MQTT-RD: A MQTT based Resource Discovery for Machine to Machine

Communication

Eliseu Pereira, Rui Pinto, Jo

ao Reis and Gil Gonc¸alves

SYSTEC - Research Center for Systems and Technologies, Faculty of Engineering, University of Porto, Porto, Portugal

Keywords:

M2M Communication, IoT, Resource Discovery, Resource Directory, Zero Conﬁguration, MQTT.

Abstract:

The Internet of Things (IoT) is one of the key enablers for digital businesses and economic growth. By in-

terconnecting objects and people through diverse heterogeneous networks, using Machine to Machine (M2M)

communication, IoT enables the continuous monitoring of devices its surrounding environment, proving to

have a huge potential in terms of new business opportunities. One of the biggest challenges nowadays in

M2M communication, is the way devices are capable to look up for other devices and their services in local

networks and internet. This paper proposes a distributed resource discovery architecture (MQTT-RD) based

on the MQTT protocol. The proposed architecture enables decentralized discovery and management of de-

vices in multiple networks, by introducing plug and play capabilities to devices, contributing for a mechanism

for zero-conﬁguration networking in IoT environments. This architecture was tested in an experimental envi-

ronment, composed of multiple devices, in order to test resource discovery capabilities using an MQTT based

protocol. The evaluated metrics were the overall message drop in the network, the delays in the delivery of

messages and the processing time of each message.

1 INTRODUCTION

Information and Communication Technology (ICT) is

considered to be one of the most important areas dur-

ing the last decades and upcoming years. The con-

stant miniaturization of technology enabled informa-

tion processing devices to shift from large comput-

ers towards small portable computers integrated into

larger products. ICT devices embedded into larger

systems led to the term ‘embedded systems’. These

systems are deﬁned as information processing sys-

tems embedded into enclosing products, character-

ized specially for their real-time constrains, depend-

ability, concurrency and efﬁciency requirements.

These embedded systems have been equipped

with sophisticated sensors and actuators, interfaces,

processors, complex control loops, software agents

and communication means. Since the embedded com-

putation on these products uses closed models and

algorithms to control the electronics, the link to the

physical world is frequently ignored. More recently

this close link between computation and real world

has recently been stressed by the introduction of the

term Cyber-Physical Systems (CPS). [Lee, 2008] de-

ﬁned CPS as the integration of computation and phys-

ical processes. Later, [Hellinger and Seeger, 2011]

extended the deﬁnition of CPS by mentioning the im-

portance of networking, control-loops and distribu-

tion. In fact, CPS differ of embedded systems in the

sense that CPS operate in a much larger scale, while

an embedded system is a self-contained system con-

ﬁned to a single device. CPS usually include many

embedded systems and other devices.

The electronics of a CPS are controlled based on

an open control feedback loop, where the resulting

sensor information of the physical process monitoring

is used to control and optimize the CPS functionality.

In a CPS, sensors and actuators have been recently

enabled by Wireless Sensor and Actuator Networks

(WSAN). Sensors perceive the environment condi-

tions of the physical world and these data is used as

input in decision making processes. These processes

are usually represented as holonic representations of

the physical object in the virtual world, mostly known

as Digital Twins (DT). Usually, in a CPS, several

components of the system are represented by several

DTs. Because centralized control is unsuitable for

large-scale system integration, cooperation between

networked DTs enables distributed control.

Advances in wireless technology enabled the ex-

tension of devices with network connectivity for re-

mote monitoring and control. These solutions based

Pereira, E., Pinto, R., Reis, J. and Gonçalves, G.

MQTT-RD: A MQTT based Resource Discovery for Machine to Machine Communication.

DOI: 10.5220/0007716201150124

In Proceedings of the 4th International Conference on Internet of Things, Big Data and Security (IoTBDS 2019), pages 115-124

ISBN: 978-989-758-369-8

 2019 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

115

on communication between devices, also know as

Machine to Machine (M2M) communication [Galeti

et al., 2011], were based on closed networks, built

speciﬁcally for this purpose. Later, this network con-

nection was based on the Internet Protocol (IP), al-

lowing for IP enabled devices to be monitored and

controlled over the Internet. Connecting objects to

each other over the Internet is the main idea of the

Internet of Things (IoT).

The term IoT refers to uniquely identiﬁable phys-

ical objects (‘Things’), also known as Smart Objects,

and their virtual representations in an internet-like

structure, namely the DT. The internet represents the

global networking of connected Smart Objects, en-

abling them to communicate with each other by ex-

changing and transforming information. [Gubbi et al.,

2013] deﬁne IoT as the interconnection of sensing and

actuation devices, providing the ability to share in-

formation across platforms through a uniﬁed frame-

work, developing a common operating picture for en-

abling innovative applications. It represents informa-

tion, networking and knowledge being integrated into

CPS.

IoT networks have several applications, at the

level of factories, hospitals, cities or agriculture.

Within Industrial IoT applications, M2M communica-

tion enables full automation of sensors and actuators,

allowing machines to be interconnected and to com-

municate over a network with minimal human inter-

vention. Human operators and stakeholders are able

to access production systems and monitoring man-

ufacturing processes, using several Human-Machine

Interfaces (HMI) and remotely connected devices.

This enables the collection of machine condition and

diagnosis data, and control process parameters for op-

timizing costs and product quality. Also, M2M com-

munication enables machines to connect with the IT

infrastructure of their own manufactures, in order to

request repairs and order new parts and components.

Regarding Intelligent Transportation Systems,

M2M will play an important role in connecting cars,

buses, trafﬁc lights, trams, roads and emergency

crews, enabling the interconnection of all objects and

roads for road trafﬁc efﬁciency and safety. In e-

Healthcare applications, patients staying at home with

medical bio-sensors can be monitored remotely by

doctors in the hospital, collecting data and analyzing

the patient’s health condition in real time. Networked

smart meters and advanced metering infrastructures

are enabled by M2M communications in Smart Power

Grid applications, for efﬁciency improvement, ser-

vice quality enhancement, save cost in power genera-

tion, distribution and consumption.

However, M2M communication presents some

challenges, namely [Song et al., 2014,Datta and Bon-

net, 2015]: 1) Communication interoperability, due

to the heterogeneity of the communication technolo-

gies used by different devices, e.g., Bluetooth, Zig-

bee, Modbus, etc; 2) Semantic interoperability, due to

different data models used to exchange sensor mea-

surements and actuator commands; 3) Resource dis-

covery, i.e., lack of capabilities to detect devices and

services offered by these devices in a CPS or IoT envi-

ronment, e.g., sensor measurements and/or actuation

commands; 4) Self-management, i.e., lack of system

capabilities to conﬁgure network topology and man-

age a large number of smart devices across multiple

networks.

Several M2M architectures were developed by

different standard organizations to tackle some of

these challenges, such as the European Telecommuni-

cations Standards Institute (ETSI) [Boswarthick and

Mulligan, 2009], 3rd Generation Partnership Project

(3GPP) [Kunz et al., 2012] and one Machine to Ma-

chine (oneM2M) [Chang et al., 2011]. In this pa-

per, the authors tackle the resource discovery chal-

lenge, by proposing a distributed resource discov-

ery approach, which enables zero-conﬁguration net-

working in an IoT environment. This approach in-

troduces to M2M networked devices capabilities to

discover other devices and services in the same lo-

cal network and in remote networks, without relying

in a centralized entity to manage devices and com-

munications. The proposed solution, named MQTT-

RD, explores the MQTT protocol by using the Con-

strained RESTful Environments Resource Directory

(CoRE RD) principles. To validate the proposed so-

lution, scalability tests were carried out in an exper-

imental environment. The experimental environment

contains 2 machines, one runs the main component of

the MQTT-RD (Sniffer) while the other machine sim-

ulates multiple devices, which are successively added

to the network. Through the scalability tests it is pos-

sible to infer about the overall message drop in the

network, the delays in communication between com-

ponents and the processing time of new messages by

the Sniffer. From these metrics is estimated the limit

number of devices per Sniffer, and when this limit is

reached, Sniffer overloads message management, i.e,

at this point Sniffer can only receive messages, not

being able to forward them to the subscribers devices.

The rest of the paper is organized as follows. Sec-

tion 2 presents the background and surveys the state-

of-the-art regarding M2M protocols and methodolo-

gies that enable zero-conﬁguration for resource dis-

covery. Section 3 presents and describes the pro-

posed architecture, highlighting the novel aspects of

the work. Section 4 characterizes a testbed for test-

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

116

ing the overall functionalities of the proposed solu-

tion and presents a discussion of the obtained results.

Finally, in Section 5, the conclusions are presented,

while future directions of the work are identiﬁed.

2 BACKGROUND & RELATED

WORK

Regarding M2M communication and according to

[Fysarakis et al., 2016], there are three main ap-

proaches for communication protocols used in IoT

environments, namely service-oriented approaches,

message-oriented approaches and resource-oriented

approaches.

Protocols used in service-oriented architectures

(SOA) are oriented for Web services, where a service

is a discrete unit of functionality that can be accessed

and updated remotely. The Devices Proﬁle for Web

Services (DPWS) [Driscoll et al., 2009] and the Uni-

versal Plug and Play (UPnP) [Jeronimo and Weast,

2003] are examples of such protocols, where the

DPWS was introduced by Microsoft as a successor to

UPnP. Nowadays, the DPWS is an open standard of

the Organization for the Advancement of Structured

Information Standards (OASIS), being widely used

for large-scale enterprise deployment, such as indus-

trial automation systems, for exchange soft real-time

data [Cucinotta et al., 2009]. Despite being suited

for residential networks without enterprise-class de-

vices, for sharing digital media among multimedia

devices, UPnP was also used in industrial applica-

tions [Gonc¸alves et al., 2014]. Recently, since DPWS

is characterized by large memory requirements and

message overhead, the OPC Foundation developed

the Open Platform Communications - Uniﬁed Archi-

tecture (OPC-UA) [Mahnke et al., 2009], oriented for

industrial usage [C

andido et al., 2010].

Message-oriented protocols typically focus on

providing asynchronous messaging between dis-

tributed devices, focusing on reliable messaging, in-

cluding Quality of Service (QoS) mechanisms. The

Message Queue Telemetry Transport (MQTT) [Banks

and Gupta, 2014], the Advanced Message Queu-

ing Protocol (AMQP) [Kramer, 2009] and Extensi-

ble Messaging and Presence Protocol (XMPP) are ex-

amples of such protocols. While XMPP is an IETF

standard, MQTT e AMQP are currently standard-

ized by OASIS. AMQP is also a standard of the In-

ternational Standards Organization (ISO) and the In-

ternational Electrotechnical Commission (IEC). Both

MQTT and AMQP were designed as a lightweight

publish-subscribe communication model, where a

broker is responsible for handling and organizing all

communications between the various devices. Mes-

sages are published with speciﬁc topics, which can be

subscribed by different devices. AMQP provides a

richer set of messaging scenarios and supports differ-

ent acknowledgment use cases and transactions across

message queues. On the other side, despite Google

stopped supporting XMPP, due the lack of worldwide

support, lately the protocol has re-gained a lot of at-

tention as a communication protocol suitable for IoT

environments.

Resource-oriented protocols refer to protocols fol-

lowing the Representational State Transfer (REST)

architecture, which is widely known within Internet

application, since typically uses the Hypertext Trans-

fer Protocol (HTTP). Because HTTP is not suitable

for IoT environments, considering the resource, band-

width and energy restrictions of devices, the Con-

strained Application Protocol (CoAP) [Shelby et al.,

2014] was introduced by the Internet Engineering

Task Force (IETF), suitable for constrained nodes and

networks. Table 1 provides a comparison between

the different M2M communication protocols identi-

ﬁed, where it is considered that a constrained envi-

ronment is a device with few computational resources

(e.g. embedded device).

Regarding resource discovery, [Datta et al., 2015]

defend that mechanisms for automatic discovery of

resources, their properties and capabilities, as well as

the means to access them, are fundamental to realize

the M2M communication between devices and, con-

sequently, the vision of IoT. Traditional Web resource

discovery models use Web crawlers to discover re-

sources across the Internet. However, according to

[Vandana and Chikkamannur, 2016], these traditional

models are not suited for IoT applications. First, since

most of IoT devices are energy constrained, they re-

main most of the time inactive, until and event trig-

gers them to perform a speciﬁc function. In tradi-

tional Web resource discovery models, Web crawlers

can only discover Web servers that are always active.

Second, most of IoT devices are deployed in semi-

closed networks, which have ﬁrewalled gateways. On

the other hand, Web crawlers are suitable to discover

resources in a typical Web infrastructure.

Since traditional Web discovery techniques do not

produce accurate resource discovery results for IoT

applications, current trends are based in network as-

sociation, directory domain, peer-to-peer conﬁgura-

tion and based on resource semantics. The most

promising approaches refer to protocols speciﬁcally

for resource discovery, currently proposed by IETF

working group for Constrained RESTful Environ-

ments (CoRE), which are based on CoAP and Do-

main Name System (DNS), such as CoAP resource

MQTT-RD: A MQTT based Resource Discovery for Machine to Machine Communication

117

Table 1: Comparison Between M2M Communication Protocols.

Protocol Standards

Constrained

Environment

Communication

Model

QoS

Resource

Discovery

Transport

Layer

MQTT

OASIS &

Eclipse Foundation

3 Publish-Subscribe 3 levels 7 TCP

COAP

IETF &

Eclipse Foundation

Request-Reply

Resource-Observe

2 levels 3 UDP

AMQP

OASIS &

ISO/IEC

Request-Reply

Publish-Subscribe

2 levels 7 TCP

XMPP IETF 7

Request-Reply

Publish-Subscribe

3 levels 3 TCP

OPC-UA ISO/IEC 7

Request-Reply

Publish-Subscribe

7 3

TCP &

UDP

DPWS OASIS 7 Request-Reply 7 3

TCP &

UDP

UPnP ISO/IEC 7 Request-Reply 3 levels 3

TCP &

UDP

discovery, CoAP Resource Directory (RD) [Koster

et al., 2017] and DNS-Service Discovery (DNS-

SD) [Cheshire and Krochmal, 2013].

Regarding CoAP based approaches, CoAP re-

source discovery is a distributed approach, where a

direct query is performed between devices, in order

to discover resources offered by each other. A de-

vice can request the resources hosted by another de-

vice using the CoRE Link Format [Shelby, 2012]. Re-

quests are mostly unicast, but there are the possibility

to issue a multicast request, in the case that the IP ad-

dress or host name of the device to be required are not

known. On the other hand, CoAP RD performs re-

source discovery queries in a centralized manner, us-

ing a directory entity (RD). The RD is deﬁned within

a given domain, i.e., logical groups of IoT devices, in-

stead of the entire Web. RD can be found by IoT de-

vices using IP multicast. Then, each IoT device must

tion, IoT devices can discover other devices and be

discovered, requesting the RD database. Discovery

can occur between IoT devices located in the RD do-

main or may be outside of it.

[Liu et al., 2013] proposed a distributed resource

directory architecture for M2M applications, referred

to as DRD4M, which uses HTTP and CoAP proto-

cols for resource registration and lookup in a peer-to-

peer (P2P) scenario. This work focuses on design-

ing a distributed RD and providing a real prototype.

[Datta et al., 2015] proposed a resource discovery

framework, based on the CoRE Link Format, which

comprises a proxy layer that includes drivers for vari-

ous communication technologies and protocols. [Ko-

vatsch et al., 2014] presents a CoAP framework for

IoT deployments named Californium, which imple-

ments RD functionality in general purpose servers.

[Cirani et al., 2015] propose a Fog node named IoT

Hub, which integrates RD functionality in order to en-

able a truly seamless interaction between IoT devices.

Based on the previous description of the protocols,

MQTT and CoAP are supported by constrained envi-

ronment devices, which allows these protocols to run

almost on any device, regardless of the type of hard-

ware. Among these two protocols, there are some

differences, e.g., CoAP uses UDP while MQTT uses

TCP regarding the transport layer. This difference

in the transport layer gives MQTT the advantage of

being more reliable in package delivery. Also, be-

cause of the higher levels of quality of service, MQTT

guarantees better the delivery of messages in compar-

ison with CoAP. Finally, regarding implementation,

MQTT is easier to integrate new components when

compared to more complex protocols (e.g. OPC-UA).

Although IoT networks rely greatly in the

publisher-subscriber model, as supported by MQTT,

request-reply models are also widely suported,

namelly by protocols such as CoAP. Despite both

are targeted to IoT networks, on contrary to MQTT,

CoAP already supports zero conﬁguration and re-

source discovery mechanisms. This capability al-

lows the automatic conﬁguration / discovery of new

devices (hardcoded IP address not required) and the

search of resources inside the Resource Collection.

For this reason, the proposed protocol (MQTT-RD)

aims to solve the limitations of the MQTT protocol,

referring to resource discovery and zero conﬁgura-

tion.

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

118

3 PROPOSED APPROACH

This section presents the MQTT-RD approach for re-

source discovery in M2M communication within IoT

applications. The MQTT-RD uses the CoRE RD prin-

ciples, but its functionalities are based on the MQTT

protocol instead of CoAP. Also, the CoRE Link For-

mat is replaced by a new deﬁned JSON ﬁle format,

named Resource Collection, which contains a list of

all components in the network. Communication be-

tween devices is based in different message types de-

ﬁned in MQTT.

A typical MQTT communication scenario uses

a topic-based publish-subscribe architecture. There

are: 1) publishers, which are IoT devices that share

data; 2) subscribers, which are IoT devices that re-

ceive shared data by the publishers; 3) brokers, which

are entities that manage topics and message exchange,

and can be implemented within any device in the net-

work, including the publishers and subscribers. When

new data is generated, publishers send messages to

the broker, in order to update a given topic. Every

time a topic is updated, the broker broadcasts the new

data to every subscriber of that topic. Figure 1 repre-

sents a sequence diagram regarding the message ex-

change in the MQTT protocol.

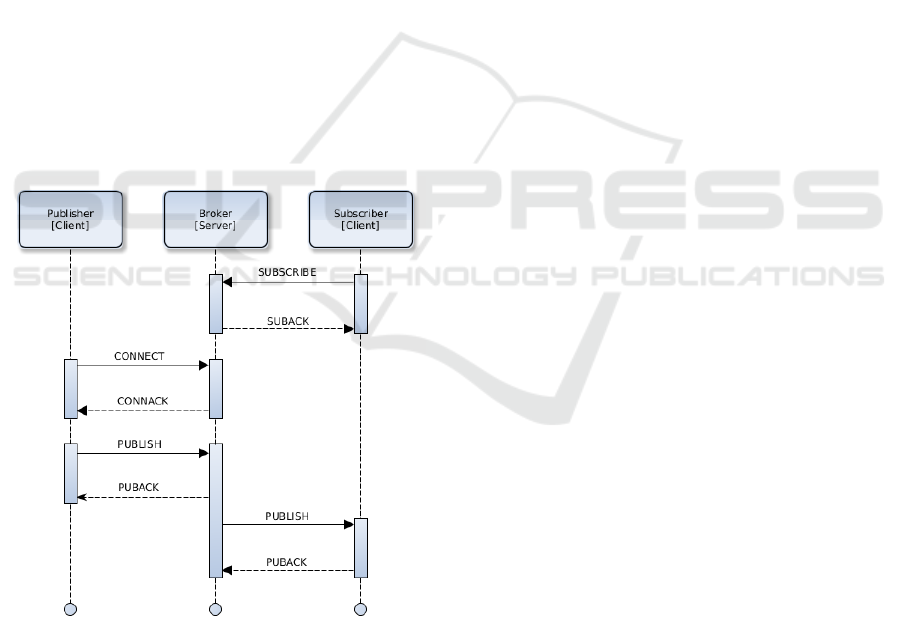

Figure 1: Message exchange in the MQTT protocol.

The CONNECT message is used when a device

requests a connection to the broker, identifying in the

payload the device ID, name and password. The bro-

ker returns a CONNACK message to indicate to the

device success or failure in the connection. The PUB-

LISH message is associated with a topic and is used

by a device to update data within a topic. The mes-

sage payload contains the data to be published. After

receiving a PUBLISH message, the broker returns a

PUBACK message, which means that the message re-

ceived can be brodcasted by all the subscribers. Fac-

ing other levels of QoS, the broker may also return a

PUBREC message, which means that the message re-

ceived can not be yet broadcasted to the subscribers.

In order to subscribe to one or more topics, a SUB-

SCRIBE message can be sent to the broker, identify-

ing the topic to be subscribed and the level of QoS.

After receiving a SUBSCRIBE message, the broker

returns a SUBACK message.

MQTT-RD is based on a distributed architecture

where some devices are responsible for the resource

discovery, i.e., identiﬁcation of the IoT devices and

MQTT brokers present in the network, these devices

are called Sniffers. There is, at least, one Sniffer rep-

resenting a LAN (i.e. Local Sniffer), the same way

as a RD is deﬁned within a given domain. While Lo-

cal Sniffers are only capable of discovering resources

in a speciﬁc LAN, Internet Sniffers can connect with

other Internet Sniffers in other networks using the

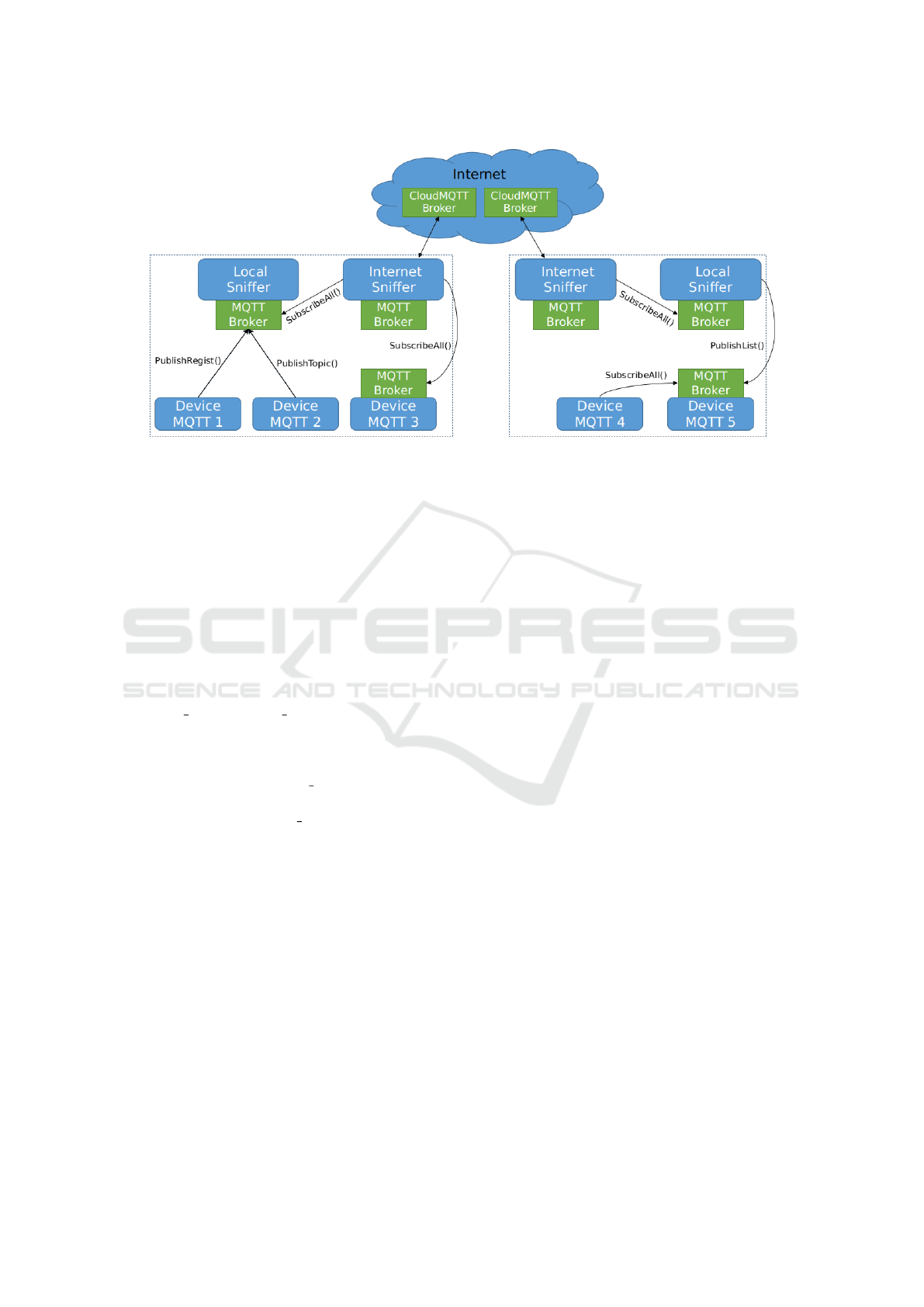

Internet, these components are present in Figure 2,

which contains 2 different LANs, where each LAN

contains one Local Sniffer and one Internet Sniffer.

This way, the Sniffer is responsible off managing all

the devices in the network and publications performed

between them, by taking advantage of the MQTT bro-

ker functionalities. For this reason a MQTT bro-

ker is required for communication between compo-

nents, so each Sniffer has an associated MQTT bro-

ker, while Internet Sniffer additionally uses another

MQTT broker for communication over the internet

and that’s why this MQTT broker is hosted at a public

address (a CloudMQTT broker was used). While the

other MQTT devices may choose to have an associ-

ated MQTT broker depending on the trafﬁc they gen-

erate or if they want an M2M communication. The

interaction between Sniffers and devices is also pre-

sented in Figure 2, where the data ﬂow goes from the

devices to the Sniffers, from there the Sniffer forwards

the data to the stakeholders, either locally or remotely.

3.1 MQTT Topics

As mention before, Sniffers take advantage of MQTT

functionalities in order to connect with MQTT de-

vices and other Sniffers present in the network. In this

case, the Sniffer uses several speciﬁc topics, accord-

ing to the type of message, namely:

• /getlist: This topic is present in every MQTT bro-

ker and is used by Sniffers to update the list of ev-

ery existing Sniffer and MQTT device in the net-

work, i.e., the Resource Collection. In this case, a

MQTT-RD: A MQTT based Resource Discovery for Machine to Machine Communication

119

Figure 2: MQTT-RD Architecture.

new Sniffer or MQTT device that connects to the

network should subscribe to this topic, in order to

get and updated version of the Resource Collec-

tion.

• /registdevice: This topic is used to register new

MQTT devices. In this case, the new MQTT de-

vice publish to this topic a self-description docu-

ment. The Sniffer associated to the corresponding

MQTT broker, which have already subscribed to

this topic, uses the self-description document to

add the new MQTT device to the Resource Col-

lection.

• /device id/attrs/object id: This topic is used by

MQTT devices to publish data regarding their at-

tributes, such as sensor readings or actuator state.

Each device attribute is associated with one of

these topics, where device id represents the ID

used by the MQTT device in the registration in

the Sniffer and the object id represents the ID of

the considered attribute.

• /sniffercommunication: This topic is used for

message exchange between Sniffers, in order to

update the Resource Collection between Sniffers

in the registration and removal of Sniffers and

MQTT devices. Also, this topic can be used by

Sniffers to detect if there are anomalies regarding

other Sniffers.

3.2 Resource Collection

The Resource Collection is a JSON ﬁle format that

contains information regarding every Sniffer and

MQTT device in the network. Every Sniffer contains

a copy of the Resource Collection, which is updated

regularly in order to keep track of existing MQTT de-

vices and other Sniffers in the network, considering

the registration and removal of Sniffers and MQTT

devices in the network. Figure 3 represents the struc-

ture of the Resource Collection ﬁle.

The ﬁle is structured by the characterization of

Sniffers. In this case, each Sniffer is represented by

an unique ID, a type (in order to differentiate between

local or Internet), the network location of the MQTT

broker associated (local IP address and port) and the

MQTT broker that enables remote connections with

other Sniffers (public IP address, port, username and

password), LAN identiﬁcation and multicast IP, and

a list of all MQTT devices registered in that Sniffer,

each one containing a device ID, attributes (associ-

ated with topics, such as sensor measurements and

actuator state) and device type, i.e., with or without

MQTT broker associated. If a MQTT broker is asso-

ciated, their parameters should be included (local IP

address and port). Otherwise, parameters regarding

the MQTT broker of the Sniffer should be considered.

3.3 Resource Registration

Before registering resources MQTT devices and Snif-

fers should know the IP address of the Sniffer to which

they will join and for this are used multicast IP ad-

dresses. In this case, when joining the network, every

MQTT device or Sniffer connects to the same multi-

cast IP address. In case of one MQTT device or Snif-

fer sends a ping message to that IP, every other MQTT

device or Sniffer connected to it are able to receive and

respond to the ping message. Through this process, it

is possible to add to the network new devices with or

without MQTT broker and new Sniffers, in the case

of devices with MQTT broker it is also necessary for

Sniffer to subscribe to all MQTT broker topics.

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

120

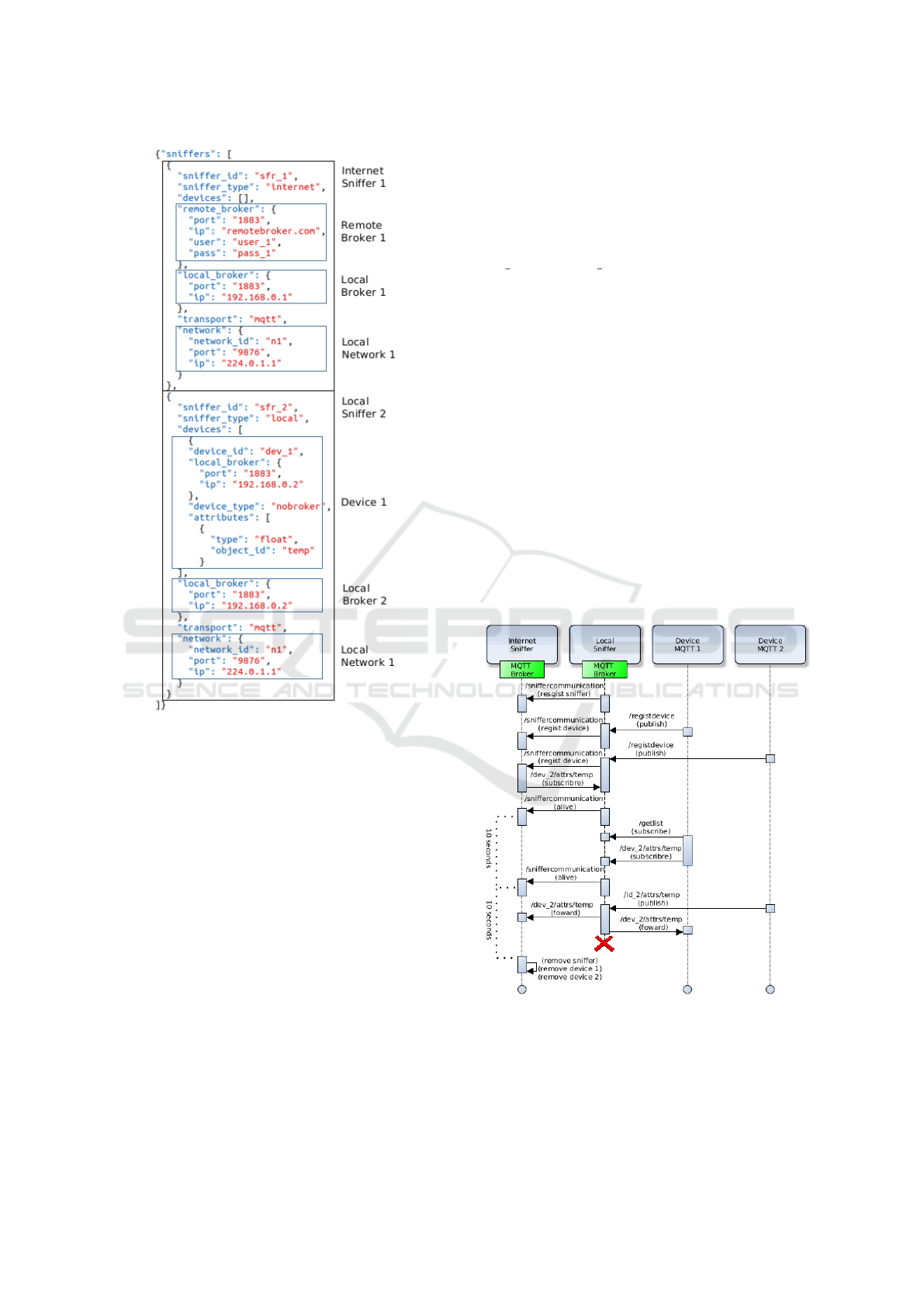

Figure 3: Resource Collection Information Model.

From this point forward, the MQTT device is able

to register in a Sniffer, using the /registdevice topic, as

shown in Figure 4. On the other hand, Sniffers should

subscribe to this topic, in order to add MQTT devices

in the Resource Collection. In this case, a Sniffer

can subscribe to the /registdevice topic provided by

their own MQTT brokers or the ones associated with

MQTT devices, as previously mentioned. To update

the Resource Collection on the remaining Sniffers, a

message is sent to every Sniffers present on the net-

work, this message is associated with the /sniffercom-

munication topic, as reported in Figure 4. To update

the Resource Collection on all LANs, Internet Sniffer

must forward the register message to the remaining

Internet Sniffers in order to update the data on their

LANs.

After registration, every Sniffer gets the Resource

Collection with updated data regarding existing Snif-

fers and MQTT devices in the network. The Resource

Collection allows Sniffers and MQTT devices to learn

the location of every component in the network and

the attributes of each MQTT device. With this ap-

proach, the Resource Collection simpliﬁes the opera-

tions of MQTT devices regarding topic subscription.

Thus, as shown in Figure 4, after searching at the

Resource Collection for the resource, the MQTT de-

vice can subscribe to this resource through the /de-

vice id/attrs/object id topic.

3.4 Device Anomaly Detection

The MQTT-RD provides a mechanism to detect

anomalies in Sniffers, in order to reconﬁgure the net-

work accordingly. In this case, in order to evaluate

the malfunction of a Sniffer, two methods were im-

plemented, namely 1) the exchange of alive messages

and 2) detection of connectivity lost with the MQTT

broker.

Exchange of alive messages consists in a mecha-

nism implemented in the Sniffers, where a ping mes-

sage is broadcasted regularly. Within a give time pe-

riod, if a ping message is not received by a given

Sniffer that was present in the network, a request to

remove that Sniffer from the Resource Collection is

issued to all Sniffers in the network, as illustrated in

Figure 4.

Figure 4: Message exchange in the MQTT-RD protocol.

On the other end, evaluate malfunction Sniffers

is possible by identifying the lost of connection of a

given Sniffer to the respective MQTT broker. If the

Sniffer cannot reconnect to the MQTT broker after a

couple of trials, then a request to remove that Sniffer

MQTT-RD: A MQTT based Resource Discovery for Machine to Machine Communication

121

from the Resource Collection is issued to all Sniffers

in the network.

4 TESTS AND RESULTS

This section details the implemented testbed to assess

the concept and evaluate the technological constraints

od the proposed protocol. In this case, the MQTT-RD

was tested in a laboratory environment, where it was

evaluated the Sniffer component and overall network

functionality regarding scalability, i.e., number of de-

vices available and message exchange.

4.1 Testbed

For proof of concept and evaluation, a simple version

of the system architecture represented in Figure 2 was

implemented. In this case, it was considered one net-

work, containing a Sniffer associated with a respective

MQTT broker. Simulated MQTT devices are intro-

duced to the network, where each of these devices is

associated with the MQTT broker in the Sniffer. Fig-

ure 5 represents the implemented testbed.

Figure 5: Testbed Architecture.

The local network was setup using a network

switch, where both Sniffer and MQTT device com-

ponents were connected via Ethernet cable. In this

case, a machine (Intel i7 processor with 16GB RAM)

was used to execute the Sniffer component and cor-

responding MQTT broker, while another machine

(ARM Cortex-A7 processor with 1GB RAM) was

used to execute a routine that simulates MQTT de-

vices in intervals of 10 seconds. Each simulated de-

vice has only one attribute and it publish updates in

the respective topic with a frequency of 1Hz. Every

time a new MQTT device is created, it connects to the

MQTT broker and registers in the Sniffer, in order to

start publishing in the respective topic and subscribe

to every topic of the existing MQTT devices in the

network. For this, the recently registered MQTT de-

vice requests the Sniffer for the list of existing devices

and topics, in order to subscribe to all of them.

4.2 Solution Evaluation

Evaluating the proposed solution consisted in moni-

toring the overall network trafﬁc and Sniffer response

while the implemented proof of concept executes as

described earlier. In this case, every existing topic

in the network was monitored, by using the corre-

sponding Publish and Subscribe messages sent be-

tween MQTT devices and MQTT broker. Three dif-

ferent metrics were used to evaluate the robustness of

the solution, namely: 1) the overall message drop in

the network; 2) time of travel of Publish messages

from MQTT device to broker; and 3) delay between

receiving Publish messages and issuing correspond-

ing Subscribe messages to topic subscribers. Wire-

shark was used to monitor network trafﬁc, by analyz-

ing MQTT messages exchanged in the network. This

way, 8 packet captures were obtained with an increas-

ing number of devices between 5 and 40. For each of

the packet captures, an average value was calculated

in any of the metrics analyzed.

For overall message drop in the network, Wire-

shark was used to monitor several MQTT messages

exchanged between publisher MQTT devices, MQTT

broker and subscribers MQTT devices, as represented

in Figure 1. Figure 6 represents the results of MQTT

message drop in the network, by identifying the deliv-

ery rate of publication messages sent by the devices to

the MQTT broker (Publish messages) and the deliv-

ery rate of messages forwarded by the MQTT broker

to the devices (Subscribe messages).

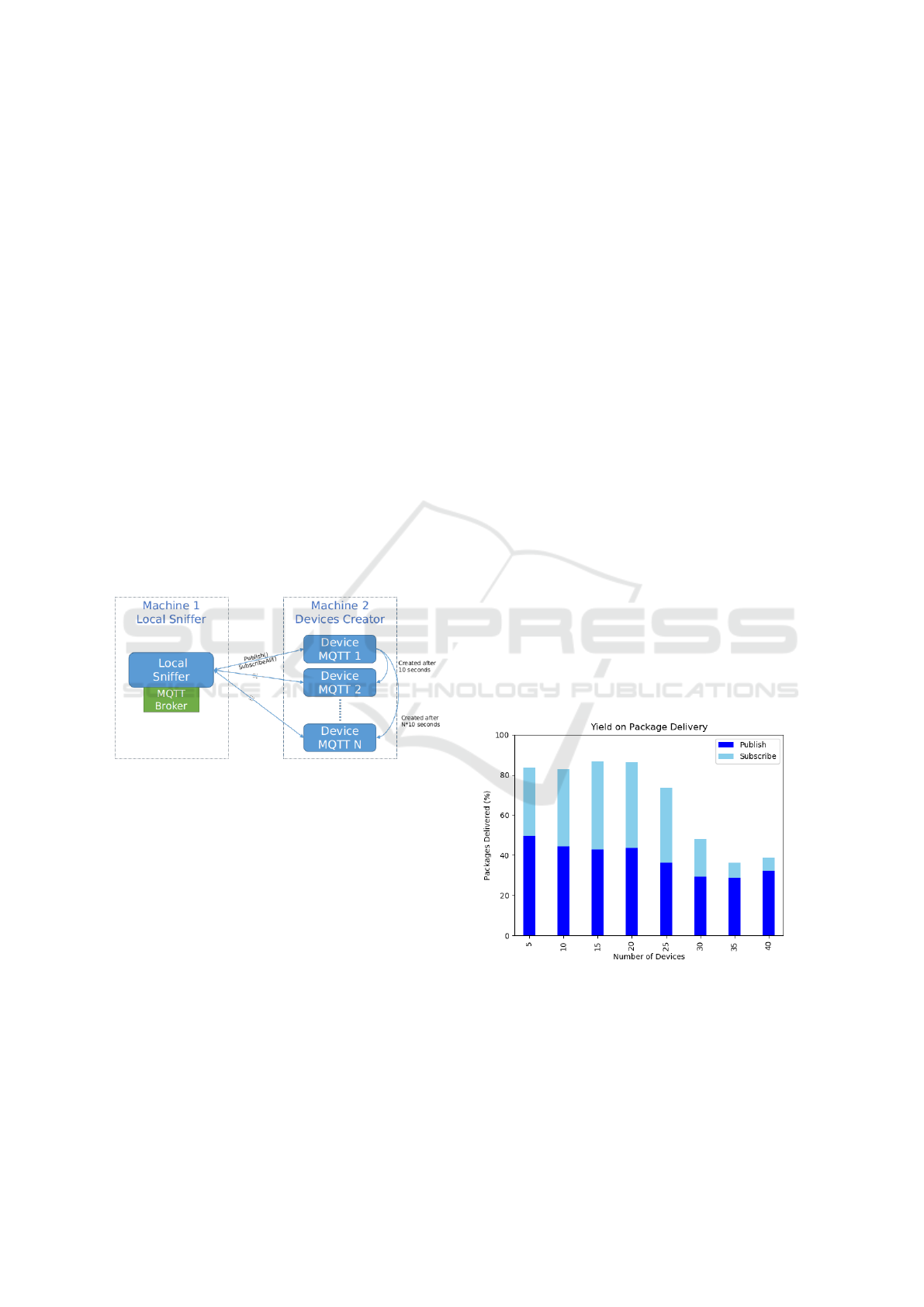

Figure 6: Yield on Package Delivery.

After the inspection of Figure 6, it is concluded

that for a low number of devices, the message deliv-

ery rate is around 80-90%, which is acceptable in this

case because there is a bidirectional communication

with high packet trafﬁc between the devices and the

MQTT broker. The packet loss value also includes

the packets that have a signiﬁcant delay, i.e. packets

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

122

that are not within the time interval, consequently the

value of the losses increases a little. When the number

of devices exceeds 20, there is a drop in the message

delivery rate, more speciﬁcally in the Subscribe mes-

sages. This break occurs because the MQTT broker

becomes saturated and is no longer able to forward

messages.

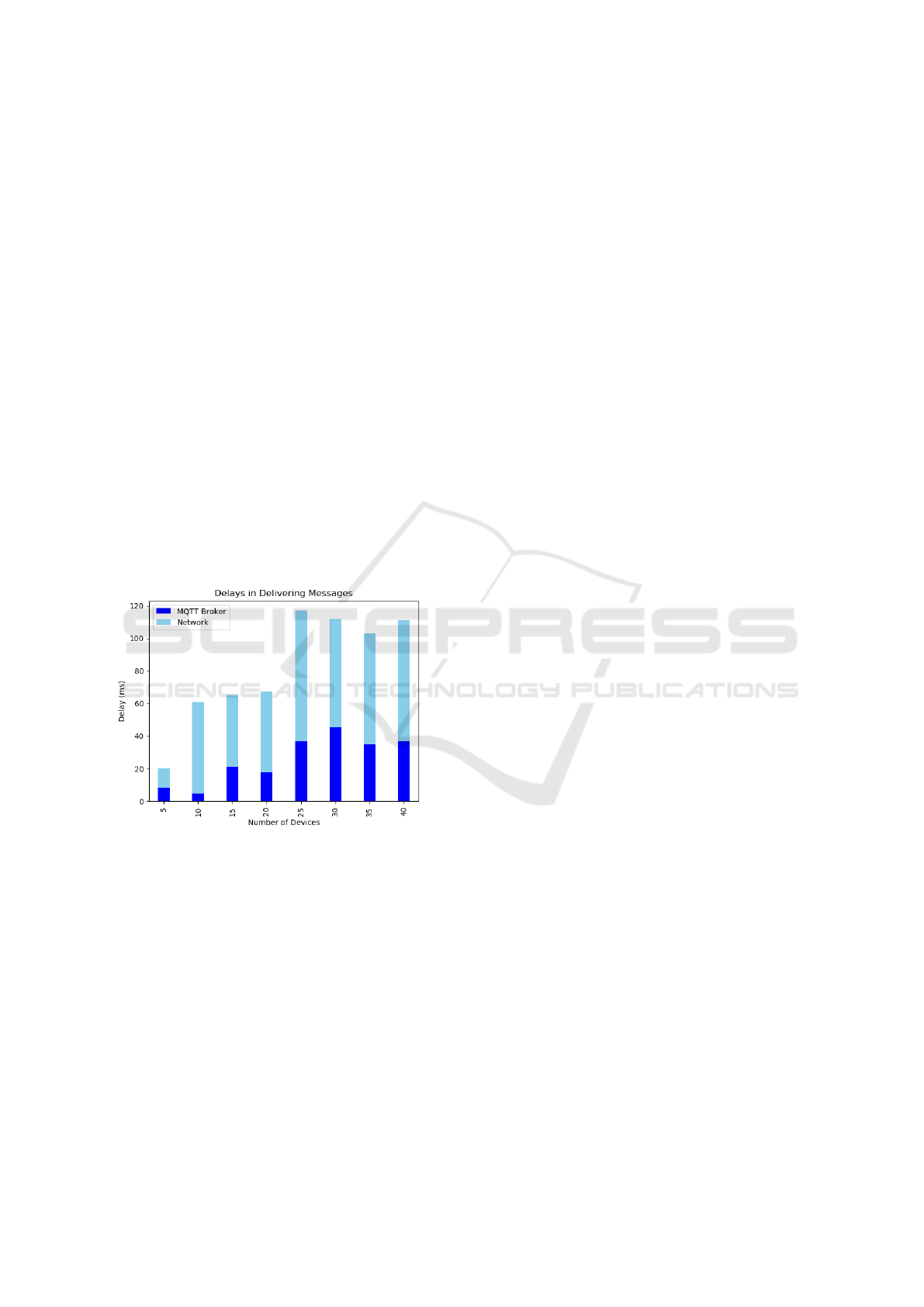

Figure 7 represents the time of travel of Publish

messages and the delay between the MQTT broker

receiving Publish messages and issuing correspond-

ing Subscribe messages to topic subscribers (MQTT

broker processing delay). The time of travel of Pub-

lish messages from MQTT device to broker was de-

termined by calculating the difference between the in-

stance when MQTT devices send Publish messages

and the instance when the MQTT broker receives

them (network delay).

In this case, the number of Subscribe messages of

a given topic increases proportionally with the num-

ber of MQTT devices in the network, because every

new MQTT device in the network subscribes every

topic already existing. This constant subscription of

topics generates a high trafﬁc in the network, with the

increasing number of devices.

Figure 7: Delays in Delivering Messages.

For both network delay and MQTT broker pro-

cessing time, their time delays tend to increase signif-

icantly when the number of devices exceeds 20. For

a low number of devices the network delays range is

between 10 and 60 milliseconds, which for a network

with high exchange of messages is normal. Another

important point is the comparison of the processing

time with the network delay, in this case the process-

ing time is lower than the network delay, which is a

good indicator of the correct operation of the Sniffer.

5 CONCLUSION AND FUTURE

WORK

As mentioned earlier, the zero conﬁguration and re-

source directory mechanisms allow an easy integra-

tion of new devices into large networks. Some of the

existing protocols already have these features, such as

CoAP, OPC-UA or XMPP. By integrating these func-

tionalities into a MQTT based protocol allows MQTT

main advantages to be used in networks with a large

number of devices, where the devices are constantly

replaced. Therefore the networks become more sta-

ble, meaning less time lost in maintenance and con-

ﬁguration of new components.

MQTT-RD has some of the characteristics of

MQTT, which distinguish it from other protocols,

such as its easy integration into devices and the ability

to run on components with low computational power.

As improvements to MQTT, MQTT-RD allows the

automatic conﬁguration of new devices (zero conﬁg-

uration), the updated registration of the topics of each

device (resource directory) and the search of topics by

each device (resource discovery). These features en-

able MQTT-RD to be versatile, complete and an easy-

to-use protocol.

On the other hand, as disadvantages, MQTT-RD,

such as MQTT, is not as robust as OPC-UA (regard-

ing industrial applications), since it is a less com-

plex protocol and only supports the publish-subscribe

communication model. MQTT-RD has other handi-

caps that make it difﬁcult to use, such as not being

available in a programming framework and increasing

MQTT overheads. By means of the experimental re-

sults, it is demonstrated that for an increasing number

of devices the Sniffer has a high network trafﬁc and a

high processing load of the MQTT broker. To reduce

the load on the Sniffer processing, it would be ideal to

distribute the devices uniformly across all the Sniffers

present in the network, in order to have a minimum

number of devices per Sniffer.

Based on the disadvantages presented, future work

focuses on the development of a framework, in such a

way MQTT-RD can be used in other application sce-

narios and later compared in a more detailed way with

other protocols, such as the OPC-UA. After the devel-

opment and testing of the framework, another goal is

to apply this solution in a real environment, in order

to validate the application. In general, the MQTT-RD

protocol can be used in home or industrial networks,

as it provides bidirectional channels, which allows the

subscription and publication of topics / messages and

the discovery of resources (resource directory) and

endpoints (zero conﬁguration) in a typical IoT envi-

ronment.

MQTT-RD: A MQTT based Resource Discovery for Machine to Machine Communication

123

REFERENCES

Banks, A. and Gupta, R. (2014). Mqtt version 3.1. 1. OASIS

standard, 29.

Boswarthick, D. and Mulligan, U. (2009). M2m activities

in etsi. Presentation Report.

andido, G., Jammes, F., de Oliveira, J. B., and Colombo,

A. W. (2010). Soa at device level in the industrial do-

main: Assessment of opc ua and dpws speciﬁcations.

In Industrial Informatics (INDIN), 2010 8th IEEE In-

ternational Conference on, pages 598–603. IEEE.

Chang, K., Soong, A., Tseng, M., and Xiang, Z. (2011).

Global wireless machine-to-machine standardization.

IEEE Internet Computing, 15(2):64–69.

Cheshire, S. and Krochmal, M. (2013). Dns-based service

discovery. Technical report.

Cirani, S., Ferrari, G., Iotti, N., and Picone, M. (2015).

The iot hub: a fog node for seamless manage-

ment of heterogeneous connected smart objects. In

Sensing, Communication, and Networking-Workshops

(SECON Workshops), 2015 12th Annual IEEE Inter-

national Conference on, pages 1–6. IEEE.

Cucinotta, T., Mancina, A., Anastasi, G. F., Lipari, G.,

Mangeruca, L., Checcozzo, R., and Rusin

a, F. (2009).

A real-time service-oriented architecture for industrial

automation. IEEE Transactions on industrial infor-

matics, 5(3):267–277.

Datta, S. K. and Bonnet, C. (2015). A lightweight

framework for efﬁcient m2m device management in

onem2m architecture. In Recent Advances in Internet

of Things (RIoT), 2015 International Conference on,

pages 1–6. IEEE.

Datta, S. K., Da Costa, R. P. F., and Bonnet, C. (2015). Re-

source discovery in internet of things: Current trends

and future standardization aspects. In Internet of

Things (WF-IoT), 2015 IEEE 2nd World Forum on,

pages 542–547. IEEE.

Driscoll, D., Mensch, A., Nixon, T., and Regnier, A. (2009).

Devices proﬁle for web services version 1.1. OASIS

standard, 1(4).

Fysarakis, K., Askoxylakis, I., Soultatos, O., Papaefs-

tathiou, I., Manifavas, C., and Katos, V. (2016).

Which iot protocol? comparing standardized ap-

proaches over a common m2m application. In Global

Communications Conference (GLOBECOM), 2016

IEEE, pages 1–7. IEEE.

Galeti

c, V., Boji

c, I., Ku

sek, M., Je

c, G., De

c, S., and

Huljeni

c, D. (2011). Basic principles of machine-to-

machine communication and its impact on telecom-

munications industry. In MIPRO, 2011 Proceedings

of the 34th International Convention, pages 380–385.

IEEE.

Gonc¸alves, G., Reis, J., Pinto, R., Alves, M., and Correia,

J. (2014). A step forward on intelligent factories: A

smart sensor-oriented approach. In Proceedings of

the 2014 IEEE Emerging Technology and Factory Au-

tomation (ETFA), pages 1–8.

Gubbi, J., Buyya, R., Marusic, S., and Palaniswami, M.

(2013). Internet of things (iot): A vision, architectural

elements, and future directions. Future Generation

Computer Systems, 29(7):1645–1660.

Hellinger, A. and Seeger, H. (2011). Cyber-physical sys-

tems. driving force for innovation in mobility, health,

energy and production. Acatech Position Paper, Na-

tional Academy of Science and Engineering.

Jeronimo, M. and Weast, J. (2003). Upnp design by exam-

ple.

Koster, M., Shelby, Z., Bormann, C., and Stok, P. V. d.

(2017). Core resource directory.

Kovatsch, M., Lanter, M., and Shelby, Z. (2014). Cali-

fornium: Scalable cloud services for the internet of

things with coap. In Internet of Things (IOT), 2014

International Conference on the, pages 1–6. IEEE.

Kramer, J. (2009). Advanced message queuing protocol

(amqp). Linux Journal, 2009(187):3.

Kunz, A., Kim, H., Kim, L., and Husain, S. S. (2012). Ma-

chine type communications in 3gpp: from release 10

to release 12. In Globecom Workshops (GC Wkshps),

2012 IEEE, pages 1747–1752. IEEE.

Lee, E. A. (2008). Cyber physical systems: Design chal-

lenges. In Object Oriented Real-Time Distributed

Computing (ISORC), 2008 11th IEEE International

Symposium on, pages 363–369. IEEE.

Liu, M., Leppanen, T., Harjula, E., Ou, Z., Ramalingam, A.,

Ylianttila, M., and Ojala, T. (2013). Distributed re-

source directory architecture in machine-to-machine

communications. In Wireless and Mobile Comput-

ing, Networking and Communications (WiMob), 2013

IEEE 9th International Conference on, pages 319–

324. IEEE.

Mahnke, W., Leitner, S.-H., and Damm, M. (2009). OPC

uniﬁed architecture. Springer Science & Business

Media.

Shelby, Z. (2012). Core link format, draft-ietf-core-link-

format-11. Technical report, Internet draft, IETF 2012

(in progress).

Shelby, Z., Hartke, K., and Bormann, C. (2014). The con-

strained application protocol (coap). Technical report.

Song, J., Kunz, A., Schmidt, M., and Szczytowski, P.

(2014). Connecting and managing m2m devices in the

future internet. Mobile Networks and Applications,

19(1):4–17.

Vandana, C. and Chikkamannur, A. A. (2016). Study of re-

source discovery trends in internet of things (iot). In-

ternational Journal of Advanced Networking and Ap-

plications, 8(3):3084.

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

124
