Abstract:

Developing contemporary software solutions requires many processes and people working in synergy to

achieve a common goal. Any misalignment between parts of the software production cycle can severely

impede the quality of the development process and its resulting products. In this paper, we focus on improving

means for measuring the quality of methods used to support ﬁnding similarities between software product

artifacts, especially requirements. We propose a new set of measures, Signal-to-Noise ratios which extends

the commonly used precision and recall measures. We test the applicability of all three types of SNR on two

methods for ﬁnding similar requirements: the normalized compression distance (NCD) originating from the

domain of information theory, and the Vector Space Model originating from computer linguistics. The results

obtained present an interesting property of all types of SNR, all the values are centered around 1 which con-

ﬁrms our hypothesis that the analyzed methods can only limit the search space for the analysis. The analyst

may still have difﬁculties in manually assessing the correct links among the incorrect ones.

1 INTRODUCTION

The size of software system continues to grow not

only in terms of code lines, but also in terms of its

augmenting factors such as complexity, the degree of

heterogeneity and decentralization. These augment-

ing factors are recognized as the “hot spots” research

topics in Requirements Engineering (RE) (Cheng and

Atlee, 2007). This problem is not new, since many

studies reported a need for revisiting current software

and requirements engineering techniques under pres-

sure of growing size and complexity (Bergman et al.,

2002; Finkelstein, 1994; Leveson, 1997; Northrop

et al., 2006; Maccari, 1999).

Providing automatic support for the most time-

consuming activities of requirements engineering and

management has been recognized as one of the chal-

lenges in development and large and complex sys-

tems (Konrad and Gall, 2008; Berenbach et al., 2009;

Finkelstein, 1994). In particular, techniques and tools

that can ease, and partially automate the task of identi-

fying and document traceability links among require-

ments artifacts and between requirements and other

artifacts (Cheng and Atlee, 2007; Cleland-Huang

et al., 2004; Hayes et al., 2006a; Marcus and Maletic,

2003; Sabetzadeh and Easterbrook, 2005; Cleland-

Huang et al., 2005; Karlsson et al., 2007).

Several methods have been proposed and eval-

uated for semi-automated tracing requirements, in-

cluding scenario and test case-based methods (Egyed,

2003), policy-based methods (Murta et al., 2006),

event-based methods (Cleland-Huang et al., 2003a)

and rule-based approaches (Spanoudakis et al., 2004).

Three IR-rooted methods dominate semi-automatic

and automatic support for requirements traceability:

Latent Semantic Analysis (LSA), the Vector Space

Model, and probabilistic approaches (Hayes et al.,

2006a; Hayes et al., 2008; och Dag et al., 2004;

Deursen et al., 2006; De Lucia et al., 2004; Antoniol

et al., 2000).

Despite delivering promising results in terms of

precision and recall, the methods have three major pit-

falls: (1) they require pre-processing of data, some-

times manually, (2) their performance heavily de-

pends on the data input and its quality and (3) they

leave the analysts with a list of candidate link that

he has to manually investigate. Thus, these semi-

automatic methods only help to effectively reduce the

search space rather than making actual decisions.

In that case, using precision and recall to evalu-

ate the mentioned methods can be questioned in the

following way: are these quality measures providing

330

Wnuk, K., Borg, M. and Gorschek, T.

Towards New Ways of Evaluating Methods of Supporting Requirements Management and Traceability using Signal-to-Noise Ratio.

DOI: 10.5220/0007717203300339

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 330-339

ISBN: 978-989-758-375-9

the full picture of the support of the linking process

or maybe only precisely describe how well the search

space is limited? One of the studies that uses ma-

chine learning approach for tracing regulatory codes

to product speciﬁc requirements reported that one of

the methods used in the study successfully excluded

1806 of the potential 1889 links. (Cleland-Huang

et al., 2010). This, however, means that 83 links were

left for the analyst to analyze and the precision, in

this case, was below 10%! How many links are pre-

sented for the analysts: hundreds or maybe only ten or

twenty? How easy it is for the analyst to detect “false

positives”? How the presence of false positives next

to correct answer impact the judgment of the require-

ments analyst?

As identiﬁed by (J

arvelin and Kek

ainen, 2002),

it is necessary to develop measures, going beyond pre-

cision and recall, which credit methods that clearly

distinguish between highly relevant and less relevant.

Without good measures to base evaluations on, future

improvements to traceability tools are hard to make in

a systematic way.

In this paper we propose extending the current

way of accessing performance and quality of semi-

automatic methods for supporting requirements trace-

ability. We propose using the Signal-to-Noise Ratios

(SNR) as a complementary quality measure that can

bring more qualitative insights into the performance

of tested methods. We complement other research ef-

forts but expanding the already presented measures,

e.g., Mean Reciprocal Rank, Accuracy@N, Recall-

Rate@N, Mean Average Precision (Zhou et al.,

2012).

We discovered that most values are centered

around 1 which may cause difﬁculties in manually

assessing the correct links among the incorrect ones.

We applied SNR to the new methods for measuring

similarity between requirements that does not require

any pre-processing, based on Normalized Compres-

sion Distance (NCD) from the information theory do-

main (Vit

anyi et al., 2008).

This paper is organized as follows: Section 2 de-

scribes related work and bring some rationale into re-

search. Section 3 gives the theoretical background of

SNR and Section 4 proposes how SNR can be used in

software engineering. Section 5 presents results from

measuring SNR for two methods for supporting the

requirements consolidation task. Section 6 presents

the results of our case study and our interpretations

of the data, Section 7 discusses threats to validity and

in section 8 we draw conclusions and directions for

future work.

2 RELATED WORK

The key activities of requirements traceability are es-

tablishing and maintaining traceability links between

artifacts. Many of the current state-of-the-art tools

support semi-automatic link generation or identiﬁca-

tion. In most cases, a human analyst is presented a list

of possible candidates, thus signiﬁcantly reducing the

search space, but the actual decision making must be

done manually. The analyst can actually discard true

links and make the results of semi-automated trace-

ability worse (Hayes et al., 2005).

The main purpose of Information Retrieval (IR)

methods is to extract relevant items and at the same

time retrieve as few of the non-relevant as possible.

The most relevant candidates should be ranked ﬁrst

when presented to the user, in order to support rele-

vance judgments and decision making.

Various similarity techniques have been used to

support traceability in the software engineering do-

main. Natt och Dag et al. used vector-space mod-

els to measure linguistic similarities to link market

requirements to product requirements using the tool

ReqSimile (och Dag et al., 2005). Hayes et al. de-

veloped the tool RETRO to link requirements to de-

sign documents and bug reports, by default also us-

ing vector-space models (Hayes et al., 2008). La-

tent Semantic I Indexing (LSI) is an extended vector-

space based method that has been used (Marcus and

Maletic, 2003; De Lucia et al., 2008), and probabilis-

tic methods like what is used in spam ﬁlters has also

been tried (Antoniol et al., 2000). Cleland-Huang

et al. proposed a new method of traceability based

upon event-notiﬁcation applicable even in a hetero-

geneous and globally distributed development envi-

ronment (Cleland-Huang et al., 2003b). Huffman

Hayes et al. proposed the RETRO tool for improving

the overall quality of the dynamic candidate link gen-

eration for the requirements tracing process (Hayes

et al., 2006b).

Even though these IR techniques indicate useful-

ness, in all cases there is considerable scope for im-

provements. A study conducted by Lee et al., claims

that assessment of semantic similarity fundamentally

is a human cognitive capability, and neither of the

vector-space oriented techniques word-based, n-gram

nor latent semantic analysis produced good correla-

tions with human judgments (Lee et al., 2007). All

approaches mentioned, including direct spam ﬁlter

evaluations as (Tariq Banday and Jan, 2009), could

utilize a measure for decision making. Hayes et al.

stressed that the issue of analyst interaction with soft-

ware needs further studies (Hayes et al., 2006b).

Hayes et al. (Hayes et al., 2003) present re-

Towards New Ways of Evaluating Methods of Supporting Requirements Management and Traceability using Signal-to-Noise Ratio

331

Table 1: The results from algorithms after trimming (Hayes et al., 2003). R indicates Recall and P precision.

Vanilla algorithm

(10x10)

Retrieval with key

phrases algorithm

(10x10)

Retrieval with the-

saurus algorithm

(19x50)

Top 4 R: 23% P: 17.6% R: 27.2% P: 5.2% R: 85.4% P: 40%

Above 25 R: 23% P: 75% R: 27% P: 25% R: 9.7% P: 40%

Within 33 R: 23% P: 23% R 27.2% P: 15.7% R: 48.7% P: 44.4%

Within 50 R: 33% P: 20% R: 27.2% P: 15.7% R 58.5% P: 42.1%

sults in terms of precision and recall depending on the

threshold given in number of candidate requirements

showed by the algorithms. They decided to decrease

the size of the list in order to improve precision as

a potential cost to recall. The selected values of the

threshold were: top 4 candidates, or candidates with

similarity above 0.25, any candidates with a similarity

within 0.33 and 0.50 of the similarity of the top candi-

date. The results do not reveal any particular function

or relationship that can be later explored. For example

for the vanilla algorithm, both above 25 and within 33

returned the same recall 23%, but above 25 returned

precision of 75% while within 33 only 23%.

Several measures have been proposed to

better evaluate IR methods. J

arvelin and

Kek

ainen (J

arvelin and Kek

ainen, 2002) propose

measures based on cumulated gain, combining

the degree of relevance and rank. This gives an

indication about the quality of a method, but does

not evaluate the support for decision making. Spink

and Greisdorf (Spink and Greisdorf, 2001) suggest

the median effect as a measure to evaluate the way

the distribution of relevance judgments of retrieved

items are generated by a method, but this is mainly

focused on being an alternative to dichotomous

measures. Kek

ainen and J

arvelin (Kek

ainen and

arvelin, 2002) also, identify the weakness of just

evaluating binary relevance as is the case for recall

and precision, and they propose generalized recall

and precision, which reward IR methods that extract

more relevant items. These measures also do not

evaluate how easy it is to make decisions. While

Zhou et al. focused on measures that can evaluate a

process that produces a list of possible responses to

a query, e.g. Mean Reciprocal Rank, Mean Average

Precision (Zhou et al., 2012; Manning et al., 2008),

the SNR introduced in this work tries to describe how

much the analyst is distracted by the presence of false

positives next to a correct answer in the candidate

list.

Other measures as expected search

length (Cooper, 1968), normalized recall mea-

sure (Rocchio, 1966), sliding ratio measure (Pollack,

1968), satisfaction-frustration-total measure (Myaeng

and Korfhage, 1990) can all be used to credit meth-

ods presenting relevant items high up the list, but

again evaluation of decisions making support is not

targeted.

3 DEFINITIONS AND THEORY

The signal-to-noise ratio (SNR) is a measure widely

used in science and engineering to quantify how much

a signal has been corrupted by noise. It compares the

level of a desired signal to the level of background

noise which is a fundamental measure in signal pro-

cessing theory.

SNR =

signal

noise

(1)

SNR =

sigma

(2)

In its classical deﬁnition, signal-to-noise is a ratio

between the average power of the signal (P

signal

) and

the average power of the noise (P

noise

) ( 1) (Gonzalez

and Woods, 2006). Since signals have usually a very

wide dynamic range, the logarithmic decibel scale is

used to express SNR. There exist alternative deﬁni-

tions of SNR, like for example the ratio of mean (mu)

to standard deviation (sigma) of a signal or measure-

ment ( 2). This deﬁnition is commonly used in image

processing (Gonzalez and Woods, 2006; Stathaki,

2008; Raol, 2009; Russ, 1999) where the SNR of an

image is usually calculated as the ratio of the mean

pixel value to the standard deviation of the pixel val-

ues over a given neighborhood.

The higher the ratio, the less obtrusive the back-

ground noise is. In other words it is a ratio be-

tween the meaningful information and the back-

ground noise. In our case, the signal is represented by

the correct link between two objects while the noise

is represented by all other potential links. In digital

signal processing the noise is the error signal cause

by the quantization of the signal, assuming that the

analog-digital conversion has been performed.

F = 2 ∗

precision ∗recall

precision + recall

(3)

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

332

Precision =

true positives

true positives + f alse positives

(4)

Recall =

true positives

true positives + f alse negatives

(5)

Precision and recall are widely used for statisti-

cal classiﬁcations. They can be seen as measures of

exactness or ﬁdelity (precision) or completeness (re-

call). The relationship between precision and recall

is often inverse, the effort put on increasing the recall

of the method often result in a decrease of precision

and vice-versa. Therefore, these measures should not

be discussed in isolation and are often combined into

the single measure, such as the F-measure, which is

the weighted harmonic mean of precision and recall

(see equation 3 for an evenly weighted version of F

measure). Finally, based on the notion of true posi-

tives, true negative, false positives, and false negatives

we can classify the results of the information retrieval

task and build additional measures.

For example, recall can be called true positive

rate 4, or true negative rate can be called speciﬁcity 5.

These measures can be suitable for measuring the

quality of the result of the automatic classiﬁcation

task, but do not assume that someone, for example

a requirements analyst will use the results as a list

of possible candidates in linking similar objects (Natt

och Dag et al., 2006). In this case, the measures de-

scribed above give only an indication of the entire re-

sult set, without assessing the quality of how distinc-

tive the correct answers are from the incorrect ones.

We assume that this support can help the human an-

alyst to assign more correct links and minimize the

number of false positive links (Natt och Dag et al.,

2006).

4 RATIONALE FOR DEFINING

SIGNAL-TO-NOISE RATIO

To illustrate the rationale for deﬁning yet another

measure we use an example of linguistic tool support

for requirements consolidation (Natt och Dag et al.,

2006). In this case, a similarity measure has been uti-

lized to propose a list of requirements candidates and

their similarity score to one actually analyzed. The

requirements analyst uses the resulting list of candi-

dates to assign links between two or more similar re-

quirements. In the experiment performed to validate

the method (Natt och Dag et al., 2006), a set of 30

requirements has been analyzed against 160 other re-

quirements. The key with correct answers, consist-

ing of 20 links, had been prepared before the experi-

ment. Once the correct links have been assigned, they

have been checked with the output of the tool to as-

sess which position on the candidate list they will be

classiﬁed.

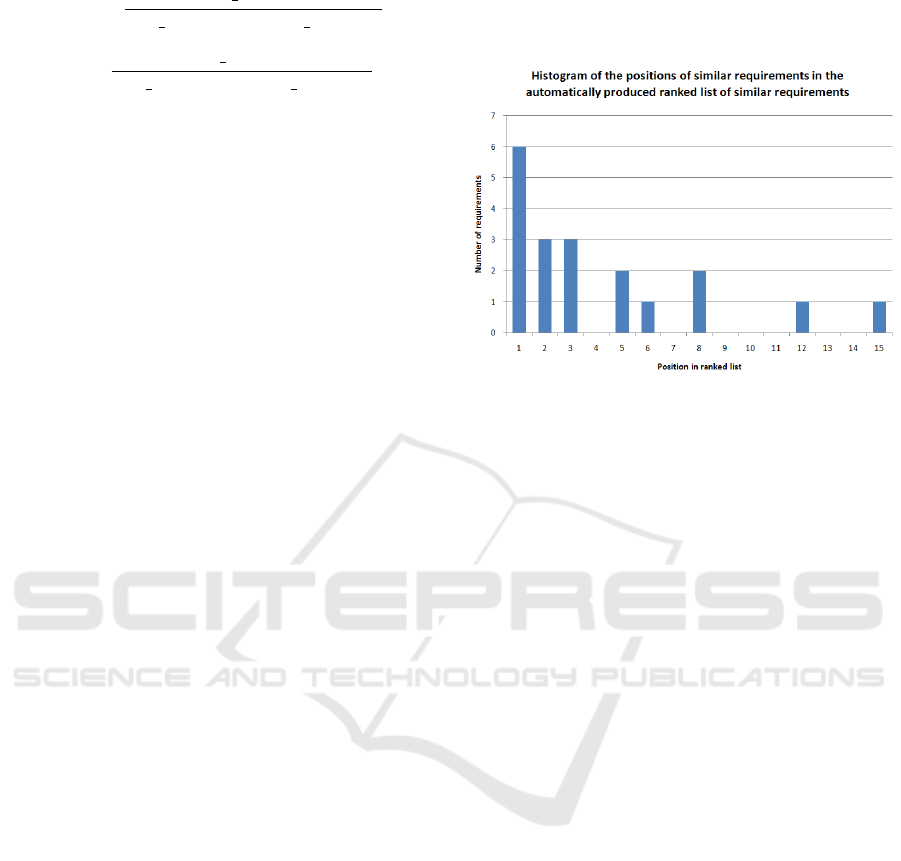

Figure 1: Histogram of the positions of similar require-

ments in the automatically produced ranked list of similar

requirements (Natt och Dag et al., 2006).

Figure 1 depicts a histogram of the distribution

of the positions at which the correctly similar re-

quirements end up in the ranked list produced by the

tool (Natt och Dag et al., 2006). For the data set used

in (Natt och Dag et al., 2006), almost all (17 out of

20) of the correct answers end up at position 8 or bet-

ter in the ranked list, and could therefore be quickly

spotted. The question that remains unanswered here

is what are the similarity scores for all the incorrect

links proposed on the list. In case the correct answer

has position 8 on the list, there seems to be 7 other an-

swers ranked as more similar than the correct answer,

which the analyst has to correctly disregard in order

to create the correct link. The decision which links to

reject may be hard if the similarity scores of all incor-

rect but highly ranked requirements are very similar

to the score of the correct answer. In other words, the

analysts may get mislead by the fact that the noise is

highly ranked than the correct signal. Thus, we pro-

pose applying three SNR measures that gives insights

of the differences between the correct answer and the

very close appearing incorrect answer.

To address the issues mentioned above, we pro-

pose three versions of signal-to-noise that can be ap-

plied for evaluation of automatic methods for support-

ing decision-oriented tasks in software engineering.

The ﬁrst measure, called Individual SNR is the ratio

between the correct answer and the closest incorrect

answer on the list of candidates. In a case when the

correct answer is not ranked as number one on the list

of candidates, the Individual SNR is an average value

of the two closest incorrect proposals, one higher than

the correct one and one lower than the correct answer

6. The interpretation is a type of SNR may be that

Towards New Ways of Evaluating Methods of Supporting Requirements Management and Traceability using Signal-to-Noise Ratio

333

it is the ability to spot the correct answer among the

closest proposed incorrect answer(s).

SNR

individual

score corr

(score incorr down + scope incorr up)/2

(6)

The second version of SNR we propose is the

Maximum Noise SNR which is the ratio of the simi-

larity degree of the correct answer of the candidates

list to the maximum value of similarity of the incor-

rect answer presented in the list of candidates 7.

SNR

Max

score corr

∑

MAX

score incorrect

(7)

The third version of SNR we propose in this paper,

called Average SNR, is the ratio between the value of

similarity of the correct answer to the average noise

ratio value above a certain threshold 8. The thresh-

old in Figure 1 has been set to 15, which means that

candidate requirements that scored below number 15

on the list were not considered. However, this is a

modiﬁed version of the Average SNR measure. Our

deﬁnition consider a value rather than a certain num-

ber on the ranked list as the threshold.

SNR

Avg

score corr

∑

i=1

score incorrect

nbr o f incorrect

its

∀i < threshold (8)

5 MEASURING SNR FOR THREE

REQUIREMENTS SIMILARITY

METHODS

In this section, we present results from measuring the

three versions of SNR on the set of requirements de-

scribed in section 4. The requirements are reused

from the experiment on a linguistic tool, support-

ing the consolidation of requirement sets (och Dag

et al., 2005). The analysis has been performed for

two methods of measuring the similarity between the

requirements: (1) the linguistic method based on vec-

tor space model (och Dag et al., 2005; Natt och Dag,

2006b) and (2) the normalized compression distance

method based on information theory (Cilibrasi et al.,

) and POIROT (Lin et al., 2006).

5.1 Data in the Context

The set contains 30 requirements that are checked

against 160 requirements. There exist 20 correct links

between the requirement sets. Knowing which links

are correct, we have compared the values of the simi-

larity score for the correct and incorrect answers.

Next, we used the ReqSimile tool (och Dag et al.,

2005; Natt och Dag, 2006b), which implements the

linguistic method, and the Complearn implementation

of normalized compression distance (Cilibrasi et al., )

to measure the SNR values for the two techniques.

The linguistic method uses a vector-space representa-

tion of requirements where each requirement is rep-

resented using a vector of terms with a respective

number of occurrences (och Dag et al., 2004; Man-

ning and Sch

utze, 2002). From the matrix which

shows how many times a term appears in each re-

quirement the information may be derived about how

many terms the two requirements have in common i.e.

overlap. The very similar requirements will result in

closely clustered points in this vector space (Manning

and Sch

utze, 2002). In the evaluated method (och

Dag et al., 2005) a frequency of terms has been used,

instead of counting the occurrences. The cosine cor-

relation measure is often chosen in text retrieval ap-

plications for the purpose of ﬁnding similar require-

ments, as it does not depend on the relative size of the

input (Manning and Sch

utze, 2002).

σ( f , g) =

∑

(t) ∗ w

(t)

∑

(t)

∗

∑

(t)

(9)

The measure in 9 is used, where f and g are two

requirements, t ranges over terms, and w(t) denotes

the weight of term t. The term weight is typically a

function of the term frequency, since while the num-

ber of times a word occurs is relevant, its relevance

decreases as the number gets larger (Manning and

Sch

utze, 2002). As mentioned in (Natt och Dag,

2006a), there is no guarantee that two requirements

that are similar according to the σ(.) measure are in-

deed related. The method evaluated does not con-

sider hypernyms and hyponyms (Jackson and Moulin-

ier, 2002). POIROT is a Web-based tool supporting

traceability of distributed heterogeneous software ar-

tifacts. A probabilistic network model is used to gen-

erate traces between requirements, design elements,

code and other artifacts stored in distributed 3rd party

case tools such as DOORS and source code reposito-

ries (Lin et al., 2006).

Procedures of the Case Study. To avoid errors

while measuring, the analysis has been performed

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

334

twice by two researchers, working independently and

then compared. Any inconsistencies and possible er-

rors were discussed and corrected.

5.2 Results of Measuring SNR on the

First Dataset

The results from measuring the three types of SNR

are presented in Tables 2, 3, and 4. For the average

SNR calculations we use similarity 0.5 as the thresh-

old in the linguistic approach. The very low similarity

measures of the NCD forced us to lower the threshold

to 0.4 for this method, accepting that direct compar-

isons no longer are possible. R19, the only quality

requirement, was in all calculations considered as an

outlier and disregarded. Its format and structure lead

to too high similarity values.

A quick comparison between the three techniques

can be seen in Table 5. The SNR values are in all

cases close to 1 and the correct link is in the most

cases not the ﬁrst on the list. The linguistic VSM

based approach has in all cases higher SNR than the

proposed method from the domain of information the-

ory. POIROT seems to deliver promising values for

some requirements R1 (SC13) and R2 (41104).

As it can be seen in Table 2 only for one require-

ment (R19) the SNR value is more than 2. In all

other cases the values ranges from 0.69 to 1.2 for

various types of SNR. The Na values in Table 2 for

the AvgSNR corresponds in this case to the situa-

tion when the measurement could not be performed:

for example in cases of R9 and R16 both the correct

answer and the highest noise were below threshold

0.5. Moreover, for some data points, the values for

MaxSNR and AvgSNR are identical (R3 and R17),

which means in this case that there are only two data

points above the threshold and the top candidate is

the noise (R3 case) or a correct signal (R17). The

equal values for both IndSNR and MaxSNR indicate

that the correct answer is number one on the list of

candidates (R2, R5, R11, R17, R18, and R19). The

average value for IndSNR is slightly higher (1.035)

than for MaxSNR (0.93) and AvgSNR (0.974) 5. Fi-

nally, the biggest median value represents results for

AvgSNR (1.06), comparying to IndSNR(1.009) and

MaxSNR(0.94)

The results for measuring all three types of SNR

for the Normalized Compression Distance method

of assessing the similarity between requirements are

more dispersed, see Table 3. The values range from

0.28 to 1.04. The correct answer mostly ended up on

the list of candidates much lower than for the linguis-

tic similarity measure method (only for 4 cases it is

within the top 10 candidates). The average for Ind-

Table 2: The results from measuring all three types of SNR

for the ReqSimile tool that uses vector space model.

Requirement IndSNR MaxSNR AvgSNR Pos. on

the list

R1 (SC13) 1.04 0.98 1.16 2

R2 (41104) 1.26 1.26 1.34 1

R3 (41112) 1.12 0.97 0.97 2

R4 (41114) 1 0.68 0.68 3

R5 (41123) 1.04 1.04 1.14 1

R6 (41301) 1.005 0.89 0.95 5

R7 (41307) 1.009 0.57 0.62 64

R8 (41309) 0.97 0.79 0.83 15

R9 (41414) 1.02 0.91 Na 3

R10

(41601)

0.99 0.95 1.19 3

R11

(41606)

1.008 1.008 1.07 1

R12

(41608)

0.99 0.94 1.06 5

R13

(41710)

1.02 0.89 0.92 8

R14

(41804)

1.009 0.94 1.20 6

1.001 0.91 1.20 8

R15

(41811)

1.001 0.89 1.06 12

R16 (4205) 1.01 0.89 Na 2

R17

(43302)

1.12 1.12 1.12 1

R18

(43303)

1.05 1.05 1.05 1

R19

(43402)

2.7 2.7 Na 1

SNR is the highest (1), with more differences to other

types of SNR (MaxSNR average is equal to 0.72 and

AvgSNR average is equal to 0.759 in this case). The

similar, bigger than in the case of linguistic support,

difference can be seen between the medians for Ind-

SNR (1), MaxSNR (0.75) and AvgSNR (0.75) respec-

tively.

The result for the POIROT tool (see Table 4 are

similar than those for ReqSimile. POIROT returns

much better IndSNR for R1 and R2 and similar values

for the remaining requirements.

6 CASE STUDY RESULTS AND

INTERPRETATION

As it can be seen from the results depicted in Ta-

bles 2, 3 and 4 the values for all three types of SNR

are centered around 1. This may lead to the following

Towards New Ways of Evaluating Methods of Supporting Requirements Management and Traceability using Signal-to-Noise Ratio

335

Table 3: The results from measuring all three types of SNR

for the tool using NCD.

Requirement IndSNR MaxSNR AvgSNR Pos. on

the list

R1 (SC13) 1.03 0.93 0.97 4

R2 (41104) 1 0.49 0.49 111

R3 (41112) 1 0.75 Na 20

R4 (41114) 1.06 0.84 Na 5

R5 (41123) 1.01 1.01 1.04 1

R6 (41301) 0.99 0.42 0.48 155

R7 (41307) 1.003 0.66 0.72 97

R8 (41309) 0.998 0.84 0.86 57

R9 (41414) 1 0.597 0.62 134

R10

(41601)

1.007 0.66 0.79 80

R11

(41606)

1.01 0.8 Na 52

R12

(41608)

0.98 0.85 0.92 13

R13

(41710)

1 0.89 1 9

R14

(41804)

0.993 0.91 0.99 14

1 0.77 0.84 73

R15

(41811)

1 0.73 NaN 95

R16 (4205) 0.93 0.507 0.57 92

R17

(43302)

0.99 0.564 0.564 41

R18

(43303)

1 0.537 0.537 29

R19

(43402)

0.996 0.28 0.389 136

interpretation: in the task of requirements consolida-

tion for the methods that have been tested, the dif-

ferences between the values of similarity of the cor-

rect answer and the incorrect answers are very small.

Thus, SNR offers better understanding and new in-

sights about these methods. Still, we should further

investigate how the human analyst reacts to a list of

X candidates with similar SNR values. Paradoxically,

the struggle to improve IR-methods may result in a

candidate list of very similar requirements and those

make the ﬁnal decision more difﬁcult.

The results also provide valuable information

about the nature of candidate links that an analyst has

to examine while assigning links. The low levels of

SNR obtained in this study suggest that the analyst

may have difﬁculties assessing which of the proposed

candidates is the correct one, especially if the differ-

ences of the degree of similarity are very small. As a

result, in this case, the analysts must turn back to the

Table 4: The results from measuring all three types of SNR

for the POIROT tool. In this case we calculated average

SNR for all data point with conﬁdence level >=50%.

Requirement IndSNR MaxSNR AvgSNR Pos. on

the list

R1 (SC13) 1.31 0.775 2.05 3

R2 (41104) 2.01 2.01 2.56 1

R3 (41112) 1 0.766 0.918 12

R4 (41114) 1.02 0.75 1.19 4

R5 (41123) 1.18 0.99 1.92 2

R6 (41301) 1 0.76 0.60 43

R7 (41307) 0.99 0.83 0.83 28

R8 (41309) 1 0.71 0.53 47

R9 (41414) 0.98 0.93 1.38 3

R10

(41601)

0.97 0.92 1.25 2

R11

(41606)

0.98 0.775 1.14 4

R12

(41608)

0.98 0.85 1.01 3

R13

(41710)

1.01 0.82 0.96 11

R14

(41804)

1 0.89 0.97 11

1 0.85 0.86 18

R15

(41811)

1 0.79 0.89 16

R16 (4205) 0.995 0.4 0.19 34

R17

(43302)

1.3 1.3 1.94 1

R18

(43303)

1.06 1.06 2.5 1

R19

(43402)

3.27 3.27 5.88 1

original text to make the judgment, or more or less

guess the correct answer by selecting a requirement

from the list of candidates.

7 THREATS TO VALIDITY

We discuss validity threats based on the classiﬁcation

of threats provided by Yin (Yin, 2002). To address re-

liability we have measured all three types of SNR for

three methods that can be used to help ﬁnding simi-

lar requirements. Moreover, the data set selected for

this study is reused from a previous study on support-

ing similarity analysis of requirements from multiple

sources together with the correct answer. Finally, both

requirements sets and correct answer can be shared

upon a request for replications.

Due to the descriptive and exploratory nature of

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

336

Table 5: Comparison of the three SNR measures and posi-

tion of the correct link for Reqsimile,NCD and POIROT.

ReqSimile NCD POIROT

Average IndSNR 1.035 1 1.20

Median IndSNR 1.009 1 1

Average MaxSNR 0.930 0.724 1.02

Median MaxSNR 0.94 0.75 0.84

Average AvgSNR 0.974 0.759 1.48

Median AvgSNR 1.06 0.75 1.07

Average Position 7.526 56.947 12.25

Median Position 3 52 4

this study, where the main focus is to introduce a new

set of measures and to provide an example without

an attempt to draw any causal relationship, the inter-

nal threats to validity are minimized. Still, it would

be valuable to perform a user study where we could

ask the participants to perform a task and see if SNR

results ”matches” the performance of users in per-

forming this tasks (Kochhar et al., 2016). The as-

sumed positive causal relationship of SNR introduc-

tion should be conﬁrmed in user surveys.

Since this study proposes only one way of measur-

ing the differences between the candidate links pre-

sented to the analysts, the threats to construct valid-

ity remains not fully addressed. It remains to be an

open question how SNR performs in relation to other

metrics suggested to evaluate IR techniques applied

to software engineering, e.g., Mean Reciprocal Rank,

Accuracy@N, Recall-Rate@N, Mean Average Preci-

sion, just to name a few.

Finally, the threats to external validity have been

partially addressed by measuring the three types of

SNR for two methods that may be used as support

for linking similar requirements. Moreover, there has

been several new IR-based methods proposed. Mea-

suring SNR on as many IR-based methods as possible

remains to be the part of future work. Moreover, We

plan to expand our analysis to other traceability re-

covery techniques, e.g., bug localization (Rath et al.,

2018). The used dataset is small and we plan to repli-

cate our study on much larger datasets.

8 CONCLUSIONS AND FUTURE

WORK

Producing software is a complex task and keeping

the involved processes aligned is an important chal-

lenge (Sabaliauskaite et al., 2010). One approach

to improving the alignment is to utilize traceability

techniques to create and maintain links between soft-

ware artifacts. Most of the traceability techniques cur-

rently available are semi-automatic (Raja and Kam-

ran, 2008). They present a list of candidates and a hu-

man analyst has to make the ﬁnal decision, whether a

link should be established or not. The commonly ac-

cepted measures for evaluating traceability techniques

fail short on measuring the support for this decision.

In this paper, we propose a new way of measuring

the quality of the list of candidates for semi-automatic

methods. We apply a new set of measures, signal-

to-noise ratio, to a set of requirements and evaluate

three methods. The results show that the differences

between the signal and noise are small. This clearly

indicates that an analyst may have a problem when

making the decision. We propose that the measures

should be used to help improve the semi-automatic

techniques, and also to lay the foundation for more

automated tools in the future. Another contribution

of this paper is that we have tried normalized com-

pression distance as a method to assess the similarity

between software artifacts, even though the results are

discouraging.

Future work includes expanding the data set with

more textual requirements and test cases, and mea-

suring SNR for more of the available techniques. We

also plan to further explore the suitability of NCD for

non-textual requirements tracing.

ACKNOWLEDGMENTS

This work is supported by the Knowledge Foundtion

in Sweden within the Software Engineerng Rethought

project, https://rethought.se/.

REFERENCES

Antoniol, G., Canfora, G., de Lucia, A., and Casazza, G.

(2000). Information retrieval models for recovering

traceability links between code and documentation.

Software Maintenance, IEEE International Confer-

ence on, 0:40.

Berenbach, B., Paulish, D. J., Kazmeier, J., and Rudorfer,

A. (2009). Software & Systems Requirements Engi-

neering: In Practice. Pearson.

Bergman, M., King, J. L., and Lyytinen, K. (2002). Large-

scale requirements analysis revisited: The need for

understanding the political ecology of requirements

engineering. Req Eng, 7(3):152–171.

Cheng, B. H. C. and Atlee, J. M. (2007). Research di-

rections in requirements engineering. In FOSE ’07:

2007 Future of Software Engineering, pages 285–303,

Washington, DC, USA. IEEE Computer Society.

Towards New Ways of Evaluating Methods of Supporting Requirements Management and Traceability using Signal-to-Noise Ratio

337

Cilibrasi, R., Cruz, A. L., de Rooij, S., and Keijzer, M. The

complearn suite website. http://www.complearn.

org/index.html.

Cleland-Huang, J., Chang, C. K., and Christensen, M.

(2003a). Event-based traceability for managing evolu-

tionary change. IEEE Trans. Softw. Eng., 29(9):796–

810.

Cleland-Huang, J., Chang, C. K., and Christensen, M.

(2003b). Event-based traceability for managing evo-

lutionary change. IEEE Tran on Soft Eng, 29(9):796–

810.

Cleland-Huang, J., Czauderna, A., Gibiec, M., and Eme-

necker, J. (2010). A machine learning approach for

tracing regulatory codes to product speciﬁc require-

ments. In ICSE Conference, pages 155–164, New

York, NY, USA. ACM.

Cleland-Huang, J., Settimi, R., BenKhadra, O., Berezhan-

skaya, E., and Christina, S. (2005). Goal-centric trace-

ability for managing non-functional requirements. In

ICSE Conference, pages 362–371, New York, NY,

USA. ACM.

Cleland-Huang, J., Zemont, G., and Lukasik, W. (2004).

A heterogeneous solution for improving the return on

investment of requirements traceability. In IEEE RE

Conference, pages 230–239, Washington, DC, USA.

IEEE Computer Society.

Cooper, W. S. (1968). Expected search length: A single

measure of retrieval effectiveness based on the weak

ordering action of retrieval systems. J. Am. Soc. Inf.

Sci., 19(1):30–41.

De Lucia, A., Fasano, F., Oliveto, R., and Tortora, G.

(2004). Enhancing an artifact management system

with traceability recovery features. In 20th IEEE

ICSM Conference, pages 306–315, Washington, DC,

USA. IEEE Computer Society.

De Lucia, A., Oliveto, R., and Tortora, G. (2008). Adams

re-trace: Traceability link recovery via latent seman-

tic indexing. In Proceedings of the 30th ICSE Confer-

ence, ICSE ’08, pages 839–842, New York, NY, USA.

ACM.

Deursen, A. V., Stehouwer, A., Lormans, M., Lormans,

M., gerhard Gross, H., gerhard Gross, H., Solingen,

R. V., and Solingen, R. V. (2006). Monitoring require-

ments coverage using reconstructed views: An indus-

trial case study. In 13th Working Conf. on Reverse

Eng, pages 275–284.

Egyed, A. (2003). A scenario-driven approach to trace

dependency analysis. IEEE Trans. Softw. Eng.,

29(2):116–132.

Finkelstein, A. (1994//). Requirements engineering: a re-

view and research agenda. pages 10 – 19, Los Alami-

tos, CA, USA.

Gonzalez, R. C. and Woods, R. E. (2006). Digital Image

Processing (3rd Edition). Prentice-Hall, Inc., Upper

Saddle River, NJ, USA.

Hayes, J. H., Dekhtyar, A., and Osborne, J. (2003). Improv-

ing requirements tracing via information retrieval. In

20th IEEE RE Confenrece, pages 151–161.

Hayes, J. H., Dekhtyar, A., and Sundaram, S. (2005). Text

mining for software engineering: How analyst feed-

back impacts ﬁnal results. SIGSOFT Softw. Eng.

Notes, 30(4):1–5.

Hayes, J. H., Dekhtyar, A., Sundaram, S., Holbrook, A.,

Vadlamudi, S., and April, A. (2008). Requirements

tracing on target (retro): Improving software mainte-

nance through traceability recovery.

Hayes, J. H., Dekhtyar, A., and Sundaram, S. K. (2006a).

Advancing candidate link generation for requirements

tracing: The study of methods. IEEE Tran on Soft

Eng, 32:4–19.

Hayes, J. H., Dekhtyar, A., and Sundaram, S. K. (2006b).

Advancing candidate link generation for requirements

tracing: the study of methods. IEEE Tran on Soft Eng,

32(1):4–19.

Jackson, P. and Moulinier, I. (2002). Natural language pro-

cessing for online applications. Text retrieval, extrac-

tion and categorization, volume 5. Benjamins, Ams-

terdam, Philadelphia.

arvelin, K. and Kek

ainen, J. (2002). Cumulated gain-

based evaluation of ir techniques.

Karlsson, L., Dahlstedt, s. G., Regnell, B., Natt och Dag,

J., and Persson, A. (2007). Requirements engineering

challenges in market-driven software development -

an interview study with practitioners. Inf. Softw. Tech-

nol., 49(6):588–604.

Kek

ainen, J. and J

arvelin, K. (2002). Using graded rel-

evance assessments in ir evaluation. J. Am. Soc. Inf.

Sci. Technol., 53(13):1120–1129.

Kochhar, P. S., Xia, X., Lo, D., and Li, S. (2016). Practition-

ers’ expectations on automated fault localization. In

Proceedings of the 25th International Symposium on

Software Testing and Analysis, pages 165–176. ACM.

Konrad, S. and Gall, M. (2008). Requirements engineering

in the development of large-scale systems. In Pro-

ceedings of the 16th International Requirements En-

gineering Conference (RE 2008), pages 217–222.

Lee, M. D., Pincombe, B., and Welsh, M. (2007). A com-

parison of machine measures of text document simi-

larity with human judgments.

Leveson, N. G. (1997). Software engineering: stretching the

limits of complexity. Commun. ACM, 40(2):129–131.

Lin, J., Lin, C. C., Cleland-Huang, J., Settimi, R., Amaya,

J., Bedford, G., Berenbach, B., Khadra, O. B., Duan,

C., and Zou, X. (2006). Poirot: A distributed tool

supporting enterprise-wide automated traceability. In

14th IEEE International Requirements Engineering

Conference (RE’06), pages 363–364.

Maccari, A. (1999//). The challenges of requirements engi-

neering in mobile telephones industry. pages 336 – 9,

Los Alamitos, CA, USA.

Manning, C. D., Raghavan, P., and Sch

utze, H. (2008). In-

troduction to Information Retrieval. Cambridge Uni-

versity Press, New York, NY, USA.

Manning, C. D. and Sch

utze, H. (2002). Foundations of

Statistical Natural Language Processing. MIT Press.

Marcus, A. and Maletic, J. (2003). Recovering

documentation-to-source-code traceability links using

latent semantic indexing. In ICSE Conference, pages

125–135, Washington, DC, USA. IEEE Computer So-

ciety.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

338

Murta, L. G. P., van der Hoek, A., and Werner, C. M. L.

(2006). Archtrace: Policy-based support for man-

aging evolving architecture-to-implementation trace-

ability links. In ASE Conference, pages 135–144,

Washington, DC, USA. IEEE Computer Society.

Myaeng, S. H. and Korfhage, R. R. (1990). Integration

of user proﬁles: models and experiments in informa-

tion retrieval. Information Processing & Management,

26(6):719 – 738.

Natt och Dag, J. (2006a). Managing Natural Language

Requirements in Large-Scale Software Development.

PhD thesis, Lund University.

Natt och Dag, J. (2006b). The reqsimile tool website. http:

//reqsimile.sourceforge.net/.

Natt och Dag, J., Thelin, T., and Regnell, B. (2006). An

experiment on linguistic tool support for consolida-

tion of requirements from multiple sources in market-

driven product development. Empirical Software En-

gineering, 11(2):303–329.

Northrop, L., Felier, P., Habriel, R. P., Boodenough, J.,

Linger, R., Klein, M., Schmidt, D., Sullivan, K., and

Wallnau, K. (2006). Ultra-Large-Scale Systems: The

Software Challenge of the Future. Software Engineer-

ing Institute.

och Dag, J. N., Gervasi, V., Brinkkemper, S., and Regnell,

B. (2004). Speeding up requirements management in

a product software company. RE Conference, 0:283–

294.

och Dag, J. N., Gervasi, V., Brinkkemper, S., and Reg-

nell, B. (2005). A linguistic-engineering approach to

large-scale requirements management. IEEE Softw.,

22(1):32–39.

Pollack, S. M. (1968). Measures for the comparison of

information retrieval systems. Am. Doc., 19(4):387–

397.

Raja, U. A. and Kamran, K. (2008). Framework for require-

ments traceability.

Raol, J. R. (2009). Multi-Sensor Data Fusion with MAT-

LAB: Theory and Practice. Taylor and Francis, Inc.

Rath, M., Lo, D., and M

ader, P. (2018). Analyzing require-

ments and traceability information to improve bug lo-

calization. In Int Conf Mining Software Repositories

(MSR), pages 442–453. IEEE.

Rocchio, J. J. J. (1966). Document retrieval systems: opti-

mization and evaluation. PhD thesis, Harvard Univer-

sity, USA.

Russ, J. C. (1999). The image processing handbook (3rd

ed.). CRC Press, Inc., Boca Raton, FL, USA.

Sabaliauskaite, G., Loconsole, A., Engstr

om, E., Un-

terkalmsteiner, M., Regnell, B., Runeson, P.,

Gorschek, T., and Feldt, R. (2010). Challenges in

aligning requirements engineering and veriﬁcation in

a large-scale industrial context. In Proc. REFSQ 2010.

Sabetzadeh, M. and Easterbrook, S. (2005). Traceability

in viewpoint merging: A model management perspec-

tive.

Spanoudakis, G., Zisman, A., Perez-Minana, E., and

Krause, P. (2004). Rule-based generation of require-

ments traceability relations. JSS, 72(2):105–127.

Spink, A. and Greisdorf, H. (2001). Regions and levels:

measuring and mapping users’ relevance judgments.

J. Am. Soc. Inf. Sci. Technol., 52(2):161–173.

Stathaki, T. (2008). Image Fusion: Algorithms and Appli-

cations. Academic Press.

Tariq Banday, M. and Jan, T. R. (2009). Effectiveness and

Limitations of Statistical Spam Filters. ArXiv e-prints.

Vit

anyi, P. M. B., Balbach, F. J., Cilibrasi, R. L., and Li, M.

(2008). Information Theory and Statistical Learning,

chapter Normalized Information Distance, pages 45–

82. Springer.

Yin, R. K. (2002). Case Study Research: Design and Meth-

ods. Sage Publications.

Zhou, J., Zhang, H., and Lo, D. (2012). Where should the

bugs be ﬁxed? more accurate information retrieval-

based bug localization based on bug reports. In 34th

ICSE Conference, pages 14–24.

Towards New Ways of Evaluating Methods of Supporting Requirements Management and Traceability using Signal-to-Noise Ratio

339
