In-depth Comparative Evaluation of Supervised Machine Learning

Approaches for Detection of Cybersecurity Threats

Laurens D’hooge, Tim Wauters, Bruno Volckaert and Filip De Turck

Ghent University - imec, IDLab, Department of Information Technology, Technologiepark-Zwijnaarde 126, Gent, Belgium

Keywords:

Intrusion Detection, CICIDS2017, Supervised Machine Learning, Binary Classiﬁcation.

Abstract:

This paper describes the process and results of analyzing CICIDS2017, a modern, labeled data set for test-

ing intrusion detection systems. The data set is divided into several days, each pertaining to different attack

classes (Dos, DDoS, inﬁltration, botnet, etc.). A pipeline has been created that includes nine supervised learn-

ing algorithms. The goal was binary classiﬁcation of benign versus attack trafﬁc. Cross-validated parameter

optimization, using a voting mechanism that includes ﬁve classiﬁcation metrics, was employed to select opti-

mal parameters. These results were interpreted to discover whether certain parameter choices were dominant

for most (or all) of the attack classes. Ultimately, every algorithm was retested with optimal parameters to

obtain the ﬁnal classiﬁcation scores. During the review of these results, execution time, both on consumer-

and corporate-grade equipment, was taken into account as an additional requirement. The work detailed in this

paper establishes a novel supervised machine learning performance baseline for CICIDS2017. Graphics of the

results as well as the raw tables are publicly available at https://gitlab.ilabt.imec.be/lpdhooge/cicids2017-ml-

graphics.

1 INTRODUCTION

Intrusion detection is a cornerstone of cybersecurity

and an active ﬁeld of research since the 1980s. Al-

though the early research focused more on host intru-

sion detection systems (HIDS), the principal aims of

an intrusion detection system (IDS) have not changed.

A well-functioning IDS should be able to detect a

wide range of intrusions, possibly in real-time, with

high discriminating power, improving itself through

self-learning, while being modiﬁable in its design and

execution (Denning and Neumann, 1985). The advent

of computer networking and its ever greater adoption,

shifted part of the research away from HIDS to net-

work intrusion detection systems (NIDS). This paper

details the experiment and results of analyzing a mod-

ern intrusion detection dataset (CICIDS2017) and it

is structured as follows. First an overview of the re-

lated work in intrusion detection and network secu-

rity dataset generation is given, then the implementa-

tion of the analysis is described (section 3). Third and

most important is the discussion of the results (sec-

tion 4), summarized in the conclusion . Key ﬁndings

in this work are the outstanding performance both in

terms of classiﬁcation and time metrics of tree-based

classiﬁers, especially ensemble learners, the surpris-

ing effectiveness of simple distance-based methods

and the classiﬁcation difﬁculty for all methods on one

attack class.

2 RELATED WORK

2.1 Intrusion Detection

The ﬁeld of network intrusion detection developed

two main visions on solving the problem of deter-

mining whether observed trafﬁc is legitimate. The

chronologically ﬁrst approach, is the use of signature-

based systems (also called misuse detection systems).

Within this category different strategies have been re-

searched (Axelsson, 2000), including state modelling,

string matching, simple rule based systems and ex-

pert systems (emulating human expert knowledge, by

making use of a knowledge base and an inference

system). All systems in this category, while being

great at detecting known signatures, do not general-

ize. That’s a violation of the principles for intrusion

detection systems, namely the system’s ability to im-

prove itself through learning.

The second approach, anomaly detection, has

D’hooge, L., Wauters, T., Volckaert, B. and De Turck, F.

In-depth Comparative Evaluation of Supervised Machine Learning Approaches for Detection of Cybersecurity Threats.

DOI: 10.5220/0007724801250136

In Proceedings of the 4th International Conference on Internet of Things, Big Data and Security (IoTBDS 2019), pages 125-136

ISBN: 978-989-758-369-8

125

been around almost as long, but the methods have

changed drastically in the past years. Early systems

based their decisions on rules, proﬁles and heuristics,

often derived from relatively simple statistic methods.

These systems could be self-learning in the sense that

their heuristics could be recomputed and thus become

a dynamic part of the system. Advances in the last ten

years in terms of distributed computation and storage

have enabled more advanced statistical methods to be-

come feasible. Work by Buczak et al. (Buczak and

Guven, 2016) concluded that making global recom-

mendations is impossible and the nature of the data

and types of attacks to be classiﬁed should be taken

into account when designing an IDS. Furthermore

they stress the requirement for training data in the

ﬁeld of network intrusion detection and an evaluation

approach that considers more than just accuracy. On a

ﬁnal note, the authors included recommendations for

machine learning (ML) algorithms for anomaly detec-

tion (density based clustering methods and one-class

SVMs) and for misuse detection (decision trees, asso-

ciation rule mining and Bayesian networks).

Very recent work by Hodo et al. (Hodo et al.,

2017) examines the application of shallow and deep

neural networks for intrusion detection. Their graph-

ical overview of IDS techniques clearly shows the

dominant position of anomaly based methods, driven

by the adoption of machine learning techniques.

Their main contribution is a chapter explaining the

algorithm classes of neural networks. The work dif-

ferentiates between artiﬁcial neural networks (ANN)

(shallow) and deep networks (DN), with subdivisions

between supervised and unsupervised methods for

ANNs and generative versus discriminative methods

for DNs. Their conclusion is that deep networks show

a signiﬁcant advantage for DNs in detection. They

note that the adoption of either class is still in its early

stages, when applied to network intrusion detection.

2.2 Datasets

Self-learning systems require data to train and test

their efﬁcacy. All techniques used in this work are

supervised, machine learning algorithms. This means

that they do not just require data, but that data has to

be labeled. The dataset landscape in intrusion detec-

tion has a.o. been described by Wu et al. (Wu and

Banzhaf, 2010) as part of a review paper on the state

of computational intelligence in intrusion detection

systems and more succinctly by Shiravi et al. (Shiravi

et al., 2012), as prelude to their efforts in generating a

new approach for dataset creation.

This work will only offer a very brief overview of

the most studied datasets. KDDCUP99 (KDD99), the

subject of ACM’s yearly competition on Data mining

and Knowledge Discovery in 1999 is by far the most

studied data set for intrusion detection. Its origin is to

be found in a DARPA funded project, run by the Lin-

coln Lab at MIT, which was tasked with evaluating

the state of the art IDSs at the time. Apart from be-

ing based on twenty year old data by now, it has also

been criticized by McHugh in 2000 (McHugh, 2000),

by Brown et al. in 2009 (Brown et al., 2009) and by

Tavallaee et al. also in 2009 (Tavallaee et al., 2009).

The persistence of a single dataset for almost two

decades and its improved version, which now also

is nearly a decade old, called for new research into

dataset generation. The Canadian Institute for Cyber-

security (CIC), a coalition of academia, government

and the public sector, based at the University of New

Brunswick is the front runner in this ﬁeld of research.

The analysis by Tavallaee et al. of the dataset resulted

in a new dataset, named NSL-KDD, in which struc-

tural deﬁciencies of KDD99 were addressed. NSL-

KDD does not have redundant records in the training

data, removed duplicates from testing data, reduced

the total number of records so that the entire dataset

could be used, instead of needing to sample it. Finally,

to improve the variability in ability of the learners

they tested, items which were hard to classify (a mi-

nority of the learners classiﬁed them properly), were

added to NSL-KDD with a much higher frequency

than items which most of the classiﬁers identiﬁed cor-

rectly. Because NSL-KDD is a derivation of KDD99,

it is not completely free from its origin’s issues.

2.2.1 ISCXIDS2012 & CICIDS2017

After publishing NSL-KKD, the CIC started a new

project to create modern, realistic datasets in a scal-

able way. The ﬁrst results from this project are docu-

mented in (Shiravi et al., 2012). Their system uses

alfa and beta proﬁles. Alfa proﬁles are abstracted

versions of multi-stage attacks, which would ideally

be executed fully automatically, but human execu-

tion remains an option. Beta proﬁles are per proto-

col abstractions ranging from statistical distributions

to custom user-simulating algorithms. Building on

this foundation, published in 2012, a new dataset was

published in 2017. The main difference is that CI-

CIDS2017 (Sharafaldin et al., 2018) is geared more

towards machine learning, with its 80 ﬂow-based fea-

tures, whereas, ISCXIDS2012 had 20 packet features.

Both datasets give access to the raw pcap ﬁles, for fur-

ther analysis. The ﬂow features were gathered with

CICFlowMeter, an open source ﬂow generator and

analyzer. CICIDS2017 added an HTTPS beta pro-

ﬁle, which was necessary to keep up with the surge

in HTTPS adoption on the web (Google transparency

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

126

report). This rest of this work will cover an analysis

of the newest dataset, CICIDS2017.

3 ARCHITECTURE AND

IMPLEMENTATION

The evaluation of this dataset is a project in Python,

supported by the Pandas (McKinney, ), Numpy and

Sklearn (Pedregosa et al., 2011) modules. The fol-

lowing subsections detail the engineering effort and

choices to produce a robust, portable solution to eval-

uate any dataset. Google’s guide (Zinkevich, ), Rules

of Machine Learning: Best Practices for ML Engi-

neering, by Martin Zinkevich, has been inﬂuential on

the implementation (mainly rules 2, 4, 24, 25, 32

and 40), as well as the detailed guides offered by

Scikit-Learn. The current implementation makes use

of nine supervised machine learning classiﬁers. Four

tree-based algorithms: a single decision tree (CART)

(dtree), a random forest ensemble learner (rforest), a

bagging ensemble learner (bag) and an adaboost en-

semble learner (ada). Two neighbor-based ones: the

K-nearest neighbor classiﬁer (knn) and the N-centroid

classiﬁer (ncentroid), two SVM-based methods: lin-

earSVC (liblinear subsystem) (linsvc) and RBFSVC

(libsvm subsystem) (rbfsvc) and one logistic regres-

sion (L-BFGS solver) (binlr).

3.1 Data Loading & Preprocessing

The dataset consists of labeled ﬂows for eight days. A

merged version has also been created. Details about

the content are listed in table 1. Each day has the same

features, 84 in total (label not included), though it

should be noted that the ”Fwd Header Length” feature

is duplicated, an issue of CICFlowMeter that has been

ﬁxed in the source code, but persisted in the dataset.

Another caveat when importing this data for analysis,

is the presence of the literal value Inﬁnity. String-type

data like this results in run time crashes, when mixed

with numeric data. This was rectiﬁed by replacing the

strings with NaN values.

The Label column was binarized. While this does

incur information loss, it is justiﬁed for an outer de-

fense layer to classify ﬁrst between benign and ma-

lign trafﬁc. For each ﬁle the distribution over attack -

normal trafﬁc is summarized in table 2.

3.2 Cross-validation and Parameter

Optimization

The implementation has two main branches, cross-

validated parameter optimization and single execution

Table 1: CICIDS2017 day, attack type, size mapping.

Dataset ﬁles

Day Attack type(s) Size (MB)

Mon No attacks 231

Tue FTP / SSH bruteforce 173

Wed Layer 7 DoS and

Heartbleed

283

Thu AM Web attacks 67

Thu PM Inﬁltration 108

Fri AM Ares botnet 75

Fri PM 1 Nmap port scanning 101

Fri PM 2 Layer 4 DDoS 95

Merged All 1100

Table 2: CICIDS2017 day, benign samples, malign sam-

ples.

Dataset attack distribution

Day Benign Malign

Mon 529918 0

Tue 432074 13835

Wed 440031 252672

Thu AM 168186 2180

Thu PM 288566 36

Fri AM 189067 1966

Fri PM 1 97718 128027

Fri PM 2 127537 158930

Merged 2273097 557646

Table 3: CICIDS2017 algorithm, parameters, ranges.

Parameter tuning search space

Algorithm Parameters Search space

dtree

max features 2..columns 1

max depth 1 .. 35 1

rforest

max features 2..columns 5

max depth 1 .. 35 5

bag

max features 0.1 .. 1.0 .1

max samples 0.1 .. 1.0 .1

ada

n estimators 5 .. 50 5

learning rate 0.1 .. 1.0 .1

knn

n neighbors 1 .. 5 1

distance metric manhattan euclid

linsvc

max iterations 10e3. ∗10e6 10

tolerance 10e − 3. ∗ 10e − 5 .1

binlr

max iterations 10e3. ∗ 10e6 10

tolerance 10e − 3. ∗ 10e − 5 .1

testing. The branches share all code up to the point

where the choice of algorithm is done. For parame-

ter tuning, K-fold cross-validation is employed, with

k = 5. The splits are stratiﬁed, taking samples propor-

tional to their representation in the class distribution.

Parameter tuning is done with grid search, eval-

uating all combinations of a parameter grid. This is

multiplicative: e.g. for two parameters, respectively

with three and ﬁve values, ﬁfteen combinations are

tested. An overview of the algorithms and their pa-

In-depth Comparative Evaluation of Supervised Machine Learning Approaches for Detection of Cybersecurity Threats

127

rameter search spaces can be seen in table 3.

Special care went into avoiding model contami-

nation. The data given for cross-validated parameter

tuning is two thirds of that day’s data. Optimal param-

eters are derived from only that data. The results from

cross-validation are stored. These results include: the

total search time, the optimal parameters, the param-

eter search space and the means of ﬁve metrics (bal-

anced accuracy, precision, recall, f1-score and ROC-

AUC).

3.3 Metric Evaluation and Model

Selection

The only point of interaction between the cross-

validation (cv) code and the single execution is in

gathering the optimal model parameters from the re-

sult ﬁles, written to disk by the cv code. The op-

timal parameters are chosen, based on a voting sys-

tem. That voting system looks at the ranks each set of

tested parameters gets on the following ﬁve metrics:

Balanced Accuracy: combined per class accuracy,

useful for skewed class distributions. Obtained

through evaluating equation 1 for each class, aver-

aged, compared to accuracy itself which also uses

equation 1 over all classes simultaneously. TP, TN,

FP, FN respectively stand for true / false positive /

negative.

ACC =

T P + T N

T P + T N + FP + FN

(1)

Precision: Of the items that were tagged as positive,

how many are actually positive (equation 2).

PR =

T P

T P + FP

(2)

Recall: Of the items that were tagged as positive, how

many did we tag compared to all positive items (equa-

tion 3).

RC =

T P

T P + FN

(3)

F1-score: deﬁned as the harmonic mean of preci-

sion and recall (equation 4), the F1-score combines

these metrics in such a way that the impact of poor

scores on either of the metrics, heavily impacts the ﬁ-

nal score. In order to achieve a high F1-score, it is not

only sufﬁcient to be precise in prediction (discrimina-

tive power), but equally high in ﬁnding a generalized

representation of positive samples.

F1 =

2 ∗ precision ∗ recall

precision + recall

(4)

ROC-AUC: the receiver operator characteristic

(ROC) is a visual metric of the relationship between

the true positive rate (recall) on the y-axis and the

false positive rate (equation 5) on the x-axis at differ-

ent classifying thresholds. The thresholds are implicit

in the curve. In essence it shows how well a classi-

ﬁer is able to separate the classes. To avoid having to

interpret the plot, the area under the curve (AUC) is

calculated. An AUC of 1 would mean that the clas-

siﬁer is able to completely separate the classes from

each other. An AUC of 0.5 indicates that the class dis-

tributions overlay each other fully, meaning that the

classiﬁer isn’t better than random guessing. The AUC

reduces the ROC curve to a single number. If special

care has to be given to the avoidance of false posi-

tives or to maximal true positive rate, then the AUC

metric is no longer helpful. For unbalanced data sets,

the ROC curve is a great tool, because the imbalance

is irrelevant to the outcome.

FPR =

FP + T N

(5)

The optimal parameters are decided by a voting

mechanism that works as follows: 1: Find the highest

ranked set of parameters for each of the ﬁve metrics.

2: Aggregate across the found sets. 3: Pick the most

prevalent set. Some algorithms showed a high pref-

erence for certain parameter values. The results are

summarized in table 4.

Table 4: CICIDS2017 algorithm, parameters, results.

Parameter tuning search results

Algorithm Parameters Search results

dtree

max features no clear winners

max depth no clear winners

rforest

max features no clear winners

max depth no clear winners

bag

max features 0.7 / 0.8 (18/21)

max samples 0.9 / 1.0 (19/21)

ada

n estimators no clear winners

learning rate 0.6 (7/21)

knn

n neighbors 1 (20/21)

distance metric manhattan (17/21)

linsvc

max iterations 1000 (16/21)

tolerance 10e − 5 (21/21)

binlr

max iterations 1000 (13/21)

tolerance 10e − 3 (21/21)

3.4 Algorithm Retesting with Optimal

Parameters

For each day (each attack scenario), the algorithms

were retested with optimal parameters. Execution of

the ﬁxed parameter functions, yields a dictionary with

the used parameters, the run time, the predicted la-

bels on the test set and the actual labels for the test

set. Seven metrics are gathered, namely the ﬁve met-

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

128

rics used to evaluate in the cross-validation phase (de-

scribed in paragraph 3.3). In addition the accuracy

score is kept as well as the confusion matrix.

4 EVALUATION RESULTS

This section describes the results from the retesting

with optimized parameters. In total 9 algorithms were

tested. It should be noted that for two of these no

cross-validation was done. The N-centroid classiﬁer

does not use optimized parameters, due to a limita-

tion of Scikit-learn. For the RBF-SVC classiﬁer, pa-

rameter optimization was skipped due to the excessive

run times of forced single-core execution. The results

are described in their respective algorithmic classes

in subsection 4.1. All testing was done on two types

of infrastructure, roughly reﬂecting corporate and pri-

vate environments. The corporate grade server was

equipped with 2X Intel Xeon E5-2650v2 @ 2.6GHz

(16 cores) and 48GB of RAM, while the consumer-

grade host had 1X Intel Core i5-4690 @ 3.5GHz (4

cores) and 16 GB of RAM.

4.1 Algorithm Comparison

This section details the results of testing the vari-

ous classiﬁcation algorithms. The algorithms are

grouped, based on their underlying classiﬁer. Due

to page constraints only results of single execution

on the consumer-grade hardware are contained in

the paper in tabular format in appendix 5.1. It is

advised to use this paper with the full collection of

tables and derived graphs that are publicly available

at https://gitlab.ilabt.imec.be/lpdhooge/cicids2017-

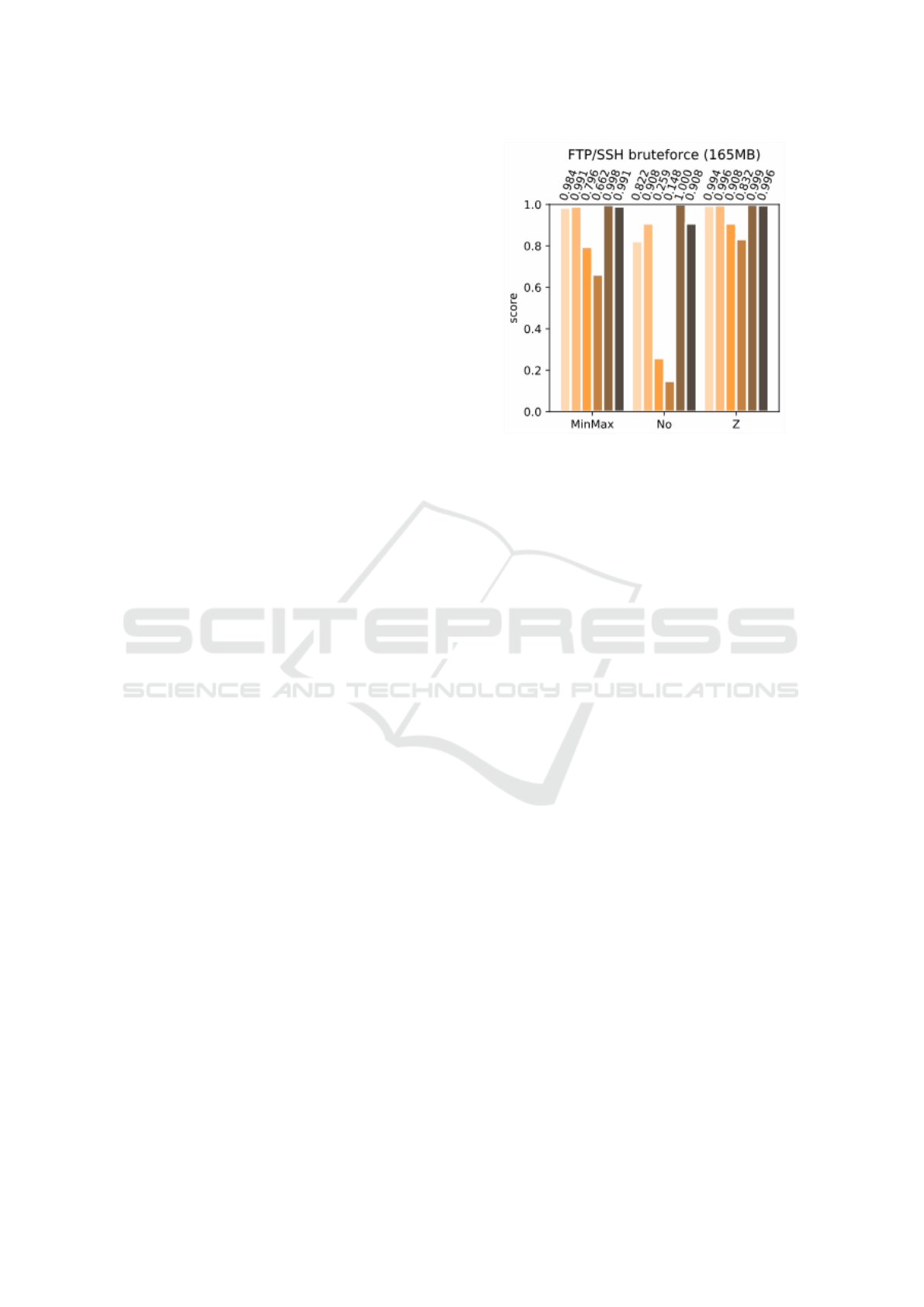

ml-graphics. A sample result graphic is shown in

ﬁgure 1.

4.1.1 Tree-based Classiﬁers

On the whole, the tree-based classiﬁers obtained the

best results for all attack types, on all metrics. Even

a single decision tree is able to achieve 99+% on

all metrics for the DoS / DDoS and Botnet attack

types. Another interesting ﬁnding is that building the

tree without scaling the features, improves the perfor-

mance on all metrics for detection of the brute force

and port scanning trafﬁc, to be near-perfect. Results

on the merged dataset reveal that identiﬁcation across

different attack classes works with equally great re-

sults to the best-identiﬁed classes. It should however

be noted that good performance on the merged data

set includes the attack classes with the most samples

Figure 1: Sample result, full results available at

https://gitlab.ilabt.imec.be/lpdhooge/cicids2017-ml-

graphics.

(DoS, port scan & DDoS) and might obfuscate worse

performance on the less prevalent attack classes.

When introducing meta-estimators, techniques at

a higher level of abstraction that introduce concepts

to improve the underlying classiﬁer(s), several bene-

ﬁts were discovered. Random forests improved the

results on port scanning trafﬁc when applying either

of the scaling methods, compared to a decision tree.

For the other attack types results are very similar,

with a noted reduction on botnet trafﬁc classiﬁcation,

but only when using MinMax scaling. A reduction

on multiple classiﬁcation metrics is observed for the

inﬁltration attacks as well. This attack type consis-

tently is the hardest to classify, not least because the

dataset only contains 36 of these ﬂows, compared to

the 288566 benign samples in the same set (2).A mod-

est improvement on all metrics is observed for the

merged data set compared to a single decision tree.

The bagging classiﬁer proved itself to be a more

potent meta-estimator, reaching near-perfect scores

on all metrics for the brute force, Dos, DDoS, botnet

and port scanning trafﬁc. The improved performance

and stability in the brute force and botnet classes com-

pared to plain decision trees and random forests is its

main advantage. Scoring on the inﬁltration attacks did

take a big hit. This is believed to be a result of the ad-

ditional sampling employed by the bagging classiﬁer,

when the number of samples to learn from is already

very low. The almost perfect classiﬁcation on ﬁve of

the seven attack classes generalized to the evaluation

of the entire data set.

The overall best meta-estimator was discovered as

adaboost. Adaboost retains the near perfect scores,

achieved by the bagging classiﬁer on the previously

In-depth Comparative Evaluation of Supervised Machine Learning Approaches for Detection of Cybersecurity Threats

129

mentioned classes. Thanks to its focus on improv-

ing classiﬁcation for difﬁcult samples, it was the best

classiﬁer for inﬁltration attacks, reaching balanced

accuracies between 75% and 79.2%. Unfortunately

the recall was never higher than 58.3%, meaning that

about half of the inﬁltration ﬂows were misclassiﬁed.

Similarly to the bagging classiﬁer, performance was

stable and equally high on the merged data set. In

total, 5 of the seven attack classes could be discov-

ered with very high reliability, irrespective of the em-

ployed feature scaling method. On the web attacks

(brute force, XSS and SQLi), the random forest and

bagging classiﬁers had a slight, but stable edge com-

pared to single decision trees and adaboost. The only

class on which classiﬁcation underperformed on all

metrics was inﬁltration. Results pertaining to execu-

tion times are described in subsection 4.2.

4.1.2 SVM-based Classiﬁers and Logistic

Regression

This subsection covers three more algorithms, two

support vector machines: one with a linear kernel and

one with a radial basis function kernel and a logistic

regression classiﬁer. Full results are listed in table 7.

The linear support vector machine consistently

has very high scores on all metrics for the DoS, DDoS

and port scan attack classes. Recall on the ftp/ssh

brute force, web attacks and botnet attack classes is

equally high, but gets offset by lower precision scores

especially in the absence of feature scaling. The al-

gorithm thus succeeds in recognizing most of the at-

tacks, but has higher false-positive rates compared to

the tree-based methods. Precision on the inﬁltration

attack classes is extremely poor. The logistic regres-

sion with binomial output results, tells a similar story.

Like the linear support vector classiﬁer (linSVC), it

performs best and most stably on the DoS, DDoS

and port scanning trafﬁc. Furthermore, recall scores

on the brute force, web and botnet trafﬁc classes are

high to very high, but paired with worse precision

scores compared to the linSVC, the applicability of

this model gets reduced. One consistent result is that

feature scaling is a necessity for the logistic regres-

sion classiﬁer, preferring standardization over min-

max scaling. The generalization or lack thereof is

clearly visible in the results on the merged data set.

Performance is reasonable with standardized features

(98.4% recall & 80.4% precision), but not even close

to the performance of the tree-based classiﬁers. This

performance reduction does indicate that misclassiﬁ-

cation on the less prevalent classes is impactful on

the ﬁnal scores. The last algorithm in this category,

a support vector classiﬁer with radial basis function

in the kernel demonstrates the importance of proper

method selection for feature scaling. This classiﬁer

has dismal performance when features are used as in-

put without scaling, not reaching acceptable perfor-

mance on any of the seven attack classes. Minmax

scaling gives great results on the DoS, port scan and

DDoS attacks (the classes with the most samples to

learn from 2). Standardizing (Z) scaling improves

performance on these classes even further and suc-

ceeds much better at recognizing brute force, web and

botnet trafﬁc, making the classiﬁer a valid contender

for use on ﬁve of the seven attack classes.

4.1.3 Neighbor-based Classiﬁers

Despite its simplicity, the k-nearest neighbors algo-

rithm, generally looking at only one neighbor and us-

ing the Manhattan (block) distance metric, is a high-

performer in 6/7 attack scenarios. In four scenarios,

99.9% on all metrics is almost invariably obtained,

with metrics for the other attack classes never be-

low 95.7%. The elusive class to recognize remains

inﬁltration attack trafﬁc. Interestingly enough, even

though this too is a distance-based algorithm, all fea-

ture scaling methods, yielded very similar results.

Another conclusion is the loss of perfect classiﬁca-

tion, compared to the tree-based classiﬁers. While

the reduction in classiﬁcation performance is minute,

it is observable and stable. Performance on the

merged data set shows generalization capability, but

this comes at a cost further described in subsection

4.2. The last algorithm, nearest centroid classiﬁer is

equally simple and has some interesting properties.

Its results resemble the SVM results, with high, sta-

ble recognition of DDoS and port scanning trafﬁc,

mediocre but stable results in the DoS category and

medium to high recall on the ftp/ssh brute force, web

attack and botnet trafﬁc, but again paired with low

precision scores. Combined with its run time pro-

ﬁle, it has application potential for the recognition of

DDoS and port scanning trafﬁc. The perfect scores

on recall, regardless of scaling method for the FTP

/ SSH brute force and web attacks are also in inter-

esting property. On the merged data set results show

degraded performance, reﬂective of the poor classi-

ﬁcation scores on the other attack classes. Detailed

results are available in the appendix in table 6.

4.2 Time Performance Comparison

Real-world intrusion detection systems have con-

straints, when evaluating trafﬁc. Some example con-

straints are a.o.: required throughput, minimization of

false positives, maximization of true positives, evalu-

ation in under x units of time, real-time detection. To

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

130

gain insight in the run time requirements of the dif-

ferent algorithms, summarizing charts can be seen in

ﬁgures 2 and 3. Five main takeaways should be noted

from these charts. First, as long as the dataset stays

under 200 megabytes, evaluation can be done in un-

der 20 seconds by most algorithms. To give an idea

of the amount of ﬂows in 200 MB, the Tuesday data

set, 173 MB in size contains 445909 ﬂows. Second,

the algorithms split in two categories when looking at

execution times: all tree and neighbor methods keep

their execution time under one minute on both types

of infrastructure when evaluating data sets under 300

MB. The SVM and regression models take more time

to run, with outliers that are caused by not scaling the

features. Applying a standardizing scaler to the data,

drastically reduces the execution time. Third, the

consumer-grade infrastructure holds its own against

the corporate server. The reason for this is twofold.

Purely on a hardware level, the lower core count, but

substantially higher clock speeds (and thermal head-

room for aggressive frequency scaling) keep the sys-

tems in competition. Another factor is how well an

algorithm is suited for parallel execution. For exam-

ple knn makes full use of all available cores, because

the problem is easily separable, while the implemen-

tation of the rbfsvc in LIBSVM locks execution to a

single core. Fourth, the nearest centroid classiﬁer is

as good as insensitive to data set size. In combination

with the classiﬁer’s ability in recognizing DDoS and

port scanning trafﬁc, it is conceivable to employ it in

real-time on IoT networks to identify compromised

devices, taken over to execute DDoS attacks (blog, ).

Fifth and ﬁnally, execution times on the merged data

set inﬂuence algorithm choice. Execution time on the

consumer-grade hardware stays under ten minutes for

the full, 1.1 GB data set for the ada, bag, dtree, ncen-

troid and rforest classiﬁers (around and under ﬁve

minutes when ignoring the bagging classiﬁer). Knn

is very resource intensive and doesn’t scale well into

larger data sets. Evaluation on the merged data set

took almost 1 hour and 30 minutes. The logistic re-

gression completed evaluation of the full dataset in

just over 30 minutes. In general using the corporate

infrastructure with higher core counts reduces the ex-

ecution time, but as mentioned earlier, this potential

speedup depends on the implementation.

4.3 Result Comparison to State of the

Art

Because of the recency of CICIDS2017, published re-

search is still limited. Nonetheless a comparison to a

selection of relevant research is already possible.

Attak et al. (Attak et al., ) focus on the DARE

(data analytics and remediation engine) component

of the SHIELD platform, a cybersecurity solution for

use in software deﬁned networks (SDN) with network

function virtualization (NFV). The machine learn-

ing methods that were tested are segmented into two

classes: those for anomaly detection and those for

threat classiﬁcation. Comparison to this work is apt

for the threat classiﬁcation portion. The researchers

kept only a 10-feature subset of the ﬂow data. This

subset was chosen, not produced by a feature selec-

tion technique. The threat classiﬁcation made use of

the random forest and multi-layer perceptron classi-

ﬁers. Optimal models from a 10-fold cross-validation

were used on 20% of the data that was held out for

validation. The random forest classiﬁer obtained the

best results on accuracy, precision and recall, often

reaching perfect classiﬁcation. The multi-layer per-

ceptron had similar accuracy scores, but much greater

variability on precision and recall. Overall their re-

search shows favourable results for the random forest,

both in terms of performance on the tested classiﬁca-

tion metrics, but also on execution time.

Marir et al. (Marir et al., 2018) propose a sys-

tem for intrusion detection with deep learning for fea-

ture extraction followed by an ensemble of SVMs for

classiﬁcation, built on top of Spark, the distributed in-

memory computation engine. The feature extraction

is done by a deep belief network (DBN), a stack of

restricted Boltzmann machines. Next, the dimension-

reduced sample set is fed to a layer of linear SVMs for

classiﬁcation. Layers further in the stack of SVMs are

given samples for which previous layers weren’t con-

ﬁdent enough. Because both the DBN and the SVMs

operate in distributed fashion, the master node decides

whether enough data is present to build a new layer. If

not, then the ensemble of SVMs are the models pro-

duced in the ﬁnal layer. This approach was tested on

four datasets, namely KDD99, NSL-KDD, UNSW-

NB15 and CICIDS2017. The results of testing their

approach reveal that the combination of deep learn-

ing for feature extraction and supervised learning with

an emphasis on retraining for difﬁcult samples, yields

better performance on the classiﬁcation metrics, but

requires more training time than the application of the

individual parts on the classiﬁcation task.

5 CONCLUSIONS AND FUTURE

WORK

This paper contains a detailed analysis of CI-

CIDS2017, a modern data set geared towards the ap-

plication of machine learning to network intrusion de-

tection systems. The design and implementation have

In-depth Comparative Evaluation of Supervised Machine Learning Approaches for Detection of Cybersecurity Threats

131

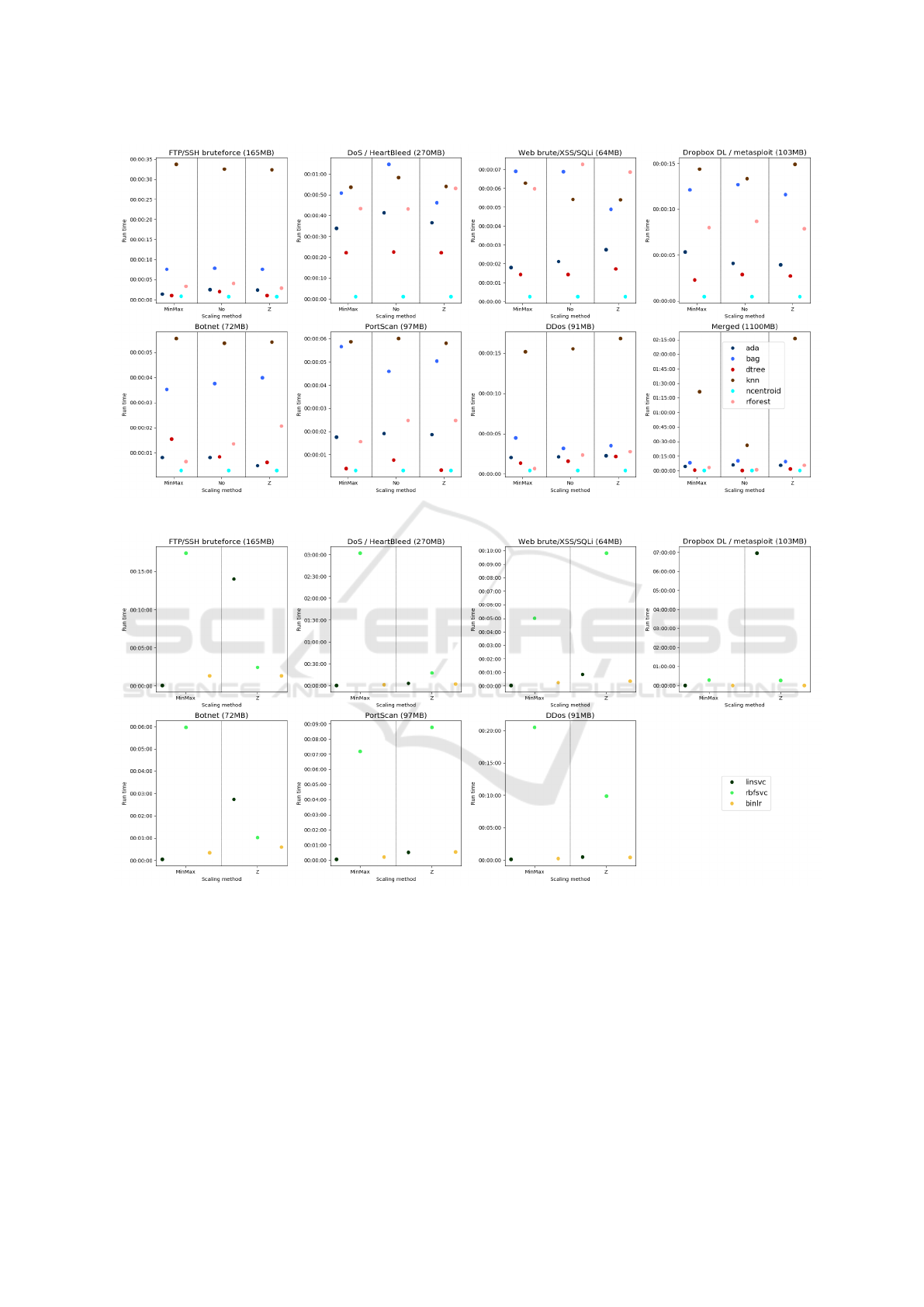

Figure 2: Algorithm run times i5 scatter part 1.

Figure 3: Algorithm run times i5 scatter part 2.

been laid out in section 3, focusing on the principles

and application of solid machine learning engineer-

ing. The main section of this paper conveys the results

of applying nine supervised learning algorithms with

optimized parameters to the data. Results were gath-

ered for every individual day, containing trafﬁc from

a speciﬁc attack class, as well as for a merged ver-

sion, containing all attack types. The analysis was run

on both consumer- and professional-grade hardware,

to conﬁrm stability of the results further and to in-

vestigate differences in execution time. In general, it

can be stated that the tree-based classiﬁers performed

best. Single decision trees are capable of recogniz-

ing DoS, DDoS and botnet trafﬁc. Meta-estimators

based on decision trees improved performance to the

point where they are practically applicable for six of

the seven attack classes. This was most true for the

bagging- and adaboost classiﬁers. Another improve-

ment of meta-estimators over single decision trees

is their ability to abstract over the choice of feature

scaling. In addition performance generalized to the

merged data set, without incurring heavy increases in

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

132

execution time. The elusive attack class to classify

was inﬁltration. One reason for this might be the se-

vere lack of positive training samples for this cate-

gory, a natural consequence of the low network foot-

print of inﬁltration attacks. Only k-nearest neighbors

(knn) came close to a decent precision score for this

class, but it lacked in recall. Despite its simplicity

knn is a potent classiﬁer for ﬁve of the seven attack

classes. It is held back by its steep increase in exe-

cution time for larger data sets, even though it gener-

alizes as well as the tree-base meta-estimators. Op-

posite to this is the nearest centroid classiﬁer, being

nigh insensitive to dataset size, while applicable for

the classiﬁcation of port scan and DDoS trafﬁc and for

perfect detection of brute force and DoS trafﬁc. The

ﬁnal algorithms, two support vector machines with

different kernels and logistic regression are useful for

recognition of port scan, DoS and DDoS trafﬁc, pro-

vided the features are scaled (preferably normalized).

However, these classiﬁers are not favoured when pit-

ted against the tree-based classiﬁers, because the at-

tack classes on which they perform well are only a

subset of the classes for which the tree-based perform

equally well.

REFERENCES

Attak, H., Combalia, M., Gardikis, G., Gast

on, B., Jacquin,

L., Litke, A., Papadakis, N., Papadopoulos, D., and

Pastor, A. Application of distributed computing

and machine learning technologies to cybersecurity.

Space, 2:I2CAT.

Axelsson, S. (2000). Intrusion detection systems: A survey

and taxonomy.

blog, C. Inside the infamous mirai iot botnet: A retrospec-

tive analysis.

Brown, C., Cowperthwaite, A., Hijazi, A., and Somayaji,

A. (2009). Analysis of the 1999 darpa/lincoln labora-

tory ids evaluation data with netadhict. In Computa-

tional Intelligence for Security and Defense Applica-

tions, 2009. CISDA 2009. IEEE Symposium on, pages

1–7. IEEE.

Buczak, A. L. and Guven, E. (2016). A survey of data min-

ing and machine learning methods for cyber security

intrusion detection. IEEE Communications Surveys &

Tutorials, 18(2):1153–1176.

Denning, D. and Neumann, P. G. (1985). Requirements and

model for IDES-a real-time intrusion-detection expert

system. SRI International.

Hodo, E., Bellekens, X., Hamilton, A., Tachtatzis, C., and

Atkinson, R. (2017). Shallow and deep networks in-

trusion detection system: A taxonomy and survey.

arXiv preprint arXiv:1701.02145.

Marir, N., Wang, H., Feng, G., Li, B., and Jia, M.

(2018). Distributed abnormal behavior detection ap-

proach based on deep belief network and ensemble

svm using spark. IEEE Access, 6:59657–59671.

McHugh, J. (2000). The 1998 lincoln laboratory ids eval-

uation. In Debar, H., M

e, L., and Wu, S. F., editors,

Recent Advances in Intrusion Detection, pages 145–

161, Berlin, Heidelberg. Springer Berlin Heidelberg.

McKinney, W. pandas: a foundational python library for

data analysis and statistics.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer,

P., Weiss, R., Dubourg, V., Vanderplas, J., Passos,

A., Cournapeau, D., Brucher, M., Perrot, M., and

Duchesnay, E. (2011). Scikit-learn: Machine learning

in Python. Journal of Machine Learning Research,

12:2825–2830.

Sharafaldin, I., Lashkari, A. H., and Ghorbani, A. A.

(2018). Toward generating a new intrusion detec-

tion dataset and intrusion trafﬁc characterization. In

ICISSP, pages 108–116.

Shiravi, A., Shiravi, H., Tavallaee, M., and Ghorbani, A. A.

(2012). Toward developing a systematic approach to

generate benchmark datasets for intrusion detection.

computers & security, 31(3):357–374.

Tavallaee, M., Bagheri, E., Lu, W., and Ghorbani, A. A.

(2009). A detailed analysis of the kdd cup 99 data

set. In Computational Intelligence for Security and

Defense Applications, 2009. CISDA 2009. IEEE Sym-

posium on, pages 1–6. IEEE.

Wu, S. X. and Banzhaf, W. (2010). The use of computa-

tional intelligence in intrusion detection systems: A

review. Applied soft computing, 10(1):1–35.

Zinkevich, M. Rules of machine learning: Best practices

for ml engineering.

APPENDIX

5.1 Intel Core i5-4960 Full Results

Tables 5, 6 and 7 contain all results. Sim-

ilar tables with detailed results for the

execution times are available online at

https://gitlab.ilabt.imec.be/lpdhooge/cicids2017-

ml-graphics. Mirror tables and accompanying

graphics of testing on the Intel Xeon E5-2650v2 are

also available via the aforementioned link.

In-depth Comparative Evaluation of Supervised Machine Learning Approaches for Detection of Cybersecurity Threats

133

Table 5: Intel Core i5-4690 dtree, rforest and bag full results.

algorithm day scaling accuracy balanced accuracy F1 precision recall ROC-AUC

dtree

1: FTP / SSH bruteforce

MinMax 0.9922 0.9959 0.8893 0.8007 0.9998 0.9959

No 0.9999 0.9996 0.9991 0.9989 0.9993 0.9996

Z 0.9920 0.9959 0.8862 0.7957 1.0000 0.9959

2: DoS / Heartbleed

MinMax 0.9998 0.9998 0.9998 0.9997 0.9998 0.9998

No 0.9998 0.9998 0.9997 0.9997 0.9998 0.9998

Z 0.9998 0.9998 0.9997 0.9997 0.9997 0.9998

3: Web attacks

MinMax 0.9998 0.9922 0.9907 0.9971 0.9844 0.9922

No 0.9995 0.9936 0.9815 0.9755 0.9876 0.9936

Z 0.9995 0.9937 0.9817 0.9758 0.9878 0.9937

4: Inﬁltration

MinMax 0.9999 0.8182 0.7000 0.7778 0.6364 0.8182

No 0.9999 0.7500 0.5455 0.6000 0.5000 0.7500

Z 0.9999 0.7500 0.6316 0.8571 0.5000 0.7500

5: Botnet

MinMax 1.0000 1.0000 1.0000 1.0000 1.0000 1.0000

No 0.9999 0.9984 0.9940 0.9910 0.9970 0.9984

Z 0.9999 0.9985 0.9957 0.9943 0.9971 0.9985

6: Portscan

MinMax 0.8717 0.8521 0.8983 0.8154 1.0000 0.8521

No 0.9998 0.9998 0.9998 0.9999 0.9998 0.9998

Z 0.8716 0.8516 0.8983 0.8154 1.0000 0.8516

7: DDoS

MinMax 0.9999 0.9999 0.9999 0.9999 0.9999 0.9999

No 0.9998 0.9998 0.9998 0.9998 0.9998 0.9998

Z 0.9999 0.9999 0.9999 0.9999 0.9999 0.9999

8: Merged (all types)

MinMax 0.9998 0.9997 0.9995 0.9995 0.9996 0.9997

No 0.9973 0.9946 0.9931 0.9961 0.9901 0.9946

Z 0.9998 0.9998 0.9996 0.9996 0.9996 0.9998

rforest

1: FTP / SSH bruteforce

MinMax 0.9919 0.9958 0.8855 0.7946 1.0000 0.9958

No 1.0000 0.9997 0.9997 1.0000 0.9993 0.9997

Z 0.9922 0.9960 0.8866 0.7963 1.0000 0.9960

2: DoS / Heartbleed

MinMax 0.9999 0.9999 0.9999 0.9999 0.9998 0.9999

No 0.9999 0.9999 0.9999 0.9999 0.9999 0.9999

Z 0.9999 0.9999 0.9998 0.9999 0.9998 0.9999

3: Web attacks

MinMax 0.9997 0.9898 0.9870 0.9945 0.9796 0.9898

No 0.9997 0.9927 0.9901 0.9947 0.9855 0.9927

Z 0.9998 0.9944 0.9923 0.9958 0.9889 0.9944

4: Inﬁltration

MinMax 0.9999 0.8437 0.7586 0.8462 0.6875 0.8437

No 0.9999 0.7000 0.5714 1.0000 0.4000 0.7000

Z 0.9999 0.6875 0.4800 0.6667 0.3750 0.6875

5: Botnet

MinMax 0.9961 0.8102 0.7657 1.0000 0.6204 0.8102

No 1.0000 0.9992 0.9976 0.9968 0.9984 0.9992

Z 0.9999 0.9976 0.9961 0.9969 0.9953 0.9976

6: Portscan

MinMax 1.0000 1.0000 1.0000 1.0000 1.0000 1.0000

No 0.9999 0.9999 0.9999 1.0000 0.9998 0.9999

Z 0.9999 0.9999 0.9999 1.0000 0.9998 0.9999

7: DDoS

MinMax 0.9999 0.9999 0.9999 1.0000 0.9998 0.9999

No 0.9999 1.0000 1.0000 1.0000 0.9999 1.0000

Z 0.9999 0.9999 0.9999 0.9999 0.9999 0.9999

8: Merged (all types)

MinMax 0.9999 0.9998 0.9998 0.9999 0.9997 0.9998

No 0.9996 0.9992 0.9991 0.9997 0.9984 0.9992

Z 0.9999 0.9998 0.9998 0.9999 0.9997 0.9998

bag

1: FTP / SSH bruteforce

MinMax 1.0000 0.9999 0.9997 0.9996 0.9998 0.9999

No 1.0000 0.9998 0.9996 0.9996 0.9996 0.9998

Z 1.0000 1.0000 1.0000 1.0000 1.0000 1.0000

2: DoS / Heartbleed

MinMax 0.9999 0.9999 0.9999 0.9999 0.9998 0.9999

No 0.9998 0.9998 0.9997 0.9999 0.9996 0.9998

Z 0.9997 0.9997 0.9997 0.9998 0.9995 0.9997

3: Web attacks

MinMax 0.9997 0.9939 0.9899 0.9919 0.9879 0.9939

No 0.9998 0.9948 0.9905 0.9912 0.9897 0.9948

Z 0.9997 0.9890 0.9889 1.0000 0.9780 0.9890

4: Inﬁltration

MinMax 0.9999 0.7333 0.6364 1.0000 0.4667 0.7333

No 0.9999 0.7500 0.6667 1.0000 0.5000 0.7500

Z 0.9999 0.5833 0.2667 0.6667 0.1667 0.5833

5: Botnet

MinMax 0.9999 1.0000 0.9969 0.9938 1.0000 1.0000

No 1.0000 0.9977 0.9977 1.0000 0.9954 0.9977

Z 0.9999 0.9970 0.9955 0.9970 0.9940 0.9970

6: Portscan

MinMax 0.9999 0.9999 0.9999 1.0000 0.9999 0.9999

No 0.9999 0.9999 0.9999 0.9999 0.9998 0.9999

Z 0.9999 0.9999 0.9999 1.0000 0.9998 0.9999

7: DDoS

MinMax 0.9999 0.9999 0.9999 1.0000 0.9999 0.9999

No 0.9999 0.9999 1.0000 1.0000 0.9999 0.9999

Z 0.9999 0.9999 0.9999 1.0000 0.9999 0.9999

8: Merged (all types)

MinMax 0.9999 0.9998 0.9998 0.9998 0.9997 0.9998

No 0.9999 0.9998 0.9997 0.9998 0.9997 0.9998

Z 0.9999 0.9999 0.9998 0.9999 0.9998 0.9999

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

134

Table 6: Intel Core i5-4690 ada, knn, ncentroid, full results.

algorithm day scaling accuracy balanced accuracy F1 precision recall ROC-AUC

ada

1: FTP / SSH bruteforce

MinMax 1.0000 0.9997 0.9993 0.9993 0.9993 0.9997

No 1.0000 0.9999 0.9995 0.9991 0.9998 0.9999

Z 0.9999 0.9997 0.9988 0.9980 0.9996 0.9997

2: DoS / Heartbleed

MinMax 0.9998 0.9999 0.9998 0.9997 0.9999 0.9999

No 0.9998 0.9998 0.9998 0.9997 0.9998 0.9998

Z 0.9998 0.9998 0.9997 0.9997 0.9998 0.9998

3: Web attacks

MinMax 0.9995 0.9901 0.9798 0.9792 0.9805 0.9901

No 0.9996 0.9936 0.9841 0.9807 0.9875 0.9936

Z 0.9997 0.9957 0.9896 0.9875 0.9917 0.9957

4: Inﬁltration

MinMax 0.9999 0.7917 0.6364 0.7000 0.5833 0.7917

No 0.9999 0.7500 0.6316 0.8571 0.5000 0.7500

Z 0.9999 0.7916 0.6087 0.6364 0.5833 0.7916

5: Botnet

MinMax 1.0000 0.9992 0.9977 0.9969 0.9985 0.9992

No 1.0000 1.0000 0.9992 0.9985 1.0000 1.0000

Z 0.9999 0.9976 0.9931 0.9908 0.9954 0.9976

6: Portscan

MinMax 0.9998 0.9998 0.9998 0.9998 0.9999 0.9998

No 0.9998 0.9998 0.9998 0.9998 0.9999 0.9998

Z 0.9999 0.9999 0.9999 0.9999 0.9998 0.9999

7: DDoS

MinMax 0.9999 0.9999 0.9999 0.9999 0.9999 0.9999

No 0.9999 0.9999 0.9999 0.9998 0.9999 0.9999

Z 0.9999 0.9999 0.9999 0.9999 1.0000 0.9999

8: Merged (all types)

MinMax 0.9998 0.9997 0.9996 0.9995 0.9996 0.9997

No 0.9999 0.9998 0.9996 0.9996 0.9997 0.9998

Z 0.9998 0.9998 0.9996 0.9995 0.9997 0.9998

knn

1: FTP / SSH bruteforce

MinMax 0.9996 0.9976 0.9944 0.9933 0.9954 0.9976

No 0.9997 0.9981 0.9948 0.9932 0.9965 0.9981

Z 0.9996 0.9984 0.9939 0.9907 0.9972 0.9984

2: DoS / Heartbleed

MinMax 0.9969 0.9970 0.9957 0.9939 0.9975 0.9970

No 0.9966 0.9968 0.9953 0.9934 0.9973 0.9968

Z 0.9967 0.9969 0.9955 0.9935 0.9976 0.9969

3: Web attacks

MinMax 0.9994 0.9882 0.9773 0.9780 0.9766 0.9882

No 0.9995 0.9903 0.9802 0.9795 0.9809 0.9903

Z 0.9996 0.9936 0.9834 0.9794 0.9875 0.9936

4: Inﬁltration

MinMax 0.9999 0.7692 0.6667 0.8750 0.5385 0.7692

No 0.9999 0.6666 0.4000 0.5000 0.3333 0.6666

Z 0.9999 0.7000 0.5455 0.8571 0.4000 0.7000

5: Botnet

MinMax 0.9994 0.9794 0.9723 0.9859 0.9590 0.9794

No 0.9994 0.9839 0.9744 0.9808 0.9680 0.9839

Z 0.9994 0.9786 0.9738 0.9909 0.9574 0.9786

6: Portscan

MinMax 0.9990 0.9989 0.9991 0.9990 0.9992 0.9989

No 0.9987 0.9987 0.9989 0.9986 0.9992 0.9987

Z 0.9986 0.9986 0.9988 0.9984 0.9991 0.9986

7: DDoS

MinMax 0.9994 0.9994 0.9994 0.9993 0.9996 0.9994

No 0.9994 0.9993 0.9994 0.9992 0.9997 0.9993

Z 0.9993 0.9992 0.9993 0.9992 0.9995 0.9992

8: Merged (all types)

MinMax 0.9994 0.9993 0.9986 0.9979 0.9992 0.9993

No 0.9970 0.9964 0.9925 0.9896 0.9954 0.9964

Z 0.9990 0.9986 0.9975 0.9970 0.9980 0.9986

ncentroid

1: FTP / SSH bruteforce

MinMax 0.8489 0.9220 0.2946 0.1727 1.0000 0.9220

No 0.8494 0.9223 0.2937 0.1721 1.0000 0.9223

Z 0.8495 0.9224 0.2886 0.1686 1.0000 0.9224

2: DoS / Heartbleed

MinMax 0.8380 0.7869 0.7291 0.9325 0.5986 0.7869

No 0.8370 0.7858 0.7275 0.9324 0.5964 0.7858

Z 0.8376 0.7868 0.7292 0.9330 0.5984 0.7868

3: Web attacks

MinMax 0.8733 0.9358 0.1683 0.0919 1.0000 0.9358

No 0.8739 0.9362 0.1657 0.0904 1.0000 0.9362

Z 0.8761 0.9373 0.1680 0.0917 1.0000 0.9373

4: Inﬁltration

MinMax 0.9695 0.8776 0.0075 0.0038 0.7857 0.8776

No 0.9702 0.8697 0.0070 0.0035 0.7692 0.8697

Z 0.9376 0.9233 0.0034 0.0017 0.9091 0.9233

5: Botnet

MinMax 0.9644 0.8139 0.2713 0.1707 0.6603 0.8139

No 0.9638 0.7924 0.2584 0.1634 0.6174 0.7924

Z 0.9635 0.7894 0.2564 0.1622 0.6117 0.7894

6: Portscan

MinMax 0.9659 0.9608 0.9708 0.9433 1.0000 0.9608

No 0.9654 0.9600 0.9704 0.9426 1.0000 0.9600

Z 0.9667 0.9615 0.9714 0.9445 1.0000 0.9615

7: DDoS

MinMax 0.9429 0.9356 0.9512 0.9069 1.0000 0.9356

No 0.9433 0.9364 0.9513 0.9070 1.0000 0.9364

Z 0.9425 0.9354 0.9507 0.9060 1.0000 0.9354

8: Merged (all types)

MinMax 0.7975 0.8247 0.6285 0.4921 0.8696 0.8247

No 0.8856 0.9273 0.7743 0.6333 0.9962 0.9273

Z 0.6990 0.7024 0.4810 0.3642 0.7080 0.7024

In-depth Comparative Evaluation of Supervised Machine Learning Approaches for Detection of Cybersecurity Threats

135

Table 7: Intel Core i5-4690 binlr, linsvc and rbfsvc full results.

algorithm day scaling accuracy balanced accuracy F1 precision recall ROC-AUC

binlr

1: FTP / SSH bruteforce

MinMax 0.9841 0.9906 0.7959 0.6621 0.9976 0.9906

No 0.8222 0.9081 0.2586 0.1485 0.9998 0.9081

Z 0.9937 0.9960 0.9078 0.8322 0.9985 0.9960

2: DoS / Heartbleed

MinMax 0.9958 0.9965 0.9943 0.9899 0.9988 0.9965

No 0.8814 0.8732 0.8383 0.8336 0.8430 0.8732

Z 0.9995 0.9996 0.9993 0.9985 1.0000 0.9996

3: Web attacks

MinMax 0.9848 0.9923 0.6271 0.4568 1.0000 0.9923

No 0.9480 0.9277 0.3086 0.1859 0.9068 0.9277

Z 0.9970 0.9978 0.8958 0.8122 0.9986 0.9978

4: Inﬁltration

MinMax 0.9905 0.9952 0.0257 0.0130 1.0000 0.9952

No 0.0001 0.5000 0.0003 0.0001 1.0000 0.5000

Z 0.9969 0.9151 0.0641 0.0333 0.8333 0.9151

5: Botnet

MinMax 0.9723 0.9791 0.4227 0.2690 0.9861 0.9791

No 0.7737 0.8818 0.0828 0.0432 0.9923 0.8818

Z 0.9820 0.9856 0.5315 0.3633 0.9892 0.9856

6: Portscan

MinMax 0.9949 0.9941 0.9955 0.9912 0.9998 0.9941

No 0.9557 0.9489 0.9624 0.9276 1.0000 0.9489

Z 0.9985 0.9984 0.9987 0.9980 0.9995 0.9984

7: DDoS

MinMax 0.9974 0.9972 0.9977 0.9965 0.9989 0.9972

No 0.9279 0.9193 0.9389 0.8861 0.9984 0.9193

Z 0.9987 0.9986 0.9988 0.9981 0.9995 0.9986

8: Merged (all types)

MinMax 0.9433 0.9566 0.8719 0.7863 0.9784 0.9566

No 0.8232 0.7416 0.5750 0.5460 0.6071 0.7416

Z 0.9498 0.9627 0.8853 0.8045 0.9841 0.9627

linsvc

1: FTP / SSH bruteforce

MinMax 0.9927 0.9957 0.8948 0.8103 0.9989 0.9957

No 0.9753 0.9867 0.7154 0.5572 0.9989 0.9867

Z 0.9973 0.9979 0.9582 0.9210 0.9985 0.9979

2: DoS / Heartbleed

MinMax 0.9991 0.9993 0.9988 0.9977 0.9999 0.9993

No 0.9964 0.9971 0.9951 0.9905 0.9998 0.9971

Z 1.0000 1.0000 0.9999 0.9999 1.0000 1.0000

3: Web attacks

MinMax 0.9951 0.9975 0.8395 0.7233 1.0000 0.9975

No 0.9952 0.9969 0.8407 0.7260 0.9986 0.9969

Z 0.9991 0.9995 0.9645 0.9313 1.0000 0.9995

4: Inﬁltration

MinMax 0.9877 0.9522 0.0184 0.0093 0.9167 0.9522

No 0.9918 0.8709 0.0225 0.0114 0.7500 0.8709

Z 0.9993 0.9580 0.2418 0.1392 0.9167 0.9580

5: Botnet

MinMax 0.9810 0.9820 0.5164 0.3502 0.9831 0.9820

No 0.9229 0.9611 0.2108 0.1178 1.0000 0.9611

Z 0.9837 0.9872 0.5562 0.3867 0.9908 0.9872

6: Portscan

MinMax 0.9969 0.9964 0.9973 0.9947 0.9998 0.9964

No 0.9858 0.9866 0.9874 0.9946 0.9802 0.9866

Z 0.9992 0.9993 0.9993 0.9996 0.9991 0.9993

7: DDoS

MinMax 0.9974 0.9972 0.9977 0.9963 0.9990 0.9972

No 0.9441 0.9389 0.9514 0.9185 0.9868 0.9389

Z 0.9995 0.9995 0.9995 0.9996 0.9994 0.9995

rbfsvc

1: FTP / SSH bruteforce

MinMax 0.9803 0.9892 0.7586 0.6116 0.9987 0.9892

No 0.9698 0.5137 0.0533 1.0000 0.0274 0.5137

Z 0.9996 0.9997 0.9936 0.9875 0.9998 0.9997

2: DoS / Heartbleed

MinMax 0.9933 0.9932 0.9908 0.9887 0.9929 0.9932

No 0.6417 0.5088 0.0346 1.0000 0.0176 0.5088

Z 0.9999 0.9999 0.9998 0.9997 0.9999 0.9999

3: Web attacks

MinMax 0.9779 0.9874 0.5361 0.3666 0.9972 0.9874

No 0.9872 0.5000 0.0000 0.0000 0.0000 0.5000

Z 0.9996 0.9998 0.9843 0.9690 1.0000 0.9998

4: Inﬁltration

MinMax 0.9885 0.9526 0.0197 0.0100 0.9167 0.9526

No 0.9999 0.5000 0.0000 0.0000 0.0000 0.5000

Z 0.9998 0.7499 0.3429 0.2609 0.5000 0.7499

5: Botnet

MinMax 0.9677 0.9822 0.3885 0.2412 0.9969 0.9822

No 0.9902 0.5239 0.0912 1.0000 0.0478 0.5239

Z 0.9951 0.9914 0.8053 0.6797 0.9877 0.9914

6: Portscan

MinMax 0.9919 0.9907 0.9929 0.9862 0.9997 0.9907

No 0.5687 0.5018 0.7245 0.5680 1.0000 0.5018

Z 0.9997 0.9997 0.9997 0.9998 0.9996 0.9997

7: DDoS

MinMax 0.9963 0.9961 0.9967 0.9952 0.9981 0.9961

No 0.5582 0.5039 0.7152 0.5567 1.0000 0.5039

Z 0.9999 0.9999 0.9999 1.0000 0.9997 0.9999

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

136
