Policy-based Deployment

in a Hybrid and Multicloud Environment

Giuseppe Di Modica

, Orazio Tomarchio

, Hao Wei

and Joaquin Salvachua Rodriguez

Department of Electrical, Electronic and Computer Engineering, University of Catania, Catania, Italy

Departamento de Ingeniera de Sistemas Telemáticos, Universidad Politécnica de Madrid, Madrid, Spain

Keywords:

Policy based Management, Multi Cloud, Cloud Provisioning, Cloud Orchestration, TOSCA, BPMN.

Abstract:

Hybrid and multi-cloud become prominent infrastructure strategy of enterprise. However, the complexity of

such infrastructure is a considerable challenge. It is common to see that multi-cloud infrastructure is divided

into several smaller units to facilitate the management. The division criteria are geolocation, cost, security,

etc. Therefore, how to manage application deployment in such partitioned environment is an intriguing topic

of multi-cloud management. We propose a policy-based deployment in multi-cloud infrastructure, which

contains policy evaluation and TOSCA standard based orchestration. The system architecture is introduced

and a case study with two empirical scenarios is discussed. The results indicate that the proposed policy-based

deployment is useful in ﬁnding suitable resource and improving deployment efﬁciency.

1 INTRODUCTION

Based on deployment models, cloud computing can

be classiﬁed into private cloud, public cloud, and hy-

brid cloud (Mell and Grance, 2010). The hybrid cloud

model combines the public cloud and private cloud,

and it delivers the best of both types of clouds. A

deep analysis of the economics of cloud computing

suggested that for enterprise hybrid cloud can offer

the best economic beneﬁts (Weinman, 2016). In ad-

dition to this, the compliance issue, legacy IT sys-

tem, etc. make the hybrid cloud model the optimal

choice for enterprise. A RightScale survey in 2017

(RightScale, 2017) conﬁrms that 67% of enterprises

worldwide currently adopt hybrid cloud.

Despite the fast growth of cloud computing, the

barriers of adopting a cloud solution still exist. Cloud

Administrators’ main concerns regard which technol-

ogy best suites the enterprise needs, which third party

cloud provider is to be preferred, how to avoid be-

ing locked-in, how to correctly and smoothly integrate

geographically distributed private resources and pub-

lic resources, how to enforce the same security level

across all resource domains (Di Modica and Tomar-

chio, 2016). When in particular a hybrid approach

has been adopted, the complexity of the management

gets higher. In this case a good strategy is to split

the multi-cloud environment into multiple infrastruc-

ture domains in a way that simpliﬁes the manage-

ment and, at the same time, preserves the ﬂexibility.

This paper proposes a policy based application de-

ployment method, which aims to relieve the admin-

istrative burden of the cloud service provisioning and

accelerate the deployment of applications in hybrid

cloud environments. The proposed approach sepa-

rates the non-functional requirements from the func-

tional ones of cloud applications. The former are ad-

dressed by means of policies, while a TOSCA-based

cloud provisioning framework caters for the latter. To

further study the insights of the proposal, realistic ex-

periments were conducted on a concrete case study.

The experimental results elucidate the viability of the

proposed approach.

The rest of this paper is organized as follows.

Section 2 summarizes the related work. Section 3

sketches the proposed system’s architecture. Section

4 presents an overview of proposed policy based ap-

plication deployment model. A case study experiment

is discussed in Section 5. Section 6 concludes the pa-

per and anticipates the future work.

2 RELATED WORK

Many cloud industry players have developed

cloud management platforms for automating the

provisioning of cloud services (e.g. Amazon

388

Di Modica, G., Tomarchio, O., Wei, H. and Rodriguez, J.

Policy-based Deployment in a Hybrid and Multicloud Environment.

DOI: 10.5220/0007726503880395

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 388-395

ISBN: 978-989-758-365-0

CloudFormation(Amazon, 2016), Rightscale Cloud

Management Platform(Rightscale, 2016), RedHat

CloudForms(RedHat, 2016), IBM Cloud Orchestra-

tor(IBM, 2016)). The most advanced platforms also

offer services and tools for the management of cloud

applications’ lifecycle. None of these commercial

products are open to the community, nor the solutions

they offer are portable across third-party providers.

As to open-source Cloud orchestration frame-

works, the OpenStack platform

includes an Orches-

tration service which provides a template-based way

to describe a cloud application based on TOSCA. The

templates, written according to the HOT (Heat Or-

chestration Template) template language

, enable to

create most OpenStack resource types, such as in-

stances, storage volumes, networking information, se-

curity policies, and all the other required cloud infras-

tructure to run an application. Another notable ex-

ample of orchestration platform in the open source

domain is Cloudify(GigaSpaces, 2016): it allows to

model applications and automate their entire lifecycle

through a set of built-in workﬂows.

Some minor research initiatives have come up

with open source solutions as well. Roboconf (Pham

et al., 2015) is an open sourced hybrid cloud or-

chestrator for application deployment. It implements

the basic administration mechanisms which are called

Autonomic Computing Systems (ACS). Roboconf

has simple and extensible design, many of its com-

ponents are reusable. A Domain Speciﬁc Language

(DSL) is also presented for ﬁne-grain deﬁnition of

applications and execution environments. Their re-

search has tended to focus on installation and con-

ﬁguration of applications rather than addressing the

management issues of hybrid and multi-clouds.

With respect to standardizing initiatives, OASIS

is the most active on the cloud provisioning topic.

TOSCA, which stands for Topology and Orchestra-

tion Speciﬁcation for Cloud Applications, is a stan-

dard designed by OASIS to enable the portability of

cloud applications and the related IT services (OA-

SIS, 2013). This speciﬁcation permits to describe

the structure of a cloud application as a service tem-

plate, that is in turn composed of a topology_template

and the types needed to build such a template. The

TOSCA Simple Proﬁle (OASIS, 2017) is an isomor-

phic rendering of a subset of the TOSCA v1.0 XML

speciﬁcation in the YAML language. It provides a

more accessible syntax as well as a more concise and

incremental expressiveness of the TOSCA language

in order to speed up the adoption of TOSCA to de-

scribe portable cloud applications.

www.openstack.org

https://wiki.openstack.org/wiki/Heat

A couple of initiatives regarding the use of poli-

cies to support the deployment of cloud application

are worth to be cited. A scheduling method based

on SLA metrics for deploying application in cloud

(Emeakaroha et al., 2011) is discussed. This method

takes into account the amount of required CPU, net-

work bandwidth and storage. The resource with con-

strained SLA in IaaS, Platform as a Service (PaaS),

Software as a Service (SaaS) is provided by the

scheduling method. This research outlines a novel as-

pect of application deployment in cloud. In the paper,

the resources are differentiated only by the metrics of

SLA. However, in enterprise hybrid cloud there are

far more parameters which need to be considered to

classify a cloud resource. Similarly, a cost based dat-

acenter resource decision model (Strebel and Stage,

2010) is proposed for application deployment in hy-

brid cloud. It builds optimization model to com-

pare virtual machines’ tariffs to achieve economic ef-

ﬁciency of application operation. A major limitation

of this research is that it takes only one factor into

account the cloud resource selection in hybrid cloud.

3 SYSTEM ARCHITECTURE

For the enterprise that owns or uses a large scale IT

infrastructure with multi-clouds, the common practice

is to divide the infrastructure into several independent

infrastructure domains based on business and IT re-

quirements. For example, a global multi-clouds in-

frastructure can be divided into two management do-

mains, because it owns two data centers in two differ-

ent locations (e.g., one in Frankfurt and one in Paris).

Should private resources be insufﬁcient to sustain the

enterprise’s business growth, publicly provided re-

sources come to the aid (Amazon AWS

, Microsoft

Azure

, etc.). The depicted scenario can become very

problematic to manage, as it includes the presence of

hybrid and geographically distributed resources. Is-

sues can arise from both the technical point of view

(different APIs to access resources provided by third

parties) and the administrative point of view (different

law restrictions on data enforced by countries, hetero-

geneous security and SLA guarantees offered by third

parties).

The complexity of multi-domain infrastructures

can be faced with the help of policies. A policy ap-

plies to a speciﬁc context and deﬁnes a set of pos-

sible actions that can be triggered according to the

activation of given rules. So, for instance, a policy

aws.amazon.com

azure.microsoft.com

Policy-based Deployment in a Hybrid and Multicloud Environment

389

could deﬁne the security level that is to be granted in a

given domain upon speciﬁc conditions. Policies could

even span multiple, geographically distant domains

(e.g., the same policy may apply in both Frankfurt and

Paris domains). Figure 1 depicts the data model on

which the design of the hereby proposed framework is

grounded. Basically, an enterprise’s cloud infrastruc-

ture is composed of multiple Cloud pools, whereas by

pool we mean a cluster of resources residing in a spe-

ciﬁc place and managed in a cloud fashion by way of

any IaaS software. A Policy context deﬁnes the logi-

cal boundaries of a set of resources. Resources taken

from different pools can be part of the same context.

Finally, a Policy can apply to one or multiple contexts,

and more policies can be grouped to form a Policy

Group.

Cloud

Infrasctructure

Cloud Pool

IaaS platform

1..n

Policy context

1..n

Policy

1..n 1

1..n

Policy Group

1..n

Figure 1: Data Model.

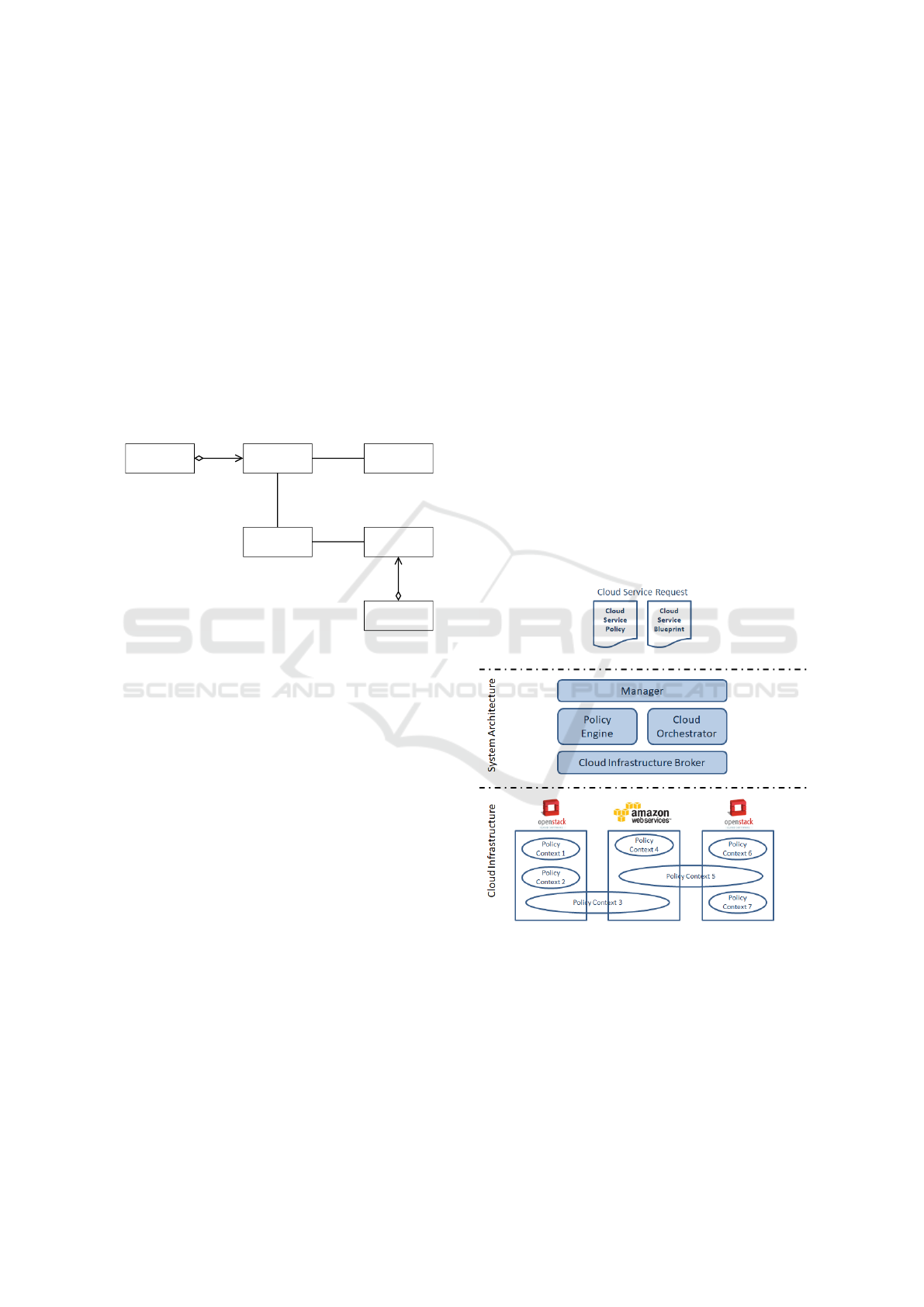

In Figure 2 the framework’s System Architec-

ture is depicted on top of a typical hybrid Cloud In-

frastructure consisting of both private and public re-

sources. In the ﬁgure, the Cloud infrastructure is rep-

resented by a number of silos of resources (Cloud

Pools). A Pool can either be privately managed (e.g.,

by way of the Openstack software) or be constituted

by aggregating resources rented from a public Cloud

Provider (Amazon in the example). Policy contexts

have also been highlighted in the ﬁgure. Some con-

texts refer to a single domain (PolicyContext1, Poli-

cyContext2, PolicyContext4, PolicyContext6, Policy-

Context7), others span two domains (PolicyContext3,

PolicyContext5).

The System Architecture layer hosts the software

components responsible for the policy-based deploy-

ment of cloud services. A deployment process is

started upon a customer’s submission of a Cloud Ser-

vice Request, which is a combination of two inputs: a

Cloud Service Policy and a Cloud Service Blueprint.

The role of the System Architecture’s components are

explained below:

• Manager. The Manager is the component in

charge of handling the customer’s Cloud Service

Request. Upon the reception of a Request, the

Manager triggers and coordinates cloud resource

allocation and cloud service deployment activi-

ties.

• Policy Engine. The policy engine loads the pol-

icy and evaluates the request against it, and then

the engine gives back the response. The policy

engine’s request evaluation has two steps. Firstly,

it matches each deploy condition to the policy and

gets the corresponding policy contexts. Secondly,

it ﬁnds the intersected domains from the result of

the previous step.

• Cloud Infrastructure Broker. The cloud infras-

tructure broker plays a key role as facade of multi-

ple Cloud Resource Pools. It has the responsibil-

ity of selecting the resources that match the target

policy context and the resource requirement.

• Cloud Orchestrator. The Cloud Orchestrator re-

ceives in input application’s deployment require-

ments, turns them into a pipeline of activities of

deployment/conﬁguration of the cloud application

components and ﬁnally run the activities’ execu-

tion. Details on the cloud orchestration process

can be found in Section 4.2.

Figure 2: System Architecture.

In order to give the reader a sense of how the

whole system actually works, we provide a dynamic

view highlighting the components’ interaction upon

the arrival of a Cloud Service Request.

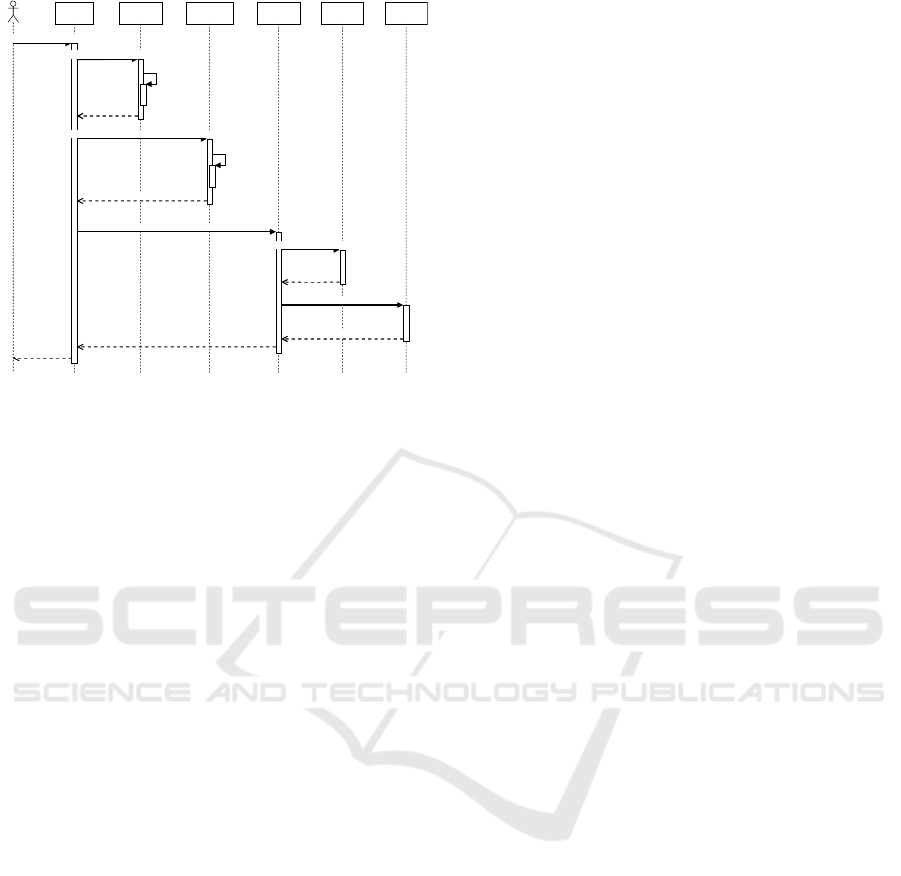

The sequence diagram depicted in the Figure 3

shows the actions taken by the System Architecture

components in reaction to the submission of a request.

The service request speciﬁes two types of require-

ments: policy requirements, embedded in the Cloud

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

390

:Manager

:Policy

Engine

ﬁlter(Policy)

:Infrastructure

Broker

ﬁlter()

:Cloud

Orchestrator

:Cloud

Pool #1

:Cloud

Pool #2

submit(ServiceRequest)

ServiceEndPoint

getPolicyContext(Policy)

PolicyContext

getResourcePools(PolicyContext,resourceRequirements)

resourcePools

deployService(resourcePools,Blueprint)

ServiceEndPoint

deploy(ServiceComponent_1)

return

deploy(ServiceComponent_2)

return

Figure 3: Sequence diagram.

Service Policy ﬁle, and application deployment re-

quirements, contained in the Cloud Service Blueprint

ﬁle. The Policy and the Blueprint ﬁles carries in-

formation on the cloud service’s non-functional and

functional requirements respectively. In Sections 4.1

and 4.2 insights on the two documents’ structure can

be found.

The Manager receives the service request and co-

ordinates the provisioning operations. The ﬁrst com-

ponent to be invoked is Policy Engine. It is in charge

of matching the policy requirements speciﬁed in the

Cloud Service Policy ﬁle to the enterprise’s policies

that are pre-loaded form a private policy storage. The

output of the task will be the Policy Context that best

accommodates the request. In the subsequent step the

Cloud Infrastructure Broker is engaged in the process.

The Broker is the component responsible for selecting

those Cloud resources belonging to the just identiﬁed

Policy Context which also match the request’s func-

tional requirements (e.g., number and type of VMs,

RAM size, etc.). Output of this selection will be

a list of Cloud Pools where resources will be taken

from. This information, along with the Cloud Service

Blueprint, is handed over to the Cloud Orchestrator

in order to run the deployment routine. In the spe-

ciﬁc case depicted in the ﬁgure, we have assumed that

the application to be deployed consists of two compo-

nents, which are eventually deployed in CloudPool#1

and CloudPool#2 respectively.

4 POLICY-BASED DEPLOYMENT

The cloud service deployment process is jointly car-

ried out by the Policy Engine and the Cloud Orches-

{

"policyName": "NameOfThePolicy",

"rules": {

"rule_1": ["PolicyContext_1", "PolicyContext_2",

".........", "PolicyContext_m"],

"rule_2": ["PolicyContext_1", "PolicyContext_2",

".........", "PolicyContext_m"],

"........" : [""],

"rule_n": ["PolicyContext_1", "PolicyContext_2",

".........", "PolicyContext_m"]

}

Listing 1: Policy structure.

trator, which are the two core components of the Sys-

tem Architecture. The former identiﬁes which of

the multiple enterprise contexts are eligible for host-

ing the service, the latter interacts with the selected

contexts and runs the service deployment procedures.

The following subsections provide insights on the

policy management and the service deployment re-

spectively.

4.1 Policy Management

Basically, a Policy ﬁle is the smallest unit in policy

management (Wei and Rodriguez, 2018). It may con-

tain one or multiple rules. Each rule is a key-value

pair. The purpose of rules is organizing and sorting

Policy contexts with their features or standards. The

structure of a Policy ﬁle is reproduced in Listing 1.

For example, a rule can describe all policy contexts

that are bound to the Frankfurt data center. When a

cloud service request requires the Frankfurt premise,

the policy containing that rule will match and return

all policy contexts associated to that premise.

As mentioned earlier, the Policy Engine’s task is

to receive the policy request, load the available enter-

prise policies and evaluate the request against them.

We designed an ad-hoc algorithm, called "match-and-

select", to evaluate the request. The match-and-select

is a counting sort based algorithm. It features two

different steps. Firstly, it matches each deploy condi-

tion to the policy and gets the corresponding contexts.

Secondly, it ﬁnds the intersected contexts from the re-

sult of last step. The pseudo code for this algorithm

is shown in Algorithm 1. To evaluate the request, the

algorithm iterates each condition of the request. For

each condition, the algorithm ﬁnds the corresponding

policy and gets the contexts which are deﬁned in the

policy. The results from all conditions are sorted by

count sort. Then the algorithm iterates through the

sorted set and returns an array of intersected contexts.

If no intersected domains are found, null is returned.

Two or more policies can be grouped into a Policy

group. Other than policies, a policy group contains

Policy-based Deployment in a Hybrid and Multicloud Environment

391

Algorithm 1: Policy engine match-and-select algo-

rithm.

Input: Set of deploy conditions

C = (c

,...,c

), n is the number of

conditions

Output: Set of infrastructure contexts

C = (C

,...,C

), m is the

number of contexts

1 for c

∈ C do

2 p = f indPolicy(c

)

= getContexts(p, c

)

PC = addToSet(PC

)

3 PC = countSort(PC,1,N

contexts

);

/ ∗ N

contexts

= numberO f AllContexts ∗ /

D ← null

4 for d ← 1 to N

contexts

5 if PC

= n then

6 D = addToArray(d)

7 return D;

conﬁguration options, which could be useful to han-

dle complicated evaluation results. The conﬁguration

options are the select algorithm and the evaluation

strategy respectively. The select algorithm is useful

when more than one data center is returned from pol-

icy engine. Two options are available in this case:

random and all. The random option selects one data

center randomly. The all option keeps all the returned

data centers, later the resources will be equally dis-

tributed to the selected data centers. The evaluation

strategy is useful when the request has multiple sub-

requests. This algorithm has two options, strict and

easy. The strict option only returns the success re-

sponse when all subrequests are successful. The easy

option returns success response from any successful

subrequests.

4.2 Service Deployment

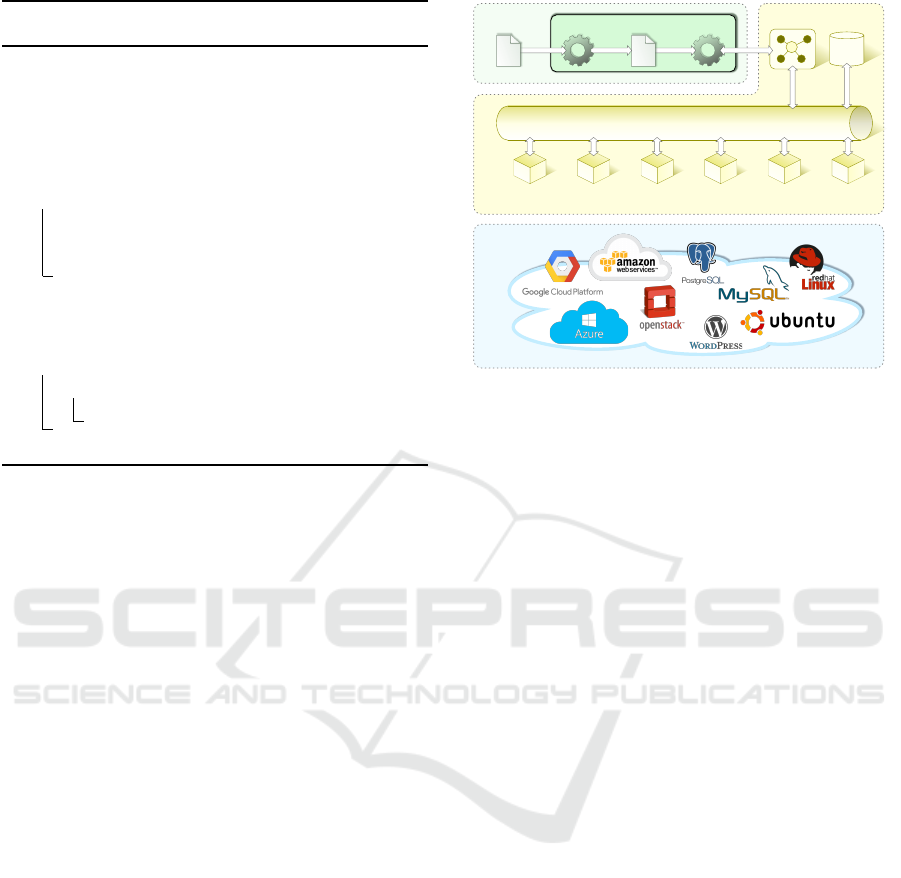

The Cloud Orchestrator component depicted in Fig-

ure 2 is responsible for carrying out the cloud pro-

visioning process. In Figure 4 the orchestrator’s ref-

erence scenario is depicted. The Cloud Orchestra-

tor takes a TOSCA service template (in the YAML

format) as input, translates it into BPMN schemes

(OMG, 2011) and feeds such schemes to a BPMN

Engine which eventually orchestrates the provision-

ing tasks. Provisioning tasks, in turn, invoke provi-

sioning services in a SOA (Service Oriented Archi-

tecture) fashion. This enables a scenario of a market

of services in which many Providers advertise their

services and Customers can get the best combination

of services that meet their own requirements. We en-

Create Network

Service

Create VM

Service

Create Storage

Service

Deploy DB

Package Service

Service BUS

Service

Broker

Deploy App Container

Package Service

Deploy …

Cloud Orchestrator

BPMN

Engine

YAML

to BPMN

BPMN

Service Connectors Layer Orchestration LayerService Provisioning Layer

Tosca

YAML

Service

Registry

Figure 4: Cloud Orchestration scenario.

vision two categories of provisioning services: Cloud

Services and Packet-based Services. The ﬁrst cat-

egory consists of resources offered by way of any

Cloud delivery model (IaaS, PaaS, SaaS), be them

virtual machines, platforms or even software appli-

cation instances hosted on a third-party provider’s

premises; by contrast, the second category includes

all the downloadable software “packets” which re-

quire a pre-conﬁgured runtime environment to run (be

it a database management system or a web server ex-

ecutable, to name a few).

A novelty introduced by this approach is the sep-

aration between the orchestration of the provisioning

tasks and the invocation of the provisioning services

themselves. Since there is a multitude of providers of-

fering a huge variety of services (each with different

features and QoS), an intermediate Service Connec-

tors Layer has been introduced. This layer is popu-

lated with REST services called Service Connectors.

Connectors provide a uniﬁed interface model for the

invocation of the provisioning services. The uniﬁed

model allows to achieve service location transparency

and loose coupling between the BPMN provisioning

tasks and the actual provisioning services.

In Listing 2 we provide an example of a two-tiers

application topology ﬁle expressed in TOSCA Sim-

ple Proﬁle. The template ﬁle describes a web applica-

tion stack hosted on the web server compute resource

("web_server"), and a database software hosted on

the database server compute resource ("db_server").

The application topology ﬁle speciﬁes provisioning

constraints by means of the requirements tag. If a

TOSCA node contains a requirement tag, the provi-

sioning of that node must be delayed until the node

pointed by the tag is successfully provisioned. In this

case we say that the pointing node "depends" upon

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

392

topology_template:

inputs:

# omitted here for brevity

node_templates:

wordpress:

type: tosca.nodes.WebApplication.WordPress

properties:

requirements:

- host: apache

- database_endpoint: wordpress_db

interfaces:

Standard:

inputs:

apache:

type: tosca.nodes.WebServer.Apache

properties:

requirements:

- host: web_server

web_server:

type: tosca.nodes.Compute

capabilities:

host:

properties:

num_cpus: 1

disk_size: 50 GB

mem_size: 8192 MB

os:

wordpress_db:

type: tosca.nodes.Database.MySQL

properties:

requirements:

- host: mysql

mysql:

type: tosca.nodes.DBMS.MySQL

properties:

requirements:

- host: db_server

db_server:

type: tosca.nodes.Compute

capabilities:

host:

properties:

num_cpus: 2

disk_size: 50 TB

mem_size: 16384 MB

os:

Listing 2: A simple TOSCA topology template.

the pointed node. The Cloud Orchestrator is respon-

sible of parsing the template ﬁle, building the graph

of node dependencies and translating the graph into a

BPMN workﬂow of provisioning tasks. So in the case

of the topology depicted in Listing 2, the wordpress-

apache-web_server dependency will translate into a

workﬂow in which the web_server provisioning task

precedes the apache provisioning task, which in turn

precedes the wordpress.

In the framework, the provisioning of any Cloud

application is modeled through a variable number of

two kinds of provisioning tasks: cloud service pro-

visioning tasks and packet-based provisioning tasks.

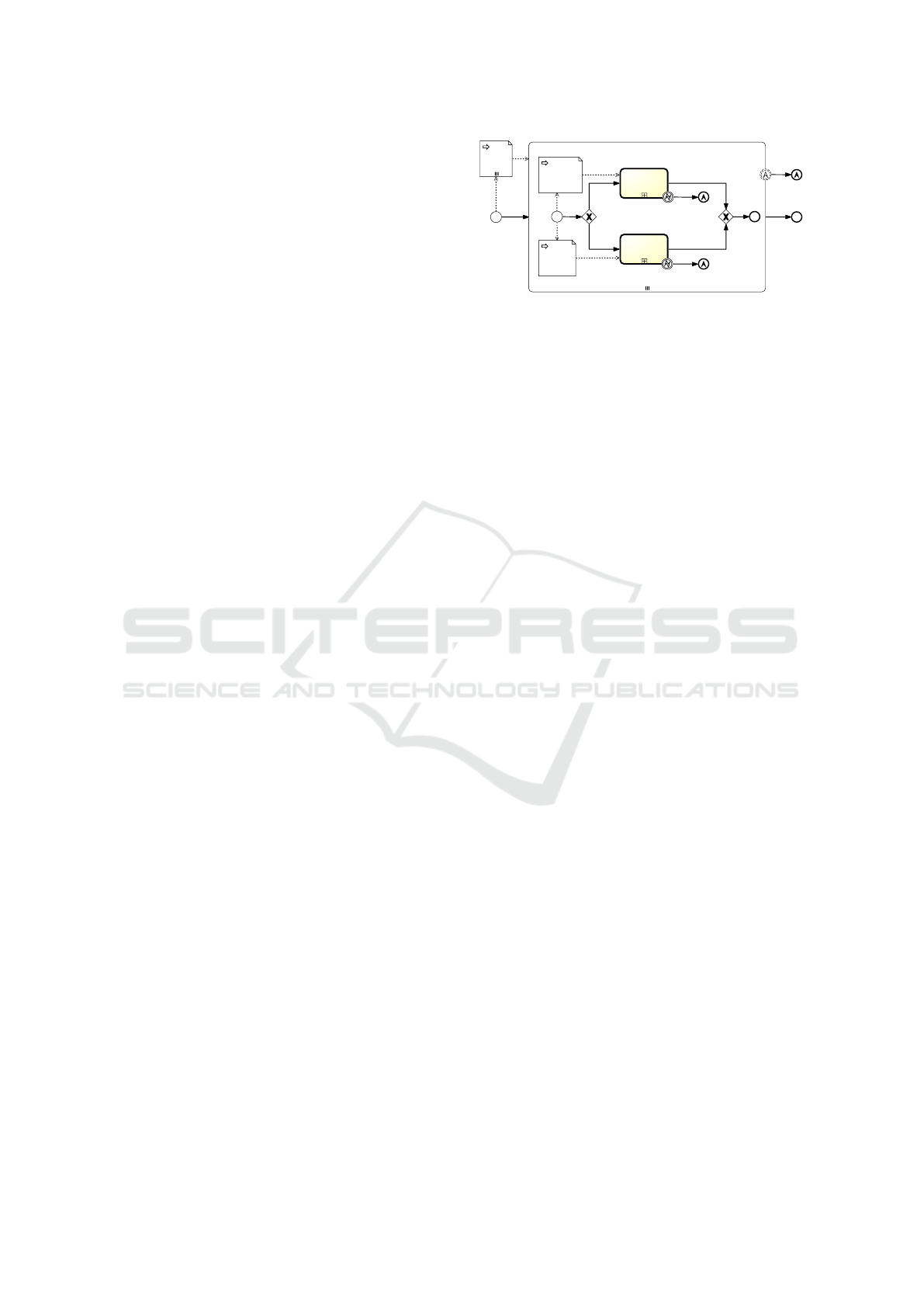

The BPMN scheme governing the cloud application

provisioning is depicted in Figure 5.

The BPMN scheme is composed of a parallel

multi-instance sub-process, i.e., a set of sub-processes

(called "Instantiate Node") each processing a TOSCA

node in a parallel fashion. Since a TOSCA node can

begin

error

escalation

node

Instantiate Node

deploy

any error

create

any error

node

[cloud resource]

node

[package]

cloud resource

error

package

error

complete

any error

escalation

cloud resource

package

Figure 5: BPMN scheme of the cloud application provision

workﬂow.

be either a cloud resource or a software package, a

sub-process will proceed to either a "create ‹cloud re-

source›" or a "deploy ‹package›" sub-process.

The reader may refer to (Di Modica et al., 2017)

to discover more technical details of the provisioning

process. A concrete use case example of how the pro-

visioning step was combined with the policy ﬁltering

presented in Section 4.1 is discussed in Section 5.

5 CASE STUDY

In this section the viability of the proposal is assessed

through the discussion of a simple case study of two

empirical deployment scenarios.

Let us assume that an enterprise owns a data cen-

ter and that the Openstack software is used to virtu-

alize and manage all internal resources. Following

the business needs, the enterprise intends to deploy

on the Cloud a new web application developed ac-

cording to the classic two-tiers logic. The application

is then composed of a Database for data persistence

and a Business logic. The enterprise’s adopted policy

ﬁle is shown in Listing 3. The policy group deﬁnes 3

policies, ownership, location and security level. The

select algorithm is random and the evaluate strategy

is set to easy, which means that in the case of sev-

eral matched policy contexts the policy engine will

randomly select one and will return partially succeed

result even though some requests fail.

Scenario One: Private/Public Cloud. Because of

the strict data security policy, the company decides to

internally host all data collected from the application.

However, for a better user experience the application

should be deployed close to user. Unfortunately, due

to the limitation of company’s internal resource and

the cost of the resource, internal resource could not

reach to all the users.

Therefore, in order to satisfy both constraints, a

good deployment strategy would be to have the busi-

ness logic installed off premise, i.e., on computing re-

Policy-based Deployment in a Hybrid and Multicloud Environment

393

{

"policyGroup": [

{

"policyName": "ownership",

"rules": {

"on-premises": ["PolicyContext1", "PolicyContext2",

"PolicyContext6", "PolicyContext7"],

"supplier": ["PolicyContext4"]

}

{

"policyName": "location",

"rules": {

"muc": ["PolicyContext1"],

"fra": ["PolicyContext2", "PolicyContext4"],

"sgp": ["PolicyContext6", "PolicyContext7"]

}

{

"policyName": "securityLevel",

"rules": {

"high": ["PolicyContext3","PolicyContext5"],

"middle": ["PolicyContext2", "PolicyContext4",

"PolicyContext7"],

"low": ["PolicyContext1", "PolicyContext6"]

}

"selectAlgorithm": "random",

"evaluateStrategy": "easy"

}

Listing 3: Policy ﬁle. The policy ﬁle contains 3 policies.

Each policy has several rules which is mapping to policy

contexts.

sources leased from a public cloud provider, while

keeping the database running on internal resources

(on premise). The technical burden introduced by this

solution is, of course, the setup of a network overlay

between the public and the private domain.

So, in this scenario we prepared the cloud service

request ﬁle to require on premise cloud resources for

the database and external cloud resources for the busi-

ness logic.

The request ﬁle is shown in Listing 4. The re-

quest ﬁle has two subrequests, each of them has only

one deploy condition and one topology group, which

links to topology template and later will transfer ob-

tained resource to the groups via the Manager. The

deploy conditions require the available resource from

“on-premises” and “supplier”. From the policy ﬁle

we can see that both the requests can be satisﬁed, and

corresponding results will be sent to the Infrastruc-

ture Broker to further require the resource informa-

tion, which later will be passed to the Cloud Orches-

trator.

The Cloud Orchestrator will then receive two in-

puts: the resource information and the Blueprint

(TOSCA topology ﬁle). The latter is reported in the

Listing 5. The reader may notice that in the bottom

of the Blueprint ﬁle two groups have been deﬁned:

o f f _premise, that collects the business logic nodes,

and on

remise, that includes the database nodes. By

crossing this information with the policy’s, the Cloud

Orchestrator will activate the deployment of the busi-

ness logic in the Policy Context #4 (Amazon Sup-

plier), while the database will be deployed in any of

[

{

"name": "subrequest1",

"deployConditions": {

"ownership": "on-premises"

"resourceRequirement": {

"topologyGroup": "on_primes_group"

}

{

"name": "subrequest2",

"deployConditions": {

"ownership": "supplier"

"resourceRequirement": {

"topolgyGroup": "off_primes_group"

}

]

Listing 4: Request ﬁle for scenario one. The request ﬁle

has two requests which require private cloud resource and

public cloud resource.

topology_template:

inputs:

# omitted here for brevity

node_templates:

wordpress:

apache:

web_server:

wordpress_db:

mysql:

db_server:

# omitted here for brevity

groups:

off_premise_group:

type: tosca.groups.Root

members: [wordpress,apache,webserver]

on_premise_group:

type: tosca.groups.Root

members: [wordpress_db,mysql,db_server]

Listing 5: Nodes grouping for scenario one.

the policy contexts bound to the private premises.

Scenario Two: Geo-location. To handle the in-

creasing user demand in the German market, the com-

pany decided to scale out the application’s database

layer in Frankfurt data center. In this scenario we

added one extra request to only require the private

cloud resource which is located in the Frankfurt data

center. The request ﬁle is shown as in Listing 6.

The request has two deploy conditions "on-premises"

and "fra". The requested resource will be assigned to

"all_group" nodes in the TOSCA topology template.

As expected, the policy engine gave "Policy context2"

as result.

6 CONCLUSION

The paper proposes a policy based application de-

ployment in hybrid and multi-cloud environment. The

requirements come from a growing adoption of cloud

in large enterprises and increasingly complex hetero-

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

394

[

{

"name": "demoSceneTwo",

"deployConditions": {

"ownership": "on-premises",

"location": "fra"

"resourceRequirement": {

"topologyGroup": "all_group"

}

]

Listing 6: Request ﬁle for scenario two. The request re-

quires private cloud resource which also locates in Frank-

furt.

geneous infrastructure background. In this paper, the

overall system architecture is presented. The Policy

Engine and the Cloud Orchestrator are discussed in

details. A case study of the proposed system is con-

ducted with a practical real world application, and a

set of experiments further show the insights of the sys-

tem. The results suggest that the policy based deploy-

ment can well manage and simplify the deployment

in multi-cloud environment.

In future work, we will continue to investigate in

the following directions. We will ﬁrst extend the sup-

port of cloud broker to Azure cloud and further de-

velop the proposed system into SaaS service. Then

we will investigate to add user friendly methods for

editing policies, requests and topology templates. Ad-

ditionally, the current design will be integrated with a

container system and extended to support the auto-

matic management the application lifecycle.

REFERENCES

Amazon (2016). Amazon CloudFormation. https://aws.

amazon.com/cloudformation/. Last accessed on 04-

01-2019.

Di Modica, G. and Tomarchio, O. (2016). Matchmaking se-

mantic security policies in heterogeneous clouds. Fu-

ture Generation Computer Systems, 55:176 – 185.

Di Modica, G., Tomarchio, O., Calcaterra, D., and Cartelli,

V. (2017). Combining TOSCA and BPMN to En-

able Automated Cloud Service Provisioning. In Pro-

ceedings of the 7th International Conference on Cloud

Computing and Services Science (CLOSER 2017),

pages 187–196, Porto (Portugal).

Emeakaroha, V. C., Brandic, I., Maurer, M., and Breskovic,

I. (2011). Sla-aware application deployment and re-

source allocation in clouds. In Proc. IEEE 35th

Annual Computer Software and Applications Conf.

Workshops, pages 298–303.

GigaSpaces (2016). Cloudify. http://getcloudify.org/. Last

accessed on 04-01-2019.

IBM (2016). IBM Cloud Orchestrator. https://

www.ibm.com/us-en/marketplace/deployment-

automation. Last accessed on 04-01-2019.

Mell, P. and Grance, T. (2010). The nist deﬁnition of cloud

computing. Communications of the ACM, 53(6):50.

OASIS (2013). Topology and Orchestration Speciﬁcation

for Cloud Applications Version 1.0. http://docs.oasis-

open.org/tosca/TOSCA/v1.0/os/TOSCA-v1.0-

os.html. Last accessed on 04-01-2019.

OASIS (2017). TOSCA Simple Proﬁle in YAML Version

1.2. http://docs.oasis-open.org/tosca/TOSCA-Simple-

Proﬁle-YAML/v1.2. Last accessed on 04-01-2019.

OMG (2011). Business Process Model and Notation

(BPMN 2.0). http://www.omg.org/spec/BPMN/2.0/.

Last accessed on 04-01-2019.

Pham, L. M., Tchana, A., Donsez, D., de Palma, N., Zur-

czak, V., and Gibello, P. Y. (2015). Roboconf: A

hybrid cloud orchestrator to deploy complex applica-

tions. In Proc. IEEE 8th Int. Conf. Cloud Computing,

pages 365–372.

RedHat (2016). RedHat CloudForms. https://

www.redhat.com/it/technologies/management/

cloudforms. Last accessed on 04-01-2019.

Rightscale (2016). Rightscale Cloud Management

Platform. http://www.rightscale.com/why-cloud-

management-platform/beneﬁts. Last accessed on 04-

01-2019.

RightScale (2017). Rightscale 2017 state of the cloud re-

port. Technical report, RightScale.

Strebel, J. and Stage, A. (2010). An economic deci-

sion model for business software application deploy-

ment on hybrid cloud environments. Multikonferenz

Wirtschaftsinformatik 2010, page 47.

Wei, H. and Rodriguez, J. S. (2018). A policy based applica-

tion deployment method in hybrid cloud environment.

In 2018 IEEE 6th International Conference on Future

Internet of Things and Cloud (FiCloud), pages 93–99.

Weinman, J. (2016). Hybrid cloud economics. IEEE Cloud

Computing, 3(1):18–22.

Policy-based Deployment in a Hybrid and Multicloud Environment

395
