A Mobility Restriction Authoring Tool Approach based on a Domain

Speciﬁc Modeling Language and Model Transformation

Adalberto T. Azevedo Jr.

, Fernando Benedito

, Luciano Reis Coutinho

Francisco Jos

e da Silva e Silva

, Marcos Paulino Roriz Junior

and Markus Endler

Departament of Informatics, Federal University of Maranhao, Brazil

Departament of Informatics, Federal University of Goias, Brazil

Departament of Informatics, Pontiﬁcal Catholic University of Rio de Janeiro, Brazil

Keywords:

Mobility Management, Mobility Restrictions Monitoring, Authoring Tool, Domain-Speciﬁc Modeling

Language, Model Transformation.

Abstract:

There are many situations in which there is a need to monitor the location and behavior of people and/or vehi-

cles in order to detect possible irregularities and control where they are located and how they move, such as in

companies, public transportation and public security. In this paper, we present MobCons-AT (Mobility Con-

straints Authoring Tool), an authoring tool that allows the speciﬁcation of mobility restrictions rules that must

be followed by mobile nodes. Rules are speciﬁed through a Domain-Speciﬁc Modeling Language (DSML)

called MobCons-SL (Mobility Constraints Speciﬁcation Language). Once speciﬁed in MobCons-SL, these

rules are automatically transformed into software artifacts that performs the detection of the mobility restric-

tions violations performed by mobile nodes. This approach allows faster delivery time and lower the cost for

the development of software systems aiming the detection of mobility restrictions. This paper also describes

the use of MobCons-AT in two case studies, showing its applicability for diverse mobility scenarios.

1 INTRODUCTION

In many situations it is necessary to monitor the lo-

cation and behavior of people and/or objects in order

to detect possible irregularities and to control where

people, groups of people or vehicles are located and

how they move (Zheng et al., 2014). For example,

a mining company might be interested in restricting

employee access to certain areas, depending on the

mandatory use of safety equipment, prior training, or

even the employee’s function. Similarly, the company

could restrict a vehicle’s access and behavior in cer-

tain geographic area, limiting within the speed limits,

proximity between vehicles or monitoring if they are

staying on deﬁned routes. In public transportation, it

can be desired to verify if a bus following its route and

a set of patterns, such as respecting a speed limit and

maintaining a minimum distance between buses of the

same line in order to maintain a regular frequency of

them at bus stops. In the area of public safety, police

vehicles could be monitored in order to control their

area of coverage and circulation, working hours and

location. Similarly, port companies may wish to re-

strict employee access to restricted areas for security

reasons, as well as monitor ships movement. Finally,

airports can control the movement of people and/or

vehicles in areas of aircraft circulation.

In the literature there are several proposed soft-

ware solutions related to the monitoring of mobile

nodes and the vast majority of them follows a tradi-

tional software engineering approach (Antoniou et al.,

2014; Al-Khedher, 2012; Behzad et al., 2014; Al-

Taee et al., 2007; Joy et al., 2016; Punetha and Mehta,

2014; Almomani et al., 2011; Oliveira et al., 2013).

Alternatively, the use of Authoring Tools is gaining

more space in the software market mainly because it

allows the reduction of software delivery time and its

associated costs. Authoring Tools are systems that

simplify the production of software content, that is,

the users become authors without the need of devel-

oping a large amount of code lines.

The aim of this paper is to present an Authoring

Tool called MobCons-AT that simpliﬁes the complex-

ity of developing applications for monitoring the mo-

bility of nodes where mobility restrictions must be en-

forced. The proposed Authoring Tool is domain inde-

pendent and is based on a domain speciﬁc language

that allows end users to specify mobility restrictions

and the context where they must be applied and uses

model transformation techniques for the automatic

generation of code. The development of MobCons-

AT is part of the MobileAMP project.

Azevedo Jr., A., Benedito, F., Coutinho, L., Silva, F., Roriz Junior, M. and Endler, M.

A Mobility Restriction Authoring Tool Approach based on a Domain Speciﬁc Modeling Language and Model Transformation.

DOI: 10.5220/0007727905250534

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 525-534

ISBN: 978-989-758-372-8

525

The remainder of this paper is structured as fol-

lows: Section 2 discuss the fundamental concepts

used in this work. Section 3.1 provides an overview of

the MobileAMP project and its architecture. Section

3.2 presents the DSML created to specify mobility

constraints, as well as its abstract syntax (metamodel)

and its concrete syntax (a graphical notation). Section

3.3 describes the automatic generation of code, real-

ized through the use of M2T (Model to Text) trans-

formations

. Section 4 provides case studies aiming

to show the effectiveness of the tool and of the devel-

oped language. Section 5, presents the related works,

comparing them with the proposed approach. Finally,

Section 6 describes the conclusions of the developed

work an points for future efforts directions.

2 FUNDAMENTAL CONCEPTS

Researchers have long been dedicated to developing

adaptive and intelligent authoring systems (Murray

et al., 2003). Murray (Murray, 1999) has classiﬁed

authoring tools into a number of categories, like Cur-

riculum Sequencing and Planning, Tutoring Strate-

gies, Domain Expert System, Multiple Knowledge

Types and Special Purpose. The Special Purpose cat-

egory is specialized in speciﬁc tasks or domains and

can best support the author’s needs for speciﬁc situa-

tions. In other words, this category of authoring tools

may be based on speciﬁc domains and modeled by

languages.

The problem of specifying mobility constraints

can be treated by authoring tools. To do so, these

problems domain are described by a model. A model

is an abstraction of a system often used to replace

the system under study (Ludewig, 2003). In the last

decades, many techniques and modeling languages

have been proposed to support the design and devel-

opment of complex software systems. More recently,

models have become more than documentation arti-

facts, assuming central roles in the software engineer-

ing process, in an approach known as Model-Driven

Engineering (MDE). In addition to the beneﬁts men-

tioned above, models also allow - through complex

techniques such as metamodeling, model transforma-

tion, code generation or model interpretation - to cre-

ate or automatically run software systems based on

these models. For the Object Management Group

(OMG)

, ”metamodels are model models”. As for

(Favre and NGuyen, 2005), ”metamodels are model

language models”. Based on such concepts, we can

M2T Transformation:

https://www.eclipse.org/modeling/m2t/

OMG: http://www.omg.org/index.htm

deﬁne metamodel as a model that deﬁnes the struc-

ture of a Modeling Language (Da Silva, 2015).

The simplicity with which the user deﬁnes his

speciﬁcations is best obtained through a Modeling

Language, that is, a set of all possible models that

are in accordance with the abstract syntax of that lan-

guage, represented by one or more concrete syntax

and that satisfy a given semantics. The deﬁnition

of a modeling language usually begins by capturing

and identifying the application main domain. This

task represents the domain analysis phase to build the

modeling language (Mernik et al., 2005). The re-

sult of this activity produces the abstract syntax of

the modeling language, which corresponds to a meta-

model with all the concepts identiﬁed at the meta-

domain level. The concrete syntax of a modeling lan-

guage refers to its notation, that is, how users will

learn and use it, whether by reading or writing and de-

signing the models. Thus, the success of a modeling

language will depend on the right balance between

simplicity, expressiveness, ability to write, readabil-

ity, learning, and effectiveness. Finally, a modeling

language can be classiﬁed as a General-Purpose Mod-

eling Language (GPML) or Domain-Speciﬁc Model-

ing Language (DSML) (Mernik et al., 2005; Fowler,

2010). A GPML has broader and widespread use in

different ﬁelds of application. On the other hand,

DSMLs use some constructs or concepts closer to

their application domain, which is usually easier to

read, understand, validate and communicate.

Once the entire speciﬁcation is modeled, it can be

transformed into artifacts through a standard Trans-

formation process. Models can be created manually

or generated automatically through a process of con-

verting a source model to a destination model called

Transformation between models. OMG’s Model to

Text (M2T) Transformation is one of the key trans-

formations that generate or produce software artifacts,

typically source code, XML (Extensible Markup Lan-

guage), and other text ﬁles, from models. The most

common technique for this class of transformations

is known as code generation, and there are several

solutions and techniques (Guinelli et al., 2014). It

can be speciﬁed through different languages, such as

conventional programming languages, as well as spe-

cialized model transformation languages, for different

purposes and with different modeling paradigms such

as Acceleo

and ATL (Atlas Transformation Lan-

guage)

. Through transformation rules, concrete soft-

ware artifacts of the models produced by the domain

language can be generated.

Acceleo: http://www.eclipse.org/acceleo/

ATL: https://eclipse.org/atl/documentation/

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

526

3 THE MobCons-AT AUTHORING

TOOL

MobCons-AT is an authoring tool for end-user pro-

gramming that is part of the MobileAMP project and

allows the speciﬁcation of rules that deﬁne mobility

restrictions that must be followed by mobile devices,

with automatic code generation and near real time de-

tection of the deﬁned restrictions violations. Through

the implementation of a DSML called MobCons-SL,

a central part of the tool, MobCons-AT allows users

to graphically and textually model scenarios involv-

ing this domain.

The section begins by giving an overview of the

MobileAMP project followed by the description of

the developed DSML and the transformation process

for software artifact generation. Finally, an end-user

prototype is presented.

3.1 The MobileAMP Project

The MobileAMP project focuses on the develop-

ment of software that allows the real-time analysis of

activity-mobility patterns from the processing of con-

text data streams generated from people, vehicle and

other moving entities (also known as mobile nodes).

Unlike most previous work, which uses a statistical

approach to store data and process it off-line, Mo-

bileAMP stands out by discovering such patterns in

real time through the use of CEP (Complex Event

Processing) data-stream processing primitives. The

data-stream events in the current project stage provide

information of update locations, mobile node type and

timestamp. However, other context data such as speed

and acceleration should be exploited in the future.

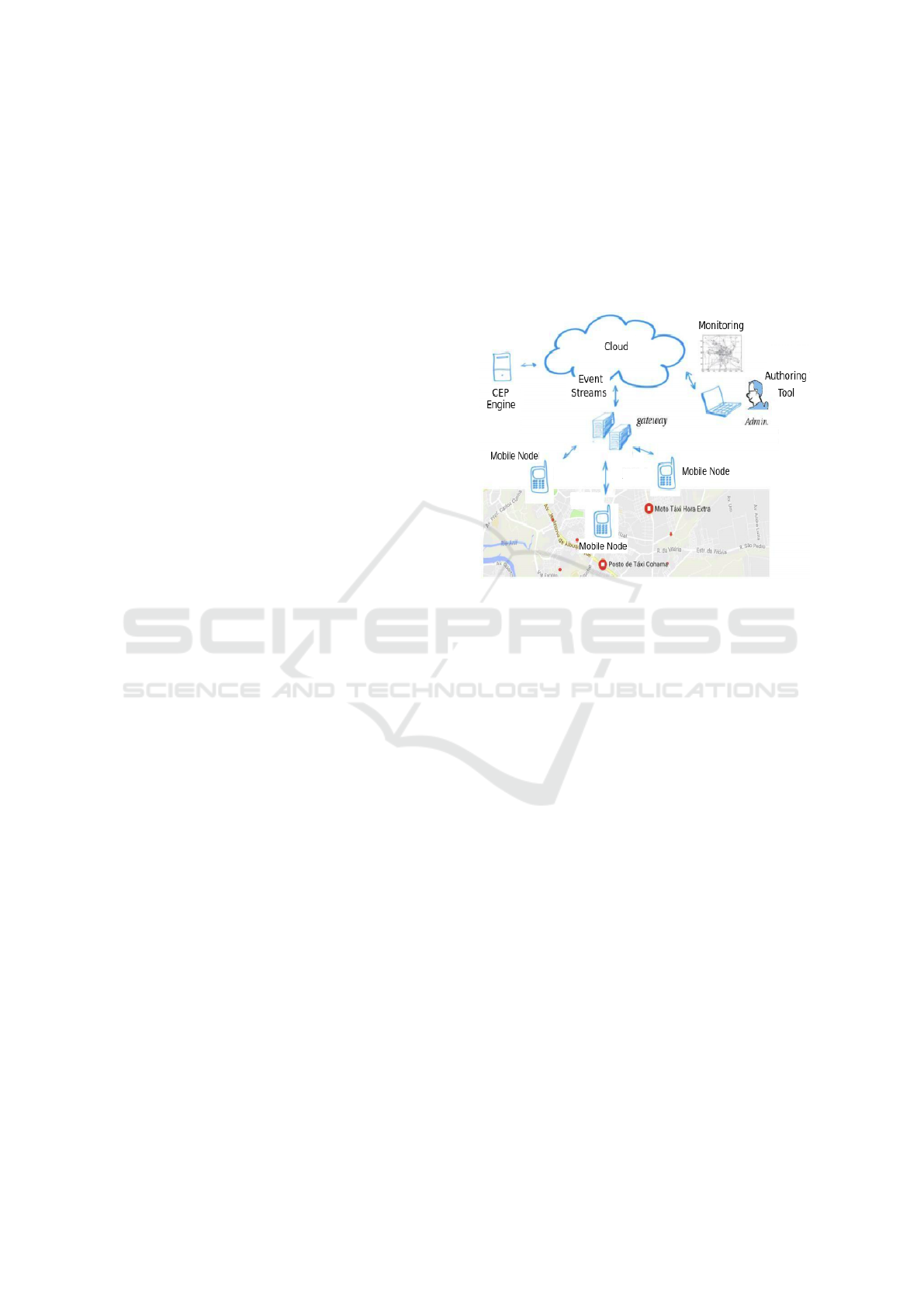

The general system architecture proposed in the con-

text of this project is composed of four main compo-

nents, as shown in Figure 1.

• Authoring Tool: software module that imple-

ments a DSML, called MobCons-SL, that allows

the user to specify mobility restrictions at a high

level abstraction. These rules are transformed into

artifacts that access the MobCons library classes;

• Mobile Nodes: entities running a mobile applica-

tion that can acquire sensor data, such as location,

velocity, timestamp, and send them through data

stream for further analysis;

• Cloud: executes the CEP engine that receives the

real-time events from the mobile nodes, processes

the data stream and generates derived events

based on rules that identify the mobility constraint

violations;

• Monitoring: a visualization tool that provides a

user interface that is responsible for receiving and

displaying alerts of mobility restrictions viola-

tions performed by mobile nodes. Events describ-

ing mobility restrictions violations can be logged

in a database along with the mobile nodes location

updates for proving a play back feature allowing

the visualization of past actions.

Figure 1: MobileAMP project: General Architecture.

The project software system provides a library,

called MobCons, that provides an API for deﬁnition

of mobility restrictions and the context where they

must be applied and transform them into CEP rules

that can detect restrictions violations. The library

also dynamic instantiates the generated CEP rules in

a CEP engine that process the data stream generated

by mobile nodes and outputs derived events when-

ever mobility restrictions violations are detected. The

output is consumed by the Monitoring Model. The

MobCons-AT tool, main focus of this paper, provides

a high level DSML used by the end-user to easily

specify mobility restrictions and a set of transforma-

tion rules that transforms the DSML statements into

MobCons code.

3.2 The MobCons-SL Language

To abstract the complexity of specifying mobile nodes

mobility restrictions, MobCons-AT implements a

DSML called MobCons-SL, which allows users to

model the most diverse scenarios involving this sub-

ject. The DSML created is composed of an abstract

syntax, represented by a metamodel, and by a con-

crete syntax in accordance with this metamodel, rep-

resented by a graphical notation.

A Mobility Restriction Authoring Tool Approach based on a Domain Speciﬁc Modeling Language and Model Transformation

527

3.2.1 Abstract Syntax - Metamodel

The proposed metamodel was developed using the

EMF (Eclipse Modeling Framework)

standard. EMF

is a common standard for data models that many tech-

nologies and frameworks are based on. It is able

to produce artifacts for various languages and has a

number of compatible tools. The developed meta-

model is presented in Figure 2.

The Specification class (painted yellow in

Figure 2) corresponds to the metamodel ﬁrst level

and it is a starting point for the speciﬁcation of

mobility restrictions. From the Speciﬁcation class

it is possible to deﬁne Context, Restriction,

TemporalCondition and Rule.

Context (blue in Figure 2) deﬁne for which mo-

bile nodes a constraint must be applied and can be of

the following types, according to the metamodel:

• MU: Used to apply a restriction to a single mobile

node;

• Group: Used to group two or more mobile nodes

to which it can be assigned a given restriction;

• MUType: Deﬁnes a context for all mobile nodes

of a speciﬁc type (CAR, BUS, PERSON, etc);

• Area: Deﬁnes a geographical area, which can be

circular, a rectangle or a polygon. A mobility re-

striction can be applied to an area and should be

obeyed by all mobile nodes when moving within

its boundaries.

Restriction (red in Figure 2) represent limita-

tions imposed on the mobility of mobile nodes. The

proposed metamodel allows the speciﬁcation of the

following restrictions types:

• Access: Restricts the mobility of mobile nodes by

detecting when they access a restricted area that

must be avoided;

• Permanence: Restricts the mobility of mobile

nodes by detecting when they leave the bound-

aries of a given area;

• Speed: Imposes a maximum and/or minimum

speed limit to mobile nodes;

• Path: Deﬁnes a path to be followed by mobile

nodes, detecting when they deviate from the pro-

vided path given a threshold;

• MaxDistance: Deﬁnes a maximum distance al-

lowed between two Contexts;

• MinDistance: Deﬁnes a minimum distance al-

lowed between two Contexts;

EMF:http://projects.eclipse.org/projects/modeling.emf

• Punctuality: Deﬁnes the expected time in which

a mobile node must achieve a particular geograph-

ical area.

The metamodel also provides

TemporalCondition. These classes (in gray

color) are optional and allow to specify when a

mobility constraint must be applied. It allows specify

a date, days of the week, and/or time bands for a

given restriction. For example, it is possible to deﬁne

that a bus must travel at a maximum speed of 60

km/h from Monday to Friday (between 8 am and 6

pm) but on Saturdays and Sundays it can speed up to

80 km/h.

Rule (green in Figure 2) are associations between

Context, Restriction and TemporalCondition,

allowing, for example, to deﬁne a scenario such as:

All vehicles and motorcycles (MUType

Context) can only transit within the Federal

University (Area Context) at a maximum speed

of 30 km/h (Speed Restriction), on Mondays,

Wednesdays and Fridays, from 6 am to 11 am

(TemporalCondition).

3.2.2 Concrete Syntax - Graphical Notation

Based on the described metamodel we developed a

graphical representation used by the Authoring Tool

user to specify the mobility restrictions in a easy way.

In order to derive a concrete model representation

based on the abstract metamodel syntax it is neces-

sary to map the elements of the abstract metamodel to

concrete graphical elements that represent them. Ta-

ble 1 shows the graphical notation of the MobCons-

SL language, where it can be observed that all ob-

jects presented in the metamodel (abstract syntax) are

represented by a different icon. It is up to users to

design the model using the graphical notation based

on their knowledge of the application domain. When

designing the graphical notation, our objective was

to achieve a balance between simplicity, expressive-

ness, ability to write, readability, learning and effec-

tiveness.

3.3 Transformation

A fundamental aspect deﬁned by MobCons-AT is the

possibility of generating code automatically through

the use of M2T (Model to Text) transformations us-

ing as input the user provided model developed us-

ing the graphical notation. The transformation rules

deﬁned in MobCons-AT receive as input the con-

crete model (generated according to the metamodel

and composed of all speciﬁcations made by the user

through the MobCons-SL language) and generate as

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

528

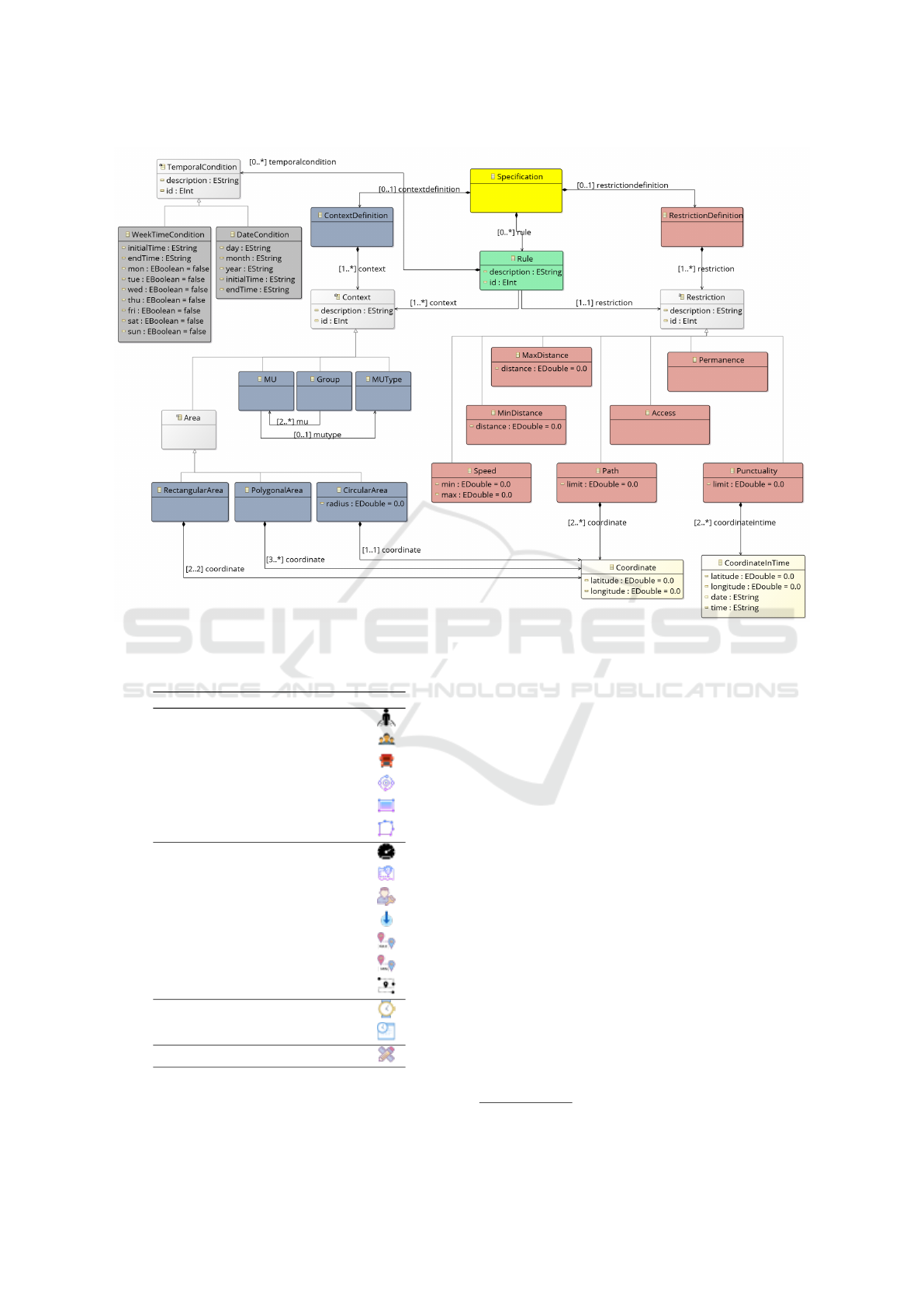

Figure 2: The MobCons-SL Metamodel.

Table 1: Graphical Notation.

Object Icon

Contexts

Group

MUType

CircularArea

RectangularArea

PolygonalArea

Restrictions

Speed

Path

Access

Permanence

MaxDistance

MinDistance

Punctuality

Temporal Condition

WeekTimeCondition

DateCondition

Rules Rule

output artifacts code in Java

that instantiates classes

of the MobCons library responsible for the generation

of CEP queries that are instantiated in the CEP engine

running in the cloud.

The automated process of model transforming oc-

curs through a set of deﬁned rules. These rules are

structured in the form of templates and queries, each

template being responsible for a transformation stage

and each query used to query values or collections

of values deﬁned in the template. The transforma-

tions used in MobCons-AT were implemented using

the Acceleo tool, chosen for its easy use and its inte-

gration with the Eclipse IDE through a plug-in.

The transformation is started by the instantiating

of the class Specification. From this class, all

speciﬁed Rule classes are searched, and for each the

transformation process looks for the Restriction

classes, Context and possible TemporalCondition

classes. In other words, the developed routine

searches for all the speciﬁed rules, obtaining from

each one, the constraint, contexts and temporal con-

ditions (if they exist) associated.

To demonstrate the transformation process de-

veloped, consider the scenario showed in Section

Java: https://www.oracle.com/java/index.html

A Mobility Restriction Authoring Tool Approach based on a Domain Speciﬁc Modeling Language and Model Transformation

529

3.2.1. To model this example, the MobCons-

SL language generates the following objects:

a RestrictionDefinition class and a Speed

constraint, a ContextDefinition class, and a

PolygonalArea context of at least three Coordinate

objects. The association between the context and the

constraint is done by creating a Rule class consisting

of a WeekTimeCondition. The graphic notation that

represents the concrete input model generated can be

seen in Figure 3.

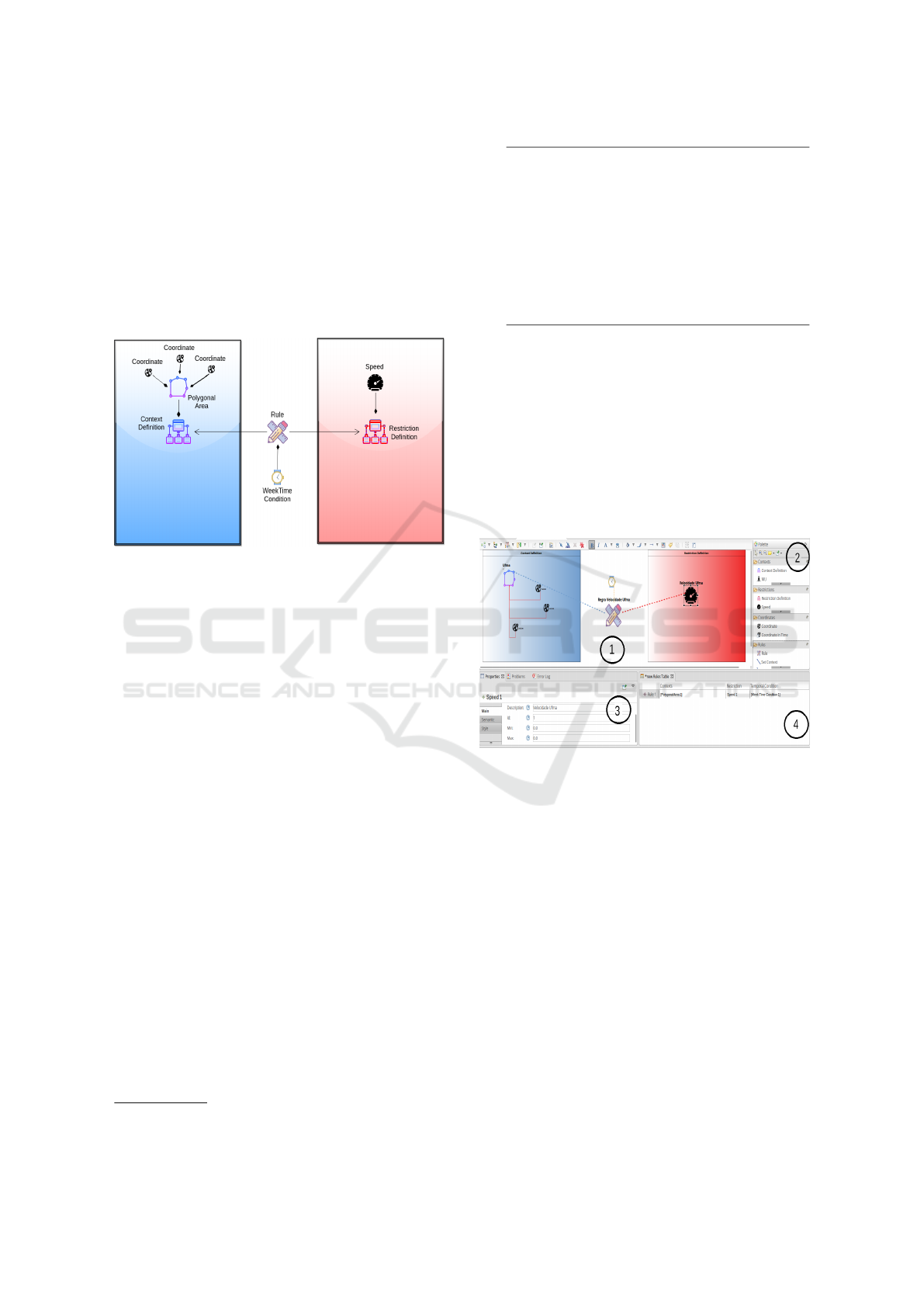

Figure 3: Concrete input model, based on the example of

Section 3.2.1.

From this point, the objects deﬁned in the concrete

input model are transformed into the objects imple-

mented in MobCons. The code of Listing 1 shows the

artifact generated after the transformation of the con-

crete model, where it is possible to observe the map-

ping between the classes of the metamodel and the

classes of the MobCons library. Lines 3 and 4 are re-

sponsible for the instantiation of the library main con-

structor followed by the calls to the constructors of the

SpeedRestriction (line 6), AreaContext (line 7),

and ConstraintTimeClause (line 9) classes. Line2

12 to 15 are responsible for binding the mobility re-

striction to the contexts and temporal conditions and

generating the correspondent CEP rules by calling the

newMC() method. This method is also responsible

for dynamically instantiating the CEP rules into the

CEP engine. Some simple mobility restrictions (such

as speed limit) generate a single CEP rule, while more

complex ones (such as route and punctuality) require

several CEP rules for proper monitoring of mobile

nodes.

3.4 The MobCons-AT Prototype

The MobCons-AT tool graphical interface was devel-

oped using the Sirius

tool, chosen for its easy use and

its integration with Eclipse IDE through a plug-in.

Sirius: https://www.eclipse.org/sirius/

1 public class MobCons {

2 public static void main(String[] args) {

3 MampCoreMobconsCore mobconsCore = new MobconsCore();

4 mobconsCore.init(true);

6 SpeedRestriction restriction11 = new SpeedRestriction(30.0);

7 AreaContext contextArea11 = new AreaContext(

8 new Point2D.Double(10.0, 30.0), 10.0);

9 ConstraintTimeClause weekTimeCondition11 =

10 ConstraintTimeClause.timeIntervalAndDaysOfWeekInArray(

11 "06:00", "11:00",2,4,6);

12 mobconsCore.newMC(restriction11,

13 contextArea11,

14 weekTimeCondition11);

15 }

16 }

Listing 1: Artifact generated after transformation, based on

the example of Section 3.2.1.

The simple to use graphical interface allow users to

focus in the business domain and the provided trans-

formation model avoids the necessity of writing code

lines.

The proposed graphical interface allows to visu-

ally represent the concepts deﬁned in the MobCons-

SL language. Figure 4 shows the modeling of a mo-

bility restriction scenario using the prototype.

Figure 4: MobCobs-AT Prototype.

The tool window is divided basically into four

parts:

1. An area for creating the models;

2. A palette of modeling elements, divided into

• Contexts: elements that represent the con-

texts, that is, ContextDefinition, MU, Group,

MUType, CircularArea, RectangularArea

and PolygonalArea;

• Restrictions: elements that represent the con-

straints, that is, RestrictionDefinition,

Speed, Path, MaxDistance, MinDistance,

Access, Permanence and Punctuality;

• Coordinates: elements that represent the

coordinates, that is, Coordinate and

CoordinateInTime;

• Rules: elements that represent the rules, their

relationships with contexts and constraints, and

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

530

the types of temporal constraints, that is, Rule,

Set Restriction, Set Context, WeekTime

Condition and Date Condition.

3. Fields for textual edition of values to complement

the graphical notation;

4. A rules visualization table, which shows in tabular

format all contexts, constraints and temporal con-

ditions that comprise the model being developed.

4 CASE STUDIES

This Section aims to demonstrate the expressiveness

of the MobCons-SL language to describe mobility re-

strictions in diverse scenarios. It also demonstrate the

functionality of MobCons-AT transformation rules to

generate software artifacts that allows near real time

monitoring of the deﬁned mobility restrictions. We

want to verify, therefore, that using the provided

DMSL the user will be able to correctly model the

scenarios and that the tool will correctly produce arti-

facts according to the model speciﬁed for each sce-

nario. For this, two case studies were developed.

The chosen case studies encompass Rule with a large

number of Context and Restriction, as well as

TemporalCondition.

4.1 Mining Company Scenario

A mining company wants to limit the maximum speed

of vehicles within its iron ore yard to 40 km/h. Such

speed restriction must be carried out between 07 am

and 12 am, from Monday to Friday. The vehicles of

the outsourced company Formula 1 should not exceed

60 km/h in all dependencies of the company. All ve-

hicles must maintain a minimum distance of 60 me-

ters from each other, for safety purposes. In addi-

tion, excavator-type vehicles should remain restricted

to the iron ore yard and their displacement should fol-

low a predeﬁned route.

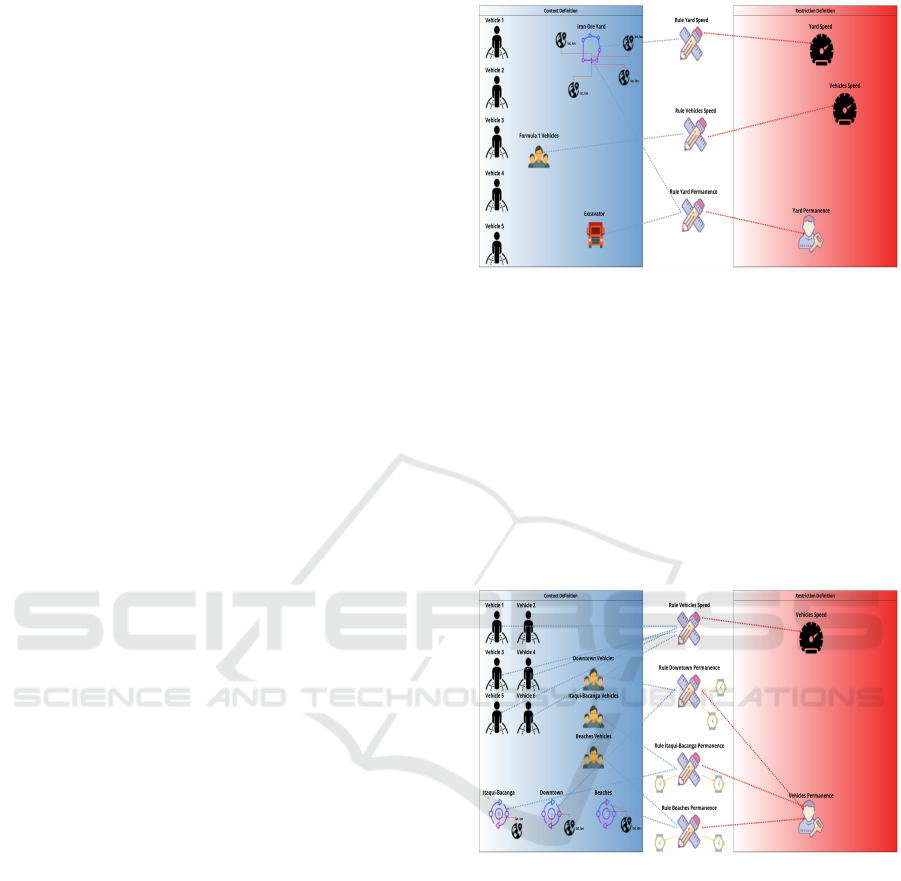

The Figure 5 shows a possible modeling to spec-

ify the mobility restrictions of the proposed scenario.

In the Appendix Section, it is shown the artifact gen-

erated after the transformation process.

4.2 Public Safety Scenario

The Department of Public Security wants to control

the use of its police vehicles. Following the rules of

the Secretariat, each car must cover a predetermined

area within a speciﬁc time period, which must be from

06 am to 18 pm, Monday to Friday, and from 10 am

Figure 5: Mining Company Scenario.

to 22 pm on Saturdays and Sundays. The areas of

operation of the vehicles should be: Itaqui-Bacanga

neighbourhood, Downtown and Beaches. Except for

times when they are called for emergencies or ﬂagrant

offenses, vehicles should only make rounds in their

area of operation, at a maximum speed of 40 km/h.

The Figure 6 shows a possible modeling to spec-

ify the mobility restrictions of the proposed scenario.

In the Appendix Section, it is shown the artifact gen-

erated after the transformation process.

Figure 6: Public Safety Scenario.

4.3 Discussion

This Section illustrates the expressiveness of the

Mobcons-SL language to describe mobility restric-

tions of mobile nodes in two case studies: a mining

company and public safety. The use of the Mobcons-

AT allowed the user to model the required mobility

restrictions using a high level language based on a

graphical notation. It has been shown the language

ﬂexibility for expressing diverse mobility restrictions

and conditions, including temporal ones, that can be

easily combined with a ﬂexible set of contexts, rang-

ing from individual mobile nodes, groups of mobile

nodes, mobile nodes types and geographical areas.

A Mobility Restriction Authoring Tool Approach based on a Domain Speciﬁc Modeling Language and Model Transformation

531

The use of transformation rules allowed the auto-

matic generation of non trivial software artifacts that

use Complex Event Processing rules for near real time

detection of the deﬁned mobility restrictions viola-

tions, avoiding the time and effort necessary for writ-

ing that code.

As showed in this two case studies, the use of an

Authoring Tool, such as Mobcons-AT, allows the user

to focus in the domain expertise instead of program-

ming software skills and contributes to the reduction

of software delivery time and its associated costs.

5 RELATED WORK

To the best of our knowledge, there is no report in

the literature of an authoring tool that implement a

Domain-Speciﬁc Modeling Language to specify mo-

bility restrictions to be applied to mobile nodes. In

this section, we present related works that allow mon-

itoring of mobile nodes, but are not based in the de-

velopment of a DSML and the exploitation of model

transformations.

There are some papers that investigate how to ac-

quire the geographic position of a vehicle and send

it to a central node that displays their location (An-

toniou et al., 2014; Al-Khedher, 2012; Behzad et al.,

2014). Others can also detect and alert when a mon-

itored mobile node exceeds a certain speed limit (Al-

Taee et al., 2007; Joy et al., 2016), when they leave a

certain area (Punetha and Mehta, 2014), or can com-

bine this two types of mobility restrictions (Almo-

mani et al., 2011). The work described in (Oliveira

et al., 2013) emits alerts when a deﬁned route devia-

tion occurs.

Most of the works are focused on vehicle track-

ing with the exception of (Punetha and Mehta, 2014),

that was developed for tracking people, and (Oliveira

et al., 2013), that was developed for tracking cargo.

We should also note that most of the work associate

mobility restrictions (speed limits, bounded area or

route) to the monitored mobile nodes. (Joy et al.,

2016), in the other hand, associates a speed limit to

a speciﬁc area (or road).

As can be seen, previous works adopt a strategy

based on traditional software development and pro-

pose a speciﬁc software already deployed that, of

course, could be extended with a specialized team of

programmers. The proposed approach described in

this paper, on the other hand, provides an Authoring

Tool that implements a DSML which allows the spec-

iﬁcation of a ﬂexible set of mobility restrictions, tem-

poral conditions and the context where they must be

applied. Through the use of model transformation,

software artifacts are automatic generated allowing

near real time detection of mobility restrictions vi-

olations. Beyond that novel approach, the provided

DSML allows the speciﬁcation of a set of mobility re-

strictions richer than previous works that can be ﬂex-

ibly combined in different contexts.

6 CONCLUSION AND FUTURE

WORK

The technological advances in the area of mobile and

ubiquitous computing opens up opportunities for the

gathering, distribution, and analysis of diverse sensor

data such as location, speed, acceleration, tempera-

ture, and so on. This data is crucial for the under-

standing of the dynamics of individuals, enterprises,

and even whole cities. In this paper we focused in

mobility management and, more speciﬁcally, in the

deﬁnition and monitoring of mobility restrictions that

must be followed in given contexts. There are many

applications in both public and private sectors that re-

quire such monitoring capabilities.

Although there are several work developed in this

area, they follow the traditional approach of software

engineering, deriving a speciﬁc software system that,

to be altered or extended, requires a specialized team

of software developers.

In this paper we propose a novel approach for

developing such systems by providing an Authoring

Tool, called Mobcons-AT, that implements a DSML

(Mobcons-SL) which allows the speciﬁcation of a

ﬂexible set of mobility restrictions, temporal condi-

tions and the context where they must be applied.

Through the use of model transformation, software

artifacts are generated automatically, allowing near

real-time detection of mobility constraint violations.

The automatic software generation reduce the cost,

time and human resources (software developers) re-

quired for building systems focusing the online mon-

itoring of mobility restrictions.

The use of Mobcons-AT was validated through

case studies based in two real-world scenarios. The

scenarios demonstrate the language ﬂexibility for ex-

pressing diverse mobility restrictions and conditions,

including temporal ones, that can be easily combined

with a ﬂexible set of contexts, ranging from individual

mobile nodes, groups of mobile nodes, mobile nodes

types and geographical areas. In addition, a graphical

notation allows users to easily describe the mobility

restrictions without requiring much technical skills.

The use of Mobcons-AT transformation rules allows

the automatic generation of non trivial software ar-

tifacts that use Complex Event Processing rules for

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

532

near real time detection of the deﬁned mobility re-

strictions violations, avoiding the time and effort nec-

essary for writing that code. In this way, the proposed

solution, contributes to the reduction of cost and time

required for the development of mobility restriction

management systems.

Despite the various objectives achieved during the

development of this work, there are some possibili-

ties for improvements that have been observed. Fu-

ture works include the development of experimental

evaluation for analyzing the automatic generated sys-

tem scalability in respect to the number of monitored

mobile nodes and the modeling of complex mobility

patterns, such as concentration, dispersion, conges-

tion, leadership, and meeting.

ACKNOWLEDGEMENTS

This research is part of the INCT of the Future In-

ternet for Smart Cities and was ﬁnanced in part by

the Coordenac¸

ao de Aperfeic¸oamento de Pessoal de

ıvel Superior - Brazil (CAPES) - Finance Code 001,

Conselho Nacional de Desenvolvimento Cient

ıﬁco e

Tecnol

ogico - Brazil (CNPq) proc. 465446/2014-0,

Fundac¸

ao de Amparo

a Pesquisa do Estado de S

Paulo - Brazil (FAPESP) proc. 14/50937-1 and proc.

15/24485-9, Fundac¸

ao de Amparo

a Pesquisa e ao De-

senvolvimento Cient

ıﬁco e Tecnol

ogico do Maranh

- Brazil (FAPEMA) proc. UNIVERSAL-00987/17.

REFERENCES

Al-Khedher, M. A. (2012). Hybrid gps-gsm localiza-

tion of automobile tracking system. arXiv preprint

arXiv:1201.2630.

Al-Taee, M. A., Khader, O. B., and Al-Saber, N. A. (2007).

Remote monitoring of vehicle diagnostics and loca-

tion using a smart box with global positioning system

and general packet radio service. In 2007 IEEE/ACS

International Conference on Computer Systems and

Applications, pages 385–388.

Almomani, I. M., Alkhalil, N. Y., Ahmad, E. M., and Jodeh,

R. M. (2011). Ubiquitous gps vehicle tracking and

management system. In 2011 IEEE Jordan Confer-

ence on Applied Electrical Engineering and Comput-

ing Technologies (AEECT), pages 1–6.

Antoniou, A., Georgiou, A., Kolios, P., Panayiotou, C., and

Ellinas, G. (2014). An event-based bus monitoring

system. In 17th International IEEE Conference on In-

telligent Transportation Systems (ITSC), pages 2882–

2887.

Behzad, M., Sana, A., Khan, M., Walayat, Z., Qasim, U.,

Khan, Z., and Javaid, N. (2014). Design and develop-

ment of a low cost ubiquitous tracking system. Proce-

dia Computer Science, 34(Supplement C):220 – 227.

Da Silva, A. R. (2015). Model-driven engineering: A sur-

vey supported by the uniﬁed conceptual model. Com-

puter Languages, Systems & Structures, 43:139–155.

Favre, J.-M. and NGuyen, T. (2005). Towards a meg-

amodel to model software evolution through transfor-

mations. Electronic Notes in Theoretical Computer

Science, 127(3):59–74.

Fowler, M. (2010). Domain-speciﬁc languages. Pearson

Education.

Guinelli, J. V., de Souza Rosa, A., Pantoja, C. E., Choren,

R., Friburgo-RJ-Brasil, N., and de Janeiro-RJ-Brasil,

R. (2014). Uma metodologia para apoio ao projeto

de banco de dados geogr

aﬁcos utilizando a mda. X

Simp

osio Brasileiro de Sistemas de Informac¸

ao.

Joy, S. P., Sunitha, V. S., Devi, V. R. S., Sneha, A., Deepak,

S., and Raju, A. J. (2016). A novel security enabled

speed monitoring system for two wheelers using wire-

less technology. In 2016 International Conference

on Circuit, Power and Computing Technologies (IC-

CPCT), pages 1–7.

Ludewig, J. (2003). Models in software engineering–an in-

troduction. Software and Systems Modeling, 2(1):5–

14.

Mernik, M., Heering, J., and Sloane, A. M. (2005). When

and how to develop domain-speciﬁc languages. ACM

computing surveys (CSUR), 37(4):316–344.

Murray, T. (1999). Authoring intelligent tutoring systems:

An analysis of the state of the art. International Jour-

nal of Artiﬁcial Intelligence in Education (IJAIED),

10:98–129.

Murray, T., Blessing, S., and Ainsworth, S. (2003). Author-

ing tools for advanced technology learning environ-

ments: Toward cost-effective adaptive, interactive and

intelligent educational software. Springer Science &

Business Media.

Oliveira, R. R., Noguez, F. C., Costa, C. A., Barbosa,

J. L., and Prado, M. P. (2013). Swtrack: An intelli-

gent model for cargo tracking based on off-the-shelf

mobile devices. Expert Systems with Applications,

40(6):2023 – 2031.

Punetha, D. and Mehta, V. (2014). Protection of the child/

elderly/ disabled/ pet by smart and intelligent gsm and

gps based automatic tracking and alert system. In

2014 International Conference on Advances in Com-

puting, Communications and Informatics (ICACCI),

pages 2349–2354.

Zheng, Y., Capra, L., Wolfson, O., and Yang, H. (2014). Ur-

ban Computing: Concepts, Methodologies, and Ap-

plications. ACM Transactions on Intelligent Systems

and Technology, 5(3):38:1—-38:55.

A Mobility Restriction Authoring Tool Approach based on a Domain Speciﬁc Modeling Language and Model Transformation

533

APPENDIX

1 public class Mobcons {

2 public static void main(String[] args) {

3 MobconsCore mobconsCore = new MobconsCore();

4 mobconsCore.init(true);

5 SpeedRestriction restriction11 = new SpeedRestriction(40.0);

6 AreaContext contextPolygonalArea11 = new AreaContext(

7 new Point2D.Double(10.0,10.0),

8 new Point2D.Double(20.0,20.0),

9 new Point2D.Double(30.0,30.0),

10 new Point2D.Double(40.0,40.0));

11 ConstraintTimeClause weekTimeCondition11 =

12 ConstraintTimeClause.timeIntervalAndDaysOfWeekInArray(

13 "07:00:00", "12:00:00",2,3,4,5,6);

14 mobconsCore.newMC(restriction11,

15 contextPolygonalArea11,

16 weekTimeCondition11);

17 SpeedRestriction restriction22 = new SpeedRestriction(60.0);

18 GroupUMContext contextGroup12 = new GroupUMContext(1,2,3,4,5);

19 mobconsCore.newMC(restriction22,contextGroup12);

20 AreaRestriction restriction13 = new AreaRestriction(true,

21 new Point2D.Double(10.0,10.0),

22 new Point2D.Double(20.0,20.0),

23 new Point2D.Double(30.0,30.0),

24 new Point2D.Double(40.0,40.0));

25 KindOfMUContext contextKindOfMU13 =

26 new KindOfMUContext("Escavadeiras");

27 mobconsCore.newMC(restriction13,contextKindOfMU13);

28 } //end of the method main

29 } //end of the class

Listing 2: Artifact generated by the scenario 4.1.

1 public class Mobcons {

2 public static void main(String[] args) {

3 MobconsCore mobconsCore = new MobconsCore();

4 mobconsCore.init(true);

5 SpeedRestriction restriction11 = new SpeedRestriction(40.0);

6 SingleUMContext contextMU11 = new SingleUMContext(1);

7 mobconsCore.newMC(restriction11,contextMU11);

8 SingleUMContext contextMU21 = new SingleUMContext(2);

9 mobconsCore.newMC(restriction11,contextMU21);

10 SingleUMContext contextMU31 = new SingleUMContext(3);

11 mobconsCore.newMC(restriction11,contextMU31);

12 SingleUMContext contextMU41 = new SingleUMContext(4);

13 mobconsCore.newMC(restriction11,contextMU41);

14 SingleUMContext contextMU51 = new SingleUMContext(5);

15 mobconsCore.newMC(restriction11,contextMU51);

16 SingleUMContext contextMU61 = new SingleUMContext(6);

17 mobconsCore.newMC(restriction11,contextMU61);

18 AreaRestriction restriction12 = new AreaRestriction(true,new

19 Point2D.Double(400.0,400.0),10.0);

20 GroupUMContext contextGroup12 = new GroupUMContext(1,2);

21 ConstraintTimeClause weekTimeCondition12 =

22 ConstraintTimeClause.timeIntervalAndDaysOfWeekInArray(

23 "06:00:00","18:00:00",2,3,4,5,6);

24 mobconsCore.newMC(restriction12,contextGroup12,weekTimeCondition12);

25 ConstraintTimeClause weekTimeCondition22 =

26 ConstraintTimeClause.timeIntervalAndDaysOfWeekInArray(

27 "10:00:00","22:00:00",1,7);

28 mobconsCore.newMC(restriction12,contextGroup12,weekTimeCondition22);

29 AreaRestriction restriction23 = new AreaRestriction(true,new

30 Point2D.Double(10.0,10.0),5.0);

31 GroupUMContext contextGroup23 = new GroupUMContext(3,4);

32 ConstraintTimeClause weekTimeCondition33 =

33 ConstraintTimeClause.timeIntervalAndDaysOfWeekInArray(

34 "06:00:00","18:00:00",2,3,4,5,6);

35 mobconsCore.newMC(restriction13,contextGroup23,weekTimeCondition33);

36 ConstraintTimeClause weekTimeCondition43 =

37 ConstraintTimeClause.timeIntervalAndDaysOfWeekInArray(

38 "10:00:00","22:00:00",1,7);

39 mobconsCore.newMC(restriction13,contextGroup23,weekTimeCondition43);

40 AreaRestriction restriction34 = new AreaRestriction(true,new

41 Point2D.Double(1000.0,1000.0),20.0);

42 GroupUMContext contextGroup34 = new GroupUMContext(6,5);

43 ConstraintTimeClause weekTimeCondition64 =

44 ConstraintTimeClause.timeIntervalAndDaysOfWeekInArray(

45 "06:00:00","18:00:00",2,3,4,5,6);

46 mobconsCore.newMC(restriction14,contextGroup34,weekTimeCondition64);

47 ConstraintTimeClause weekTimeCondition74 =

48 ConstraintTimeClause.timeIntervalAndDaysOfWeekInArray(

49 "10:00:00","22:00:00",1,7);

50 mobconsCore.newMC(restriction14,contextGroup34,weekTimeCondition74);

51 } //end of the method main

52 } //end of the class

Listing 3: Artifact generated by the scenario 4.2.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

534
