Safe Design Real-time Embedded Systems with Security Patterns

Ahmed Ben Mansour, Mohamed Naija and Samir Ben Ahmed

El Manar University, Faculty of Mathematical, Physical and Natural Sciences of Tunis Manar, Tunisia

Keywords:

Real Time Embedded Systems, security Pattern, Ontology, Adaptation.

Abstract:

Security is a fundamental property in the modeling of real-time embedded systems. Unfortunately, integrating

this property is a hard task for a designer due to their small background concerning this feature. Thankfully,

the design pattern can provide a practical solution to integrate security through an abstraction mode. However,

Nowadays the number of design pattern is increasing, for that reason, the selection of suitable pattern is

a fundamental challenge for designers. In this context, we propose in this position paper an approach to

integrating security pattern in the phase of modeling of real-time embedded systems. To solve the problem of

selection pattern we propose in our approach to use the ontology-based solution, and thus, we propose some

methods to guarantee the performance of the systems after integrating.

1 INTRODUCTION

Pattern passed development is becoming increasingly

recognized in software engineering. The use of pat-

terns is one of the means by which reusability can be

ensured in the systems development because it saves

time during the development and as a result reducing

the time to market. However, integrating these pat-

terns remain a challenge for developers, which is why

it is a critical research topic these days. In fact, pat-

terns are applied in the modeling of modern software

architectures, distributed systems, and real-time em-

bedded systems (RTES).

Nowadays, the modeling of real-time embedded

systems may be stated as a crucial problem with the

current lack of design models and tools. This is why,

it is necessary to provide a solution that manages the

coexistence of the different hardware and software re-

quirement and at the same time assist non-functional

properties (NFPs) (e.g., Time requirement and secu-

rity specialists). It is also advantageous to provide

them with building blocks that meet their needs, of

course, methods will guide them throughout the sys-

tems life-cycle. A solution based on model-driven en-

gineering (MDE) (Dobson et al., 2006) and patterns

seem to meet these expectations.

Besides, design patterns (Gamma, 1995) can pro-

vide a practical solution to meet speciﬁc needs such

as, the security concern that can be addressed using

security patterns that encapsulate security solutions

by an abstraction mode and allows designers to inte-

grate it in the phase of co-design real-time embedded

systems. These types of patterns ensure reusability

thanks to their construction advantage which is inde-

pendent of all environments.

The use of security patterns in real-time embed-

ded systems co-design saves much time and reduces

the development cost in RTES systems, but the choice

of suitable patterns is a challenge for the designer be-

cause of its vast number. Besides, the integration of

design patterns can affect the performance of the sys-

tems and the architecture quality, for example, the in-

tegration of the pattern can increase the time response

of the system. The designer must take into considera-

tion the different effects when he chooses the correct

pattern.

In this position paper, we propose an approach

to select the right security pattern that is suitable for

solving security problems and respecting the different

time constraints of the system. It represents a generic

illustration backing into the co-modeling of features

to be used in the context of modeling security and

analysis time constraint in the RTES.

Our approach aims to guide RTES designers in

building and veriﬁcation of safe RTES models. It fa-

cilitates complex systems modeling, reduces the de-

velopment time and improves software process qual-

ity.

The remainder of this position paper is organized

as follows. In section II, we give background on re-

lated concepts. In section III, we present an overview

of the proposed approach. Finally, we conclude with

some outlined directions for future works.

Ben Mansour, A., Naija, M. and Ben Ahmed, S.

Safe Design Real-time Embedded Systems with Security Patterns.

DOI: 10.5220/0007749104590463

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 459-463

ISBN: 978-989-758-375-9

459

2 THEORETICAL BACKGROUND

The increase in the importance of security in organi-

zations leads to the birth of several research-oriented

levels for the integration of security concept in vari-

ous phases of software development lifecycle. In this

section, we present some works on the integration of

security design patterns, and then we present some ex-

isting ontologies in the same ﬁeld. Finally, we present

different works about adaptation mechanism.

2.1 Review of Security Pattern Selection

The authors proposed in (Alam et al., 2007), (Fer-

nandez et al., 2007a) an approach for integrating se-

curity patterns at all phases of systems development.

These guidelines affect the phase of design, imple-

mentation, testing, and deployment of the systems.

In fact, the authors presented a recommendation for

follow-up without giving details on the modeling or

the concrete solution.

In (Fernandez et al., 2007b) and (Toahchoodee

et al., 2009) the authors used the oriented program-

ming paradigm to integrate security patterns into the

modeling of the system. The security aspects are

modeled independently by using the security patterns

to be woven after that with the functional models.

The authors in (Bouaziz et al., 2015) proposed a

process to integrate security pattern in the different

phases of system development. This process provides

separation between domain expertise and application

security expertise. The primary goal in this work is to

provide a semi-automatic integration of security pat-

tern into component-based models. This integration

is performed through a set of information rules. The

result of this integration is a new model supporting

security concepts.

2.2 Review of Security Ontology

The advantages of applying ontology technology into

the information security domain are speciﬁc in (Guan

et al., 2016) from three viewpoints: 1) ontologies can

eliminate the ambiguity of items to a properties list

and systematically organize information at a detailed

level. 2) ontological technology can induce the mod-

ularity which can be used by other approaches. 3) an

ontological approach can forecast security problems

by providing inference mechanisms.

Schumacher proposed in (Schumacher, 2003) a

security ontology to maintain the security pattern

repository with a general security pattern search en-

gine. However, only top-level concepts were intro-

duced in their ontology, which is too abstract to apply

to the speciﬁc context.

In (Denker et al., 2005), Denker had mainly ad-

dressed the knowledge representation and some of the

reasoning issue for trust and security in the semantic

web. Enforcement mechanisms, automatic negotia-

tion, and tools for semantic web security are much

less developed and provide ample opportunities. They

summarized an ontological approach to enhancing the

semantic web with security using ontology.

In (Souag et al., 2015) the authors presented a

core and general security ontology for security re-

quirements engineering. Its core and general status

are attained thanks to its coverage of broad and high-

level security concepts and relationships.

2.3 Review of Adaptation

The design of adaptive RTES is relatively old domain

and thus very rich. Unfortunately, these tasks present

a challenge due to the complexity of the problem it

handles (Said et al., 2014). A typical fundamental

challenge is optimizing system non-functional prop-

erties while meeting internal and external constraints

(real-time constraint). Such as, high quality of service

may require a high utilization of system resources

(CPU cycles and memory space).

In (Said et al., 2014), the authors have proposed

ﬁve patterns representing generic modeling of the

adaptation loop modules. The patterns take into con-

sideration the real-time features of adaptation opera-

tion. These design patterns are presented in the static

view through class diagrams annotated with MARTE

(OMG, 2008) proﬁle stereotyped. The adaptation is

then considered as a dynamic and partial change of

the operation mode without supporting platform re-

sources.

In (Yousef and Khaled, 2015) the authors pro-

posed a feedback loop design process for self-

adaptation. Feedback loops provide the generic

mechanism for self-adaptation. It is a control loop

where the output of the controlled system is fed back

to the input. Typically, it involves four key activities:

• Monitor: it is responsible for collecting data from

a set of sensors, ﬁltering and aggregating this data

and sending it to the analyzer component for any

possible symptoms of system goals violation.

• Analyzer: its responsibility is to receive collected

and logged data from monitor representing the

system state history and analyze them for any pos-

sible symptoms of system goals and requirements

violation.

• Plan: is responsible for the construction of the

change plan in response to an adaptation request

received from the analyzer.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

460

• Execute: is responsible for sending the corrective

actions to the effectors in a speciﬁc order.

3 SECURITY PATTERN

INTEGRATION

In this section, we present the general idea of our ap-

proach for the integration and selection of security

patterns in the modeling of RTES. The approach is

based on the scenario that was deﬁned in (Motii et al.,

2015) and (Motii et al., 2016), we modify some steps

to guarantee the automation and to solve several prob-

lems that are not solved, and we redeﬁne some phases

in the scenario.

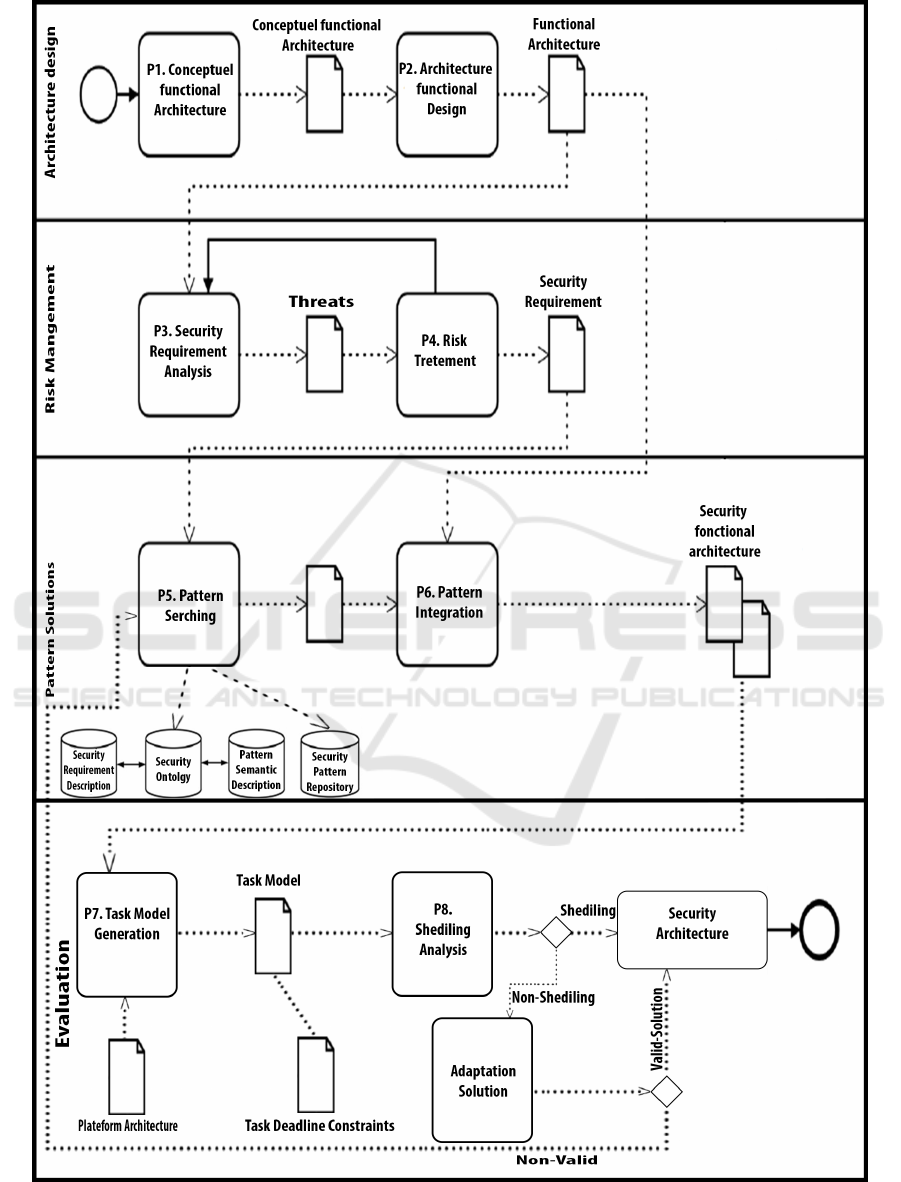

The ﬁgure shows the different phases of the ap-

proach. Our approach is based on the separation be-

tween the functional model and the non-functional

properties. For that, the ﬁrst step in our approach is

the modeling of the functional model with architec-

ture design. This model describes the functional as-

pect of the system and contains the several operations

of the software system.

The second step is the functional model sent to

the risk analysis. This phase for listing the threats

and deriving the security requirements. This analysis

is carried out by a safety risk analyzer. The security

requirements describe what should be provided by the

security mechanisms to stop some threats.

Based on security requirements, a method to

search a security pattern must be described to en-

sure the identiﬁcation of the suitable patterns that can

solve the described security problem automatically.

To achieve this goal, we will seek to deﬁne an on-

tology to look for the appropriate security pattern, for

that we will describe and store the security require-

ments and the security patterns semantically.

For the semantic representation of the security re-

quirements, we will use OWL (Web Ontology Lan-

guage) to guarantee the automatic mapping of re-

quirements to its solution. For the semantic repre-

sentation must contain all the necessary information

of a security pattern, its level of abstraction, type of

solution, the context and its integration method. Two

libraries will be deﬁned: a library of security pattern

and a library of the security ontologies.

The operation of the search algorithm will be to

look for semantic representation of security require-

ment suitable for a semantic pattern presentation if it

exists then the ontology will send the proper repre-

sentation of the pattern to extract the proper security

pattern that can solve the security problem. Finally,

the security pattern will be selected and prepared for

integration into a functional model by the system de-

signer. A secure model will be the result of the inte-

gration.

After the steps of integration, the operation of the

system will be modiﬁed; for that, an evaluation must

be provided to validate this integration. A model con-

taining the operation of the system must be related

to the hardware resources. We will use the proﬁle

UML/MARTE for the allocation of the software task

in the hardware resources. In the evaluation test, the

time constraints for each task must be taken into con-

sideration; for example, when we add the security re-

quirements to the task corresponding to its execution

time, the test must verify that change does not exceed

to task deadline.

If the evaluation test is positive then the integra-

tion of security pattern will be accepted, if not another

solution will be provided to validate the integration of

pattern, the adaptation solution.

The adaptation solution consists of the changing

of the structure or the system behavior to respond to

the change of its functioning, in our case, the adapta-

tion is the reconﬁguring of the allocation between the

resources and the appropriate tasks after the modify-

ing of the execution time. For this solution, we will

use the same pattern from the MAPE loop for the self-

adaptation after we modify some operations. We will

use only three patterns from the loop:

• DecisionMaker: for generating of adaptation de-

cision that speciﬁes the elements to be modiﬁed

and how to modify them to meet the requirements

of the system after pattern integration better.

• Actor: for applying the decision. It maps the ac-

tions to the effector interfaces.

• Effectors: it is responsible for applying the change

in the allocation of tasks in different resources.

If the validation test (the same scheduling analy-

sis) is valid, then the secured model will be validated,

if not then the pattern chosen was not the suitable for

the system operation, and we must return to the search

patterns phase to ﬁnd another pattern that responds to

the same requirements.

4 CONCLUSION

In this position paper, we proposed an approach for

the integration of security patterns in a real-time sys-

tem model. This approach is based on ontology to

automatically select the appropriate security pattern

to the security requirement that was extracted by the

security risk analysis. Then we dealt with the prob-

lem of system performance according to the time con-

straints validation, and we proposed an alternative so-

Safe Design Real-time Embedded Systems with Security Patterns

461

Figure 1: Integration Patterns phases.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

462

lution to the scheduling test which is based on the sys-

tem adaptation to guarantee the correct functioning of

the system with the integrated patterns.

Our future work, we focus on two main areas. One

is the extension of the requirement ontology. The

other area is the Automatic benchmark integration in

the real-time system model; one takes into consider-

ation the other criteria that perform to system perfor-

mance such as runtime and energy.

REFERENCES

Alam, M., Breu, R., and Hafner, M. (2007). Model-driven

security engineering for trust management in sectet.

JSW, 2(1):47–59.

Bouaziz, R., Krichen, F., and Coulette, B. (2015). C-scrip:

collaborative security pattern integration process. In-

ternational Journal of Information Technology and

Web Engineering (IJITWE), 10(1):31–46.

Denker, G., Kagal, L., and Finin, T. (2005). Security in the

semantic web using owl. Information Security Tech-

nical Report, 10(1):51–58.

Dobson, S., Denazis, S., Fern

andez, A., Ga

ıti, D., Gelenbe,

E., Massacci, F., Nixon, P., Saffre, F., Schmidt, N.,

and Zambonelli, F. (2006). A survey of autonomic

communications. ACM Transactions on Autonomous

and Adaptive Systems (TAAS), 1(2):223–259.

Fernandez, E. B., Ballesteros, J., Desouza-Doucet, A. C.,

and Larrondo-Petrie, M. M. (2007a). Security pat-

terns for physical access control systems. In IFIP An-

nual Conference on Data and Applications Security

and Privacy, pages 259–274. Springer.

Fernandez, E. B., Pelaez, J. C., and Larrondo-Petrie, M. M.

(2007b). Security patterns for voice over ip networks.

In Computing in the Global Information Technology,

2007. ICCGI 2007. International Multi-Conference

on, pages 33–33. IEEE.

Gamma, E. (1995). Design patterns: elements of reusable

object-oriented software. Pearson Education India.

Guan, H., Yang, H., and Wang, J. (2016). An ontology-

based approach to security pattern selection. In-

ternational Journal of Automation and Computing,

13(2):168–182.

Motii, A., Hamid, B., Lanusse, A., and Bruel, J.-M. (2015).

Guiding the selection of security patterns based on se-

curity requirements and pattern classiﬁcation. In Pro-

ceedings of the 20th European Conference on Pattern

Languages of Programs, page 10. ACM.

Motii, A., Hamid, B., Lanusse, A., and Bruel, J.-M. (2016).

Guiding the selection of security patterns for real-time

systems. In Engineering of Complex Computer Sys-

tems (ICECCS), 2016 21st International Conference

on, pages 155–164. IEEE.

OMG (2008). Object management group. a uml proﬁle for

marte: Modeling and analysis of real-time embedded

systems. In Beta2, Object Management Group.

Said, M. B., Kacem, Y. H., Kerboeuf, M., Amor, N. B., and

Abid, M. (2014). Design patterns for self-adaptive rte

systems speciﬁcation. International Journal of Recon-

ﬁgurable Computing, 2014:8.

Schumacher, M. (2003). Security engineering with pat-

terns: origins, theoretical models, and new applica-

tions, volume 2754. Springer Science & Business Me-

dia.

Souag, A., Salinesi, C., Mazo, R., and Comyn-Wattiau,

I. (2015). A security ontology for security require-

ments elicitation. In International symposium on engi-

neering secure software and systems, pages 157–177.

Springer.

Toahchoodee, M., Abdunabi, R., Ray, I., and Ray, I. (2009).

A trust-based access control model for pervasive com-

puting applications. In IFIP Annual Conference on

Data and Applications Security and Privacy, pages

307–314. Springer.

Yousef, A. and Khaled, S. (2015). The impact of architec-

tural styles on self adaptive systems engineering. The

Impact of Architectural Styles on Self Adaptive Sys-

tems Engineering.

Safe Design Real-time Embedded Systems with Security Patterns

463
