2.1 Sampling Locations
Intact sediment cores were taken from a fix point in
the innermost part of Mikawa Bay, Japan, in order to
evaluate the suppression effects of iron application to
surface sediment on sulfide release rates. Mikawa
Bay is a eutrophic coastal embayment’s in which
seasonal density stratification and associated hypoxic
condition in the bottom water develop, in general,
from June to September. In this study, sediment core
samples were collected with acrylic pipe whose inner
diameter of 10 cm and length of 50 cm, every month
from June to September 2017. Temperature, salinity,
DO, and turbidity were measured at every sampling
occasions. All sampled sediment cores were
immediately transferred to a laboratory to conduct
sulfide release experiments with or without iron
application to the surface sediment.
2.2 Laboratory Experiments
Total 6 (for experiments in June, July and August) or
9 (September) core samples were selected for

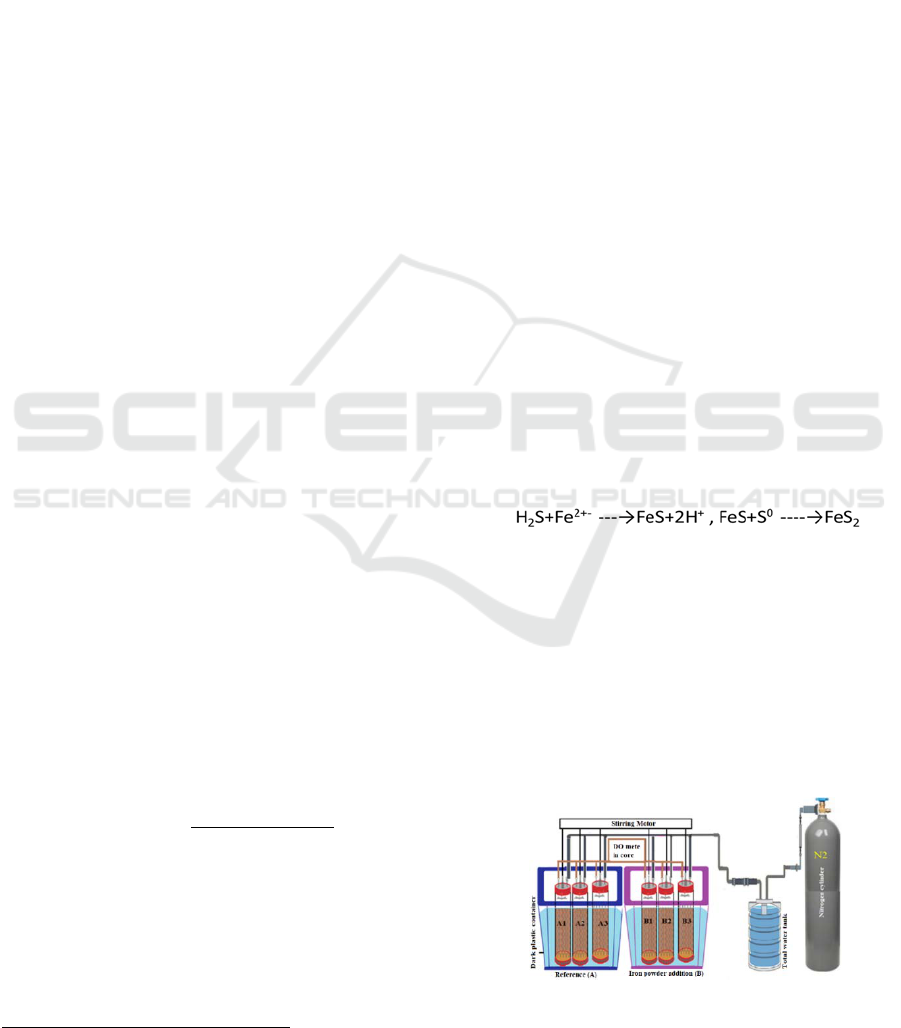

incubation experiment. In the laboratory, the
overlying water of each core was replaced with
deoxygenated filtered seawater. For iron application
cores, predetermined amount of iron compounds were
applied to the surface of the sediment. Cores were
then sealed by a top cap to keep anoxic condition
during the course of the incubation period. DO meter
to check anoxic condition and a stirrer to circulate the
overlying water were also installed to a lid of pipe for
each core. Cores were then incubated into a container
keeping the same temperature of each the in-situ
conditions. Bottom water temperature for June, July,
August, and September experiments were 20.3, 21.7,
25.7 and 24.0 degree in Celsius, respectively.
The experiment was conducted with total four
kind of treatments (Reference core A, core B with
iron oxide applied to the surface, Unused core C, and
core D added with iron hydroxide, which was
performed only in September). In addition, each
experimental treatment was performed in triplicate
except the treatment B in June. Table 1 shows the
amount of iron compounds applied for each
experiment. Note that 5 g of iron oxide and 5.6 g of
iron hydroxide are equivalent to the same Fe amount
of 3.5 g.
The incubation experiments continued for three
weeks. Water samples were collected to measure the
dissolved sulfide and dissolved iron concentrations in
the overlying water at appropriate time intervals
during the incubation.
Table 1: List of treatments of the release experiment.
Treatments
Iron
compounds
Amount of iron compounds
applied [g]
June July Aug. Sept.
A: Control
Reference-1 0 0 0 0
Reference-2 0 0 0 0
Reference-3 0 0 0 0
B: Iron
oxide
addition
Fe
2
O
3
-1 0.41 5 5 5
Fe
2
O
3
-2 0.85 5 5 5
Fe
2
O
3
-3 1.61 5 5 5
C:
Experiment
unused
Only use in chemical analysis and preparative
D: Iron
hydroxide
addition
Fe (OH)
3
-1 - - - 5.6
Fe (OH)
3
-2 - - - 5.6
Fe (OH)
3
-3 - - - 5.6
2.3 Chemical Analysis
Dissolved sulfide was analysed by the methylene blue
method. In this method, a sulfide colouring reagent
comprising iron chloride III (FeCl
3
.6H
2
O) and N, N-
dimethyl-p-phenylenediamine sulphate dissolved in 6
M HCl solution were added into the sample for
analysis. The absorbance of the solution was
measured with a spectrophotometer at a wavelength
of 667 nm. Dissolved divalent iron concentration was
also analysed by the phenanthroline method.
Sediment quality was analysed after completion
of the experiment. Sediments were sliced to 1.5 cm
intervals, and water content, loss in ignition, TOC,
COD, sulfide, TN, TP, T-Fe, and T-Mn were analysed
for each sediment samples. Sediment pore water was
obtained by squeezing over a 0.45 µm filter, then
dissolved-sulfide concentrations were measured in
pore waters. A part of the collected sediment samples
was also used to analyze the hydrogen ion
concentration index (pH), oxidation-reduction
potential.
The data were analyzed using one-way analysis of
variance (ANOVA) at 0.05% level of significance
with the SPSS package (version 23 IBM).
3 RESULTS AND DISCUSSIONS
3.1 Dissolved Sulfide Concentration in
the Overlying Water

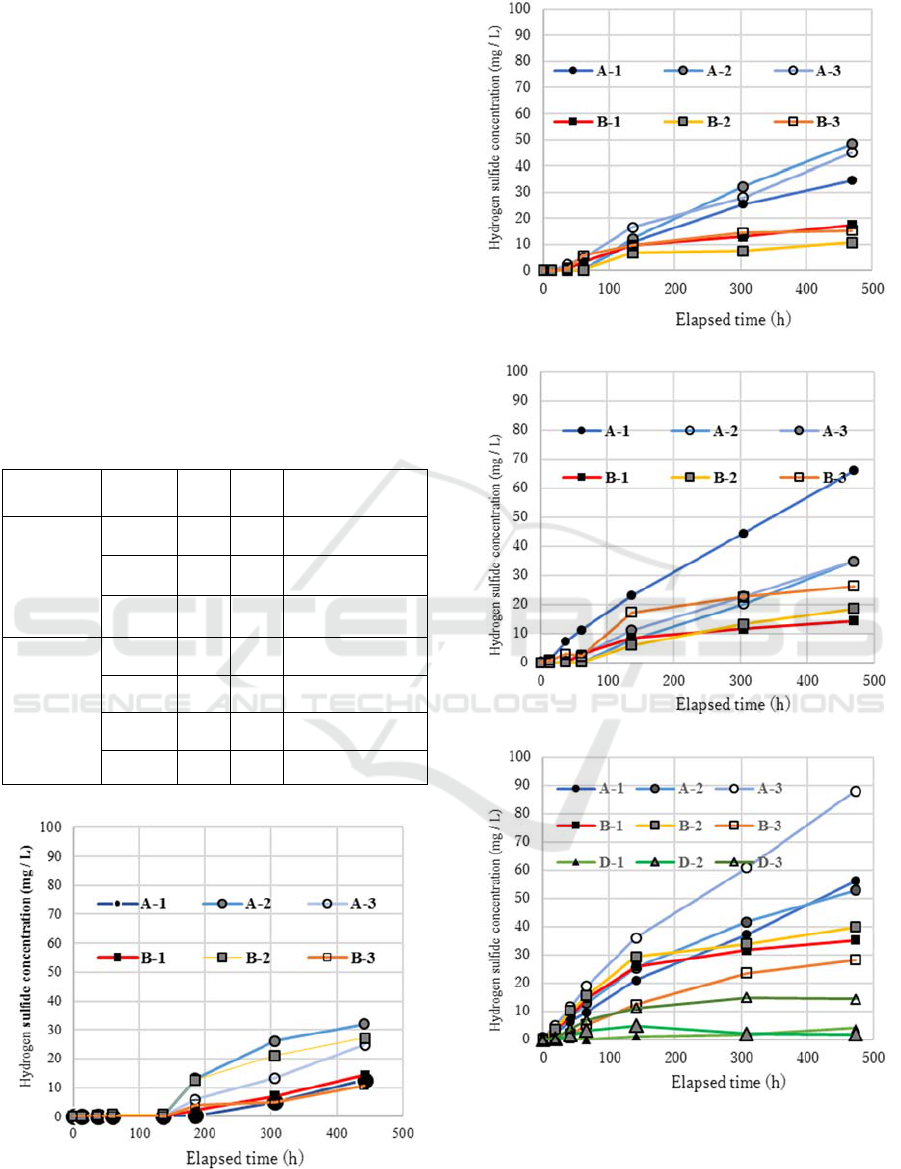

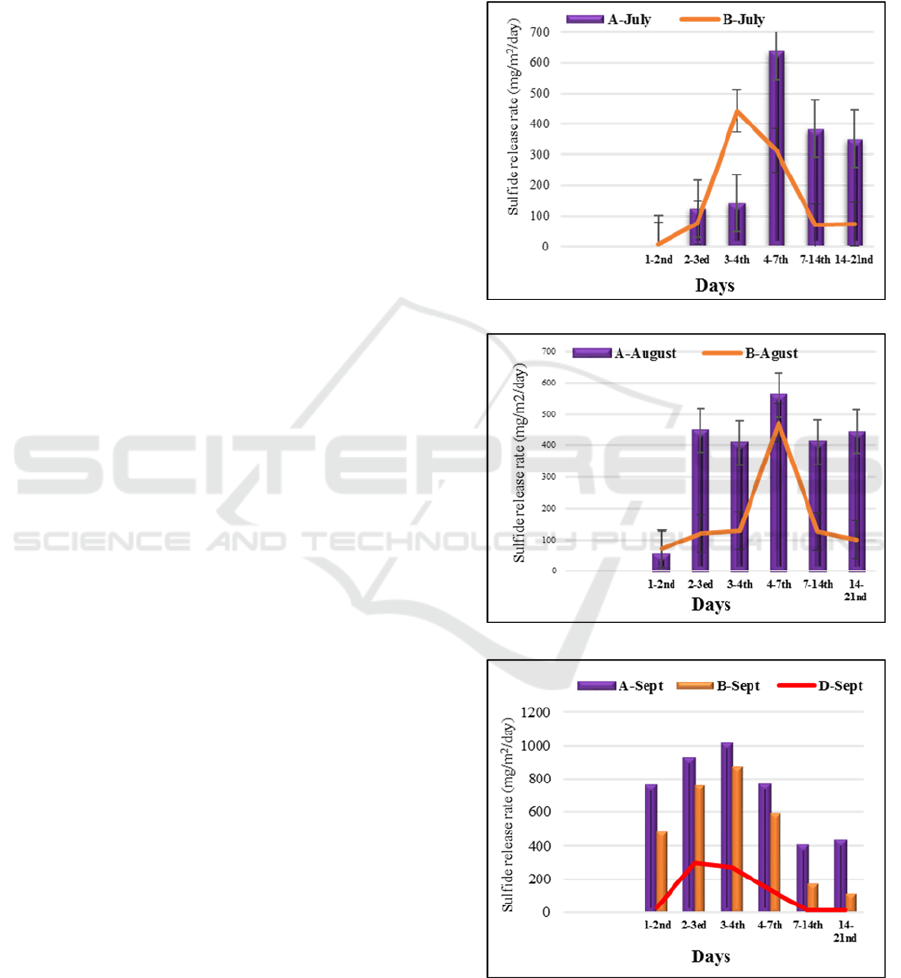

Temporal changes of dissolved sulfide concentrations
in the overlying water in each treatment are shown in
Figure. 2 (a), (b), (c), and (d) for the experiments
