Towards Short Test Sequences for Performance Assessment of Elastic

Cloud-based Systems

Michel Albonico and Paulo Varela

Federal Technological University - Paran

a, Francisco Beltr

ao, Brazil

Keywords:

Cloud Computing, Elasticity, Combinatorial Testing, Small Test Sequences, Performance Testing.

Abstract:

Elasticity is one of the main features of cloud-based systems (CBS), helping them to meet performance re-

quirements under a varying workload. Given the great number of combinations among workload and elastic

adaptation parameters, assessing their effect on CBS performance may be prohibitive. Existing systematic

combinatorial testing approaches can help to reduce such combinations, though most of them only consider

conventional software architectures. In the literature, we only ﬁnd a single work on elastic CBS combinatorial

testing, presented by some of the authors. However, the paper only presents experimental results on 2-wise

elasticity parameter interactions and shallowly explores the performance issue causes. In this paper, we lead a

further experiment by using our previous approach to generate performance test cases that cover three elasticity

parameter interactions (i. e., 3-wise), one interaction longer than on the previous paper. Despite the signiﬁcant

increase in execution time and cost, new experimental results do not reveal any new critical performance issue

by 3-wise, which enforces the acceptance of 2-wise elasticity parameter interactions.

1 INTRODUCTION

In cloud computing, elasticity is a system property to

adapt itself in response to workload variation (Herbst

et al., 2013). The main goal of elasticity is for the

cloud-based system (CBS) to meet the current work-

load demand as closely as possible, which guaran-

tees an acceptable performance experience to the user.

Adaptations (i.e., dynamic changes) in the CBS struc-

ture and its operational parameters help it to achieve

elasticity when leading with computational resource

variation.

Inadequate adaptations can result in CBS perfor-

mance degradation, and consequently an unsatisfac-

tory service to the user. Therefore, testers must assess

CBS performance by testing their elasticity. A typ-

ical strategy to do so consists in varying the work-

load in a way the CBS adapts itself and assessing

whether such adaptations lead to signiﬁcant degra-

dation in performance. However, the number of in-

teractions between possible workload variations and

CBS adaptations can be very large, where testing all

of them can be exhaustive and expensive. Therefore,

we must reduce the number of interactions, while still

being possible to ﬁnd performance degradation.

Some of the authors previous work (Albonico

et al., 2017a) presents an approach based on Combi-

natorial Interaction Testing (CIT) to reduce the num-

ber of elasticity parameter interactions. The approach

allows generating test conﬁgurations by combining a

different number of elasticity parameters up to all pa-

rameter combination (N-wise). However, in the pre-

vious paper, we do not go further than two elastic-

ity parameter combination (2-wise). In this paper, we

focus on the impact of another elasticity parameter

combination for the performance assessment of CBS

systems.

Aiming at discovering an effective parameter cov-

erage for performance assessment of elastic CBSs,

we conduct two systematic experiments on a shard-

ing deployment of MongoDB document database

this paper CBS case study: 1) the CBS was exposed

to test sequences that cover 2 interactions (2-wise)

among elasticity parameters; 2) we increase the num-

ber of parameters interactions by one, generating test

sequences with 3 parameter interaction (3-wise), and

then exposed the CBS to them.

Experimental results enforce it is acceptable to

generate test sequences by covering 2-wise interac-

tions among elasticity parameters. Compared with 3-

wise, 2-wise experiment reveals most of the elasticity-

related performance issues, including the major ones,

MongoDB web site: https://www.mongodb.com/

Albonico, M. and Varela, P.

Towards Short Test Sequences for Performance Assessment of Elastic Cloud-based Systems.

DOI: 10.5220/0007758501650175

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 165-175

ISBN: 978-989-758-365-0

165

for our case study. Furthermore, both experiments re-

veal the same problematic re-conﬁguration (transition

between two test conﬁgurations) pattern.

The remainder of this paper is organized as fol-

lows. Section 2 gives us a short introduction of cloud

computing, its states and combinatorial testing. Sec-

tion 3 presents the combinatorial-based test genera-

tion approach used in this paper. Section 4 describes

the experiments and discusses the results. Section 5

discusses the related work. Finally, Section 6 con-

cludes and lists future perspectives.

2 BACKGROUND

In this section, we describe the main aspects of elastic

CBS and combinatorial interaction testing.

2.1 CBS Elasticity

Figure 1 presents an example of CBS exposition to

cloud computing infrastructure elasticity (Albonico

et al., 2017b).

1.5

Resource Allocation

Resource Demand

Scale-out Threshold

Scale-in Threshold

Scale-out Threshold Breaching

Scale-in Threshold Breaching

Time (s)

Resource

(Processors)

0.4

0.8

1.6

scale-out reaction time

scale-out time

scale-in reaction time

scale-in time

Legend

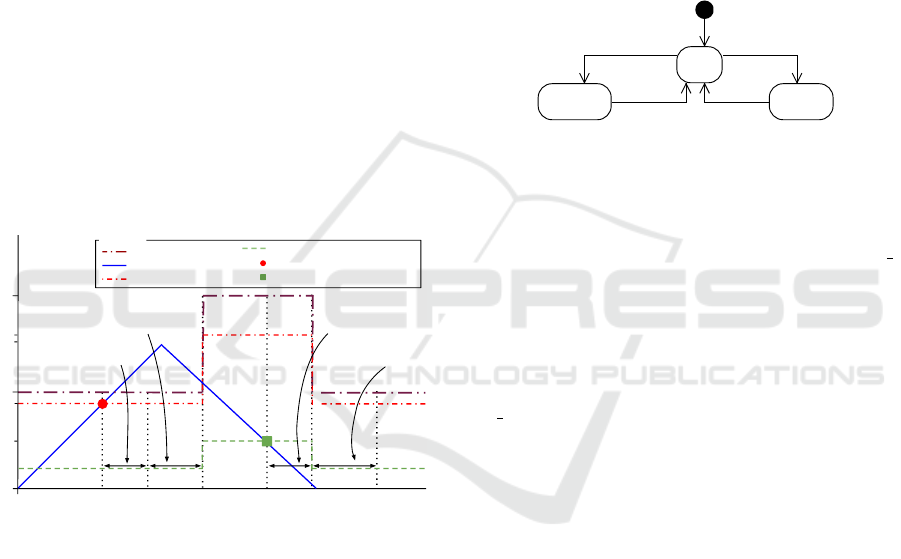

Figure 1: Typical Elastic Behavior.

The graph reports a resource demand (y-axis) ex-

pressed over time (x-axis) as a percentage of the cur-

rently allocated resources. Fancifully, the demand in-

creases linearly, from 0 to 1.5, and then goes back to

0. Note that a resource demand equal to 1.5 means

that the application demands 50 % more resources

than the currently allocated ones.

If the resource demand exceeds the scale-out

threshold (as a percentage of currently allocated re-

sources, e.g. 80%) for the scale-out reaction time, the

cloud elasticity controller instantiates a new resource,

which becomes available after a scale-out time (the

time for the cloud infrastructure to allocate it). Once

the resource is available, the scale-in and scale-out

threshold values are updated accordingly. In a sim-

ilar way, if the resource demand becomes lower than

the scale-in threshold (as a percentage of currently

allocated resources, e.g. 20%) for the scale-in reac-

tion time, the cloud elasticity controller releases a re-

source. Note that, even if the infrastructure needs a

scale-in time to actually release the resource, the re-

source is no longer available and the threshold values

are updated as soon as the scale-in begins.

Cloud infrastructures can vary the number of com-

putational resources according to demand, i. e., elas-

ticity. In response to the cloud computing elastic-

ity, the CBS adapts itself, transiting through three

main states: scaling-in, scaling-out, and ready. Fig-

ure 2 depicts the transition between CBS elasticity

states (Albonico et al., 2017b).

Deallocated/

SI_t breaching[a>m]/a-- SO_t breaching/a++

Allocated/

Create/a=i

scaling-inscaling-out

ready

Figure 2: Elasticity State Transitions.

At the beginning, the CBS is launched (event cre-

ate), and enters into the ready state, when the amount

of allocated resource (a = i) is steady. When the re-

source demand breaches the scale-out threshold (SO t

breaching for a while (scale-out reaction time) and

a new resource is already added (a++), the CBS en-

ters into the scaling-out state, and remains there until

reacting to the allocated resource. After a scaling-

out, the CBS returns to the ready state. Then, when

the resource demand breaches the scale-in threshold

(SI t breaching), and a resource is being deallocated

(a–), the CBS enters into the scaling-in state. Note

that the scaling-out state, the scaling-in state begins

during the resource deallocation process since it is no

longer. Finally, it returns to tge ready state.

2.2 Combinatorial Testing

In complex cloud computing systems, the elastic be-

havior is determined by a large number of parameters,

such as workload thresholds, virtual machine type,

and system topology The interaction between some of

these parameters may be the cause of system failures

or performance degradation at runtime. Exhaustively

testing all possible combinations of parameter values,

i.e., all possible conﬁgurations, is often computation-

ally too expensive, because the total number of com-

binations of parameter values quickly increases as the

system size grows.

Several techniques have been proposed over the

years to address the intractability of exhaustive testing

by selecting a smaller representative set of conﬁgura-

tions. Among those, Combinatorial Interaction Test-

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

166

ing (CIT) is a strategy that consists of testing all T-

wise combinations of the parameters of a system (Nie

and Leung, 2011). This means that when consider-

ing n parameter values T-wise combinatorial testing

investigates only 2





conﬁgurations compared to

the n! required for exhaustive testing. Kuhn et al.

show that 2-wise (pairwise) coverage of parameters

is adequate to detect more than 90 % of failures in

many software systems, while 6-wise coverage is the

maximum that is needed for practical purposes (Kuhn

et al., 2004).

In this paper, we use the tool Testona (previ-

ously known as CTE-XL) (Lehmann and Wegener,

2000) to generate CBS conﬁgurations. Testona im-

plements the Classiﬁcation Tree Method, a strategy

for CIT. The method consists of tree steps: i) iden-

tify system relevant aspects, and their correspond-

ing values; ii) model a classiﬁcation tree, where as-

pects are branches (classiﬁcations), and values are the

leaves (classes); iii) combine classes from classiﬁca-

tions into test cases (or conﬁgurations), covering dif-

ferent T-wise combinations.

3 RE-USED TEST GENERATION

APPROACH

In this section, we re-present the three-steps

combinatorial-based approach to generate test se-

quences for elastic CBS (Albonico et al., 2017b)

given its complexity.

3.1 Elasticity Modeling

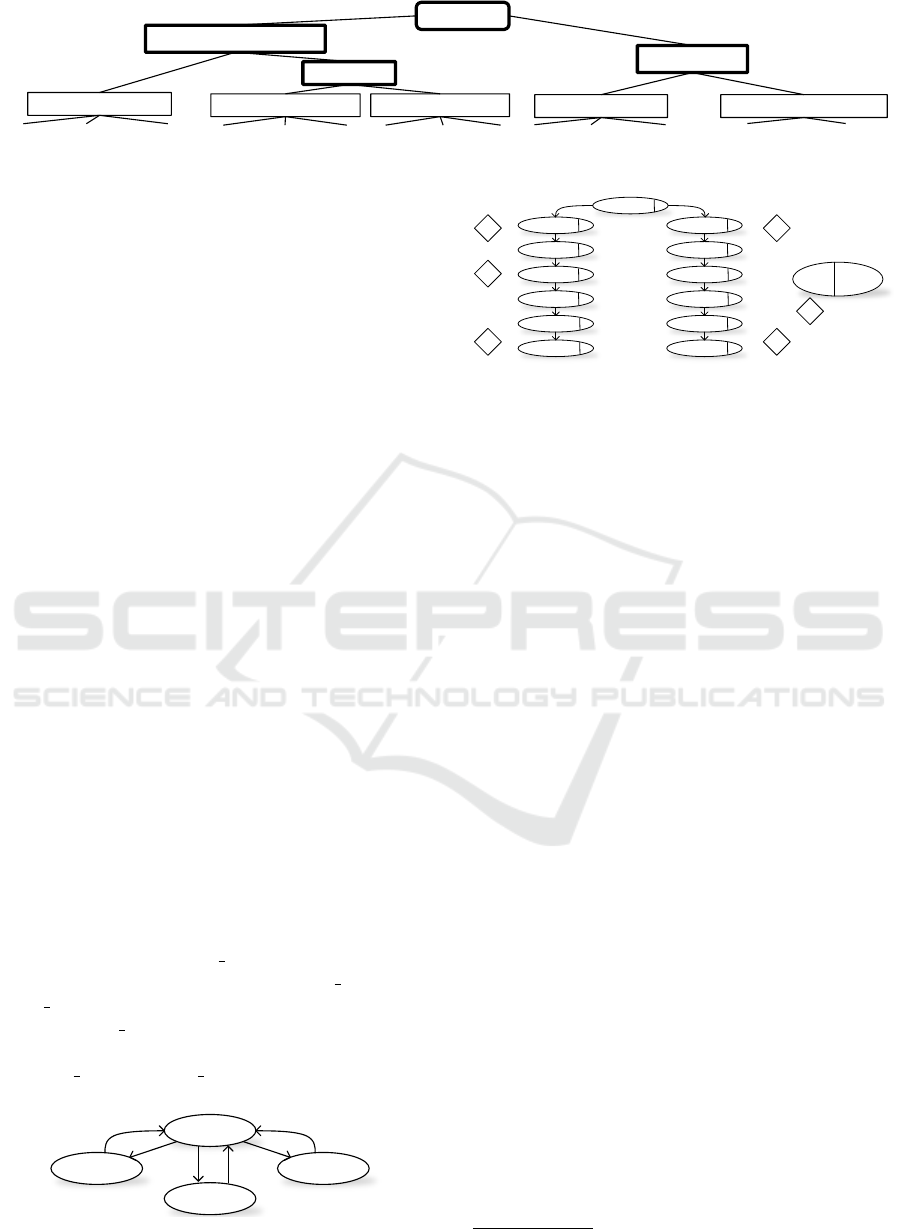

We model the elasticity parameters that can be con-

trolled during the test on a Classiﬁcation Tree Model

(CTM) (Figure 4). The root of the CTM is the elas-

ticity, i. e., the CBS characteristic we want to investi-

gate. We decompose it into two main compositions,

namely cloud infrastructure, which encompasses the

parameters for the CBS deployment into the Cloud,

and benchmark, which models the workload. These

compositions are then decomposed into classiﬁca-

tions. Additionally, the cloud infrastructure has the

sub-composition threshold that implements the scale-

out (scale out cpu t) and scale-in (scale in cpu t), set

on the Cloud.

The cloud infrastructure composition is decom-

posed into the elasticity state classiﬁcation, which

classes represent the possible CBS states (see Fig-

ure 2). The scale

out cpu t and scale in cpu t classi-

ﬁcations receive three different values (classes) each,

where for the scale out cpu t the value range is from

0 to 50, while for the scale in cpu t it is from 50 to

100. Note that for avoiding bias, for each classiﬁ-

cation, we use values which are equally spaced. The

benchmark composition is decomposed into the work-

load type and workload intensity classiﬁcations. In

particular, workload type classes represent the three

basic workload proﬁles found in benchmark tools:

read, write and read and write operations. The work-

load intensity implements two workload intensities to

drive the CBS through a scaling-out state: attempting

to exhaust the allocated resource (overloading), and

a fear workload, which never stresses the CBS (non-

overloading)(Gambi et al., 2013b).

3.2 Test Conﬁguration Generation

A test conﬁguration is a set C of classes which are

atomic values of classiﬁcations (leaves in the classiﬁ-

cation tree). For example, a test conﬁguration conf i

is a conﬁguration with the ﬁrst class of each classiﬁ-

cation shown in the CTM of Figure 4:

conf i = {ready, 60%, 10%, read, overloading}

Based on the CTM, we can create 162 (= 3

· 2

)

conﬁgurations, where four classiﬁcation has three

classes, while one has two.

Each test conﬁguration should also satisfy addi-

tional cross-tree constraints, which model particular

aspects of the domain of testing CBS. For instance,

we specify that a conﬁguration in the ready or scaling-

in state cannot have an overloading workload inten-

sity since this can unexpectedly trigger a resource

scale-out. Considering this constraint, for instance,

the conf i is an invalid conﬁguration since it combines

both, the ready and overloading classes.

T-wise Combination

We use Combinatorial Interaction Testing (Nie and

Leung, 2011) to test only T-wise combinations of

elasticity parameters. This reduces the number of

test conﬁgurations while ensuring variety in the CTM

classes (Hervieu et al., 2011; Sen et al., 2015), where

the number of conﬁgurations and their variety in-

crease with the value of T. Considering the CTM of

Figure 4, the value of T could range from 2 to 5 (the

number of classiﬁcations in the CTM), while this test

generation methodology is independent of the value

of T.

Table 1 lists the twelve 2-wise test conﬁgurations,

while Table 2 lists the forty 3-wise conﬁgurations,

where we can see a high variance. In these tables,

each column represents a CTM classiﬁcation, while

the rows are their values (classes).

Table 1 lists all the conﬁgurations generated sat-

isfying pairwise interactions of elasticity parameters

Towards Short Test Sequences for Performance Assessment of Elastic Cloud-based Systems

167

Step 1

Elasticity

Modeling

Elasticity

Parameters

Classification

Tree

Model

Step 2

Generation of

Test

Configuration

List of

T-wise Test

Configurations

Step 3

Generation of

Test Sequences

Test

Sequences

T-wise

parameter

Step

Intermediate output data

parameter

Scalability

parameter

Constraints

Elasticity State

Machine

Legend:

Figure 3: 3-Steps Approach (Albonico et al., 2017b).

Table 1: The 12 Pairwise Test Conﬁgurations (Albonico

et al., 2017b).

scale scale

elasticity out in workload workload

state cpu cpu type intensity

t t

2w-conf 0 scaling in 90% 40% read write not overloading

2w-conf 1 scaling out 90% 25% write overloading

2w-conf 2 scaling out 75% 10% read not overloading

2w-conf 3 ready 60% 25% write not overloading

2w-conf 4 scaling out 60% 40% read overloading

2w-conf 5 scaling out 60% 10% read write overloading

2w-conf 6 scaling in 75% 25% read write not overloading

2w-conf 7 scaling in 60% 10% write not overloading

2w-conf 8 ready 90% 10% read write not overloading

2w-conf 9 ready 75% 40% read not overloading

2w-conf 10 scaling in 90% 25% read not overloading

2w-conf 11 scaling out 75% 40% write overloading

and the constraints. Note that only considering pair-

wise interactions, the number of test conﬁgurations

is reduced from 162 (to cover all-wise interactions of

elasticity parameters) to 12.

3.3 Test Sequence Generation

In general, a test sequence is an ordered list of con-

ﬁgurations covering all the possible re-conﬁgurations,

i. e., transitions between conﬁgurations. Creating an

optimal sequence that covers all the re-conﬁgurations

without repeating them would require the use of a

backtrack algorithm, facing an NP-complete prob-

lem. Therefore, we choose to create several se-

quences, each one covering a subset of unique re-

conﬁgurations, and then we select several sequences

covering together all the re-conﬁgurations.

Generation of a List of Re-conﬁgurations

The re-conﬁgurations should model the elasticity

state transitions (see Figure 2), where scaling-out and

scaling-in states are always preceded or followed by a

ready state. Among others, this allows CBS to stabi-

lize itself after a resource change.

There are 54 re-conﬁgurations between 2-wise

test conﬁgurations, which are partially shown in Ta-

ble 3. Table last column reports the change in the

amount of resource related to the next conﬁgura-

tion. For instance, 2w-recon f 0 and 2w-recon f 3 are

re-conﬁgurations towards a ready state (2w-con f 3),

Table 2: The 40 3-wise Test Conﬁgurations.

scale scale

elasticity out in workload workload

state cpu cpu type intensity

t t

3w-conf 0 scaling in 90% 40% read write not overloading

3w-conf 1 scaling in 75% 25% write not overloading

3w-conf 2 scaling in 60% 10% read not overloading

3w-conf 3 scaling out 90% 40% write overloading

3w-conf 4 scaling out 90% 25% read not overloading

3w-conf 5 scaling out 75% 25% read write overloading

3w-conf 6 ready 90% 10% write not overloading

3w-conf 7 ready 75% 40% read not overloading

3w-conf 8 ready 60% 25% read write not overloading

3w-conf 9 scaling out 60% 10% write overloading

3w-conf 10 scaling out 60% 40% read overloading

3w-conf 11 ready 60% 40% write not overloading

3w-conf 12 scaling in 75% 10% read write not overloading

3w-conf 13 scaling out 60% 40% read write not overloading

3w-conf 14 scaling out 75% 10% read not overloading

3w-conf 15 scaling out 90% 10% read write overloading

3w-conf 16 scaling out 60% 25% write not overloading

3w-conf 17 scaling out 75% 40% write overloading

3w-conf 18 scaling in 60% 25% read write not overloading

3w-conf 19 ready 90% 25% read not overloading

3w-conf 20 scaling in 90% 10% write not overloading

3w-conf 21 scaling in 90% 25% read not overloading

3w-conf 22 ready 75% 25% write not overloading

3w-conf 23 ready 75% 10% read write not overloading

3w-conf 24 scaling out 90% 25% write overloading

3w-conf 25 ready 90% 10% read not overloading

3w-conf 26 ready 75% 40% read write not overloading

3w-conf 27 scaling out 75% 10% write overloading

3w-conf 28 scaling in 75% 25% read not overloading

3w-conf 29 scaling in 90% 40% read not overloading

3w-conf 30 ready 60% 10% read write not overloading

3w-conf 31 ready 90% 25% read write not overloading

3w-conf 32 ready 60% 25% read not overloading

3w-conf 33 scaling out 60% 40% read write overloading

3w-conf 34 scaling out 75% 25% read overloading

3w-conf 35 scaling out 90% 10% read overloading

3w-conf 36 scaling in 60% 40% write not overloading

3w-conf 37 ready 90% 40% read write not overloading

3w-conf 38 scaling in 75% 40% read write not overloading

3w-conf 39 scaling out 60% 25% read write overloading

Table 3: Excerpt of the 2-wise Re-conﬁgurations.

previous next changes in the

conﬁguration conﬁguration amount of resource

2w-reconf 0 2w-conf 0 2w-conf 3 0

... ... ... ...

2w-reconf 3 2w-conf 1 2w-conf 3 0

... ... ... ...

2w-reconf 9 2w-conf 3 2w-conf 0 -1

2w-reconf 10 2w-conf 3 2w-conf 1 +1

2w-reconf 11 2w-conf 3 2w-conf 2 +1

... ... ... ...

when the number of resources is not changed (=0),

while 2w-recon f 9 is a reconﬁguration towards a

scaling-in state (2w-con f 0), when a resource is re-

moved (−1).

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

168

elasticity

threshold

cloud_infrastructure

benchmark

workload_type workload_intensity

scale_out_cpu_t scale_in_cpu_t

60% 75%

90% 10% 25% 40%

read write

elasticity_state

ready scaling_out scaling_in

read_write

overloading

non-overloading

Figure 4: Elasticity Parameters CTM (Albonico et al., 2017b).

Generation of Test Sequences

From the set of re-conﬁgurations we can gener-

ate test sequences of any length by chaining re-

conﬁgurations. Figure 5 illustrates this concept using

an example graph that considers an excerpt of the re-

conﬁgurations listed in Table 3.

The nodes of the graph are test conﬁgurations,

while the edges are re-conﬁgurations. Each edge is

annotated the value from the last column of Table 3.

In this way, a test sequence can be seen as a path over

this re-conﬁgurations graph.

Re-conﬁgurations are associated to changes in re-

source allocation, and hence, particular paths over the

graph could lead to either continuous de-allocation of

resources or allocate too many resources. In this pa-

per, we bound the amount of resources (a) according

to Figure 2, which avoids scalability bias: the initial

number of resource (i), the minimum number of re-

sources (Min), and the maximum number of resources

(Max).

To reduce the length of test sequences, we avoid

to use the same reconﬁguration several times by

transforming the re-conﬁguration graph into a tree.

The tree root can be any conﬁguration associated

to the ready state. The other nodes are conﬁgu-

rations reached through a sequence of unique re-

conﬁgurations, respecting resource amount bounds.

In this paper, we consider the values i = 1 and 1 ≤

a ≤ 2.

Figure 6 illustrates an example of a re-

conﬁguration tree from the graph of Figure 5. The

test conﬁguration 2w-con f 3, associated to the ready

state, is the root node. Only 2w-con f 1 and 2w-

con f 2 can occur at the ﬁrst level (diamonds 1 and 2)

since 2w-con f 0 would lead to an amount of resource

lower than the minimum allowed. Test conﬁgurations

2w-con f 1 and 2w-con f 2 are not allowed at the third

2w-conf_3

2w-conf_2

2w-conf_1

2w-conf_0

-1

Figure 5: Excerpt of 2-wise Re-conﬁguration Graph.

2w-conf_3

2w-conf_22w-conf_1

2w-conf_3 2w-conf_3

2w-conf_0 2w-conf_0

2w-conf_3 2w-conf_3

2w-conf_2 2w-conf_1

2w-conf_32w-conf_3

1 2

4 5

config-

uration

#allocated

resource

x : comment

Legend:

Figure 6: Reconﬁguration Tree.

level of the left branch (diamond 3) since they would

push the amount of resources over the maximum. Fi-

nally, at the lower level (diamonds 4 and 5), no new

re-conﬁguration is possible.

4 EXPERIMENTS

In this section, we present the experiment we con-

ducted to investigate the necessary elasticity parame-

ters coverage to ﬁnd performance degradation into an

elastic CBS. We generate two sets of test sequences,

one by using 2-wise coverage, and another by using

3-wise coverage os elasticity parameters. Avoiding

interference from not modeled parameters such as,

bandwidth or concurrency, both sets of test sequences

are re-executed 10 times. The number of repetitions

respects ﬁnancial constraints, once the experiments

by using 3-wise result in a high cost.

4.1 CBS Case Study

We use the document database MongoDB as a CBS,

which is deployed as a sharding cluster

: a conﬁg-

uration server, a mongos instance, and several shard

instances. Cluster sharding is useful when you need to

distribute instances across several nodes. In the clus-

ter, the conﬁguration server stores meta-data, while

the mongos instance works as a coordinator and a load

balancer that routes queries and writes operations to

shards. Finally, shard instances store and process the

data in a distributed manner.

MongoDB Website: https://www.mongodb.org/

Towards Short Test Sequences for Performance Assessment of Elastic Cloud-based Systems

169

4.2 Software Deployment

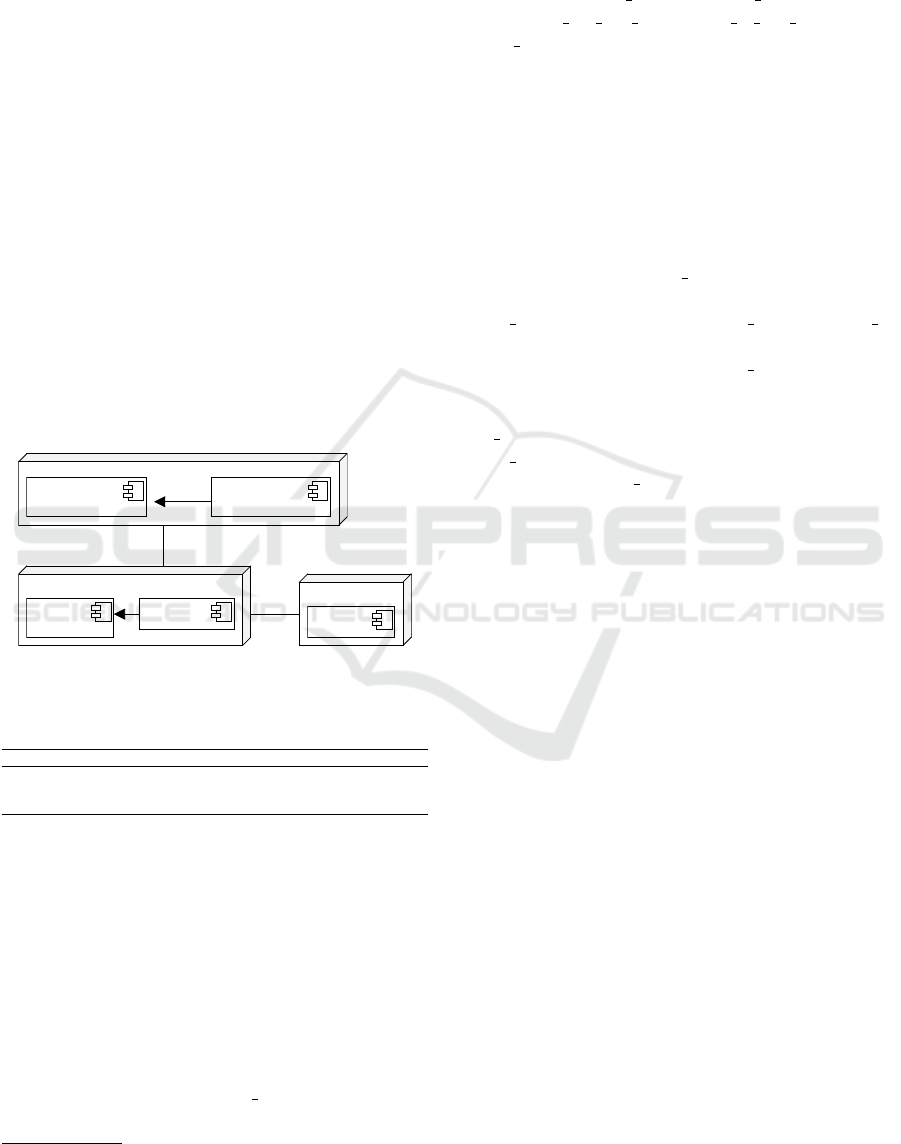

Figure 7 illustrates the deployment of both, Mon-

goDB components and workload generation artifacts.

We deploy all the software artifacts on Amazon EC2

all purpose virtual machines described in Table 4. We

deploy the mongos and the conﬁguration server on

the same virtual machine (t2.medium type) (MongoS

node), and the shard instance on a dedicated virtual

machine (t2.small type) (MongoD node). The initial

MongoDB conﬁguration consists of only one shard

instance, where additional instances are manually al-

located/deallocated during execution by respecting

the threshold classes in the test conﬁgurations. In an-

other virtual machine (t2.large type) (Workload Gen-

erator Node), we deploy the workload generation ar-

tifacts, i. e., the Yahoo Cloud Serving Benchmark

(YCSB) (Cooper et al., 2010) as a benchmark tool,

and the workload controller. During the experiment,

the workload controller dynamically drives the bench-

mark tool according to the parameters in the test con-

ﬁgurations.

Workload

Controller

Benchmark

Tool

Config

Server

MongoS

Shard

Workload Generator Node

MongoD Node

MongoS Node

1..n

workload to

1 1...*

Figure 7: Software Components Deployment.

Table 4: Virtual Machine Conﬁgurations

Machine Type CPU Memory Disk Price/Hour

t2.small 1 vCPU (3.3 GHz) 2 GB 10 GB $0.0232

t2.medium 2 vCPUs (3.3 GHz) 4 GB 20 GB $0.0464

t2.large 2 vCPUs (3.0 GHz) 8 GB 20 GB $0.0928

4.3 Test Sequences Execution

Each test sequence is independently executed, and

at each execution we (re-)deploy the CBS, avoiding

any trash from previous executions. For each test se-

quence, we execute test conﬁgurations sequentially,

respecting their parameters. We ﬁrst set up the thresh-

old on the cloud according to threshold value in the

test conﬁguration, then we generate the workload.

The transition between conﬁgurations is determined

by the ending of the elasticity state associated with

the test conﬁguration (see Section 2.1).

https://aws.amazon.com/ec2/instance-types/.

To generate the workload, we control the bench-

mark tool and parameterize it with the workload type

and intensity speciﬁed by the test conﬁguration pa-

rameters workload type, workload intensity, thresh-

olds (scale out cpu t and scale in cpu t), and elas-

ticity state. The workload type is the native proﬁle

of the benchmark tool. The workload intensity is

steady throughout each test conﬁguration and varies

only when the conﬁguration ends.

The workload intensity is calculated as our previ-

ous work (Albonico et al., 2016): (1) we proﬁle the

resource usage of a workload type, and (2) we esti-

mate the number of request (workload intensity) to

lead the CBS to the target elasticity state.

Due to the cross-tree constraints explained in

Section 3.2, the elasticity

state ready and scaling-in

can only be associated to a non-overloading work-

load intensity. When the elasticity state is scaling in,

we set a workload intensity that breaches the scale-

in threshold. When the elasticity state is ready, we

set a workload intensity that keeps the resource usage

just below the scale-out threshold. For the elastic-

ity state scaling-out, we can have both types of work-

load intensity, i. e., overloading and non-overloading.

When the workload intensity is non-overloading, we

set a value that just breaches the scale-out threshold.

When the intensity is overloading, we set a value that

should use 100 % of CPU.

4.4 Performance Test Oracle

Ensuring a more reliable experimental validation, we

repeat the same test sequence multiple times measur-

ing the performance in the number of answered oper-

ations per second (i. e., throughput). Then, for each

conﬁguration c

, we calculate its median throughput

) over the executions, which is a parameter of the

test oracle.

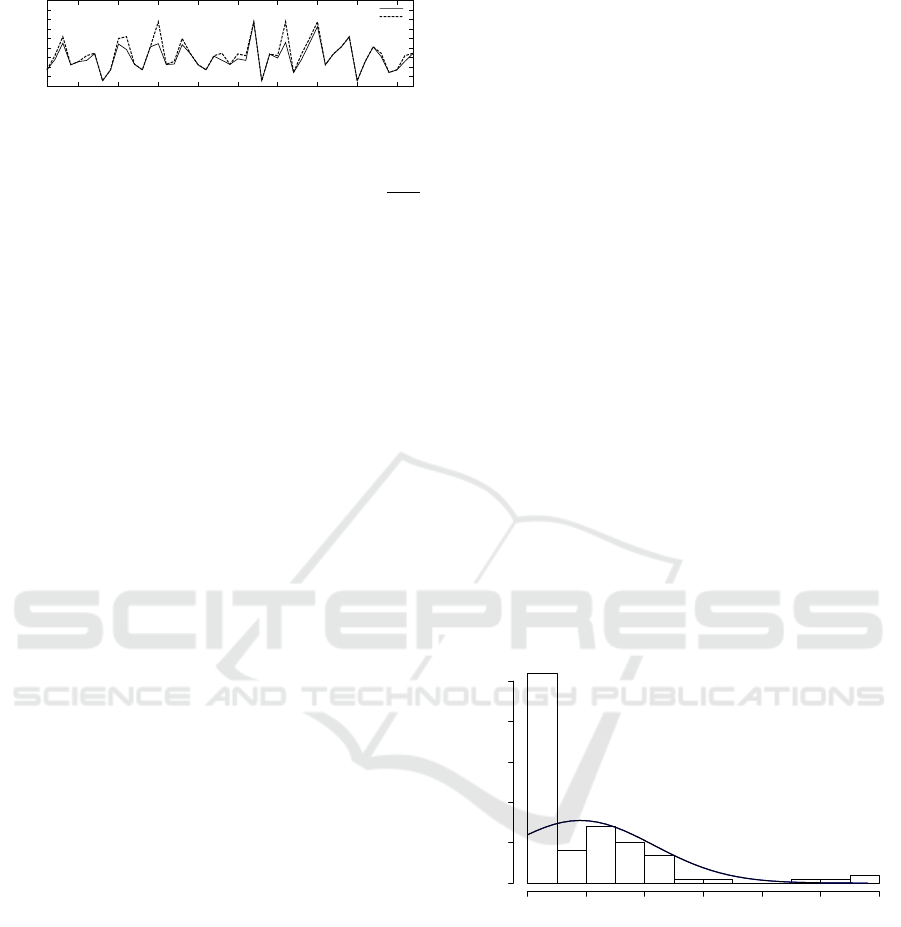

Figure 8 illustrates both, workload (dashed line)

and conﬁguration median throughput (solid line) vari-

ations, over the 3-wise test sequence (TS-0) execu-

tions. In the ﬁgure, we see several throughput drops

(negative different compared to the workload), such

as the ones after index 10, which are easy to see.

Nevertheless, other drops are less evident, such as

the ones before the index 5. This illustrates different

severity levels among throughput drops, which im-

pacts on the consumers is difﬁcult to estimate. Allow-

ing testers to decide which is a critical level for their

CBS, the performance test oracle enables a severity

level setting.

The test oracle assigns performance testing ver-

dicts by using post-execution scripts. For each conﬁg-

uration c

, we calculate the percentage deviation (d

)

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

170

500

1000

1500

2000

2500

3000

3500

4000

4500

5 10 15 20 25 30 35 40 45

Operations per sec. (ops/sec)

Test Sequence Index

Average Performance

Workload

Figure 8: Performance Variation for 3-wise Test

SequenceTS-0.

compared to the workload w

, deﬁned as d

−w

Note that, if a conﬁguration is repeated in a test se-

quence, we consider a distinct performance deviation

for each of its occurrences.

For each conﬁguration c

in a test sequence, the

test oracle compares the expected performance (i. e.,

workload w

), to the absolute value of the perfor-

mance deviation (

). Avoiding false positives due

to light performance deviations, the test oracle sup-

ports several tolerance levels (L), where the higher is

the tolerance, the higher is the performance deviation.

Then, the test oracle assigns a verdict v

to each con-

ﬁguration c

as following:

(

pass if

≤ L

fail if

> L

If the absolute value of the performance deviation is

less than or equal to the tolerance level, then the ver-

dict is pass. Otherwise, the verdict is fail.

4.5 Experimental Results

In this section, we ﬁrst present the experiment results,

and discuss them later, in Section 4.5.5.

4.5.1 Execution Time and Cost

Both measurements, execution time and cost, are im-

portant for testers to decide whether a test is pro-

hibitive or not. Therefore, we present these measure-

ments for 2-wise and 3-wise experiments.

Two-wise conﬁgurations result in 97 re-

conﬁgurations. Executing them takes ≈6 h (≈3.8 s

per conﬁguration) on the Amazon EC2, while repeat-

ing them 10 times takes ≈60 h, costing US$ ≈20.88:

(2L + M + 5S)∗ T (1)

where L, M and S are the costs per hour of dedicated

t2.large, t2.medium and t2.small instances on Ama-

zon EC2, and T is the execution time in hours. The

L cost is multiplied the number of t2.large instances

during the experiment, which is constant, while S is

multiplied by the number of t2.small instances within

one hour. Note that, on Amazon EC2, the shortest

instance fee time is one hour. Therefore, the total

of t2.small instances comes from the ≈ 3.7 minutes

per conﬁguration, resulting in ≈ 16 conﬁgurations per

hour, where only 4 scale-out states in an additional

instance. Nonetheless, two large and one medium in-

stances live during the entire experiment, and there-

fore, only counts once in an hour.

The 3-wise re-conﬁgurations are 2675, i. e., 27 ×

longer than for 2-wise. Executing these once

takes ≈170 h, and re-executing them 10 times takes

≈1900 h, i. e., ≈2.4 months. By executing them in

parallel, one could reduce the execution time, how-

ever, it would still cost U S$ ≈661.2.

4.5.2 Severity of Performance Issues

Aiming at investigating the statistical difference be-

tween 2-wise and 3-wise test sequences, we illustrate

the distribution of their performance issue severity.

As a performance issue severity, we consider the dif-

ference in operations per second between the work-

load and the measured performance, where higher is

the difference, more severe is the performance issue.

Figure 9 illustrates the performance issue severity

for 2-wise test sequences. We see most of the perfor-

mance issues with a severity value less than 600 ops,

where the higher frequency is for severity values be-

tween 0 and 100 ops.

Performance Drop Value

Frequency

0 200 400 600 800 1000 1200

0 10 20 30 40 50

Figure 9: Distribution of the 2-wise Performance Issues.

Figure 10 illustrates the performance issue sever-

ity for 3-wise test sequences. In the ﬁgure, most of

the performance issues lie below 800ops, which is a

little higher than in 2-wise test sequences, and as well

as for 2-wise the higher frequency is also for sever-

ity values between 0 and 100. We also see that most

of the performance issues are lower than 1500, ex-

cept for some outliers that lie between 1500 and 2000.

Note that the difference on the frequency axis labels

of Figures 10 and 10 match the proportion in number

of test re-conﬁgurations, i. e., 97 for 2-wise and 2675

for 3-wise.

Towards Short Test Sequences for Performance Assessment of Elastic Cloud-based Systems

171

Performance Drop Value

Frequency

0 500 1000 1500 2000 2500

0 500 1000 1500

Figure 10: Distribution of the 3-wise Performance Issues.

4.5.3 Problematic Test Conﬁgurations

We use the test oracle (Section 4.4) to assess the

performance of test conﬁgurations during the exper-

iment. Considering different tolerance levels it re-

sults in fail verdicts in a range of 100 % (0.05) to 0 %

(0.35). Despite the tolerance levels in this paper are

realistic and could be used in industry, here we do not

discuss which is the better level for performance test-

ing of CBSs. We let it for testers to decide how they

affect consumers.

In both experiments, with 2-wise or 3-wise cov-

erage, we notice that 100% of the verdicts are fail

when the tolerance is at lowest level (no tolerance),

Therefore, no conﬁguration c

achieves the ideal per-

formance (d

= 0) in the experiment, which is com-

prehensible since we are testing a distributed system

under a massive sequence of re-conﬁgurations.

Table 5 groups by tolerance level 2-wise and 3-

wise test conﬁgurations failing the test, which we call

unstable conﬁgurations.

Table 5: Unstable Conﬁgurations.

Tolerance Unstable Conﬁgurations

0.30−0.15 2w-conf 8, 2w-conf 9, 3w-conf 6,

3w-conf 7, 3w-conf 19, 3w-conf 22,

3w-conf 23, 3w-conf 25, 3w-conf 26,

3w-conf 31, 3w-conf 37

0.10−0.05 2w-conf 3, 3w-conf 8, 3w-conf 11,

2w-conf 30, 3w-conf 32

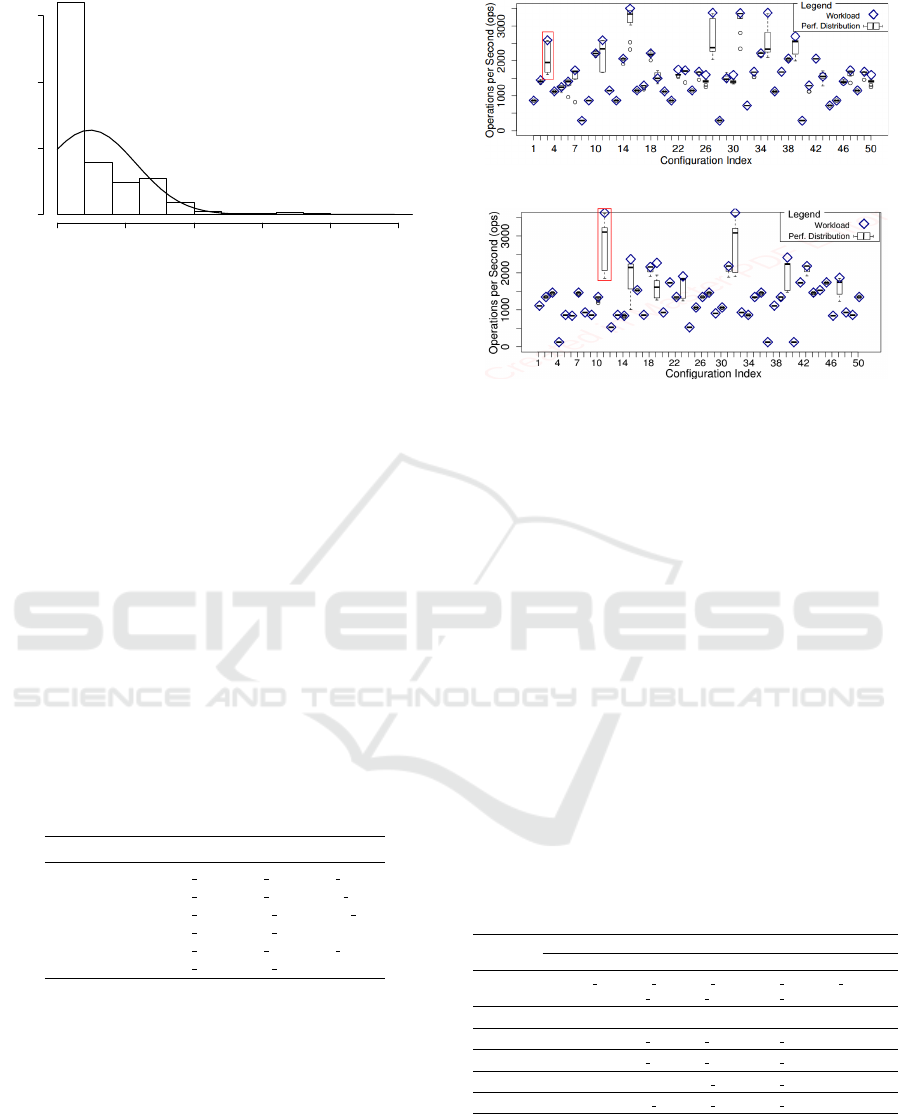

Figure 11 illustrates such conﬁgurations.

In the ﬁgures, diamonds represent the workload,

while box-and-whisker plots represent the distribu-

tion of each conﬁguration throughput over 10 execu-

tions. At some conﬁgurations, such as at the index 3

in Figure 11a and at the index 11 in Figure 11b, the

performance variation is very high. We see that such

conﬁgurations have their medium values distant from

the workload, what mean they are unstable. Those

conﬁgurations match those listed in Table 5 with tol-

erance level between 0.30 and 0.15. Other conﬁgura-

(a) 2-wise Test Sequence TS-0

(b) 3-wise Test Sequence TS-0

Figure 11: Throughput Variation.

tions are less problematic, such as the ones at index

7 and at the index 23 in Figure 11b, which match to

the test conﬁgurations in Table 5 with tolerance level

between 0.10 and 0.05.

4.5.4 Problematic Re-conﬁgurations

By traversing the test sequences executed in the ex-

periments, we ﬁgured out the re-conﬁgurations that

result in the unstable conﬁgurations listed in Table 5,

which we call problematic re-conﬁgurations. For il-

lustration reasons, Table 6 only depicts an excerpt of

2-wise problematic re-conﬁgurations. Note that, for

each tolerance level, we only show new unstable re-

conﬁgurations not revealed by higher levels. There-

fore, each level of tolerance includes the performance

failures of the higher level, where tolerance 0.05 cor-

responds to all the re-conﬁgurations.

Table 6: Unstable Re-conﬁgurations by Tolerance.

Reconﬁguration

Tolerance Previous Conﬁgurations Problematic Conﬁgurations

0.30

2w-conf 1, 2w-conf 2, 2w-conf 4 2w-conf 8, 2w-conf 9

2w-conf 5, 2w-conf 11 2w-conf 8

0.25 – –

0.20 2w-conf 5, 2w-conf 11 2w-conf 9

0.15 2w-conf 4, 2w-conf 11 2w-conf 3

0.10 2w-conf 5 2w-conf 3

0.05

2w-conf 1, 2w-conf 2 2w-conf 3

In the table, all of the previous test conﬁgurations

are associated with the scaling-out elasticity state, and

all of the test conﬁgurations associated with a scaling-

out elasticity state proceed at least a problematic con-

ﬁguration. As previously stated, the problematic con-

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

172

ﬁgurations are all associated with the ready elasticity

state. This same pattern is found for both, 2-wise and

3-wise test sequences.

We also see that the severity of problematic con-

ﬁgurations is linked to their workload intensity pa-

rameter, where the higher is the workload intensity,

the more severe is the performance failure. For the

highest tolerance level (0.30-0.20), we have test con-

ﬁgurations associated with ready state and high work-

load intensity. For the lowest tolerance levels (0.15-

0.05), we have test conﬁgurations associated with

ready state and low workload intensity. Both are pro-

ceeded by a scale-out state.

4.5.5 Discussion

Before discussing the presented results, let us high-

light that, during the experiment execution, we pre-

vent resource exhaustion and unbalanced data be-

tween instances to avoid any interference to the elas-

ticity parameters.

By comparing 2-wise and 3-wise experimental re-

sults, we see that grater parameter coverage is typi-

cally cost- and time-consuming. For instance, exe-

cuting 3-wise test sequences (only one combination

grater than 2-wise) once takes ≈170 h on the Amazon

EC2, ≈28 times more than 2-wise. One could argue

that this can be solved by executing the test sequences

in parallel. However, this does not reduce the execu-

tion cost, which for 3-wise test sequences is also ≈28

more expensive.

Even though 3-wise test sequences is more plural

in therms of test conﬁgurations, we do not see any

relevant difference in their performance issue severity

distributions (Figures 9 and 10). This indicates the

CBS behaves alike for both.

For the MongoDB case study, 2-wise test se-

quences reveal the same pattern among problematic

test re-conﬁgurations. Given the expensiveness of 3-

wise test sequences execution, we expected more se-

vere performance degradation, which is not revealed

in the experiment. We do not plan to execute test

sequences with larger combination of elasticity pa-

rameters since the cost and execution time are pro-

hibitive. However, one could re-execute the experi-

ment by considering different or further elasticity pa-

rameters.

About the performance degradation found, we no-

tice that they occur due to MongoDB load balanc-

ing problems. Right after being added during the

scaling-out state that precedes unstable conﬁgura-

tions,the newest shard node does not receive as many

requests as the existing one (oldest shard). Then, dur-

ing a ready state that follows a scaling-out state, the

oldest shard is exhausted. That explains why only

ready states with high intensity have severe perfor-

mance degradation.

4.5.6 Threats to Validity

In this study, we consider that a reconﬁguration can

only occur by changing the elasticity states. One can

argue that during an elasticity state the other parame-

ters could be changed. It is right but useless in most

situations. For instance, when the system is in a scal-

ing in state, it is useless to change the threshold or the

workload intensity parameters. Furthermore, as far as

we experimented, we did not see major impact due to

workload type changes. In this paper, we only con-

sider the elasticity performance issue, then the most

interesting parameters is elasticity state, whereas we

are interested in measuring the impact of the other pa-

rameters when elasticity state is changed.

We choose to have each reconﬁguration only once

per test sequence. Therefore, we need several se-

quences to cover all the re-conﬁgurations. An alter-

native would be to create an unique sequence with

all the re-conﬁgurations. However, to satisfy all

the constraints, we would need to duplicate the re-

conﬁgurations in the sequence. This solution could

be employed in real life, but in this paper, to get ex-

ecutions that can be compared each other, we prefer

to generate several sequences with unique reconﬁgu-

ration in each one of them.

We restrict the list of elasticity parameters in our

classiﬁcation tree. More parameters result in test se-

quences longer than the ones we use in the experi-

ments. We could set a wider range of scale-out thresh-

olds. In particular, this would help us identifying

which is the exact limitation of MongoDB at ready

states. However, the paper focus on proposing an ap-

proach for elasticity testing of cloud systems, wherein

the set parameters are enough to answer the research

questions.

5 RELATED WORK

Gambi et al. (Gambi et al., 2013b) and model elas-

tic systems as a sequence of elasticity states (ES)

called elastic transition sequence (ETS). Given an in-

put workload they verify if the elasticity transition se-

quence executes as expected. However, the ETS does

not consider scaling states (scale in/out) and ignores

testing requirements such as coverage of workload

or coverage of all possible sequences. The authors

also present AUToCLES (Gambi et al., 2013a), a test-

as-a-service (TaaS) tool. Their resource management

(elasticity control) allows customized reuse of virtual

Towards Short Test Sequences for Performance Assessment of Elastic Cloud-based Systems

173

machines and resource sharing, in contrast to usual

Infrastructure-as-a-Service (IaaS). The elastic opera-

tions (add or remove virtual machines) we consider in

this paper respect the infrastructure constraints. None

of their work considers a strategy to soften the com-

plexity of elasticity testing.

There are several research efforts on elasticity

control, which is peripheral to the subject of our work.

Our goal is to test a cloud application covering various

elasticity states and workloads rather than develop au-

tonomous control algorithms for elasticity of a CBS.

We brieﬂy mention work on elasticity control to give

the reader an overview of a related area. Copil et al.

discuss Sybl a language to control elasticity (Copil

et al., 2013), Han et al. present a lightweight ap-

proach for resource scaling (Han et al., 2012), and

Malkowski et al. use empirical models of workloads

for controlling elasticity (Malkowski et al., 2011). Al-

bonico et al. (Albonico et al., 2016) present elastic-

ity control of the speciﬁc case of web applications on

the cloud. Finally, Truong et al. (Truong et al., 2014)

present a platform as a service for elasticity control,

and Dupont et al. do experimental analysis on auto-

nomic elastic control strategies (Dupont et al., 2015).

Finally, Islam et al. present metrics for measuring

elasticity on a cloud platform (Islam et al., 2012).

In contrast, our work measures the performance of a

cloud application upon workload and elasticity states

variations.

Systematic testing of a CBS for performance un-

der elastic conditions (Brebner, 2012) is essential to

guarantee service level agreements and be reliable un-

der varying workloads. Our work is based on previous

work on modeling (Lehmann and Wegener, 2000) and

generating test cases (Perrouin et al., 2010; Perrouin

et al., 2012) for CIT. In a recent work, Sen et al. (Sen

et al., 2015) goes one step further and generates se-

quences of re-conﬁgurations to evaluate reconﬁgura-

tion impact in self-adaptive software systems. In our

previous work (Albonico et al., 2017b), we propose

an approach to select re-conﬁgurations that represent

realistic elasticity. However, we do not go further than

test conﬁgurations that cover 2-wise elasticity param-

eters.

6 CONCLUSION

In this paper, we parameterize a combinatorial-based

approach to create 2-wise and 3-wise test sequences

for elasticity testing. The approach is applied to as-

sess the performance of a CBS case study, the Mon-

goDB.

In the experiments, shortest test sequences, i. e.,

2-wise, reveal most of the performance degradation.

It also allows us to identify a pattern for unstable

re-conﬁgurations. Given the promising experimental

results, and the large adoption of 2-wise in standard

software testing, we claim it is also an adequate cov-

erage in the case of combinatorial test case generation

for elastic CBS performance assessment. This is en-

forced by the presented high cost and long executions

of 3-wise or longer test sequences, which may make

their executions impractical.

This work is our second step towards short test se-

quence generation for CBS performance assessment.

The presented results enforce 2-wise combinatorial

testing as a combinatorial testing strategy. However,

one cloud compare other methods, as well as fur-

ther elasticity parameters, case studies, and scalabil-

ity (more than two nodes). As future work, we plan to

compare this paper CIT to further test case generation

strategies. We also plan to conduct a deeper evalua-

tion of elasticity parameters, scalability and case stud-

ies.

REFERENCES

Albonico, M., Alesio, S. D., Mottu, J., Sen, S., and Suny

G. (2017a). Generating Test Sequences to Assess the

Performance of Elastic Cloud-Based Systems. In 2017

IEEE 10th International Conference on Cloud Com-

puting (CLOUD), pages 383–390.

Albonico, M., Di Alesio, S., Mottu, J., Sen, S., and Suny

G. (2017b). Generating test sequences to assess the

performance of elastic cloud-based systems. In 2017

IEEE 10th International Conference on Cloud Com-

puting (CLOUD), Honolulu, HI, USA, June 25-30,

2017, pages 383–390.

Albonico, M., Mottu, J.-M., and Suny

e, G. (2016). Control-

ling the elasticity of web applications on cloud com-

puting. In Proceedings of the 31st Annual ACM Sym-

posium on Applied Computing, Pisa, Italy, April 4-8,

2016, pages 816–819.

Brebner, P. C. (2012). Is your cloud elastic enough?: per-

formance modelling the elasticity of infrastructure as

a service (iaas) cloud applications. In Proceedings of

the 3rd ACM/SPEC International Conference on Per-

formance Engineering, pages 263–266. ACM.

Cooper, B. F., Silberstein, A., Tam, E., Ramakrishnan, R.,

and Sears, R. (2010). Benchmarking Cloud Serving

Systems with YCSB. In Proceedings of SoCC’10,

New York, NY, USA. ACM.

Copil, G., Moldovan, D., Truong, H.-L., and Dustdar, S.

(2013). Sybl: An extensible language for controlling

elasticity in cloud applications. In Cluster, Cloud and

Grid Computing (CCGrid), 2013 13th IEEE/ACM In-

ternational Symposium on, pages 112–119. IEEE.

Dupont, S., Lejeune, J., Alvares, F., and Ledoux, T. (2015).

Experimental Analysis on Autonomic Strategies for

Cloud Elasticity.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

174

Gambi, A., Hummer, W., and Dustdar, S. (2013a). Auto-

mated testing of cloud-based elastic systems with AU-

ToCLES. In The proceedings of ASE’13, pages 714–

717. IEEE/ACM.

Gambi, A., Hummer, W., and Dustdar, S. (2013b). Test-

ing elastic systems with surrogate models. In 2013

1st International Workshop on Combining Modelling

and Search-Based Software Engineering (CMSBSE),

pages 8–11. IEEE.

Han, R., Guo, L., Ghanem, M. M., and Guo, Y. (2012).

Lightweight resource scaling for cloud applications.

In Cluster, Cloud and Grid Computing (CCGrid),

2012 12th IEEE/ACM International Symposium on,

pages 644–651. IEEE.

Herbst, N. R., Kounev, S., and Reussner, R. (2013). Elas-

ticity in Cloud Computing: What It Is, and What It Is

Not. ICAC.

Hervieu, A., Baudry, B., and Gotlieb, A. (2011). PACO-

GEN: Automatic Generation of Pairwise Test Conﬁg-

urations from Feature Models. In 2011 IEEE 22nd

International Symposium on Software Reliability En-

gineering (ISSRE), pages 120–129.

Islam, S., Lee, K., Fekete, A., and Liu, A. (2012). How a

consumer can measure elasticity for cloud platforms.

In Proceedings of ICPE’12, page 85, New York, New

York, USA. ACM Press.

Kuhn, D. R., Wallace, D. R., and Gallo Jr, A. M. (2004).

Software fault interactions and implications for soft-

ware testing. Software Engineering, IEEE Transac-

tions on, 30(6):418–421.

Lehmann, E. and Wegener, J. (2000). Test Case by Means

of the CTE XL. EuroSTAR 2000.

Malkowski, S. J., Hedwig, M., Li, J., Pu, C., and Neumann,

D. (2011). Automated control for elastic n-tier work-

loads based on empirical modeling. In Proceedings of

the 8th ACM international conference on Autonomic

computing - ICAC ’11, page 131, New York, New

York, USA. ACM Press.

Nie, C. and Leung, H. (2011). A Survey of Combinatorial

Testing. ACM Comput. Surv., 43(2).

Perrouin, G., Oster, S., Sen, S., Klein, J., Baudry, B., and

Traon, Y. (2012). Pairwise Testing for Software Prod-

uct Lines: Comparison of Two Approaches. Software

Quality Journal, 20(3-4):605–643.

Perrouin, G., Sen, S., Klein, J., Baudry, B., and Le Traon,

Y. (2010). Automated and scalable t-wise test case

generation strategies for software product lines. In

Software Testing, Veriﬁcation and Validation (ICST),

2010 Third International Conference on, pages 459–

468. IEEE.

Sen, S., Alesio, S. D., Marijan, D., and Sarkar, A. (2015).

Evaluating Reconﬁguration Impact in Self-Adaptive

Systems – An Approach Based on Combinatorial In-

teraction Testing. In 2015 41st Euromicro Conference

on Software Engineering and Advanced Applications,

pages 250–254.

Truong, H. L., Dustdar, S., Copil, G., Gambi, A., Hummer,

W., Le, D. H., and Moldovan, D. (2014). CoMoT - A

Platform-as-a-Service for Elasticity in the Cloud. In

Proceedings of IC2E.

Towards Short Test Sequences for Performance Assessment of Elastic Cloud-based Systems

175
