OPeRAte: An IoT Approach towards Collaborative,

Manufacturer-independent Farming 4.0

Maik Fruhner, Thorben Iggena, Franz Kraatz, Frank Nordemann, Heiko Tapken and Ralf T

onjes

Faculty of Engineering and Computer Science, Osnabr

uck University of Applied Siences,

Albrechtstr. 30, Osnabr

uck, Germany

Keywords:

Agriculture, IoT, Precision Farming, Farming 4.0, Big Data.

Abstract:

Without modern agricultural technology, it would not be possible to feed the world’s steadily growing popu-

lation. In order to be able to handle this task in the future, new improvements must be constantly developed to

improve agriculture and increase yields. These include methods known as ’Precision Farming’, ’Smart Farm-

ing’ or ’Farming 4.0’. These terms describe working in the ﬁeld with high-tech machines that are supported

by intelligent systems that communicate with each other. But at the present time, such intercommunicating

ecosystems are manufacturer-bound and hardly interoperable. This paper presents a new approach to connect-

ing various agricultural machines from different manufacturers into a common network of IoT devices. In

this project, a framework for the orchestration of agricultural processes is being developed that is capable of

planning, controlling, monitoring and documenting joint collaborative tasks between many independent ma-

chines while breaking the commitment to a single manufacturer. The ﬁrst application example of the system

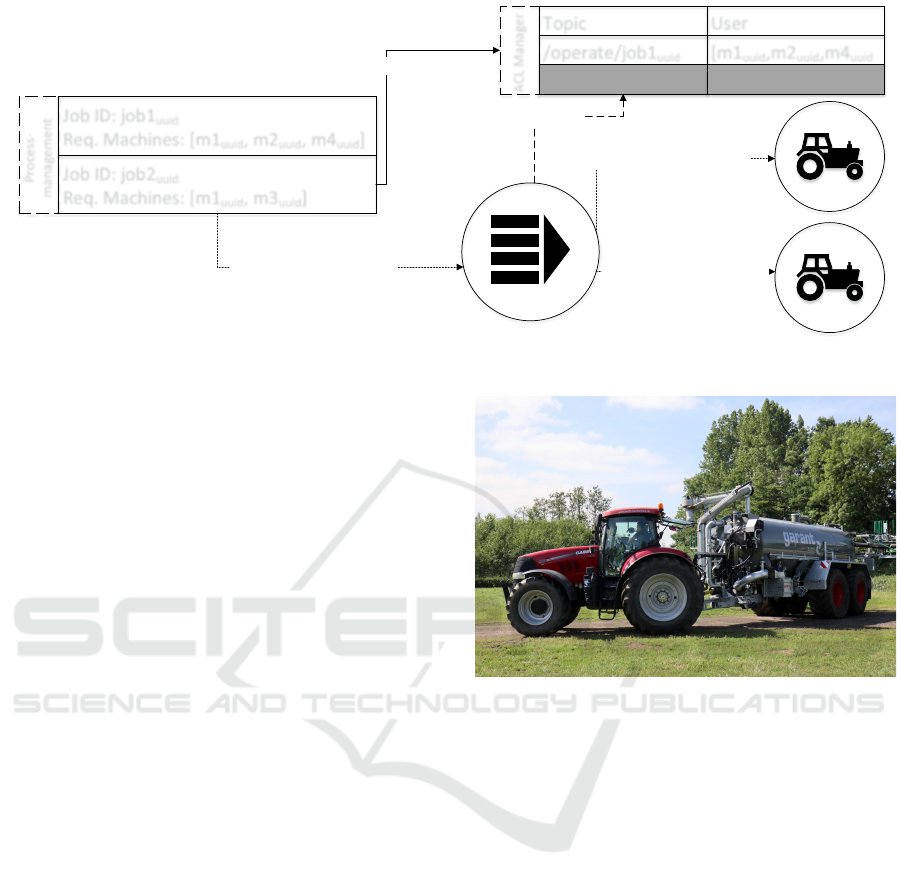

is the development of a tank trailer for liquid slurry spreading with various sensors and controls. By using

IoT-speciﬁc technologies, the tank can already be conﬁgured by a process management system, so that exact

nutrient quantities are applied part-ﬁeld-speciﬁcally and a legally compliant documentation is generated.

1 INTRODUCTION

The world’s population has grown permanently in the

past and will continue to do so in the coming decades

(United Nations, Department of Economic and So-

cial Affairs, Population Division, 2017). This ever-

increasing number of the human population simulta-

neously demands a higher food production and results

in a steady decline of arable land per person (DBV,

2018), driven by the necessary expansion of urban ar-

eas and infrastructure. The required increasing agri-

cultural yield can only be achieved through the de-

velopment of special optimization techniques in the

agricultural sector.

A common problem in trying to improve yield is

the variety of devices required and the associated pro-

prietary technology that leads to cross-manufacturer

incompatibility. Approaches that try to solve this

problem often use old, outdated technology that is no

longer state of the art. The use of modern cloud ar-

chitectures for agricultural use is at most conceptually

designed, but still years away from market maturity.

This paper presents a novel approach towards op-

timizing complex agricultural processes by connect-

ing individual machines, regardless of their vendor,

into a large network of IoT devices. The cross-process

control via a management system makes it possible to

assign tasks to any number of vehicle/trailer combi-

nations so that orders can then be processed jointly

but still autonomously. The aim of the project is the

creation of a framework for the management of cross-

actor, cooperative processes in agricultural engineer-

ing. The combination of several modern technologies

results in a continuous cloud based data ﬂow between

all machines and a process management system that

not only simpliﬁes distributed tasks but also legally

secures the responsible persons.

The current project uses slurry spreading as the

research example. The new aspects developed in the

project are explained in the paper on the basis of this

example.

After the following presentation of the motivation

and the current state of the art, the most important as-

pects of the project are presented in the form of the

system’s architecture and implementation. An eval-

uation of the current state of development illustrates

the progress achieved.

Fruhner, M., Iggena, T., Kraatz, F., Nordemann, F., Tapken, H. and Tönjes, R.

OPeRAte: An IoT Approach towards Collaborative, Manufacturer-independent Farming 4.0.

DOI: 10.5220/0007760101650176

In Proceedings of the 4th International Conference on Internet of Things, Big Data and Security (IoTBDS 2019), pages 165-176

ISBN: 978-989-758-369-8

165

2 MOTIVATION

A key word to mention nowadays in connection with

agriculture certainly is ’Precision Farming’. The term

describes the systematic cultivation of farmland, de-

pending on current soil conditions. An important

factor in agriculture is the fertilization of the ﬁelds.

Without precise knowledge of the soil condition and

the nutrients it contains, it is not possible to give accu-

rate information about the quantity of fertiliser to be

applied. In addition, the soil of a ﬁeld is not the same

in every location. In fact, a ﬁeld usually consists of

many different soil types and nutritional values. The

values change constantly between the cultivation pe-

riods, depending on the currently sown crop and the

crops of previous years.

This is where the OPeRAte project comes into

place. It supports traditional agricultural practices,

such as slurry spreading or maize harvesting, with

high-tech, automated processes and machines oper-

ating as members of the Internet of Things.

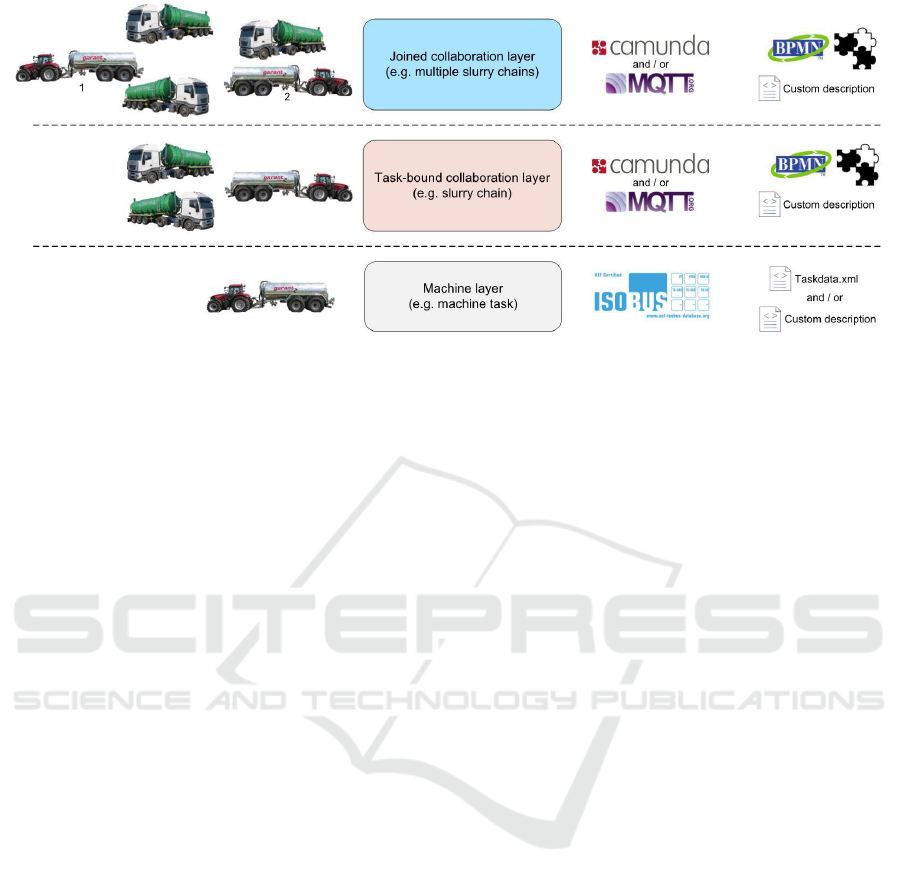

In concrete terms, it represents a framework for

orchestrating agricultural processes at three succes-

sive layers:

• The machine layer, executing commands on a

single machine,

• the task-bound collaboration layer, controlling

multiple machines and devices executing a com-

mon task

• and the joined collaboration layer, controlling

many machines and devices across different tasks.

The framework is aimed at farmers and contractors

who wish to run an automated, resource-efﬁcient,

part-ﬁeld-speciﬁc farm management system across all

three mentioned layers. This means, for example,

to automatically calculate the correct, varying quan-

tities of fertiliser to apply to different parts of a ﬁeld

and sending this information to the corresponding ma-

chine to execute. Fertilizing part-ﬁeld-speciﬁc results

in higher quality and quantity yield.

In order to put this intention into practice, the agri-

cultural machinery must become part of a network

in the sense of the Internet of Things. Due to the

continuous communication between the devices, each

machine plays its own role in the system. Part of

the commnication is the exchange of status and sen-

sor data between machines and the management plat-

form.

This, in turn, leads to the generation and mainte-

nance of large amounts of data, which can later be

used for evaluation and consequential ressource opti-

mization. These can be 360-degree views of the data,

the fully automated generation of application maps

and legally required documentation, or the agile re-

planning of an ongoing process for an overall better

result.

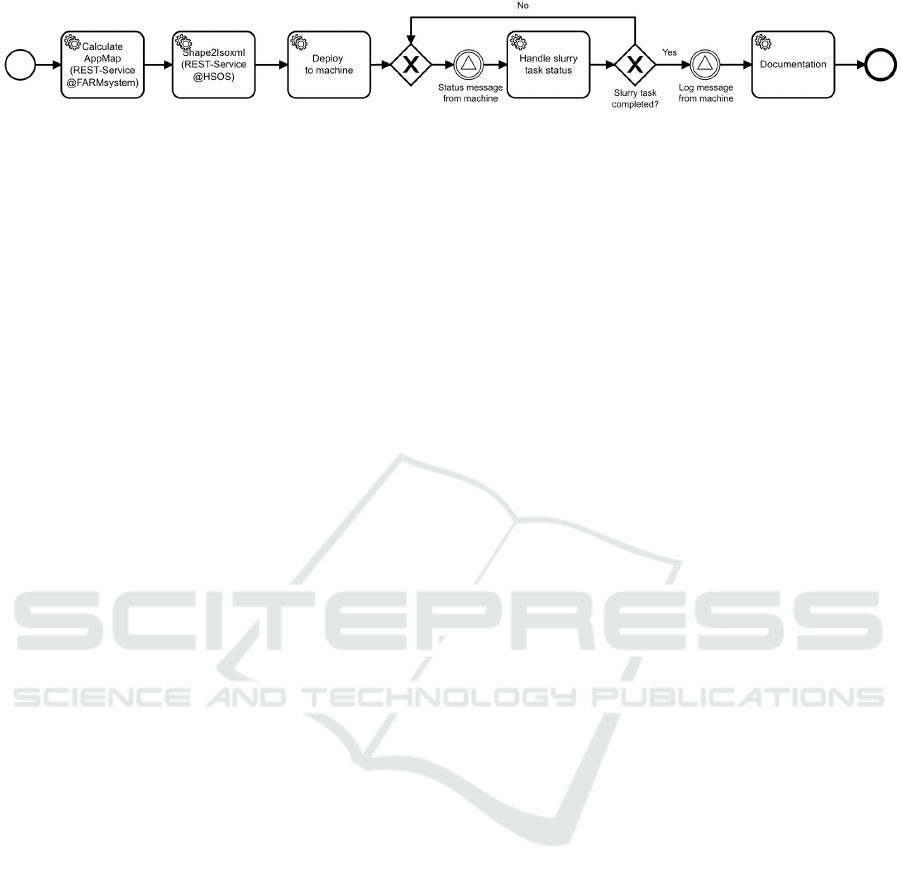

A cultivation cycle ranges from sowing, fertiliz-

ing and treatment with pesticides to harvesting. The

scenario currently being worked on is a precise, auto-

mated fertilization through spreading of slurry. While

using the OPeRAte-Framework, the farmer beneﬁts

in many ways. The two main issues are monetary and

legal aspects and come to bear as follows.

When a farmer cultivates his ﬁeld, he wants to

make the most of his time and resources. Depend-

ing on the condition of the soil, fertiliser must be ap-

plied to the ﬁeld in many different quantities at dif-

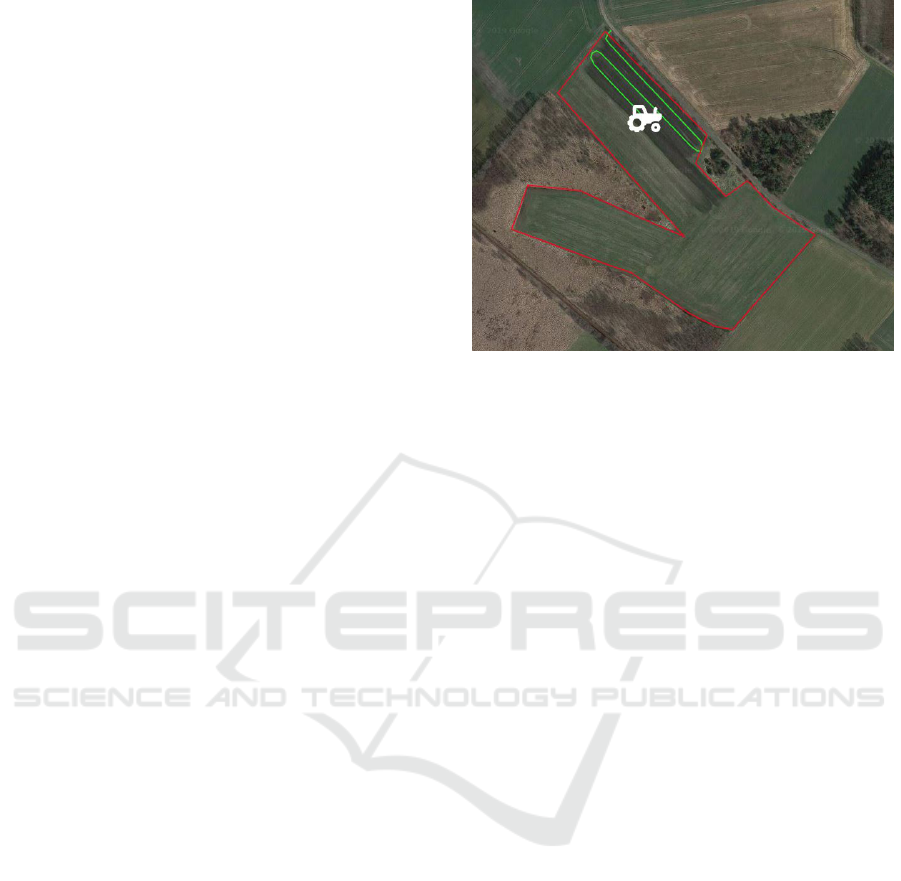

ferent locations. Speciﬁc application maps used for

Precision Farming generated by the OPeRAte Process

Management describe these output ratios visually for

the farmer to understand and technically for the ap-

plication through the slurry tank. When an intelligent

tank reads the output values from an application map,

it can automatically regulate the current ﬂow rate of

the fertilizer. These maps - while being able to auto-

mate the process of fertilizing - also conform to the

german fertilizer ordinance which came into force in

2017 (BMEL, 2017).

Therefore, a precise documentation of the applied

amounts of slurry and the resulting soil conditions can

be generated automatically after each completed task.

The user then has the ability to easily prove all rele-

vant aspects to the government.

The ﬁrst goal of the OPeRAte project is the proto-

typical development of a high-tech slurry tank, which

can be integrated into this highly distributed system

and which considers all mentioned aspects.

3 RELATED TOPICS

The goals pursued in this project are not entirely

new. International manufacturers of agricultural ma-

chinery offer similar functionalities for cross-process

communication and interaction with their equipment.

However, these solutions are mostly proprietary, so

that they can only be used in the manufacturer’s own

ecosystem of devices. Compatibility with other ven-

dors or even open interfaces are available in the rarest

cases.

3.1 ISOBUS

An already widely used standard for communica-

tion across agricultural machinery is called ISOBUS

(AEF, 2019), which is the name of the ISO 11783

norm (ISO, 2017). It is currently being maintained

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

166

by the Agricultural Industry Electronics Foundation

(AEF).

It not only represents a communication bus, but

also serves, for example, to control the task controller

or the universal terminal and as a result, it enables

the control of several connected devices via a single

terminal in the driver’s cab.

The ISO XML format deﬁned in the same stan-

dard is used as the data structure. It enables cross-

device planning, control and evaluation of agricultural

processes. This allows new tasks to be created in the

farmer’s management system and then to be copied

to a tractor’s terminal. The results can also be trans-

ferred back to the management platform.

Although it is present in virtually every modern

agricultural machine, its major drawback is that the

standard is too loosely deﬁned, so that each manu-

facturer can implement it in slightly different ways,

leading to incompatibilities within the standard.

Developers and manufacturers must license the

deﬁnition of the standard in order to gain insight into

the details and thus be able to program interfaces.

The AEF also deﬁned EFDI (Extended FMIS Data

Interface) (Schlingmann, 2016), a standard for wire-

less communication across ISOBUS devices. It could

one day replace the data exchange via USB ﬂash

drive, but has not yet become widespread.

3.2 Open Communication

For several years now, among others the Osnabr

uck

University of Applied Sciences, together with various

partners, has been researching possible solutions for

open and interoperable communication interfaces.

The completed ’KOMOBAR’ project (Freye,

2010) focused on the development of a reference ap-

plication for the self-optimization of supply chains.

The optimisation of logistics chains should reduce

fuel and personnel costs as well as pollutant emis-

sions, increase energy efﬁciency and improve the

overall quality of the products concerned. These ob-

jectives were to be achieved through the development

of open APIs, which would subsequently be available

to SMEs. However, the focus was solely on logistics.

Optimizations for the farming process itself were not

considered.

The ongoing project ’Smart Data, Smart Services’

(DFKI, 2017) is in the process of developing an ’agri-

cultural data hub’. The goal is to deﬁne and im-

plement an open ecosystem that enables data to be

exchanged and evaluated independently of manufac-

turers and services in various different data formats.

A support for controlling complex processes, as pro-

posed in this paper’s project, is not part of the re-

search, though.

Both research projects attach great importance to

the fact that the interfaces are and remain freely ac-

cessible and are therefore intended to overcome the

constraints imposed by the manufacturers of propri-

etary systems.

3.3 IoT in Farming

When it comes to the use of IoT in agriculture, sys-

tems for stationary sensors are found almost exclu-

sively. Many companies offer their own commercial

solutions for monitoring a variety of different kinds of

data such as weather and soil conditions.

More advanced use of IoT in farming have been

demonstrated, for example, in the form of a small

connected smart farming system (Minwoo Ryu et al.,

2015) or a feed silo measuring the quality and quan-

tity of its content (Agrawal et al., 2016).

However, large-scale IoT frameworks capable of

managing complete farms have only been researched

for a few years and have not yet entered the market

(Kamilaris et al., 2016). The authors therefore devel-

oped their own framework, which is able to process

sensory data of up to 300 sensors deployed at a ﬁeld

and perform reasoning in real-time on the data. The

farmer then receives recommendations for decision-

making during the execution of a job.

When it comes to IoT devices on agricultural ve-

hicles, researchers still have to develop new ideas. As

stated above though, manufacturer-bound commer-

cial solutions are already on the way. Current vehi-

cles produced by John Deere already come with con-

nectivity systems such as LTE, Wiﬁ and Bluetooth

and can communicate with their own cloud (Fergu-

son, 2018) and with each other.

The project proposed in this paper goes one step

further and enables this communication in an open,

transparent way. The aim is to enable joint communi-

cation and work between machines, even with equip-

ment from different manufacturers, and thus to elimi-

nate the need for a single ecosystem.

4 ARCHITECTURE

The following chapter describes the fundamental ar-

chitecture of the OPeRAte-Framework. As stated

above, the system’s process management acts on three

superimposed layers, which are shown in Figure 1. In

the subsequent sections, the indiviual features of the

three distinct layers are explained in detail from bot-

tom up.

OPeRAte: An IoT Approach towards Collaborative, Manufacturer-independent Farming 4.0

167

Figure 1: The three layers of the OPeRAte Process Management at the example of slurry spreading.

4.1 Machine Layer

The most basic processing layer of the system is the

machine layer. It lays the foundation of the layered

system by representing the bottom level of task exe-

cution by describing the capabilities modern agricul-

tural machines already possess.

In particular, it describes and covers the function-

ality of a single tractor-implement combination. At

this level, for example, the previously mentioned ap-

plication maps or task data are generated and used.

In order to make the tasks machine-readable, the

process management must output the information re-

quired for a job in a certain structure. This is ac-

complished by using the established ’Taskdata.XML’

format deﬁned in the ISO 11783 norm (ISO, 2017),

which every Electronic Control Unit (ECU) can un-

derstand.

The Taskdata ﬁle format is used to deﬁne automa-

tion processes for ﬁeld cultivation. For example, a

task can describe what kind of work has to be done

on a particular part-ﬁeld. The ﬁeld boundaries, the

job to be done and the necessary parameters are in-

cluded so that a job can be automated without further

conﬁguration.

Given a set of input parameters, the developed

process management system is capable of automat-

ically creating such a standard-compliant XML ﬁle,

which deﬁnes an entire task execution.

A task is assigned to one or more vehicles which

are in charge of fulﬁlling this job. The deﬁnition can

then be sent to the assigned machines, where it can

either wait for the driver to initiate it, or it can be exe-

cuted autonomously immediately or at a later point in

time if the vehicle is capable of self-driving.

At this physical level, all communication takes

places via a standardized ISOBUS connection. All

modern agricultural machinery support the ISO stan-

dard mentioned above, which enables unambiguous

control of vehicles and equipment.

The machine layer takes care of the deﬁnition and

control of a task for a single vehicle combination.

4.2 Task-bound Collaboration Layer

During the execution of a task though, vast amounts

of data are produced by the variety of sensors con-

nected to the tractor and the implements. By de-

fault, this data is recorded and saved on device for

the farmer to export via USB after a task is complete.

The task-bound layer now extends this approach

so that the data is captured not only ofﬂine, but also

online. This means that all sensory data can be sent

to the process management system in real time during

acquisition.

For this purpose, several new exchange formats

have been developed. One of the main objectives

of the project is the establishment of manufacturer-

independent interoperability. This can only be

achieved by converting the jobs created by the pro-

cess management into the different proprietary ﬁle

formats. An internal description language handles the

conversion of sensor, status, log and task data.

This data transmission is performed under the

aspect of a publisher-subscriber schema using the

MQTT protocol, which will be described in detail in

section 5.3. In principle, the data is published by

an IoT device at a certain ’topic’ and enables inter-

ested, authorized parties to subscribe to this continu-

ous stream of new information.

One of those subscribers is the process manage-

ment. It collects and aggregates all received data in

order to perform various different types of processing

on them. One example would be the generation of

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

168

a complete and comprehensive documentation of the

work done once a task has been completed.

However, it is not unusual in agriculture for sev-

eral vehicles to be involved in the same task. This

is also known as a task chain. Staying in the slurry

spreading scenario, there might be one party that de-

livers the fertilizer while the second party actually ap-

plies it to the ﬁeld. In order to realize the possibility

of carrying out this task-bound collaboration, detailed

communication is required not only between the pro-

cess management and the vehices, but also between

the vehicles themselves.

The requirement to combine different subtasks

into a single super-task while at the same time allow-

ing the indiviual machines to work autonomously can

be regarded as a rather complex challenge. To over-

come this, the task chains are modelled as determinis-

tic processes. The Business Process Model and Nota-

tion (BPMN) is used to formally describe them while

remaining hidden to the end user. A farmer, for ex-

ample, never has to interact directly with BPMN, but

instead uses a convenient, easy-to-use web front-end.

There, the client is able to conﬁgure an upcoming

task by deﬁning a set of parameters, such as:

• the ﬁeld to fertilize

• the tractor and implement to use

• the location to acquire the fertilizer from

• last year’s yield

After completion, the process management can

automatically send the newly created task data to the

corresponding devices. In addition, a new MQTT

topic will be created, which each participating device

should subscribe to in order to get all relevant infor-

mation about the current task.

Through this digital networking where sensor and

status data is exchanged at all times, the process can

be monitored and controlled in real time. This allows

a dynamic adaptation of the running processes, which

might be necessary due to disfunctions of a device or

manual reconﬁguration through the responsible per-

son. Again, updates are sent out immediately to en-

sure optimum yield.

Figure 2 shows the graphical visualization of the

monitoring. A tractor symbol indicates the current

position of the machine. The red polygon illustrates

the ﬁeld border of the current task. The green line

highlights the chosen route.

Such an integration of MQTT and BPMN into the

ﬁeld of agriculture is completely new. Through for-

malized data structures, it is possible to connect many

manufacturer-independent devices IoT-controlled to a

large, jointly working network.

Figure 2: A process can be monitored on a live map.

4.3 Joined Collaboration Layer

The ﬁnal and most advanced layer deals with so-

called joined collaboration. At larger farms, work

may not only be done on one collaborative task, but

on many concurrent tasks. These simultaneous tasks,

although not directly interdependent, can also interact

with each other thanks to OPeRAte.

Interprocess communication can be useful if, for

example, a process chain reports an imminent delay

caused by an unforeseen event. In this case, another

operational process chain can delegate a currently dis-

pensable machine to the chain fallen behind in sched-

ule to make up for the loss.

Together, these three layers form a unit with which

the process management system can conﬁgure, con-

trol and monitor several active process chains across

different machines and ﬁelds.

5 IMPLEMENTATION

After introducing the basic idea and highlighting the

archtitectural design, the next chapter will give an in-

sight into some of the technical details of the OPeR-

Ate project. Starting with the implementation of the

process management, the section also shows how the

large amounts of data (considered as Big Data) are

stored correctly. It then describes the communication

between all IoT devices, servers and other clients, and

concludes by explaining how all data transmissions

are secured against unauthorized access.

OPeRAte: An IoT Approach towards Collaborative, Manufacturer-independent Farming 4.0

169

5.1 Process Management

The three controlling layers of the process manage-

ment form the core of the OPeRAte-Framework. The

management system is used to deﬁne, conﬁgure, ini-

tiate, monitor and evaluate tasks (Nordemann et al.,

2016).

Always hidden from the end user, it processes ini-

tiated tasks on a model basis. This means that each

executable process performs as a self-contained task.

A process can consist of various subprocesses and can

itself be a subprocess of a higher-level process.

As mentioned before, all possible processes are

created as BPMN ﬂow diagrams. The advantage of

the individual sub-processes is that they have care-

fully been implemented in such a way as they can

be reused to describe another super-process in a com-

pletely different context, consisting of a different set

of sub-processes.

The Camunda software serves as a modeling

framework. This not only makes it possible to plan

and deﬁne processes, but also to run them directly in

the execution environment.

The so-called ’workﬂow automation’ offers an

API for the execution of external jobs. A web fron-

tend, for example, can then start an operation through

a REST request. The modeled ﬂowchart is processed

and returns a response to the frontend. This is note-

worthy from a technical point of view, since graph-

ically modeled processes usually only serve to illus-

trate an implemented algorithm and cannot be exe-

cuted themselves. Furthermore, there is no known

project which used BPMN in an agricultural context

before.

All business logic of the system is implemented

in this way. From planning, monitoring and dynamic

rescheduling of running tasks to automated genera-

tion of documentation for the target and actual status,

everything is implemented via BPMN.

As an enhancement, processes can also be exe-

cuted in different variants. Based on the input param-

eters, a diagram can be conﬁgured either automati-

cally , semi-automatically or manually.

The default behaviour on one hand is to manually

plan and conﬁgure a new task via the web interface.

The relevant locations, ﬁelds and devices are set and

the task is registered for a start at a later point in time.

On the other hand, a farmer can start a job by turn-

ing on the tractor without a prior conﬁguration of a

task data. The device then reports to the process man-

agement that a new task was launched. The system

automatically registers this task and starts logging the

incoming sensor and log data.

Figure 3 illustrates a shortened version of the pro-

cess model for slurry spreading. The main process

consists of ﬁve building blocks. The cogwheels indi-

cate a subprocess being responsible to return a result

for said block. In general, there is a common descrip-

tion for each process and what it is supposed to do,

for each actor involved. The details on how an actor

implements his or her subprocess is irrelevant for the

other parties, as long as it delivers the desired result.

The ﬁrst two subprocesses communicate with ex-

ternal services via REST, one being developed by a

project partner. First, the application map for auto-

matic adjustments of the liquid fertilizer ﬂow is cal-

culated. Input values given by the farmer through the

web interface are used to initialize the request. It does

not matter to the system how exactly the map is being

generated. This blackbox approach allows external

companies to offer their own services to the project’s

system while at the same time keeping their coporate

secrets save. As long as the deﬁned interfaces are

used, different implementations of a subprocess can

exist.

After converting the remaining input into an

ISOXML format, the task is deployed to the machines

via MQTT. The required topics are created and the

machines subscribe and start to send status updates.

The process keeps looping as long as the slurry

spreading is not done. During the loop, status mes-

sages are received and handled.

Once all devices report a ﬁnished task, log mes-

sages are collected and the documentation is being

generated. Again, depending on type of task, used

machines and location of the ﬁeld, the implemen-

taion of the documentation process could be varying

in many different ways to output a different version

for each possible conﬁguration.

But not a single task could be accomplished by

the Process Management itself. The second important

component is the data storage. A stable communica-

tion between all IoT devices and the cloud is not to be

forgotten.

5.2 Data Management

In order to be able to analyse completed tasks, ﬁnd

optimizations for upcoming tasks or to retrieve new

external information, any data generated by the pro-

cess management or by the communicating devices

must be stored for later use.

The foundation for the data structure is formed by

the taskdata standard deﬁned in the ISO 11783 norm.

Based on this XML deﬁnition, a relational database

schema was developed that is able to map incoming

task data ﬁles to new or existing database entities in a

highly normalized database.

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

170

Figure 3: Slurry spreading as an example of a BPMN process model.

5.2.1 Raw Data

Incoming data encoded as Taskdata.XML is consid-

ered ’raw’ data. This data is read from the XML ﬁle

to be then written to the raw-database. But this data

may occasionally be incorrectly formatted or not con-

form to the standard.

For this purpose, a parsing software was devel-

oped that takes a set of task data as input. The input

ﬁles are then validated against the standard and cor-

rected if necessary. Finally, the program generates the

corresponding entities in the database, resulting in a -

potentially adjusted - copy of the information, stored

in relational database tables.

Luckily, these do not have to be created by hand,

though. The parser written in Java is also able to ﬁg-

ure out the database schema and deploy it to the de-

sired database using an XML Schema (XSD) ﬁle that

describes the structure of the task data input. Using

JPA Annotations, all relevant XML-tags are converted

to Java entity-classes. These are used in turn to gener-

ate the corresponding database tables in PostgreSQL

using JDBC.

Saving all task data as new, individual units, how-

ever, creates a problem with data integrity. Each task

data contains all the partﬁelds, machines and imple-

ments among other things used for a job. This data is

not kept consistent across multiple task ﬁles, though.

Each task begins assigning IDs starting with 1, which

might result in different identiﬁers for the same ma-

chine in each task, depending on the order they appear

in. If now, for example, the same tractor is used twice

in two different tasks, it is also stored twice to the

database.

This does not correspond to the principles of re-

lational databases and is therefore not a reasonable

strategy to keep the data. To solve this problem, the

enriched database is introduced.

5.2.2 Data Purgement

In the ﬁrst transformation step after the import, new

data must be revised so that no duplicate entries occur.

Recurring data records such as farms, ﬁelds, machines

and implements are called ’static data at rest’ in a sec-

ond, enriched database. After input into the database,

these data records are given a new ID, which differs

from the one given by the task, but which will stay

unique in the database.

When importing new task data, a mapping must

therefore determine whether an entry already exists

in the database or not. If so, the record is not saved

again, but instead is referenced via foreign key.

After successful reference of new data to existing

data, various table columns of the new data coming

from the raw database tables are transformed for bet-

ter further processing. One of these transformations

takes numeric columns representing coordinates and

stores them in a speciﬁc geolocalization format pro-

vided by the PostGIS extension for PostgreSQL. This

allows fast and lightweight calculations of distances

and areas, which is especially advantageous for han-

dling additional data from external sources.

5.2.3 Data Enrichment

At this point, the imported task data was correctly in-

tegrated into the existing data records and selected

columns were extended to new data types by a sys-

tematic combination. In the following data enrich-

ment step, all available information - new and old

- will be augmented by adding details from external

services.

By using openly available data sources, the gener-

ated data for a ﬁeld can be supplemented in a variety

of ways. In the current stage, the imported task data

are enhanced by historical weather data provided by

the German Weather Service (DWD) and satellite im-

agery of 13 different spectral bands recorded by the

Sentinel 2 program.

One hurdle are the many different data types in

which the different information is available. The

weather data are provided in grids of thousands of

square cells covering the whole of Germany. Hyper-

spectral satellite data from the Sentinel 2 program are

recorded for most of the Earth and are available in

different frequency bands and resolutions via various

pre-processing APIs.

To make use of these offerings, requests for the

latest data are regularly sent to the different services.

Certainly not everything that is available is of interest.

Only information about the farms and ﬁelds present in

the system are fetched. If updates are available, they

are pulled and matched to the corresponding database

OPeRAte: An IoT Approach towards Collaborative, Manufacturer-independent Farming 4.0

171

entries.

For this procedure, additional database tables are

required to save the enrichments. Having analysed the

structure of each indiviual external data format, the

database is capable of retaining the new information.

After the integration step of external data, static

data at rest is not only correlated across different

tasks, but also enriched by new information from

other sources than the input. With this data storage

system, it is possible to merge historical weather data

of a certain ﬁeld with the hyperspectral frequency

bands of the corresponding coordinates at a given

point in time, for instance to determine the result of a

speciﬁc fertilisation. This huge amount of correlated

data can further be used to run automated analysis of

the condition of the farmers’ ﬁelds and machines.

5.3 Communication

In order to create a dynamic and productive network

between all the devices and machines involved in

these complex processes, optimal communication is

essential. The project makes use of several different

communication methods and protocols for different

applications: The ISOBUS standard is used for the

local communication of a single machine-implement

combination. An MQTT Client-Broker architecture

offers a reliable data transmission between all mo-

bile and stationary devices and machines involved in a

process. RESTful APIs using the common HTTP pro-

tocol connect the IoT devices with the process man-

agement and the backend.

5.3.1 ISOBUS

Almost every agricultural machine produced in recent

years supports the ISO 11783 standard, also known as

ISOBUS, managed by the AEF. The ISO standard is

a composition of several components. It describes the

physical connectors on the machines as well as the

ﬁle formats and network interfaces used for commu-

nication on a machine-implement combination. This

means, for example, that the trailer circuits can be

controlled via the terminal in the tractor cab.

OPeRAte’s goal now is to connect the local com-

munication of the machine layer to a cloud infras-

tructure using IoT technologies. Addressing the indi-

vidual, working machines via a central control panel

makes it possible to coordinate many individual car-

riages into a common task. This is done via the

MQTT protocol displayed below.

5.3.2 MQTT

The MQTT protocol, based on the Publisher-

Subscriber approach, has been a standard in IoT for

many years. One reason for this is the smaller over-

head and the correspondingly higher performance of

data transmission compared to the widely used HTTP

protocol (Yokotani and Sasaki, 2016).

The ability to send and receive messages even

when network connections are weak becomes very

important in agriculture, where machines may not

be connected to a cellular network while processing

tasks in a ﬁeld.

All participating devices continuously send sen-

sory and status data to the broker. To ensure that each

message reaches all recipients for whom it is relevant,

speciﬁc topics are deﬁned for each participating de-

vice and each task. If a device is in need of informa-

tion from another device, it can subscribe to one of

its topics to get that information, if it has the permis-

sion to do so. One of these receivers is the process

management. Each device and every task - running

and completed - has its own status topic to keep the

system informed of its current status.

If, for example, a machine is sending the informa-

tion that it is currently unused, the process manage-

ment can assign a new task to it. Therefore, a new

topic will be created if not already done and the ma-

chine is told to subscribe to it. The machine will read

and execute the received task data and send its logs to

the new topic created for that particular task.

The transmitted data is structured using the

JavaScript Object Notation (JSON). This universally

compatible format can be serialized and deserialized

on practically any device, making it suitable for sys-

tem with any computing power.

This procedure on its own is already a signiﬁ-

cant step forward from the currently established stan-

dard. In most systems currently in use, all task data is

transferred manually to the agricultural machinery by

the farmer via USB ﬂash drive. With the OPeRAte-

Framework this procedure becomes obsolete.

5.3.3 REST (HTTP)

Not only the IoT devices have to communicate with

each other and with the process management, but also

the end user needs a way to interact with the sys-

tem. Furthermore, the system itself must access the

database described above in order to persist and query

its data. For this purpose dedicated web services pro-

vide REST APIs which offer speciﬁc functions for the

required operations.

To abstract the management layer - which might

appear to complex for an end user - a graphical user

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

172

interface is offered in form of a dynamic web based

frontend which can be used with any modern Internet

browser. The web application can be used to man-

age and conﬁgure all registered machines, devices and

tasks.

On the backend side, another service is respon-

sible for importing new task data in the form of the

standardized ISOBUS XML data format as described

in section 5.2.

5.4 Data Security

As shown in section 1 agricultural processes are un-

der a steady technological change, which is on the one

hand related to new technologies and possibilities and

on the other hand conditional upon changes in law.

During modern agricultural processes a huge amount

of data is being generated by different actors or more

technical roles. As it is unusual that one process can

be done by one single role security problems become

a major issue as things like authentication or autho-

rization have to be considered during design of new

programs or frameworks.

The agricultural framework presented in section 4

is designed to allow different roles to be combined in

one process. The process management as the central

part is therefore responsible to bring different roles

together and to act as a distributor for the data needed

by the process.

5.4.1 Security Analysis

To build a secure system with a high user acceptance

the design principles of Privacy by Design (PbD) shell

be considered (ENISA, 2014), (Cavoukian, 2009).

Therefore in a ﬁrst step the proposed architecture has

to be analyzed and extended by security mechanisms

before realization. The identiﬁed main aspects are:

User and Role Management. Processes in the agri-

cultural environment are often distributed over

different participants. Even a small process nor-

mally consists of a farmer as the responsible

owner and manager of the process, an agricul-

tural contractor, and the workers of the contrac-

tor. Each of these roles is supposed to have dif-

ferent access rights within the framework and to

guarantee its identity to systems and roles it has

to communicate with.

Communication. As the components of the frame-

work are loosely coupled there is a lot of com-

munication between different systems. The com-

munication is realized mainly by REST interfaces

and the message bus protocol MQTT as described

in section 5.3.2. For the security aspect it has to

be ensured that no third party can access the com-

munication interfaces.

Resource Requirements for Processes. As stated in

section 5.2 the project is a big data project due

to the immense amount and variety of data in the

agricultural environment expected in the future.

While dealing with data it is important to have a

concept of security for the data of a user stored in

the projects database.

5.4.2 Security Solutions in Framework

Authentication

To identify the participants of the agricultural pro-

cesses, the framework uses a certiﬁcate based solu-

tion. By providing all framework components with

certiﬁcates the clients can ensure that they are com-

municating with the right party. In addition this also

enables the framework to use SSL/TLS based encryp-

tion for communication channels. By also equipping

the clients with client certiﬁcates the framework com-

ponents themselves can verify that they send process

information to the right participants. For the MQTT

communication the framework makes use of client au-

thentication by client certiﬁcates combined with pass-

words. Through additional extensions or extended

enterprise versions of MQTT brokers (e.g. HiveMQ

(HiveMQ, 2019)) it is also possible to authenticate

by external data bases or services like LDAP, which

might be used in future versions.

Authorization in Processes

The process communication is realized by MQTT. To

avoid unjustiﬁed access to MQTT topics belonging

to a process by third parties a ﬂexible solution sim-

ilar to ACL has been integrated. Whereas the us-

age of ﬁle based ACLs is not really adoptable for

the processes, as authorizations have to be changed

for every new process, an authorization plugin for the

mosquitto (Eclipse Foundation, 2019) broker has to

be used. This addon enables the broker to query data

bases or an ldap for user authorizations.

With this extension the solution of job topic

switching depicted in Figure 4 can be used. For a

new process the process management creates a new

job uuid and selects the participants, which are then

added to a new ACL allowing them to access the

MQTT topic used by the process. The participants

itself are informed about the new topic and subscribe

to them. Any other roles would not be able to access

the job topic.

Communication Security

The process management as the central element of

the framework is responsible for the communication

with all needed components. As shown in 5.3.2

OPeRAte: An IoT Approach towards Collaborative, Manufacturer-independent Farming 4.0

173

Job ID: job1

uuid

Req. Machines: [m1

uuid

, m2

uuid

, m4

uuid

]

Process

management

Job ID: job2

uuid

Req. Machines: [m1

uuid

, m3

uuid

]

/operate/job1

uuid

ACL Manager

[m1

uuid

,m2

uuid

,m4

uuid

Topic User

/operate/job2

uuid

[m1

uuid

,m3

uuid

]

MQTT

Broker

addACL(job2

uuid

, [m1

uuid

,m2

uuid

])

switchTopic(m1

uuid

, job2

uuid

)

switchTopic(m3

uuid

, job2

uuid

)

checkACL

switchTopic(m1

uuid

, job2

uuid

)

switchTopic(m3

uuid

, job2

uuid

)

Figure 4: A Visualization of Topic Switching.

the vehicle communication is realized with MQTT.

This lightweight protocol for IoT offers options to se-

cure communication connections. To ensure a secure

communication between devices and components via

MQTT transport encryption will be used. The OA-

SIS MQTT standard allows to use TLS for transport

layer. By providing a certiﬁcate to the MQTT bro-

ker TLS can be enabled (OASIS, 2014), (Dierks and

Rescorla, 2008).

Resource Management

As shown in section 5.2 the framework is designed

to hold large amounts of data for further optimiza-

tion. Therefore, the framework has to ensure that only

owners of data can decide on how to use them. This

requires a strict division of the stored data, which is

ensured by policies, also known as row level security.

This approach allows to fulﬁll the design principles of

PbD.

6 EVALUATION

The framework presented here has not been just a

concept for quite some time now. Through coopera-

tion with some well-known German companies in the

agricultural sector, the developed solutions could be

implemented in software and hardware. In the current

phase an implement is developed, which is supposed

to support all features listed in this paper.

More precisely, an intelligent tank trailer for slurry

spreading is being engineered. The ﬁrst version, de-

picted in Figure 5, is already in prototypical use and

tests the functionality of the joined processes on ac-

tual ﬁelds.

Initial trials are already showing promising re-

sults. The device can currently read in an applica-

tion map and identify the various output values for the

Figure 5: The OPeRAte slurry tank attached to a tractor.

different locations in a ﬁeld contained therein. Then,

during the task execution, the values to be applied to

the current position are determined with the help of

GPS. The tank automatically performs the appropri-

ate hydraulic settings to reduce or increase the ﬂow

of the liquid fertilizer. The controlling - as deﬁned by

the machine layer - is done via the ISOBUS standard,

once the task data was loaded to the tractors main ter-

minal wirelessly through MQTT.

During the task execution all sensory, status and

log data are sent back to the framework. The data

collected during the jobs can be then used to suggest

improvements to the process itself and to the hard-

ware and software. Finally, a legally compliant pro-

cess documentation is created as a PDF ﬁle.

The product has already been presented at many

international exhibitions and has always generated

great interest and approval. Examples include AgEng

2016 and the International Green Week 2019.

Due to this sucess, the second generation of the

tank is already being conceptualized and might soon

be produced by the cooperation partners. Once the

project has been completed, the manufacturers will

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

174

use the research results to develop marketable prod-

ucts.

7 CONCLUSION

In this paper, the OPeRAte-project was presented in

its current stage and in terms of its long-term goal.

The result is a framework for platform-independent,

cross-vendor execution of joined, distributed agricul-

tural tasks.

At present, there is a BPMN-based three-layer

process management which is responsible for creat-

ing, controlling and monitoring task collaboration. As

a reference task serves liquid slurry spreading.

Special hardware in the form of a tank trailer was

manufactured by cooperation partners and success-

fully put to the test in some initial runs. The con-

nection of all machines, devices and sensors to the In-

ternet and the contiuous ﬂow of information between

them creates a central system for the coordination

of multiple task chains. End users, such as farmers

and contractors, beneﬁt from dynamic resource opti-

mization and automated generation of legally required

documentation of tasks performed. At the same time,

complex, internal process structures remain hidden

from the user and are instead abstracted in an under-

standable way by logically structured, graphical user

interfaces.

During development, care was taken to keep the

software architecture as generic as possible so that

modules can be reused and ports to other manufac-

turer models and scenarios remain possible.

The project will continue until the beginning of

2020. Until then, the currently available processes

and implementations will be reﬁned so that at the end

of the project the basis for a product not yet avail-

able in this form exists. OPeRAte has the potential to

sustainably improve agriculture hopefully not only in

Germany through the intelligent application of mod-

ern technologies.

ACKNOWLEDGEMENTS

The project is supported by funds of the Federal Min-

istry of Food and Agriculture (BMEL) based on a de-

cision of the Parliament of the Federal Republic of

Germany via the Federal Ofﬁce for Agriculture and

Food (BLE) under the innovation support programme.

REFERENCES

AEF (2019). ISOBUS - AEF Online. URL:

https://www.aef-online.org/de/die-aef/isobus.html,

accessed: 24.01.19.

Agrawal, H., Prieto, J., Ramos, C., and Corchado, J. M.

(2016). Smart feeding in farming through IoT in si-

los. In Corchado Rodriguez, J. M., Mitra, S., Thampi,

S. M., and El-Alfy, E.-S., editors, Intelligent Sys-

tems Technologies and Applications 2016, Advances

in Intelligent Systems and Computing, pages 355–

366. Springer International Publishing.

BMEL (2017). D

ungeverordnung. URL: https://

www.bmel.de/DE/Landwirtschaft/Pﬂanzenbau/

Ackerbau/Texte/Duengung.html, accessed: 28.01.19.

Cavoukian, A. (2009). Privacy by design: The 7

foundation principles. Information and Privacy

Commissioner Ontario, Canada http://www. ipc.

on. ca/images/Resources/7foundationalprinciples. pdf

agina vigente al, 22.

DBV (2018). Situationsbericht 2018/19. page 16. URL:

https://de.statista.com/statistik/daten/studie/658759/

umfrage/wirtschaftskennzahlen-der-landwirtschaft-

in-deutschland/, accessed: 28.01.19.

DFKI (2017). SDSD - Smarte Daten, Smarte Dien-

ste. Landwirtschaftliche Datendrehscheibe f

efﬁziente ressourcenschonende Prozesse. URL:

https://www.dfki.de/web/forschung/projekte-

publikationen/projekte/projekt/sdsd/, accessed:

24.01.19.

Dierks, T. and Rescorla, E. (2008). The transport layer

security (tls) protocol version 1.2. Technical report.

URL: https://www.ietf.org/rfc/rfc5246.txt, accessed:

30.01.19.

Eclipse Foundation (2019). Eclipse Mosquitto. URL:

http://mosquitto.org/, accessed: 13.03.19.

ENISA (2014). Privacy and data protection by de-

sign – from policy to engineering. URL:

https://www.enisa.europa.eu/ publications/privacy-

and-data-protection-by-design, accessed: 25.01.19.

Ferguson, S. (2018). John Deere Bets the Farm on AI,

IoT. URL: https://www.lightreading.com/enterprise-

cloud/machine-learning-and-ai/john-deere-bets-the-

farm-on-ai-iot/a/d-id/741284, accessed: 30.01.19.

Freye, D. (2010). Agrarwirtschaft - KOMOBAR heißt

der neue Forschungsschwerpunkt der Hochschule.

(11):28 – 29.

HiveMQ (2019). HiveMQ. URL:

https://www.hivemq.com/, accessed: 13.03.19.

ISO (2017). ISO 11783-1:2017. URL: http://www.iso.org/

cms/render/live/en/sites/isoorg/contents/data/standard/

05/75/57556.html, accessed: 30.01.19.

Kamilaris, A., Gao, F., Prenafeta-Boldu, F. X., and Ali,

M. I. (2016). Agri-IoT: A semantic framework for In-

ternet of Things-enabled smart farming applications.

In 2016 IEEE 3rd World Forum on Internet of Things

(WF-IoT), pages 442–447.

Minwoo Ryu, Jaeseok Yun, Ting Miao, Il-Yeup Ahn, Sung-

Chan Choi, and Jaeho Kim (2015). Design and im-

plementation of a connected farm for smart farming

system. In 2015 IEEE SENSORS, pages 1–4, Busan.

IEEE.

OPeRAte: An IoT Approach towards Collaborative, Manufacturer-independent Farming 4.0

175

Nordemann, F., Kraatz, F., Tapken, D. H., and T

onjes,

D. R. (2016). Ein modulares Framework zur Mod-

ellierung, Konﬁguration und Regelung von koopera-

tiven Agrarprozessen.

OASIS (2014). Mqtt version 3.1. 1. 1. URL: http://docs.

oasis-open. org/mqtt/mqtt/v3, accessed: 30.01.19.

Schlingmann, N. (2016). Communications Networking on

Agricultural Machinery.

United Nations, Department of Economic and Social Af-

fairs, Population Division (2017). World Population

Prospects: The 2017 Revision, DVD Edition.

Yokotani, T. and Sasaki, Y. (2016). Comparison with HTTP

and MQTT on required network resources for IoT.

In 2016 International Conference on Control, Elec-

tronics, Renewable Energy and Communications (IC-

CEREC).

IoTBDS 2019 - 4th International Conference on Internet of Things, Big Data and Security

176
