How Pupils Solve Online Problems: An Analytical View

Carlo Bellettini, Violetta Lonati, Mattia Monga and Anna Morpurgo

Department of Computer Science, Universit

a degli Studi di Milano, Italy

Keywords:

Computing Education, Computational Thinking, Informatics Contests, Learning Analytics, Problem-solving

Process.

Abstract:

More and more assignments that were traditionally executed with paper and pencil are now carried out with

the support of speciﬁc software applications or learning platforms. This opens the possibility to automatically

collect a number of data concerning the way pupils interact with the system that administers the learning

activity, and such information can help teachers monitor and understand how pupils engage with the assigned

task. In the paper we propose a multidimensional model for describing the interactions of pupils with such

systems, and we show how we apply it in the context of the Bebras Challenge, an international initiative aimed

at introducing the fundamental concepts of informatics to a wide audience of pupils.

1 INTRODUCTION

Thanks to the pervasiveness of digital technologies in

schools, many learning activities that were tradition-

ally carried out with paper and pencil, now rely more

and more on the support of speciﬁc software applica-

tions or learning platforms. Thus, in principle a num-

ber of data on the ways pupils interact with the system

can be automatically collected and such information

can help teachers monitor and understand how pupils

engage with the assigned tasks.

This is especially interesting when such tasks are

sophisticated, i.e., they present open-answer ques-

tions, are interactive, or require complex, combined

answers (Boyle and Hutchison, 2009). In such cases,

besides the typical information concerning the con-

tent, i.e., the answers or artifacts that pupils submit to

the system, also the problem-solving process they use

in reaching their ﬁnal answer deserves a careful ob-

servation. When the learning process happens in the

classroom, it can be observed using qualitative tech-

niques, as for instance those derived from ethnogra-

phy approaches. Some research has also been con-

ducted on exploiting smart environments or digital

tangibles to collect data on the interactions going on

in the group, see for example (Bonani et al., 2018). In

this paper we focus on quantitative data: how much

time pupils spend on each speciﬁc part of the as-

signment, whether and when they come back and re-

view/change their answer to a task already completed,

whether they perform actions that generate feedback

from the system, and so on. While almost all e-

learning platforms are able to log the high-level in-

teractions of the learners with the system, namely ar-

tifact exchanges and forum messages (and this data is

more and more useful for building predictive learning

analytics models, see (Mullan et al., 2017)), they are

often surprisingly poor in their ability to track ﬁne-

grained learners data (Ruiz et al., 2014).

We adapted the platform we use for managing an

informatics contest, in order to be able to collect this

kind of ﬁne-grained data related to the problem solv-

ing activity of the pupils during the contest. We are

not as much interested here in the statistical analysis

of such data, as in the possibility of providing teach-

ers with a useful presentation thereof, which can be

a starting point for their understanding of how their

pupils engaged with the assignment. To this goal,

in this paper we propose a multidimensional model

for describing the interaction of pupils with a learn-

ing platform. Moreover, we show how we applied it

to the scope of the Bebras Challenge, an international

initiative aimed at introducing the fundamental con-

cepts of informatics to a wide audience of pupils, in

order to give the teachers a rich feedback about how

their students experienced the contest.

The paper is organized as follows. In Sect. 2 we

propose some measures, thus deﬁning a multidimen-

sional model to describe interactions with a learning

platform during a learning activity. In Sect. 3 we de-

scribe the scenario in which we applied the model,

that is the Bebras Challenge, the platform used to ad-

minister the contest, and how we equipped it in or-

der to collect data about the contestants’ interactions

132

Bellettini, C., Lonati, V., Monga, M. and Morpurgo, A.

How Pupils Solve Online Problems: An Analytical View.

DOI: 10.5220/0007765801320139

In Proceedings of the 11th International Conference on Computer Supported Education (CSEDU 2019), pages 132-139

ISBN: 978-989-758-367-4

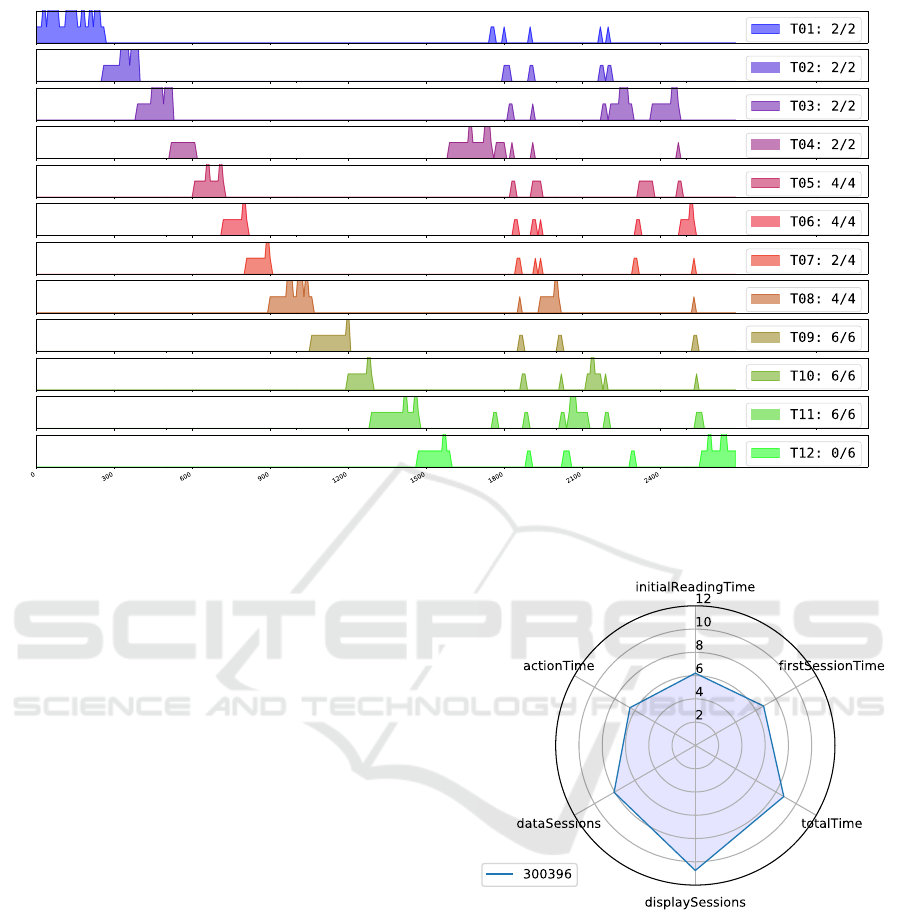

with the platform. In Sect. 4 we present a tool that

provides teachers with a visual representation of in-

teraction data of their teams. In Sect. 5 we draw some

conclusions and outline further developments.

2 A MODEL FOR INTERACTION

In this section we consider how pupils interact with a

system that supports a learning activity; we propose

some measures and indicators, thus deﬁning a mul-

tidimensional model that enables us to describe the

interaction of learners with the system.

The model has been designed by taking into con-

sideration our experience in organizing the Italian Be-

bras Challenge, but it applies as well to other learning

environments where learners:

• are engaged in a sequence of tasks that can be ad-

dressed in any order;

• always have the possibility to go back to tasks and

possibly change an answer given earlier;

• can possibly get feedback about the submitted an-

swers;

• have a ﬁxed limited time to complete the tasks.

In particular, the model considers two aspects of

the learners’ behavior: the engagement (e.g. the

learner stays for a long or short time on a speciﬁc

task, once only or revisiting it) and the interaction

mode (e.g. the learner reads/watches/thinks or acts).

These aspects are complex and cannot be directly ob-

served and measured by a unique variable. Instead we

introduce a pool of simple indicators that are clearly

related to engagement and interaction mode: by con-

sidering these indicators together we get a model of

the learners’ interaction behavior.

In order to do that we distinguish between three

levels of activity on a task at a given time.

Level 0 no activity: another task is displayed.

Level 1 reading/watching/thinking: the task is dis-

played but there is no action, hence the pupil is

reading the text, or watching the included images

and diagrams, or thinking about the task.

Level 2 acting: the pupil is inserting or changing the

answer of the task, or is doing an action that gets

a feedback from the system.

To describe the interaction of a learner on any single

task, we propose the following indicators:

1. initialReadingTime: time spent on the task before

the ﬁrst interaction;

2. ﬁrstSessionTime: length of the ﬁrst session spent

on the task;

3. totalTime: total time spent on the task;

4. displaySessions: number (possibly 0) of

read/watch/think sessions, i.e., without action;

5. dataSessions: number (possibly 0) of sessions

with some action;

6. actionTime: total time spent acting on the task;

7. feedback: number of actions that got feedback

from the system.

For instance, a team that uses an unreﬂexive trial-and-

error approach would show short initialReadingTime

but high actionTime and feedback. On the other hand,

a signiﬁcant initialReadingTime with high displaySes-

sions and low dataSessions would describe the be-

haviour of a careful motivated team that thinks a lot

on the solutions, goes back and checks them, but does

not modify them often.

3 APPLICATION SCENARIO

In this section we describe the scenario in which we

applied the model presented in the previous section,

that is the Italian Bebras Challenge. First we recall

its main features, then we describe the platform used

to administer the contest, and how we equipped it in

order to collect data about the interactions of contes-

tants with the system.

The Bebras Challenge. The Bebras chal-

lenge

(Dagien

e, 2009; Haberman et al., 2011;

Dagien

e and Stupuriene, 2015), is a popular initiative

aimed at introducing the fundamental concepts of in-

formatics to a wide audience of pupils. The challenge

is organized on an annual basis in several countries

since 2004, with almost 2 million participants from

43 countries in the last edition.

Participants have to solve a set of about 10-15

tasks that are designed to be fun and attractive, ad-

equate for the contestants’ age, and solvable in an av-

erage time of three minutes (although it is not easy

to predict the difﬁculty of tasks (van der Vegt, 2013;

Bellettini et al., 2015; Lonati et al., 2017b; van der

Vegt, 2018)). Bebras tasks are more and more used

as the starting points for educational activities carried

out by teachers during their school practice (Dagien

and Sentance, 2016; Lonati et al., 2017a; Lonati et al.,

2017c).

In Italy (ALaDDIn, 2017) the Bebras Challenge

is proposed to ﬁve categories of pupils, from pri-

mary (4

grade and up) to secondary schools, who

participate in teams of at most four pupils. Teams

access a web platform (Bellettini et al., 2018) that

presents the tasks to be solved. There are differ-

ent types of questions: multiple choice, open answer

with a number/text box, drag-and-drop, interactive,

http://bebras.org/

How Pupils Solve Online Problems: An Analytical View

133

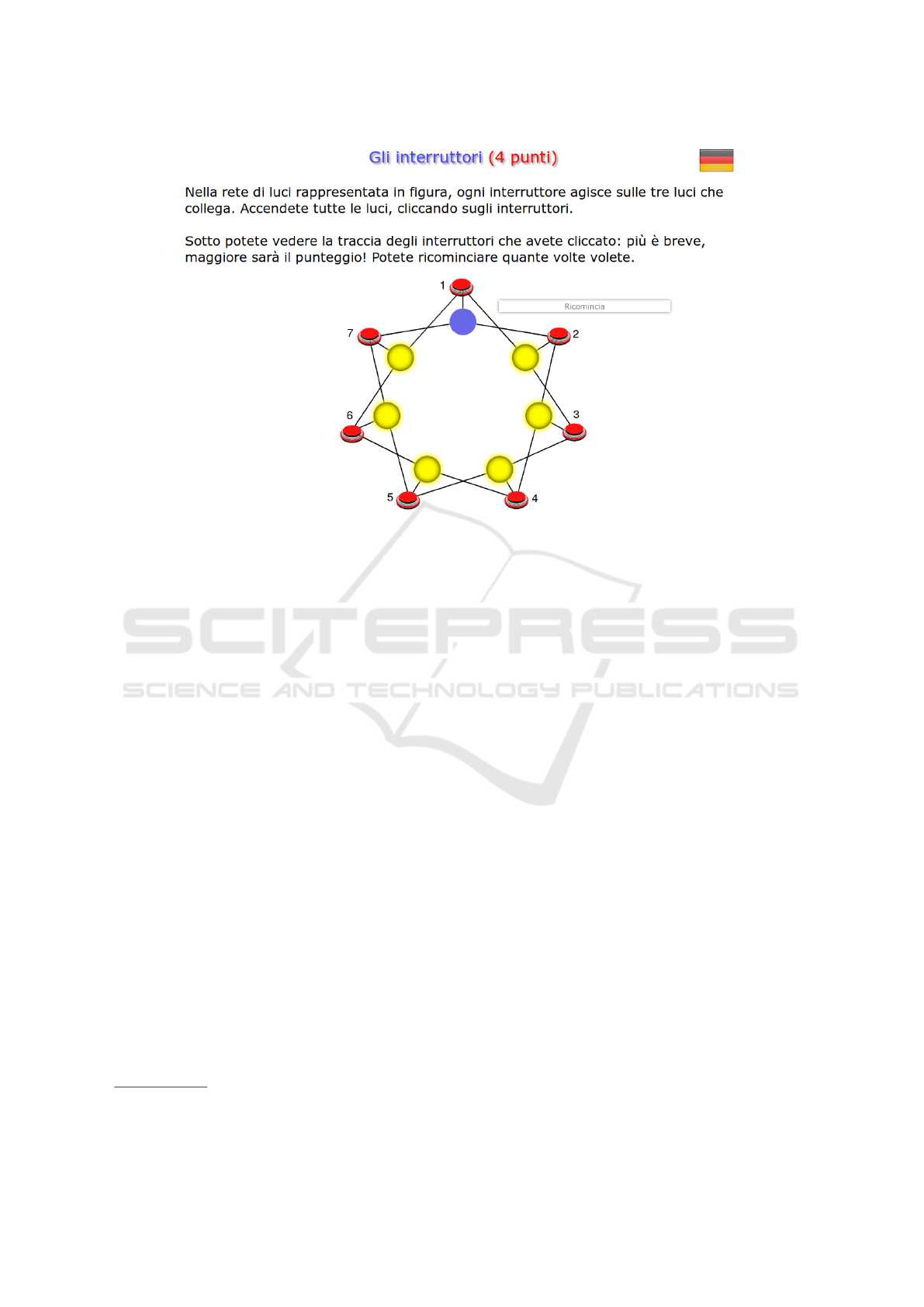

Figure 1: An interactive tasklet.

and so on. Occasionally some automatic feedback is

provided, especially by interactive tasks (for instance

when clicking on a “simulation” button). An example

of interactive task is presented in Figure 1: each red

button controls the three connected lights, the goal is

to switch on all the lamps (one can restart from the

beginning state by clicking on “Ricomincia”)

The 2018 edition saw the participation of 15,738

teams (51634 pupils, since not every team had four

members), with ﬁve categories, see Table 1; each cat-

egory had 12 tasks to be solved within 45 minutes.

The Italian Bebras Platform. In our country, the

web application that presents the tasks to be solved

was designed as a multifunctional system to support

all phases of the competition: task editing and par-

ticipants’ registration and training before the contest;

tasks’ administration, monitoring, and data collection

during the contest; scoring, access to solutions, and

production of participation certiﬁcates after the con-

test. For a detailed description of the architecture and

implementation of the system, see (Bellettini et al.,

2018).

Each task is designed to occupy exactly the full

screen, no matter what the device used; in the side-

bar, active zones with numbers allow to move be-

tween tasks and a task can be entered as many times as

wished –we say that, each time a task is entered, a new

The task was proposed by the German Bebras organiz-

ers.

session on the task starts. Answers can be changed in

every moment, since they are submitted for evalua-

tion only when either the contestant ends the contest

or the allowed time is over. Moreover, it is possible to

insert a partial answer and complete it in a later ses-

sion, since tasks that have already been seen appear

exactly as they were when the last session ended.

The contest system was already designed to record

several pieces of information, mostly needed to sup-

port ordinary operations related to the contest. In par-

ticular, before the contest the system collects some

data about the composition of teams (age, gender, and

grade of each member) and their school (geographical

data, number of participating teams, number of teach-

ers involved in Bebras). While a team is taking part

in the contest, the system stores the current state of

each task, determined by the data currently inserted

by the team and relevant to compute the score gained

in the task. When the allowed time ends, the current

state of each task is considered ﬁnal and recorded as

the submitted answer for the task.

We instrumented our system by adding some trac-

ing features, hence now a signiﬁcant amount of data

is tracked during the contest. In particular the sys-

tem, besides collecting the submitted answers, now

also tracks, for each team, a number of events during

the team’s interactions with the platform: all events

that allow a team to select and display a different task,

by clicking on the numbers or arrows in the side-bar;

those pertaining to the insertion of (part of) an an-

swer, e.g., by typing, selecting a multiple choice op-

CSEDU 2019 - 11th International Conference on Computer Supported Education

134

Table 1: Participation to the Italian Bebras, edition 2018.

Category teams pupils females males average number of

team members

grades 4-5 3770 12670 6107 (48.2%) 6563 (51.8%) 3.75

grades 6-7 5592 18437 8793 (47.7%) 9644 (52.3%) 3.74

grade 8 2651 8900 4144 (46.6%) 4756 (53.4%) 3.74

grades 9-10 2070 6669 2015 (30.2%) 4654 (69.8%) 3.70

grades 11-12-13 1655 4958 1491 (30.1%) 3467 (69.9%) 3.68

Total: 15738 51634 22550 (43.7%) 29084 (56.3%)

tion, selecting an option in a scroll-bar menu, drag-

ging and dropping an object, clicking on an active part

of the screen, and so on; those to get feedback (e.g.,

by clicking on a simulation button).

For each tracked event the system logs a time-

stamp, the type of event (enter a task, change the

state of the task, get feedback, leave the task), and

all changes in the state of the task, if any.

4 VISUALIZATION TOOL

In this Section we present a tool that provides teachers

with a visual representation of several data describing

the interaction behavior of Bebras contestants with

the system, also in comparison with the average be-

havior of contestants of the same age.

The tool processes the event-tracking data col-

lected by the Bebras platform described in Sec. 3.

Some data are ﬁltered out before processing due to

either the inconsistency of the collected data, or sus-

pects of cheating, or anomalies derived from techni-

cal issues occurred during the contest. For instance,

the cohort of primary school pupils that participated

in the Italian Bebras contest in 2018 includes 3770

teams (of 4 pupils each at most), among which 350

teams were ﬁltered out.

The tool displays diagrams in the dashboard that

teachers use to manage teams’ registration and to

check scores and rankings: such diagrams illustrate

the detailed behavior of any speciﬁc team both on

the overall challenge and on each speciﬁc task, and

present summary views of indicators for tasks and

teams.

The visual representation of the behavior of a team

during its contest is given by a diagram as in Figure 2,

depicting, for each task, the level of activity on each

time slot of 10 seconds; when the team goes from a

task to another one, the plots of the two tasks overlap

slightly. The legend shows also the score gained by

the team in each task. In this particular case, the team

tackled the tasks in the order they were presented, and

inserted answers in the ﬁrst session of each task ex-

cept the fourth; on the ﬁrst task (a simple program-

ming task that provided feedback) the team started

almost immediately to act, and spent some time to

insert/edit the right answer; on the following tasks,

instead, the initial reading times were longer (as illus-

trated in the plot by the plateaus preceding the picks),

i.e. answers were inserted after some time devoted to

reading and thinking abut each task; after about 27

minutes from the start (more or less half the available

time of 45 minutes) the team reached the last task and

then went back directly to the task with the missing

answer, thought about it a little while more, inserted

the answer and then changed it in the same session;

afterwards the team started reviewing all tasks again

from the ﬁrst one, and changed some of the previ-

ously inserted answers; ﬁnally, the team focused back

on some chosen tasks (interestingly enough, the work

done in the last two minutes on the last task did not

lead to the correct answer).

The event-tracking data for a team are also used to

compute the measures described in the previous sec-

tion, which summarize the behavior of that team on

each task, see Table 2. In particular, we compute the

actionTime as follows: the allowed time is divided

into brief time slots (10 seconds each); the number

of time slots where an action occurs are counted, and

the resulting number is multiplied by the duration of

slots. Moreover, when counting sessions, we do not

consider sessions that last less than 5 seconds, which

occur mainly when the contestants are searching for a

task and click quickly on the side-bar to ﬁnd the de-

sired one.

In order to place the behavior of a single team

among other teams, we compute, for each task, the

mean, variance, min, max, and quartiles –over all

contestants– of each indicator, see Table 3. Since the

indicators have different variability ranges, we stan-

dardize their values

. Figure 4 shows the behavior

of a team on a single task, in comparison with the

overall behaviors of teams: red dots correspond to the

values in the row of Table 2 associated with the task,

The standard value are obtained by subtracting the

mean value and dividing by the standard deviation.

How Pupils Solve Online Problems: An Analytical View

135

seconds

Figure 2: Time line of a team. The level of activity (no activity, reading/thinking, acting) for each task is shown in each time

slot of 10 seconds.

whereas each box summarizes the overall distribution

of the corresponding standardized indicator over all

teams, by depicting quartiles with min and max val-

ues. In these plots the upper whiskers are typically

much longer than the lower ones, even though they

represent equally numerous sets of teams, and this is

due to the fact that all indicators have 0 as lower up-

per bound but they are not similarly bounded from

above. Indicators that are outside boxed interval can

be used by teachers as hints (not alarms) –speciﬁc of

the team– that can guide the interpretation of the time-

line plot and other diagrams for the team.

The general behavior of any team during the

whole activity with respect to any indicator can be

shortly described by the sums, over all tasks, of the

ranking of the team compared to other teams. We call

this sum the ranking index of the team for that indi-

cator. For instance, if a team have usually devoted a

high time to initial reading, resulting in a high rank-

ing on many tasks with respect of this indicator, it will

have a high ranking index for the initialReadingTime

indicator. The set of ranking indices for a given team

are visualized in a radar chart with a dimension for

each indicator, see Figure 3. In this particular case,

for instance, the team shows a tendency for displaying

the tasks more repeatedly than in the average teams,

which indeed is suggested by the plot in Figure 2.

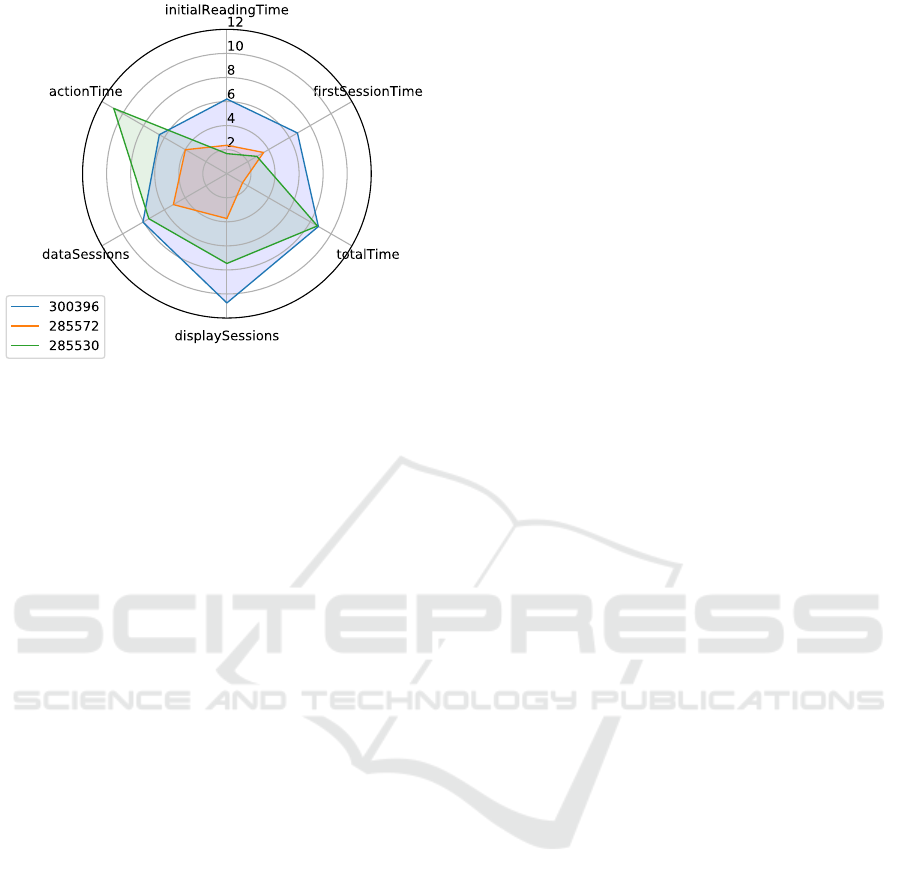

Radar diagrams can be used also to compare the

behavior of different teams under the light of the

data (possibly weighting the analytical data with their

Figure 3: Radar plot of the ranking indexes of a team, rep-

resenting the general behavior of the team during the whole

activity.

knowledge of the team members). For instance, in

Figure 5 two other teams are added: the blue team,

as already seen, liked to come back several times on

the same tasks: they probably thought a lot on their

solutions, but they did not modify them too often; the

red team has a very low disposition towards spend-

ing time on tasks (here a high score could be suspi-

cious); the green team, ﬁnally, acted soon and often

without thinking long before acting, and showing in

some sense an impulsive trait.

CSEDU 2019 - 11th International Conference on Computer Supported Education

136

Table 2: Indicators for a team in each task.

initialReadingTime ﬁrstSessionTime totalTime displaySessions dataSessions actionTime feedback

T01 30 264 288 3 1 31 9

T02 67 133 157 1 1 7 0

T03 54 129 327 2 3 25 0

T04 166 85 287 3 1 3 0

T05 53 110 190 3 1 2 0

T06 85 90 170 3 2 2 0

T07 87 94 125 2 1 1 0

T08 70 159 235 1 2 7 0

T09 143 146 161 1 1 1 0

T10 71 83 154 1 2 7 0

T11 129 182 305 4 2 4 0

T12 100 116 300 3 2 6 0

Table 3: Mean, standard deviation and ﬁve-number summary –over all contestants– of all indicators for a task.

initialReadingTime ﬁrstSessionTime totalTime displaySessions dataSessions actionTime feedback

mean 47.38 244.38 348.33 0.42 1.67 54.95 11.64

std 25.68 133.35 198.36 0.73 0.91 41.96 13.10

min 1 2 10 0 0 0 0

25% 33 155 202 0 1 25 4

50% 42 221 299 0 1 42 8

75% 56 309 448 1 2 71.25 15

max 294 1198 1447 5 7 327 188

initialReadingTime

5.0

2.5

0.0

2.5

5.0

7.5

10.0

12.5

15.0

ﬁrstSessionTime totalTime displaySessions dataSessions actionTime feedback

Figure 4: Indicators of a team on a task, in comparison with the overall behaviors of all teams on that task. On this task, in

particular, the team shows a notably high number of display sessions w.r.t. the other teams.

5 CONCLUSION

Observing the problem-solving process pupils use in

reaching their ﬁnal answer to a given task deserves a

careful observation, but it can be troublesome when

using a computer platform. We propose a multidi-

mensional model for describing the interactions of

pupils with a learning platform. Fine-grained data

related to the problem solving activity of pupils dur-

ing a learning activity can be used to yield a number

of indicators that describe the interaction of a learner

with the platform on any single task; this can support

teachers in monitoring and understanding how pupils

engage with the assigned tasks. We instrumented our

web based contest platform to collect such data dur-

ing the 2018 Bebras Challenge in our country and ap-

plied such model to study the behavior of contestants,

also offering to teachers a terse visual representation

of these data. We think that such data and derived ob-

servations, conveniently elaborated, can help teachers

in getting the most from the education potential of the

Bebras contest or other monitored activity adminis-

tered with a similar system.

The proposed model could be enriched by further

dimensions, e.g. indicators about whether or how the

interactions make the score higher or lower. More-

over, more data could be collected, for example the

ending time of simulations to distinguish more ﬁnely

How Pupils Solve Online Problems: An Analytical View

137

Figure 5: Comparison among three teams.

this from reading or answers’ checking, or all uses

of the mouse (position, movements, clicks, etc.) to

create a gesture heatmaps (see for example (Vatavu

et al., 2014)) and detect those parts of a task that got

more carefully observed, that have been overlooked,

or have distracted the contestants.

Finally, the use of the model and methodology

presented in the paper, or its extensions, can be useful

to investigate more general research questions about

how the problem solving process is performed in the

area of computational thinking, e.g.: is there any cor-

relation between the way learners interact with the

system and the outcome of their effort? Is it pos-

sible to classify/characterize problem-solving tasks

with respect to the way they are experienced and per-

ceived by learners?

ACKNOWLEDGEMENTS

We would like to thank the Bebras community for the

great effort spent in producing exciting tasks.

REFERENCES

ALaDDIn (2017). Bebras dell’informatica.

https://bebras.it. Last accessed on November

2018.

Bellettini, C., Carimati, F., Lonati, V., Macoratti, R., Mal-

chiodi, D., Monga, M., and Morpurgo, A. (2018). A

platform for the Italian Bebras. In Proceedings of the

10th international conference on computer supported

education (CSEDU 2018) — Volume 1, pages 350–

357. SCITEPRESS. Best poster award winner.

Bellettini, C., Lonati, V., Malchiodi, D., Monga, M., Mor-

purgo, A., and Torelli, M. (2015). How challenging

are Bebras tasks? an IRT analysis based on the per-

formance of Italian students. In Proceedings of the

20th Annual Conference on Innovation and Technol-

ogy in Computer Science Education ITiCSE’15, pages

27–32. ACM.

Bonani, A., Del Fatto, V., Dodero, G., and Gennari, R.

(2018). Tangibles for graph algorithmic thinking: Ex-

perience with children (abstract only). In Proceedings

of the 49th ACM Technical Symposium on Computer

Science Education, SIGCSE ’18, pages 1094–1094,

New York, NY, USA. ACM.

Boyle, A. and Hutchison, D. (2009). Sophisticated tasks in

e-assessment: what are they and what are their bene-

ﬁts? Assessment & Evaluation in Higher Education,

34(3):305–319.

Dagien

e, V. (2009). Supporting computer science education

through competitions. In Proc. 9th WCCE 2009, Edu-

cation and Technology for a Better World, 9th WCCE

2009, Bento Goncalves.

Dagien

e, V. and Sentance, S. (2016). It’s computational

thinking! bebras tasks in the curriculum. In Proceed-

ings of ISSEP 2016, volume 9973 of Lecture Notes in

Computer Science, pages 28–39, Cham. Springer.

Dagien

e, V. and Stupuriene, G. (2015). Informatics educa-

tion based on solving attractive tasks through a con-

test. KEYCIT 2014 - Key Competencies in Informatics

and ICT, pages 97 – 115.

Haberman, B., Cohen, A., and Dagien

e, V. (2011). The

beaver contest: attracting youngsters to study comput-

ing. In Proceedings of the 16th annual joint confer-

ence on Innovation and technology in computer sci-

ence education, pages 378–378. ACM.

Lonati, V., Malchiodi, D., Monga, M., and Morpurgo, A.

(2017a). Bebras as a teaching resource: classifying

the tasks corpus using computational thinking skills.

In Proceedings of the 22nd Annual Conference on In-

novation and Technology in Computer Science Educa-

tion (ITiCSE 2017), page 366.

Lonati, V., Malchiodi, D., Monga, M., and Morpurgo, A.

(2017b). How presentation affects the difﬁculty of

computational thinking tasks: an IRT analysis. In Pro-

ceedings of the 17th Koli Calling International Con-

ference on Computing Education Research, pages 60–

69. ACM New York, NY, USA.

Lonati, V., Monga, M., Morpurgo, A., Malchiodi, D., and

Calcagni, A. (2017c). Promoting computational think-

ing skills: would you use this Bebras task? In

Dagien

e, V. and Hellas, A., editors, Informatics in

schools: focus on learning programming: Proceed-

ing of the 10th international conference on informat-

ics in schools: situation, evolution, and perspectives,

ISSEP 2017, volume 10696 of Lecture Notes in Com-

puter Science, pages 102–113, Cham. Springer Inter-

national Publishing.

Mullan, J., Sclater, N., and Peasgood, A. (2017).

Learning analytics in higher education.

https://www.jisc.ac.uk/reports/learning-analytics-

in-higher-education. Last accessed January 2019.

Ruiz, J. S., D

ıaz, H. J. P., Ruip

erez-Valiente, J. A., Mu

noz

Merino, P. J., and Kloos, C. D. (2014). Towards

the development of a learning analytics extension in

CSEDU 2019 - 11th International Conference on Computer Supported Education

138

open edx. In Proceedings of the Second International

Conference on Technological Ecosystems for Enhanc-

ing Multiculturality, TEEM ’14, pages 299–306, New

York, NY, USA. ACM.

van der Vegt, W. (2013). Predicting the difﬁculty level of a

Bebras task. Olympiads in Informatics, 7:132–139.

van der Vegt, W. (2018). How hard will this task be? de-

velopments in analyzing and predicting question difﬁ-

culty in the bebras challenge. Olympiads in Informat-

ics, 12:119–132.

Vatavu, R.-D., Anthony, L., and Wobbrock, J. O. (2014).

Gesture heatmaps: Understanding gesture perfor-

mance with colorful visualizations. In Proceedings of

the 16th International Conference on Multimodal In-

teraction, ICMI ’14, pages 172–179, New York, NY,

USA. ACM.

How Pupils Solve Online Problems: An Analytical View

139
