Using an Intelligent Vision System for Obstacle Detection in Winter

Condition

Marwa Ziadia

, Sousso Kelouwani

, Ali Amamou

, Yves Dub

and Kodjo Agbossou

Departement of Mechanical Enginnering, Universit

e du Qu

a Trois-Rivi

eres, Canada

Department of Electricl Engineering, Universit

e du Qu

a Trois-Rivi

eres, Canada

Keywords:

Vehicle Technology, Collision Avoidance, Mobileye, Advanced Driving Assistance System, Winter Naviga-

tion.

Abstract:

This paper explores the performance of an Advanced Driving Assistance System (ADAS) during navigation in

urban trafﬁc and a winter condition. The selected ADAS technology, Mobileye, has been integrated into a hy-

drogen electric vehicle. A set of three cameras (visible spectrum) has also been installed to give a surrounding

view of the test vehicle. The tests were carried out during the dusk as well as in the night in winter condi-

tion. Using Matlab, the messages provided by Mobileye system have been analyzed. More than 2800 samples

(short sequences of 5s Mobileye messages) have been processed and compared with the corresponding video

samples recorded by the three cameras. In average, the selected ADAS device was able to provide 99% of true

positive vehicle detection and classiﬁcation, even in poor ambient lighting condition in winter. However, 72%

of samples involving a pedestrian was correctly classiﬁed.

1 INTRODUCTION

The number of vehicles on the road is continuously

growing, and despite the primary safety design of

cars, the number of collisions and incidents is also

growing (Lyu et al., 2018). The World Health Or-

ganization recently reported that more than one mil-

lion persons die every year because of road accidents

(Curiel-Ramirez et al., 2018).

Traditionally, the car manufacturers provide sec-

ondary safety features that can reduce a crash impact

on passengers. One such feature is the airbags tech-

nology. However, with the recent progress on the ve-

hicle mechatronics, onboard sensors and soft comput-

ing, the primary safety features are among the manu-

facture safety priority. These features have the poten-

tial to directly mitigate the likelihood of an imminent

crash: adaptive cruise control, electronic stability, etc.

(Thompson et al., 2018).

Although the deployment of these primary safety

features, most accidents on the road are due to the

human driver distraction (Larkin, 2006; Excell, 2005;

Wright, 2016; Barclay, 2012; Chang et al., 2009). The

Advanced Driving Assistance System has emerged as

one of the promising technologies that has a great po-

tential to help the driver to avoid accidents and inci-

dents during distraction periods. Therefore, this paper

focuses on the aftermarket ADAS device (Mobileye 5

series) which is based on a monocular camera for col-

lision avoidance and mitigation.

Several studies have recently been published

which, in general, highlighted the collision-reduction

potential of the ADAS system. Hence, in (Chang

et al., 2010), a vision system combined with a GPS

sensing has been used to enhance obstacles detection

and mitigate collision occurrences. This system has

been shown to be effective in normal operating condi-

tion conditions (daytime, no winter condition, etc.).

A similar operating condition has been reported in

(Curiel-Ramirez et al., 2018; Chen et al., 2017; Ex-

cell, 2005; Fireman, 2017). In a ﬁeld test, an ADAS

system has shown to improve the driver alert level and

reduce the likelihood of forward collision (Thompson

et al., 2018). The tests have been performed on a ﬂeet

of government vehicles, and the details driving con-

ditions are not speciﬁed. Another trial that involves

an ADAS system has been performed in China (urban

and highway navigation). All the tests were done dur-

ing the daytime from 8:00 am to 17:30 pm. Although

the outcome of the study indicated that the selected

ADAS improved the drivers’ longitudinal behaviors

and signiﬁcantly reduced the likelihood of a forward

collision, no winter condition has been used as a nav-

igation condition. Besides, the previously mentioned

562

Ziadia, M., Kelouwani, S., Amamou, A., Dubé, Y. and Agbossou, K.

Using an Intelligent Vision System for Obstacle Detection in Winter Condition.

DOI: 10.5220/0007766905620568

In Proceedings of the 5th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2019), pages 562-568

ISBN: 978-989-758-374-2

study included most of the reported results on the ef-

fectiveness and acceptance of ADAS. In (Birrell et al.,

2014), an ADAS system has been tested in a real-

world condition to assess if any measurable beneﬁ-

cial changes can be observed in the driving perfor-

mance. The test scenarios include different road and

trafﬁc types. The presented results suggested that a

smart driving assistance system can signiﬁcantly im-

prove the driver behavior and can lead to a fuel-saving

too. All these tests have been carried out in normal

weather operating condition (no winter conditions).

A similar result has also been reported in (Reagan,

2019; Lee et al., 2018).

Regarding the speciﬁc problem of detecting a

pedestrian, several studies have been carried out, and

most of them have been performed in regular day-

time without winter operating condition. These stud-

ies were done on the different type of road including

urban and highway roads. Hence, in (Ke et al., 2017),

a new framework has been introduced that can ef-

fectively detect in real-time a vehicle-pedestrian near

through a single monocular camera. The presented re-

sults have been performed without considering winter

operating conditions. Chen and al. (Chen et al., 2017)

has studied the interaction of pedestrian and a vehicle

at unsignalized crossings and there were able, through

more than 2900 crossing events analysis, to build a

stochastic interaction model based on a multivariate

Gaussian mixture method. Here again, most of the

analyzed events did not include winter operating con-

ditions.

One of the most used ADAS devices in the above-

mentioned studies is Mobeleye intelligent monocular

vision system (Abelson, 2012; Wright, 2016; Wang

et al., 2017; Vasic et al., 2016; Markwalter, 2017).

Also, most of these studies were carried out without

taking into account the winter navigation condition.

Cold climate countries (Canada, Sweden, Finland,

UK, Russia, etc.) can experience harsh winter navi-

gation environment with snow and ice covered roads.

Any ADAS, to be effective, should provide collision

alert warnings for all weather conditions. Therefore,

this paper aims to explore some of the performance

of an ADAS system, when used in an urban trafﬁc

condition during winter navigation condition (dusk as

well as nigh-time). Knowing the real-life limitation

of the selected ADAS system will allow further op-

timization to enhance its capabilities in all weather

conditions.

The rest of the paper is organized as follows. The

test setup and material are presented in section 2,

whereas the results and discussions are presented in

section 3 and ﬁnally the last section is related to the

concluding remarks and future directions.

2 MATERIALS AND SETUP

2.1 Materials

A hydrogen vehicle (see ﬁg. 1) is retroﬁtted with a

Mobileye 5-series intelligent camera. We used this

speciﬁc type of vehicle because we are investigating

the energy efﬁciency of the fuel cell stack in winter

condition (Amamou et al., 2016; Henao et al., 2012;

Cano et al., 2014). This system uses a single camera

(visible spectrum) which is installed in the middle of

the front windscreen. Using a proprietary processor,

it can calculate different dynamic parameters related

to the vehicle motion (distance between the car and

surrounding objects which could potentially be con-

sidered as obstacles). The system includes a speciﬁc

device which serves as a display (EyeWatch) (see ﬁg.

2).

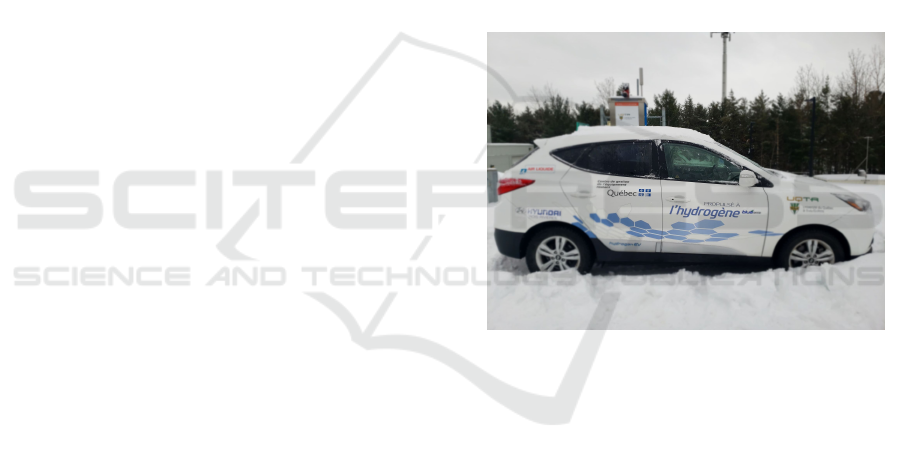

Figure 1: The test vehicle: Hyunday Tucson Hydrogen Ve-

hicle.

The setup is shown in Fig. 3. Mobileye messages

are acquired through the Kvaser Leaf device. This

device is connected to a computer (Laptop) using one

USB port. Three GoPro cameras are also connected

to the computer.

To be able to analyze the navigation context ade-

quately and compare the provided Mobileye messages

with the human navigation scene interpretation, three

monocular GoPro cameras (visible spectrum) were

installed. One of them is put on the front windscreen

(see Fig. 4). The second one is installed on the vehicle

left side whereas the last one is put on the right side.

The three cameras provide a surrounding view that

help us to interpret each navigation scene. The videos

from these cameras are also collected and saved for

future analysis.

The GoPro cameras and the Mobileye system are

time-synchronized in order to get one common time

scale of both vision modalities.

Using an Intelligent Vision System for Obstacle Detection in Winter Condition

563

Figure 2: Mobileye Serie 5 with its small display EyeWatch

(Mobileye, 2019).

Figure 3: Setup used during the tests in winter condition.

2.2 Naturalistic Test Scenario

To assess the behavior of the intelligent vision sys-

tem, several tests have been performed during winter

2018 in Canadian urban trafﬁc. The test vehicle used

the road shown in Fig. 5. The weather was cloudy

at dusk. In the evening and in the night, there is a

mixture of rain and snowfall. The visibility is almost

poor. No extra warnings were given to the driver and

the road users are most likely to be students (going

back to home after classes), workers and teachers (go-

ing back at the end of the day), nurses, physicians, and

other pedestrians. In addition, the driver was asked to

Figure 4: Camera GoPro installed in front of the test vehicle

(middle of the windshield).

ignore the Mobileye messages and drives the car as

usual. All grabbed data (from Mobileye Canbus as

well as the GoPro cameras) are synchronized to get

the same time reference for further analysis.

The data were segmented into very short data-

stream of 5s. The idea is to sample the whole urban

trip into short motion within the framework of urban

navigation. Globally, 2880 samples have been ana-

lyzed. For each sample, the analysis consists in:

• processing the sample of Mobileye log ﬁle with

its corresponding short video;

• identifying the number of detected obstacles in the

Mobileye messages stored in the log ﬁle;

• for each identiﬁed obstacle, check the type of ob-

stacle among vehicle, truck, bike, pedestrian, and

bicycle;

• playbacks the corresponding video record from

the GoPro camera and assess if the identiﬁed ob-

stacle type is really in the video.

• try to ﬁnd in the video record if there is any po-

tential obstacle which, although it appears in the

Mobileye ﬁeld of view, has not been detected and

correctly classiﬁed.

3 RESULTS AND DISCUSSION

The following table gives the overall results. Most

of the time (97% of the 2880 observation samples),

the test vehicle shared the road with other road users

(cars, trucks, bikes, bicycles, pedestrians, etc.). As the

tests were carried out in winter, very few pedestrians

were in the streets (see Table 1).

As reported in Table 2, 2702 samples involves an-

other vehicle (without a pedestrian). The vision sys-

tem was able to correctly detect and classify all vehi-

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

564

Figure 5: Urban test path in a Canada city in Winter. The

red color represents the driving road followed by the test

vehicle.

Table 1: Global indicators.

Number of samples 2880

Number of samples

with another road users 2763

(cars, trucks, pedestrians, etc.)

Number of samples with

at least one pedestrian 61

cle in the video samples, even when the ambient light

was very poor. This good performance of the vision

system indicates that the ADAS system is much ro-

bust than what the manufacturer advertises.

Table 2: Vehicle detection result.

Number of samples with

at least one vehicle (no pedestrian) 2702

Number of samples with a vehicle

correctly detected 2702

Number of samples with a vehicle

incorrectly detected 0

It has also been observed that 2% of the samples

involved a pedestrian. It is critical for safety reason

to know how the intelligent vision system can per-

form in such difﬁcult weather conditions. Therefore,

we investigate to know what proportion of the sam-

ples with a pedestrian has been correctly classiﬁed as

having a pedestrian.

Table 3 shows the detail results of pedestrian de-

tection. Among the 61 video samples with at least one

pedestrian, 72% were correctly analyzed and classi-

ﬁed as having a pedestrian. 20% were incorrectly de-

tected. However, for 8%, we can not assess that the

pedestrian was in the Mobileye ﬁeld of view.

Fig. 6 illustrates a video sample with a pedestrian

who is correctly detected and classiﬁed at dusk in

winter. The sky is cloudy and the ambient light is low,

which reduces the contrast between the pedestrian im-

age and the background. This sample has been taken

when the test vehicle (Hyundai Tucson Hydrogen Ve-

Table 3: Pedestrian detection result.

Number of samples with

at least one pedestrian 61

Number of pedestrian samples

correctly detected 44

Number of pedestrian samples

incorrectly detected 12

Number of pedestrian samples

unknown classiﬁcation 5

hicle), after stopping at a road intersection, stated to

turn on the left. At the same time, a pedestrian was

crossing the intersection and several other vehicles are

waiting at the same intersection. It is important to

note that when the test vehicle is stopped, the pedes-

trian worn dark clothes and the asphalt color of the

road does not offer a good contrast with the back-

ground. In addition, as soon as the vehicle starts turn-

ing the pedestrian start crossing the road.

The detail interpretation of Mobileye messages

that correspond to this video sample is shown in Fig.

Figure 6: Snapshot: Good pedestrian detection at dusk in

winter.

In Fig. 7, we showed two graphs. The time scale

of both graphs are the same and it corresponds to the

sample video ego-time (i.e: the time of the ﬁrst frame

of the video sample is 0). From 0s to 1.2s, the ve-

hicle is stopped at the intersection: it is waiting to

turn on the left. Therefore, no important and im-

mediate obstacle has been reported by the Mobileye

system. Hence, the ﬁrst graph (graph (a)) indicates

that the number of obstacles is 0 during that time-

frame. Thus, no obstacle type is available before 1.2

as shown in the second graph of Fig. 7.

Between 1.2s to 2.4s, the vehicle is turning on its

left and the Mobileye system has detected one po-

tential obstacle (y-axis of the ﬁrst graph shows 1 as

the number of detected obstacles.). Note that in the

video, the other cars are stopped at the road inter-

section, waiting their turn to move away. During the

same time-frame, the second graph of Fig. 7 indicates

Using an Intelligent Vision System for Obstacle Detection in Winter Condition

565

that the detected obstacle is likely to be a pedestrian

(obstacle type 3). According to Mobileye technical

document, the following type of obstacles could be

reported:

• Type 0 (binary word 000): the detected obstacle is

most likely to be a vehicle

• Type 1 (binary word 001): the detected obstacle is

most likely to be a truck

• Type 2 (binary word 010): the detected obstacle is

most likely to be a bike

• Type 3 (binary word 011): the detected obstacle is

most likely to be a pedestrian

• Type 4 (binary word 100): the detected obstacle is

most likely to be a bicycle

The classiﬁed pedestrian is true since we can ob-

serve in the shown snapshot (Fig. 6) that there was

pedestrian crossing the road.

0 0.5 1 1.5 2

Time (s)

0.5

1.5

Number of Obstacles

(a)

0 0.5 1 1.5 2

Time (s)

2.5

3.5

Obstacle Type

(b)

Figure 7: Mobileye message corresponding to the good

pedestrian detection at dusk in winter: (a) The num-

ber of detected obstacles are reported by the system; (b)

The detected obstacle type: 0=Vehicle, 1=Truck, 2=Bike,

3=Pedestrian, 4=Bicycle.

In the snapshot below, the pedestrian on the side-

walk has been successfully detected and classiﬁed al-

though the poor contrast between the pedestrian im-

age and the background. It is worth mentioning that

there was a drop of snow in front of the camera rep-

resented by the white spot in the upper left corner of

Fig. 8.

During the tests, several samples with a pedestrian

have not been successfully processed. At this time it

is very difﬁcult to know what is the most likely reason

for these non detection. In the sequel, we illustrated

some of the failed pedestrian detections.

In Figs. 9 and 10, the test vehicle is in a trafﬁc

during the night in winter. There is a truck on its left

Figure 8: Snapshot: Good pedestrian detection during the

night in winter.

Figure 9: Snapshot: A vehicle is correctly detected and clas-

siﬁed but the pedestrian is not detected (see Fig. 10).

and a passenger car in front. In addition, we can ob-

serve a pedestrian facing the road and who is start

crossing the road (Fig.9). The analysis of Mobileye

messages indicates that only one obstacle has been

reported (graph (a) of Fig. 9). The type of reported

obstacle is ”0” which means that the detected obsta-

cle is most likely to be a vehicle (graph (b) of Fig. 9).

Hence the pedestrian is not detected.

In the following ﬁgures, we show a case of no

detection when the test vehicle was in urban trafﬁc

and there were several spotlights into the camera ﬁeld

of view. One car is in front whereas two pedestrians

were walking on the sidewalk.

The next ﬁgures show a sample with a non-

detected pedestrian, although the front vehicle is cor-

rectly detected and classiﬁed. This sample is taken

during the dusk in winter. Indeed, we can observe in

Fig. 13 a pedestrian crossing the road on the left. The

test vehicle is waiting to turn on the left. The anal-

ysis of Mobileye messages indicates in Fig. 14 that

the number of reported obstacles is 1 (see graph (a))

and the type of the detected obstacle is 3 which means

that the front vehicle is detected. However, the cross-

ing pedestrian, although he was walking on the road,

no speciﬁc detection has been reported.

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

566

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

Time (s)

0.5

1.5

Number

of obstacles

(a)

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

Time (s)

-1

-0.5

0.5

Obstacle type

(b)

Figure 10: Mobileye signal interpretation: (a) The number

of reported obstacles is 1. (b) The obstacle type is a vehi-

cle. Clearly the pedestrian near the vehicle in front is not

detected as shown in the snapshot (see Fig. 9).

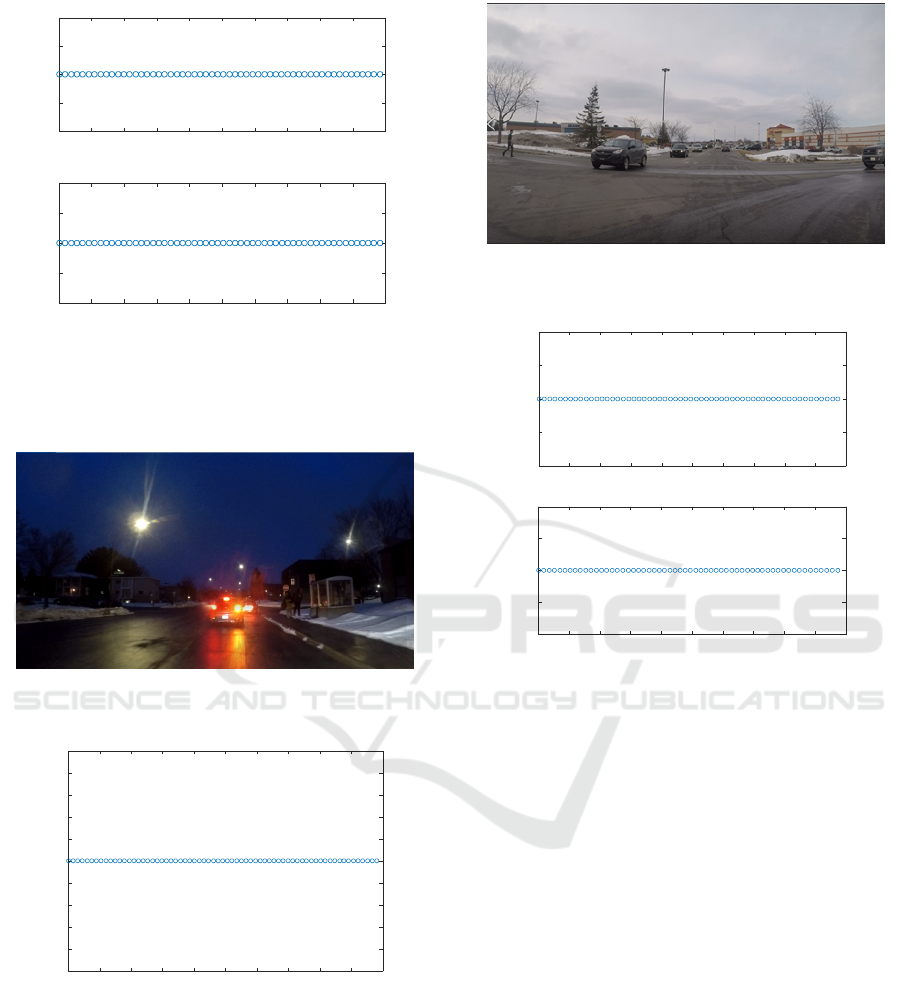

Figure 11: Snapshot: The vehicle in front and the two

pedestrians are not detected (see Fig. 12).

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

Time (s)

-1

-0.8

-0.6

-0.4

-0.2

0.2

0.4

0.6

0.8

Number of obstacle

Figure 12: Mobileye signal interpretation: The number of

reported obstacles is 0.

4 CONCLUSION AND FUTURE

WORKS

In this work, one of the most used vision systems for

advanced driving assistance system (Mobileye) has

been tested in winter condition and urban trafﬁc. Us-

Figure 13: Snapshot: The vehicle in front and the two

pedestrians are not detected (see Fig. 14).

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

Time (s)

0.5

1.5

Number

of obstacles

(a)

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

Times (s)

-1

-0.5

0.5

Obstacle type

(b)

Figure 14: Mobileye signal interpretation: The number of

reported obstacles is 0.

ing additional cameras, the performance of this ad-

vanced vision system has been assessed in harsh en-

vironmental conditions. The test started during win-

ter dusk and covered different lighting and weather

conditions. In general Mobileye vision system pro-

vides good detection accuracy for cars and other vehi-

cles (more than 99night seems to be more difﬁcult to

achieve. In future work, an in-depth analysis of which

pedestrian characteristics are most likely to have a

signiﬁcant impact on the detection accuracy in win-

ter will be carried out. Besides, we will investigate

the combination of a thermal vision system with the

Mobileye vision system to increase the pedestrian de-

tection and classiﬁcation accuracy

ACKNOWLEDGEMENTS

This work was supported by the Natural Sciences and

Engineering Research Council of Canada.

Using an Intelligent Vision System for Obstacle Detection in Winter Condition

567

REFERENCES

Abelson, P. (2012). Playing it safe. Concrete Producer,

30(1).

Amamou, A. A., Kelouwani, S., Boulon, L., and Agbossou,

K. (2016). A comprehensive review of solutions and

strategies for cold start of automotive proton exchange

membrane fuel cells. IEEE Access, 4:4989–5002.

Barclay, S. (2012). Mobileye to launch the world’s ﬁrst

smartphone-connected driver assistance system. Au-

tomotive Industries AI, 192(1).

Birrell, S. A., Fowkes, M., and Jennings, P. A. (2014). Ef-

fect of using an in-vehicle smart driving aid on real-

world driver performance. IEEE Transactions on In-

telligent Transportation Systems, 15(4):1801–1810.

Cano, M. H., Kelouwani, S., Agbossou, K., and Dub

e, Y.

(2014). Free air breathing proton exchange mem-

brane fuel cell: Thermal behavior characterization

near freezing temperature. Journal of Power Sources,

246:650–658.

Chang, B., Tsai, H., and Young, C.-P. (2010). Intelli-

gent data fusion system for predicting vehicle colli-

sion warning using vision/gps sensing. Expert Systems

with Applications, 37(3):2439–2450.

Chang, B., Young, C.-P., and Tsai, H. (2009). Simu-

lation and implementation of high-performance col-

lision warning system for motor vehicle safety us-

ing embedded anﬁs prediction. International Jour-

nal of Innovative Computing, Information and Con-

trol, 5(10):3415–3430.

Chen, B., Zhao, D., and Peng, H. (2017). Evaluation

of automated vehicles encountering pedestrians at

unsignalized crossings. pages 1679–1685.

Curiel-Ramirez, L., Ramirez-Mendoza, R., Carrera, G.,

Izquierdo-Reyes, J., and Bustamante-Bello, M.

(2018). Towards of a modular framework for semi-

autonomous driving assistance systems. International

Journal on Interactive Design and Manufacturing,

pages 1–10.

Excell, J. (2005). Sens-ational drive. Engineer,

293(7668):30–31.

Fireman, M. (2017). Mobileye to generate, share, and uti-

lize vision data for crowdsourced mapping with nis-

san. Automotive Industries AI, 197(4).

Henao, N., Kelouwani, S., Agbossou, K., and Dub

e, Y.

(2012). Pemfc low temperature startup for electric

vehicle. In IECON 2012-38th Annual Conference

on IEEE Industrial Electronics Society, pages 2977–

2982. IEEE.

Ke, R., Lutin, J., Spears, J., and Wang, Y. (2017). A cost-

effective framework for automated vehicle-pedestrian

near-miss detection through onboard monocular vi-

sion. volume 2017-July, pages 898–905.

Larkin, J. (2006). Mobileye vision technologies providing

applications for delphi’s collision mitigation system.

Automotive Industries AI, 186(4).

Lee, M., Lim, W., Kim, S., and Sunwoo, M. (2018). Tem-

poral local route modeling using the recognized lane

for autonomous driving comfort.

Lyu, N., Deng, C., Xie, L., Wu, C., and Duan, Z. (2018). A

ﬁeld operational test in china: Exploring the effect of

an advanced driver assistance system on driving per-

formance and braking behavior. Transportation Re-

search Part F: Trafﬁc Psychology and Behaviour.

Markwalter, B. (2017). The path to driverless cars [cta

insights]. IEEE Consumer Electronics Magazine,

6(2):125–126.

Mobileye (2019). Mobileye serie 5,

https://www.mobileye.com/fr-fr/produits/mobileye-

serie-5/.

Reagan, I. (2019). Effects of an aftermarket crash avoid-

ance system on warning rates and driver acceptance in

urban and rural environments. Advances in Intelligent

Systems and Computing, 786:776–787.

Thompson, J., Mackenzie, J., Dutschke, J., Baldock, M.,

Raftery, S., and Wall, J. (2018). A trial of retroﬁtted

advisory collision avoidance technology in govern-

ment ﬂeet vehicles. Accident Analysis and Prevention,

115:34–40.

Vasic, M., Mansolino, D., and Martinoli, A. (2016). A

system implementation and evaluation of a coopera-

tive fusion and tracking algorithm based on a gaus-

sian mixture phd ﬁlter. volume 2016-November, pages

4172–4179.

Wang, J.-G., Zhou, L., Song, Z., and Yuan, M. (2017). Real-

time vehicle signal lights recognition with hdr camera.

pages 355–358.

Wright, C. (2016). Mobileye to offer user-generated map-

ping for autonomous driving: New technology will al-

low drivers to provide real-time road information to

enhance autonomous driving experience. volkswagen

and general motors ﬁrst strategic partners to explore

this technology. Automotive Industries AI, 196(1).

VEHITS 2019 - 5th International Conference on Vehicle Technology and Intelligent Transport Systems

568
