Smart Wheelchairs: Using Robotics to Bridge the Gap between

Prototypes and Cost-effective Set-ups

Matthew Aquilina

, Marvin K. Bugeja

and Simon G. Fabri

Department of Systems and Control Engineering, University of Malta, Msida, MSD 2080, Malta

Keywords:

Smart Wheelchair, Assistive Technology, ROS, Autonomous Navigation, Mapping, Electronic Hardware

Design.

Abstract:

Wheelchairs have improved the lives of many people with limited mobility. Yet, to this day, conventional

wheelchairs are still not a viable option for mobility independence in cases of people with severe weakness

or poor coordination e.g. Amyotrophic Lateral Sclerosis (ALS). Smart wheelchairs (SWs) overcome many

of these limitations by adding an extra layer of intelligence to the system. SWs have so far remained mostly

inaccessible to the general public, due to a limited market presence and steep costs. This paper thus presents the

design and implementation of a novel SW which makes the upgrade of a commercially available motorised

wheelchair to a SW a much simpler process. The system is a complete implementation offering low-level

hardware control, a specialised ROS architecture and autonomous navigation algorithms allowing shared user

control or fully-autonomous movement. Contrary to most other published works, the focus of this paper is

to implement a fully-featured working prototype with minimal hardware complexity and an efﬁcient modular

software development environment. Initial practical tests in typical use scenarios showcased the successful

operation of the complete system. The developed prototype SW has the potential to restore autonomy to

people who are unable to use conventional or powered wheelchairs.

1 INTRODUCTION

Wheelchairs have been around since the 17th cen-

tury. Initially, these models all required the user or

a carer to manually propel the wheelchair. Designs

for Powered Wheelchairs (PWs) appeared in the early

20th century. PWs allow the user to control move-

ment of the motorised wheelchair through a joystick.

PWs and the more conventional manual wheelchairs

are the most popular kinds of wheelchairs in use today

(Simpson et al., 2008).

Conventional PWs provide mobility to many peo-

ple with special needs or to those who cannot walk

unaided. However, people with severe weakness who

cannot direct a joystick (e.g. individuals with ALS)

or people with very poor coordination (e.g. Cerebral

Palsy) cannot use PWs (Simpson et al., 2008). Per-

sons in such a situation often end up dependent on

others to propel their wheelchair.

The concept of a Smart Wheelchair (SW) started

https://orcid.org/0000-0002-4039-1398

https://orcid.org/0000-0001-6632-2369

https://orcid.org/0000-0002-6546-4362

taking shape in the 1980s (Simpson, 2005). A SW

is an upgraded form of PW to which a number of

sensors and computing units are attached to enable

semi-autonomous or autonomous modes of operation

(Leaman and La, 2017). The SW operates via nav-

igation algorithms, such as those for path-planning

and obstacle avoidance, to achieve autonomous and

safe mobility. These systems, coupled with some

simple input mechanisms (such as a touchscreen or

voice command) can compensate for a user’s lack of

coordination or weakness. SW technology has pro-

gressed greatly worldwide, with designs consisting of

multiple sensors and complex algorithms. However,

despite many sophisticated models being developed,

practically none of them have made it to the commer-

cial market (Leaman and La, 2017).

This paper aims to challenge this state of affairs by

presenting a novel and inexpensive design methodol-

ogy by which a standard commercially available PW

could be upgraded to SW level, both in technology

and in autonomy. The hardware used is easily ac-

cessible, and all software is coded using open-source

frameworks. To demonstrate its applicability, a SW

platform was designed and retroﬁtted on top of a sim-

Aquilina, M., Bugeja, M. and Fabri, S.

Smart Wheelchairs: Using Robotics to Bridge the Gap between Prototypes and Cost-effective Set-ups.

DOI: 10.5220/0007796801810189

In Proceedings of the 16th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2019), pages 181-189

ISBN: 978-989-758-380-3

181

ple and inexpensive PW available on the market, the

process of which is detailed in this paper. Both semi-

autonomous and fully-autonomous navigation algo-

rithms were deployed successfully on this prototype,

demonstrating the capabilities of the build.

The paper is organised in the following manner.

Section 2 contains a brief review of related work in

the literature. Section 3 details the process followed

to upgrade the hardware systems to SW level start-

ing from the standard PW frame. Section 4 builds on

Section 3 by going into further detail on the support-

ing software infrastructure. Section 5 expands on the

navigation algorithms, and Section 6 details and dis-

cusses the results obtained, followed by conclusions

in Section 7.

2 RELATED WORK

Generally, SWs in development fall into one of two

categories: navigation aids or fully-autonomous ve-

hicles. Both use similar sensors and hardware to

achieve their aims; the difference lies in the software

and algorithms they use.

2.1 Wheelchairs with Navigation Aids

Wheelchairs with navigation aids aim to enhance the

user’s mobility without completely ignoring the user’s

input when navigating. One of the oldest and most

well-developed examples is the NavChair (Levine

et al., 1999). This chair could use its on-board Vec-

tor Field Histograms (VFH) (Borenstein and Koren,

1991) and Virtual Force Field (VFF) (Borenstein and

Koren, 1989) obstacle avoidance methods to guide the

wheelchair in the general direction the user indicates

through a joystick. Similarly, Carlson and Demiris

(2012) present another study where the wheelchair

acts to help a user reach a destination inferred through

a joystick. This system uses a camera localisation

system, laser rangeﬁnder and ultrasonic sensors, re-

sulting in a much better picture of the environment

than that obtained through ultrasonic sensors alone.

Many other systems (Nasri et al., 2016; Leaman et al.,

2016; Cavanini et al., 2014) have been developed with

features designed to complement a user’s guiding in-

put. However, all of these studies typically have one

or more obstructive hardware limitations, such as de-

pendence on a laptop rather than an embedded PC,

a prohibitively expensive sensor suite or the require-

ment of a speciﬁc wheelchair brand for the software

to operate.

2.2 Autonomous Wheelchairs

Fully-autonomous SWs depend almost completely on

their software and sensory systems for navigation.

Some SWs, such as in Echefu et al. (2017), plan

paths in advance on a map using planners such as

the A* (Hart et al., 1968) or D*Lite (Koenig and

Likhachev, 2002) algorithms. With the plan com-

plete, the wheelchair is guided through the path, using

a local obstacle avoidance algorithm (such as VFH

(Borenstein and Koren, 1991) or Dynamic Window

Approach (DWA) (Fox et al., 1995)) to navigate ob-

stacles unmarked on the map. Others, such as Kin-

para et al. (2011), navigate by following a desig-

nated carer or group of carers. This is made possible

through a complicated system of laser rangeﬁnders

and a camera acting as people/group detectors. Addi-

tionally, fully-autonomous modes can be used to en-

hance maps with more in-detail features. Hemachan-

dra et al. (2011) achieve this through a SW which

follows a tour guide and draws up a map using laser

rangeﬁnders, whilst also tagging different rooms with

information it infers through listening to the tour

guide. Generally, such advanced features require a

larger sensor suite, resulting in a more complicated or

expensive design.

In this project, both navigation aid and au-

tonomous functionalities were implemented onto the

wheelchair. A combination of the VFH+ (Ulrich and

Borenstein, 1998) and A* (Hart et al., 1968) path

planners were utilised to achieve these functions. A

laser rangeﬁnder was used as the primary method

of obstacle detection, complemented by a set of ul-

trasonic sensors. Navigation was managed through

wheel encoders for both localisation and closed-loop

speed control. By keeping the sensor suite small, the

developed SW retains a similar footprint to its origi-

nal PW design, whilst providing enough information

about the environment to navigate safely. The devel-

oped software is implemented using an ROS (ROS,

nde) backbone, keeping the system lean, modular and

efﬁcient whilst providing an easy-to-use Python de-

velopment environment.

3 TECHNICAL HARDWARE

DESIGN

One of the main hindrances to SW adoption is the

difﬁculty of mounting the required technology onto

a standard powered wheelchair frame. This section

provides an overview of the procedure adopted to ef-

ﬁciently upgrade our PW to a SW.

ICINCO 2019 - 16th International Conference on Informatics in Control, Automation and Robotics

182

3.1 Powered Wheelchair Upgrade

The Surace 715 Magic (Figure 1) was selected as the

PW base (Surace, nd). This wheelchair came with

two 24V geared DC motors along with a battery pack,

motors driver and a joystick. The controller elec-

tronics were closed-source and had to be removed

completely, leaving only the motors and battery to be

used by the SW. This situation also applies to the vast

majority of standard PWs that are available commer-

cially.

3.2 System Architecture

The architecture of the new system installed on the

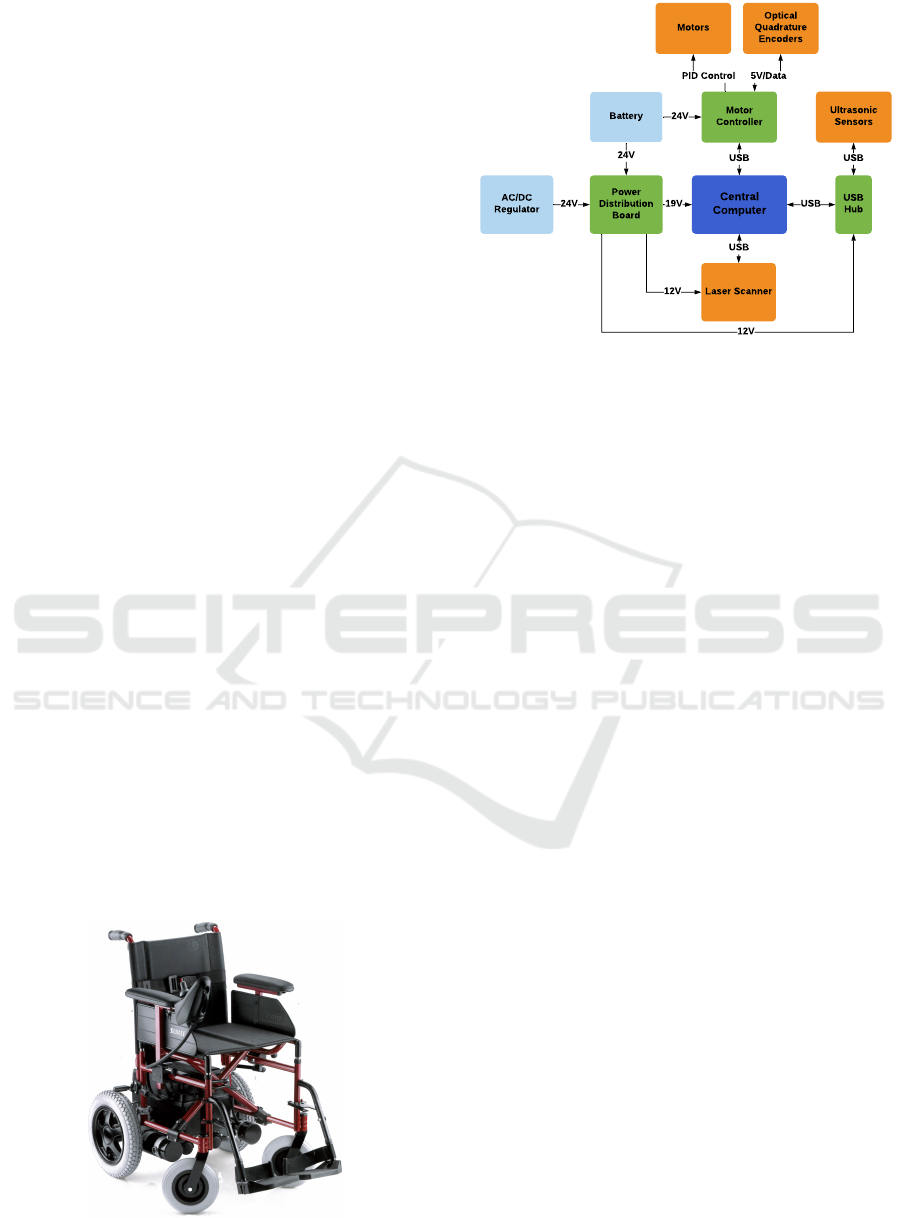

wheelchair is shown in the block diagram of Figure 2.

3.2.1 Computer and Motor Controller System

A computer was placed on board the wheelchair,

in order to act as the central communication point

whilst executing algorithms. A compromise needed

to be achieved between size and processing capabil-

ity/speed. The Intel NUC mini PC (Intel, nd) offered

the best balance. These PCs are available with a range

of options, allowing one to either prioritise on extra

capability or a lower budget.

Communicating data to and from the computer

was facilitated through the use of USB ports. Thus,

the motor controller selected for the SW needed

to have some way to transfer and receive data via

USB. Rather than introducing a converter or mi-

croprocessor unit to achieve USB communication,

the USB-compatible MCP233 Advanced Motor Con-

troller (BasicMicro, nd) was selected instead. This

controller offered the capability of driving both mo-

tors simultaneously, in-built Proportional Integral

Derivative (PID) code and several mixed functionality

pins for sensor interfacing, brake driving etc.

Figure 1: The standard powered wheelchair (Surace, nd).

Central

Computer

Motor

Controller

Power

Distribution

Board

Laser Scanner

Ultrasonic

Sensors

Motors

Optical

Quadrature

Encoders

Battery

USB

Hub

24V

19V

USB

12V

USB

24V

PID Control 5V/Data

AC/DC

Regulator

24V

24V Supply

5V Regulator

12V Regulator

19V Regulator

Sensor

Expansions

Computer

Laser Scanner,

USB Hub

USB

Figure 2: Hardware system block diagram.

3.2.2 Sensors

The sensors chosen for the system included a Hokuyo

240° laser rangeﬁnder (Hokuyo, nd), a set of ul-

trasonic sensors (Maxbotix, nd) and 1024 ppr opti-

cal quadrature wheel encoders (Hengstler, nd). The

laser rangeﬁnder was mounted at the front of the

wheelchair on an extended arm in order to keep its

line-of-sight clear of obstructions. The ultrasonic sen-

sors were mounted in a ring around the wheelchair,

attached directly to the chassis. The wheel encoders

were attached directly to each motor shaft by extend-

ing the shafts through the motor caps. The resulting

setup had an effective angular resolution of 0.00275°.

Given the large number of sensors (and other devices

requiring USB ports), two USB hubs were used to

expand the ports available; one unpowered and one

powered (through a 12V power supply).

3.2.3 Power Distribution System

With all devices accounted for, the different voltages

required for the system were: 19V for the computer,

12V for the USB hub and laser rangeﬁnder, 5V for

the encoders and 24V for the motors. A simple reg-

ulatory circuit was custom-built to provide all the re-

quired regulated voltages from the unregulated 24V

wheelchair battery. Additionally, a switchover system

was designed and implemented to allow all electron-

ics (except the motors and controller) to be powered

via an external AC wall plug. This allowed the devel-

oper to continue using the computer and sensors, even

while the battery was charging. The motors them-

selves were powered solely from the MCP233 con-

troller. The controller was connected to the battery

through a custom-designed protection system incor-

porating in-rush current prevention, fuses and a re-

verse energy recovery diode.

Smart Wheelchairs: Using Robotics to Bridge the Gap between Prototypes and Cost-effective Set-ups

183

3.3 Final Implementation

Three methods of user-input were made available on

the wheelchair. A ﬁxed joystick (USB) was mounted

next to the wheelchair’s arm rest, along with a wire-

less remote control which emulated the ﬁxed joy-

stick’s functionality at a distance. This remote control

was attached to the system via the mini PC’s in-built

Bluetooth module. Additionally, a touchscreen mon-

itor was mounted at the front of the chair, which al-

lowed the user to directly interface with the computer

operating system, navigation controls and system di-

agnostics.

All electronics were housed within a two-level

PVC compartment mounted at the bottom of the chair.

The bottom level was dedicated completely to the

power and motor controller units, while the top level

was occupied by the computer and USB hubs. Due

to the large number of high power components, vari-

ous space optimisations were introduced such as ﬁx-

ing components to the ceiling of the compartment or

connecting cables to busbars. The complete SW is

shown in Figure 3. By opting for USB connectivity,

and by designing custom-made power solutions, the

price of the upgrade was kept to a minimum.

4 SOFTWARE

INFRASTRUCTURE

With the hardware shell complete, the software driver

systems had to be built before any navigation algo-

rithms could be employed.

4.1 Software Platform

4.1.1 ROS

The primary decisions were to select which soft-

ware platform, framework and language to use for

the system. The ideal solution for the wheelchair

was found in Robot Operating System (ROS) (ROS,

nde) (speciﬁcally version Lunar Loggerhead). ROS

provides many tools and services which allow one to

build a whole web of interconnected programs work-

ing in a parallel manner whilst sharing data between

them.

The parallelised system, along with a host of well-

built and open-source libraries and development tools,

made ROS ideal to act as the software base architec-

ture for the wheelchair. Simulations of the algorithms

used on the SW were carried out directly in ROS, fol-

lowing which they were imported to the system on-

board the wheelchair PC.

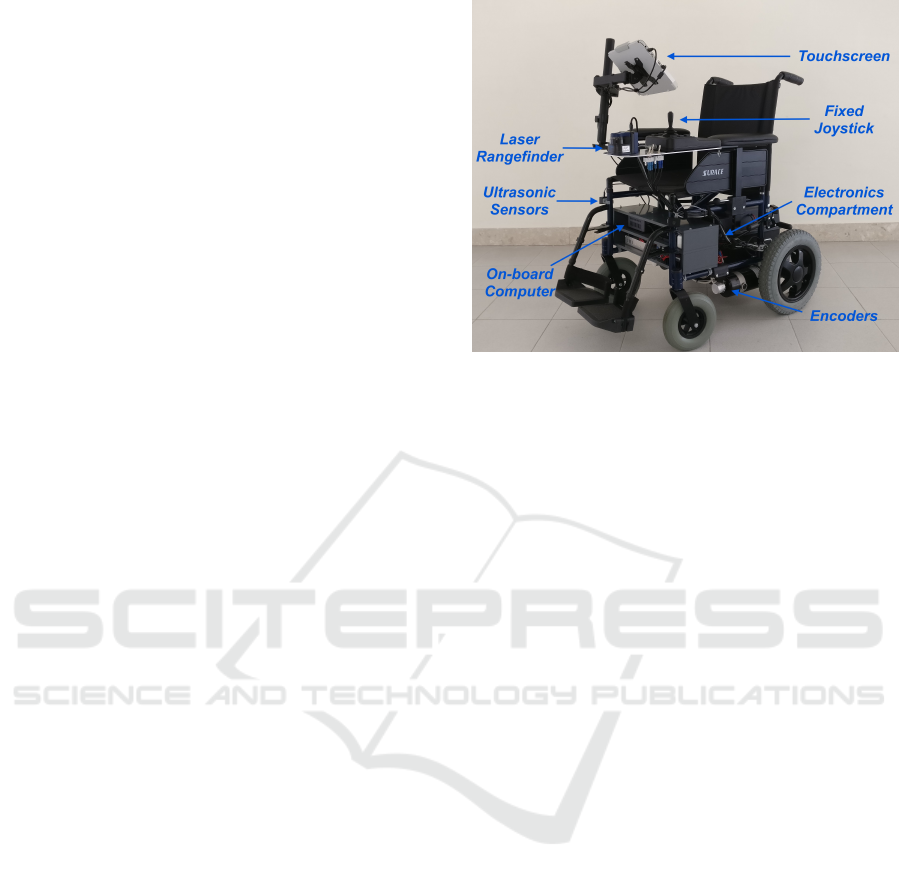

Figure 3: The complete Smart Wheelchair.

4.1.2 Platform and Language

Ubuntu Linux (speciﬁcally version 16.04 LTS)

(Ubuntu, nd) was selected as the operating system

for the wheelchair, being one of the most popular

and user-friendly Linux distributions available. The

whole system was coded in Python 2.7, due to its ex-

tensive ROS support and availability of open-source

mathematical, graphing and multithreading libraries.

4.2 Low-level Setup

Some low-level conﬁgurations and tuning needed to

be applied before integrating the ROS node system.

The encoders were connected directly to the motor

controller which read the encoder pulses for closed-

loop speed control. Additionally, the controller sent

the raw encoder counts to the computer via USB,

where standard dead-reckoning calculations were per-

formed to turn this data into a source of odometry.

The controller’s internal PID system needed to be

tuned with appropriate gain values. The PID control

was set to reach the targeted velocity value as quickly

as possible. Instant acceleration, however, was not the

desired behaviour on the wheelchair; this would have

led to a very uncomfortable ride for the user. Thus, ac-

celeration was regulated by another P controller pro-

grammed into ROS. This controller took in the desired

target velocity and limited the change from the cur-

rent velocity within reasonable limits, before sending

this adapted velocity to the motor controller. In this

way, the acceleration was made smoother, and abrupt

starts or stops were kept to a minimum. Additionally,

immediate control of the motor speeds was still avail-

able in emergencies, thanks to the rapid response of

the hardware PID system. The velocity control proce-

dure is presented graphically in Figure 4.

ICINCO 2019 - 16th International Conference on Informatics in Control, Automation and Robotics

184

To Motors

Software

acceleration

smoothing

Direct motor PID

control

User input

(joystick/remote)

Algorithm

velocity

selection

ROS

External Har dware

Mode

Selection

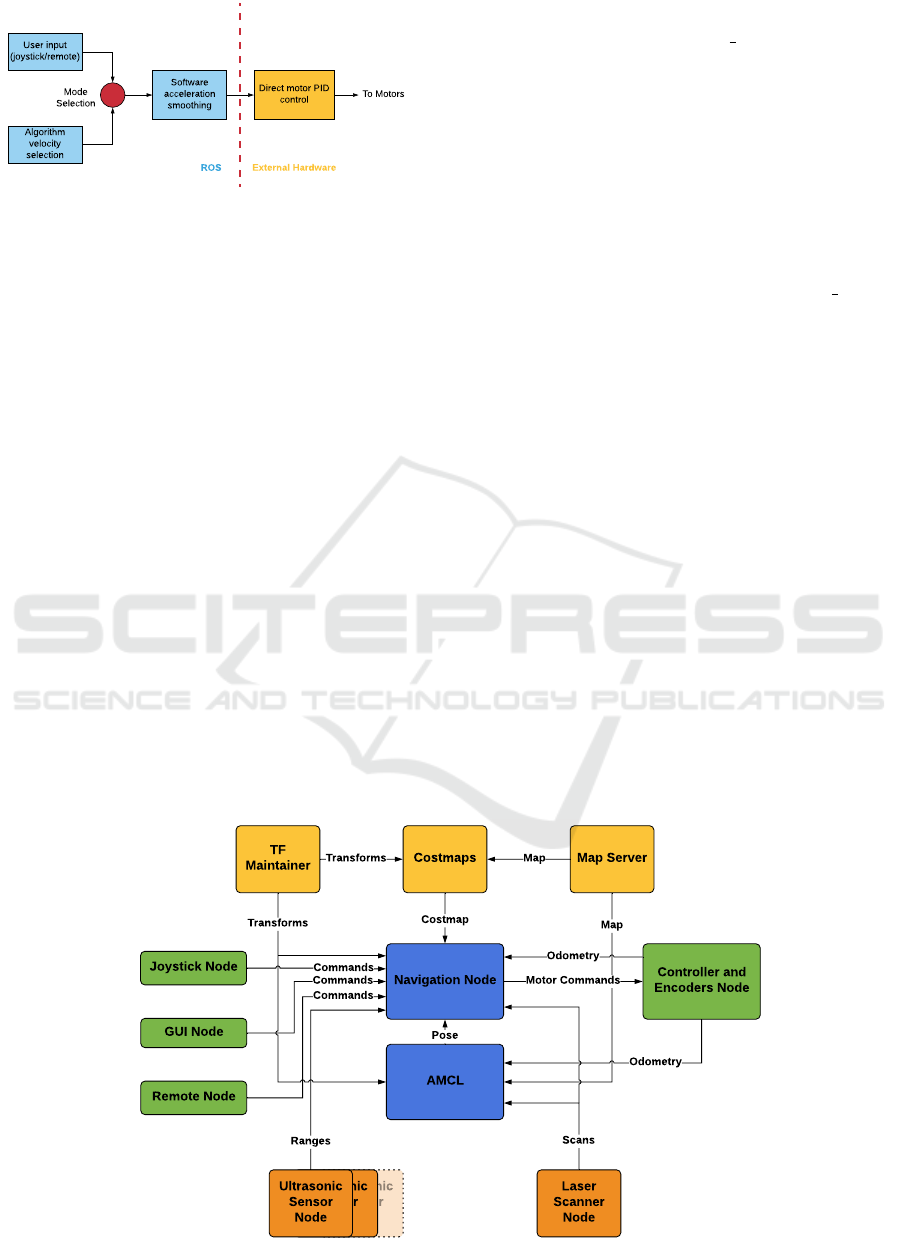

Figure 4: Velocity Smoothing Procedure.

4.3 Node Setup and Integration

All sensor and input streams were separated into dif-

ferent ROS nodes, resulting in the structure shown in

Figure 5.

4.3.1 Mapping and Costmapping

When using the SW in an indoor environment, maps

can help in localisation and allow the SW to pre-

plan paths through its environment. Mapping in this

system was facilitated through the use of the ROS

Gmapping package (ROS, ndc). This uses a Rao-

Blackwellised particle ﬁlter (openSLAM, nd) to fuse

laser and odometry data together to form a well-

dimensioned map. To build this map, the wheelchair

was slowly driven around the selected area, while data

from the laser rangeﬁnder and encoders was gathered.

These were then fed to the Gmapping package, which

translated them into an occupancy grid map. An ex-

ample of such a map is provided in Figure 10. Before

being able to produce accurate maps, a lengthy pro-

cedure of manual parameter tuning (number of parti-

cles, linear/angular update intervals and range) had to

be followed to correctly ﬁt the Gmapping system to

the SW hardware. The Costmap 2D (ROS, ndb) ROS

package was used to inﬂate obstacles on the map with

the wheelchair’s radius.

4.3.2 TF

The TF package from ROS (ROS, ndf) was used to

keep track of the many coordinate systems present on

the wheelchair. The hierarchical structure in Figure 6

was built through this package. The bottom relation

in this structure was the positioning of each sensor

with respect to the wheelchair centre (Base Link in

Figure 6). These relations were ﬁxed (i.e. the laser

rangeﬁnder was always at a ﬁxed distance away from

the centre of the wheelchair). This information was

used when determining the wheelchair navigational

paths (to be described in Section 5).

Along with these hardware levels, TF also man-

aged the link between a map, the odometry system

and the wheelchair position. Odometry was taken

care of entirely by the wheel encoders, which ref-

erenced the distance travelled from a ﬁxed point.

When using a map, the system needed to deﬁne

where the wheelchair was, relative to the map. To

handle this, the Adaptive Monte Carlo Localisation

(AMCL) (ROS, nda) package (unmodiﬁed) from ROS

was used. This package handled publishing the trans-

form between the Odom and Map transforms (Figure

6) and hence took care of positioning the wheelchair

on the map. This package does not only rely on en-

coder readings to position the wheelchair on the map

due to their inherent drift issues. Instead, AMCL uses

a particle ﬁlter to stochastically fuse laser scans and

encoder readings and compare these readings with the

Ultrasonic

Sensor

Node

Ultrasonic

Sensor

Node

Navigation Node

Controller and

Encoders Node

GUI Node

AMCL

Laser

Scanner

Node

Joystick Node

Map ServerCostmaps

Maintainer

Ultrasonic

Sensor

Node

Remote Node

Costmap

Map

Scans

Pose

Odometry

Map

Ranges

Commands

Transforms

Odometry

Motor Commands

Commands

Transforms

Figure 5: ROS system node diagram.

Smart Wheelchairs: Using Robotics to Bridge the Gap between Prototypes and Cost-effective Set-ups

185

current map. This helped the SW localise with the

map as a reference point, thus mitigating considerably

the errors introduced by encoder dead-reckoning.

4.3.3 Input/Output Device Interfacing

Each sensor and input device in the system was as-

signed a dedicated node (except the encoders, which

were bundled with the motor controller). These nodes

managed the basic processing required to translate

data in and out of the system. The laser rangeﬁnder

was taken care of by the ROS ‘urg node’ (ROS, ndg)

package which translated laser scans into ﬁxed ar-

rays of distance measurements and angles. The ul-

trasonic sensors were handled through custom-made

serial nodes, which picked up range readings from the

sensors at ﬁxed rates. The joystick/remote returned

deviations from their centre when actuated. These

were translated to angular/magnitude changes and

sent to the navigation system for processing. For the

touchscreen, a Graphical User Interface (GUI) was

constructed using Kivy (Kivy, nd), an open-source

GUI Python library. The GUI was populated with

diagnostics and tools, allowing a user to control the

navigation system (Section 5) and tweak its parame-

ters. Additionally, the touchscreen allowed a user to

switch navigation modes and view the wheelchair po-

sition on the map. A typical view of the GUI is shown

in Figure 7.

5 NAVIGATION ALGORITHMS

With both the software and hardware infrastructures

complete, the actual intelligent navigation algorithms

were developed and implemented on the system (as

the Navigation Node of Figure 5).

Sonars

Map

Base_Link

Odom

Sonars Laser

Figure 6: Transformation tree.

Figure 7: Custom-made GUI showing mode selection, on-

line information and laser-generated map.

5.1 Semi-autonomous Navigation Mode

This mode was named ‘semi-autonomous’ due to its

reliance on both a user’s input to provide the target di-

rections, as well as on its sensor-based algorithm util-

ising VFH (Borenstein and Koren, 1991) to guide the

wheelchair through a safe path. Essentially, the user

directs the wheelchair towards a target goal (with no

regard to the obstacles that might lie between them)

using the joystick/remote, while the wheelchair at-

tempts to follow this target in as safe a manner as

possible by avoiding any obstacles it encounters en

route.

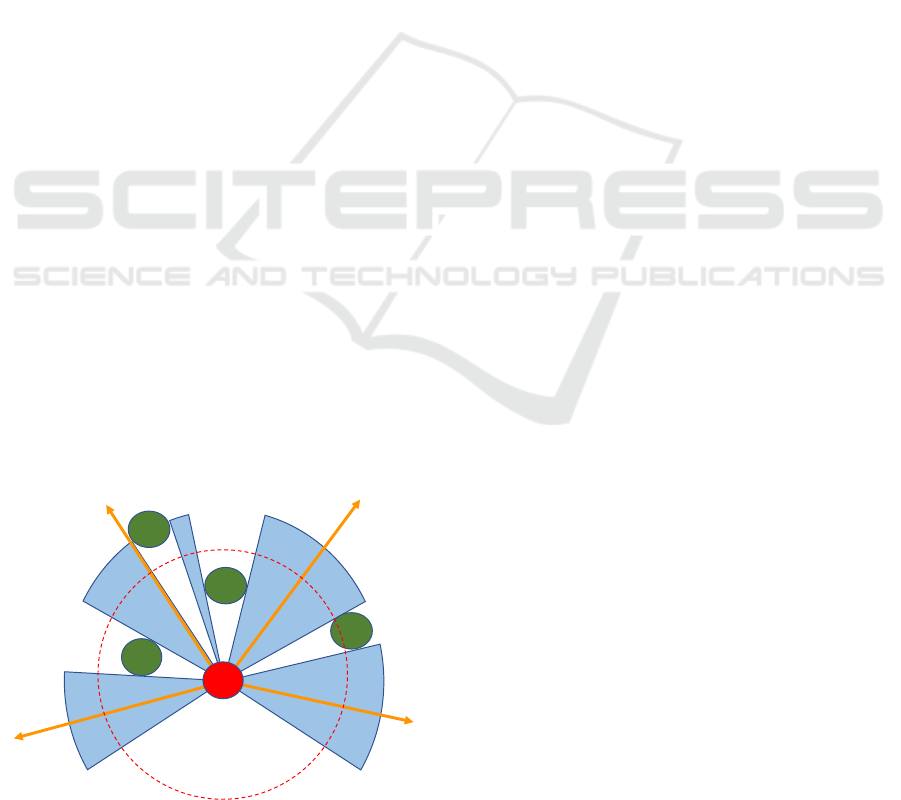

5.1.1 VFH+

The approach used for navigation was adapted from

VFH+ (Ulrich and Borenstein, 1998); one of the en-

hanced versions of the base VFH. Originally, this al-

gorithm was intended for robots containing a large

number of ultrasonic sensors. Thus, the algorithm had

to be modiﬁed to work with the laser scanner, and in-

teract with its data structure correctly. The algorithm

looped through the cycle shown in Figure 8.

Establish

Target

Inflate

Laser

Points

Filter and

Create

Candidates

Screen

Candidates

Select Best

Candidate

and

Velocity

Figure 8: VFH algorithm loop.

ICINCO 2019 - 16th International Conference on Informatics in Control, Automation and Robotics

186

To start the loop, the target heading was extrap-

olated from the user joystick/remote input. The user

only needed to indicate the direction once; the sys-

tem made sure to track this target through the use

of the wheel encoders. From here, all obstacles de-

tected by the laser rangeﬁnder were enlarged by the

wheelchair’s radius (inﬂated). This inﬂation process

allowed one to consider the wheelchair as a point ob-

ject. With all objects inﬂated, candidate directions

were selected by ﬁnding the gaps between objects

that were less than a speciﬁc cut-off radius (Figure

9). The best candidate was then selected by prioritis-

ing the candidate both closest to the target direction

and which kept the wheelchair on the smoothest path;

by minimising the following cost function:

cost = µ

∆{c

, t} + µ

∆{c

, c

i−1

} + µ

∆{c

, θ

} (1)

where ∆{} is an angular difference measurement

function, c

, c

i−1

stand for the current and previous

candidate respectively, t stands for the current target

direction, θ

stands for the current forward wheelchair

orientation and µ

, µ

are constant parameters.

The last two terms of the cost function are a mea-

sure of how smooth the trajectory of the wheelchair

is. Thus, by varying the ratios of µ

, µ

and µ

, one

can select how much weighting the algorithm should

give to the goal or towards a non-oscillatory path. In

most instances, it has been found that selecting a µ

slightly higher than µ

+ µ

results in goal-oriented

behaviour, with very little oscillatory motion. Once

a candidate is selected, the wheelchair is assigned a

velocity based on the position of obstacles around its

path.

5.2 Fully-autonomous Navigation Mode

For fully-autonomous navigation, the system was

placed in complete control of the SW’s trajectory.

Laser Origin

Cut-Off Radius

Candidate

Figure 9: Candidate proposals.

The user only interacted with the system by selecting

the desired ﬁnal destination of the wheelchair on the

previously-acquired map using the touchscreen. With

a goal and start position deﬁned, a full path between

the two was always generated before wheelchair

movement, using the A* algorithm (Hart et al., 1968).

This algorithm works by generating a path which min-

imises both the distance from the start as well as the

distance to the goal along each node selected. The

A* planning process has been built into a customised

ROS node, since the ofﬁcial A* path-planning nodes

on ROS all require the ROS navigation stack (ROS,

ndd) to function.

Once this path was established, the system plot-

ted a set of waypoints along the path and targeted the

wheelchair to reach each waypoint sequentially. The

VFH algorithm was placed in control of this move-

ment, avoiding all obstacles (mapped and unmapped)

while following each waypoint.

5.3 Manual Modes

Additionally, two other fully user-controlled modes

were implemented. One was completely manual (joy-

stick/remote controlled), while the other simply pre-

vented collisions by halting the SW before it struck an

obstacle. This mode used the ultrasonic ring to detect

obstacles in close proximity.

6 RESULTS

6.1 Sensor and Mapping Accuracy

Before building any maps, the encoders were tested

for their accuracy in localisation, by checking both

their speed and position measurements. To assess

speed accuracy, the motors were given a ﬁxed value

and the resulting reading compared with that of a laser

tachometer. To assess accurate positioning, the SW

was set to traverse a known distance, and the reported

encoder readings were compared with this value. For

speed, the encoder readings were found to be within

0.005m/s of the tachometer and the position readings

at a percentage error of around 2.5%, both of which

were satisfactory results. To test the laser rangeﬁnder

and mapping functionalities, a number of maps were

built for different indoor areas. Figure 10(a) shows

the map built for a laboratory inside the department.

Whilst this map came out dimensionally accurate

and well-deﬁned, others, such as the one shown in

Figure 10(b), were less so. While still dimensionally

accurate, many fringe error readings were also ob-

tained. This was due to the presence of reﬂective ma-

Smart Wheelchairs: Using Robotics to Bridge the Gap between Prototypes and Cost-effective Set-ups

187

terials in the area being mapped. However, even with

these errors, these issues would not have affected nav-

igation since they would still be eliminated through

the costmapping system.

6.2 Navigation

To assess the semi-autonomous navigation mode, a

number of cluttered environments were set up. One

such test result is shown in Figure 11. Here, the SW

was directed into the obstacle course, and its path

through it was tracked with the encoders. As shown

by the red arrows (the route followed by the SW)

in Figure 11, VFH+ was able to select the best path

through the obstacles, without collisions or sudden

movements/path decisions.

The fully-autonomous system was tested by com-

manding the wheelchair to navigate from one side of

the hall to the other, by selecting the destination on

the map using the touchscreen. After plotting the path

shown in Figure 10(b), the wheelchair was able to fol-

low each waypoint to the goal. Even when additional

unseen obstacles were added to the map, the SW was

able to navigate through safely until it reached the

goal destination, using its VFH system.

Velocity updates were made to reach the motors

in less than 0.2s; making the SW capable of react-

ing almost instantaneously in emergencies. Further

efﬁciency improvements could be possible by using

C++ rather than Python, but the current implementa-

tion was more than capable of handling the computa-

tional load within the selected update interval.

7 CONCLUSIONS

In this paper, a complete SW design process has

been detailed. A standard commercially available

PW was converted into a SW through the introduc-

tion of a novel modular hardware and software sys-

tem. Several autonomous capabilities were designed

and implemented into the architecture. All algorith-

ms and systems were tested in practical environments,

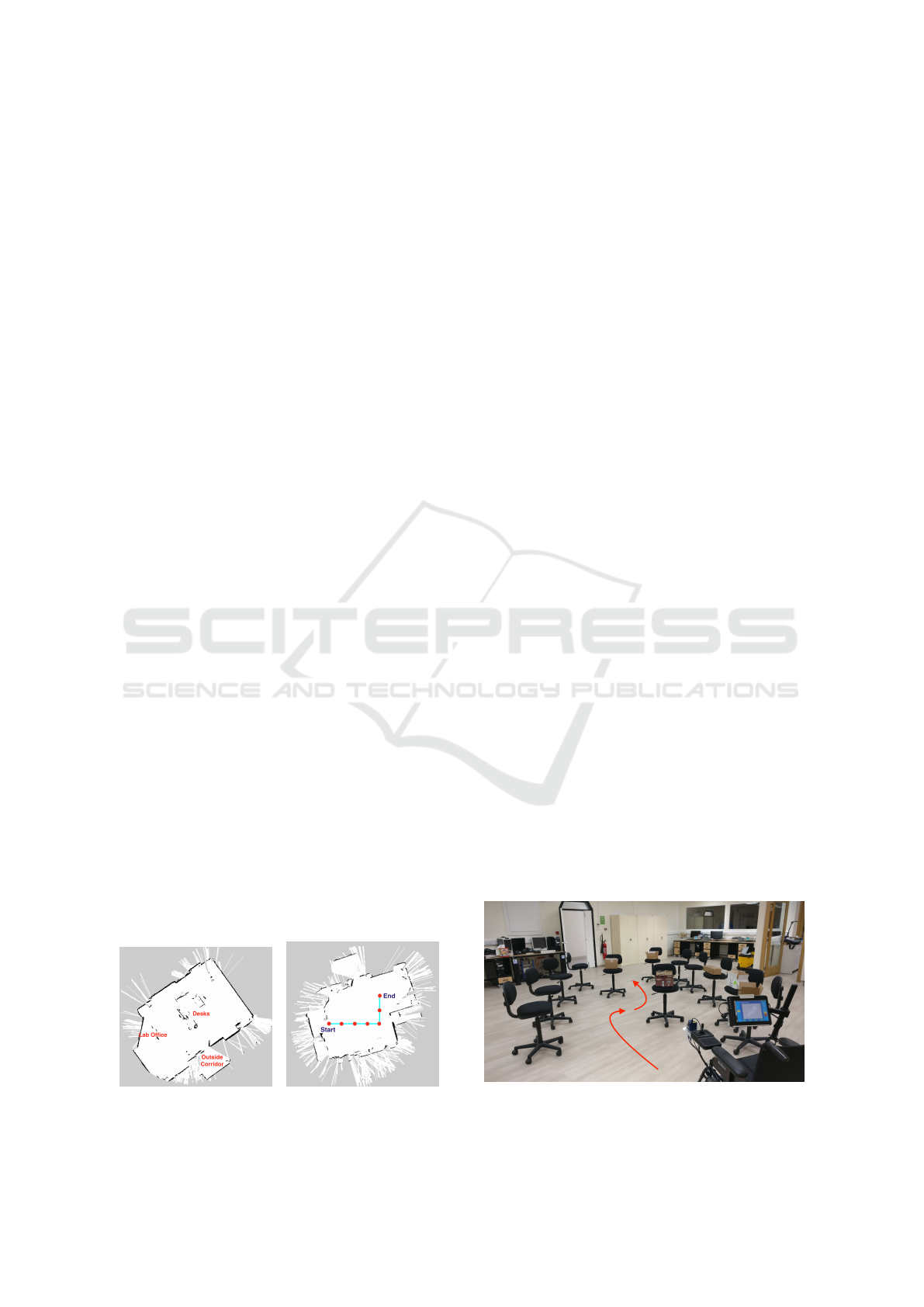

(a) Accurate map. (b) A* path planning.

Figure 10: Different maps obtained through SW mapping.

and their robustness veriﬁed using thorough experi-

ments.

This whole process was designed to ﬁt onto any

standard PW, using its own motors and battery. The

whole system can be taken as is, and attached to an-

other wheelchair. The costs for the whole prototype

(excluding the wheelchair frame) have been kept to

below e5000, with potential savings of more than

e1000 if certain prototyping functionalities are re-

moved. An integrated modular ROS system has been

built which can accommodate additional sensors and

computation nodes, whilst also speeding up further

development through the use of Python and its many

libraries.

This work has proven that a SW can economi-

cally be built on any existing PW frame with excel-

lent results. However, other factors such as practical-

ity, comfort and safety can be improved. Apart from

algorithmic enhancements, the system needs to be tri-

alled and thoroughly validated on actual patients. Us-

ing their feedback, additional features can be tailor-

made to the wishes of the target population or hard-

ware components can be modiﬁed to prioritize func-

tionality and comfort. Furthermore, protocols need

to be put in place to guard against accidents (such as

sensor failure or ﬂat tyres), providing safety cases for

both hardware and software breakdowns. This will re-

quire signiﬁcant changes to the navigation system to

allow the current algorithms to tackle uncertain situa-

tions, whilst keeping the safety of the user paramount

to any other task.

ACKNOWLEDGEMENTS

This work has been supported by the Research, Inno-

vation and Development Trust (RIDT) of the Univer-

sity of Malta along with APS Bank.

Special thanks goes to Mr. Noel Agius and the

University of Malta Workshop for their aid in assem-

bling the system hardware.

Figure 11: VFH+ avoiding obstacles in tight spaces.

ICINCO 2019 - 16th International Conference on Informatics in Control, Automation and Robotics

188

REFERENCES

BasicMicro (n.d.). MCP233. https://goo.gl/oogiQE. Re-

trieved February 20, 2019.

Borenstein, J. and Koren, Y. (1989). Real-Time Obstacle

Avoidance for Fast Mobile Robots. IEEE Transac-

tions on Systems, Man, and Cybernetics, 19(5):1179–

1187.

Borenstein, J. and Koren, Y. (1991). The Vector

Field Histogram-Fast Obstacle Avoidance for Mobile

Robots. IEEE Transactions on Robotics and Automa-

tion, 7(3):278–288.

Carlson, T. and Demiris, Y. (2012). Collaborative Con-

trol for a Robotic Wheelchair: Evaluation of Perfor-

mance, Attention, and Workload. IEEE Transactions

on Systems, Man, and Cybernetics, Part B (Cybernet-

ics), 42(3):876–888.

Cavanini, L., Benetazzo, F., Freddi, A., Longhi, S., and

Monteri

u, A. (2014). SLAM-based autonomous

wheelchair navigation system for AAL scenarios. In

2014 IEEE/ASME 10th International Conference on

Mechatronic and Embedded Systems and Applications

(MESA), pages 1–5.

Echefu, S., Lauzon, J., Bag, S., Kangutkar, R., Bhatt, A.,

and Ptucha, R. (2017). Milpet – The Self-Driving

Wheelchair. In Electronic Imaging, volume 2017,

pages 41–49.

Fox, D., Burgard, W., and Thrun, S. (1995). The Dynamic

Window Approach to Collision Avoidance. Technical

report.

Hart, P. E., Nilsson, N. J., and Raphael, B. (1968). A Formal

Basis for the Heuristic Determination of Minimum

Cost Paths. IEEE Transactions on Systems Science

and Cybernetics, 4(2):100–107.

Hemachandra, S., Kollar, T., Roy, N., and Teller, S. (2011).

Following and Interpreting Narrated Guided Tours. In

2011 IEEE International Conference on Robotics and

Automation, pages 2574–2579.

Hengstler (n.d.). Icuro RI36 Encoders. https://goo.gl/

hWDLmh. Retrieved February 20, 2019.

Hokuyo (n.d.). UBG-04LX-F01. https://goo.gl/TzfEvh. Re-

trieved February 20, 2019.

Intel (n.d.). NUC7I7BNH. https://goo.gl/ZqkN6v. Re-

trieved February 20, 2019.

Kinpara, Y., Takano, E., Kobayashi, Y., and Kuno, Y.

(2011). Situation-Driven Control of a Robotic

Wheelchair to Follow a Caregiver. In 2011 17th

Korea-Japan Joint Workshop on Frontiers of Com-

puter Vision (FCV), pages 1–6.

Kivy (n.d.). Kivy Homepage. https://kivy.org/. Retrieved

February 20, 2019.

Koenig, S. and Likhachev, M. (2002). D*Lite. In Eigh-

teenth National Conference on Artiﬁcial Intelligence,

pages 476–483, Menlo Park, CA, USA. American As-

sociation for Artiﬁcial Intelligence.

Leaman, J. and La, H. M. (2017). A Comprehensive Re-

view of Smart Wheelchairs: Past, Present, and Fu-

ture. IEEE Transactions on Human-Machine Systems,

47(4):486–499.

Leaman, J., La, H. M., and Nguyen, L. (2016). Develop-

ment of a smart wheelchair for people with disabili-

ties. In 2016 IEEE International Conference on Mul-

tisensor Fusion and Integration for Intelligent Systems

(MFI), pages 279–284.

Levine, S. P., Bell, D. A., Jaros, L. A., Simpson, R. C., Ko-

ren, Y., and Borenstein, J. (1999). The NavChair As-

sistive Wheelchair Navigation System. IEEE Trans-

actions on Rehabilitation Engineering, 7(4):443–451.

Maxbotix (n.d.). MB1413 USB Ultrasonic Sensors. https:

//goo.gl/Lh9W2d. Retrieved February 20, 2019.

Nasri, Y., Vauchey, V., Khemmar, R., Ragot, N., Sirlantzis,

K., and Ertaud, J.-Y. (2016). ROS-based Autonomous

Navigation Wheelchair using Omnidirectional Sen-

sor. International Journal of Computer Applications,

133(6):12–17. Published by Foundation of Computer

Science (FCS), NY, USA.

openSLAM (n.d.). Gmapping. http://openslam.org/

gmapping.html. Retrieved February 20, 2019.

ROS (n.d.a). AMCL Package. http://wiki.ros.org/amcl. Re-

trieved February 20, 2019.

ROS (n.d.b). Costmaps Package. http://wiki.ros.org/

costmap 2d. Retrieved February 20, 2019.

ROS (n.d.c). Gmapping Package. http://wiki.ros.org/

gmapping. Retrieved February 20, 2019.

ROS (n.d.d). Navigation Stack. http://wiki.ros.org/

navigation. Retrieved February 20, 2019.

ROS (n.d.e). ROS Main Page. http://www.ros.org. Re-

trieved February 20, 2019.

ROS (n.d.f). TF Package. http://wiki.ros.org/tf. Retrieved

February 20, 2019.

ROS (n.d.g). Urg Node. http://wiki.ros.org/urg node. Re-

trieved February 20, 2019.

Simpson, R. (2005). Smart wheelchairs: A Literature Re-

view. In Journal of rehabilitation research and devel-

opment, volume 42, pages 423–438.

Simpson, R., Lopresti, E., and A Cooper, R. (2008).

How Many People Would Beneﬁt from a Smart

Wheelchair? In Journal of rehabilitation research and

development, volume 45, pages 53–71.

Surace (n.d.). 715 Magic Power Wheelchair. https://goo.gl/

gDK53W. Retrieved February 20, 2019.

Ubuntu (n.d.). Ubuntu Main Page. https://www.ubuntu.

com. Retrieved February 20, 2019.

Ulrich, I. and Borenstein, J. (1998). VFH+: Reliable Ob-

stacle Avoidance for Fast Mobile Robots. In Pro-

ceedings. 1998 IEEE International Conference on

Robotics and Automation (Cat. No.98CH36146), vol-

ume 2, pages 1572–1577 vol.2.

Smart Wheelchairs: Using Robotics to Bridge the Gap between Prototypes and Cost-effective Set-ups

189
