Towards Risk-aware Scheduling of Enterprise Architecture Roadmaps

Christophe Ponsard, Fabian Germeau and Gustavo Ospina

CETIC Research Centre, Charleroi, Belgium

Keywords: Enterprise Architecture, Risk Management, Meta-modelling, Optimisation.

Abstract:

Enterprises need to keep their organisation aligned with their business objectives. Enterprise Architecture

provides a way to identify the current and target states as well as deﬁning the evolution roadmap taking the

form of a complex project portfolio. Conducting changes requires to deal with the occurrence of several risks

at the project level which can affect strategic decisions. This paper investigates how to optimally deal with

such risks in the global scheduling process. We start by identifying and structuring risks and projects concepts

based on a domain model. We then identify a set of risks and related management scenarios. Experiments

in risk control are carried out using two local search optimisation tools able to consider risk information

in addition with inter-project and resource dependencies. We show the feasibility of efﬁciently anticipating

risks and even dynamically adapting the scheduling. A dedicated focus is set on speciﬁc characteristics of IT

projects.

1 INTRODUCTION

Enterprise Architecture (EA) is discipline for proac-

tively and holistically leading enterprise responses

to disruptive forces by identifying and analysing the

execution of change toward desired business vision

and outcomes (Gartner, 2014). EA supports a set of

well-deﬁned practices for conducting enterprise anal-

ysis, design, planning, and implementation, using a

comprehensive approach at all times, for the success-

ful development and execution of strategy (FEAPO,

2013). EA can also be viewed as a knowledge hub

integrating and sharing information on various struc-

tures across the enterprise and the business transfor-

mation value chain, as depicted in Figure 1.

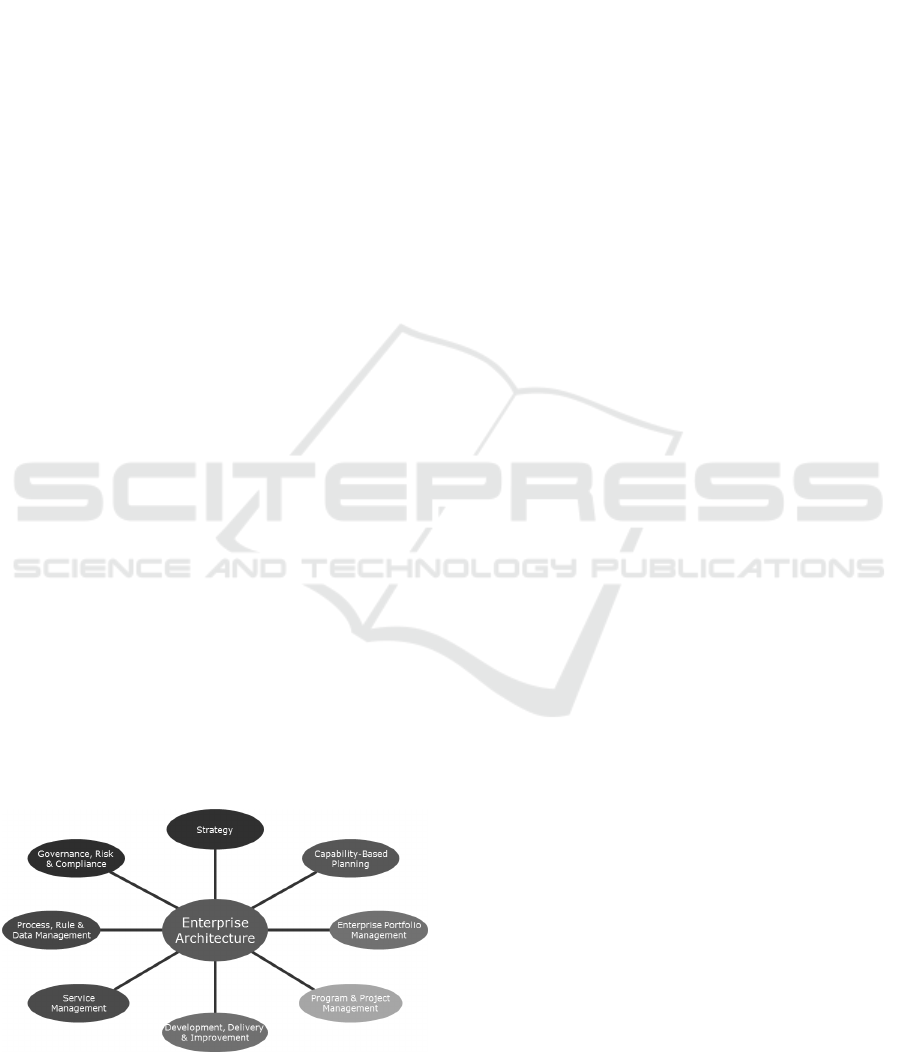

Figure 1: Enterprise architecture as knowledge hub.

The execution of change is carried out through a

set of projects. Each project is a temporary endeav-

our undertaken to create a unique product, service, or

result (PMI, 2008). A key role of EA is thus to de-

ﬁne and manage a global roadmap of related projects

to conduct the required change for keeping the enter-

prise aligned with its business objectives. Managing

such a project portfolio is not an easy task for many

reasons:

• the need to ensure the business continuity of the

enterprise while transforming it.

• usually complex dependencies between projects

reﬂecting the current state of its organisation and

IT infrastructure (including technical debt).

• priority constraints for reaching speciﬁc mile-

stones in due time.

• limited internal resource/budget to staff projects.

Projects can face many problems that can cause

failures, delays or budget overruns. Project Manage-

ment (PM) is especially recognised as severe in the IT

sector where about half of the projects are challenged

and 20% still fail (Standish Group, 2015). Project risk

management is a well-deﬁned discipline with stan-

dards or frameworks like PRINCE2(Murray, 2009),

PMBOK(PMI, 2008) and ISO31000(ISO, 2009) are

available.

Managing risks at the portfolio level is more com-

plex. Enterprise Architecture provides a set of com-

plementary viewpoints: business view (strategy, gov-

ernance, organisation, and key business processes),

696

Ponsard, C., Germeau, F. and Ospina, G.

Towards Risk-aware Scheduling of Enterprise Architecture Roadmaps.

DOI: 10.5220/0007799806960702

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 696-702

ISBN: 978-989-758-372-8

 2019 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

data view (logical and physical data assets), applica-

tion view (IT component and their interrelationships),

and technical view (hardware, software, and network

infrastructure). From those viewpoints, a risk ap-

proach can be carried out so that risks can be iden-

tiﬁed and addressed. Some risks can be directly man-

aged, e.g. to address the challenge of the digital trans-

formation more IT experts might be needed which

is done through the hiring/training process. Other

risks will be addressed by the speciﬁc project, which

means that the risks landscape is itself evolving across

projects, e.g. an obsolete component needs to be re-

placed but in the meanwhile other projects may need

to deal with performance or reliability issues of that

component.

Risk and risk-related activities like capability and

project management is part of the global EA vision

as depicted in Figure 1. Some EA frameworks also

provide direct support and guidance to capture risks

in speciﬁc EA viewpoints. The Open Group Archi-

tecture Framework (TOGAF) has a dedicated chapter

for risk management, including risk classiﬁcation, ini-

tial/residual assessment, and monitoring (The Open

Group, 2009). ArchiMate does not support risk as

ﬁrst class concept but provides language customisa-

tion mechanisms allowing one to capture specialised

concepts (The Open Group, 2017). A risk mapping

is given as informative example and more elaborated

mappings are also available (Jonkers, 2014).

Taking decision on how to best anticipate and

manage risks when they materialise is quite difﬁ-

cult in the context of enterprise architecture given the

complexity of the associated roadmap. Enterprises,

especially smaller ones, usually use only simple and

short-term strategies with reduced tool support. The

purpose of this paper is to explore a better method-

ological and tool support to cope with this problem.

This work goes beyond EA which is not about the

timing but only on the sequence to progress from an

as-is to a to-be situation. Hence, more information

is required about available resources and budget to

drive the planning. In order to maximise the chance

to reach the to-be state within resource constraints, the

planning need to take all relevant risks into account,

especially those inferred from the EA model and the

resources capabilities. Our paper takes the following

approach:

• capture relevant information for carrying out a

risk-aware roadmap execution, i.e. both risk and

project information. We propose a domain model

combining these dimensions. This provides the

reference scheme for reasoning and later integrat-

ing tool support.

• identify a series of risks potentially impacting

roadmap execution and deﬁning some measures

to address them.

• perform experiments about practical tool support

that can be applied to deal with risks by adapting

scheduling tools.

Our research is still in an early phase. We focus

here on the meta-model and do not claim to be ex-

haustive about the studied risks scenarios. Our tech-

nological assessment is mainly oriented to technical

feasibility in order to manage risk-based constraints.

The paper structure reﬂects our approach. Section

2 reviews some existing meta-models for project and

risk management. Section 3 proposes a uniﬁed do-

main model over those aspects. Section 4 discusses

some risks scenarios while Section 5 shows some re-

sults using scheduling tools. Finally, Section 6 con-

cludes and presents our next steps.

2 OVERVIEW OF EXISTING

PROJECT META-MODELS

Different domain models or meta-models have been

deﬁned in the literature, mainly from two sources:

Project Management and Enterprise Architecture

frameworks. They have slightly different scopes al-

though the global structure is quite similar: they con-

sider portfolio/program that gather projects and go in

the details of projects at different levels of granularity.

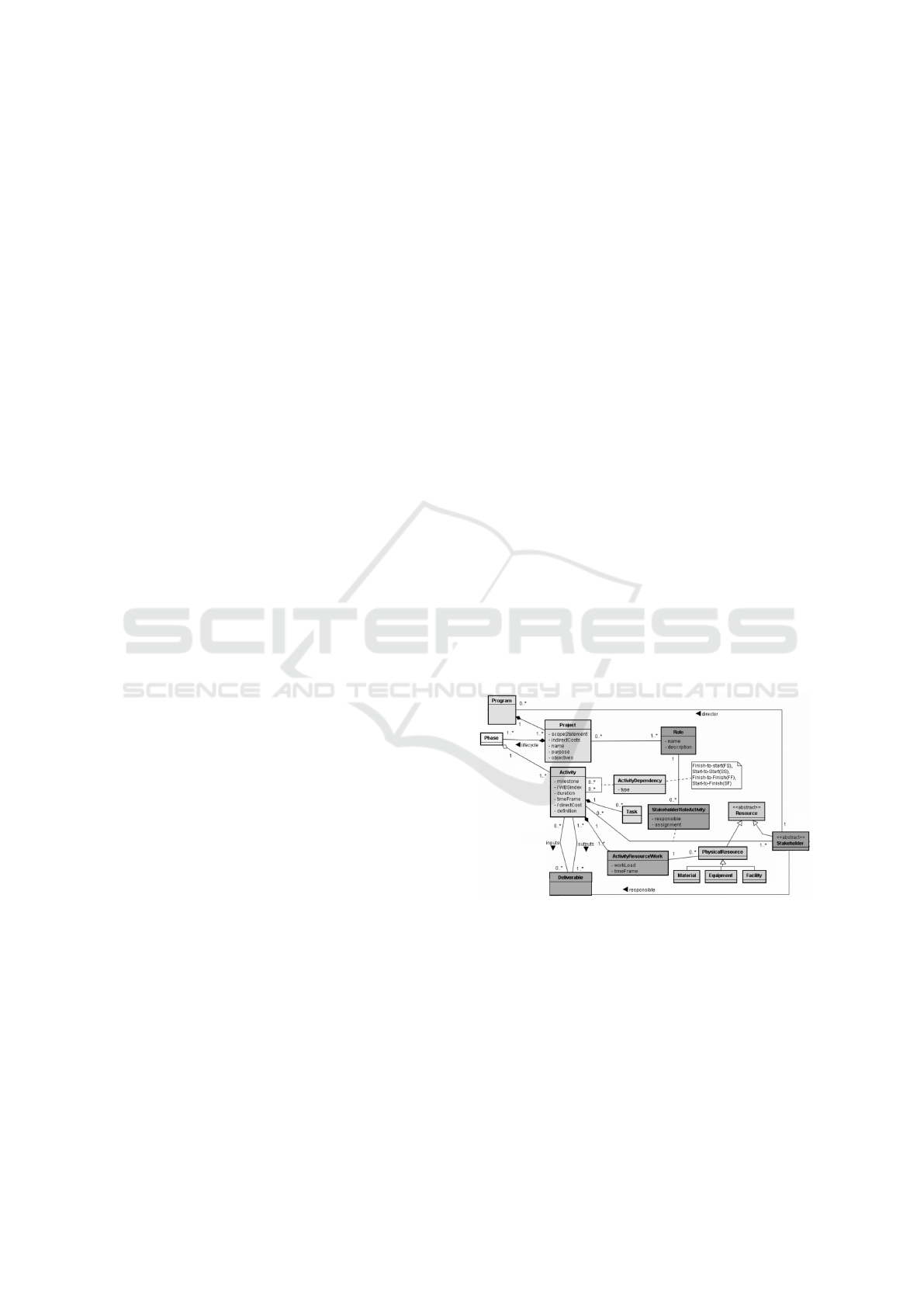

Figure 2: Partial projet meta-model from PMBOK.

As expected, PM frameworks focus more on the

project concept and provide details in terms of op-

erational concepts like task/activities, resources in-

volved and products/deliverables. As example, Figure

2 shows the meta-model proposed by PMBOK (PMI,

2008). Other meta-models quite similar in nature

have been proposed by other frameworks like RUP

and OPEN. An attempt to deﬁne a common global

meta-model is described in (Martins and da Silva,

2005). However, they tend to become unnecessarily

complex and are mainly useful for interoperability.

Towards Risk-aware Scheduling of Enterprise Architecture Roadmaps

697

Another characteristic of those meta-models is that

they do not make explicit reference to risks although

they capture risk factors.

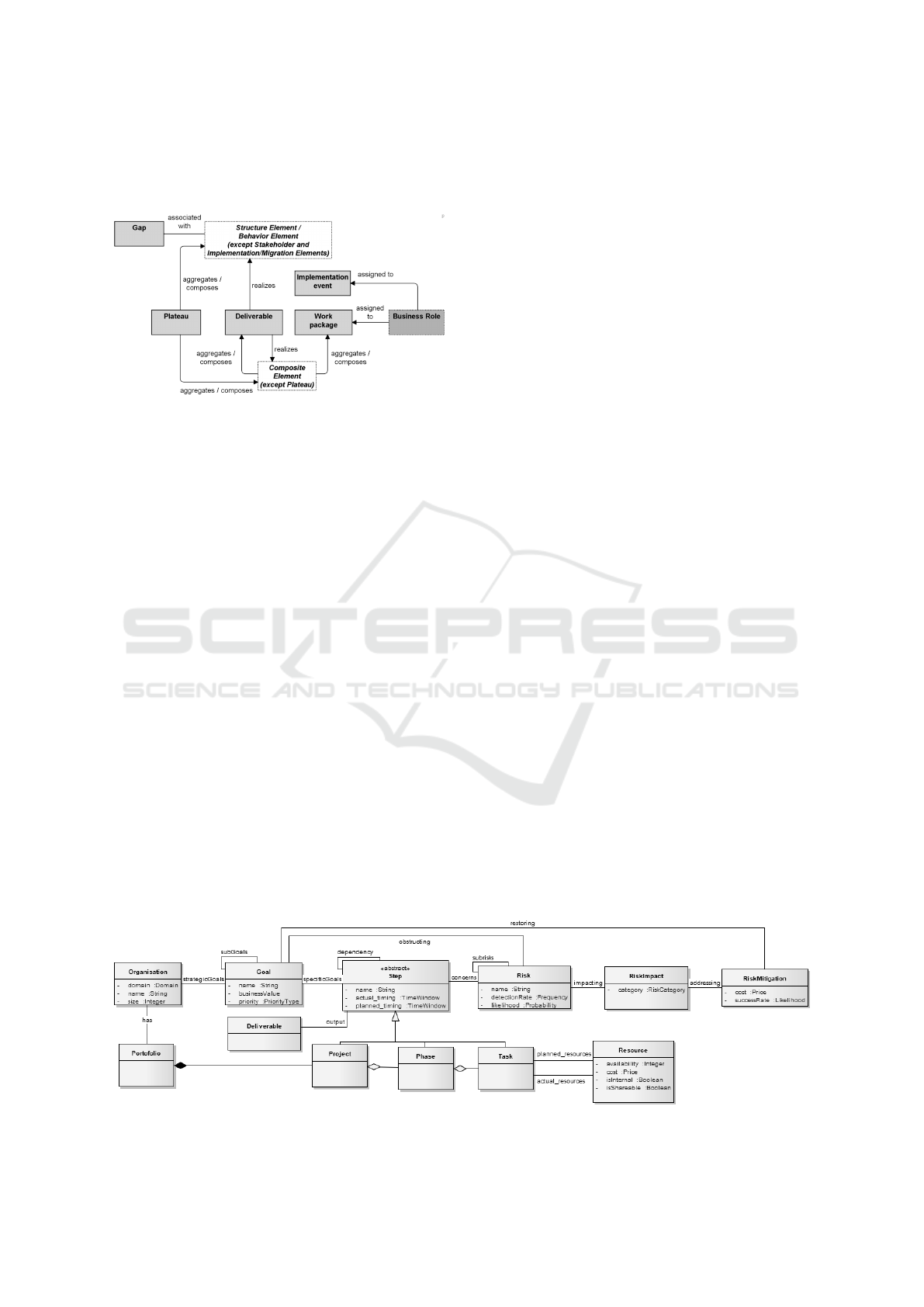

Figure 3: Project concepts of the ArchiMate meta-model.

EA frameworks target a broader perspective mak-

ing links with goals, business services, infrastructure

and have a more abstract notion of project. As shown

in Figure 3, ArchiMate use the notion of “Imple-

mentation Events” to describe the transition between

successive states named “Plateau” (The Open Group,

2017). However, some frameworks like Alfabet (Soft-

wareAG, 2015) do have an explicit concept of project.

All EA frameworks include some form of risk man-

agement. Surprisingly, the risk concept itself is sel-

dom explicitly present in the framework meta-model.

The ArchiMate 3.0 speciﬁcation states risks as an im-

portant EA aspect but does not cover them. TOGAF

requires a speciﬁc meta-model extension to deal with

risks(The Open Group, 2009).

3 PROPOSED UNIFIED DOMAIN

MODEL

The previous section has highlighted the need to be

able to characterise projects in relation with risks in

order to cover classical risks (typically by addressing

the quality/cost/delay equation) but also to be able to

cope with the introduction of domain speciﬁc risks.

In order to provide a strong rationale when build-

ing our meta-model and making also sure it would

enable to express risks in a quantitative way, we

applied the obstacle reﬁnement technique borrowed

from Goal Oriented Requirements Engineering(van

Lamsweerde, 2009). The starting point is a set of key

project goals which are challenged by risks (modelled

as obstacles) that are reﬁned down to the point to be

measurable on model elements. At this point, miti-

gation strategies can also be deployed, but our focus

here is more on identifying key model elements that

needs to be captured. We shortly highlight the pro-

cess in structured text on the delay goal, i.e. the risk

of project overrun:

,→ project deadline unrealisable → pro ject.deadline

(attribute in meta-model)

,→ reduced margins between tasks

,→ some tasks could to be late

,→ unreliable estimate of task duration

→ task. plannedDuration

,→ required resource unavailable

→ resource.availability

,→ task plannedResource vs actualResource

,→ possible unavailability rate of resource

,→ etc.

The resulting meta-model is shown in Figure 4.

Projects are structured steps at different abstraction

levels: portfolio, phase and tasks. Those can be used

at the required level of granularity. Each step has a

planned time interval for its completion and will even-

tually be completed in an actual time interval. Each

step targets the production of some deliverable that

is the concrete achievement of some operational goal

which is aligned with strategic goals of the organisa-

tion. It also requires a set of resources of some type

(e.g. monetary, time of material type) to guarantee its

completion at some cost of which an actual set will be

devoted. Risks can affect steps at various levels and

obstruct the related goal. They are characterised by

both their likelihood and impact. Impacts categories

are deﬁned and can be populated with generic risk

types (resource unavailability) and more domain spe-

ciﬁc ones like production machine breakdown. Risks

Figure 4: Resulting meta-model.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

698

can be reﬁned into sub-risks and speciﬁc mitigation

actions can address them in order to restore the re-

lated goal. Like risks, different categories of mitiga-

tion actions can be foreseen and evolved based both

on generic or domain speciﬁc strategies. In the pro-

cess, costs can be considered, including for deploying

some risk mitigation to guide its selection.

4 IDENTIFICATION OF RISK

SCENARIOS AND RELATED

MEASURES

This section reviews a few risks that can arise in the

execution of a complex project portfolio and identiﬁes

some measures that can be used to address them. We

especially identify measures that can be automatically

explored by a scheduling process. As usual, the two

risk factors requiring to be analysed are likelihood and

impact.

4.1 Inherent Risk of an Speciﬁc Task

A task considered alone independently of its links

with other tasks or the required resources can be more

or be less risky given its nature and the enterprise con-

text. Information provided by different viewpoints

can directly help in estimating the risks, mainly at the

impact level: are they bound to a strategic goal of the

company? Do they impact many processes, applica-

tions or technologies? Are there alternative paths to

reach the same result?

Reducing risks can be done in designing the

roadmap itself to provide some backup solution or al-

ternatives. A typical classiﬁcation of risks will ad-

dress the following dimensions:

• scope risks: new requirements, strategic change.

• scheduling risks: related to estimation, inter-

nal/external dependencies.

• resource risks: capability and availability.

• technology risks: related to hardware and soft-

ware availability, reliability, security issues.

• environment risks, e.g. regulation, government,

market, suppliers’ issues.

• management risks: related to organisation com-

plexity, available skills, bureaucracy.

Scheduling and resource risks directly affect the

planning and will be detailed in the rest of the sec-

tion. Other risks need to be managed at the organisa-

tion level. The residual risks should be considered in

terms of possible delays or failures w.r.t. other tasks,

depending on the correct achievement of this task.

4.2 Portfolio Structure Risks

A few risks can be inferred from the project portfo-

lio structure. Our meta-model can capture those de-

pendencies at different levels. At least project level

dependencies need to be analysed and of course the

related critical path to meet the target deadline should

be identiﬁed. Speciﬁc constraints on project start time

might also be imposed due to external constraints (de-

pendency on external project/resource/technology) or

ﬁnancial issues (e.g. yearly budget approval).

Dependency impact of a task can be quantiﬁed

based on indicators related to its presence on the criti-

cal path and on the number of downstream dependen-

cies. A riskier task should be scheduled in priority

to enable better recovery in case of delay. However,

the global duration of each project and effort splitting

across project should also be kept under control.

4.3 Resource Related Risks

A resource level characteristics (not all reﬂected in

Figure 4) is the level of reliability of the resource and

characterise the risk likelihood. For a process/ma-

chine, it is the mean time between failures (MTBF).

For people, it can be related to the level of expertise

w.r.t the task or some evaluation of their competency.

The global capacity should also be taken into account,

e.g. if a risky task needs to be reinforced, some re-

sources should be available or another less important

project should accept to be delayed. It is also possi-

ble to explore different alternatives to reach the same

result by different combinations of task durations and

intensity of allocations. However, the functional de-

pendency can be complex, as discussed in the next

point.

4.4 Domain Speciﬁc Risks (IT projects)

In many ﬁelds of project management and especially

in the IT domain, it is well-known that adding man-

power to a task will not result in a proportional

speedup and is even totally ineffective at some point

in the project, i.e. “adding human resources to a late

software project makes it later” (Brooks, 1978). This

means that adding more resource in this case is not an

option. Such known impact needs to be modelled ad-

equately to rule out the generation of such schedules.

For a risky project, it is better to have secured the right

level of resource and to have some safety margins.

Towards Risk-aware Scheduling of Enterprise Architecture Roadmaps

699

5 RISK SCHEDULING

EXPERIMENTS

5.1 Tooling Used

In order to carry out risk scheduling experiments, two

Open Source tools where investigated. Both are based

on local search techniques which is the recommended

approach to deal with complex scheduling problems,

although it does not provide guarantee to ﬁnd an op-

timal solution. These tools are:

• OptaPlanner, a lightweight, embeddable, planning

engine written in Java (Smet, 2006). It solves

constraint satisfaction problems with construction

heuristics and meta-heuristic algorithms. It pro-

vides support for scheduling with resources and

modes which can be enhanced to deal with risks.

• OscaR is Scala toolkit for solving Operations Re-

search problems with two main engines: Con-

straint Programming (CP) and Constraint-Based

Local Search (CBLS) (OscaR, 2012). The sec-

ond engine can efﬁciently solve complex schedul-

ing problems through incremental evaluation

of neighbourhood search(Van Hentenryck and

Michel, 2005). OscaR also provides a high level

description language for models and search proce-

dures but has limited built-in support for schedul-

ing.

The tooling was used in development mode and

was also integrated inside Redmine, a complete web-

based Open Source PM environment (Lang, 2006)

which supports bug/task management and contains a

basic Gantt viewer. It also provides a REST API for

easing scheduler integration.

5.2 Scenario#1 - Independent Tasks

with Increasing Risk Level

This simple scenario just considers a simple portfo-

lio of 5 tasks without any dependency but relying on

a single resource. It applies a penalty that is propor-

tional to the risk level and start date of the tasks. This

can be stated in OscaR.CBLS using the following ob-

jective function:

val a ctR i s k = Array . tabul a t e ( size )

( i = > { pb . s ta r t T im e s ( i ) * penal t y *i })

val globa l R is k : O b j ec t i v e = Sum ( a c t R isk )

Figure 5 shows the results where the tasks are exe-

cuted in reverse order so that riskier tasks are executed

sooner.

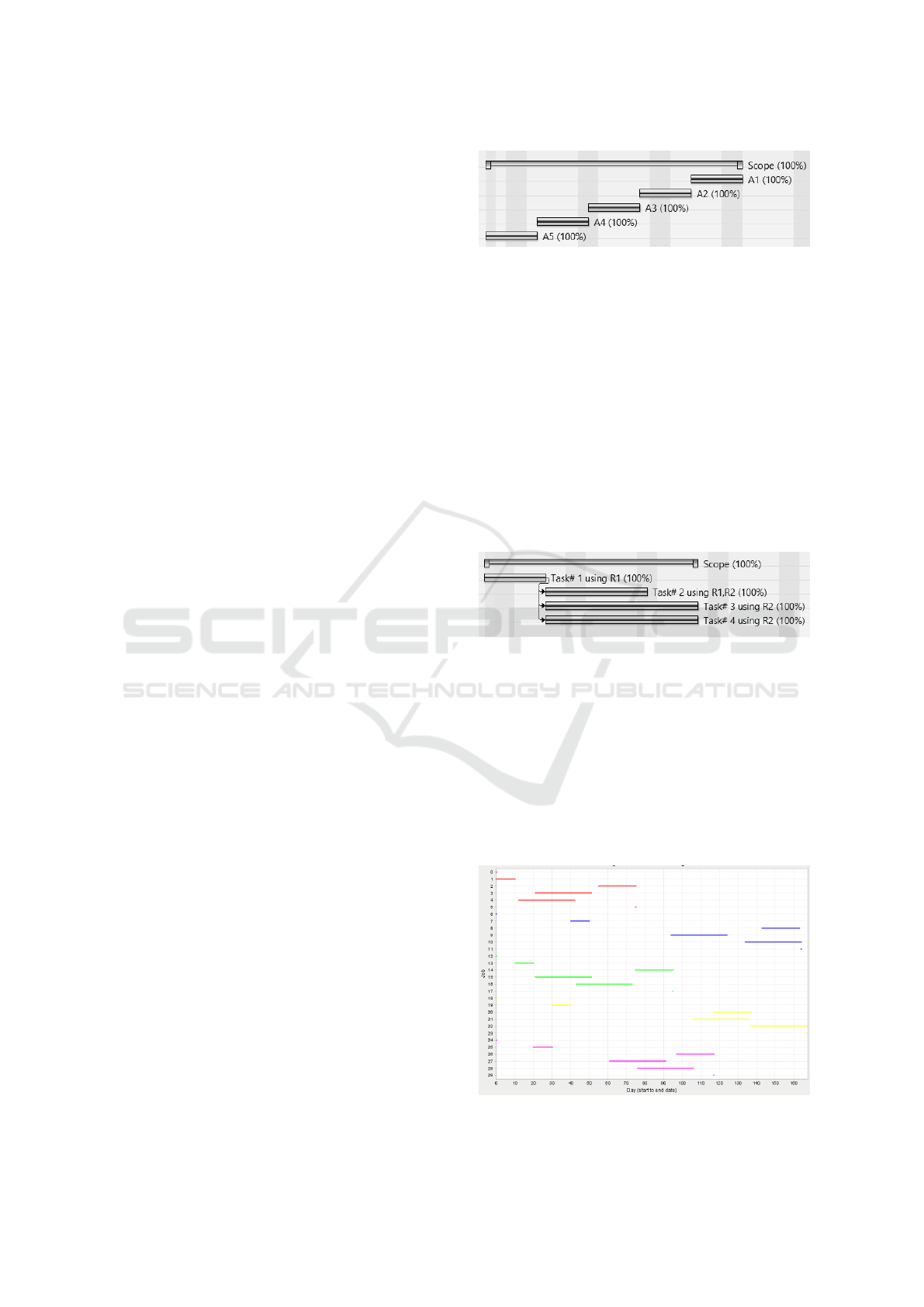

Figure 5: Scenario of independent tasks with increasing

risk.

5.3 Scenario#2 - Starting Risky Tasks

Earlier

In the three next scenarios, we will consider a port-

folio composed of 5 instances of a similar project

structure depicted in Figure 6. Task#1 is a blocker

for 3 subsequent tasks. At resource level, task#1 and

task#2 both need resource R#1 while task#2, task#3

and task#4 require resource R#2. Globally, only one

instance of R#1 and three instances of R#2 are avail-

able to make the problem a bit constrained. This ex-

ample contains enough complexity while still easy to

depict and to explain using readable Gantt diagrams.

Figure 6: Simple project structure.

Figure 7 shows the result achieved by OptaPlanner

with an objective function rewarding for early start of

critical task#1 in all projects. The best possible re-

sult could be achieved with all projects intertwining

to start this task. At the performance level, only basic

search operators (insert/retract/swap) were used and

reaching this optimal solution required about 30 sec-

onds search time in verbose mode. It could probably

be improved with a smarter way to select neighbour-

hood candidates.

Figure 7: Scheduling to cope with risky tasks early.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

700

5.4 Scenario#3 - Limit Scattering

While controlling the risk of critical tasks, the previ-

ous roadmap schedule has the drawback of running

many projects in parallel. This results in a longer

project duration, which is a known risk because of

resource switching overhead and also having projects

on hold for quite a while, e.g. project #3 in Figure 7.

A strategy to cope with this is to minimise

project duration by using a score that rewards shorter

projects. It can be expressed as follows using Op-

taPlanner (in a inefﬁcient non-incremental evaluation

mode). Note that the notion of soft score is for

minimisation, while resource allocation is strictly en-

forced through hard constraints.

so f t 0 Sc o r e =0;

for( Projec t p : pr o j E n d Da t e M a p . k e y Set ()){

int ed = pr o j En d Da t e M a p . get ( p );

int sd = pr o j S t a r t D a t e Ma p . get ( p );

so f t 0 Sc o r e += ( sd - ed );

}

Figure 8 shows the result easily found by Opta-

Planner. The global duration is the same as in the pre-

vious scenario. Of course, achieving compact sched-

ules means starting some projects later and is thus not

compatible with the previous scenario: in this case,

the latest project is started after 90 time units rather

than 40 before.

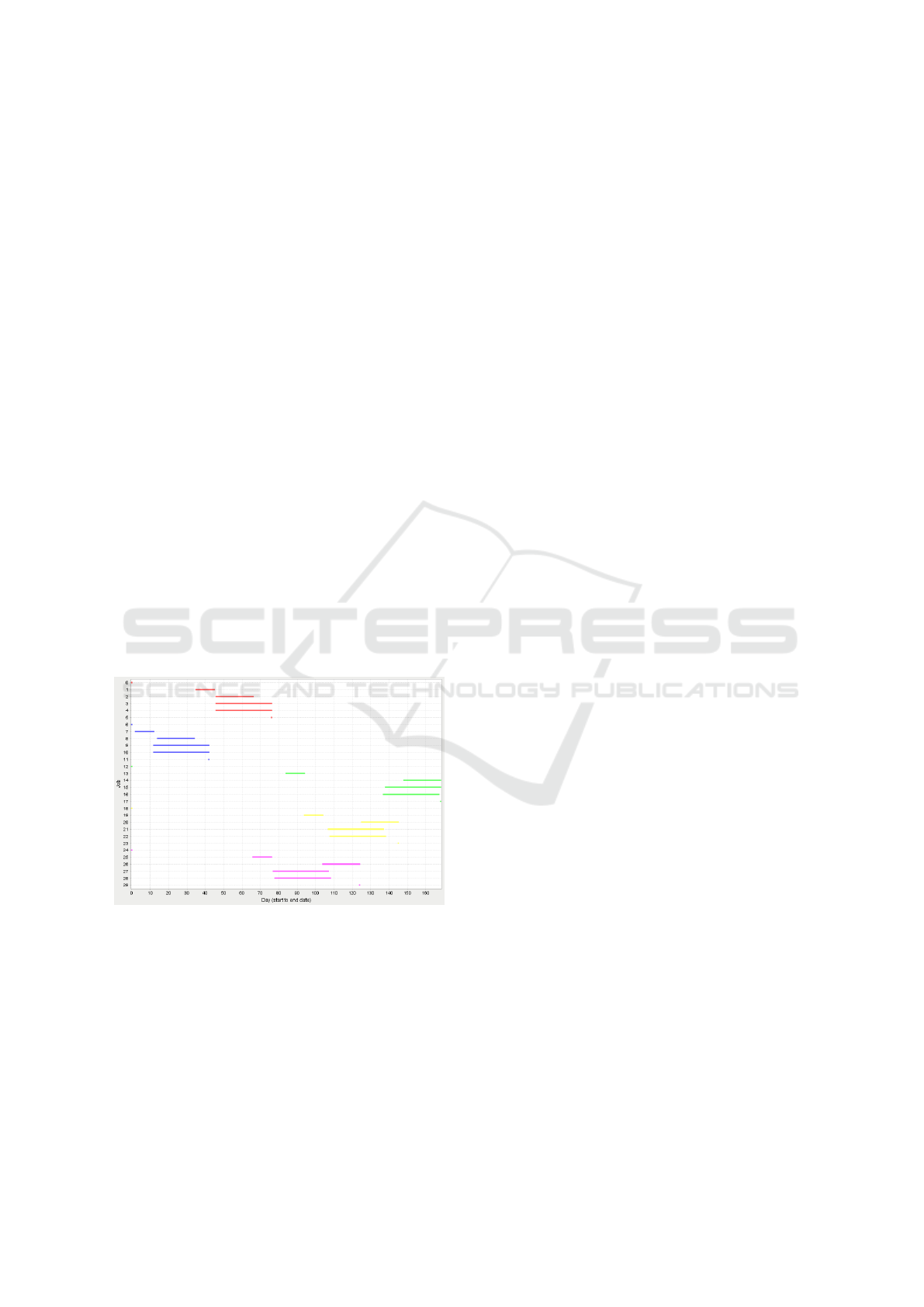

Figure 8: Scheduling to minimise project duration risks.

5.5 Scenario#4 - Redmine Integration

In this scenario, we connected the OscaR-based

scheduler with a Redmine application (Lang, 2006).

The REST API was used to retrieve the whole project

and risk information matching our risk meta-model

described in Section 3. For risk support, a dedicated

plugin was used. The results are shown in a schedul-

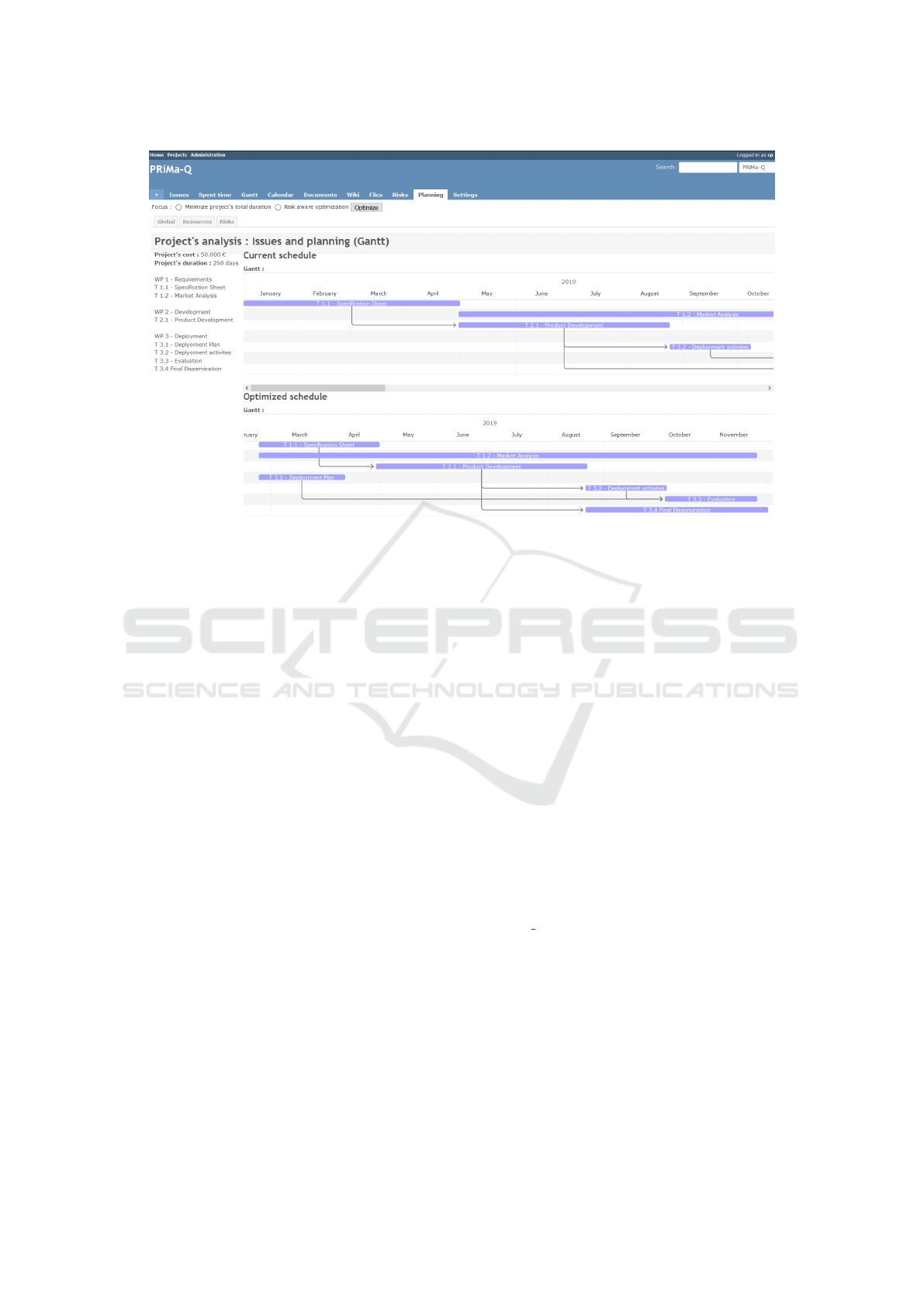

ing page featuring two Gantt diagrams, respectively

before and after optimisation as depicted in Figure 9.

A view of resource load over time is also available

from a separate tab. The platform is available online

in read only mode without registration need at this

URL: http://prima-q.cetic.be.

Figure 9 shows the Gantt of a two-year project in-

volving mainly six people (actually the project sup-

porting this research). The optimisation reveals that

some tasks could have been started earlier and that

progress could have been achieved with more tasks in

parallel. However, this does not totally reﬂect all task

constraints and resource availabilities. This means

that the result of the optimisation should be analysed

carefully to make sure it relies on accurate data and to

include some margins for the unforeseen.

6 CONCLUSION AND NEXT

STEPS

In this paper, we have presented our approach to cap-

ture and model risks within the scope of an enter-

prise architecture roadmap and with the goal to per-

form risk-aware scheduling. We proposed a reference

meta-model inspired from both the project and risk

literature. Looking at different risks arising in enter-

prise operation, we identiﬁed a few of them directly

impacting the scheduling, as well as measures to ad-

dress them. Finally, we had some practical experi-

ments with mature open source optimisation tools.

Our results so far are encouraging as we were

successful in deploying our risk management strate-

gies. Although our experiments are still of reduced

size, the tooling showed the ability to scale, especially

the OscaR tool which was also integrated with a pre-

operational Redmine environment. In this respect, the

developed meta-model proved useful to develop the

required integration layer. We believe it can help oth-

ers to map all relevant concepts into their own frame-

work and tooling.

Going beyond this feasibility step, the next steps

of our research are to investigate:

• more elaborated classiﬁcations of risks impacting

the scheduling of the roadmap.

• the use of alternatives in project roadmaps and dif-

ferent possible implementations of tasks (e.g. du-

ration vs intensity).

• more thoroughly the literature, especially related

to Project Portfolio Management, System of Sys-

tems (Gillespie et al., 2017) and considering spe-

ciﬁc SME needs (Marcelino-S

adaba et al., 2014).

• how to make our tooling adequate for use by

SMEs for the kind of EA projects they have to

manage, in the line with our earlier work in this

Towards Risk-aware Scheduling of Enterprise Architecture Roadmaps

701

Figure 9: Redmine integration of the risk-aware scheduling.

area (Ponsard and Majchrowski, 2015).

ACKNOWLEDGEMENTS

This work was partly funded by the PRIMa-Q COR-

NET research project (nr.1610088) from the Walloon

Region of Belgium and the German Federation of In-

dustrial Research Associations (AiF). We thank our

User Committee, especially Respect-IT and LabNaf.

REFERENCES

Brooks, Jr., F. P. (1978). The Mythical Man-Month: Essays

on Softw. Addison-Wesley Longman Publishing Co.,

Inc., Boston, MA, USA, 1st edition.

FEAPO (2013). Common Perspectives on Enterprise Archi-

tecture. Federation of EA Professional Organizations,

Architecture and Governance Magazine. Issue 9.

Gartner (2014). Gartner it glossary - enterprise architecture.

https://www.gartner.com/it-glossary.

Gillespie, S. E. et al. (2017). System of systems architecture

feasibility analysis to support tradespace exploration.

In 12th System of Systems Engineering Conference,

SoSE 2017, Waikoloa, HI, USA, June 18-21.

ISO (2009). Risk management – principles and guidelines.

ISO 31000.

Jonkers, H. (2014). Enterprise architecture-based risk

assessment with archimate. https://bizzdesign.com/

blog.

Lang, J.-P. (2006). Redmine. http://www.redmine.org.

Marcelino-S

adaba, S. et al. (2014). Project risk manage-

ment methodology for small ﬁrms. Int. Journal of

Project Management, 32(2):327 – 340.

Martins, P. V. and da Silva, A. R. (2005). PIT-P2M: Projec-

tIT Process and Project Metamodel. In Proc. of OTM

Confederated Int. Conf. on the Move to Meaningful

Internet Systems. Springer-Verlag.

Murray, A. (2009). Managing successful projects with

PRINCE2. TSO, Norwich.

OscaR (2012). OscaR: Scala in OR. https://bitbucket.org/

oscarlib/oscar.

PMI (2008). A Guide to the Project Management Body

of Knowledge (PMBOK Guide), 4th Edition. Project

Management Institute.

Ponsard, C. and Majchrowski, A. (2015). Driving the adop-

tion of enterprise architecture inside small companies

- lessons learnt from a long term case study. In Proc.

of Int. Conf. on Enterprise Information Systems.

Smet, G. D. (2006). OptaPlanner Open Source Constraint

Solver. http://www.optaplanner.org.

SoftwareAG (2015). Alfabet, Enterprise Architecture Man-

agement. www2.softwareag.com/corporate/products/

aris alfabet/eam.

Standish Group (2015). CHAOS Report. http://www.

standishgroup.com.

The Open Group (2009). TOGAF - The Open Group Ar-

chitecture Framework V9.

The Open Group (2017). Archimate 3.0.1. http://pubs.

opengroup.org/architecture/archimate3-doc.

Van Hentenryck, P. and Michel, L. (2005). Constraint-

Based Local Search. The MIT Press.

van Lamsweerde, A. (2009). Requirements Engineering -

From System Goals to UML Models to Software Spec-

iﬁcations. Wiley.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

702
