An Interactive Tutoring System for Training Software Refactoring

Thorsten Haendler, Gustaf Neumann and Fiodor Smirnov

Institute for Information Systems and New Media,

Vienna University of Economics and Business (WU), Austria

Keywords:

Intelligent Tutoring System, Software Refactoring, Software Design, Code Visualization, Software-

engineering Education and Training, Uniﬁed Modeling Language (UML2), Interactive Training Environment.

Abstract:

Although considered useful and important, software refactoring is often neglected in practice because of the

perceived risks and difﬁculties of performing it. A way to address these challenges can be seen in promoting

developers’ practical competences. In this paper, we propose an approach for an interactive training environ-

ment for addressing practical competences in software refactoring. In particular, we present a tutoring system

that provides interactive feedback to the users (e.g., university students or software developers) regarding the

software-design quality and the functional correctness of the (modiﬁed) source code. After each code modi-

ﬁcation (refactoring step), the user can review the results of run-time regression tests and compare the actual

software design (as-is) with the targeted design (to-be) in order to check quality improvement. For this pur-

pose, structural and behavioral diagrams of the Uniﬁed Modeling Language (UML2) representing the as-is

software design are automatically reverse-engineered from source code. The to-be design diagrams (also in

UML) can be pre-speciﬁed by the instructor. We illustrate the usability of the approach for training compe-

tences in refactoring via short application scenarios and describe exemplary learning paths. Moreover, we

provide a web-based software-technical implementation in Java (called refacTutor) to demonstrate the techni-

cal feasibility of the approach. Finally, limitations and further potential of the approach are discussed.

1 INTRODUCTION

As a result of time pressure in software projects, prior-

ity is often given to implementing new features rather

than ensuring code quality (Martini et al., 2014). In

the long run, this leads to software aging (Parnas,

1994) and increased technical debt with the conse-

quence of increased maintenance costs on the soft-

ware system (i.e., debt interest) (Kruchten et al.,

2012). A popular technique for code-quality assur-

ance is software refactoring, which aims at improving

code quality by restructuring the source code while

preserving the external system behavior (Opdyke,

1992; Fowler et al., 1999). Several kinds of ﬂaws

(such as code smells) can negatively impact code

quality and are thus candidates for software refac-

toring (Alves et al., 2016). Besides kinds of smells

that are relatively simple to identify and to refactor

(e.g., stylistic code smells), others are more complex

and difﬁcult to identify, to assess and to refactor, such

as smells in software design and architecture (Fowler

et al., 1999; Suryanarayana et al., 2014; Nord et al.,

2012) Although refactoring is considered useful and

important, it is often neglected in practice due to sev-

eral barriers, among which are (perceived by software

developers) the difﬁculty of performing refactoring,

the risk of introducing an error into a previously cor-

rectly working software system, and a lack of ade-

quate tool support (Tempero et al., 2017). These bar-

riers pose challenges with regard to improving refac-

toring tools and promoting the skills of developers.

On the one hand, in last years, several tools have

been proposed that apply static analysis for identify-

ing smells via certain metrics and benchmarks (e.g.,

level of coupling between system elements) or sup-

porting in planning and performing the actual refac-

toring (steps), such as JDeodorant (Tsantalis et al.,

2008) and DECOR (Moha et al., 2010), as well as

for measuring and quantifying their impact in terms

of technical debt, such as SonarQube (Campbell and

Papapetrou, 2013) or JArchitect (CoderGears, 2018).

However, for more complex kinds of smells (e.g.,

on the level of software design and architecture) the

smell detection and refactoring is difﬁcult. Thus,

these tools only cover a modest amount of smells

(Fernandes et al., 2016; Fontana et al., 2012) and

tend to produce false positives (Fontana et al., 2016)

(which, i.a., represent constructs intentionally used by

Haendler, T., Neumann, G. and Smirnov, F.

An Interactive Tutoring System for Training Software Refactoring.

DOI: 10.5220/0007801101770188

In Proceedings of the 11th International Conference on Computer Supported Education (CSEDU 2019), pages 177-188

ISBN: 978-989-758-367-4

177

the developer with symptoms similar to smells, such

as certain design patterns). In addition, the decision

what and how to refactor also depends on domain

knowledge (e.g., regarding design rationale) provided

by human experts such as software architects. Due to

these issues, the refactoring process is still challeng-

ing and requires human expertise.

On the other hand, so far only little attention has

been paid in research to education and training in

the ﬁeld of software refactoring. Besides textbooks

with best practices and rules on how to identify and

to remove smells via refactoring, e.g., (Fowler et al.,

1999), there are only a few approaches (see Section

6) for supporting developers in accomplishing or im-

proving practical and higher-level competences such

as application, analysis and evaluation according to

Bloom’s taxonomy of cognitive learning objectives;

see, e.g., (Bloom et al., 1956; Krathwohl, 2002).

In this paper, we propose an approach for an in-

teractive learning environment for training practical

competences in software refactoring. In particular,

we present a tutoring system that provides interac-

tive feedback and decision-support regarding both the

software-design quality and the functional correctness

of the source code modiﬁed by the user (see Fig. 1).

User

code modi cation

(refactoring step)

feedback on

code quality and software behavior

(e.g., as-is vs. to-be design and test result)

refacTutor

Figure 1: Exercise interaction supported by tutoring system.

Driven by a refactoring task deﬁned by the in-

structor, after each refactoring step, the user can re-

view the results of run-time regression tests (e.g., pre-

speciﬁed by the instructor; in order to check that

no error has been introduced) and compare the ac-

tual software design (as-is) with the intended de-

sign (to-be; in order to check quality improvement).

For this purpose, structural and behavioral software-

design diagrams of the Uniﬁed Modeling Language

(UML2) (Object Management Group, 2015) repre-

senting the as-is software design are automatically

reverse-engineered from source code. The to-be de-

sign diagrams (also in UML) can be pre-speciﬁed

by the instructor. UML is the de-facto standard for

modeling and documenting structural and behavioral

aspects of software design. There is evidence that

UML design diagrams are beneﬁcial for understand-

ing software design (issues) (Arisholm et al., 2006;

Scanniello et al., 2018; Haendler, 2018). This way,

the approach primarily addresses the refactoring of

issues on the level of software design and architec-

ture. Moreover, the code visualization supports in

building and questioning users’ mental models, see,

e.g., (Ca

nas et al., 1994; George, 2000). In addition,

the system optionally reports on other quality aspects

provided by quality-analysis tools (Campbell and Pa-

papetrou, 2013).

In order to illustrate the usability for teaching

and training refactoring competences, we describe

exemplary learning paths, specify the corresponding

exercise-interaction workﬂow and draw exemplary

application scenarios (based on different learning ob-

jectives and tasks and with corresponding settings

(conﬁguration options) for decision support and feed-

back. We also introduce a proof-of-concept imple-

mentation in Java (called refacTutor

) in terms of a

web-based development environment. Its application

is demonstrated via a short exercise example. In the

following Section 2, a short conceptual overview of

the proposed approach is given.

2 CONCEPTUAL OVERVIEW

Fig. 2 depicts an overview of the tutoring-system in-

frastructure in terms of technical components and ar-

tifacts used, created or modiﬁed by instructor and/or

user respectively.

Diagram

Builder

Source

Code

As-is Design

(UML Diagrams)

To-be Design

(UML Diagrams)

Test Framework

Quality

Analyzer

User/Student

Hints

Test

Speci cation

Task

Test

Result

Instructor

uses / reviews

creates / modi es

Legend

is kind of

compares

analyzes

speci es

modi es

«abstract»

Analysis Tool

automatically

analyzes

automatically

creates

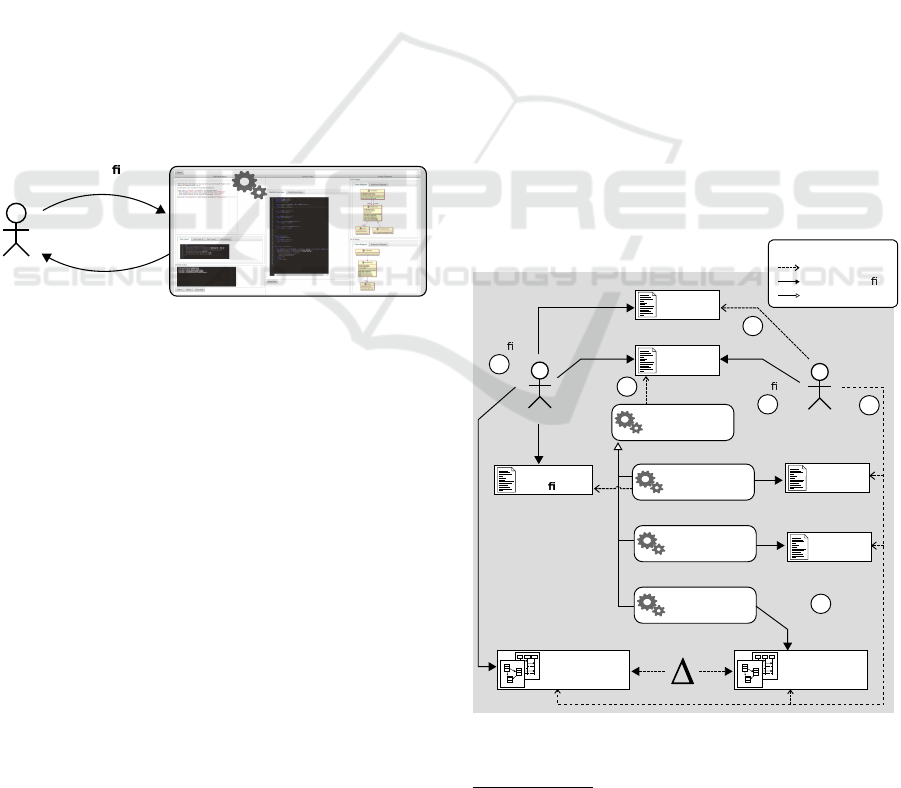

Figure 2: Overview of key components and artifacts of in-

teractive tutoring system for training software refactoring.

See Section 5. The software prototype is available for

download from http://refactoringgames.com/refactutor

CSEDU 2019 - 11th International Conference on Computer Supported Education

178

Focused on certain learning objectives (for details,

also see Sections 3 and 4), the instructor at ﬁrst spec-

iﬁes a task, prepares the initial source code for ex-

ercise, speciﬁes (or re-uses an existing) test script,

and speciﬁes the to-be software design (see step



in Fig. 2). The user’s exercise then starts by ana-

lyzing the task (step

). After each code modiﬁ-

cation (step

), the user can review several kinds

of feedback created by different analysis tools that

analyze the code (see steps

 to

). These ana-

lyzers consist of a test framework for checking the

functional correctness (test result), a quality analyzer

that examines the code using pre-conﬁgured quality

metrics (for providing hints on quality issues), and a

diagram builder that derives (reverse-engineers) dia-

grams from source code and reﬂects the current as-is

software design. This way, the tutoring system sup-

ports a cyclic exercise workﬂow of steps

 to

.

Structure. The remainder of this paper is struc-

tured as follows. In Section 3, the applied conceptual

framework of the interactive tutoring system (includ-

ing competences and learning paths, exercises, code

modiﬁcation as well as feedback mechanisms) are

elaborated in detail. Section 4 illustrates the usability

of the training environment for two exercise scenarios

(i.e., design refactoring and test-driven development).

Then, in Section 5, we present a proof-of-concept im-

plementation in Java; including a detailed exercise ex-

ample. In Section 6, related approaches are discussed.

Section 7 reﬂects limitations and further potential of

the approach and Section 8 concludes the paper.

3 INTERACTIVE TUTORING

ENVIRONMENT

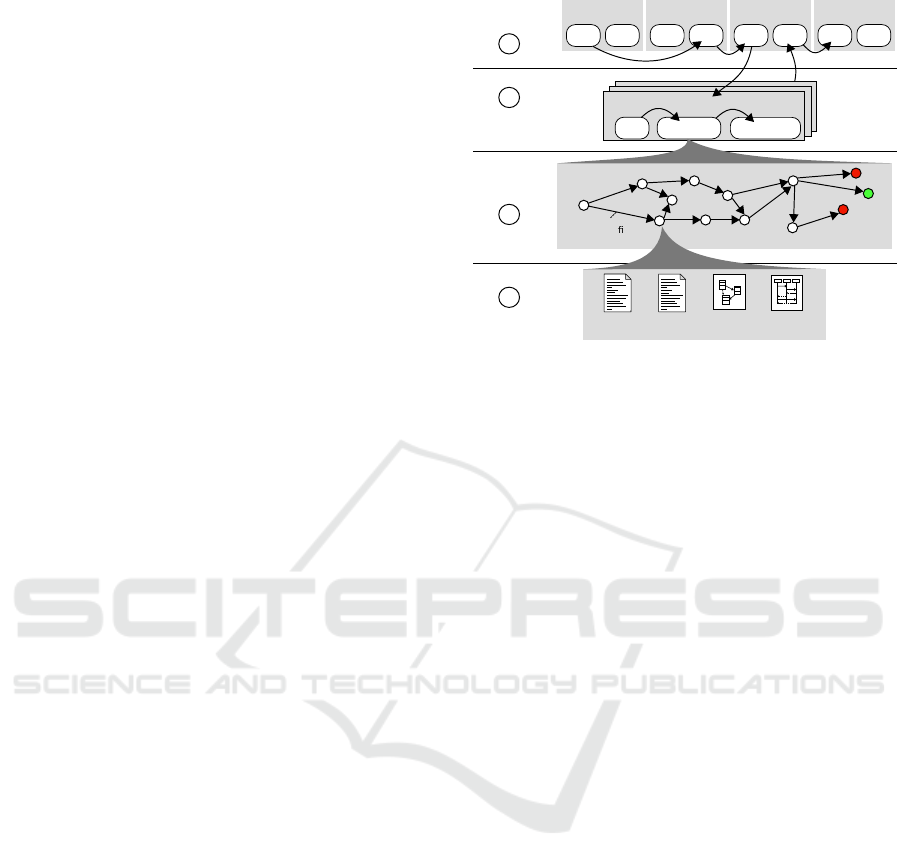

Fig. 3 gives an overview of important conceptual as-

pects for training software refactoring. The model is

structured into four layers that concretize from an ex-

emplary learning and training path

 (built on exem-

plary environments) via the exercises performed by

the user

 to refactoring paths and system states



and ﬁnally views on system states

 (feedback and

decision support). The corresponding aspects are de-

scribed below in detail.

3.1 Learning Objectives and Paths

The learning activity sequence (IMS Global Consor-

tium, 2003) (depicted on the top layer

 in Fig.

3) illustrates an exemplary learning path for soft-

ware refactoring by sequence multiple exercise units,

Exercises

Exemplary Training

Environments

and Paths

Refactoring

Paths &

System States

State Views

Exercise

Initial

State

Transitional States

Passing

State

Unit

Lecture

Unit Unit Unit

Paper-based

Exercises

Unit Unit

Training in

Tutoring System

Unit Unit

Training in

Serious Game

Non-passing

State

Code

Modi cations

Code

Test

Behavior

Design

Structrue

Design

Behavior

Task Interaction Assessment

Figure 3: Layers of training refactoring via tutoring system

from exemplary learning paths with refactoring exercises to

applied feedback mechanism.

which base on different learning environments. The

path can be driven by certain learning objectives, e.g.

oriented to Bloom’s taxonomy of cognitive learning

objectives (Krathwohl, 2002). For instance, via lec-

ture based on best practices and rules provided by

a refactoring textbook, e.g., (Suryanarayana et al.,

2014), basic competences (i.e., knowledge and com-

prehension) may be addressed, e.g., the (theoretical)

understanding of rules for identifying refactoring can-

didates and for performing refactoring steps. For ap-

plying the comprehended techniques, e.g., units with

paper-based exercises (PBE) can follow. In order to

actually apply and improve practical competences on

executable code (via editor), a tutoring system then

can be used (see below). Moreover, via playing seri-

ous games (providing or simulating real-world condi-

tions, such as a large code base) (Haendler and Neu-

mann, 2019), further higher-level competences can be

acquired such as analysis and evaluation (e.g., while

developing and applying refactoring strategies for pri-

oritizing smell candidates and refatoring options).

This exemplary path along different training environ-

ments demonstrates that the proposed tutoring-system

approach has to be seen as a complement to other ap-

proaches, each focusing on certain competence levels.

3.2 Structure of Exercises

A unit might generally consist of several exercises.

Each exercise of the proposed tutoring system (see

the second layer

 in Fig. 3) has a certain sequence

consisting of the task (instruction) deﬁned by the in-

structor, the exercise interaction of the user with the

tutoring system and the exercise assessment, which

will be explained in detail below.

An Interactive Tutoring System for Training Software Refactoring

179

Decision-Making

Mental Model

1st

loop

2nd loop

Identi

cation of options and planning

of refactoring steps

Confrontation with task de ned by

the instructor

Implementation

Evaluation/

Analysis

Problem

Recognition

User's conceptions on refactoring

(e.g., based on previous training units)

Performing refactoring steps

(code modi cation)

Analysis of eﬀects via provided views

and feedback mechanism

Problem

Analysis

Analysis of the task and the investigation

of the provided views (source code)

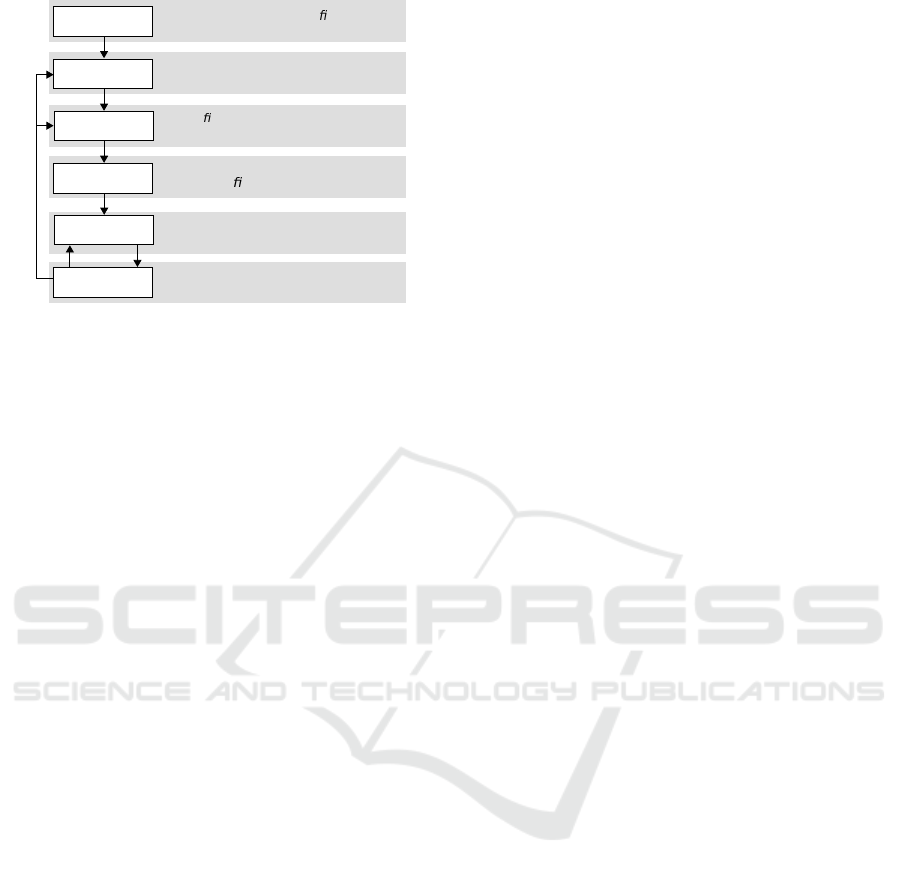

Figure 4: Refactoring-exercise workﬂow as double-loop

learning and decision-making cycle supported by the tutor-

ing system.

(1) The task deﬁnes the actual instructions to be per-

formed by the user. The instructions might be ori-

ented to e.g. a challenge to be solved (e.g., to re-

move a certain smell), a goal to be achieved (e.g.,

to realize a certain design structure), or instruc-

tions for concrete modiﬁcation actions (e.g., to

perform an EXTRACTMETHOD refactoring). For

examples with further details, also see Section 4).

(2) The exercise interaction represents a cycle of

analysis and actions performed by the user which

is built on feedback provided by the tutoring sys-

tem. Fig. 4 represents the workﬂow of the exercise

interaction in terms of a double-loop learning and

decision-making cycle supported by the approach;

also see (Haendler and Frysak, 2018). Driven by

the speciﬁc task (problem recognition) and based

on the user’s mental model, the user analyses the

task and investigates the provided views (e.g., de-

sign diagrams). After analysis, the user identiﬁes

options and plans for refactoring (decision mak-

ing). In this course, the user selects a certain op-

tion for code modiﬁcation and plans the particu-

lar steps for performing them (implementation).

After the code has been modiﬁed, the user ana-

lyzes the feedback given by the tutoring system

(evaluation). This workﬂow supports a double-

loop learning (Argyris, 1977). Through previous

learning and practice experiences, the users have

built a certain mental model (Ca

nas et al., 1994)

on performing software refactoring, on which the

analysis and the decisions for planned modiﬁca-

tions are built (ﬁrst loop), e.g. how to modify the

code structure in order to remove the code or de-

sign smell. After modiﬁcation, the feedback (e.g.

in terms of test result, the comparison of the as-

is with the to-be design diagrams) impacts the

user’s mental model and allows for scrutinizing

and adapting the decision-making rules (second

loop). This way, the cycle allows an (inter-) active

learning for promoting practical competences.

(3) The exercise assessment provides means for as-

sessing the outcome of the user’s actions in terms

of feedback for both the instructor as well as the

user. Basically, it is checked whether the as-is de-

sign conforms the to-be design and whether the

tests pass. The veriﬁcation of the design qual-

ity can be performed manually by the instructor

(by visually comparing the diagrams) or automat-

ically by using analysis tools to check for differ-

ences between the diagrams; or applying addi-

tional quality-analysis tools (see below). More-

over, the time for completing the exercise can be

measured.

3.3 Code Modiﬁcations and System

States

During exercise interaction, the system under analysis

(SUA) can take different system states (see

 in Fig.

3). The states can be classiﬁed into the initial state

INITIAL

), the ﬁnal state(s) (i.e., S

FINAL(PASSING)

and

FINAL(NON-PASSING)

) and multiple transitional states

TRANSITIONAL

). In particular, the initial state S

INITIAL

represents the system at the beginning (e.g. as pre-

pared by the instructor). Each actual or possible mod-

iﬁcation to be performed on a certain state then leads

to a certain following state (S

TRANSITIONAL

). Depend-

ing on the kind of task and smell, there are differ-

ent ways of achieving the deﬁned exercise goal. As

mentioned above, for more complex smells several

options and sequences for achieving a desired design

can exist, such as for some types of software-design

smells (Suryanarayana et al., 2014). This way, the

options and steps of possible modiﬁcations can be

represented via a graph structure (i.e. modiﬁcations

as edges, states as nodes). The performance of one

user (via several refactoring steps starting from and/or

leading to a S

TRANSITIONAL

) then draws a concrete path

through this graph. The ﬁnal state can either be pass-

ing (S

FINAL(PASSING)

) (i.e., fulﬁlling the quality stan-

dards, e.g., deﬁned by to-be design diagrams, and

passing the tests) or failing (S

FINAL(NON-PASSING)

). For

each state, several aspects are important for refactor-

ing which are reﬂected by selected views (see below).

3.4 Views on System States

Oriented to viewpoint models applied in software ar-

chitecture such as (Kruchten, 1995), we apply a view-

point model for refactoring that includes the follow-

ing four views on system states, i.e. code, test be-

CSEDU 2019 - 11th International Conference on Computer Supported Education

180

havior as well as design structure and behavior (see

 in Fig. 2). The views conform to the viewpoint

model depicted in Fig. 5 and serve as feedback and

decision support for the user on each system state. In

particular, there is evidence that for identifying and

assessing software design smells (such as ABSTRAC-

TION or MODULARIZATION smells), a combination

of UML class diagrams (providing inter-class cou-

plings evoked by method-call dependencies) and se-

quence diagrams (representing run-time scenarios) is

appropriate (Haendler, 2018). The viewpoint model

depicted in Fig. 5 reﬂects the views on system states.

Source

Code

Test

Behavior

Structure

Behavior

(Interactions)

Software

Design

tests correct

funtionality

abstracts

from

abstracts

from

comparison

as-is

to-be

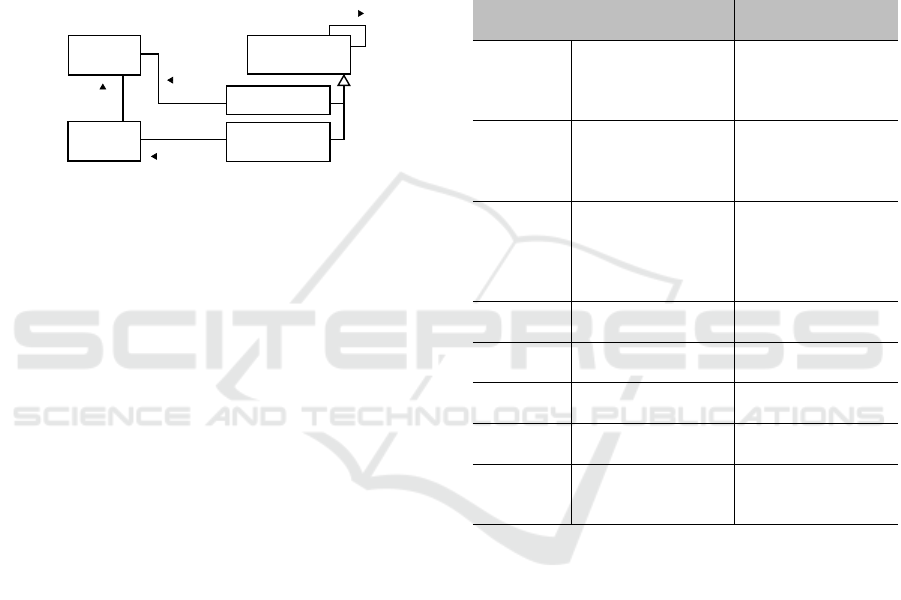

Figure 5: Applied viewpoint model for refactoring.

In addition to the source code (modiﬁed by the

user), the other views are provided by applying the

following tools and techniques.

• The test behavior is speciﬁed (in terms of a test

script) using a certain test framework (e.g., XU-

nit or scenario-based tests). By performing the

tests after each (important) modiﬁcation (regres-

sion testing) the functional correctness of the code

is ensured. Feedback is returned to the user in

terms of the test result.

• For automatically deriving (a.k.a. reverse-

engineering) the design diagrams representing

the as-is software design of the source code,

(automatic) static and dynamic analysis tech-

niques are applied, see, e.g., (Richner and

Ducasse, 1999; Kollmann et al., 2002; Haendler

et al., 2015). The Uniﬁed Modeling Language

(UML)(Object Management Group, 2015) is

the de-facto standard for documenting software

design. For representing design structure, UML

class diagrams are extracted from source code;

for design behavior, UML sequence diagrams

are derived from execution traces. For further

details on the derivation techniques and the

resulting diagrams, see Section 5.

• In addition, also software-quality analyzers (e.g.,

SonarQube (Campbell and Papapetrou, 2013))

can be used to identify quality issues (such as

smells) as well as to measure and quantify the

technical debt score, which both then can be pre-

sented as hints or feedback to the user.

4 APPLICATION SCENARIOS

In order to illustrate the feasibility of the proposed

tutoring-system approach for teaching and training

software refactoring, two possible application scenar-

ios are described. In Table 1, exemplary tasks with

corresponding values of views and other exercise as-

pects are speciﬁed for two scenarios, i.e., (a) design

refactoring and (b) test-driven development (TDD).

Table 1: Exemplary exercise scenarios: (a) design refactor-

ing and (b) test-driven development.

Aspects

and Views

Design Refactoring Test-driven Develop-

ment (TDD)

Task Refactor the given

(smelly) source code in

order to achieve the de-

ﬁned to-be design

Implement the given to-

be design in code so that

also the given tests pass

Target Com-

petence

Analyze software design

and plan & perform refac-

toring steps for removing

a given smell

Apply the red–green-

refactor steps (to realize

the deﬁned to-be design

and test behavior)

Prerequisite

Competence

Knowledge on refac-

toring options for given

smell type as well as on

notations and meaning

of UML diagrams

Knowledge on refac-

toring options for given

smell type as well as on

notations and meaning

of UML diagrams

Code

IN ITIAL

)

Code with design smells No code given

As-is-Design

IN ITIAL

)

Representing design

smells

No as-is-design available

As-is-Design

FIN AL(PAS SING)

)

Conforming to to-be de-

sign

Conforming to to-be de-

sign

Tests Tests pass in (S

IN ITIAL

)

and in (S

FIN AL(PAS SING)

)

Tests fail in (S

IN ITIAL

), but

pass in (S

FIN AL(PAS SING)

)

Assessment As-is and to-be design

are identical and all tests

pass

As-is and to-be design

are identical and all tests

pass

4.1 Design Refactoring

First, consider the instructor aims at fostering the

practical competences of analyzing the software de-

sign and performing refactoring steps (i.e., applica-

tion and analysis, see target competences in Table 1).

In this case, a possible training scenario can be real-

ized by presenting a piece of source code that behaves

as intended (i.e., runtime tests pass), but with smelly

design structure (i.e., as-is design and to-be design

are different). The user’s task then is to refactor the

given code in order to realize the speciﬁed targeted

design. As important prerequisite, the user needs to

bring along the competences to already (theoretically)

know the rules for refactoring and to analyze UML di-

agrams. Fig. 6 depicts the values of different system

states while performing the exercise (also see Section

3.3 and 3.4). At the beginning (S

INITIAL

), the tests

An Interactive Tutoring System for Training Software Refactoring

181

pass, but code and design are smelly by containing,

e.g., a MULTIFACETEDABSTRACTION smell (Surya-

narayana et al., 2014). During the (path of) refac-

torings (e.g., by applying corresponding EXTRACT-

CLASS and/or MOVEMETHOD / MOVEFIELD refac-

torings (Fowler et al., 1999)), the values of the views

can differ (box in the middle). Characteristic for a

non-passing ﬁnal state or the transitional states is that

at least one view (e.g., test, design structure or behav-

ior) does not meet the requirements. In turn, a passing

ﬁnal state fulﬁlls the requirements for all view values

(box on the right-hand side).

Code Test

Design

Struct.

Design

Behav.

Code Test

Design

Struct.

Design

Behav.

Code Test

Design

Struct.

Design

Behav.

initial

transitional

nal(passing)

or or

Code

Modi cations

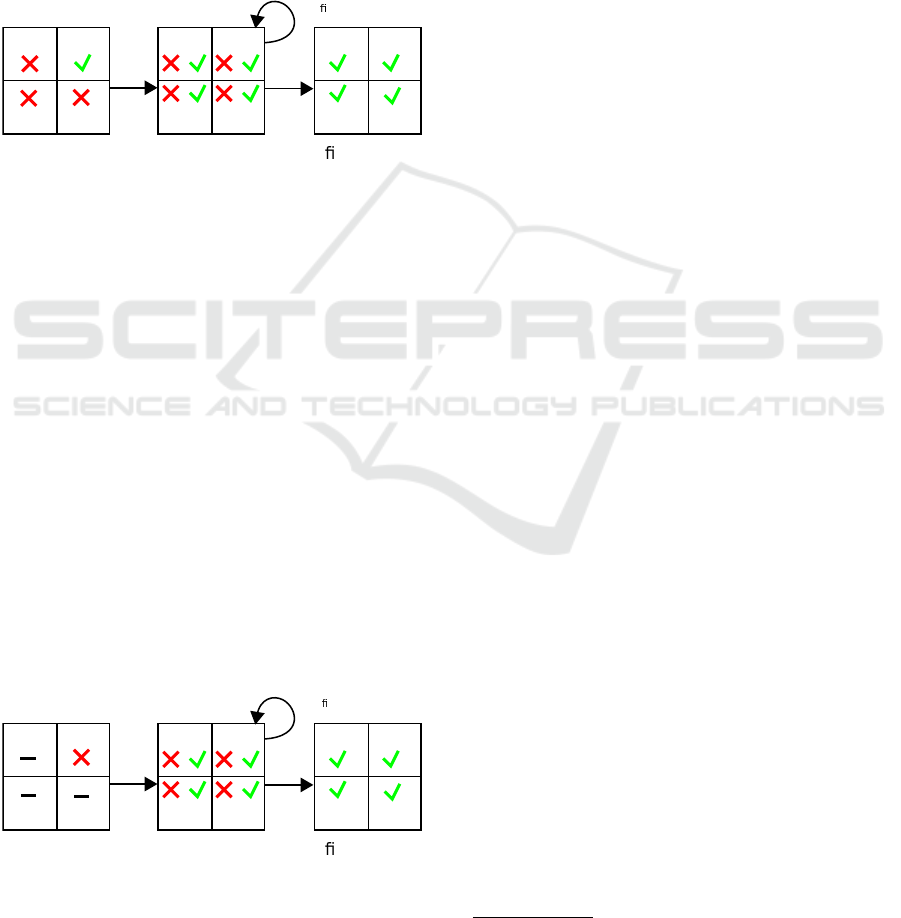

Figure 6: States with view values for the exercise scenario

on design refactoring.

4.2 Test-driven Development

Another application example can be seen in test-

driven development. Consider the situation that the

user shall improve her competences in performing the

red–green–refactor cycle typical for test-driven de-

velopment (Beck, 2003), which also has been iden-

tiﬁed as challenging for teaching and training (Mu-

gridge, 2003). This cycle includes the activities to

specify and run tests that reﬂect the intended behav-

ior (which ﬁrst do not pass; red), then implement (ex-

tend) the code to pass the tests (i.e., green), and ﬁnally

modify the code in order to improve design quality

(i.e., refactor). For this purpose, corresponding run-

time tests and the intended to-be design are prepared

by the instructor. The user’s task then is to realize the

intended behavior and design by implementing and

modifying the source code. Fig. 7 depicts the view

values of the different system states.

Code Test

Design

Struct.

Design

Behav.

Code Test

Design

Struct.

Design

Behav.

Code Test

Design

Struct.

Design

Behav.

initial

transitional

nal(passing)

or or

Code

Modi cation

Figure 7: States with view values for the exercise scenario

on test-driven development.

Besides these two exemplary scenarios, multiple

other scenarios can be speciﬁed by varying the values

of the exercise aspects and views (see Table 1).

5 SOFTWARE PROTOTYPE

In order to demonstrate the technical feasibility, we

introduce our software prototype refacTutor

that re-

alizes key aspects of the infrastructure presented in

Fig. 2. In the following, we focus on applied tech-

nologies, the derivation of UML class diagrams re-

ﬂecting the as-is design, the graphical user interface

(GUI), and a concrete exercise example.

5.1 Applied Technologies

We implemented a software prototype as a web-based

application using Java Enterprise Edition (EE) to

demonstrate the feasibility of the proposed concept.

Java is also the supported language for the refac-

toring exercises. As editor for code modiﬁcation

the Ace Editor (Ajax.org, 2019) has been integrated,

which is a ﬂexible browser-based code editor written

in JavaScript. After test run, the entered code is then

passed to the server for further processing. For com-

piling the Java code, we applied InMemoryJavaCom-

piler (Trung, 2017), a GitHub repository that provides

a sample of utility classes allowing compilation of

Java sources in memory. The compiled classes are

then analyzed using Java Reﬂection (Forman and For-

man, 2004) in order to extract information on code

structure. The correct behavior is veriﬁed via JU-

nit tests (Gamma et al., 1999). Relevant exercise in-

formation are stored in XML ﬁles including task de-

scription, source code, test script, and information for

UML diagrams (see below).

5.2 Design-diagram Derivation

For automatically creating the as-is design diagrams,

the extracted information is transferred to an inte-

grated diagram editor. PlantUML (Roques, 2017) is

an open-source and Java-based UML diagram editor

that allows for passing plain text in terms of a sim-

ple DSL for creating graphical UML diagrams (such

as class and sequence diagrams), i.a. in PNG or SVG

format. PlantUML also manages the efﬁcient and aes-

thetic composition of diagram elements.

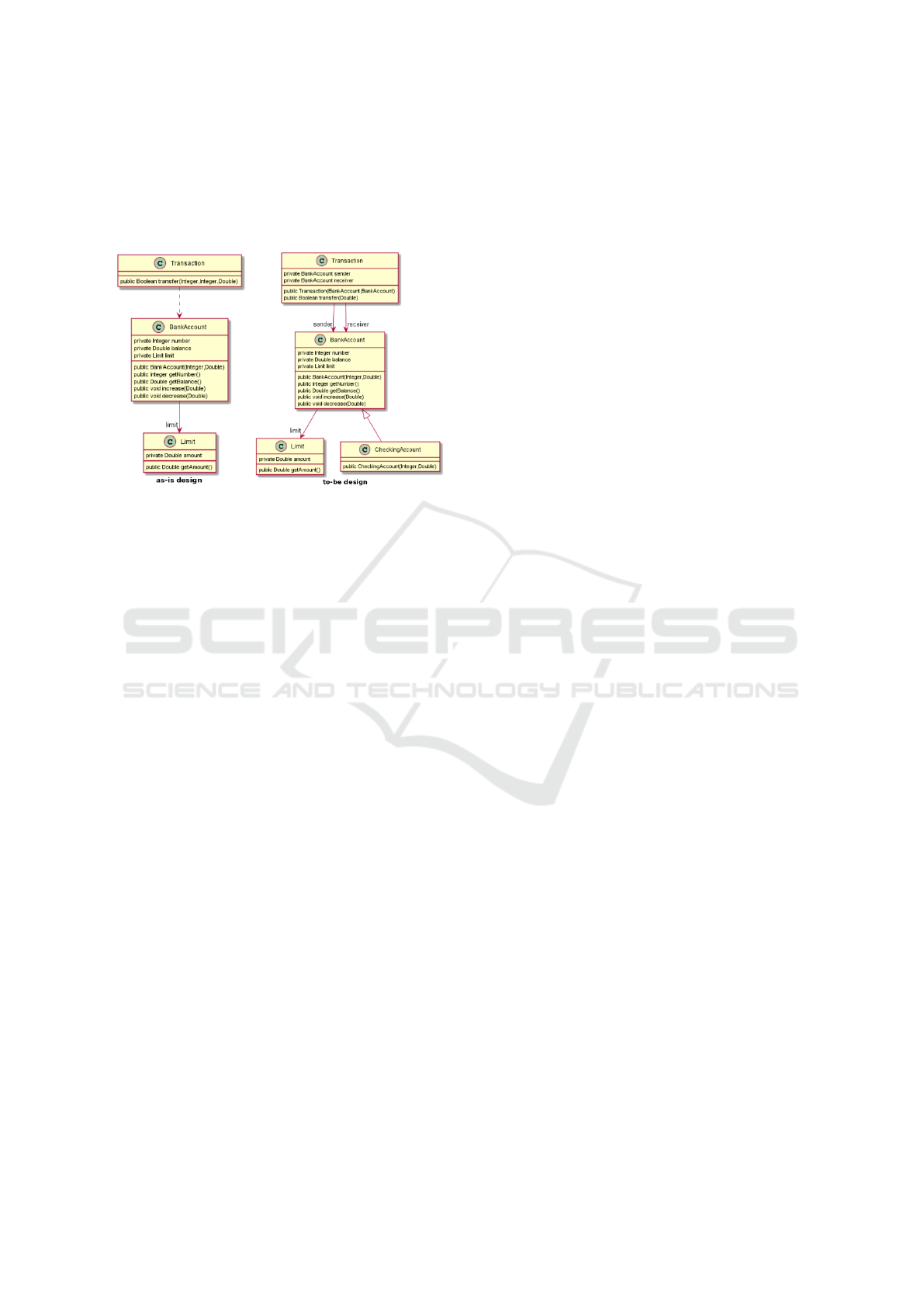

Fig. 8 depicts an application example of source

code to be refactored (left-hand side, Listing 1) with

The software prototype is available for download from

http://refactoringgames.com/refactutor

CSEDU 2019 - 11th International Conference on Computer Supported Education

182

Listing 1: Exemplary Java code.

1 public class Ba n kA c co u n t {

2 private Int e g er nu m b er ;

3 private Doub l e b a la n ce ;

4 private Limit l im i t ; //(1)

5 public Ba n k A c co u n t ( Integ e r n u m b e r , Do u bl e ba l an c e ) {

6 this. n um b e r = num b e r ;

7 this. b al a nc e = b a la n c e ;

8 }

9 [ . . .]

10 }

11 public class Ch e c k in g A c co u n t extends B a n k Ac c o u n t { //(2)

12 [ . . .]

13 }

14 public class Limi t {

15 [ . . .]

16 }

17 public class Tr a ns a ct i o n {

18 public Boo l e an tr a ns f er ( I n t e ge r s e n de r N um b e r , In t eg e r

re c e i v e rN u m b e r , Doub l e a m oun t ) {

19 Ba n k A c c o un t s e nde r = new Ban k Ac c o u n t (12 3 4 5 6 ) ; //(3)

20 Ba n k A c c o un t r e ce i ve r = new Ban k A c c o u nt (23 4 5 6 7 ) ;

21 if( s en d e r . g et B al a n c e () >= amou n t ){

22 re c ei v e r . i n c r ea s e ( a m ou n t );

23 se n d er . d ec r ea s e ( a m ou n t );

24 return true;

25 } else {return false; }

26 }

27 }

Figure 8: Listing with exemplary Java code fragment for a refactoring task (left-hand side) and UML class diagram (right-hand

side) representing the as-is design automatically derived from source code and visualized using PlantUML.

as-is design diagram (reﬂecting the current state of

code) in terms of a UML class diagrams (right-

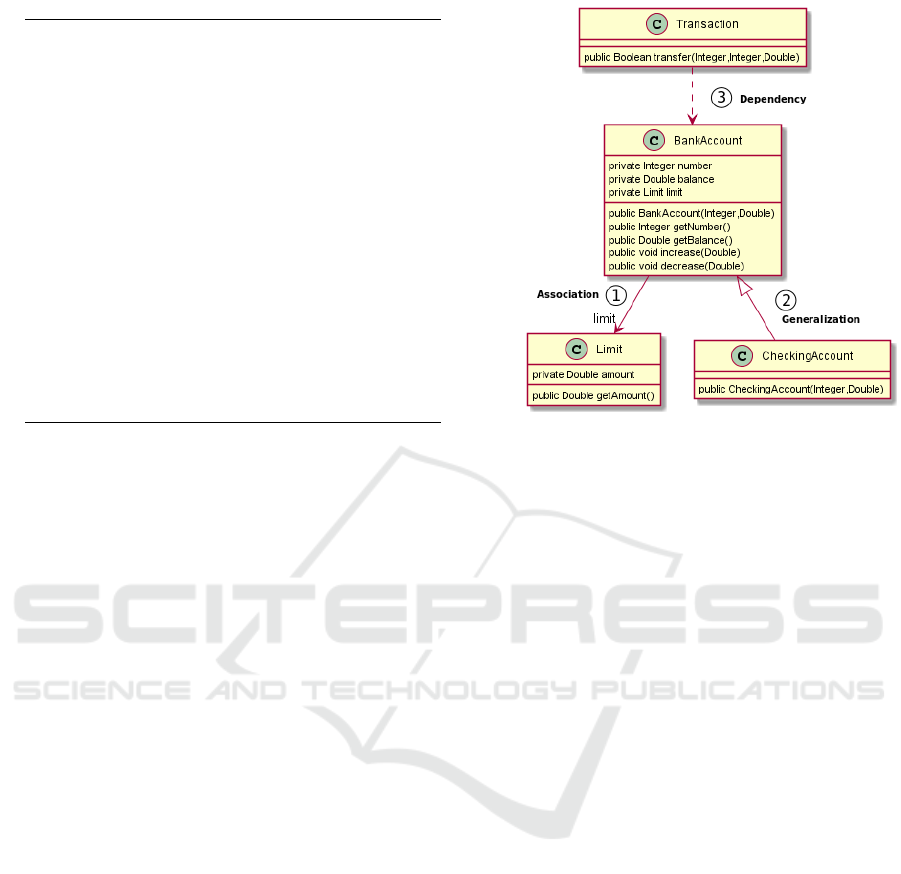

hand side). In particular, the (derived) class dia-

grams provide associations in terms of references to

other classes. For example, see

 in the diagram

and line 4 in the listing in Fig. 8). Generalizations

represent is-a relationships (between sub-classes and

super-classes); see

) in the diagram and line 11

in the listing. Moreover, the derived class diagrams

also provide call (or usage) dependencies between

classes (see

), which, e.g., represent inter-class

calls of attributes or methods from within a method

(see lines 19 and 20 in the listing in Fig. 8). For de-

riving UML sequence diagrams, we apply dynamic

reverse-engineering techniques based on the execu-

tion traces triggered by the runtime tests, already de-

scribed and demonstrated in (Haendler et al., 2015)

and (Haendler et al., 2017). As explained in Section

3.4, a combination of UML class and sequence dia-

grams can support in identifying and assessing issues

in software design or architecture (Haendler, 2018).

5.3 GUI

As outlined in the overview depicted in Fig. 2, the

prototype provides GUI perspectives for instructors

conﬁguring and preparing exercises and for users

performing the exercises. Each role has a speciﬁc

browser-based dashboard with multiple views (a.k.a.

widgets) on different artifacts (as described in Fig.

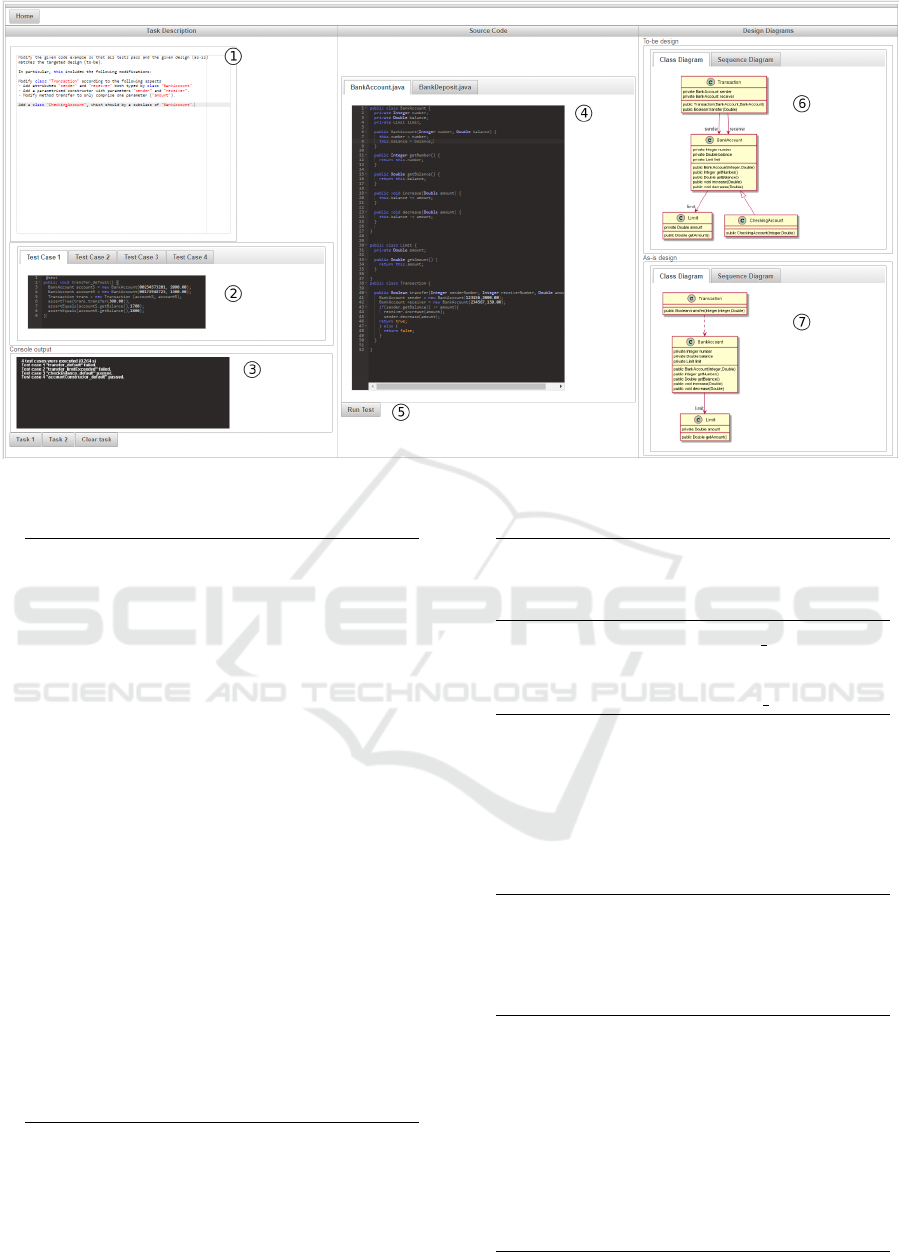

2). Fig. 9 depicts the user’s perspective with provided

views and an exercise example (which is detailed in

Section 5.4). In particular, the user’s perspective com-

prises a view on the task description (as deﬁned by the

instructor; see

 in Fig. 9). In

, the tests scripts of

the (tabbed) JUnit test cases are presented. The con-

sole output in

 reports on the test result and addi-

tional hints. The code editor (see

 in 9) provides the

source code to be modiﬁed by the user (with tabs for

multiple source ﬁles). Via the button in

, the user

can trigger the execution of the runtime tests. For both

the to-be design (deﬁned by the instructor beforehand;

see

) and the actual as-is design (automatically de-

rived after and while test execution and reﬂecting the

state of the source code; see

), also tabs for class

and sequence diagrams are provided. The teacher’s

perspective is quite similar; in addition, it provides an

editor for specifying the to-be diagrams.

5.4 Exercise Example

In the following, a short exercise example applying

refacTutor is illustrated in detail. In particular, the

source code, runtime tests, the task to be performed by

the user and the corresponding as-is and to-be design

diagrams are presented.

Source Code. For this exemplary exercise, the fol-

lowing Java code fragment (containing basic classes

and functionality for a simple banking application)

has been prepared by the instructor (see Listing 2 and

also the editor

 in Fig. 9).

An Interactive Tutoring System for Training Software Refactoring

183

Figure 9: Screenshot of user’s perspective with views provided by the refacTutor prototype implementation.

Listing 2: Java source code.

1 public class Ba n kA c co u n t {

2 private Int e g er nu m b er ;

3 private Doub l e b a la n ce ;

4 private Limit l im i t ;

5 public Ba n k A c co u n t ( Integ e r n u m b e r , Do u bl e ba l an c e ) {

6 this. n um b e r = num b e r ;

7 this. b al a nc e = b a la n c e ;

8 }

9 public Int e g er ge t N u m b e r () {

10 return this. n u mb e r ;

11 }

12 public Doub l e g et B al a nc e () {

13 return this. b a la n ce ;

14 }

15 public void i n cr e as e ( Doubl e am o unt ) {

16 this. b al a nc e + = a mo u nt ;

17 }

18 public void d e cr e as e ( Doubl e am o unt ) {

19 this. b al a nc e -= amo u nt ;

20 }

21 }

22 public class Limi t {

23 private Doub l e a m ou n t ;

24 public Doub l e g et A mo u nt () {

25 return this. a m ou n t ;

26 }

27 }

28 public class Tr a ns a ct i o n {

29 public Boo l e an tr a ns f er ( I n t e ge r s e n de r N um b e r ,

In t e g e r r e ce i v er N um b e r , D o u bl e am o u nt ) {

30 Ba n k A c c o un t s e nde r = new Ban k Ac c o u n t

(1 2 34 5 6 , 2 0 00 . 00 ) ;

31 Ba n k A c c o un t r e ce i ve r = new Ban k A c c o u nt

(2 3 4 5 6 7 ,1 5 0. 0 0 ) ;

32 if( s en d e r . g et B al a n c e () >= amou n t ){

33 re c ei v e r . i n c r ea s e ( a m ou n t );

34 se n d er . d ec r ea s e ( a m ou n t );

35 return true;

36 } else {return false; }

37 }

38 }

Tests In this example, four JUnit test cases have

been speciﬁed by the instructor (see Listing 3 and also

 and the views

 in Fig. 9). Two out of these cases

fail at the beginning (S

INITIAL

Listing 3: Test result.

1 4 test c ase s wer e ex e cu t ed ( 0. 2 6 4 s )

2 Test case 1 " t r a n sf e r _ d e fa u l t " failed.

3 Test case 2 " t r a n s f e r _l i m i t E x c e e de d " failed.

4 Test case 3 " c h e c k B a l an c e _ d e fa u l t " passed.

5 Test case 4 " a c c o u n t C o n s t ru c t o r _ d e f a u l t " passed.

One of these failing cases is transfer default, which is

speciﬁed in the script in Listing 4.

Listing 4: Test case 1 transfer default.

1 @test

2 public void tr a n s fe r _ d e f au l t () {

3 B an k Ac c o u n t ac c ou n tS = new B a n kA c c o u n t (00 2 34 5 7 32 0 1 ,

20 0 0. 0 0 ) ;

4 B an k Ac c o u n t ac c ou n tR = new B a n kA c c o u n t (00 1 73 9 4 87 2 5 ,

15 0 0. 0 0 ) ;

5 T ra n sa c t i o n tra n s = new Tra n sa c t i o n ( a c c o untS ,

ac c ou n t R ) ;

6 assertTrue( t r a ns . t ra n sf e r (300 . 0 0 ) ) ;

7 assertEquals( a c c o u n t S . g et B al a n c e () ,1700) ;

8 assertEquals( a c c o u n t R . g et B al a n c e () ,1800) ;

9 }

Task For the exercises, the user is confronted with

the task presented in Listing 5 (also see

 in Fig. 9).

Listing 5: Task description.

1 M od i f y t h e giv e n co d e ex a mp l e so tha t a l l te s t s p a s s

and the g i ve n de s i gn ( as - i s ) m a tc h e s t h e ta r ge t ed

de s i gn ( to - b e ) .

2 In p a rti c u lar , th i s i n c lu d es t h e f o ll o wi n g

mo d i f ic a t i on s :

3 ( 1 ) Mo d i fy cla s s " Tran s ac t i o n " acco r di n g to the

fo l lo w in g a s pe c t s

4 (a ) A d d at t r i b u t e s " s e nd e r " a n d " r ec e iv e r " b oth

typ e d by cl a s s " Bank A c c o u n t " to cla s s "

Tr a n s a c t io n ".

5 (b ) A d d a p a ra m e t ri z e d c o ns t r u ct o r w i th p ar a me t e r s "

se n d er " and " r e c e i v e r " .

6 (c ) M od i f y m e th o d t r an s fe r to only co m p r i s e o n e

pa r am e te r ( " a m ou n t " of t y p e D o u bl e ) .

7 ( 2 ) Add a class " C he c k i n g A c c o u nt " , wh i c h s h ou l d be a

su b cl a s s of " B a nk A c c o u n t " .

CSEDU 2019 - 11th International Conference on Computer Supported Education

184

Design Diagrams. In the course of the exercise (af-

ter each code modiﬁcation), the user can review the

diagrams reﬂecting the actual design derived from

code and compare them with the targeted design di-

agrams (see Fig.10; also see

 and

 in Fig. 9).

Figure 10: Contrasting as-is (automatically derived from

source code; left-hand side) and to-be software design (tar-

geted design speciﬁed by the instructor; right-hand side)

both represented as UML class diagrams.

6 RELATED WORK

Related work can be roughly divided into the follow-

ing two groups: (1) interactive tutoring systems for

programming, especially those leveraging program

visualization (in terms of UML diagrams) and (2) ap-

proaches for teaching refactoring, especially with fo-

cus on software design.

6.1 Tutoring Systems for Programming

Interactive learning environments in terms of editor-

based web-applications such as Codecademy (Sims

and Bubinski, 2018) are popular nowadays for learn-

ing programming. These tutoring systems provide

learning paths for accomplishing practical compe-

tences in selected programming aspects. They moti-

vate learners via rewards and document the achieved

learning progress. Only very few tutoring systems can

be identiﬁed that address software refactoring; see,

e.g., (Sandalski et al., 2011). In particular, Sandalski

et al. present an analysis assistant that provides intel-

ligent decision-support and feedback very similar to a

refactoring recommendation system, see, e.g., (Tsan-

talis et al., 2008). It identiﬁes and highlights simple

code-smell candidates. After the user’s code modiﬁ-

cation, it reacts by proposing (better) refactoring op-

tions.

Related are also tutoring environments that

present interactive feedback in terms of code and de-

sign visualization; for an overview, see, e.g., (Sorva

et al., 2013). Only a few of these approaches pro-

vide the reverse-engineering of UML diagrams, such

as JAVAVIS (Oechsle and Schmitt, 2002) or BlueJ

olling et al., 2003). However, existing approaches

do not target refactoring exercises. For instance, they

not allow for comparing the actual design (as-is) and

the targeted design (to-be), e.g., as deﬁned by the in-

structor, especially not in terms of UML class dia-

grams. Moreover, tutoring systems barely provide in-

tegrated software-behavior evaluation in terms of re-

gression tests (pre-speciﬁed by the instructor).

We complement these approaches by presenting

an approach that integrates interactive feedback on

code modiﬁcations in terms of software-design qual-

ity and software behavior.

6.2 Approaches for Teaching

Refactoring

Besides tutoring systems (discussed above) other

kinds of teaching refactoring are related to our ap-

proach. In addition to tutoring systems based on in-

structional learning design, a few other learning ap-

proaches in terms of editor-based refactoring games

can be identiﬁed that also integrate automated feed-

back. In contrast to tutoring systems which normally

apply small examples, serious games such as (Elezi

et al., 2016; Haendler and Neumann, 2019) are based

on real-world code base. These approaches also in-

clude means for rewarding successful refactorings by

increasing the game score (or reducing the technical-

debt score) and partially provide competitive and/or

collaborative game variants. However, so far these

games do not include visual feedback that is par-

ticularly important for the training of design-related

refactoring.

Moreover other approaches without integrated au-

tomated feedback are established. For instance, Smith

et al. propose an incremental approach for teaching

different refactoring types on college level in terms of

learning lessons (Smith et al., 2006; Stoecklin et al.,

2007). The tasks are also designed in an instruc-

tional way with exemplary solutions that have to be

transferred to the current synthetic refactoring can-

didate (i.e. code smell). Within this, they provide

an exemplary learning path for refactorings. Fur-

thermore, Abid et al. conducted an experiment for

contrasting two students groups, of which one per-

formed pre-enhancement (refactoring ﬁrst, then code

extension) and the second post-enhancement (code

extension ﬁrst, then refactoring) (Abid et al., 2015).

An Interactive Tutoring System for Training Software Refactoring

185

Then they compared the quality of the resulting code.

opez et al. report on a study for teaching refactoring

opez et al., 2014). They propose exemplary refac-

toring task categories and classify them according to

Bloom’s taxonomy and learning types. They also de-

scribe learning settings, which aim at simulating real-

world conditions by providing, e.g., an IDE and revi-

sion control systems.

In addition to these teaching and training ap-

proaches, we present a tutoring system that can be

seen as a link in the learning path between lectures

and lessons (that mediate basic knowledge on refac-

toring) on the one hand and environments such as seri-

ous games that already demand practical competences

on the other.

7 DISCUSSION

In this paper, a new approach has been presented

for teaching and training practical competences in

software refactoring. As shown above (Section 6),

the tutoring system is considered as complement to

other training environments and techniques, such as

lectures for mediating basic understanding (before)

and serious games (afterwards) for consolidating and

extending the practical competences in direction of

higher-level competences such as evaluating refac-

toring options and developing refactoring strategies.

The provided decision support in terms of UML de-

sign diagrams (representing the as-is and to-be soft-

ware design) especially addresses the refactoring of

quality issues on the level of software design and ar-

chitecture, which are not directly visible by review-

ing the source code alone; also see architectural debt

(Kruchten et al., 2012).

The feasibility of the proposed approach has been

illustrated in two respects. On the one hand, in terms

of the usability for training practical competences in

software refactoring via two exemplary application

scenarios, i.e. design refactoring and test-driven de-

velopment, for which both the exercise workﬂows and

other aspects have been described. On the other hand,

by demonstrating the technical feasibility via a proof-

of-concept implementation in Java that realizes the

core functions. In this course, also a more detailed

exercise example has been presented.

As a next step, it is necessary to investigate the ap-

propriateness of the approach in an actual training set-

ting (empirical evaluation) and gather feedback from

system users. From a didactic perspective, a chal-

lenge in creating a training unit is to put together a set

of appropriate refactoring exercises consisting of code

fragments that manifest as smells in corresponding

UML diagrams. An orientation for this can be seen

in rules and techniques for identifying and refactoring

smells on the level of software design (Suryanarayana

et al., 2014). In addition, in (Haendler, 2018) we ex-

plored how 14 kinds of software-design smells can

be identiﬁed (and represented) in UML class and se-

quence diagrams. This catalog can serve as a system-

atic guideline for creating exercises targeted on dif-

ferent design smells. For applying the prototype in a

training setting, also further technical extensions and

reﬁnements are planned; for example, by including

views for assessment and progress management (e.g.,

gamiﬁcation elements such as leaderboards or activity

charts).

8 CONCLUSION

In this paper, we presented a novel approach for teach-

ing software refactoring, especially with focus soft-

ware design issues, via an interactive development

and learning environment that provides feedback to

the user in terms of reverse-engineered UML dia-

grams, test behavior and an extensible array of quality

aspects. The paper contributes to the state-of-the art

via the following aspects; by:

• presenting a training environment that supports

users, e.g., university students or (more) expe-

rienced software developers, in accomplishing

practical competences for software refactoring.

• illustrating exemplary application scenarios that

show the feasibility of the approach for train-

ing practical competences in refactoring and test-

driven development.

• providing a web-based software-technical im-

plementation in Java (refacTutor) as proof-of-

concept that demonstrates the technical feasibil-

ity of the proposed approach. Here also a short

exercise example is illustrated in detail.

• specifying a generic concept and a lightweight ar-

chitecture that integrates already existing analy-

sis tools such as test frameworks, diagram edi-

tors (and quality analyzers), which allows one to

implement the tutoring system for other program-

ming languages as well.

As already discussed in Section 7, in the next step an

empirical evaluation of the prototype implementation

will be done. For this purpose, it is planned to inte-

grate a training unit on refactoring for design smells

into a university course on software design and mod-

eling. The key questions here are how the training via

the tutoring system is perceived by the users and to

what extent it supports in acquiring practical refactor-

ing competences.

CSEDU 2019 - 11th International Conference on Computer Supported Education

186

REFERENCES

Abid, S., Abdul Basit, H., and Arshad, N. (2015). Reﬂec-

tions on teaching refactoring: A tale of two projects.

In Proceedings of the 2015 ACM Conference on Inno-

vation and Technology in Computer Science Educa-

tion, pages 225–230. ACM.

Ajax.org (2019). AceEditor. https://ace.c9.io/ [March 21,

2019].

Alves, N. S., Mendes, T. S., de Mendonc¸a, M. G., Sp

ınola,

R. O., Shull, F., and Seaman, C. (2016). Identiﬁca-

tion and management of technical debt: A systematic

mapping study. Information and Software Technology,

70:100–121.

Argyris, C. (1977). Double loop learning in organizations.

Harvard business review, 55(5):115–125.

Arisholm, E., Briand, L. C., Hove, S. E., and Labiche, Y.

(2006). The impact of UML documentation on soft-

ware maintenance: An experimental evaluation. IEEE

Transactions on Software Engineering, 32(6):365–

381.

Beck, K. (2003). Test-driven development: by example.

Addison-Wesley Professional.

Bloom, B. S. et al. (1956). Taxonomy of educational objec-

tives. vol. 1: Cognitive domain. New York: McKay,

pages 20–24.

Campbell, G. and Papapetrou, P. P. (2013). SonarQube in

action (In Action series). Manning Publications Co.

nas, J. J., Bajo, M. T., and Gonzalvo, P. (1994). Men-

tal models and computer programming. International

Journal of Human-Computer Studies, 40(5):795–811.

CoderGears (2018). JArchitect. [March 21, 2019].

Elezi, L., Sali, S., Demeyer, S., Murgia, A., and P

erez, J.

(2016). A game of refactoring: Studying the impact of

gamiﬁcation in software refactoring. In Proceedings

of the Scientiﬁc Workshop Proceedings of XP2016,

page 23. ACM.

Fernandes, E., Oliveira, J., Vale, G., Paiva, T., and

Figueiredo, E. (2016). A review-based comparative

study of bad smell detection tools. In Proceedings of

the 20th International Conference on Evaluation and

Assessment in Software Engineering, page 18. ACM.

Fontana, F. A., Braione, P., and Zanoni, M. (2012). Auto-

matic detection of bad smells in code: An experimen-

tal assessment. J. Object Technology, 11(2):5–1.

Fontana, F. A., Dietrich, J., Walter, B., Yamashita, A., and

Zanoni, M. (2016). Antipattern and code smell false

positives: Preliminary conceptualization and classi-

ﬁcation. In Proc. of 23rd International Conference

on Software Analysis, Evolution, and Reengineering

(SANER 2016), volume 1, pages 609–613. IEEE.

Forman, I. R. and Forman, N. (2004). Java Reﬂection in

Action (In Action series). Manning Publications Co.

Fowler, M., Beck, K., Brant, J., Opdyke, W., and Roberts,

D. (1999). Refactoring: improving the design of exist-

ing code. Addison-Wesley Professional.

Gamma, E., Beck, K., et al. (1999). JUnit: A cook’s tour.

Java Report, 4(5):27–38.

George, C. E. (2000). Experiences with novices: The im-

portance of graphical representations in supporting

mental models. In Proc. of 12 th Workshop of the Psy-

chology of Programming Interest Group (PPIG 2000),

pages 33–44.

Haendler, T. (2018). On using UML diagrams to identify

and assess software design smells. In Proc. of the

13th International Conference on Software Technolo-

gies, pages 413–421. SciTePress.

Haendler, T. and Frysak, J. (2018). Deconstructing

the refactoring process from a problem-solving and

decision-making perspective. In Proc. of the 13th

International Conference on Software Technologies,

pages 363–372. SciTePress.

Haendler, T. and Neumann, G. (2019). Serious refactor-

ing games. In Proc. of the 52nd Hawaii International

Conference on System Sciences, pages 7691–7700.

Haendler, T., Sobernig, S., and Strembeck, M. (2015).

Deriving tailored UML interaction models from

scenario-based runtime tests. In International Con-

ference on Software Technologies, pages 326–348.

Springer.

Haendler, T., Sobernig, S., and Strembeck, M. (2017). To-

wards triaging code-smell candidates via runtime sce-

narios and method-call dependencies. In Proceed-

ings of the XP2017 Scientiﬁc Workshops, pages 8:1–9.

ACM.

IMS Global Consortium (2003). IMS simple sequencing

best practice and implementation guide. Final speciﬁ-

cation, March.

olling, M., Quig, B., Patterson, A., and Rosenberg, J.

(2003). The BlueJ system and its pedagogy. Com-

puter Science Education, 13(4):249–268.

Kollmann, R., Selonen, P., Stroulia, E., Systa, T., and Zun-

dorf, A. (2002). A study on the current state of the art

in tool-supported UML-based static reverse engineer-

ing. In Ninth Working Conference on Reverse Engi-

neering, 2002. Proceedings., pages 22–32. IEEE.

Krathwohl, D. R. (2002). A revision of bloom’s taxonomy:

An overview. Theory into practice, 41(4):212–218.

Kruchten, P., Nord, R. L., and Ozkaya, I. (2012). Technical

debt: From metaphor to theory and practice. IEEE

software, 29(6):18–21.

Kruchten, P. B. (1995). The 4+1 view model of architecture.

IEEE software, 12(6):42–50.

opez, C., Alonso, J. M., Marticorena, R., and Maudes,

J. M. (2014). Design of e-activities for the learning

of code refactoring tasks. In Computers in Education

(SIIE), 2014 International Symposium on, pages 35–

40. IEEE.

Martini, A., Bosch, J., and Chaudron, M. (2014). Architec-

ture technical debt: Understanding causes and a quali-

tative model. In 2014 40th EUROMICRO Conference

on Software Engineering and Advanced Applications,

pages 85–92. IEEE.

Moha, N., Gueheneuc, Y.-G., Duchien, L., and Le Meur,

A.-F. (2010). Decor: A method for the speciﬁcation

and detection of code and design smells. IEEE Trans-

actions on Software Engineering, 36(1):20–36.

An Interactive Tutoring System for Training Software Refactoring

187

Mugridge, R. (2003). Challenges in teaching test driven de-

velopment. In International Conference on Extreme

Programming and Agile Processes in Software Engi-

neering, pages 410–413. Springer.

Nord, R. L., Ozkaya, I., Kruchten, P., and Gonzalez-Rojas,

M. (2012). In search of a metric for managing archi-

tectural technical debt. In 2012 Joint Working IEEE/I-

FIP Conference on Software Architecture and Euro-

pean Conference on Software Architecture, pages 91–

100. IEEE.

Object Management Group (2015). Uniﬁed Mod-

eling Language (UML), Superstructure, Version

2.5.0. http://www.omg.org/spec/UML/2.5 [March 21,

2019].

Oechsle, R. and Schmitt, T. (2002). JavaVis: Automatic

program visualization with object and sequence dia-

grams using the java debug interface (JDI). In Soft-

ware visualization, pages 176–190. Springer.

Opdyke, W. F. (1992). Refactoring object-oriented frame-

works. University of Illinois at Urbana-Champaign

Champaign, IL, USA.

Parnas, D. L. (1994). Software aging. In Proceedings of

16th International Conference on Software Engineer-

ing, pages 279–287. IEEE.

Richner, T. and Ducasse, S. (1999). Recovering high-level

views of object-oriented applications from static and

dynamic information. In Proceedings of the IEEE

International Conference on Software Maintenance,

pages 13–22. IEEE Computer Society.

Roques, A. (2017). PlantUml: UML diagram editor.

https://plantuml.com/ [March 21, 2019].

Sandalski, M., Stoyanova-Doycheva, A., Popchev, I., and

Stoyanov, S. (2011). Development of a refactoring

learning environment. Cybernetics and Information

Technologies (CIT), 11(2).

Scanniello, G., Gravino, C., Genero, M., Cruz-Lemus, J. A.,

Tortora, G., Risi, M., and Dodero, G. (2018). Do

software models based on the UML aid in source-

code comprehensibility? Aggregating evidence from

12 controlled experiments. Empirical Software Engi-

neering, 23(5):2695–2733.

Sims, Z. and Bubinski, C. (2018). Codecademy.

http://www.codecademy.com [March 21, 2019].

Smith, S., Stoecklin, S., and Serino, C. (2006). An in-

novative approach to teaching refactoring. In ACM

SIGCSE Bulletin, volume 38, pages 349–353. ACM.

Sorva, J., Karavirta, V., and Malmi, L. (2013). A review

of generic program visualization systems for introduc-

tory programming education. ACM Transactions on

Computing Education (TOCE), 13(4):15.

Stoecklin, S., Smith, S., and Serino, C. (2007). Teaching

students to build well formed object-oriented meth-

ods through refactoring. ACM SIGCSE Bulletin,

39(1):145–149.

Suryanarayana, G., Samarthyam, G., and Sharma, T.

(2014). Refactoring for software design smells: Man-

aging technical debt. Morgan Kaufmann.

Tempero, E., Gorschek, T., and Angelis, L. (2017). Bar-

riers to refactoring. Communications of the ACM,

60(10):54–61.

Trung, N. K. (2017). InMemoryJavaCompiler.

https://github.com/trung/InMemoryJavaCompiler

[March 21, 2019].

Tsantalis, N., Chaikalis, T., and Chatzigeorgiou, A. (2008).

JDeodorant: Identiﬁcation and removal of type-

checking bad smells. In 12th European Conference

on Software Maintenance and Reengineering (CSMR

2008), pages 329–331. IEEE.

CSEDU 2019 - 11th International Conference on Computer Supported Education

188
