A Blockchain Approach to Support Digital Contracts

Victor H. Breder, Laurival S. C. Neto, Thiago F. Medeiros, Ivan M. Padalko, Guilherme S. Oliveira,

Vitor Venceslau Curtis and Juliana de Melo Bezerra

Department of Computer Science, ITA, Sao Jose dos Campos, Brazil

Keywords: Blockchain, Digital Contract, Digital Signature.

Abstract: Distributing computing that work with policies that flirt with democracy, in which parties can interact without

an intermediary, has gained strength. In this way, an attractive idea is to support digital contracts by removing

the third party and allowing the group to create and store contracts in a reliable and secure way, where

contracts are immutable and easily retrievable. We propose a Blockchain approach to aid the management of

digital contracts. The proposal considers contract encryption, digital signature, and protocols for chaining

blocks with data related to digital contracts. We develop a prototype to ensure the viability of our proposal.

We also present a case of use to demonstrate the prototype usage. We argue that proposal and implementation

together create an appropriate environment for research and education purposes.

1 INTRODUCTION

Although the technology continues to advance, in

recent years the computational capacity seems to been

reaching some barriers, such as the difficulty to

continuously scale down transistors and the problem

of energy efficiency (Borkar and Chien, 2011). Such

a scenario has found an alternative through

distribution and parallelization. Distributed systems

can be scaled up through the addition of more

machines, which brings a greater tolerance to failures

and allows resources’ sharing throughout the nodes of

the system. It’s not trivial to design and verify the

correctness of distributed algorithms. Fortunately,

groundbreaking and innovative results are emerging,

such as Google’s Spanner (Corbett et al., 2013) and

the revolutionary Bitcoin/Blockchain couple

(Nakamoto, 2017).

The need to scale up has required new ways of

thinking. Decentralized systems that work with

policies that flirt with democracy, in which parties

can interact without an intermediary, has gained

strength. For instance, P2P sharing technology (Ding

et al., 2004) and Blockchain technology (Miraz and

Ali, 2018). Blockchain, in principle, works as a form

of database. It assembles, in a specific order, blocks

that contains data. Furthermore, consensus

algorithms are be applied to create a distributed

version of Blockchain in a way that security is

guaranteed.

One interesting application of the distributed

Blockchain idea is digital contracts, which are digital

version of regular contracts (Cong and Zheng, 2017).

In regular contracts, a group of interested people

relies on a third party to validate a contract that verses

about rules regarding something valuable to the

group. After the approval of the involved ones about

the contract terms, they sign the document, validate

with the third party and store it. The idea of digital

contracts in a Blockchain is to remove the third party

and allow the group to create and store contracts in a

reliable and secure way, where contracts are

immutable and easily retrievable. Furthermore, it’s

even possible to create addendums to contracts stored

in the Blockchain.

Regarding the use of Blockchain technology

applied to contracts, literature explores the concept of

smart contracts. A smart contract is in fact an auto

enforceable code, running on top of a Blockchain,

with rules that dictate how parties interact with each

other. However, there is a lack of studies about

scalability, performance and security of presented

applications (Alharby and Moorsel, 2017).

Kalamsyah et al. (2018) work with the idea of digital

contracts, but they focus on the authentication process

of contracts between two parties and in the

importance of a witness process.

In this paper, we propose a Blockchain approach

to aid the management of digital contracts. The

proposal considers the contract encryption, the digital

446

Breder, V., Neto, L., Medeiros, T., Padalko, I., Oliveira, G., Curtis, V. and Bezerra, J.

A Blockchain Approach to Support Digital Contracts.

DOI: 10.5220/0007809804460453

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 446-453

ISBN: 978-989-758-379-7

signature of parties, the validation of digital

signatures, the storage of such information using

block chaining. It is possible to deal with distinct

contracts as well as with their possible addendums,

always in a distributed manner. While keeping

properties as integrity and authenticity of traditional

contracts, our approach based on Blockchain

eliminates the need of intermediaries and brings

security to the whole process. Section 2 describes our

proposal. Section 3 describes the evaluation of an

implemented prototype. Section 4 presents

conclusions and future work.

2 SUPPORTING DIGITAL

CONTRACTS

In our proposal, users can, after a consensus, create a

contract that is then inserted in the Blockchain. The

network consists of several nodes that are aware of all

the other nodes in the network, in other words, a

complete network. Each node represents an instance

capable of inserting blocks in the Blockchain. Each

user group that wishes to create a contract does so

through some node of the network. The proposal can

be summarized into three distinct parts: digital

contract creation and signing; Blockchain structure

and the network protocols.

2.1 Digital Contract Creation

and Signing

The digital contract is treated here as a pack of data.

It’s not necessarily needed to be stored in the

Blockchain, in fact it is stored somewhere else. Only

information that can be used to assert the contract is

the same for all parties is needed, in other words,

information that can assert the contract integrity.

Furthermore, the contract is sealed only after all

parties agree on its content with their respective

signatures.

Nowadays, an effective way of checking data

integrity is by using a hash function, a mathematical

function that maps the data in such a way that even

small changes to the original data causes a complete

different result from the hash function. Usually,

inverting the hash function isn’t possible and

collisions, when two different data contents are

mapped into the same value by the hash function, are

very rare, but can happen.

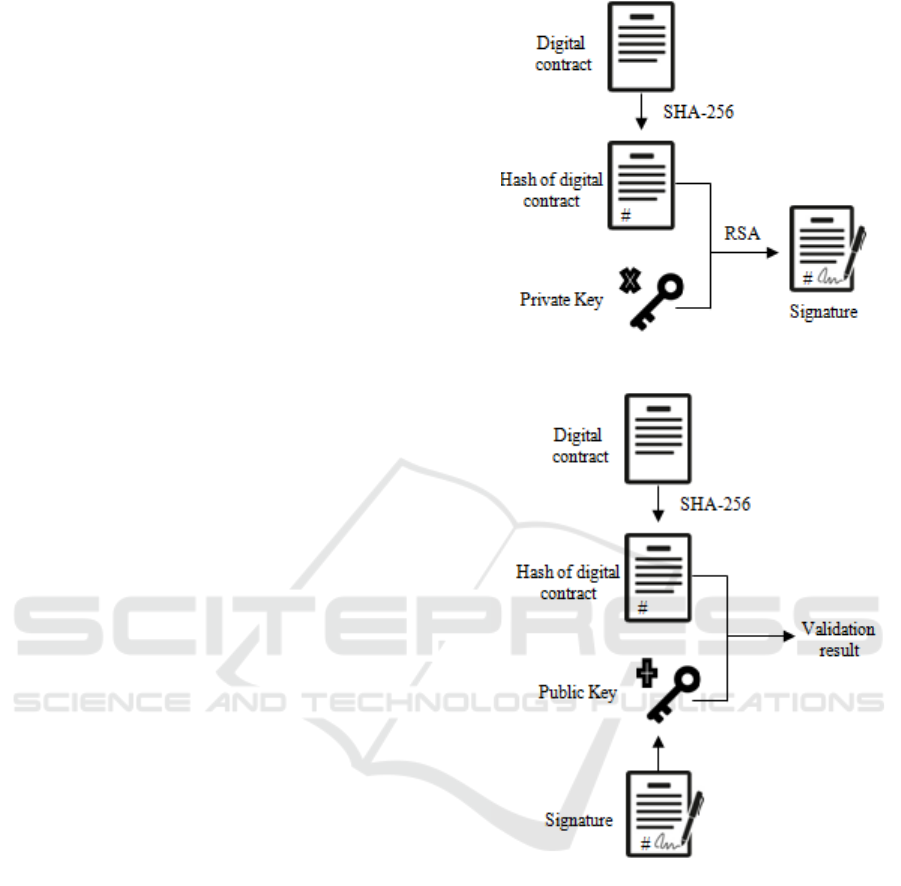

Figure 1: Signature generation scheme.

Figure 2: Signature verification scheme.

One of such functions is SHA-256, a hash

function that, given input data of arbitrary size,

produces a fixed 256 bit (or 32 bytes) word. Then,

using SHA-256 it’s possible for parties to check the

contract integrity. Once every party agrees upon the

contract, the hash of the document is used as a base

for the signatures. This process uses the typical RSA

authentication, where each party has a public key and

a private key.

The process to generate a signature of a contract

is depicted in Figure 1. Given the digital contract (for

instance a file named ‘contract.docx’), the SHA-256

function is used to generate a hash. The owner of a

A Blockchain Approach to Support Digital Contracts

447

private key then creates his signature of the hash by

the RSA algorithm.

Conversely, given a signature and the

correspondent public key, the signature can be

verified. The scheme is shown in Figure 2. If the

signature is authentic, operating with the public key

over data that has been encrypted with the

corresponding private key will decrypt and reveal the

original data. The original data should be the hash of

the contract that can be easily computed if the

contract is available. So, if the result is the hash, the

signature is valid.

2.2 Blockchain Structure

The Blockchain structure grows linearly as new

pieces (blocks) are added. There is only one entry

point for a new block. The addition of a block is made

in such a way that consistency of the structure can be

verified. The entire structure works as a register. The

Blockchain structure provides a simple way to store

data, but it’s potential and interesting features are only

apparent in the distributed form.

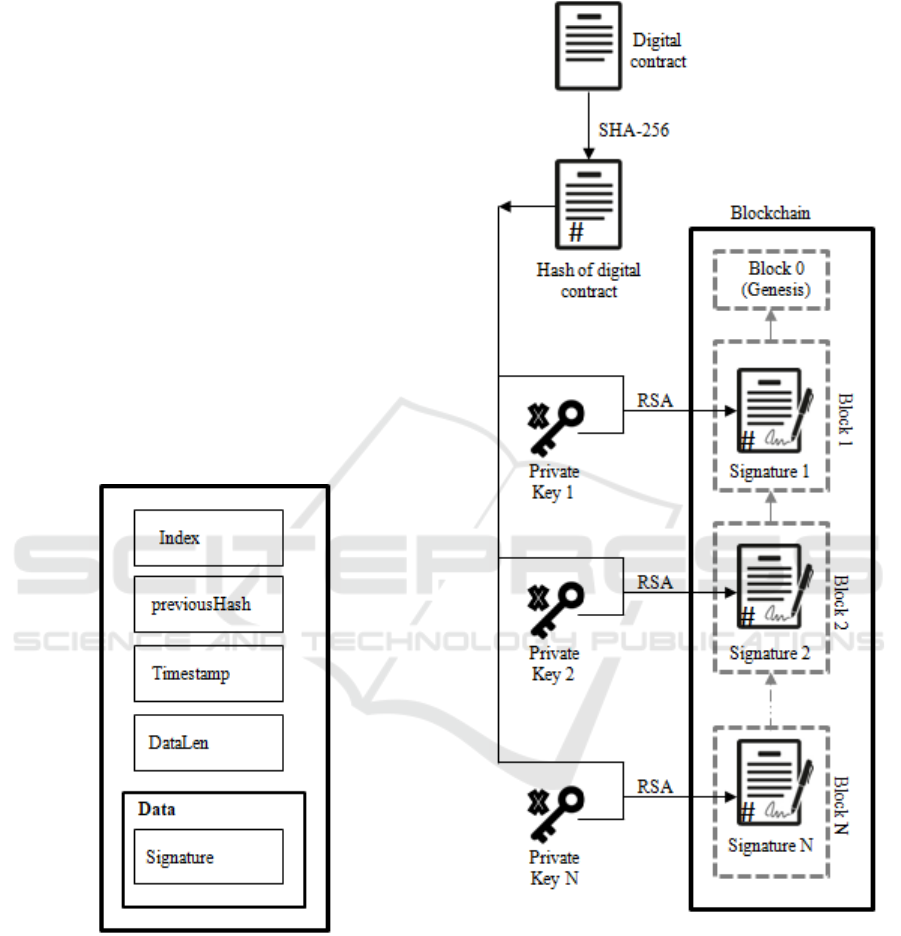

Figure 3: Block structure.

The block structure used in our approach is

presented in Figure 3. The components are: an index

that determines the position of the block in the chain;

the hash of the previous block (computed with SHA-

256 and using the block data); The timestamp; the

data length (number of bytes of data); and the data

itself. The data for our purposes consists only of a

signature. In other words, each signature of a contract

corresponds to a block in the Blockchain.

Figure 4: Blockchain formation scheme.

Regarding the chaining of blocks, the first block

is the ‘Genesis’ block, one that does not has the hash

of a previous block. After that, the chain can be built.

A block can only enter in the Blockchain if it has the

information about the hash of the last block added to

it. This property is useful when considering the

distributed case. Furthermore, the consistency of the

chain can be easily checked by starting from the last

ICSOFT 2019 - 14th International Conference on Software Technologies

448

added block and verifying if the hashes match block

to block until the ‘genesis’ block is reached.

A scheme of the Blockchain can be seen in Figure

4. Given a digital contract and its respective hash,

each party that signs the hash, creates a block in the

chain. It is important to remember that people can be

distributed, so blocks can be originated in distinct

nodes of the distributed system. The picture shows a

chain with N blocks in order; however they could be

in a different order given the distributed (and so out

of sequence) characteristic.

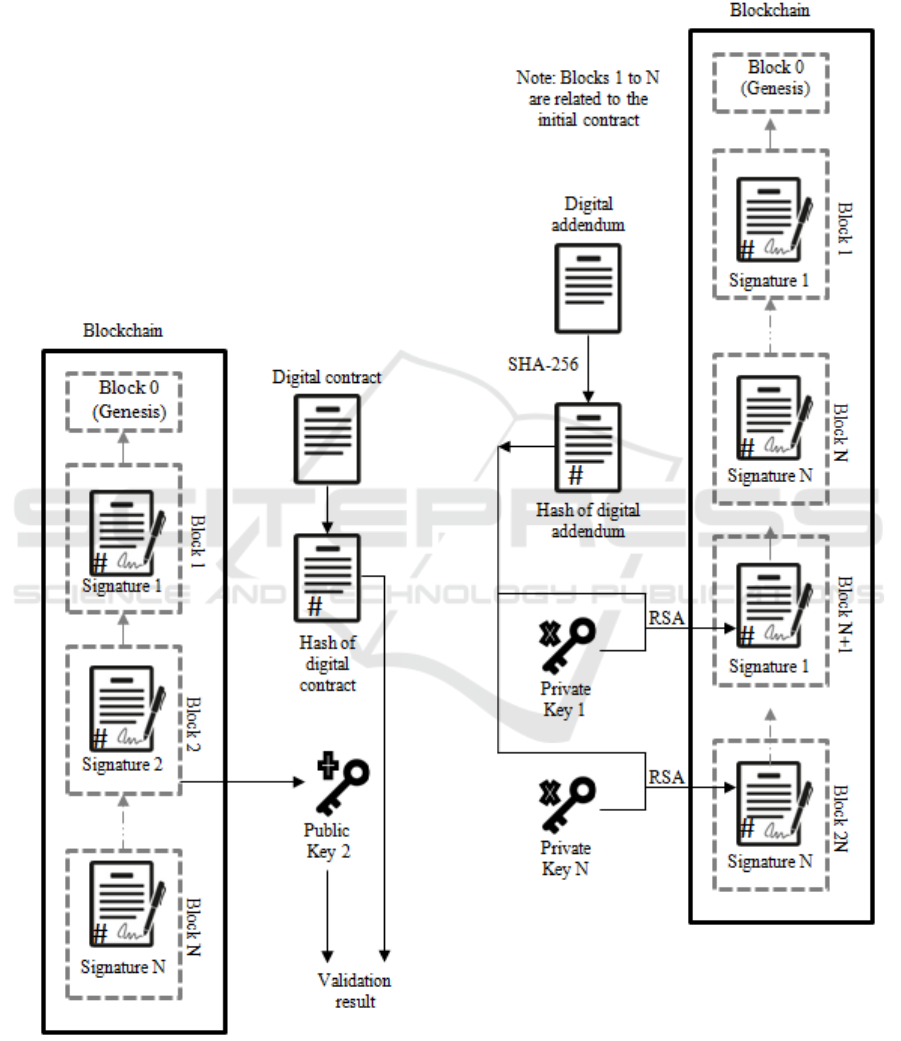

Following the idea of signature verification

shown in Figure 2, the verification process in

Blockchain presented in Figure 5. So, every signature

(inside a given block) can be verified using a public

key. A match in the result indicates that that person

(with the used public key) has signed the given

contract (using its hash in fact).

Figure 5: Signature verification in the Blockchain.

In case of contract addendums, the process is

similar, as presented in Figure 6. Parties need to sign

the hash of the addendum. New blocks are then

generated and added in the current chain. In the same

way, the Blockchain is up to register contracts and

addendums of distinct groups.

Figure 6: Contract addendums in the Blockchain.

2.3 Network Protocols

In our proposal, the system is a set of nodes in a

network. Blocks can be generated by different nodes.

Each node maintains a copy of the Blockchain. Here

we discuss how nodes enter in the system, how blocks

A Blockchain Approach to Support Digital Contracts

449

are propagated among nodes, and how to manage

eventual inconsistencies among chains in nodes.

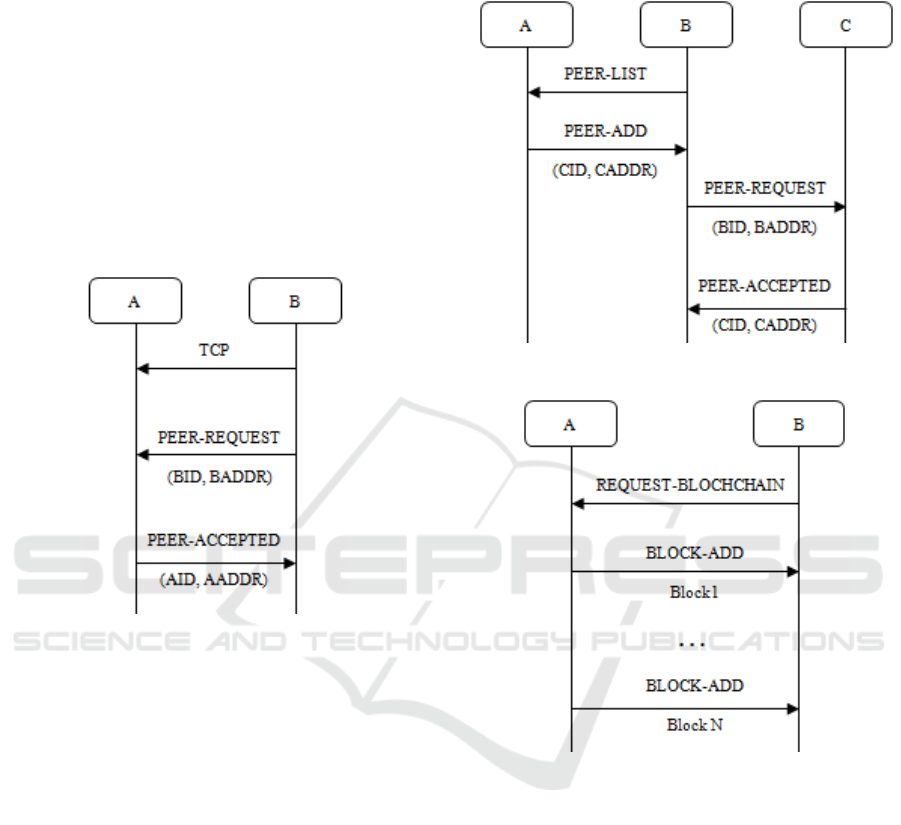

Figure 7 shows a scheme for adding nodes in the

network. When a new node B desires to enter the

network, it must first establish a TCP connection with

any of the present nodes already in the network (in the

example, its node A). Node B sends a ‘PEER-

REQUEST’ with its ID and Address to node A. Node

A then acknowledge and store B’s presence on the

network (a local copy of existing nodes in the

network). After processing the request, node A

responds with ‘PEER-ACCEPTED’ and B can

the network as well.

Figure 7: Protocol to add a new node in network.

The process of adding a new node continues until

all nodes recognize the presence of the new one. The

protocol is depicted in Figure 8. After the mutual

acknowledgment in Figure 7, B sends a ‘PEER-LIST’

message to A, asking for the addresses of other nodes

in the network. Node A, then, sends B sequentially

‘PEER-ADD’ messages. Each ‘PEER-ADD’

message has the address of a node of the network that

B must connect to, by doing the same ‘PEER-

REQUEST’ and ‘PEER-ACCEPTED’ iteration

(already described in Figure 7). By the end of the

process, the network remains a complete graph, in

other words, every node is connected to every other

node.

When a node (in the previous example, node B)

enters the network, it also requests from the first node

it connected (in the case, node A) a copy of the

Blockchain. This process is presented in Figure 9.

Node B sends ‘REQUEST-BLOCKCHAIN’ and A

replies with many ‘BLOCK-ADD’ messages. Node

A sends each block at a time on the same sequence it

is stored locally. After that, B will have a copy of A’s

local Blockchain.

Figure 8: Protocol to inform network about a new node.

Figure 9: Protocol to copy the Blockchain between nodes.

Other protocol responsible for distributing the

Blockchain is the broadcast of the addition of a new

block, as shown in Figure 10. After node A insert a

new block on its local Blockchain, it broadcasts the

added block to the rest of the network. In a receiver

node, if the new block fits as the next block (in other

words, when it has the correct hash for the last added

block on its local chain), then it is added at the end of

the local chain. If in any case it doesn’t fit the local

Blockchain of a node, the new blocked is discarded in

that particular node. Hence, it’s possible to have

inconsistencies on the consensus of the network about

the Blockchain while adding multiple blocks at the

same in different nodes and broadcasting it.

ICSOFT 2019 - 14th International Conference on Software Technologies

450

Figure 10: Protocol to broadcast a new block.

Lastly, to solve the pointed conflict of

inconsistency of the consensus of the network about

the Blockchain state, the nodes should follow a

specific protocol. When a node receives a block with

an index bigger than its own last inserted block, it

requests from the sender the Blockchain. Since the

Blockchain from the sender is longer, it gets

prioritized and overwrites the local Blockchain of the

requesting node. So, in the presence of a conflict, the

longest Blockchain gets prioritized and the smaller

chain is overwritten on the conflicting node.

This approach can lead to an exploit for malicious

attacks, like creating a fake long chain and forcing the

network to acknowledge it as the real Blockchain,

since it’s the longest. In fact, Bitcoin uses this

approach, but to maintain the security of network and

avoid this problem, it’s also implemented the so

called ‘Proof-of-Work’ or PoW (and there is a more

recent idea about a ‘Proof-of-Stake’ or PoS), where

the rate at which blocks are added to the chain is

controlled and limited by computational power in

such a way that trying to create a bigger chain in a

small time interval would require a prohibitive

amount of energy (Vashchuk and Shuwar, 2018). For

this paper purposes, this potential problem is left

unsolved for the sake of simplicity.

3 CASE OF USE

In a way to evaluate our proposal, we developed a

prototype from scratch. It was implemented in the Go

language and stored as an open-source project in a

GitHub repository (link: https://github.com/

impadalko/CES27Projeto). Here we describe a case

of use, presenting existing commands and the

demonstrating structures and protocols previously

described.

The application starts as a single node with the

‘Genesis’ block created, as shown in Figure 11. The

‘NodeId’ is a random string and ‘NodeAddr’ is the

address of node, so that other nodes can communicate

and connect to it. The application can also be started

with an address parameter. In this case, the node will

try to connect to a node with the given address. An

example is given in Figure 12, when the new attempts

to connect to a preexisting node (in the case, with

address 34369). The connection succeeds and it can

be seen that the ‘Genesis’ block data is copied.

Figure 11: First node instantiation.

Figure 12: Initializing a new node.

Figure 13: ‘peers’ command.

Figure 14: ‘conns’ command.

The ‘peers’ command (Figure 13) shows

addresses of peers connected to the current node. The

‘conns’ command (Figure 14) shows, in details, the

information of connections with current node. In

these examples, another node was added (not shown

./CES27Projeto

NodeId: WoQ57YZu

NodeAddr: [::]:34369

Index Hash PrevHash Timestamp Data

0 e3b0c442 00000000 1543547516

./CES27Projeto :34369

NodeId: W6GOogKr

NodeAddr: [::]:44713

Peer connected: WoQ57YZt

Block added:

Index Hash PrevHash Timestamp Data

0 e3b0c442 00000000 1543547516

peers

PeerId PeerAddr

62TtJ0rH [::]:38819

W6GOogKr [::]:44713

conns

RemoteAddr LocalAddr PeerId

PeerAddr

127.0.0.1:53042 127.0.0.1:34369 W6GOogKr

[::]:44713

127.0.0.1:53044 127.0.0.1:34369 62TtJ0rH

[::]:38819

A Blockchain Approach to Support Digital Contracts

451

in previous figures). Generating public and private

keys can be done with ‘genkey’ command followed

by user nickname. Keys are stored as ‘.pem’ files in a

local directory of the node. In this example, two pair

of keys are generated, one to Alice (Figure 15) and

other to Bob (similar to Figure 15).

Figure 15: ‘genkey’ command to Alice.

Figure 16: Alice enables her private key.

Figure 17: Alice creates the contract hash.

Figure 18: Alice signs the contract hash.

The process of signing a contract hash is

demonstrated below. In a given node, Alice uses

‘privkey’ command to enable its private key (Figure

16). Given a contract named ‘contract.dat’ stored

locally, Alice creates its hash (Figure 17) and signs it

(Figure 18). The signature is then stored as a block in

the local chain (named as ‘block 1’) and later

broadcasted to other nodes. In other node, Bob also

signs the contract hash (Figure 19), generating ‘block

2’ in Blockchain as well.

Figure 19: Bob signs the contract hash.

Figure 20: Blockchain in a node.

Figure 21: Alice enables her public key.

Figure 22: Alice verifies her signature.

Figure 23: Alice creates a block with data ‘1010’.

Figure 24: Bob creates a block with data ‘0101’.

Blockchain can be seen in Figure 20. In fact, it is

the chain stored in a given node, after adding Alice

and Bob signatures of the hash of ‘contract.dat’.

‘Data’ column shows the partial signature data.

Consider that Alice desires to verify its signature for

the given contract. Firstly, she indicates the use of her

public key (Figure 21). She then verify ‘block 1’

(created by her in Figure 18) against the contract hash

(Figure 17). As expected, there is a match and the

signature is authentic (Figure 22). In the same way,

Alice and Bob can verify signature from each other in

the Blockchain.

We demonstrate the process of tie breaking by

using the longest chain. Consider that Alice creates a

block with data ‘1010’ in a node. The block is stored

locally and not broadcasted (Figure 23). Similarly,

Bob creates a block with data ‘0101’ in a distinct node

genKey Alice

Generated private key Alice written to

Alice_priv.pem

Generated public key Alice written to

Alice_pub.pem

privKey Alice

Using private key: Alice

hash contract.dat

The SHA256 hash of the file given is:

e3b0c44298fc1c149af...

sign e3b0c44298fc1c149af…

The document with hash e3b0c442 was

signed with key Alice and added to the

blockchain in block 1

sign e3b0c44298fc1c149af…

The document with hash e3b0c442 was

signed with key Bob and added to the

blockchain in block 2

blocks

Index Hash PrevHash Timestamp Data

0 e3b0c442 00000000 1543547516

1 2f715cac e3b0c442 1543547787 bc27076c

2 1d9198e2 2f715cac 1543547832 d77b3c7b

pubKey Alice

Using public key: Alice

verify 1 e3b0c44298fc1c149af…

The signature is VALID

The document with hash e3b0c442 was

signed by Alice in the block 1

add 1010

Index Hash PrevHash Timestamp Data

0 e3b0c442 00000000 1543547516

1 2f715cac e3b0c442 1543547787 bc27076c

2 1d9198e2 2f715cac 1543547832 d77b3c7b

3 430c0c4e 1d9198e2 1543548033 1010

add 0101

Index Hash PrevHash Timestamp Data

0 e3b0c442 00000000 1543547516

1 2f715cac e3b0c442 1543547787 bc27076c

2 1d9198e2 2f715cac 1543547832 d77b3c7b

3 9dcf97a1 1d9198e2 1543548041 0101

ICSOFT 2019 - 14th International Conference on Software Technologies

452

(Figure 24). Both blocks are named as ‘block 3’ in the

local chains. When block with data ‘0101’ is

broadcasted to Alice’s node, it is ignored, since there

is already a block with pointing to ‘block 2’ (with data

‘1010’).

Figure 25: Alice creates a block with data ‘0110’.

Later Alice creates other block, now with data

‘0110’. It results in a bigger chain shown in Figure

25. Finally, broadcasting the longest chain causes the

overwritten of the other chain (with block ‘0101’).

Hence, the implemented application behaves as the

proposed idea of applying the distributed Blockchain

algorithm to digital contracts.

4 CONCLUSIONS

We proposed an approach to support the management

of digital contracts, motivated by the need to

guarantee contract integrity and signature

authenticity, and also to provide a trustable

environment without involving intermediaries as with

regular contracts. Our proposal is mainly based on

Blockchain technology, but also includes contract

hashing (using SHA-256 algorithm) and

authentication based on public and private keys

(using RSA algorithm).

The idea is that, after consensus about the contract

rules, every part emits a signature of the hash of the

digital contract. Each signature is inserted as a

different block in the chain. This process happens

inside a node of the network. When every party has

signed the contract, the new blocks are broadcasted to

the rest of the network. After some time, if the

Blockchain is not overwritten by some other block

addition, the agreement is done. If some signatures

cannot enter the Blockchain, the local chain is

updated and they are reinserted and broadcasted

again, until all signatures are part of the Blockchain.

We developed a prototype to ensure the viability

of our proposal. We also presented a case of use to

demonstrate the prototype usage. The current

examples can be easily generalized to any number of

nodes, parties, contracts, and addendums. Extensions

of our prototype are encouraged, in a way to facilitate

the proposal application, for instance by adding

facilities to communicate with processes across

different machines, and by establishing directives to

manage keys in a secure way.

Regarding the proposal itself, we intend to

investigate enhancements in the protocols, including

to deal with incomplete networks, and to add

consensus algorithms for new blocks in the chain. We

would like to study the proposal resilience to nodes’

failure and message losses. A web application to

access Blockchain data is also of interest to improve

the application usability. Both proposal and

implementation are then suitable to further

improvements, being an appropriate environment for

research and education purposes.

REFERENCES

Alharby, M., Moorsel, A. V., 2017. Blockchain-based

smart contracts: a systematic mapping study. Computer

Science & Information Technology (CS & IT), 7, 1-16.

Borkar, S., Chien, A., 2011. The future of microprocessors.

Communications of the ACM, 54 (5), 67.

Cong, L., Zheng, H., 2017. Blockchain Disruption and

Smart Contracts. SSRN Electronic Journal.

Corbett, J. C., et al., 2013. Spanner: Google’s globally

distributed database. ACM Transactions on Computer

Systems (TOCS). 31 (3), No. 8.

Ding, H., Nutanong, S., Buyya, R., 2004. Peer-to-Peer

Networks for Content Sharing. Technical Report,

GRIDS-TR-2003-7, Grid Computing and Distributed

Systems Laboratory. University of Melbourne,

Australia.

Kalamsyah, S. A., Barmawi, A. M., Arzaki, M., 2018.

Digital Contract Using Block Chaining and Elliptic

Curve Based Digital Signature. 6th International

Conference on Information and Communication

Technology (ICoICT).

Miraz, M., Ali, M., 2018. Applications of Blockchain

Technology beyond Cryptocurrency. Emerging

Technologies in Computing (AETiC), 2 (1).

Nakamoto, N., 2017. Centralised Bitcoin: A Secure and

High Performance Electronic Cash System. SSRN

Electronic Journal.

Vashchuk, O., Shuwar, R., 2018. Pros and cons of

consensus algorithm proof of stake. Difference in the

network safety in proof of work and proof of stake.

Electronics and Information Technologies, 9.

add 0110

Index Hash PrevHash Timestamp Data

0 e3b0c442 00000000 1543547516

1 2f715cac e3b0c442 1543547787 bc27076c

2 1d9198e2 2f715cac 1543547832 d77b3c7b

3 430c0c4e 1d9198e2 1543548033 1010

4 af340aa5 430c0c4e 1543548097 0110

A Blockchain Approach to Support Digital Contracts

453
