A MapReduce based Approach for Circle Detection

Mateus Menezes Azevedo Coelho, Dylan Nakandakari Sugimoto, Gabriel Adriano de Melo,

Vitor Venceslau Curtis and Juliana de Melo Bezerra

Computer Science Department, ITA, S

ao Jos

e dos Campos, Brazil

Keywords:

MapReduce, Parallel Processing, Distributed Processing, Circle Detection, Hough Transform.

Abstract:

Circle detection algorithms applied on images are used in different contexts and areas, such as bacteria iden-

tiﬁcation in Medicine and ball identiﬁcation in a humanoid robot soccer competition. Specialization and

processing time are critical issues in existing algorithms and implementations so that good detection results

to different situations usually impact the execution time. Aiming to deal with trade-off of specialization and

performance, this paper proposes a parallel algorithm for circle detection using Hough Transform and MapRe-

duce paradigm. We also compared its performance relative to its serial implementation and the one provided

by the OpenCV library. The proposed approach is useful for maintaining an accessible time execution while

increasing results’ quality, moreover it is general in terms of usability, which aid the identiﬁcation of circles

for different circumstances and inconstant environment.

1 INTRODUCTION

Circle detection on images can be applied in various

scientiﬁc ﬁelds, including Engineering and Medicine.

One example is the identiﬁcation of a ball contour by

a robot during a humanoid robot soccer league (Ki-

tano et al., 1997). The robot should be able to detect

the ball (which is a circle in 2D space) and then act ac-

cordingly in the game. Another example is counting

the number of bacteria colonies that arise on a petri

dish, whose concentration is proportional to this num-

ber.

Distinct approaches can be used to solve a cir-

cle identiﬁcation problem. For instance, SURF

(Speeded-Up Robust Features) algorithm (Bay et al.,

2008) uses pattern recognition to detect circles. This

kind of algorithm requires the extraction of features

that may not be always available. An example is coin

counting, where we need to identify the head and the

tail side of a coin. Other drawback is that such algo-

rithms can require some artiﬁcial intelligence prepro-

cessing in order to identify key points.

Hough Transform (Duda and Hart, 1972) based

methods are used for identifying different geomet-

ric shapes in an image, such as lines, circles or el-

lipses. There are even libraries that implement and

optimize such algorithms, as the image processing li-

brary OpenCV (Bradski, 2000).

The Hough Transform algorithm (Duda and Hart,

1972) has two main phases. The ﬁrst phase is to iden-

tify the boundary points in a certain image. The sec-

ond phase is the one that takes more processing time

for circle detection, if in a generalized implementa-

tion, since every pixel in an image can be a circle cen-

ter, and every diameter that is smaller than the image’s

width and height is possible.

This algorithm, when implemented without sim-

pliﬁcations and executed in a generic way (such as

no radius limitation), has a long computing time and

large cost of memory space, which can affect algo-

rithm usage in real problems. A way to solve this

issue is to make parallel the Hough Transform al-

gorithm, so that the computing time and the mem-

ory space problems can be amortized. A parallel ap-

proach requires splitting the image and merging the

results, always considering performance, result gen-

eralization, and result quality.

To deal with parallelism, MapReduce is a promis-

ing solution. MapReduce is a programming model

and an associated implementation for processing a

large amount of data (Dean and Ghemawat, 2004).

Using this concept to implement a parallel version of

a certain algorithm, two main functions are needed

to develop the algorithm: Map and Reduce. A Map

function processes an initial set of key/value pairs that

is used to generate a set of intermediate key/value

pairs. A Reduce function merges all intermediate

values associated with the same intermediate key.

454

Coelho, M., Sugimoto, D., Melo, G., Curtis, V. and Bezerra, J.

A MapReduce based Approach for Circle Detection.

DOI: 10.5220/0007827604540459

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 454-459

ISBN: 978-989-758-379-7

MapReduce allows a “split to conquer” vision of an

algorithm, which can have its performance improved

by parallel processing.

Sere et al. (2016) discussed a way of implement-

ing Hough Transform with the MapReduce concept

in order to develop a line detection application. They

also indicated the possibility to apply the same idea

to other shapes. We extend the previous work to con-

sider circle detection. In this paper, we then propose

a parallel approach to circle detection problem, based

on MapReduce model. The proposal is compared in

terms of result quality and execution time with serial-

ized implementations.

2 CIRCLE DETECTION WITH

HOUGH TRANSFORM AND

MAPREDUCE

Our work is based on the Generalized Hough Trans-

form algorithm (Duda and Hart, 1972), which is de-

scribed with its simpliﬁcations in this section. The

same algorithm is implemented on serialized ap-

proach as well as parallel approach. The parallel

algorithm, based on MapReduce paradigm, uses the

Apache Spark framework (Zaharia et al., 2016) tech-

nology to support parallel execution.

2.1 Serialized Hough Transform for

Circle Detection

The algorithm responsible for the serial execution of

the Hough Transform in circles is detailed on the list-

ing 1. The algorithm receives the input ﬁle and then it

stores the image in a matrix. The image is ﬁltered

in order to avoid boundary detection errors, in this

case, using a Gaussian Filter. For boundary detec-

tion, the Canny Edge Detection (Canny, 1986) is ap-

plied. Later, the algorithm considers that the circles

that can be correctly detected have its radius between

5 pixels and half of the minimum value of the image

dimensions. Such approximation is made to avoid de-

tection errors, for example simple points being con-

sidered circles.

Then, we initialize the candidate’s data structure

that is used for saving the number of boundary points

at a certain distance from a point. For each pixel that

was detected as boundary by Canny Edge, we sum

one to each other pixel that is a circle candidate for

the ﬁrst pixel at a given radius, in other words, whose

distance to it is between the circle’s radius detection

range. Then we return the circles after a selection over

the candidates. This selection is based on the num-

ber of boundary pixels at a certain distance from the

given circle center and done by the function FilterCir-

clesFromcandidates. This function simply search for

the locally maximum points in the accumulated data

structure that are greater than a threshold deﬁned by

its radius.

Algorithm 1: Serial Circle Detection.

1: function SERIALHOUGHCIRCLES(img):

2: input = applyGaussianFilter(img)

3: input = cannyEdge(input)

5: length = int(min(rows/2,col/2))

6: radius = [range(5,length)]

7: cands = InitCandidates()

9: for r in radius do:

10: for pixel in input do:

11: if pixel is boundary then:

12: for angle in range(0,360) do:

13: centerCand = get Center(pixel,r, angle)

14: if centerCand in image then:

15: cands[r][centerCand]+ = 1

16: return FilterCirclesFromCandidates (cand)

2.2 Parallel Hough Transform for

Circle Detection

The algorithm responsible for the parallel execution

of the Hough Transform for circles is described in list-

ing 2. It is the result of an adaptation of the algorithm

1 to the MapReduce paradigm, following directives of

the Spark’s resilient distributed dataset.

The algorithm behaves essentially in the same

way. It receives the image as a parameter and ﬁlters it

before applying the Canny Edge detection. Then, the

spark context variable, which is responsible for coor-

dinating the parallel execution, is initialized, as well

as the candidates, which are an accumulator variable.

The image is split into windows with maximum

dimensions as 50x50. This was a reasonable choice

for the division of work so that the overhead for split-

ting and synchronizing the workers is not greater than

time for computing the Hough Transform in the win-

dow. Using the spark context variable, the function

upCand is executed for each image window. This

function is the same as the algorithm 1 as it just update

the candidates in the given window sequentially. For

each pixel that was detected as boundary by Canny

Edge of each window, this function sums one to each

other pixel that is a circle candidate whose distance to

it is between the circle’s radius detection range. This

process of summing one for each pixel is done by the

A MapReduce based Approach for Circle Detection

455

3DAccumulator as there are 3 degrees of freedom in

which every possible circle is evaluated: its x and y

coordinates center position and its radius r. After the

end of the execution, the upCand function’s results

are updated. Then, the candidates are ﬁltered such

that the circle identiﬁcation is correct.

Algorithm 2: Parallel Circle Detection.

1: function PARALLELHOUGHCIRCLES(img):

2: input = applyGaussianFilter(img)

3: input = cannyEdge(input)

4: sc = getSparkContext()

6: cands = sc.accumulator(3DAccumulator)

8: windows = splitImage(input)

10: sc.parallelize(windows). f oreach(upCand)

11: return FilterCirclesFromCandidates (cand)

3 EVALUATION

We compared results of four implementations for cir-

cle detection. Two algorithms are those described

in the previous section, known as ’Serial Circle De-

tection’ (Algorithm 1) and ’Parallel Circle Detection’

(Algorithm 2). The two other implementations were

based on the OpenCV Hough Transform circle de-

tection function (Bradski, 2000). We worked with a

OpenCV execution using delimited radius, here called

as ’Simpliﬁed OpenCV Circle Detection’. We also

worked with a OpenCV execution with no maximum

radius, here called ’General OpenCV Circle Detec-

tion’.

The evaluation criteria include: processing time,

detection results, and algorithm generalization. Pro-

cessing time is an important criterion for algorithms

to characterize performance. Detection results is the

evaluation of the implementation itself, considering

circles correctly detected and circles not detected. Al-

gorithm generalization criterion is related to how the

same algorithm can be used in different situations, in

other words, it is the ﬂexibility that it has in relation

to its parameters. A more general algorithm is ex-

pected to work well in more tests cases than a more

specialized one, in our case, this means to detect the

desired circles even with the presence of shadows and

differences in illumination.

These criteria are considered in the execution of

the algorithms over the same images, with images re-

lated to different applications. These images where

randomly selected from the images search results that

included circular objects such as tennis balls, ge-

ographical features such as roundabouts, maps and

trees and ﬁnally microscopical images of bacteria.

For each implementation, the Hough Transform

processing time was measured. We do not measure

only the circle identiﬁcation, but also all processing

functions executed over the image to assist the iden-

tiﬁcation. For example, to use the OpenCV Hough

Transform implementation for circles and obtain an

acceptable response, it is important to process previ-

ously the image with a Gaussian blur (Hsiao et al.,

2007).

Table 1 shows the results of the execution of the

four implementations for circle detection. The used

machine was a computer with two Intel(R) Xeon(R)

CPU E5-2670 v3 @ 2.30GHz, totaling 48 threads and

128 GB of RAM. The Serial (Algorithm 1) and Par-

allel (Algorithm 1) algorithms were implemented in

Python language, being the Parallel adapted to inte-

grate with the Spark technologies, which is the inter-

face with the cluster. The program’s mean execution

time was calculated using at least 3 executions for the

more time consuming implementation and 5 for the

OpenCV implementations.

Table 1: Processing time of Hough Transform implementa-

tions for circle detection.

Implementation Mean Processing Time (sec)

Simpliﬁed OpenCV 0.013

General OpenCV 0.015

Serial (Algorithm 1) 924

Parallel (Algorithm 2) 44.2

The algorithms 1 and 2 had a worse performance

compared to the OpenCV implementation, the main

reason for that being the fact that OpenCV was im-

plemented in C using highly optimized operations

while our implementation was made in Python3 and

executed using its interpreter. Therefore, there is a

multiplicative constant that maps between the times

from the compiled code execution to its interpreta-

tion, which is a order of magnitude higher. Also, the

ratio between our serial and parallel implementations

is limited by the number of cores in which the parallel

version was run. One of the beneﬁts of the parallel al-

gorithm is that its performance can be easily improved

by using a better cluster.

Regarding the detection results, we use as exam-

ple a bacteria cologne photo. The algorithms must

then attempt to identify such colognes as circles. The

red dots in the images were the centers of the detected

circles while its circumference is shown in green.

Serial (Algorithm 1) and Parallel (Algorithm 2)

are essentially the same, the only difference is the ap-

plication of a parallel execution strategy. So, as ex-

ICSOFT 2019 - 14th International Conference on Software Technologies

456

pected, the detection results are the same, as show in

Figure 1. It is important to note that not all bacteria

were found to have a circular shape that could be de-

tected by the algorithm and that some inner features

had a deeply round shape that was detected by the al-

gorithm. Nevertheless, the algorithm was able to ﬁnd

important circles that would help to characterize the

image.

The result for the execution of the ’Simpliﬁed

OpenCV’ is presented in Figure 2. The OpenCV

implementation requires the input image to be in

grayscale as it can work only with one color chan-

nel. We observed that with a specialized parameter

range, such as the radius that ranged between 15 to 40

pixels and the threshold parameter, the algorithm was

able to select only the circles in which it had the most

conﬁdence. In this way the smaller features were ﬁl-

tered out but other important circles were also left out

of the ﬁnal results. Our implementation has the ad-

vantage that it doesn’t need the user to manually se-

lect the range as it is able to automatically sweep the

entire range of possible radius, selecting the larggest

acumullation points.

The result for the execution of the ’General

OpenCV’ is presented in Figure 3. We noted that this

detection result wasn’t good as it identiﬁed a exces-

sive number of circles that shouldn’t be marked, ren-

dering the analysis less useful. This image was also

loaded as grayscale because it is the only input format

the OpenCV implementation accepts.

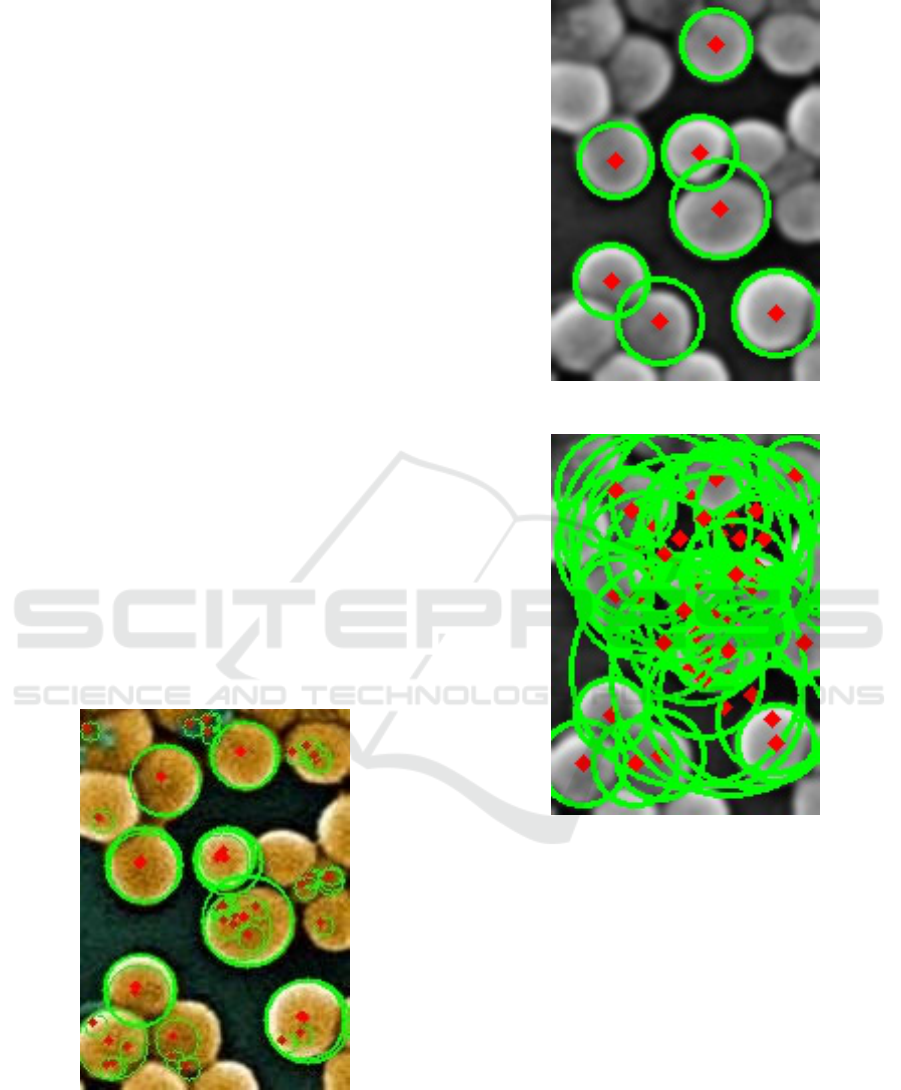

Figure 1: Detection Result of Serial (Algoritm 1) and Par-

allel (Algorithm 2).

The last evaluation criterion was the algorithm

generalization. The implementation provided by

OpenCV has a low generalization power, since to

achieve a good result, some parameters have to be

Figure 2: Detection Result of Simpliﬁed OpenCV.

Figure 3: Detection Result of General OpenCV.

changed accordingly, such as the circle’s radius limits

and the parameter related to the internal Canny Edge

detector, which mean that assuming a certain range

for the radius is usually needed for adequate results.

Accordingly to the OpenCV documentation, there is

the parameter d which is the ratio between the image

resolution and the accumulator resolution, the param1

which is the higher threshold of the two threshold that

are passed to the internal canny edge detector as the

lower one is twice smaller, and the param2 is the ac-

cumulator threshold for the centers of the circles at the

detection stage so that the smaller it is, the more false

circles may be detected (Team, 2014). Some parame-

ter’s conﬁguration may require more processing time

as the accumulation space would be bigger or more

densely populated. This process of choosing the right

parameter may be time consuming and it is this point

A MapReduce based Approach for Circle Detection

457

that our algorithm excels.

This issue is not a problem to Serial (Algorithm 1)

neither to the proposed Parallel (Algorithm 2), which

do not need to receive guessed parameters and its de-

tection performance does not change abruptly. For

instance, specifying an small radius range of 10 pix-

els has a better performance than specifying the range

from zero to half the image’s width. Also, the parame-

ters associated with the OpenCV implementation may

vary from image to image, depending on the scale and

the illumination presented in the image.

When there is an obstructed circle, the OpenCV

implementation has a higher chance of considering it

a circle, depending on the tolerance of its parameters,

which mostly increase wrong identiﬁcation cases. But

both the Serial and the proposed Parallel implementa-

tions (Algorithm 1 and Algorithm 2, respectively) are

robust enough to identify the obstructed circles with-

out affecting the result quality.

4 CONCLUSIONS

In a context of circle identiﬁcation, where the envi-

ronment variables, such as light, changes quickly, it

is very important to have an algorithm implementa-

tion that allows result stability and quality without a

dynamic change on the received parameters. This im-

plementation is the objective of this paper, which was

motivated by the need to balance circle identiﬁcation

performance with the achievement of appropriated re-

sults independent of contexts.

In this context, we proposed a parallel algorithm

for circle identiﬁcation. We applied Hough Trans-

form as the foundation for our algorithm and added

parallelism using the MapReduce paradigm. For exe-

cution purposes, we used Spark framework, which is

a framework to support distributed computing.

We compared the proposed parallel algorithm

with analogous implementations, also using Hough

Transform. We investigated the serial version of

our proposal. We also explored the OpenCV Hough

Transform Algorithm in two ways: in a simpliﬁed

way (with predeﬁned parameters) and in a general

way (without predeﬁned parameters).

We found that the main advantage of our proposal

as well as its serialized version is the algorithm gen-

eralization. Such implementations can than be used

to detect different objects as a circle in distinct con-

texts without the need to set specialized conﬁgura-

tions. Regarding the detection results, the OpenCV

achieved good results when properly conﬁgured. The

OpenCV in a general way was unable to identify cir-

cles correctly, since it ended up with many false pos-

itives. To avoid it, some parameters, such as circle

radius limits, should be deﬁned, even when the ade-

quate values for them are mutable, like when the cam-

era gets closer to the object, the circle radius limits

should change, or when the environment gets lighter,

a different ﬁlter parameter should be applied. As ex-

pected, our parallel algorithm gave the same detection

results that its serialized version. However, some re-

sults were not small formations not consistent with

the expected circles, so we need to investigate how to

improve the algorithm in this way.

Regarding performance, OpenCV implementation

has a very good performance, mainly when the pa-

rameters are speciﬁed correctly. But, since this im-

plementation relies deeply on the correct choice of

these parameters, when the context changes a little

the performance may decay signiﬁcantly. The serial

algorithm has the largest processing time of the eval-

uated algorithms, while having a generalized perfor-

mance as good as our parallel implementation. Nev-

ertheless, this serial algorithm can take up to a day of

processing time for high resolution images. Although

the performance of the proposed parallel algorithm

was not impressive, such parallel approach requires

further evaluations, since it relies on cluster architec-

ture and processing power. The interesting result is

that the performance of parallel algorithm is not neg-

atively impacted by context changes.

More experiments and comparisons should be

studied. As future work, we intend to investigate other

parallelism framework different from Spark, other

programming languages, as well as other execution

platform in order to improve performance of our par-

allel algorithm. We will also test different blurring ﬁl-

ters and edge detectors, aiming to reduce the errors in

the circles identiﬁcation. We argue that, with an opti-

mized implementation, our proposal can adequately

support circle detection in real distributed systems’

problems.

REFERENCES

Bay, H., Ess, A., Tuytelaars, T., and Van Gool, L. (2008).

Speeded-up robust features (surf). Comput. Vis. Image

Underst., 110(3):346–359.

Bradski, G. (2000). The OpenCV Library. Dr. Dobb’s Jour-

nal of Software Tools.

Canny, J. (1986). A computational approach to edge de-

tection. IEEE Trans. Pattern Anal. Mach. Intell.,

8(6):679–698.

Dean, J. and Ghemawat, S. (2004). Mapreduce: Simpliﬁed

data processing on large clusters. In Proceedings of

the 6th Conference on Symposium on Operating Sys-

tems Design & Implementation - Volume 6, OSDI’04,

ICSOFT 2019 - 14th International Conference on Software Technologies

458

pages 10–10, Berkeley, CA, USA. USENIX Associa-

tion.

Duda, R. O. and Hart, P. E. (1972). Use of the hough trans-

formation to detect lines and curves in pictures. Com-

mun. ACM, 15(1):11–15.

Hsiao, P.-Y., Chou, S.-S., and Huang, F.-C. (2007). Generic

2-d gaussian smoothing ﬁlter for noisy image process-

ing. TENCON 2007 - 2007 IEEE Region 10 Confer-

ence, pages 1–4.

Kitano, H., Asada, M., Kuniyoshi, Y., Noda, I., and Osawa,

E. (1997). Robocup: The robot world cup initiative. In

Proceedings of the First International Conference on

Autonomous Agents, AGENTS ’97, pages 340–347,

New York, NY, USA. ACM.

Team, O. D. (2014). Feature detection. In OpenCV API

Reference.

Zaharia, M., Xin, R. S., Wendell, P., Das, T., Armbrust,

M., Dave, A., Meng, X., Rosen, J., Venkataraman, S.,

Franklin, M. J., Ghodsi, A., Gonzalez, J., Shenker, S.,

and Stoica, I. (2016). Apache spark: A uniﬁed engine

for big data processing. Commun. ACM, 59(11):56–

65.

A MapReduce based Approach for Circle Detection

459
