Attack on a Scheme for Obfuscating and Outsourcing SAT Computations

to the Cloud

Khazam Alhamdan, Tassos Dimitriou and Imtiaz Ahmad

Department of Computer Engineering, Kuwait University, Kuwait

Keywords:

SAT, Outsourcing Computations, Obfuscation, Data Privacy, Attack, Cloud Computing.

Abstract:

The emergence of cloud computing gave users the capability to oﬄoad computations that cannot be executed

locally to cloud servers with large computational power. One such computationally demanding problem is

solving large satisﬁability (SAT) instances. Although many problems from AI, circuit veriﬁcation, etc. can be

converted to SAT, outsourcing SAT instances may leak considerable information that can put a user’s security

at risk. Hence the privacy of outsourcing computations to the cloud is a major issue. In this work we look at

the techniques of Qin et al. (Qin and Jia., 2014; Qin and Du., 2018) which have been used to obfuscate SAT

formulas before they are released to the cloud. We came up with a realistic attack against their technique that

demonstrates how a malicious cloud provider can obtain signiﬁcant information about the underlying SAT

instance. Our work shows that ad hoc schemes cannot oﬀer the required security guarantees for outsourcing

SAT computations, hence more formal frameworks should be used instead.

1 INTRODUCTION

Cloud computing is a new paradigm that enables ser-

vice providers to share resources (storage, computa-

tion, bandwidth, etc.) with users. Cloud computing

comes with mainly three diﬀerent ﬂavors: SaaS (Soft-

ware as a service), PaaS (Platform as a service), and

IaaS (Infrastructure as a service) (Mell and Grance,

2011). While each model has its own usage, outsourc-

ing computations mainly falls under the SaaS cate-

gory in which the provider oﬀers the applications that

can be run on the cloud, and the clients access these

applications through an appropriate interface without

having to worry about maintaining the actual hard-

ware system. However, despite the increased conve-

nience of cloud services, users may be reluctant to

oﬄoad critical tasks to the cloud as this may leak pri-

vate information to the cloud provider. It is neces-

sary therefore to protect user’s data and tasks against

a malicious or untrusted provider (Zissis and Lekkas.,

2012).

There are already many problems that beneﬁt

from outsourcing various computational tasks to the

cloud such as those involving matrix multiplication

(Atallah and Frikken, 2010) and Linear Programming

(C. Wang and Wang, 2011). Other known compu-

tationally demanding problems are those related to

modular exponentiation (Ding and Choo., 2017; Zhu

and Chen., 2018), graph theoretic problems (Blan-

ton et al., 2013), rule-based machine learning (Wong

et al., 2007), and so on. For a recent survey on secu-

rity issues in computation outsourcing, please refer to

(Shan et al., 2018).

Problems such as AI planning, deduction, and

software checking are also known to be hard espe-

cially when the inputs are really large. Researchers

use diﬀerent algorithmic techniques to solve such

problems, one of which it to reduce the problem from

its original form into a form (eg. propositional logic)

which can be tested for satisﬁablity (SAT), i.e. ﬁnd

an assignment to the variables that makes the formula

true (Hung and Gao., 2014). Once the problem is con-

verted to a SAT instance, various optimized and well

studied SAT solvers can be used to obtain the desired

solution (Rintanen, 2011; Hung and Gao., 2014).

Despite the advantage of reducing a diﬃcult prob-

lem to such a well studied problem as SAT, still ﬁnd-

ing a solution that satisﬁes the propositional logic

problem is not easy. This problem is also known as

she satisﬁability problem (SAT). Knowing that SAT

is hard means it typically requires a large amount of

computational power, which can be easily provided

through the use of cloud services. Although outsourc-

ing computations to the cloud solves the problem of

clients with limited computational resources to some

extend, security issues arise since the input-output

356

Alhamdan, K., Dimitriou, T. and Ahmad, I.

Attack on a Scheme for Obfuscating and Outsourcing SAT Computations to the Cloud.

DOI: 10.5220/0007829503560362

In Proceedings of the 16th International Joint Conference on e-Business and Telecommunications (ICETE 2019), pages 356-362

ISBN: 978-989-758-378-0

relationship of SAT instances may reveal consider-

able information about the user’s activities as cap-

tured by the SAT formula. For example, SAT is of-

ten used as a tool to accomplish other goals; Wakrime

(Wakrime, 2017) developed a system that considers

sharing data in a privacy preserving manner using

SAT. Brun et al. (Brun and Medvidovic., 2012) used

SAT as an abstract view of how computation privacy

can be achieved on the cloud.

Our scope here is the privacy of the problem’s

data, in particular of SAT formulas. One of the many

approaches to provide such service is by encrypt-

ing/disguising the original problem through a pro-

cedure called obfuscation. However, a study per-

formed in (Hosseinzadeh and Lepp

anen., 2018) states

that obfuscation increases the diﬃculty of reverse-

engineering the problem but it does not provide any

guarantees for security. Here, we will exploit such po-

tential weaknesses in the SAT obfuscation approach

used in (Qin and Jia., 2014) and (Qin and Du., 2018).

More precisely, we developed an attack against

the Qin et al. SAT obfuscation schemes and found

that a malicious provider may learn considerable in-

formation about the underlying SAT formula even if

this is presented in an obfuscated form. The lesson

to be learned is that if an obfuscation scheme is not

designed carefully then solutions obtained might re-

veal enough information which can be used to de-

obfuscate and nullify the scheme.

The remaining of the paper is organized as fol-

lows. In Section 2, related work about privacy of SAT

instances is presented. In Section 3, the (Qin and Jia.,

2014) approach is described and our methodology to

attack the scheme is discussed. In Section 4, we vali-

date our ﬁndings with further experimental evidence.

Finally, Section 5 concludes this work.

2 RELATED WORK

There are two aspects of the SAT privacy problem,

one focusing on hiding the circuit structure of a hard-

ware design and the other focusing on the privacy of

solving computationally hard SAT instances.

Keshavarz et al. (Keshavarz and Holcomb., 2018)

surveyed the major techniques used to achieve intel-

lectual property (IP) protection at the hardware level

as well as their potential weaknesses. These include

reverse engineering a circuit through imaging, using

a working chip, or analyzing the circuit at the logical

level. A clever way of preventing the imaging attack

is by disguising the gates in a way that they all look

the same under imaging (Rajendran and Karri., 2013).

Adding more circuitry to the desired design is an ad-

ditional countermeasure that can be used to prevent

simple reverse engineering using a working chip.

Logic locking is a technique attempting to lock

the logical functionality of the circuit unless a certain

key input is provided along with the input parameters

(Chakraborty and Bhunia., 2009) of the working pro-

totype. Roshanisefat et al. (Roshanisefat and Sasan.,

2018) further introduced SRCLock (SAT-Resistant

Cyclic logic Locking) to overcome some weaknesses

in the original practice of logic locking. However

Chen et al. (Chen, 2018) countered SRCLock by en-

hancing prior attacks against it. Yet, Xie et al. (Xie

and Srivastava., 2018) introduced a more complex

way for circuit locking called Anti-SAT, which how-

ever has also been countered by the Bit-ﬂipping attack

in (Shen and Zhou., 2018).

The previous attacks demonstrate that is not easy

to hide the functionality of a circuit. However, the

focus of this paper is to handle the computational pri-

vacy aspect of the SAT problem which is about hid-

ing the original SAT formula structure from the cloud

solver.

Brun et al. (Brun and Medvidovic., 2012) pro-

posed to distribute the computation of a SAT formula

on multiple machines such that every machine is as-

signed to evaluate a diﬀerent part of the formula. The

sub-evaluation is then passed to the neighbouring ma-

chines. Although this method might work in theory,

nothing prevents the servers from colluding in order

to recover the hidden formula. Hence this method as-

sumes a trustworthy cloud provider.

Qin et al. in (Qin and Jia., 2014) and subsequently

in (Qin and Du., 2018) proposed two similar meth-

ods that attempt to obfuscate a SAT formula by em-

bedding a secret key in them. In the next section we

describe their scheme as well as our attack against it.

3 ATTACKING THE QIN ET

AL. SCHEMES

We start with a brief discussion about the underlying

threat model and some background information on the

SAT problem. Then we describe how the target ob-

fuscation scheme works (Qin and Jia., 2014; Qin and

Du., 2018), and how our attack takes advantage of

ﬂaws in the scheme’s design.

3.1 Preliminaries

Threat Model: There are two main participants in the

model of outsourcing computations to the cloud, the

cloud service provider and the user who wants to out-

source his/her SAT instance to the cloud. The goal of

Attack on a Scheme for Obfuscating and Outsourcing SAT Computations to the Cloud

357

any SAT obfuscation algorithm should be to prevent

the cloud solver from getting any information about

the original instance from the obfuscated one. As the

cloud solver is assumed to have the computational ca-

pability to solve the obfuscated formula, any solution

to this should not reveal anything about the original

instance.

SAT: The Satisﬁability problem (SAT) asks whether

there exists an assignment x ∈ {0, 1}

that makes a

given Boolean function f of n variables equal to 1

(True). Typically, a cloud solver expects f to be in

Conjunctive Normal Form (CNF), in which case f is

a conjunction of clauses, where a clause is a disjunc-

tion of literals (e.g. a variable or its negation). In what

follows, n will denote the number of variables and m

the number of clauses of f .

Tseitin Encoding: Tseitin Encoding (Tseitin, 1983;

Eriksson and H

oglund., 2014) is a way to transform

any Boolean formula or circuit into its equivalent

CNF form. It has been used to encode logical circuits

so then they can be analyzed using diﬀerent SAT tech-

niques. The idea is that for any circuit C with inputs

, ..., x

} and f as the output of C, let the circuit for-

mula of C be true iﬀ (if and only if “⇔”) f is true.

Then substitute iﬀ by its equivalent Boolean expres-

sion using · (and), + (or), and ¯(not).

C ⇔ f

(

C + f ) · (C +

f ) (1)

This procedure can be applied recursively on any

Boolean sub-formula or gate of the circuit to trans-

form it into its equivalent CNF form.

3.2 Qin et al. Algorithm

Qin et al. (Qin and Jia., 2014; Qin and Du., 2018)

described their obfuscating algorithm as mixing and

combining two SAT instances (one encoding the orig-

inal formula and the other a secret known only to the

user) in a way that the solution of the obfuscated SAT

formula can only be reversed by the user who knows

the embedded secret information, and thus the solu-

tion for the original formula can be retrieved as well.

To obfuscate a formula F, the user ﬁrst picks two

prime numbers p and q as a key to generate a new

SAT formula (which is called the husk formula). This

formula is obtained by asserting the output of a mul-

tiplication circuit which is equal to the product of the

two prime numbers p and q. Afterwards, this formula

is converted to CNF form using the Tseitin encoding

procedure. The obfuscation algorithm will take as in-

put both the husk and the original formula and feed

the variables of husk into clauses of the original for-

mula in order to mix the two instances together and

wipe out any signature of the variables in the origi-

nal clauses. Thus, in the end, no one should be able

to determine what are the variables belonging to the

original formula.

In particular, if F is the original formula, H is the

husk formula and G is the obfuscated formula, then G

is equal to:

G =

F ∧ H, (2)

where

F is equal F after its clauses are mixed with H

variables. A map that matches the original variables

with the obfuscated formula’s variables is also gen-

erated and kept with the client as secret information

that can be used to recover the solution of F from G,

if such solution is found by the cloud solver. We will

express the solution (satisfying assignment) for G as:

= mix{S

}, (3)

where S

is the solution of G, S

is a solution of F,

is a solution for H, and mix{ } is the mix eﬀect of

the obfuscation process. S

can be further described

as a Tseitin Encoding of a multiplication circuit with

the primes p and q as input and p · q as output.

= T seitin{Mult{p, q}} = p|q|Mult|p · q

= T seitin{Mult{q, p}} = q|p|Mult|p · q

Thus, S

can be described as shown below:

= mix{S

|p|q|Mult|p · q} (4)

As a toy example consider a “circuit” consisting

of only one AND gate with two inputs a, b, and one

output c. Following the Tseitin encoding, F is equal

to:

c ⇐⇒ a ∧ b or

(¯c + a)(¯c + b)(c + ¯a +

Assume further that the husk formula H is equal to

xy, which makes the assignment x = y = 1 be the only

only that satisﬁes H. Then

F can be expressed as:

F = (¯c + a)(¯c + b)(¯c + x)(c + ¯a +

b + ¯x),

where x = 1 was chosen randomly out of the variables

of H to be injected into F and turn it into an AND

gate of three inputs a, b, and x. Now the obfuscated

formula becomes

G =

F ∧ H.

Based on this, the client will use the assignment {x =

1, y = 1} to de-obfuscate G and recover the original

SECRYPT 2019 - 16th International Conference on Security and Cryptography

358

formula F.

(x=1,y=1)

F ∧ H

(x=1,y=1)

= (¯c + a)(¯c + b)(¯c + 1)(c + ¯a +

b +

= (¯c + a)(¯c + b)(c + ¯a +

= F

Hence any satisfying assignment returned by the

cloud solver for G will translate into a satisfying as-

signment for F, once the values for the husk formula

have been plugged in G.

3.3 Attack Analysis

In this section several weaknesses will be exploited

and a detailed attack will be described. The intu-

ition of the attack is that solutions found by the cloud

provider may reveal enough information about the

variables that are part of the original formula. Hence

the mixing eﬀect will be nulliﬁed and a malicious

cloud solver can recover the original formula (or parts

of it) despite the secret information embedded by the

user. Below we list two operations that will be helpful

to mount the attack.

Swap Bits: Deﬁne a swap operation that takes an as-

signment string S of the variables and swaps the val-

ues of two bits i and j.

S =< s

, .., s

S wap(S, i, j) → S

=< s

, .., s

> (5)

Flip Bits: Deﬁne a ﬂip operation that takes an assign-

ment string S of n variables and negates a speciﬁed

bit of S .

S =< s

, ..., s

Flip(S, i) → S

=< s

, ..., ¯s

, ..., s

> (6)

and for short: Flip(S , i) = S

In general if multiple bits would be ﬂipped for a

set of indices X ⊂ {1, 2, . . . , n}, we write S

to denote

the assignment generated by ﬂipping every bit i ∈ X.

Solution Dependency and Structure. By the

structural properties of the obfuscated formula S

any solution S

found by the cloud solver has a com-

plementary solution

which is deﬁned as:

= mix{s

|p|q|Mult|p · q}

= mix{s

|q|p|Mult|p · q}

This dependency is a vulnerable point an adver-

sary can exploit to reverse engineer the whole obfus-

cation process. In particular, if one can determine

which bits of the solution S

belong to s

and which

belong to S

, then the whole obfuscation is compro-

mised.

De-Obfuscation Attack on Multiple Solutions. In

this section we explain how the adversary can de-

obfuscate G by extracting information from multiple

solutions found. The underlying assumption is that

the original formula has more than one satisfying as-

signments. Since the obfuscation algorithm of Qin et

al. should work independently of the number of satis-

fying assignments of F, we will demonstrate how this

can be used to recover information about F.

Algorithms 1 and 2 below may further be used by

the cloud provider to ﬁnd more assignments by ﬂip-

ping or swapping bits of the initial solution S

. How-

ever, the cloud solver may rely on its own means (and

its computational capacity) to ﬁnd more assignments,

if they exist.

Algorithm 1 (Flip Search): For each of the n bits

belonging to S

ﬂip that bit and test if the resulting

assignment is satisfying. Collect all satisfying assign-

ments generated this way.

Using Algorithm 1, a list of solutions L will be

returned where each one is a new satisfying assign-

ment for the obfuscated formula G. Moreover, each

solution is one ﬂip away from the initial solution S

Lemma 1. If a satisfying assignment is generated

from another solution S by ﬂipping a bit i, then i must

belong to s

Proof. A bit i either belongs to s

or s

. However,

since s

has only two satisfying assignments which

are related to each other by switching the roles of

primes p and q, the ﬂipped bit cannot be part of p or

q. Since the ﬂipped bit gave rise to a new satisfying

assignment, then i must belong to s

. So, basically

ﬂipped bits always point to variables of the original

formula. 

Algorithm 2 (Swap Search): For every pair of bits

belonging to S

, swap those bits and test if the re-

sulting assignment is satisfying. Collect all satisfying

assignments generated this way.

Using Algorithm 2, a list of solutions L will be re-

turned such that each solution is two bits away from

the initial one. However, as in Lemma 1, with high

probability the bits cannot be part of the prime num-

bers. Hence, solutions generated by swapping bits,

again reveal variables belonging to s

We are now ready to proceed with the actual at-

tack. The problem tackled here can be deﬁned for-

mally as

Given: a CNF-SAT G = mix{s

|p|q|Mult|p · q}

and three solutions S

, S

, and S

Objective: Find which bits belong to S

or S

Attack on a Scheme for Obfuscating and Outsourcing SAT Computations to the Cloud

359

Because of the dependencies between the solu-

tions, one can deduce information by XORing diﬀer-

ent satisfying assignments. Deﬁne a relation R

i, j

being the result of taking pointwise XOR of S

and

as follows:

1,2

= S

⊕ S

= mix{s

⊕ s

⊕ p

⊕ q

| . . . }

1,3

= S

⊕ S

= mix{s

⊕ s

⊕ p

⊕ q

| . . . }

2,3

= S

⊕ S

= mix{s

⊕ s

⊕ p

⊕ q

| . . . }

Lemma 2. If some S

& S

have p

= p

& q

= q

then all the bits which are assigned true belong to the

solution S

Proof. If S

& S

have p

= p

& q

= q

, then S

& S

will diﬀer only on s

& s

. Thus, S

⊕ S

mix{s

⊕ s

|00. . . 0} and the only source of 1’s comes

from s

⊕ s

which is part of s

. 

Corollary 3. There exits at least one R

i, j

such that

the number of 1’s (trues) is statistically high. That is

it has more 1’s than the other two.

Proof. Straightforward. 

For all R

i, j

’s, all the 1-bits belong to s

with high

conﬁdence. The information gained depends on the

structure of the original solution space of the orig-

inal formula F. If the solutions are clustered, then

their diﬀerences in term of bits is very low. However,

if the solutions are scattered over the solution space,

then the bits diﬀerence between solutions will be large

which will increase the information gained.

4 EXPERIMENTAL ANALYSIS

The obfuscation scheme described by (Qin and Jia.,

2014) was implemented following their construction

that an obfuscation formula G of F and H is equiva-

lent to:

G =

F ∧ H.

Variable remapping was not implemented as our anal-

ysis does not make use of variable ordering or map-

ping. A number of random 3-SAT formulas were gen-

erated where every variable was picked with a uni-

form probability. A husk formula was then generated

using Wallace multiplier (Purdom and Sabry, ) pro-

viding two primes p and q (notice here that the size

of the primes does not really matter as the attack is

agnostic to the prime numbers used). The formulas

generated were based on the following categorization:

Roughly nine to ten random formulas were gen-

erated from each category shown in Table 1, for a

total of 55 formulas. The ratio C/V is a very well

known threshold such that when it is near 4.27, the

Table 1: Types of formulas generated.

Category # Vars V # Clauses C Ratio C/V

1 250 1000 4.0

2 500 1850 3.7

3 750 2550 3.4

4 2000 6800 3.4

5 3000 10200 3.4

6 4000 13600 3.4

complexity of several complete algorithms for check-

ing satisﬁability reaches a steep peak (Kirkpatrick and

Selman, 1994). So, from an empirical point of view,

the “hard” instances of SAT are to be found near

that threshold. Thus, decreasing the threshold’s value

gives rise to more satisfying assignments.

The main experiments conducted relate to ﬂipping

(Algorithm 1) and XORing solutions found (Lemma

2). The swap search (Algorithm 2) was not used as

it did not generate many new solutions. In the ﬂip

search experiment, the number of additional satisfy-

ing assignments was computed by ﬂipping variables

of an initial assignment S

generated by a SAT solver

(Niklas and Niklas, 2017). In the XORing experi-

ment, three solutions were combined to recover bits

of S

. The results are meant to show how easy it is

to ﬁnd additional assignments (in order for Lemma 2

to be applied). However, as noted before, the cloud

solver may use further techniques to come up with

more assignments, provided they exist.

Figure 1: Flip Search Data.

Figure 1 demonstrates the number of solutions

found using the Flip Search algorithm. Category 1

formulas have the least number of additional solutions

found because the C/V ratio is closer to the satisﬁabil-

ity threshold 4.27, while category 6 formulas have the

most. Hence the more solutions are found, the more

SECRYPT 2019 - 16th International Conference on Security and Cryptography

360

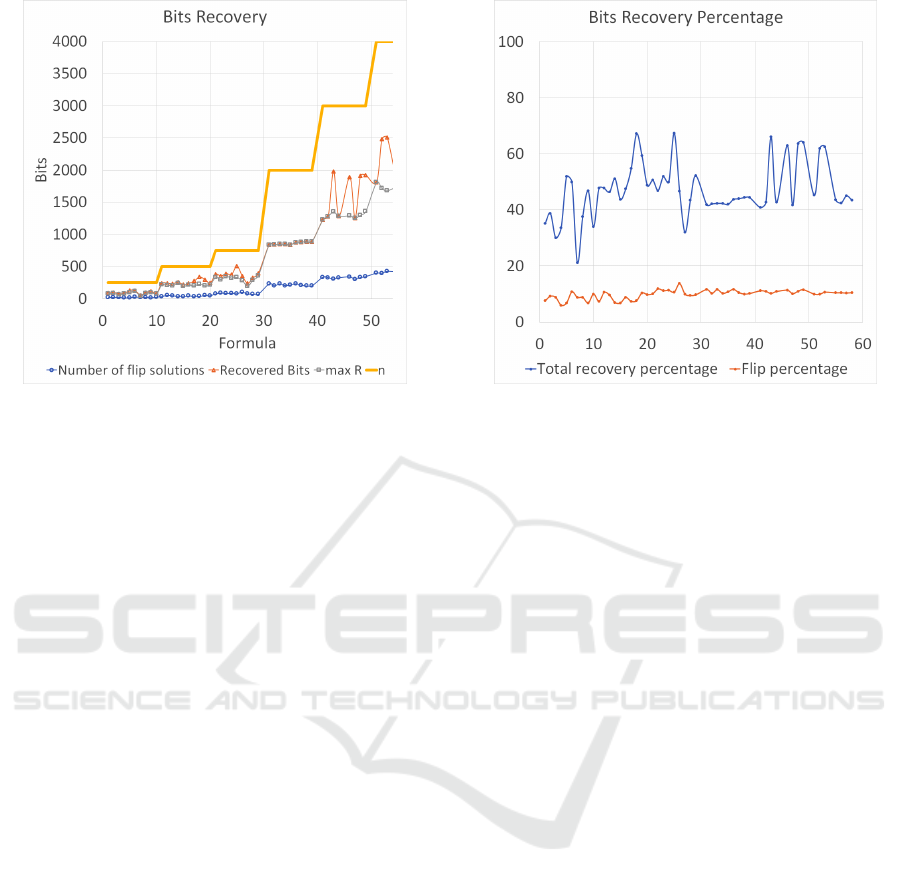

Figure 2: Total number of bits recovered by Flip Search and

XORing process. The solid line denotes the number of bits

(variables) in the original formula for each obfuscated one.

bits are discovered to be part of the original formula.

Figure 2 demonstrates the number of bits recov-

ered by diﬀerent methods for each of the generated

formulas. ‘Max R’ denotes the relation in which the

number of 1’s is the most and has an underlying solu-

tion with the same order of primes (p

= p

& q

= q

‘Recovered Bits’, as the name suggests, denotes the

combined contribution of bits found from both the

XOR process and ﬂip search.

Thus, using the analysis in Lemmas 1 and 2, many

bits can be recognized to be part of the hidden for-

mula S

. Notice it is also possible to run the same

experiments (ﬂip-search and XOR) on the discovered

solutions themselves to derive even more satisfying

assignments.

Finally, Figure 3 demonstrates the percentage of

bits found using ﬂip search and the combined bits

recovered by XORing solutions from both the SAT

solver and the ﬂip search. Although diﬀerent cate-

gories of SAT formulas were used, the number of bits

discovered seems to ﬂuctuate around 50% although in

some cases it is a lot more than this. Of course bit re-

covery depends on the similarity of solutions found,

so we expect formulas with clauses-to-variables ratio

closer to 4.27 to have less bits recovered. However,

the vulnerability of the framework has been demon-

strated as it must provide secure obfuscation for all

SAT formulas not only those with a few satisfying as-

signments.

Figure 3: The percentage of bits recovered from the origi-

nal formula using the XOR experiment on three satisfying

assignments generated using a SAT solver.

5 CONCLUSIONS

Outsourcing computations to the cloud is a new

paradigm necessitated by the inherent complexity of

many real life problems. One such problem is Satis-

ﬁability due to its wide applicability in many diverse

applications.

In this paper we reviewed the obfuscation tech-

nique of Qin et al. (Qin and Jia., 2014; Qin and Du.,

2018) for outsourcing SAT computations to the cloud

and presented simple exploits that can be used by a

malicious cloud provider to recover information and

de-obfuscate the original formula or parts of it.

The lesson to be learned is that ad hoc techniques

that try to randomize a given formula based on se-

cret information embedded in the formula might not

work well in practice. Instead, more formal frame-

works should be used as for example the recent de-

velopments in Fully Homomorphic Encryption (Gen-

try, 2009) which allows one to securely outsource

computations, or the techniques in Indistinguishabil-

ity Obfuscation (Garg and Waters, 2016) where the

workings of a circuit (or formula) can be provably

disguised so that no reverse-engineering is possible.

While these approaches have high overhead, an inter-

esting research direction would be to see if any prac-

tical schemes to outsource SAT computations can be

derived from these secure frameworks.

Attack on a Scheme for Obfuscating and Outsourcing SAT Computations to the Cloud

361

ACKNOWLEDGEMENTS

The authors would like to thank the anonymous

reviewers for their comments and suggestions that

helped improve the paper.

REFERENCES

Atallah, M. J. and Frikken, K. B. (2010). Securely outsourc-

ing linear algebra computations. In In Proceedings of

the 5th ACM Symposium on Information, Computer

and Communications Security, ASIACCS ’10, pages

48–59, New York, NY, USA, 2010. ACM.

Blanton, M., Steele, A., and Alisagari, M. (2013). Data-

oblivious graph algorithms for secure computation

and outsourcing. In Proceedings of the 8th ACM

SIGSAC symposium on Information, computer and

communications security, pages 207–218. ACM.

Brun, Y. and Medvidovic., N. (2012). Keeping data private

while computing in the cloud. In In Cloud Computing

(CLOUD), 2012 IEEE 5th International Conference

on, pp. 285-294. IEEE.

C. Wang, K. R. and Wang, J. (2011). Secure and practical

outsourcing of linear programming in cloud comput-

ing. In In INFOCOM 2011, pages 820–828. IEEE.

Chakraborty, R. S. and Bhunia., S. (2009). Harpoon: an

obfuscation-based soc design methodology for hard-

ware protection. In IEEE Transactions on Computer-

Aided Design of Integrated Circuits and Systems 28,

no. 10 (2009): 1493-1502.

Chen, Y.-C. (2018). Enhancements to sat attack: Speedup

and breaking cyclic logic encryption. In ACM Trans-

actions on Design Automation of Electronic Systems

(TODAES) 23, no. 4 (2018): 52.

Ding, Yong, Z. X. J. Y. and Choo., K.-K. R. (2017). Secure

outsourcing of modular exponentiations under single

untrusted programme model. In Journal of Computer

and System Sciences 90 (2017): 1-13.

Eriksson, J. and H

oglund., J. (2014). A comparison of re-

ductions from fact to cnf-sat.

Garg, Sanjam, C. G. S. H. M. R. A. S. and Waters, B.

(2016). Candidate indistinguishability obfuscation

and functional encryption for all circuits. In In SIAM

Journal on Computing 45, no. 3 (2016): 882-929.

Gentry, C. (2009). Fully homomorphic encryption using

ideal lattices. In In Stoc, vol. 9, no. 2009, pp. 169-

178.

Hosseinzadeh, Shohreh, S. R. S. L. J.-M. M. J. H. S. H. and

Lepp

anen., V. (2018). Diversiﬁcation and obfuscation

techniques for software security: a systematic litera-

ture review. In Information and Software Technology.

Hung, William NN, X. S. J. T.-X. L. J. Z. R. W. and Gao.,

P. (2014). Motion planning with satisﬁability mod-

ulo theories. In In Robotics and Automation (ICRA),

2014 IEEE International Conference on, pp. 113-118.

IEEE.

Keshavarz, Shahrzad, C. Y. S. G. X. X. and Holcomb., D.

(2018). Survey on applications of formal methods in

reverse engineering and intellectual property protec-

tion. In Journal of Hardware and Systems Security 2,

no. 3 (2018): 214-224.

Kirkpatrick, S. and Selman, B. (1994). Critical behavior in

the satisﬁability of random boolean expressions. Sci-

ence, 264(5163):1297–1301.

Mell, P. and Grance, T. (2011). The nist deﬁnition of cloud

computing.

Niklas, E. and Niklas, S. (2004-2017). Sat4j.

Purdom, P. and Sabry, A. Cnf generator for fac-

toring problems. In https://www.cs.indiana.edu/cgi-

pub/sabry/cnf.html.

Qin, Ying, S. S. and Jia., Y. (2014). Structure-aware

cnf obfuscation for privacy-preserving sat solving.

In In Formal Methods and Models for Codesign

(MEMOCODE), 2014 Twelfth ACM/IEEE Interna-

tional Conference on, pp. 84-93. IEEE.

Qin, Ying, X. Y. S. and Du., Z. Y. (2018). Privacy-

preserving sat solving based on projection-

equivalence cnf obfuscation. In In International

Symposium on Cyberspace Safety and Security, pp.

224-239. Springer.

Rajendran, Jeyavijayan, M. S. O. S. and Karri., R. (2013).

Security analysis of integrated circuit camouﬂaging.

In In Proceedings of the 2013 ACM SIGSAC confer-

ence on Computer & communications security, pp.

709-720. ACM.

Rintanen, J. (2011). Planning with specialized sat solvers.

In Twenty-Fifth AAAI Conference on Artiﬁcial Intelli-

gence.

Roshanisefat, Shervin, H. M. K. and Sasan., A. (2018). Sr-

clock: Sat-resistant cyclic logic locking for protecting

the hardware. In In Proceedings of the 2018 on Great

Lakes Symposium on VLSI, pp. 153-158. ACM.

Shan, Z., Ren, K., Blanton, M., and Wang, C. (2018). Prac-

tical secure computation outsourcing: a survey. ACM

Computing Surveys (CSUR), 51(2):31.

Shen, Yuanqi, A. R. and Zhou., H. (2018). Sat-based bit-

ﬂipping attack on logic encryptions. In In Design, Au-

tomation & Test in Europe Conference & Exhibition

(DATE), 2018, pp. 629-632. IEEE.

Tseitin, G. S. (1983). On the complexity of derivation in

propositional calculus. In In Automation of reasoning,

pp. 466-483. Springer, Berlin, Heidelberg.

Wakrime, A. A. (2017). Satisﬁability-based privacy-aware

cloud computing. In The Computer Journal 60, no. 12

(2017): 1760-1769.

Wong, W. K., Cheung, D. W., Hung, E., Kao, B., and

Mamoulis, N. (2007). Security in outsourcing of asso-

ciation rule mining. In Proceedings of the 33rd inter-

national conference on Very large data bases, pages

111–122. VLDB Endowment.

Xie, Y. and Srivastava., A. (2018). Anti-sat: Mitigating

sat attack on logic locking. In IEEE Transactions

on Computer-Aided Design of Integrated Circuits and

Systems (2018).

Zhu, Yiming, A. F. S. Y. Y. Y. S. L. and Chen., Z. (2018).

New algorithm for secure outsourcing of modular ex-

ponentiation with optimal checkability based on sin-

gle untrusted server. In In 2018 IEEE International

Conference on Communications (ICC), pp. 1-6. IEEE.

Zissis, D. and Lekkas., D. (2012). Addressing cloud com-

puting security issues. In Future Generation computer

systems 28, no. 3 (2012): 583-592.

SECRYPT 2019 - 16th International Conference on Security and Cryptography

362
