An Evaluation of Big Data Architectures

Valerie Garises and Jos

e G. Quenum

Namibia University of Science and Technology, 13 Jackson Kaujeua, Windhoek, Namibia

Keywords:

Big Data, Software Architecture Analysis, Software Architecture Evaluation, Software Architectural Patterns.

Abstract:

In this paper, we present a novel evaluation of architectural patterns and software architecture analysis using

Architecture-based Tradeoff Analysis Method (ATAM). To facilitate the evaluation, we classify the Big Data

intrinsic characteristics into quality attributes. We also categorised existing architectures following architec-

tural patterns. Overall, our evaluation clearly shows that no single architectural pattern is enough to guarantee

all the required quality attributes. As such, we recommend a combination of more than one pattern. The net

effect of this would be to increase the beneﬁts of each architectural pattern and then support the design of Big

Data software architectures with several quality attributes.

1 INTRODUCTION

The ongoing Big Data challenge brings an increas-

ing burden to software and system architects. Usually,

they select a tool/infrastrcture (e.g., Apache Hadoop,

Apache Spark) that satisﬁes most big data functions.

(Garises and Quenum, 2018) pondered over the sus-

tainability of this approach, whether it makes optimal

use of resources and how it deals with maintenability.

It argued the need for a reference architecture where

the tools and infrastructure are selected and assem-

bled suitably.

One critical step towards deﬁning the reference ar-

chitecture is to identify the central components that

should make up a reference architecture as well as

their roles and responsibilities. In this paper, we re-

visit existing big data architectures and analyse them

using a software architecture evaluation method. The

IEEE standard 1471 (W. Maier et al., 2000) deﬁnes a

software architecture as the fundamental organisation

of a system embodied in its components, their rela-

tionships to each other and the environment and the

principles guiding its design and evolution. A soft-

ware architecture is generally deﬁned as a logical con-

struct for deﬁning and controlling the interfaces and

the integration of all the components of the system.

Similarly, (Bass et al., 2003) deﬁne it as the structure

or structures of the system, which comprise compo-

nents, their externally visible behaviour, and the rela-

tionships among them. In short, a software architec-

ture is about a structure formed by components and

the connections between them.

Furthermore, a software architecture is usually ar-

rived at following an architectural pattern. Accord-

ing to (Garlan and Shaw, 1994), a pattern describes

a problem which occurs over and over in the envi-

ronment and then describes the core of the solution

of that problem so that it can be applied a million

times over. An architectural pattern thus determines

the various components and connectors that can be

associated with the instances of that style along with

a set of constraints on their combination. Common ar-

chitecture patterns include Layers, Pipes and Filters,

Model View Controller (MVC), Broker, Client-Server

and Shared Repository.

In this work, we selected various big data architec-

tures and evaluated them using the architecture-based

trade-off analysis method (ATAM); a scenario-based

evaluation method. In order to conduct the evaluation,

we mapped each one of them to an architectural pat-

tern. Our evaluation reveals that no architectural pat-

tern fulﬁls the requirements for Big data systems. It

thus underscores the need for a combination of these

architectural patterns in a big data system.

The remainder of the paper is as follows. Sec-

tion 2 discusses architecture evaluation methods. Sec-

tion 3 discusses the actual evaluation of selected big

data architectures. Section 4 summarises our ﬁndings,

while Section 5 draws some conclusions and sheds

light on future work.

152

Garises, V. and Quenum, J.

An Evaluation of Big Data Architectures.

DOI: 10.5220/0007840801520159

In Proceedings of the 8th International Conference on Data Science, Technology and Applications (DATA 2019), pages 152-159

ISBN: 978-989-758-377-3

2 SOFTWARE ARCHITECTURE

ANALYSIS METHODS

The aim of analysing an architecture is to predict the

quality of a software system before it is built. Eval-

uating an architecture, on the other hand, is to com-

pare it with another architectural candidate or with a

set of requirements in order to minimise the risks and

provide evidence that the fundamental requirements

have been addressed (Kazman et al., 2000). There are

several software architecture evaluation methods such

as experience-based, scenario-based, mathematical

modelling, and simulation-based (Ali Babar et al.,

2004). These evaluation methods are applicable in

different phases of the software development cycle.

Overall, a software architecture can be evaluated be-

fore, during and after implementation. In this paper,

we focused on the scenario-based evaluation method.

Architecture-based Trade-off Analysis Method

(ATAM).

In this paper, we set out to evaluate multiple architec-

tures using multiple quality attributes. As such ATAM

proves to be a good ﬁt for our evaluation. ATAM is

generally aimed at evaluating architectures after the

design phase, but before they are implemented. How-

ever, in some cases, it has been used on deployed sys-

tems. In a survey, (Al-Jaroodi and Mohamed, 2016)

identiﬁed common requirements for big data systems.

These are:

: Scalability. Big Data systems must be scal-

able, i.e., be able to increase and support different

amounts of data, processing them uniformly, al-

locating resources without impacting costs or ef-

ﬁciency. To meet this requirement, it is required

to distribute datasets and their processing across

multiple computing and storage nodes;

: High Performance Computing. Big Data sys-

tems must be able to process large streams of data

in a short period of time, thus returning the re-

sults to users as efﬁciently as possible. In addi-

tion, the system should support computation in-

tensive analytic, i.e., support diverse workloads,

mixing request that requires rapid responses with

long-running requests that perform complex an-

alytic on signiﬁcant portions of the data collec-

tion (Gorton and Klein, 2015);

: Modularity. Big Data systems must offer dis-

tributed services, divided into modules, which can

be used to access, process, visualise, and share

data, and models from various domains, provid-

ing ﬂexibility to change machine tasks;

: Consistency. Big Data systems must sup-

port data consistency, heterogeneity, and exploita-

tion. Different data formats must be also man-

aged to represent useful information for the sys-

tem (Cecchinel et al., 2014). Besides that, sys-

tems must be ﬂexible to accommodate this mul-

tiple data exchange formats and must achieve the

best accuracy as possible to perform these opera-

tions;

: Security. Big Data systems must ensure secu-

rity in the data and its manipulation in the archi-

tecture, supporting the integrity of information,

exchanging data, multilevel policy-driven, access

control, and prevent unauthorised access (Dem-

chenko et al., 2016);

: Real-time Operations. Big Data systems must

be able to manage the continuous ﬂow of data

and its processing in real time, facilitating deci-

sion making;

: Inter-operability. Big Data systems must be

transparently intercommunicated to allow ex-

changing information between machines and pro-

cesses, interfaces, and people (Santos et al.,

2017); Thus, it must facilitate interoperability be-

tween disparate and heterogeneous systems, both

existing and future;

: Availability. Big Data systems must ensure high

data availability, through data replication horizon-

tal scaling, i.e., spread a data set over clusters

of computers and storage nodes, avoiding bottle-

necks (Gorton and Klein, 2015)

Since all these architectural requirements are clas-

siﬁed as non-functional requirements, we mapped

them onto a known quality model, speciﬁcally

ISO/IEC 25010 (ISO/IEC, 2010). Table 1 provides

a snapshot of this mapping.

Table 1: Mapping of Big Data Requirements to Quality At-

tributes of ISO/IEC 25010.

Requirements Quality Attributes

Consistency Not covered

Scalability Portability: adaptability

Real-time Operation Performance efﬁciency:

time-behavior

High Performance Computing Performance efﬁciency:

time-behavior

and resource utilisation

Security Security: conﬁdentiality,

integrity and authenticity

Availability Reliability: availability and

recoverability

Modularity Maintainability: modularity

Inter-operability Compatibility: inter-operability

It should be noted that consistency is not cov-

ered by the quality model. Consistency represents

the ability of all integrated information, whether from

An Evaluation of Big Data Architectures

153

one data source or many, to be cohesive and usable.

The non-coverage of this attribute may be due to the

fact that ISO/IEC 25010 represents a quality model

for systems, while consistency represents information

quality.

Due to the exponential growth of data over the last

decade and, consequently, the increase in the number

of Big Data systems, it is necessary to resort to archi-

tectural patterns for the development of these systems.

Moreover, the Big Data requirements of software ar-

chitectures in those systems can directly impact the

outcome of the software quality challenges. Hence,

the characterisation of these architectures against the

requirements is fundamental.

3 ARCHITECTURE EVALUATION

WITH ATAM

3.1 Business Drivers

As part of the ATAM process, business drivers were

identiﬁed from the requirements. Here, we used the

context of the Namibia healthcare use case and archi-

tectural requirements outlined in Section 2. The core

business drivers are listed below and are mapped to

the Big Data architectural requirements from which

they were derived.

Modiﬁability is important as messaging standards

may change over time and new transactions, or-

chestrations and health information systems (HIS)

may be added over time (R

and R

);

Scalability and Performance are important as such a

system may be deployed at a national level and it

should remain functional at scale (R

and R

);

Availability is essential as the Big Data inter-

operability infrastructure needs always to be

available so that vital health data can be captured

and retrieved around the clock (R

and R

);

Inter-operability is vital as the architecture should be

able to communicate and exchange data with to a

wide variety of environments (R

and R

);

Security is important as a patient’s health informa-

tion is highly conﬁdential and should not be tam-

pered with or viewed by unauthorised parties

3.2 Big Data Architectures

We selected several known Big Data reference ar-

chitectures in the academia and industry. These in-

clude Big Data Architecture Framework, Big Data

Enterprise Model, Big Data Analytics Architecture in

Healthcare, Microsoft Big Data Ecosystem Architec-

ture, IBM Big Data Analytics Reference Architecture

and Oracle Reference Architecture. In the follow-

ing subsections we describe some of these architec-

tures. These architectures were analysed retrospective

as some are already implemented.

3.2.1 Big Data Analytics Architecture in

Healthcare

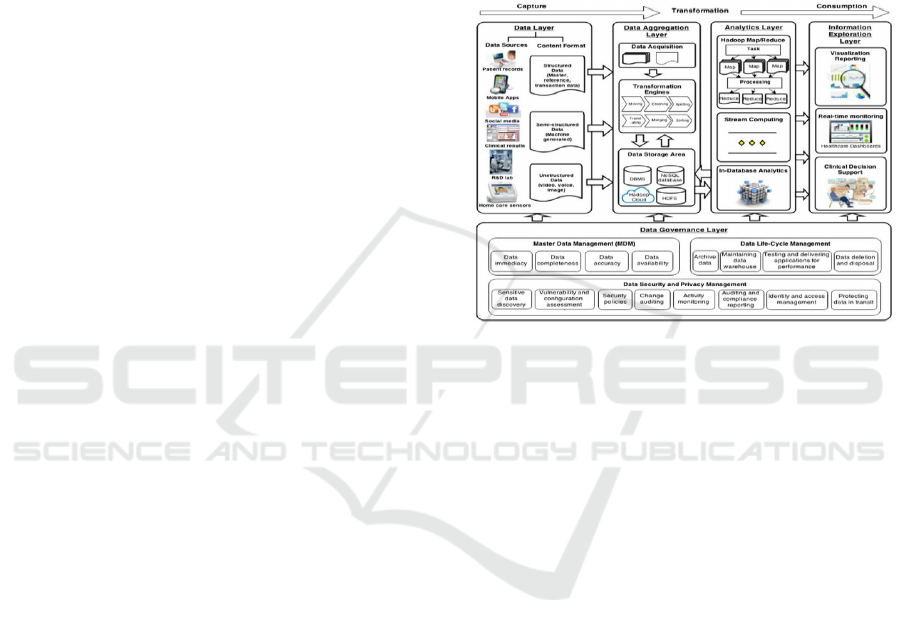

Figure 1: Big Data Analytics Architecture in Healthcare.

(Wang et al., 2018), deﬁne a Big Data analytics

architecture embedded in the concept of data lifecy-

cle framework that starts with data capture, proceeds

via data transformation and concludes with data con-

sumption. Figure 1 depicts the proposed best practice

Big Data analytics architecture that loosely comprises

ﬁve major architectural layers: (1) data, (2) data ag-

gregation, (3) analytics, (4) information exploration,

and (5) data governance. These logical layers make

up the Big Data analytics components that perform

speciﬁc functions, and will, therefore, enable health-

care managers to understand how to transform the

healthcare data from various sources into meaning-

ful clinical information through Big Data implemen-

tations.

3.2.2 IBM Big Data Reference Architecture

IBM introduces Big Data and Analytics Reference

Architecture with eleven components as depicted in

Figure 2. The reference architecture is intended to be

used by sales professionals selling IBM software and

designing end-to-end Big Data and analytics client so-

lutions.

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

154

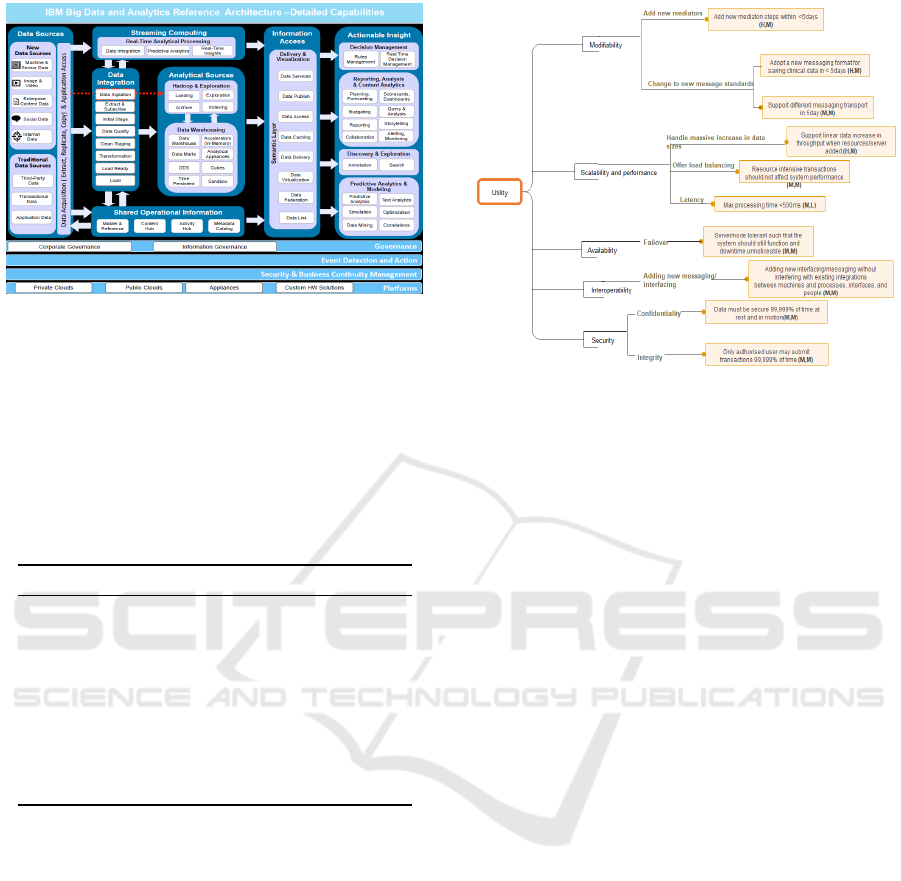

Figure 2: IBM Big Data Reference Architecture Compo-

nents.

3.3 Underlying Architectural Patterns

In Table 2, we present a summary of the architectures

above and their references and match the architectural

patterns identiﬁed in each one.

Table 2: Big Data Reference Architectures and Architec-

tural Patterns.

ID Title and Reference Architectural Pattern

Big Data Architecture Pipes and Filters

Framework (BDAF)

Big Data Enterprise Model Shared Repository

Big Data Analytics Architecture Pipes and Filters

in Healthcare

Microsoft Big Data Ecosystem Pipes and Filters

Architecture

IBM Big Data Analytics Pipes and Filters

Reference Architecture

Oracle Reference Architecture Layered

3.4 Quality Attributes and Utility Tree

Following step 5 of the ATAM process, a utility tree

was drawn up as depicted in Figure 3. The utility

tree maps scenarios derived from the architectural re-

quirement of the architecture to the quality attributes

that the scenarios fall under. To construct the util-

ity tree many scenarios that the architecture needs

to address must be elicited. The high-level require-

ments that were derived from the Namibia healthcare

use case were used to formulate these scenarios along

with known scenarios gathered. The utility tree con-

tains a list of ten scenarios that have been prioritized

and mapped to the particular quality attribute that it

addresses.

Furthermore, following Step 7 in the ATAM pro-

cess, the evaluation scenarios that appeared in the util-

ity tree were prioritized along two dimensions. The

Figure 3: Utility Tree.

ﬁrst dimension is the importance of the scenarios to

the success of the architecture and the second dimen-

sion is the anticipated difﬁculty in achieving this sce-

nario. These ratings can be seen in brackets on the

utility tree scenarios, rated on a scale of high (H),

medium (M) and low (L). Using these priorities, the

highest rated quality attributes were identiﬁed. These

attributes are the most important to the success of

the architecture which also deﬁnes its quality. The

attributes of high importance are chosen as the at-

tributes that will be evaluated to determine the overall

quality of the architecture.

Moreover, ATAM categorises the architectural at-

tributes according to two risk categories namely run-

time (availability, performance, availability) and de-

velopment (modiﬁability, integration). Hence, the

total architecture quality is a function that consists

of modiﬁability, scalability, performance, interoper-

ability, and security attributes. In other words, the

overall HLM architecture quality can be deﬁned as:

Arch

= f (Q

Mod

, Q

Sca

, Q

per

, Q

Sec

, Q

inter

). However,

this analysis will only focus on the architecture devel-

opment quality attributes which is a subset of function

Arch

3.5 Analysing the Architectural

Patterns

3.5.1 Pipes and Filters Pattern

In this architectural pattern data comes from an exter-

nal source or producer and is managed through sev-

eral steps, such as data collection, preparation, pro-

cessing, and visualisation. Finally, the results of such

processing are sent to consumers and or domain appli-

cations. In Table 2, four of the six architectures have

An Evaluation of Big Data Architectures

155

the Pipe and Filter (PF) architectural pattern. More

details about the PF pattern can be found in (Bass

et al., 2003).

• Scenario 1 (Context). This refers to the ﬁrst

scenario under the utility tree (Figure 3) under

Scalability and Performance attribute. Big Data

systems need to “handle a massive increase in

data sizes” to extract useful value from this mas-

sive volume of data generated in real time. To

meet this requirement data extraction must pass

through several steps (e.g., data collection, data

integration, pre-processing, processing, and data

visualisation), which could support the overall

data mining process. These steps have to be ex-

ecuted in a speciﬁc order to complete the accurate

data processing and analysing.

• Problem. The Big Data architectures must sup-

port the execution of efﬁcient data ﬂows real-time

as well as batch processing. The communication

between the steps must be scalable, avoiding bot-

tlenecks in performance that could result in fail-

ures or delays or inconsistencies in the data min-

ing steps. Data must be processed independently

in each step, and thus sent to the next to maintain

real-time operation.

• Solution. This pattern structures the processing

of a stream of data (Geerdink, 2015). Each pro-

cessing step is implemented as a ﬁlter, with in-

formation ﬂowing between the ﬁlters through a

pipe. Filters can be combined in many ways to

provide a family of solutions. Its importance is

justiﬁed because the sequence of data analysis is

essential. For example, it is not possible to ex-

tract value from data that have still not been pre-

processed. This pattern increases complexity and

could support data transformation, implying on

high dependence between the ﬁlters (Buschmann

et al., 2007).

• Trade-offs. This is one of the closest related pat-

terns to the Big Data context because it was pro-

posed to solve data processing issues. However,

only such data ﬂow is not sufﬁcient to ensure that

there will be quality in performance. Pipes and

ﬁlters implementation usually achieve scalability

and performance, but several Big Data speciﬁci-

ties impact its execution and may minimise its

beneﬁts. Firstly, a high volume of data is gener-

ated in real-time and should be consumed by the

ﬁlters and processed effectively. However, some

of the pipe steps require that the entire dataset be

loaded before processing and since there is no al-

ternative way, processing queues are generated,

thus impacting scalability, response time, and di-

rectly performance. The veracity of the data can

also take risks in this pattern. There are no inter-

mediary sources of input and output between the

ﬁlters, that is, the data is the input of the ﬁrst, and

the extracted value of the data is the output of the

last one. This increases the complexity (i.e., vol-

ume, variety) of the data causing some failures in

the middle of the execution, and such failures can

be propagated resulting in changes or even data

loss. This indicates a central point of failure and

at the same time a liability to safety.

3.5.2 Shared Repository Pattern

In this architecture, there is a shared repository to

communicate to all the architecture components, i.e.,

components for Big Data processing, technological

modules, the broker that process data generated by

several sources, and the server connected to the do-

main applications. This repository is responsible

for receiving requests from all these components

and maintain data availability and consistency (Chen

et al., 2015).

• Scenario 2 (Context). This refers to the ﬁrst and

second scenarios under the utility tree (Figure 3)

under Modiﬁability attribute. Also, to the massive

volumes of data which managed and processed it

must be able to handle a variety of data and mes-

saging types to transfer data to different formats,

domains and systems. These systems must be

ﬂexible to “add or remove mediators and messag-

ing standards” while processing and storing the

vast variety of data types. The processed data

must be shared in different formats to different

consumers, devices, application, systems, people

and domains.

• Problem. In this scenario, preparing a Big Data

repository often involves more mediators and

messaging standards and challenges when such

data must be shared among different consumers,

producers and domains in real-time. Shared pro-

cessing, storage and management also increase a

control issue related to how and when data will

be available in order to be read or written in the

shared memory and storage.

• Solution. The shared repository pattern con-

sists of using a data repository as communica-

tion among different software components cross-

ing domain boundaries. Information produced by

a component is stored in the shared repository,

and other components will retrieve it if they re-

quest such data. The repository manages the com-

mon data handling application’s operation and

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

156

their permissions to access and modify the repos-

itory. Thus, this pattern reduces the communica-

tion ﬂows by allowing only requested data, which

entails a gain in performance in Big Data systems.

Reuse of data beneﬁts the third party, who gets in-

formation from a common shared repository.

• Trade-offs. The main beneﬁts of this pattern in-

clude the combination with different storage pat-

terns for improving the way large volumes of data

are stored using cloud and distributed systems.

However, the shared repository pattern has some

drawbacks in the performance and scalability that

can be severely affected in distributed environ-

ments by concurrent access to the data. Shared

repository transmission can fail, and the whole

system is immediately affected by losing the syn-

chronisation with other services as well as real-

time response. In addition, modifying the struc-

ture, mediators, messaging standards of the shared

repository has a negative impact on Big Data sys-

tems resulting in modiﬁcations in the interfaces

and software communication systems.

3.5.3 Layered Pattern

In this architectural pattern the architecture is divided

in the functionalities into layers according to the dif-

ferent steps of data analytics (e.g., storage, publisher,

sources, and applications). Moreover, (Santos et al.,

2017) proposed a common layer in Big Data archi-

tectures, focusing on security, management and mon-

itoring, which includes components that provide base

functionalities needed in the other layers, ensuring the

proper operation of the whole infrastructure. Com-

munication and data ﬂow between the layers can be

implemented through interfaces and APIs.

• Scenario 3 (Context). This refers to the scenario

under the utility tree (Figure 3) under Interoper-

ability attribute. Big Data systems require the sep-

aration of roles among their components. Such

division must be established at both the module

level (i.e., data processing, data storage, data vi-

sualisation, data integration) and at the abstrac-

tion level (i.e., communication, security, man-

agement). However, these different components

must be tightly integrated and interoperable to ex-

change data and messages among the different

layers. Besides that, these systems must orches-

trate the ﬂow of data to execute business pro-

cesses, and hence to ensure that the objectives of

the system are fulﬁlled and that data is not lost.

• Problem. From the above scenario, Big Data

architectures must allow the division of respon-

sibilities, by grouping them based on goals and

functionalities. Such architectures must provide

means to process data in real-time, because some-

times a speciﬁc workﬂow depends on the results

of the previous one. Moreover, the communica-

tion protocols must guarantee high performance

and data scalability, avoiding bottlenecks.

• Solution. The layered pattern provides a horizon-

tal division of software responsibilities by group-

ing a set of functionalities in encapsulated and in-

dependent layers. The speciﬁc partitioning crite-

ria can be deﬁned along various dimensions, such

as abstraction, granularity, hardware distance, and

rate of change. Layers of an architecture generally

communicate with adjacent layers through imple-

mented interfaces. Therefore, one layer can make

requests to the next layer, and wait for the re-

sponse while responding to requests from the pre-

vious layer. Such interfaces must be scalable and

implement communication protocols to ensure ef-

ﬁciency.

• Trade-offs. The waiting time and the execution

of communication protocols may delay process-

ing and cause the response to not be as fast as

expected. Besides, these communication proto-

cols impact scalability, since the high volume of

data must be processed at the same time and can

cause a bottleneck between the layers. Finally, be-

cause data have to go through different layers, the

processing performance is directly impacted. Re-

garding Big Data requirements, this pattern sup-

ports the modularity by providing a division of

concerns in the application. The independence of

each layer enables the implementation of different

protocols for keeping the data safe to be sent only

when necessary, allowing a positive impact on the

security requirement of Big Data. Considering

weaknesses, three of the most important Big Data

requirements are minimised by this pattern (i.e.,

Real-Time Operation (R

), Scalability (R

), and

High-Performance computing (R

)). Big Data re-

quires the processing of data at run-time because

a speciﬁc layer depends on the result of the pre-

vious one. Hence, the wait time and the execu-

tion of communication protocols may delay pro-

cessing and cause the response not to be as fast as

expected. These communication protocols impact

scalability, since the high volume of data, must be

processed at the same time and can cause a bot-

tleneck between the layers. Finally, because data

have to go through different layers, the processing

performance is directly impacted.

An Evaluation of Big Data Architectures

157

4 EVALUATION RESULTS

From the evaluation discussed in Section 3 it is clear

that Big Data systems must be designed considering

their 5V’s intrinsic characteristics of Volume, Veloc-

ity, Variety, Veracity, and Value. From a perspective

of software architecture, it is important to deﬁne the

requirements of quality attributes that must be ful-

ﬁlled by those systems. In Table ref, we summarise

the results, mapping the Big Data characteristics into

quality attributes and therefore, indicating which ar-

chitectural patterns meet individually the Big Data re-

quirements.

Table 3: Quality Requirements vs Architectural Patterns.

Characteristics Quality Layered Shared Pipes and

of Big Data Attributes Repository Filters

Systems

Volume, Velocity Scalability - - -

Volume, Velocity Performance - - -

Volume Modularity + - +

Veracity Consistency + -

Veracity Security + + -

Velocity Real-time - - -

Variety, Value Interoperability

Value Availability -

Scalability, performance and real-time operation

are related to the velocity at which data is generated.

The system needs to be scalable to handle this veloc-

ity, as well as processing this data in real time to avoid

bottlenecks and not impact performance. In terms of

the characteristic of volume, the related attributes are

scalability, performance, and modularity. Big Data

systems need to adapt to the high and low volumes

of data that are generated at run-time. In addition,

these data need to be executed with high performance,

and if possible, in different modules, to increase the

modularity and division of responsibilities. Data ve-

racity has aspects of security and consistency. The

data processed must remain consistent throughout the

processing ﬂow, and backups must be guaranteed so

that data can be recovered if the system fails. In ad-

dition, communication between the modules must be

secure to avoid data losses and data alteration during

this process. The variety of data is addressed by inter-

operability requirements, which must ensure that data

provided by different systems and different formats

are processed for value acquisition. Finally, availabil-

ity is related to value acquisition for ensuring that the

generated knowledge and data is available to stake-

holders and to execute desired business processes.

As expected, none of the patterns directly fulﬁl

all Big Data requirements. This is mostly due to the

fact that each of them was proposed to address a spe-

ciﬁc problem. Moreover, Performance, scalability,

and availability are one of the most critical require-

ments for Big Data systems. Performance and real-

time operation are not supported by any of the pat-

terns detailed in this work. This is due to the lack

of evidence in the body of work presented in Table 3

about how software architectures proposed for Big

Data systems address performance, availability, and

real-time requirements. In this perspective, it is of

utmost importance to investigate which architectural

solutions can be integrated with patterns discussed in

this work to successfully address those requirements.

The main disadvantage related to patterns offer-

ing partial solutions, is that architects must prioritize

some requirements more than others (e.g., scalabil-

ity, performance, security), causing adverse effects

between the 5V’s characteristics of Big Data system.

Therefore, it is identiﬁed that the union of more than

one of the patterns could add the beneﬁts of each and

then support the design of Big Data software archi-

tectures with more quality. However, such a union

must be investigated carefully, in order to address the

new requirements and guarantee that the crucial re-

quirements are still considered. Moreover, the imple-

mentation of each pattern could be adapted in order to

support different characteristics.

5 CONCLUSION

The Big Data context is promising due to the fact that

data complexity is increasing, and therefore tends to

bring more challenges to software architectures. In

this paper, we investigated the applicability of archi-

tectural patterns, namely, layered, pipes and ﬁlters,

and shared repository to the Big Data context using

the ATAM evaluation method. We observed that none

of these patterns can successfully meet the expected

requirements for Big Data since each pattern was con-

ceived to solve a speciﬁc problem. Using a speciﬁc

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

158

pattern to achieve some requirements, cause trade-

offs between others desired requirements for Big Data

systems. In this context, the integration of patterns to

consolidate a software architecture for those systems

must be carefully investigated. It is required to resort

to the preliminary identiﬁcation of trade-offs to deﬁne

alternatives to mitigate negative impacts imposed by

architectural patterns selected to conform to the soft-

ware architecture of Big Data systems. This work can

be used as a basis for such a trade-off analysis.

As future work, we intend to design Big Data ref-

erence architecture using the combination of these es-

tablished patterns, and if necessary, propose a new

one, aiming at supporting the design and documen-

tation of software architectures for Big Data systems

in healthcare domain.

REFERENCES

Al-Jaroodi, J. and Mohamed, N. (2016). Characteristics and

requirements of big data analytics applications. In 2nd

IEEE International Conference on Collaboration and

Internet Computing, CIC 2016, Pittsburgh, PA, USA,

November 1-3, 2016, pages 426–432.

Ali Babar, M., Zhu, L., and Jeffery, D. R. (2004). A frame-

work for classifying and comparing software architec-

ture evaluation methods. 2004 Australian Software

Engineering Conference. Proceedings., pages 309–

318.

Bass, L., Clements, P., and Kazman, R. (2003). Software

Architecture in Practice. Addison-Wesley Longman

Publishing Co., Inc., Boston, MA, USA, 2 edition.

Buschmann, F., Kevlin, H., and Schmidt, D. C. (2007).

Pattern-oriented software architecture, 4th Edition.

Wiley series in software design patterns. Wiley.

Cecchinel, C., Jimenez, M., Mosser, S., and Riveill, M.

(2014). An architecture to support the collection of

big data in the internet of things. In 2014 IEEE World

Congress on Services, SERVICES 2014, Anchorage,

AK, USA, June 27 - July 2, 2014, pages 442–449.

Chen, H., Kazman, R., Haziyev, S., and Hrytsay, O.

(2015). Big data system development: An embed-

ded case study with a global outsourcing ﬁrm. In

1st IEEE/ACM International Workshop on Big Data

Software Engineering, BIGDSE 2015, Florence, Italy,

May 23, 2015, pages 44–50.

Demchenko, Y., Turkmen, F., de Laat, C., Blanchet, C., and

Loomis, C. (2016). Cloud based big data infrastruc-

ture: Architectural components and automated provi-

sioning. In International Conference on High Perfor-

mance Computing & Simulation, HPCS 2016, Inns-

bruck, Austria, July 18-22, 2016, pages 628–636.

Garises, V. and Quenum, J. G. (2018). The road to-

wards big data infrastructure in the health care sec-

tor: The case of namibia. In Proceedings of the 19

IEEE Mediterranean Electronical Conference, IEEE

MELECON’18, pages 98–103, Marrakech, Morocco.

IEEE.

Garlan, D. and Shaw, M. (1994). An introduction to soft-

ware architecture. Technical report, Software Engi-

neering Institute, Pittsburgh, PA, USA.

Geerdink, B. (2015). A reference architecture for big data

solutions - introducing a model to perform predictive

analytics using big data technology. IJBDI, 2(4):236–

249.

Gorton, I. and Klein, J. (2015). Distribution, data, deploy-

ment: Software architecture convergence in big data

systems. IEEE Software, 32:78–85.

ISO/IEC (2010). Iso/iec 25010 system and software quality

models. Technical report, ISO.

Kazman, R., Klein, M. H., and Clements, P. C. (2000).

Atam: Method for architecture evaluation. Technical

report, Software Engineering Institute, Pittsburgh, PA,

USA.

Santos, M. Y., e S

a, J. O., Costa, C., Galv

ao, J., Andrade, C.,

Martinho, B., Vale Lima, F., and Eduarda, C. (2017).

A big data analytics architecture for industry 4.0. In

Recent Advances in Information Systems and Tech-

nologies - Volume 2 [WorldCIST’17, Porto Santo Is-

land, Madeira, Portugal, April 11-13, 2017]., pages

175–184.

W. Maier, M., Emery, D., and Hilliard, R. (2000). Rec-

ommended Practice for Architectural Description of

Software-Intensive Systems. Technical report, IEEE.

Wang, Y., Kung, L., Wang, W. Y. C., and Cegielski, C. G.

(2018). An integrated big data analytics-enabled

transformation model: Application to health care. In-

formation & Management, 55(1):64–79.

An Evaluation of Big Data Architectures

159
