A Framework for Evaluating Business Process Performance

Wiem Khlif, Mariem Kchaou and Faiez Gargouri

Mir@cl Laboratory, University of Sfax, Sfax, Tunisia

Keywords: BPMN Model, Performance, Framework, Classification, Business Context, Social Context, Perspectives,

Temporal Measures, Cost Measures.

Abstract: Measuring the performance of business processes is an essential task that enables an organization to achieve

effective and efficient results. It is by measuring processes that data on their performance is provided, thus

showing the evolution of the organization in terms of its strategic objectives. To be efficient in such task,

organizations need a set of measures, thereby enabling them to support planning, inducing control and making

it possible to diagnose the current situation. Indeed, several researchers have defined specific measures for

assessing the business process (BP) performance. Our approach proposes new temporal and cost measures to

assess the performance of business process models. The aim of this paper is to classify the performance

measures proposed so far within a framework defined in terms of characteristics, design and temporal

perspectives, and to evaluate the performance of business process models. This framework uses business and

social contexts to improve particular measures. It helps the designer to select a subset of measures

corresponding to each perspective and to calculate and interpret their values in order to improve the

performance of their model.

1 INTRODUCTION

Performance is one of the major topics for

organizations seeking continuous improvements.

Evidently, evaluating the performance of business

process model is a necessary step to reduce time, cost

and to indicate whether the company goals are

successfully achieved or not. Obviously, the business

process performance is highly influenced by

decisions taken during the modelling phase. This

justifies the motivation of several researchers to

invest in finding solutions to define, manage and

evaluate the performance of a business process

model. The recent literature on the BP performance

measurement shows three trends of approaches: those

based on time, those centered on cost and those

combining the two aspects.

The first type of appraoches is based on indicators

and time patterns. Works that collect and analyze

performance related to Key Performance Indicators

(KPIs) are crucial to ensure consistent and continuous

process optimization (Del-Río-Ortega et al., 2016),

(Mendes and Santos, 2016), (Van der Aa et al.,

2017), (El Hadj Amor and Ghannouchi, 2017),

(Hompes et al., 2018). KPIs can be defined as

quantifiable measures that an organisation uses to

measure the performance in terms of meeting its

strategic and operational objectives.

In addition, several works are based on temporal

patterns (Kluza et al., 2016), (Lanz et al., 2016) to

evaluate the BP performance. It is by measuring

temporal aspect of processes that data on their

performance is provided (D'Ambrogio et al., 2016).

The second type of approaches use the cost factor,

(Wynn et al., 2013), (Kaplan and Cooper, 1988).

Certainly, all aspects of the business process that have

a monetary component are made part of the overall

cost structure. The allocation of costs with different

products or services lead the manager to a decision

based on false information (Wynn et al., 2013).

The third type integrate the cost and time aspects

to evaluate the performance of business process

(Araújo et al., 2016), (Kis et al., 2017). In this

approach type, time and cost are fully inter-related.

Naturally, the amount of time required to perform

activities will be directly related to the amount of

resources allocated to the business process (cost).

However, the so-far proposed approaches neglect

the organizational aspects of a business process

model, expressed by social relationships,

collaborative behaviors among actors and their

Khlif, W., Kchaou, M. and Gargouri, F.

A Framework for Evaluating Business Process Performance.

DOI: 10.5220/0007841403710383

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 371-383

ISBN: 978-989-758-379-7

371

features such as availability and suitability which

affect the overall process performance.

We recall that an actor can be represented as a

performers or business role who realizes a business

activity.

In addition, they neglect temporal and cost aspects

related to BPMN elements such as gateway, sequence

flow, lane, Pool). The lack of these information may

reduce the scope of possible analyses that can be

made.

Our objective in this paper, is to show how to

apply the correlated temporal (i.e., time lag between

two activities, etc.), cost and organizational aspects

(ie. Performance, availability, suitability of an actor,

relation type with other actors, etc.), to evaluate the

business process performance models specified in the

Business Process Model and Notation (BPMN).

To end this purpose, we propose new performance

measures representing cost and temporal aspects.

Since the diversity of measures, we propose a

framework for classifying them. Our measure

classification is based on business process model

perspectives (e.g., informational, functional,

organizational, behavioral and temporal), and the

elements (activity, event …) involved in computing

the measures.

One advantage of our classification is that it

provides for a better usage of the perfomance

measures: 1) Depending on his/her perspective, a

designer would be examining only a subset of

performance measures pertinent to his/her point of

view. In addition, the measures are defined in terms

of BPMN elements and social context (ie., actor) that

he/she is interested in. 2) Based on the obtained

measures values, the desiginer decision is made. He

knows the impact of his decision on other measures

dealing with other perspectives; the business process

model elements involved in the examined measure

provides for traceability among the various

perspectives.

A second advantge of our classfication, is the

genericity of the framework since it is expressed in

the BPMN standard notation.

The rest of this paper is organized as follows:

Section 2 presents an overview of the business

process performance measurement. Section 3,

proposes temporal and cost measures to evaluate the

performance of a business process model. These

measures are related to the social aspect (actors) and

the BPMN elements. Section 4 presents our

classification framework and illustrate it through an

example annotated by semantic and temporal

information that can provided by an expert or a

business designer. Finally, we conclude this paper

with a summary of the presented work and an outline

of its extensions.

2 RELATED WORK

In this section, we overview works on the

measurement of the BP performance. These works

are divided into three categories: Time based-

performance measurement, cost based-performance

measurement and works combining time and cost.

2.1 Time Based-performance

Measurement

The first category is classified in two work types:

Indicators based-performance measurement and

Patterns based-performance measurement.

2.1.1 Indicators Based-performance

Measurement

(Del-Río-Ortega et al., 2016) propose the Process

Performance Indicators meta-model (PPINOT) to

allow the modelling of the Process Performance

Indicators (PPIs). PPINOT support two different

types of resource-aware PPIs and shows the main

elements and the types of measure (Base, Derived and

Aggregated) that can be used to define a PPI. Table 2,

in Section 4.2.2, illustrates the performance

measures.

In (Van der Aa et al., 2017), the authors translate

the natural language PPI descriptions into Process

Performance Indicators (PPIs) according to a

structured notation.

(Mendes and Santos, 2016) identified the model

used for evaluating the performance of BP which best

fits the evaluation of the business processes, with a

view to a greater alignment between the indicators of

the process and the strategic objectives.

(Hompes et al., 2018) introduced a generic

approach to process performance analysis from event

data. Using event data, the authors compute the basic

performance measures defined on the states and

transitions of the artifact lifecycle models.

D'Ambrogio et al., (D'Ambrogio et al., 2016)

expressed how the model-driven techniques can be

applied to manage the performance properties. They

introduce the Performability-oriented BPMN

(PyBPMN), which can be used to annotate the BPMN

models with: i) the performance requirements, ii) the

results provided by the BP simulation-based analysis,

and iii) the measures taken at execution time, so as to

ICSOFT 2019 - 14th International Conference on Software Technologies

372

include in a single BPMN model all the data

associated to the performance properties.

To measure the performance of a business

process, (El Hadj Amor and Ghannouchi, 2017) used

an ontology based on a real business process to create

the semantic relationships between all key

Performance indicators (KPI), represented as

qualitative and quantitative indicators. After that,

they were based on data mining technique to extract

information from data measurement. In addition,

(Peral et al., 2017), analyzed the candidate KPIs

through data mining techniques to ensure that they

reflect the relationships identified during the business

strategy modeling.

In summary, all performance indicators defined in

(Del-Río-Ortega et al., 2016), (Hompes et al., 2018)

(El Hadj Amor and Ghannouchi, 2017) rely on the

remaining aspects related to the BPMN elements.

These works investigate the performance of the

business process based on techniques, template and

linguistic patterns. However, they don’t illustrate the

BP performance by using measures.

2.1.2 Time Patterns Based-performance

Measurement

Time Patterns are crucial for any enterprise to know

the temporal properties of its business processes.

These properties strongly affects the performance of

the business process execution. For example, Lanz et

al., (Lanz et al., 2016), identified 10 different time

patterns to support the selection of the appropriate

process-aware information systems (PAISs). They

are classified on 4 distinct categories: 1) Durations

and Time Lags, 2) Restricting Execution Times, 3)

Variability and 4) Recurrent Process Elements.

The first pattern category and time lags contains

three time patterns expressing the durations for

different kinds of process granularities: TP1: Time

lags between two activities, TP2: Duration and TP3:

Time lags between two arbitrary events.

The second category “Restricting Execution

Times” is composed of the following four patterns

that consist in restricting the execution times of an

activity or process (e.g., earliest start or latest

completion time): TP4: Fixed Date Element to

properly time the execution of activities and process

instances, TP5: Schedule Restricted Element to bind

the execution of an activity or process to an external

schedule, TP6: Time-based Restrictions to limit the

number of executions of an activity (process) within

a particular time frame and TP7: Validity Period to

restrict the lifetime of an activity or process.

The third pattern Variability is based on TP8:

Time-dependent Variability pattern which provides

the different control flow, depending on time aspects.

The fourth pattern Category Recurrent Process

Elements comprises TP9: Cyclicity elements pattern

and TP10: Periodicity.

Kluza et al., (Kluza et al., 2016), provide a short

overview of the selected temporal logics that specify

the time patterns in business process models.

Based on time patterns, we extract a set of

measures presented in Table 2. These measures focus

mainly on the temporal constraints related to the

following BPMN elements: activity and event.

However, they neglect gateway that is considered

important decision-making element, sequence flow

and lane/pool elements which have an impact on

assessing the business process performance.

2.2 Cost Based-performance

Measurement

(Wynn et al., 2013) propose a framework to support

management accounting decisions on cost control by

automatically incorporating cost information, from

annotation of event logs for monitoring, predicting

and reporting process-related costs. The cost

information is related to the employee and activity

element.

(Sampathkumaran and Wirsing, 2013) propose a

methodology for cost calculation by dividing a

business process into patterns. A cost and reliability

factor for each of these patterns is calculated based on

the cost of the BPMN elements.

(Kaplan and Cooper, 1988) proposed an activity-

based-costing (ABC) which emphasises on the per

(activity) unit cost of all possible activities. However,

the ABC technique requires a substantial effort to

implement and to be kept up-to-date.

(Gupta and Galloway, 2003) defined a conceptual

proposal for the use of ABC and its variation ABM

(Activity-Based Management), in order to improve

the decision-making operations. ABM is the way in

which an entity can drive, measure and control the

aim to improve their performance.

Nevertheless, there is no work that combines the

cost of all BPMN elements with the actors.

2.3 Cost and Time Aspects

Based-performance Measurement

Cost represents the expenses of a business process

required for its execution. For example, (Korherr

2007) presented a metamodel with its extension to

integrate the business process goals and the

A Framework for Evaluating Business Process Performance

373

performance measures into BPMN modelling

language. The extension offers the goals a business

process must achieve, as well as an incorporation of

the performance measures time cost, and quality.

(Araújo et al., 2016) calculate the cost of idleness

and implementation of the TDABC (Time-Driven

Activity-Based Costing) to support the development

of a costing system for public universities.

Kis et al., (Kis et al., 2017) provided a framework

on how the four dimensions of the devil's quadrangle

(time, cost, quality and flexibility) can be measured

by using log data generated by a process engine.

The presented works ignore the organizational

aspects of a business process model expressed by

social relationships, collaborative behaviors among

actors and their features determined in terms of

availability, suitability, etc. Our proposed method

combines both aspects to cover all BPMN concepts,

the organizational and the social aspects in order to

improve the performance of a business process

model.

3 MEASURES FOR BUSINESS

PROCESS PERFORMANCE

In this section, we propose performance measures

related to actors and to BPMN elements (gateway,

activity, sequence flows and lane/Pool). We note that

an actor represents the performers or organizational

units. These measures are classified into temporal and

cost measures.

3.1 Measures for Actor

We propose the following measures related to the

actor element. They express the cost and the temporal

aspects.

 Shift Time of an Actor to Perform an Activity

(ShT

Act

(A)): a period where an actor is scheduled

(planified) to perform an Activity.

 Actor’s BReaks When he Performs an Activity

(BR

Act

(A)): unproductive time where the actor is

scheduled not to work. A scheduled time when

workers stop working for a brief period.

 Stop Time of an Actor When he Performs an

Activity (ST

Act

(A)): the time where the actor was

intended to work but was not due to unplanned

stops (breakdowns) or planned stops

(changeovers).

 Ideal Cycle Time of an Actor to Perform an

Activity (ICT

Act

(A)): Theoretical minimum time

to perform an activity by an actor.

 Total Number of Good Activities Performed by an

Actor per Day (TGADay

Act

): expresses the

number of performed activities by an actor that

terminate correctly in a day.

act

i=1

TGADay =



(1)

Where m is the number of good activities (GA

)

produced by an actor.

A high number of good activities performed by an

actor expresses a high suitability and availability,

which depends on its capacity because an actor is

available if he is able to provide the needed capacity

at the required unit of time.

 Total Number of Defected Activities Performed by

an Actor per Day (TDADay

Act

): determines the

number of activities performed by an actor (Act)

in a day and that represent the failures due to

internal errors or wrong user input in a specific

period of time, detected faults, etc.

Act

j=1

TDADay =



(2)

Where n is the number of defected activities (DA

)

produced by an actor.

The more defected activities registered for a

specific period of time, the worse the process

performed in terms of technical quality. This

increases the fault tolerance and decreases the

performance of an actor, his availability, and

suitability.

 Total Number of Activities Processed by an Actor

per Day (TADay

Act

): includes the well performed

activities and the defected ones.

TDADay

TGADay

TADay

ActActAct

(3)

 Ratio of Defected Activities by an Actor per day

(RDA

Act

): is calculated by the Total Number of

Defected Activities performed by an actor divided

by the Total number of Activities performed by

the same actor.

ayTAD

TDADay

RDA

Act

(4)

 Ratio of Good Activities Performed by an Actor

(RGA

Act

): is calculated by the Total Number of

Good Activities realized by an actor in a day

divided by the Total number of Activities

performed by the same actor in one day.

ayTAD

TGADay

RGA

Act

(5)

A high ratio value of good activities performed by an

actor expresses a high actor’s suitability and

availability. This reduces the cost and reflects a good

ICSOFT 2019 - 14th International Conference on Software Technologies

374

reliability of the activity.

 Planned Production Time of an Actor to Perform

an Activity (PPT

Act

(A)): the total time that an actor

is expected to produce. It is calculated by

subtracting the schedule loss from all time. So

first, exclude any Shift Time where there is no

intention of running production (typically

Breaks).

( ) ( ) ( )

ABR_AShT=APPT

ActActAct

(6)

 Working Time Spent by an Actor to Perform an

Activity (WT

Act

(A)): It corresponds to the run time

which is simply calculated by the difference

between the Planned Production Time and Stop

Time.

( ) ( ) ( )

AST_APPT=AWT

ActActAct

(7)

 Total Working Time Spent by an Actor in a Lane

per Day (TWTDay

Act

(L)): the sum of working

time spent, in a day, by an actor in the

corresponding lane.

Act

( ) = ( )

Act p

L WT A

TWTDay





(8)

Where f is the number of activities in a lane performed

by an actor.

 Total Working Time Spent by an Actor in the

whole Process per Day (TWTDay

Act

(P)) : the sum

of working time spent by an actor in all lanes in

the process.

 

Act

( ) =

Act k

P TWTDay L

TWTDay





(9)

Where k is the number of lanes in the process.

 Percentage of an Actor Time Contribution in a

Lane per Day (PTC

Act

(L)): it represents the

proportion of the working time spent per day by

an actor in a lane (L) and the total working time

of the same actor in all the process P.

 

Act

PTC L = *100

Act

TWTDay L

TWTDay P

(10)

A high percentage value of an actor time contribution

represents that the actor is suitable and available to

accomplish his work. This increases his performance.

 Availability of an Actor in a Day (AVDay

Act

represents the capability of the actor to be able to

perform the activity in the required unit of time. It

is calculated as the ratio of Working Time spent

by an actor on a day to Planned Production Time.

PPTDay

WTDayT

AVDay

Act

(11)

A high value of AVDay indicates that the production

of an actor is important and he is able to provide the

needed capacity at the required time. This increases

his suitability and the performance per day.

 Performance of an Actor per Day (PerDay

Act

): It

expresses how fast the actor’s work? In addition,

it represents all elements that causes the process

to operate at less than the maximum possible

speed, when running. It compares the working

Time spent by an actor per day to the Ideal Cycle

Time.

Act

Day

TWT

Per

ICT

(12)

The best value of the performance is equal to 1. It

indicates that the actor has a high speed of production,

that is always available and that he is suitable to

perform the assigned tasks.

 Cost of an Actor in a Lane per Day

(CosDay

act

(L)): is calculated by the product of the

total working time spent by an Actor in a Lane per

Day (TbWTDay

Act

(L)) and its actual Labour

Costs per Hour (LCH

Act

LCH

*)L(

TWTDay

=)L(

CosDay

Act

ActAct

(13)

 Percentage of the actor’s Cost in a Lane per day

(PCos

Act

(L)): represents the proportion of the

actor cost in a Lane per Day and the lane cost per

Day.

Act

()

Day

( ) = *100

Day( )

Cos

PCos

Cos L

(14)

A high cost percentage of the actor expresses that he

is very expensive for the organization. This can be

due to the fact that the actor is not suitable to

accomplish tasks.

As the same, Formula 13 and 14 can be applied to

the pool.

3.2 Measures for the Activity Element

We propose to complete the temporal measures

related to the activity presented in the literature (Lanz

et al., 2016) (e.g., Activity Duration (AD)) by those

focusing on the cost and the activity reliability.

 Cost of an Activity realized by an actor (CA

Act

): is

calculated by the product of the actor’s actual

Labour Costs per Hour and the working time spent

by an Actor to perform an Activity.

)A(

LCH

ActActAct

(15)

It is important to note that an increase of the activity

cost has an impact on the lane cost and the entire

organization.

 Ideal Cost of an Activity realized by an actor

(ICA

Act

): is calculated by the product of the

A Framework for Evaluating Business Process Performance

375

actor’s actual Labour Costs per Hour and Ideal

Cycle Time of an Actor to perform an Activity.

)A(

ICT

LCH

ICA

ActActAct

(16)

 Difference between Cost of an Activity realized

by an actor and Ideal Cost of an Activity realized

by an actor (DCIC

Act

Act Act Act

DCIC CA ICA



(17)

The high difference expresses that the actor cost is

expensive and the required time to accomplish the

activity is high. In fact, the actor is not the most

appropriate one to perform the activity.

 Number of Detected Faults in an activity

performed by an actor in a period of time

(NDFA

Act

A high number of detected faults has a negative

impact on the reliability of the activity. Besides, it

reflects that the actor has not the skills to perform this

activity.

 Number of Error Event (NEE) that can appear in

an activity in a period of time.

We note that, the low number of errors minimizes the

necessary time to accomplish an activity and

consequently, reduces the cost of an activity.

3.3 Performance Measures for

Gateway/Sequence Flow Elements

Table 1: Performance measures related to the gateway and

sequence flow elements.

Temporal measures

Pattern

category

Time patterns

Measures

Duration and time lags

TP2 : Duration

Sequence Flow

SeqFD: Sequence Flow Duration

represents the transfer time between

BPMN elements (activity, gateway

and event).

SeqFD=

ST(BPMN element

i+1

)–

ET(BPMN element

) where

ST: Start Time

ET End Time

SeqFSD : Sequence Flow Set

Duration

SeqFSD SeqFD





where w: the total number of

sequence flows and SeqFD

is the

duration of a sequence flow u

Gateway

GD: Gateway Duration

GD=ETG-STG Where:

ETG: End Time of a Gateway

STG: Start Time of a Gateway

GSD : Gateways Set Duration

GSD GD





where y: the total number of

gateways and GD

is the duration of a

gateway i

TP : Time lags

Time lags between

two gateways

DSTG : Difference between Start

Time of different Gateways

DSTG = STG(G1)-STG(G2)

DETG : Difference between End

Time of different Gateways

DETG= ETG(G1)-ETG(G2)

Time lags

between

a gateway and an

activity

DSTASTG : Difference between

Start Time of an Activity (STA) and

Start Time of a Gateway

DSTGSTA = STA-STG

DETAETG : Difference between End

Time of an Activity (ETA) and End

Time of a Gateway

DETGETA = ETA-ETG

Time lags between a

gateway and an event

DETGETE : Difference between End

Time of a Gateway and End Time of

an Event (ETE)

DETGETE = ETG-ETE

DSTGSTE : Difference between Start

Time of a Gateway and Start Time of

an Event

DSTGSTE = STG-STE

Restricting Execution Times

for a gateway

TP4: Fixed

Date

Elements

FDG : Fixed Date of a Gateway

TP6 : Time

based

restriction

NGTP : Number of Gateways

executed per Time Period

TP7 :

Validity

period

MinTVG : Minimal Time Validity of

a Gateway

MaxTVG : Maximal Time Validity

of a Gateway

VPG : Validity Period of a Gateway

VPG = MaxTVG – MinTVG

Cost measures

Gateway

Cost of a Gateway (CosGat

Act

): the

product of the gateway duration and

the actor’s actual Labour Costs per

Hour (LCH

Act

Act Act

=*GD

CosGat LCH

Sequence flow

Cost of a sequence flow: (CosSeqF

Act

): the product of the Sequence

Flow Duration (SeqFD) and the

actor’s actual Labour Costs per Hour

(LCH

Act

CosSeqF SeqFD

LCH

Table 1 presents the proposed measures for gateway

and sequence flow elements that concern the temporal

and the cost aspects. Temporal measures related to the

gateway and sequence flows are classified, based on

the time patterns presented in Lanz et al., (Lanz et al.,

2016). We note that splitting gateways usually do no

take time because represents a decision. On the other

hand, merging gateways may took time for example

when we are dealing with parallel join gateway since

previous activities must end to the process continues.

Sequence flow duration represents also the time lags

(difference) between the start of an element i+1 and

the end of an element i. Cost measures reflects the

cost needed to perform the gateway and sequence

flow elements.

A high value of the time lags between a gateway

and a BPMN element (activity, event, and gateway)

increases the transfer time. This has a negative impact

on the duration of the whole process.

Besides, a high duration of a gateway or sequence

flow makes its cost more expensive and increases the

cost of the process.

ICSOFT 2019 - 14th International Conference on Software Technologies

376

3.4 Performance Measures for

Lane/Pool Element

This section presents the measures for Lane/Pool

elements. They aim to evaluate the time and the cost

of the whole process.

 Lane Duration (LD): the sum of the needed time

to carry out all BPMN elements in a lane.

1 1 1

b g p e

a h o d

LD AD SeqFD GD ED

  

  

   

(18)

Where b is the number of activities, g is the

number of sequence flows, p is the number of

gateways and e is the number of events in a

lane.

 Pool Duration (PD): It is calculated by the sum of

lanes duration in the process.

PD LD





(19)

Where l is the number of lanes in a process.

A high duration has a negative impact on the time

behavior and leads to an expensive cost of the whole

process.

 Cost of a Lane per Day (CosDay(L)): determines

the cost of all BPMN elements in a Lane per Day.

It includes the cost of transfer time between them.

1 1 1 1

( ) =

y t c r

Act Act

w x e i

CosDay L CA CosSeqF CosGat CosEv

   

  

   

(20)

Where y is the number of activities, t is the number of

sequence flows, c is the number of gateways and r is

the number of events in a lane.

The shorter is the BPMN elements duration, the

more the cost of a lane is reduced. Formula 20 can be

also applied to the pool.

4 A PERFORMANCE

FRAMEWORK FOR BPMN

MODEL

In our previous work, we annotated a BPMN model

by using the context concept (Khlif et al., 2017) as a

means to encapsulate the semantic information

pertinent to the business logic and the organizational

aspect. (Khlif et al., 2017) defined the context by

assimilating a business process P to an undirected

graph G

= (V, E) where V is the non-empty set of

nodes representing elements of P such as pools, lanes,

activities, gateways and events, etc. E ⊆ V × V is the

set of edges linking the nodes V. Let F

be the set of

features describing each node individually. A context

is defined as the set of all instances derived from

the set F

. From this generic definition, the authors

derive two instances of context: social context and

business context. The social context CS

of a process

P instantiates the C

context where V is the set of

actors and F

expresses their characteristics. The

business context of a business process places the

social context in the organizational aspect and

completes it with semantic information related to

organizational, functional and informational

perspectives (Khlif et al., 2017).

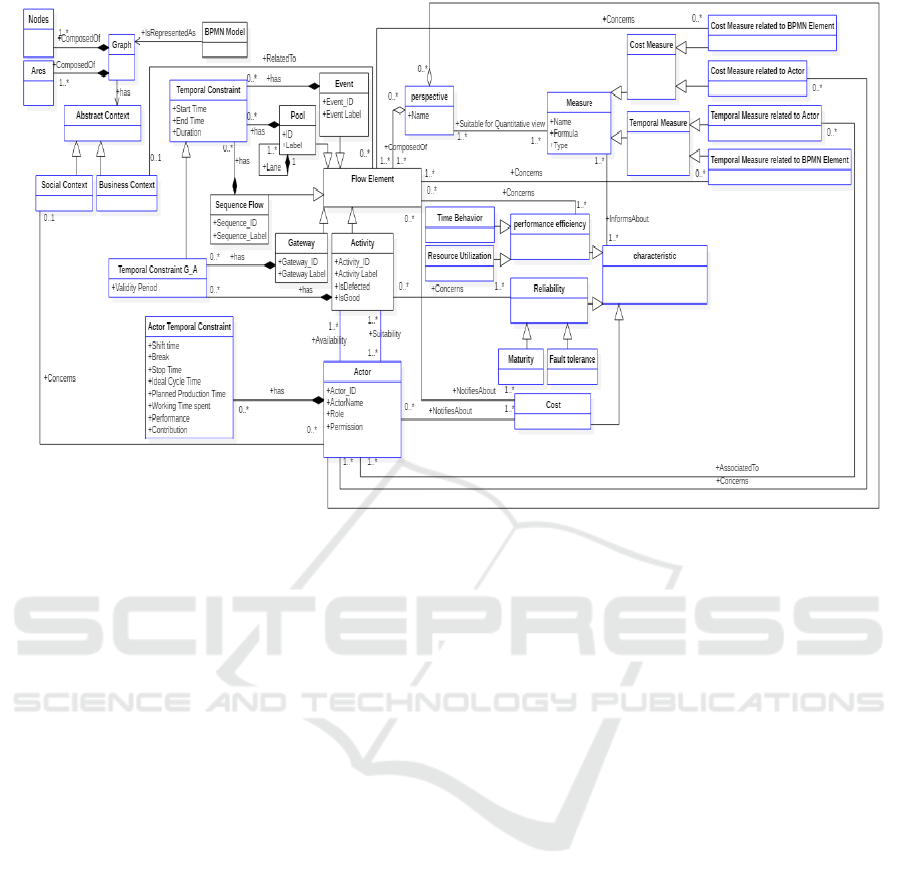

To define our framework and since the presented

definition neglect the temporal constraints, the

temporal perspective and the cost that are useful to

annotate our BPMN model, we propose in this paper

to enrich as follows the context definitions of a

business process:

4.1 Enriched Context Definitions of a

Business Process

We extend the social context by additional properties

related to actor that can improve the performance of

a business process such as his availability (AV

act

), his

SuiTability (ST

act

), his performance to realize

activities, etc. Furthermore, we extend the business

context using semantic information related to the

behavioral and temporal perspectives. The temporal

perspective includes the temporal constraints related

to the social aspect (Actors), and associated to

different BPMN elements (activities, lanes, pools,

gateway, etc.). More precisely, the business context

of a business process P covers the following semantic

information:

4.1.1 Semantics of Organizational and

Temporal Perspectives

The organizational perspective which places the

social context within the enterprise represents

"Where" and by "whom" the business process

activities are performed. The main BPMN concepts

that reflect the organizational perspective are "Pool"

and "Lane". In particular, the context is associated to

the lane and pool elements. It describes the following

information: Lane ID and label, pool ID and label, the

list of actors affiliated with the lane, permission and

role assignments, and the hierarchical roles among

the actors (Khlif et al., 2017). Recall that a

hierarchical roles indicate partial ordering on roles.

Roles are partially ordered to reflect the

organizational hierarchy. Therefore, for two roles r

and r', r



r′ implies that permissions that exist within

r′ are subsumed by those in r (Khlif et al., 2017).

We extend the business context in the

organizational perspective by the following

A Framework for Evaluating Business Process Performance

377

information that integrate also the temporal

perspective:

 Cooperation Roles: expresses that the actors have

the same position (the same roles and

permissions).

 Actor’s Availability: is the capability of the actor

to perform an activity in the required unit of time.

 Actor’s Suitability: represents the capability of the

actor to perform the activity well.

 Shift Time of an Actor: a period of time where an

actor is scheduled to perform a task.

 Actor’s Break: a scheduled time when the actor

stop working for a brief period.

 Stop Time of an Actor: a passage of time where

the actor stops temporarily since unplanned stops

(breakdowns) or planned stops (changeovers).

 Ideal Cycle Time of an Actor: the minimum period

when an actor performs the activity.

 Planned Production Time of an Actor: a period of

time that an actor is expected to perform an

activity.

 Working Time Spent by an Actor: represents the

duration that an actor performs an activity.

 Performance of an Actor: represents the

percentage of all elements that permit the process

to operate at less than the maximum possible

speed, when the actor performs the activity.

 Contribution of an Actor in a Lane: indicates how

the working time spent by an actor in a lane affects

total working time of the same actor in all the

process.

 Actor Cost: Cost of an actor when he perform an

activity.

4.1.2 Semantics based on Functional and

Temporal Perspectives

Activity node is the main concept in the functional

perspective. It is documented with the following

context information: the unique activity identifier

(ID), its lane, the ID of the actor responsible of

performing it, the IDs of the activities on which it

directly depends (before and after), the dependency

type (authorization, coordination, or resource

dependency), and his required objects which can be

either shared or private (Khlif et al., 2017).

We extend this annotation by the following

temporal and semantic information:

 Performance Duration: is a pair (Start Time, End

Time) that denotes respectively the starting and

finishing time of an activity.

 Time Lags between Activities: it expresses the

transfer time between activities.

 Validity Period of an Activity: Allows to

restrict the lifetime of an activity or a process.

 Activity Cost: Cost needed to accomplish an

activity

 IsDefected: verifies if the activity is defected

 IsGood: verifies is the activity that is well

performed.

4.1.3 Semantics based on Informational and

Temporal Perspectives

Since the informational perspective is represented in

terms of data and events, the resources needed by an

activity express the semantic information that related

to this perspective (Khlif et al., 2017). We extend the

business context in the informational perspective, by

those expressing temporal and cost information:

 Time Date of an Event: specifies a fixed date when

trigger will be fired.

 Time Duration of an Event: specifies how long the

timer should run before it is fired.

 Time Lags between Two Events: specifies the time

lags between two arbitrary events.

 Event Cost: the cost of sending/receiving an event.

4.1.4 Semantics based on Behavioural and

Temporal Perspectives

We define the business context associated to the

gateway and sequence flow elements. We suppose

that the gateway and sequence flow nodes in a

business process model are documented with the

following context information: Unique identifier of

the gateway (ID

)/sequence flow (ID

SeqF)

, their labels,

their duration and costs. Note that the gateway can be

also expressed by the time lags between it and other

BPMN element (gateway, activity and event)

expressing the transfer time between them.

4.2 Classification Framework

Due to the fact that no consensual classification exists

for the multiple measures proposed, this complicates

their exploitation. Thus, in this section, we propose a

classification framework for performance measures

to facilitate their use in the evaluation of the business

process performance. It should be noted that the

existing measures in the literature and those we have

proposed adhere to this classification.

4.2.1 Framework Architecture

The measure classification framework is given in

Figure 1. A "BPMN model" is represented as a

"Graph" which is composed of "Nodes" and "Arcs".

ICSOFT 2019 - 14th International Conference on Software Technologies

378

The "Graph" has an "Abstract Context". Both

"Business Context" and "Social Context" are viewed

as an instantiation of the context concept. "Business

Context" is related to the "Flow Element" and "Social

Context" concerns the "Actor" node.

Our classification framework is organized in three

levels. The first level expresses that a measure can be

temporal or representing the cost. They concerns the

following nodes: flow element(s) and actor.

In order to determine the scope of each temporal

(respectively cost) measure, we introduced the

"FlowElement" class whose instances are the BPMN

concepts (i.e., gateway, event, lane, activity and

sequence flow). The association "concerns"

establishes a link between the "Temporal Measures

related to BPMN elements" (respectively "Cost

measures related to BPMN elements") and

"FlowElement". The latter provides an indication of

the BPMN elements involved in the measurement.

For example, the measure AD (Activity Duration)

and CA

Act

(Cost of an Activity realized by an Actor)

have as scope the basic element "Activity".

In addition, we introduce the "Actor" class. The

links "Associated to" and "Concerns" relate the latter

to respectively "Temporal Measures related to Actor"

and "Cost Measures related to Actor" classes. These

links provide indications about the temporal and cost

features involved in the measurement. We note that

"Actor" and "FlowElement" classes have temporal

constraints. The association between these classes,

and the "Temporal Constraint" class indicates

temporal dependencies.

The second level associates for each category a set

of measures that are classified into perspectives:

functional, organizational, behavioral, informational,

and temporal.

The association between the "Measures" class and

the "Perspective" class, presented in Figure 1,

establishes a link between each measure and the

perspective(s) in which it can be calculated. From a

perspective, a set of the related measures represents a

quantitative view of this perspective. Using this

classification, our framework helps the designer to

select an appropriate subset of measures associated to

the corresponding perspective.

We classify at the last level the temporal and cost

measures on base, derived and aggregated. A measure

is characterized by its name, calculation formula and

a "type" attribute that indicates whether the measure

is base, derived and aggregated. A base measure

provides a direct idea on the temporal or cost aspects

of one BPMN element or an actor, and on the

interpretation of the measure value, while a derived

measure is defined as a mathematical function over

one or more measure. An aggregated measure

aggregates one single measure using an aggregation

function (i.e., sum or average).

Each characteristic is composed of a set of sub

characteristics. Based on our classification, the

association "informs about" links the class "Measure”

to the class "Characteristic". It states that each

Measure is associated to one or more (sub) quality

characteristics (Bocciarelli et al., 2014), (D'Ambrogio

et al., 2016) on reliability, performance efficiency and

cost characteristics.

In (Heinrich and Paech, 2010), the first

characteristic performance efficiency is defined by

the capability of the BPMN element to provide an

appropriate performance, relative to the amount of

resources and the time used, under stated conditions.

It is shown by the sub characteristics time behavior

and resource utilization.

Time behavior is defined as the appropriate

transport time between different BPMN elements and

processing times when executed. For instance, we

associate Time Lags between two start activities

(STASTA: Start Time of the first Activity and Start

Time of the second Activity) (Lanz et al., 2016) to

this sub characteristic.

Resource utilization represents the capability of

the BPMN element to use appropriate amounts and

the types of resources when executed under stated

conditions. For instance, we associate the measure

"the list of actors that perform an activity" (Del-Rio-

Ortega et al., 2016) to this sub-characteristic.

The second characteristic reliability is determined

by the capability of the activity to maintain a specified

level of performance when used under specified

conditions (Heinrich and Paech, 2010). It is revealed

by the sub characteristics Maturity and fault

tolerance. Maturity is the capability of the activity to

avoid failure as a result of faults in the activity. For

instance, we associate to this sub characteristic, the

Number of Detected Faults in an activity performed

by an actor per day (NDFA

Act

Fault tolerance is the capability of the activity to

maintain a specified level of performance in cases of

faults. We quote for example the measure Number of

Error Event (NEE) in an activity per day.

The third characteristic cost is expressed as a price

or monetary value associated to BPMN element or

actor in a period of time. The association

"notifiesAbout" links the classes "Flow Element" and

"Actor" to the "Cost" class. For instance, we associate

Cost of an actor in a Lane per Day (CosDayact(L)) to

this sub characteristic.

A Framework for Evaluating Business Process Performance

379

Figure 1: Classification framework.

The availability and suitability are considered as

characteristics which capture attributes and measures

related to the actor performance. Note that the actor

characteristics differ from the BPMN element

characteristics. Thus, we do not treat actor as an

activity. Availability is the capability of the actor to

be able to perform the activity in the required unit of

time. In fact, we propose the availability measure of

an actor (AVDay

act

Suitability focuses on actor skills that cover his

qualification, expertise, social competence, skills,

motivation and performance ability. This aspect

focuses on the extent to which all of the elements of

an actor performance are intentionally and

specifically addressed and appropriately configured

to accomplish the desired organizational outcomes.

4.2.2 Applicative Example

In order to illustrate the classified measures, we use

the "Travel agency Process" example modelled with

BPMN in Figure 2. The model is annotated by

temporal constraints and semantic information (cost

and organizational aspects) that help analysis to

evaluate the BP performance.

For instance, we suppose that three actors ("Ali",

"Salah" and "Sami") are affiliated to "Management of

Car/bus" lane, while two actors having the same

position ("Omar" and "Olfa") work in the

"Reservation Management" lane.

In the "Management of Car/bus" lane, "Ali" is the

leader of "Sami" and "Salah". So, the permission

attributed to "Sami" and "Salah" is also attributed to

"Ali". "Sami" starts performing the task "Rent cars to

customer" on Monday at 11:12 and he completes it at

11:42. Its duration is equal to 30 minutes. Since "Ali"

is available on Monday at 10:40, and he can start the

"Rent cars to customer" task before "Sami", the

designer could affect it to "Ali". In addition, the latter

can perform this task in a reduced laps of time

(WT=20 mn) since he is the leader and he has more

skills (suitability of Ali=1) than "Sami".

Consequently, he is more suitable to perform the

"Rent cars to customer" task. In this case, "Ali"

reduces the behavior time and the cost characteristics.

In the "Reservation Management" lane, "Omar"

performs on Monday six tasks "create reservation",

"determine date of rented and returned car", "check

car availability", "cancel reservation", "validate

reservation" and "establish payment". All the tasks

are well performed except for the "check car

availability" which is a defected one. In fact, the ratio

of good (respectively defected) tasks performed by

Omar is equal to RGA

Omar

=83.3% (respectively

RDA

Omar

=16.7%). Certainly, a high ratio value of

good tasks performed by Omar expresses his

suitability. It reduces the task cost and reflects a good

reliability of this task.

ICSOFT 2019 - 14th International Conference on Software Technologies

380

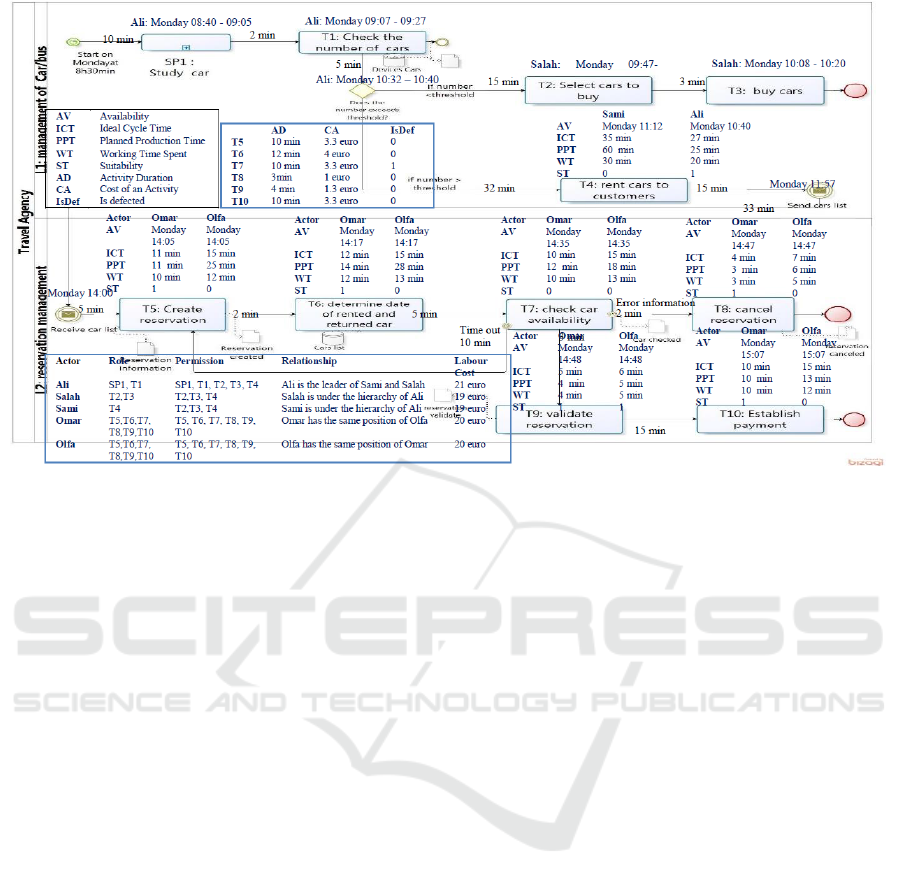

Figure 2: Travel Agency process example.

Furthermore, we note that "Omar" should work 6

hours per day (TWTDay

Omar

=6 hours). He required

one hour to perform one instance of all tasks in lane

2. In fact, his total working time is 6 hours per day

((WT

+ WT

T10

)*6)

while his planned production time is 6 hours 30

minutes ((PPT

+ PPT

PPT

T10

)*6). This expresses that the availability of

Omar is TWTDay

Omar

/ PPTDay

Omar

= 92.3% and he is

capable to perform his job in the required unit of time.

Based on Figure 2, the ideal cycle time per day of

"Omar" to perform the tasks is equal to 6 hours 18

minutes ((ICT

+ ICT

ICT

T10

)*6). Comparing the working time to the ideal

one, allow to calculate his performance which is equal

to 95%. The obtained value indicates that "Omar" has

a high production speed. Furthermore, although

"Omar" and "Olfa" have the same position, the former

can perform the "Create reservation" task on 10

minutes, while "Olfa" requires 12 minutes. We

explain this by the fact that "Omar" has more skills

(Suitability ST

Omar

=1) than "Olfa" (ST

Olfa

=0).

Certainly, reducing the activity duration improves the

time behavior and the cost by decreasing the

execution time of the whole process. Its cost is

calculated by the product of the actor’s actual Labour

Costs per Hour (LCH

Omar

=20 euro/hour) and the

working time spent by "Omar" to perform the "Create

reservation" (CA

Omar=

(20 euro/60)*10=3.3 euro). To

determine the cost of "Reservation Management"

lane, we calculate the sum of all BPMN elements cost

in this lane (14+16.3= 30.3 euro).

It is important to note, that the presented model

can be evaluated based on the obtained measures

values. In this case, several measures should be

minimized and others should be maximized to

improve the BP performance. The interpretation of

the performance measures gives an evaluation of the

business process performance. For instance, the

performance and availability measures of the actor

"Omar" in a day should be maximized to improve the

performance of the business process model. They

represent respectively high values (95% and 92.3%).

In addition, the ratio of defected activities performed

by "Omar" should be minimized to improve the

performance of the business process model. It

represents a low value (RDA

Omar

=16.7%). In our

case, based on the majority measure values, the

"Travel agency Process" model has a good

performance.

However, for a better evaluation, it is mandatory

to establish thresholds that reflect the optimal value

of each measure.

Table 2 shows the classification of the

performance measures in terms of all perspectives

and presents the values for our running example. The

symbol (*) indicates that the measure is derived and

the symbol (**) indicates that the measure is

aggregated. In this table, the sign - (minus) indicates

that the measure should be minimized to improve the

BP performance, while the plus sign + indicates that

the measure should be maximized.

A Framework for Evaluating Business Process Performance

381

Table 2: Classification of the performance measures.

Perspectives

Performance measures

Source

Characteristics related to

BPMN elements

Characteristics

related to actor

Value

Temporal Measures

Cost Measures

Performance

efficiency

Reliability

Cost

Actor

performance

Temporal

measures for

BPMN

elements

Temporal

measures

related to

actor

Cost

measures

for BPMN

elements

Cost measures

related to actor

Time

Behavior

Resource

Utilization

Maturity

Fault

tolerance

Availability

Suitability

Functional and

temporal

: Activity

Duration

Lanz et

al., 2016

AD (T4:Rent car to

customers) = 11:42 –

11:12 = 30 minutes

Act

:Cost

of an

Activity

Omar

(Create

reservation) = 10

minutes * 20 euro/Hours

= 3,33 euro

NDFA

Act

Number of

Detected Faults

in an activity

per day

NDFA(Create

reservation)

Omar

Informational

and temporal

NEE

: Number

of Error Event

per day

NEE(Check car

availability)

Omar

Organizational and temporal

Business

Temporal

context

CosDay(L)

:Cost

of Lane per Day

CosDay(Reservation

Management)= 30.3

euro

Social Temporal context

LAADay

List of Actors

that perform

an Activity

per day

Del-Río-

Ortega et

al., 2016

LAADay (Validate

reservation)= 2 (Olfa

and Omar)

RGA

Act

Ratio of Good

Activities

performed by

an Actor

RGA

Omar

=5/6=83.3%

AVDay

act

Availability

of an actor

AVDay

Omar

= 6 hours / 6

hours and 30 minutes =

92.3%

PerDay

Act

Performance

of an actor

PerDay

omar

= 6 hours/ 6

hours 18 minutes =95%

CosDay

act

(L)

Cost of an actor

in a Lane per Day

CosDay

Omar

(Reservation

Management)= 6 hours

* 20 euro = 120 euro

Behavioural and

temporal

: Gateway

Duration

GD (Number of cars?) =

10:40-10:32 = 8

minutes

CosGat

Act

Cost of a

Gateway

CosGat

Ali

= 5 minutes *

21 euro/hour = 2.8 euro

5 CONCLUSION

In this paper, we focused on improving the

performance of BPMN models. To end this purpose,

we first enriched the existing measures by proposing

a set of cost and temporal ones related to BPMN

elements and actors. These measures are based on

business and social contexts.

Since there is no consensual classification for the

multiple measures, we defined a framework for

classifying them. It facilitates their use in the

evaluation of the business process performance.

This classification framework is organized in

three levels. At the first level, the proposed measures

represent the cost and the temporal aspects. They

concern the BPMN element(s) and the Actor. At the

second level, for each category, we classified a set of

measures into perspectives. Thanks to this second

level, our framework helps the designer to select the

suitable subset of performance metrics dealing with

his/her perspective. At the third level, we classify

ICSOFT 2019 - 14th International Conference on Software Technologies

382

performance measures into base, derived and

aggregated. To illustrate our proposed framework, an

example as well as its validation on a real case study

in the "Travel Agency Process" is presented. It allows

to calculate and interpret the measures values in order

to improve the performance of the business process

model.

Our future work focuses on three main axes: 1)

integrate our classification within a toolset for

BPMN, 2) checking the proposed measures through

empirical studies and identify thresholds, and 3)

exploit the temporal and cost information to provide

for assistance during the refactoring/improvement of

a business process model in order to alert the designer

of potential impacts of their decisions upon the

various perspectives.

REFERENCES

Araújo, M., Filho, B. A. R, Gonçalves, R. F., 2016.

Business process management notation for a costing

model conception. In ICIEOM’9, International

Conference on Industrial Engineering and Industrial

Management, Aveiro, Portugal, pp. 244-251.

Bocciarelli, P., D'Ambrogio, A., Giglio, A., Paglia, E.,

2014. Simulation-based performance and reliability

analysis of business processes. In WSC’14,

International Winter Simulation Conference,

Savannah, GA, USA, pp. 3012-3023.

Del-Río-Ortega, A., Resinas, M., Durán, A., Ruiz Cortés, A.,

2016. Using templates and linguistic patterns to define

process performance indicators. In Enterprise IS’16,

International Journal of Enterprise Information Systems,

Volume 10, Num. 2, pp. 159-192.

D'Ambrogio, A., Paglia, E., Bocciarelli, P., Giglio,A.,

2016. Towards performance-oriented perfective

evolution of BPMN models. In SpringSim'16, 49th

International Conference on Spring Simulation Multi-

Conference, Pasadena, CA, USA, Volume 48, pp. 15.

El Hadj Amor, A. E., Ghannouchi, A. S., 2017. Towards

Managing Key Performance Indicators for Measuring

Business Process Performance. In EMCIS’17, 14th

Conference European, Mediterranean, and Middle

Eastern on Information System, Portugal, pp .579-591.

Gupta, M., Galloway, K., 2003. Activity-based

costing/management and its implications for operations

management. In International Journal of Technological

Innovation, Entrepreneurship and Technology

Management, Volume 23, pp. 131-138.

Heinrich, R., Paech, B., 2010. Defining the Quality of

Business Processes. In Modellierung’10, 4th

International Conference of Modellierung, Klagenfurt,

Austria, pp.133-148.

Hompes, Bart F. A., Van der Aalst, W. M. P., 2018.

Lifecycle-Based Process Performance Analysis. In

CoopIS, C&TC, and ODBASE’18, 17

International

Conference on Cooperative Information Systems,

Valletta, Malta, pp. 336-353.

Kaplan, R. S., Cooper, R., 1998. Cost and effect: using

integrated cost systems to drive profitability and

performance. Cambridge, MA, 1

edition Harvard

Business School Press.

Khlif, W., Ben-Abdallah, H., Elleuch Ben Ayed, N., 2017.

A methodology for the semantic and structural

restructuring of BPMN models. In International

Journal on Business Process Management, Volume 23,

pp. 16-46.

Kis, I., Bachhofner, S., Di Ciccio, C., Mendling, J., 2017.

Towards a Data-Driven Framework for Measuring

Process Performance. In BPMDS’17, 18

International

Conference on Enterprise, Business-Process and

Information Systems Modeling, Germany, pp. 3-18.

Kluza, K., Jobczyk, K., Wisniewski, P., Ligeza, A., 2016.

Overview of Time Issues with Temporal Logics for

Business Process Models. In FedCSIS’16, Federated

Conference on Computer Science and Information

Systems, Gdańsk, Poland, pp. 1115-1123.

Korherr, B., List, B., 2007. Extending the EPC and the

BPMN with Business Process Goals and Performance

Measures. In ICEIS’9, International Conference on

Enterprise Information Systems, Funchal, Madeira,

Portugal, pp. 287-294.

Lanz, A., Reichert, M., Weber, B., 2016. Process time

patterns: A formal foundation. In Inter. Journal of the

Information Systems, Volume 57, pp. 38-68.

Mendes, T., Santos, S., 2016. A Procedural Approach for

Evaluating the Performance of Business Processes

Based on a Model of Quantitative and Qualitative

Measurements. In ICEIS’16, 18

Inter. Conf. on

Enterprise Information Systems, Rome, pp. 515-534.

Peral, J., Maté, A., Marco, M., 2017. Application of Data

Mining techniques to identify relevant Key

Performance Indicators. In Inter. Journal of Computer

Standards & Interfaces, Volume 50, pp. 55-64.

Sampathkumaran, P. B., Wirsing, M., 2013. Financial

Evaluation and Optimization of Business. In Inter.

Journal of Information System Modeling and Design,

Volume 4, Number 2, pp. 91-120

Van der Aa, H., Leopold, H., Del-Río-Ortega, A., Resinas,

M., Reijers, H. A., 2017. Transforming unstructured

natural language descriptions into measurable process

performance indicators using Hidden Markov Models.

In International Journal of the Information Systems,

Volume 71, pp. 27-3.

Wynn, M. T., Low, W. Z., Nauta, W., 2013. A Framework

for Cost-Aware Process Management: Generation of

Accurate and Timely Management Accounting Cost

Reports. In APCCM’9, Asia-Pacific Conference on

Conceptual Modelling, Adelaide, Australia, pp. 79-88.

A Framework for Evaluating Business Process Performance

383
