Code Reuse between Java and Android Applications

Yoonsik Cheon, Carlos V. Chavez and Ubaldo Castro

Department of Computer Science, The University of Texas at El Paso, El Paso, Texas, U.S.A.

Keywords:

Code Reuse, Multiplatform Application, Platform Difference, Android, Java.

Abstract:

Java and Android applications can be written in the same programming language. Thus, it is natural to ask

how much code can be shared between them. In this paper we perform a case study to measure quantita-

tively the amount of code that can be shared and reused for a multiplatform application running on the Java

platform and the Android platform. We ﬁrst conﬁgure a multiplatform development environment consisting of

platform-speciﬁc tools. We then propose a general architecture for a multiplatform application under a guiding

design principle of having clearly deﬁned interfaces and employing loose coupling to accommodate platform

differences and variations. Speciﬁcally, we separate our application into two parts, a platform-independent

part (PIP) and a platform-dependent part (PDP), and share the PIP between platform-speciﬁc versions. Our

ﬁnding is that 37%–40% of code can be shared and reused between the Java and the Android versions of our

application. Interestingly, the Android version requires 8% more code than Java due to platform-speciﬁc con-

straints and concerns. We also learned that the quality of an application can be improved dramatically through

multiplatform development.

1 INTRODUCTION

Java is one of the most popular programming lan-

guages in use today for developing a wide spectrum

of applications running on a range of platforms from

mobile and desktop to server. The Android operat-

ing system is the dominating mobile platform of to-

day, and Android applications can be written in Java

albeit some differences between the Java application

programming interface (API) and the Android API.

Source code reuse is considered as a fundamental part

of software development (Abdalkareem et al., 2017).

Thus, it is natural to ask how much code can be shared

and reused between Java and Android applications. In

this paper we study and answer this question.

A multiplatform application is an application that

is developed for and runs on multiple platforms. We

use the term platform loosely to mean operating sys-

tems, runtimes including virtual machines, and soft-

ware development kits (SDKs). We include SDK in

the platform, as our research is focused on code reuse

and we are also interested in studying the impact and

complications caused by API differences of SDKs.

The two speciﬁc platforms that we consider in this

paper are Java SDK for desktop applications and An-

droid Java SDK.

We answer our research question by perform-

ing an experiment to measure quantitatively the de-

gree of code reuse possible between Java and An-

droid versions of an application. Our experiment is

a case study developing natively a Java application

and its Android version running on mobile devices

like smartphones and tablets. The application is small

in Java but is a typical Android application of the

average size (Minelli and Lanza, 2013), requiring a

graphical user interface (GUI), data persistence, net-

working, and multithreading. We develop the ap-

plication incrementally and iteratively with continu-

ous integration and testing by switching instantly be-

tween platform-speciﬁc integrated development envi-

ronments (IDEs). For this, we conﬁgure a custom

multiplatform application development environment

by sort of gluing individual platform-speciﬁc tools

and IDEs. Our development environment propagates

immediately changes made on the shared code using

one IDE to other IDEs and platforms. Our design

approach for code reuse is to decompose an applica-

tion into two different parts: a platform-independent

part (PIP) and a platform-dependent part (PDP). The

PIP is the part of an application that does not depend

on platform speciﬁcs and thus can be reused on dif-

ferent platforms. The guiding design principle is to

have clearly deﬁned interfaces and employ loose cou-

pling between the two parts to accommodate platform

246

Cheon, Y., Chavez, C. and Castro, U.

Code Reuse between Java and Android Applications.

DOI: 10.5220/0007843702460253

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 246-253

ISBN: 978-989-758-379-7

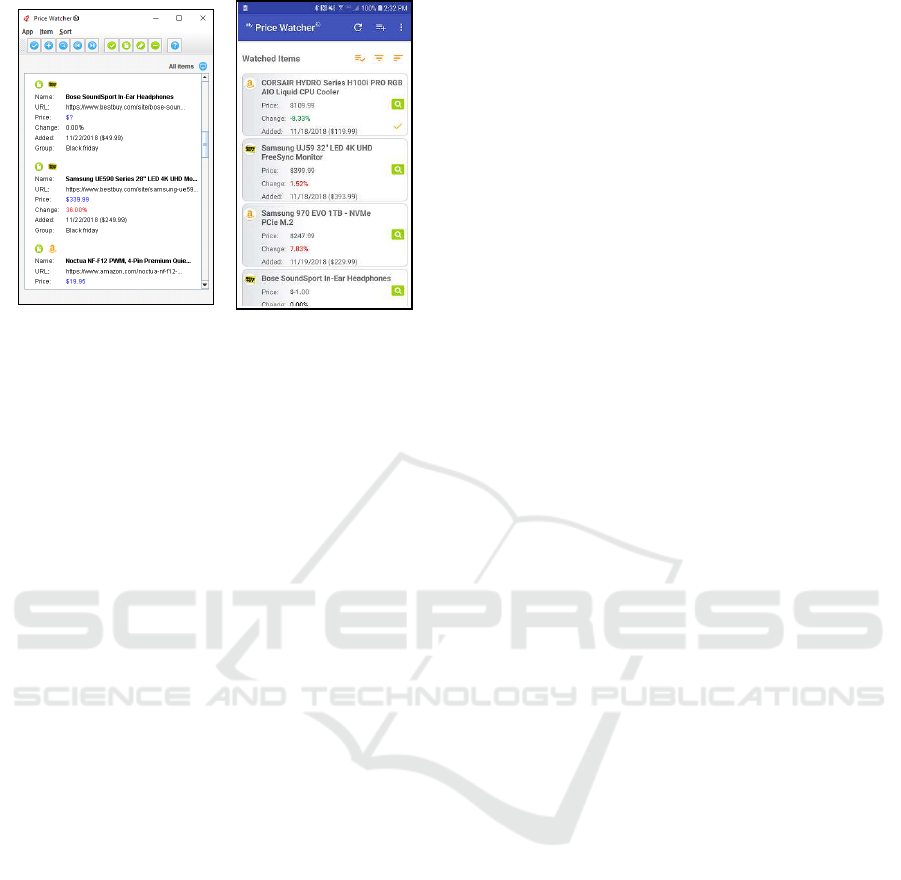

Figure 1: Screenshots of Price Watcher (Java and Android).

differences and variations. To determine code reuse,

we measure the size of our code with a simple metric

counting the number of lines of code (LOC). We also

share other ﬁndings and lessons that we learned from

our case study.

The rest of this paper is structured as follows. In

Section 2 we describe our case study application. In

Section 3 we explain our development of the applica-

tion, including the conﬁguration of tools and design

challenges along with our solutions. In Section 4 we

assess code reuse by measuring it quantitatively and

interpreting the measurements. In Section 5 we men-

tion few related work, and we provide a concluding

remark in Section 6.

2 CASE STUDY

The primary objective of our case study is to mea-

sure quantitatively the amount of code reuse possi-

ble between a Java application and its Android ver-

sion. The secondary objective is to learn complica-

tions or issues associated with multiplatform applica-

tion development—those related with not only design

and coding but also conﬁguration of tools for incre-

mental development with continuous integration.

We develop a Java desktop application and its An-

droid mobile version, named Price Watcher. The ap-

plication tracks the prices of products, or items, ex-

tracted from their webpages (see Figure 1 for sample

screenshots). The application helps a user to ﬁgure

out the best time to buy items by watching over ﬂuc-

tuating prices. As the prices are scraped from web-

pages, the watch list may consist of items from differ-

ent online stores or websites.

Most applications of today are built with libraries

or frameworks that are either provided by the plat-

forms themselves or acquired from third parties.

These libraries and frameworks may introduce ad-

ditional complications to the development of multi-

platform applications. To study their implications in

the code reuse, we use several different libraries and

frameworks in our development. The APIs of Java

and Android Java are very similar for common li-

braries such as collections, ﬁle I/O, and networking.

However, graphical user interface (GUI) frameworks

of Java and Android are completely different, as An-

droid offers its own framework for GUI program-

ming. Interestingly, there are also differences in the

ways third-party libraries and framework are provided

or supported by platforms.

• Plain Old Java Objects (POJOs): A library or

framework is written in the ordinary Java, not

bound by any special restriction other than those

of the Java language speciﬁcation. It is often bun-

dled in the SDK. Android SDK, for example, in-

cludes one particular open source JSON library

while Java SDK does not. An open-source li-

brary or framework can be tightly integrated into

the platform and be part of the platform’s APIs.

It is in a sense provided as a built-in feature of

the platform, often modiﬁed signiﬁcantly through

the integration. An example is Android’s support

for SQLite, a lightweight, server-less relational

database system. There are noticeable differences

between the Android-speciﬁc SQLite API and the

JDBC-based Java SQLite API.

• Platform-speciﬁc SDK: A third party frame-

work is often provided as a platform speciﬁc

SDK. An example relevant to our case study

is Google’s Firebase Database, a cloud-hosted

database. Google provides different Firebase

SDKs for different platforms, and the APIs of An-

droid and Java (Firebase Admin Java SDK) are

similar but with some subtle syntactic and seman-

tic differences.

3 DEVELOPMENT

We develop our application incrementally—one fea-

ture at a time—and iteratively by continuously inte-

grating and testing code written on different platforms

(Cheon, 2019). It is crucial to have adequate tool

support for multiplatform application development.

Since we develop two versions of an application, one

for each platform, our development environment log-

ically consists of three IDEs: two platform-speciﬁc

IDEs and one for developing the common code. For

Android, we of course use Android Studio, the of-

ﬁcial IDE from Google for Android application de-

velopment built on JetBrain’s Java IDE called IntelliJ

Code Reuse between Java and Android Applications

247

IDEA. For the development of both the Java applica-

tion and the common code, any reasonable Java IDE

including IntelliJ IDEA will work. However, since we

are also interested in learning issues caused by diver-

sity of tools, we opt for Eclipse.

One key requirement for incremental development

of a multiplatform application is to propagate changes

immediately from one IDE to the other. We use

Apache Maven, a software project management and

build tool, to share code and propagate changes in

the form of a library, a Java archive (jar) ﬁle. Both

the Java project and the Library project in Eclipse

are Maven projects, and the Library project produces

a library jar ﬁle, called an artifact in Maven, of the

common code. The library jar ﬁle is installed in the

Maven local repository and becomes available instan-

taneously to the Android project. Android Studio uses

the Gradle build tool that understands Maven reposi-

tories. For the Java project we can also make it refer-

ence, or depend on, the Library project by changing

its build path, as both are Eclipse projects. This al-

lows us to also use Eclipse to build the Java project.

Our primary design goal is to maximize code

reuse between Java and Android versions. We de-

compose our application into two parts: a platform-

independent part and a platform-dependent part. The

platform-independent part (PIP) is the part of an ap-

plication that does not depend on speciﬁcs of imple-

mentation platforms such as platform-speciﬁc APIs

(Cheon, 2019). The platform-dependent part (PDP)

is the part of an application that does depend on a spe-

ciﬁc platform. We make this distinction to share the

PIP code across platforms while developing a speciﬁc

PDP on each target platform. Thus, the key criterion

on identifying and determining the PIP of an applica-

tion is whether the code can be shared on all the target

platforms of the application.

We need to cleanly separate the PIP from the PDP

while minimizing code duplication. It is easy to say

and difﬁcult to do. We need to identify commonali-

ties and differences between the two target platforms

in terms of the APIs and libraries needed for the im-

plementations of the application. The PIP—the com-

mon, sharable code—has to accommodate the plat-

form differences and variations. Figure 2 shows the

high level design of our application. The box labeled

“shared model” is the PIP and the other two are the

PDP. Since Android provides its own GUI framework

along with Android-speciﬁc concepts such as activi-

ties and fragments, the biggest platform difference is

the UI. The other is to encapsulate platform differ-

ences and variations for the PIP.

How does the PIP accommodate platform differ-

ences and variations? In a single platform applica-

User interface (UI)

Shared model:

business logic, storage

and network

Plugins,

extensions

and utilities

Figure 2: Application architecture.

tion, the PIP and the PDP code are often interwo-

ven and tangled. For a multiplatform application, we

need to separate them and make the dependencies be-

tween them clean and explicit. In particular, we need

to eliminate any dependency of the PIP on the PDP.

There are several different techniques and approaches

possible, such as required interface, inheritance and

hook, parameterization, interface cloning, and inter-

face uniﬁcation (Cheon, 2019). The implementation

of the PIP often depends on that of the PDP. As an

example, consider the case when a new item is added

to the watch list through the UI or externally through

the shared cloud storage. The notions of items and

the watch list can be coded once in the PIP and thus

the PIP will be responsible for adding the item to the

watch list. The PIP however cannot display the newly

added item. Instead, it has to tell the UI (PDP) to

display the newly added item, and each platform pro-

vides a different way of asking the UI to update its

display. We eliminate this kind of dependencies by

applying the dependency inversion principle, a spe-

ciﬁc form of decoupling program modules (Martin,

2003). We let the PIP depend on an abstraction of the

PDP, not its concrete implementation. The assump-

tion that the PIP makes on the PDP is coded explic-

itly in the form of a required interface (F. Bronsard,

et al., 1991), an interface that is deﬁned by a service

provider of an interaction that speciﬁes what a service

consumer or client needs to do so that it can be used

in that interaction. In a sense, this approach allows

one to plug in platform-speciﬁc code to the PIP by

providing a class that implements the required inter-

face. Figure 3 shows an application of this approach.

A model class named ItemListModel manages the

items that are currently displayed by the UI, and it de-

ﬁnes a required interface to interact with a platform-

speciﬁc UI. Both the Java and the Android applica-

tions provide an implementation of the required inter-

face coded using platform-speciﬁc APIs. In the ﬁg-

ure these are shown using the socket/lollipop notation.

In a sense, the platform-speciﬁc UI is a plug-in that

can be inserted into the PIP. The class diagram also

shows how we maximize code reuse and minimize

code duplication. The UI needs to display the items

being watched, and each platform of course provides

a different view, or widget, for displaying a collection

of data, e.g., JList in Java and RecyclerView in An-

ICSOFT 2019 - 14th International Conference on Software Technologies

248

Item

ItemListModel

ItemManager

JList

ListModel

RecyclerView

RecyclerAdapter

Java UI

Android UI

Shared model

Figure 3: Plugging in platform-speciﬁc code.

droid. This so-called container view stores the data

differently in a view-speciﬁc model classes, e.g., List-

Model and RecyclerAdapter, providing a different set

of operations. However, there is enough commonal-

ity in the set of operations, including grouping, ﬁlter-

ing, sorting, and searching, that need be implemented

for our application. Therefore, our design decision

is to introduce a platform-neutral model class, Item-

ListModel, in the PIP and let platform-speciﬁc model

classes in the PDP to delegate their operations to it.

Another common way to accommodate platform

differences and variations is to provide a skeleton al-

gorithm, or code, in the PIP and let the PDP ﬁll out

the details in a platform-speciﬁc way. For this we use

well-known software design patterns such as template

method, strategy, factory method, and abstract factory

(Gamma et al., 1994). This approach gives less free-

dom to the PDP than the previous approach, as the

PDP has to follow the skeleton algorithm deﬁned in

the PIP, but more code is shared and reused. We use

this approach to persist watched items in several dif-

ferent ways (see Section 4). The complete Java appli-

cation consists of 36 classes and 4604 lines of source

code, and the Android version consists of 41 classes

and 4987 lines of source code.

4 ASSESSMENT

4.1 PIP

The PIP consists of 16 Java classes and 1825 lines of

source code (see Table 1). Nested classes and inter-

faces are not included in the number of classes, but

their code were of course counted in the number of

source code lines. We can group the PIP classes into

four different groups for later analyses.

• Items: classes for the core business logic, consist-

ing of Item, ItemManager and ItemListModel.

• Storage: classes to persist watched items.

Three different approaches—ﬁle, local database

Table 1: PIP classes and their sizes.

Class No. of Lines

Item 150

ItemListModel 295

ItemManager 246

FileHelper 12

FileItem 45

FileItemManager 106

SqliteDatabaseHelperable 19

SqliteItem 28

SqliteItemManager 114

FirebaseHelper 137

FirebaseItem 93

FirebaseItemManager 129

PriceFinder 35

WebPriceFinder 64

WebStoreBase 317

Log 35

Total 1825

Item File Database Cloud Network Other

37.86

8.93

8.82

19.67

22.79

1.92

Figure 4: Distribution of PIP code.

(SQLite) and cloud storage (Google Firebase)—

are used to study the impact of API differences on

the code reuse.

• Network: classes for online stores, or websites,

and for ﬁnding an item’s price from its webpage.

• Others: utility and miscellaneous classes.

It would be interesting to see how the code is dis-

tributed among these groups of classes (see Figure 4).

The item-related classes account for 38% of our code,

the storage 38%, and the network 23%. If we look fur-

ther into the items group, 43% (295 lines) of source

code belong to the ItemListModel class. Remember

this is a UI-speciﬁc model class that we introduced

to maximize code reuse between the two platforms

(see Section 3). The class helps the UI to display

watched items in many different ways; it is not re-

ally a core business logic class. Therefore, we can in-

fer that our application is UI-intensive. Another thing

we can quickly learn from the graph is that the three

data persistence approaches have varying code sizes:

ﬁle (9%), database (9%), and cloud (20%). This may

indicate the complexities of the data persistence ap-

proaches themselves or their code reusability.

Code Reuse between Java and Android Applications

249

Table 2: Sizes of application code.

App Part

No. of No. of Lines

Classes Percent (%)

Java

PIP 16 1825 40

PDP 20 2779 60

All 36 4604 100

Android

PIP 16 1825 37

PDP 25 3162 63

All 41 4987 100

4.2 PDP

Table 2 shows the sizes of both the Java and the

Android versions of our application including their

PDPs. The source code lines of the Android PDP

include only manually-written Java code; they do

not include so-called resource ﬁles such as GUI lay-

outs written in XML or automatically generated Java

source code ﬁles. The last column of the table shows

the percentage that each part accounts for the whole

application code, calculated using a formula, x / (PIP

+ PDP) * 100, where x is either PIP or PDP. The PIP

takes 40% and 37% of the Java and the Android ap-

plication code, respectively. That is, 37%–40% of

code are reused in our application. One side ﬁnding

is that the Android PDP requires 14% ((3162 - 2779)

/ 2779 * 100) more code than the Java PDP. Android

applications generally require more coding to address

Android-speciﬁc concerns such as application lifecy-

cles and screen orientation changes. The Android ver-

sion of the application requires 8% more lines of code

than the Java version.

How many lines of code are needed to interface

with the PIP? Table 3 lists platform-speciﬁc classes

along with the numbers of source code lines written

to interface with the PIP. Note that some of the classes

are named the same as those of the PIP, but they are

platform-speciﬁc subclasses deﬁned in the PDPs. The

last row shows the percentages of the interfacing code

in the PDPs, 14% for Java and 22% for Android. As

mentioned before, Android requires more coding, and

this is clearly shown in the table. Two bulky classes

are RecyclerAdapter and WebStore. The ﬁrst class

addresses Android-speciﬁc UI concerns, e.g., recy-

cling widgets to display multiple items. The addi-

tional code of the second class is mainly due to one

more online store supported in the Android version;

Android-speciﬁc features were used for this. Another

thing to notice is the relative amount of code for three

data persistence approaches. The database approach

requires 3–6 times more code (see below for more dis-

cussion on this).

It would be very instructive to see how the plat-

form differences of the same API affect reuse of the

PIP code. If we combine the data from Table 1 and

Table 3: PDP code for interfacing with PIP.

Class

No. of Lines

Java Android

ItemListModel 78 N/A

RecyclerAdpater N/A 237

FileHelper 32 38

SqliteDatabaseHelper 187 117

SqliteItemManager N/A 20

FirebaseHelper 39 22

WebStore 47 90

WebPriceFinder N/A 36

Total 383 560

Percent (%, total/PDP) 14 18

LOC

Figure 5: PIP features and their interfacing code.

Table 3, we can estimate the amount of code that has

to be written to reuse the major features of the PIP.

Figure 5 shows this by plotting the sizes of the PIP

classes and the corresponding PDP code for three fea-

tures: UI, storage and network. The PDP code of

course includes only the interfacing code—code writ-

ten to interface with the PIP feature in question. Fig-

ure 6 shows the same information but in percentages.

As shown, the percentages vary widely from 6% (of

Android cloud) to 58% (of Java database) among the

PIP features; the average is 18% for Java and 25%

for Android. Th LOC numbers in Figure 5 gener-

ally indicate the degrees of code reusability as well

as the easiness of reuse. For example, the ﬁrst bar

says one needs to write only 78 lines of Java code in-

stead 619 (= 78 + 541) lines to manage watched items

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

UI File Database Cloud Network

Java PIP Android

Figure 6: PIP and interfacing code in percentages.

ICSOFT 2019 - 14th International Conference on Software Technologies

250

Table 4: Complexity of data persistence in LOC.

Storage Java Android Average

File 195 201 198

Database 387 298 343

Cloud 398 381 390

and help the UI to display them. For each PIP fea-

ture the size of its interfacing code is marginal com-

pared to coding the whole logic in the PDP. However,

there is one exception. Among the three data persis-

tence approaches of ﬁle, database and cloud storage,

the database approach requires more code in the PDP

side—58% for Java and 46% for Android (see Fig-

ure 6). Before we look into this unusual case, let us

ﬁrst measure the complexity of each of the persistence

approach in terms of source code lines. As shown in

Table 4, the ﬁle-based approach is smaller than the

database that requires somewhat less code than the

cloud storage. One thing that the table does not show

is the similarity of the platform APIs between Java

and Android. The Android File (I/O) APIs are ex-

actly the same as those of Java except for additional

notations for denoting different kinds of storages (in-

ternal and external) and directories (download, doc-

uments, etc.). The Google’s Firebase APIs for Java

and Android are also very similar albeit some subtle

differences in some of the operations provided. How-

ever, the story is completely different for the SQLite

database. Android supports it as sort of a built-in fea-

ture with an API tightly integrated with its own frame-

work. For Java, there is an open-source, JDBC-based

library for SQLite databases. Due to this difference

of platform APIs, we had to push more code to the

PDPs, and that is why more code was written in the

PDPs. In short, the platform APIs and their common-

alities and differences greatly affect the development

of the PIP and its reusability.

How does the separation of PIP and PDP affect

the size of an application? Is there an increase in the

code size caused by the separation, and if so, how

much? The way we develop our application allows

us to answer this question with minimal effort. We

wrote our application incrementally by writing com-

plete code in one platform for the feature under de-

velopment and then refactored the code to derive a

reusable PIP. As a result, we have two versions of our

application, written with and without using the PIP.

Table 5 shows the sizes of different versions of our ap-

plication. As guessed, the monolithic versions—the

ones written without using the PIP—have less classes

and lines of code, and the size overheads of PIP/PDP

are 14% and 13% for Java and Android, respectively.

Table 5: Overheads of PIP and PDP separation.

App Part

No. of No. of Overhead

classes lines (%)

Java

PIP + PDP 36 4604

Monolithic 27 4031

Android

PIP + PDP 40 4987

Monolithic 31 4418

4.3 Other Findings

We learned both positive and negative sides of mul-

tiplatform application development through our case

study. Besides the obvious beneﬁt of code reuse,

perhaps, the most important side beneﬁt from a de-

veloper’s point of view is that it provides opportu-

nities for improving the quality of an application.

We have to address diversity of platforms by consid-

ering platform-speciﬁc restrictions or concerns. In

addition we have to work on, or review, the same

or derived code several times, each with a different

perspective—either as a service provider or a con-

sumer. We ﬁrst prototyped a new application fea-

ture in one of the platforms, refactored the monolithic

code into a reusable library (PIP) and the PDP of that

platform, and apply the library in the other platform.

The implementation of a feature required several iter-

ations with continuous integration and testing on two

platforms. This development process allowed us to

notice issues and problems from simple mistakes like

naming inconsistency to more serious ones.

We found that Android-speciﬁc features allowed

us to explore and test our application in a way that

would be impossible or unnecessary for a typical Java

application, often exposing a potential issue or prob-

lem in the application. An example is device orienta-

tion change. The screen on an Android device can

switch between portrait and landscape mode in re-

sponse to the way one holds the device or when the

device is rotated. Our application allows the user to

ﬁlter items to be displayed in several different ways,

e.g., based on online stores, item groups and key-

word search. An item can belong to a user-named

group, but not all items have to belong to a group.

The ﬁltering feature was ﬁrst introduced in the Java

version, and it worked correctly. When the feature

was added to the Android version, however, the de-

vice orientation change causes the application to show

only those items that do not belong to any item group.

We soon learned that this strange behavior was caused

by an incorrect re-initialization of the application. A

re-initialization occurs when the screen orientation

changes because Android creates a new instance of

a framework class upon screen orientation change; no

such re-initialization is needed for the Java version.

We ﬁxed the problem by modifying the PIP. We also

Code Reuse between Java and Android Applications

251

added a new UI element in both PDPs to provide an

option for displaying all those items that do not be-

long to any item group. This option was overlooked

in the initial design of the ﬁltering feature.

Multiplatform application development encour-

ages one to generalize APIs, especially those of the

PIP, to address and accommodate platform differ-

ences and variations. In fact, even platform-speciﬁc

restrictions or constraints contribute positively on the

creation of a more reusable and extensible applica-

tion. The initial design of our network module done

on the Java platform provided synchronous opera-

tions, and a special return value was used to notify

when the invoked operations fail. On Android, how-

ever, the provided network operations were always

called in background threads created by the UI be-

cause Android does not allow any network operation

on the UI thread (while Java does). This made us to

create a new version of the network module that also

provides asynchronousoperations implemented using

the Observer design pattern (Gamma et al., 1994).

Due to the use of this design pattern, the error han-

dling was also improved by creating a separate call-

back method in the observer, or listener, interface.

The error reporting is separated from the main logic,

and thus more detailed information about the error is

provided to the caller. Android’semphasis on applica-

tion responsiveness also made us to improve the user

experience of our application by providing additional

features such as setting network timeouts and cancel-

ing network operations.

An obvious downside of the PIP-PDP separation

is that the PIP has to be written using the common

denominators, or shared traits, of the both platforms.

The platform of the PIP is the intersection of the two

target platforms. A common platform feature has to

provide the same syntactic interface—operation name

and signature, class, and package—as well as the se-

mantics. Otherwise, it cannot be directly used in the

PIP implementation and has to be pushed to the PDPs.

5 RELATED WORK

We found no published work measuring code reuse

between Java and Android applications. However,

source code reuse in Android applications recently re-

ceived much attention from researchers. One interest-

ing report is that the practice of software reuse is high

among mobile application developers (Mojica et al.,

2014). One study even reported that 61% of Android

application classes appeared in two or more other

applications (Ruiz et al., 2012). Unfortunately, the

signiﬁcant code reuse also indicates illegal cloning

of classes, code piracy, or even repackaging of ap-

plications (Linares-V´asquez et al., 2014) (Gonzalez

et al., 2015). Code reuse also impacts the quality

of an application, particularly when code is reused in

the copy-and-paste manner from online question-and-

answer websites such as Stack Overﬂow (Abdalka-

reem et al., 2017). Unlike these existing work, our

study investigated code reuse between a mobile appli-

cation and a desktop application written in the same

programming language, where the development pro-

cesses and practices can be quite different (Minelli

and Lanza, 2013) (Syer et al., 2013).

The diversity of mobile devices and platforms

made native development of mobile applications

challenging and costly, thus approaches like cross-

platform development have emerged to reuse code

across different mobile platforms by using various

techniques including cross-compilation, virtual ma-

chines, and web technologies and platforms (Palmieri

et al., 2012) (Heitk¨otter et al., 2013). Our case study,

unlike the cross-platform development approach, was

concerned with native development and sharing code

with a desktop version of the application.

There are various types of software reuse possible

(Ambler, 1998). Our study focused only on the reuse

of source code in the form of a library or framework.

However, the notions and concepts that we used in

our case study for a multiplatform application devel-

opment, such as PIP, PDP, and platform differences

and variations (Cheon, 2019), are related with those

of the established software engineering. For example,

PIP and PDP are similar to a platform-independent

model (PIM) and a platform-speciﬁc model (PSM),

respectively, in model-driven software development

(Brown, 2004). A PIM is a software model that

is independent of the speciﬁc technological platform

used to implement it, and is translated to a PSM, a

model that is linked to a speciﬁc technological plat-

form (Meservy and Fenstermacher, 2005). Software

product line development has been widely adopted in

professional software development to create a collec-

tion of similar software systems, known as a prod-

uct family, from a shared set of software assets us-

ing a common means of production (Northrop, 2002).

Several architectural styles are proposed for devel-

oping software product lines of Android applications

(Durschmid et al., 2017). One core idea of the soft-

ware product line developmentis identifying the com-

monalities and variabilities within a family of prod-

ucts (Coplien et al., 1998). In our case study, we used

the commonality and variability analysis to identify

platform differences and variations as well as the plat-

form for the PIP.

ICSOFT 2019 - 14th International Conference on Software Technologies

252

6 CONCLUSION

We performed a small case study to measure quan-

titatively the degree of code reuse possible between

Java and Android versions of an application. For

code sharing, we decomposed our application into

two parts: the platform-independent part (PIP) and

the platform-dependent part (PDP). The PIP is shared

between the two platforms, and each platform has its

own PDP to address platform-speciﬁc concerns. To

determine code reuse achieved in our application, we

measured the size of our code with a simple metric

counting the number of lines of code. Our ﬁnding is

very promising in that we were able to achieve 40%

and 37% code reuse for Java and Android versions,

respectively, for a UI-intensive application. We also

learned that the Android version requires 8% more

code than the Java version. The degree of code reuse,

of course, depends heavily on the types and degrees

of platform differences and variations. We noticed

several types of platform differences, each requiring

a different technique to cope with it. It would be in-

teresting future work to study the platform differences

systematically to categorize them, to measure quanti-

tatively their impacts on the code reuse, and suggest

effective techniques to address them.

REFERENCES

Abdalkareem, R., Shihab, E., and Rilling, J. (2017). On

code reuse from StackOverﬂow: an exploratory study

on Android apps. Information and Software Technol-

ogy, 88:148 – 158.

Ambler, S. (1998). A realistic look at object-oriented reuse.

Software Development, 6(1):30–38.

Brown, A. W. (2004). Model driven architecture: Princi-

ples and practice. Software and Systems Modeling,

3(4):314–327.

Cheon, Y. (2019). Multiplatform application development

for Android and Java. In 17th IEEE/ACIS Interna-

tional Conference on Software Engineering, Manage-

ment and Applications, May 29-31, 2019, Honolulu,

Hawaii. To appear.

Coplien, J., Hoffman, D., and Weiss, D. (1998). Common-

ality and variability in software engineering. IEEE

Software, 15(6):37–45.

Durschmid, T., Trapp, M., and Dollner, J. (2017). Towards

architectural styles for Android app software product

lines. In 4th International Conference on Mobile Soft-

ware Engineering and Systems, pages 58–62.

F. Bronsard, et al. (1991). Toward software plug-and-play.

In Symposium on Software Reusability, Boston, MA,

pages 19–29.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1994). Design Patterns: Elements of Reusable

Object-Oriented Software. Addison Wesley.

Gonzalez, H., Kadir, A. A., Stakhanova, N., Alzahrani,

A. J., and Ghorbani, A. A. (2015). Exploring reverse

engineering symptoms in Android apps. In 8th Euro-

pean Workshop on System Security, pages 7:1–7.

Heitk¨otter, H., Hanschke, S., and Majchrzak, T. A. (2013).

Evaluating cross-platform development approaches

for mobile applications. In Cordeiro, J. and Krempels,

K.-H., editors, Web Information Systems and Tech-

nologies, pages 120–138. Springer.

Linares-V´asquez, M., Holtzhauer, A., Bernal-C´ardenas, C.,

and Poshyvanyk, D. (2014). Revisiting Android reuse

studies in the context of code obfuscation and library

usages. In 11th Working Conference on Mining Soft-

ware Repositories, pages 242–251. ACM.

Martin, R. C. (2003). Agile Software Development, Princi-

ples, Patterns, and Practices. Prentice Hall.

Meservy, T. O. and Fenstermacher, K. D. (2005). Trans-

forming software development: an MDA road map.

IEEE Computer, 38(9):52–58.

Minelli, P. and Lanza, M. (2013). Software analytics for

mobile applications-insights & lessons learned. In

European Conference on Software Maintenance and

Reengineering, Genova, Itally, pages 144–153. IEEE.

Mojica, I. J., Adams, B., Nagappan, M., Dienst, S., Berger,

T., and Hassan, A. E. (2014). A large-scale empirical

study on software reuse in mobile apps. IEEE Soft-

ware, 31(2):78–86.

Northrop, L. M. (2002). SEI’s software product line tenets.

IEEE Software, 19(4):32–40.

Palmieri, M., Singh, I., and Cicchetti, A. (2012). Compar-

ison of cross-platform mobile development tools. In

16th International Conference on Intelligence in Next

Generation Networks, pages 179–186.

Ruiz, I. J. M., Nagappan, M., Adams, B., and Hassan, A. E.

(2012). Understanding reuse in the Android market.

In 20th IEEE International Conference on Program

Comprehension, pages 113–122.

Syer, M. D., Nagappan, M., Hassan, A. E., and Adams, B.

(2013). Revisiting prior empirical ﬁndings for mobile

apps: An empirical case study on the 15 most popular

open-source Android apps. In Conference of the Cen-

ter for Advanced Studies on Collaborative Research,

pages 283–297.

Code Reuse between Java and Android Applications

253
