A NUMA Aware Spark™ on Many-cores and Large Memory Servers

François Waeselynck and Benoit Pelletier

Atos, 1 rue de Provence, Echirolles, France

Keywords: CloudDBAppliance, Bullsequana S, Scale-up, Spark, NUMA.

Abstract: Within the scope of the CloudDBAppliance project, we investigate how Apache Spark™ can leverage a many

cores and large memory platform, with a scale up approach as opposed to the commonly used scale out one:

that is, the approach is to deploy a spark cluster to few large servers with many cores (up to several hundreds)

and large memory (up to several tera-byte), rather than spreading it on many vanilla servers, and to stack

several Spark executor processes per cluster node when running a job. It requires to cope with the non-uniform

memory access within such servers, so we inculcate NUMA awareness to Spark, that provides a smart and

application transparent placement of executor processes. We experiment it on a BullSequana™ S series

platform with the Intel HiBench suite benchmark and compare performance where NUMA awareness is off

or on.

1 INTRODUCTION

Within the scope of the CloudDBAppliance project,

we investigate how Apache Spark™ can leverage a

many cores and large memory platform, with a scale

up approach in mind, as opposed to the commonly

used scale out one. That is, rather than spreading a

Spark cluster on many vanilla servers, the approach is

to deploy it on a few BullSequana™ large servers

with many cores (up to several hundreds) and large

memory (up to several tera-byte). Spark jobs

execution enrols several executor processes – several

per server, that leverage the many-cores and large

memory features of the BullSequana server.

But so large servers are designed with Non

Uniform memory Access (NUMA) it is necessary to

cope with in order to achieve the best performance.

We inculcate NUMA awareness to Spark and

experiment it on a BullSequana™ S series platform

in a scale up approach with the Intel HiBench suite

microbenchmark.

This document exposes the general issue induced

by NUMA architectures, then explains how it can be

addressed for Spark applications. Then it describes

the test protocol and testbed and compares the

application performance and efficiency where

NUMA awareness is switched on versus where it is

switched off.

2 NON UNIFORM MEMORY

ACCESS (NUMA)

The target hardware platform of CloudDBAppliance

is a BullSequana S server, a highly scalable and

flexible server, ranging from 2 to 32 processors (up to

896 cores and 1792 hardware threads), up to 32 GPUs

and 48 TB RAM, and 64 TB NVRAM. Our staging

platform includes a BullSequana S800 server with :8

Intel® Xeon® Platinium 8158 CPU @ 3 GHz (12

cores each), and 4 TB RAM (512 GB per CPU).

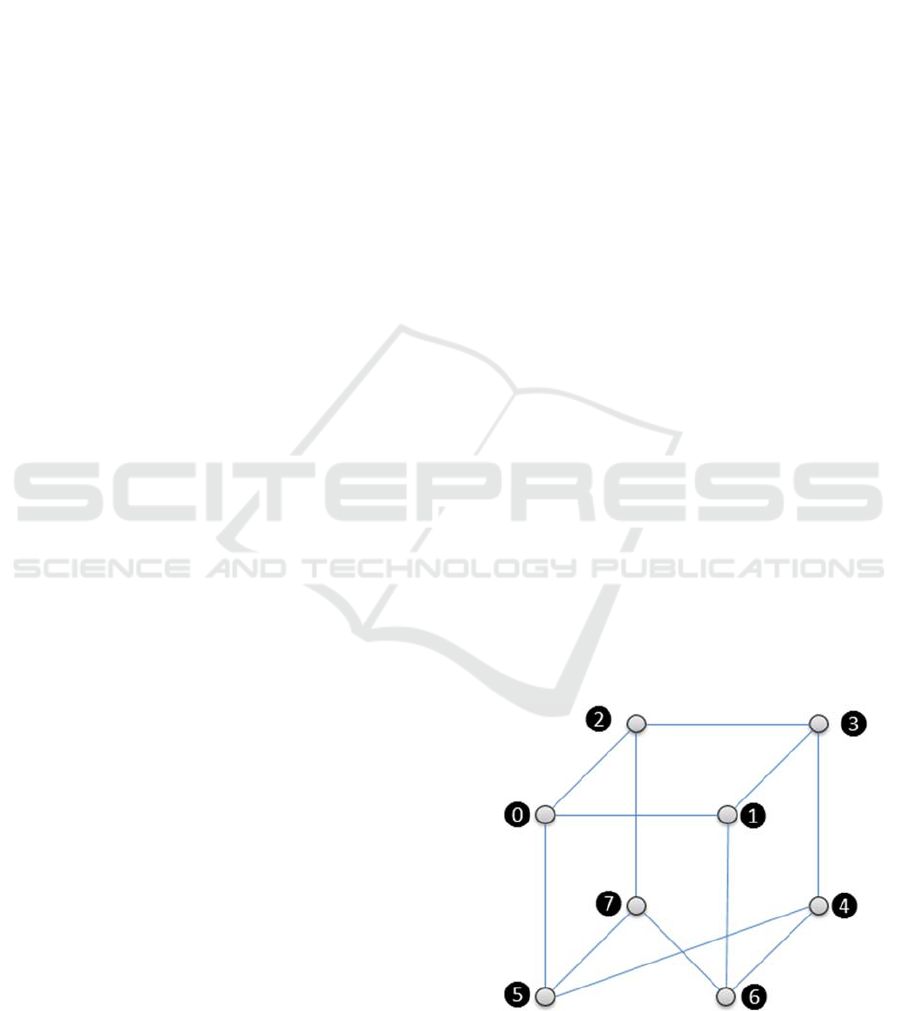

Figure 1: BullSequana S800 NUMA nodes.

BullSequana S has a Non-Uniform Memory

Access architecture. Each processor has local

648

Waeselynck, F. and Pelletier, B.

A NUMA Aware SparkTM on Many-cores and Large Memory Servers.

DOI: 10.5220/0007905506480653

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 648-653

ISBN: 978-989-758-365-0

memory, that forms what is termed a NUMA node.

Each NUMA node is linked to other NUMA nodes by

UPI links, in such a way that all nodes are transitively

linked, so that the whole server memory can be

consistently accessed from any node. The

BullSequana S800 has eight NUMA nodes numbered

from 0 to 7, which are linked so that there are at most

two hops between nodes as shown in

Figure

Each node has 3 neighbours at one hop, and four

nodes at two hops. Obviously, the latency to access a

portion of memory from a given node varies with the

distance between the accessing node to the accessed

node: where there is one hop, the latency is about

twice the latency of an access to local memory; where

there are two hops, the latency is about three times the

latency of a local access, as shown in

Figure

2. This

may dramatically affect the performance of the

application.

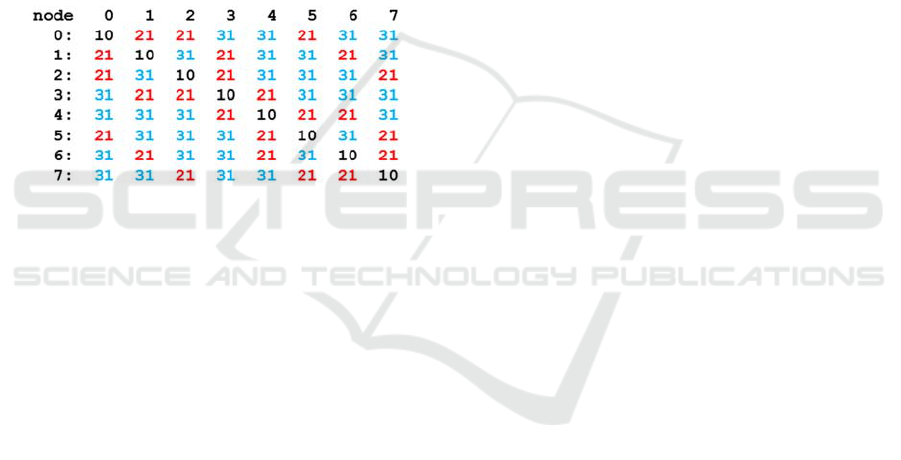

Figure 2: Distances between NUMA nodes.

NUMA awareness aims at maximizing access to

local memory by the threads that run on every core.

3 NUMA AWARE SPARK

A Spark application comprises of:

 A driver process, that controls the whole

processing of the application. The application is

modelled as a direct acyclic graph (DAG). The

driver understands and interprets this model, and,

when operating on a given dataset, splits the

processing in stages and individual tasks that it

schedules and distributes to executors that run in

the cluster nodes.

 Executor processes that perform the actual data

processing, as instructed by the driver. The

executor processes hold data parts in their

memory: a task applies to a data part, and each

executor receives (and runs) tasks retated to the

data parts it holds. Executor processes run on

cluster nodes, the so-called worker nodes. There

may be one or more executors per worker node.

Data processing may involve many executor

processus spread on many worker nodes.

A Spark application consumes (large) data from

various sources, processes it, then outputs (smaller)

results to various sinks. Processing usually

transforms the input data so that to build a dataset in

the desired form, caches it in memory, then applies

algorithms that repeatedly operate on the cached data.

Unlike Hadoop - that stores intermediate results on

storage (HDFS), Spark retains intermediate results in

memory as far as possible, and the more memory it

gets, the less pressure on the Input/output system.

This makes Spark less sensitive to the input/output

system than Hadoop.

Spark will try to perform initial processing close

to the input data location to consumes it at the highest

rate, but further computing will be more dependent on

the way it (re)partitions and retains data in the

memory cache of the executors. And as the

processing time is usually far higher than the

cumulated input and output times, the distribution of

data among the executor processes (in their memory)

is an important factor to consider.

Spark still writes data to file systems during

shuffling operation, when data is rebalanced between

executors, e.g. on sort operations or data

repartitioning. Shuffling thus may put high pressure

on both I/O systems and network, the later incurring

CPU consumption as data has to be serialized before

being transferred through the network. One way to

lower it is to use large memory executors: data

analytics often reduce datasets size from a very large

input to a far smaller output. The more filtering and

transformations that lower the size can be done in a

continuous space, the less the number and size of

shuffling operations will occur. Large-memory and

many-core platforms enable few huge executors as

well as more common approaches with several

executors, for a single application as well as several

ones.

Spark has been designed for scale out and is not

natively NUMA aware. We have made extensions to

inculcate NUMA awareness to the worker processes

of a Spark cluster deployed in standalone mode. A

worker process manages executor processes in a

server of a Spark cluster: placement of executors

within the server is a local concern the worker is

responsible for. When a worker launches a Spark

executor process, it binds it to a NUMA node, so that

the threads running the tasks within the executor

process access local memory, where the data parts

reside. Or, if the executor does not fit to a single

NUMA node, it binds it to a set of NUMA nodes close

to each other. The worker process manages a table of

A NUMA Aware SparkTM on Many-cores and Large Memory Servers

649

the running executors, so that to balance the executor

placement. The placement is fully transparent to the

application. The placement obey to a configurable

policy, that can be set at the cluster level or at submit

time.

4 THE TEST PROTOCOL

The test protocol is to run the same benchmark

against input datasets of various size onto a single

BullSequana S800 server, with the NUMA awareness

switched off, then to re-run it with the NUMA

awareness switched on, then compare results of both:

a) In terms of performance key indicator(s):

 duration of the benchmark with NUMA

awareness: T

 duration of the benchmark without NUMA

awareness: T

off

 The improvement computed as: (1 – T

/ T

off

 The gain computed as: T

off

/ T

b) In terms of efficiency, that is, how much resources

are consumed to fulfil the same work:

 Average CPU consumption during the bench,

respectively CPU

and CPU

off

 NUMA awareness CPU efficiency computed

as: CPU

off

. T

off

/ CPU

The system under test comprises of:

 A BullSequana S800 server with 8x12 cores

processors and 4 terabytes (TB) RAM

memory. That is a total of 96 cores and 192

hardware threads, as hyperthreading is

activated.

 a Spark 2.4 platform setup in standalone

cluster mode, with NUMA awareness

extension.

 Input datasets are stored in a Hadoop

Distributed File System (HDFS). Four dataset

input profiles of various size have been

defined, as shown by Table 1.

 The used microbenchmark workload is

HiBench/Kmeans (https://github.com/intel-

hadoop/HiBench).

 HiBench/Kmeans is run with a parallelism of

128 tasks – where a task is run by a thread,

spread on 8 executor processes with each 16

parallel tasks, and a 128 GB Heap size.

 System metrics are collected by means of a sar

command, for off Line analysis.

 Spark metrics are collected by means of the

Spark history server for off line analysis.

Table 1: Input dataset profiles.

Dataset profile Size

gigantic 37,4 GB

halfbigdata 112,2 GB

bigdata 224,4 GB

gargantua 401,6 GB

5 ANALYSIS AND RESULTS

5.1 What a HiBench/Kmeans Run

Looks like

Whatever the input dataset size, a HiBench/Kmeans

run exhibits the following behaviour: it runs N jobs in

sequence, numbered from 0 to N-1. Job #0 triggers

the reading of the input dataset and loads it in the

spark cache, i.e. the executor memory. Further jobs

from 1 to N-1 mainly operates on the data loaded in

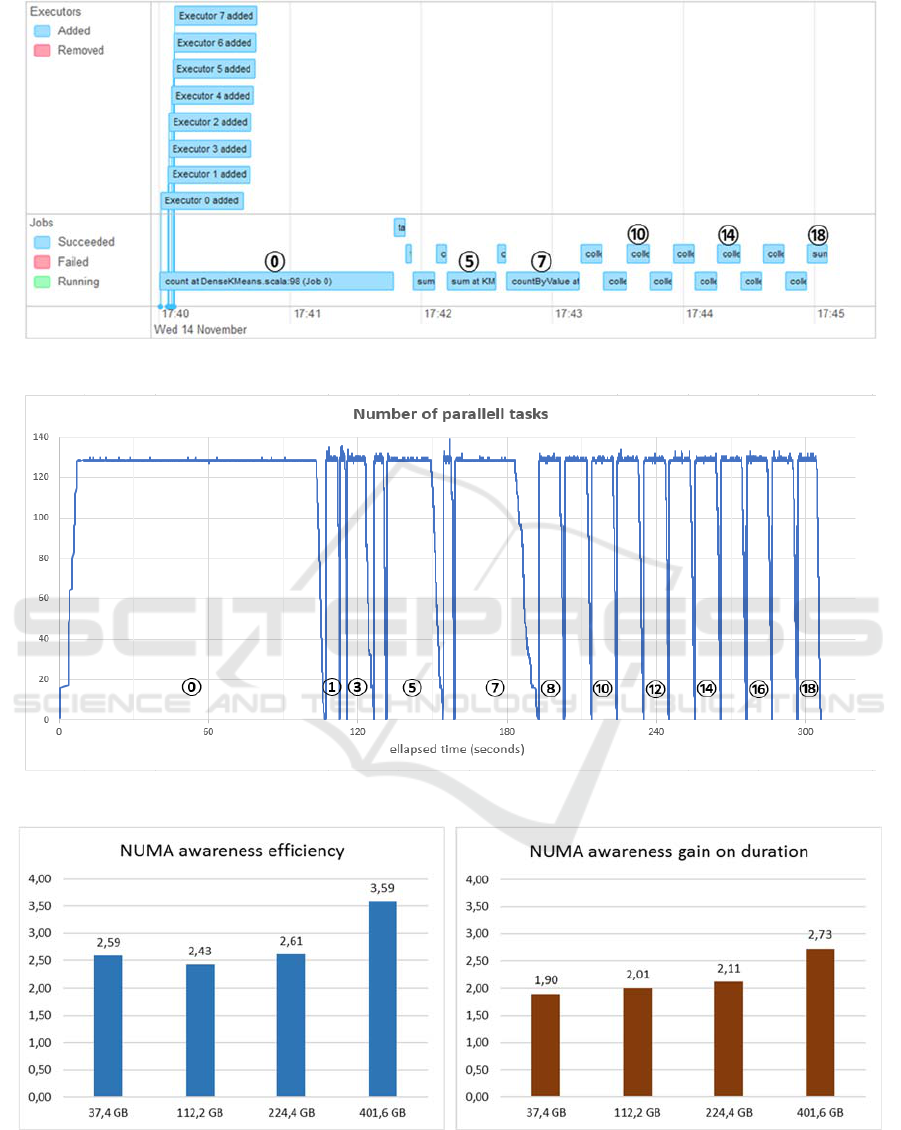

the cache. Figure 3 – extracted from the Spark web

console, shows a timeline run of Hibench/Kmeans on

a gargantua (401,6 GB) input dataset, with NUMA

awareness on.

The upper pane shows the launch of the executors

at the beginning of the run. The lower pane shows the

19 jobs it runs sequentially, numbered from 0 to 18,

some of which have been labelled for the sake of

readability. Each job includes around 3300 tasks,

distributed to the 8 executor processes, each being

configured to potentially run 16 tasks in parallel, so

that there is a potential of 128 parallel running tasks.

Analysis of the benchmark trace logged by the Spark

history server, allows to compute the effective

number of parallel tasks all along the run, as

illustrated by Figure 4. Jobs appear clearly on the

graph, with a ramp up, a steady plateau, then a fall to

zero (the number of task is always zero between two

jobs). The profile shows that full parallelism is

effective: for each job, the desired level (128 parallel

tasks) is reached after a short and steep ramp up, then

stays at this level during the job, then quickly and

steeply falls to zero at the end of the job.

This profile denotes well synchronized executor

processes, where there are no stragglers, that is the

best case to expect.

5.2 Comparing Kmeans Runs

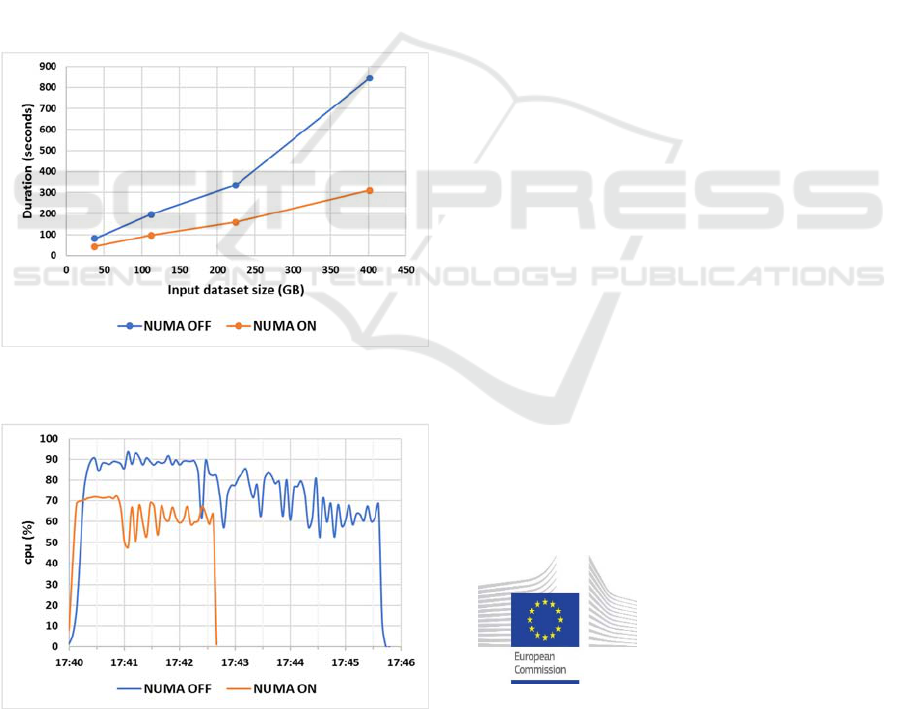

Figure 6 gives the variation of the benchmark dura-

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

650

Figure 3: Hibench:Kmeans timeline view.

Figure 4: Hibench:Kmeans number of tasks in parallel.

Figure 5: Hibench:Kmeans gain on duration and efficiency of NUMA awareness.

tion (in seconds), function of the input dataset size:

gigantic (37,4 GB), halfbigdata (112,2 GB), bigdata

(224,4 GB), gargantua (401,6 GB).

HiBench/Kmeans against gigantic, halfbigdata

and bigdata have been setup with 8 executors of 16

cores and 128 Gb heap each. For gargantua, it is not

A NUMA Aware SparkTM on Many-cores and Large Memory Servers

651

possible to keep the same settings. It is necessary to

increase the heap size to 160 GB (where NUMA

awareness is on) and even 256 GB (where NUMA

awareness is off) and to tune the garbage collector:

indeed, with the original 128 GB heap, there is too

much pressure on the garbage collector, that causes a

high CPU overhead saturating the server, so that less

CPU is given to the application itself, that

dramatically increases the benchmark duration to

about 36 minutes.

CPU consumption is far more intensive where

NUMA awareness is off and lasts more than twice as

long. Figure 7 superposes the CPU consumption of

two runs, one with NUMA awareness on, the other

one with NUMA aware off. Moreover, the total heap

is increased from 1,25 TB (NUMA on) to 2 TB

(NUMA off). NUMA awareness thus increases

dramatically the efficiency, as the Spark cluster will

be able to process more job submissions in a given

time interval.

Figure 6: Hibench:Kmeans duration function of input

dataset size.

Figure 7: Hibench:Kmeans CPU consumption.

NUMA awareness shortens the benchmark

duration by a factor of 2.0 (approximately) or even

more. Moreover, it dramatically increases efficiency

by dividing by 2.5 or even more the CPU

consumption to complete a run.

Figure

5 show

efficiency and gain on duration for the various input

dataset.

These results apply to HiBench/Kmeans only.

Other workloads may have a different sensitivity to

NUMA awareness.

6 CONCLUSIONS

Spark leverages High-End servers such as

BullSequana S, each able to support hundreds to

thousands Spark parallel tasks and up to several

terabytes of in memory data, thus enabling to process

large datasets within a single system or a few systems,

thanks to NUMA aware scale up placement of spark

executor processes.

Beyond the benefits brought by the many-cores

and large-memory features, the support of Apache

Pass non-volatile RAM (NVRAM) and GPUs opens

new perspectives the CloudDBAppliance project is

yet exploring:

 Though Spark intensively uses memory, it still

writes data to file systems during shuffling

operations, when data is rebalanced between

executors, e.g. on sort operations or data

repartitioning. Another case is for some cache

management policies. The use of Apache Pass is

expected to relax the high pressure it may put on

the input/output system, as it exhibits higher

throughput and lower latency than SSDs or

NVMe.

 More and more machine learning and deep

learning frameworks and libraries support off-

loading to GPU.

ACKNOWLEDGEMENTS

The CloudDBAppliance

project has received funding

from the European Union’s

Horizon 2020 research and

innovation programme under

grant agreement No. 732051.

REFERENCES

Intel Hibench suite: https://github.com/intel-

hadoop/HiBench

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

652

BullSequana S series technical specification:

https://atos.net/wp-content/uploads/2017/11/FS_Bull

Sequana_S200-800_specifications.pdf

CloudDBAppliance: https://clouddb.eu/

Spark: http://spark.apache.org

A NUMA Aware SparkTM on Many-cores and Large Memory Servers

653
