NUMA-aware Deployments for LeanXcale Database Appliance

Ricardo Jiménez-Peris

, Francisco Ballesteros

, Pavlos Kranas

, Diego Burgos

and Patricio Martínez

LeanXcale, Campus de Montegancedo, Madrid, Spain

Universidad Rey Juan Carlos, Madrid, Spain

Keywords: Scalable Databases, NUMA Architectures, Database Appliance, Scalable Transactional Management.

Abstract: In this paper we discuss NUMA awareness for the LeanXcale database appliance being developed in

cooperation with Bull-Atos in the Bull Sequana in the context of the CloudDBAppliance European project.

The Bull Sequana is a large computer than in its maximum version can reach 896 cores and 140 TB of main

memory. Scaling up in such a large computer with a deep NUMA hierarchy is very challenging. In this paper

we discuss how LeanXcale database can be deployed in NUMA architectures such as the one of the Bull

Sequana and what aspects have been taking into account to maximize efficiency and to introduce the necessary

flexibility in the deployment infrastructure.

1 INTRODUCTION

In this paper we discuss NUMA awareness for the

LeanXcale database appliance being developed in

cooperation with Bull-Atos in the Bull Sequana in the

context of the CloudDBAppliance European project

(CloudDBAppliance, 2019). The Bull Sequana is a

large computer than in its maximum version can

reach 896 cores and 140 TB of main memory. Scaling

up in such a large computer with a deep NUMA

hierarchy is very challenging. In this paper we discuss

how LeanXcale database can be deployed in NUMA

architectures such as the one of the Bull Sequana and

what aspects have been taking into account to

maximize efficiency and to introduce the necessary

flexibility in the deployment infrastructure.

2 NUMA ARCHITECTURES

2.1 Background

NUMA (Non-Uniform Memory Access)

architectures are motivated due to the bottleneck

introduced by previous UMA (Uniform Memory

Access) architectures. In the past, CPUs ran slower

than the main memory, so all CPUs were connected

to a global pool of main memory (see Figure 1).

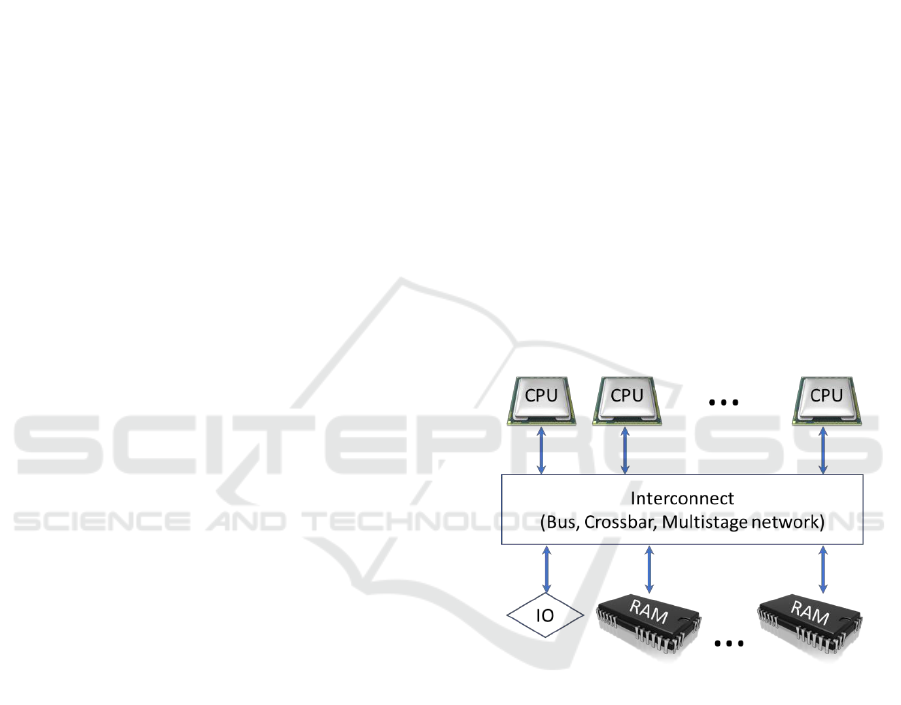

Figure 1: UMA Architecture.

However, CPUs have become over time faster

than memory and at some point, they found a

limitation on the speed improvements, so multi-core

and multi-CPU architectures started to proliferate

even in commodity servers and desktops. At some

point the interconnect between CPUs and memory

could not provide the necessary bandwidth. NUMA

architectures then became the solution. Basically,

each NUMA unit consists of a CPU and a local pool

of memory. Memory is still globally accessible by all

other cores at other NUMA units, however, now the

access speed and bandwidth are not uniform

anymore. The local memory at the NUMA unit is the

one that has highest bandwidth and can be accessed

faster.

666

Jiménez-Peris, R., Ballesteros, F., Kranas, P., Burgos, D. and Martínez, P.

NUMA-aware Deployments for LeanXcale Database Appliance.

DOI: 10.5220/0007905806660671

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 666-671

ISBN: 978-989-758-365-0

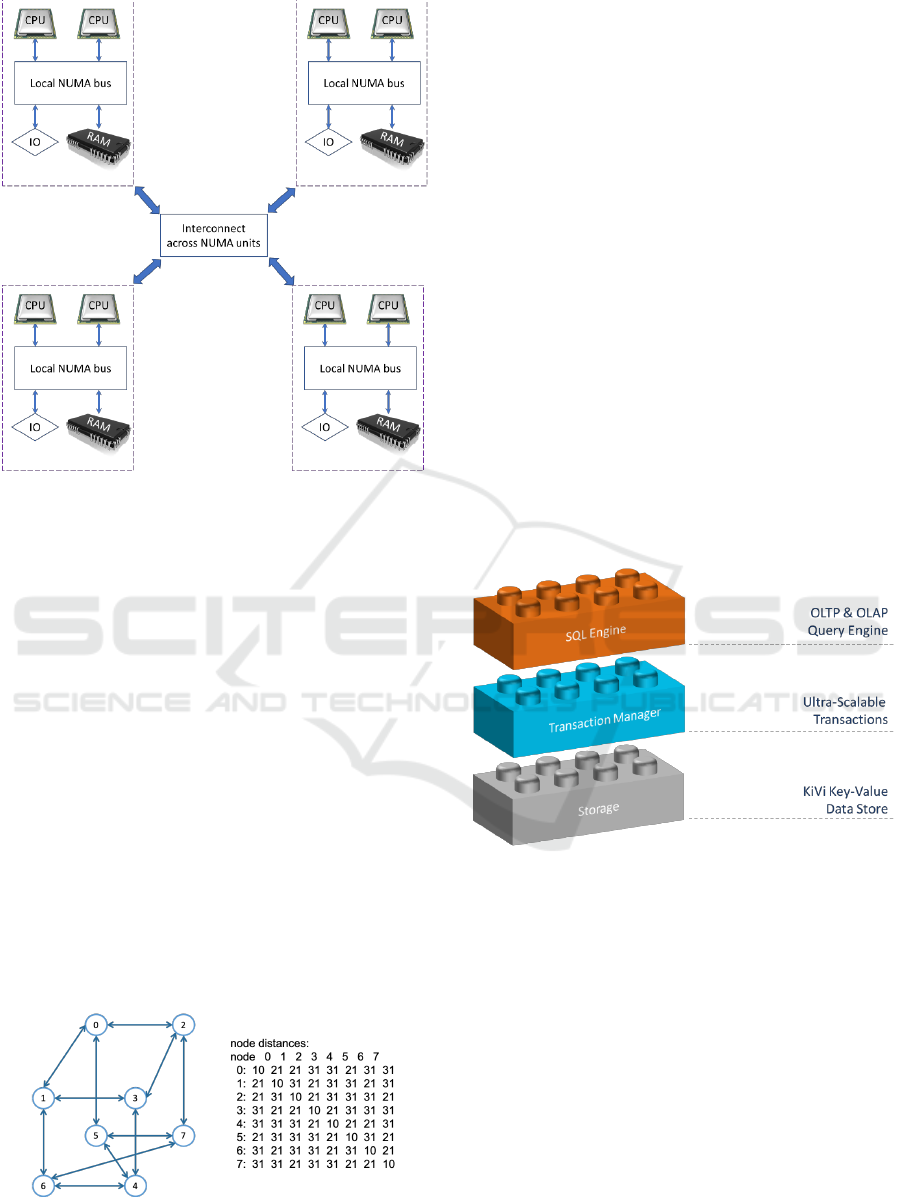

Figure 2: Two-level NUMA Architecture.

Depending on how many units this hierarchy can

become deeper. Computers with 2 or 4 processors

might have a 2-level hierarchy (see Figure 2), but

computers like the Bull Sequana has a 3-level

hierarchy (see Figure 3). Actually, with the new

Cascade Lake-AP Intel processor, the hierarchy

becomes 4-level since each CPU (NUMA unit) is

internally split into two halves with result in a new

NUMA hierarchy (called sub-NUMA clustering by

INTEL). As can be seen in 1 memory latency is 3.1

times higher in the farthest node with respect local

memory.

2.2 Implications of NUMA

In an UMA architecture, it does not matter on which

core or CPU is running a thread. The cost to access

memory will be the same. However, in a NUMA

architecture this is not true anymore. Accessing a data

item in the memory of the local NUMA unit is much

cheaper than accessing it in a remote NUMA unit.

Figure 3: Memory latency factors in Bull Sequana NUMA

architecture.

This fact basically means that to be efficient,

server software has to exercise as much memory

locality as possible. However, this is hard since server

software is multi-threaded and threads share memory.

This results in being allocated to any core and

accessing memory across all NUMA units, resulting

in high inefficiency due to higher latency in memory

accesses and bottlenecks in memory bandwidth to

remote NUMA units.

3 LEANXCALE ARCHITECTURE

3.1 What is LeanXcale Database

LeanXcale (LeanXcale 2019) is an ultra-scalable

operational Full SQL Full ACID distributed database

(Ozsu and Valduriez, 2014) with analytical

capabilities. The database system consists of three

subsystems (see Figure 4: LeanXcale Subsystems):

1. KiVi Storage Engine.

2. Transactional Engine.

3. SQL query Engine.

Figure 4: LeanXcale Subsystems.

3.2 LeanXcale Subsystems

The operational database is a quite complex system in

terms of different kinds of components. The

operational database consists of a set of subsystems

namely: the Query Engine (QE), the Transactional

Manager (TM), the Storage Engine (SE) and the

Manager (MG). Some subsystems are homogeneous

and other heterogeneous. Homogeneous subsystems

have all instances of the same kind of role.

Heterogenous subsystems have different roles. Each

role can have a single instance or multiple instances.

The transactional manager has the following roles:

Commit Sequencer (CS), Snapshot Server (SS),

Conflict Managers (CMs) and Loggers (LGs). The

NUMA-aware Deployments for LeanXcale Database Appliance

667

former two are mono-instance, whilst the latter two

are multi-instance. The Storage Engine has two roles

data server (DM) and meta-data server (MS), both

multiple instances. The query engine is homogeneous

and multi-instance. There is a manager (MNG) that is

single instance and single-threaded. Many of these

components can be replicated to provide high

availability, but their nature does not change. Since

replication it is an orthogonal topic, we do not

mention anymore.

4 FACTORS TO BE

CONSIDERED

Leveraging the full potential of multi-core and

NUMA shared memory architectures implies the

understanding of three key concepts namely:

processor affinity, data placement and the notion and

relation of physical and virtual cores.

4.1 Processor Affinity

It is the capability to map a given processing unit to

the execution of a given task. Usually, the selection

of a given CPU is governed by a scheduler that takes

into consideration the systems state and several other

policies in order to load balance tasks to the number

of available processors. When only one core is

available, processes or threads are instructed to start

and halt their execution in order to grant permission

to other threads, ensuring that the resource is shared

among the interested parts. When several CPUs are

available, the scheduler splits the thread’s work

among the available instances and may decide to halt

and reallocate task execution among processors to

achieve load balancing or to comply with other

policies. Under this scenario, NUMA architectures

become problematic since processors and their

respective memory blocks become disassociated.

Processor affinity relies in a modified scheduler to

systematically associate a given task with a given

processor, despite of the available resources. During

the lifetime of a given process or thread, the scheduler

monitors the relevant metrics to ensure that memory

allocation remains local to the process or thread that

is using a given processor. This technique by itself

may significantly harm performance by preventing

the task scheduler to spread load among the available

instances. This implies that this technique should be

accompanied by a smart observing and allocation

scheduler in order to exploit use case specificities that

would leverage this technique. On its own, this

technique may be negative for most use cases as the

scheduler implicitly may provide hints about affinity

without preventing a given processing core to execute

jobs outside of its strict affinity allowance.

4.2 Data Placement

Data placement is the capability to place data close to

the processing cores that are responsible to execute a

given task. Regardless if data placement is achieved

implicitly, where memory blocks are assigned to

specific processing units or, explicitly, where the

application is hardware aware and requests ranges of

memory to be handled by specific processing units;

the more often data can be placed close to the

processing unit that is preforming the computation,

more performance is expected through the overall

reduction in access time. Data placement is thus keen

to translate traditional scheduling policies in order to

favour fast storage mediums that present smaller

access costs over remote memory accesses.

4.3 Virtual Cores/HW Threads Vs

Physical Cores Vs Sockets

A computer might have one or more sockets also

known as NUMA units. Each socket is basically a

CPU that can have one or more cores and has

allocated a memory module. Sockets are structured in

a NUMA hierarchy that can be from 2 levels to an

arbitrary number of levels. In the new Bullion the

NUMA hierarchy is pretty deep. Understanding the

relationship between physical cores and sockets and

the NUMA distance across physical cores is crucial

to minimize the cost of communication across

components. Components that interact frequently will

communicate more efficiently if they are running on

closer cores in the NUMA hierarchy.

Many CPUs have the concept of physical and

virtual cores. Many INTEL CPUs exhibit

hyperthreading that lies in providing two hardware

threads per physical core. They have a superscalar

architecture in which a subset of the instructions can

operate on separate data in parallel. Additionally,

when one thread blocks the other can still run

guaranteeing that the physical core is actually

performing work.

The operating system actually reports the

hardware threads as virtual cores. AMD virtual cores

are more complete than INTEL hyperthreads since

each has a full set of registers, so threads running on

different cores actually do not require to save the

thread registers as it happens with hyperthreading.

The operating system always reports about virtual

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

668

cores (hardware threads for INTEL, actual virtual

cores for AMD). When setting processor affinity, it is

the id of the virtual cores what is actually provided.

It is very important to understand the relationship

between virtual cores and physical cores, since some

servers should run a single instance per physical core,

such as the storage engine. Running any other server

on a virtual core over the same physical core would

result in serious performance drop. However, there is

no straightforward way of getting this association.

The way we have found to extract this information is

through the thread_sibling_list in the CPU topology

meta-information of the operating system:

/sys/devices/system/cpu/cpu0/topology/thread_siblin

gs_list.

When the first number is the same as CPU id, then

the CPU is a physical core. When the CPU id appears

at other position other than first, it means that it is a

virtual core.

5 CHARACTERIZING SERVERS

5.1 Taxonomy Dimensions

The previously introduced approaches present

alternatives to either move data close to the

processing units or the opposite, where the processing

is moved closer to the nodes where data is placed. In

a distributed deployment, where a multitude of

components coexist and interact among each other, it

becomes imperative to reason about the underlying

specific use case. A system model allows to bound

both the expectations and requirements of each

component that builds the distributed system has

according to several distinct factors, namely:

a. Threading model: single threaded server vs.

multi-threaded server;

b. Architecture (Single instance vs Multiple instance

components);

c. Resource boundness (IO/CPU/Memory bound)

The above set of properties allows to determine

important deployment features that might limit the

action of the smart placement, such as the need for

component co-location or the required memory

thresholds.

5.2 Taxonomy of Servers for NUMA

Awareness

The manager is single instance. Table 1 summarizes

the main properties of each subsystem/role.

Table 1: LeanXcale Servers and their Taxonomy.

Subsystem

Role

Instances

Multi-

threading

Resource

Boundness

QE+LTM

QE+

LTM

Multiple

Yes

CPU

Memory

Single

CPU

Single

CPU

Multiple

CPU

Multiple

Single

CPU

Multiple

IO/CPU/

Memory

MNG

Single

CPU

6 DEPLOYMENT MODELS

6.1 Collocation

The first question is whether is good to collocate

servers and if yes, which ones and how. Collocating

servers can be good if they communicate a lot, since

the communication can be done via local memory.

Another reason why it can be good to collocate is

when servers are complementary in terms of resource

usage. For instance, there are servers that are CPU

bound while others are IO bound. In this case, they

match well due to their collocation can result in a

balanced usage of resources.

Looking closely to the Bull Sequana, IO devices

are distributed evenly across NUMA units. This

means that it becomes important to be able to

distribute the IO activity across all NUMA units.

6.2 Model of Individual Deployment

The other question is how to deploy each individual

server, across how many cores or NUMA units. Let

us look at the individual features of each server.

6.2.1 Query Engine+LTM

The query engine is a Java application that runs on the

JVM. It is a multi-threaded server, in which each

client session is served by an independent thread. This

means that if a query engine instance has 100 clients

(the JDBC drivers running collocated with the client

application), it will have 100 threads managing each

client session.

The query engine is stateless, it just keeps session

state. In terms of memory, it depends on the kinds of

queries it runs. Many queries are not memory

intensive, just CPU intensive. Analytical queries with

multi-way joins are both memory and CPU intensive.

The LTM handles the interaction with all the

transaction manager components and it is used as a

NUMA-aware Deployments for LeanXcale Database Appliance

669

library by the data storage client side that is used as a

library by the query engine. The LTM and client side

of the storage engine are CPU bound. LTM and client

side of the storage engine code runs as part of

invoking query engine Java threads. The client side of

the storage engine has also its own threading to deal

with the communication with the storage engine

servers.

The JVM is known to not scale up well in terms

of memory size due to the garbage collection

becomes more intrusive when the number of objects

grows what happens when the memory used is larger.

Running the JVM across NUMA units results in

remote NUMA memory accesses and since it does not

scale up also results in being less efficient.

For all aforementioned reasons, a given query

engine instance is deployed within one NUMA unit.

When more instances are needed, they are run on

different NUMA units. A query engine since it is

multi-threaded it can be deployed across multiple

cores.

6.2.2 Commit Sequencer, Snapshot Server

and Manager

All these servers are single threaded. They are CPU

bound. Although in large deployments it is worth to

run them separately, in small and medium

deployments they are run as a single entity with three

different threads.

6.2.3 Logger

Loggers are IO intensive and single threaded. Their

IO activity is based on forced writes. Thus, they have

to run on devices without any other IO since

otherwise their performance is heavily affected.

Therefore, loggers should run on individual cores

spread across different NUMA units and always on

devices that they use in isolation, with no other IO

activity.

6.2.4 Data Storage

The data storage has two kinds of servers the meta-

data server and the data server. The former is mostly

CPU bound. The latter can be CPU or IO-bound. It is

always memory bound.

The data server is single-threaded and CPU and

IO intensive. Thus, it should be deployed on

individual cores and without sharing the IO device

with other components.

6.3 Collocation Considerations

There are two main considerations to be taken into

account that affect collocation. Servers that interact a

lot between them is good they are on the same NUMA

unit so they can communicate through local memory.

Servers that consume different kind of resources also

benefit from collocation since the collocation results

in a more evenly balanced resource consumption.

What servers interact with a lot of data? The

heaviest interaction happens between query engines

and data storage servers. Especially with analytical

queries. With analytical queries the query engine runs

in parallel mode what means that all query engines

process a fraction of the query. In analytical queries a

lot of information can flow from the data storage

engine into the query engine. Since query plans are

projected so the first stages are purely local between

data storage engine and query engine, it is very

beneficial to collocate query engine with data storage

servers.

If there are enough IO devices on each NUMA

unit for data storage servers and a logger, having a

collocated logger with the LTM (that is a library of

the query engine) is also very beneficial since all

logging activity becomes purely local.

Conflict managers are CPU-bound. Each instance

is global so there is no special benefit on being

collocated with any particular kind of server. Since

they are CPU-bound they can benefit from a

collocation with IO bound servers such as loggers or

storage engine servers. The number of conflict

managers typically required is much smaller than

query engines, data storage servers, and loggers. So,

it is fine to run them in an arbitrary NUMA unit with

spare CPU capacity.

6.4 Deployment Strategy

For the Bull Sequana, we have adopted a uniform

deployment strategy for the multi-instance servers.

Basically, we deploy for each NUMA unit:

 A query engine instance running on several cores.

 Several storage server instances, each running on

a separate core and each of them with an IO device

used in isolation.

 A logger running on a separate core and with an

exclusive IO device.

 A conflict manager that runs on the JVM of the

query engine and share cores with it.

The benefits of this strategy are:

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

670

 The intensive communication between data

storage instances and query engine instances is

purely local in the first stages of the query plan.

 The intensive communication between LTM and

logger is purely local.

 By allocating different set of cores with processor

affinity the different services attain high caching

efficiency.

 By running on a single NUMA unit all memory

accesses are NUMA local.

 By distributing the IO intensive services

uniformly across all NUMA units the IO load is

evenly balanced across NUMA units and devices

being able to use all the available IO bandwidth.

The single-instance servers run on its own NUMA

unit. In this NUMA unit it is run:

 The meta-data server of the storage engine.

 The commit sequencer.

 The snapshot server.

 The LeanXcale manager.

 The loggers used by all the above servers.

By running these meta servers on a different NUMA

unit isolation from the worker servers is attained. This

performance isolation is crucial since all these

services if they get stalled, they stop the whole

database.

7 CONCLUSIONS

Supercomputers such as the Bull Sequana are

challenging because existing server software,

especially databases are not designed to run

efficiently on a large NUMA architecture such as the

one of the Bull Sequana. LeanXcale database thanks

to its modular design enables to adapt its

configuration to use with optimal efficiently the Bull

Sequana NUMA architecture. LeanXcale attains high

locality of interactions within NUMA units, with no

interactions across NUMA units except for the meta

servers. This results in using the large NUMA

architecture as a distributed system and maximizing

the performance. Additionally, the IO usage is

guaranteed to be uniform across NUMA units

resulting in a very efficient usage of the super

computer.

ACKNOWLEDGEMENTS

This work has been partially funded by the European

Commission under the H2020 project:

CloudDBAppliance – European Cloud In-Memory

Database Appliance with Predictable Performance

for Critical Applications. Project number: 732051.

REFERENCES

Özsu, T., P. Valduriez.

Distributed and Parallel Database Systems. Computing

Handbook, 3rd ed. 2014.

LeanXcale. http://leanxcale.com. 2019

CloudDBAppliance. https://clouddb.eu/ 2019

NUMA-aware Deployments for LeanXcale Database Appliance

671
