Verifying Complex Software Control Systems from Test Objectives:

Application to the ETCS System

Rabea Ameur-Boulifa

1 a

, Ana Cavalli

2 b

and Stephane Maag

2 c

Institut Mines-T

ecom/T

ecom ParisTech, Universit

e Paris-Saclay, France

Institut Mines-T

ecom/T

ecom SudParis, Universit

e Paris-Saclay, CNRS UMR 5157 SAMOVAR, France

Rabea.Ameur-Boulifa@telecom-paristech.fr, {ana.cavalli, stephane.maag}@telecom-sudparis.eu

Keywords:

Formal Veriﬁcation, Safety, Model Checking, Software Control Systems.

Abstract:

Ensuring the correctness of complex distributed software systems is a challenging task, the issue of building

frameworks for developing such safe and correct systems still remains a difﬁcult issue. Where test coverage

is dissatisfying, formal analysis grants much higher potential to discover bugs during the development phase.

This paper presents a framework for formal veriﬁcation of complex systems based on standardized test ob-

jectives. The framework integrates a transformation of test objectives into formal properties that are veriﬁed

on the system by model checking. The overall proposed approach for formal veriﬁcation is evaluated by the

application to the standard European Train Control System (ETCS). Some critical safety properties have been

proved on the model, ensuring that the model is correct and reliable.

1 INTRODUCTION

The development, veriﬁcation and testing of complex

software systems (e.g., embedded systems, control

systems, etc.) involve high challenges due to the com-

plexity of the implementation and the time required

for testing and verifying. In most cases, the deadline

is not met, products being launched several months

late and without achieving the required performance

targets. Within that context, many efforts have been

done in the processes of software validation and in

particular in the testing of these systems from the ver-

iﬁcation of formal speciﬁcations. However, although

languages and formal transformation have been pro-

posed for that purpose, very few works have been de-

voted to the veriﬁcation of models from the testing

phases.

We herein provide a framework based on formal

methods that performs the methods and techniques

necessary to automate the development and veriﬁca-

tion processes. The expected result consists in a more

reliable system, in terms of functionality, safety and

robustness and a reduction of the time necessary for

veriﬁcation. Indeed, we aim at verifying software sys-

tems from the standardized deﬁnition of their test ob-

https://orcid.org/0000-0002-2471-8012

https://orcid.org/0000-0003-2586-9071

https://orcid.org/0000-0002-0305-4712

jectives.

In order to highlight and assess our methodology,

we applied it on a real industrial case study, that is

the European Train Control System (ETCS) (ERTMS

Commission Group - European Commission, 2017).

Over the past century, Europe’s railways have been

developed within national boundaries, resulting in a

variety of different signaling and train control sys-

tems, which hampers cross-border trafﬁc. In the

scope of increasing their interoperability, the Euro-

pean Union has decided to adopt a standard, the

ETCS. We formalized some components of this stan-

dard and based on standardized test objectives, we

veriﬁed some critical properties of the system.

In summary, the main contributions of this paper

are:

• a transformation that converts IF-test-objectives

to MCL-formulas in such a way that automatic

and exhaustive veriﬁcation of safety properties

will be possible on application;

• an integrated framework suitable for software de-

velopers. The proposed framework relies on a

toolchain for automating test generation, thus it

complements the toolchain by allowing formal

veriﬁcation;

• an example illustrating the approach and showing

its practical use by applying our framework on a

realistic case study.

Ameur-Boulifa, R., Cavalli, A. and Maag, S.

Verifying Complex Software Control Systems from Test Objectives: Application to the ETCS System.

DOI: 10.5220/0007918203970406

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 397-406

ISBN: 978-989-758-379-7

397

The paper is organized as follows. Section 2

presents the related works on the veriﬁcation and test-

ing of complex systems and the relation between test-

ing and veriﬁcation techniques. In section 3, basic

concepts and deﬁnitions for the modelling of the sys-

tem, and the description of test objectives are de-

scribed. Section 4 gives the language for the proper-

ties speciﬁcation and the rules for the transformation

of test objectives into formal properties to be veriﬁed

on the formal model. In Section 5, the formal speciﬁ-

cation of the ETCS system is provided as well as the

results of the experimentation performed on it. Fi-

nally, Section 6 gives the conclusion and perspectives

of this work.

2 RELATED WORKS

Veriﬁcation and testing of complex systems (e.g.,

train or avionic software and industrial control sys-

tems) have been studied for many years. Several mod-

els and techniques have been proposed to either test

the systems (Asadollah et al., 2015; Garousi et al.,

2018) or verify their formal models (B

erard et al.,

2013; Karna et al., 2018). In the following, we cite

the works from which we get inspired.

Many works have deﬁned languages or ap-

proaches to model complex systems. In (Salem et al.,

2015), a UML proﬁle named R-UML has been pro-

posed to model and then verify ﬂexible control sys-

tems. The model is enriched in order to consider the

management of resource sharing. Besides, a trans-

formation model to state machines is used for the

veriﬁcation process. Also, the authors of (Belghiat

and Chaoui, 2015) proposed a Pi-calculus-based ap-

proach through transformation of sequence diagrams

for the veriﬁcation process. An interesting mapping

is formally deﬁned to analyse and verify well-deﬁned

properties. Models transformation is of high impor-

tance and has been well described in a very recent sur-

vey (Kahani et al., 2018). The transformation is also

performed in our approach in order to apply model-

checking. However, although these studies propose

high semantics and transformation rules, the authors

do not propose experiments on real case studies and

the properties to be checked are not provided. Be-

sides, in our approach, our transformation through

models and languages are easily applied in a sense

that the procedures are tooled (based on Fiacre (Gar-

avel et al., 2011) - see Section 5.3).

We also get inspired of the researches on testing

and veriﬁcation of complex software control systems.

(Kapinski et al., 2016) presents an interesting survey

for modeling, testing, and verifying embedded control

systems. The authors note that model-based devel-

opment approaches are crucial in industrial contexts.

They also raise the challenging consolidation between

testing and veriﬁcation processes in software systems.

In this area, papers like (Petiot et al., 2014) experi-

mented an incremental methodology of deductive ver-

iﬁcation assisted by test generation. Though the pro-

posal is very promising, it tackles the software code

with no formal state machines. Nevertheless, relevant

combination between test and veriﬁcation was intro-

duced. Time constraints in the validation processes

are also very important. In (Mubeen et al., 2017),

the authors studied them and proposed an approach

to represent and reﬁne them among various abstrac-

tion levels. Besides, they veriﬁed timing constraints

on a complex system. In our paper, such information

has also been raised and we noted the importance of

such constraints in the model as well as into the veri-

ﬁcation phase.

It was shown in the survey of Fraser et al. (Fraser

et al., 2009) that testing could be performed from ver-

iﬁcation processes. Many efﬁcient techniques and

tools have been developed in that purpose. Still in

that way, the authors of (Ferrante et al., 2018) have

recently presented the use of model-checking for au-

tomated test cases generation applied to a standard-

ized complex aerospace system. However, all these

works present the use of veriﬁcation for testing with-

out raising the issue of the test objectives. Although

a recent interesting document about bridging the gap

between testing and veriﬁcation approaches has been

published by Microsoft Research (Godefroid, 2016),

the methods always propose to apply veriﬁcation to

testing. In our work, we present a way for verifying

a formal speciﬁcation from standardized test objec-

tives in the context of Control Train Systems (TCS).

Such veriﬁcation purposes are not new as depicted

in the well-known report published by the CMU on

TCS (Platzer and Quesel, 2009). In (Ghazel, 2014),

a dynamic model is proposed for model-checking

of European TCS speciﬁcations. UML, LTL and a

model-based methodology is successfully applied and

the author clearly focus that work as an entry point

for generating test cases. In a more recent work (Je-

sus Valdivia et al., 2017), the authors proposed a novel

testing platform based on virtual laboratory. Braking

events have been tested using faults injection. How-

ever, as mentioned, although these works are very in-

teresting, none of them started from standardized test

objectives (eventually automatically generated) to the

veriﬁcation of the models. This is what we tackle in

our work we herein propose.

ICSOFT 2019 - 14th International Conference on Software Technologies

398

3 PRELIMINARIES

3.1 Behavioural Models

There exist several modelling languages, such as the

symbolic state machines (Mouttappa et al., 2013),

to specify complex systems when the number of ex-

changed messages, data and parameters is important.

In our approach, we describe each process (the be-

haviour of each component) in terms of Labelled

Transition Systems (LTS for short) which are strongly

based on the deﬁnition and semantics of Symbolic

Transition Graph with Assignment (Hennessy and

Lin, 1995). The LTS extends the general notion of La-

belled Transition Systems by adding parameters and

value-passing features. Transitions are labelled by pa-

rameterised actions, to which are attached a set of pa-

rameters and variables.

Deﬁnition 1. (LTS) A Labelled Transition System is

a rooted directed graph where each state s is associ-

ated with a ﬁnite set of free variables and each edge

is labelled by a triple s

([b],α,~x:=~e)

−−−−−−−→ s

. Where b is

a boolean expression, e is a data expression (which

may includes variables), x ranges over data variables,

~x := ~e is a multiple assignment and α ranges over a

set of abstract action algebras.

The set of abstract actions is a set of action al-

gebras that can encode naturally usual point-to-point

message passing calculi using ?a(x

,.. ., x

) for in-

puts, !a(v

,.. ., v

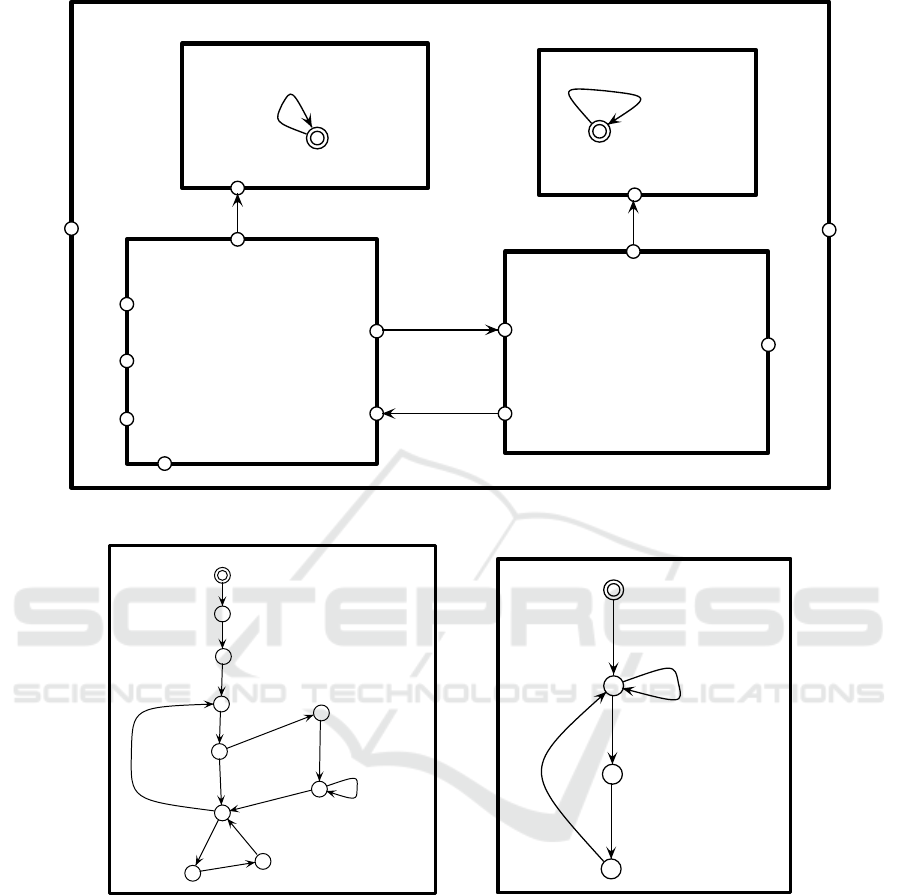

) for outputs. Figure 3 shows the

graphical representation of the two LTSs depicting the

behaviour of the OBU (On-Board Unit) and RBC com-

ponents (Radio Block Center).

The parallel composition of processes and their com-

munication is deﬁned through parameterised Network

(pNet) (Ameur-Boulifa et al., 2017; Henrio et al.,

2015). pNets are tree-like networks of processes.

They provide means to represent in a structured and

hierarchical way the behaviour of processes, repre-

sented as labelled transition systems (LTS with value-

passing messages). Composition of pNets is realized

by synchronisation vectors that relate the actions of (a

subset of) the subnets, with a global action that will be

exported at the next level.

Figure 2 gives a graphical representation of pNets.

The pNet shown in this example is represented by a

set of four boxes: OBU, RBC, GETSPEED and RE-

LEASESPEED boxes inside the ETCS SYSTEM box

(hierarchy). Each box representing parameterised

process (which can be formed of other pNets or LTS

and that have parameters and local variables), is sur-

rounded by labelled ports encoding a particular sort of

the corresponding pNet. The ports are interconnected

through edges for communication and synchronisa-

tion. Edges are translated to synchronisation vectors.

3.2 The IF Language

IF is a language based on the semantic temporized

state machines, allowing the description of existing

concepts into speciﬁcation formalisms (Bozga et al.,

2002). A real-time system described using IF lan-

guage is composed of processes running in paral-

lel and interacting asynchronously through shared

variables and message exchanges via communication

channels. The description of a system in IF consists

in the deﬁnition of data types, constants, shared vari-

ables, communication signals and processes. The sig-

nals set is divided into inputs and outputs provided by

the environment of a current state machine or sent to

its environment, respectively. One of the main advan-

tages of the IF language is the ease of use to formally

specify test objectives as described in the next section.

3.3 Test Objectives

In our work, we focus on the functional properties

to be tested on a system or implementation (namely

implementation or system under test (SUT)). In that

context, a test objective describes a particular func-

tionality of a SUT by specifying the property to be

checked in the system implementation. It is an ob-

servable action of the system that once described in

IF language (Bozga et al., 2004) is used for guiding

the space exploration of the system’s states.

A test objective is described as a conjunction of

conditions, including the following optional condi-

tions: instance of a process with an identiﬁer, a state

of the system (a source state or a destination state),

an action of the system (a message sent, a message

received, an internal action), a variable of the process

or a clock of the process, specifying a value and its

state (active or inactive). Table 1 shows the general

structure of a test objective in the IF description.

From a test objective, a set of test cases is gener-

ated. Basically, a test case is a sequence of input and

output actions. It represents a trace of an LTS that

satisﬁes the test objective.

4 FRAMEWORK - FROM TEST

OBJECTIVES TO VERIFIED

PROPERTIES

Our goal is to use formal methods both to increase

the quality of such systems through enhancing the

Verifying Complex Software Control Systems from Test Objectives: Application to the ETCS System

399

Table 1: General structure of Test Objective.

TO = TO

∧ TO

= P

∧ P

∧ ··· ∧ P

= process : instance = {proc}id

= state : source = s

= state : destination = s

= input action : α

(parameters)

= variable : (v

= value)∗

= Q

∧ Q

∧ ··· ∧ Q

= process : instance = {proc}id

= state : source = s

= state : destination = s

= output action : α

(parameters)

= variable : (v

= value)∗

veriﬁcation activity, and to prevent unnecessary tests.

However, since we aim at a general approach for spec-

ifying properties, we advocate to use the test objec-

tives to generate formal speciﬁcations or properties

that may be used for proving or disproving the cor-

rectness of the systems. As described before (Section

3.3) test objectives express the desired or unexpected

behaviour of a system in terms of input and output

actions. Their distinctive features are typically the

dealing with data parameters that are generally ab-

stracted away in formal models because veriﬁcation

problems are undecidable for inﬁnite systems. Fur-

thermore, the crucial characteristic of our models is

the parameterised action.

Precisely, MCL (Model Checking Language) is a

language for expressing properties that addresses this

crucial matter: representing and handling data, and

reasoning about their value.

4.1 Property Language

Basic MCL logic extends action in modal µ-calculus

with data variables (Mateescu and Thivolle, 2008), so

it suits for describing the property of concurrent sys-

tems. Indeed, MCL language provides high-level op-

erators facilitating the construction of formulas. It al-

lows to handle in a natural way the data values present

in the LTSs and to reason about systems described in

value-passing process algebras such as LOTOS.

The MCL formulas are logical formulas built over

regular expressions using boolean operators, modal-

ities operators (the necessity operator denoted by [ ]

and the possibility operator denoted by h i), maximal

ﬁxed point operator (denoted by µ) and data-handling

constructs inspired from functional programming lan-

guages. From LTS’s point of view, a transition se-

quence starting at the initial state and satisfying a reg-

ular formula ε can be expressed in MCL either as an

example for the hεitrue formula, or as a counterex-

ample for the [ε]false formula. For specifying tran-

sition sequences, MCL uses regular formulas.

A regular formula is a logical formula built from

action formulas, traditional and extended regular ex-

pression operators, namely concatenation (.), choice

(|), and transitive- reﬂexive closure (*).

An action formula is a logical formula built from

action predicates which includes action patterns, and

the ”tau” constant operator. Action pattern can either

action for matching values denoted by {α !e

...!e

or action for extracting and storing values denoted by

{α ?x

: T

...?x

: T

} where α is an action name, e

is an expression, variable name or function name, x

is a variable name and T

is a basic data type. It is

important to note that the usage of ! and ? symbols

in MCL speciﬁcation has different meaning from the

notation introduced in LTS models. They enable to

match a given value against an expression or to extract

and store it in a variable. MCL also uses other speciﬁc

notations: the ”true” constant is used to match a value

of any action formula and the wildcard clause ”any”

matches a value of any type.

4.2 Encoding Test Objectives into MCL

Formula

We deﬁne the transformation of IF test objectives

into MCL speciﬁcation by associating to each test

objective a MCL formula expressing a liveness

property. Consider TO a test objective:

TO=

process: instance=

{

proc

}

∧

state:source=s

∧

input action :α

,..,x

)

∧

output action:α

,..,x

)∧

state:destination=s

0 00

The encoding of test objective TO is the following

MCL property pattern:

[true∗.{α

...?x

}] inev({α

† x

... † x

})

where {α

: T

...?x

: T

} and {α

† x

... † x

} are

the input action and the output action resp. Note that

for dataless actions, brackets can be omitted. And

such that †x can be either !x or ?x : T depending on

whether x

consists of matching values with data x

(encoded !x

) or extracting and storing them in typed

variables (encoded ?x

: T

). MCL uses the usual

datatypes e.g., bool, nat, string.

The predicate inevitability of an action α denoted

inev(α) expresses that a transition labelled with α is

eventually reached from the current state. It can be

deﬁned in MCL using ﬁxed point operator by the fol-

lowing macro deﬁnition:

macro inev(α)=

µ X.(<true> true and [not (α)] X)

ICSOFT 2019 - 14th International Conference on Software Technologies

400

macro end

meaning that as long as there has been no α action,

there is always an execution leading to α.

It is important to note that our translation does not

care about the conditions on the states which are in-

volved in test objectives. For the formal veriﬁcation,

the pointing of the states of a system is useless infor-

mation. Because the approach checks properties by

means of an exhaustive search of all possible states

that the system could reach.

Concerning the variables that we have not con-

sidered in the given general test objective. They are

also translated but not in completely automatic man-

ner. The translation requires sometimes the interven-

tion of the user. As mentioned earlier, such as a pro-

gramming language, MCL offers constructors to fa-

cilitate the handling of data values. Thus, for encod-

ing the variable conditions that are not empty, we use

such constructors, in particular the where construc-

tor. The action pattern ending with the optional clause

”where b” means that the pattern matches an action

if and only if the guard (boolean expression) b is true.

The guard can be the equality check, i.e, like where

= val

5 EXPERIMENTS

5.1 ETCS System

Our work has been experimented on a formal model

of the European Train Control System (ETCS). The

ETCS is a part of the European standard that deﬁnes

the European Railway Trafﬁc Management System

The normative documents describe ETCS as a

train control standard, based on in-cab equipment,

an On-Board Unit (OBU) able to supervise train

movements and to stop it according to the permit-

ted speed at each line section, along with calculation

and supervision of the maximum train speed at all

times (ERTMS Commission Group - European Com-

mission, 2017). The information is received from the

ETCS equipment beside the track. For that purpose,

the OBU runs concurrently with a Radio Block Center

(RBC). Basically, this standard is proposed in order to

improve the safety in European railways. The trains

running limits are stated by movement authorities.

The train control system ensures the reception of

messages like safety distance, speed limitations and

controls the driving according to these limitations.

Secondly, the safety is increased by the supervision of

train driving. As illustrated in the Figure 1, data are

http://www.ertms.net/

used by the on-board ETCS equipment to supervise

the train drivers

. Therefore, the on-board equipment

has to know both information regarding the route as

well as information regarding the train.

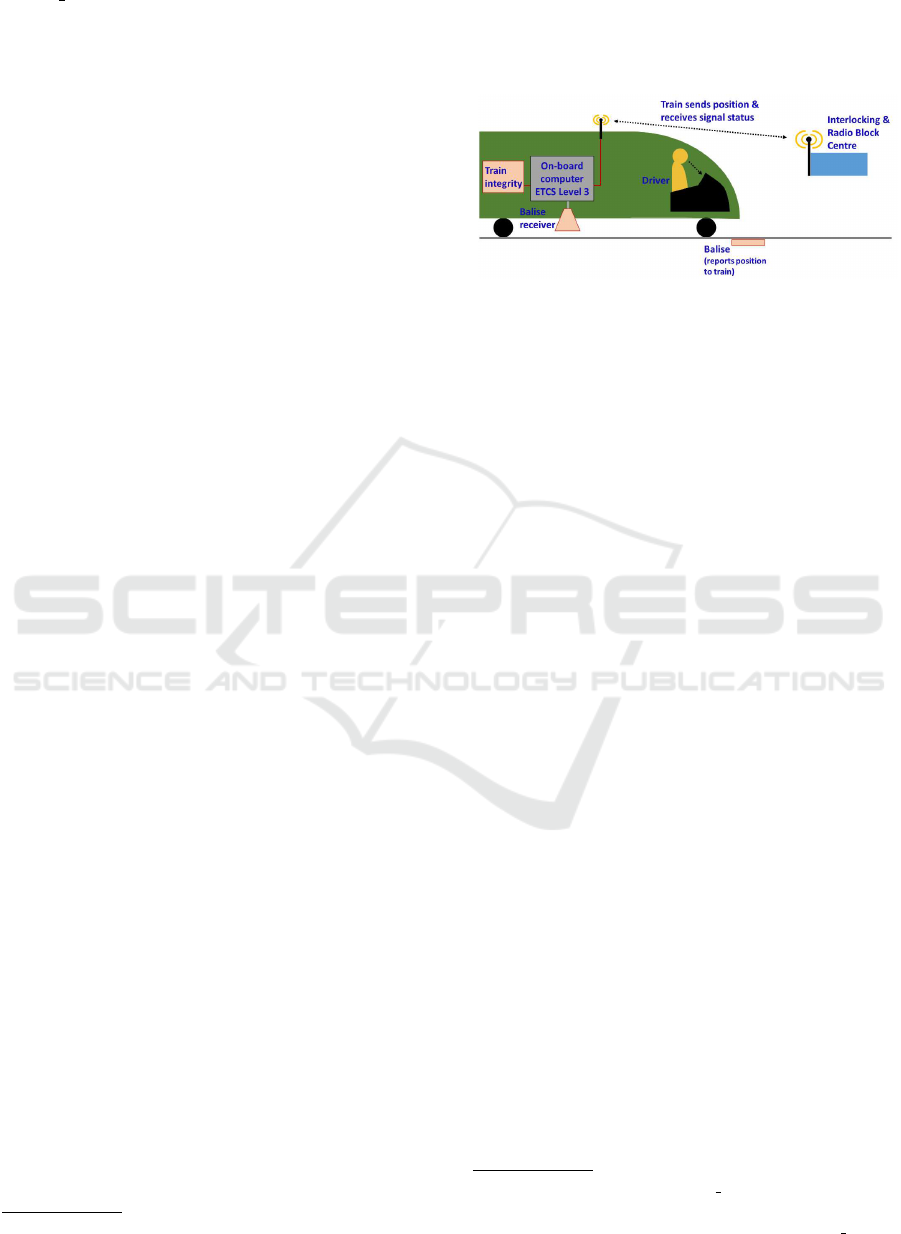

Figure 1: The ETCS system.

This train data is introduced by the train driver be-

fore starting the journey. Based on the track data and

on the data entered by the driver, the on-board sub-

system calculates a dynamic speed proﬁle, calculates

a set of braking curves for train movement supervi-

sion and commands the brake application, if neces-

sary

. A high performance is given by an increas-

ing speed and capacity due to a track-train transmis-

sion system and the on-board equipment knowledge.

The track-train transmission system uses precise in-

formation about running limits and consequently, su-

pervises a train permanently to avoid that the speed

limits exceed. The on-board equipment knowledge

about train running limits is used to inform drivers

through displays, allowing the railways to increase the

running speeds without worrying about shortening the

time period for track side signal observation.

5.2 ETCS Formal Speciﬁcation

The Figure 2 shows the semantic model of our use

case, the signature of interfaces, and the behaviour of

its components and its methods. The overall architec-

ture of the system consists of:

• The OBU component receiving the information

about the current speed, the current location and

maximum authorized speed, and makes a decision

to the issue to brake or not,

• The RBC component that manages the exchange

of data required for a safe train travel,

• A behavioural speciﬁcation of methods GET-

SPEED and GETRELEASESPEED that returns re-

spectively at any time the current speed of the

train and the maximum authorized speed under

which the train must to respect.

https://medium.com/@POST UK/moving-block-

signalling-b9b0b9f498c2

https://ec.europa.eu/transport/modes/rail/ertms en

Verifying Complex Software Control Systems from Test Objectives: Application to the ETCS System

401

In this section we describe only the structure of the

pNets, the communication among them and the be-

haviour of the local methods. The local methods com-

pute regularly the new value of the speed. They are

naturally encoded as an inﬁnite loop of actions that

returns a random value in the range [0.. .max value]

such that max value is the maximum value of speed

attainable by each of them. The internal behaviour

of OBU and RBC components are represented by the

LTSs given in Figure 3.

The ETCS system as speciﬁed in the European stan-

dard uses a clock. Each component owns a clock

which is synchronized with clocks of the other com-

ponents. Particularly, the RBC component receives a

location of a danger point for a certain period of time.

In our models, we abstract away this kind of detail and

represent the receiving of a location of danger point as

an inﬁnite loop.

The OBU Component. The OBU receives the cur-

rent estimated location (?ELocation(l)) of the train

from the environment. This location is encapsulated

in a request sending to the RBC (!MARequest(id, l)).

Thus, it receives in return a release speed consisting

of a limited speed under which the train must to re-

spect (?MA(id, rs)). The local method GETSPEED

will ﬁll the current speed with the calculated value

(?ESpeed(s)). If the current speed s of the train is less

than or equals to the limited speed, it can continue to

operate. Otherwise, if the current speed s exceeds the

maximum authorized speed, an emergency brake is

applied (!EBcmd(1)). The brake is hold until the train

totally stops. The OBU sends a Driver Machine In-

terface command to display speed information to the

driver (!DMIspeed(rs)).

The RBC Component. The RBC receives the Dan-

ger locations that are sent from the environment

(?DLocation(l)). Based on this information and the

estimated location report received from the OBU, the

RBC computes release speeds by calling the method

RELEASESPEED (!call computation(rs)). The re-

lease speed is then sent to OBU via the (!MA(id,rs))

message.

Test Objectives for Automatic Veriﬁcation. A

critical property of the ETCS that is particularly cru-

cial to be veriﬁed is the ability of the system of tak-

ing over control if the driver appears to be going too

fast. Among scenarios describing this property we

consider the following:

Example 1. Scenario in which the train is in the in-

dication state (encoded s

), running at 120km/h while

the release speed is 80km/h, thus OBU has to gener-

ate a brake command and to pass to the intervention

state (encoded s

) – by traversing the normal state

(encoded s

)–. The associated test objective is formu-

lated in the IF description (where {OBU}0 is used to

identify the ﬁrst instance of process OBU) as follows:

TO=

process:instance=

{

OBU

}

∧

variablers=80

∧

state:source=s

∧

variables =120

∧

state:source = s

∧

output action:EBCMD1

As detailed in previous works (Nguyen et al.,

2014), TestGen-IF tool can be used to generate efﬁ-

cient test cases for testing and validating of a system

from such test objectives. However, as the system

deal with data variables over a domain the authors

show that the number of test cases generated by ex-

haustive strategy grows too large even for relatively

small domains.

5.3 Results

The source speciﬁcation was written in the inter-

mediate format Fiacre language (Berthomieu et al.,

2012). The Fiacre language provides syntax for data

types and expressions, deﬁnition of LTSs, and a form

of composition of processes by synchronization on

channels. Then we run a combination of CADP tools

(Garavel et al., 2011), the most important ones are

ceasar.open for generating transition systems from

Fiacre programs, ocis the interactive simulator, and

Evaluator4, the model-checker that deals with the

MCL logic. All the tools provided by the CADP tool-

box are command-line tools, but also integrated into

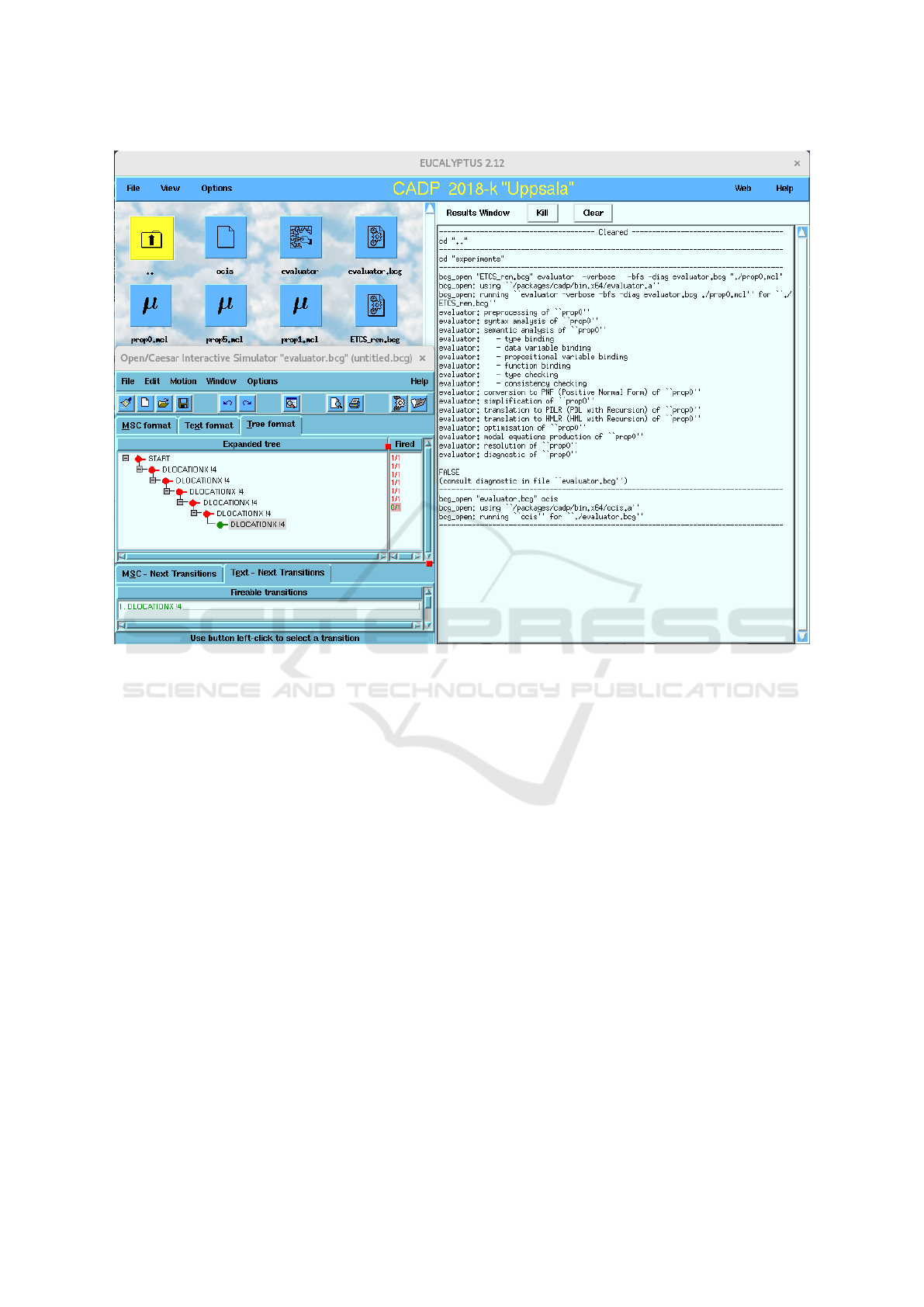

graphical user interface (GUI). Through the Xeuca in-

terface (see Figure 4) CADP toolbox allows an easy

access to the offered functionalities.

From a ﬁnite model pNet of ETCS we have com-

puted the LTS of the global system. Choosing small

values for the domain of parameters, i.e. [0..4] inter-

vals for all data, we obtain an LTS with 662 states and

3615 transitions.

To formally verify the correct execution of the dif-

ferent scenarios, we generated several properties in

MCL in precise and generic way; they express var-

ious facets of the system. Some properties express

global correctness of the application, seen from the

(external) ETCS point of view, and that reveals the

feasibility of several scenarios or the impossibility of

some errors.

First, we started by verifying usual properties the

system is deadlock-free. As well, we veriﬁed a prop-

erty expressing that each scenario is acyclic, i.e. spec-

ifying the absence of unfair execution actions, which

is characterized using the inﬁnite looping operator

(denoted by @ operator):

ICSOFT 2019 - 14th International Conference on Software Technologies

402

ETCS_System

ETCS_SystemETCS_SystemETCS_SystemETCS_SystemETCS_System

ETCS_System

ETCS_SystemETCS_SystemETCS_SystemETCS_System

ETCS_System

OBU(id)

OBU(id)OBU(id)OBU(id)OBU(id)OBU(id)

OBU(id)

OBU(id)OBU(id)OBU(id)OBU(id)

OBU(id)

RBC

RBCRBCRBCRBCRBC

RBC

RBCRBCRBCRBC

RBC

ReleaseSpeed

ReleaseSpeedReleaseSpeedReleaseSpeedReleaseSpeedReleaseSpeed

ReleaseSpeed

ReleaseSpeedReleaseSpeedReleaseSpeedReleaseSpeed

ReleaseSpeed

GetSpeed

GetSpeedGetSpeedGetSpeedGetSpeedGetSpeed

GetSpeed

GetSpeedGetSpeedGetSpeedGetSpeed

GetSpeed

!EBcmd(1)

!EBcmd(1)!EBcmd(1)!EBcmd(1)!EBcmd(1)!EBcmd(1)

!EBcmd(1)

!EBcmd(1)!EBcmd(1)!EBcmd(1)!EBcmd(1)

!EBcmd(1)

!MARequest(id,l)

!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)

!MARequest(id,l)

!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)

!MARequest(id,l)

?MARequest(id,l)

?MARequest(id,l)?MARequest(id,l)?MARequest(id,l)?MARequest(id,l)?MARequest(id,l)

?MARequest(id,l)

?MARequest(id,l)?MARequest(id,l)?MARequest(id,l)?MARequest(id,l)

?MARequest(id,l)

!MA(id,rs)

!MA(id,rs)!MA(id,rs)!MA(id,rs)!MA(id,rs)!MA(id,rs)

!MA(id,rs)

!MA(id,rs)!MA(id,rs)!MA(id,rs)!MA(id,rs)

!MA(id,rs)

?MA(id,rs)

?MA(id,rs)?MA(id,rs)?MA(id,rs)?MA(id,rs)?MA(id,rs)

?MA(id,rs)

?MA(id,rs)?MA(id,rs)?MA(id,rs)?MA(id,rs)

?MA(id,rs)

!ESpeed(s)

!ESpeed(s)!ESpeed(s)!ESpeed(s)!ESpeed(s)!ESpeed(s)

!ESpeed(s)

!ESpeed(s)!ESpeed(s)!ESpeed(s)!ESpeed(s)

!ESpeed(s)

!ESpeed(s)!ESpeed(s)!ESpeed(s)!ESpeed(s)!ESpeed(s)

!ESpeed(s)

!ESpeed(s)!ESpeed(s)!ESpeed(s)!ESpeed(s)

!ESpeed(s)

!EBcmd(0)

!EBcmd(0)!EBcmd(0)!EBcmd(0)!EBcmd(0)!EBcmd(0)

!EBcmd(0)

!EBcmd(0)!EBcmd(0)!EBcmd(0)!EBcmd(0)

!EBcmd(0)

!DMIcmd(rs)

!DMIcmd(rs)!DMIcmd(rs)!DMIcmd(rs)!DMIcmd(rs)!DMIcmd(rs)

!DMIcmd(rs)

!DMIcmd(rs)!DMIcmd(rs)!DMIcmd(rs)!DMIcmd(rs)

!DMIcmd(rs)

?DLocation(l)

?DLocation(l)?DLocation(l)?DLocation(l)?DLocation(l)?DLocation(l)

?DLocation(l)

?DLocation(l)?DLocation(l)?DLocation(l)?DLocation(l)

?DLocation(l)

?call_compute(rs)

?call_compute(rs)?call_compute(rs)?call_compute(rs)?call_compute(rs)?call_compute(rs)

?call_compute(rs)

?call_compute(rs)?call_compute(rs)?call_compute(rs)?call_compute(rs)

?call_compute(rs)

!call_compute(rs)

!call_compute(rs)!call_compute(rs)!call_compute(rs)!call_compute(rs)!call_compute(rs)

!call_compute(rs)

!call_compute(rs)!call_compute(rs)!call_compute(rs)!call_compute(rs)

!call_compute(rs)

?ELocation(l)

?ELocation(l)?ELocation(l)?ELocation(l)?ELocation(l)?ELocation(l)

?ELocation(l)

?ELocation(l)?ELocation(l)?ELocation(l)?ELocation(l)

?ELocation(l)

?DLocation(l)

?DLocation(l)?DLocation(l)?DLocation(l)?DLocation(l)?DLocation(l)

?DLocation(l)

?DLocation(l)?DLocation(l)?DLocation(l)?DLocation(l)

?DLocation(l)

?ELocation(l)

?ELocation(l)?ELocation(l)?ELocation(l)?ELocation(l)?ELocation(l)

?ELocation(l)

?ELocation(l)?ELocation(l)?ELocation(l)?ELocation(l)

?ELocation(l)

s:= any in (0..Max)

s:= any in (0..Max) s:= any in (0..Max) s:= any in (0..Max) s:= any in (0..Max) s:= any in (0..Max)

s:= any in (0..Max)

s:= any in (0..Max) s:= any in (0..Max) s:= any in (0..Max) s:= any in (0..Max)

s:= any in (0..Max)

!ESpeed(s)

!ESpeed(s)!ESpeed(s)!ESpeed(s)!ESpeed(s)!ESpeed(s)

!ESpeed(s)

!ESpeed(s)!ESpeed(s)!ESpeed(s)!ESpeed(s)

!ESpeed(s)

rs:= any in (0..Max’)

rs:= any in (0..Max’) rs:= any in (0..Max’) rs:= any in (0..Max’) rs:= any in (0..Max’) rs:= any in (0..Max’)

rs:= any in (0..Max’)

rs:= any in (0..Max’) rs:= any in (0..Max’) rs:= any in (0..Max’) rs:= any in (0..Max’)

rs:= any in (0..Max’)

!call_compute(rs)

!call_compute(rs) !call_compute(rs) !call_compute(rs) !call_compute(rs) !call_compute(rs)

!call_compute(rs)

!call_compute(rs) !call_compute(rs) !call_compute(rs) !call_compute(rs)

!call_compute(rs)

Figure 2: pNet model for the ETCS system.

OBU

OBUOBUOBUOBUOBU

OBU

OBUOBUOBUOBU

OBU

id:nat

id:natid:natid:natid:natid:nat

id:nat

id:natid:natid:natid:nat

id:nat

?Elocation(l)

?Elocation(l)?Elocation(l)?Elocation(l)?Elocation(l)?Elocation(l)

?Elocation(l)

?Elocation(l)?Elocation(l)?Elocation(l)?Elocation(l)

?Elocation(l)

!MARequest(id,l)

!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)

!MARequest(id,l)

!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)

!MARequest(id,l)

?MA(id,rs)

?MA(id,rs)?MA(id,rs)?MA(id,rs)?MA(id,rs)?MA(id,rs)

?MA(id,rs)

?MA(id,rs)?MA(id,rs)?MA(id,rs)?MA(id,rs)

?MA(id,rs)

?ESpeed(s)

?ESpeed(s)?ESpeed(s)?ESpeed(s)?ESpeed(s)?ESpeed(s)

?ESpeed(s)

?ESpeed(s)?ESpeed(s)?ESpeed(s)?ESpeed(s)

?ESpeed(s)

[s>rs] !EBcmd(1)

[s>rs] !EBcmd(1)[s>rs] !EBcmd(1)[s>rs] !EBcmd(1)[s>rs] !EBcmd(1)[s>rs] !EBcmd(1)

[s>rs] !EBcmd(1)

[s>rs] !EBcmd(1)[s>rs] !EBcmd(1)[s>rs] !EBcmd(1)[s>rs] !EBcmd(1)

[s>rs] !EBcmd(1)

!DMIcmd(rs)

!DMIcmd(rs)!DMIcmd(rs)!DMIcmd(rs)!DMIcmd(rs)!DMIcmd(rs)

!DMIcmd(rs)

!DMIcmd(rs)!DMIcmd(rs)!DMIcmd(rs)!DMIcmd(rs)

!DMIcmd(rs)

[s<=rs] !DMIcmd(rs)

[s<=rs] !DMIcmd(rs)[s<=rs] !DMIcmd(rs)[s<=rs] !DMIcmd(rs)[s<=rs] !DMIcmd(rs)[s<=rs] !DMIcmd(rs)

[s<=rs] !DMIcmd(rs)

[s<=rs] !DMIcmd(rs)[s<=rs] !DMIcmd(rs)[s<=rs] !DMIcmd(rs)[s<=rs] !DMIcmd(rs)

[s<=rs] !DMIcmd(rs)

[s>0] ?ESpeed(s)

[s>0] ?ESpeed(s)[s>0] ?ESpeed(s)[s>0] ?ESpeed(s)[s>0] ?ESpeed(s)[s>0] ?ESpeed(s)

[s>0] ?ESpeed(s)

[s>0] ?ESpeed(s)[s>0] ?ESpeed(s)[s>0] ?ESpeed(s)[s>0] ?ESpeed(s)

[s>0] ?ESpeed(s)

[s=0] !EBcmd(0)

[s=0] !EBcmd(0)[s=0] !EBcmd(0)[s=0] !EBcmd(0)[s=0] !EBcmd(0)[s=0] !EBcmd(0)

[s=0] !EBcmd(0)

[s=0] !EBcmd(0)[s=0] !EBcmd(0)[s=0] !EBcmd(0)[s=0] !EBcmd(0)

[s=0] !EBcmd(0)

?ESpeed(s)

?ESpeed(s)?ESpeed(s)?ESpeed(s)?ESpeed(s)?ESpeed(s)

?ESpeed(s)

?ESpeed(s)?ESpeed(s)?ESpeed(s)?ESpeed(s)

?ESpeed(s)

?Elocation(l)

?Elocation(l)?Elocation(l)?Elocation(l)?Elocation(l)?Elocation(l)

?Elocation(l)

?Elocation(l)?Elocation(l)?Elocation(l)?Elocation(l)

?Elocation(l)

!MARequest(id,l)

!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)

!MARequest(id,l)

!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)!MARequest(id,l)

!MARequest(id,l)

?MA(id,rs)

?MA(id,rs)?MA(id,rs)?MA(id,rs)?MA(id,rs)?MA(id,rs)

?MA(id,rs)

?MA(id,rs)?MA(id,rs)?MA(id,rs)?MA(id,rs)

?MA(id,rs)

(a) LTS of OBU

RBC

RBCRBCRBCRBCRBC

RBC

RBCRBCRBCRBC

RBC

?Dlocation(l)

?Dlocation(l)?Dlocation(l)?Dlocation(l)?Dlocation(l)?Dlocation(l)

?Dlocation(l)

?Dlocation(l)?Dlocation(l)?Dlocation(l)?Dlocation(l)

?Dlocation(l)

?MARequest(id,l)

?MARequest(id,l)?MARequest(id,l)?MARequest(id,l)?MARequest(id,l)?MARequest(id,l)

?MARequest(id,l)

?MARequest(id,l)?MARequest(id,l)?MARequest(id,l)?MARequest(id,l)

?MARequest(id,l)

?call_compute(s)

?call_compute(s)?call_compute(s)?call_compute(s)?call_compute(s)?call_compute(s)

?call_compute(s)

?call_compute(s)?call_compute(s)?call_compute(s)?call_compute(s)

?call_compute(s)

sr:=s

sr:=ssr:=ssr:=ssr:=ssr:=s

sr:=s

sr:=ssr:=ssr:=ssr:=s

sr:=s

?Dlocation(l)

?Dlocation(l)?Dlocation(l)?Dlocation(l)?Dlocation(l)?Dlocation(l)

?Dlocation(l)

?Dlocation(l)?Dlocation(l)?Dlocation(l)?Dlocation(l)

?Dlocation(l)

!MA(id,sr)

!MA(id,sr)!MA(id,sr)!MA(id,sr)!MA(id,sr)!MA(id,sr)

!MA(id,sr)

!MA(id,sr)!MA(id,sr)!MA(id,sr)!MA(id,sr)

!MA(id,sr)

s0’

s0’s0’s0’s0’s0’

s0’

s0’s0’s0’s0’

s0’

s1’

s1’s1’s1’s1’s1’

s1’

s1’s1’s1’s1’

s1’

s2’

s2’s2’s2’s2’s2’

s2’

s2’s2’s2’s2’

s2’

s3’

s3’s3’s3’s3’s3’

s3’

s3’s3’s3’s3’

s3’

(b) LTS of RBC

Figure 3: Model for ETCS System.

[true∗] <true> @

Not surprisingly, this property does not hold for all

scenarios. By using ocis simulator (as depicted in Fig-

ure 4), we visualize this is because the RBC processor

can stay in its state after receiving a ?DLocation(l).

Indeed, since we abstracted away the clock, the RBC

process can be engaged in a circular receiving loop

of danger locations that are sent from the environ-

ment. However, under the hypothesis that this action

is performed over a time period, such a cycle is exe-

cuted at most a ﬁnite number of times. Thus, cycles

of this form should not be considered a problem, and

the model is reﬁned, for instance by allowing only a

ﬁnite number of actions.

Next, we proved a formula that checks the reach-

ability of the emergency brake command:

[true∗.”EBCMD1”] true

This property is evaluated to TRUE meaning that

the break command is reachable over all computa-

tions paths.

Afterwards, we proved properties that we gener-

ated from test objectives. For instance, consider the

following test objective checking global correction of

Verifying Complex Software Control Systems from Test Objectives: Application to the ETCS System

403

Figure 4: Graphical user-interface of CADP.

the ETCS system:

TO=

process: instance=

{

RBC

}

∧

state:source=s

∧

input action:MAREQUEST(id)

∧

output action:MA(id,sr)

∧

state:destination=s

It formalises the scenario in which the train is in

the initial state (encoded s

) issues a MAREQUEST, thus

the RBC has to send MA and to pass to the idle state

(encoded s

Based on the property pattern, our framework de-

rives from the test objective the following MCL for-

mula:

[true∗.({MAREQUEST ?id:nat})] inev({MA !id ?any})

Note how the identiﬁer id of the OBU is extracted

from a transition label by the ﬁrst action predicate

{MAREQUEST ?id:nat} (by wildcard symbol ?) and is

used subsequently in the property. This property is

evaluated to TRUE meaning that for each possible re-

quest of a train (id being the identiﬁer of an OBU),

the return of the corresponding movement authority

permission is reachable with some returned value of

speed (denoted any).

From the test objective given in the Example 1,

our framework generates also a MCL formula al-

though in a less systematic way:

[true∗.{MA ?any ?v

:nat}.(not{ESPEED ?any})∗.

{ESPEED ?v

:nat where v

}] inev(”EBCMD 1”)

This formula expresses a general property for veri-

fying that OBU issues a brake command at each state

whenever speed is greater than releaseSpeed. Actu-

ally, the test objective does not specify the input ac-

tion but the value of the variables s and rs (s = 120

and rs = 80), and the output action: EBCMD 1. It is

speciﬁed that the speed of the train is greater than the

release speed. By analysis of the models of the train,

we look for the actions that set the value of these vari-

ables, we use them to express the assignment instead

of the variables assignment. As it can be noted, the

variable s is set by the action ESPEED sets and the

variable rs is set by the action MA. Thereby, for these

actions that are used in the formula, it is explicitly ex-

pressed that the argument of the ﬁrst is greater than

the argument of the second. Note that the values 80

and 120 of the variables are not set in the formula to

express this safety property in a general form. It is

evaluated to TRUE: once an RBC delivers a release

speed, upon the ﬁrst speed exceeding this limit the

train always issues the brake command.

ICSOFT 2019 - 14th International Conference on Software Technologies

404

6 CONCLUSION AND

PERSPECTIVES

This article provides a framework for the generation

of logical properties from test objectives with the aim

of verifying properties on complex distributed sys-

tems. A test objective provides a convenient descrip-

tion for generating test cases to be executed to achieve

a particular software testing requirement. This pa-

per describes the translation of such test objectives to

MCL properties. MCL properties enable the exhaus-

tive veriﬁcation of applications; the correctness of ap-

plications can be proved by using the model checking

technique.

Concerning future work, ﬁrst we plan to reﬁne the

behavioural model by taking time into consideration.

Preliminary modiﬁcations allow to encode implicitly

the notion of time and go beyond the issues raised by

its abstraction. However, from the test objective point

of view, it would be interesting to study what could be

the property pattern corresponding to the test objec-

tive involving the clock. Moreover, we will consider

the eventual changes of the model parameters due to

the clock phases over the time.

Finally, our framework could be extended to take

into account other aspects in order to offer the ability

to analyse non-functional properties.

REFERENCES

Ameur-Boulifa, R., Henrio, L., Kulankhina, O., Madelaine,

E., and Savu, A. (2017). Behavioural semantics for

asynchronous components. J. Log. Algebr. Meth. Pro-

gram., 89:1–40.

Asadollah, S. A., Inam, R., and Hansson, H. (2015). A sur-

vey on testing for cyber physical system. In IFIP In-

ternational Conference on Testing Software and Sys-

tems, pages 194–207. Springer.

Belghiat, A. and Chaoui, A. (2015). A Pi-calculus-based

approach for the veriﬁcation of UML2 sequence dia-

grams. In 2015 10th International Joint Conference

on Software Technologies (ICSOFT), volume 2, pages

1–8. IEEE.

erard, B., Bidoit, M., Finkel, A., Laroussinie, F., Petit, A.,

Petrucci, L., and Schnoebelen, P. (2013). Systems and

software veriﬁcation: model-checking techniques and

tools. Springer Science & Business Media.

Berthomieu, B., Bodeveix, J., Filali, M., Garavel, H., Lang,

F., Peres, F., Saad, R., Stoecker, J., and Vernadat, F.

(2012). The syntax and semantics of FIACRE. In

Deliverable number F.3.2.11 of project TOPCASED.

Bozga, M., Graf, S., and Mounier, L. (2002). If-2.0: A val-

idation environment for component-based real-time

systems. In International Conference on Computer

Aided Veriﬁcation, pages 343–348. Springer.

Bozga, M., Graf, S., Ober, I., Ober, I., and Sifakis, J. (2004).

The IF Toolset, pages 237–267. Springer Berlin Hei-

delberg.

ERTMS Commission Group - European Commission

(2017). Delivering an effective and interoperable eu-

ropean rail trafﬁc management system (ERTMS) – the

way ahead. Technical report, SWD(2017) 375.

Ferrante, O., Scholte, E., Rollini, S., North, R., Manica,

L., and Senni, V. (2018). A methodology for formal

requirements validation and automatic test generation

and application to aerospace systems. Technical re-

port, SAE Technical Paper.

Fraser, G., Wotawa, F., and Ammann, P. E. (2009). Test-

ing with model checkers: a survey. Software Testing,

Veriﬁcation and Reliability, 19(3):215–261.

Garavel, H., Lang, F., Mateescu, R., and Serve, W. (2011).

CADP 2010: A toolbox for the construction and anal-

ysis of distributed processes. In TACAS’11, volume

6605 of LNCS, Saarbr

ucken, Germany. Springer, Hei-

delberg.

Garousi, V., Felderer, M., Karapıc¸ak, C¸ . M., and Yılmaz, U.

(2018). Testing embedded software: A survey of the

literature. Information and Software Technology.

Ghazel, M. (2014). Formalizing a subset of ertms/etcs spec-

iﬁcations for veriﬁcation purposes. Transportation re-

search part C: emerging technologies, 42:60–75.

Godefroid, P. (2016). Between testing and veriﬁcation: Dy-

namic software model checking.

Hennessy, M. and Lin, H. (1995). Symbolic bisimulations.

Theor. Comput. Sci., 138(2):353–389.

Henrio, L., Madelaine, E., and Min, Z. (2015). pNets: An

expressive model for parameterised networks of pro-

cesses. In 2015 23rd Euromicro International Con-

ference on Parallel, Distributed, and Network-Based

Processing, pages 492–496. IEEE.

Jesus Valdivia, L., Solas, G., A

norga, J., Arrizabalaga, S.,

Adin, I., and Mendizabal, J. (2017). Etcs on-board

unit safety testing: Saboteurs, testing strategy and

results. Promet-Trafﬁc&Transportation, 29(2):213–

223.

Kahani, N., Bagherzadeh, M., Cordy, J. R., Dingel, J., and

Varr

o, D. (2018). Survey and classiﬁcation of model

transformation tools. Software & Systems Modeling,

pages 1–37.

Kapinski, J., Deshmukh, J. V., Jin, X., Ito, H., and Butts,

K. (2016). Simulation-based approaches for veriﬁca-

tion of embedded control systems: An overview of

traditional and advanced modeling, testing, and veri-

ﬁcation techniques. IEEE Control Systems Magazine,

36(6):45–64.

Karna, A. K., Chen, Y., Yu, H., Zhong, H., and Zhao, J.

(2018). The role of model checking in software engi-

neering. Frontiers of Computer Science, 12:642–668.

Mateescu, R. and Thivolle, D. (2008). A model check-

ing language for concurrent value-passing systems. In

FM 2008: Formal Methods, 15th International Sym-

posium on Formal Methods, Turku, Finland, May 26-

30, 2008, Proceedings, pages 148–164.

Mouttappa, P., Maag, S., and Cavalli, A. (2013). Using pas-

sive testing based on symbolic execution and slicing

Verifying Complex Software Control Systems from Test Objectives: Application to the ETCS System

405

techniques: Application to the validation of commu-

nication protocols. Computer Networks, 57(15):2992–

3008.

Mubeen, S., Nolte, T., Sj

odin, M., Lundb

ack, J., and

Lundb

ack, K.-L. (2017). Supporting timing analy-

sis of vehicular embedded systems through the reﬁne-

ment of timing constraints. Software & Systems Mod-

eling, pages 1–31.

Nguyen, H. N., Za

ıdi, F., and Cavalli, A. R. (2014). A

framework for distributed testing of timed composite

systems. In 21st Asia-Paciﬁc Software Engineering

Conference, APSEC 2014, Jeju, South Korea, Decem-

ber 1-4, 2014. Volume 1: Research Papers, pages 47–

54.

Petiot, G., Kosmatov, N., Giorgetti, A., and Julliand, J.

(2014). How test generation helps software speciﬁ-

cation and deductive veriﬁcation in frama-c. In Inter-

national Conference on Tests and Proofs, pages 204–

211. Springer.

Platzer, A. and Quesel, J.-D. (2009). European train control

system: A case study in formal veriﬁcation. In Inter-

national Conference on Formal Engineering Methods,

pages 246–265. Springer.

Salem, M. O. B., Mosbahi, O., Khalgui, M., and Frey, G.

(2015). R-UML: An UML proﬁle for veriﬁcation of

ﬂexible control systems. In ICSOFT, pages 118–136.

Springer.

ICSOFT 2019 - 14th International Conference on Software Technologies

406
