Fuzz Testing with Dynamic Taint Analysis based Tools for Faster Code

Coverage

Ciprian Paduraru

1,2,3

, Marius-Constantin Melemciuc

and Bogdan Ghimis

1,2

The Research Institute of the University of Bucharest (ICUB), Romania

Department of Computer Science, University of Bucharest, Romania

Electronic Arts Romania, Romania

Keywords:

Fuzzing, Tainted Analysis, Automatic, Generative Model, Test Data.

Abstract:

This paper presents a novel method for creating and using generative models for testing software applications.

At the core of our method, there is a tool performing binary tracing using dynamic taint analysis. Our open-

source tool can learn a connection between code variables that affect the program’s execution ﬂow and their

content in a set of initial training examples, producing a generative testing model which can be inferred later

to produce new tests. This work attempts to maximize the code coverage metrics by focusing only on those

parts of the input that affect the control ﬂow of a program. The method can be used to automatize the test data

generation on any binary x86 application. Evaluation section shows that it is producing better code coverage

on applications accepting binary input formats, especially when the feedback from the test system is needed

in a short time.

1 INTRODUCTION

Software security is a hot topic nowadays, especially

because of the wide interconnectivity between soft-

ware and hardware pieces. Before releasing software

on the market, and even during development, compa-

nies are investing important resources for testing the

quality of their software. We think that it is impor-

tant to automatize as much as possible the generation

of inputs and automatically test software pieces with-

out human effort. One of the main purposes of an

automatic test data generation system is to generate

test data that covers as many lines of code of a pro-

gram. A common technique is Fuzz testing (Gode-

froid, 2007), which looks for inputs causing errors

such as buffer overﬂows, memory access violations,

null pointer dereferences, etc, which in general have

a high rate of being exploitable. Using this technique,

testing data is generated using random inputs and the

program under test is executing them for the purpose

of detecting issues like the above mentioned ones.

One of the main limitations of fuzz testing is that it

takes a signiﬁcant effort to produce inputs that cov-

ers almost all branches of a program’s source code.

This comes from the fact that using randomness, it re-

sults in a high chance of producing inputs that are not

correct and rejected in the early outs of a program’s

execution.

Alternative methods that augment the classic ran-

dom fuzz testing with different methods were created.

Such ideas involved the use of genetic algorithms for

better guiding the test data generation towards uncov-

ered areas (Paduraru et al., 2017), or by using re-

current neural networks and predicting the probabil-

ity distribution of the next character knowing a previ-

ously generated context (Godefroid et al., 2017), (Ra-

jpal et al., 2017).

This paper discusses an open-source tool (from

the authors’ knowledge, the ﬁrst one at the

moment of writing this paper; publicly avail-

able here: https://github.com/AGAPIA/river-trace-

analysis-and-fuzz) that given an x86 binary ﬁle un-

der test, is able to learn a generative model for new

tests, starting from a set of training examples (i.e.,

a starting set of input tests), which concentrates the

fuzz process exactly on the parts used by branches in-

side the program. A tracer tool that uses tainted anal-

ysis (Stoenescu et al., 2016) is at the foundation of

this work. The main idea of our method is that only

speciﬁc parts of an input stream given to a program

are used to evaluate the branch conditions, and our

attempt is to concentrate more on learning the con-

tent of those parts in valid tests. Obtaining a model

that describes where those parts are and their content

Paduraru, C., Melemciuc, M. and Ghimis, B.

Fuzz Testing with Dynamic Taint Analysis based Tools for Faster Code Coverage.

DOI: 10.5220/0007921300820093

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 82-93

ISBN: 978-989-758-379-7

format (as a general regular expression, or recursive

neural networks in our current implementation), it is

an important way to ensure that fuzzed inputs are not

rejected from early out branches of a program and can

potentially generate better code coverage.

The rest of the paper is structured as follows. Sec-

tion 2 discusses related work in the ﬁeld. The backend

tools used for tracing and performing tainted analysis

are described in Section 3. Section 4 describes our

method in details, while Section 5 compares it against

other new methods with the same purpose. Finally,

the last section presents the conclusions and future

work.

2 RELATED WORK

In the ﬁeld of fuzzing techniques, there are three main

categories currently: blackbox random fuzzing (Sut-

ton et al., 2007), whitebox random fuzzing (Gode-

froid et al., 2012), and grammar based fuzzing (Pur-

dom, 1972), (Sutton et al., 2007). The ﬁrst two

are automatic methods proving efﬁciency in ﬁnding

vulnerabilities in binary-format ﬁle parsers. These

methods are also augmented with others for better re-

sults. For example, in (Paduraru et al., 2017) authors

present a distributed framework using genetic algo-

rithms that generate new tests by looking at the prob-

ability of each branch encountered during the execu-

tion. Their ﬁtness function scores a newly generated

input test by the probability of the branches encoun-

tered in the program’s execution trace. This way, the

genetic algorithm tries to create input data that drives

the program’s execution towards rare (low probabil-

ity) branches inside the program’s control ﬂow. They

use Apache Spark for parallelization and dynamic

tainting to know the paths taken during the execution.

Their method obtains better scores than classical ran-

dom fuzzers and it is one of the solutions that we com-

pare against, using the same two examples: an HTTP

parser and an XML parser.

On the other side, the grammar based fuzzing is

not fully automatic: it requires a grammar specifying

the input format of the application under test. Typi-

cally, this grammar is written by hand and the process

becomes time consuming and error prone. It can be

viewed as a model-based testing (Utting et al., 2012),

and the work on it started with (Hanford, 1970), (Pur-

dom, 1972). Having the input grammar, test gen-

eration from it can be done either (usually) random

(Sirer and Bershad, 1999), (Coppit and Lian, 2005)

or exhaustive (L

ammel and Schulte, 2006). Methods

that combine whitebox fuzzing with grammar-based

fuzzing were discussed in (Majumdar and Xu, 2007),

(Godefroid et al., 2008a). Recent work concentrates

also on learning grammars automatically. For in-

stance, (Bastani et al., 2017) presents an algorithm

to synthesize a context-free grammar from a given

set of inputs. The method uses repetition and alter-

nation constructs for regular expressions, then merg-

ing non-terminals for the grammar construction. This

can capture hierarchical properties from the input for-

mats but, as mentioned in (Godefroid et al., 2017) the

method is not well suited for formats such as PDF ob-

jects for instance, which include a large diverse set of

content types and key-value pair.

Autogram, mentioned in (H

oschele and Zeller,

2016) learns context-free grammars given a set of in-

puts by using dynamic tainting, i.e. dynamically ob-

serving how inputs are processed inside a program.

Syntactic entities in the generated grammar are con-

structed hierarchically by observing what parts of the

given input is processed by the program. Each such

input part becomes an entity in the grammar. The

same idea of processing input formats from exam-

ples and producing grammars, but this time associat-

ing data structures with addresses in the application’s

address space is presented in (Cui et al., 2008). There

are two main differences between Autogram and our

method:

• Our method concentrates only on the part of the

inputs that affect the branching conditions, while

Autogram is considering all source code variables

that have a connection to the input stream. For this

reason, we expect that our solution is more suit-

able for larger input binary ﬁles than Autogram in

practice.

• Autogram is suitable only for Java applications

since it uses JVM to parse the callstack and corre-

late variables in the code to inputs used. In com-

parison, our method can be used to test any kind

of applications which can be translated to assem-

bly code.

Both approaches described above for learning

grammars automatically require access to the pro-

gram for adding instrumentation. Thus, their appli-

cability and precision for complex formats under pro-

prietary applications is unclear. Another disadvantage

of these is that if the program’s code changes, the in-

put grammar must be learned again. The method pre-

sented in (Godefroid et al., 2017) uses neural-network

models to learn statistical generative models for such

formats. Starting from a base suite of input PDF ﬁles

(not binaries) they concatenate all and use recurrent

neural networks (RNN, and more speciﬁcally a se-

quence - to - sequence network) to learn a generative

model for other PDF ﬁles. Their work is focused on

generative models for non-binary objects.

Fuzz Testing with Dynamic Taint Analysis based Tools for Faster Code Coverage

Dynamic tainting has numerous applications such

as ﬁnding and analyzing security threats (Newsome,

2005), (Arzt et al., 2014), software test generation us-

ing in combination with concolic execution (Bekrar

et al., 2011), or in combination with fuzz testing

and genetic algorithms (Avancini and Ceccato, 2010),

(Mathis, 2017). The last two papers fall in the same

target as ours, but their approach is to mark the parts

of the input tainted by a program execution ﬁrst, then

applies genetic algorithms over those parts. Instead,

our method is marking the parts of the input which

are both tainted and used inside a branch evaluation

in the program. The intuition is that ours should help

in improving the code coverage since branch condi-

tions can drive the number of paths explored during

execution, which directly impacts the code coverage

metric. As an example, think of an image processing

application that iterates over some areas of an input

image sent by the user, but doesn’t actually modify

the control ﬂow of the program based on those iter-

ations. In this case, fuzzing over the entire tainted

data might be useless in getting more code cover-

age. Instead, concentrating the fuzz process only

over areas used for branching can get better result

in shorter time.

One of the most appreciated tools for practi-

cal fuzzing today, AFL (american fuzzy lop) (AFL,

2018), is based on genetic algorithms and various

heuristics to ﬁnd faster vulnerabilities and achieve

good code coverage. We compared it against our so-

lution to ﬁnd out that is the difference between them.

On short, AFL tends to be better on text-based inputs,

while ours can get better results on binary like kind of

inputs. An improved fuzzing tool, with reported re-

sults above AFL is Angora (Chen and Chen, 2018). It

uses runtime taint analysis and keeps stack context on

branch transitions to achieve improved code coverage

and bugs ﬁnding. However, it is dependent on LLVM

and needs access to the source code. Instead, our tool

works at binary level (i.e. doesn’t need access to the

source code), and this is the reason we don’t compare

our methods against Angora.

3 BACKEND DESCRIPTION

This section is an overview of the technical tools that

we use as backend for implementing the core ideas of

this paper.

3.1 RIVER Tool

The tool we use to perform dynamic taint

analysis and meaningful tracing from a pro-

gram execution is named RIVER (Stoenescu

et al., 2016), and it is available open source at

https://github.com/bitdefender/river.

RIVER works at the binary level and doesn’t need

any other source code information from the user. At

test time, different modules can be registered and pro-

duce inputs to test the user’s application against them.

The runtime reads instructions starting from the user’s

application entry point and performs dynamic instru-

mentations of the x86 instructions, such that they can

be interpreted and executed similarly to something

running inside a virtual machine (more technical de-

tails are described in (Stoenescu et al., 2016)). A ba-

sic block in our terminology represents a contiguous

set of instructions that ends with a branch decision.

Considering assembly code, basic blocks can be rep-

resented by the code inside an if statement, a loop

one, or the entire code of a function if it doesn’t have

any branching decision.

3.2 Taint Analysis Description

The method of dynamic taint analysis works by mark-

ing all data originating from untrusted sources (e.g.

user input, ﬁles opened, network trafﬁc, etc). Then,

at runtime, instructions having operands marked as

tainted can propagate tainting to destination operands.

RIVER’s backend uses dynamic taint analysis at bit

level (similar to the work described in (Yadegari

and Debray, 2014)), tracking at runtime any source

of tainted data by interpreting each instruction from

the user’s provided executable at the assembly level

and continuously updating its internal data structures.

When a branch instruction is executed, we add infor-

mation about this operation such as the memory re-

gion used or the type of branch evaluation, the poten-

tial forward address, etc.

3.3 Tainted Tracer Tool

The component inside RIVER that is built over the

taint analysis system to get detailed information from

a program execution is called tainted tracer tool. The

output of this tool is a combination of operations in-

volving taint analysis operations, and addresses of ba-

sic blocks encountered in the program’s execution.

For each such block, we capture different informa-

tion. The most important for our current paper are

the module and address where the block resides, the

jump instruction information (return, jump, condi-

tional jump, call or syscall), and the option available

for continuing the execution depending on the jump

condition evaluation. Other details include the cost

for executing a block and the number of instructions

ICSOFT 2019 - 14th International Conference on Software Technologies

used in the block.

Omitting the taint analysis operations, Figure 1

shows a snippet from an output log ﬁle explaining the

data provided by the tracer for each basic block oc-

curred during execution of a program.

The full output log also adds data ﬂow analysis

on top of the basic blocks tracing. The analysis is

done by marking the initial input given to a program

as tainted and propagating tainting information dur-

ing a program execution depending on data ﬂow and

usage. Each taint propagation produces a new vari-

able in the SSA format (Single Static Assignment).

Variables are marked as I[index], where index is in in-

creasing order during program execution (i.e. inside a

loop execution, even if an instruction is computed for

the same variable name, in SSA format there will be

many different increasing variables associated with it

in the ﬁnal output log).

The four operations that show taint propagation in

the output log are deﬁned below.

• Extract: Cutting a part from the tainted data to a

new variable, by specifying the offset where to

cut from and size in bits. A concrete example for

this operation in a programming language would

be getting a slice of an array or the last two bytes

of an integer represented on four bytes.

I[k] <= I[index][o f f set : size]

• Concatenation: Concatenate two tainted variables

to another. Consider operations where the code

puts together a new variable from two existing

ones.

I[k] <= I[p] | I[q]

• Generic execution: Represents a set of instruc-

tions on one or two variables that propagates

tainting to the resultant. Consider math opera-

tions in programming languages as an example

for this, both unary and binary transformations.

I[k] <= I[p] + + I[q]

• Constants: Every constant used in the code is

considered tainted since it modiﬁes the data ﬂow

execution.

I[427] <= const0x0000000A(32)

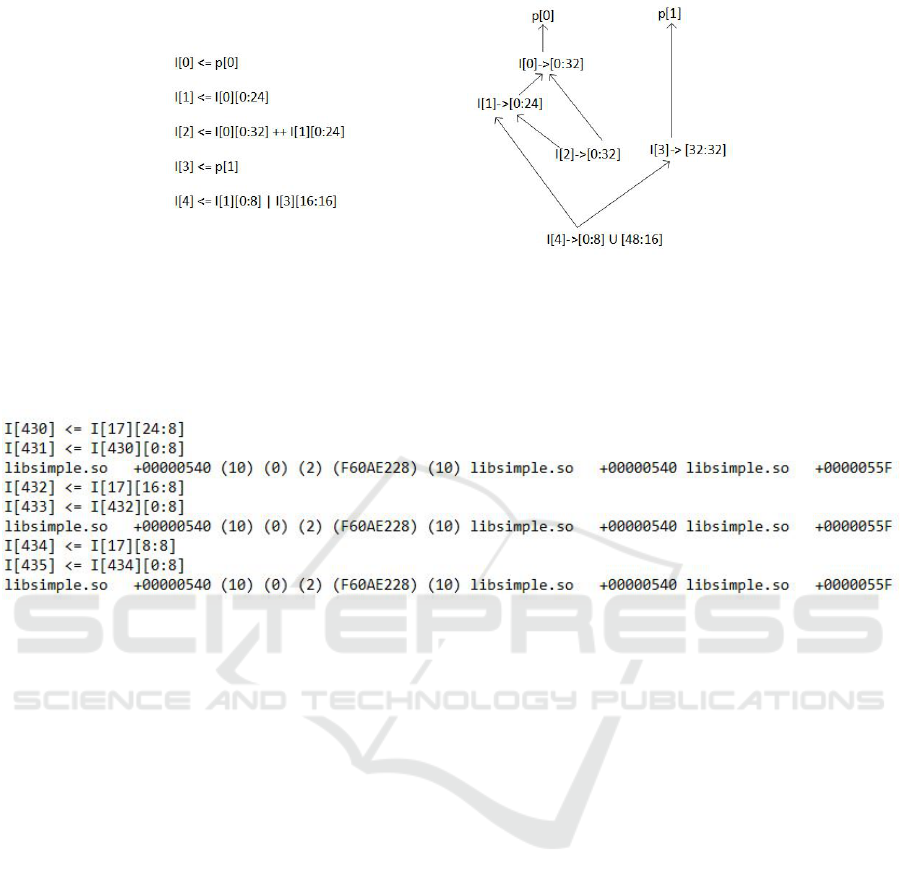

A snippet of a full output log can be observed in

Figure 2. Other than the explanation given below the

ﬁgure, a key observation here is that when in as-

sembly code there is a jump instruction evaluated

by a condition related to parts of the input stream,

that condition evaluation depends in the end on a

single tainted variable if SSA format is used.. The

variable in the cause is the last one appearing before

the block description entry in the log ﬁle. In Figure

2, variable I[431] is evaluated for checking the branch

condition. This is a key aspect because it shows how

we connect the branch decisions in a program by the

input stream, i.e. through SSA variables outputted by

the tainted tracer tool.

4 CREATING AND USING THE

MODEL TO GENERATE NEW

TEST DATA

This section presents the solution we use for obtain-

ing a generative model by learning the patterns from

the tainted tracer output logs using an existing set of

training inputs. The purpose is to learn the general

format of the inputs given to a program, and the input

data patterns especially around the parts that are used

in the source code for branching decisions. By con-

centrating fuzzing only on those parts we expect to hit

two targets:

• Use more efﬁciently the computational resources

for fuzz process and thus obtain faster a good cov-

erage than other fuzzing methods.

• Obtain a good pass rate (i.e., number of inputs not

rejected in the early branches of a program’s exe-

cution) for inputs generated using our generative

model since it learns the valid format of the parts

used for branching.

With enough input training examples, we also ex-

pect that our model to generalize well and create

enough diversity.

4.1 Overview

Considering that we have a software application and a

database of recorded user inputs to it, our target is to

ﬁnd a generative model that can explain the existing

sets of inputs and produce similar new inputs.

As a concrete example, consider a program doing

image processing and where its control ﬂow de-

pends mostly on a small part of the input, the im-

age’s header. The format of most of the inputs will

be [header | image content in bytes], where

header can be binary data such as 4x2 bytes de-

scribing the resolution of the image, 1 byte spec-

ifying the number of channels, and a string of

Fuzz Testing with Dynamic Taint Analysis based Tools for Faster Code Coverage

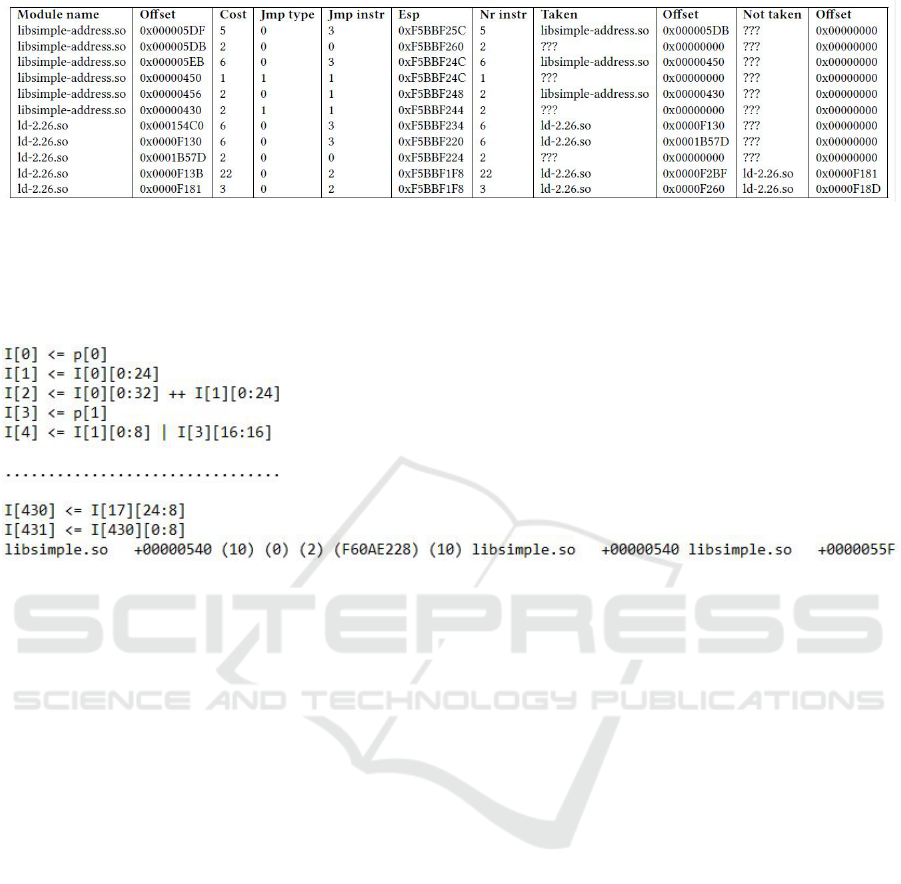

Figure 1: The ﬁgure shows a part of the output returned by the tracer using raw tracing option (omitting the taint analysis

output for easier presentation).The ﬁrst two columns tell the module name and offset where the block resides. Jump type

shows where the condition for branch evaluation resides and can be a value in the set:0 - immediate jump, 1 - memory, 2 -

register. Jump instruction column shows the kind of jump instruction that ends the block, and can be a value in the set: 0 -call,

1 -return, 2 - syscall, 3 - jmp, 4 - jcc. The last four columns specify the pairs of modules and offsets of the following basic

block if the branch is taken or not.

Figure 2: Figure showing a snippet of output log using tainted tracer tool. The ﬁrst part of the image shows some taint

propagation instructions. Note that the initial input stream is marked with p in the log, and the default memory addressing

is on 4 bytes, i.e. p[0] extracts the ﬁrst four bytes from the initial input stream sent by the user. The other extraction and

concatenation operators used in the picture are explained in Section 3.3. In the second part of the picture, there is a related

taint propagation and block execution. The tainted instructions used inside a block appear before the entry of that block in the

output log. For example, variables I[430] and I[431] are generated by tainting inside the block. In this case, if the branch is

taken, the next block will be inside the same module at address 0x00000540, while if not taken, the new offset is 0x0000055F.

4 bytes for specifying the order of the chan-

nels. (e.g. of headers ”1024—768—4—ARGB”,

”1920—1080—3—BGR”). Giving such a set of im-

ages to our model training methods, it will learn a

model where the input that does most of the control

ﬂow of the program resides in the ﬁrst part of the in-

put, and where the ﬁrst two numbers have a memory

footprint of 4 bytes, with values within some range,

the third is a single byte number which is either 1,3

or 4, then a string of 4 bytes representing a string

that satisﬁes a regular grammar. Then, this model

can be used to produce new inputs by fuzzing only

on those areas. It is up to the user to decide how

to fuzz those areas of interest. Our current out-of-

the-box implemented methods offer customized regu-

lar grammars and recursive neural networks to under-

stand certain categories of inputs such as numbers /

strings / date, but the user is free to inject other meth-

ods such as genetic algorithms to learn and fuzz over

the targeted content (Godefroid et al., 2017), (Padu-

raru et al., 2017).

It is important to note that the rest of the content

which is not used for any branching evaluation is not

of interest for our method since it doesn’t affect the

control ﬂow of the program, thus, neither affects the

code coverage if we modify it. Going back to the ex-

ample above, think that pixels in the image are not

used for any kind of branch evaluation. Randomizing

that image’s pixels doesn’t modify the program’s con-

trol ﬂow at all. This is the reason why in our method,

we concentrate the fuzzing process only over areas

detected as being used in branch evaluation, while the

rest is randomized just to keep a similar structure to

the original input.

The foundation of our system is based on the

tainted tracer tool described in Section 3. The gen-

erative model is obtained by executing the program

against each input in the training set and understand-

ing the patterns in the resulted logs for various parts

of the input stream used in branch decisions. The

only type of applications that are not currently sup-

ported in our method are the ones that can imply

asynchronous / non-deterministic read of the input

streams. These streams cannot be currently learned

as a generative model since pattern matching poses

some serious challenges, but this is added in our fu-

ICSOFT 2019 - 14th International Conference on Software Technologies

ture work investigations.

Figure 3 shows in more details the ﬂow of obtain-

ing a generative model by tracing and learning the pat-

terns inside tainted logs, from various input streams

recorded. The input streams can have different for-

mats and lengths, there is no restriction on their con-

tent.

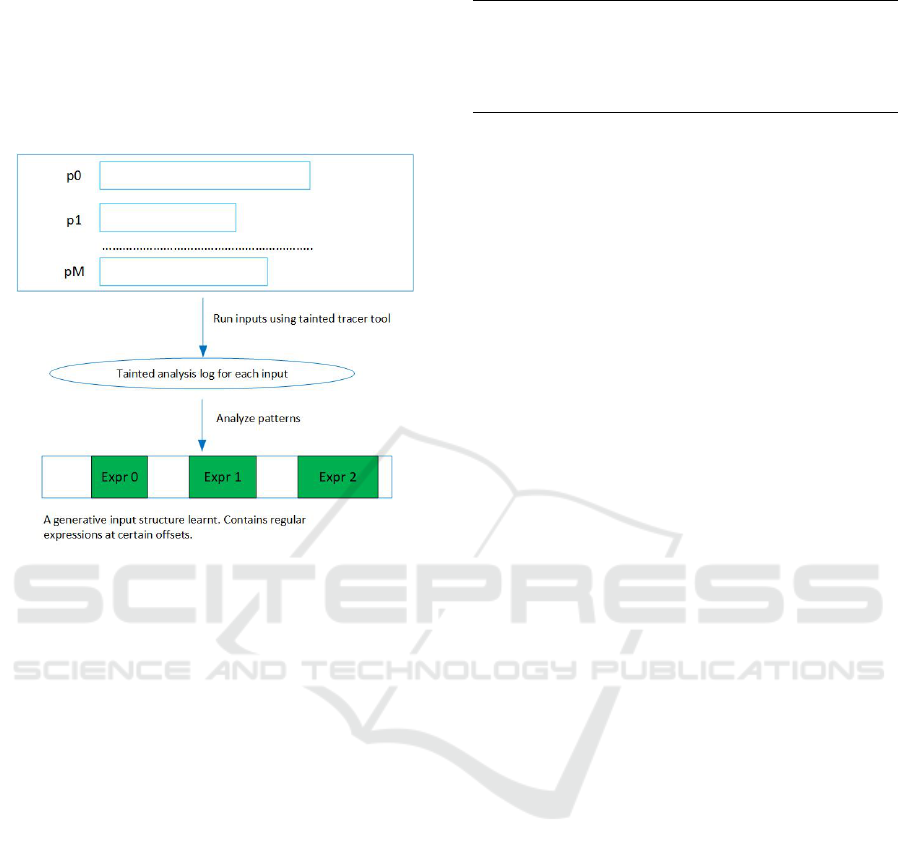

Figure 3: Overall ﬂow for obtaining a generative model,

from a set of inputs. It starts with a recorded set of inputs

for the evaluated program. The tainted tracer tool is exe-

cuting the program against each input in the set, obtaining

an output log. Then, this log is parsed and patterns over

different input sequences are analyzed to create the ﬁnal

model. The green areas are corresponding to parts of an

input structure which are used for branch decisions. Thus,

by concentrating the fuzz methods over those areas, it is the

same result as doing fuzzing everywhere in the input, but

with less computational resources used.

4.2 Steps to Create the Generative

Model

There are four steps involved in creating the model,

deﬁned below.

Step 1 - Create a DAG Associated with the Output

Logs

The ﬁrst step when analyzing a tainted output log

is to create the DAG (Directed Acyclic Graph) of

the tainted variables. For each variable, we store

the interval of bits used from the initial input stream

(more speciﬁcally, a union of intervals). For example,

Figure 4 sketches a set of tainted instructions along

with the DAG obtained from it. The initial input

stream given to the evaluated program is marked with

the variable named p. The graph contains as nodes

Listing 1: Simple loop using parts of input stream: array a.

f o r ( i n t i = 0 ; i < N ; i ++)

{

x = a [ i ] ;

y = a [ i + 1 ] ;

}

all the tainted variables, while the edges mark the

data dependencies between them.

Step 2 - Cluster the Nodes Corresponding to the

Same Variable in the Program’s Source Code

A disadvantage when using the SSA format for in-

structions is that when looping over variables con-

suming directly or indirectly input data in the user’s

program assembly, a new SSA variable is created for

each original variable at each loop iteration. As an

example, for the source code associated with the one

in Listing 1, there will be N SSA variables created

for both x and y in the output log (I[index], where in-

dex varies between 0 and 2 ∗ N − 1, variable x being

represented by even indices, while variable y by odd

indices. Each of these tainted variables consume a

single entry of the input stream.). This is a disadvan-

tage because our model has to understand that all the

odd indices for example actually belong to the same

cluster, i.e. pointing to the same purpose variable in

the source code. Same is valid for the even indices. In

the end, the purpose of the second step is to replace all

the intermediary tainted variables nodes in the exam-

ple, with just two tainted variable nodes which store

the union of all input stream intervals used in the clus-

ter they represent (x uses even entries, while y uses

odd entries of the input stream a).

Fortunately, this can be easily obtained by parsing

the output log and simulating a stack using the mod-

ules and offsets information for the lines describing a

block entry. Following them, we can understand if a

jump was made and where. When a group of tainted

variables I[index] appears at the same stack context

(module, offset), it means that they are in the same

cluster. At parsing time, we hold a hashing scheme

(indexed by the pair module and offset) for ﬁnding if

a variable is in the same cluster with another, and if it

is, then its interval of used input stream is appended

to the existing variable, otherwise the new tainted

index variable is added to the DAG. A concrete

example of this behavior based on a sample output

log can be observed in Figure 5.

Fuzz Testing with Dynamic Taint Analysis based Tools for Faster Code Coverage

Figure 4: A set of tainted instructions and their corresponding DAG. On the right side of each node, it is shown the interval in

bits from the input stream used by that node, in the same format as the extraction operation: [startbit : sizein bits]. Tainting

starts from the original stream p, and by default, if not speciﬁed, the tainting is done on 4 bytes. In this case, I[0] uses the

ﬁrst 4 bytes from the initial input stream. I[1] does an extraction operation and uses the ﬁrst 3 bytes from the initial input.

Since I[3] uses p[1], its real used interval in bits is starting at bit 32 and has length 32 bits, thus bytes 4 to 7 inclusive are used.

I[4] is part of an operation involving extracted parts of I[1] (the ﬁrst byte from it) and I[3] (its last two bytes). On complex

applications, these intervals can grow signiﬁcantly and overlap.

Figure 5: Figure showing a snippet of output log for a program containing a loop statement. The loop can be recognized by

observing multiple basic block entries at the same address (module libsimple.so and offset 0x00000540), each of these with a

jump to a different block address if the branch condition is no longer evaluated as true (jumping to the same module, but offset

0x0000055F. In the complete output log, after all iterations are ﬁnished, the next basic block entry will show the same module

and address 0x0000055F if the loop is a simple iteration over iterative code which doesn’t crash or performs any exception).

The only variables retained by our DAG after step 2 are I[430] and I[431], since all others are in the same cluster with them.

Also, notice that variable I[430] holds an interval of 8 bits (I[17][24 : 8] means that starting from bit 24 of I[17] it uses the next

8 bits), and in the next instruction the log says that I[431] depends on the entire interval used for I[430]. Therefore, after step

3, the only leaf node (and the remaining node of interest) is variable I[431]. To identify and connect this variable between the

execution of the same program with different inputs, the DAG will contain instead of I[431], a label containing the module

and offset where it belongs to: [”libsimple.so”, 00000540]. If in a different execution the same corresponding source code

variable would have index I[498] because the program took a different ﬂow by using a different input, the variable/cluster is

still recognizable by its module and offset origin, i.e. it will have the same label.

Step 3 - Finding the Leaf Nodes in Each Input Test

Example; Connect and Cluster the Leaf Nodes

between Different Examples’ Execution Logs

The concept of leaf node in our context is not the

usual one in the graph theory. In our context, a leaf

node represents a node that doesn’t have its entire

stored interval being reused by the set of nodes de-

pending on it. For instance, in Figure 4, I[0] is not a

leaf node because its input interval is reused by nodes

I[1] and I[2], while node I[3] is still a leaf node since

its ﬁrst two bytes are not reused by I[4]. The leaf

nodes in our context are therefore I[4], I[3] and I[2].

Internally, for each of the leaf nodes, we also store

the basic block (the pair [module, block offset]) asso-

ciated with that variable. An important observation at

this point is that for each basic block, there will be

at most one leaf node. The explanation is based on

remembering the key observation discussed in Sec-

tion 3, that each basic block will propagate tainting

information to a single variable used for evaluating

the jump condition, and considering our contextual

deﬁnition for leaf nodes given above. The group of

internal variables which use parts of the input stream

and in the end contributes to the branching condition

of a basic block (i.e. affecting the execution ﬂow of

the program), are therefore grouped in a single node

variable.

An example of these two last steps can be visu-

alized in Figure 5. There is only one leaf node in

the end: I[431]. All other variables are either be-

ICSOFT 2019 - 14th International Conference on Software Technologies

ing reused by dependants or in the same cluster with

I[431].

Executing the same program with different inputs

can cause different SSA variable indices for the

same corresponding source code variables. More

speciﬁcally, if before the loop in Listing 1 there

would be a simple decision statement (if statement)

based on the input, then if we compare the tainted

variables in the SSA format, the variable indices

created for x and y could be different between two

executions of a program if one would take the branch

before loop, while the other doesn’t (e.g. inside

the simple decision statement there could be other

variables consuming tainted input data, and a new

SSA variable index is therefore created for each one).

We can still connect the variables between different

execution paths in a cluster variable by observing

that after each variable usage, the output log contains

the basic blocks information where that tainting was

propagated. If indices in two (or more) execution

logs were created in the same basic block entry,

then they actually represent the same variable. Thus,

in the ﬁnal DAG (and model output) we store the

pair [module, o f f set] instead of the variable index.

We still denote this pair as tainted variable in the

continuation of the paper.

Step 4 - Format and Store the Model for Inference

Depending on how an input stream is used by a pro-

gram, each leaf node variable can use different areas

from it, corresponding to the union of intervals stored

inside the node (Figure 6). Some variables might not

appear at all in a tainted log output, for example, if the

program execution with an input stream doesn’t use

at all those speciﬁc variables. The content detected as

used by each individual variable in each of the input

test examples is concatenated into a contiguous array

of bytes (a string), then (by default) a regular expres-

sion generator (DevonGovet, ) is used to create a regu-

lar expression that is able to match all the strings from

each individual input stream. The user has the op-

tion to hook a function and decide what to do with the

detected pattern and try other methods too. Another

method used by us, as stated in the evaluation section,

is by using recursive neural networks for learning the

format and the possible content used for a variable.

The output of this step is a set containing meta-

data for all variables. The meta-data stored for each

variable is in the form

{[module, o f f set], DataPattern}, where

DataPattern is the data pattern learned for the

respective variable (i.e. by default a regular expres-

sion matching all data in the input streams; user

has another out of the box option to chose a RNN

model instead of regular expression to learn and

produce content for that speciﬁc variable; another

generic option is to attach own hooks and create

customized models based on the existing frame-

work), and the pair [module, o f f set] is the address

where this variable was used as a branch condition

evaluation. A mapping from all variables to their

corresponding meta-data is created and denoted

further by VarToDataPattern.

To support different inference methods, the im-

plementation also saves a snapshot of different in-

put streams examples resulted from the outputs logs

(variable InputsDatabase). Concretely, for a sub-

set of the inputs from the training examples set,

we store a data structure with the following format:

{InputIndex ; InputLength;

VariablesUsed ; O f f sets; Intervals}. The ﬁrst two

parameters represent the index and the length of the

input stream in the original set. The third parameter

is a set of tainted variables used, sorted by the order

of their appearance in the respective stream of input,

while the fourth parameter is the offset in the input

stream where each variable is used (i.e. the ﬁrst byte

used by the variable). The last parameter represents

the union of intervals used by each variable on the

initial input stream.

4.3 Producing New Inputs using

Inference

To generate a new input, one of the saved snapshots

is sampled and the method tries to produce an input

that follows the same structure, but for each variable

used inside the snapshot we use the global data pat-

tern learned from all training examples. Basically, we

follow the next steps:

(1) Select one random test (index) from

InputsDatabase (we need to follow its

structure closely to obtain a valid input),

and create a random array (NEW INPUT )

of bytes with its original length (using

InputsDatabase[index].InputLength).

(2) For each variable V in

InputsDatabase[index].VariablesUsed

(a) Generate a new string (S) using the registed

model (i.e. by default regular expression):

VarToDataPattern[V ].

(b) Apply the generated string over

NEW INPUT S array, starting at the off-

set speciﬁed by the attribute

Fuzz Testing with Dynamic Taint Analysis based Tools for Faster Code Coverage

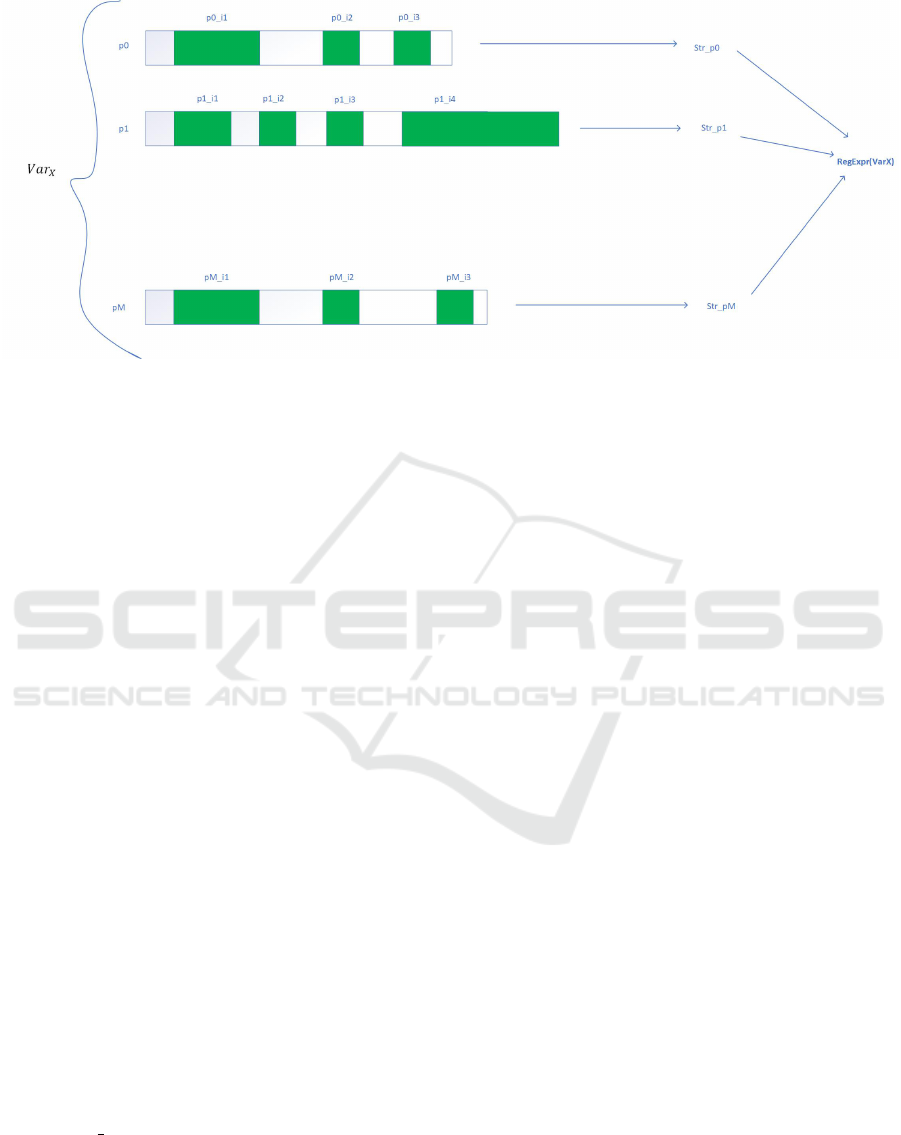

Figure 6: Considering a set of M input streams in the training examples, the green areas show the parts used by a tainted

variable in each of them. The content in those areas are concatenated in a string, per each input stream, and by default are

given to the regular expression matching, which in the end builds a regular expression matching all usages. If RNN method is

used to learn the data pattern instead of regular expressions, the model learns for that speciﬁc variable the probability of the

next character, similar to seq2seq models in (Godefroid et al., 2017). Note that our implementation allows the user to hook a

function for learning on its own the data pattern model, and another one for performing inference to generate new data based

on the learned pattern.

InputsDatabase[index].O f f sets[V ] for the

corresponding variable and try to match as

much as possible the set of intervals speciﬁed

in InputsDatabase[index].Intervals[V ].

4.4 Practical Usage of Models and

Inference

In practice, inputs sets for a program can be updated

online, i.e. new sets of inputs can be added for im-

proving the existing model. When a new input is

added, it must be executed through the tracer and a

new tainted log is obtained. The existing model is up-

dated by:

• Adding the transformed log data to

InputsDatabase.

• Updating the generative model for the vari-

ables used in the new test, i.e. data structure

VarToDataPattern, because the new test could

contain new patterns for those variables.

The next time inference is used, it will take into

account the new input test too. The intervals used

by the variables can still overlap sometimes when ap-

plied NEW INPUT array. Also, the offsets where

generated strings are applied might be dependent on

the content of the generated strings (e.g. think about

branching variables representing the size of an im-

age). Still, by using the method described above

we can learn models and generate inputs which intu-

itively should provide better code coverage than many

fuzzing techniques.

5 EVALUATION

The evaluation between different methods was done

using two open source applications that accept binary

ﬁles as input -

zlib (http://www.zlib.net/) and libjpeg

(http://www.libpng.org/pub/png/pngcode.html), and

one text based input ﬁle - libxml (xmlsoft.org). The

purpose for zlib evaluation is to create a model that

learns to create new compressed ﬁles. Same purposes

are targeted for libjpg - create a generator for images

that will be later given to the library to read data from,

and libxml - a generator for XML ﬁles.

The three applications will be compared against

the ﬁve methods described below. The method pre-

sented in (H

oschele and Zeller, 2016) couldn’t be

evaluated since there is no source code / executable

publicly available at the moment.

(1) Method 1: Presented in (Godefroid et al., 2008b),

where Recurrent Neural Networks are used to cre-

ate a model able to create content similar to the

input tests. Our evaluation used the same infer-

ence method which authors suggested as perform-

ing the best in their tests, SampleFuzz, i.e. sam-

pling a new random number after each space char-

acter.

ICSOFT 2019 - 14th International Conference on Software Technologies

(2) Method 2: Presented in (Paduraru et al., 2017),

where genetic algorithms are used to improve

fuzzing techniques and get potential more code

coverage.

(3) Method 3: Described in this paper, applying di-

rectly the algorithm in Section 4.

(4) Method 4: On top of Method 3, but using an ad-

ditional fuzzing with probability 5%. This means

that after generating the string with our method, 1

out of 20 bytes will be replaced by a random byte.

(5) Method 5: Using american fuzzy lop (AFL)

(AFL, 2018).

The models trained by Methods 1,3,4 used an in-

ternal collection of input ﬁles consisting of 10000

XML ﬁles, 5000 jpg pictures, and 10000 small

archived content ﬁles, all randomly crawled from the

internet. The Method 1 model was trained for about

15h (until the model converged even on the jpg in-

put ﬁles). At the same time, Methods 3 and 4 took

around 13h to parse tainted logs and process data, on

the same system (a cluster of 8 PCs, each one with

12 physical CPU cores, totaling 96 physical cores of

approximately the same performance - Intel Core i7-

5930K 3.50 GHz; Each of the PC had one GPU de-

vice, an Nvidia GTX 1070). One of the advantages

of Methods 2 and 5 related to this aspect, is that they

don’t need any training time.

To evaluate the ﬁve methods we use a metric very

similar to code coverage. But instead of showing the

number of lines of code, we show how many branches

(different basic blocks of code) of a program are eval-

uated using all the available tests generated. There

are two main reason for this: counting only the ba-

sic blocks is less intrusive (i.e. the software perform-

ing analysis needs to count only the jumps taken in

the source code), and we are more interested in see-

ing programs taking different ﬂows in the execution

path. This last reason is based on the observations

that sometimes applications have a huge percent of

source code lines on the main execution ﬂow, while

some other interesting blocks of code have just a few

lines. The number of different basic blocks touched

during execution was evaluated using our tracer tool,

but this time with taint analysis disabled. The models

for Method 3 and 4 have no difference in inference

time.

It is important to note that nowadays testing

methodologies are applied to check binaries after each

or a bunch of consecutive source code changes sub-

mitted to a repository to verify against vulnerabili-

ties or bugs. In this context, using fuzz testing can

be a good approach in general since it can get good

code coverage in a short time. Left inﬁnitely to run,

all methods are expected to converge to the same re-

sults. Considering this, we think it is important to

show how our method compare to others in short in-

tervals of time too, since users might want to get quick

feedback from a fuzz test system, testing their new

changes in the source code of a program. To evalu-

ate fairly between the time needed to produce new in-

puts and the quality of the results, ﬁrst, we let all ﬁve

methods produce new tests (inferring their model) for

ﬁxed time moments, choose between 10 minutes and

24 hours. For each time range, method and test appli-

cation, we let each method produce a different folder

of new tests. Then, for each folder with tests, we used

our tracer tool to execute the evaluated libraries and

get the number of different basic blocks executed.

First, Table 1 shows the code coverage for each

method and application with the setup deﬁned above.

The results conﬁrm the initial intuition: our method

is producing generative models which are better in

terms of code coverage metric, for applications which

receive binary ﬁles as inputs and whose branch de-

cisions are made only through a small part out of

that ﬁle. In comparison with Methods 1 and 5 our

method randomizes the rest of the input content and

concentrates more on modifying the parts of an in-

put that seems to affect the branching conditions and

program’s execution ﬂow, instead of learning a model

for the entire set of training input ﬁles. Combined

with a small fuzzing percent at inference, our method

obtains a greater variety which seems to improve the

results. Compared to Methods 1 and 5, the average

improvements were between 13 − 20%.

However, on applications with inputs based more

on text ﬁles (libxml), where the branching conditions

can be affected by the text context, our method is still

better than genetic fuzz testing, but worse than Meth-

ods 1 and 5. This was again expected since there are

too many points of branch conditions in ratio with the

input’s length, thus using a single RNN model for the

entire set of data is faster for inference. Note that for

evaluating the libxml library we also used a RNN to

learn the variables’ data patterns and generate simi-

lar content. In this case, our model stores variables

with sub-models learned from almost the entire input

streams in the set of training examples.

Figures 7 and 8 show that our method is even more

useful when users want to get quick feedback for eval-

uating a bunch of new source code changes. Note that

after 10 minutes of testing, our methods tend to be

50% better than other methods fuzz methods. This

can be a valuable optimization of resources used for

testing software in industry.

Fuzz Testing with Dynamic Taint Analysis based Tools for Faster Code Coverage

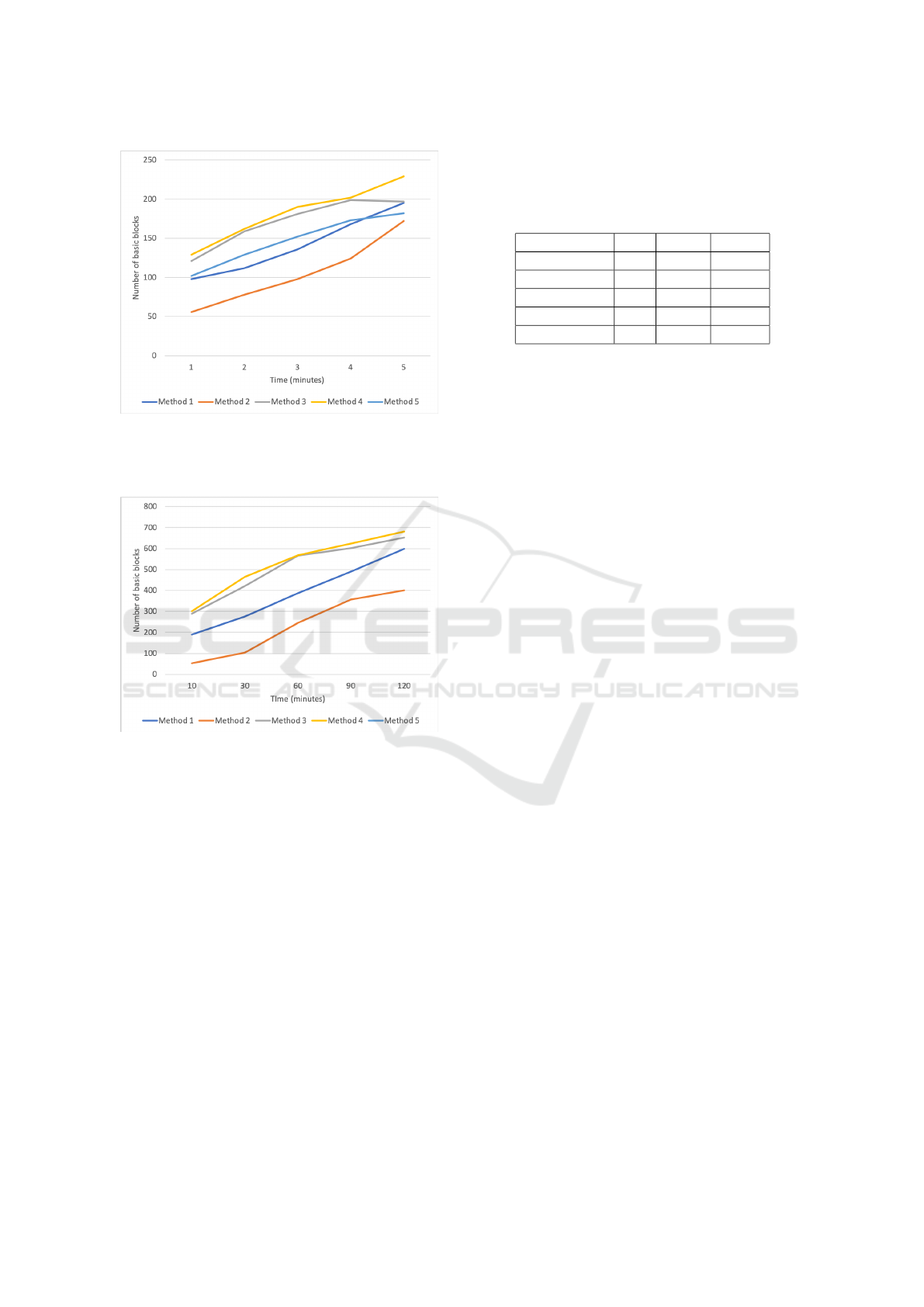

Figure 7: Shows the number of different basic blocks ex-

ecuted by each fuzzing method for zlib library. The hori-

zontal axis shows the results for different moments of time

(minutes).

Figure 8: Shows the number of different basic blocks exe-

cuted by each fuzzing method for libpng. The horizontal

axis shows the results for different moments of time (min-

utes).

6 CONCLUSION AND FUTURE

WORK

This paper presented a novel method based on dy-

namic taint analysis and a tracer tool to obtain a gen-

erative model starting from a set of training exam-

ples, which can be used to generate a new set of input

tests for different evaluated programs. As the results

show, the method is more efﬁcient than existing ones

for generating inputs for applications where the in-

put stream is binary and the control ﬂow of the pro-

gram is affected only by a small part of it. However,

our future plan include improvements for evaluation

methods such as: getting more libraries for evalua-

tion (similar to the corpus in AFL (AFL, 2018)), in-

Table 1: The number of branch instructions touched in com-

parison between the ﬁve methods and the three applications

under test. Each method was let to produce inputs for 24h,

then tracer was executed on each application and generated

test folder to obtain the results below.

Method used zlib libjpg libxml

Method 1 218 783 1286

Method 2 199 698 1129

Method 3 215 789 1150

Method 4 238 875 1227

Method 5 235 781 1240

clude other important metrics (detection of crashes

and their type, overﬂows, hangs), use LAVA bench-

mark for automatic evaluation (Dolan-Gavitt et al.,

2016). In terms of methods used, our future plans are

to invest more in using machine learning to learn the

relationship between the binary content of a ﬁle and

the branch decisions inside a program, and, as previ-

ously mentioned in the paper, to adapt our method to

asynchronous programs that use the input stream in a

non-deterministic way.

ACKNOWLEDGMENTS

This work was supported by a grant of Roma-

nian Ministry of Research and Innovation CCCDI-

UEFISCDI. project no. 17PCCDI/2018 We would

like to thank our colleagues Teodor Stoenescu and

Alexandra Sandulescu from Bitdefender, and to Alin

Stefanescu from University of Bucharest for fruitful

discussions and collaboration.

REFERENCES

AFL (2018). American fuzzing lop (aﬂ). In

http://lcamtuf.coredump.cx/aﬂ/.

Arzt, S., Rasthofer, S., Fritz, C., Bodden, E., Bartel, A.,

Klein, J., Traon, Y. L., Octeau, D., and McDaniel,

P. D. (2014). Flowdroid: precise context, ﬂow, ﬁeld,

object-sensitive and lifecycle-aware taint analysis for

android apps. In PLDI.

Avancini, A. and Ceccato, M. (2010). Towards security test-

ing with taint analysis and genetic algorithms. In Pro-

ceedings of the 2010 ICSE Workshop on Software En-

gineering for Secure Systems, SESS ’10, pages 65–71,

New York, NY, USA. ACM.

Bastani, O., Sharma, R., Aiken, A., and Liang, P. (2017).

Synthesizing program input grammars. SIGPLAN

Not., 52(6):95–110.

Bekrar, S., Groz, R., Mounier, L., and Bekrar, C. (2011).

Finding software vulnerabilities by smart fuzzing. In

ICSOFT 2019 - 14th International Conference on Software Technologies

2011 Fourth IEEE International Conference on Soft-

ware Testing, Veriﬁcation and Validation(ICST), vol-

ume 00, pages 427–430.

Chen, P. and Chen, H. (2018). Angora: Efﬁcient fuzzing by

principled search. CoRR, abs/1803.01307.

Coppit, D. and Lian, J. (2005). Yagg: An easy-to-use gen-

erator for structured test inputs. In Proceedings of

the 20th IEEE/ACM International Conference on Au-

tomated Software Engineering, ASE ’05, pages 356–

359, New York, NY, USA. ACM.

Cui, W., Peinado, M., Chen, K., Wang, H. J., and Irun-Briz,

L. (2008). Tupni: Automatic reverse engineering of

input formats. In Proceedings of the 15th ACM Con-

ference on Computer and Communications Security,

CCS ’08, pages 391–402, New York, NY, USA. ACM.

DevonGovet, h. Regular expression generator.

Dolan-Gavitt, B., Hulin, P., Kirda, E., Leek, T., Mam-

bretti, A., Robertson, W. K., Ulrich, F., and Whelan,

R. (2016). LAVA: large-scale automated vulnerability

addition. In IEEE Symposium on Security and Pri-

vacy, pages 110–121. IEEE Computer Society.

Godefroid, P. (2007). Random testing for security: black-

box vs. whitebox fuzzing. In RT ’07.

Godefroid, P., Kiezun, A., and Levin, M. Y. (2008a).

Grammar-based whitebox fuzzing. In Proceedings

of the 29th ACM SIGPLAN Conference on Program-

ming Language Design and Implementation, PLDI

’08, pages 206–215, New York, NY, USA. ACM.

Godefroid, P., Kiezun, A., and Levin, M. Y. (2008b).

Grammar-based whitebox fuzzing. SIGPLAN Not.,

43(6):206–215.

Godefroid, P., Levin, M. Y., and Molnar, D. (2012).

Sage: Whitebox fuzzing for security testing. Queue,

10(1):20:20–20:27.

Godefroid, P., Peleg, H., and Singh, R. (2017). Learn&fuzz:

machine learning for input fuzzing. In Rosu, G.,

Penta, M. D., and Nguyen, T. N., editors, Proceedings

of the 32nd IEEE/ACM International Conference on

Automated Software Engineering, ASE 2017, Urbana,

IL, USA, October 30 - November 03, 2017, pages 50–

59. IEEE Computer Society.

Hanford, K. V. (1970). Automatic generation of test cases.

IBM Syst. J., 9(4):242–257.

oschele, M. and Zeller, A. (2016). Mining input gram-

mars from dynamic taints. In Proceedings of the

31st IEEE/ACM International Conference on Auto-

mated Software Engineering, ASE 2016, pages 720–

725, New York, NY, USA. ACM.

ammel, R. and Schulte, W. (2006). Controllable combi-

natorial coverage in grammar-based testing. In Uyar,

U., Duale, A. Y., and Fecko, M. A., editors, Test-

ing of Communicating Systems, pages 19–38, Berlin,

Heidelberg. Springer Berlin Heidelberg.

Majumdar, R. and Xu, R.-G. (2007). Directed test genera-

tion using symbolic grammars. In Proceedings of the

Twenty-second IEEE/ACM International Conference

on Automated Software Engineering, ASE ’07, pages

134–143, New York, NY, USA. ACM.

Mathis, B. (2017). Dynamic tainting for automatic test

case generation. In Proceedings of the 26th ACM

SIGSOFT International Symposium on Software Test-

ing and Analysis, ISSTA 2017, pages 436–439, New

York, NY, USA. ACM.

Newsome, J. (2005). Dynamic taint analysis for automatic

detection, analysis, and signature generation of ex-

ploits on commodity software.

Paduraru, C., Melemciuc, M., and Stefanescu, A. (2017).

A distributed implementation using apache spark of

a genetic algorithm applied to test data generation.

In Bosman, P. A. N., editor, Genetic and Evolution-

ary Computation Conference, Berlin, Germany, July

15-19, 2017, Companion Material Proceedings, pages

1857–1863. ACM.

Purdom, P. (1972). A sentence generator for testing parsers.

BIT Numerical Mathematics, 12(3):366–375.

Rajpal, M., Blum, W., and Singh, R. (2017). Not all

bytes are equal: Neural byte sieve for fuzzing. CoRR,

abs/1711.04596.

Sirer, E. G. and Bershad, B. N. (1999). Using produc-

tion grammars in software testing. SIGPLAN Not.,

35(1):1–13.

Stoenescu, T., Stefanescu, A., Predut, S.-N., and Ipate, F.

(2016). River: A binary analysis framework using

symbolic execution and reversible x86 instructions.

Sutton, M., Greene, A., and Amini, P. (2007). Fuzzing:

Brute Force Vulnerability Discovery. Addison-Wesley

Professional.

Utting, M., Pretschner, A., and Legeard, B. (2012). A

taxonomy of model-based testing approaches. Softw.

Test. Verif. Reliab., 22(5):297–312.

Yadegari, B. and Debray, S. (2014). Bit-level taint analy-

sis. In Proceedings of the 2014 IEEE 14th Interna-

tional Working Conference on Source Code Analysis

and Manipulation, SCAM ’14, pages 255–264, Wash-

ington, DC, USA. IEEE Computer Society.

Fuzz Testing with Dynamic Taint Analysis based Tools for Faster Code Coverage
