Conceptual Modelling of the Dynamic Goal-oriented Safety Management

for Safety Critical Systems

Sana Debbech

, Philippe Bon and Simon Collart-Dutilleul

Univ. Lille/Nord de France, IFSTTAR/COSYS/ESTAS, Villeneuve d’Ascq, France

Keywords:

Ontology, GORE, Or-BAC, Safety Measures Development, UFO, Railway Safety.

Abstract:

In the context of Safety Critical Systems (SCSs), safety measures derived from the dysfunctional analysis are

generally expressed in an informal way. However, in an early phase of SCSs design, there is a need to link

these safety measures to Goal-Oriented Requirements Engineering (GORE) concepts. Moreover, the current

practice of the safety measures development is not based on a speciﬁc goal-oriented control model. Since

there are different knowledge domains, there is a lack of a common vocabulary aiming to avoid the semantic

heterogeneity between them. Consequently, a common model for an unambiguous knowledge sharing and a

full semantic interoperability assurance is missing. In this paper, we propose the Goal-Oriented Safety Man-

agement Ontology (GOSMO), a domain ontology, which is grounded in the Uniﬁed Foundational Ontology

(UFO) and provides a conceptualization and a real-world semantic interpretation of the knowledge matching

for SCSs. Furthermore, the proposed safety measures development process is performed using a reinterpreta-

tion from the safety point of view of the Organization-Based Control Access (Or-BAC), which was initially

developed for the Information Systems (IS) security. The GOSMO aims to capture the alignment between

the considered domains concepts through the reference models reuse and the proposed taxonomy based on

standards deﬁnitions. The proposed ontology is evaluated by the formalization of two cases studies from the

railway domain, since it is the target application domain. Finally, the evaluation results show that GOSMO

covers and analyses several real critical situations and fulﬁls its intended purpose.

1 INTRODUCTION

In the Safety Critical Systems (SCSs) context, safety

is viewed as an emergent control issue. Therefore,

safety management must be ensured by a control or-

ganization integrated in an adaptive socio-technical

system. The aim of this control organization is to en-

force safety constraints on the system behaviour in

the ﬁrst design stages (Debbech et al., 2018a). Fur-

thermore, safety improvement must still be main-

tained and the system must keep its safe behaviour as

changes occur. Consequently, there is a need to deﬁne

the appropriate safety constraints according to the re-

lated context. From this perspective, SCSs suffer from

a lack of control and development models of safety

measures derived from dysfunctional analysis.

Moreover, these safety constraints must be in-

tegrated as a control structure of the adequate en-

forcement of components and their interactions. This

safety knowledge has to be considered in the sys-

tem design model and particularly in the Requirement

Engineering (RE) practice. In other words, safety

https://orcid.org/0000-0002-4003-6505

analysis should be strongly related to the system re-

quirements elicitation. Ordinarily, safety measures

derived from the safety analysis are directly con-

sidered as safety requirements: “Safety requirements

are the safety measures taken to mitigate hazards

in safety-critical systems” (Zhou et al., 2017). Then,

safety requirements are deﬁned as safety measures,

that are taken to avoid, reduce or limit catastrophic

failure consequences: “safety requirements are de-

ﬁned based on a list of categorized hazards and as-

sociated safety risk analysis” (Firesmith, 2005). In-

tuitively, this deﬁnition seems clear and easy to un-

derstand but there is a lack of consideration for the

safety team efforts into the requirements speciﬁcation

process and “this makes difﬁcult to ensure that archi-

tecture incorporates the appropriate safety guards”

(Firesmith, 2005). From a further perspective, safety

measures must be linked to Goal-Oriented Require-

ments Engineering (GORE) (Van Lamsweerde, 2001)

concepts such as goal, agent, requirement and task.

In order to deal with the semantic heterogeneity

and the knowledge domains combination, the aim of

this study is to propose a conceptualization of the

knowledge matching in order to provide a shared

Debbech, S., Bon, P. and Collart-Dutilleul, S.

Conceptual Modelling of the Dynamic Goal-oriented Safety Management for Safety Critical Systems.

DOI: 10.5220/0007932502870297

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 287-297

ISBN: 978-989-758-379-7

287

view between them. Furthermore, we deﬁne the safety

measures development process for SCSs based on the

Organization-Based Control Access (Or-BAC) Model

(El Kalam et al., 2003). This control access model is

normally used in order to ensure the Information Sys-

tems (IS) security. Nevertheless, the analogy between

the security conditions to access to an information and

the conditions in order to operate safely proposed by

(Ben Ayed et al., 2014) is extended in this study. In the

present paper, the matching between knowledge do-

mains is considered through the concepts alignment

and is driven by the Uniﬁed Foundational Ontology

(UFO) (Guizzardi, 2005). Then, the proposed seman-

tic interpretation and conceptualization is provided in

real-world in order to provide a common vocabulary

at a high level of abstraction.

Therefore, a domain ontology is proposed and is

called the Goal-Oriented Safety Management Ontol-

ogy (GOSMO). In this work, we focus on relevant

concepts related to safety, GORE and Or-BAC knowl-

edge. GOSMO aims to provide an unambiguous,

complete and consistent set of the involved concepts,

and to manage safety related decisions in the SCSs

design process. In order to bridge the gaps mentioned

above, two Research Questions (RQs) are deﬁned:

- RQ1: How can we interpret and conceptualize

safety measures and link them to GORE concepts in

real-world semantics?

- RQ2: Which UFO-driven conceptualization of

Or-BAC concepts would be able to provide a safety

control model and to deal with the organizational as-

pect of SCSs?

These two RQs deﬁne the purpose of the pro-

posed ontology and they will be reﬁned in order to

fulﬁl it. This paper is organized as follows. Section

2 deﬁnes the background on UFO, GORE, Or-BAC

knowledge and discusses related works. Section 3

presents GOSMO and its evaluation by the railway

knowledge is detailed in Section 4. Section 5 con-

cludes the paper and outlines perspectives.

2 BACKGROUND

The present study is based on an extensive research on

knowledge domains (knowledge acquisition) in order

to extract, apply and connect them. In this section,

we introduce relevant concepts of the considered do-

mains, namely GORE, Or-BAC and the well-founded

ontology UFO.

2.1 The Uniﬁed Foundational Ontology

(UFO)

The Uniﬁed Foundational Ontology (UFO) is an

upper-level ontology which provides a full and com-

mon set of generic concepts and relations for all

domains (Guizzardi, 2005). The discussion around

the choice of this foundational ontology has been

made and argued in a previous work (Debbech et al.,

2019b). Thanks to its ontological distinctions, it pro-

vides a complete and consistent set of concepts that

cover pertinent aspects of safety, GORE and the or-

ganizational control model. Moreover, the reuse of

foundational concepts aims to provide a real-world

semantics interpretation of safety measures and its

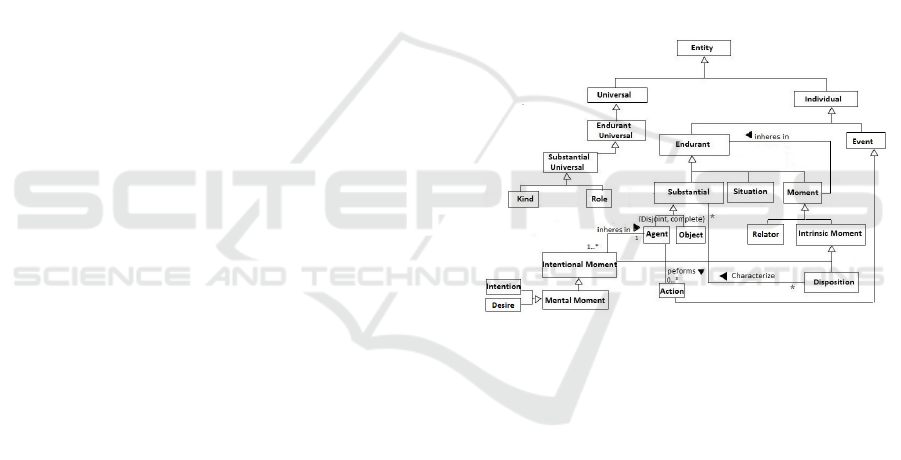

surrounding concepts. Figure 1 shows the Uniﬁed

Modelling Language (UML) diagram representing a

fragment of UFO concepts that will be reused in this

study.

Figure 1: Fragment of UFO showing Individuals and Uni-

versals.

More details about these UFO concepts and their

interpretation and illustration by railway examples

may be respectively found in (Guizzardi, 2005; Falbo

and Bertollo, 2009) and (Debbech et al., 2019b). Ta-

ble 1 summarizes deﬁnitions of the UFO concepts

considered in this study. In the remainder of this pa-

per, concepts and relations between them are respec-

tively represented in bold and italic styles in order to

improve readability.

2.2 Goal-Oriented Requirements

Engineering (GORE)

Several beneﬁts of GORE are deﬁned in the RE prac-

tice such as the clarity and the completeness of re-

quirements speciﬁcation, a clearer way to manage re-

quirements complexity and resolve conﬂicts among

them (Van Lamsweerde, 2001). These advantages

have been the aim of many GORE approaches such as

ICSOFT 2019 - 14th International Conference on Software Technologies

288

Table 1: Deﬁnitions of the considered UFO concepts.

UFO Concepts Deﬁnitions

Kind

A Kind is a subtype of Substantial Universal. It denotes a substantial universal with rigidity

and a unique identity permanently.

Role

A Role is a subtype of Substantial Universal. It denotes non-rigid Substantial Universal and

its identity changes as new situation (circumstances) occurs.

Agent

An Agent is a a subtype of Substantial. It denotes Individuals with a unique identity and its

existence is independent of other Individuals.

Action An Action is a a subtype of Event and it is caused by an Intention.

Relator A Relator is a subtype of Moment. Its existence depends on many Individuals.

Situation A Situation denotes a state-of-affairs existing in reality.

Intention

An Intention is a subtype of Mental Moment. It inheres in an Agent and it denotes a consid-

eration of a plan to accomplish the goal.

Desire

A Desire is a subtype of Mental Moment. It denotes the willingness of the Agent towards a

Goal.

the i*/iStar framework (Yu, 2011), KAOS (Dardenne

et al., 1993), Techne (Borgida et al., 2009) and Goal

Oriented Requirements Ontology (GORO), which is

grounded in UFO (Negri et al., 2017). The purpose of

this paper is neither to make a comparative study of

these approaches nor to use one over the others, but

it is to propose a new conceptual model to link safety

measures derived from safety analysis to GORE con-

cepts based on a real-world semantics.

As GORO is a reference domain ontology

grounded in UFO, it seems interesting to be re-used

for the alignment of both safety analysis and GORE

concepts. It provides a common vocabulary of GORE

concepts through the analysis and the interoperability

of well-known languages mentioned above.

According to GORO (Negri et al., 2017), there is

a distinction of the Goal type as a propositional con-

tent of two Mental Moments: the Intention or the

Desire of the Agent. In the present study, these con-

cepts are reused in order to elicit goals during the inte-

gration of safety measures in the RE process. In this

way, a goal is considered as a set of intended state-

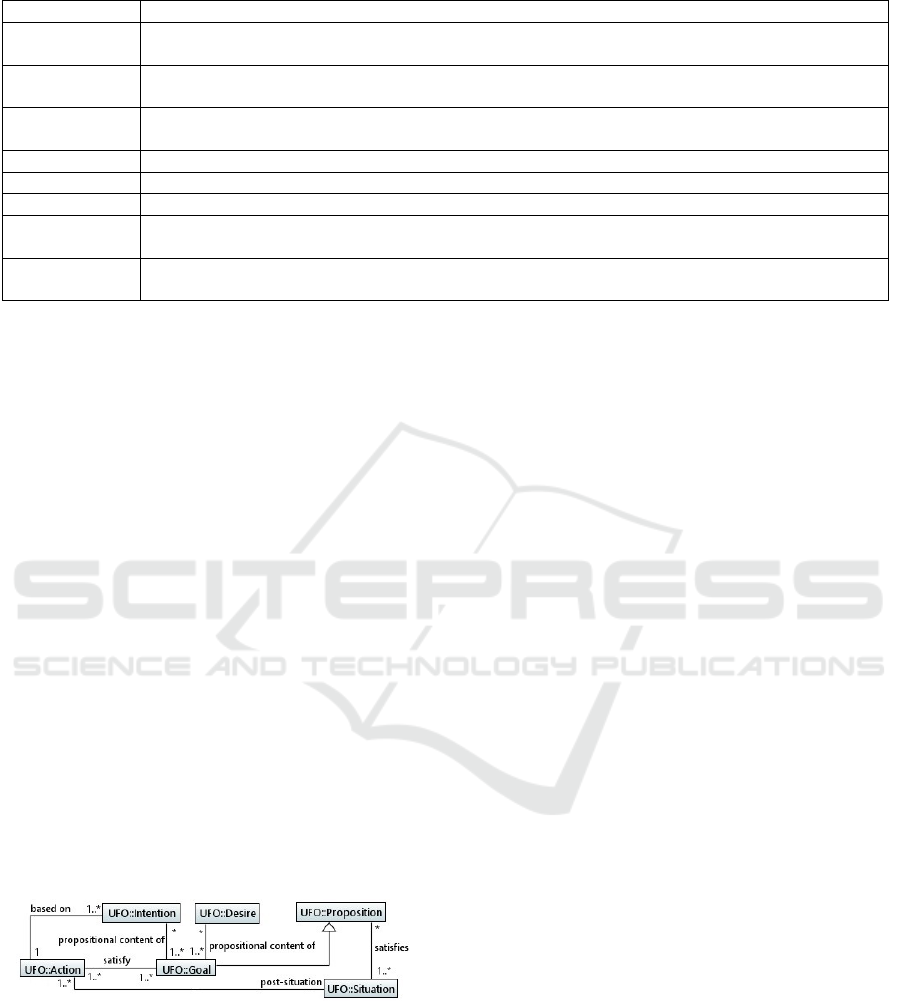

ments to be achieved. The GORO fragment represent-

ing the Goal-related UFO concepts and relations be-

tween them, is illustrated by Figure 2.

Figure 2: GORO fragment focusing on Mental Moments

and Goals (Negri et al., 2017).

In this study, we assume that goals can be com-

posed into sub-goals to be satisﬁed in a given state-

of-affairs in reality. The composition is a whole-part

formal relation which can be expressed as satisfying

a goal (G) is achieved by satisfying at least one sub-

goal:

Satis f y(G) ⇔ Satis f y(G

) ∨ ... ∨Satis f y(G

) (1)

From a lower level of abstraction, (Wang et al.,

2014) deﬁned a requirement as an intended behaviour

in the environment independently of the machine.

GORO considers the Requirement as a subtype of

Goal in the context of a speciﬁc problem. It describes

environmental conditions to be achieved through a de-

sired solution to satisfy the underlying strategic goals.

In this paper, we refer to IEEE standards which

deﬁne the requirement as a condition or a capacity of

a system to satisfy a policy, a standard, a speciﬁca-

tion or any formal imposed document (IEEE 610.12,

1990) and (ISO/IEC/IEEE 29148, 2011). By this deﬁ-

nition, we consider a Requirement as a reﬁnement of

a Goal to satisfy a speciﬁcation. A speciﬁcation may

be an artefact, a formal document of statements to be

satisﬁed or an agent’s judgement to satisfy a speciﬁc

situation. The requirement and its relations with other

concepts is detailed in Section 3.

2.3 Organization-based Control Access

(Or-BAC)

The Organization-Based Control Access (Or-BAC) is

an access control model based on the organization

concept and it is generally used in order to improve

the IS security. In Or-BAC, an organization is an en-

tity that manages a set of security policies. This se-

curity rules management is based on several entities

such as Organization, Role, Activity, View, Subject,

Action, Object and Context. Moreover, a set of pred-

icates are deﬁned aiming to model relationships be-

tween these entities. More details about Or-BAC may

be found in (El Kalam et al., 2003). A formal deﬁni-

tion of Or-BAC concepts and relations between them

is detailed in (M

ery and Merz, 2007). Figure 3 illus-

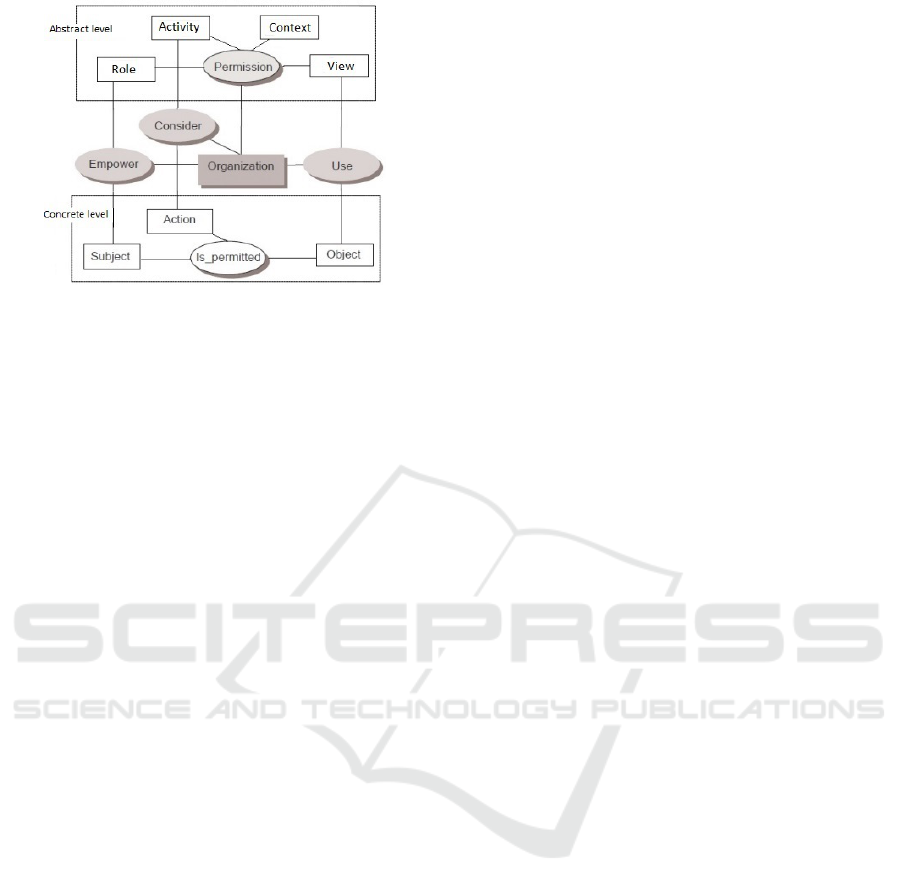

trates the Or-BAC concepts (rectangles) and relations

between them (oval).

Conceptual Modelling of the Dynamic Goal-oriented Safety Management for Safety Critical Systems

289

Figure 3: Or-BAC concepts and relations between them.

In Or-BAC, the hierarchy aspect is considered for

the Role and the Organization concepts in order to en-

sure the permission inheritance of roles and security

policies by sub-organizations. This aspect is relevant

in the context of the present study since it spotlights

the organizational aspect of SCSs and the interoper-

ability criterion. On the one hand, this access model

allows a structured security decisions management in

order to access to information within an organization.

On the other hand, it deﬁnes relevant concepts and

relations between them that may be reinterpreted for

other domains such as SCSs in this study.

In the SCSs terminology, safety operations man-

agement requires a consistent model aiming to man-

age safety conditions. In (Debbech et al., 2019a;

Debbech et al., 2019b), we proposed a complete

semantic interpretation of some Or-BAC concepts

namely, organization, role and subject from the safety

perspective. Furthermore, we discussed the difference

of requirements between both domains and we de-

ﬁned the analogy between them by introducing new

concepts. In this study, a full consistent conceptual-

ization of Or-BAC concepts from the safety perspec-

tive is proposed in real-world semantics. The socio-

technical aspect of SCSs enforces their view as hier-

archical structures with speciﬁc imposed constraints

on each level. The organization concept highlights the

organizational aspect of railway systems and its inte-

gration in the conceptual model enhances the safety-

related control. In the present study, Or-BAC con-

cepts are reinterpreted in a safety-oriented way. Fur-

thermore, they are extended regarding the railway

knowledge and aligned with both UFO and GORE

concepts.

2.4 Related Work

Ontologies are widely used in the Information Sys-

tems (IS) and software development. In (Souag et al.,

2015), authors provide a security ontology to elicit

security requirements through an interactive environ-

ment between security knowledge and requirements

engineering. Nevertheless, the dynamic aspect of the

security management and the security requirements

analysis according to GORE approaches are not con-

sidered. The security measures development are not

based on a structured control access model. Then,

the conceptualization was not provided in real-world

semantics in order to allow a better communication

with a common vocabulary. With the analogy be-

tween safety and security properties, these aspects are

considered in the present study.

In (Zhou et al., 2015), the proposed safety re-

quirements elicitation approach is based on the safety-

related environment knowledge representation, as a

set of assumptions, and a set of deﬁned reasoning

rules. However, their work is limited to domain as-

sumptions which does not cover all possible contexts

for SCSs and the dynamic safety requirements elicita-

tion is not satisﬁed. In (Provenzano et al., 2017), au-

thors propose an ontological approach to elicit safety

requirements based on the hazard knowledge con-

ceptualization. The proposed heuristic approach de-

scribes the hazard components analysis according to

their properties, roles and relations between them.

Then, the safety requirements elicitation is performed

by extracting this knowledge and managing relations

between components. However, they did not consider

the semantic link interpretation between safety mea-

sures derived from the hazard knowledge and safety

requirements. Moreover, the safety requirements elic-

itation is not based on a speciﬁc GORE approach in

order to deal with the complexity and the dynamic as-

pect of this activity.

To the best of our knowledge, the SCSs-related

literature suffers from a lack of a shared and struc-

tured knowledge representation considering several

issues simultaneously, and aiming to answer them.

Furthermore, the dynamic aspect of the safety con-

straints management process must be considered in

the ﬁrst design stages. Therefore, the need to for-

malize a shared goal-oriented safety decisions man-

agement model emerges. In this paper, we try to ﬁll

the gaps mentioned above and we propose GOSMO,

which aims to support the conceptual clariﬁcation

of the considered domains and the safety decision-

making management for the SCSs design. Then, it

provides a new terminological interpretation of con-

cepts based on reference models and standards. The

development of the proposed ontology is detailed in

next Section.

ICSOFT 2019 - 14th International Conference on Software Technologies

290

3 THE PROPOSED

GOAL-ORIENTED SAFETY

MANAGEMENT ONTOLOGY

(GOSMO)

In order to build the Goal-Oriented Safety Man-

agement Ontology (GOSMO), we chose the Sys-

tematic Approach for Building Ontologies (SABiO)

(de Almeida Falbo, 2014). The choice of the SABiO

approach has been made because it supports the do-

main ontologies development process and incorpo-

rates best practices from Ontology Engineering and

Software Engineering. Moreover, it has been widely

used for building several domain ontologies and ad-

mit the relevance of using foundational ontologies in

the ontology development process. In this paper, only

the ﬁrst two phases of SABiO are considered. The

ﬁrst one consists in the purpose identiﬁcation and the

ontology requirements elicitation. The second one de-

notes the capture of the domain conceptualization and

the formalization of axioms. For the purpose of deﬁn-

ing the GOSMO purpose, a set of Competency Ques-

tions (CQs) are elicited and are considered as the on-

tology requirements from the RE view. The raised

CQs listed below consist in the high level of granular-

ity of the proposed RQs and they are used to reﬁne the

GOSMO scope and then for its evaluation process:

• CQ1: What are safety measures and how to link

them to GORE concepts?

• CQ2: How to operationalise these safety mea-

sures?

• CQ3: How to semantically align the role concept

proposed by Or-BAC with the Role concept of

UFO ?

• CQ4: How to conceptualize the dynamic context

related to the Or-BAC permissions from the UFO

perspective?

• CQ5: Which UFO-driven implementation of the

organization concept is able to deal with the orga-

nizational aspect of SCSs?

• CQ6: What is the reinterpretation of the roles as-

signment proposed by Or-BAC that would be suit-

able for SCSs?

• CQ7: How to make better safety decisions man-

agement in the SCSs design based on the interpre-

tation of the permission concept of Or-BAC?

After the CQs elicitation, the conceptual mod-

elling may be performed by providing a speciﬁc tax-

onomy and using the UFO ontological pattern. In or-

der to have a better approximation of the proposed

ontology to the ideal knowledge domain representa-

tion, the ontology must be represented with highly-

expressive languages such as OntoUML, which is

a UML extension for the conceptual modelling. It

incorporates the foundational features proposed by

UFO and is used in this study in order to ensure

the ontology representation adequacy. Then, some ax-

ioms specifying constraints and inferences rules are

formalized using First-Order Logic (FOL) in order to

provide an unambiguous and expressive description.

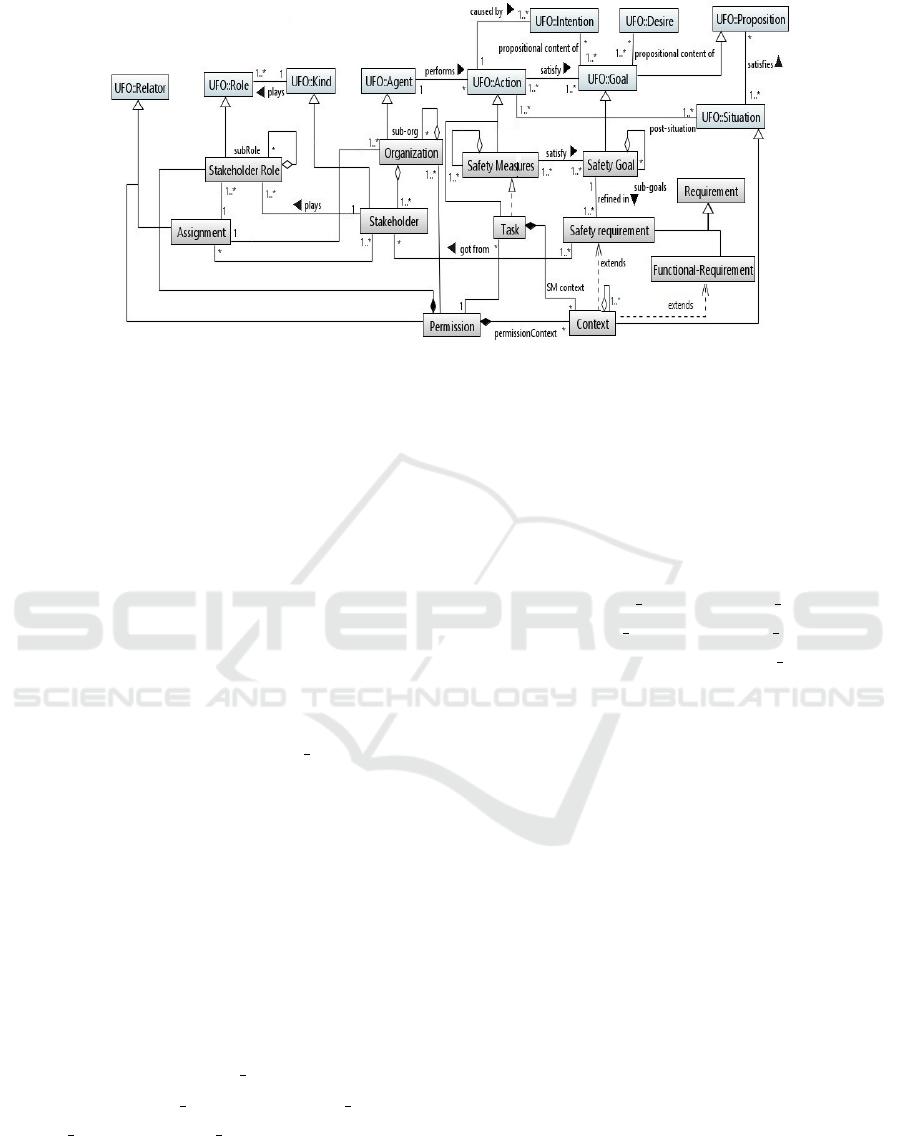

Figure 4 represents the conceptual model of

GOSMO using the OntoUML diagram. It shows the

interpretation and the conceptualization of relations

between Safety Measures, GORE and Or-BAC con-

cepts. In safety critical domains, safety measures are

deﬁned as the operationalization of safety policies im-

posed by organizations. As Actions are a subtype of

Events, Safety Measures will change the state of af-

fairs of reality from the Hazard situation to another

safe post-situation. The central concept in the pro-

posed ontology is Safety Measures (sm). They are

composed of sub-measures. The composition relation

is denoted by the part

of predicate and is declared to

be transitive, non reﬂexive and anti-symmetric as re-

spectively enforced by Axioms 2, 3 and 4 using the

FOL. In the same way, these axioms are deﬁned for

the composition relation for other related concepts,

but they will not repeated in order to improve read-

ability. This relation is considered in order to satisfy

both the constraint assumed in this study considering

the Safety Goal composition (see Section 2.2) and the

organizational aspect of SCSs.

(∀sm

, sm

)part o f (sm

, sm

)∧

part of(sm

, sm

) ⇒ part o f (sm

, sm

)

(2)

(∀sm)¬part o f (sm, sm)

(3)

(∀sm

, sm)part o f (sm

, sm)

⇒ ¬part o f (sm, sm

)

(4)

Then, we assume that a sub-measure may be a

part of two measures and may contribute to satisfy

two sub-goals. Therefore, each organizational level

provides its own Sub-Safety Measures and a sub-

measure satisﬁes a sub-goal and partially satisﬁes a

Safety Goal. This interpretation is formalized as fol-

lows:

Let SM={ sm

| i = 1, 2, ..., n } be the set of safety

measures.

Let SG={ sg

| i = 1, 2, ..., n } be the set of safety

goals.

Satis f y(sm, sg) ⇔ Satis f y(sm

, sg

) ∨ ··· ∨ Satis f y(sm

, sg

)

(5)

Conceptual Modelling of the Dynamic Goal-oriented Safety Management for Safety Critical Systems

291

Figure 4: Conceptual Model of GOSMO focusing on relations between Safety Measures, Or-BAC and GORE concepts.

When the Safety Goal is achieved, a post-

situation occurs in order to satisfy a Proposition (a

goal). Then, the Safety Goal is reﬁned in Safety re-

quirement which is realized by a Stakeholder into

an Organization. The central concept of the pro-

posed safety measures management model is the Or-

ganization. In the proposed conceptual model, the

Organization concept, which is inspired by the Or-

BAC model, is aligned with the Agent UFO con-

cept. Moreover, the hierarchy aspect of the Organi-

zation is considered in the proposed conceptualiza-

tion by its aggregation to sub-organizations. In order

to satisfy the socio-technical aspect of railway sys-

tems, the Organization (o) is considered as a subtype

of the Agent and an aggregation of Stakeholders (st),

which is denoted by the predicate has a(o, st).

Moreover, the Stakeholder (st) plays a Stake-

holder Role (str) within an Organization (o). The

Assignment (a) concept is a subtype of Relator since

it is a relational property connecting several concepts.

According to Or-BAC, an organization assigns a role

to a user through the empower predicate. This inter-

pretation is extended regarding UFO and GORE con-

cepts by considering the Stakeholder concept and the

subsumption relation of the Role and Kind concepts

of UFO. It provides the concretisation of the safety

management process when changes occur in order to

deal with the dynamic aspect. The assignment of roles

is constrained by Axiom 6 using the containment re-

lation denoted by the member of predicate.

(∀o, str, a, st)member o f (str, a) ∧ member o f (st, a)

∧has a(o, st) ∧ member o f (o, a) ⇒ plays(st, str)

(6)

Likewise, as a Relator, the Permission (p) con-

cept denotes the authorization assignment to a Stake-

holder Role (str) to perform a Task (t) according to

a speciﬁc Context (c). The role hierarchy aspect is

considered in order to factor the permissions associ-

ated to roles. Hence, this formalism ensures the in-

heritance of permissions of Stakeholder Role to sub-

roles. The conceptualization pattern of these concepts

is justiﬁed and illustrated in (Debbech et al., 2019b).

The permission process is enforced by Axiom 7 in

order to provide a structured control model of safety

decisions.

(∀str, p, c, t)part o f (str, p) ∧ part o f (p, c)

∧part o f (c, t) ∧ member o f (o, p)

⇒ member o f (p, t)

(7)

Furthermore, we deﬁne the Context concept as a

speciﬁc Situation, that determines the validity of a

Safety requirement and of a Functional Require-

ment. A Context can be classiﬁed into many types

such as the spatial and temporal boundaries, chrono-

logical events, domain constraints or the history of

previous tasks. Consequently, the aggregation of the

Context is considered in order to satisfy some situ-

ations in reality such as the remotely operated Task

as illustrated in (Debbech et al., 2018b). This notion

is important because it highly impacts safety-related

decisions and the Task implementation. The match-

ing between the context concept (from the Or-BAC

model) and the railway knowledge was tackled and

evaluated by a case study from the real accident of

Saint-Romain-En-Gier in a previous work (Debbech

et al., 2019a). In the present study, we propose the

alignment between the context concept and UFO con-

cepts in order to provide an abstract view in real-

world semantics. This interpretation is illustrated by

the extends relation between the Safety requirement

and the Context. In the same way, a Context extends

a Functional Requirement. The introduced relation

called extends considers that validity or the execution

of a requirement is potentially related to a context. It

ICSOFT 2019 - 14th International Conference on Software Technologies

292

underlines the “extend” relation deﬁned by UML.

The Task concept is considered as a concrete view

of one or more Safety Measures. It denotes the

realization of Safety Measures. Indeed, a Task is

composed of a Context characterizing circumstances

or the speciﬁc Situation in which the Permission is

granted by the Organization to a Stakeholder Role

in order to perform this Task. Moreover, this concept

provides the related concepts encapsulation in order

to ensure the information integrity.

Both Functional Requirement and Safety re-

quirement are considered in the proposed concep-

tual model in order to tackle the requirement trace-

ability mechanism. This aspect is relevant to ensure

the requirements consistency and completeness, and

to support the requirement management process af-

ter the safety requirements change. It is difﬁcult to

deal with the Task criticity when there are several re-

quirements that dynamically change according to a

Context. Furthermore, requirements change during

the SCSs design process due to the continuous rise of

safety constraints to enforce component interactions.

This aspect will be tackled in future works in order to

capture the requirement engineering knowledge and

to provide a common model with a complete, consis-

tent and traceable view.

The proposed ontology, grounded in UFO, aims to

capture the goal-oriented safety decisions knowledge.

It provides a consistent and unambiguous taxonomy

of safety decisions management based on Or-BAC

and GORE concepts in order to provide a reusable

shared view between knowledge domains. Further-

more, GOSMO may be reused for other safety crit-

ical domains since it is a domain ontology founded

in UFO. Otherwise, the proposed conceptualization is

based on several criteria such as the clarity, the coher-

ence and the extendibility since it aims to represent a

knowledge sharing (Gruber, 1995).

4 EVALUATION

In this section, the evaluation of the Goal-Oriented

Safety Management Ontology (GOSMO) is per-

formed using veriﬁcation and validation methods pro-

posed by SABiO (de Almeida Falbo, 2014). The ﬁrst

step consists in the veriﬁcation of the capability of

GOSMO to answer to the raised CQs. The veriﬁca-

tion results are summarized in a table in order to ver-

ify that the ontology fulﬁls its requirements (purpose).

Then, the validation of GOSMO is performed through

its instantiation in order to represent real situations.

This veriﬁcation step is primordial in order to demon-

strate the completeness and the validity of GOSMO

and its ability to analyse different real-world aspects.

4.1 The GOSMO Veriﬁcation

Table 2 illustrates the GOSMO veriﬁcation results re-

garding the predeﬁned CQs. This table may be used

as an ontology management support in order to keep

track of its changes. This traceability tool is particu-

larly useful for the GOSMO reuse for other domains.

The table displays that the ontology answers all of the

CQs.

4.2 The GOSMO Validation

Case 1: For the validation purpose, we took a real rail

accident scenario (d’Enqu

etes sur les Accidents de

Transport Terrestres (BEA-TT), 2005). The rail acci-

dent occurred on February 16

, 2005 at Longueville

(France). It denotes a side collision when the train

117710 from Provins (Seine-et-Marne) hit the train

117578 sidelong at Longueville station (Seine-et-

Marne). The scenario is due to the fault of the re-

versibility system which was not locked on the oper-

ating position. Consequently, the brakes were deacti-

vated. Then, the driver had an insufﬁcient behaviour

knowledge in critical situations and only used the lo-

comotive’s handbrake to stop the train. However, it

was not powerful enough because of the brakes deac-

tivation, which causes a crossing of a closed signal.

Consequently, the accident is due to cascading fail-

ures that seems to be triggered by a lack of an efﬁ-

cient safety measures development model able to deal

with the criticality of railway systems as SCSs. More

details about the scenario description and the safety

investigation may be found in (d’Enqu

etes sur les

Accidents de Transport Terrestres (BEA-TT), 2005).

In this section, the graphic representation of the se-

mantic annotation is used for the goal-oriented safety

management process in order to improve the visuali-

sation of the GOSMO illustration and to validate its

semantic scope without modiﬁcations. In the graphic

notation, ovals denote the GOSMO concepts and rect-

angles denote the linked individuals.

According to the accident scenario, safety con-

straints are violated and this causes the accident due to

the lack of an efﬁcient safety control model. In order

to show the relevance of the GOSMO pattern design

for the design of SCSs, the safety-oriented Or-BAC

model is used to analyse the safety constraints, that

could have been able to avoid this accident. Then, the

safety measures development process, which has to

be considered as ﬂexible solutions to avoid this criti-

cal situation, is performed as detailed below in order

to ensure their validity for all contexts. Here, it is im-

Conceptual Modelling of the Dynamic Goal-oriented Safety Management for Safety Critical Systems

293

Table 2: Veriﬁcation table: GOSMO’s CQs and how to fulﬁl them.

CQs Concepts and Relations

CQ1

A Safety Measure is a subtype of Action. It satisﬁes a Safety Goal that is composed of sub-goals. A

Safety Goal is reﬁned in Safety requirement got from a Stakeholder. When the Task is performed,

a post-Situation occurs that satisﬁes a Proposition (Goal).

CQ2

A Task is accomplished according to a Stakeholder Role Permission by an Organization related

to a speciﬁc Context.

CQ3 A Stakeholder Role is a subtype of Role. It is played by a Stakeholder (a subtype of Kind).

CQ4

A Context is a subtype of Situation. It denotes the speciﬁc Situation (circumstances) in which the

Permission is according to a Stakeholder Role to perform the Task. Moreover, it extends a Safety

requirement and a Functional Requirement.

CQ5

An Organization is a subtype of Agent and it is composed of sub-organizations. An Organization

is composed of one or many Stakeholders that are a subtype of Kind.

CQ6

An Assignment is a subtype of Relator and it denotes the Stakeholder Role (a subtype of Role)

assignment to a Stakeholder by an Organization.

CQ7

A Permission is a subtype of Relator and it denotes the Stakeholder Role authorization to accom-

plish the Task according to a Context , which is a speciﬁc subtype of Situation.

portant to mention that safety measures are proposed

intuitively based on the railway knowledge for the il-

lustration purpose.

The ﬁrst Safety Measure can be the deployment

of an electric control of the reversibility system to sat-

isfy the correct switch of locomotives and correctly

activate brakes (Safety Goal). This safety measure

provides an enforcement of the system behaviour in

order to avoid technical failures.

The driver as a Stakeholder Role assigned by

the SNCF (Organization), has the Permission in his

Task to use the emergency braking systems (Safety

Measure), in the case of emergency situations such

as the failure of brakes (Context), in order to stop

the train (sub-goal) and then avoid a collision (Safety

Goal). This recommendation was proposed in the

BEA-TT report (d’Enqu

etes sur les Accidents de

Transport Terrestres (BEA-TT), 2005). In this sce-

nario, the driver did not use the emergency brakes,

even if he should do it. Figure 5 represents the se-

mantic annotation of the accident data related to the

goal-oriented safety control process for the driver be-

haviour.

The second Safety Measure consists in a rein-

forcement of the braking control or of the driver be-

haviour. This Safety Measure may be the deploy-

ment of a technical device (a component of the train

protection system) to satisfy the driver alertness when

he cross a closed signal by alerting him on-board and

he has to acquit (Safety Goal). If he did not acquit,

the emergency stop is automatically triggered. It is a

post-situation that satisﬁes a Proposition (a Goal).

Another simple solution could be the use of low-level

automatic control devices like crocodiles. This safety

measure may be adequate in the context of this sce-

nario, however it could be not efﬁcient for all possi-

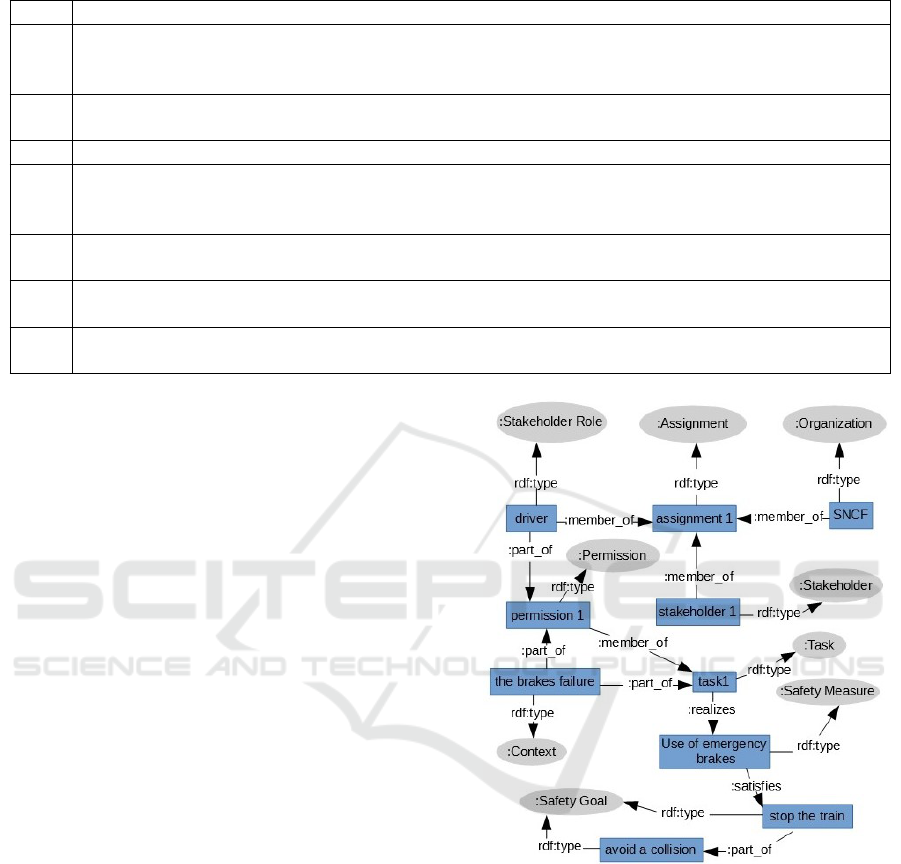

Figure 5: Semantic annotation of the safety-oriented Or-

BAC model for driver behaviour in the Longueville acci-

dent.

ble contexts in order to stop a train crossing a closed

signal. A more ﬂexible device could be able to be a

tailored solution to different contexts.

The train agent as a Stakeholder Role assigned by

the SNCF (Organization), has the Permission in his

Task to communicate with the driver (Safety Mea-

sure), if he perceives a critical situation of the driver’s

behaviour (Context), in order to prevent a collision

(Safety Goal). However, the train was not equipped

by the inter-phony communication between the train

agent and the driver. It could be efﬁcient to avoid this

collision if a communication had been established be-

ICSOFT 2019 - 14th International Conference on Software Technologies

294

tween them in order to have a full view of the criti-

cal situation. The semantic annotation for train agent

behaviour is performed in the same way but it is not

shown in this paper due to the space constraint.

Figure 6 depicts the semantic annotation of the

proposed goal-oriented safety measures for this acci-

dent. The proposed Safety Measures are considered

in order to deal with failures due to components fault

(the reversibility system) and others due to human er-

rors. These aspects can be transformed to architec-

tural constraints in the design model of SCSs in order

to improve goal-oriented safety decisions in the ﬁrst

stages.

Figure 6: Semantic annotation for the proposed goal-

oriented safety measures development process of the

Longueville accident.

Case 2: Another rail accident scenario is consid-

ered in order to instantiate and validate GOSMO from

another perspective. We refer to the Saint Romain-

En-Gier accident (d’Enqu

etes sur les Accidents de

Transport Terrestres (BEA-TT), 2004) which denotes

a frontal collision and occurred on April 5

, 2004 be-

tween an empty high speed train and a works train on

the line between Lyon and Saint-Etienne (France). It

is due to a set of human errors and to maintenance

works on tracks in a railway section. Firstly, the site

was not protected by the safety agent in order to pre-

vent the trains trafﬁc in this area. Due to a false be-

lief of the situation, the other human error consists

in the erroneous authorization by the trafﬁc agent to

the works train that cross a closed signal which is out

of its operating institution. Moreover, there is a lack

of a full instructions document that indicates the sig-

nalling and the trafﬁc direction for works train drivers.

Consequently, a combination of these human errors

bring about the frontal collision between trains, since

they are running in the opposite direction but moving

towards each other on the same track. Figure 6 shows

the semantic annotation of the accident data in order

to illustrate the GOSMO relevance for the safety re-

lated decision-making.

This accident scenario was tackled and analysed

in a previous work (Debbech et al., 2019a) in or-

der to illustrate the Context concept. More details

about the scenario description and its analysis may

be found in (d’Enqu

etes sur les Accidents de Trans-

port Terrestres (BEA-TT), 2004). The accident was

due to failures caused by Stakeholders such as the

trafﬁc agent and the works train driver. Moreover,

both Stakeholders performed erroneous actions in

their Task because there was no Permission granted

to these Stakeholder Roles in a speciﬁc Context to

carry out a safe Task. Then, the organized Task and

its related parts did not consider all Contexts, espe-

cially the train works movement, the signalling and

lists of instructions when the area changes. Conse-

quently, the accident occurred due to the lack of the

Context perception within the Task and the lack of a

organizational control model for every Stakeholder

Role Permission in a speciﬁc Context. Figure 7

shows the safety-control model annotation that could

have been efﬁcient to avoid this accident.

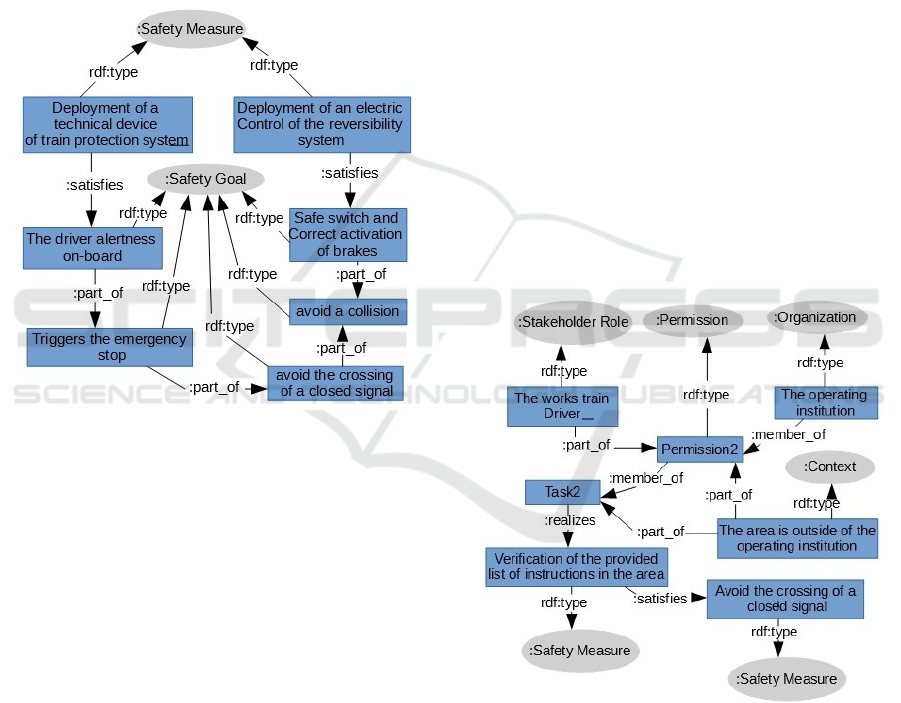

Figure 7: The annotation of the proposed safety control

model for the Saint Romain-En-Gier accident.

These two accident scenarios demonstrate the

GOSMO semantics ﬂexibility in terms of the of con-

cepts and relations between them. GOSMO shows its

capability to annotate data and cover several aspects.

Moreover, it shows the concepts polymorphism and

their completeness regarding a set of real-world sit-

uations. The completeness of the deﬁned semantics

lies in their capability to interpret different critical no-

Conceptual Modelling of the Dynamic Goal-oriented Safety Management for Safety Critical Systems

295

tions. Then, GOSMO provides a high level of abstrac-

tion of goal-oriented safety management model, that

can be adapted to a context.

5 CONCLUSION & FUTURE

WORK

The main contribution in this paper consists in

proposing a Goal-Oriented Safety Management On-

tology (GOSMO), which is grounded in UFO, devel-

oped using the SABiO approach and based on stan-

dards and a thorough knowledge acquisition of in-

volved knowledge domains such as GORE, Or-BAC

and safety. Moreover, it establishes a semantic link

between several domains for the purpose of identify-

ing safety needs and reﬁning them until the formal-

ism implementation and the fulﬁlment of the GOSMO

intended requirements. The proposed ontology con-

tributes to the knowledge sharing, the conceptual

modelling and the management of safety decisions

from several perspectives which make it original. The

considered issues in this study are summarized as fol-

lows.

Firstly, GOSMO provides a conceptualization of

safety measures nature, its development from a goal

oriented view and by a safety reinterpretation of Or-

BAC concepts in order to improve safety decisions

management. This conceptual analysis is based on

the use of UFO’s foundational concepts and relations

between them. Then, it systematizes the ambiguous

use of the term safety measures and its surround-

ing concepts in the safety critical systems terminol-

ogy. Moreover, the safety oriented reinterpretation

of Or-BAC concepts (such as organization, role, per-

mission, context) aims to support safety measures de-

velopment and it provides a structured and consistent

safety control model for the SCSs design. Further-

more, GOSMO can be used as a reference model to

support the ontological analysis and the conceptual

clariﬁcation of real-world critical situations.

Secondly, the safety management is performed

from a GORE perspective in order to deal with the

complexity of the requirements engineering activity.

Then, this aspect is relevant since the aim of GOSMO

is to support safety management as soon as possible

in the ﬁrst design stages. Besides, a conceptual analy-

sis of GORE concepts such as goal, requirement agent

is provided with a matching between safety measures

and Or-BAC concepts. In other words, safety no-

tions are considered and integrated from the ﬁrst de-

sign phases of SCSs for the purpose of obtaining a

safe system behaviour. Then, it contributes to the RE

process through the goals conceptualization and the

safety constraints capture and speciﬁcation.

Thirdly, GOSMO establishes a common vocabu-

lary for the knowledge sharing in order to improve

communication between actors domains and avoiding

the semantic heterogeneity between them. Moreover,

the proposed ontology provides a complete and con-

sistent taxonomy which is able to represent and anal-

yse several real situations. Then, the semantic anno-

tation of real data set is performed using the GOSMO

pattern design with any modiﬁcation. It demonstrates

the adaptability and the ﬂexibility criteria of GOSMO,

regarding different critical situations. The proposed

concepts can be used interchangeably in order to re-

fer to different aspects and types of phenomena. As

a reference domain model, GOSMO may be reused

for other safety critical domains since it is based on

widely used standards and real-world semantics.

Finally, we are convinced that an operational ver-

sion of GOSMO (implemented in OWL) can be used

to make a semantic annotation of safety concerns

in the system design model and components related

to the occurrence of failures. In fact, we intend

to strongly connect GOSMO to the proposed Dys-

functional Analysis Ontology (DAO) in future works.

Then, the OWL formalization will improve the reuse

of the GOSMO thanks to its powerful capacities in

terms of expressiveness. Therefore, it will allow the

development of a requirements traceability tool relat-

ing requirements and stakeholders goals with change

requests that are tracked during the context-adaptive

safety management process. This aspect will be the

subject of future works. Finally, we will provide a for-

mal characterization of GOSMO in order to allow the

reasoning and the data retrieval related to safety and

design aspects. Then, we intend to evaluate GOSMO

by comparing it with results obtained by safety analy-

sis integration methods and requirements elicitation

tools. These contributions intend to provide a full

safety-control methodology for the design of future

autonomous systems.

REFERENCES

Ben Ayed, R., Collart-Dutilleul, S., Bon, P., Idani, A.,

and Ledru, Y. (2014). B formal validation of

ERTMS/ETCS railway operating rules. In Interna-

tional Conference on Abstract State Machines, Alloy,

B, TLA, VDM, and Z, pages 124–129. Springer.

Borgida, A., Ernst, N., Jureta, I. J., Lapouchnian, A.,

Liaskos, S., and Mylopoulos, J. (2009). Techne: A

(nother) requirements modeling language. Computer

Systems Research Group. Toronto, Canada: Univer-

sity of Toronto.

Dardenne, A., Van Lamsweerde, A., and Fickas, S. (1993).

ICSOFT 2019 - 14th International Conference on Software Technologies

296

Goal-directed requirements acquisition. Science of

computer programming, 20(1-2):3–50.

de Almeida Falbo, R. (2014). Sabio: Systematic ap-

proach for building ontologies. In 1

Joint Work-

shop ONTO.COM / ODISE on Ontologies in Concep-

tual Modeling and Information Systems Engineering.

FOIS, Rio de Janeiro.

Debbech, S., Bon, P., and Collart-Dutilleul, S. (2018a). Im-

proving safety by integrating dysfunctional analysis

into the design of railway systems. WIT Transactions

on The Built Environment, 181:399–411.

Debbech, S., Bon, P., and Collart-Dutilleul, S. (2019a).

A model-based system engineering approach to man-

age railway safety-related decisions. International

Journal of Transport Development and Integration,

3(1):30–43.

Debbech, S., Bon, P., and Collart-Dutilleul, S. (2019b). To-

wards semantic interpretation of goal-oriented safety

decisions based on foundational ontology. Journal of

Computers, 14(4):257–267.

Debbech, S., Collart-Dutilleul, S., and Bon, P. (2018b). Cas

d’

etude de mission ferroviaire t

e-op

ee. Rapport de

recherche, IFSTTAR - Institut Franc¸ais des Sciences

et Technologies des Transports, de l’Am

enagement et

des R

eseaux.

d’Enqu

etes sur les Accidents de Transport Terrestres (BEA-

TT), B. (2004). The saint-romain-en-gier acci-

dent bea-tt report (french version), rapport d’enqu

ete

technique sur l’accident ferroviaire survenu

a saint-

romain-en-gier le 5 avril 2004. Technical re-

port, Minist

ere de l’

Equipement, des Transports, de

l’Am

enagement du Territoire, du Tourisme et de la

Mer, METATTM.

d’Enqu

etes sur les Accidents de Transport Terrestres (BEA-

TT), B. (2005). The longueville accident BEA-

TT report (french version), rapport d’enqu

ete tech-

nique sur l’accident ferroviaire survenu

a longueville

le 16 f

evrier 2005. Technical report, Minist

ere de

l’

Equipement, des Transports, de l’Am

enagement du

Territoire, du Tourisme et de la Mer, METATTM.

El Kalam, A. A., Benferhat, S., El Baida, R., Saurel, C.,

Balbiani, P., Deswarte, Y., Trouessin, G., et al. (2003).

Organization based access control. In The IEEE 4th

International Workshop on Policies for Distributed

Systems and Networks (POLICY 2003), Lake Come,

Italy, June, page 120. IEEE.

Falbo, R. D. A. and Bertollo, G. (2009). A software pro-

cess ontology as a common vocabulary about software

processes. International Journal of Business Process

Integration and Management, 4(4):239–250.

Firesmith, D. G. (2005). A taxonomy of safety-related re-

quirements. In International Workshop on High As-

surance Systems (RHAS’05).

Gruber, T. R. (1995). Toward principles for the design of

ontologies used for knowledge sharing? International

journal of human-computer studies, 43(5-6):907–928.

Guizzardi, G. (2005). Ontological foundations for struc-

tural conceptual models. PhD thesis, University of

Twente, Enschede, The Netherlands.

IEEE 610.12 (1990). Standard glossary of software engi-

neering terminology. Std, IEEE.

ISO/IEC/IEEE 29148 (2011). ISO/IEC/IEEE 29148: Sys-

tems and software engineering – Life cycle processes

–Requirements engineering. Std, IEEE.

ery, D. and Merz, S. (2007). Speciﬁcation and reﬁnement

of access control. J. UCS, 13(8):1073–1093.

Negri, P. P., Souza, V. E. S., de Castro Leal, A. L.,

de Almeida Falbo, R., and Guizzardi, G. (2017). To-

wards an ontology of goal-oriented requirements. In

CIbSE, pages 469–482.

Provenzano, L., Hanninen, K., Zhou, J., and Lundqvist, K.

(2017). An ontological approach to elicit safety re-

quirements. In 2017 24th Asia-Paciﬁc Software Engi-

neering Conference (APSEC), pages 713–718. IEEE.

Souag, A., Salinesi, C., Mazo, R., and Comyn-Wattiau,

I. (2015). A security ontology for security require-

ments elicitation. In International symposium on engi-

neering secure software and systems, pages 157–177.

Springer.

Van Lamsweerde, A. (2001). Goal-oriented requirements

engineering: A guided tour. In Requirements Engi-

neering, 2001. Proceedings. 5

IEEE International

Symposium on Requirements Engineering (RE’01),

pages 249–262. IEEE.

Wang, X., Guarino, N., Guizzardi, G., and Mylopoulos, J.

(2014). Towards an ontology of software: a require-

ments engineering perspective. In 8

International

Conference on Formal Ontology in Information Sys-

tems (FOIS), Rio de Janeiro, pages 317–329.

Yu, E. (2011). Modelling strategic relationships for process

reengineering. Social Modeling for Requirements En-

gineering, 11:2011.

Zhou, J., Hanninen, K., Lundqvist, K., Lu, Y., Proven-

zano, L., and Forsberg, K. (2015). An environment-

driven ontological approach to requirements elicita-

tion for safety-critical systems. In 2015 IEEE 23rd

International Requirements Engineering Conference

(RE), pages 247–251. IEEE.

Zhou, J., H

anninen, K., Lundqvist, K., and Provenzano, L.

(2017). An ontological interpretation of the hazard

concept for safety-critical systems. In The 27th Eu-

ropean Safety and Reliability Conference ESREL’17,

18-22 Jun 2017, Portoroz, Slovenia, pages 183–185.

Conceptual Modelling of the Dynamic Goal-oriented Safety Management for Safety Critical Systems

297
