Leveraging Cloud-based Tools to Talk with Robots

Enas Altarawneh and Michael Jenkin

Electrical Engineering and Computer Science, York University, Toronto, ON, Canada

Keywords:

Human-robot Interaction, Cloud-based AI, Realistic Human Avatar.

Abstract:

Although there has been signiﬁcant advances in human-machine interaction systems in recent years, cloud-

based advances are not easily integrated in autonomous machines. Here we describe a toolkit that supports

interactive avatar animation and modeling for human-computer interaction. The avatar toolkit utilizes cloud-

based speech-to-text software that provides active listening by detecting sound and reducing noise, a cloud-

based AI to generate appropriate textual responses to user queries, and a cloud-based text-to-speech generation

engine to generate utterances for this text. This output is combined with a cloud-based 3D avatar animation

synchronized to the spoken response. Generated text responses are embedded within an XML structure that

allows for tuning the nature of the avatar animation to simulate different emotional states. An expression pack-

age controls the avatar’s facial expressions. Latency is minimized and obscured through parallel processing in

the cloud and an idle loop process that animates the avatar between utterances.

1 INTRODUCTION

This work describes the development of an animated

and programmable interactive avatar. The cloud-

based Extensible Avatar toolkit (or the EA toolkit for

short) is a rendered 3D visual puppet (avatar) through

which humans can interact with a robot (see Figure

1). The toolkit relies on a number of components:

a speech-to-text module that converts utterances cap-

tured by a microphone in proximity to the robot into

text, a generic text-to-utterance module that generates

natural language speech, and on-robot speaker and

display hardware. Augmenting these utterances with

a visual avatar requires rendering complex and de-

tailed animations in real time and synchronizing these

animations to the utterance. Such rendering typically

requires speciﬁc and/or resource intensive hardware

which may not be available embedded within an au-

tonomous robot. In order to overcome this constraint,

this work explores utterance recognition and the ren-

dering of the avatar using cloud-based computational

resources. A high level view of this process is shown

in Figure 2.

The work described here leverages a number of

cloud-based software components. It relies on a

speech-to-text recognition module, a knowledge en-

gine, a text-to-speech engine, a 3D character design

system, a 3D animation toolkit, and a lip-syncing

plugin for the animation program that extracts the

(a) The avatar

(b) Components

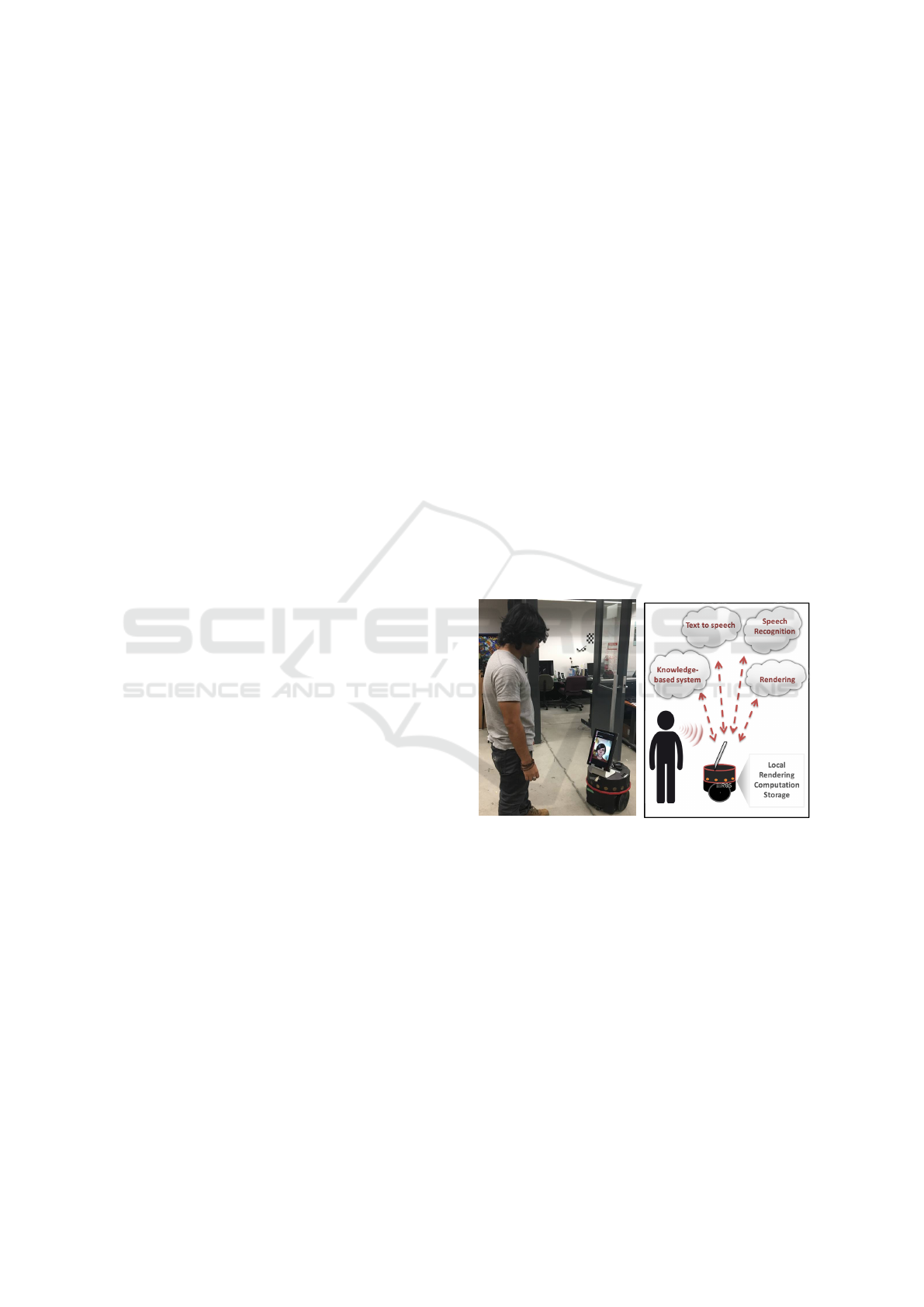

Figure 1: Talking with an interactive avatar-enabled robot.

Cloud-based systems are used to augment limited on-board

computational and rendering resources.

sounds in words, maps them to mouth shapes and

plots them according to duration and occurrence in

the text in real time. An expression package con-

trols the animated character’s mood and facial ex-

pressions. Rather than seeking to advance our un-

derstanding in terms of these aspects, this work con-

siders how to integrate these modules to provide an

animated cloud-based avatar. Recognizing that the

use of cloud-based resources will introduce unwanted

delays in the recognition and rendering process, key

technical contributions in this work include (i) the de-

velopment of an adaptive parallelization strategy to

360

Altarawneh, E. and Jenkin, M.

Leveraging Cloud-based Tools to Talk with Robots.

DOI: 10.5220/0007947003600367

In Proceedings of the 16th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2019), pages 360-367

ISBN: 978-989-758-380-3

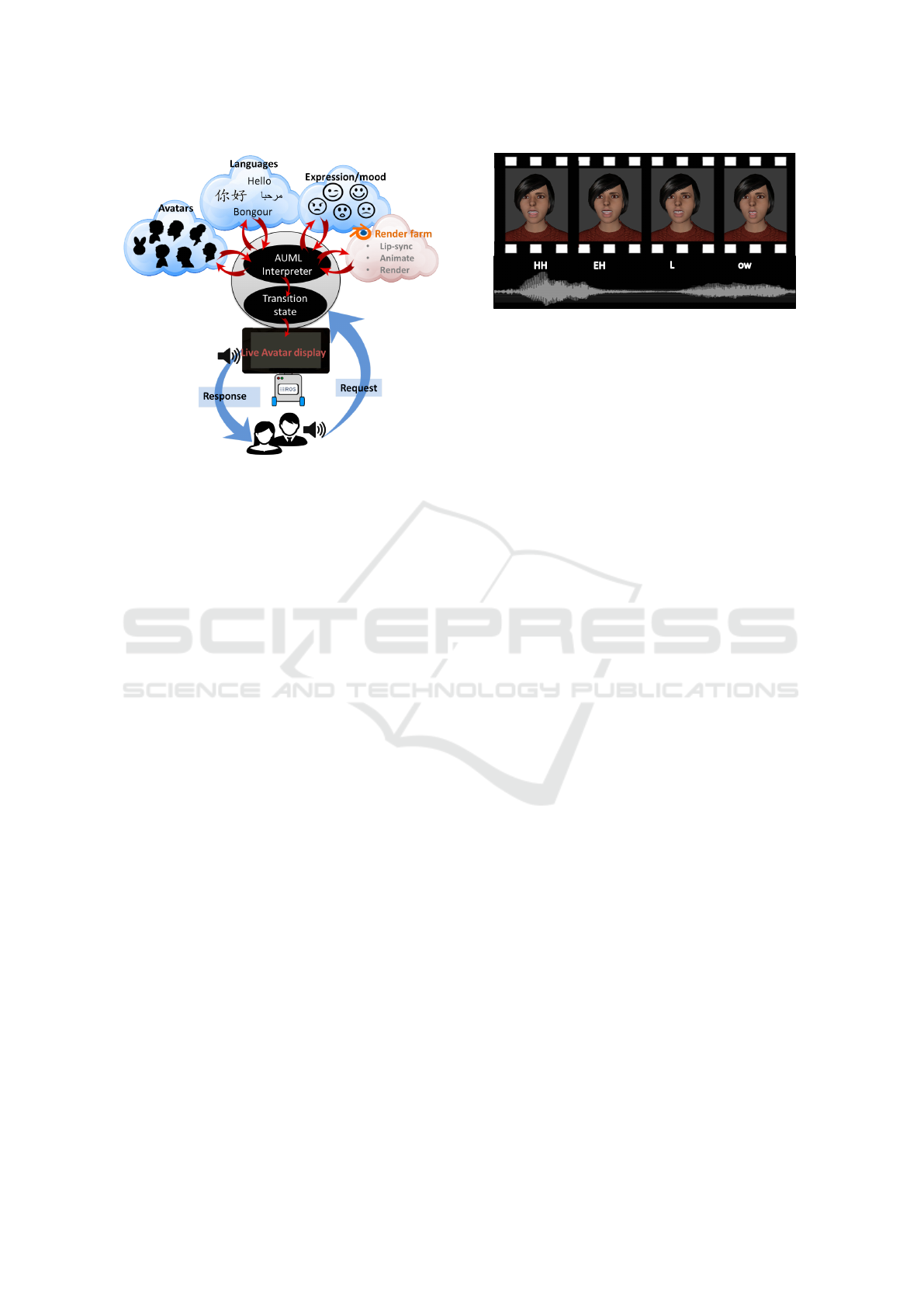

Figure 2: Extensible Avatar (EA) toolkit. The avatar can

be customized for language, appearance and tenor of the

conversation. Responses can be reﬂected through the avatar

or through commanded instruction to the vehicle.

leverage cloud-based rendering resources to minimize

the latency itself, and (ii) the development of an “idle

loop” process to obscure any resulting latency in the

recognition, response and rendering processes. This

“idle loop” process animates the avatar puppet be-

tween utterances so that the character being rendered

is not still but rather appears to interact with external

users even when not being spoken to directly.

2 PREVIOUS WORK

An artiﬁcially intelligent agent is an autonomous en-

tity that observes the environment through sensors

and acts upon it using actuators, directing its activ-

ity towards achieving a speciﬁc set of goals (see Rus-

sell and Norvig 2003). A virtual agent or intelligent

avatar has applications in almost every ﬁeld. For ex-

ample, avatars and virtual agents have been used as an

interface for home care monitoring and companion-

ship (see (Shaked, 2017)). There have been a number

of previous attempts to create realistic 3D expressive

talking heads for intelligent agents and avatars and

some have shown encouraging results (e.g. (Brem-

ner et al., 2016), (Wan et al., 2013), (Anderson et al.,

2013a), (Anderson et al., 2013b)); however existing

systems have not yet achieved the level of realism as-

sociated with their 2D counterparts ((Anderson et al.,

2013a)). 2D talking heads presently look more real-

istic than their 3D counterparts, but they are limited

in the variety of poses and in the lighting conditions

that can be simulated ((Anderson et al., 2013a)). En-

Figure 3: A ﬁlm strip of an animated character. The avatar

is controlled by control points. These controls are of two

types, facial controls and the body rig. Examples of a facial

controls include mouth-open, left-brow-right-up, left-brow-

mid-down and mouth-right-corner-up. Examples of body

rigs include neck, left-eye-lid, jaw and spine.

abling a talking head to express emotion along with

a synchronized utterance is a challenging problem.

Model-based approaches have shown some potential

in solving this problem. For example, the avatar de-

scribed by (Anderson et al., 2013a) is driven by text

and emotion inputs and generates expressive speech

with corresponding facial movements. It uses a Hid-

den Markov Model (HMM)-based text-to-speech syn-

thesis system ((Zen et al., 2007)) with an active ap-

pearance model (AAM)-based facial animation sys-

tem ((Cootes et al., 2001)). The system utilizes a

cluster adaptive training framework to train both the

speech and facial parameters which allows for the

creation of expressions of different intensity and the

combining of different expressions together to create

new ones. Results on an emotion-recognition task

show that recognition rates given the synthetic output

are comparable to those given the original videos of

the speaker. (Anderson et al., 2013b) present a simi-

lar study that produced a talking head given an input

text and a set of continuous expression weights. The

face is modeled using an active appearance model,

and several extensions that enhance the face. The

model allows for normalization with respect to both

pose and blink state which signiﬁcantly reduces arti-

facts in the resulting synthesized sequences ((Ander-

son et al., 2013b)).

A central problem in avatar generation involves

synchronizing the animated avatar to audio responses

generated by the avatar. There exist software sys-

tems and human aided approaches that can be used

to partially or completely automate the creation of

facial and speech animation. One example of such

work is the framework for synthesizing a 3D lip-sync

speech animation to a given speech sequence and its

corresponding text described by (Chen et al., 2012).

The ﬁrst step in this process identiﬁes the key-lip-

shapes from a training video that guides the creation

of corresponding 3D key-faces. These 3D key-faces

Leveraging Cloud-based Tools to Talk with Robots

361

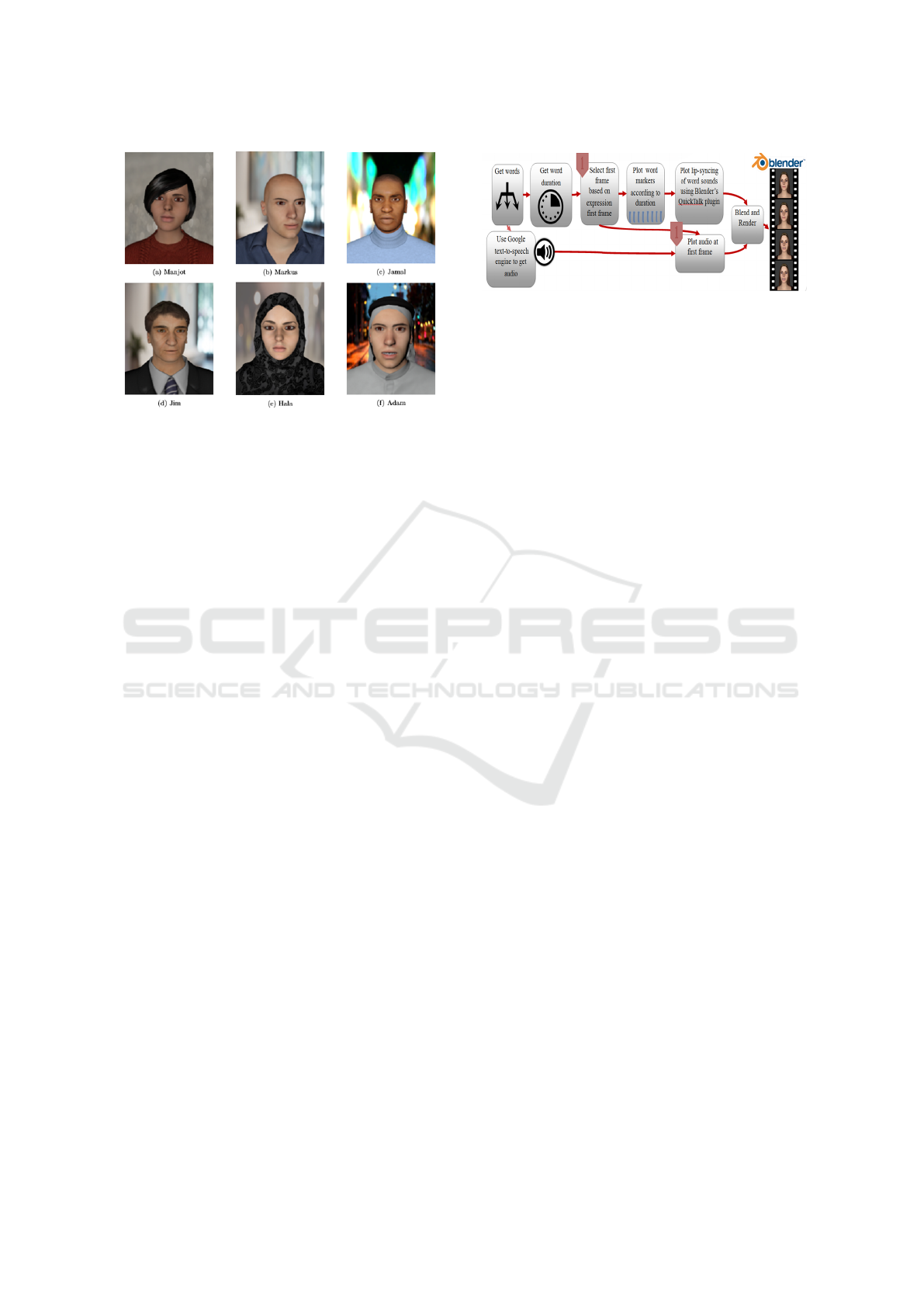

Figure 4: Examples of developed avatars.

are used to construct Dominated Animeme Models

(DAM) for each kind of phoneme. Considering the

coarticulation effects, which is the articulation of two

or more speech sounds together so that one inﬂuences

or dominates over the other, the DAM computes the

polynomial-ﬁtted animeme shape for each key-face

and its corresponding dominance weight ((Chen et al.,

2012; Huang et al., 2009)). Other approaches exist in

the literature. For example, (Wang et al., 2012) de-

scribes a statistical, multi-streamed Hidden Markov

Model (HMM) trained using super feature vectors

consisting of 3D geometry, texture and speech. The

HMM is then used to synthesize both the trajectories

of head motion animation and the corresponding dy-

namics of texture. In yet another example, the speech

signal, which is represented by Mel-Frequency Cep-

stral Coefﬁcient vectors, is classiﬁed into visemes us-

ing a neural network ((Zoric and Pandzic, 2005)). Us-

ing genetic algorithms the topology of the neural net-

work is conﬁgured automatically. This eliminates the

need for manual neural network design and consider-

ably improves viseme classiﬁcation results.

There exists a range of software tools, plugins and

add-on solutions that aid animators with lip-syncing

and facial animations. One example is CrazyTalk

(CrazyTalk, 2018). Crazy Talk is a 2D real-time fa-

cial animation software that uses voice and text to an-

imate facial images. It allows an animator to use their

own voice to create their animations in real-time us-

ing an automatic motion engine. Another example is

Faceshift (Faceshift, 2018), which is a software so-

lution that can capture the user’s facial expressions

in real time and generate an avatar that mimics the

user. Faceshift technology uses off-the-shelf RGBD

cameras. Faceshift is compatible with most available

3D software packages via plugins and data export.

A Blender (Mullen (2012)) plugin called Quicktalk

(Quicktalk, 2017) can semi-automatically lipsync any

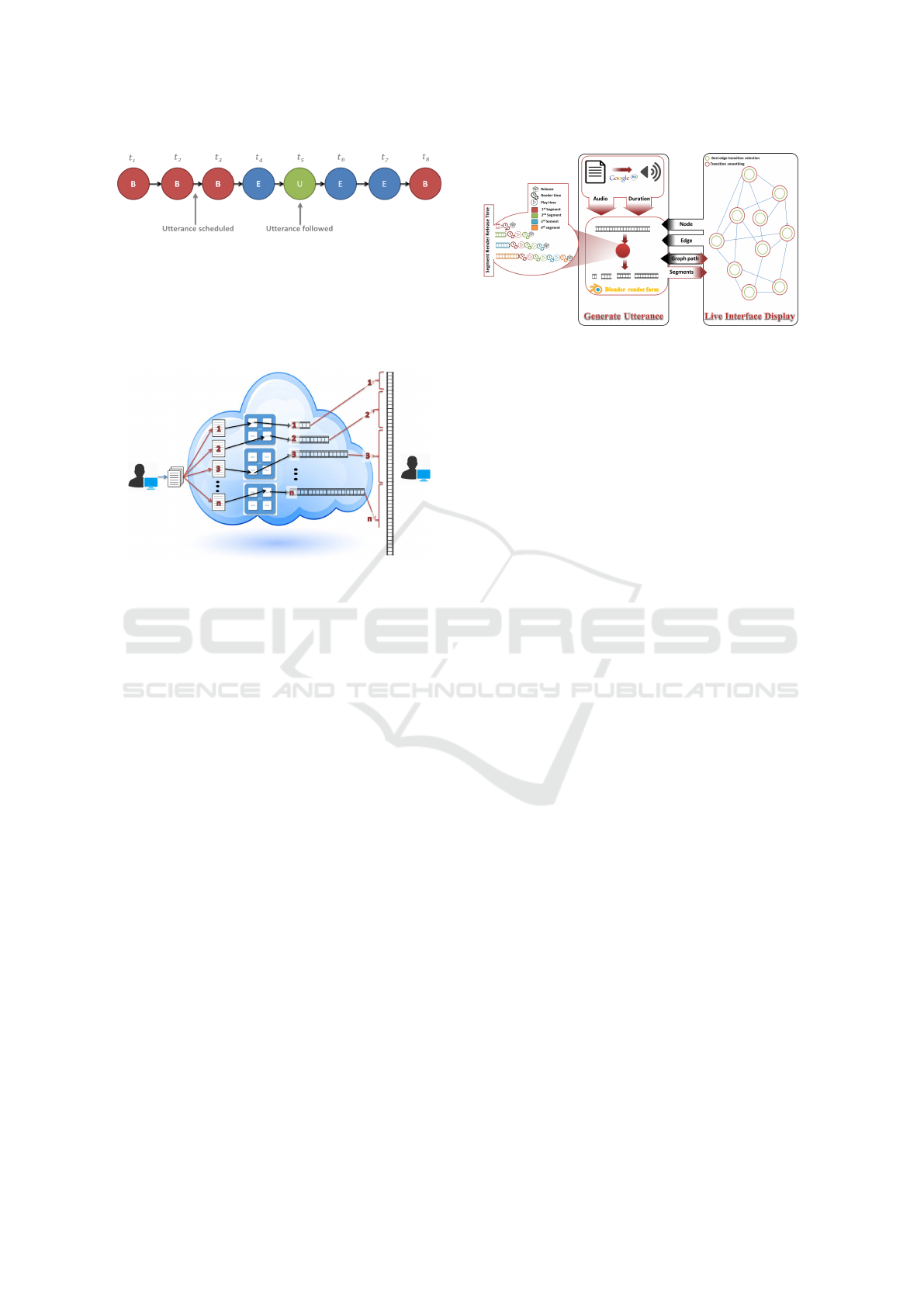

Figure 5: The process of lip-syncing the spoken words.

selected audio using the MakeHuman MxH2 charac-

ter (MXH2, 2017). To use this plugin the user man-

ually exports a Makehuman’s MXH2 character, adds

the sound track, adds the word-sound dictionary, adds

the text script to be lip-synced, and then uses the plu-

gin to automatically plot the lip-sync. The word plot

markers then need to be manually adjusted to match

the audio of each word so that the lip-sync is not out

of place.

3 BUILDING THE AVATAR

There exist a number of different suppliers of cloud-

based speech recognition and text-to-speech audio

generation systems. Here we use an abstract model

of these processes. This abstract process has been im-

plemented utilizing a number of different cloud-based

and local engines, although the work has concentrated

on the Google Engine (Speech Recognition, 2017).

The development of this abstract toolkit builds upon

substantive previous efforts in this domain. A stan-

dard toolkit for local speech recognition can be found

online (Speech Recognition, 2017) and can be easily

integrated into any ROS robot system. Google pro-

vides a toolkit to integrate their recognizer with 3rd

party software. The output of this process is a natu-

ral language expression as a sequence of words in the

recognition language. Similar tools exist for utterance

generation. This work uses Google’s textto- speech

cloud-based engine (Krishnan and Gonzalez (2015))

to generate the audio layer of the utterance and blend

it with an animated avatar to match the response.

The Avatar Utterance Markup Language

(AUML). Rather than transmitting straight

English text, the text to be rendered by the avatar is

placed within a structured framework that provides

rendering hints for both audio generation and avatar

rendering through the Avatar Utterance Markup

Language (AUML), a formal language for avatar

utterances created in this work. This language is

a XML representation; it deﬁnes a set of rules for

encoding a desired output using a textual data format.

ICINCO 2019 - 16th International Conference on Informatics in Control, Automation and Robotics

362

Figure 6: Generating a path in the ADG. To generate a

path for the utterance a start and end node are selected in

the ADG, the utterance is then inserted into the graph and

rendered to allow smooth transition from and to the utter-

ance.

Every utterance includes an avatar’s detailed descrip-

tion, language, spoken words, expression associated

with sub phrases and general mood. The goal of this

language is to standardize and facilitate the use of

available avatars, languages and expressions. It also

allows for extensibility by the simple inclusion of

new tags or values.

The Avatars. Avatars are 3D puppets properly

rigged for animation. This work utilizes an open

source realistic 3D human character design software

called MakeHuman(J. Russell and Cohn (2012)).

MakeHuman provides the ability to manipulate age,

weight, length, gender, and race of the avatar. The

software also allows for changes in facial details, hair,

eyes, skin and clothes. Users can select from a variety

of 3D meshes and bone structures for each character.

Characters are exported using the MHX2 rig (MHX2,

2017) which enables MakeHuman structures to be im-

ported into the Blender renderer (Mullen (2012)). Ex-

amples of implemented avatars are shown in Figure 4.

Lip-syncing Spoken Words. Spoken words in the

utterance are lip-synced with the audio to provide a

realistic utterance. A key requirement here is under-

standing the time indexing of individual events in the

utterance. As we know the text used to generate the

audio we use the text to help animate the lips. We

utilize a dictionary of the sounds in words and use

this to compute the timing of events in the utterance.

Having prior knowledge of the duration of every pos-

sible word (or at least most common words) helps to

automate realistic lip-syncing and more generally al-

lows us to predict how long the resulting audio and

video sequences will be. In order to obtain the ex-

pected duration of utterances we trained our system

on the duration of every word in a dictionary using

the text-to-speech engine. We assume that the du-

ration t(x) of the spoken word x is independent of

its context within which x was used. This simpliﬁes

the process of estimating the duration of the spoken

phrases. Audio strips generated by a text to audio en-

gine are typically embedded within a quiet clip. The

Figure 7: Realistic utterance state transitions.

result audio duration usually includes empty audio at

the beginning and the end of the audio strip. An au-

dio clip consists of a constant number of frames ( f )

per second (typically 24) and the pre- and post-clip

residue have proven to be of constant duration. In-

order to accommodate these effects, the duration of

each word is used as a weight for the actual plot time

of the word in the lip-sync animation of the sentence.

The time marker of each word is calculated using

w(x) = t(x)/

∑

i=1

(t(x

)). The duration of the word

x in the actual sentence T

(x) is approximated by the

weight of the word multiplied by the actual duration

of the sentence t

(x) = w(x)∗t(x). The marker of each

word in the actual sentence m(xs) is the marker for the

ﬁrst frame ( f

) plus the number of frames (NF(d)) in

the duration space (d) of every word that comes be-

fore it. The frame marker for each word is calculated

using m(x) = f

+ NF(

∑

J<i

j=1

(w(x

) ∗t(x

)).

The vismes in every word are mapped to mouth

and lip key-frame shapes. These key-frame shapes

are used to plot the vismes associated with each word.

We utilize key-frame shapes that are part of the MHx2

facial rig exported from MakeHuman ((Russell and

Cohn, 2012)) and imported into Blender ((Mullen,

2012)). This automated lip-sync process is based on

a manual process that uses a blender plugin called

QuickTalk ((Quicktalk, 2017)). We automated this

process and optimized the word markers based on the

actual duration of the word instead of using equally

divided markers. The QuickTalk plugin creates an

indexed dictionary of all of the words in the vismes

dictionary for every lip-synced phrase. This work op-

timizes the vismes retrieval mechanism by using one

pass for the words. The sounds plotted using key-

frame shapes were based initially on the originally

hard coded values for each visme found in MHX2.

The original values create exaggerated mouth move-

ments for each visme which did not seem to produce a

realistic outcome. These default values were adjusted

to create a more desired effect. The lip-syncing pro-

cess is summarized in Figure 5.

Building a Realistic Utterance State Transition.

Between utterances we do not want the avatar to be

still. Rather we wish the avatar to engage in ap-

parently normal motion. Furthermore, we wish the

Leveraging Cloud-based Tools to Talk with Robots

363

Figure 8: Multiple edge state transition. Four idle loops

through x

are illustrated with transitions between x

and x

, x

and x

, and x

and x

. Potential idle loops in

each of x

through x

shown in different colors an a possi-

ble stochastic path is shown as a dotted line.

avatar to transit from this delay behavior to utter-

ance behavior seamlessly. We accomplish this by

pre-rendering and pre-loading to the robot a collec-

tion of renderings that can be played when the avatar

is idle and which are designed to be combined to-

gether to make arbitrarily long sequences of idle be-

havior. The Avatar Delay Graph (ADG) provides a

structure within which to encode short locally cached

video sequences that can be played so as to provide

an animation of the avatar between utterances. This

structure also provides a mechanism within which to

obscure rendering and transmission latencies which

are unavoidable given the cloud-based rendering of

the avatar. We model the ADG as a labeled di-

rected graph G = (V, E), where V = {x

,...,x

}

and E = {e

,...,e

}. Nodes correspond to points

at which speciﬁc video sequences can be stitched to-

gether smoothly and edges model individual video se-

quences. Each edge e = (x

) is labeled with τ(e),

how long it takes the play the sequence corresponding

to e. When the avatar plays the video sequence corre-

sponding to edge e the avatar’s representation within

the ADG transits from x

to x

. Also associated with

edge e is an “expressive state” es = (s

,...,s

) an

encoding of the nature of the avatar as it is perceived

by a user. The dimensionality of es is avatar depen-

dent.

Initially the avatar is in some node x

and has some

avatar state S. When the avatar is not uttering an ex-

pression it walks the ADG in a stochastic manner as

described below. When in node x it chooses from the

edges departing from x. For each candidate edge e

the avatar delay engine computes the difference from

S to es(e

), d

= |S − es(e

)|. The avatar then chooses

randomly from each of the incident edges with a prob-

ability inversely proportional to this distance. Specif-

ically, with a probability proportional to 1/(d

+ ε)

where ε is a small positive constant to avoid overﬂow.

Once a best edge e

best

is chosen the avatar’s state S

is updated using S

= λS + (1 − λ)es(e

best

). Vertices

in the ADG are optionally labeled as being a starting

or terminating node to aid in terms of merging ADG

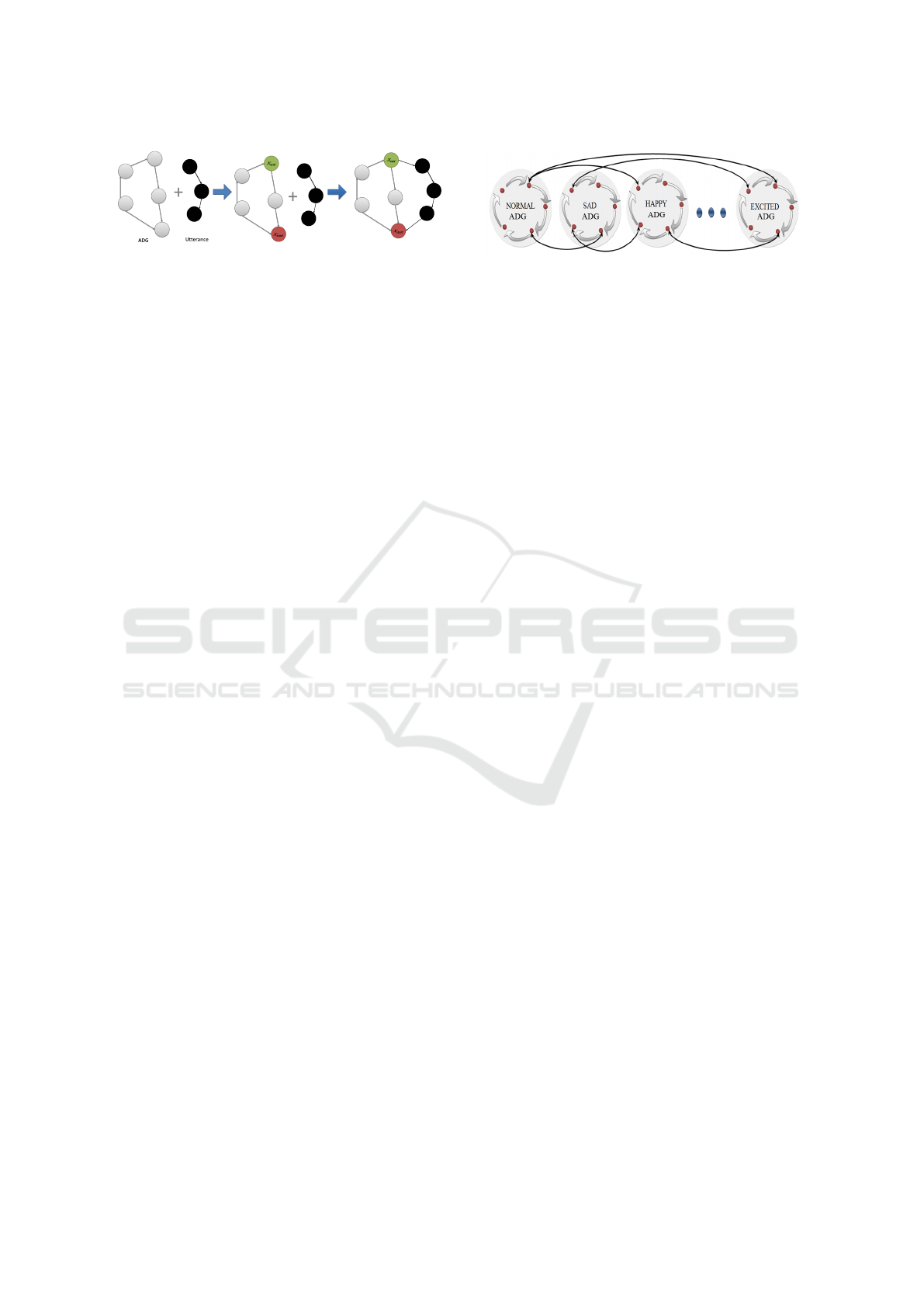

Figure 9: An example ADG, representing two different

emotional states.

transitions and renderings with renderings associated

with utterances. A node can be both a starting and ter-

minating node. When an utterance is to be generated

an appropriate terminating node in the ADG is iden-

tiﬁed based on the length of the path and to this node

the similarity of the chosen transitioning node to the

current avatar state as described below.

When the avatar is to render some utterance with

state S, a new temporary edge E = (x

start

end

) is con-

structed. Here the x

start

and x

end

nodes are chosen

from the set of starting and terminating nodes in the

ADG. The utterance is rendered between node x

start

and x

end

of the ADG. To accomplish this, we ﬁrst

identify x

start

and x

end

in the ADG. The x

end

node

is chosen such that (i) is a terminating node, and (ii)

the mean of |es((x

end

)) − S| is minimized. That

is, when the utterance is generated it terminates in a

state where there is a good exiting edge in the ADG

from x

end

.The choice of start node is similar, but it

is also necessary to identify a node that can be ac-

cessed quickly in terms of transitions in the ADT in

order to avoid delaying the utterance (Figure 6). The

start

node is chosen such that (i) x

start

has a starting

label, and (ii) the cost of

∑

ατ(e) + (1 − α)|es(e) − S|

is minimized, where here the sum is over the path in

the ADG from the avatar’s current state to the x

start

node. This chooses a nearby start node such that the

es values are similar to the current state of the avatar S.

Note that the process of selecting the x

start

node also

enables the computation of the expected delay before

it is necessary to start rendering the utterance.

Once the x

start

and x

end

nodes have been identiﬁed

the avatar begins to move deterministically through

the ADG to the x

start

node following the sequence

identiﬁed in the process of identifying this node.

When it reaches x

start

it then executes the rendered

utterance and re-enters the ADG at the x

end

node.

The value of S is unchanged by this process although

clearly it would be possible to associate a change in S

with each utterance. Once at x

end

the stochastic walk

through the ADG continues until the next utterance is

ICINCO 2019 - 16th International Conference on Informatics in Control, Automation and Robotics

364

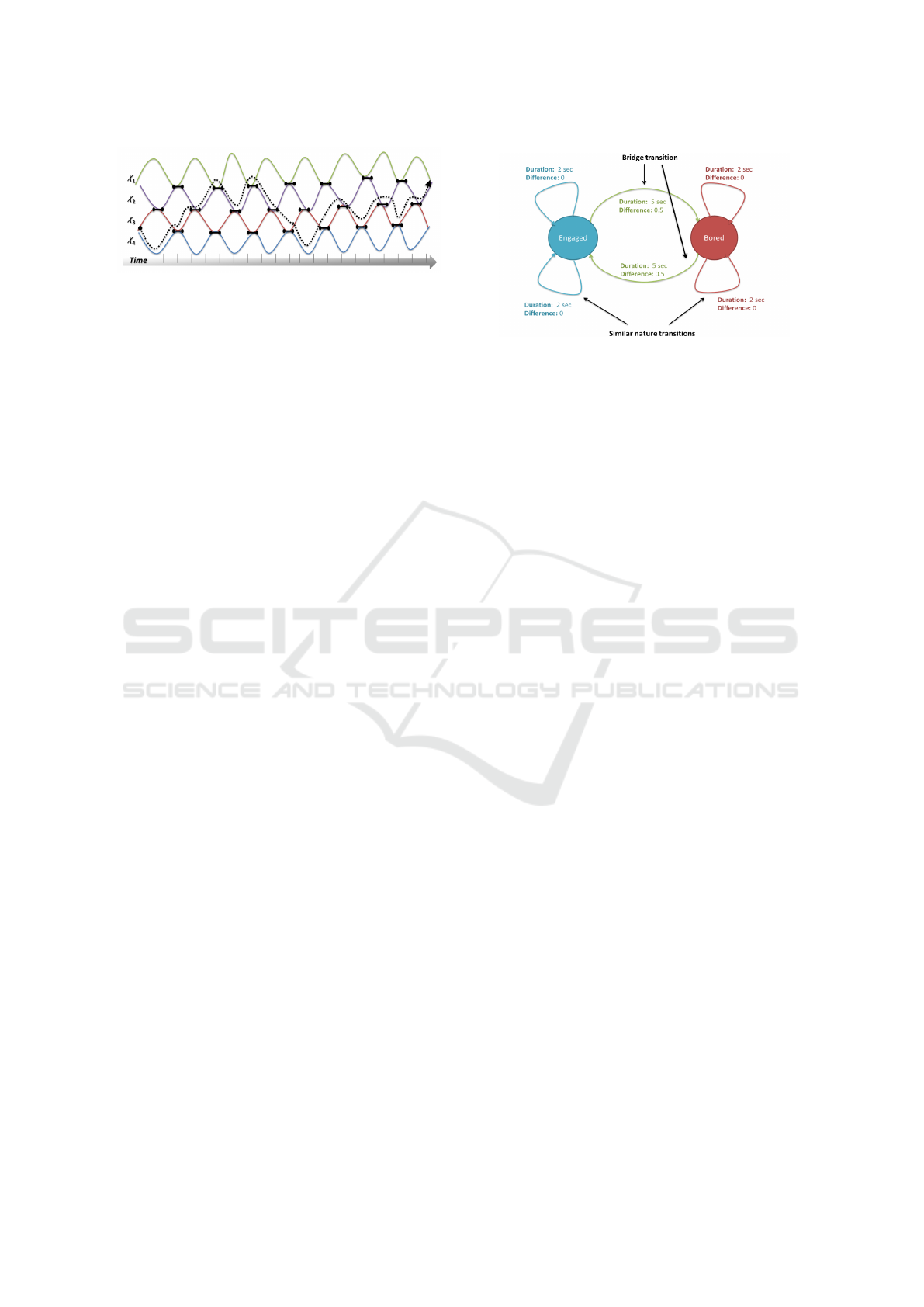

Figure 10: An example transition sequence. Initially the

avatar is bored in the bored state. At t

an utterance is

scheduled for after t

. The only start node is in the engaged

state, so the avatar transits to the engaged node and ex-

ecutes the utterance at t

. After the utterance the avatar

returns to the engaged state where it continues to walk the

graph.

Figure 11: The multi-process rendering system. A clip

to be rendered is split into non-uniform length pieces and

distributed to the rendering farm. The rendered sections

are pieced together in the correct display sequence.

available and the process continues.

When not generating utterances the avatar contin-

ues to animate through one of a number of waiting

states to simulate a non-engaged but nevertheless an-

imated speaker. We can structure such waiting states

to simulate emotion or mood (Figure 7). Figure 7

also shows how common connectors allow for real-

istic transition. Figure 8 illustrates how these idle

loops are combined stochastically in order to gen-

erate smooth idle sequences. The idle loops cross

path to form a graph of nodes and edges. To illus-

trate this point more clearly consider Figure 9. Here

the Bored and Engaged state is structured as two idle

loops. Suppose that the starting and ending nodes ex-

ist only in the “engaged” portion of the ADG. Then

it would need a bridge for an utterance while it is in

the “bored” portion of the ADG. Figure 10 presents

an example of the transition from bored to engaged.

In addition to a simulated general mood in the

waiting state the avatar supports automated facial ex-

pressions manipulation. We can automate expression

based on predeﬁned rotation and translation values

for our facial rig or a given set of values at any time.

The importance of this automation is that expression

manipulation and animation can be done on demand

without the need for 3D GUI manipulation which can

be extremely time consuming.

Figure 12: An overview of the parallel multiprocess gener-

ation of the utterance to reduce latency and how its result is

connected to the display.

4 RENDERING THE AVATAR

We utilize the Google cloud platform to render the

avatar. This platform provides a compute engine that

allows for the creation of virtual machines with var-

ious levels of computation power (number of virtual

CPUs, the inclusion of a GPU, size of RAM and disk

space) and different choics of operating systems. The

virtual machines can be customized based on the user

needs. This work requires the creation of K identical

virtual machines for multiprocessing and transform-

ing these headless virtual machines into rendering en-

gines. By default the instances created in a project

on the Google cloud platform do not include a GUI,

graphics display device or an audio playback device.

Individual instances are headless servers with compu-

tational power and are described as compute engines.

This work requires rendering engines. Rendering an-

imations with Blender requires an X server, display

screen and audio sink. To create a rendering engine

from a compute engine a dummy audio sink needs

to be created and activated and an X server needs to

be started using a virtual display screen and assigning

it values for resolution and color. Unfortunately off

screen rendering can not make use of OpenGL which

allows for the use of hardware acceleration. In or-

der to enable rendering each instance is provided with

VirtualGL (VirtualGL, 2018). VirtualGL is a software

that can forward off-screen rending requests to the

GPU for hardware acceleration. VirtualGL requires

two displays (a 3D display to render from and a 2D

display to render to) and a real X server. So, in ad-

dition to the previously mentioned virtual display and

audio dummy sink, each instance requires a real X

server running and a virtual 3D display linked to the

GPU driver.

Leveraging Cloud-based Tools to Talk with Robots

365

4.1 Distributed Rendering in the Cloud

First, we observe that we can parallelize the render-

ing process of the avatar. We can break the rendering

sequence into smaller pieces, render those pieces in

parallel in the cloud, and then present the rendered

clips in sequence to the user. If we approximate the

relationship between playing time T

and rendering

and network latency time T

as a multiplicative fac-

tor (k), then T

= kT

and if we have a pre-deﬁned

acceptable rendering latency (T ), then we he have

T seconds to render the ﬁrst clip. This latency will

result in kT seconds of played video. The second

rendering stream also starts at time 0, and has the

initial latency plus the time of the ﬁrst clip’s play-

ing time within to render, resulting in T + kT sec-

onds of rendering time and k(T + kT) seconds of ren-

dered video from the second processor. Or more gen-

erally, T

= T +

∑

n−1

and under the assumption

that T

= kT

then T

= T + k

∑

n−1

. Figure 11 il-

lustrates the multi-process rendering system. Second,

we observe that delays in the cloud are estimable, but

are stochastic. So there is some small probability that

the next clip to play may not be available when it is

needed. Furthermore, we wish to simplify the prob-

lem of stitching the clips together when playing them

so arbitrary clip points are to be avoided. So instead

of using the break points as identiﬁed above we treat

the break points as maximum values and seek the next

earliest point in the utterance that corresponds to a

word break or punctuation. This gives us more nat-

ural break points in the rendering. More rigorously,

suppose we have a break point T

identiﬁed through

the process described above. Then rather than break-

ing the input at this point we scan backwards looking

for the ﬁrst break in the input, either the ﬁrst punctu-

ation or space between words. Call the time moving

backwards in the clip until the ﬁrst word break T

and

the time unit the ﬁrst punctuation T

. We weight each

by k

and k

respectively and choose the minimum of

, T

and V

max

as the break point. Here V

max

a maximum weighted distance to backup. Note that –

especially for very short duration clips – one or more

of T

and T

may not exist. Third, we observe that

we can ‘stall’ the video being generated should it be

necessary by rocking the video to be played back and

forward a small amount to avoid the avatar becoming

‘stuck’ or ‘stuttering’. Rolling the video backwards

and forwards will always be consistent with the video

being played and can be used to ‘hide’ unexpected la-

tency. Figure 12 provides an illustration of the overall

rendering and display process. The ﬁgure shows how

the rendering and display process are connected and

the data ﬂow required to achieve a seamless display

of introduced response utterances.

5 EXPERIMENTAL SYSTEM

A customized version of the cloud-based avatar for

human-robot interaction was used to navigate the

robot using a simple chatbox layer that can iden-

tify targeted navigational words and numbers in the

user’s speech within context. This customized ver-

sion allows for sending navigational commands us-

ing speech. These commands include “go left”, “go

right”, “move forward” and “stop”. Using these com-

mands the robot moves continuously until given the

command “stop”. A speciﬁed distance can be sent to

these commands by adding a number at the end of

each command, such as “go forward two”. The avatar

would respond with an appropriate utterance by say-

ing “going left”, “going right”, “coming through” and

“stopping”. The utterances are cached locally on the

robot after the ﬁrst utterance of a kind is sent to the

cloud for rendering and is received by the local de-

vice for display. An image of a user interacting with

this customized version of the interface is shown in

Figure 1.

6 ONGOING AND FUTURE

WORK

We are currently completing a user study exploring

the efﬁciency of the approach and the potential of ex-

ploring locally provided cloud resources speciﬁcally

tuned for avatar rendering. And we are working to

deploy the technology in a greeter robot application.

ACKNOWLEDGMENT

The ﬁnancial support of CFREF VISTA projects, the

Google Cloud Platform and the NSERC’s NCFRN

and NCRN projects are gratefully acknowledged.

REFERENCES

Anderson, R., Stenger, B., Wan, V., and Cipolla, R. (2013a).

An expressive text-driven 3d talking head. In ACM

SIGGRAPH 2013 Posters, pages 80:1–80:1, New

York, NY. ACM.

Anderson, R., Stenger, B., Wan, V., and Cipolla, R. (2013b).

Expressive visual text-to-speech using active appear-

ance models. In Proceedings of the 2013 IEEE Con-

ference on Computer Vision and Pattern Recognition

ICINCO 2019 - 16th International Conference on Informatics in Control, Automation and Robotics

366

(CVPR), pages 3382–3389, Washington, DC. IEEE

Computer Society.

Bremner, P., Celiktutan, O., and Gunes, H. (2016). Person-

ality perception of robot avatar tele-operators. In Pro-

ceeding of the 11th ACM/IEEE International Confer-

ence on Human-Robot Interaction (HRI), pages 141–

148, Christchurch, New Zealand.

Chen, Y. M., Huang, F. C., Guan, S. H., and Chen, B. Y.

(2012). Animating lip-sync characters with dominated

animeme models. IEEE Transactions on Circuits and

Systems for Video Technology, 22(9):1344–1353.

Cootes, T. F., Edwards, G. J., and Taylor, C. J. (2001). Ac-

tive appearance models. IEEE Transactions on Pat-

tern Analysis and Machine Intelligence, 23(6):681–

685.

CrazyTalk. (2018). Create 3D talking heads with

CrazyTalk. Retrieved from https://www.reallusion.

com/crazytalk/

Faceshit. (2018). Faceshift. Retrieved from http://openni.

ru/solutions/faceshift/index.html

Huang, F.-C., Chen, Y.-M., Wang, T.-H., Chen, B.-Y., and

Guan, S.-H. (2009). Animating lip-sync speech faces

by dominated animeme models. In SIGGRAPH ’09:

Posters, pages 2:1–2:1, New York, NY. ACM.

Krishnan, S. T. and Gonzalez, J. U. (2015). Building Your

Next Big Thing with Google Cloud Platform: A Guide

for Developers and Enterprise Architects. Apress,

Berkely, CA, USA, 1st edition.

MHX2. (2017). Mhx2 documentation. Retrieved from

https://thomasmakehuman.wordpress.com/mhx2-

documentation

Mullen, T. (2012). Mastering Blender. SYBEX Inc.,

Alameda, CA, USA, 2nd edition.

Quicktalk. (2017). Quicktalk lip synch addon. Retrieved

from Available: https://tentacles.org.uk/quicktalk

Russell, J., & Cohn, R. (2012). Makehuman. Book on De-

mand. Retrieved from https://books.google.ca/books?

id=TFeaMQEACAAJ

Quicktalk (2017). Quicktalk lip synch addon.

Russell, J. and Cohn, R. (2012). Makehuman. Book on

Demand.

Shaked, N. A. (2017). Avatars and virtual agents - relation-

ship interfaces for the elderly. Healthcare Technology

Letters 4.3, pages 83–87.

SpeechRecognition. (2017). Speechrecognition 3.8.1 :

Python package index - pypis. Retrieved from https://

pypi.python.org/pypi/SpeechRecognition/ (Accessed

30- April-2017)

VirtualGL. (2018). Virtualgl the virtualgl project. Retrieved

from https://www.virtualgl.org/

Wan, V., Anderson, R., Blokland, A., Braunschweiler, N.,

Chen, L., Kolluru, B., Latorre, J., Maia, R., Stenger,

B., Yanagisawa, K., Stylianou, Y., Akamine, M.,

Gales, M., and Cipolla, R. (2013). Photo-realistic ex-

pressive text to talking head synthesis. In Proceedings

of the Annual Conference of the International Speech

Communication Association (INTERSPEECH), Lyon,

France.

Wang, L., Han, W., and Soong, F. K. (2012). High quality

lip-sync animation for 3d photo-realistic talking head.

In Proceeding of IEEE International Conference on

Acoustics, Speech and Signal Processing (ICASSP),

pages 4529–4532, Kyoto, Japan.

Zen, H., Nose, T., Yamagishi, J., Sako, S., Masuko, T.,

Black, A. W., and Tokuda, K. (2007). The HMM-

based speech synthesis system (HTS) version 2.0. In

Proceedings of the 7th ISCA Tutorial and Research

Workshop on Speech Synthesis (SSW), Kyoto, Japan.

Zoric, G. and Pandzic, I. S. (2005). A real-time lip sync

system using a genetic algorithm for automatic neural

network conﬁguration. In Proceeding of IEEE Inter-

national Conference on Multimedia and Expo, pages

1366–1369, Amsterdam, Netherlands.

Leveraging Cloud-based Tools to Talk with Robots

367
