LADS: A Live Anomaly Detection System based on Machine Learning

Methods

Gustavo Gonzalez-Granadillo

, Rodrigo Diaz

, Ib

eria Medeiros

, Susana Gonzalez-Zarzosa

and Dawid Machnicki

Atos Research & Innovation, Cybersecurity Laboratory, Spain

LASIGE, Faculty of Sciences, University of Lisboa, Portugal

Keywords:

Machine Learning, One-class SVM, Anomaly Detection, Network Trafﬁc Behavior, NetFlow.

Abstract:

Network anomaly detection using NetFlow has been widely studied during the last decade. NetFlow provides

the ability to collect network trafﬁc attributes (e.g., IP source, IP destination, source port, destination port,

protocol) and allows the use of association rule mining to extract the ﬂows that have caused a malicious event.

Despite of all the developments in network anomaly detection, the most popular procedure to detect non-

conformity patterns in network trafﬁc is still manual inspection during the period under analysis (e.g., visual

analysis of plots, identiﬁcation of variations in the number of bytes, packets, ﬂows). This paper presents a Live

Anomaly Detection System (LADS) based on One class Support Vector Machine (One-class SVM) to detect

trafﬁc anomalies. Experiments have been conducted using a valid data-set containing over 1.4 million packets

(captured using NetFlow v5 and v9) that build models with one and several features in order to identify the

approach that most accurately detects trafﬁc anomalies in our system. A multi-featured approach that restricts

the analysis to one IP address and extends it in terms of samples (valid and invalid ones) is considered as a

promising approach in terms of accuracy of the detected malicious instances.

1 INTRODUCTION

Anomaly detection solutions work on the basis of

the data provided by different network monitoring

technologies (e.g., sFlow and NetFlow) or software-

deﬁned management solutions (e.g., OpenFlow) that

allow access to forwarding devices. These approaches

are used to collect data about the trafﬁc as it enters

or exits an interface (Bradatsch, 2019). Due to the

lightweight and efﬁcient nature of the NetFlow pro-

tocol, a number of widely used NetFlow-based solu-

tions have been developed and a great number of al-

gorithms have been proposed to detect abnormal ac-

tivities in NetFlow data (Vaarandi, 2013).

Despite of all the developments in network

anomaly detection, the most popular procedure to de-

tect non-conformity patterns is still manual inspection

during the period under analysis (e.g., visual analy-

sis of plots, identiﬁcation of variations in the num-

ber of bytes, packets, ﬂows). Most of the current

work focuses on the identiﬁcation of anomalies based

on trafﬁc volume changes. However, since not all

of the anomalies are directly reﬂected in the number

of packets, bytes or ﬂows, it is not possible to iden-

tify them all with such metrics (Lakhina et al., 2005).

Approaches to address this issue propose the use of

IP packet header data. Particularly, IP addresses and

ports allow the characterization of detected anoma-

lies.

In this paper, we propose a Live Anomaly De-

tection System (denoted by LADS) based on unsu-

pervised machine learning algorithms. The approach

explores the use of a well known machine learning

method, the One class Support Vector Machine (One-

class SVM), to identify abnormal behaviors in the

NetFlow trafﬁc captured. A set of experiments have

been conducted using one and multiple features of

ﬂows in order to identify the best approach to de-

tect anomalies in a given trafﬁc using NetFlow. Re-

sults show a promising approach using multiple fea-

tures that restrict the analysis to a modelled IP address

and extended it in terms of samples (valid and invalid

ones).

The remainder of this paper is structured as fol-

lows: Section 2 discusses related work. Section 3

presents the architecture of LADS. Section 4 intro-

duces the One-class SVM algorithm and dataset used

to model the network trafﬁc behavior. Section 5 de-

464

Gonzalez-Granadillo, G., Diaz, R., Medeiros, I., Gonzalez-Zarzosa, S. and Machnicki, D.

LADS: A Live Anomaly Detection System based on Machine Learning Methods.

DOI: 10.5220/0007948904640469

In Proceedings of the 16th International Joint Conference on e-Business and Telecommunications (ICETE 2019), pages 464-469

ISBN: 978-989-758-378-0

tails the experiments performed to train, test and se-

lect the most accurate anomaly detection model. Fi-

nally, conclusions and perspective for future work are

presented in Section 6.

2 RELATED WORK

Machine learning (ML) techniques have been widely

proposed in the literature as a viable approach for net-

work anomaly detection. Wagner et al. (Wagner et al.,

2011), for instance, propose a machine learning ap-

proach for IP-Flow record anomaly detection. The

approach is based on SVM algorithm, in order to an-

alyze and classify large volumes of NetFlow records.

Xu and Wang (Xu and Wang, 2005) propose an

adaptive network intrusion detection method based on

principal component analysis (PCA) and SVM. The

approach aims at optimizing the training of the clas-

siﬁer and the tests using a PCA algorithm. This latter

performs the optimization by discarding all unneces-

sary data coming into the IDS and then running SVM

on the data. Although much faster, results show that

the approach degrades the detection rate using PCA

algorithm.

Zhang et al. (Zhang et al., 2008) present a

method based on One-class SVM for detecting net-

work anomalies. Experiments are carried out on three

different sets of telecommunication network data and

the results show the promising performance of the ap-

proach. The main drawback of this approach is that

its ability to detect anomalies rely on the choice of a

kernel function (i.e., Radial Basic Function), whose

parameters are difﬁcult to deﬁne. In addition, the ap-

proach does not perform comparison tests with other

tools, nor it performs anomaly detection tests with dif-

ferent kernels.

Mulay et al. (Mulay et al., 2010) propose an ap-

proach that uses ML techniques to apply SVM and

decision tree algorithms to a given data set. Authors

use SVM and decision tree combined to see which

would get the best results with multiclass data.

Amer et al. (Amer et al., 2013) propose two en-

hanced methods that use One-class SVM for unsuper-

vised anomaly detection. The key idea of both en-

hancement is that outliers should contribute less to

the decision boundary as normal instances. Experi-

ments conducted on well-known data sets show that

the proposed modiﬁcations on the One-class SVM al-

gorithms are very promising.

Limthong (Limthong, 2013) proposes a real time

computer network anomaly detection using ML tech-

niques. The approach compares three standard and

well-known ML algorithms (i.e., multivariate normal

distribution, k-nearest neighbor, and one-class SVM)

and uses a function based on the precision and recall

parameters, to evaluate the detection performance of

the proposed techniques. Results show that the pro-

posed approach is suitable to be applied in real-time

systems. Nevertheless, the approach lacks of informa-

tion about time consumption during the training and

test phase. In addition, the selection of features for

detecting particular anomalies needs to be reﬁned.

Our work differs from previous works in the way

that it deﬁnes features (one or a combination of sev-

eral IP-based features) to be used for evaluating the

performance of a given machine learning algorithm in

detecting legitimate and anomalous network trafﬁc.

3 LADS ARCHITECTURE

The general architecture of Live Anomaly Detection

System (LADS) is presented in Figure 1.

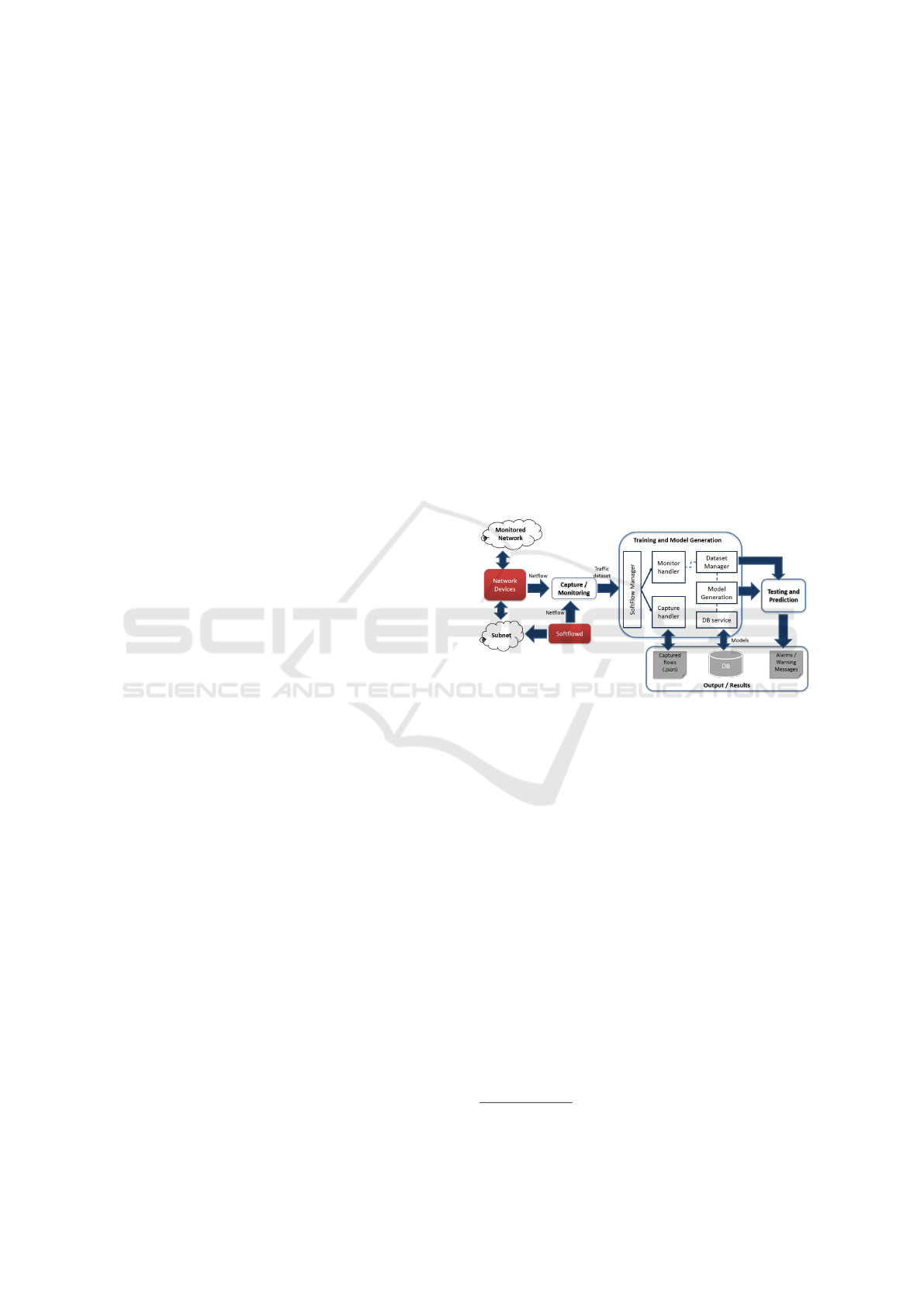

Figure 1: LADS Architecture.

• Capture/Monitoring: This module is composed

of two elements: (i) the monitored network, which

includes NetFlow data from both hardware de-

vices (e.g., routers) and software elements (soft-

ﬂow); and (ii) the softﬂowd

, a ﬂow-based net-

work trafﬁc analyzer capable of exporting Cisco

NetFlow data.

• Training and Model Generation: This module

uses machine learning to build a model for test-

ing and predictions over the captured data with

a predeﬁned time window that can vary accord-

ing to the size of the data to be analyzed (e.g.

5-second window). The Model Generator uses a

deﬁned machine learning algorithm to build the

model based on the legitimate trafﬁc and the de-

ﬁned parameter(s) (e.g., IP addresses, port num-

bers, protocols). Models are then stored in the

database by the DB service.

• Testing and Prediction: Once the machine learn-

ing model is built, the testing and prediction

https://github.com/irino/softﬂowd

LADS: A Live Anomaly Detection System based on Machine Learning Methods

465

module performs the network trafﬁc evaluation

in real-time. For this, the module requires the

dataset (composing of both legitimate and mali-

cious event) from the Dataset Manager. The main

objective of the prediction service is to identify

anomalous behavior on the network trafﬁc and to

generate alarms (warning messages) based on the

obtained results. If a sample falls outside the area

deﬁned by the model, then the sample is consid-

ered as anomalous. More details about this pro-

cess is provided in Section 5.2.

• Output/Results Module: This module is com-

posed of (i) the database that stores all models

used for the prediction module. The database

needs to be populated with NetFlow data, indi-

cating all the arguments of the captured interface.

It is then possible to indicate the root path of the

NetFlow data, the proﬁle and source name of the

captured trafﬁc; (ii) the captured ﬂows generated

by the Capture handler during the training and

model generation process; and (iii) the alarms in-

dicating anomalous behavior of the analyzed net-

work trafﬁc. The main objective of this module is

to provide information about the generated mod-

els whenever these data is required by the testing

and prediction module.

4 LADS MACHINE LEARNING

ALGORITHM AND DATASET

This section details the machine learning algorithm

and the dataset used for testing and validation of the

LADS. It is important to note that we have built sev-

eral prediction models using the same machine learn-

ing algorithm. The ultimate goal of this research work

is to be able to use different algorithms to build differ-

ent models and to compare their accuracy in detecting

anomalous behavior on the Netﬂow data.

4.1 Machine Learning Algorithm

Out of the many novel mechanisms that can be used

for intrusion detection, there are two promising ap-

proaches that can be adopted in order to satisfy the

aforementioned requirement (Pedregosa et al., 2011)

(i) Novelty detection, aiming at establishing a de-

cision boundary that encompasses legitimate events;

and (ii) Outlier detection, aiming at building a data

model, based on an event database, which separates

largely dense areas from outliers.

In the machine learning domain, there are several

solutions from both learning groups: supervised

(requiring classiﬁed data to train on) and unsuper-

vised (autonomously identifying the classes within

the data). Our research focuses on one particular

unsupervised method:

• One-class Support Vector Machine

(SVM) is

a variation of a widely used SVM algorithm that

belongs to the novelty detection family. The train-

ing process is carried out only on samples rep-

resenting legitimate (normal) behavior/events, in

this case, the functional margin is established to

encompass all the training samples and separate

them from the rest of the space.

LADS uses the One-Class SVM algorithm to con-

struct a hyper-plane or set of hyper-planes in a high

or inﬁnite dimensional space. A good separation is

achieved by the hyper-plane that has the largest dis-

tance to the nearest training data points of any class

(functional margin), therefore, the larger the margin

the lower the generalization error of the classiﬁer.

4.2 Dataset

The One-Class SVM algorithm has been tested

against a valid dataset, containing NetFLow trafﬁc

from an training internal network of an electrical com-

pany infrastructure. The network is divided by rooms

which contain devices that communicate with each

other and, in some cases communicate with devices

on other rooms.

The network has two capture points, one on Room

1 and another on Room 2, which were running Wire-

shark

. The same program was used to create two

packet capture ﬁles that were later converted into Net-

Flow v5

and NetFlow v9

with a maximum time in-

terval of 3 minutes for each ﬂow and stored using nf-

dump

tools. Table 1 summarizes the information of

the used dataset.

Before the training process, we cleaned the dataset

so that broadcast, multicast and non-internal IP ad-

dresses were discarded. We split the dataset into two:

• Dataset 1: IP addresses from Room 1 excluding

broadcast and multicast (6,000 ﬂows); and

• Dataset 2: keeping only internal trafﬁc inside

Room 1 (5,800 ﬂows).

http://scikit-learn.org/stable/auto examples/svm/

plot oneclass.html

https://www.wireshark.org/

https://www.plixer.com/support/NetFlow-v5

https://www.plixer.com/support/NetFlow-v9

https://github.com/phaag/nfdump

SECRYPT 2019 - 16th International Conference on Security and Cryptography

466

Table 1: Dataset Statistics.

NetFlow Room Packets Flows Start

Time

End

Time

Total

Time

Vol.

(MB)

Src

Dst

Port

Src

Port

Dst

1 511,875 8,294 16:22:37 18:18:46 01:56:09 46.23 9 16 2,241 107

v5 2 and 3 208,365 3,759 17:08:14 18:15:51 01:07:37 26.47 12 19 721 24

All 720,240 12,053 16:22:37 18:18:46 01:56:09 72.70 21 30 3,052 122

1 514,713 8,716 16:22:37 19:52:47 03:30:10 46.54 13 24 2,523 179

v9 2 and 3 209,034 4,006 17:08:13 19:23:28 02:15:15 26.54 14 23 909 25

All 723,747 12,722 16:22:37 19:52:47 03:30:10 73.08 27 38 3,293 194

5 LADS TRAINING AND

TESTING

This section presents the validation process of our ap-

proach.

5.1 Training

We trained the LADS only with information about

the IP addresses provided in the dataset. Since the

training process requires to build a model based on

the distance among IPs within the dimensional space

at which they are embedded, an IP transformation

is required. In order to reduce the dimensionality

of the dataset used by the LADS, maintaining at the

same time as much as possible information carried by

the samples, the Principal Component Analysis func-

tion (PCA) is essential to ﬁnd alternative features that

maintain around 99% of the data variance, meaning

that around 99% of information is carried by the orig-

inal dataset.

After these steps, we trained the One-Class SVM

algorithm on the clean data provided in the dataset

and validated the trained models against the test set

(see next experiments). The accuracy and precision

of the trained models vary largely depending on the

evaluated features.

5.2 Testing

Aiming at validating the models built by the LADS,

we performed a series of tests with one, two, three and

four features.

5.2.1 Experiment 1

Measuring Distance among IP Addresses (2 Fea-

tures): The goal of this experiment is to compute the

distance between the modelled IP and the new ob-

served IP addresses. Such a distance could indicate

how close or far the new observed IP is with respect

to the modelled one. The rule in this experiment is

to classify as anomalous those IPs whose distance ex-

ceeds a predeﬁned threshold.

For this experiment we transformed all IP ad-

dresses into integer values (e.g., 172.18.21.4 is trans-

formed to 2886735108) and we subtract the resulting

integer of the modelled IP with the integer of the new

observed IP. The LADS has been trained with dataset

1 and 2. We have used the One-Class SVM algorithm

to compute the distance from the closest to the far-

thest IP address. A model based on these data is cre-

ated and a region is designed accordingly. During the

testing part, we have added seven IP addresses from

outside the range used during the training process. All

IPs from the block are considered legitimate and all

those that fall outside the boundaries are considered

anomalous. Results are shown in Figure 2.

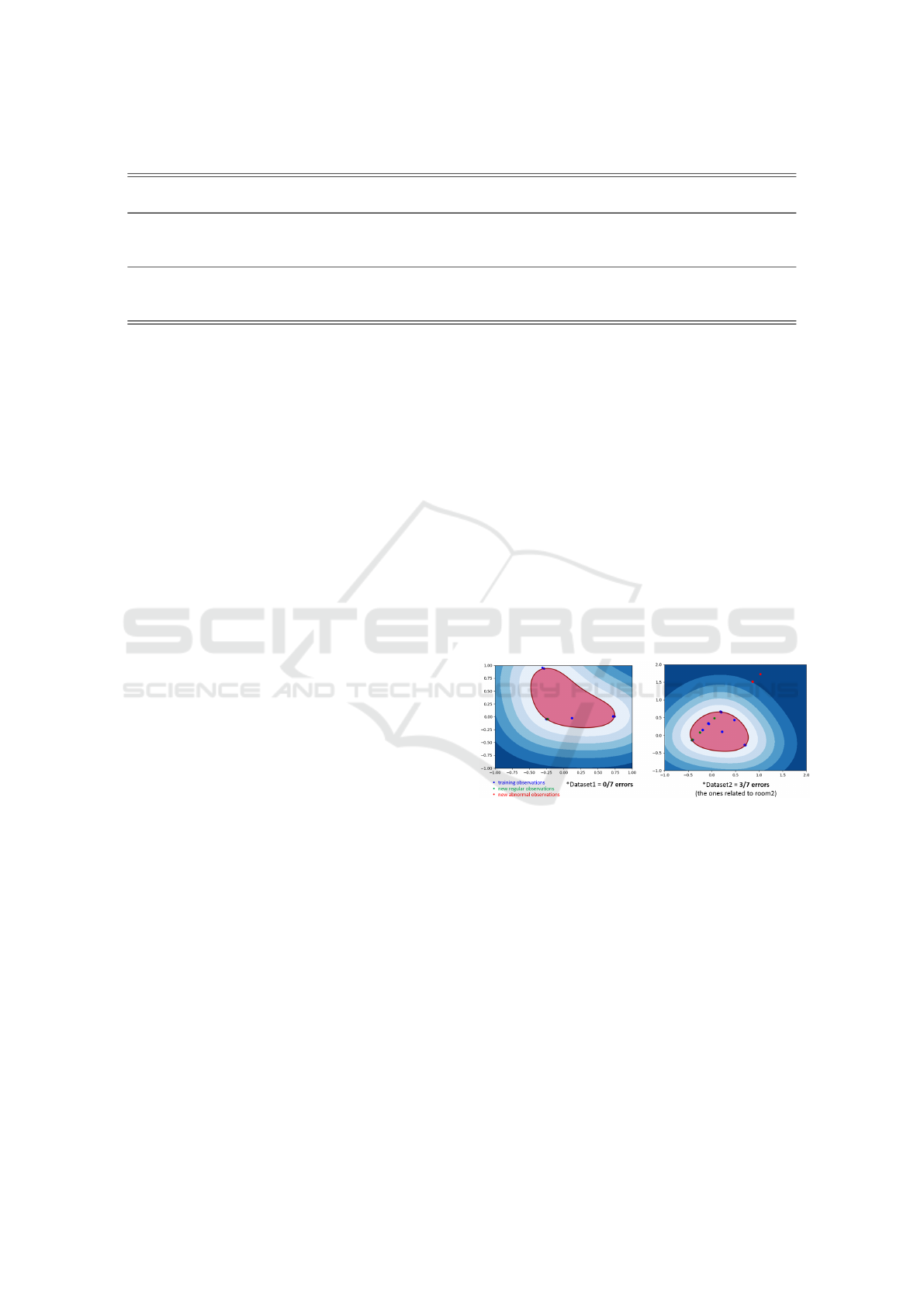

Figure 2: Results from Experiment 1.

As shown in Figure 2, the blue dots are the train-

ing observations, the green dots are the new regular

observations, whereas the red dots are the new abnor-

mal observations. Results from dataset 1 show that

there is no error in the analysis (i.e., all IP addresses

are considered legitimate, although seven of them do

not belong to the range), whereas results from dataset

2 show that there are three errors (i.e., three out of

seven IP addresses are considered anomalous). Preci-

sion (i.e., percentage of instances correctly classiﬁed

as anomalies over the discovered anomaly) is very

low in this case. In order to improve these results,

it is necessary to build and test other models.

LADS: A Live Anomaly Detection System based on Machine Learning Methods

467

5.2.2 Experiment 2

Measuring Distance among IP Addresses and Pro-

tocols (3 Features): For this experiment we included

not only IP source and destination, but also the proto-

col used in the connections as the features to be ana-

lyzed by the LADS. We have used the same datasets

and the One-Class SVM to compute the distance form

the closest to the farthest IP address. A model based

on these data is created and a 3D region is designed

accordingly. During the testing part, we have added

seven IP addresses from outside the range used dur-

ing the training process. All IPs from the block are

considered legitimate and all those that fall outside

the boundaries are considered anomalous. Results are

shown in Figure 3.

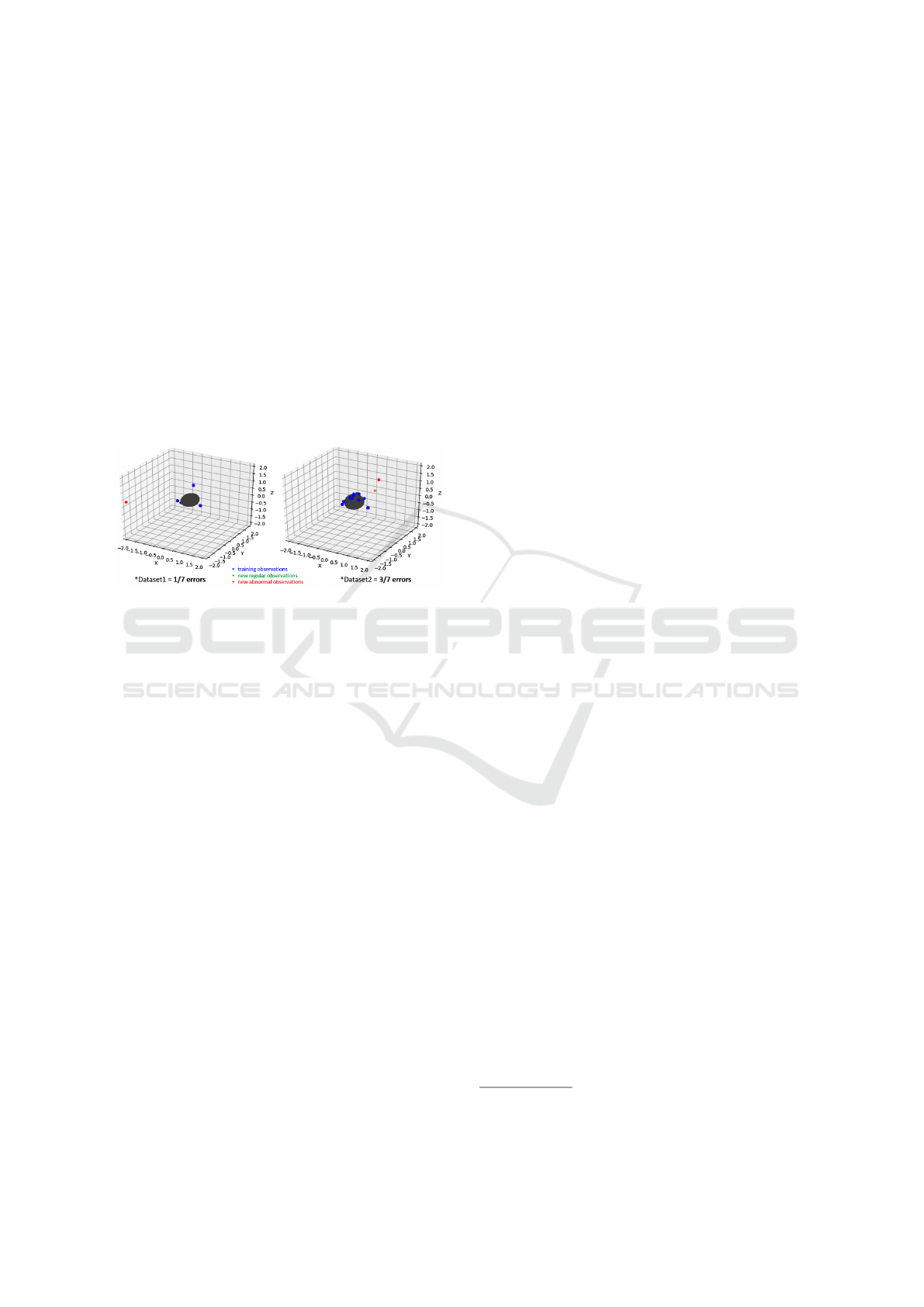

Figure 3: Results from Experiment 2.

Results from dataset 1 show that there is one error

in the analysis (i.e., one out of seven IP addresses is

considered anomalous), whereas result from dataset 2

show that there are three errors (i.e., three out of seven

IP addresses are considered anomalous). Results are

similar from those obtained in experiment 1, we de-

cided to generate another model and run other types

of experiments.

5.2.3 Experiment 3

Measuring Distance of Each IP Octet (4 Features):

Instead of transforming the whole IP address into

one integer, we split the IP address into four octets

and each octet is treated as one different feature.

Octets have been transformed into integer values (e.g.,

172.18.21.4 is transformed to 288,67,35,108). Simi-

lar to previous training, a model based on these data

is created and a region is designed accordingly. Dur-

ing the testing part, we have added seven IP addresses

from outside the range used during the training pro-

cess. All IPs from the block are considered legitimate

and all those that fall outside the boundaries are con-

sidered anomalous. Since there are four features, it is

not possible to obtain plots in four dimensions. How-

ever, results are similar to those obtained in experi-

ment 1 (i.e., dataset 1 = 0/7 errors, dataset 2 = 3/7

errors). No improvements have been obtained with

the use of a greater number of features.

5.2.4 Experiment 4

Converting IPs into Binaries (1 Feature): for this

experiment we transformed each IP into its corre-

sponding binary using the Label Binarizer encoding

method

, which consists on assigning zeros or ones

to data points depending on what category they are

in. During the training process, the LADS learns one

binary classiﬁer per class, by doing this, multi-class

labels are converted into binary labels whether they

belong or not to the class. During the testing pro-

cess, one assigns the class for which the correspond-

ing model gave the greatest conﬁdence.

Results from this experiment show that no errors

have been detected with the current training/testing

dataset (i.e., all IP addresses are considered to be le-

gitimate, including the seven outsiders). Still, pre-

cision is very low. No improvements have been ob-

tained with the use of this approach.

5.2.5 Experiment 5

Evaluating 3 Features to Represent IP Source and

Destination: A dedicated model has been created for

one of the IP addresses included in the dataset (i.e.,

172.18.21.4). We only included the incoming and

outgoing trafﬁc that goes through the selected IP ad-

dress. The model considers three features:

• IP Location: we evaluate if the IP address of

the analyzed instance is source or destination, for

which a value of zero or one will be allocated ac-

cordingly (i.e., 0 if it is a source IP, 1 if it is a

destination IP).

• IP Distance: we compute the distance between the

modelled IP and the new one (as performed in pre-

vious experiments).

• IP Knowledge: we evaluate if the IP address of

the analyzed instance is known or unknown, for

which a value of zero or one will be allocated ac-

cordingly (i.e., 0 if it is a known IP, 1 if it is an

unknown IP).

The testing dataset has been restricted only to the

modelled IP and extended in terms of samples: 15

samples (3 valid and 12 invalid). Results are shown

in Figure 4, from which 11 out the 12 invalid samples

were detected as anomalous observations (1 false pos-

itive). In terms of the dataset, even without ﬁltering

external trafﬁc, this approach is able to detect most of

the anomalous samples.

https://scikit-learn.org/stable/modules/generated/

sklearn.preprocessing.LabelBinarizer.html

SECRYPT 2019 - 16th International Conference on Security and Cryptography

468

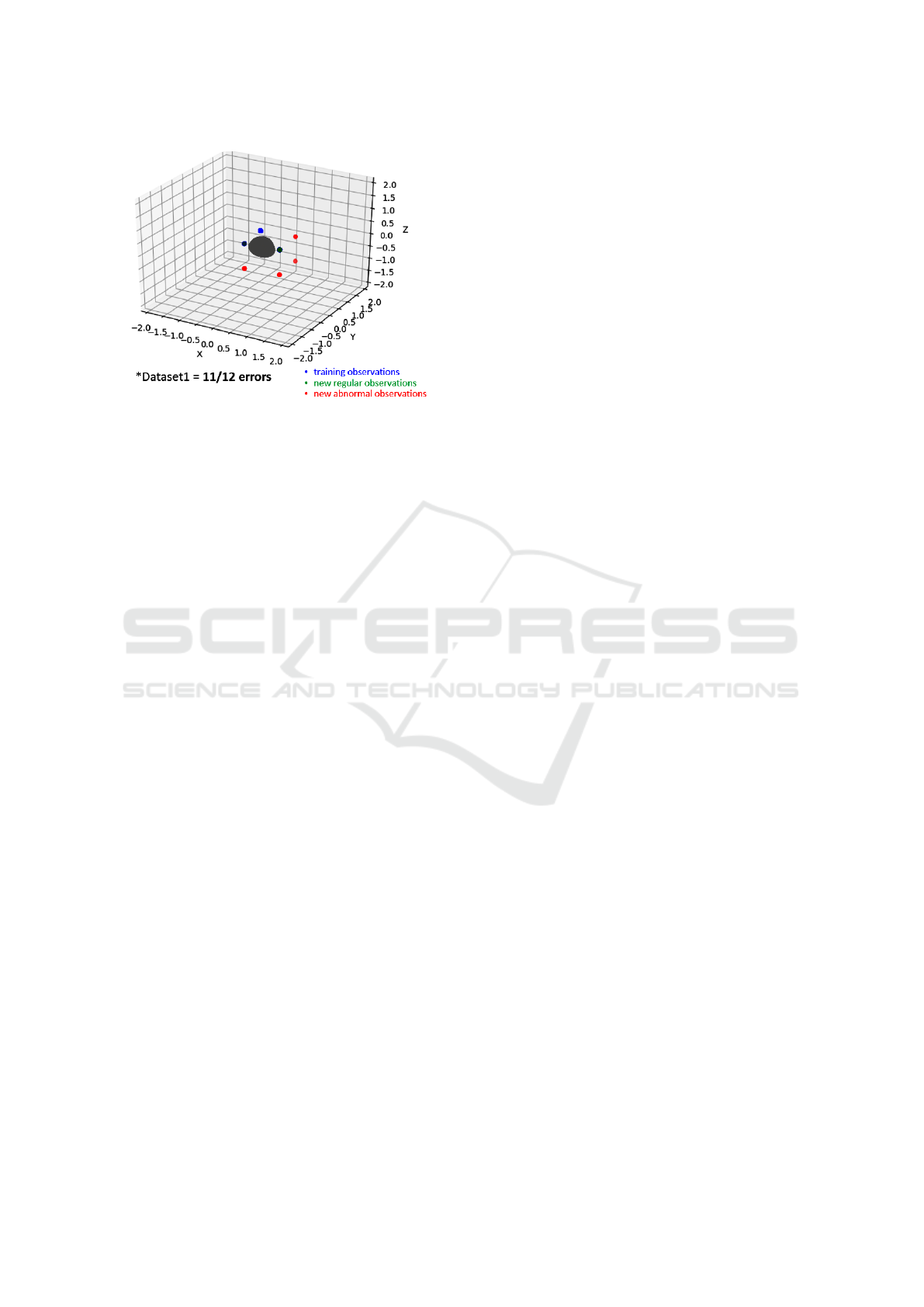

Figure 4: Results from Experiment 5.

6 CONCLUSION AND FUTURE

WORK

We have proposed LADS, a Live Anomaly Detection

System that uses unsupervised machine learning al-

gorithms to detect anomalies after a training process

of a given dataset. The approach analyses the perfor-

mance of a well known machine learning algorithm:

One class support vector machine (One-Class SVM)

under different test environments (e.g., using one or

multiple IP features), making it possible to identify

which approach performs better in detecting legiti-

mate and anomalous trafﬁc. Training is done ofﬂine

using valid datasets, but predictions are done in real

time, making it possible to detect anomalous behav-

ior of the current system’s trafﬁc.

Results show that a combination of multiple fea-

tures (i.e., IP source, IP destination, distance between

IPs, IP known, IP unknown) provides more accurate

results and reduces considerably the false rates in the

analysis performed.

It is important to highlight that these experiments

are best suited for the behavior analysis of IoT devices

(e.g., smart security systems, monitoring devices, jam

detectors, smart thermostats, etc.) that generates one

or few signals, and whose behavior can be easily mod-

elled by the LADS. We should exclude computers,

servers and mobile phones in our analysis, as the het-

erogeneity of the trafﬁc they generate will make it dif-

ﬁcult to represent accurate models.

Future work will consider other features to evalu-

ate trafﬁc behavior (e.g., connection time, trafﬁc size,

port source and destination, protocols, etc.) and will

assign a percentage value to each of the evaluated fea-

tures (based on its importance in identifying anoma-

lies) to tune the tool and compare the accuracy of the

results.

ACKNOWLEDGEMENTS

The research in this paper has been partially sup-

ported by the European Commission through the

DiSIEM project, (Grant Agreement No. 700692),

STOP-IT project, (Grant Agreement No. 740610),

and the SerIoT project, (Grant Agreement No.

780139), as well as the LASIGE Research Unit (ref.

UID/CEC/00408/2019).

REFERENCES

Amer, M., Goldstein, M., and Abdennadher, S. (2013). En-

hancing one-class support vector machines for unsu-

pervised anomaly detection. In Proceedings of the

ACM SIGKDD Workshop on Outlier Detection and

Description.

Bradatsch, L. (2019). Anomaly detection based on trafﬁc

records. In International Conference on Networked

Systems.

Lakhina, A., Crovella, M., and Diot, C. (2005). Mining

anomalies using trafﬁc feature distributions. In Con-

ference on Applications, technologies, architectures,

and protocols for computer communications, pages

217–228.

Limthong, K. (2013). Real-time computer network anomaly

detection using machine learning techniques. In Jour-

nal of Advances in Computer Networks, volume 1(1).

Mulay, S. A., Devale, P., and Garje, G. (2010). Intrusion

detection system using support vector machine and

decision tree. In International Journal of Computer

Applications, volume 3(3), pages 40–43.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer, P.,

Weiss, R., Dubourg, V., Vanderplas, J., Passos, A.,

Cournapeau, D., Brucher, M., Perrot, M., and Duch-

esnay, E. (2011). Scikit-learn: Machine learning in

python. In Journal of Machine Learning Research,

volume 12, pages 2825–2830.

Vaarandi, R. (2013). Detecting anomalous network trafﬁc

in organizational private networks. In International

Multi-Disciplinary Conference on Cognitive Methods

in Situation Awareness and Decision Support.

Wagner, C., Francois, J., State, R., and Engel, T.

(2011). Machine learning approach for ip-ﬂow record

anomaly detection. In International IFIP TC 6 Con-

ference on Networking, pages 28–39.

Xu, X. and Wang, X. (2005). An adaptive network intrusion

detection method based on pca and support vector ma-

chines. In Advanced Data Mining and Applications,

pages 696–703.

Zhang, R., Zhang, S., Lan, Y., and Jiang, J. (2008). Network

anomaly detection using one class support vector ma-

chine. In Proceedings of the International MultiCon-

ference of Engineers and Computer Scientists.

LADS: A Live Anomaly Detection System based on Machine Learning Methods

469
