Towards Lakosian Multilingual Software Design Principles

Damian M. Lyons

, Saba B. Zahra

and Thomas M. Marshall

Department of Computer and Information Science, Fordham University, New York, NY, U.S.A.

Bloomberg LP, New York, NY, U.S.A.

Keywords: Software Engineering, Programming Languages, Multilingual Software, Software Metrics, Lakosian Metrics,

Software and Systems Quality.

Abstract: Large software systems often comprise programs written in different programming languages. In the case

when cross-language interoperability is accomplished with a Foreign Function Interface (FFI), for example

pybind11, Boost.Python, Emscripten, PyV8, or JNI, among many others, common software engineering tools,

such as call-graph analysis, are obstructed by the opacity of the FFI. This complicates debugging and fosters

potential inefficiency and security problems. One contributing issue is that there is little rigorous software

design advice for multilingual software.

In this paper, we present our progress towards a more rigorous design approach to multilingual software. The

approach is based on the existing approach to the design of large-scale C++ systems developed by Lakos. The

FFI is an aspect of physical rather than logical architecture. The Lakosian approach is one of the few design

methodologies to address physical design rather than just logical design. Using the MLSA toolkit developed

in prior work for analysis of multilingual software, we focus in on one FFI – the pybind11 FFI.

An extension to the Lakosian C++ design rules is proposed to address multilingual software that uses

pybind11. Using a sample of 50 public GitHub repositories that use pybind11, we measure how many

repositories would currently satisfy these rules. We conclude with a proposed generalization of the pybind11-

based rules for any multilingual software using an FFI interface.

1 INTRODUCTION

Software systems, especially large ones, are often

developed using more than one programming

languages (Mushtak and Rasool 2015) (Mayer,

Kirsch and Le 2017). These are often referred to as

multilingual or polylingual (Barrett, Kaplan and

Wileden 1996) software systems. Occasionally,

multilingual software refers to software localization –

customizing software to operate with a specific

human language/culture; this is not its usage in this

paper. In prior work (Lyons, Bogar and Baird 2018)

we have discussed the historical and engineering

trends that promote the development of multilingual

software. We high-lighted a key challenge faced by

developers and maintainers of multilingual software:

“While it may be possible to automatically inspect

individual language components of the codebase for

software engineering metrics, it may be difficult or

impossible to do this on a single accurate description

of the complete multilingual codebase.”

In a survey of software developers, Mayer et al.

(Mayer, Kirsch and Le 2017) find that 90% request

help in developing multilingual code bases. The

issues they raise include redundancy between

language functionalities, necessitating refactoring

(Strien, Kratz and Lowe 2006); unexpected

interactions between languages (Hong and al 2015),

and security breaches in cross-language calls

(Bravenboer, Dolstra and Visser 2010) (Lee, Doby

and Ryu 2016). Moreover, it appears this issue will

continue to grow in significance. In an analysis of

over 3800 papers over a 15-year time period,

Zaigham et al. (Zaigham, Rasool and Shehzad 2017)

report that 23% of these papers were written in the

two years prior to publication alone.

In our work, we have focused on the common

Foreign Function Interface (FFI) style of cross-

language interoperability. Examples include JNI,

PyV8, pybind11, and many, many others. The

advantages of examining this form of cross-language

interoperability, apart from its popularity, include that

it is amenable to static analysis of the source code by

looking at a call-graph (since the cross-language

transition is effected with a function call). However,

the FFI is opaque: we cannot see what other-language

functions are called within the FFI call. Thus, it

306

Lyons, D., Zahra, S. and Marshall, T.

Towards Lakosian Multilingual Software Design Principles.

DOI: 10.5220/0007958303060314

In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 306-314

ISBN: 978-989-758-379-7

becomes more difficult to verify software correctness,

efficiency, and security. On top of this challenge,

while an FFI package developer might (sometimes)

make some recommendations as to how to safely use

the interface, an application programmer is typically

left to his or her own devices as to how to embed the

FFI into the host language software. This can lead to

a bewildering variety of designs for any one interface,

and of course, a programmer might choose to use

different interfaces for the same two languages at

different places in the software to leverage ease of use

or just plain familiarity. This lack of design guidance

greatly complicates multilingual software

engineering.

Grechanik et al. (Grechanik, Batory and Perry

2004) present a design approach for polylingual

software. The problem they address is the O(n

)

potential cross-language communications in n

programs. They propose a framework, called ROOF,

that presents a single API for all cross-language

communications. While this standardization clearly

has benefits, we take a different approach: we believe

software developers will use whatever FFI packages

become available, so rather than try to change this

behaviour, we limit ourselves to finding an approach

that addresses the analysis of the ‘messy’ multilingual

software thus created.

Lakos (Lakos 1996) addresses the problem of the

physical design of large-scale C++ software. He

proposes a set of guidelines for the physical

architecture of large C++ codebases that has certainly

stood the test of time (an extensively expanded

version is scheduled by Addison-Wesley for 2021). It

addresses issues such as how to structure source code

files into components, packages, and package groups

in a modular way, avoiding potentially troublesome,

hidden linkages between the source code units that

hinder efficiency, scalability and understandability.

These troublesome linkage issues are similar to those

caused by multilingual interoperability APIs and it is

the thesis of this paper that some of the principles

introduced for large-scale C++ physical design in

(Lakos 1996), Lakosian principles, are relevant for

multilingual design.

To illustrate this, we focus here on a common

interoperability API, pybind11 (Smirnoff 2017),

which allows mutual calling between C++ and

Python. While Python is often convenient for high

level programming, C++ can offer a more efficient

platform to implement numerical algorithms.

Pybind11 was released in 2015 and has become a very

popular alternative to the Boost.Python library

(Abrahams and Grosse-Kunstleve 2003). To measure

the popularity, we searched for public GitHub

repositories using pybind11 and using Boost.Python.

It has been 17 years since Boost.Python was released,

and we found 478 repositories that referenced it. It

has been only 4 years since pybind11 has been

released and we found 233 repositories that reference

it. The ratio of these time in existence to amount of

repositories numbers would suggest that pybind11, at

58.2, is experiencing higher growth than the more

mature Boost.Python, at 28.1. Public comments on

programming forums typically cite pybind11’s

header-only nature, STL/Eigen support and full

coverage of Boost.Python functionality as reasons for

adoption. We take this step of picking one FFI to

make our conclusions more concrete, and while we

justify this choice for this paper, we could have

selected a different one. We also specifically pick an

FFI rather than a language such as Cython

(http://cython.org) which aims to minimize the FFI

aspect of calling C from Python; though given the

popularity of Cython, we will come back to this later

in the paper.

We begin in Section 2 by briefly reviewing those

aspects of Lakosian design principles for large-scale

C++ development that will prove useful. Multilingual

software with the Foreign Function Interface (FFI) is

introduced in Section 3 with pybind11 as a specific

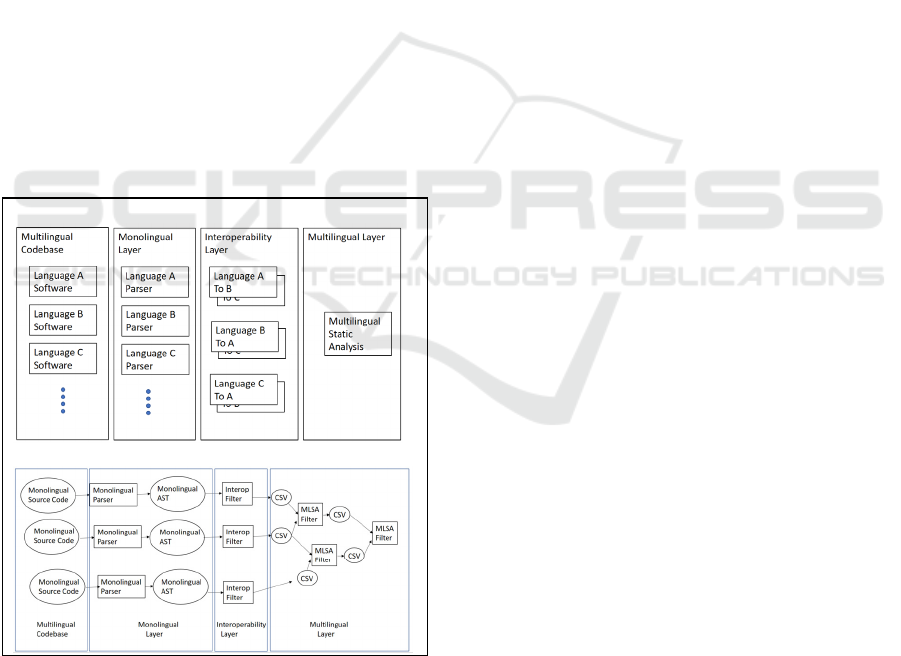

example. The MLSA (Multilingual Software

Analysis) toolkit (Lyons, Bogar and Baird 2017)

(Bogar, Lyons and Baird 2018), which will be used to

investigate FFI usage in a collection of pybind11

repositories, is introduced in Section 4. Some

common FFI practices will be identified that show

analogous troublesome linkages to those first

identified by Lakos in C++ physical design. As a

solution, we will propose an extension of some

Lakosian principles to address, first, pybind11/C++

repositories, and later (Section 6) FFI software in

general. The pybind11 repository experimentation

and results are reported in Section 5 and our

conclusions presented in the final section.

2 LAKOSIAN DESIGN

PRINCIPLES

Physical design is defined by Lakos as being

concerned with the physical aspects of a software

code repository: the directories, header files, source

files, libraries and issues related to these. Contrast this

with logical design, which relates to classes,

functions and so forth. His motivation in considering

physical design is the issue of scaling to very large

software systems written in C++. Our motivation is

Towards Lakosian Multilingual Software Design Principles

307

different, relating as it does to the inter-language

interface in multilingual software and issues relating

to scaling, but we find that there are common

concerns and solutions which can usefully be

transferred from this prior work to our problem.

Lakos introduces some useful terminology and it

is helpful to recapitulate it here:

• A component is a unit of physical design

consisting of a source file (an implementation, a

.cpp file for Lakos) and associated header file (an

interface, a .h file for Lakos). All our work here

will be component-based and we leave

consideration of C++ modules for future work.

• A name is introduced into a name scope

(namespace) via a declaration and is uniquely

defined with a definition.

• Components are grouped into packages which

are grouped into package groups.

• A translation unit is the union of all components

being processed by a compiler at one time.

• A name has external linkage if it refers to the

same object across multiple translation units.

• A name has internal linkage if it is only visible

in its translation unit.

Among the many rules defined by Lakos to address

issues in physical design, we identify a small subset

that when interpreted in a multilingual context, as we

will in a later section, are also important design rules.

They are presented with their original intent here:

R1. The source file includes the header file as its

first substantive line of code

R2. All logical constructs having external

linkage defined in a source file are declared

in the corresponding header file

R3. All constructs having external linkage

declared in a header file are defined within

the component.

While there are arguably additional Lakosian design

rules that can address multilingual software, we select

these rules because they are designed to address the

problem of potential inconsistencies in name bindings

in external linkages. They ensure that externally

linked functions and objects are defined in a

predictable, easy to find, and easily understood

manner.

3 MULTILINGUAL SOFTWARE

Modern software development is increasingly

multilingual: Developers might build a software

project from different language components for

functionality or style reasons. In prior work (Lyons,

Bogar and Baird 2017) (Bogar, Lyons and Baird

2018) (Lyons, Bogar and Baird 2018), we have

looked at the problem of providing tools for analyzing

multilingual code bases to address software

engineering and security concerns. We proposed a

software architecture for lightweight multilingual

software analysis tools – the MLSA architecture and

introduced some tools for generating multilingual

call-graphs, which we argued can be the basis for the

addressing many useful software engineering and

security concerns.

3.1 Foreign Function Interface

Programs in one language can communicate with

software written in a second language through several

means (Grimmer, et al. 2018): message passing,

foreign-function interface, and multi-language run-

time. Rather than proposing any new scheme for

writing, including or executing multilingual software

in this paper, we have instead focused on processing

existing and widely used FFI packages, e.g., JNI (C

with Java), Python.h (C/C++ with Python), PyV8

(JavaScript with Python), Emscripten (JavaScript

from C++), JQuery (Python from JavaScript), and so

forth. As we initially stated, advantages of focusing

on this form of cross-language are that it is quite

common and it is amenable to static analysis of the

source code by looking at a call-graph. Message

passing is more difficult to analyze statically

(Bronevetsky 2009), and a common language run-

time analysis must be done on the common language

bytecode.

All of these FFI packages differ in their syntax

and use and there are no standards or guidelines that

specifically address their use. In fact new cross-

language interfaces are defined all the time:

Boost.Python (Abrahams and Grosse-Kunstleve

2003) introduced a powerful library for binding C++

classes and functions to Python, a great improvement

over the interoperability provided by Python’s C/C++

interface (Python 2.7 documentation 2010).

Subsequently, pybind11 was developed as a light-

weight, header-only interface (Smirnoff 2017) with

similar functionality. For historical reasons, all three

are still used, and it is not unlikely that new ones will

be developed!

All these interoperability interfaces provide the

common function of mapping from the namespace of

one programming language to that of another. But in

the Lakosian vocabulary, they map from the

namespace of one translation unit to that of another.

In that framework, every translation unit is C++ code,

Fig. 1(a) whereas we propose to relax that constraint.

ICSOFT 2019 - 14th International Conference on Software Technologies

308

Hence, FFIs define an external linkage between the

two language translation units, Fig.1(b) – a topic

about which Lakos has design advice that we can

leverage. Our approach to addressing this issue with

Lakosian design principles will be to work from the

specific to general, starting with a pybind11 example.

(a)

(b)

Figure 1: (a) External linkage between C++ translation

units; (b) Foreign-function interface between multilingual

translation units.

3.2 Standard Pybind11 Case

A straightforward example of the use of pybind11 to

call a C++ function from a Python script

A.py is

shown in Fig. 2(a). A C++ file

B.cpp, shown in Fig.

2(b), defines a function

f, and establishes that it can

be called in Python (with the same name

f in this

example). After compilation, a binary file is

generated that can be imported as a Python module.

#Python file A

# C++ functions

import B

# call C++ function

x = B.f(34)

(a)

//C++ file B

#include <pybind11>

// declaration

int f(int a);

// bind python “f” to f

PYBIND11_MODULE(B,m){

m.def(“f”,&f)

}

(b)

Figure 2: Pybind11 example.

Let us begin by considering the software in Fig. 2 as

two components. Each component has an interface

(header file) and implementation (source file). This

separation is important in physical design. The lines

shown in bold font in Figs. 2(a) and (b) is the header

file information and those below it, the source file

information.

To respect R1-3 of Section 2, it necessary that the

header file

B.h contains (at least) the material in bold

in Figure 2(b) and the source file

B.cpp contains (at

least) the remainder. The rationale is a little different

from the regular C++ case but reflects the same

concerns with external linkage, or name binding. The

Python file

A.py needs to import declaration

information for the external linkages (C++ names) it

uses (R2). For this example, that information is in the

m.def commands in B.cpp and not in B.h, which

has the declarations of the C++ functions referenced

by these bindings. Thus, the implementation

declarations should be separate from the bindings,

which should be in a source file named for the

module. (An informal rule advocated by the pybind11

developers). The implementation declarations should

be included in the header file for the component, and

definitions in a separate source file, providing

insulation for the module implementation.

Summarizing, and based on R1-R3 in Section 2:

M1. The python component imports the

pybind11 generated module by name, in

standard python syntax.

M2. The source file of the binding component

must be named after the module, so that

there is a transparent connection to the

interface with the important statement (R2).

M3. The header file of the binding component

should declare the implementation of the

bound functions (R3).

In addition to following Lakosian design principles

for physical architecture, or perhaps because of it,

these rules also simplify the static analysis of

multilingual code bases by making it readily clear in

what files functions are located. The multilingual

software analysis toolkit MLSA is described in the

next section as prelude to using the toolkit. Public

GitHub repositories using pybind11 will be analysed

with MLSA to determine how many abide by the

proposed principles and in what ways they differ.

4 THE MLSA TOOLKIT

Developers may build a software project (here, the

input data for our MLSA analysis tools) from

different language components for functionality or

style reasons, while at the same time companies

maintain a commitment to language already used in

company software, leading to an increasingly

crowded and complex landscape of multilingual

Translation unit namespace A Translation unit namespace B

External Linkage between A and B

A B

Language A

Translation unit names

ace

Language B

Translation unit names

ace

External Linkage between A and B via FFI

FFI

A B

Towards Lakosian Multilingual Software Design Principles

309

software development. Any solution that is narrowly

focused on the existing state-of-the-art will find itself

quickly outdated as new languages or interoperability

APIs or language embeddings appear. For this reason,

we proposed the following design principles for a

software architecture for MLSA (Lyons, Bogar and

Baird 2017) (Fig. 3).

1. Lightweight: Computation is carried out by

small programs, which we call filters, that

communicate results with each other. A

specific software analysis is built as a

pipeline of these programs.

2. Modular: Filter programs accept input and

produce output in a standard form, to allow

modules to be substituted or added with

minimum collateral damage.

3. Open: MLSA uses open-source software for

monolingual processing and for display.

4. Static Analysis: MLSA uses static source

code analysis as its principle approach

Illustrating the lightweight design principle, each

filter is a small standalone program, implementing a

single analysis. The only constraint on the filter is on

the format of its input and output. Filter programs can

be written in different languages as shell scripts.

(a)

(b)

Figure 3: MLSA Software Architecture (a); example filter

pipeline, from (Lyons, Bogar and Baird 2017) (b).

The modularity design principle means that extending

MLSA to handle a new cross-language interface is as

simple as extending the parts of the processing

pipeline with scripts designed for the new interface.

4.1 Multilingual Call-graph Analysis

We have argued in prior work (Lyons, Bogar and

Baird 2017) (Lyons, Bogar and Baird 2018) (Bogar,

Lyons and Baird 2018) that call-graph analysis is one

productive tool for investigating software

engineering properties of multilingual code, and we

have focused our research on what is required to

construct a multilingual call-graph. In addition to the

challenges of monolingual call-graph construction,

e.g., (Ali and Lhotak 2012) (Bacon and Sweeney

1996) (Bogar, Lyons and Baird 2018), multilingual

call graphs have to include edges that span one

language to a second. Since it is very typical in an FFI

for the name of the function in the second language to

be specified by the value of an argument to a function,

and not as a name or label in the host name space,

static analysis of the code becomes challenging. In

(Lyons, Bogar and Baird 2018), we propose a

solution to this problem based on a Reaching

Definitions Algorithm (RDA) (Nielson, Nielson and

Hankin 2005) to statically resolve argument values.

Using this, we demonstrated multilingual call graphs

for software code bases using C/C++, Python and

JavaScript languages. We showed how the call graph

could be used to identify potential software security

hazards and other software engineering concerns that

would normally be hidden by the opacity of the cross-

language interface.

4.2 MLSA Pybind11 Filter

To include the pybind11 cross-language

interoperability interface to the repertoire of FFI that

MLSA handles, it was only necessary to build an

additional MLSA filter and add it to the multilingual

call-graph pipeline in Fig. 2 of (Lyons, Bogar and

Baird 2018). That pipeline is summarized below, for

convenience. For simplicity, and since it suited the

goals of this paper, only the Python calling C++

direction was implemented (our review of GitHub

repositories shows this was by far more common),

and only the function call interface (

.def) was

implemented and not the variable (

.attr) interface.

The MLSA multilingual call-graph pipeline

(Lyons, Bogar and Baird 2018) proceeds as follows:

1. MLSA begins by generating Abstract Syntax

Trees (ASTs) for each monolingual program.

2. From these, it extracts all the function definitions

and calls, and writes them to csv-formatted data

files. (Bogar, Lyons and Baird 2018)

3. Filter programs for various cross-language

interoperability FFIs post-process these files,

ICSOFT 2019 - 14th International Conference on Software Technologies

310

replacing the cross-language FFI call with the

cross-language function being called (in so much

as that can be statically determined by RDA).

4. The resultant data files are then merged to

produce a single multilingual call graph.

The MLSA pybind11 filter is just another filter added

to stage 3 of this processing pipeline. The filter

searches the datafiles generated from the Python AST

looking for a function call in a module that has been

defined in C++ rather than Python. (It knows this

from inspecting the data files generated in stage 2.)

The datafile for the C++ module is then scanned for

references to the

.def function. The arguments to

.def are processed to determine the name of the

target function. Only literal values, or variables

previously assigned literal values (found by RDA

analysis) are currently allowed. The python function

call is replaced in the datafile by the C++ function.

(a)

(b)

Figure 4: Multilingual call-graph extracted by MLSA from

the example in Fig. 2: (a) just A.py and (b) for A.py and

B.cpp/.h Node shape: Rect: Python; Ell: C/C++.

Fig. 4 shows the multilingual call graph generated in

this way from the example in Fig. 2. Fig. 4(a) shows

the call graph for just the Python component

A.py.

Fig. 4(b) shows the call graph after the pybind11 filter

has acted. The python function call

B.f() has been

correctly bound to the C++ function

f() and its

implementation subgraph included. Different

languages are indicated in MLSA call graphs with

different node shapes: here, rectangular indicates

Python and ellipse indicates C++. Note that the

implementation of

f() is not shown in Fig.2 but is

shown here: A call from the C++

f() function to the

C++

square() function.

The MLSA pybind11 filter provides a convenient

lens to study how pybind11 is used in practice, and to

evaluate to what extent the proposed Lakosian

inspired design rules are followed. In the next section

we present the results of our experimental analysis of

public GitHub repositories.

5 EXPERIMENTAL RESULTS

GitHub has become a popular platform for

collaborative software development, with over 30M

users and 100M repositories (github.com/about). To

measure how pybind11 is used by software

developers, and how often our proposed design rules

reflect common practice, we collected public GitHub

repositories that use pybind11. A simple keyword

search showed over 900K repositories using Python

and almost 500K repositories using C++. Of these

almost 12K used both C++ and Python. However,

only 233 specifically mentioned pybind11, and we

restricted our attention to these.

Many of the repositories just contained examples

or tutorials for pybind11 and in general we rejected

all but one copy of these small repositories until we

had reached 50 samples – an arbitrary limit selected

to yield generalizable results. Table 1 describes the

sizes of the repositories.

Table 1: Details of Sample Repositories.

Num. repositories 50

Num. pybind11 modules 449

Total num. files 3712

Num. PY files 540

Num. CPP files 748

Total lines of code 4.2M

Max, min, avg. num. files 1131, 3, 75

Max, min, avg. lines of code 2.3M, 312, 83K

The MLSA pybind11 filter was augmented to count

how often the repositories complied with our

extended Lakosian design rules. The results are in

Table 2.

Table 2: Summary Results of Study.

Rep. Mod.

Num. rep./mod. meeting

M1-M3

8 (16%) 360 (80%)

Binding misname (fails M2) 27 (54%) 40 (9%)

Impl. in binding (fails M3) 24 (48%) 53 (12%)

Table 2 reports that 16% of the repositories strictly

followed the guidelines proposed. That means all 360

modules in those repositories followed the rules. The

small repository number and large module number

indicate that the repositories following the rules were

in fact all the largest repositories in the collection. We

contend that this large minority figure could be

considered a vote in favour of our proposed

guidelines. Given the variety of usage observed, we

summarized failure to follow the guidelines into two

categories: Where the binding component was not

Towards Lakosian Multilingual Software Design Principles

311

named after the module (fails M2; 54%) and where

the implementation was included alongside the

binding (fails M3; 48%). A repository was counted as

failing M2 or M3 if any module in the repository

failed. As can be seen from the smaller module

percentages for this, many repositories contained a

mix of modules meeting and not meeting each of the

two criteria. Based on this study, 84% of the

repositories have potential software engineering

challenges related to ambiguity in how they defined

external linkages. Several recurring themes were

identified in non-compliant repositories; we discuss

these in more depth below.

Anonymous Functions. We consider any function,

such as a lambda function, which is defined directly

in the binding as an anonymous function. This

approach fails to meet design rule M3. An example is

shown in Fig. 5. While lambda functions are elegant

solutions to certain problems, anonymous functions

of any kind are more difficult to track. Our approach

in MLSA is to flag these for closer (manual)

inspection when detected. We observed that 20% of

the repositories used lambda functions in any module.

Only 4% of modules used lambda functions,

however, approximately half of which were used for

member variable get/set functionality.

# A.py

import B

x=B.f(1,2)

y=B.g(3,4)

//B.cpp

#include “impl.h” // def f

PYBIND11_MODULE(B, m) {

m.def("f",&f);

m.def("g",

[](int i, int j)

{ return i - j; });

}

Figure 5: Anonymous function example.

Misnamed Module. Included in this category is

anything that puts the binding information in a place

that is not clearly visible by inspection of the software

or static analysis. The obvious example (shown in

Fig. 6) is where the binding component is not named

with the module name. MLSA can still find the

binding but it flags the situation for correction, since

the software becomes more difficult to maintain when

the external linkages are not readily visible in a single

location. Other cases of this include multiple modules

in one binding (makes clear naming difficult), or

binding information in a different location from the

# A.py

import C

x=B.f(3)

//B.cpp

#include “impl.h” # def f

PYBIND11_MODULE(C, m) {

m.def("f",&f);

}

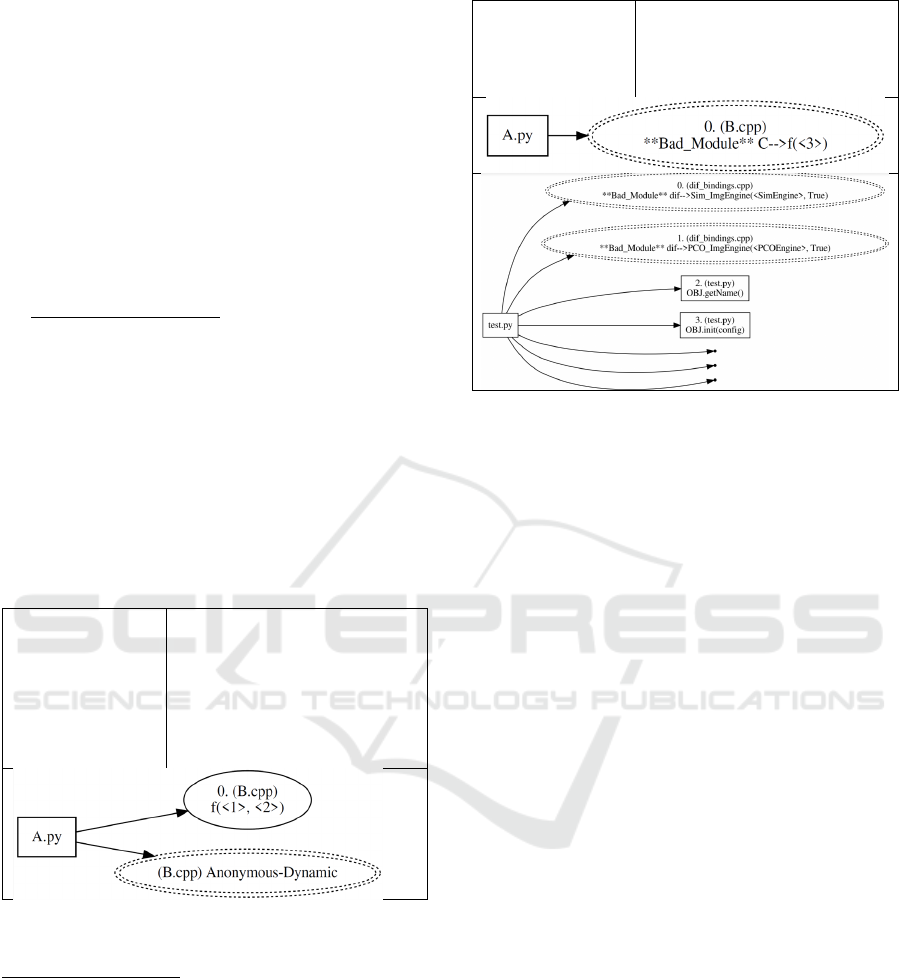

Figure 6: Misnamed module example (top two rows,

explanatory example; bottom row, summarized example

call-graph from repository collection).

location the module will be imported from (a

directory named for the module, for example). We

found no example where there were multiple

modules defined in a single binding.

6 PROPOSED LAKOSIAN ML

DESIGN RULES

This paper has focused on pybind11 as a specific

example for developing multilingual software design

guidelines. We generalize our Lakosian inspired

physical design rules M1-M3 for any FFI from a host

language to a target language.

ML1. The host component imports/includes a single

uniquely named FFI interface file.

ML2. The source file of the FFI binding component

in the target language must be named after the

FFI interface file, so that there is a transparent

connection to the interface (R2).

ML3. The source file of the binding component

should import, or include declarations of, the

implementation of the bound functions (R3) in

the target language.

While we argue that this extension can be justified

based on our pybind11 examples and the original

Lakosian rules, a realistic validation requires it should

be evaluated against a range of FFI. That work is

beyond the scope of this paper in general, but we will

look at just one important case: How would this

specialize to Cython?

ICSOFT 2019 - 14th International Conference on Software Technologies

312

Cython is a static compiler that accepts a superset

of Python allowing a programmer to mix C/C++

declarations and definitions in Python-like code

which is then translated to C for efficient

implementation. In particular, programmers can write

modules that can be imported and called from Python,

in a manner analogous to pybind11. Our general ML

design rules can be applied to this usage of Cython as

follows:

C1. The python component imports the Cython

generated module (created by the build file) by

name, in standard python syntax.

C2. The binding file (~.pyx) should be named the

same as the binding module name in the build

file (~setup.py).

C3. The binding file should include a header file

containing declarations of the C functions used

in the binding functions in (~.pyx).

7 CONCLUSIONS

Large software systems often have components

written in different languages. The FFI approach to

cross-language interoperability is popular and

relatively easy to use, mimicking as it does a host

language function call. Our approach is to accept that

programmers will continue to use existing and new

FFI interfaces, and we do not try to present a new

multilingual interface concept or formalism. Instead,

we have developed a lightweight toolkit, MLSA

(Lyons, Bogar and Baird 2018) for analysing such

multilingual systems and identifying software

engineering and security issues. In particular, given

the nature of the FFI, we have focused on call-graph

analysis (Bogar, Lyons and Baird 2018). In this paper,

we have addressed the problem that there is little in

the way of design assistance for FFI based

multilingual software, comparable to the Lakosian

design method of (Lakos 1996) for C++.

We have proposed an extended application of

the Lakosian design method to multilingual software.

In particular, we applied this to software written using

the popular pybind11 FFI to call C++ from Python.

We reported on our study of 50 public GitHub

pybind11 repositories: While 16% already adhered to

our guidelines, 84% did not. Of the non-compliant

cases, binding file naming and use of lambda

functions are the most often issues. Based on our

experience with pybind11, we proposed a more

general set of multilingual design rules. In future

work, we plan to evaluate these rules against other

FFI. Finally, we believe we have just begun the task

of understanding how Lakosian physical design rules

hold value for the design of multilingual software.

ACKNOWLEDGEMENTS

Lyons and Zahra are partially supported by grant DL-

47359-15016 from Bloomberg L.P.

REFERENCES

Abrahams, D., and R.W. Grosse-Kunstleve. 2003. Building

Hybrid Systems with Boost.Python. 14 5.

https://www.boost.org/doc/libs/1_69_0/libs/python/do

c/html/article.html.

Ali, K., and Ondrej Lhotak. 2012. “Application-only Call

Graph Construction.” ECOOP'12 Proceedings of the

26th European Conf. on Object-Oriented Prog..

Beijing.

Bacon, D., and P. Sweeney. 1996. “Fast static analysis of

C++ virtual function calls.” 11th ACM SIGPLAN Conf.

on OO Prog. Sys., Lang & App.

Barrett, D., A. Kaplan, and J. Wileden. 1996. “Automated

support for seamless interoperability in polylingual

software systems.” 4th ACM SIGSOFT symposium on

Foundations of software engineering. New York.

Bogar, A.M., D. Lyons, and D. Baird. 2018. “Lightweight

Call-Graph Construction for Multilingual Software

Analysis.” 13th Int. Conf. Soft. Tech.. Porto, Portugal.

Bravenboer, M., E. Dolstra, and E. Visser. 2010.

“Preventing injection attacks with syntax embeddings.”

Sci. Comput. Program. 75 (7): 473-495.

Bronevetsky, G. 2009. “Communication-Sensitive Static

Dataflow for Parallel Message Passing Applications.”

International Symposium on Code Generation and

Optimization. Seattle WA.

Grechanik, M., D. Batory, and D. Perry. 2004. “Design of

large-scale polylingual systems.” 26th Int. Conf. on

Software Systems. Edinburgh UK.

Grimmer, M., R. Schatz, C. Seaton, T. Wurthinger, and M.

Lujan. 2018. “Cross-Language Interoperability in a

Multi-Language Runtime.” ACM Trans. on Prog.

Languages and Systems (ACM) 40 (2): 8:1-8:43.

Hong, S., and et al. 2015. “Mutation-Based Fault

Localization for Real-World Multilingual Programs.”

30th IEEE/ACM Int. Conf. on Automated Software Eng.

Lakos, John. 1996. Large-Scale C++ Software Design.

Addison-Wesley..

Lee, S., J. Doby, and S. Ryu. 2016. “HybriDroid: static

analysis framework for Android hybrid applications.”

31st IEEE/ACM International Conference on

Automated Software Engineering. Singapore.

Lyons, D., A. Bogar, and D. Baird. 2017. “Lightweight

Multilingual Software Analysis.” 12th Int. Conf. on

Software Technologies (ICSoft). Madrid, Spain.

Lyons, D., A.M. Bogar, and D. Baird. 2018. “Lightweight

Multilingual Software Analysis.” In Chall. & Opp. in

ICT Research Projects, by J. Filipe. SCITEPRESS.

Mayer, P., M. Kirsch, and M-A. Le. 2017. “On multi-

language software development, cross-language links

and accompanying tools: a survey of professional

Towards Lakosian Multilingual Software Design Principles

313

software developers.” Journal of Software Engineering

Research and Development 5 (1).

Mushtak, Z., and G. Rasool. 2015. “Multilingual source

code analysis: State of the art and challenges.” Int.

Conf. Open Source Sys. & Tech.

Nielson, F., H.R. Nielson, and C. Hankin. 2005. Principles

of Program Analysis. Springer.

2010. Python 2.7 doc.. https://docs.python.org/2.7/.

Smirnoff, I. 2017. “Seamless operability between C++11

and Python.” EuroPython Conference. Rimini, Italy.

Strien, D., H. Kratz, and W. Lowe. 2006. “Cross-Language

Program Analysis and Refactoring.” 6th Int. Workshop

on Source Code Analysis and Manipulation .

Zaigham, M., G. Rasool, and B. Shehzad. 2017.

“Multilingual Source Code Analysis: A Systematic

Literature Review.” IEEE Access PP (99).

ICSOFT 2019 - 14th International Conference on Software Technologies

314
