Efficient Geometric Group Key-sharing Scheme
Koki Nishigami and Keiichi Iwamura
Tokyo University of science, 6-3-1, Niijuku Katsushikaku, Tokyo 125-8585, Japan
Keywords: Group Key, Key Sharing, Common Key Cryptography, IoT Network, Euclid Distance.
Abstract: In recent years, Internet of things (IoT) technologies that are used to collect various data have advanced
significantly. In such networks, devices communicate with each other to exchange data. It is efficient for
group-encrypted communication in IoT networks when devices in a group communicate with a common
group key. However, if one device in the group is analyzed by an attacker, the group key is leaked. Therefore,
a group key-sharing scheme that can change the group composition including a device deletion is required.
Hamasaki et al. proposed a group key-sharing scheme using geometric characteristic. In this scheme, each
device stores only the unique key and the key generates the coordinates for key sharing. The group
composition can be changed easily using this scheme. However, the scheme incurs considerable computation
cost when a large number of devices exist in the group. Therefore, we propose an efficient scheme that
improves on Hamasaki et al.’s scheme for group key sharing and compare it with other methods.
1 INTRODUCTION
In recent years, Internet of things (IoT) has become
fundamental for advancing businesses including e-
business. In IoT networks, many devices (nodes)
collect various data and send them to a base station
for analysis. Generally, an IoT network comprises a
base station (BS) and many nodes. A single BS is
included in every network and serves as the center of
the network. Many nodes are present in the network
and they collect environmental data. A BS must be
tamper resistant and include sufficient computational
ability and power supply capacity because if the BS
malfunctions, the network will be affected. Nodes are
placed in physically unsafe places, and the number of
nodes can be large in the network. Therefore, nodes
are not tamper-resistant and CPU performance is
poor, because the cost to nodes is minimized.
Communications in the IoT network include
unicast, group, and broadcast communications.
Unicast communication involves one-to-one device
communication. Group communication involves
three or more nodes. Broadcast communication
involves all nodes in the network. Broadcast
communication is considered as group
communication because “all nodes in the network”
are one of the groups in the network.
It is necessary to encrypt all communications in an
IoT network to ensure a secure communication. The
following factors highlight the importance of
encrypted communication in IoT networks because
the node performance can be poor, and efficient key
sharing is critical for establishing encrypted
communication in IoT networks:
• Low communication cost
Communication cost must be low because of the
considerable electric power required for
communication, and each node has limited
power storage.
• Low computational cost
Large computational costs involving complex
calculations such as the public key cryptosystem
may not be suitable for IoT networks because of
poor CPU performance of nodes.
• Low storage requirement
It is possible to share keys using many pre-
distributed element keys without using a unique
key for each node. However, node storage
requirements are expected to be low because
memory storage for most nodes is low.
• Key renewal
Encrypted communication using group keys for
every communication group is efficient in IoT
networks. However, it is desirable to renew a
Nishigami, K. and Iwamura, K.
Efficient Geometric Group Key-sharing Scheme.
DOI: 10.5220/0007965802090214
In Proceedings of the 16th International Joint Conference on e-Business and Telecommunications (ICETE 2019), pages 209-214
ISBN: 978-989-758-378-0
Copyright
c
2019 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
209
group key easily because if the same group key
is used continuously, all communication leaks
when an attacker analyzes a device, and the key
can be leaked as well.
• Security
It is important to ensure that an attacker analysis
performed for one node does not leak the keys
of other nodes.
Hamasaki et al. proposed a geometric method in
which a group key is shared using the unique key of
each node. In this scheme, node coordinates are
generated based on the unique key of a node, and the
center coordinate is calculated, which is equally
distant from all node coordinates. The BS broadcasts
the center coordinate to all nodes, and the distance
between the center coordinate and every node
coordinate is used as the group key. The method uses
characters of circles and spheres where the center
coordinate is equally distant from the circumferences
of a circle and a sphere. The method realizes an
efficient key renewal process. We evaluated this
method based on the five factors defined above. The
evaluation demonstrated good results except for
computational cost when the number of nodes in a
group is large. This can be attributed to the
calculation of multidimensional coordinates
according to the number of nodes. For example, a
999-times calculation for multidimensional
coordinates is required when 1,000 nodes exist in the
network.

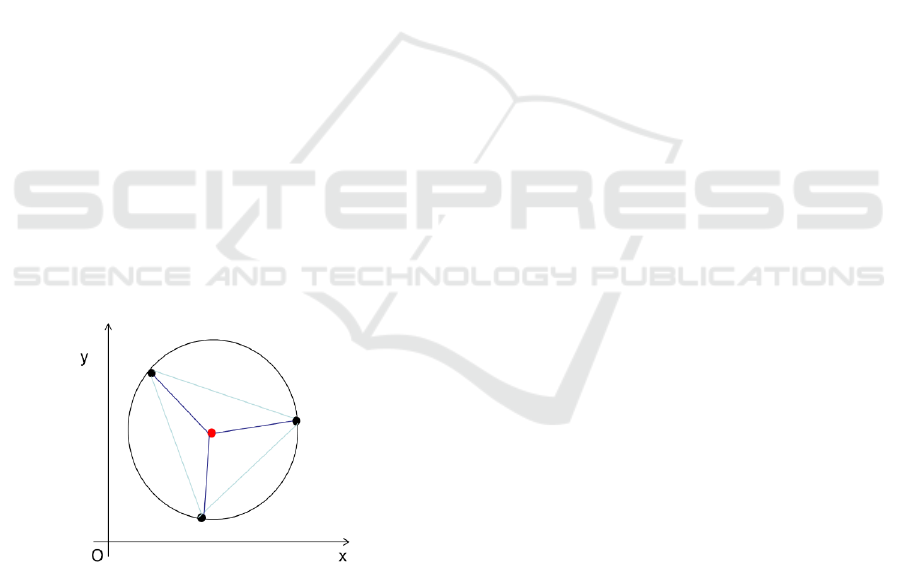

Figure 1: Central point of a circle.
Therefore, we propose an efficient scheme for
group key sharing, in which the group is divided into
clusters of three nodes each.
The related works are presented in Section 2.
Section 3 provides a detailed description of the
proposed scheme. Section 4 presents an evaluation of
the proposed scheme, and Section 5 summarizes the
conclusions of the paper.
2 RELATED WORKS
2.1 LEAP
The Localized encryption and authentication protocol
(LEAP) was introduced to maintain secure key
establishment by providing four keys per each node:
individual key, group key, cluster key, and pairwise
key. This scheme is based on a common key
cryptosystem.
The individual key is shared with the BS, the
group key with all nodes in the network globally, the
cluster key with all the neighbor nodes jointly, the
pairwise key with the direct neighbor nodes
individually. In terms of LEAP, a cluster key is a key
used for group communication, whereas a group key
is a key used for broadcasting. Concept of the cluster
key-sharing scheme used in LEAP is explained in
detail in the subsequent paragraphs.
The pairwise key sharing is required to be
established first; it is then followed by the cluster key
sharing phase. The pairwise key is generated by
exchanging IDs between each neighbor nodes and
encrypting these IDs using the initial keys set in all
nodes. The individual key is deleted after pairwise
key-sharing phase is completed.
The cluster key-sharing process is established in a
rather straightforward way. Let us consider the case
where a node u attempts to establish a cluster key with
all immediate neighbors v1, v2, …, vm. The node u
first generates a random key Kcu as a group key, and
subsequently encrypts this key with the pairwise key
shared with each neighbor individually, followed by
transmitting the encrypted key to each neighbor vi (i
= 1, …, m). Therefore, the node u sends the encrypted
key and the node ID vi to identify the addressee node.
The node vi decrypts the group key Kcu and
subsequently stores it. When one of the neighbors is
revoked or added, the node u generates a new cluster
key and transmits it to all the neighbors similarly.
2.2 ECCKSS
The ECC-based key-sharing scheme (ECCKSS)
protocol is based on the elliptic curve cryptography
(ECC) operation, namely, based on public key
cryptosystems. This protocol consists of an initiator
that wishes to share a group key and a responder that
is a multicast group member. First, we present the
steps of the initiator for sharing the group key.
1. The initiator decides the composition of the
multicast group U = {U
1
,U
2
,U
3
,…,U
4
}.
ICE-B 2019 - 16th International Conference on e-Business
210
2. The initiator generates a random value r and
computes R = rG (G is the base point generator
with an order of p, which is a prime used in the
elliptic curve (EC) parameters). The same R
value can be reused.
3. The initiator calculates the EC points S
j
s (j = 1
to n-1) using r and the public keys Q
j
of the
group members: S
j
= d
j
Q
j
+ R, where d
j
is its
private key.
4. The initiator encodes the EC point S
j
= (x
j
,y
j
)
into the point (u
j
,v
j
) as follows: u
j
= h(x
j
); v
j
=
h(y
j
).
5. The initiator computes the values u
=
{⊕
u
}⊕v
, ∀j ∈ {1, … , n- 1} and denotes
the set P = (u
|| … u
).
6. The initiator calculates the group key as k =
h
(
⊕
u
)
.
7. The initiator calculates the Auth code as
follows: Auth = h(k||R||P).
8. The initiator transmits (Auth; C; R; U; P), where
C is the counter value. Additionally, the digital
signature is appended to preserve the message’s
authenticity and integrity.
Next, we present the steps of the other nodes for
sharing the group key.
1. The responder verifies whether it is included in
the multicast group U. Subsequently, the digital
signature and counter C are verified.
2. If both are verified correctly, the responder
computes
using the received random value R
and the node's private key d
: S
=d
Q
+R .
3. The responder converts the EC point S
to the
point (u
,v
) using the same encoding as in Step
4.
4. The responder calculates the group key k: k =
h(u
⊕u
⊕v
).
5. The responder verifies whether Auth =
h(k||R||P). If this is verified correctly, then the
group key k is authenticated.
Finally, we present the concluding step for
sharing the group key:
1. Each sensor node should send an
acknowledgment message h(k, Q
) to complete
the handshake.
2. By verifying the acknowledgment message, the
initiator can ensure the authenticity of the
particular group member and the accurate
derivation of the group key k.
2.3 SSKM
To maintain the channel secure for delivering shares,
the secret sharing-based key management (SSKM)
scheme adopts a discrete logarithm in the finite field
under the decisional Diffie–Hellman difficulty
assumption.
This scheme shares one cluster key (a group key)
between the neighboring nodes. Below the detailed
description of the scheme phases is presented.
[Initial phase]
Assume that − 1 clusters exist, and each cluster
has a cluster head and n (n ≥ k) member nodes. In this
phase, the BS sets the parameters for key sharing.
This process is discussed systematically in
subsequent paragraphs.
Step 3-1:
The BS chooses two large primes: 1 and 1; let
= 21 + 1 and = 21 + 1, = ; it is
computationally intractable to solve the factor
N
without and . Meanwhile, the BS selects a
generator ( ∈[
1/2
,]) and another prime ( >
). Subsequently, it broadcasts the triple (, , ) to
the sensors in the network.
Step 3-2:
The BS randomly and uniformly chooses a
polynomial f(
) of (k−1) degree for each cluster as
follows:
() = +
+
+⋯+
Step 3-3:
The BS independently selects a session key
CH
from GF() in the finite field and encrypts the
session key Z
CH
with the secret key
CH
, namely, Z
CH
= K
CH
+ S
CH
.
[Cluster key management]
Step 4-1:
The cluster head (CH) chooses its own key xch
randomly, which is relatively prime with p-1 and q-1,
and sends it to the BS. Thereafter, the BS counts the
y
CH
=
xch
and sends (ID
CH
, y
CH
) to a sensor node in
the cluster; meanwhile, the sensor node selects a
node’s private key xi randomly, which is relatively
prime with p-1 and q-1, computes yi =
xi
mod N, and
subsequently sends (Indi, yi) to the BS. The BS
ensures that, if IDi
≠
IDj, yi = yj should not exist;
otherwise, it reselects a node until it succeeds.
Furthermore, the BS utilizes the CH's ID
CH
and the
members' IDi (i = 1, ..., k) to count the shares f
CH
(ID
CH
) and f
CH
(IDi).
Step 4-2:
The CH selects a group of users = {ID1,…,
IDk}, while the BS unicasts (
ID
CH
,f
CH
(ID
CH
)･(yi)
xch
Efficient Geometric Group Key-sharing Scheme
211
modN
)toasensornodeintheclusterandsends
(
IDi,f
CH
(IDi)･(y
CH
)
xi
mod
)totheCH.
Step 4-3:
The BS informs Z
CH
not to share the K
CH
.
[Secret recovery]
Depending on the received information from the
BS, e.g., the public generator, a node’s private key ,
and the CH’s own key
CH
, the CH and members can
obtain their shares through the following formulas:
(
)(
)
(
)
=
(
)
(1)
(
)(
)
(
)
=
(
)
(2)
2.4 Hamasaki et al. Scheme
In this scheme, all nodes share the group key through
a BS. First, the steps executed by the BS to perform
the group key sharing are discussed. All nodes store
each own unique key and the BS knows all unique
keys. The BS and all nodes keys are calculated with
GF(p). The process is described in detail below:
1. The BS generates a pseudorandom number r,
and the number r is shared with all nodes in the
group n.
2. The BS generates a pseudorandom number
based on each node’s unique key and a random
number r to set node’s coordinates in n-1
dimensions a
i
(a
i1
, a
i2
, a
i3
,
‥
, a
i(n-1)
).
3. If all node coordinates are set in n-2 dimensions,
the BS returns to step 1.
4. The BS calculates the coordinates of the center
of the circle using the coordinates of all nodes.
5. The BS broadcasts r, n and the coordinates of
the center of the circle.
Next, the steps of sharing the group key for a node
i are presented:
1. The node i calculates a pseudorandom number
a
i
(a
i1
, a
i2
, a
i3
,
‥
, a
i(n-1)
) based on a random
number r and a node’s unique key.
2. The node i calculates the distance from the
received center of the circle to its own node
coordinates using equation (3) presented below.
However, we do not perform the square root
operation because of its lower computational
cost.
=
(
−
)
+
(
−
)
+⋯
+
−
(
)
(3)
3 PROPOSED SCHEME
We propose an efficient geometric group key-sharing
scheme based on the Hamasaki et al. scheme.
3.1 Efficient Hamasaki et al. Scheme
The Hamasaki et al. scheme incurs a high
computational cost if there are many nodes in a group
because n-1 times generating pseudorandom number
is required (n is the number of nodes in the group).
Because the result of equation (3) is a group key, the
bit length of p includes the group key size. Therefore,
the length of the pseudorandom number is 128 bits
when the key size is 128 bits; therefore, the random
number can be generated by encryption in that the bit
length is 128 bits, for example, AES, etc. If 1,000
nodes are in the group, a 999-times encryption is
required to share the group key in this method;
therefore, the computational cost becomes high.
A large number of nodes causes this problem. The
group is divided into clusters of three nodes each to
decrease the number of nodes n. A cluster key is
generated in each cluster by the Hamasaki et al.
scheme, and a group key is sent to every cluster with
the cluster key. We present the operation to share the
group key. First, we present the BS steps. All nodes
store each unique key and the BS knows all unique
keys and IDs. The description of the scheme steps is
provided below:
1. The BS divides the IDs of nodes in the group
into clusters c
j
(j = 1, 2, 3, ..., m) of three nodes
in ascending order.
2. The BS generates a random number r, and
calculates each node coordinates a
i
(a
ix
, a
iy
)
based on the random number r and each unique
key using pseudorandom number generator.
3. The BS calculates the center of the circle O
j
(O
jx
,
O
jy
) of each cluster with the Hamasaki et al.
scheme.
4. The BS calculates the radius for cluster key s
j
in
each cluster by equation (4).
=
−
+
−
(4)
5. The BS generates group key S and encrypts
group key S with cluster key s
j
into g
j
.
6. The BS broadcasts the following information.
cID
j
is the smallest ID in cluster c
j
.
r, (cID
j
, O
j
(O
jx
,O
jy
), g
j
) (j = 1,2,3,
‥
,m)
Next, we present the steps for a node i.
ICE-B 2019 - 16th International Conference on e-Business
212
1. If its node ID
i
is in the received cID
j
～
cID
j+1
, its
cluster is c
j
.
2. The node i calculates pseudorandom number
a
i
(a
ix
,a
iy
) based on random number r and its own
unique key.
3. The node i calculates the distance from the
received center of circle O
j
to its own node
coordinate a
i
by equation (4).
4. The node i decrypts g
j
by s
j
to obtain group key
S.
4 EVALUATION
The proposed scheme is compared with the
conventional methods discussed in Section 2 based on
the five factors presented in Section 1. The results of
comparison are presented considering computational
cost, communication cost, and storage requirement,
the performance evaluation process is described in
detail in Section 4.1. We present the results of the
evaluation based on key renewal and security as
outlined in Section 4.2.
4.1 Performance Evaluation
The performance indicators in terms of computational
cost, communication cost, and storage requirement
for each node are evaluated for all considered
schemes. Table 1 lists the order for all used indicators
and schemes. The BS performance is not evaluated
because a BS must be tamper-resistant and include
sufficient computational ability and power supply
capacity.
To perform a simple evaluation, we set the length
of constants such as counter value, random value, and
ID of a node or a key, equal to L1; the length of data
that are encoded by a common key cryptosystem,
hash, or ECC operations to L2; and the length of data
that are processed by a discrete logarithm to L3.
Generally, L1 < L2 << L3.
For computational cost, we set the computational
complexity of addition and multiplication equal to
C1; that of using a common key cryptosystem, hash,
pseudorandom number generation, and simultaneous
equation processing including the secret-sharing
scheme to C2; and that of ECC operation and the
discrete logarithm to C3. Generally, C1<C2<<C3.
Meanwhile, LEAP, ECCKS, and SSKM have an
initiator. However, Hamasaki et al.’s scheme and the
proposed scheme do not have one. It is possible to
assume an initiator for Hamasaki et al.’s scheme and
for the proposed scheme to keep the settings of nodes
in the group consistent (SSKM has a BS as well).
Therefore, a group consists of one initiator and m
peripheral nodes. In this case, each peripheral node
sends its own ID to the initiator.
Table 1: Comparison of results.
(a) (b) (c) (d) (e)
(1) mL2 m
2
L2 L2 mL1 mL1
(2) L1 L1 L3 L1 L1
(3) 2mC2 mC3 C3 mC2 2C2
(4) 3C2 C3 2C3 mC2 2C2
(5) L2 L2 L2 L2 L2
(a) LEAP
(b) ECCKS
(c) SSKM
(d) Hamasaki et al. scheme
(e) Proposed scheme
(1) Communication cost (initiator)
(2) Communication cost (peripheral node)
(3) Computational cost (initiator)
(4) Computational cost (peripheral node)
(5) Storage requirement
LEAP shares a group key (cluster key) using
pairwise keys. Therefore, during the pairwise key-
sharing phase, the initiator needs the communication
cost of mL1 to send its own ID to each node, then the
peripheral nodes send their own ID to the initiator,
whereas the group key-sharing phase requires that of
m(L1+L2)
≒
mL2 for the initiator as it has to transmit
the node ID and enciphered key.
In LEAP, the initiator performs one encryption for
its own ID, and one encryption for every node ID in
the pairwise key sharing. In addition, the initiator
performs m encryption for the peripheral nodes.
Therefore, the initiator requires the computational
cost of (1+2m)C2
≒
2mC2, and each peripheral node
performs two encryptions and one decryption for
pairwise and group key-sharing. Therefore, that of
peripheral node is 3C2.
ECCKSS uses an ECC-based operation. The
initiator transmits (Auth; C; R; U; P) for each node.
Therefore, it requires the communication cost of
m{(m + 1)(L1 + L2) + L2}
≒
m
2
L2. The
communication cost required by the digital signature
and Ack was not included in this evaluation as these
objects are used for verification.
In ECCKSS, each node performs an ECC
operation for
, a hash for
and
, and two
additions to calculate the group key. Considering the
initiator, processing the ECC operation for and
addition for
and are added. Therefore, each node
requires the computational cost of almost C3 + 2C2
Efficient Geometric Group Key-sharing Scheme
213
+ 2C1
≒
C3, and the initiator requires the
computational cost of almost mC3.
SSKM applies a discrete logarithm. The initiator
sends xch to the BS. A peripheral node sends (IDi, yi)
to the BS. y
CH
and yi are extremely large numbers.
Therefore, the communication cost of the initiator is
L2 and that of each peripheral node is almost L3.
In SSKM, the nodes except the initiator calculate
yi =
xi
mod N and equation (1) to obtain a share. The
nodes solve a simultaneous equation processing to
obtain the group key. Therefore, each node requires
the computational cost of almost 2C3+C2
≒
2C3 and
the initiator requires that of almost C3+C2
≒
C3.
Hamasaki et al.’s scheme performs calculations to
obtain the center of a circle by the BS. Therefore, each
peripheral node sends its own ID to the initiator, and
the initiator sends the IDs of the peripheral nodes to
the BS. Each node receives the coordinate of the
center of the circle from the BS. Therefore, the
initiator requires the communication cost of mL1, and
each peripheral node requires that of L1.
In Hamasaki et al.’s scheme, each node generates
m pseudorandom numbers and calculates S using
addition and multiplication. Therefore, each node
requires mC2+C1
≒
mC2.
The scheme proposed in this paper forms multiple
clusters, which allows keeping m as a relatively small
number. The communication cost for each node is the
same as that of Hamasaki et al.’s method. However,
the computational cost of the proposed scheme is the
smallest comparing to other consider methods,
because m is maintained small. Therefore, each node
requires the computational cost of 2C2+C1
≒
2C2.
5 APPLICATION EXAMPLE
The proposed scheme is characterized by easy group
key update. Therefore, we can present applications
where only authorized people can receive service in
unpartitioned space. To build an analogy, let us
consider a hypothetical room where people who have
a communication device frequency enter and exit.
However, it is not necessary for a room to be
surrounded by a wall, which would cut off
communication. Let us consider that a service, which
is operated in the room is e-sports, established such
as only authorized people sharing a common group
key can use it. The game of e-sports is projected to a
big screen in the room, and only the people in the
room can share the information. When a person exits
the room, the group key is immediately updated to
remove that person from the group. Therefore, he
loses access to the service at the moment when he
leaves the room. Subsequently, when someone enters
the room, the group key is updated to include this new
person and he can obtain access to the service.
Therefore, it is easy to respond to services that are
frequently updated by participants using the proposed
scheme.
6 CONCLUSION
We proposed an efficient key-sharing scheme, which
implies dividing into clusters to decrease
computational cost. In future work, we would like to
consider pairwise key sharing, and propose a method
using pairwise key sharing and group key sharing.
REFERENCES
Estrin, D. et al, 1999. Next century challenges: scalable
coordination in sensor networks. In Mobile Computing
and Networking (Mobi- Com’99), Seattle, WA, pp.263-
270
Hamasaki, J. et al, 2016 “Geometric Group Key-Sharing
Scheme,” Global Conference on Consumer Electronics
Pages 667-668.
Zhu, S. et al, 2003. LEAP: Efficient Security Mechanisms
for Large-ScaleDistributed Sensor Networks, In ACM
Conference on Computer and Communications
Security, pp.62-72.
Zhu, S. et al, LEAP+: Efficient security mechanisms for
large-scale distributed sensor netwoeks, In ACM Trans.
On Sensor Networks (TOSN), Vol.2, Issue 4, pp. 500-
528, 2006.
Porambage, P. et al, 2015. Multicast Communication in
Wireless Sensor Networks Deployed for IoT
Applications, In IEE Access pp. 1503–1511.
Zhang, Y. et al, 2013. A Secret Sharing-Based Key
Management in Hierarchical Wireless Sensor Network,
In International Journal of Distributed Sensor
Networks Volume.
ICE-B 2019 - 16th International Conference on e-Business
214
