Data Quality in Secondary Data Analysis: A Case Study of Ecological

Data using a Semiotic-based Approach

Mila Kwiatkowska

and Frank Pouw

Department of Computing Science, Thompson Rivers University, 805 TRU Way, Kamloops, Canada

Department of Environmental Sciences, Thompson Rivers University, 805 TRU Way, Kamloops, Canada

Keywords: Data Quality, Secondary Data Analysis, Ecological Data, Semiotics.

Abstract: Data quality problems are widespread in secondary data when they are used for data warehousing and data

mining. This paper advocates a broad semiotic approach to data quality. The main premises of this expanded

semiotic framework are (1) data represent some reality, (2) data are created and interpreted by humans in a

communication process, (3) data are used for specific purposes by humans, and (4) data cannot be created,

interpreted and used without knowledge. Thus, the semiotic-based approach to data quality in secondary data

analysis has four aspects: (1) representational, (3) communicational, (3) pragmatic, and (4) knowledge-based.

To illustrate these four characteristics, we present a case study of ecological data analysis used in the creation

of an ornithological data warehouse. We discuss the temporal data (ecological notion of time), spatial

ecological data (communication processes and protocols used for data collection), and bioacoustic data

processing (domain knowledge needed for the specification of data provenance).

1 INTRODUCTION

Data quality (DQ) is a well-established research field

and is an essential component of data science, data

warehousing and data mining. The definition,

dimensions, methods of assessment, and management

of DQ have been studied from theoretical and

practical perspectives for several decades (Ivanov,

1972; Andersen, 1991; Wand and Wang, 1996; Price

and Shanks, 2008; Rasmussen 2008; Sebastian-

Coleman, 2013). Previous research has developed

several general approaches and frameworks based on

the understanding of the concept of data, data utilities,

and “data fitness” for the studied problem. They can

be grouped into four main approaches to DQ: system

theoretical, ontological, business (data as a product

and as a service), and semiotic (based on the semiotic

framework for information systems).

The system theoretical approach (Ivanov, 1972)

views data as meaningless digits and characters,

which support information. Thus, DQ is understood

as information quality. This approach defines two

intrinsic aspects of the quality of information:

accuracy and precision. Furthermore, in the system

theoretical approach, the information quality depends

on the quality of the conceptual model and the overall

quality of the system.

The ontological approach (Wand and Wang,

1996) focuses on DQ as a multi-dimensional concept

and defines multiple quality dimensions: accuracy,

precision, legitimacy, validity, reliability, relevance,

importance, consistency, timeliness, completeness,

accessibility, comprehensibility, security, and

usefulness. The framework of Wang and Strong

(1996) organizes these dimensions into four

categories: intrinsic, accessibility, contextual, and

representational.

The business approach (Kahn et al., 1997; Wang,

1998) views data as an asset and as a service. The

approach to data as business asset brings the product

perspective to DQ. The approach to data as service

brings the customer expectations as a measure of DQ.

The semiotic approach to DQ has been developed

by several researchers (Shanks and Darke, 1998;

Shanks and Corbitt, 1999; Price and Shanks, 2004;

Price and Shanks, 2008; Sebastian-Coleman, 2013).

This approach is based on the definition of “data as

signs,” which was introduced by Andersen (1991) as

a part of computer semiotics defined as “a branch of

semiotics that studies the special nature of computer-

based signs.” The semiotic framework for DQ is

based on Stamper’s (1991) semiotic levels: syntactic,

semantic, pragmatic, and social. The first three levels

are defined by Price and Shanks (2004) as follows:

Kwiatkowska, M. and Pouw, F.

Data Quality in Secondary Data Analysis: A Case Study of Ecological Data using a Semiotic-based Approach.

DOI: 10.5220/0007978403770384

In Proceedings of the 8th International Conference on Data Science, Technology and Applications (DATA 2019), pages 377-384

ISBN: 978-989-758-377-3

377

(1) syntactic quality determines how well data

corresponds to stored meta-data, (2) semantic quality

defines how the stored data corresponds to the

represented external phenomena, and (3) pragmatic

quality determines the suitability of data for a given

use. The fourth level, social semiotic, is described by

Shanks and Corbitt (1999) as “the shared

understanding of the meaning of symbols.”

In this paper, we take a broader semiotic approach

to DQ. The main premises of the expanded semiotic

perspective are (1) data represent some reality, (2)

data are created and interpreted by humans in a

communication process, (3) data are used for specific

purposes by humans, and (4) data cannot be created,

interpreted and used without knowledge. Based on

these premises, we present a semiotic approach using

four aspects: representational, communicational,

pragmatic, and knowledge-based.

Furthermore, we focus on the problem of DQ in

secondary data analysis. The distinction between

primary data and secondary data (secondary use of

data) is critical for DQ management. Primary data are

collected by organizations and researchers for a

clearly defined purpose. The secondary data analysis

“reuses” the collected data for different purposes. The

secondary data usage includes data warehousing, data

mining, creation of data archives, and building of

integrated repositories, in which the previously

collected data are integrated from multiple sources,

summarized, aggregated and made available to large

groups of users. Furthermore, in many cases, the

primary data collection and use involve tacit

knowledge, which is not formally documented when

the data are used for secondary analysis. Therefore,

traceable data provenance and standardized metadata

specification are the key components of DQ.

This paper is organized as follows. In section 2,

we discuss the necessity of the ecological data sharing

and integration. We discuss the high complexity of

ecological data and we present examples of

ecological data used in the biodiversity studies. In

section 3, we provide a brief introduction to

development of semiotics as the study of signs, sign

systems, and sign processes; and the role of semiotics

as a universal approach and a unifying framework for

multiple disciplines. We describe the proposed

extended semiotic-based framework and give

examples of temporal data (ecological event timing),

spatial data (integration of water-depth measurement,

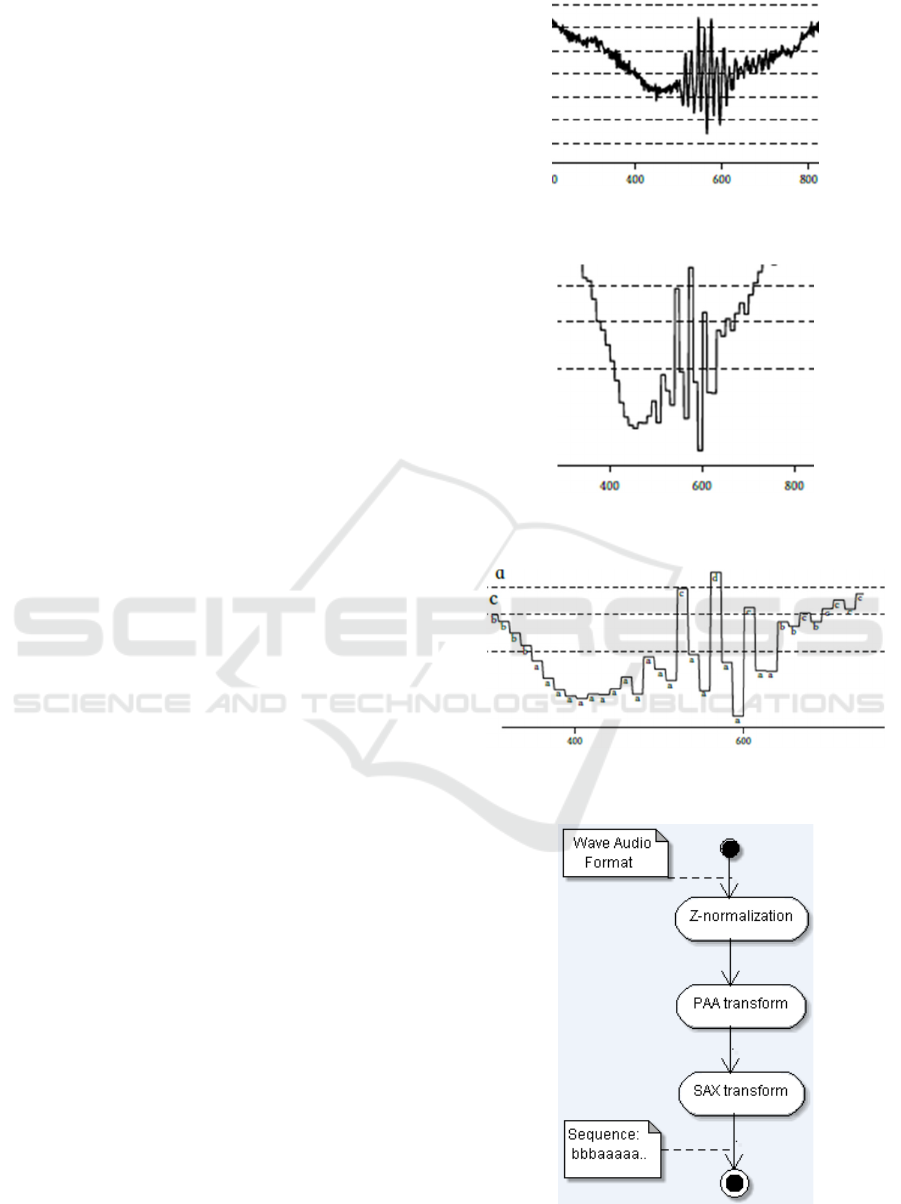

horizontal cover, and wetland assessment), and time-

series data (bioacoustics signals) to illustrate the

representational, communicational, pragmatic, and

knowledge-based aspects of the extended semiotic

framework. Finally, in the Conclusions section, we

advocate the use of a broader semiotic framework for

DQ in secondary data analysis. We argue that DQ

depends on adequate models of ecological reality,

explicit models of communication and data collection

protocols, specification of data collection goals and

limitations, and explicit specifications of data

provenance.

2 ECOLOGICAL DATA

ANALYSIS

With the availability of small portable sensors for

data collection, ecologists who study biodiversity are

able to acquire, store, and process vast amounts of

ecological data (Pankratz et al., 2017). The large

volumes of sensor-generated data must be integrated

with data coming from other multiple and diverse

sources, such as observations, field surveys, existing

maps and GIS. However, many ecological projects

capture the data in minimally structured formats

without proper mechanism for DQ management

(Madin et al., 2007). The need for a broader

perspective and universal standards in ecological data

collection has been addressed by several researchers

(Cushing et al., 2007; Hampton et al., 2013). This

wider approach allows for (1) data exchange between

ecologists, (2) support for building high-quality data

warehouses and repositories of historical ecological

data, and (3) repurpose and reuse of data for

comprehensive ecological analysis spanning multiple

geographical areas.

Cushing et al. (2007) characterize ecological data

and metadata as “highly complex ontologically,

spatio-temporally and sociologically”. Thus,

ecological data integration, archiving, and data

warehousing have specific requirements regarding

metadata and standardization. In this paper, we

describe an expanded semiotic framework to address

issues concerning DQ in the secondary analysis of

ecological data. We present a case study based on our

experience with data extraction, transformation and

loading in the creation of a data warehouse for the

identification of bird species. This data warehouse,

called ecoDW, is based on multidimensional data

marts implemented in Oracle 12c DBMS. It is a

component of a decision support system proposed to

assist humans in bird identification. EcoDW links

bioacoustics data with their environmental context.

2.1 Ecological Data Provenance

In our case study, we describe the ecological data

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

378

provenance based on the W7 ontological model

proposed by Ram and Liu (2007; 2008) using seven

elements: who, where, what, when, how, which, and

why. The ecological data were made available by Dr.

Erin Bayne from the University of Alberta (Shonfield

and Bayne, 2017). The data (7,957 records), which

span two years (2014-2015), were extracted from the

database maintained by the Ecological Monitoring

Committee of the Lower Athabasca region

(EMCLA). The EMCLA project collects the data for

monitoring uncommon species: owls, amphibians,

and yellow rails. The EMCLA database includes: (1)

bioacoustics recordings downloaded from automated

recording units (ARUs), (2) geographic locations and

timestamps for the recordings, and (3) results from

field assessments done by the technicians around

some of the ARUs (water depth, density of vegetation

and wetland type). These habitat data were integrated

with habitat characteristics derived from CanVec+

habitat maps (Natural Resources Canada, 2014) and

the Alberta Digital Elevation Model. Large portion of

the data in EMCLA database has been collected for

the studies of the Yellow Rail (Coturnicops

noveboracensis), a small, marsh-dwelling bird that

occupies wetlands across southern and central

Canada (Leston and Bookhout, 2015).

3 SEMIOTIC-BASED APPROACH

Originally, the term ‘semiotics’ (from a Greek word

for sign sēmeîon) was introduced by the physician

and philosopher Galen (129-199), who classified

semiotics as a branch of medicine (contemporary

symptomatology). The term ‘semiotics’ (originally

semiology) as a study of signs and sign systems in

language was introduced by the Swiss linguist

Ferdinand de Saussure (1857-1913). The Saussurean

approach to semiotics is dyadic. It is based on two

features: (1) the signified, which is the concept or

object and (2) the signifier, which is indicating the

signified. The term ‘semiotics’ was redefined by the

American logician and philosopher Charles Sanders

Peirce (1839-1914) as a study of all signs (including

non-linguistic signs) and the semiotic process

(semiosis) as “an irreducibly triadic relation among a

sign, its object, and its interpretant” (Sebeok, 1999).

Contemporarily, semiotics is a discipline which can

be broadly defined as the study of signs, sign systems,

and sign processes. Sign processes (in generalized

sense) are underlying the functioning of all living

organisms and, even, the products of humans, such as

computers, sensors, and automata (Sebeok, 1999).

Thus, the semiotic approach and semiotic-based

frameworks have been used in almost all disciplines,

from literary studies through biology to information

science and computer science. A semiotic paradigm

is characterized by its universality, but, at the same

time, it is associated with different traditions and

multiple empirical methodologies. Therefore, to

avoid misinterpretation, we briefly describe basic

terminology needed to present our ecological case

study.

Peirce defined “sign” as any entity carrying some

information and used in a communication process.

Peirce, and later Charles Morris, divided semiotics

into three categories: syntax (the study of relations

between signs), semantics (the study of relations

between signs and the referred objects), and

pragmatics (the study of relations between the signs

and the agents who use the signs to refer to objects in

the world). This triadic distinction is represented by a

Peirce’s semiotic triangle (shown in Figure 1): the

representamen (the form which the sign takes), an

interpretant (the sense made of the sign), and an

object (an object to which the sign refers).

Figure 1: Peirce’s triadic representation of semiosis.

3.1 Representational Aspect

In the extended semiotic-based framework for DQ,

the representational aspect refers to semantics (the

study of relations between signs and the referred

objects). As stated by Kent (1978) “An information

system (e.g., database) is a model of a small, finite

subset of the real world.” Thus, in this sense, data

(data models) represent some parts (views) of reality.

However, reality can be perceived from different

perspectives (worldviews). For example, notion of

time is dependent on the worldview of specific group

of people (or specific purpose). Temporal data are

essential for the analysis of migratory movements and

diurnal/nocturnal behaviours of birds. Specifically,

season and time of day in relationship to sunrise and

sunset are crucial in ecology. Therefore, in our study,

the date and time stamp (from the original data) was

transformed into the ecologically meaningful notion

of time as time before and after sunrise and time

before and after sunset. Thus, new temporal attributes

were constructed using the recording’s civil time and

resentamen

Interpretant

ect

Data Quality in Secondary Data Analysis: A Case Study of Ecological Data using a Semiotic-based Approach

379

the ARU’s geographic location. The examples of the

primary data are shown in Table 1. The first column

contains time represented by the ISO 8601 standard:

YYYY-MM-DD, 24-hour clock and an offset from

the UTC time (6 hours before the UTC time). The

second column contains the geographic location

represented by the ISO 6709 standard: latitude and

longitude coordinates in decimal degrees.

Table 1: Automatically recorded date and time data and

geographic point location.

Civil Time

ISO 8601

Geographic Location

ISO 6709

1 2014-06-18 08:36 -06.00 55.72731 -110.9788

2 2014-05-29 08:36 -06.00 56.22676 -110.84226

3 2014-06-08 05:00 -06.00 56.89742 -111.91476

The date/time and geographic location attributes were

used to calculate local sunrise and sunset times (using

the maptools package from the R studio). The timing

of the sunrise/sunset is calculated for two calendar

days giving four attributes: last and next sunrise time

and last and next sunset time. Table 2 shows the

calculated local last sunrise and sunset times for the

records from Table 1.

Table 2: Calculated last sunrise and sunset times.

ID Last Sunrise Time Last Sunset Time

1 2014-06-18 04:38 2014-06-17 22:11

2 2014-05-29 04:47 2014-05-28 21:53

3 2014-06-08 04:36 2014-06-07 22:16

The sunrise and sunset times were used to calculate

the time elapsed after sunrise and the time before

sunset. The results for the three records are shown in

Table 3.

Table 3: Examples of automatically recorded date and time

and sunrise/sunset oriented timing.

ID Civil Time ISO 8601

Time After

Sunrise (min)

Time Before

Sunset (min)

1 2014-06-18 08:36 -06.00 23

2 2014-05-29 08:36 -06.00 22

3 2014-06-08 05:00 -06.00 2

1,03

The described transformation process illustrates

the need for an explicit ecological model of reality, in

which the notion of time is based on the sunrise and

sunset. The sunrise and sunset timing, daybreak,

dawn, first hours after sunrise, twilight, and the

number of hours of daylight are essential for the

studies of bird activities, such as vocalization,

foraging, roosting or migration. For example, the

yellow rails vocalize most frequently after complete

darkness. As another example, common swifts (Apus

apus) perform daily vertical ascents (up to 2.5 km) in

the twilight of dawn and dusk (Dokter et al., 2013).

3.2 Communicational Aspect

The expanded semiotic-based approach stresses the

fact that data are created and interpreted by humans

(in general, living entities or artificially created

agents) in a communication process. The

communicational aspect is even more important in the

secondary data analysis, where data come from

multiple and, often, heterogeneous sources and the

participants/agents have multiple perspectives.

In our case study, the primary data for the habitat

include an ARU’s geographic location and in-field

habitat assessment. Since in-field assessments were

done for some ARU locations, the habitat

characteristics for the remaining ARUs were derived

from CanVec+ habitat maps (Natural Resources

Canada, 2014) and the Alberta Digital Elevation

Model. As a result, the secondary data for the habitat

have three sources: automatically measured

geographic locations, human observations, and the

generalized habitat maps (based on aggregated data

from several years).

We argue that secondary data analysis requires (1)

an explicit communication model for all agents: ARU

(automata), field technicians, and GIS specialists; and

(2) explicit specification of the data collection

protocols. The following three examples illustrate the

complexity of the ecological data collection and the

necessity of explicit communication and protocol

specifications.

3.2.1 Water Accumulation Data

Water accumulation data were based on the water

depth measurements done manually by the

technicians using a meter stick at 21 points around

ARUs, yielding values between 0 and 100 cm (the

length of the meter stick). However, the technicians

were not able to take all measurements (in some

places water was too deep to measure or the wetland

was unsafe to walk on). The technicians

communicated the fact that the measurement was

impossible by entering values out of range (negative

values and values > 100), so called sentinel values.

Thus, 165 records had invalid values (disguised

missing values), which had to be omitted in the pre-

processing for the ecoDW. Table 4 shows the invalid

values and their frequency.

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

380

Table 4: Disguised missing data for the water depth.

Depth Recorded (cm) Number of Records

99,999

9,999

999

-5

-881

-882

-883

-884

3.2.2 Horizontal Cover Data

The protocol for horizontal cover (density of

vegetation) estimation uses cover boards (1 x 1 m

square) placed at 0.5 m and at 1.5 m above the ground

for 5 points around the ARU. Horizontal coverage

estimates range from completely un-obscured (0%) to

completely obscured (100%). Figure 2 illustrates the

use of cover boards. The low cover (grey cover board

square) is estimated as 30% and the high cover (white

cover board square) is estimated as 10%. The

horizontal cover is calculated as 20% (an average of

the low and high covers).

Figure 2: Sketch of a horizontal cover board in use.

In some circumstances the placement of the board

was impractical, and the technicians communicated

this fact by entering values outside of valid range (57

records had invalid values).

3.2.3 Wetland Assessment Data

In our study, the protocol for the wetland assessment

(wetland type identification) used the Ducks

Unlimited Enhanced Wetland Classification

(DUEWC) (Ducks Unlimited, 2015). The percentage

of each DUEWC category was judged and recorded

by the technicians. The DUEWC codes were

provided for the manual data entry at the site.

However, for some sites (e.g., disturbed habitats) the

technicians were not able to find corresponding

codes, and they entered description (not DUEWC

class) to communicate the unusual habitat, for

example: “burn”, “compressor”, “cutline”, and

“highway”. Although these descriptions represent

invalid values, they are important for the ecological

studies. Therefore, we have created new habitat

categories for ecoDW: “Undefined”, “Anthropogenic

Disturbance” and “Natural Disturbance.”

3.3 Pragmatic Aspect

In the expanded semiotic-based framework for DQ,

the pragmatic aspect is understood in a broad sense

and it combines the pragmatic level and the social

level from the semiotic DQ framework proposed by

Shanks and Corbitt (1999). Thus, we define

pragmatic aspect as usability and usefulness (Kahn et

al. 1997) and, also, as integration of stakeholder

viewpoints, biases, cultural and political aspects

(Shanks and Corbitt, 1999). Our broad definition of

pragmatic aspect is based on the European continental

pragmatic tradition (perspective approach), in which

pragmatics is viewed as “a general functional (i.e.

cognitive, social and cultural) perspective on

linguistic phenomena” (Huang, 2007).

We illustrate the pragmatic aspect of DQ using an

example of the purpose of the water depth

measurements. The main goal of the in-field water

depth measurements was not to determine water

accumulation but to study the preferred habitat of

yellow rails: marshes with shallow water and areas

with an average early-July water depth of 5-10 cm.

Since the water depth fluctuates (due to weather

conditions) and the in-field measurements have

limited precision, we used a fuzzy-set approach to

transform the measurements into fuzzy linguistic

variables. For the secondary data analysis, we have

created fuzzy membership functions for shallow,

medium, and deep water. Thus, the optimal habitat

for the yellow rail was defined between shallow and

medium. This approach reduced the dimensionality of

data and, at the same time, allowed for efficient

identification of preferred habitats.

3.4 Knowledge Aspect

In the expanded semiotic-based framework for DQ,

the knowledge aspect is orthogonal to the

representational, communicational, and pragmatic

aspects. Each of these three aspects requires specific

domain knowledge. Furthermore, we argue that in

secondary data, the tractability of the data to the

primary sources is critically important – data

provenance is a key component of the quality of

secondary data. We present an example of a

bioacoustics signal processing to illustrate the need

Data Quality in Secondary Data Analysis: A Case Study of Ecological Data using a Semiotic-based Approach

381

for an explicit specification of the transformation

steps for the derivation of secondary data. This

specification allows to (1) re-run the transformations

for new primary data and (2) perform an audit to

evaluate secondary data quality.

3.4.1 Data Provenance Specification

Bioacoustic signal processing is knowledge-intensive

and data-centric (Di Ciccio et al., 2015); therefore, it

requires an explicit specification of domain

knowledge and the required workflows. In our study,

the bioacoustic files (ARU’s field recordings) are

processed and used for bird identification.

In general, two approaches are used for pattern

identification in bird vocalizations: feature-based

matching and time-series analysis. The feature-based

identification uses more than 40 features, and the

types of features depend on a particular bird species.

Since ecoDW stores data for multiple species, the

time-series analysis with dimensionality reduction

has been chosen. For the acoustic data

transformations, we used the Piecewise Aggregate

Approximation (PAA) technique, which was

introduced by Keogh et al. (2000). PAA compared

favourably to other signal-reduction techniques such

as Discrete Fourier Transform and Discrete Wavelets

Transform (Keogh et al., 2000) and has the additional

advantage of equalizing signals that differ only in

intensity (loudness can be ignored in bird

identification) through signal normalization (Kasten

and McKinley, 2007). Next, the PAA was converted

to a symbolic representation using a lower bounded

approximation of the Euclidean distance of the

original time series through the process of Symbolic

Aggregate approXimation (SAX) (Lin et al., 2003).

Figure 3 shows a short segment of an acoustic

recording of a Yellow Rail (Coturnicops

noveboracensis) typical vocalization, called “click”.

The segment uses a Waveform Audio File Format

which represents analogue sound as amplitude over

time. Figure 4 shows the PAA representation and

Figure 5 shows the final results from SAX symbolic

representation using 8-letter alphabet. Thus, the

bioacoustic signal for a typical call of yellow rail is

transformed to “bbbaaaaaaaaaaacaadaacaabbcb”.

The bioacoustic processing is intrinsically

complex. Therefore, all steps with specific

transformation methods and their parameters must be

clearly defined. Figure 6 shows the workflow for

bioacoustic signal processing used for secondary data

derivation. We use an UML activity diagram to

represent the three steps of the workflow: Z-

normalization, 10-fold PAA reduction, and symbolic

SAX reduction based on 8-letter alphabet.

Figure 3: Segment of acoustic recording for a single “click”

in a Yellow Rail vocalization.

Figure 4: The “click” segment reduced by the 10-fold

Piecewise Aggregate Approximation (PAA).

Figure 5: The PAA “click” segment in a Symbolic

Aggregate approXimation (SAX) representation.

Figure 6: Workflow for the PAA/SAX transformation from

a bioacoustic signal to a sequence of symbols.

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

382

The symbolic representation of bird vocalization

has two main advantages: (1) significant reduction of

the required space in the database and (2) availability

of various text mining algorithms for data analysis.

4 CONCLUSIONS

In this paper, we advocated the use of a broader

semiotic perspective on data quality in secondary data

analysis. We proposed an expanded semiotic

framework based on four aspects: representational,

communicational, pragmatic, and knowledge-based.

We have shown that knowledge aspect is orthogonal

to the other aspects, and requires an explicit

specification. The expanded framework has been

used for ecological secondary data analysis and

transformation in the creation of an ornithological

data warehouse, ecoDW. We presented examples of

ecological data analysis and transformation to

illustrate four main premises of the expanded

semiotic framework: (1) data represent some reality,

(2) data are created and interpreted by humans in a

communication process, (3) data are used for specific

purposes by humans, and (4) data cannot be created,

interpreted and used without knowledge. These four

premises were used to define the four aspects of our

framework: representational, communicational,

pragmatic, and knowledge-based.

We illustrated the representational aspect using

the example of the conversion of civil date-time

stamp and geographic location into ecologically

useful temporal data representing hours before and

after sunrise and sunset. We demonstrated the

communicational aspect using three examples: the

measurement of water depth, horizontal cover and

habitat classification. In all three examples, the

problems with in-field data collection forced the

technicians to enter invalid values as sentinels (out of

range values or descriptions instead of valid codes) to

communicate their atypical observations. These

“invalid values” were carefully analysed and used for

secondary data modelling. We illustrated the

pragmatic aspect using the goal-oriented approach to

fuzzification of imprecise primary data. In particular,

we described the re-use of water depth measurements

for the creation of fuzzy descriptors for the preferred

habitats for bird species (e.g., Yellow Rail).

Furthermore, we demonstrated that each step in data

collection, analysis, and transformation requires pre-

existing domain knowledge (data cannot exist

without knowledge). Thus, the knowledge aspect is

orthogonal to all three aspects: representational,

communicational, and pragmatic. For example, the

addition of new classes to the habitat groups were

done after careful analysis of data to preserve the

observational data about the environment of the study

sites. Otherwise, a mechanical cleaning of data by

removing the data with invalid codes would eliminate

important information about anthropogenic and

natural disturbances. In addition, we illustrated the

knowledge-based aspect using the specification for

bioacoustic signal processing based on PAA/SAX

transformation. This transformation process converts

a complex acoustic signal into a string of characters

(based on 8-letter alphabet) and preserves sufficient

discriminatory information for the inter-species bird

identification. We showed that knowledge-intensive

data transformations and derivation of secondary data

require explicit specification of the domain

knowledge and workflow protocols.

This paper presented data quality framework as a

crucial component of secondary data analysis. It

outlined the first steps in explicit specification of

semiotic-based aspects using a case study of

ecological data. Future work has two directions:

practical and theoretical. The practical direction

requires further testing and evaluation of ecoDW,

which has been created as a first component of a

decision support system for bird identification. The

theoretical direction requires further work on building

the semiotic-based framework based on existing

approaches to metadata specification (e.g., RDF Data

Cube ontology from W3C with extensions for spatio-

temporal components) and workflow specifications

for data provenance. Furthermore, more research is

needed for the possible use of Linked Data approach

and future publication of the data on a SPARQL

endpoint with tools for data visualization and

exploration for the ornithologists and environmental

researchers.

REFERENCES

Andersen, P. B., 1991. A Theory of Computer Semiotics,

Cambridge University Press.

Cushing, J. B., Nadkarni, N., Finch, M., Fiala, A., Murphy-

Hill, E., Delcambre, L. and Maier, D., 2007.

Component-based end-user database design for

ecologists. Journal of Intelligent Information Systems.

29(1): 7-24.

Di Ciccio C., Marrella, A. and Russo, A., 2015.

Knowledge-Intensive Processes: Characteristics,

Requirements and Analysis of Contemporary

Approaches. Journal of Data Semantic, 4(29): 29–57.

Dokter, A. M., Akesson, S., Beekhuis, H. et al., 2013,

Twilight ascents by common swifts, Apus apus, at

Data Quality in Secondary Data Analysis: A Case Study of Ecological Data using a Semiotic-based Approach

383

dawn and dusk: acquisition of orientation cues? Animal

Behaviour, 85(3): 545-552.

Ducks Unlimited, 2015. Field Guide of Boreal Wetland

Classes in the Boreal Plains Ecozone of Canada.

Version 1.1.

Hampton, S. E., Stasser, C. A., Tewksbury, J. J., Gram, W.,

Budden, A. E., Batcheller, A. L. et al., 2013. Big data

and the future of ecology, Frontiers in Ecology and

Environment, 11(3): 153-162.

Huang, Y., 2007. Pragmatics, Oxford University Press Inc.,

New York. NY, USA.

Ivanov, K., 1972. Quality-control of information: On the

concept of accuracy of information in data-banks and

in management information systems. Stockholm: The

Royal Institute of Technology KTH. Unpublished PhD

thesis.

Kasten, E. P. and McKinley, P. K., 2007. MESO:

Supporting online decision making in autonomic

computing systems. IEEE Transactions on Knowledge

and Data Engineering. 19(4):485–499.

Kahn, B. K., Strong, D. M. and Wang, R. Y. 1997. A Model

for Delivering Quality Information as Product and

Service. In Proceedings of International Conference on

Information Quality, Cambridge, 80-94.

Kent, W., 1978. Data and Reality: Basic Assumptions in

Data Processing Reconsidered, Elsevier Science Inc.,

New York, NY, USA.

Keogh, E., Chakrabarti, K., Pazzani, M., and Mehrotra, S.,

2000. Dimensionality reduction for fast similarity

search in large time series databases. Knowledge and

Information Systems, 3(3):263–286.

Leston, L. and Bookhout, T. A., 2015. Yellow Rail

(Coturnicops noveboracensis), version 2.0. In The Birds

of North America, Poole, A. F. editor, Cornell Lab of

Ornithology, Ithaca, NY, USA.

Lin, J., Keogh, E., Lonardi, S. and Chiu, B. 2003. A

symbolic representation of time series. In Proceedings

of 8th ACM SIGMOD Workshop on Research Issues in

Data Mining and Knowledge Discovery, 2–11.

Madin, J., Bowers, S. and Schilhauer, M., 2007. An

ontology for describing and synthesizing ecological

observation data, Ecological Applications, 2, 279-296.

Natural Resources Canada, 2014, CanVec+ Feature

Catalogue, Technical Report, Sherbrooke, QC.

Pankratz, R. F., Hache, S., Sólymos, P. and Bayne, E. M.,

2017. Potential benefits of augmenting road-based

breeding bird surveys with autonomous recordings.

Avian Conservation and Ecology, 12(2):18.

Price, R., and Shanks, G., 2004. A Semiotic Information

Quality Framework, In Proceedings of the IFIP

International Conference on Decision Support Systems

(DSS2004), Prato, Italy, 658-672.

Price R., and Shanks G., 2008. Data Quality and Decision

Making. In Handbook on Decision Support Systems 1.

International Handbooks Information System.

Springer, Berlin, Heidelberg.

Ram, S. and Liu, J., 2007, W7 Model: an Ontological

Model for Capturing Data Provenance Semantics. In

Lecture Notes in Computer Science 4512. Chen, P.

Editor, Springer: 17-29.

Ram, S. and Liu, J., 2008, A Semiotics Framework for

Analyzing Data Provenance Research, Journal of

Computing Science and Engineering, 2(3): 221-248.

Rasmussen, K. B., 2008. General Approaches to Data

Quality and Internet-Generated Data, In Nigel G

Fielding, N. G., Raymond M Lee, R. M. and. Blank, G.

Editors, The Sage Handbook of Online Research

Methods, London: Sage, 79-96.

Sebastian-Coleman, L., 2013. Measuring Data Quality for

Ongoing Improvement: A Data Quality Assessment

Framework. Morgan Kaufmann Publishers Inc., San

Francisco, CA.

Sebeok T. A., 1999, Signs: An introduction to semiotics.

University of Toronto Press.

Shanks, G. and Corbitt, B., 1999. Understanding data quality:

Social and cultural aspects. In Proceedings of the 10th

Australasian Conference on Information Systems,

Wellington: MCB University Press Ltd., 785–797.

Shanks, G. and Darke, P., 1998. Understanding Metadata

and Data Quality in a Data Warehouse, Australian

Computer Journal, 30(4): 122-128.

Shonfield, J., and Bayne, E. M., 2017. Autonomous

recording units in avian ecological research: current use

and future applications. Avian Conservation and

Ecology 12(1):14.

Stamper, R., 1991. The semiotic framework for information

systems research, In Information Systems Research:

Contemporary Approaches and Emergent Traditions,

Nissen, H., Klein, H. and R. Hirshheim, R. editors,

North Holland: Elsevier Science Publishers, 515–527.

Wand, Y. and Wang, R. Y., 1996. Anchoring data quality

dimensions in ontological foundations,

Communications of the ACM, vol. 39 (11): 86–95.

Wang, R. Y., 1998. A product perspective on total data

quality management, Communications of the ACM,

41(2): 58-65.

Wang, R. Y. and Strong, D, 1996. Beyond Accuracy: What

Data Quality Means to Customers, Journal of

Management Information System, 12(4): 5-33.

DATA 2019 - 8th International Conference on Data Science, Technology and Applications

384
