Towards a Lawful Authorized Access:
A Preliminary GDPR-based Authorized Access
Cesare Bartolini
1 a
, Said Daoudagh
2,3 b
, Gabriele Lenzini
1 c
and Eda Marchetti
2 d
1
Interdisciplinary Centre for Security, Reliability and Trust (SnT), University of Luxembourg, Luxembourg
2
Istituto di Scienza e Tecnologie dell’Informazione “A. Faedo”, CNR,
via G. Moruzzi 1, 56124, Pisa, Italy
3
Computer Science Department, University of Pisa, Pisa, Italy
Keywords:
Access Control Policy, GDPR.
Abstract:
The General Data Protection Regulation (GDPR)’s sixth principle, Integrity and Confidentiality, dictates that
personal data must be protected from unauthorised or unlawful processing. To this aim, we propose a sys-
tematic approach for authoring access control policies that are by-design aligned with the provisions of the
GDPR. We exemplify it by considering realistic use cases.
1 INTRODUCTION
The new General Data Protection Regulation (GDPR)
is changing how Personal Data should be processed.
It states, in Art. 5.1(f), that “[data] should be pro-
cessed in a manner that ensures appropriate security
of the personal data [..] using appropriate technical
or organisational measures (integrity and confiden-
tiality)”.
Access Control (AC) systems can be such a mea-
sure. AC is a mechanism used to restrict access to
data or systems according to Access Control Poli-
cies (ACPs), i.e., a set of rules that specify who has
access to which resources and under which circum-
stances (Sandhu and Samarati, 1994). By implement-
ing them, one can gain compliance to the principle of
Integrity and Confidentiality, but when enriched with
policies elicited from the GDPR’s provisions, we be-
lieve, AC systems can realize a compliance by-design
to the GDPR’s provisions expressed in the policies.
According to the GDPR, resources are Personal
Data while the Controller, the Processor, or the Data
Subject are those requesting access to them. But, be-
sides this simple mapping, it may be challenging for
ACPs designers to identify, to extract, to translate
and to encode the GDPR’s provisions into enforceable
a
https://orcid.org/0000-0002-6538-3466
b
https://orcid.org/0000-0002-3073-6217
c
https://orcid.org/0000-0001-8229-3270
d
https://orcid.org/0000-0003-4223-8036
ACPs (Xiao et al., 2012). Provisions can be ambigu-
ous and can include implicit information. They are
also unstructured and therefore not straightforwardly
expressible in a formal policy. This call for a system-
atic process, following which one can design ACPs
properly linked to the GDPR. Failing this task may
have serious consequences: not only the AC system
enforcing them will leave unprotected personal data
but, in the specific context of the GDPR, it will also
become unlawful.
The risk can be mitigated by promoting the adop-
tion of AC systems with policies which are system-
atically designed for expressing GDPR’s provisions,
and in this paper we make a step towards this goal.
Recent literature provides partial solutions to this
problem. In (Fatema et al., 2016), for instance, the au-
thors propose an approach to extract ACPs from the
Data Protection Directive (Directive 95/46/EC), the
document that before the GDPR was a reference point
for the protection of personal data. In (Brossard et al.,
2017) the authors discuss an approach for implement-
ing Attribute-Based AC policies tailored to the protec-
tion of resources in an industrial setting; although the
proposal is an example of systematic implementation
of policies, it does not consider any legal framework.
Our proposal is to leverage those results by com-
bining them and by providing a unified framework
able to design ACPs in reference to the legal frame-
work of the GDPR. In particular, inspired by the prin-
ciple of Data Protection by-design, we discuss how
to develop such ACPs by gathering access control AC
Bartolini, C., Daoudagh, S., Lenzini, G. and Marchetti, E.
Towards a Lawful Authorized Access: A Preliminary GDPR-based Authorized Access.
DOI: 10.5220/0007978703310338
In Proceedings of the 14th International Conference on Software Technologies (ICSOFT 2019), pages 331-338
ISBN: 978-989-758-379-7
Copyright
c
 2019 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
331

requirements from the GDPR.
Outline. We recall the GDPR and AC in section 2,
where we also discuss the related work. In section 3
we describe a simple scenario used as reference in the
remaining sections. In section 4 we describe our ap-
proach and in section 5 we apply it. In section 6 we
conclude and point out the future work.
2 BACKGROUND
GDPR Concepts. The General Data Protec-
tion Regulation (GDPR)
1
has been conceived to
strengthen the rights of natural persons over their
own data and at the same time to make organizations
accountable. The mandatory part of the GDPR
contains 99 Articles. Art. 4 defines Personal Data as
any information related to an identified or identifiable
natural person, called the Data Subject. Art. 6 states
that the Purpose of the Processing of personal data
is determined by the Controller, and this “processing
shall be lawful only if and to the extent that at least
one of the” six legal bases “applies”. In particular,
item 1(a) of the article, states that one of those legal
bases is the Consent given by the data subject “to
the processing of his or her personal data for one or
more specific purposes”. Art. 7 introduces the duty to
demonstrate the consent and the right to withdraw it.
The GDPR sets other fundamental rights of the
data subject, such as the Right of access by data sub-
ject (Art. 15) and the new Right to data portability
(Art. 20), and several principles that the controller and
processor shall abide. For a full reference, we remand
the reader to original text of the Regulation.
Access Control Context. Among the AC models
proposed in the literature, we refer to the Attribute-
Based Access Control (ABAC) (Jin et al., 2012)
which is currently one of the mostly adopted in in-
dustrial environment (Hu et al., 2019). The basic idea
of ABAC is to use attributes of different entities to
formulate access control decisions regarding a sub-
ject’s (e.g., user, process, or legal entity such as con-
troller and data subject) access on an object (e.g., file,
database or personal data) in a system. The autho-
rization decisions are obtained by means of authoriza-
tion policies specified using a policy specification lan-
guage. ABAC policies are a set of rules defined based
1
Regulation (EU) 2016/679 of the European Parliament
and of the Council of 27 April 2016 on the protection of
natural persons with regard to the processing of personal
data and on the free movement of such data, and repealing
Directive 95/46/EC (General Data Protection Regulation).

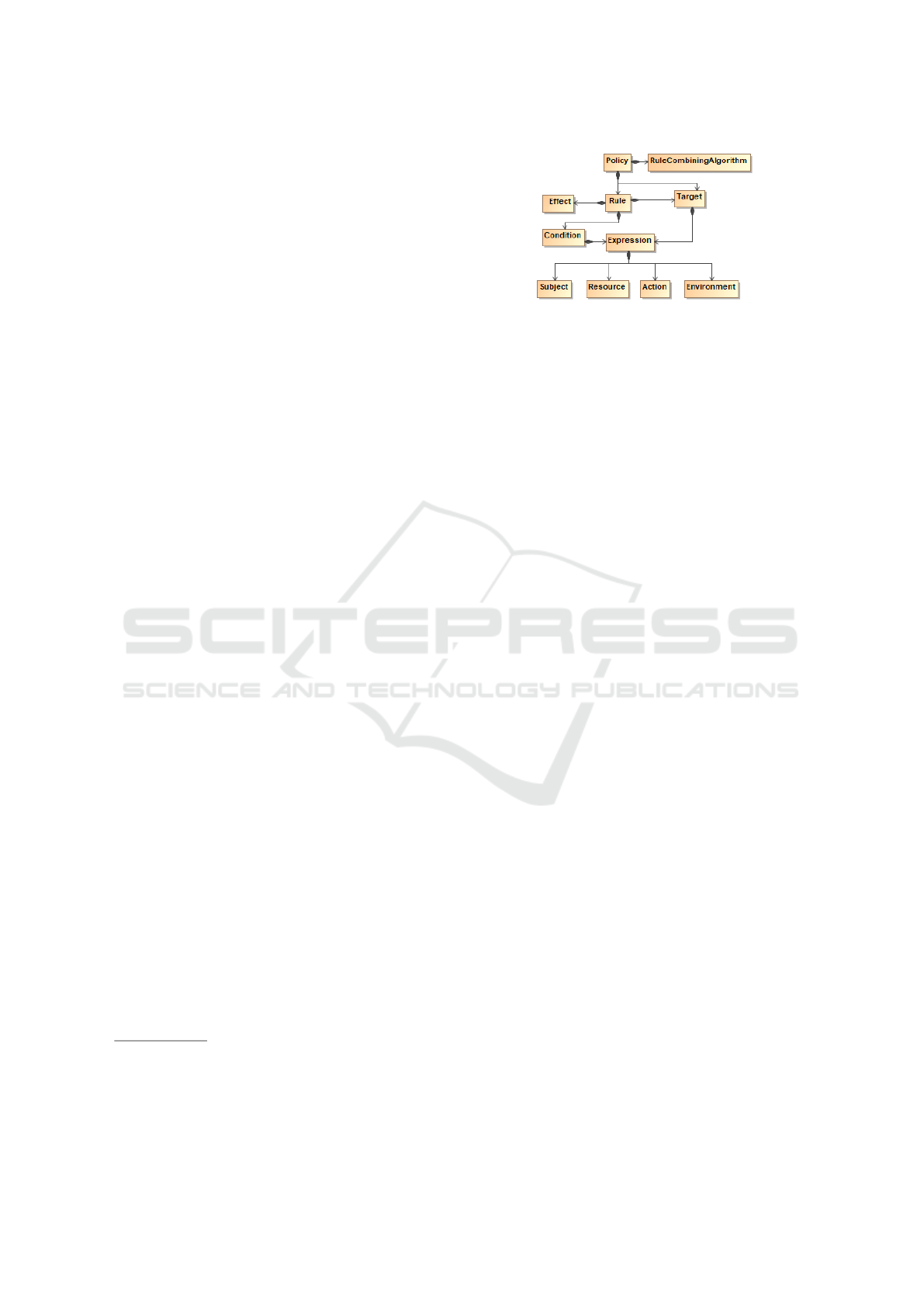

Figure 1: XACML Policy Data Model.
on the attributes of subjects, objects and operations as
well as other attributes, such as contextual or environ-
mental attributes.
The ABAC model is usually implemented us-
ing the eXtensible Access Control Markup Language
(XACML) (OASIS, 2013), which is a de facto stan-
dardized specification language that defines ACPs and
access control decision requests/responses in a XML
format. A XACML policy defines the access control
requirements of a protected system. An access request
that aims at accessing a protected resource is first
evaluated against the policy, after which the access
is granted or denied. A XACML Request is composed
of four main elements: 1. Subject, the entity request-
ing the access; 2. Resource, the requested object that
is described in terms of attributes; 3. Action, the op-
eration that the subject wants to perform; 4. Environ-
ment, the contextual information such as the request
time and the location. By referring to the GDPR we
assume that the consent is a contextual information.
The core component of a XACML Policy is the Rule,
which represents the basic enforceable element: it is
composed of an Effect (Deny or Permit value); Target
which defines the applicability of the rule, and Condi-
tion that represents a more complex boolean function.
The effect of the rule is returned when the evaluation
of a given request meets the constrains of its target and
condition. The rules are organized in policy which
contains a Combining Algorithm. The algorithm de-
fines the way to obtain a single decision in case of two
or more rules are evaluated true. Figure 1 reports the
XACML policy data model.
Legal Ontologies. Designing ACPs in reference to
the GDPR requires to refer, within a policy, to GDPR
concepts and to relationships among them. It also de-
mands for a consistent vocabulary along the whole
lifecycle of the development of the ACPs. An help in
this direction comes from semantic web technologies
and in particular from the legal ontologies. Among
the legal ontologies currently available, in this paper
we refer to the Privacy Ontology (PrOnto) “that aims
to provide a legal knowledge modelling of the privacy
agents, data types, processing operations, rights and
ICSOFT 2019 - 14th International Conference on Software Technologies
332

obligations” (Palmirani et al., 2018).
Related Work. In literature there are several works
that use access control as main means of protecting
personal data. For example, authors in (Cerbo et al.,
2018) report an initial proposal for an automatically
enforceable policy language for access and usage con-
trol of personal information, aiming at transparent and
accountable data usage. A formal definition of the
consent is introduced in (Ulbricht and Pallas, 2018),
where the authors defined a privacy preference lan-
guage explicitly designed to fulfill consent-related re-
quirements and to suit constrained execution environ-
ments. Only some proposals take as an explicit refer-
ence a determined data protection law. For instance,
the HIPAA was considered as a case study in (Chowd-
hury et al., 2012) where the authors have evaluated
whether the XACML standard is adequate to express
the constraints imposed in HIPAA. A work closer to
ours is reported in (Fatema et al., 2016). Here the au-
thors examined the feasibility of translating the arti-
cles related to access control of the directive, and also
provided an implementation. In the industrial envi-
ronment, authors in (Brossard et al., 2017) proposed
a systematic methodology for the implementation of
ABAC solutions in real contexts.
However all the available proposals either focus
only some aspects of the GDPR or do not provide
implementations or are not specific for legal require-
ments. Differently from these works, this paper aims
at defining a systematic approach for gathering as
many GDPR requirements as possible so to comply
with the regulation, and consequently provide ACPs
in line with the GDPR.
3 RUNNING EXAMPLE
In explaining our proposal, we refer to a simple sce-
nario (see Figure 2). A customer Alice (the data sub-
ject) wants to purchase goods online from ABC (the
controller), an e-commerce company which provides
an online service for ordering and delivering goods.
ABC follows two marketing strategies, both using
customer personal data: (1) Untargeted Marketing:
the customers’ E-mail is used to advertise novelties,
such new services or special sales; (2) Location-based
Targeted Marketing (or Geomarketing): a customers’
location is processed to customise the user experience
of who is visiting the platform that provides the ser-
vice.
After the GDPR entered into force, ABC wants to
adopt an AC systems to be compliant to the GDPR
obligations. Its main objectives are: (1) to regulate
Figure 2: E-Commerce Scenario.
the access to personal data; (2) to guarantee that its
processing is lawful; (3) to facilitate data subjects in
exercising their rights.
4 THE PROPOSED APPROACH
Our approach has three phases: (1) GDPR-based ACP
Template Generation (2) Legal Use Cases Definition;
(3) Access Control Policies Authoring.
Phase 1: GDPR-based ACP Template Generation.
The GDPR text is analysed in search for provisions
that spot a relation with AC so as to derive a meta-
model (i.e., ACP template) for each of them.
This phase is organized in ten activities (see Fig-
ure 3). The first six (from 1 to 6 ) aim at selecting
only the articles related to access control and discard
all the remaining ones (activity 4 ). Subsequently,
the selected articles are then distinguish between arti-
cles related to ACPs (activity 5 ) and the ones related
to AC mechanism (activity 6 ). The former group is
used for the definition of meaningful ACPs. The latter
is used to gather legal requirements from the architec-
tural point of view, and it is out of the scope of the
current paper. Indeed, the collected functional and
non-functional requirements will be used during the
ACPs enforcement.During the activity 7 all and only
the attributes relate to AC are identified. The selection
of these attributes is driven by a conceptual model of
the GDPR as they are represented in the PrOnto on-
tology. Thus, we restricted our study to the concepts
described within PrOnto representation.
For aim of completeness, we report the following
sentence, as a simple example, where the identified
GDPR-based attributes are highlighted:
Data Subject can access his Personal Data.
The next activity ( 8 ) is then aimed to classify the
identified attributes into the commonly-used entities
(or categories) in AC, namely, Subject, Resource, Ac-
tion and Environment. For instance, considering the
above sentence, the identified attributes are classified
as reported in the following:
Data Subject
[Sub ject]
can access
[Action]
his
Personal Data
[Resource]
Towards a Lawful Authorized Access: A Preliminary GDPR-based Authorized Access
333

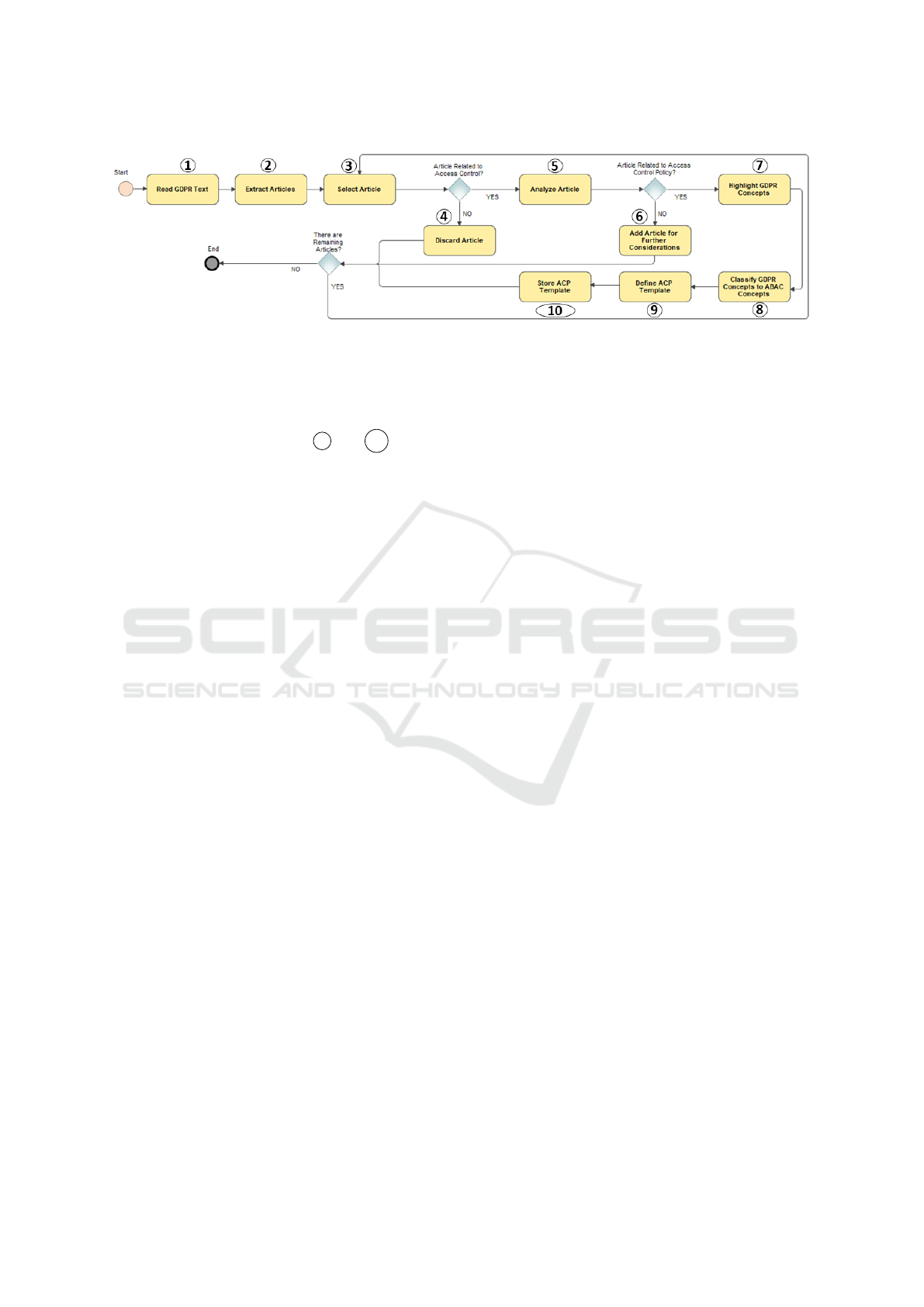

Figure 3: GPDR Articles Selection and Templates Generation Process.
In ABAC terms Data Subject is classified as a Sub-
ject, access is classified into the Action category, and
finally Personal Data is classified as a Resource cat-
egory.
Finally, the last two activities ( 9 and 10 ) involve
the definition of GDPR-based ACP templates, where
the natural language statements are transformed in a
machine-readable representation and the relations be-
tween attributes identified.
Considering the previous example, we need to
clarify the meaning of his and to define possible re-
lations between the attributes Data Subject and Per-
sonal Data. Article 4(1) can be used for the purpose.
Specifically, it states that: ‘personal data’ means any
information relating to an identified or identifiable
natural person (‘data subject’); an identifiable nat-
ural person is one who can be identified, directly or
indirectly, in particular by reference to an identifier
such as a name, an identification number, [. . . ]; this
means that the Personal Data have the property of
identifying a particular Data Subject. We can express
this property as:
DataSubject = PersonalData.Owner
Consequently, a possible GDPR-based ACP template
related the aforementioned sentence could be:
((Subject = Data Subject) ∧ (Resource = Per-
sonal Data) ∧ (Action = access) ∧ ( Data Sub-
ject = PersonalData.Owner)) =⇒ (Autho-
rization = Permit)
Phase 2: Use Cases Definition and ABAC At-
tributes Selections. Depending on the peculiarities
of the specific application scenarios and the selected
GDPR articles, the use cases are defined, customized
and better specified for each user of the system, e.g.,
Data Subject or Controller to gather AC requirements
in terms of concrete attributes. The second phase is
then made up of two main steps.
Step 1. Legal Use Case Definition which includes
the development of ACPs able to guarantee by design
some of the Data Subject’s rights, such as the right
of access of personal data (Article 15) and the right
to data portability (Article 20). This is in line with
the Article 12.2, which is worded as follows: “The
controller shall facilitate the exercise of data subject
rights under Articles 15 to 22. [. . . ]”. Indeed, on
the basis of the template developed in the first phase
(section 4), the controller can automatically, easily
and promptly setting up customized ACPs as soon
as the consent is obtained from a data subject and
in line with the GDPR provisions. This allows the
controller to act without hindrance and without undue
delay (pursuant to Article 20) to wishes of the data
subject to exercise his/her rights. As a consequence,
the data subject can exercise his/her rights as soon as
the ACPs become enforceable from the access con-
trol system, i.e., when the policies are deployed in the
ACPs repository.
To better explain the proposed methodology, we
consider the running example from section 3. We sup-
pose that Alice, at registration time within the ePlat-
form, provided the ABC company her name, her E-
mail address, and the name of the city where she has
the permanent address.We also assume that, at a later
moment, Alice wanted to know which data she gave
to the ABC Company during the registration, so as to
exercise her right of access pursuant to Article 15.1.
Consequently, ABC defined the following autho-
rization requirement:
ABC Req: Alice can read her name, E-mail, and her
permanent city.
Of course, without the appropriate access control
mechanisms, the specified authorization requirement
could hardly be enforced. For this, the next activity.
Step 2. AC Attribute Identification and Classifica-
tion We identify AC attributes directly from the Le-
gal Use Case and . for each of them: (1) the spe-
cific category is defined. This includes categories of
data subjects, e.g., customer or employee and cate-
gories of personal data, e.g., biodata, financial data,
health data or biometric data and so on; (2) the proper
classification is identified. This include to classify
the attributes according to the commonly used enti-
ICSOFT 2019 - 14th International Conference on Software Technologies
334

ties (or categories) of AC specification, i.e., Subject,
Resource, Action and Environment.
By referring to the requirement ABC Req, the
identified attributes are highlighted as follows:
ABC Req: Alice can read her name, E-mail, and
her permanent city.
A possible classification of those attributes is then re-
ported in Table 1, where (1) column Identified At-
tribute contains the identified attributes; (2) column
Attribute Category shows a possible classification of
those attributes into a specific category
2
; (3) while
column AC Category illustrates the classification at-
tributes into the commonly used entities in AC.
Table 1: Attribute Classification Example.
Identified Attribute Attribute Category AC Category
Alice Customer Subject
read Action
name Biodata Resource
E-mail Contact data Resource
permanent city Location data Resource
Phase 3: Authoring and Assessing the GDPR-
based ACPs The first two phases provide the neces-
sary building blocks for authoring and assessing con-
crete, meaningful and enforceable ACPs. This phase
is composed of three steps: (1) Attribute Matching;
(2) Authoring the GDPR-based ABAC Policy; and
(3) Assessing the GDPR-based ABAC Policy.
Step 1: Attributes Matching. The GDPR-based at-
tributes identified in Phase 1 are connected and in-
stantiated with the concrete ABAC attributes identi-
fied in Phase 2.The process we adopted for this aim
is illustrated in Figure 4. Therefore, by referring to
the requirement ABC Req, Alice is classified as Data
Subject; the read action is connected to the access
one; and finally, Name, E-mail and Permanent City
attributes match Personal Data one.
Figure 4: Attributes Matching Example.
Step 2. Authoring the GDPR-based ABAC Policy
The concrete and enforceable ACPs are obtained by
performing two activities: (1) instantiate the ACP
2
Note that classification refers only to the personal data
and not to the processing operations such as read action.
templates (see Phase 1) with actual attributes gath-
ered from the legal use cases, as in Phase 2 and
(2) translate the resulting policies in a given formal-
ism or language
3
.
Consequently, by referring to the classification of
the attributes of ABC Req defined in Phase 2 and to
the policy defined during the Authoring Access Con-
trol Templates activity of Phase 1, a possible abstract
ACP looks like the following:
(Subject = Alice ) ∧ (((Resource = Name) ∧
(Subject = Name.owner)) ∨ ((Resource = E-
mail) ∧ (Subject = E-mail.owner)) ∨ ((Re-
source = PermanentCity) ∧ (Subject = Per-
manentCity.owner))) ∧ (Action = read) =⇒
(Authorization = Permit)
The second activity involves the translation of the ab-
stract ACP into a reference formalism or language.
In this paper we refer to the widely used XACML
standard (OASIS, 2013) to express the GDPR-based
ABAC policies; but, one can choose any other imple-
mentation of ABAC model. An example of a concrete
XACML policy is provided in section 5.
Step 3: Assessing the GDPR-based ABAC Policy
The last step is in charge of checking whether the au-
thored GDPR-based policies conform with intended
access rights, i.e., it verifies the correctness of the au-
thored policies. In literature different proposals target
the problem of policy assessment and are generally
divided into: model-based testing (Xu et al., 2015),
combinatorial based (Bertolino et al., 2013). We refer
to the literature for more details.
5 APPLICATION EXAMPLE
In this section we illustrate the application of our ap-
proach to the GDPR. To this regard, we first selected
the articles related to AC and then we provided a ACP
model for each of them (Phase 1 of the approach).
This allows the controller, or his/her delegate (e.g., an
internal security administrator), to write ACPs in line
with the GDPR according to the principle of data pro-
tection by design and by default. Consequently, the
usage scenario and required attributes have been de-
fined (Phase 2.) Finally, the ACP templates have been
instantiated so as to obtain enforceable ACPs (Phase
3).
3
The approach aims at at providing a generic ACP i.e.,
an independent representation from any formalism. This
helps one to author ACPs in different languages that refer to
different formalisms such as ABAC and Role-Based Access
Control (RBAC). For aim of clarity, here, we illustrate how
to encode actual ACPs by referring the ABAC model and
its implementation XACML.
Towards a Lawful Authorized Access: A Preliminary GDPR-based Authorized Access
335

Phase 1. From a procedural point of view, we firstly
parsed the text of the GDPR (Read GDPR Text ac-
tivity) and we selected only 99 articles
4
(Extract Ar-
ticles). For each selected article (Select Article),
we evaluated its adherence to the concept of access
control: not pertinent the articles have been conse-
quently discarded (Discard Article). The remaining
ones have been further analyzed (Analyze Article) to
assess whether they could be related either to ACP
concepts or the AC mechanisms (Add Article for Fur-
ther Considerations). As final results, among the 99
selected articles, only forty-one have been considered
as related to access control. Specifically: three of
them were concerning only AC mechanisms; eight
were referring only ACPs, and thirty articles related to
both ACPs and AC mechanisms. Consequently, only
thirty-eight articles have been used to derive GDPR-
based ACP templates.
As an example, in the remaining of the section we
illustrate the proposed approach only for one of the
final selected articles, which is related to the manage-
ment of both the purpose and the consent given by the
data subject.
5.1 Lawfulness of Processing
For providing a lawful authorized access of personal
data by the controller the first step is to guarantee that
all the accesses authorized by the AC system (or pro-
cessing activities in general) are based on lawful ba-
sis. To this purpose, the Article 6 lists as first basis
the Consent: this is the most general concepts and
the most critical for a legal point of view
5
. Specif-
ically, during the Highlight GDPR Concepts activity
(see Figure 3), we refer to the sub-paragraph of the
Article 6.1(a) which words:
Processing shall be lawful only if and to the
extent that at least one of the following ap-
plies: (a) the data subject has given consent
to the processing of his or her personal data
for one or more specific purposes;
Consequently, by referring to the PrOnto ontol-
ogy we identified the following four GDPR concepts,
as highlighted before: (1) consent, (2) processing,
(3) personal data, and (4) purposes.
During the activity Classify GDPR Concepts into
ABAC, we classified personal data as Resource and
processing as Action. Concerning the purposes at-
tribute, we distinguished the purpose for which the
4
In this proposal we focused on the articles that are
mandatory.
5
For more details we refer to the Guidelines on consent
under Regulation 2016/679 of the Article 29 Working Party
(WP29).
personal data is collected and the purpose for which
the data is requested or accessed. For this, we re-
ferred to the XACML Privacy Policy Profile (OASIS,
2015) provided by the XACML standard. This spec-
ification describes a profile of XACML for express-
ing privacy policies and defines two attributes and
one rule: (1) the resource:purpose attribute “indi-
cates the purpose for which the data resource was col-
lected”. (2) the action:purpose attribute “indicates
the purpose for which access to the data resource is
requested”; while, (3) the defined rule “stipulates that
access shall be denied unless the purpose for which
access is requested matches [. . . ] the purpose for
which the data resource was collected”.
Therefore, since the purposes listed in Article 6
refers to the purposes for which the personal data was
collected, we classified the identified attribute as Re-
source, and more precisely as an attribute of personal
data.
The same strategy has been adopted for the con-
sent as well, i.e., we defined the consent as a special
attribute of the specific purpose for the personal data
is collected. In case of personal data, we considered
the consent as a BOOLEAN contextual attribute. This
allows the controller to manage also the right of the
data subject “to withdraw his or her consent at any
time” pursuant the Article 7 (Conditions for consent).
As a consequence the consent attribute has been clas-
sified as Environment attribute with the following re-
sult:
[. . . ] (a) the data subject has given
consent
[Environment]
to the processing
[Action]
of
his or her personal data
[Resource]
for one or
more specific purposes
[Resource]
.
During GDPR-based ACP Template activity, the
following ACP template associated the Article 6.1(a)
has been derived:
((Resource = PersonalData) ∧ (Ac-
tion = processing) ∧ (Action.purpose
= PersonalData.purpose) ∧ (Personal-
Data.purpose.consent = YES) ) =⇒
(Authorization = Permit)
Table 2: Legal Use Case: Attribute Classification.
Identified Attribute Attribute Category AC Category
Req 1
ABC company Controller Subject
Alice Customer Subject
send Action
E-mail Contact data Resource
Consent Environment
untarget marketing purpose Resource
ICSOFT 2019 - 14th International Conference on Software Technologies
336

Phase 2. A possible Legal Use Case aligned with
Article 6.1(a) concerns the registration phase within
the ePlatform and the actions required by the con-
troller to obtain the explicit consent from its cus-
tomers. More precisely, by referring the scenario
in section 3, to use the online service provided by
the ABC company, Alice needs to create an account
within the ePlatform (see Figure 2), and submits a
set of personal data, i.e., Name, Surname, E-mail Ad-
dress, Home Address, the Gender, and Birthdate. Af-
terwards Consent Manager asks Alice her consent for
processing some of her personal data for the purposes
defined by Controller, i.e., Untarget and Location-
based target marketing.Consequently, Alice for each
requested consent gives or denies her consent. In par-
ticular, we consider the specific situation in which
she gives only the explicit consent of processing her
E-mail Address for Untarget Marketing purpose, and
withhold her consent for Geomarketing purpose. Fi-
nally, the Consent Manager stores and sends the col-
lected information to the AC System for authoring an
ACP related to Alice. A possible authorization re-
quirement related to Alice’s consent is:
Req 1: ABC company (Controller) can send com-
munications only for untarget marketing pur-
pose using the E-mail of Alice, because of the
consent given.
The next activity is the Access Control Attribute
Identification and Classification where the at-
tributes based on the above requirements are iden-
tified, and reported in the first column of Table 2.
The table depicts the classification of the identified
attributes into a commonly used access control cate-
gories as well.
Figure 5: Article 6.1(a): Attributes Matching.
Phase 3 Due to space limitation, in the following
we report only the result of the Attribute Matching
(see Figure 5) and authoring policy activities, con-
sidering Req 1 (see Figure 6).
Policy . . . . . . . . . . . . . . . . . . . . . . root element
PolicyId = Article6(1)(a)
rule-combining-algorithm:deny-
overrides
Target . . . . . . . . . . . . . . . . Company can send communications
only for un-target marketing purpose
using the E-mail of Alice, because of
the consent given
Subject . . . . . . . . . . . Subject-id = ABC Company
Rule . . . . . . . . . . . . . . . . . . . RuleId = untargetMarketing, Effect =
Permit
Target . . . . . . . . . . . . The sent e-mail actions
Resource . . . . . subject-id = ABC Company
Resource . . . . . resource-id = E-mail
Action . . . . . . . action-id = sendEmail
Condition . . . . . . . . ABC Company.
And . . . . . . . . . . . And Operator
string-equal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
resource:owner = ”Alice”
string-equal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
purpose = ”untarget Marketing”
string-equal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
action:purpose = purpose.
string-equal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
resource:purpose = purpose.
boolean-equal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
resource:purpose:consent = true.
Rule . . . . . . . . . . . . . . . . . . . default: deny all, which is not allowed
explicitly.
RuleId = defaultRule, Effect = Deny
Figure 6: A Possible XACML Policy for Article 6.1(a).
6 CONCLUSION AND FUTURE
WORK
This paper presented a systematic approach to gather
access control requirements from the GDPR. This ap-
proach is the first step towards a formal definition of
an access control solution based on the GDPR.
Although grounded in a domain-related imple-
mentation (i.e., compliance to the GDPR), the ap-
proach yields a more general spectrum, since it can
be applied to different data protection regulations and
more in general to any legal text that implicitly con-
tains, or suggests, data protection requirements. To
the best of the authors’ knowledge, the novelty of the
paper is the systematic approach to join and improve
the current academic proposals for the extraction of
legal by-design ACPs from the data protection regu-
lation with the approaches currently used in industrial
environment for implementing ABAC.
As future work, we are planning to consider the
Towards a Lawful Authorized Access: A Preliminary GDPR-based Authorized Access
337

GDPR requirements referring access control mech-
anisms, i.e., from the architectural point of view.
The analysis will investigate functional and non-
functional requirements so to assess the adequacy of
the current reference architecture (e.g., XACML) and
to provide possible extensions to align the access con-
trol mechanisms to the GDPR principles.
We also intend to investigate thoroughly on the ex-
pressiveness and adequacy of policy languages of cur-
rent access control models, such as ABAC and RBAC,
to eventually make legally sufficient access control
systems. This research may either bring evidence that
current model are adequate for the task or lead to for-
mal extensions of the ABAC and RBAC core models.
REFERENCES
Bertolino, A., Daoudagh, S., Lonetti, F., Marchetti, E., and
Schilders, L. (2013). Automated testing of extensible
access control markup language-based access control
systems. IET Software, 7(4):203–212.
Brossard, D., Gebel, G., and Berg, M. (2017). A systematic
approach to implementing abac. In Proceedings of the
2Nd ACM Workshop on Attribute-Based Access Con-
trol, ABAC ’17, pages 53–59, New York, NY, USA.
ACM.
Cerbo, F. D., Martinelli, F., Matteucci, I., and Mori, P.
(2018). Towards a declarative approach to stateful and
stateless usage control for data protection. In WEBIST,
pages 308–315. SciTePress.
Chowdhury, O., Chen, H., Niu, J., Li, N., and Bertino, E.
(2012). On xacml’s adequacy to specify and to enforce
hipaa. In Proceedings of the 3rd USENIX Conference
on Health Security and Privacy, HealthSec’12, pages
11–11, Berkeley, CA, USA. USENIX Association.
Fatema, K., Debruyne, C., Lewis, D., OSullivan, D., Mor-
rison, J. P., and Mazed, A. (2016). A semi-automated
methodology for extracting access control rules from
the european data protection directive. In 2016 IEEE
Security and Privacy Workshops (SPW), pages 25–32.
Hu, C. T., Ferraiolo, D. F., Kuhn, D. R., Schnitzer, A., San-
dlin, K., Miller, R., and Scarfone, K. (2019). Guide
to attribute based access control (abac) definition and
considerations [includes updates as of 02-25-2019].
Technical report.
Jin, X., Krishnan, R., and Sandhu, R. (2012). A unified
attribute-based access control model covering dac,
mac and rbac. In Data and Applications Security
and Privacy XXVI, pages 41–55, Berlin, Heidelberg.
Springer Berlin Heidelberg.
OASIS (2013). eXtensible Access Control Markup
Language (XACML) Version 3.0. http:docs.oasis-
open.orgxacml3.0xacml-3.0-core-spec-os-en.html.
OASIS (2015). XACML v3.0 Privacy Pol-
icy Profile Version 1.0. http:docs.oasis-
open.orgxacml3.0privacyv1.0xacml-3.0-privacy-
v1.0.html.
Palmirani, M., Martoni, M., Rossi, A., Bartolini, C., and
Robaldo, L. (2018). Legal ontology for modelling
GDPR concepts and norms. In Legal Knowledge and
Information Systems - JURIX 2018: The Thirty-first
Annual Conference, Groningen, The Netherlands, 12-
14 December 2018., pages 91–100.
Sandhu, R. S. and Samarati, P. (1994). Access control: prin-
ciple and practice. IEEE Communications Magazine,
32(9):40–48.
Ulbricht, M. and Pallas, F. Yappl - A lightweight privacy
preference language for legally sufficient and auto-
mated consent provision in iot scenarios. In DPM
2018 and CBT 2018 - ESORICS 2018 International
Workshops, Barcelona, Spain, September 6-7, 2018.
Xiao, X., Paradkar, A., Thummalapenta, S., and Xie, T.
(2012). Automated extraction of security policies
from natural-language software documents. In Pro-
ceedings of the ACM SIGSOFT FSE ’12, FSE ’12,
pages 12:1–12:11, New York, NY, USA. ACM.
Xu, D., Kent, M., Thomas, L., Mouelhi, T., and Le Traon, Y.
(2015). Automated model-based testing of role-based
access control using predicate/transition nets. IEEE
Transactions on Computers, 64(9):2490–2505.
ICSOFT 2019 - 14th International Conference on Software Technologies
338
