A Methodology for Experimental Evaluation of a Software Assistant

for the Development of Safe and Economically Viable Software

Alina Khayretdinova

and Michael Kubach

University of Stuttgart, Institute for Human Factors and Technology Management IAT, Nobelstrasse 12,

Stuttgart, Germany

Fraunhofer IAO, Fraunhofer Institute for Industrial Engineering IAO, Nobelstrasse 12, Stuttgart, Germany

Keywords: Assistant Tool, Experimental Evaluation, Viable Security, Privacy by Design, Usable Security,

Socio-economic Security, Software Assistant, Software Development.

Abstract: Very often software developers of IT security solutions tend to focus on subjects of privacy and security of

the product neglecting other important aspects of the development such as socio-economics and usability that

are crucial for the success of the product on the modern market. To address this problem, project CUES

developed a software assistant that has an interdisciplinary approach. The assistant guides the developers of

IT security solutions through an entire software development process by aiding to identify present problems

and suggesting effective solutions from the fields of (a) Usability and User Experience, (b) socio-economics,

conditions that are closest to reality: the assessment of the software assistant is carried out through two case

studies where at each two student teams have a task to develop a security related software that will also be

attractive for users and the market. One of the student teams in each case study was supported by the assistant,

whereas the second teams were not. The teams supported by the assistant performed better.

1 INTRODUCTION

The software development process of IT security

solutions is a complicated multidimensional task that

does not rely on a strong basis of security and privacy

aspects only but is also dependant on other factors

such as e.g. stakeholder requirements, business

model, market needs, usability, etc. The consideration

of different aspects as security, usability and

socioeconomic is crucial for the success of the

software product on the market (Koçak, et al., 2015).

However, it is a common problem that developers

tend to focus on the former aspects while neglecting

the latter. According to (Grabowski, 2015) and

(Hengsberger, 2018), some of the reasons why

innovative products fail on the market and do not

deliver any meaningful financial return are the

following:

 Poor user experience

 Bad pricing policy

 Lack of market orientation (wrong or small

target market)

 No clear understanding of the target audience

needs

As can be seen, these are mostly usability and

socio-economic factors that actually suffer during the

development of products. Moreover, according to

(Zibuschka and Roßnagel, 2011a), (Zibuschka and

Roßnagel, 2011b), (Greenwald, et al., 2004), software

solutions that are successful on the market are usually

those that are easy to use and meet the user needs. In

case of development of secure solutions for software,

the above-mentioned aspects are also applicable and

developers tend to overlook or diminish their

meaning.

To solve the problems mentioned above, a

complex holistic approach should be applied during

the development process, in order to produce

software solutions that are secure, user-friendly and

economically successful. Unfortunately, to

knowledge of the authors there is currently no such an

extensive approach available that helps to deal with

the problem on all the mentioned layers (Hofer and

Sellung, 2016). The project CUES addresses this

problem by creating a software assistant that is an

234

Khayretdinova, A. and Kubach, M.

A Methodology for Experimental Evaluation of a Software Assistant for the Development of Safe and Economically Viable Software.

DOI: 10.5220/0008069102340241

In Proceedings of the 15th International Conference on Web Information Systems and Technologies (WEBIST 2019), pages 234-241

ISBN: 978-989-758-386-5

integrated guiding tool for developers of IT solutions

(Ruff and Horch, 2018). The overall goal of the

assistant is to support developers, who are typically

already experts in the IT security field, build on their

foundation with assistance to integrate other

disciplines (usability and socio-economics) in order

to establish a secure but also market friendly software

(Hofer and Sellung, 2016). The assistant guides the

developers through the whole software development

process and on each phase, it presents a specifically

defined set of questions to identify the status of the

process and possible problems of the current phase.

Having defined the problems encountered by the

developers, the assistant presents solutions based on

the expert knowledge that will help at a particular

state of the development process. This knowledge

was collected from experts in the fields of IT security,

usability and socio-economics through several

workshops and is stored in the assistant in the form of

questions, problem identifiers, and solutions from

three abovementioned fields.

This paper describes the methodology and lessons

learned from the experimental evaluation of a

software assistant. Two methods were used for the

assessment and one of them, an experimental

evaluation through a case study is presented in this

paper in detail. More information on the previous

development stages of the assistant has already been

published and is thus out of scope of this paper. It can

be found in the following papers: (Hofer and Sellung,

2016) present the selection process of the methods

and standards from the fields of usability,

socioeconomics, and IT-security used by the

assistant; the description and method of construction

of the semantic data model that structures the

knowledge base of the wizard can be found in (Horch,

et al., 2017); and (Ruff and Horch, 2018) provides

information on the overall functionality of the

software assistant.

The organization of the paper is as follows.

Section 2 presents the software assistant and

introduces its structure and core model. In Section 3,

the evaluation methods of the assistant are described

and the conclusion is given in Section 4.

2 THE CUES ASSISTANT

The CUES assistant is a tool that contributes to

improving the software development process. It

guides the developers of IT security solutions through

the whole process following a comprehensive

approach that includes such aspects as IT security,

usability and socio-economics. By including more

disciplines in the development process, the assistant

makes the whole development process more

comprehensive and inclusive (Hofer and Sellung,

2016). This way it helps to address a technical bias

that often leads to drawbacks or blind spots that could

have been avoided had the development process

included more disciplines.

The assistant comprises a semantic database

(Horch, et al., 2017) built on expert knowledge on

common problems and challenges that software

developers may encounter in the development

process as well as adequate and comprehensive

solutions to tackle them. Moreover, in order to

identify potential problems, the assistant provides

specific questions and related information by letting

the users of the assistant fill out a questionnaire.

The CUES assistant allows for two cases of use.

In the case where the software developers are already

aware of the problems they face in the current

development process and have identified them, they

can directly search for solutions. In cases where the

developers do not know whether they might

encounter a problem or cannot define the type of issue

they encounter, the developers enter the following

meta-data for the project:

 Project name

 Short description of the project

 Incorporated phases (e.g. test, development,

evaluation, etc.)

 Start date of the project and each phase

 End date of the project and each phase

 Type of software to be developed (e.g. web

application, mobile app, etc.)

 Budget of the project

 Number of software developers and

security/usability/economics experts.

Further, the assistant asks them a set of specific

questions, which will help identify present or possible

problems and will then offer the most adequate

solutions in the form of methods, best practices or

heuristics.

The expert knowledge stored in the assistant

includes different types of information such as, for

example, current processes for software development

and embedded phases, common problems of software

development projects, questions that help identify

these problems, and relevant solutions for possible

problems (Ruff and Horch, 2018). The knowledge

base was acquired through numerous workshops on

three topics (usability, socioeconomics and IT-

security) involving experts from the respective

domains – industry practitioners as well as

researchers. During these workshops, teams of

A Methodology for Experimental Evaluation of a Software Assistant for the Development of Safe and Economically Viable Software

235

experts suggested and discussed methods that should

be included in the software assistant as well as shared

their experience on the common problems during the

development process.

Moreover, given the project data mentioned

above, the CUES assistant can offer suitable forms to

create and build a project.

The assistant offers the following main functions:

 Browsing function as an entry point to the

assistant that provides an overview of the

solutions.

 Guiding function as core function of the

assistant that guides the users through the

development process, helps to identify present

and possible future problems, and presents

adequate solutions.

 Editing function as a tool for experts in order

to add, edit and delete problems of software

projects, questions to identify the problems as

well as solutions (Ruff and Horch, 2018).

All of the functions were assessed during the

development process of the CUES assistant to receive

the immediate feedback and be able to integrate it

before the end of the project. In this paper, we

describe only the evaluation of the browsing and

guiding functions, paying special attention to the

former one. More information on the full

functionality of the software assistant can be found in

(Ruff and Horch, 2018).

As mentioned above, the browsing function serves

as an entry point to the assistant where users can get

an overview of the available solutions (methods, best

practices, etc.) of the assistant. To filter the solutions

to problems the developers may be encountering, the

following features can be used:

1. The discipline covered by the solution (IT

security, socio-economics, usability);

2. The level of knowledge required for its

application (e.g. beginner, expert);

3. The effort for its application (e.g. high, low);

4. The phase of the project it may support (e.g.

evaluation, implementation);

5. The type of solution (e.g. method, heuristic or

design pattern) (Ruff and Horch, 2018).

The overview of a solution includes the following

information: name of the solution, project phase for

its application, required level of knowledge,

application effort, type and discipline (IT security,

usability, socio-economics) of the solution,

motivation for its application, short description of the

solution, further links, references and user rating.

In the next section, the evaluation of the

assistant’s browsing feature is presented in detail.

3 EVALUATION OF THE CUES

ASSISTANT

During its later development stage, the assistant was

evaluated with the help of two different methods (see

Table 1: Evaluation methods). Through the first

method, the browsing function of the assistant was

tested and evaluated with an experiment involving

student teams that had to create and carry out the

development of a software product concept. During

the experiment, the content (methods, best practices,

etc.) of the software was validated. The second

method tested the guiding function of the software

assistant and relied on the opinion of experts

(software developers) to whom the assistant was

presented at a workshop. There, the experts could

experience the full functionality of the assistant by

directly using it. During the workshop, the experts

gave feedback on the functionality, content and

architecture of the software assistant. Moreover, a

separate round of interviews took place where the

experts were presented with both the CUES assistant

and the use cases and later evaluated the software

assistant. In this paper, we address the methodology

of the experimental evaluation of the assistant’s

browsing function only, the details as well as the

outcomes of which will be described in the next

sessions.

Table 1: Evaluation methods.

Method 1

Method 2

 Student projects:

1. Smart Office

Device Manager

(SODAM)

2. Identity and access

management on

the shop floor for

industry 4.0

 Two groups per

project:

1. Group 1 is

supported by the

assistant

2. Group 2 is not

supported by the

assistant

 Supervision and

comparison of the

outcome

 Feedback of the

developers

 Expert feedback:

1. Interviews of

experts: the

assistant is

presented to the

experts and

explained through

different use-cases.

2. Workshop:

Workshop with

experts where the

assistant is

presented to the

experts and tested

by the experts.

WEBIST 2019 - 15th International Conference on Web Information Systems and Technologies

236

3.1 Student Projects and Evaluation

Matrix

The browsing function of the assistant was evaluated

through an experimental case study. (Kitchenham,

1996) gives a very good overview of various

evaluation methods of software tools, among which

is case studies. She claims that the advantage of this

method is the fact that it can be incorporated into the

normal software development activities – the

characteristic which is crucial for the CUES assistant

as it is supposed to be present at different stages of

the software development process. Moreover, the

product can be considered “scaled-up” to life size, if

it is tested on real projects (Kitchenham, 1996).

Two student projects were set up: one of the

projects was carried out in the area of “Internet of

Things” whereas the second involved the topic of the

“industry 4.0” (Internet of Things in manufacturing

environments). Each project involved two teams of

students, which in their turn consisted of two students

each.

To be able to observe the application of the CUES

assistant in conditions that are closest to reality and

evaluate its effectiveness in comparison, after some

time, one student group of each project was granted

access to the software assistant as a support during the

development of their concept whereas the second

group did not. The aim of this method was to find out

whether the team supported by the assistant would

improve their concept after receiving access to it and

whether it would show better overall results

compared to the team working without support.

The student teams did not know that they were in

fact testing the CUES assistant. They thought they

were developing Internet of Things / Industry 4.0

solutions for the team. Throughout the project time,

teams had to regularly present the progress regarding

the development of their solution and the underlying

reasoning why specific decisions were taken to the

developers of the assistant in regular status meetings,

an interim presentation and a final presentation. Both

projects were realized over the timeframe of five

months (May to September), the exact plan of the

meetings as well as can be seen on Fig. 1 and 4.

After each presentation, the two project reviewers

(developers of the assistant) independently evaluated

each team on multiple criteria and scored them from

1 as the lowest to 4 as the highest score:

1,0 – 1,4: requirements not met

1,5 – 2,4: requirements met to a minor degree

2,5 – 3,4: requirements met to a satisfactory degree

3,5 – 4,0: requirements met to the highest degree

Scores were combined and in cases of differences

in scoring of 2 or more a brief discussion to clarify

and agree on a common score followed.

The set of criteria covered the three main focus

areas of CUES: IT-security, usability, and socio-

economic factors and additionally the approach taken

for software development. Thus, the criteria used in

the evaluation were the following:

 Approach

o Structured approach

o Consideration of existing and

related applications

o Interdisciplinary

 Security aspects

o Security-orientation

o Consideration of confidentiality

aspects

o Consideration of integrity aspects

o Consideration of availability

aspects

o Consideration of accountability

aspects

 Socio-economic aspects

o Product-orientation

o Consideration of cost-use-aspects

o Consideration of different criteria

for a potential market success

o Consideration of possibilities to

create a product innovation

 Usability aspects

o User-orientation

o Consideration of usability

standards

o Consideration of the user

experience

The tasks received by the student teams as well as

the description of the process and the results of the

evaluation are described in the following sections.

3.1.1 Student Projects in the Area “Internet

of Things”

As mentioned earlier, the student projects were

carried out in the form of an experimental case study.

The background for this project was to develop the

concept of a Smart Office Device Access Manager

(SODAM) that regulates the access rights to the

smart-office objects produced by the fictional

company SOS AG. The case study presented to the

students at the kick-off meeting is the following:

SOS AG (Smart Office Systems) is planning the

production and transfer of a new product line of

A Methodology for Experimental Evaluation of a Software Assistant for the Development of Safe and Economically Viable Software

237

professional smart-office devices to the market:

SODAM-Smart. The company has already invested

significantly into the development of both hard- and

software as they expect a lot from the future market

and hope to resist the international competition.

The SODAM-Smart product line covers a variety of

smart devices that can be used in a smart office such

as projectors, coffee machines, or robot vacuum

cleaners. Being connected to the assistant and thus to

each other, the smart devices proactively support the

everyday office life.

Furthermore, according to the background story,

SOS AG hired two competing teams of software

developers to design and develop a detailed concept

of a digital assistant SODAM. As a result, the teams

had to come up with the best solution and sell it to the

company. The teams were to work and present their

interim and final results separately to the SOS AG

managers, who in the framework of the experiment

were the reviewers.

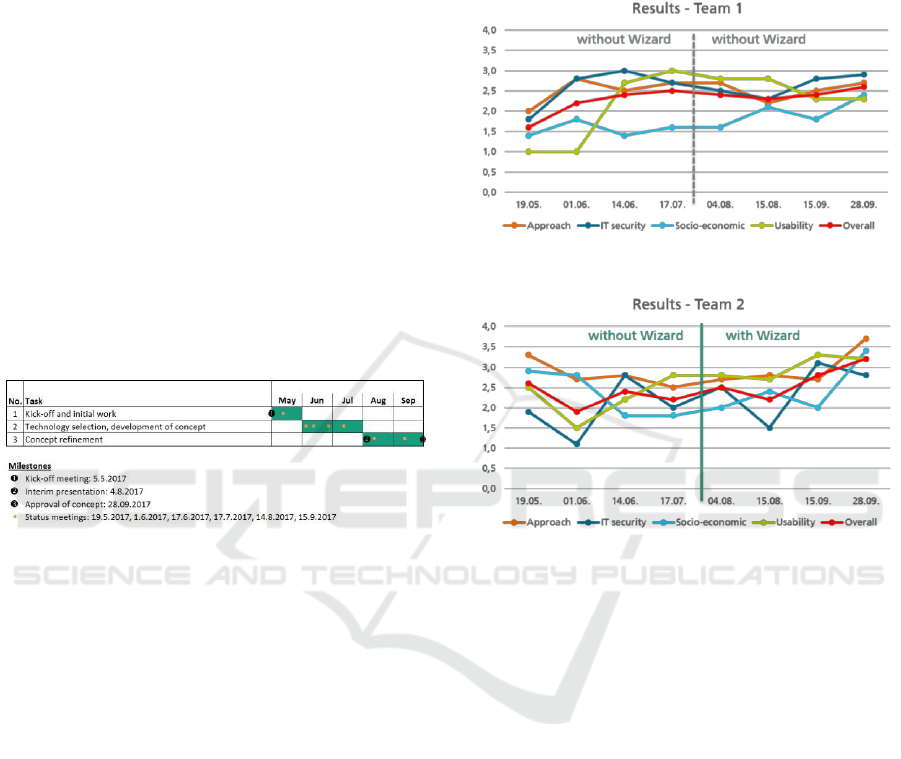

The exact project plan can be seen in Fig. 1.

Figure 1: Time schedule of the "Internet of Things" student

projects.

The student teams had to update the reviewers at

six status meetings and give one interim presentation

as well as present their results at the final meeting.

Both student teams provided qualitative results at the

end of the project. As already mentioned, after each

presentation (status meetings, interim and final

presentations) two reviewers separately gave scores

from 1 to 4 for the work of each team to assess later

the impact of the CUES assistant on the quality of the

project development process and results.

The results of both student teams (Team 1 and

Team 2) can be found on Fig. 2 and 3 respectively. In

the middle of the project, Team 2 received access to

the assistant as support whereas Team 1 had to work

without assistant until the end of the project.

As can be understood from the picture, the team

that did not use the assistant (Team 1) had a weaker

start than Team 2, especially in the aspect of

Usability. Nevertheless, they improved their

performance on most of the aspects already on the

second meeting. On the third status meeting they

showed much higher results on the aspect of usability

and kept the level until the end of the project. Another

weak point of the team that did not have the support

of the assistant was the socio-economic aspect, but

they managed to find better solutions to bring it up to

the level of other aspects by the end of the project.

Figure 2: Results of Student Team 1 in the area of "Internet

of Things".

Figure 3: Results of Student Team 2 in the area of "Internet

of Things".

On the other hand, the student team that had the

assistance of the CUES assistant (Team 2) started

with a very good score, with the exception of the IT

security aspect, but showed lower results at the

second status meeting. From the third presentation,

the work of Team 2 had improved and they stayed on

this level until the end of the project. Overall, at every

meeting, Team 2 showed solid results that stayed

approximately at the same level starting from the

third meeting. After the assistant was introduced, the

performance of the team gradually improved,

accelerating at the third meeting after the introduction

– probably the team first had to get used to the

assistant.

It can be clearly seen that by the final meeting

(approval of the concept) both teams showed better

performance at almost all of the aspects, especially in

their approach and involving the socio-economic

features in the development of the concept.

Nevertheless, Team 2 showed better results in the

end of the project, scoring between 2,8 and 3,4 for

most of the aspects and even 3,7 for the approach they

WEBIST 2019 - 15th International Conference on Web Information Systems and Technologies

238

used in building the concept. On the other hand, Team

1 received lower grades from the reviewers – between

2,3 and 2,9 for every aspect. The overall performance

of Team 2 is also significantly higher than that of

Team 1 – 3,2 against 2,6 scores.

3.1.2 Student Projects in the Area “Industry

4.0”

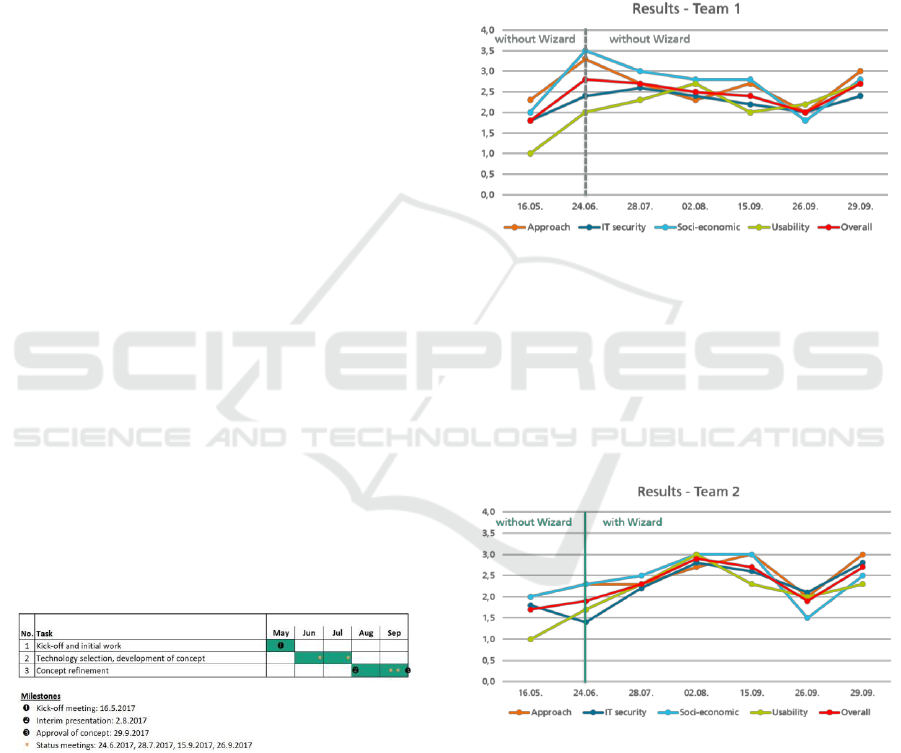

Additionally, the browsing function of the CUES

assistant as well as its impact on the product

development process were assessed through

experimental student projects in the area of Industry

4.0. The experiment followed the same method by

creating a story about a fictional company that hires

two teams of software developers to build a concept

that fits the company’s needs and requirements. As one

the previous experiment has already been described in

detail, this section covers the second experiment only

briefly, paying more attention to the results.

According to the experimental setup, Swiss

company “Swiss RMG Electronics” develops and

produces electronic components for racing cars that

fit individual needs of their clients. They are in the

process of digitalizing most of the processes and

heading in the direction of Industry 4.0 in their

production. As part of this plan, “Swiss RMG

Electronics” wants to make the processes inside the

company more secure by developing an authentication

solution that fits all of their requirements. Therefore, the

task for two student teams in this case was to come up

with a concept of an authentication for the company

that will be secure, easy to use, and will therefore help

the company to be competitive on the market by

supporting the internal processes and ensuring no

mistakes in the work with their clients.

The detailed project plan can be seen below on

Fig. 4.

Figure 4: Time schedule of the "Industry 4.0" student

projects.

During the project time, the student teams showed

their results at four status meetings, an interim

meeting and the final meeting to two reviewers (they

were not the same reviewers as of the first experiment

described in section 3.1.1). At every meeting, the

student teams received new impulses from the

reviewers to develop their ideas individually.

The performance of the teams was assessed at

every meeting according to the quality of the content

they provided. The criteria for the evaluation are

described in section 3.1 and included four aspects as

the first experiment: methodological approach, IT

security, socio-economics, and usability. The results

of both student teams (Team 1 and Team 2) can be

found on Fig. 5 and 6 respectively. Differing from the

Internet of Things case, Team 2 was granted access to

the assistant already at the second status meeting.

Team 1 had to work without support.

Figure 5: Results of Student Team 1 in the area of "Industry

4.0".

Team 1 started on a good note showing their best

results already on the second meeting without using

the CUES assistant. Nevertheless, their performance

dropped after the second meeting and continued

receiving lower scores until the final meeting. For

Team 1, the aspect of usability seemed to be the

weakest point.

Figure 6: Results of Student Team 2 in the area of "Industry

4.0".

Team 2 on the other hand showed rather average

results on the first two meetings but after they

received the access to the assistant, their performance

started to improve steadily. In comparison with Team

1, Team 2 started showing higher results after the

CUES assistant was introduced. Interesting to note,

both teams had lower results on the aspect of socio-

economics closer to the end of the project. Overall, it

A Methodology for Experimental Evaluation of a Software Assistant for the Development of Safe and Economically Viable Software

239

can be clearly seen that having the advantage of the

software assistant helped Team 2 to show improved

results after the second meeting, even if the end

results are not very different.

4 CONCLUSION

In this paper, we presented methods used for the

evaluation of the CUES assistant, a software assistant

that covers disciplines such as IT security, usability

and socio-economics and helps its users design and

develop software solutions that are strong in all of

these aspects. The CUES assistant uses a holistic and

easy to use approach supporting the developers in all

phases of software development process. We applied

different methods for the evaluation of the assistant’s

functionality, describing the experimental assessment

of the browsing function in more detail.

The assistant was evaluated through an

experimental case study, which showed that the

performance of the software development teams can

be improved on different development stages and

especially when finalizing the product and delivering

it. The results of the assessment suggest that including

requirements from other disciplines that are not

directly related to its core functionality (IT security)

tend to improve the overall quality of the software

product making it more secure, usable, and

economically successful. Moreover, evaluation

through an experimental case study lets us assess the

software assistant in conditions that are more or less

close to reality and observe the ways in which the

assistant was used to gain such first insights before

testing it in real production environment. A limitation

of our approach is certainly rooted in the number of

teams and participants involved which makes it hard

to generalize the findings. At the same time, the

experimental setup using students as test subjects is

less resource-intensive as actual case studies in the

real-world environment of a productive company.

(Kitchenham, 1996) sees the disadvantage of case

studies as an evaluation method for software tools in

the fact that there is no guarantee that similar results

will be found on other projects, but for this reason we

had two more rounds of evaluation using different

methods, which gives us more confidence in the

results of the conducted case study. After integrating

the learnings from the experimental evaluation into

the assistant, we therefore carried out the second stage

of evaluation (see Table 1: Evaluation methods) with

https://sicherheit2018.in.htwg-konstanz.de/programm/

https://www.ngi.eu/

professionals as expert reviewers that participated in

the final workshop which took place during the

SICHERHEIT 2018 conference

. All three functions

of the CUES assistant (browsing, guiding and editing)

were evaluated at the workshop and the wizard

received good acceptance. Apart from that, more

usability, IT-security and socio-economics experts

were interviewed in order to gather deeper analysis of

the wizard. The results of these activities were

included into the assistant as well. As this is a short

paper that focuses due to the limited space available

on the evaluation of the assistant’s browsing function

only, the details of the next evaluation stages are not

presented in detail here.

5 LIMITATIONS

Unfortunately, it was not possible to test and evaluate

the assistant in a real working environment during the

project time, as it would require more time and effort

than defined in the framework of the project.

Nevertheless, the browsing function of the CUES

assistant is actively used within the large-scale project

NGI_Trust

funded by the European Union’s Horizon

2020 research and innovation programme. As part of

its open call for projects

, successful third party

applicants will be using the assistant during the

development of their novel trust enhancing solutions

for the Next Generation Internet. Specifically for this

reason, the content of the wizard was translated into

English.

Moreover, it is important to note that the CUES

assistant was initially developed to be used by SMEs.

It is a lightweight tool which supports smaller

projects that have limited resources for the product

development and if possible, it should be supported

by experts from involved areas. Nonetheless, as a

result of our various expert workshops with

practitioners, larger German companies were

interested in using the assistant for internal

educational and development purposes as well.

ACKNOWLEDGEMENTS

We thank and acknowledge the Baden-Württemberg

Stiftung for financing the CUES project. For more

information, please visit: https://www.bwstiftung.de/.

https://www.ngi.eu/opencalls/ngi_trust-open-call/

WEBIST 2019 - 15th International Conference on Web Information Systems and Technologies

240

REFERENCES

Grabowski, P., 2015. 7 Reasons New Products Fail.

[Online]

Available at: https://community.uservoice.com/blog/

why-products-fail/

[Accessed 5 October 2018].

Greenwald, S. J., Olthoff, K. G., Raskin, V. and Ruch, W.,

2004. The user non-acceptance paradigm: INFOSEC’s

dirty little secret. Proceedings of the 2004 workshop on

New secuirty paradigms, pp. 35-42.

Hengsberger, A., 2018. 4 reasons why innovations fail.

[Online]

Available at: https://www.lead-innovation.com/english

-blog/why-innovations-fail

[Accessed 5 Ocober 2018].

Hofer, J. and Sellung, R., 2016. An interdisciplinary

approach to develop secure, usable and economically

successful software. s.l., s.n., pp. pp. 153-158.

Horch, A., Laufs, U. and Sellung, R., 2017. A Semantic

Data Model for the Development of Secure and

Valuable Software. Open Identity Summit 2017.

Kitchenham, B. A., 1996. Evaluating software engineering

methods and tool part 1: The evaluation context and

evaluation methods.. ACM SIGSOFT Software

Engineering Notes 21.1, pp. 11-14.

Koçak, S. A., Alptekin, G. I. and Bener, A. B., 2015.

Integrating Environmental Sustainability in Software

Product Quality. RE4SuSy@ RE, pp. 17-24.

Ruff, C. and Horch, A., 2018. A software assistant for the

development of secure, usable and economically

meaningful software.. s.l., The Steering Committee of

The World Congress in Computer Science, Computer

Engineering and Applied Computing (WorldComp),

pp. 136-142.

Zibuschka, J. and Roßnagel, H., 2011a. A framework for

Designing Viable Security Solutions. Proceedings of

the 2011 Workshop on Information Security and

Privacy (WISP 2011).

Zibuschka, J. and Roßnagel, H., 2011b. A structured

approach to the design of viable security systems.

Proceedings of the Information Security Solutions

Europe Conference (ISSE).

A Methodology for Experimental Evaluation of a Software Assistant for the Development of Safe and Economically Viable Software

241
