Classification of DHCP Spoofing and Effectiveness of DHCP

Snooping

Shigeo Akashi and Yao Tong

Department of Information Sciences, Faculty of Science and Technology

Tokyo University of Science

2641, Yamazaki, Noda City, Chiba Prefecture,

278-8510 JAPAN

Keywords: DHCP spoofing, DHCP snooping, DHCP relay agent, The longest matching prefix rule.

Abstract: It is well known that DHCP snooping is a famous countermeasure against DHCP spoofing. Actually, to

what extent DHCP snooping can protect the authenticated DHCP clients from being given malicious DHCP

transactions through the network where the authenticated DHCP clients and the malicious DHCP servers

share with each other? The answer to this question is that DHCP snooping can protect DHCP spoofing to a

certain extent, though DHCP snooping cannot protect DHCP spoofing completely. In the former half of this

paper, it is shown that DHCP spoofing can be classified into two cases, namely DHCP spoofing from inside

and DHCP spoofing from outside, and in the latter half of this paper, it is shown that DHCP snooping can

protect the former attack from being implemented but cannot protect the latter attack from being

implemented. More exactly speaking, it is shown that DHCP snooping cannot prevent DHCP spoofing from

outside from being implemented, while applying the longest matching prefix rule to leading a malicious

network segment which is constructed on the basis of the leaked DHCP transactions beforehand.

1 INTRODUCTION

The longest matching prefix rule is defined as the

dynamic routing rule that any packet should be

transferred through the interface advertising the

network segment whose address matches longest

with the prefix of the destination IP address of the

packet. Since each entry in the routing table may

specify each subnetwork, it is probable that one

destination address may match more than one in the

table entry. If such a case happens, it is reasonable

that the most specific entry of the matching table

entries, which is the entry with the longest subnet

mask, should be adopted as the optimal destination.

Therefore, if malicious application of the longest

matching rule can be used for the implementation of

the disguised packet transfer, then the authenticated

DHCP clients to be led to another DHCP server

which is not authenticated, and eventually, they may

receive malicious DHCP transactions. Such an mis-

origination as this results in DNS cache poisoning,

which is caused by the dierent way from

Kaminsky attack. In this paper, though DHCP

snooping is still eective in DHCP spoofing from

inside, in other words, in exclusion of malicious

DHCP servers from being connected directly, it is

shown that DHCP spoofing from outside can be

implemented according to the method based on the

fact that DHCP snooping cannot protect DHCP

transactions from being leaked outside, because

DHCP relay agent is incompatible with the longest

matching prefix rule.

2 MISORIGINATION CAUSED

BY THE LONGEST MATCHING

PREFIX RULE

In this section, we explain the sequential process of

the misorigination occurring in the course of

disguised packet transfer in the following network

topology:

Akashi, S. and Tong, Y.

Classiﬁcation of DHCP Spooﬁng and Effectiveness of DHCP Snooping.

DOI: 10.5220/0008099002330238

In Proceedings of the International Conference on Advances in Computer Technology, Information Science and Communications (CTISC 2019), pages 233-238

ISBN: 978-989-758-357-5

233

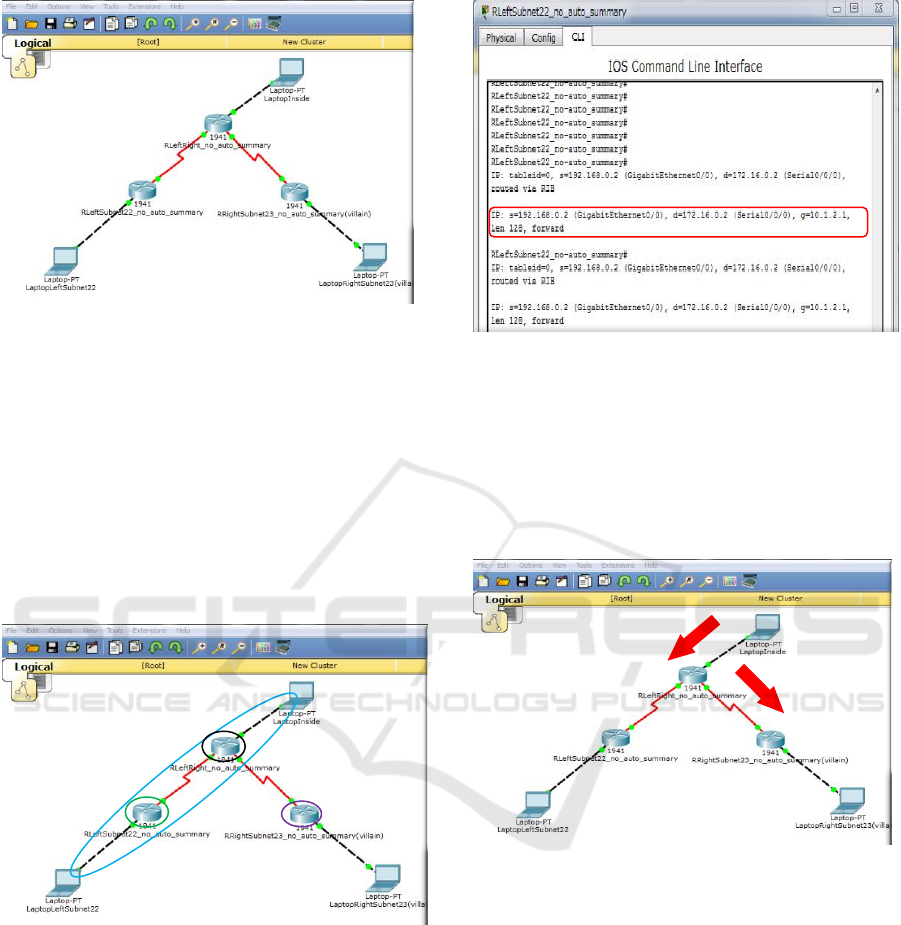

Figure 1: The structure of a sample network.

In Figure 1, it is shown that the router located in the

upper central area forwards packets according to the

longest prefix matching rule. The authenticated PC

with its IP address 192.168.0.2/22 is located in the

lower left area and the malicious PC with its IP

address 192.168.1.2/23, for wiretapping the packets

streaming on the communication line connecting

these two PCs, is located in the lower right area.

The other authenticated PC with its IP address

172.16.0.2/24 is located in the upper central area.

Figure 2: The optimal communication route connecting

the authenticated PC located in the lower left area and the

authenticated PC located in the upper central area.

In Figure 2, we assume that the authenticated PC

located in the lower left area sends ICMP packets to

the other authenticated PC located in the upper

central area and receive the response. It is most

optimal for the ICMP packets commuting these two

authenticated PCs to take the route encircled in blue.

Figure 3: The record showing one-way packet streaming.

In Figure 3, it is shown that the router encircled

in green in Figure 2 can catch the ICMP packets

from the sender with its IP address 192.168.0.2,

nevertheless, and that this router cannot catch the

response from the receiver with its IP address

172.16.0.2.

Figure 4: Misorigination applied to the response from the

PC located in the upper central area.

In Figure 4, it is illustrated the route which the

response from the PC located in the upper central

area has taken. Since the router located in the lower

left area advertises 192.168.0.0/22 to the upper

central router and the router located in the lower

right area advertises 192.168.0.0/23 to the same

router, the router located in the upper central area

forwards this response bound for 192.168.0.2 to the

lower right area along the route followed by the

above red arrows.

CTISC 2019 - International Conference on Advances in Computer Technology, Information Science and Communications

234

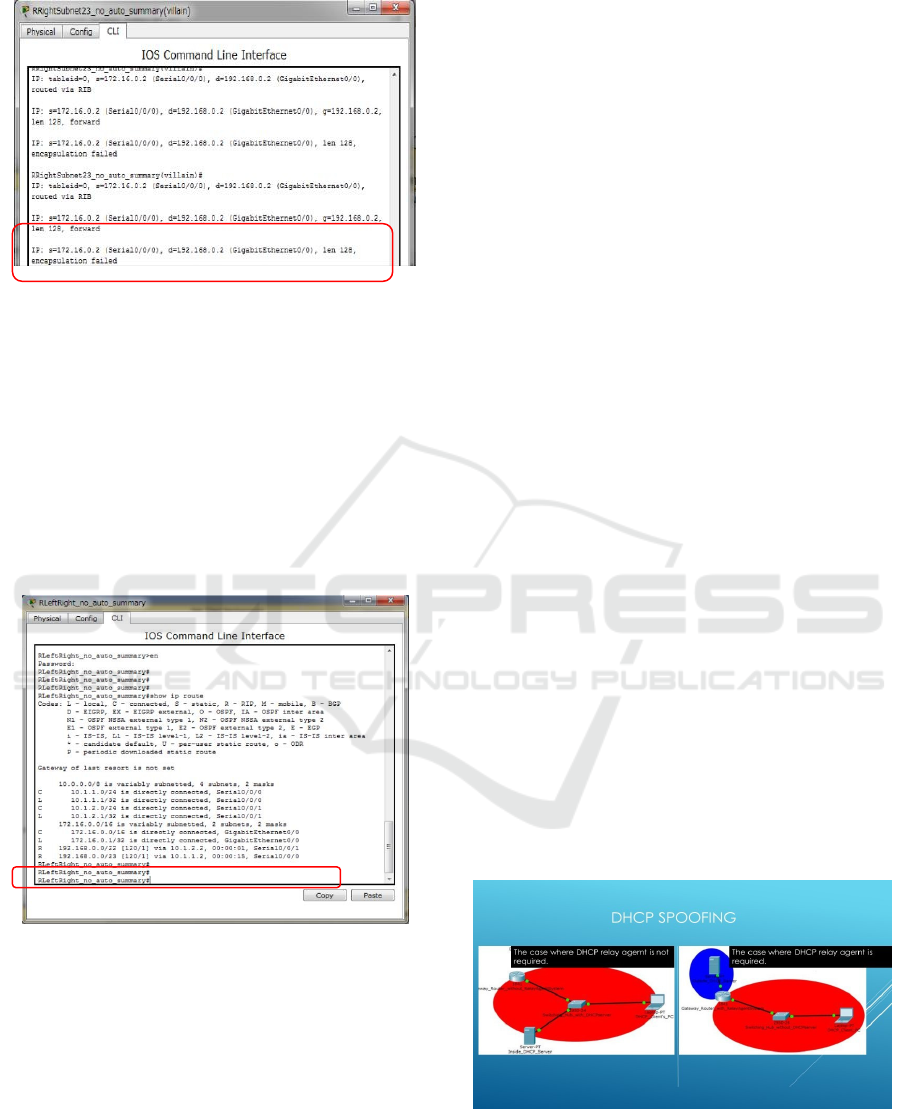

Figure 5: The routing table proving that the packets sent

back for the response are misoriginated.

In Figure 5, it is shown that the router encircled

in purple in Figure 2 catches the ICMP packets from

the sender whose IP address is 172.16.0.2, which are

bound for the receiver whose IP address is

192.168.0.2, even though this router exists in the

outside of the optimal route, which is stated in

Figure 2, connecting the lower left PC which is the

destination with its IP address 192.168.0.2 and the

upper central PC which is the origin with its IP

address 172.16.0.2.

Figure 6: The routing table recording a malicious route for

disguised transfer.

In Figure 6, the routing table of the upper central

router encircled in black in Figure 2 shows that there

exists simultaneously the route leading to the left-

hand area which a serial interface with its IP address

192.168.0.0/22 advertises and the route leading to the

right-hand area which another serial interface with its

IP address 192.168.0.0/23 advertises. This is the

reason why the longest matching prefix rule forces

all the response to transfer at the disguised route

whose destination is different for the original sender.

3 MALICIOUS APPLICATION OF

THE MISORIGINATION TO

DHCP SPOOFING

DHCP relay agent is defined as the function for

packet transfer enabling any gateway router to

forward DHCP transactions, to an authenticated and

designated DHCP server, on condition that the this

DHCP server cannot share its network segment with

the authenticated DHCP clients. By the way, the

DNS server translates a human-readable domain

name such as example.com into a numerical IP

address which is used to route communications

between nodes. Normally, if the server does not

know a requested name translation, it will ask another

server, which is designated as this master server, and

the process for inquiry continues recursively. To

increase high quality performance, any DNS server will

typically remember or cache these name translations

for a certain amount of time. This means, if it

receives another request for the same name

translation, it can reply without asking any other

DNS servers, until that cache expires. When a DNS

server has received a false translation and caches it

for the DNS server's performance optimization, it is

considered poisoned, and it supplies the false data to

the authenticated clients. If a DNS server is

poisoned, it may return with an incorrect IP address,

diverting trac to another computer administrated

by a certain malicious attacker. These facts show us

that mis- origination leading to malicious DNS

servers, which is called DNS cache poisoning, can

be broght about by DHCP spoofing. In this section,

we can see the sequential process of misorigination

in the course of establishing DHCP session by

commuting DHCP packets such as DHCP discover,

DHCP oer, DHCP request and DHCP

acknowledge, as the following:

Figure 7: The difference he network segment requiring

DHCP relay agents and the network segment not requiring

DHCP relay agents.

Classiﬁcation of DHCP Spooﬁng and Effectiveness of DHCP Snooping

235

In Figure 7, it is shown that, while the DHCP

server situated in the left area shares its network

segment with the authenticated DHCP client, the

DHCP server situated in the right area and encircled

in blue does not share its network segment with the

authenticated DHCP client.

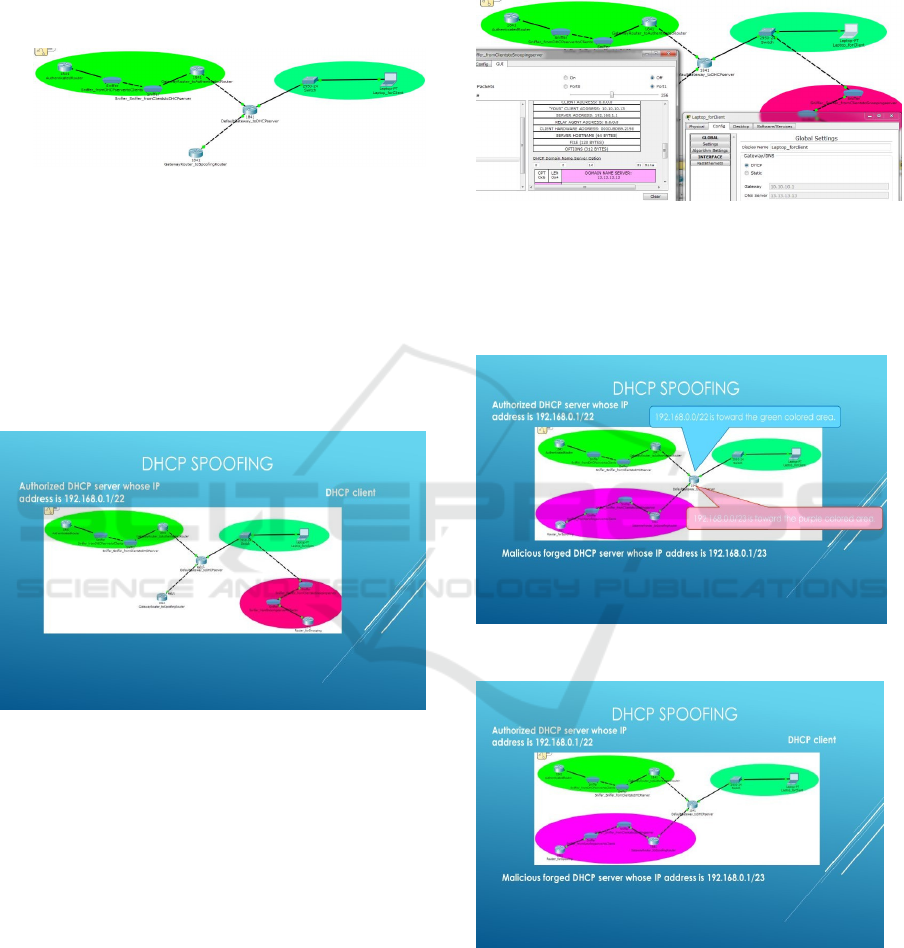

Figure 8: The role of the DHCP relay agents.

In Figure 8, we assume that the DHCP router

situated in the upper left area whose network

segment is 192.168.0.0/22 plays the role of the

authenticated DHCP server and assume that there

does not exist any intersection of the network

segment where the authenticated PC situated in the

upper right area belongs and the network segment

where the authenticated DHCP router belongs.

Figure 9: The network with malicious PC for sning.

The procedure for DHCP spoofing from outside

can be divided into two partial procedures, namely,

the first partial procedure for sning packets

informing how to connect the authenticated clients to

Internet and the second partial procedure for

constructing a malicious DHCP server outside. More

exactly speaking, the malicious PC can wiretap any

DHCP transactions easily, even if DHCP snooping

is equipped in the switch where the malicious PC is

connected directly, because DHCP cannot prevent

DHCP transactions from being leaked outside.

Step 1. As Figure 9 illustrates, the malicious router

being situated in the red ellipsoid and sharing the

network segment with the authenticated DHCP clients,

must sniff to collect the DHCP transactions which are

issued by the authenticated router and broadcast to the

authenticated DHCP clients. The present way of

broadcasting cannot prevent any malicious client from

wiretapping DHCP transactions and from constructing

another malicious DHCP server outside.

Figure 10: The proof showing DHCP spoofing succeeds.

In Figure 10, if we compare the table situated in

the left area and the table situared in the right area ,

we can see that the authenticated DHCP transactions

have snied successfully.

Figure 11: The location of a malicious DHCP server.

Figure 12: The role of the longest prefix matching rule.

Step 2. In Figure 11, it is shown that another

malicious router which has been equipped with the

DHCP transactions which have been wiretapped and

collected in Step 1, issues fake DHCP transactions

CTISC 2019 - International Conference on Advances in Computer Technology, Information Science and Communications

236

for the purpose of leading the authenticated DHCP

clients to another malicious network segment.

In Figure 12, it is shown that the route situated in

the upper central area advertises the route bound for

192.168.0.0/22 and the route bound for 192.168.0.0/23

in its routing table simultaneously.

Figure 13: The routing table proving the disguised transfer

of packets succeeds.

In Figure 13, it is shown that the DHCP

transactions issued by the malicious DHCP router

include an IP address assigned for another malicious

DNS server for the purpose of leading DHCP clients

to the malicious network segment which has been

prepared beforehand. Since the network segment

assigned for the authenticated DHCP router and the

network segment assigned for the malicious DHCP

router are 192.168.1.0/24 and 192.168.1.0/25,

respectively, the longest matching prefix rule forces

all the packets which are bound for 192.168.1.1 not

to the network segment corresponding to

192.168.1.0/24 but to the network segment

corresponding to 192.168.1.0/25, eventually.

4 A COUNTERMEASURE

AGAINST DHCP SPOOFING

FROM OUTSIDE AND

CONCLUSION

Of course, any countermeasure should be based on

the network devices under the control of the

authenticated network administrators, and moreover,

it should be realized without any dicult

preparation. Here, if we can assume that ICMP

commands such as ping and traceroute can be used,

there exists a countermeasure for the purpose of

detecting the existence of DHCP spoofing, which can

be illustrated as the following:

Figure 14: A countermeasure against DHCP spoofing.

In Figure 14, when the authenticated network

administrator sends ICMP packets from the

authenticated router to the gateway router encircled

in red and located in the central area, the way of

response from this router can be divided into two

cases as the following:

Case 1. If any other malicious DHCP server is not

connected from outside, then the response from

the central gateway router can reach the

authenticated router.

Case 2. If a malicious DHCP server is connected

from outside, then the response from the central

gateway router cannot reach the authenticated

router.

This countermeasure cannot force the attackers

to give up DHCP spoofing from outside, because

this countermeasure cannot point out the exact

topological location of the malicious DHCP servers,

but this can detect the existence of DHCP spoofing

from outside as we see. Actually, DHCP snooping

has little eects on DHCP spoofing from outside, if

the network segment where the authenticated DHCP

servers exist is in the outside of the network segment

where the authenticated clients exist, because the

modern network constructing methods regulate that

longest matching prefix rule should be prior to the

DHCP relay agent.

REFERENCES

G. Ferrari, G. Colavolpe and R. Raheli, 2004, Detection

Algorithms for Wireless Communications, John Wiley

and Sons Ltd., West Sussex, 1

edition.

Classiﬁcation of DHCP Spooﬁng and Effectiveness of DHCP Snooping

237

J. G. Gersting, 1982, Mathematical Structures for

Computer Science, W. H. Freeman and Company,

New York, 1

edition.

C. Hopps, 2000, Analysis of an Equal-Cost Multi-Path

Algorithm, RFC 2992.

D. E. Knuth, 1973, The Art of Computer Programming,

Addison-Wesley Publishing Company, Massachusetts,

edition.

O. Santos and J. Muniz,2017, CCNA Cyber Ops Secfnd

210-250, Cisco Press, Indianapolis, 1

edition.

O. Santos and J. Muniz,2017, CCNA Cyber Ops Secops

210-255, Cisco Press, Indianapolis, 1

edition.

Cisco Systems, Inc., Catalyst 3750-X and Catalyst 3560-X

Switch Software Configuration Guide, Cisco IOS Release

15.0(2)SE and Later, 2013.

CTISC 2019 - International Conference on Advances in Computer Technology, Information Science and Communications

238
