Illegal Audio Copy Detection using Fundamental Frequency Map

Heui-su Son

1,*

, Sung-woo Byun

and Soek-Pil Lee

Department of Computer Science, Graduate School, SangMyung University, Seoul, South Korea

Department of Electronic Engineering, SangMyung University, Seoul, South Korea

*https://www.smu.ac.kr

Keywords: Illegal Use, Copy Detection, Audio Fingerprinting, Fundamental Frequency Map, Pearson’s Correlation

Score.

Abstract: In this paper, we present a new audio identification system which is robust to various attacks. The types of

attacks employed are modification such as changes of tempo, pitch and speed and noise addition. We propose

a two-dimensional representation for the audio signal called FFMAP. This consists of pitch components and

frame components. We also employ Pearson’s correlation score to calculate similarity between original audio

data and query. Experimental results show that the proposed algorithm has a high performance.

1 INTRODUCTION

As social network services such as YouTube,

Facebook, Instagram, and others have become more

common, it is easier for users to access large-sale

media content than before, and approaches are

becoming more diverse. With the increased

accessibility of information, the dissemination of

digital content has become more convenient, leading

to an increase in concerns related to the illegal use of

media content. Since distributing audio files without

permission is a representative example of such illegal

use, studies searching for identified audio data among

unlabeled metadata have been proposed in the past

decade(Wu et al., 2000), (Haitsma et al., 2001), (Jiao

et al., 2007). These audio identification technologies

can be classified into two technologies: audio

watermarking (Arnold, 2000), (Hu and Hsu, 2015),

(Milaš et al., 2016) and audio fingerprinting (Chen et

al., 2013), (Bellettini and Mazzini, 2010), (Seo,

2014). Audio fingerprinting is a method to confirm

features from audio sources and comparing them with

a copyright database. The extracted features are

content-based information that contains unique

values from the audio data itself.

A number of studies on audio fingerprinting

algorithms have been researched. Among these

studies, the best-known public algorithm is Shazam

(Wang, 2003). It uses the spectrogram peaks as the

local key points of an audio stream. It then generates

a local descriptor using certain pairs of these key

points. The local descriptor is based on the time

difference between two adjacent peaks as well as their

frequencies. The extracted fingerprints are highly

robust to audio compression, foreground voices, and

other types of noise. However, because of the nature

of the descriptors, the algorithm is vulnerable to pitch

or tempo modifications. Most papers emphasizing

invariance to tempo/speed and pitch extracted local

feature values by converting audio signals into

frequency bands to generate fingerprints. Recently, to

achieve better robustness to the modifications, a

fingerprint method using Chroma vectors obtained

from the frequency domain has been proposed (Ewert

et al., 2009), (Müller et al., 2005), (Jiang et al., 2011).

A recent publication proposing audio fingerprinting

algorithm using Chroma, that also meets the demand

of robustness against speed, tempo and pitch

modification of query audio is proposed by

Malekesmaeili and Ward (2014). Also, there are an

audio fingerprinting algorithm using representable

characteristic feature combinations (Sonnleitner and

Widmer, 2016), (Sonnleitner and Widmer, 2014).

They propose audio fingerprinting method that is not

only robust to noise and audio quality degradation,

but also to large amounts of speed or frequency

scaling. In addition, it can accurately estimate the

scaling factors of applied time/frequency distortions.

“lost in space” problem (Lang et al., 2010) is used to

make those possible. More precisely, Sonnleitner and

Widmer (2014) use a compact four-dimensional,

continuous hash representation of quadruples of

points called “quad”. We will take this as our

350

Son, H., Byun, S. and Lee, S.

Illegal Audio Copy Detection using Fundamental Frequency Map.

DOI: 10.5220/0008113403500355

In Proceedings of the 16th International Joint Conference on e-Business and Telecommunications (ICETE 2019), pages 350-355

ISBN: 978-989-758-378-0

reference method in the present paper, because it is

the latest publication on this topic, and it reports high

precision results for a certain range of speed and noise

modification.

Most common fingerprint methods based on

frequency components extract local maxima from the

frequency band and generate fingerprints with local

features (Anguera et al., 2012), (Yang et al., 2014),

(Haitsma and Kalker, 2002). However, when the

modifications, such as speed, tempo, or pitch change,

occur to the original audio signal, it causes irregular

changes of the local maxima in the frequency band,

which leads to audio matching inaccuracy.

In this paper, we propose a fingerprint extraction

method based on fundamental frequency, which

improved robustness against the pitch and tempo

modifications. To this end, we first extracted the

fundamental frequency from audio data and

generated a fundamental frequency map (FFMAP)

using the extracted fundamental frequency. Then, the

generated FFMAP was changed with a specific size

through affine transformation. Lastly, the fingerprint

was obtained by reconstructing the pitch array from

the FFMAP. To compare the similarity between

fingerprints, Pearson similarity was used. Tests

comparing robustness against the pitch and tempo

modifications were conducted for determining the

feasibility of the proposed method.

The remainder of this paper is organized as

follows: Section 2 explains the proposed FFMAP-

based audio fingerprint method. Section 3 presents

the experimental results compared to existing method

(Sonnleitner and Widmer, 2014), and Section 4

concludes this work.

2 FFMAP-BASED AUDIO

FINGERPRINTING METHOD

2.1 Fingerprint Extract

Audio fingerprinting is defined as confirming

features from audio sources. In general, an ideal

fingerprinting system should fulfill several

requirements (Cano et al., 2002):

 It should be able to accurately identify an item,

regardless of the level of compression and

distortion or interference in the transmission

channel;

 Depending in the application, it should be able to

identify the titles from excerpts of only a few

seconds;

 The fingerprinting system should also be

computationally efficient. This computational

cost is related to the size of the fingerprints, the

complexity of the search algorithm and the

complexity of the fingerprint extraction.

In this research, we focused on accurately identifying

audio sources. We did not consider computationally

efficient methods.

(a)

(b)

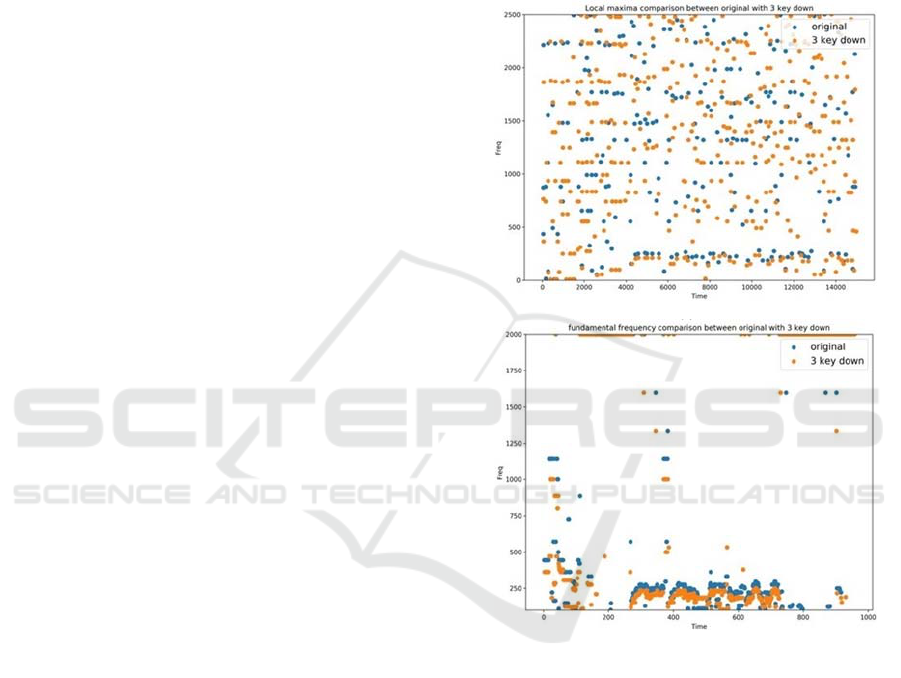

Figure 1: (a) The local maxima of the frequency selected

through the existing research method (Wang, 2003) (b) the

results of extracting fundamental frequency.

Most studies related to audio fingerprint generate

the spectrogram after performing Fourier transform

and extract fingerprints by extracting local maxima

and analysing the certain structure of the local

maxima (Malekesmaeili and Ward, 2012). However,

when the pitch change occurs, the local maxima is

irregularly changed as shown in Figure 1 (a). This

causes audio matching inaccuracy. On the other hand,

when using the fundamental frequency, all the

frequencies of the audio are scaled by the pitch shift

parameter as shown in Figure 1 (b). Using this

characteristic, we can design an audio fingerprinting

method that resists pitch and tempo changes.

Illegal Audio Copy Detection using Fundamental Frequency Map

351

Considering the range of the scales from the

music, we extract the fundamental frequency from

100Hz to 2000Hz, which are the frequency of pitches

from C3 to C7. Voiceless sounds such as the

pronunciation of a person and the hitting sound of a

musical instrument have to be removed from original

signal in order to extract accurate pitch. In general,

voiced sounds are signal with a period characteristic,

and voiceless sounds are signal with a non-period

characteristic. Therefore, if the normalized

autocorrelation value of signal in a certain interval is

less than the threshold value, it means that the signal

has weak periodicity. As a result, it can be classified

as voiceless sounds. The equation of normalized

autocorrelation is as follows:























(1)





 







|







(2)























(3)

Where R is autocorrelation function, and S and E are

time series signal and the energy of the signal,

respectively.

Based on preliminary experiments, we set the

threshold to 0.55. If the interval is classified voiceless

sound, we mapped it to zero. On the other hand, if the

interval is classified voice sound, we find the

frequency which get the largest autocorrelation value

by increasing frequency from 100Hz to 2000Hz.

Then, the frequency which have the largest

correlation values become fundamental frequency of

the interval. The value of autocorrelation is calculated

as the equation (1).

FFMAP

















1,

  0

(4)

Generated FFMAP is as shown in Figure 2. The

horizontal axis of the FFMAP is the length of music.

We call this width. And the vertical axis of it is the

pitch value of the music. Only the pitch value except

the octave value is indicated, but it has a higher octave

value as it is placed higher location.

FFMAP extracted by proposed method has

features that its width can be different from audio to

audio. The height of FFMAP is a range of

fundamental frequency fixed between 100Hz and

2000Hz, whereas the width of it depends on the

length of music. It means that even the same audio

can have different FFMAP’s width through the tempo

or speed modifications. And it leads to inaccuracy

matching. Therefore, we fix the width of extracted

FFMAP by applying affine transform. The expression

of affine transform is as follow in equation (5) and the

cubic spline interpolation is used as an interpolation

method. Based on preliminary experiments, we set

the width to 2000.





x,y





0

0





∗

,

(5)

Where I is an original image, I* is a scaled image, and

w and H are the width and the height of the music.

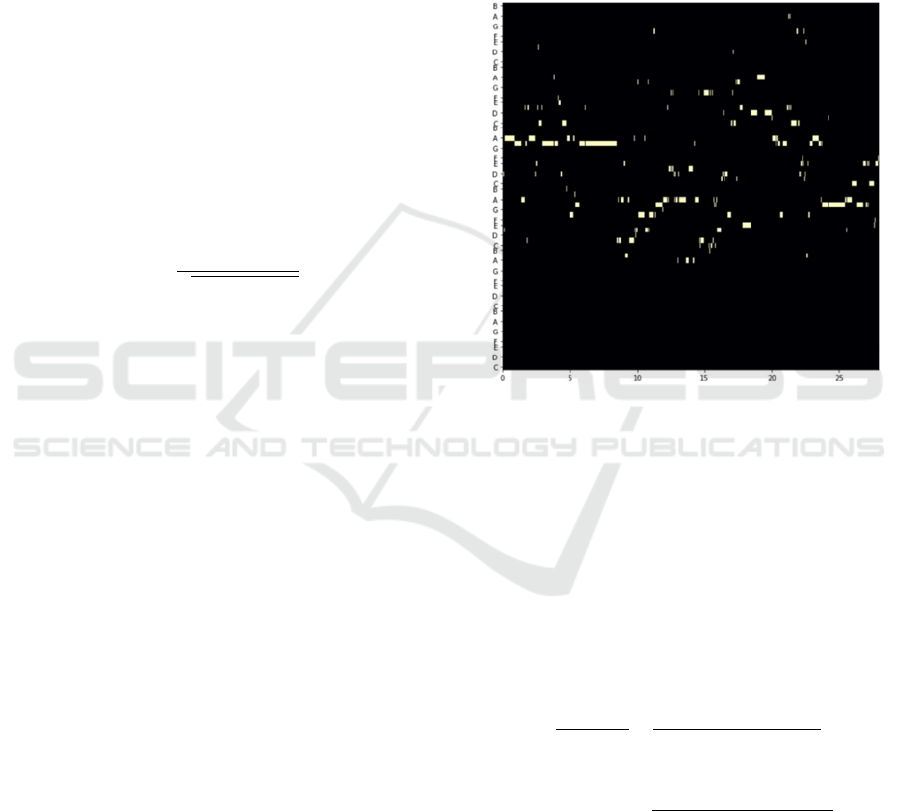

Figure 2: Extracted FFMAP.

2.2 Recognition Algorithm

To perform a search, the above fingerprinting step is

performed on an audio file to generate a set of pitch

array. This is done over for the entire music. Each

array from the audio is used to the database for

matching with unlabeled audio file to match. To

increase the accuracy of the search, Pearson’s

correlation score is used in our calculations. The

expression of Pearson’s correlation score is as

follows.

,



cov



X,Y









































(6)

E



X





Y







∑































(7)

Where each μ



and μ



are mean of population X and

Y, σ



and σ



are the standard deviation of population

X and Y, and m is a number of population objects.

Pearson’s correlation score is correlation score based

on changed in y according to x, unlike the Euclidian

score, which is a correlation score based on the

distance between x and y. Therefore, robust

SIGMAP 2019 - 16th International Conference on Signal Processing and Multimedia Applications

352

fingerprints can be extracted for pitch changes, speed

changes and tempo changes.

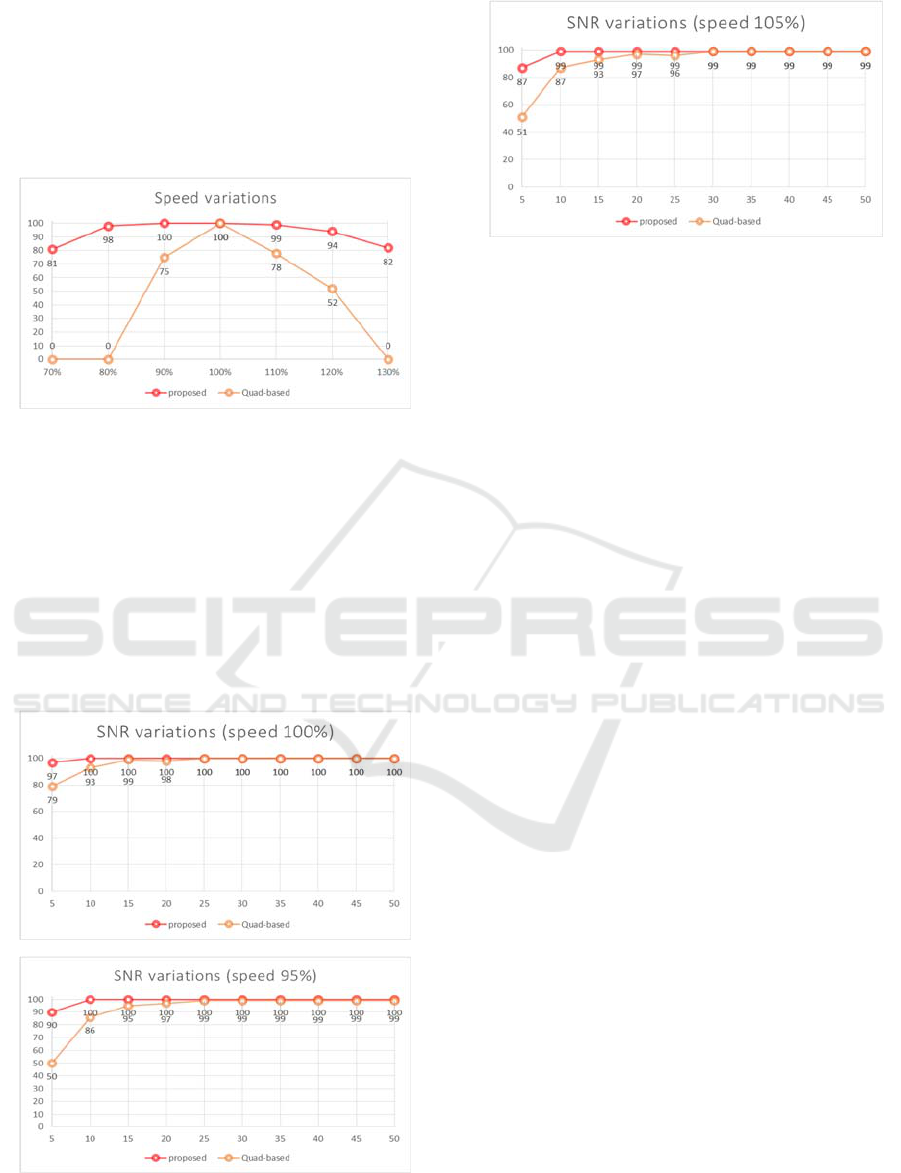

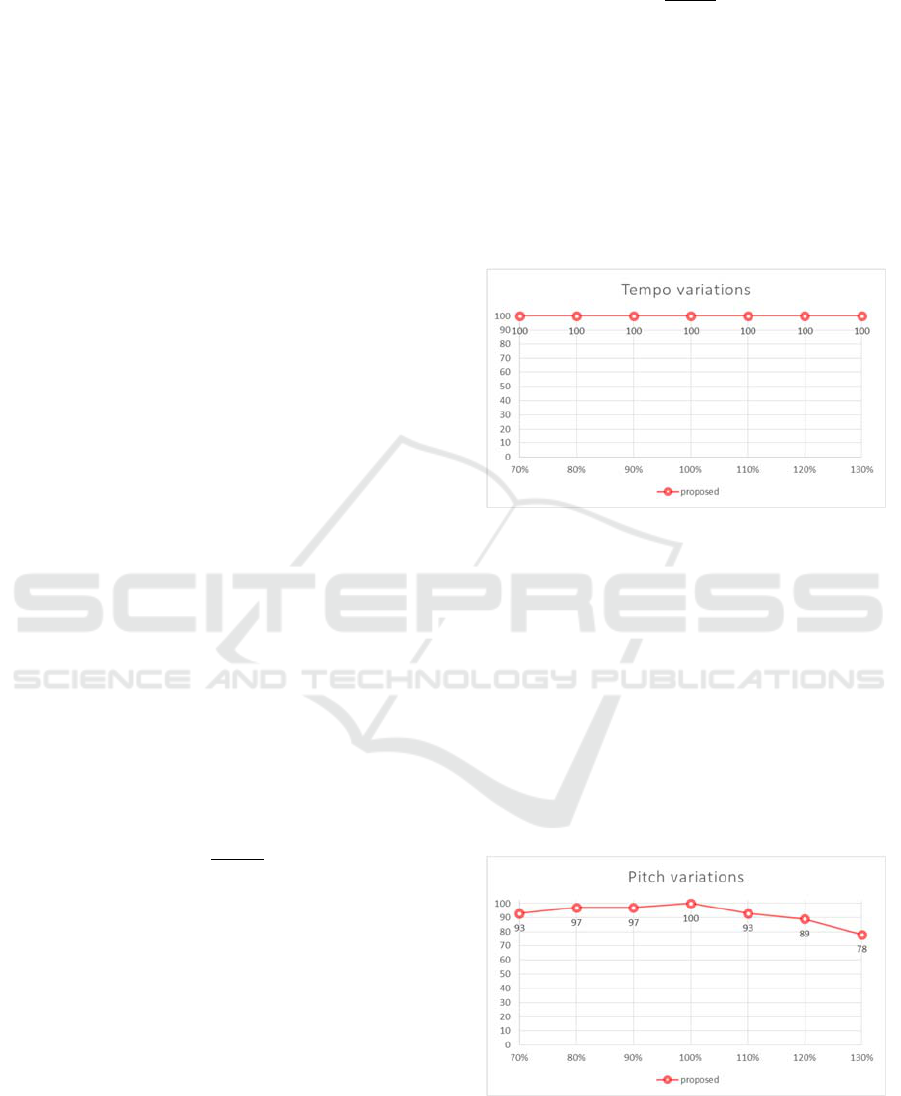

3 EXPERIMENTAL RESULTS

In this section we evaluate the proposed FFMAP

fingerprinting method. We compare it to the

algorithm proposed by Sonnleitner and Widmer

(2014), henceforth referred to as “Quad-based”

To carry out the comparison, we select a total of

100 audios from different genres. Each audio file is

set to mono channel and the sampling frequency is set

to 8000Hz. For each song we generated multiple

attacked versions by modifying it in terms of tempo,

pitch, and speed and noise level. To clarify the terms

given as experimental conditions, if only the

frequency scale is modified, this is called “pitch”

modification. If both time scale and pitch of music are

changed proportionally, it is called “speed”

modification. And changing only the time scale is

referred as a “tempo” modification.

We evaluate the uniqueness of the extracted

fingerprinting. To do so, a database of all the

fingerprints extracted from all the 100 song is created.

The fingerprint database is searched to find potential

matches to fingerprints extracted from each query.

The threshold value of similarity, which is

determined that two audio files generated from the

same source data file are the same data, is set to 0.4.

The matching criteria used by Quad-based are

different (they set the threshold to 0.5). And, we

define one performance measures: Precision is the

proportion of cases, out of all cases where the system

claimed to have identified the reference, where its

prediction is correct. Thus, high precision means low

number of false positives.

Precision 

tpfp

(8)

We tested proposed algorithm against different

distortions including modification of tempo, pitch

and speed rate which are range from 70% to 130% in

steps of 10%. The other distortion environment is the

noise adding. In this environment, we generate noisy

audio by adding white noise to original audio in SNR

level ranges from 0dB to 50dB in steps of 5dB. SNR

is a measure that compared the level of a desired

signal to the level of background noise. It is defined

as the ratio of signal power to the noise power,

expressed in decibel(dB). Therefore, the higher the

SNR value, the higher the signal than the noise. In

case of the speed modification and noise adding, we

compare the performance of proposed algorithm to

Quad-based under the same experimental conditions.

 









(9)

3.1 Tempo Modification

In Figure 3, vertical axis presents the precision of the

proposed algorithm, and horizontal axis signifies the

relative length of the modified audio compared to that

of the original audio. The proposed method has been

100% detected for all tempo-change attacks.

Therefore, the proposed fingerprint is very invariant

about the tempo change.

Figure 3: Precision according to tempo variation.

3.2 Pitch Modification

Here, as an additional factor, we put ‘pitch change

attack’ in an experiment taken in Quad-based and run

the experiment. The precision for the decrease of

semitone was relatively higher than the detection rate

for the increase of the original data. And as precision

shows in Figure4, high detection rates are shown in

all conditions except for the 3 semitones increase

attack. Also, the horizontal axis in Figure 4 signifies

the relative pitch degree of the modified audio

compared to the pitch degree of the original one.

Figure 4: Precision according to pitch variation.

3.3 Speed Modification

In speed modification, tempo distortion and pitch

Illegal Audio Copy Detection using Fundamental Frequency Map

353

distortion occur simultaneously, so the robustness for

both should be guaranteed. In Figure 5, horizontal

axis indicates the relative degree both length and

pitch of the modified audio compared to those of the

original audio. And Figure 5 shows that the proposed

algorithm can be seen to be much more robust to the

speed change than Quad-base.

Figure 5: Precision according to speed variation.

3.4 Noise Adding

Last experiment is to confirm the robustness against

complex attacks, which is noise adding and speed

changing. In the experimental environment, we use

the original file and speed changed files (speed

decrease/increase in steps of 5%) applied same noise

adding conditions. As shown in Figure 6 (a), (b) and

(c), we still get better results compared to Quad-

based.

(a)

(b)

(c)

Figure 6: (a) Precision according to SNR variation with

100% audio speed (b) Precision according to SNR variation

with 95% audio speed (c) Precision according to SNR

variation with 105% audio speed.

4 CONCLUSIONS

In this paper, we proposed a new audio identification

method that is highly robust to tempo, pitch, speed

and noise modification. The proposed method is

based on a modified spectrogram representation of

audio signal as frame-fundamental frequency

representation called FFMAP. The audio fingerprint

which is generated from FFMAP achieved high

performance with all experimental conditions

compared to Quad-based. Future research will focus

on other requirements the ideal fingerprinting system.

ACKNOWLEDGEMENTS

This work was supported by Institute of Information

& communications Technology Planning &

Evaluation (IITP) grant funded by the Korea

government (MSIT) (No.2017-0-00189, Voice

emotion recognition and indexing for affective media

service)

REFERENCES

Anguera, X., Garzon, A. & Adamek, T. 2012, "Mask:

Robust local features for audio fingerprinting", 2012

IEEE International Conference on Multimedia and

ExpoIEEE, pp. 455.

Arnold, M. 2000, "Audio watermarking: Features,

applications and algorithms", 2000 IEEE International

Conference on Multimedia and Expo. ICME2000.

Proceedings. Latest Advances in the Fast Changing

World of Multimedia (Cat. No. 00TH8532) IEEE, pp.

1013.

SIGMAP 2019 - 16th International Conference on Signal Processing and Multimedia Applications

354

Bellettini, C. & Mazzini, G. 2010, "A framework for robust

audio fingerprinting.", JCM, vol. 5, no. 5, pp. 409-424.

Cano, P., Batle, E., Kalker, T. & Haitsma, J. 2002, "A

review of algorithms for audio fingerprinting", 2002

IEEE Workshop on Multimedia Signal

Processing.IEEE, , pp. 169.

Chen, M., Xiao, Q., Matsumoto, K., Yoshida, M., Luo, X.

& Kita, K. 2013, "A fast retrieval algorithm based on

fibonacci hashing for audio fingerprinting systems",

2013 International Conference on Advanced

Information Engineering and Education Science

(ICAIEES 2013) Atlantis Press, .

Ewert, S., Muller, M. & Grosche, P. 2009, "High resolution

audio synchronization using chroma onset features",

2009 IEEE International Conference on Acoustics,

Speech and Signal Processing IEEE, pp. 1869.

Haitsma, J. & Kalker, T. 2002, "A highly robust audio

fingerprinting system.", Ismir, pp. 107.

Haitsma, J., Kalker, T. & Oostveen, J. 2001, "Robust audio

hashing for content identification", International

Workshop on Content-Based Multimedia Indexing

Citeseer, pp. 117.

Hu, H. & Hsu, L. 2015, "Robust, transparent and high-

capacity audio watermarking in DCT domain", Signal

Processing, vol. 109, pp. 226-235.

Jiang, N., Grosche, P., Konz, V. & Müller, M. 2011,

"Analyzing chroma feature types for automated chord

recognition", Audio Engineering Society Conference:

42nd International Conference: Semantic AudioAudio

Engineering Society.

Jiao, Y., Yang, B., Li, M. & Niu, X. 2007, "MDCT-based

perceptual hashing for compressed audio content

identification", 2007 IEEE 9th Workshop on

Multimedia Signal Processing IEEE, pp. 381.

Lang, D., Hogg, D.W., Mierle, K., Blanton, M. & Roweis,

S. 2010, "Astrometry. net: Blind astrometric calibration

of arbitrary astronomical images", The astronomical

journal, vol. 139, no. 5, pp. 1782.

Malekesmaeili, M. & Ward, R.K. 2014, "A local

fingerprinting approach for audio copy detection",

Signal Processing, vol. 98, pp. 308-321.

Malekesmaeili, M. & Ward, R.K. 2012, "A novel local

audio fingerprinting algorithm", 2012 IEEE 14th

International Workshop on Multimedia Signal

Processing (MMSP)IEEE, pp. 136.

Milaš, I., Radović, B. & Janković, D. 2016, "A new audio

watermarking method with optimal detection", 2016

5th Mediterranean Conference on Embedded

Computing (MECO) IEEE, pp. 116.

Müller, M., Kurth, F. & Clausen, M. 2005, "Audio

Matching via Chroma-Based Statistical Features.",

ISMIR, pp. 6th.

Seo, J.S. 2014, "An asymmetric matching method for a

robust binary audio fingerprinting", IEEE Signal

Processing Letters, vol. 21, no. 7, pp. 844-847.

Sonnleitner, R. & Widmer, G. 2016, "Robust quad-based

audio fingerprinting",

IEEE/ACM Transactions on

Audio, Speech, and Language Processing, vol. 24, no.

3, pp. 409-421.

Sonnleitner, R. & Widmer, G. 2014, "Quad-Based Audio

Fingerprinting Robust to Time and Frequency

Scaling.", DAFx Citeseer, pp. 173.

Wang, A. 2003, "An Industrial Strength Audio Search

Algorithm.", IsmirWashington, DC, pp. 7.

Wu, C., Su, P. & Kuo, C.J. 2000, "Robust and efficient

digital audio watermarking using audio content

analysis", Security and Watermarking of Multimedia

Contents II International Society for Optics and

Photonics, pp. 382.

Yang, G., Chen, X. & Yang, D. 2014, "Efficient music

identification by utilizing space-saving audio

fingerprinting system", 2014 IEEE International

Conference on Multimedia and Expo (ICME) IEEE, pp.

Illegal Audio Copy Detection using Fundamental Frequency Map

355
