Deeplearning Convolutional Neural Network based QoE Assessment

Module for 4K UHD Video Streaming

Akm Ashiquzzaman

1 a

, Sung Min Oh

, Dongsu Lee

, Hoehyeong Jung

, Tai-won Um

and Jinsul Kim

School of Electronics and Computer Engineering, Chonnam National University, Gwangju, South Korea

Department of Information and Communication Engineering, Chosun University, Gwangju, South Korea

Keywords:

Deep Learning, Convolutional Neural Network, Computer Networks, Video Steaming, 4K UHD, QoE.

Abstract:

With the rapid development of modern high resolution video streaming services, providing high Quality of

Experience (QoE) has become a crucial service for any media streaming platforms. Most often it is necessary

of provide the QoE with NR-IQA, which is a daunting task for any present network system for it’s huge

computational overloads and often inaccurate results. So in this research paper a new type of this NR-IQA

was proposed that resolves these issues. In this work we have described a deep-learning based Convolutional

Neural Network (CNN) to accurately predict image quality without a reference image. This model processes

the RAW RGB pixel images as input, the CNN works in the spatial domain without using any hand-crafted

or derived features that are employed by most previous methods. The proposed CNN is utilized to classify all

images in a MOS category. This approach achieves state of the art performance on the KoniQ-10k dataset and

shows excellent generalization ability in classifying proper images into proper category. Detailed processing

on images with data augmentation revealed the high quality estimation and classifying ability of our CNN,

which is a novel system by far in these ﬁeld.

1 INTRODUCTION

In the edge of 5G telecommunication and high speed

4K UHD streaming technologies, mandatory deliv-

ery of high quality content has become a crucial task.

by 2025, the 4K UHD streaming will become the

main standard of video streaming technologies. Uni-

versal deployment of Dynamic Adaptive Streaming

of HTTP (DASH) is also becoming popular for this

streaming technologies (Van Ma et al., 2018). Popu-

lar video streaming services such as Youtube, Netﬂix,

Amazon Hulu, etc. are moving to these standard re-

cently. These streaming technologies are mainly fo-

cusing on full service and experience provided to the

users to make sure they have the maximum satisfac-

tion in service and quality.

In the past, the concept of Quality of Service

(QoS) has been brought to the attention of a large

number of users as well as service providers and net-

work operators. QoS also has high the investment rate

of telecom operators as well as high concentration of

the network research community, leading to solutions

https://orcid.org/0000-0002-2215-8576

that ensure highly stable and highly efﬁcient (Yoo

et al., 2003). Compared with the concept of QoS,

QoE is a newer concept. QoS simply gives users a

fairly technical sense of service quality. QoS is pri-

marily focused on describing the objective, technical

criteria that the network infrastructure or application

needs to achieve in order to guarantee quality service.

In other words, QoS can be considered as the general

technical language of the quality that applications and

network infrastructure used. Consequently, we must

establish a general description model which easy to

understand for end-users of a service. That is the con-

cept of QoE. In fact, QoE is a common language for

applications and end users (Nam et al., 2016). It is

used in the approach of a user to evaluate QoS. In

other words, QoE is a measure of the satisfaction of

people with the service they are using based on sub-

jective judgment. Thus, QoE can be synthesized from

pure QoS and other non-technical factors such as the

characteristics of the human visual and auditory sys-

tem, etc. The main differences can be distinguished in

the Figure 1. The emergence of the QoE concept will

most likely lead to certain changes in the market ap-

proach of video streaming service providers. Rather

392

Ashiquzzaman, A., Oh, S., Lee, D., Jung, H., Um, T. and Kim, J.

Deeplearning Convolutional Neural Network based QoE Assessment Module for 4K UHD Video Streaming.

DOI: 10.5220/0008117903920397

In Proceedings of the 9th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2019), pages 392-397

ISBN: 978-989-758-381-0

QoE

Measurement

QoS

Measurement

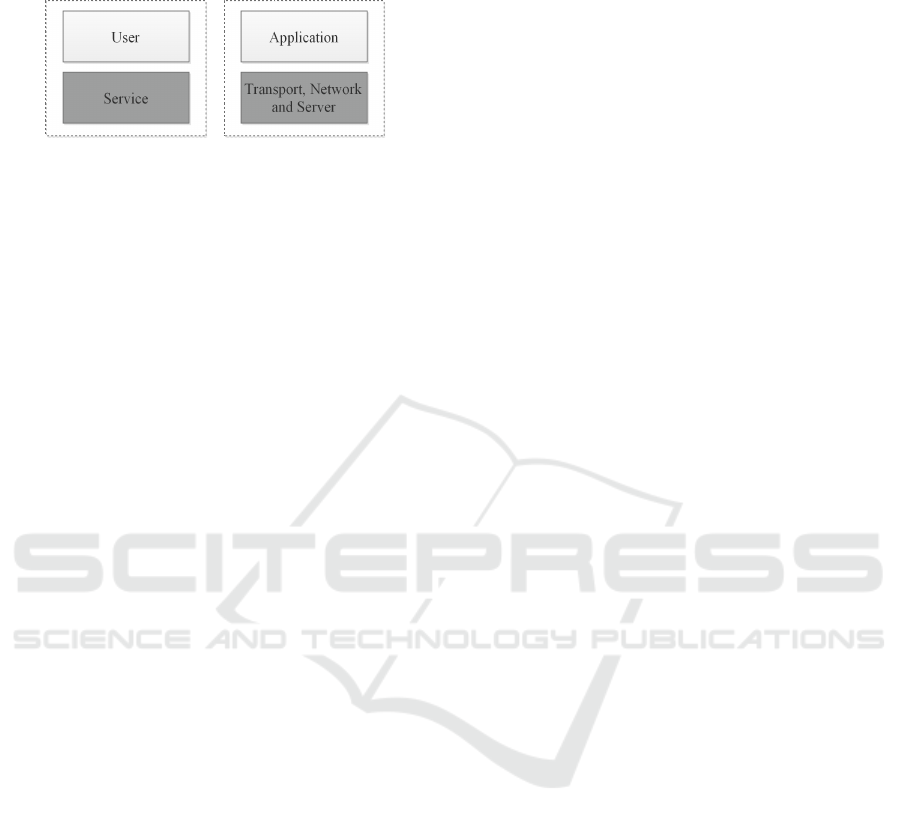

Figure 1: Comparison Between QoS and QoE shown in a

simpliﬁed graph.

than focus on QoS, QoE-related issues will be cen-

tered.

In this Research, the main QoE assessment model

was developed with the NF-IQA that is developed

with CNN with classify the given images in it’s dis-

tinctive MOS. The main idea of this CNN is to clas-

sify images that is being sampled in various time do-

main in a steaming in edge side then classify the MOS

to asses the maximum MOS to ensure best QoE. The

train CNN has outperformed the state of the art CNN

models and later the CNN will deployed into the QoE

assessment tool shown excellent result, that paves the

way to deeplearning based CNN in the QoE assess-

ment tools.

The rest of the paper is organized as follows. The

Section 2 describes the previous works and Section 3

describes the dataset and the processing of it to train

the CNN, Section 4 discusses the proposed methods

of the model. Section 5 describes the experiment and

result followed by the Conclusion in Section 6.

2 RELATED WORKS

To the best of our knowledge, deep learning CNN has

not been applied to general-purpose QoE assessment

Models. The primary reason is that the original CNN

is not designed for capturing image quality features.

In the object recognition domain good features gen-

erally encode local invariant parts, however, for the

NR-IQA task, good features should be able to capture

the aesthetics of the images as a whole. because of

this problem, the CNN based QoE model has not yet

been properly researched.

For providing the best QoE, the component has

to master the Video Quality Assessment (VQA). In

general, most of the module has to understand Image

Quality Assessment(IQA), as video sampled in ran-

dom time to ensure proper quality is essentially im-

ages. Visual quality is a very tiresome yet important

property of an image. In principle, it is the calcu-

lated of the distortion compared with an ideal imag-

ing model or perfect reference image. This type of

system is usually know as the Full Reference (FR)

IQA model (Sheikh et al., 2005). State of the art

FR IQA models have always the best performance as

it directly quantify the differences between distorted

images and their corresponding ideal versions. As a

result, this achieves a very high accuracy of correlated

to human eyes, which is essentially the experience

center.

In the technical sense, all the QoE model build

based on this principles have to be ensured to pro-

vide the base or main reference image to compare.

But the main drawback of such models are often the

model has no reference image due to the conﬁgura-

tion of the network of systems. This is also known

as the NR (No Reference) IDA. As NR-IQA can di-

rectly asses image quality by exploiting features, it

is easier to deploy in a standalone systems. So, the

NR IQA gives the image quality by justifying the

image aesthetics or the characteristics that is corre-

lates to human eyes. Recently, deep neural networks

have research and deemed optimal for recognitions

and achieved great success on various computer vi-

sion tasks. Speciﬁcally, CNN (Convolutional Neural

Network) has shown superior performance on many

standard object recognition benchmarks (Krizhevsky

et al., 2012). The main advantages of these models

that it takes raw images, as in pixels in the input and

incorporate feature learning to classify output. With a

deep structure, the CNN can effectively learn com-

plicated mappings while requiring minimal domain

knowledge.

Kang et al. (Kang et al., 2014) described a CNN

for no-reference image quality assessment. But the

CNN take input as the grayscale rather than the RGB

and had linear optimization process. This type of pro-

cess is computationally enriched and often had prob-

lems in QoE model implementation.

This research was inspired by our previous re-

search about MEC (Van Ma et al., 2018) with content-

awareness component which is placed at MEC to re-

trieve DASH information for clients. On the basic

of research on fuzzy logic to obtain DASH segments

with high quality, we deploy segment selection for

DASH streaming to MEC. As a result, it reduces net-

work latency as well as the computation resource of

clients with high streaming quality. However, the as-

sessment module needs to be in a state of art NF IQA

based model that can classify the hi resolution images

and later it will adjust the service based on the quality.

The CNN based research in this ﬁeld is novel.

Deeplearning Convolutional Neural Network based QoE Assessment Module for 4K UHD Video Streaming

393

3 DATASETS

Neural network based research needs a high amount

of reliable data for accurate learning. There should be

a variety of data distributed in the label or class prop-

erly for the neural network to learn the distinguished

features. A variety of IQA databases have been re-

leased nowadays for focusing mainly on the develop-

ment. but most of the datasets are not focused on the

quantity. As the main focus of the research was to

develop the neural network or CNN for the VQA, the

KonIQ-10k Dataset was the perfect choice for this re-

search.

3.1 KonIQ-10k Dataset

In our research the main focus to development a

fully automated QoE assesment model for the NF

VQA. The model was trained eith the KonIQ-10k

Dataset(Lin et al., 2018) for this purpose. in this

dataset, 10, 073 images were sampled from around

4.8 million images with 120 quality ratings, which

were obtained the Mean Opnion Score (MOS) by

crowd sourcing performed by a total of 1, 467 crowd

workers.

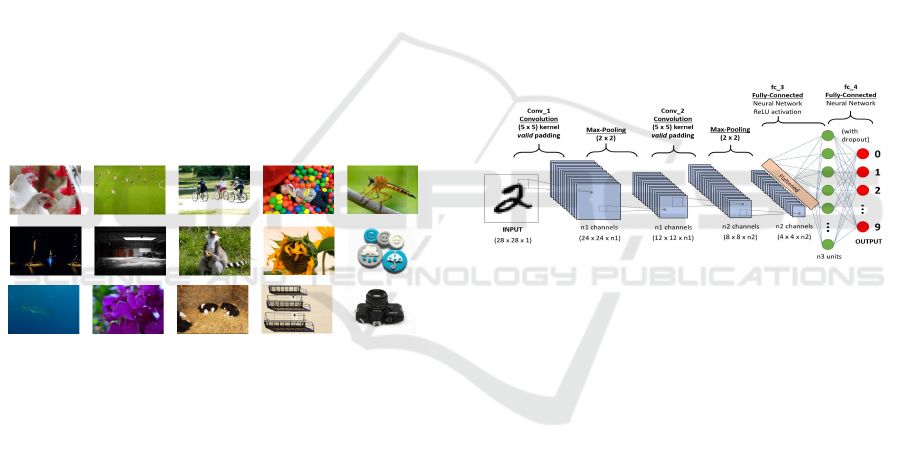

Figure 2: KonIQ-10k Dataset Image examples.

In Figure 2, some example images were seen that

has variable MOS based on the aesthetic quality of the

given images.

The main goal of deeplearning to generalized

learning. In our study, we’ve focused into the image

augmentation as our data mainly hovers around visual

elements of images to illustrate various images states,

basically augmenting the images makes it even more

generalized for the neutal network to learn as it will

not learn any focused area in single instances. This

Augmentation expands the volume of training data,

resulting more accuracy in generalized validation.

All the images in the dataset then later processed

and classify into 4 categories of MOS scores based on

the ﬂooring of the original MOS scores and thus the

values were transfers from continuous to a categorical

ones. These images then used in data augmentation

mode makes the train more robust and higher accu-

racy in classifying in model validation.

4 PROPOSED METHODS

4.1 Convolutional Neural Network

Hubel and Wiesel in 1960s demonastrated animal

visual cortex contains neurons that perticullarly re-

sponds to speciﬁc area of the perspective ﬁeld(Jung

et al., 1963). So the theory of Convolutional Neu-

ral Network evolved by compute convolution in the

input matrix to exploit edge features for the network

to clssify and respond. Images, signal waves, sound,

etc. are essentially digital signals that are represented

in a multi-dimensional arrays. Lecunn et al. (Le-

Cun and Bengio, 1995) ﬁrst uses convolutional neu-

ral networks successfully with backpropagation algo-

rithm to optimize and gradient update (Hirose et al.,

1991). Krizhevsky et al. (Krizhevsky et al., 2012)

proposed convolutional neural network model that

won the 2012 Imagenet model and this research even-

tually give the rise of CNN usage in various image

classiﬁcation applications.

Figure 3: A Common CNN architecture, build with Keras

(Ashiquzzaman and Tushar, 2017).

In the Figure 3, The common architecture of a

classifying CNN is shown. Based on the given labels

and the input, the whole model will learn to repre-

sentation of images and map the features to the given

label.

4.2 Activation Functions

In neural network, it is vitally important to use proper

activation function. As the proposed model is mainly

used convolutional layers for classifying into proper

MOS category, ReLu (Rectiﬁed Linear Unit) has been

selected for it’s linear characteristics. As shown in the

Equation 1, the Relu function gives the proper linear

output for the given input and the function is easier to

calculate in computational perspectives.

Relu(p) =



0 f or p < 0

1 f or p ≥ 0

(1)

SIMULTECH 2019 - 9th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

394

4.3 Regularization or Batch

Normalization

Batch normalization reembersed gradient ﬂow

through the neural net which allows higher learning

rate. moreover, it reduces strong dependence on

initialization, because initial values even out due

to normalization within batch. Essentially, batch

normalization is a form of regularization where

representation of an input at some layer is tied with

other inputs in the same batch. Therefore, output

of a node now turns into the function of input and

other inputs in same batch. This in turn helps in

generalization in representation space on that layer

(Ioffe and Szegedy, 2015).

Algorithm 1: Batch Normalization by Ioffe and Szegedy

(Ioffe and Szegedy, 2015).

1: procedure BATCH NORMALIZATION(x)

2: Input: x → B = {x

, ··· , x

}

3: Output: y

= BN

γ,β

)

4: µ

←

∑

i=1

) mini-batch mean

5: σ

←

∑

i=1

− µ

)

mini-batch variance

6: ˆx

←

− µ

)

− ε

normalize

7: y

← γx

+ β ≡ BN

γ,β

) scale and shift

8: end procedure

Here the algorithm 1 by Ioffe and Szegedy is ex-

plained above.

4.4 Proposed Network Conﬁguration

The proposed Neural Network model that used for the

assessment tool is proposed in the following way. As

the whole CNN has to process the images and map

the features according to the output MOS category.

As discussed in the Section 3, the whole images were

converted into distinctive image classes according to

the MOS scores. In The Table 1, The whole model

architecture was shown by layer wise conﬁguration.

The main convolutional layers were added in vari-

ous ﬁlter size based, but the main modiﬁcation in this

model were the batch normalization layer distribution

in each models to ensure proper unbiased learning.

Later the model were pooled and the densely con-

nected layers mapped and merged the whole model to

classify. The main main input layer takes the imgages

as the input. This layer follows by another same 64 ﬁl-

ters convolution layer with 3 × 3 kernel and followed

Table 1: Architecture of Proposed Deep Neural Network.

Layer

Number of

Neurons

Activation

Function

Kernel

Size

Convolutional 64 ReLu 3x3

Max Pooling N/A N/A 2x2

Batch Nor-

malization

N/A N/A N/A

Convolutional 32 ReLu 3x3

Max Pooling N/A N/A 2x2

Batch Nor-

malization

N/A N/A N/A

Convolutional 32 ReLu 3x3

Max Pooling N/A N/A 2x2

Batch Nor-

malization

N/A N/A N/A

Convolutional 32 ReLu 3x3

Max Pooling N/A N/A 2x2

Fully

Connected

150 ReLu N/A

Fully

Connected

30 ReLu N/A

Output

4 Softmax N/A

by a simple 2 × 2 Maxpolling to reduce the calcula-

tion overhead. Layers above the previous described

had the same conﬁguration, but instead of 64 ﬁlters

in each convolutional layer, it consisted of 32 ﬁlters.

The output layers has 4 dense output. the other dense

layers were conﬁgured with [150, 30] neurons in each

hidden layers. The whole model was designed to clas-

sify the images based on the MOS category it origi-

nally belongs.

The CNN model used in the based on the proposed

model is simpliﬁed and shown in the Fig. 4. The

experimental model was build based on this diagram.

5 EXPERIMENTS AND RESULT

ANALYSIS

We employ FNCP (Future Network Computing Plat-

form) to build a video delivery streaming system.

The FNCP is built based on the NFV (Network

Function Virtualization) proposed by ETSI (European

Telecommunications Standards Institute). Thanks

to its virtualized functions, we can quickly place a

database server or a web server within a short time

(in minutes). Besides, we can also reorganize or re-

construct network functions if we want to add or re-

move a component aiming to improve streaming qual-

ity. This task was intensively in the past because all

of the tasks were done/processed with physical ma-

chines (computers).

Deeplearning Convolutional Neural Network based QoE Assessment Module for 4K UHD Video Streaming

395

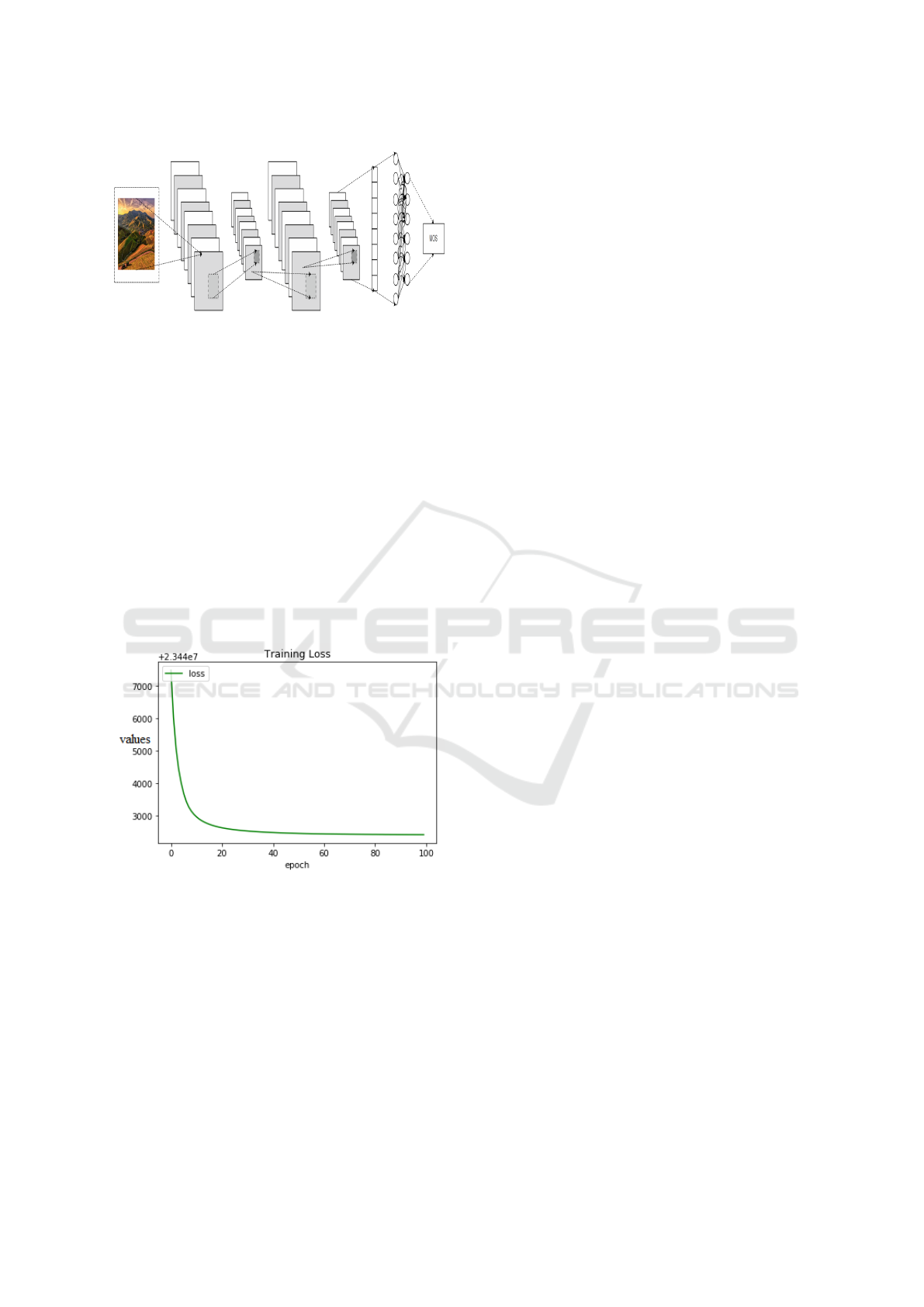

Figure 4: Proposed CNN model.

The QoE assessment model CNN was deployed

in the python based program module in the machine.

Experimental model was implemented in Python us-

ing Tensorﬂow and Keras libraries. The model is

trained for 100 epoch with different initalization. The

batch size is 128 for both training and testing. Cate-

gorical crossentropy is used as the loss function in this

model. Adadelta optimizer (Zeiler, 2012) is used to

optimize the learning process. Among the 10300 im-

ages, 9500 are used for training and 700 is used in val-

idation. We have used a computer with CPU intel i7-

9700U CPU @ 4,30GHz and @ 32GB RAM. Nvidia

Geforce GTX 1050 ti dedicated graphics is used for

faster computation, i.e CUDA support for accelerated

training is adopted. The loss reduction of the CNN

can be seen in the Fig.5 below.

Figure 5: CNN loss visualization during training.

The resulted assessment model successfully la-

beled the images based on it’s learning and the whole

model achieved a 78% accuracy over whole aug-

mented learning. The previous all methods described

models with more accuracy, although all other meth-

ods had pre-computed layers or some modern tech-

nique is included. This experiment process has the

raw RGB hi-def image as input and the whole model

were trained to classify only by assessing the pixel

values. The proposed model is thus the novel rep-

resentation of the QoE assessment tools and had the

state of the art accuracy.

6 CONCLUSIONS

4K or ultra-high-deﬁnition (UHD) will be the stan-

dard for video streaming in the next decade. In this

research, we carry a study on deeplearning CNN QoE

assessment tool which is a crucial adaptive algorithm.

More speciﬁcally, we employ deep learning CNN al-

gorithm in the form of quality of experience (QoE).

In fact, QoE is an important factor to evaluate the ef-

ﬁciency of streaming transmission models. In this re-

search article, we mainly focus on QoE performance

analysis of streaming models to improve and ensure

high quality (4K and UHD) streaming service in NFV.

The developed CNN was state of the art QoE assess-

ment tool with state of the art accuracy. The proposed

model was crucial in the NR-VQA assessment model

building up. In the future work, the main focus of this

research will be applying some Autoencoder based

data reduction model to reduce overhead and then ap-

ply it to the main CNN model for faster assessment.

ACKNOWLEDGEMENTS

This research was supported by the MSIT(Ministry

of Science and ICT), Korea, under the

ITRC(Information Technology Research Center)

support program(IITP-2018-2016-0-00314) super-

vised by the IITP(Institute for Information & com-

munications Technology Promotion). Besides, this

research was supported by Basic Science Research

Program through the National Research Foundation

of Korea (NRF) funded by the Ministry of Education,

Science, and Technology (MEST)(Grant No. NRF-

2017R1D1A1B03034429) and was also supported

by Institute for Information & communications Tech-

nology Promotion (IITP) grant funded by the Korea

government (MSIT). [2018-0-00691, Development of

Autonomous Collaborative Swarm Intelligence Tech-

nologies for Disposable IoT Devices]. Finally, This

work was supported by Electronics and Telecommu-

nications Research Institute(ETRI) grant funded by

ICT R&D program of MSIT/IITP[2200-2019-00008,

Hyper-Connected Common Networking Service

Research Infrastructure Testbed].

REFERENCES

Ashiquzzaman, A. and Tushar, A. K. (2017). Handwritten

arabic numeral recognition using deep learning neu-

ral networks. In Imaging, Vision & Pattern Recog-

nition (icIVPR), 2017 IEEE International Conference

on, pages 1–4. IEEE.

SIMULTECH 2019 - 9th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

396

Hirose, Y., Yamashita, K., and Hijiya, S. (1991). Back-

propagation algorithm which varies the number of

hidden units. Neural Networks, 4(1):61–66.

Ioffe, S. and Szegedy, C. (2015). Batch normalization: Ac-

celerating deep network training by reducing internal

covariate shift. In International Conference on Ma-

chine Learning, pages 448–456.

Jung, R., Kornhuber, H., and Da Fonseca, J. S. (1963). Mul-

tisensory convergence on cortical neurons neuronal

effects of visual, acoustic and vestibular stimuli in the

superior convolutions of the cat’s cortex. Progress in

brain research, 1:207–240.

Kang, L., Ye, P., Li, Y., and Doermann, D. (2014). Convolu-

tional neural networks for no-reference image quality

assessment. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 1733–

1740.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. In Advances in neural information process-

ing systems, pages 1097–1105.

LeCun, Y. and Bengio, Y. (1995). Convolutional networks

for images, speech, and time series. The handbook of

brain theory and neural networks, 3361(10):1995.

Lin, H., Hosu, V., and Saupe, D. (2018). Koniq-10k:

Towards an ecologically valid and large-scale iqa

database. arXiv preprint arXiv:1803.08489.

Nam, H., Kim, K.-H., and Schulzrinne, H. (2016). Qoe

matters more than qos: Why people stop watching cat

videos. In IEEE INFOCOM 2016-The 35th Annual

IEEE International Conference on Computer Commu-

nications, pages 1–9. IEEE.

Sheikh, H. R., Bovik, A. C., and De Veciana, G. (2005). An

information ﬁdelity criterion for image quality assess-

ment using natural scene statistics. IEEE Transactions

on image processing, 14(12):2117–2128.

Van Ma, L., Ashiquzzaman, A., Kim, S. W., Lee, D., and

Kim, J. (2018). Machine learning-based qoe perfor-

mance analysis for dash streaming in nfv. In Proceed-

ings of KIIT Summer Conference, pages 83–86.

Yoo, S.-J., Kwak, K.-S., and Kim, M. (2003). Predictive

and measurement-based dynamic resource manage-

ment and qos control for videos. Computer Commu-

nications, 26(14):1651–1661.

Zeiler, M. D. (2012). Adadelta: an adaptive learning rate

method. arXiv preprint arXiv:1212.5701.

Deeplearning Convolutional Neural Network based QoE Assessment Module for 4K UHD Video Streaming

397
