Explorations and Lessons Learned in Building an Autonomous Formula

SAE

Car from Simulations

Dean Zadok

b,1

, Tom Hirshberg

b,1

, Amir Biran

, Kira Radinsky

and Ashish Kapoor

Computer Science Department, Technion, Haifa, Israel

Microsoft Research, Redmond, WA, U.S.A.

Keywords:

Autonomous Driving, Imitation Learning, Deep Neural Networks.

Abstract:

This paper describes the exploration and learnings during the process of developing a self-driving algorithm

in simulation, followed by deployment on a real car. We speciﬁcally concentrate on the Formula Student

Driverless competition. In such competitions, a formula race car, designed and built by students, is challenged

to drive through previously unseen tracks that are marked by trafﬁc cones. We explore and highlight the

challenges associated with training a deep neural network that uses a single camera as input for inferring car

steering angles in real-time. The paper explores in-depth creation of simulation, usage of simulations to train

and validate the software stack and then ﬁnally the engineering challenges associated with the deployment of

the system in real-world.

1 INTRODUCTION

Machine Learning (ML) paradigms such as su-

pervised learning, imitation learning, learning-by-

demonstration and transfer learning are signiﬁcantly

transforming the ﬁeld of robotics. However, training a

real-world robot is quite challenging due to high sam-

ple complexity of these methods - successful training

of deep Neural Networks require millions of exam-

ples. The primary means to solve this problem has

been to train models in simulation and then deploy

them in the real world. There are various challenges

with such a workﬂow (Tan et al., 2018; Peng et al.,

2017) and this paper explores these issues by creating

a real-world autonomous car that was trained com-

pletely end-to-end in a simulation.

In particular, the objective of this work was to

create an autonomous formula student car that could

compete in an international self-driving formula stu-

dent competition in Germany. The competition takes

place on a professional Formula racetrack. Two lines

of trafﬁc cones (blue and yellow cones) deﬁne the

track. Note that the track is unknown prior to the race,

so the goal was to create an autonomous system that

could maneuver around accurately on arbitrary and

A student formula design competition organized by

SAE International (previously known as the Society of Au-

tomotive Engineers).

The authors contributed equally to this work.

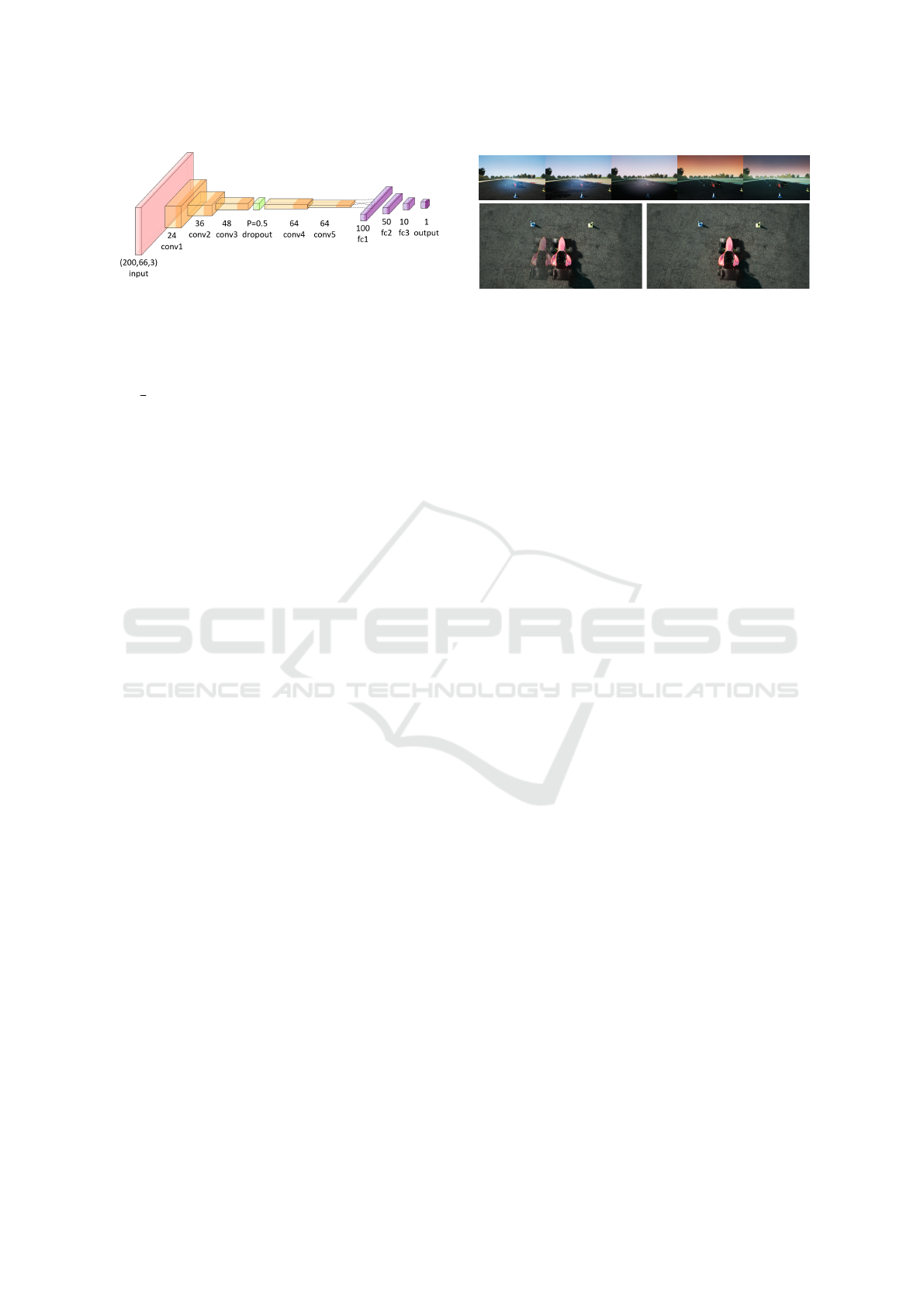

Input DNN Controller

Figure 1: End-to-end deep learning approach. The con-

troller acts according to a predicted steering angle from the

trained DNN. The predicted steering angle is inferred from

a region of interest of a given image. This methodology is

applied both in simulation, and in real-world environments.

unfamiliar tracks. Further, the race scene could po-

tentially include ad signs, tires, grandstands, fences,

etc.

There are several challenges associated with de-

signing and implementing such a system. First, creat-

ing a test environment in order to engineer such a sys-

tem is not only cumbersome and expensive, but also

quite complex due to safety considerations. Secondly,

building an end-to-end system requires several com-

plex engineered systems, both in hardware and soft-

ware, to work together - often such integrations are

challenging, and such dependencies can greatly im-

pede rapid development of individual systems (e.g.,

progress on autonomous software stack crucially de-

pends upon bug-free hardware). Finally, much of the

recent autonomous system modules depend upon the

ability to collect a large amount of training data. Such

data collection is not scalable in real-world due to

both the complexity as well as resource requirements

414

Zadok, D., Hirshberg, T., Biran, A., Radinsky, K. and Kapoor, A.

Explorations and Lessons Learned in Building an Autonomous Formula SAE Car from Simulations.

DOI: 10.5220/0008120604140421

In Proceedings of the 9th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2019), pages 414-421

ISBN: 978-989-758-381-0

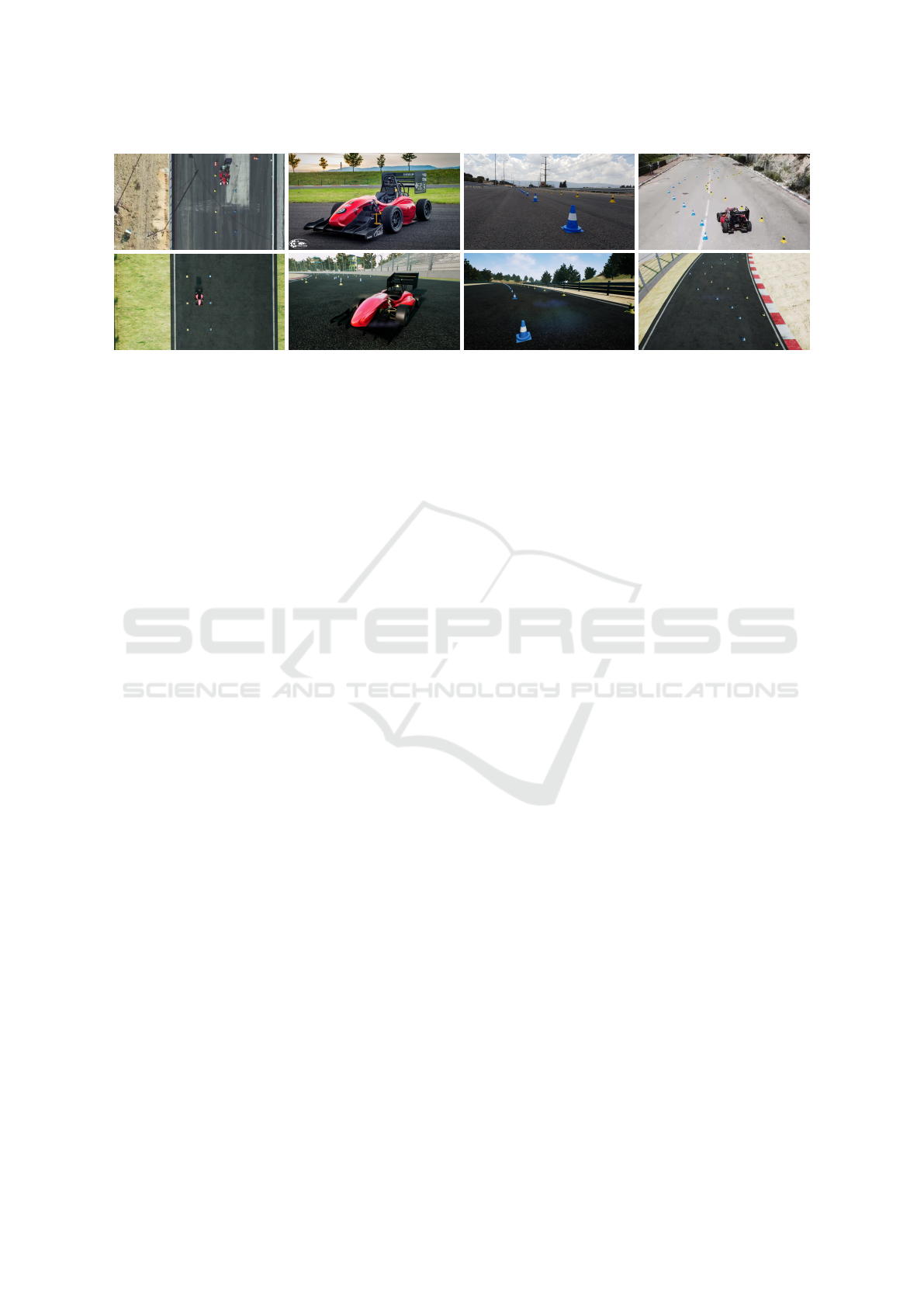

Figure 2: Images taken from our simulated environment (bottom) and from real tracks we have driven in (top). The simulation

was built to have objects resemble their real-world counterparts precisely, including the exact trafﬁc cones and our Formula

SAE car. Both the real world and the simulated environments consisted of straight and swerved tracks as shown. Our model

was trained in simulation only and was executed in a real-world environment.

to carry out such training missions.

We alleviated these problems by training and val-

idating our autonomous stack in simulation. Such

simulations allow us to mitigate risks associated with

safety, enable us to bypass the need to access a closed

off-road track and minimize the dependency on the

development of the hardware stack. Most impor-

tantly, such simulations allow us to gather data at

scale, in a wide variety of conditions, which is not fea-

sible in real-world. Our simulations consist of a dy-

namic model of the custom car, a variety of racetrack

scenes and synthesis of different weather conditions.

We explore and demonstrate that such simulations can

indeed be very useful in building autonomous systems

that are deployed in real-world. We especially high-

light the importance of creating high-ﬁdelity scenes

that mimic the real-environment. We also aim to build

our models completely in simulation, without requir-

ing the system ever to see the real tracks.

At the heart of the system is a Deep Neural Net-

work (DNN) which is trained via imitation learning

(Codevilla et al., 2018). The main task of the DNN is

to predict the desired set of actions the car should take

in real time, given the state the car was in relative to

the environment. The DNN was trained to imitate the

actions of test subjects who ﬁrst drove the car around

in the simulation during the training data collection

phase. We also investigate challenges associated with

deploying such a trained model on a real car. Specif-

ically, transferring the trained model from simulation

to the real-world consisted of creating a computation-

ally efﬁcient deployment on an edge device that could

result in a high frame-rate, for real-time predictive

performance. This part of our work required vari-

ous optimizations from software engineering includ-

ing the ability to operate using low-power systems. In

summary, various contributions of this paper include:

• An end-to-end design and deployment of an au-

tonomous stack that can drive a custom Formula

SAE car.

• Unique augmentations that alleviate the recording

procedure and improve the trained model substan-

tially.

• A detailed overview of how such predictive sys-

tems trained in simulations can be deployed on a

system that operates in a real-world environment.

The implementation is available at the repository

https://github.com/FSTDriverless/AirSim.

2 RELATED WORK

The industry of autonomous driving has seen a lot of

changes over the past few years. The improvements

in computer vision applications using deep learning

tools had encouraged teams to turn to modern meth-

ods rather than using classic algorithms, or to have

incorporated these new technologies in hybrid-type

approaches. The DARPA competition, initiated in

2004, served as a ground for teams to advance au-

tonomous technologies in a signiﬁcant manner. Such

team describes in (Urmson et al., 2008) the vehicle

that had won the 2006 ”Urban Challenge” - a part of

the DARPA competition that year. The mechanism

they used was composed of a perception system, and

of three algorithmic components - mission, behav-

ioral, and motion planning. The model they used, as

was common in autonomous driving algorithms at the

time, attempted to deal with the complexity of the task

by modularizing the decision process and addressing

each module seperately - as opposed to an end-to-end

approach as described by our work.

As shown by the above example of the DARPA

winner, autonomous driving common practices in-

clude separately addressing two stages of the pro-

Explorations and Lessons Learned in Building an Autonomous Formula SAE Car from Simulations

415

cess, one being perception and optional world model

maintenance, and the other being the decision making

process. The perception stage includes localization,

which is often addressed using either Lidar (Levinson

and Thrun, 2010), a camera (Brubaker et al., 2016),

or a combination of both(Xu et al., 2017). Percep-

tion may also include ofﬂine obstacle mapping such

as in SLAM(Valls et al., 2018), which will be dis-

cussed further on. Given the above sensor data, the

self-driving system implements an object detection

mechanism, that is usually based on deep-learning

methods (Li et al., 2019; Kiran et al., 2018). The

decision making process involves analysis and infer-

ence over the internal world model, or directly over

raw sensor data. Many classical graph-based trajec-

tory planning methods are still being improved and

incorporated into hybrid models (Bast et al., 2016).

Opposed to graph-based policy algorithms we ﬁnd

end-to-end approaches which use neural network im-

age processing (e.g., bounding box object detection

as in YOLO (Redmon et al., 2015) and semantic seg-

mentation (Chen et al., 2017)) to infer policies from

data which can be either raw or processed sensor in-

put (Glassner et al., 2019; Mehta et al., 2018).

In 2017, the ﬁrst Formula Student Driverless

(FSD) competition took place, with only four teams

passing regulations for full participation. Since it was

the ﬁrst time the competition was held, most of the

teams took conservative approaches by implementing

algorithms which are based on classic methods, and

were attempting to get through the race track care-

fully and steadily. The system that won the ﬁrst FSD

competition is called SLAM (Valls et al., 2018). In

this method, the vehicle drives very slowly during the

ﬁrst lap. This is done in order to generate an accurate

internal model of the track, so that in the next laps the

car can drive through the track faster and navigate by

maneuvering between obstacles without using visual

sensors or high-computation demanding inference al-

gorithms.

Sim-to-real approaches have also been extensively

researched in recent years (James et al., 2018; Cheb-

otar et al., 2018). Such models attempt at overcom-

ing differences between the real world and simulation

and beneﬁting from the endless amount and varia-

tion of data attainable on simulation, when used prop-

erly. Sim-to-real was used to train quad-copters (Tan

et al., 2018), mechanical robotics control (Peng et al.,

2017), and self-driving vehicles (You et al., 2017).

3 METHOD

3.1 Training Environment

Our simulation is based on AirSim (Shah et al., 2018),

an open source simulation platform that is designed to

experiment algorithms for various autonomous ma-

chines. To take advantage of the simulation, we in-

vested our efforts in preparing a realistic simulation

environment that will ease the sim-to-real process.

First, we designed a graphic model according to the

prototype model that was made by the Technion For-

mula student team, prior the assembly of the original

car. For this task, adjustments were made to the bone

structure of the vehicle, along with the creation of the

original materials and textures that were used to build

the real car. This also included the drivetrain that

served as a foundation for a realistic dynamic model.

For this task, we cooperated with the engineers that

were in charge of assembling the same car. Together,

we adjusted mechanical components such as engine

structure and gear, along with wheels and body prop-

erties, to have the simulated car behave similarly to

the real one. To assure the correctness of the driv-

ing behavior, we measured lap times in simulation

while using different track segments, and compared

them to the real car performance. As for the envi-

ronment itself, we modeled different types of trafﬁc

cones, according to the competition’s regulations. To

improve the variation of the data, we created a tool to

efﬁciently draw varied track segments. Examples for

the similarity between our simulated environment to

the real one are shown in ﬁgure 2.

Another important stage for easing the process of

moving from the simulation to the real world, was

adjusting the simulated sensors to behave as close to

the real ones. This was mainly composed of simulat-

ing the camera precisely, by placing it in the same

position and adjusting technical properties accord-

ingly, e.g., ﬁeld of view and light sensitivity. For

data recordings, we drove using a pro-level gaming

steering wheel, so that for each captured image, we

obtained an accurate steering angle, along with meta-

data related to the current state of the driving, such as

speed, throttle, brake and previous steering angle.

3.2 Model Architecture

Our DNN architecture is a modiﬁed version of Pilot-

Net (Bojarski et al., 2016), an end-to-end network ar-

chitecture that is designed to predict steering values

for autonomous vehicles, based on a single captured

image. Our modiﬁcations include using a Sigmoid

layer as ﬁnal activation, which allows us to predict

SIMULTECH 2019 - 9th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

416

Figure 3: Illustration of our modiﬁed PilotNet. We added a

dropout layer (in green) in the middle of the convolutional

block, ReLU as activation functions after each hidden layer

and a Sigmoid activation function following the last layer.

ˆy ∈ [0, 1] as direct steering angle, instead of comput-

ing

ˆr

where ˆr is the circuit radius leading to the pre-

dicted steering. Also, we added ReLU activation fol-

lowing the hidden layers and a Dropout (Srivastava

et al., 2014) layer with a parameter p = 0.5. A lin-

ear normalization of the image is expected to be per-

formed by the users of the network prior to inference.

A scheme of the ﬁnal network is shown in ﬁgure 3.

3.3 Augmentation and Data

Enhancements

Only a part of the recorded image is relevant in mak-

ing the decision of the appropriate steering angle.

Therefore, as shown in ﬁgure 1, we crop a region

of 200x66 pixels from the image that is fed into the

network. To promote generalization, we used meth-

ods of data distortion and adjustments on sampled im-

ages. The difference in light exposure between real-

world camera images to simulation recorded images

invoked a need for manual change of brightness level.

To address this, we duplicated the images in the pre-

processing phase in variations of up to 40% of the

original brightness. We also used various settings of

weather conditions when recording the data. These

settings include cloud opacity and prevalence, light

intensity and sun temperature. In addition, we used

several post-process distortion methods on some of

the sampled images. These included horizontal line

contribution, horizontal distortion and lens ﬂare re-

ﬂection.

We propose a novel method we call Shifted driv-

ing. Based on the idea of clipping an image and

post-processing the steering angle (Koppula, 2017),

we shift the camera’s position along the width of the

track and post-process the steering angle accordingly,

as illustrated in ﬁgure 4. Avoiding clipping an im-

age and instead maintaining the entire region of in-

terest, allows us to shift the camera’s position more

drastically. Our shifting distance in meters from the

center, d ∈ [−1.75, 1.75], is normally distributed with

zero mean. Using this method improved our ability

Figure 4: Illustration of our augmentation methods. Sam-

ples from CycleLight, a daylight cycle animation, demon-

strating the effect of the time of the day on the environment

(top). Shifted driving from a top view, illustrating the posi-

tion of the car after shifting the camera one meter to the left

(bottom).

to face difﬁcult situations that the car sometimes got

into while self-driving and get back to the center of

the track. It had made a great contribution to the abil-

ity of our model to maintain reliable driving, as will

be discussed in sub-section 4.1. We also propose Cy-

cleLight, a novel method for introducing variation in

recorded driving data in a simulated environment. Cy-

cleLight, as illustrated in ﬁgure 4, is an animation of a

day-light cycle in a changeable, potentially very short

period of time, i.e., by turning this feature on during

recording session, we could collect images from dif-

ferent hours of the day in just a few minutes, instead

of manually recording a whole day in different condi-

tions. The usage of this feature caused the model to

become very robust to changes in shadowing condi-

tions, daytime vs nighttime, ad signs, tire walls etc.

3.4 Database and Recording Strategies

From different drivers, we chose three accurate and

well-trained drivers to record driving sessions. The

overall recording time for these drivers was approxi-

mately 220 minutes. We built several virtual tracks.

Almost half of the recorded data was taken from driv-

ing sessions on tracks which were mostly straight.

For the other recordings, we used curvy tracks in

which the number of left turns and the number of right

turns were balanced. Since our competition regula-

tions determine the distance between cones at each

side of the track to be between 300 and 500 cen-

timeters, we simulated different distances between

cones during our training procedure. Recordings were

done by purposely using two driving styles, norma-

tive and swerved. Normative driving is the sensi-

ble way of keeping close to the center line of the

road, while swerved driving means to constantly turn

sharply from one edge of the road to the other. With-

out swerved driving style, our recordings were safe

and steady, keeping close to the center of the road, not

able to learn extreme situations. This method served

Explorations and Lessons Learned in Building an Autonomous Formula SAE Car from Simulations

417

Table 1: Distribution for usage of the various techniques. Our augmentations contain methods to synthesize a given image,

e.g., adding distortions and reﬂections, along with our unique methods to vary the recording position and animate a day-light

cycle. Each percentage is related only to the mentioned technique, so overlaps between techniques are possible. The last

technique shows that we used an almost equal amount of data from mostly straight tracks and from tracks containing many

turns.

Type Method Percentage of usage

Augmentations

Horizontal line additions 10.0%

Horizontal distortion 11.4%

Light reﬂection 9.9%

CycleLight 77.2%

Shifted driving 22.2%

Recording techniques

Swerved driving 7.5%

Curvy/straight-line 46.1% / 53.9%

the purpose of adding data samples of the car driving

to the edge of the road and returning to the center.

3.5 Real World Setup

The need to react quickly in racing competitions

raises the importance of performing decision making

in high frequencies. Such tasks, and especially tasks

involving deep learning strategies, require an efﬁ-

cient computer that can manage parallel computations

while operating under low-power constraints. While

our entire training procedure was based on Keras, an

API that is not supported in some computer archi-

tectures, running our trained model on such comput-

ers required a transition of the model to TensorFlow

framework. To increase the number of frames per sec-

ond, we optimized our pre-processing phase. The op-

timization included cropping the relevant ROI from a

given image prior to processing and replacing previ-

ous computations. The improvements in performance

of such transition are described in section 4.3 and are

shown in table 3. Our ﬁnal program operates in 45

frames per second on average.

As for our camera, we used a single colored cam-

era with a speciﬁc lens as the input device. The lens

has a FOV (ﬁeld of view) of 60

◦

, like the simulated

one, but it is vulnerable to changes in lighting expo-

sure. Instead of manually adjusting the exposure, we

used a software-based auto-exposure method. Then,

we shipped our steering decisions using a serial port

to the next stage, a micro-controller, that instructed

the car’s steering mechanism in combination with

other dynamic constraints.

4 EXPERIMENTS

For testing our models, we used tracks with speciﬁca-

tions that are dictated by the competition regulations.

The simulation test-track featured driving at noon-

time on mostly straight roads. The track included del-

icate turns, small hills, and shades. The car throttle

value was determined by a function linear in the steer-

ing angle. One lap took 11 minutes of driving, with a

maximum speed of approximately 25 km/h. The met-

ric used for benchmarking was the time passed from

the moment the car started driving until it drove out of

the track, as seen in table 2 and discussed in section

4.1. The experiments composed of various changes

in the initial PilotNet architecture, as demonstrated in

ﬁgure 3, and shown in table 2. In the real-world, the

time of day for testing was mostly noon. We held two

different experiments, one is a completely straight-

line road and the second is a wave-like curved track.

During our benchmarking procedures, we tried

different modiﬁcations to the network. Table 2 shows

the main points of change along with our training pro-

cedure from the perspective of data distribution and

architecture. In contrary to what would seem to be

the normative way of using a test set, we based our

estimation of how good a model is by letting it drive

through speciﬁc unseen tracks. This was done since

there is more than one correct way to drive, thus hav-

ing a test set would not necessarily generate proper

feedback. Addition of a Dropout layer produced an

improvement in model performance, as mentioned in

table 2. Also, a Sigmoid activation was added to the

end of the network as an output normalizer.

After experiments with and without the car state,

i.e., brakes, throttle, speed and previous steering as

additional input, we observed over-ﬁtting in the for-

mer case. e.g., after adding the swerved style data,

the model was driving out of the center of the track

more frequently and the performance worsened. The

experiments described in table 2 show improvement

after removing the car state. We observed that it was

better to discard these as inputs, despite their signif-

icance to the problem description. After the addition

SIMULTECH 2019 - 9th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

418

of shifted driving, the ﬁnal model performed excep-

tionally well on previously unseen tracks, as shown in

table 2. Some of these tracks included objects beside

the road. In all of these experiments, the car main-

tained an average speed of roughly 25 km per hour.

4.1 Simulation Experiments

Table 2: Comparison of our milestones throughout the ex-

periments. We evaluate the model by measuring the time

from the moment the car starts driving until it drives out of

the track. When using a test set that is composed from a

human recording, we observed that there is weak correla-

tion between the evaluation loss and the driving behaviour.

For example, adding the shifted driving method substan-

tially enhanced the model’s efﬁciency, an insight which we

couldn’t infer using a natural test set.

Modiﬁcations Duration

Original PilotNet 20 seconds

Dropout, Leaky ReLU 3 minutes

Addition of swerved data 5 minutes

Removal of car state 6 minutes

Shifted driving 3 hours

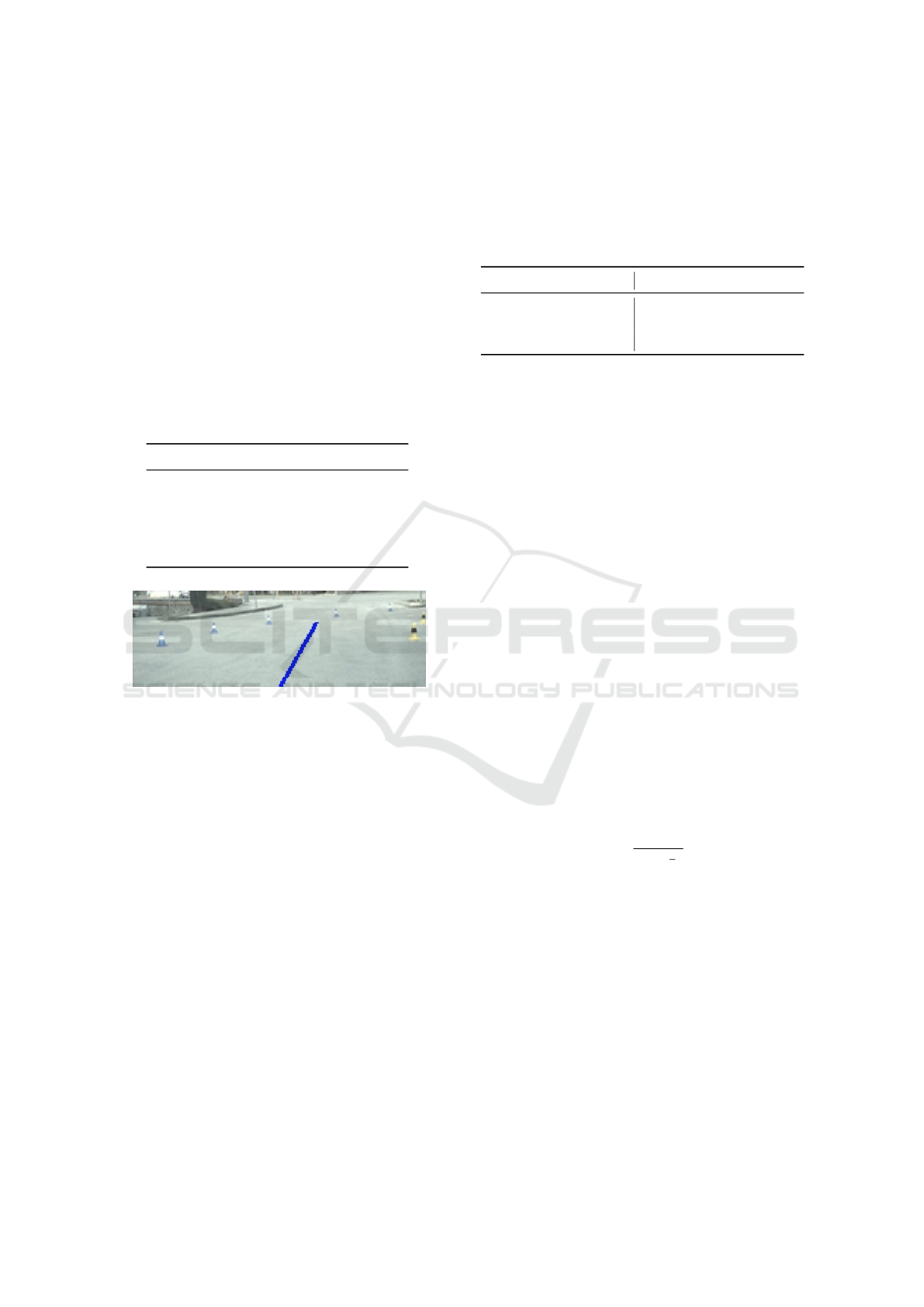

Figure 5: A sample taken from a recorded video in a parking

lot. The predicted steering angle is marked with a blue line

on the image. At this stage, the trained model from the

simulation is tested on the video, without any conversions.

4.2 Transition from Simulation to Real

World

To ensure the precision of the model in the real world,

we tested it ofﬂine on given videos of driving on a

closed-off road track. Due to the lack of labels in our

videos, we conducted these experiments using the fol-

lowing procedure: we marked the predicted steering

angles on the videos using a drawn line, as shown

in ﬁgure 5. We were assisted by experts from the

dynamic team of the car who tested the videos and

helped us to realize if the predicted steering angles

had the expected directions.

As mentioned before, we needed to convert our

model to TensorFlow framework and optimize re-

sponse time. To check the validity of the transi-

tion, we tested both Keras and TensorFlow models

on given videos. We compared the inference results

of both models, assuming they should produce the

Table 3: Execution of one hundred samples in both comput-

ers, running on three different code implementations. On

the left column is a desktop computer containing Nvidia

Geforce GTX1080, while on the right is a Nvidia Jet-

son TX2. The results are presented in average execution

time per iteration, in seconds. Due to lack of support, we

couldn’t evaluate Keras inference on TX2.

x86 TX2

Keras inference 0.0026 sec -

TensorFlow inference 0.0351 sec 0.4174 sec

Optimized inference 0.0025 sec 0.0176 sec

same outputs. Also, we checked the inference time

in both cases. We took one hundred samples and let

both computers execute inference on them. As shown

in table 3, we assured that our optimized code can

execute sufﬁcient inference frequencies on our desig-

nated computer.

4.3 Real World Experiments

For the sake of simplicity, we began by using a

“clean” environment, i.e., one that included only our

Jetson TX2 computer, a camera, a micro-controller

and trafﬁc cones in a lab, despite many differences

from an outdoor road scene. This helped us in avoid-

ing the interruptions of mechanical issues within the

car. We set the experiments by placing trafﬁc cones

in the lab’s open space in different positions, to create

various indoor track segments.

We investigated the effects of changing the cam-

era’s parameters and realized that FOV, aperture di-

ameter, shutter speed and color scheme inﬂuenced the

most. To adjust the attributes of the camera to align

with the simulated one, we calculated f , the focal

length of the lens which depends on x, the FOV of

the simulated camera, and on d, the diameter of the

sensor:

f =

2tan(

)

(1)

Where in our case d equals to 11.345 mm and x equals

to 60

◦

. To prove the necessity in using the same pa-

rameters of the camera in real-world like the simu-

lated one, we conducted an experiment in a lab using

two different cameras. One that had a FOV of 60

◦

like the simulated one and the other with a FOV of

◦

. We placed trafﬁc cones in two rows in front of

the cameras and installed both cameras in the same

position, in several rotations. We were expecting to

ﬁnd a meaningful pattern with respect to the direc-

tion values. The results showed us a less spiked be-

havior in the slope of the graph for the camera with

the same FOV as the simulated one, which means a

smooth tendency in the difference between predicted

Explorations and Lessons Learned in Building an Autonomous Formula SAE Car from Simulations

419

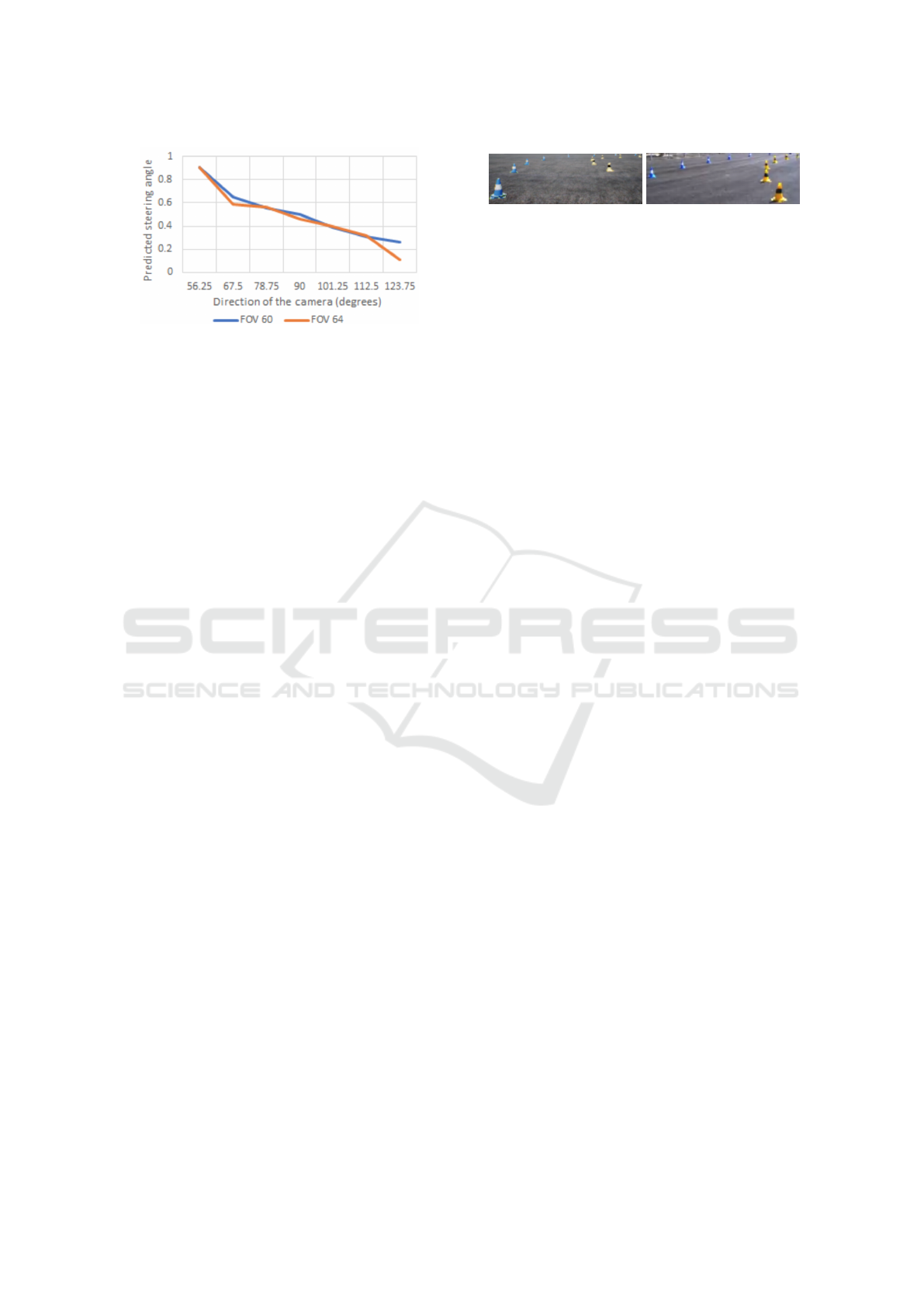

Figure 6: Predicted steering angle as a function of place-

ment direction of the cameras. The graph shows the differ-

ence between two chosen cameras.

steering angles. This is shown in ﬁgure 6.

To distinguish between the execution of the pro-

gram to the mechanical work of the controller, we

tested the connection to the controller without using

the actual car. This experiment was performed using

an Arduino module as a micro-controller receiving

the output from our Jetson TX2, and presenting the

predicted value using a LED light bulb. Our next step

was the outdoor scene. At ﬁrst, the experiments were

held statically in a closed-off road scene. We placed

a work-station in different positions, consisting of the

Jetson TX2 and the camera, which were placed on a

track marked by trafﬁc cones. The camera’s height

was adjusted to its original height on the actual car.

This was the ﬁrst time we encountered sensitive ex-

posure, this led us to correct the exposure using pro-

grammatic auto-exposure solutions.

The last experiments took place on a parking lot

and ﬁnally on an obstacle-free road segment, using

the actual car. The speed was increased progressively.

To cope with the operations of mechanical systems,

such as clutch and throttle control, we were forced to

test the program’s performance with slow speeds. The

best way to do so was without ignition while turning

on the steering system alone. One of the main prob-

lems was a delay in steering execution. The dynamic

model of the steering mechanism was under construc-

tion until our experiments phase, hence the simulated

model did not consider the mechanical delay times

accurately. Sending a steering value from the model

to the controller took negligible time while mechan-

ically changing the direction of the wheels took two

times longer than expected. Thus, executing the steer-

ing angle instruction was slow, the car consistently

drove out of track and the car’s attempts to get back

on track were unsuccessful. After a trial and error pro-

cedure, we managed to identify the optimal driving

speed, which was 15-20 km/h, limited by mechanical

constrains.

Also, we encountered dazzling when driving in a

speciﬁc time of the day, in different directions. Such

Figure 7: Comparison between sampled images taken from

our simulated camera (left) and our real world camera

(right).

phenomena resulted in unwanted anomalies during

inference, which often led us to abort the driving un-

willingly. One way of dealing with such a problem is

to use multiple cameras or additional camera ﬁlters.

Also, the usage of distance estimators, e.g., Lidar or

depth cameras, can help overcome such distortions in

real world images. The driving results in real-world

were highly successful with the model trained on data

gathered from simulation only. The car drove better

than expected and was able to ﬁnish track segments

of 100-200 meters long.

5 DISCUSSION

A prominent aspect of what makes our training pro-

cedure interesting is the fact that no real-world data

was used, this greatly simpliﬁed the data gathering

process. Augmentation and recording techniques that

were used to compensate for the lack of real-world

data, proved to be crucial for the successful transition

of the model to the actual car. Also noteworthy is the

fact that no depth related sensor was used in any part

of our work, moreover, we managed to implement a

well-performing algorithm using only a single cam-

era as our input, an uncommon practice in the self-

driving ﬁeld. Finally, we have also shown that such

algorithms can run under low-power constraints in a

sufﬁciently high enough throughput.

At a broader sense than previously discussed, the

concepts we used during our training procedure could

be deployed when attempting a variety of different

tasks. One could think of utilizing CycleLight to

varying lighting conditions when training off-road

vehicles to maneuver between obstacles, or rethink-

ing the idea of shifted driving to spread out on a

two-dimensional space when training trajectory plan-

ning for air crafts. On such cases, we believe that

simulation-based training would greatly simplify the

process.

ACKNOWLEDGEMENTS

The research was sopported by the Intelligent Sys-

tems Lab (ISL) and the Center for Graphics and Ge-

ometric Computing (CGGC), CS faculty, Technion.

SIMULTECH 2019 - 9th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

420

The Formula SAE car was supplied by the Technion

Formula Student Team.

REFERENCES

Bast, H., Delling, D., Goldberg, A. V., M

uller-Hannemann,

M., Pajor, T., Sanders, P., Wagner, D., and Werneck,

R. F. (2016). Route planning in transportation net-

works.

Bojarski, M., Del Testa, D., Dworakowski, D., Firner,

B., Flepp, B., Goyal, P., Jackel, L. D., Monfort,

M., Muller, U., Zhang, J., et al. (2016). End to

end learning for self-driving cars. arXiv preprint

arXiv:1604.07316.

Brubaker, M. A., Geiger, A., and Urtasun, R. (2016). Map-

based probabilistic visual self-localization. IEEE

Trans. Pattern Anal. Mach. Intell., 38(4):652–665.

Chebotar, Y., Handa, A., Makoviychuk, V., Macklin, M., Is-

sac, J., Ratliff, N. D., and Fox, D. (2018). Closing the

sim-to-real loop: Adapting simulation randomization

with real world experience. CoRR, abs/1810.05687.

Chen, L., Papandreou, G., Kokkinos, I., Murphy, K., and

Yuille, A. L. (2017). Deeplab: Semantic image seg-

mentation with deep convolutional nets, atrous convo-

lution, and fully connected crfs. CoRR, 2017 IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, abs/1606.00915.

Codevilla, F., Miiller, M., L

opez, A., Koltun, V., and Doso-

vitskiy, A. (2018). End-to-end driving via conditional

imitation learning. In 2018 IEEE International Con-

ference on Robotics and Automation (ICRA), pages 1–

9. IEEE.

Glassner, Y., Gispan, L., Ayash, A., and Shohet, T. F.

(2019). Closing the gap towards end-to-end au-

tonomous vehicle system. CoRR, abs/1901.00114.

James, S., Wohlhart, P., Kalakrishnan, M., Kalash-

nikov, D., Irpan, A., Ibarz, J., Levine, S., Had-

sell, R., and Bousmalis, K. (2018). Sim-to-real

via sim-to-sim: Data-efﬁcient robotic grasping via

randomized-to-canonical adaptation networks. CoRR,

abs/1812.07252.

Kiran, B. R., Rold

ao, L., Irastorza, B., Verastegui, R., S

uss,

S., Yogamani, S., Talpaert, V., Lepoutre, A., and Tre-

hard, G. (2018). Real-time dynamic object detection

for autonomous driving using prior 3d-maps. CoRR,

ECCV 2018.

Koppula, S. (2017). Learning a cnn-based end-to-end

controller for a formula sae racecar. arXiv preprint

arXiv:1708.02215.

Levinson, J. and Thrun, S. (2010). Robust vehicle localiza-

tion in urban environments using probabilistic maps.

2010 IEEE International Conference on Robotics and

Automation, pages 4372–4378.

Li, P., Chen, X., and Shen, S. (2019). Stereo R-CNN based

3d object detection for autonomous driving. CoRR,

abs/1902.09738.

Mehta, A., Subramanian, A., and Subramanian, A.

(2018). Learning end-to-end autonomous driv-

ing using guided auxiliary supervision. CoRR,

abs/1808.10393.

Peng, X. B., Andrychowicz, M., Zaremba, W., and Abbeel,

P. (2017). Sim-to-real transfer of robotic control with

dynamics randomization. CoRR, abs/1710.06537.

Redmon, J., Divvala, S. K., Girshick, R. B., and Farhadi, A.

(2015). You only look once: Uniﬁed, real-time object

detection. CoRR, abs/1506.02640.

Shah, S., Dey, D., Lovett, C., and Kapoor, A. (2018). Air-

sim: High-ﬁdelity visual and physical simulation for

autonomous vehicles. In Field and service robotics,

pages 621–635. Springer.

Srivastava, N., Hinton, G., Krizhevsky, A., Sutskever, I.,

and Salakhutdinov, R. (2014). Dropout: a simple way

to prevent neural networks from overﬁtting. The Jour-

nal of Machine Learning Research, 15(1):1929–1958.

Tan, J., Zhang, T., Coumans, E., Iscen, A., Bai, Y., Hafner,

D., Bohez, S., and Vanhoucke, V. (2018). Sim-to-

real: Learning agile locomotion for quadruped robots.

CoRR, abs/1804.10332.

Urmson, C., Anhalt, J., Bagnell, D., Baker, C., Bittner, R.,

Clark, M., Dolan, J., Duggins, D., Galatali, T., Geyer,

C., et al. (2008). Autonomous driving in urban envi-

ronments: Boss and the urban challenge. Journal of

Field Robotics, 25(8):425–466.

Valls, M. I., Hendrikx, H. F., Reijgwart, V. J., Meier, F. V.,

Sa, I., Dub

e, R., Gawel, A., B

urki, M., and Siegwart,

R. (2018). Design of an autonomous racecar: Percep-

tion, state estimation and system integration. In 2018

IEEE International Conference on Robotics and Au-

tomation (ICRA), pages 2048–2055. IEEE.

Xu, Y., John, V., Mita, S., Tehrani, H., Ishimaru, K., and

Nishino, S. (2017). 3d point cloud map based vehicle

localization using stereo camera. 2017 IEEE Intelli-

gent Vehicles Symposium (IV).

You, Y., Pan, X., Wang, Z., and Lu, C. (2017). Virtual to

real reinforcement learning for autonomous driving.

BNVC.

Explorations and Lessons Learned in Building an Autonomous Formula SAE Car from Simulations

421
