Fides: Unleashing the Full Potential of Remote Attestation

Bernd Pr

unster

1,2 a

, Gerald Palﬁnger

1,2 b

and Christian Kollmann

Institute of Applied Information Processing and Communications (IAIK), Graz University of Technology, Austria

Secure Information Technology Center – Austria (A-SIT), Austria

A-SIT Plus GmbH, Austria

Keywords:

Trust, Remote Attestation, Mobile Applications, Android, Security.

Abstract:

In connected mobile app settings, back-ends have no means to reliably verify the integrity of clients. For this

reason, services aimed at mobile users employ (unreliable) heuristics to establish trust. We tackle the issue of

mobile client trust on the Android platform by harnessing features of current Android devices and show how it is

now possible to remotely verify the integrity of mobile client applications at runtime. This makes it possible to

perform sensitive operations on devices outside a service operator’s control.

We present Fides, which improves the security properties of typical connected applications and foregoes

heuristics for determining a device’s state such as SafetyNet or root checks. At its core, our work is based on

the advancements of Android’s key attestation capabilities, which means that it does not impose a performance

penalty. Our concept is widely applicable in the real world and does not remain a purely academic thought

experiment. We demonstrate this by providing a light-weight, easy-to use library that is freely available as open

source software. We have veriﬁed that Fides even outperforms the security measures integrated into critical

applications like Google Pay.

1 INTRODUCTION

Establishing trust in remote clients is a common chal-

lenge. This work targets this issue in the mobile context

and presents a solution to remotely establish trust in

Android applications—something that has not been

reliably possible before and is not adverted even by

Google (Mayrhofer et al., 2019). We accomplish this

by leveraging the operating system’s key attestation

features and mapping it to trusted computing concepts.

As our main contribution, we demonstrate how An-

droid devices can be considered a trusted environment.

This makes it possible to perform sensitive tasks re-

motely and even outsource cryptographic operations

onto devices outside a service operator’s control—

without compromising security. Consequently, this

augments Android’s security model with comprehens-

ive trusted computing features. While remote attest-

ation has been possible on Android for some years,

its utility was rather limited: It was possible, for ex-

ample, to verify that cryptographic keys created by an

Android application were stored inside a trusted hard-

ware module. However, no reliable statement about the

https://orcid.org/0000-0001-7902-0087

https://orcid.org/0000-0001-6633-858X

integrity of the application performing this task and

the subsequent attestation could be made. As a con-

sequence, applications performing critical tasks could

be secretly modiﬁed to include malicious behaviour.

Using runtime code injection frameworks like Xposed

neither simple root checks nor Google’s own (rather

sophisticated) SafetyNet (AOSP, 2018) are able to de-

tect manipulations. In short, relying on such heuristics

does not effectively combat changes to the operating

system or to mobile applications.

Our contribution to this matter is twofold: We ﬁrst

provide an extensive analysis of Android’s key attesta-

tion capabilities, discuss their implications for applica-

tion security and show how this maps to trusted com-

puting concepts. We then present Fides, a ready-to-use

solution utilising Android’s key attestation framework

to remotely establish trust in mobile client applica-

tions running in unmanaged environments. In contrast

to SafetyNet or other typical root checks, our concept

does not rely on heuristics but rather provides a deﬁn-

itive statement about whether a device and a mobile

application running on it are uncompromised. In other

words: For the ﬁrst time, it is now possible for service

operators to verify the state of mobile clients running

https://repo.xposed.info/

314

Prünster, B., Palﬁnger, G. and Kollmann, C.

Fides: Unleashing the Full Potential of Remote Attestation.

DOI: 10.5220/0008121003140321

In Proceedings of the 16th International Joint Conference on e-Business and Telecommunications (ICETE 2019), pages 314-321

ISBN: 978-989-758-378-0

in unmanaged environments in a reliable manner. This

even rules out modiﬁcations made by the legitimate

owner of a device. Most importantly, our approach is

widely applicable in the real world, ready-to-use in

production environments and does not impose a per-

formance penalty. In order to demonstrate the practic-

ability of our approach, we have made Fides’s source

code freely available on GitHub.

The remainder of this paper is structured as fol-

lows: Section 2 provides the background on Android’s

security model and its hardware-backed keystore im-

plementation. Afterwards, Android’s attestation capab-

ilities ate discussed in Section 3. Section 4 then shows

how hardware-backed attestation can be used to re-

motely establish trust in applications running in un-

managed environment and describes how Fides imple-

ments this procedure. Having elaborated on our ap-

proach, Section 5 discusses how our system differs

from related work. Our work concludes with Section 6,

providing examples where Fides improves upon exist-

ing approaches used in real applications.

2 BACKGROUND

This section provides an overview about the measures

Android implements to improve system security, how

it separates and vets applications, and which risks re-

main. In particular, we discuss hardware-based security

mechanisms present on Android and their implications

for mobile application security.

2.1 Android System Security

As Android has become the dominant mobile operating

system, the number of attacks have increased.

To pro-

tect the operating system from these attacks, a myriad

of technologies have been implemented to secure the

platform. We refer to ‘The Android Platform Security

Model’ by Mayrhofer et al. (2019) for a full overview

of Android’s security architecture.

Android uses the concept of sandboxing to prevent

applications from accessing each others data–based

on features from the Linux kernel–such as assigning

a user ID (UID) to each application. Since Android

4.3, this separation is enhanced with the help of man-

datory access control (MAC) in the form of SELinux

(AOSP, 2019d). However, these mechanisms are all

enforced by software and can thus be circumvented.

To remedy this situation and keep secrets secure from

https://github.com/a-sit-plus/android-attestation-demo

https://www.gdatasoftware.com/blog/2018/11/31255-

cyber-attacks-on-android-devices-on-the-rise

a compromised operating system, Android has intro-

duced Trusty (AOSP, 2019e), a trusted execution en-

vironment (TEE). Although the TEE can be used to

execute tasks such as managing keys and perform-

ing cryptographic operations, it cannot run third-party

code.

To protect the system against persistent modiﬁca-

tions, Android supports veriﬁed boot since version 4.4.

Veriﬁed boot validates the integrity of each stage in

the boot process with the help of trusted hardware (if

available on the device). Unless the bootloader of a

device has been unlocked to support booting arbitrary

system images, this ensures that none of the boot stages

have been tampered with.

2.2 Android Keystore Features

The Android Keystore System (AOSP, 2019a) offers

an interface to application developers to generate

and use cryptographic keys—both secret keys and

private/public key-pairs. Fig. 1 depicts an overview

of the different types of storage back-ends used by the

keystore. In case of a software-only backend, the ap-

plication processor is used to execute cryptographic

operations, while keys are stored on the main ﬂash

memory. Sabt and Traor

e (2016) have shown that no

security guarantees hold in practice on software-backed

keystores. On devices with trusted hardware, the hard-

ware can assist in securing key material. For this pur-

pose, a TEE is usually used to provide trusted storage

which is protected from attacks by both hardware and

software, but is usually implemented as part of the ap-

plication processor. With the advent of Android 9.0,

the operating system also supports so-called Strong-

Box hardware security modules (HSMs), which in-

clude their own CPU and memory, secure storage, a

true random-number generator, and further protections

against attacks (AOSP, 2019a). This component must

be “certiﬁed against the Secure IC Protection Proﬁle

BSI-CC-PP-0084-2014 or evaluated by a nationally

accredited testing laboratory incorporating High at-

tack potential vulnerability assessment according to

the Common Criteria Application of Attack Potential

to Smartcards” (Google Inc., 2019, p. 128). In essence,

assurance levels of the hardware module conform to

those of smart card evaluations and offer comprehens-

ive protection of key material. Google “strongly recom-

mends” future devices to support StrongBox (Google

Inc., 2019, p. 128).

In addition to the protection against a comprom-

ised operating system, the hardware is able to enforce

access control to private (or symmetric) key material.

Authorisation to use the key may be bound to the al-

gorithmic parameters (the operation, padding schemes,

Fides: Unleashing the Full Potential of Remote Attestation

315

Figure 1: Different keystore back-ends; the key symbol depicts where the secret key is loaded during cryptographic operations.

digests, padding modes), temporal validity, or user au-

thentication. In addition, the system can enforce user

authentication on every key access using biometrics

(most commonly using a ﬁngerprint), regardless of any

recently carried-out authentication procedure. Since

Android 7.0, biometric inputs have to be veriﬁed in-

side the TEE or on a chip with a secure channel to the

TEE (Google Inc., 2017).

The keystore system binds any key to the app that

requested its generation. Therefore, applications can

not access each other’s keys. To prevent attackers from

simply installing an unauthorised system image to cir-

cumvent these defences, all cryptographic material be-

comes inaccessible upon unlocking a devices boot-

loader. However, as shown by Cooijmans, Ruiter and

Poll (2014), an attacker may be able to use keys if they

gain root access to the Android system.

Android 7.0 introduced support for version binding

of key material (AOSP, 2019c). With this feature, the

keys are bound to the version of the operating system

and patch level and will become inaccessible if the

system is rolled back to an older software version.

2.3 Android Application Security

With the open nature and customisability of Android

comes a risk of malicious applications. A plethora of

different analysis approaches have been proposed to

detect these unwanted applications, utilising concepts

such as static and dynamic analysis; we refer to Sadeghi

et al. (2017) for an extensive overview on this subject.

One way malware vendors try to circumvent se-

curity measures is to repackage benign applications to

include malicious code and advertise these apps along-

side their original versions. This works because An-

droid allows users to install applications from sources

other than Google’s Play Store. Although each applic-

ation needs to be signed by its vendor and this signa-

ture is checked upon app installation and updates, this

only prevents updating an uncompromised application

to a repackaged one. Multiple mechanisms to detect

and hamper such repackaging attacks have been pro-

posed. Desnos and Gueguen (2011) detect repackaging

attempts by evaluating the similarity of applications,

Huang et al. (2013) provide an evaluation of detection

mechanisms on obfuscated programs, and Zhou, Zhang

and Jiang (2013) and Ren, Chen and Liu (2014) pro-

pose different watermarking techniques to improve the

detection of repackaged applications in.

With Google Play Protect

, a similar approach is

now deployed on the majority of Android devices. Still,

these methods are not designed to guard developers

against users modifying applications in their devices.

For example, Ziegler et al. (2018) have recently shown

that a mobile cryptocurrency miner can be modiﬁed to

produce virtually unlimited tokens by repackaging the

mining application to include malicious code.

To prevent such attacks, the application provider

needs a reliable attestation mechanism to establish

trust in devices running in unmanaged environments.

Google aims to provide this attestation through their

SafetyNet service using various software and hardware

information to validate the integrity of the device and

the invoking application (AOSP, 2018). In practice,

however, SafetyNet can be circumvented by certain

rooting providers, such as Magisk

. Although Magisk

requires an unlocked bootloader, it does not alter the

system partition to provide root access. We have veri-

ﬁed that patching a device’s boot image using Ma-

gisk to obtain root access does not trip SafetyNet on

a Google Pixel 2 running Android 9.0 with the latest

security patches (April 2019 as of this writing). In con-

junction with the Xposed framework, this allows for

altering the control ﬂow of programs at runtime and,

therefore, breaks any assumptions about the integrity

of applications.

Summing up, software-based attestation ap-

proaches do not provide adequate protection and

cannot be relied upon when it comes to outsourcing

sensitive data and critical computations to mobile

clients. The following section therefore presents an

analysis of Android’s hardware-based attestation

mechanisms and discusses device support.

https://www.android.com/play-protect/

https://github.com/topjohnwu/Magisk

SECRYPT 2019 - 16th International Conference on Security and Cryptography

316

3 THE STATE OF ANDROID KEY

ATTESTATION

To remedy the shortcomings of software-based attesta-

tion approaches, recent Android versions rely on their

hardware-backed keystore implementation to provide

attestation capabilitie as follows: An application cre-

ates a non-exportable public-private key pair using An-

droid’s hardware-backed keystore implementation. The

keystore API then enables obtaining an attestation res-

ult which proves that this key was indeed created using

the dedicated cryptographic hardware. On a technical

level, this attestation result is implemented as an X.509

certiﬁcate extension: A certiﬁcate containing the previ-

ously generated public key is created and signed inside

the cryptographic hardware module using an attestation

signing key. We refer to this certiﬁcate as the attest-

ation certiﬁcate. This signing key, as well as a chain

of certiﬁcates (each signed by Google), are preloaded

onto the hardware module during the manufacturing

process. Google mandates that at least 100 000 devices

need to be provisioned before changing the attestation

key—to avoid tracking individual devices (Google Inc.,

2019). Furthermore, the root certiﬁcate of the chain is

published by Google.

3.1 Suitable Devices

All devices shipping with Android 8.0 or later that

include a ﬁngerprint reader are required to feature

hardware-backed management of cryptographic mater-

ial using a TEE or HSM and must provide comprehens-

ive remote attestation capabilities. In addition, even

some entry-level devices without biometric sensors

such as the Nokia 1

match these speciﬁcations. Ac-

cording to a 2018 whitepaper, the FIDO Alliance ex-

pects ‘almost all coming Android mobile devices (8.0

or later)’ (FIDO Alliance, 2018) to support hardware-

based key attestation and even attests current Android

devices to fulﬁl all Level 2 FIDO Authenticator Cer-

tiﬁcation requirements, arguing that current Android

devices can be considered to have effective defences

in place against large-scale attacks and operating sys-

tem compromise. Therefore, we consider such devices

robust and secure enough to outsource sensitive com-

putations to.

For the remainder of this paper, we assume a device

of this class is used. Android 8.0+ in general has a

market share of

>38%

(AOSP, 2019b), although only

some devices that originally shipped with an OS ver-

sion prior to 8.0 support all the features we require.

Without any openly available statistics on the num-

ber of suitable devices currently active, we rely on a

https://www.nokia.com/phones/en us/nokia-1

conservatively estimated lower bound of

100

million

according to Pr

unster, Fasllija and Mocher (2019).

Before going into detail about the actual attestation

workﬂow, the next section summarises the information

contained in an attestation result.

3.2 Attested Information

The information that can be extracted from the attesta-

tion certiﬁcate provides a comprehensive assessment of

device, system, and application integrity. The following

attestation properties are relevant for our approach:

•

Security level for the attestation; takes a value of

either software, TEE, or StrongBox

•

Basic cryptographic properties of the attested key

itself, such as its public key (in case of a public-

private key pair)

•

Whether user authentication (and the timeout after

a successful authentication) is required for all op-

erations involving the private (or secret) key

•

Whether the key is rollback-resistant, meaning that

it will become inaccessible upon a system or boot-

loader downgrade

•

Whether the device/bootloader is locked and will

only accept signed bootloader images

• Boot state according to the Veriﬁed Boot feature:

– Veriﬁed: Vendor-signed bootloader and system

–

SelfSigned: Third-party-signed bootloader and

system

– Unveriﬁed: Freely modiﬁable boot chain

–

(Failed: never used as part of an attestation res-

ult)

•

OS version and the security patch level, the patch

level of the vendor image (since Android 9.0), and

the boot image (since Android 9.0)

•

Application information: package name, version,

and digest of the package’s signature certiﬁcate

•

The chain of certiﬁcates starting with the certiﬁc-

ate for the key attestation key, leading up to the

published root certiﬁcate (see Fig. 2)

• The challenge value provided when requesting an

attestation

By evaluating this information in a certain manner,

it is possible to establish trust in a remotely deployed

application running on an unmanaged Android device,

to the point where it can be considered a trusted en-

vironment. Although some values of the attestation

information are only software-enforced, the following

section argues how this aligns with trusted computing

concepts such that all values can be trusted.

Fides: Unleashing the Full Potential of Remote Attestation

317

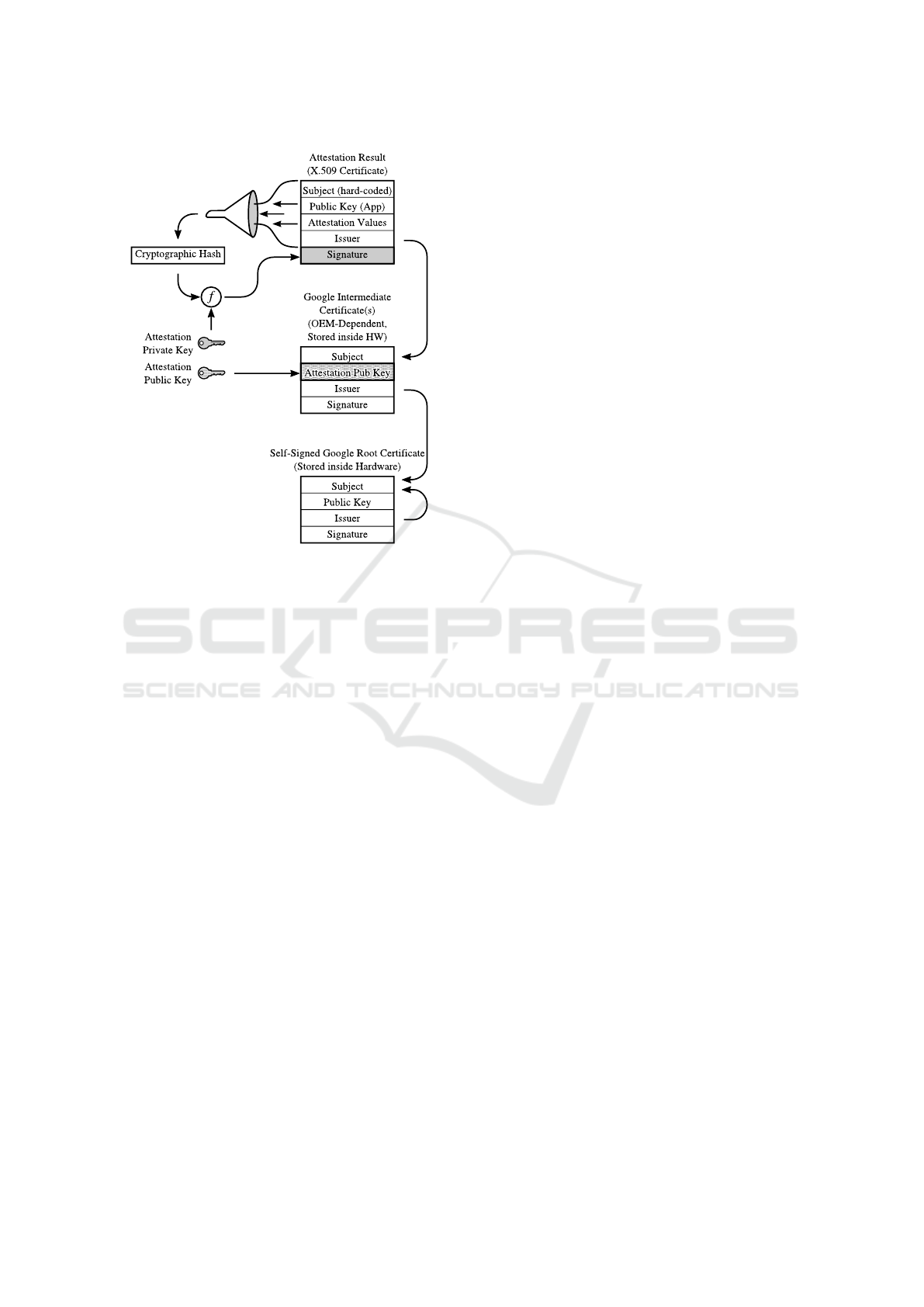

Figure 2: Attestation chain of trust.

4 Fides – REMOTE ATTESTATION

AT WORK

Our solution targets mobile applications that are con-

nected to a back-end—the classic client-server model.

The following section introduces such an abstract sys-

tem model, that is kept as simple as possible for wide

applicability. We also introduce our security model and

discuss the underlying assumptions. We then illustrate

the attestation process that leads to a trusted state based

on this model.

4.1 System and Security Model

Up until now we have assumed that an unlocked boot-

loader is required to modify the OS and/or inject code

into otherwise unmodiﬁed applications. In reality, how-

ever, exploitable vulnerabilities in the OS or bootloader

can arise. Still, the correctness of any target platform is

typically assumed by developers. We therefore assume

the hardware to be trusted and the system to operate as

intended, just as any application developer needs to rely

on the target platform’s functionality. Consequently,

we do not consider the requirement to trust hardware

manufacturers and the OS vendor a limitation, as this

has been a common trust model for decades. We con-

sequently assume Google’s root certiﬁcate of the at-

testation chain (see Fig. 2) to be trusted.

We do not, however, trust the user. In fact, we assume

a malicious user that is willing and able to unlock their

device and employ freely available tools such as Ma-

gisk and may even try to repackage the client applica-

tion for personal gain.

Our system model can be described using a client-

server use-case where the client is to be deployed on

hardware that falls into the class of suitable devices. We

assume the back-end to be controlled and thus trusted

by the service operator. We base the remainder of this

section on the following scenario:

•

A service operator publishes a mobile client applic-

ation targeting Android 8.0+. This process may or

may not happen through Google’s Play Store.

•

As every Android application is required to be

signed by its creator, the service operator signs the

client and records the digest of the signature certi-

ﬁcate.

•

Client-server connections are assumed to mandate

Transport Layer Security (TLS) using mutual au-

thentication.

The following section retraces the attestation steps

performed by modern Android smartphones to illus-

trate how it is practically possible to verify that an

unmodiﬁed client application is running on top of a

trusted operating system on real hardware.

4.2 Attestation Workﬂow

The following enumeration explains how an attestation

result is constructed based on Fig. 3 and elaborates on

the implications of this process.

When powering-on an Android device, the trusted

hardware module veriﬁes the bootloader signature,

and logs whether an unmodiﬁed bootloader image

will be used to boot the system.

The bootloader subsequently veriﬁes the signature

of the operating system image. Upon doing so, the

bootloader communicates the OS version and patch

level to the hardware.

The operating system veriﬁes an application’s sig-

nature upon installation of the application, and re-

cords the metadata.

The application creates a public-private key pair

using the keystore API and requests it to be attested.

The operating system passes the software-based

values to the hardware, which combines them with

the hardware-enforced values to create an attesta-

tion result.

The hardware signs this attestation result using the

attestation key.

SECRYPT 2019 - 16th International Conference on Security and Cryptography

318

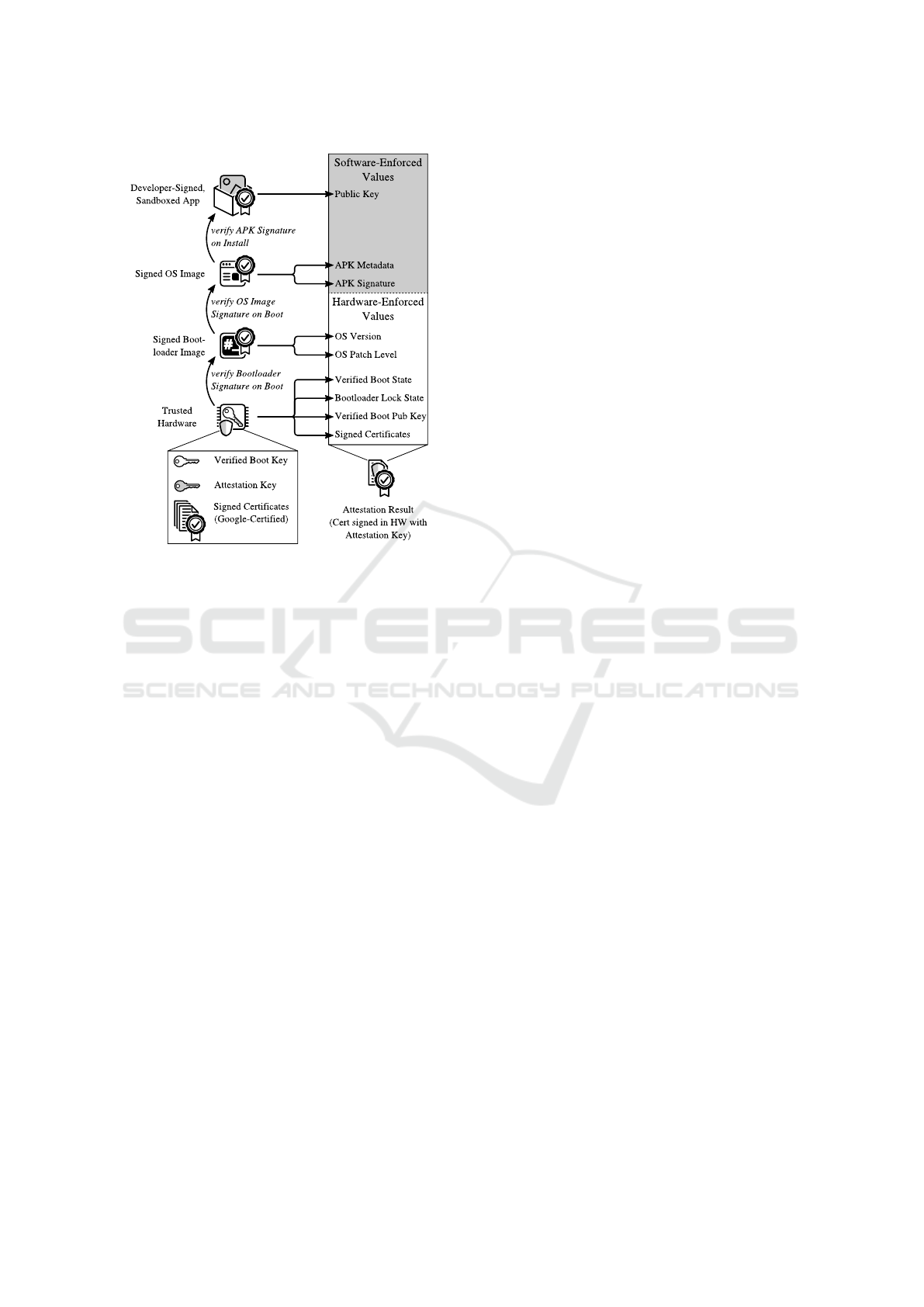

Figure 3: High-level structure of an attestation result.

Based on this workﬂow and the semantics of the

attestation values described in Section 3.2, it becomes

possible to establish trust in a mobile client application.

We illustrate this by applying this knowledge to our

system model as follows:

•

Boot State: On devices with a locked bootloader

and a Veriﬁed boot state, we can safely assume that

only a vendor-supplied bootloader can be used to

subsequently boot only vendor-signed operating

system images (cf. Section 3.2). A system booted

into a locked, Veriﬁed state is therefore guaranteed

to uphold all aspects of the Android security model.

This rules out modiﬁcations to the base system such

as rooting.

•

System Integrity: Since the system’s integrity is

veriﬁed by the hardware, the system software is

itself elevated to a trusted state. Consequently,

software-enforced attestation values provided by

the operating system can be considered trustworthy.

•

Application Integrity: By comparing the digest of

the client application’s signature certiﬁcate con-

tained in the attestation result with the digest of the

signature certiﬁcate value recorded upon signing

it, the service operator can indisputably verify the

client’s integrity. This rules out undetected repack-

aging of client applications.

If the back-end in our scenario evaluates an attesta-

tion result accordingly, the integrity of clients can be

reliably determined. As a result, services can choose

to grant only fully-veriﬁed clients access and thus ex-

clude compromised devices. This aligns with estab-

lished trusted computing concepts, speciﬁcally trusted

hardware bootstrapping a trusted system capable of

remote attestation. While it may seem obvious in hind-

sight, utilising Android’s key attestation features like

this and the consequences this entails, have never been

explored before. Our system’s architecture, which does

precisely that, is introduced in the following section.

4.3 Architecture

Fides consists of two components: a client-side lib-

rary and a server-side library. The major advantage of

Fides over other solutions is that it can be transparently

plugged into existing client-server applications as part

of connectivity establishment, also enforcing TLS with

mutual authentication. Provisioning of the server-side

certiﬁcate can be done in whichever way the service op-

erator sees ﬁt. On the client, however, Fides mandates

the attestation result to be used as the client certiﬁcate

to authenticate to the back-end. This effectively ensures

that an authenticated channel is established between

client and server based on the cryptographic material

that has been attested. The following section outlines

how Fides executes the previously described attestation

process to establish trust in a mobile client.

4.4 Establishing Trust in Mobile Clients

Each time a client connects to the back-end, its level

of trust needs to be established. When a client ﬁrst

connects to the back-end, Fides accomplishes this as

shown in Fig. 4:

The client announces its presence to the back-end

over a TLS connection (server-authenticated only).

2. The back-end generates a random challenge.

3. The challenge is sent to the client.

The client generates a key, feeds the challenge to

the hardware, obtains an attestation certiﬁcate, and

resets the TLS connection.

The client establishes a new TLS session (mutu-

ally authenticated) to the back-end, using the newly

generated key and the attestation certiﬁcate as cre-

dentials.

The back-end veriﬁes the attestation result, con-

tained in the client’s TLS certiﬁcate.

The back-end matches the attestation result against

a policy (see below).

The back-end informs the client whether access is

granted or not.

Fides: Unleashing the Full Potential of Remote Attestation

319

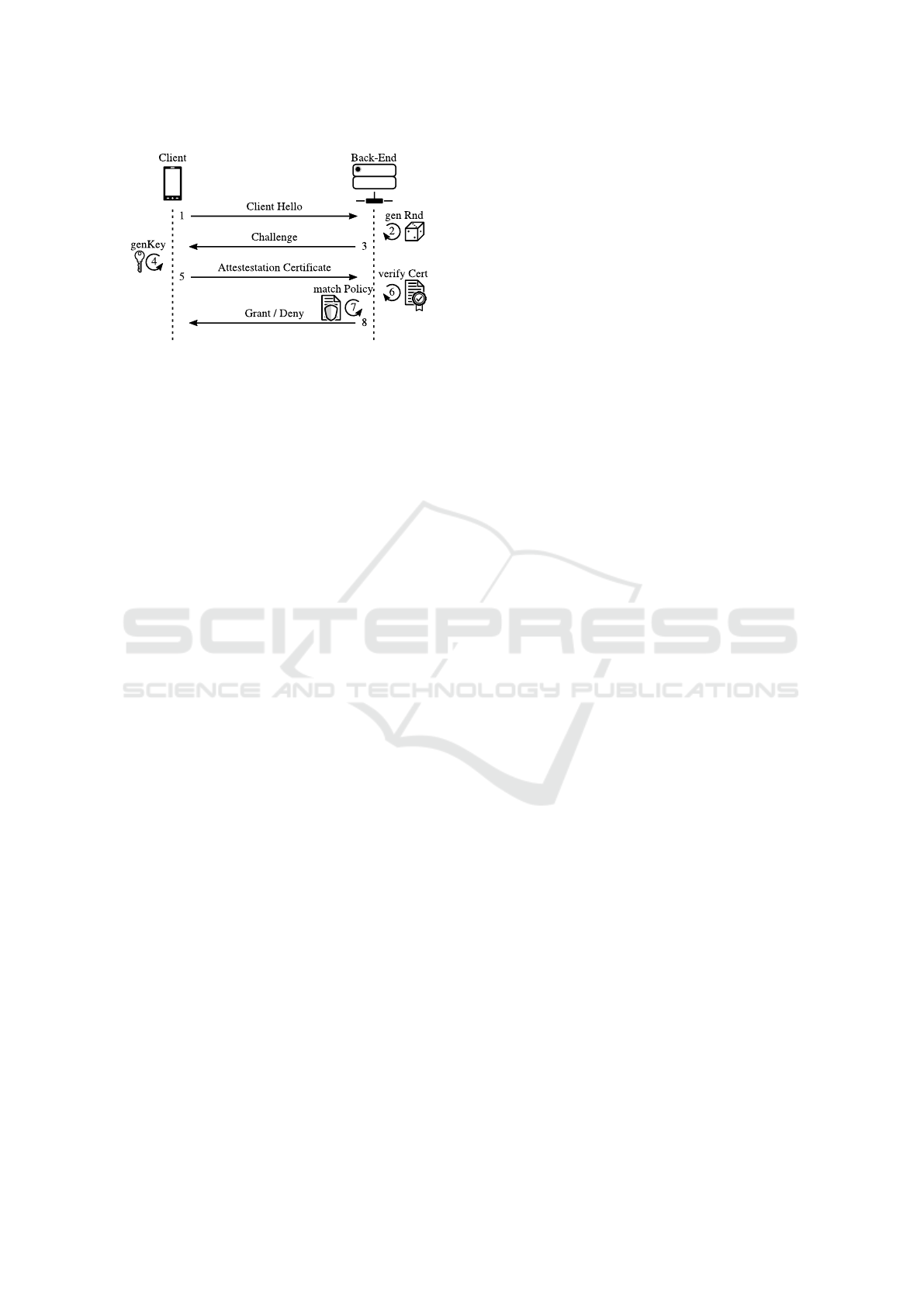

Figure 4: Initial connection between client and back-end.

Subsequent connections only require steps 5–8 as

part of regular connectivity establishment between cli-

ent and server. Thus, Fides does not require invasive

changes to either client or server logic.

A client is considered trustworthy if its attestation res-

ult proves that (a) the client application itself has not

been modiﬁed, (b) that it is running on an unmodiﬁed

base system (c) whose integrity is veriﬁed by a trusted

hardware module. In reality however, trust is not bin-

ary, but is often modelled in a more granular manner.

Fides accomplishes this by providing the possibility to

match attestation results against policies, which specify

a trust level based on attestation values.

The most important property is the security level of

the attestation and keymaster implementation, which

takes a value of software, TEE, or HSM. As argued

before, a software-based attestation result is not con-

sidered trustworthy. An initial level of trust can thus be

assigned based on whether a TEE or an HSM is present

on a device. Further nuances of the level of trust can

be deﬁned by interpreting the version of the operating

system and the security patch level.

5 RELATED WORK

Primarily utilised on the desktop, Intel’s Software

Guard Extensions (SGX) have been extensively dis-

cussed in literature: Compared to Android’s TEE im-

plementation, Intel’s SGX can be used to run arbitrary

applications in a separate, trusted part of the CPU (in-

side a so called secure enclave). SGX also features

remote attestation capabilities, although these require

contacting an Intel-run service. Initially, SGX was de-

signed to run only critical parts of an application in

the secure environment (Hoekstra et al., 2013). Since

then, various efforts have been made to allow unmodi-

ﬁed legacy applications to work in the secure enclave.

Haven (Baumann, Peinado and Hunt, 2014) uses a

Windows-based library operating system inside the en-

clave to provide the functionality needed for full applic-

ation binaries. SCONE (Arnautov et al., 2016) is an ap-

proach allowing Docker containers to run inside SGX.

Graphene-SGX (Tsai, Porter and Vij, 2017) is a more

modular library OS based on Linux. PANOPLY (Shinde

et al., 2017) introduces micro-containers, which makes

it possible to split up applications into different con-

tainers, reducing the size of each unit.

These efforts show that there is a real demand for run-

ning complex, or even unmodiﬁed applications in a

trusted environment, although no uniﬁed solution ex-

ists. Achieving this goal is notoriously difﬁcult because

(compared to modern mobile platforms like Android)

no comprehensive security concept that shields a sys-

tem from modiﬁcations is in place. Consequently, sig-

niﬁcantly more effort is required to reach a state where

an application can be executed on a desktop system

in a trusted state due to the fundamental design dif-

ferences and security concepts compared to mobile

environments. Our approach, on the other hand, utilises

the security concept of modern Android versions to

its fullest and thus enables unmodiﬁed applications to

harness the platform’s complete software and hardware

feature set. With Android being the dominant mobile

end-user platform, Fides covers a wide area of practic-

ally relevant applications and is ready to use on a vast

amount of consumer devices. Moreover, the certiﬁcate-

based attestation process makes it possible to re-use

any PKI-library of choice, compared to the SGX re-

mote attestation workﬂow based on elaborate protocols,

always mandating a connection to an Intel-run service.

unster, Fasllija and Mocher (2019) also work with

Android’s key attestation to increase the security prop-

erties of decentralised peer-to-peer networks. Their ap-

proach is tailored to defeat Sybil and eclipse attacks.

Nevertheless, the authors also argue that an Android

system can be trusted if certain properties are attested

by hardware. In effect, their approach reduces Android

phones to “not much more than a universally trusted

smartcard” (Pr

unster, Fasllija and Mocher, 2019). We,

however, aim to provide a more universal solution to

the problem of trusting mobile clients and therefore

provide a general extension to the current Android se-

curity model that is not bound to a speciﬁc system

architecture.

6 CONCLUSIONS

This work presented Fides, which solves the issue of

reliably establishing trust in Android clients running

in unmanaged environments. The proposed scheme

provides a real improvement over existing solutions

based on heuristics such as SafetyNet or root checks.

We have veriﬁed that a variety of applications pro-

SECRYPT 2019 - 16th International Conference on Security and Cryptography

320

cessing critical data (such as PayPal and even Google

Pay) do not notice system modiﬁcations performed

through Magisk (when enabling Magisk Hide and re-

packaging Magisk Manager), while Fides reliably de-

tects an unveriﬁed boot chain. As a consequence of

the veriﬁably unaltered system state, software-based

security features like SELinux can also be expected to

be working as intended.

In summary, it is now possible for service oper-

ators to establish trust in mobile clients and reliably

deny access to compromised instances, even in cases

where Google’s own protection mechanisms fail to do

so. In case exploits are an issue for certain sensitive

applications, Fides can be conﬁgured to only trust fully

patched devices (a property which cannot be spoofed

in software, since it is attested by the hardware). It is

therefore easily possible to trade off compatibility for

increased security. Our freely available libraries can

easily be integrated into the connectivity establishment

workﬂows of existing services, as it only relies on TLS.

REFERENCES

AOSP (17th Apr. 2018). Protecting against Security Threats

with SafetyNet. U R L: https://developer.android.com/

training/safetynet/ (visited on 11/01/2019).

AOSP (23rd Jan. 2019a). Android keystore system. U R L: ht

tps://developer.android.com/training/articles/keystore

(visited on 20/02/2019).

AOSP (7th May 2019b). Distribution dashboard. U R L: https:

//developer.android.com/about/dashboards/ (visited on

10/05/2019).

AOSP (2019c). Android Keystore - Version Binding. U R L:

https://source.android.com/security/keystore/version-

binding (visited on 20/02/2019).

AOSP (2019d). Security-Enhanced Linux in Android. U R L:

https://source.android.com/security/selinux/ (visited on

19/02/2019).

AOSP (2019e). Trusty TEE. U R L : https://source.android.

com/security/trusty/ (visited on 11/01/2019).

Arnautov, Sergei et al. (2016). ‘SCONE: Secure Linux Con-

tainers with Intel SGX’. In: OSDI 2016. USENIX Asso-

ciation, pp. 689–703.

Baumann, Andrew, Marcus Peinado and Galen C. Hunt

(2014). ‘Shielding Applications from an Untrusted Cloud

with Haven’. In: OSDI 2014. USENIX Association,

pp. 267–283.

Cooijmans, Tim, Joeri de Ruiter and Erik Poll (2014). ‘Ana-

lysis of Secure Key Storage Solutions on Android’. In:

Security and Privacy in Smartphones & Mobile Devices

– SPSM@CCS. ACM, pp. 11–20.

Desnos, Anthony and Geoffroy Gueguen (2011). ‘Android:

From Reversing to Decompilation’. In: Proc. of Black

Hat Abu Dhabi, pp. 1–24.

FIDO Alliance (June 2018). Hardware-backed Keystore

Authenticators (HKA) on Android 8.0 or Later Mo-

bile Devices. U R L : https : / / fidoalliance . org / wp -

content / uploads / Hardware - backed Keystore White

Paper June2018.pdf (visited on 14/01/2019).

Google Inc. (18th Apr. 2017). Android 7.0 Compatibility

Deﬁnition. U R L: https://source.android.com/compatibili

ty/7.0/android-7.0-cdd.pdf (visited on 20/02/2019).

Google Inc. (8th Feb. 2019). Android 9.0 Compatibil-

ity Deﬁnition. U R L : https : / / source . android . com /

compatibility / 9 / android - 9 - cdd . pdf (visited on

20/02/2019).

Hoekstra, Matthew et al. (2013). ‘Using innovative instruc-

tions to create trustworthy software solutions’. In: Work-

shop on Hardware and Architectural Support for Security

and Privacy – HASP. ACM, p. 11.

Huang, Heqing et al. (2013). ‘A Framework for Evaluating

Mobile App Repackaging Detection Algorithms’. In:

Trust and Trustworthy Computing. Ed. by Michael Huth

et al. Berlin, Heidelberg: Springer, pp. 169–186.

Mayrhofer, Ren

e et al. (2019). ‘The Android Platform Se-

curity Model’. In: CoRR abs/1904.05572. arXiv: 1904.

05572. U R L: http://arxiv.org/abs/1904.05572.

unster, Bernd, Edona Fasllija and Dominik Mocher (July

2019). ‘Master of Puppets: Trusting Silicon in the Fight

for Practical Security in Fully Decentralised Peer-to-

Peer Networks’. In: 16th International Conference on

Security and Cryptography. SciTePress. U R L: https :

//graz.pure.elsevier.com/en/publications/master- of-

puppets-trusting-silicon-in-the-fight-for-practical-sec.

In press.

Ren, Chuangang, Kai Chen and Peng Liu (2014). ‘Droid-

marking: Resilient SoftwareWatermarking for Impeding

Android Application Repackaging’. In: 29th ACM/IEEE

international conference on Automated software engin-

eering, pp. 635–646.

Sabt, Mohamed and Jacques Traor

e (2016). ‘Breaking into

the keystore: A practical forgery attack against Android

keystore’. In: European Symposium on Research in Com-

puter Security. Springer, pp. 531–548.

Sadeghi, Alireza et al. (2017). ‘A Taxonomy and Qualitative

Comparison of Program Analysis Techniques for Secur-

ity Assessment of Android Software’. In: IEEE Trans.

Software Eng. 43, pp. 492–530.

Shinde, Shweta et al. (2017). ‘Panoply: Low-TCB Linux

Applications With SGX Enclaves’. In: Network and Dis-

tributed System Security Symposium – NDSS 2017. The

Internet Society.

Tsai, Chia-che, Donald E. Porter and Mona Vij (2017).

‘Graphene-SGX: A Practical Library OS for Unmodiﬁed

Applications on SGX’. In: USENIX Annual Technical

Conference 2017. USENIX Association, pp. 645–658.

Zhou, Wu, Xinwen Zhang and Xuxian Jiang (2013). ‘Ap-

pInk: Watermarking Android Apps for Repackaging De-

terrence’. In: Proceedings of the 8th ACM SIGSAC sym-

posium on Information, computer and communications

security - ASIA CCS ’13. New York, USA: ACM Press.

Ziegler, Dominik et al. (July 2018). ‘Spoof-of-Work: Eval-

uating Device Authorisation in Mobile Mining Pro-

cesses’. In: 15th International Conference on Security

and Cryptography. Vol. 2: SECRYPT. Portugal: SciTe-

Press, pp. 380–387.

Fides: Unleashing the Full Potential of Remote Attestation

321
