The Effect of Search Engine, Search Term and Occasion on

Brain-Computer Interface Metrics for Emotions When Ambiguous

Search Queries Are Used

Wynand Nel

1 a

, Lizette de Wet

1 b

and Robert Schall

2 c

Department of Computer Science and Informatics, University of the Free State, Nelson Mandela Drive,

Bloemfontein, South Africa

Department of Mathematical Statistics and Actuarial Science, University of the Free State, Nelson Mandela Drive,

Bloemfontein, South Africa

Keywords: Human-Computer Interaction, Brain-Computer Interface, Emotions, Ambiguous Search Queries,

Long-Term Excitement, Short-Term Excitement, Engagement, Meditation, Frustration.

Abstract: World Wide Web (WWW) searches are the primary source of information for many people for which different

search engines are available. Depending on the search query, which might be ambiguous, search engines can

return thousands of results to the user potentially causing frustration and a dislike towards the search engine.

In this study, using a Brain-Computer Interface (BCI) we investigated the Long-Term Excitement, Short-

Term Excitement, Engagement, Meditation and Frustration of study participants while they were performing

ambiguous searches using Google, Yahoo! and Bing. The captured emotional data as well as pre-test and

post-test questionnaire data suggest that the different search engines and search terms had an influence on the

emotions of a participant during searches with ambiguous search queries.

1 INTRODUCTION

In the information age we search daily for answers to

specific questions. Such searches can be done non-

electronically (using, for example, printed material),

or electronically (using technology to perform digital

searches). Information Retrieval can be defined as a

process and technique of searching, recovering and

interpreting of information that is stored inside a file,

catalogue or computer system (Dictionary.com,

2018; Merriam-Webster, 2018; TheFreeDictionary

by Farlex, 2015).

Technology practitioners, commentators and

researchers must consider the implications and

measurement of the usability and associated User

Experience (UX) of technological products. This is

particularly true for the UX when a user does digital

searches.

Digital/World Wide Web (WWW) searches are

part of the everyday lives of people searching for

answers in an era where the Internet is the primary

https://orcid.org/0000-0001-5579-6411

https://orcid.org/0000-0001-6819-6984

https://orcid.org/0000-0002-4145-3685

source of information for many people. For this

reason, we studied the effect of search engine

(Google, Yahoo! and Bing), search term (shoot,

divide and seal) and occasion (first, second and third)

on various brain-computer interface (BCI) metrics,

for different emotions, when ambiguous search

queries are used during an Internet search.

2 BACKGROUND

The Internet consists of millions of linked computers

worldwide. The connectivity allows those computers

to communicate, carry data and exchange information

(Mouton, 2001).

According to Edosomwan and Edosomwan

(2010) the ultimate goal of a website is to share

information, but the millions of pages which are

added to the WWW daily, provide various types of

data and information, which in turn, provide a

challenge for information retrieval. In order to find

Nel, W., de Wet, L. and Schall, R.

The Effect of Search Engine, Search Term and Occasion on Brain-Computer Interface Metrics for Emotions When Ambiguous Search Queries Are Used.

DOI: 10.5220/0008164900280039

In Proceedings of the 3rd International Conference on Computer-Human Interaction Research and Applications (CHIRA 2019), pages 28-39

ISBN: 978-989-758-376-6

specific information on the WWW the user needs to

know the address (URL) of that information on the

WWW, but this URL is rarely available to the user

beforehand. Thus, searching with search engines has

become the only viable navigational construct

(Goodman and Cramer, 2010).

Search engines are among the most accessed web

sites (Edosomwan and Edosomwan, 2010; Oberoi

and Chopra, 2010; Oxford English Dictionary, 2010)

and rely on users to supply them with a search string

upon which the search engine returns the results

(documents or web pages) matching the word(s).

Search engines can return thousands of results to

the user depending on the search query that is entered.

The user then needs to work through these results

until he/she has found the information required. A

potential problem is the type of search query that the

user enters during the search process. According to

Teevan, Dumais and Horvitz (2007), users prefer

short search queries which may result in ambiguity

and the search engine returning more results than

needed. For example, a user can enter the word

“apple” as search query, which could imply an

interest in fruit, but the search engine may instead

return more results on Apple Incorporated. The large

number of irrelevant results, in turn, may cause user

frustration and other negative emotions, as he/she

now needs to work through the large amount of search

results, many of which are irrelevant.

The frustration and negative emotions caused by

a large amount of results returned by a search engine

when an ambiguous search query is used can create

dislike in a user towards the specific search engine;

when asked to do so, that user might rate the search

engine with a bad UX score. This process can thus,

for example, influence the UX measurements on

search engines.

3 SEARCH QUERIES

Search engines rely on the users to supply a search

query in order to retrieve the relevant information.

These search queries can be either ambiguous (the

search query can have more than one meaning, for

example, bat); broad (the search query can have

many sub-categories, for example, sport); proper

nouns (the search query can be names or locations, for

example, Babcock); or a clear query (the search query

is very specific with a narrow topic, for example,

University of Chicago) (Azzopardi, 2007; Dou et al.,

2007; Elbassuoni et al., 2007; Sanderson, 2008; Song

et al., 2007).

3.1 Ambiguous Queries

Ying et al. (2007) argue that word ambiguity is a

severe problem in keyword-based search methods.

Furthermore, Sanderson (2008) and Song et al. (2009)

report that roughly 7%–23% of the queries presented

to search engines are ambiguous, with the average

length of queries being one word. The ranking

algorithm of search engines struggles to give high

quality results when such short queries are submitted,

as it does not offer enough information to the search

engine. This results in the search engine providing a

diversified set of results (Luo et al., 2014).

An example of an ambiguous search query is the

word ruby. When a person searches for the word ruby,

what should the search engine return? Is the person

in search of information on the Ruby gemstone or

rather on the Ruby computer programming language?

If the person is indeed in search of the Ruby

programming language, specifically what is he/she

searching for? Is he/she looking for Ruby

documentation, regarding how the programming

language works, or rather a brief explanation of what

Ruby is?

Different methods exist and are in use by many

search engines to assist the user in mitigating

ambiguous queries. These methods include word

sense disambiguation (Gale et al., 1992; Voorhees,

1993; Ying et al., 2007), personalisation of web pages

(“E-business solutions”, 2011; Linden, 2007), query

expansion (Carpineto et al., 2001; Mitra et al., 1998),

suggesting corrections to misspelled queries

(Loukides, 2010), click-through data (Leung et al.,

2008) and clustering (Baeza-Yates et al., 2007).

4 USABILITY AND UX

Various definitions exist for usability and every

person working in the field might have his/her own

definition (Tullis and Albert, 2013). Steve Krug

(2006, p. 5) defines usability as, “… making sure that

something works well: that a person of average (or

even below average) ability and experience can use

the thing—whether it’s a Web site, a fighter jet, or a

revolving door—for its intended purpose without

getting hopelessly frustrated”.

UX, however, as defined by Tullis and Albert

(2013), the User Experience Professionals

Association (2014), and Nielsen and Norman (2015),

involves a broader view on every aspect of the

interaction or anticipated interaction (International

Standards Organization – ISO FDIS 9241-210, 2009)

that a user has with a company, its services and

The Effect of Search Engine, Search Term and Occasion on Brain-Computer Interface Metrics for Emotions When Ambiguous Search

Queries Are Used

products, taking into account the perceptions,

thoughts and feelings of the user.

Thus, UX can be interpreted as being more

comprehensive than usability. Tullis and Albert

(2013) emphasise that usability and UX are two

separate concepts, where UX include additional

aspects, such as the feelings, thoughts and perceptions

of the users as they interact with the product.

To differentiate between usability and UX, one

could list and compare usability and UX goals

(Preece et al., 2015; Rogers et al., 2011). Usability

goals have traditionally been viewed as being

concerned with meeting specific usability criteria,

such as effectiveness and efficiency, whereas UX

goals have been concerned with clarifying the nature

of the UX, such as to be aesthetically pleasing (GFK,

2015; Preece et al., 2015; Rogers et al., 2011). GFK

(2015) developed a tool to measure UX, called the

UX Score. They mention that it is important to move

beyond only looking at usability measurements. They

argue that in order to understand the total UX, it is

important to consider product fit and engagement,

learnability and look and feel as well.

5 BCI

BCI, also known as Brain-Machine Interface (BMI),

is an augmented technique that translates intentions

into operational commands through a functional

interface without requiring any motor action,

allowing individuals to communicate and control

external devices like a computer (Brandman et al.

2018; Hammer et al., 2018; Shah, 2018; Waldert,

2016). Wolpaw et al. (2002) define a BCI as a

communication system where the messages sent by a

person to the external world, does not pass through

the brain’s normal output pathways of nerves and

muscles (e.g. speech and gestures). Instead, a BCI

device harnesses bio-potentials, which are electric

signals originating from the brain and nervous system

(Colman and Gnanayutham, 2013), which are under

the conscious control of the user (Wolpaw et al.,

2002).

The BCI establishes a direct, non-muscular

connection between the brain and the electronic

device by measuring Electroencephalography (EEG)

signals on the outside of the skull before decoding it

into computer-understandable commands (Colman

and Gnanayutham, 2013; Nicolas-Alonso and

Gomez-Gil, 2012; Thorpe et al., 2005; Wolpaw et al.,

2002). An overview of the components of a BCI

system is shown in Figure 1.

BCIs can be classified according to their

invasiveness and can either be invasive (e.g.

intracortical – signal acquisition is recorded within

the brain – or non-invasive – EEG signal acquisition

is recorded from the scalp (Kameswara Rao et al.,

2012; Nicolas-Alonso and Gomez-Gil, 2012; Shah,

2018; Wolpaw et al., 2002).

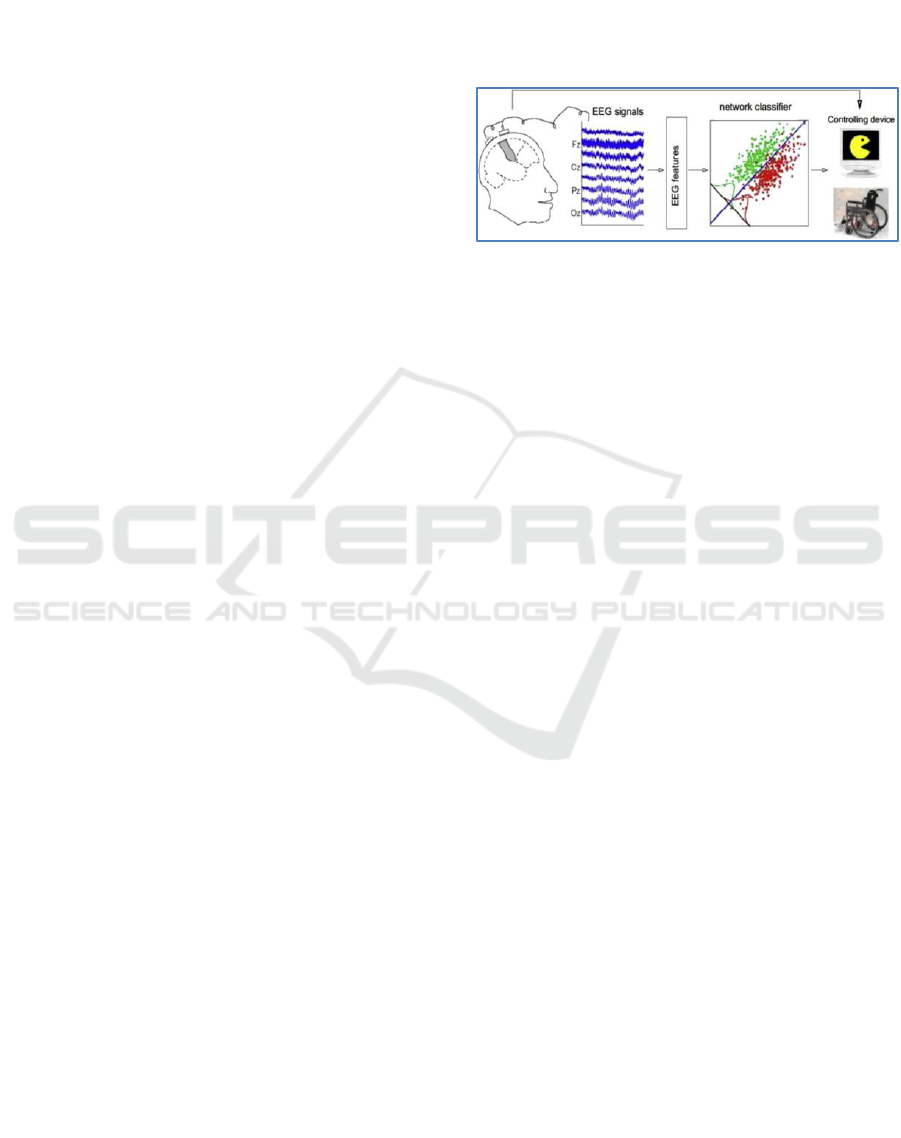

Figure 1: Schematic View of a BCI System (Karlovskiy and

Konyshev, 2007).

5.1 Emotiv EPOC Neuroheadset

The Emotiv EPOC Neuroheadset, a consumer-grade

EEG device, was the chosen BCI for this research

study, as it is a non-invasive, low-cost BCI that did

not pose a risk to the participants (Shah, 2018). This

headset, developed by Emotiv (a neuro engineering

company), was designed for human-computer

interaction and is a high-fidelity, high-resolution 14-

channel wireless neuroheadset. It can detect, user-

trained mental commands (Cognitiv

suite),

subconscious emotional states (Affectiv

suite), and

facial expressions (Expressiv

suite), which allow

the computer to react to a user’s moods and deliberate

commands in a more natural way (Emotiv, 2012,

2014a). According to Maskeliunas et al. (2016), the

Emotiv EPOC was originally developed as an input

device for video games, but is becoming increasingly

popular as a research tool, due to its usability and

flexibility.

The Affectiv

suite (Figure 2) deemed to be the

most appropriate detection suite for this research

study, as it monitors the user’s emotional state

(engagement, boredom, excitement, frustration and

meditation level) in real-time, and enabling an extra

dimension in interaction, which allows the computer

to respond to the emotions.

As there are no international recognised units for

emotions, the Affectiv

suite produces numbers

based on each user's historical range. An excitement

level of 1 is the maximum excitement for that specific

user, where 0 indicates a catatonic state (Gmac,

2014). Three distinct Affectiv

detections, namely

instantaneous excitement, engagement and long-term

excitement, are available through this suite (Emotiv,

2012, n.d.).

CHIRA 2019 - 3rd International Conference on Computer-Human Interaction Research and Applications

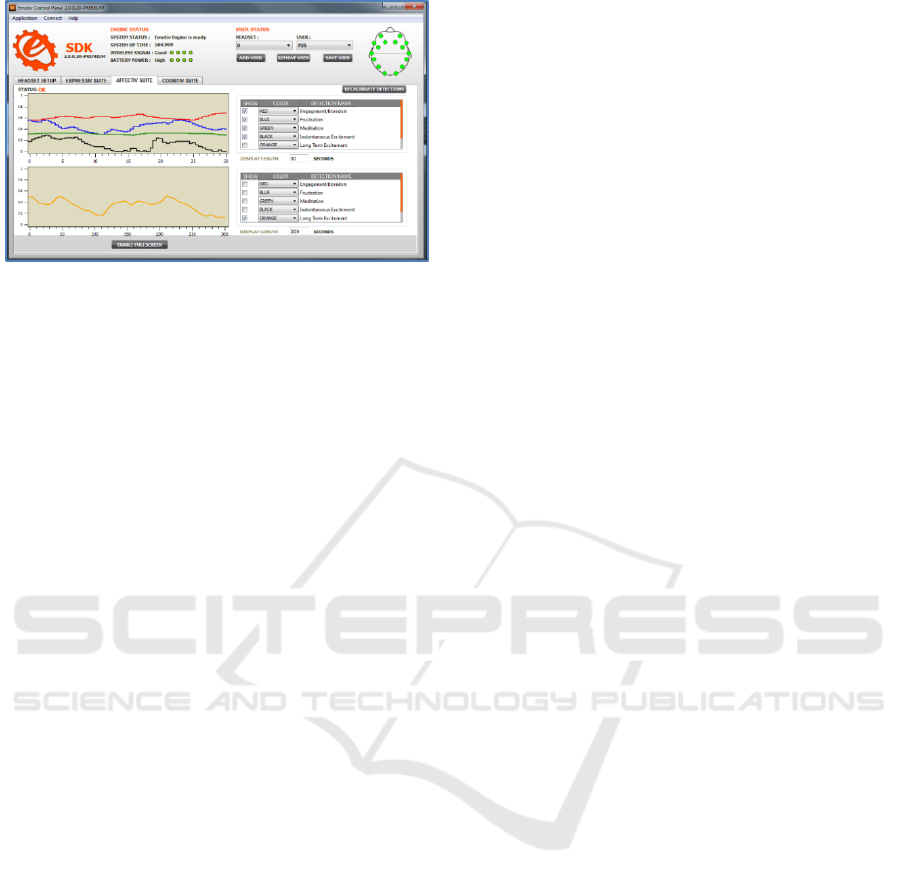

Figure 2: Emotiv Control Panel – AffectivTM Suite.

Engagement is experienced as attentiveness and

the conscious direction of attention towards task-

relevant stimuli. This is characterised by alpha and

beta waves, as well as an increase in physiological

arousal. Boredom is the opposite pole of this

detection but it does not always correspond with a

subjective emotional experience that all users

describe as boredom. The user’s engagement score

will increase when he/she writes something on paper

or types on a keyboard, and will decrease rapidly

when he/she closes his/her eyes. The related emotions

to engagement are vigilance, alertness, stimulation,

concentration and interest (Emotiv, 2012, n.d.).

The user experience instantaneous excitement is

an awareness or feeling of physiological arousal with

a positive value. Excitement is characterised by the

activation of the sympathetic nervous system. This

results in a range of physiological responses in the

user: sweat gland stimulation, pupil dilation, eye

widening, blood diversion, heart rate and muscle

tension increases and digestive inhibition. The related

emotions to instantaneous excitement are titillation,

nervousness and agitation. Instantaneous excitement

is measured over time periods as short as several

seconds (Emotiv, 2012, n.d.).

Long-term excitement is experienced and defined

in the same way as instantaneous excitement.

However, long-term excitement is measured over

longer time periods, typically measured in minutes

(Emotiv, 2012, n.d.).

The Affectiv

detection of the Emotiv EPOC

Neuroheadset is capable of detecting emotions at a

rate of four detections per second. These detections,

the automatically scaled SDK (Software

Development Kit) values, are derived from a trailing

sample of two to nine seconds for the different

emotions (long and short-term excitement,

meditation, frustration and boredom) (Emotiv,

2014b).

Short-term excitement has the fastest response

and uses a trailing buffer of two seconds to analyse

for events. According to Emotiv (Gmac, 2012), it is

possible to see a response in the short-term

excitement within half a second if there was a

significant event. For engagement, a one second

trailing buffer is used to analyse for events, but as the

data are based mostly on high frequency signals, a

response can be noticed between a half and one

second. For meditation, comparisons over several

seconds are used to derive the information and it takes

one to three seconds to respond to an event.

Frustration uses a 10-second trailing buffer to analyse

for events resulting in four to six seconds’ delay to

respond to a significant change (Gmac, 2012).

6 METHODOLOGY

The following research question was formulated,

“What are the effects of Search Engine, Search Term

and Occasion on the BCI Metrics (Minimum,

Maximum, Average and Fluctuation) for the different

emotions (Long-Term Excitement, Short-Term

Excitement, Engagement, Meditation and

Frustration) when ambiguous search queries are

used?”

In order to answer the research question, 36

participants (19 males and 17 females) were

recruited. They were all first-year students (20 to 25

years of age) at the University of the Free State

(UFS), enrolled in the computer literacy course. Each

participant completed a pre-test questionnaire,

performed three ambiguous searches and completed a

post-test questionnaire.

6.1 Pre-test Questionnaire

Before the participants were instructed to complete

the pre-test questionnaire, a unique user profile was

created on the Emotiv control panel before fitting the

Emotiv EPOC Neuroheadset on the participants’

heads. The Emotiv EPOC Neuroheadset learns and

adapts to the user's range and scale of response

(brainwaves) over time. The scale is rapidly adjusted

by the Emotiv Affectiv

suite over the first few

minutes of use and stabilises very well over about 40

minutes. A recommendation from one of the Emotiv

forum administrators was to involve participants with

questionnaires or other activities for several minutes

at the start of the testing session and then, after

approximately 10 minutes, the detections will be well

stabilised (Gmac, 2012).

The Effect of Search Engine, Search Term and Occasion on Brain-Computer Interface Metrics for Emotions When Ambiguous Search

Queries Are Used

Completing the pre-test questionnaire took the

participants a few minutes, allowing for the

stabilisation of the brainwave detections of the

headset. The questionnaire consisted of five sections

and asked each participant to answer questions related

to personal information, computer, WWW and search

engine experience, searching and search engines,

usability testing and BCI usage.

The pre-test questionnaire data show that the

majority of the participants rated their technological

experience as Expert Frequent Users when evaluating

their computer experience, WWW usage and

experience and search engine experience. The data

show that Google is the most popular search engine,

being nominated the favourite search engine amongst

all 36 participants.

6.2 Tasks

The tasks consisted of three pre-selected ambiguous

search queries to be used in WWW searches with

three search engines (Google, Yahoo! and Bing).

Each participant had to carry out three searches on

three occasions (cross-over design), using each of the

three different search engines and three different

search terms. Participants were randomized to the six

unique search engine/search term combinations using

a Graeco-Latin Square design (Kempthorne, 1983 p.

187). This design allowed for the statistically efficient

assessment of the effects of both search engine,

search term, and occasion (an effect of occasion could

be due to learning tiring effects on the users, for

example).

Twenty-seven ambiguous search terms were

considered (Table 1) for inclusion in the study. In

order for a search term to be selected, it had to exhibit

the same characteristics across all thee search

engines. As the user was not allowed to change the

search string via the keyboard, it was imperative that

the “Searches related to [original search string]” in

Google (“Google Search Engine”, 2018), “Also Try”

in Yahoo! (“Yahoo! Search Engine”, 2018), and

“Related searches” in Bing (“Bing search engine”,

2018), displayed the same results across the three

search engines once the search engine had completed

the search. These suggestions are provided by the

specific search engine to assist users in using more

relevant search queries. Google and Yahoo! display

these items towards the bottom of the web page,

whereas Bing displays them at the top right, as well

as at the bottom of the web page.

Table 1: Ambiguous search terms.

Apple

History

Racquet

Ball

Hook

Ruby

Bat

Java

Science

Canon

Match

Seal

Develop

Math

Shoot

Drink

News

Sport

Divide

Number

Star

Fight

Power

Study

Game

Python

Tree

The initial ambiguous search terms were Power,

Divide and Seal, but a day before the formal data

capturing started, Yahoo! and Bing no longer

returned the same “Also Try”/“Related searches”

items for the term Power. The ambiguous search term

Shoot replaced Power.

The participants completed each search task while

wearing the BCI headset. The headset recorded the

participants’ emotional data in real time while they

were busy with the tasks.

The emotional data gathered from the 36

participants included their Long-Term Excitement,

Short-Term Excitement, Engagement, Meditation and

Frustration. The recorded emotional data were

cleaned and normalised before four summary metrics

were calculated per emotion, from the individual

profiles, recorded over time. The metrics included:

 Minimum (Min): Minimum value measured

during the recording period.

 Maximum (Max): Maximum value measured

during the recording period.

 Average (Avg): Arithmetic mean of all values

measured during the recording period.

 Fluctuation: Calculated as the normalized peak-

trough fluctuation, namely (max–min)/average.

6.3 Post-test Questionnaire

Participants completed a post-test questionnaire

answering questions related to BCI, WWW, their

physical and personal experience, System Usability

Scale (SUS) questionnaire (one for each search

engine), emotions and general searching experience.

The purpose of the post-test questionnaire was to

obtain data on the participants’ perceptions, emotions

and feelings after completing the three search tasks,

while wearing the BCI.

The majority of the participants indicated that

they were confident using Internet Explorer and

Google, but not so much Yahoo! and Bing. The

average SUS score has also confirmed this.

CHIRA 2019 - 3rd International Conference on Computer-Human Interaction Research and Applications

7 STATISTICAL ANALYSIS

During this study it was of interest to determine

whether there were statistically significant

differences in the mean BCI metrics, regarding the

five emotions (Long-Term Excitement, Short-Term

Excitement, Engagement, Meditation and

Frustration), between the three Search Engines

(Google, Yahoo! and Bing), Search Terms (Shoot,

Divide and Seal) and Occasions (First, Second and

Third).

In order to statistically assess the effect of Search

Engine, Search Term and Occasion, respectively, on

the BCI metrics calculated from five emotions, the

following null hypotheses were formulated:

0,1

: There are no differences between the mean

BCI metrics (Minimum, Maximum, Average and

Fluctuation) calculated for the different emotions

(Long-Term Excitement, Short-Term Excitement,

Engagement, Meditation and Frustration) with

regard to the factors Search Engine (Google, Yahoo!

and Bing), Search Term (Shoot, Divide and Seal) and

Occasion (First, Second and Third).

Thus, in effect, 60 hypotheses were tested (5

emotions each with 4 metrics and 3 factors; 5 x 4 x 3

= 60).

The BCI data, that is, the four summary metrics

Minimum, Maximum, Average and Fluctuation for

each emotion, were analysed using ANOVA fitting

the factors Participant, Occasion, Search Term and

Search Engine. From this ANOVA, F-statistics and

P-values associated with testing of the significance of

the factors Occasion, Search Term and Search Engine

were reported. Furthermore, mean values of each

metric and emotion, for each level of the factors,

Occasion, Search Term and Search Engine, were

reported.

With regard to each metric and emotion, the three

search engines were compared by calculating point

estimates for the pairwise differences in mean values

between search engines, as well as 95% confidence

intervals for the mean difference and the associated

P-values.

The mean values and overall F-tests for the effect

of Search Engine (Google, Yahoo! and Bing), Search

Term (Shoot, Divide and Seal) and Occasion (First,

Second and Third) on the four summary metrics

(Minimum, Maximum, Average and Fluctuation) of

the BCI data will be discussed, per emotion (Long-

Term Excitement – Section 7.1, Short-Term

Excitement – Section 7.2, Engagement – Section 7.3,

Meditation – Section 7.4 and Frustration – Section

7.5), in the sections to follow.

7.1 Long-Term Excitement

The effect of search engine, search term and occasion,

for the emotion Long-Term Excitement, will be

discussed below.

7.1.1 Effect of Search Engine

For the emotion Long-Term Excitement, the

Minimum metric showed statistically significant

differences between search engines (P = 0.0075), with

Yahoo! having the lowest mean minimum (0.20)

followed by Bing (0.24) and Google (0.29). In

contrast, the Maximum and Average metrics did not

show statistically significant differences. The

Fluctuation metric showed statistically significant

differences between search engines (P = 0.0053) with

Yahoo! showing the greatest mean fluctuation (1.27),

followed by Bing (1.00) and Google (0.87). The fact

that Yahoo! had the greatest mean Fluctuation metric

can probably be explained by the fact that this search

engine had the smallest mean Minimum metric, while

the mean Maximum and mean Average metrics did

not differ significantly between search engines.

7.1.2 Effect of Search Term

Regarding Long-Term Excitement, the Minimum

metric showed statistically significant differences

between search terms (P = 0.0036), with Divide

having the lowest mean minimum (0.19) followed by

Shoot (0.26) and Seal (0.28). The Maximum and

Average metrics did not show statistically significant

differences. The Fluctuation metric showed

statistically significant differences between search

terms (P = 0.0008) with Divide showing the greatest

mean Fluctuation (1.32) followed by Shoot (0.88) and

Seal (0.94). The fact that Divide had the greatest mean

Fluctuation metric can probably be explained by the

fact that this Search Term had the smallest mean

Minimum metric, while the mean Maximum and mean

Average metrics did not differ significantly between

Search Terms.

7.1.3 Effect of Occasion

Finally, for Long-Term Excitement none of the

metrics showed statistically significant differences

between occasions. Thus, the order in which the

participants used the three search engines and three

search terms did not have an effect on Long-Term

Excitement. This suggests that learning or tiring

effects did not occur, or at any rate did not affect

Long-Term Excitement so that measurements taken

on the different occasions were comparable.

The Effect of Search Engine, Search Term and Occasion on Brain-Computer Interface Metrics for Emotions When Ambiguous Search

Queries Are Used

7.2 Short-Term Excitement

The effect of search engine, search term and occasion,

for the emotion Short-Term Excitement, will be

discussed below.

7.2.1 Effect of Search Engine

For the emotion Short-Term Excitement, the

Minimum metric showed statistically significant

differences between search engines (P = 0.0013), with

Yahoo! having the lowest mean minimum (0.04)

followed by Bing (0.05) and Google (0.1). In contrast,

the Maximum and Average metrics did not show

statistically significant differences. The Fluctuation

metric showed statistically significant differences

between search engines (P = 0.0064), with Yahoo!

showing the greatest mean fluctuation (2.53)

followed by Bing (2.15) and Google (2.10). The fact

that Yahoo! had the greatest mean Fluctuation metric

can probably be explained by the fact that this search

engine had the smallest mean Minimum metric, while

the mean Maximum and mean Average metrics did

not differ significantly between search engines.

7.2.2 Effect of Search Term

For the emotion Short-Term Excitement, the

Minimum metric showed statistically significant

differences between search terms (P = 0.0418), with

Divide having the lowest mean minimum (0.04)

followed by Shoot (0.07) and Seal (0.08). In contrast,

the Maximum and Average metrics did not show

statistically significant differences. The Fluctuation

metric showed statistically significant differences

between search engines (P = 0.0496) with Divide

showing the greatest mean fluctuation (2.46),

followed by Shoot (2.20) and Seal (2.12). The fact

that Divide had the greatest mean Fluctuation metric

can probably be explained by the fact that this search

term had the smallest mean Minimum metric, while

the mean Maximum and mean Average metrics did

not differ significantly between search terms.

7.2.3 Effect of Occasion

For the emotion Short-Term Excitement, none of the

metrics Minimum, Maximum, Average and

Fluctuation, showed statistically significant

differences between occasions. Thus, the order in

which the participants used the three search engines

and three search terms did not have an effect on the

Short-Term Excitement. This suggests that learning or

tiring effects did not affect the Short-Term

Excitement, similar to Long-Term Excitement, and

measurements taken on the different occasions were

comparable.

7.3 Engagement

The effect of search engine, search term and occasion,

for the emotion Engagement, will be discussed below.

7.3.1 Effect of Search Engine

For the emotion Engagement, none of the metrics

showed statistically significant differences between

search engines. Inspecting the individual mean values

per BCI metric, it can be seen that the differences

were small, indicating that this BCI emotion does not

discriminate between the three search engines.

7.3.2 Effect of Search Term

For the emotion Engagement, the Minimum metric

showed statistically significant differences between

search terms (P = 0.0004), with Divide having the

lowest mean minimum (0.40) followed by Seal (0.46)

and Shoot (0.46). The Maximum metric also indicated

statistically significant differences between the

search terms (P = 0.0025). Divide has the highest

mean maximum (0.83), followed by Seal (0.78) and

Shoot (0.77). The Average metric is the only metric

not showing statistically significant differences. The

Fluctuation metric showed statistically significant

differences between search engines (P < 0.0001) with

Divide showing the greatest mean fluctuation (0.74)

followed by Seal (0.55) and Shoot (0.52). The fact

that Divide had the greatest mean Fluctuation metric,

can probably be explained by the fact that this search

term had the smallest mean Minimum and highest

mean Maximum metric. This search term was also the

only search term that required the participant to view

three web pages before finding the correct answer.

The findings of the SUS scores indicated that the

participants experienced the task using the search

term Divide, to be more difficult than terms Shoot and

Seal.

7.3.3 Effect of Occasion

For the emotion Engagement, the metrics Minimum,

Maximum and Fluctuation did not show any

statistically significant differences between

occasions. The Average metric showed statistically

significant differences (P = 0.0176), with the First

Occasion having the highest average mean (0.61),

followed by the Second (0.59) and Third Occasions

(0.58).

CHIRA 2019 - 3rd International Conference on Computer-Human Interaction Research and Applications

7.4 Meditation

The effect of search engine, search term and occasion,

for the emotion Meditation, will be discussed below.

7.4.1 Effect of Search Engine

For the emotion Meditation, the Minimum (P =

0.0038), Maximum (P = 0.0126) and Fluctuation (P =

0.002) metrics showed statistically significant

differences between search engines. The Average

metric did not show statistically significant

differences. Yahoo! showed the greatest mean

Fluctuation (0.70), followed by Bing (0.58) and

Google (0.55). The fact that Yahoo! had the greatest

mean Fluctuation metric can probably be explained

by the fact that this search engine had the greatest

mean Maximum metric, and mean Average metrics

did not differ significantly between search engines.

7.4.2 Effect of Search Term

For the emotion Meditation, the Minimum metric

showed statistically significant differences between

search terms (P < 0.0001), with Divide having the

lowest mean minimum (0.24) followed by Shoot

(0.26) and Seal (0.27). The Maximum metric did not

indicate statistically significant differences between

the Search Terms. The Average metric indicated

statistically significant differences with P = 0.0024.

The Fluctuation metric also showed statistically

significant differences between search terms (P <

0.0001), with Divide showing the greatest mean

fluctuation (0.74) followed by Seal (0.55) and Shoot

(0.54). The fact that Divide had the greatest mean

Fluctuation metric can probably be explained by the

fact that this search term had the smallest mean

Minimum metric.

7.4.3 Effect of Occasion

For the emotion Meditation, none of the metrics

showed statistically significant differences between

occasions. Thus, the order in which the participants

used the three search engines and three search terms

did not have an effect on Meditation. This suggests

that learning or tiring effects did not affect the

Meditation, similar to Short- and Long-Term

Excitement, and measurements taken on the different

occasions were comparable.

7.5 Frustration

The effect of search engine, search term and occasion,

for the emotion Frustration, will be discussed below.

7.5.1 Effect of Search Engine

For the emotion Frustration, the Minimum (P =

0.0229) and Fluctuation (P = 0.0081) metrics showed

statistically significant differences between search

engines. The Maximum and Average metrics did not

show statistically significant differences. Yahoo!

showed the greatest mean Fluctuation (1.53),

followed by Bing (1.30) and Google (1.28). The fact

that Yahoo! had the greatest mean Fluctuation metric

can probably be explained by the fact that this search

engine had the lowest mean Minimum metric, while

the Maximum and Average metrics did not show

statistically significant differences between search

engines.

7.5.2 Effect of Search Term

For the emotion Frustration, all of the metrics,

Minimum (P = 0.0017), Maximum (P = 0.0102),

Average (P = 0.0072) and Fluctuation (P < 0.0001),

showed statistically significant differences between

search terms. The Fluctuation metric for the search

term Divide, showed the greatest mean Fluctuation

(1.62), followed by Shoot (1.27) and Seal (1.12). This

search term was also the only search term that

required the participant to view four web pages before

finding the correct answer. The findings of the SUS

scores indicated that the participants experienced the

task using the search term Divide to be more difficult

than terms Shoot and Seal.

7.5.3 Effect of Occasion

For the emotion Frustration, none of the metrics

showed statistically significant differences between

occasions. Similar to Meditation, Short-, and Long-

Term Excitement, it can be deduced that the effects of

learning or tiring did not affect the participants

Frustration levels.

8 DISCUSSION

The answer to the research question, “What are the

effects of Search Engine, Search Term and Occasion

on the BCI Metrics (Minimum, Maximum, Average

and Fluctuation) for the different emotions (Long-

Term Excitement, Short-Term Excitement,

Engagement, Meditation and Frustration)?” can be

summarised as follows.

The metrics Minimum and Fluctuation showed a

statistically significant effect of Search Engine with

regard to all emotions except Engagement, and a

The Effect of Search Engine, Search Term and Occasion on Brain-Computer Interface Metrics for Emotions When Ambiguous Search

Queries Are Used

statistically significant effect of Search Term with

regard to all emotions. It was also found that the

Average metric only had a statistically significant

effect on the emotions Meditation and Frustration with

regard to Search Term. The Minimum metric seemed

to be the most sensitive of all the metrics that were

investigated. Occasion generally had no statistically

significant effect with regard to any metric or emotion.

For the emotions Long- and Short-Term

Excitement, two metrics (Minimum and Fluctuation)

showed statistical significant differences for the effect

of Search Engine and Search Term. None of the

metrics showed any statistically significant differences

for the effect of Occasion suggesting that learning or

tiring effects did not affect Short- and Long-Term

Excitement, and measurements taken on the different

occasions were comparable.

For the emotion Engagement, none of the metrics

showed statistically significant differences for the

effect of Search Engine. The effect of Search Term, on

the other hand, did show statistically significant

differences, indicating that the participants had to

concentrate while searching for the correct answers.

There was a statistically significant difference between

Occasions regarding the Average metric for this

emotion, but after investigating the individual mean

values it was found that the differences in mean values

for the First, Second and Third occasions were very

small and thus can be ignored.

Three metrics (Minimum, Maximum and

Fluctuation) of the emotion Meditation showed

statistically significant differences for the effect of

Search Engine and Search Term. None of the metrics

showed any statistically significant differences for the

effect of Occasion suggesting that learning or tiring

effects did not affect Meditation, similar to Short- and

Long-Term Excitement, and measurements taken on

the different occasions were comparable.

For the emotion Frustration, two metrics

(Minimum and Fluctuation) showed statistically

significant differences for the effect of Search Engine,

and all the metrics showed statistically significant

differences for the effect of Search Term, confirming

the results gathered in the post-test questionnaire where

approximately a quarter of the participants indicated

that they felt frustration and did not know wat to do

while being confronted with the tasks. None of the

metrics showed any statistically significant differences

for the effect of Occasion.

In summary, it seems clear that Occasion did not

have any statistically significant effect regarding any

emotion. This finding suggests that learning or tiring

effects did not affect any of the emotions and that

measurements taken on the different occasions were

comparable in this respect. In turn, this finding

suggests that a study design where participants

complete several tasks according to some form of

cross-over design, as was done in the current study;

measurements of the kind taken in the present study are

not affected by learning or tiring effects.

Table 2 summarises the significant factors on the

BCI metrics for the different emotions. Search Engine

was a significant factor for the emotions Long-Term

Excitement, Short-Term Excitement, Meditation and

Frustration, while Search Term was a significant

factor for all five of the emotions. In contrast, Occasion

was only a significant factor for Engagement but as

mentioned above, this can be ignored.

The following null hypotheses can thus be rejected:

0,1a

: There are no differences between the mean

BCI metrics (Minimum, Maximum and Fluctuation)

calculated for the different emotions (Long-Term

Excitement, Short-Term Excitement, Meditation and

Frustration) with regard to the factors Search Engine

(Google, Yahoo! and Bing).

0,1b

: There are no differences between the mean

BCI metrics (Minimum, Maximum, Average and

Fluctuation) calculated for the different emotions

(Long-Term Excitement, Short-Term Excitement,

Engagement, Meditation and Frustration) with regard

to the factors Search Term (Shoot, Divide and Seal).

9 CONCLUSION

The statistical analysis showed that Search Engine

(Google, Yahoo! and Bing) was indeed a significant

factor for the emotions Long-Term Excitement, Short-

Term Excitement, Meditation and Frustration, while

the Search Term was a significant factor for all five of

the emotions. This indicated that the different search

engines and search terms had an influence on the

different emotions of a participant when ambiguous

search queries were used. The different occasions did

not show any statistically significant differences,

indicating that learning or tiring effects did not affect

any of the emotions and that measurements taken on

the different occasions were comparable in this respect.

The post-test questionnaire revealed that the

majority of the participants found the usability test

exciting, with low levels of frustration, while being

engaged in the tasks. These findings contradict the BCI

data, which clearly indicated that Search Engine and

Search Term affected frustration. This phenomenon

might be explained by the fact that the participant

responses were captured after the completion of the

tasks and that they felt more relaxed at that time, not

remembering how they felt before (or as the literature

CHIRA 2019 - 3rd International Conference on Computer-Human Interaction Research and Applications

indicated, not willing to share their true emotions

(Schall, 2015; Tullis and Albert, 2013)). Another

explanation might be that the emotions detected by the

Emotiv EPOC Neuroheadset, specifically Frustration,

are more sensitive than what users experienced. As

mentioned earlier, the Frustration emotion used a 10-

second trailing buffer to analyse for events, resulting in

4 to 6 seconds’ delay to respond to a significant change.

However, this was kept in mind when the BCI data

were cleaned up and prepared for statistical analysis.

Another possible reason might be the fact that during

the tests, the computer froze three times and the

recording software crashed four times. In each case, the

test had to be restarted and participants might have

experienced some level of frustration. The post-test

questionnaire also documented that some participants

indicated that they were glad that the test session was

over, which might also indicate that frustration was

present. However, the majority of the participants

indicated that they felt relaxed and that they were not

bored. The results show that the participants were

positive towards the overall usability test, which

suggests that their emotions did not negatively affect

the reliability of the data that were captured.

In the light of the above findings, the answer to this

research question is that factors Search Engine and

Search Term do have an effect on the BCI metrics for

the different emotions mentioned. Furthermore, it was

found that factor Occasion, did not have an impact on

the results and can thus be ignored.

10 FUTURE RESEARCH

Future research can include the following:

 Different ambiguous search queries to the ones

used in this paper could be used. The researcher

should also ensure that the number of steps/web

pages needed to complete each task is the same. It

will also be valuable to see how the search engines

have adapted over time to accommodate

ambiguous search terms.

 Multiple ambiguous search terms should be

identified and different search terms should be used

at different phases of the study in order to perform

a longitudinal study. However, future researchers

should keep in mind that the data collection per

phase should be completed as soon as possible, as

search engines adapt without warning.

 Different BCI devices should be compared. The

limitation of the Emotiv EPOC Neuroheadset is

that its sensors need to make contact with the scalp.

This limits the participants to those not wearing

wigs, or having weaved or braided hair.

Table 2: Summary of Significant Factors on BCI Metrics for the Different Emotions.

Factors

Metric

Long-Term

Excitement

Short-Term

Excitement

Engagement

Meditation

Frustration

Engin

Min



Max



Avg

Fluctuation



Term

Min



Max



Avg



Fluctuation



Occasion

Min

Max

Avg



Fluctuation

The Effect of Search Engine, Search Term and Occasion on Brain-Computer Interface Metrics for Emotions When Ambiguous Search

Queries Are Used

REFERENCES

Azzopardi, L. 2007. Position paper: Towards evaluating the

user experience of interactive information access

systems. Proceedings of SIGIR 2007 Workshop: Web

Information Seeking and Interaction. 60–64.

Baeza-Yates, R., Hurtado, C. and Mendoza, M. 2007.

Improving search engines by query clustering. Journal

of the American Society for Information Science and

Technology. 58(12).

Bing search engine. 2018. [Online], Available:

www.bing.com [2018, November 26].

Brandman, D.M., Hosman, T., Saab, J., Burkhart, M.C.,

Shanahan, B.E., Ciancibello, J.G., Sarma, A.A.,

Milstein, D.J., et al. 2018. Rapid calibration of an

intracortical brain–computer interface for people with

tetraplegia. Journal of Neural Engineering. 15(2).

[Online], Available: http://stacks.iop.org/1741-

2552/15/i=2/a=026007.

Carpineto, C., de Mori, R., Romano, G. and Bigi, B. 2001.

An information-theoretic approach to automatic query

expansion. In Vol. 19. ACM Transactions on

Information Systems ACM Transactions on

Information Systems (TOIS). 1–27. [Online], Available:

http://www.accessmylibrary.com/coms2/summary_02

86-10728134_ITM.

Colman, J. and Gnanayutham, P. 2013. Assistive

technologies for brain-injured gamers. In G.

Kouroupetroglou (ed.). Hershey, PA: IGI Global

Assistive Technologies and Computer Access for Motor

Disabilities. 28–56.

Dictionary.com. 2018. Information retrieval. [Online],

Available:

http://dictionary.reference.com/browse/information+re

trieval [2018, November 21].

Dou, Z., Song, R. and Wen, J. 2007. A large-scale

evaluation and analysis of personalized search

strategies. Proceedings of the 16th international

conference on World Wide Web - WWW ’07. 581.

E-business solutions. 2011. [Online], Available:

http://www.it-architects.co.uk/a_-

_z_glossary_index/E-Business_Solutions_Glossary/e-

business_solutions_glossary.html [2011, March 08].

Edosomwan, O.J. and Edosomwan, T. 2010. Comparative

analysis of some search engines. South African Journal

of Science. 106(11/12). [Online], Available:

http://www.sajs.co.za/index.php/SAJS/article/view/16

9/439.

Elbassuoni, S., Luxenburger, J. and Weikum, G. 2007.

Adaptive personalization of web search. Proceedings of

SIGIR 2007 Workshop: Web Information Seeking and

Interaction. 1–4.

Emotiv. 2012. Emotiv EPOC specifications. Brain-

computer interface technology. [Online], Available:

http://www.emotiv.com/upload/manual/sdk/EPOCSpe

cifications.pdf [2014, February 06].

Emotiv. 2014a. Emotiv EPOC and TestBench

spesifications. Brain Computer Interface and Scientific

Contextual EEG.

Emotiv. (2014b). Emotiv media. Retrieved 6 February

2014, from http://www.emotiv.com/ about/media/

Emotiv. (n.d.). Emotiv software development kit. User

manual for release 2.0.0.20. Emotiv.

Gale, W.A., Church, K.W. and Yarowsky, D. 1992. Using

bilingual materials to develop word sense

disambiguation methods. In Montréal, Canada Fourth

International Conference on Theoretical and

Methodological Issues in Machine Translation. 101–

112.

GFK. 2015. UX Score. [Online], Available:

http://www.gfk.com/solutions/ux/our-products/ux-

measurement/pages/ux-score.aspx [2015, November

18].

Gmac. 2012. Affective suite baseline data / delay on data /

3D map. [Online], Available:

http://emotiv.com/forum/messages/forum12/topic2047

/message11705/?sphrase_id=1442#message11705

[2014, August 15].

Gmac. 2014. Affectiv suite. [Online], Available:

http://emotiv.com/forum/messages/forum12/topic4084

/message18512/?sphrase_id=1442#message18512

[2014, August 15].

Goodman, E. and Cramer, M. 2010. [Online], Available:

http://www.comscore.com/Press_Events/Presentations

_Whitepapers/

2010/The_Future_of_Search_The_Emerging_Power_

of_Real-time_Personalized_Search.

Google Search Engine. 2018. [Online], Available:

www.google.co.za [2018, November 26].

Hammer, E.M., Halder, S., Kleih, S.C. and Kübler, A. 2018.

Psychological predictors of visual and auditory P300

brain-computer interface performance. Frontiers in

Neuroscience. 12:1–12.

International Standards Organization - ISO FDIS 9241-210.

2009. Ergonomics of human system interaction - Part

210: Human-centered design for interactive systems.

Switzerland: International Organization for

Standardization (ISO).

Kameswara Rao, T., Rajyalakshmi, M. and Prasad, T.V.

2012. An exploration on brain-computer interface and

its recent trends. International Journal of Advanced

Research in Artificial Intelligence. 1(8):17–22.

Karlovskiy, D.V. and Konyshev, V.A. 2007. Visualmind

framework for brain-computer interface development.

In Proceedings of the 3rd Russian-Bavarian

Conference on Bio- Medical Engineering. 15–18.

[Online], Available: http://www5.informatik.uni-

erlangen.de/Forschung/Konferenzen/Biomed07/sessio

ns/Article_(Karlovskiy)_eng.pdf.

Kempthorne, O. 1983. Design and Analysis of Experiments.

Revised ed. Florida: Robert E Krieger Publishing

Company.

Krug, S. 2006. Don’t Make Me Think! A Common Sense

Approach to Web Usability. 2nd ed. Vol. 277. Berkeley,

California USA: New Riders Publishing.

Leung, K.W., Ng, W. and Lee, D.L. 2008. Personalized

concept-based clustering of search engine queries.

IEEE Transactions on Knowledge and Data

Engineering. 20(11):1505–1518.

CHIRA 2019 - 3rd International Conference on Computer-Human Interaction Research and Applications

Linden, G. 2007. Personalized search primer and Google’s

approach. [Online], Available: http://www.readwrite

web.com/archives/personalized_search_primer.php

[2011, March 08].

Loukides, M. 2010. What is data science? Analysis: The

future belongs to the companies and people that turn

data into products. [Online], Available:

http://radar.oreilly.com/2010/06/what is data

science.html [2010, July 01].

Luo, C., Liu, Y., Zhang, M. and Ma, S. 2014. Query

ambiguity identification based on user behavior

information. Information Retrieval Technology.

(863):36–47.

Maskeliunas, R., Damasevicius, R., Martisius, I. and

Vasiljevas, M. 2016. Consumer-grade EEG devices:

Are they usable for control tasks? PeerJ. 4(e1746).

Merriam-Webster, I. 2018. Dictionary: Information

retrieval. [Online], Available: http://www.merriam-

webster.com/dictionary/information retrieval [2018,

March 17].

Mitra, M., Singhal, A. and Buckley, C. 1998. Improving

automatic query expansion. In New York: ACM New

York SIGIR ’98 Proceedings of the 21st Annual

International ACM SIGIR Conference on Research and

Development in Information Retrieval.

Mouton, J. 2001. How to succeed in your Master’s and

Doctoral Studies. A South African guide and resource

book. Van Schaik publishers.

Nicolas-Alonso, L.F. and Gomez-Gil, J. 2012. Brain-

computer interfaces, a review. Sensors. 12(2):1211–

1279.

Nielsen, J. and Norman, D. 2015. The definition of user

experience. [Online], Available:

http://www.nngroup.com/articles/definition-user-

experience/ [2018, March 12].

Oberoi, I.S. and Chopra, M. 2010. Web Search Engines – A

Comparative Study. [Online], Available: http://www.

idt.mdh.se/kurser/ct3340/ht09/ADMINISTRATION/I

RCSE09-submissions/ircse09_submission_14.pdf.

Oxford English Dictionary. 2010. 2nd ed. Oxford

University Press.

Preece, J., Rogers, Y. and Sharp, H. 2015. Interaction

Design - Beyond Human-Computer Interaction. 4th ed.

West Sussex, United Kingdom: John Wiley and Sons

Ltd.

Rogers, Y., Sharp, H. and Preece, J. 2011. Interaction

Design - Beyond Human-Computer Interaction. 3rd ed.

West Sussex, United Kingdom: John Wiley and Sons

Ltd.

Sanderson, M. 2008. Ambiguous queries: Test collections

need more sense. Proceedings of the 31st Annual

International ACM SIGIR Conference on Research and

Development in Information Retrieval. 499–506.

Schall, A. 2015. The future of UX research: Uncovering the

true emotions of our users. User Experience Magazine.

[Online], Available: http://uxpamagazine.org/the-

future-of-ux-research/.

Shah, J.J. 2018. A Closed Loop Brain Computer Interface

System: Hardware Implementation. San Diego State

University.

Song, R., Luo, Z., Wen, J., Yu, Y. and Hon, H. 2007.

Identifying ambiguous queries in web search.

Proceedings of the 16th international conference on

World Wide Web - WWW ’07. 1169.

Song, R., Luo, Z., Nie, J.Y., Yu, Y. and Hon, H.W. 2009.

Identification of ambiguous queries in web search.

Information Processing and Management. 45(2):216–

229.

Teevan, J., Dumais, S.T. and Horvitz, E. 2007.

Characterizing the value of personalizing search.

SIGIR’07.

TheFreeDictionary by Farlex. 2015. Information retrieval.

[Online], Available: http://encyclopedia2. thefreedic

tionary.com/Information+Retrieval [2015, March 17].

Thorpe, J., van Oorschot, P.C. and Somayaji, A. 2005. Pass-

thoughts: Authenticating with our minds. 121.

Tullis, T. and Albert, B. 2013. Measuring the User

Experience - Collecting, Analyzing, and Presenting

Usability Metrics. 2nd ed. Amsterdam:

Elsevier/Morgan Kaufmann.

User Experience Professionals Association. 2014.

Definitions of user experience and usability. [Online],

Available: https://uxpa.org/resources/definitions-user-

experience-and-usability [2018, March 12].

Voorhees, E. 1993. Using WordNet to disambiguate word

senses for text retrieval. In Pitsburgh, PA, USA ACM-

SIGIR ’93. 171–180.

Waldert, S. 2016. Invasive vs. non-invasive neuronal

signals for brain-machine interfaces: Will one prevail?

Frontiers in Neuroscience. 10(JUN):1–4.

Wolpaw, J.R., Birbaumer, N., McFarland, D.J.,

Pfurtscheller, G. and Vaughan, T.M. 2002. Brain–

computer interfaces for communication and control.

Clinical Neurophysiology. 113(6):767–791.

Yahoo! Search Engine. 2018. [Online], Available:

https://za.yahoo.com/ [2018, November 26].

Ying, L., Scheuermann, P., Li, X. and Zhu, X. 2007. Using

WordNet to disambiguate word senses for text

classification. In Vol. Part III. Berlin Heidelberg:

Springer-Verlag ICCS. 781–789.

The Effect of Search Engine, Search Term and Occasion on Brain-Computer Interface Metrics for Emotions When Ambiguous Search

Queries Are Used
