Security for Low-end Automotive Sensors:

A Tire-pressure and Rain-light Sensors Case Study

Adrian Musuroi, Bogdan Groza, Stefan Murvay and Horatiu Gurban

Faculty of Automatics and Computers, Politehnica University, Vasile Parvan Boulevard, Timisoara, Romania

Keywords:

Sensor, Tire Pressure Monitoring, Rain-light Sensors.

Abstract:

In recent years, the security of in-vehicle buses and components has been extensively addressed, but only a few

research works considered the security of low-end in-vehicle sensors. The main problem in addressing such

components stems from the numerous constraints, both in terms of computational power, since most sensors

are equipped with low-speed 8 bit controllers, and low bandwidth. In this work we use as a case study a tire-

pressure sensor and a rain-light sensor. The ﬁrst communicates over radio-frequency while the second uses

a low-speed in-vehicle bus, both interfaces having a very low bandwidth and reduced packet size of only 64

bits. Under these constraints we discuss the design of a cryptographic security protocol based on an existing

lightweight block cipher in order to assure both security and privacy objectives.

1 INTRODUCTION

In this work we address security and privacy issues

related to tire-pressure and rain-light sensors. The se-

curity of vehicle subsystems has been carefully exam-

ined in the recent years, e.g., (Koscher et al., 2010),

(Checkoway et al., 2011), (Miller and Valasek, 2014).

Also, security issues regarding sensors in autonomous

vehicles have been pointed out by authors in (Yan

et al., 2016). But due to a somewhat reduced im-

pact on safety and security, there are not many works

that focused on the security of low-end components

such as tire pressure sensors or rain-light sensors.

Still, the insecurity of these components may cause

serious concerns as these components are present on

many recently manufactured vehicles. In particular,

tire pressure monitoring systems (TPMS) are cur-

rently mandatory in order to increase trafﬁc safety

and reduce pollution (van Zyl et al., 2013), (Ergen

and Sangiovanni-Vincentelli, 2017). What these sen-

sors have in common is that they have communica-

tion interfaces with very low bandwidth and a reduced

packet size of only 64 bits. The ﬁrst communicates

over radio-frequency while the second is wired and

uses a low-speed in-vehicle bus, the Local Intercon-

nect Network (LIN).

For tire pressure monitoring systems (TPMS) both

security and privacy concerns have been previously

raised (Ishtiaq Roufa et al., 2010). In particular, trac-

ing vehicles based on the unique sensors IDs may be

a serious concern regarding the privacy of users. We

discuss some related work on TPMS security in the

next section. For rain-light sensors (RLS) there is

no research so far, but due to the safety-critical fea-

tures to which they are linked, i.e., automatic control

of lights or windshield wipers which may affect road

visibility, addressing their security seems also to be

relevant. Since recent research works have pointed

out security issues of the LIN bus (Takahashi et al.,

2017) to which these sensors are connected, future at-

tacks are possible.

Figure 1: Addressed scenario.

Our paper is organized as follows. In the next

subsection we discuss some related work on TPMS

and background on RLS. Section 2 presents results

on eavesdropping data from real-world TPMS sensors

and gives a clearer image on the addressed problem.

Then in section 3 we present the experimental setup,

Musuroi, A., Groza, B., Murvay, S. and Gurban, H.

Security for Low-end Automotive Sensors: A Tire-pressure and Rain-light Sensors Case Study.

DOI: 10.5220/0008165400250033

In Proceedings of the 9th International Conference on Pervasive and Embedded Computing and Communication Systems (PECCS 2019), pages 25-33

ISBN: 978-989-758-385-8

discuss our protocol design and present some exper-

imental results. Finally, section 4 holds the conclu-

sions of our work.

1.1 Existing Solutions

The automotive industry introduces new comfort and

safety features with each new generation of vehicles.

Both tire-pressure monitoring systems (TPMS) and

rain-light sensors (RLS) are good examples in this di-

rection.

Following the attacks proposed in (Ishtiaq Roufa

et al., 2010) on TPMS several solutions were pro-

posed in the literature. One of the ﬁrst solutions was

discussed by authors in (Xu et al., 2013) but the ex-

perimental results are on the Arduino platform which

is not a real-world TPM platform. A patent from Con-

tinental Corporation exists in (Toth, 2014) but the so-

lution does not appear to be secure since it is based on

CRC codes which are not a cryptographically secure

building block. A low-cost solution on a real-world

TPM sensor, i.e., the Inﬁneon SP37 platform, was de-

veloped by the authors in (Solomon and Groza, 2015)

and similar to ours uses the SPECK 32/64 block ci-

pher (Beaulieu et al., 2015). In contrast to this, here

we use a distinct implementation platform, we focus

more on limitations of existing TPMS solutions and

go toward a more compact packet with SPECK 48/96

that saves some computational time (since it allows

to embed the entire data-ﬁeld in a single encryption

block).

The RLS is a sensor able to detect rain intensity

and the ambient brightness. By detecting the rain-

drops on the windshield it can provide the information

needed to control the activation/deactivation and to

adjust the speed of the windshield wipers. The ambi-

ent brightness is used to control whether the daytime

running lights or the low beam lights are switched on.

The RLS is mounted on the interior upper part of the

windshield, above the rear-view mirror.

The information provided by the RLS are also

used by some automotive manufacturers to close the

windows/sunroof in case of rain, to modify the light

intensity of different interface elements: instrument

cluster, head-up display, infotainment unit display,

and other illuminated switches and buttons. There

are also variations of the RLS sensor with an inte-

grated humidity sensor that allows automatic wind-

shield ventilation for preventing windshield fogging.

We focused our attention on a 4th generation RLS

sensor from Hella. The RLS is usually connected to

a BCM module by using the Local Interconnect Net-

work (LIN) protocol. As shown in Figure 2, which

illustrates the structure of a LIN frame, the LIN data

ﬁeld is limited to carrying 64 bits of data. The RLS

LIN frame used by our target sensor device can be

seen in Figure 3 (the PID ﬁeld is blurred due to con-

ﬁdentiality reasons). The RLS that we studied uses

a Renesas µPD78F1817 16-bit low-power microcon-

troller with a maximum operating speed of 24MHz.

Newer RLS devices from the same family use Rene-

sas R5F10AGG chips. Characteristics for both mi-

crocontrollers can be found in Table 1. To the best of

our knowledge there are no attacks reported so far on

such sensors and no countermeasures discussed in the

literature.

The RLS being located on the windshield, the LIN

bus wires have to cross a part of the car ceiling and go

trough one of the car pillars to connect in the Body

Control Module (BCM). The BCM acts as the LIN

bus master in this case. There aren’t many other in-

vehicle devices that may connect to the ceiling LIN

wire which makes the use of RF communication for

the RLS a plausible option for reducing wiring. RF

communication is a viable alternative considering that

the LIN bus is characterized by low-speed communi-

cation requirements and a reduced frame length. The

RLS does not have to be powered by its own bat-

tery like TPMS sensors since power cables are already

available on the car ceiling for assuring ambient light.

Our after-market RLS sensor is not programmable,

consequently, in the experimental section we focus on

the TPMS unit. But since from a computational per-

spective the RLS sensor is superior to the TPMS sen-

sor that we used, the proposed solution can be easily

deployed in any of the systems.

LIN Frame

Frame header

Frame response

SYNC

Break

Field

SYNC

Field

PID

Field

Data Field

CRC

min. 14 bits

1 byte 1 byte

1-8 bytes 1 byte

Figure 2: Structure of a LIN frame.

2 ASSESSING THE PROBLEM ON

REAL-WORLD TPMS SENSORS

Before proceeding to the design of a security proto-

col, we conducted experiments on real-world sensors

in order to determine the feasibility of practical at-

tacks. This would give a crisper image on the se-

curity problems related to TPMS. This section dis-

cusses about eavesdropping sensor data from existing

in-vehicle sensors.

Exploiting TPMS vulnerability to identify and

track vehicles requires that the adversary knows at

PECCS 2019 - 9th International Conference on Pervasive and Embedded Computing and Communication Systems

Table 1: Characteristics of RLS microcontrolers and components of our experimental setup.

Function Microcontroller Architecture Operating frequency RAM Flash EEPROM Connectivity

RLS µPD78F1817 16-bit 24MHz 8KB 128KB 16KB CSI with SPI support, simpliﬁed I2C, LIN/UART

RLS R5F10AGG 16-bit 32MHz 8KB 128KB 4KB CSI, simpliﬁed I2C,LIN/UART

BCM S12XF512 16-bit 100MHz 32KB 512KB 4KB CAN, FlexRay, SPI, SCI with LIN support

TPMS PIC16F684 8-bit 8MHz 128B 2Kword 256B RF

Figure 3: RLS LIN frame.

least one sensor ID for each target car. Finding these

values is not straightforward, because the data packet

format is not standard for all cars, thus the length and

positioning of the ID within the frame varies. Re-

search work done in (Ishtiaq Roufa et al., 2010) shows

that each TPMS sensor transmits a 28 - 32 bit ID,

which makes a car with 4 such sensors identiﬁable

and thus traceable. In (Ishtiaq Roufa et al., 2010),

the method used for ﬁnding the packet format was by

observing the changes in the data frame after chang-

ing only one measured variable at a time (tire tem-

perature or pressure). This reveals the position of the

corresponding variable in the frame. The bytes that

never change their values are suited candidates for

the ID. Normal pressure and temperature ﬂuctuations

due to the wheel friction are sufﬁcient to determine

the packet ﬁelds only if a large number of captured

frames is available. Otherwise, more drastic changes

are required and it may not be possible for an adver-

sary in a real context to increase the tire temperature

using a heat gun or to change the pressure by inﬂation

or deﬂation.

Tools for reverse engineering TPMS sensor data

are already available on-line. Free software is avail-

able for statistically inspecting TPMS frames that

were recorded from a moving vehicle.

However,

there are some considerations to be taken into ac-

count. First, this method requires time and expertise

because the software cannot decode the messages by

itself. Information such as the symbol rate and pream-

https://github.com/jboone/tpms

ble format must be provided by the user, consider-

ably reducing the adversary space. Secondly, because

the software is based on statistical analysis, we must

assume that the adversary is capable of recording a

relatively high number of messages with as few in-

terceptions as possible (i.e. transmissions from other

vehicles). The requirements for this task is that the ad-

versary is able to stay in close vicinity of the moving

vehicle (TPMS messages are usually transmitted only

when a certain speed is reached by the vehicle) while

making sure that there are as few other vehicles as

possible around so there are not many interceptions.

Considering also that the transmission rate is approx-

imately one minute, gathering a sufﬁcient amount of

captures may be somewhat inconvenient for practical

reasons.

In our approach, we conducted TPMS reverse en-

gineering by using a commercial kit of programmable

sensors that are compatible with 98% of the vehicles

on the market. When programming the sensors, the

associated hardware and software tools allow us to

select a particular vehicle (i.e. brand and model) and

the sensor ID, the latter having the options to be gen-

erated within the software or handwritten. Automatic

ID generation indicates the speciﬁc ID length for each

vehicle model. One observation is that continuously

generating IDs will not change the value of the most

signiﬁcant byte until other vehicle model is selected.

This indicates a possible common practice of using

IDs with the same most signiﬁcant byte value for a

given vehicle. Further, the sensors can be diagnosed.

During this process, the kit emulates a BCM that trig-

gers the sensor to send data via RF. Searching the pre-

viously programmed ID in sensor transmissions al-

lows us to precisely determine its position in the data

frame.

The RF signal was captured using a HackRF One

receiver

with GNU Radio Companion and further

inspection, demodulation, symbol rate recovery and

symbol extraction were all made using Inspectrum.

Figure 4 shows the HackRF tool and a commercial

tire sensor. In Figure 5 we show a TPMS trace cap-

tured from the sensor during diagnosing. The cursors

are manually placed to cover the entire signal, giv-

ing a raw signal length of 176 symbols. More useful

information such as the symbol rate and symbol pe-

https://greatscottgadgets.com/hackrf/one/

https://github.com/miek/inspectrum

Security for Low-end Automotive Sensors: A Tire-pressure and Rain-light Sensors Case Study

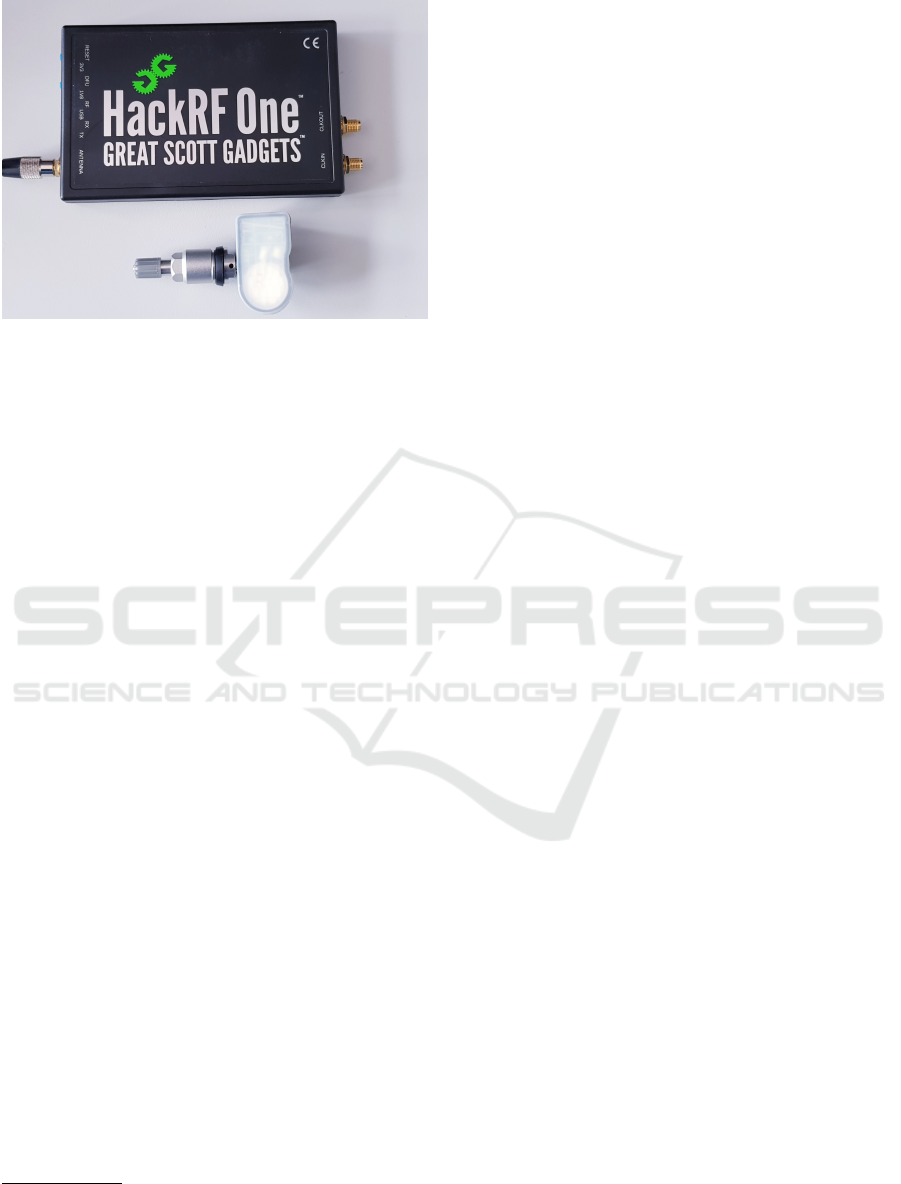

Figure 4: Analysis tools: HackRF and a commercial tire

sensor.

riod are displayed in the Controls view. After extract-

ing the symbols, removing the preamble and applying

Manchester decoding (most common encoding tech-

nique used), the previously programmed three-byte

ID is revealed within the data frame.

Further, we applied the same process for sensors

programmed for several vehicle brands and models

chosen from the Jato Dynamics 2018 best selling car

statistics,

but also for other popular brands not in-

cluded in this chart. We ﬁnd that there are various pat-

terns for TPMS messages and we used them to group

vehicle models. Table 2 summarizes our results for

eight identiﬁed patterns. For each one, the preamble,

modulation method, encoding method, symbol rate,

ID length and ID positioning are shown. Also, in

the last column, we show the order in which the ID

bytes are sent, i.e., most or least signiﬁcant byte ﬁrst.

One mention is that for preamble identiﬁcation we se-

lected the maximum number of leading symbols that

include repeated sequences of ’10’/’01’, or sequences

that cannot be a result of Manchester encoding (e.g. a

sequence of four 1’s). Values from the ID offset col-

umn were determined after removing the preamble.

From patterns no. 2, 4 and 5 we learn that mul-

tiple encoding techniques may be used in TPMS RF

transmissions. In our case, Non Return to Zero In-

verted encoding is used along Manchester, the latter

being the only encoding method considered in other

research works. Using multiple encodings adds ob-

scurity thus making reverse engineering more com-

plex, however it is unknown if this is done as a se-

curity measure. Pattern no. 1 sends the ID starting

with the least signiﬁcant byte ﬁrst while the others

start with the most signiﬁcant one. The transmission

https://www.best-selling-cars.com/europe/

2018-full-year-europe-best-selling-car-models-in-the-

eu/

order is relevant in a scenario in which an adversary

attempts to track a vehicle with known IDs.

To validate our method of TPMS reverse engi-

neering, we attempted to recover the sensor IDs of

a 2017 vehicle equipped with stock factory sensors.

Due to privacy concerns, the vehicle brand or model

are not disclosed. Driving the vehicle while record-

ing TPMS’s speciﬁc frequency resulted in a rich set of

captured frames from our vehicle but also from others.

While inspecting the captures, we found that almost

all of them match one of our previously found pat-

terns based on raw length, preamble and symbol rate.

This is very promising considering that our list of pat-

terns is not exhaustive and that there are other existing

devices using the same transmission frequency. Fur-

ther, we selected 70 messages matching our speciﬁc

vehicle’s group pattern and extracted the values from

the supposed ID position in the frame. As expected,

we found only four different values, which are the

following: 0x28ccfe56, 0x28cd094b, 0x28ccf426 and

0x28cdce57. Note that the most signiﬁcant byte has

the same value for all four IDs, consistent with our

earlier observation.

Attack Automation. By using a TPMS kit similar to

ours, one can create a database containing informa-

tion such as baud rate, transmission length, message

format, etc. for TPMS sensors of most modern vehi-

cles. Attacks such as the one described by us can be

automated and specialized tools may be developed.

This method would allow adversaries with no exper-

tise and with only one capture from each sensor to

retrieve all four IDs of a vehicle, raising a serious con-

cern about the security of current TPMS implementa-

tions.

Active Attacks. Spooﬁng attacks were also discussed

in (Ishtiaq Roufa et al., 2010). Authors showed that

injecting forged messages containing critical pressure

data can mislead the tire pressure monitoring system

and trigger warning messages to the driver. Having

at least one sensor ID of a vehicle, one adversary

can program the value to a commercial TPMS sen-

sor, which will generate valid messages, but with data

measured from an environment controlled by the ad-

versary. By eavesdropping TPMS messages we found

no evidence of any freshness mechanisms being used,

thus messages can be recorded and later replayed to

a targeted vehicle. The advantage of this method is

obvious. No software-deﬁned radio or error checking

techniques (i.e. CRC) knowledge is required when

computing a forged message.

PECCS 2019 - 9th International Conference on Pervasive and Embedded Computing and Communication Systems

Figure 5: Captured TPMS message viewed in Inspectrum.

Table 2: Interpreting extracted data from sensors.

Pattern no. Total symbols Preamble Modulation Encoding Symbol rate ID length (bytes) ID offset (bits) MSBF/ LSBF

1 176 15555555h FSK Manchester 19 kHz 3 25 LSBF

2 208 AAAAAAh FSK Manchester 38 kHz 4 12 MSBF

2 220 2Ah FSK Manchester, NRZI 19 kHz 4 18 MSBF

3 159 15555555h FSK Manchester 19 kHz 4 1 MSBF

4 180 39999999999981Fh FSK Manchester, NRZI 19 kHz 3.5 2 MSBF

5 159 2A9Eh FSK Manchester, NRZI 19 kHz 3.5 4 MSBF

6 138 3D55h ASK Manchester 8 kHz 3.5 10 MSBF

7 193 15555555h FSK Manchester 19 kHz 4 9 MSBF

8 223 15555555h FSK Manchester 19 kHz 4 1 MSBF

3 SETUP AND PROPOSED

PROTOCOL

This section discuses the platforms that supported our

protocol implementation as well as details on our pro-

tocol design. Finally we discuss performance results

in terms of computational power an power consump-

tion.

3.1 Embedded Platforms

Two embedded platforms were employed as support

for our experiments. A TPMS kit from Microchip

(shown in Figure 6) based on PIC16F684 was cho-

sen as the low-end automotive TPMS sensor. The

kit comes with a base-station that receives informa-

tion from the sensor. However, the base station is

not an automotive-grade controller, a reason for which

we also included in our experiments an NXP S12XF

based EVB9S12XF512E development board. The

S12 family is commonly used in the automotive in-

dustry and thus having results on this platform is at

least worthy as a comparison. The RLS sensor that

we have is an after-market component and is not pro-

grammable. In terms of computational power, it lies

between our PIC controller and the S12 board, thus

the experimental results on the two should be convinc-

ing regarding the RLS as well.

PIC16F684 based Sensor. Our TPMS sensor de-

velopment platform from Microchip is built on a 8-

bit PIC16F684 microcontroller with an operation fre-

quency of up to 8 MHz. In terms of memory, the chip

features 2 Kwords of ﬂash (program memory is ex-

pressed in words with 1 word = 14 bits), 128 Bytes

of RAM and 256 Bytes of EEPROM. From the oper-

ational point of view, the sensor is triggered by 125

kHz low-frequency (LF) messages sent by the base

station trough a LF Initiator module. When a valid

LF message is received by the on-board three-channel

Analog Front End (MCP2030), an interrupt is gener-

ated to wake up the processor from low-power mode.

Pressure, temperature and battery level are measured

and the data is sent back to the base station via 433.92

MHz radio frequency (RF). The actual sensor used by

Microchip in the sensor module design is an MS5407-

AM from Intersema, which is suited for this type of

applications.

S12XF based Receiver. Most functionalities related

to the vehicle body functional domain are usually im-

plemented by a single unit called BCM. Since TPM

and RLS fall into this category we opted for a re-

ceiver platform that is recommended for vehicle body

applications. The NXP S12X microcontroller family

is an option recommended for such applications. We

employed the EVB9S12XF512E development board,

equipped with an S12XF512 microcontroller, as the

BCM. The S12XF512 microcontroller provides 32

KBytes of RAM, 512 KBytes of Flash and a 16-bit

Security for Low-end Automotive Sensors: A Tire-pressure and Rain-light Sensors Case Study

main core that can operate at frequencies up to 100

MHz. Its communication capabilities cover options

for interacting with other in-vehicle modules via pro-

tocols such as CAN or FlexRay as well as protocols

to interface with various sensors and peripherals, i.e.

LIN, SPI and asynchronous serial communication.

This makes it easy to connect the microcontroller to

on-board sensors and radio-frequency transceivers en-

abling monitoring abilities for a wide range of sen-

sors.

Figure 6: Microchip TPMS kit.

3.2 Protocol Design Goals

As showed in section 2 and by related work, TPMS

sensors send data packets in plain, revealing IDs suf-

ﬁciently large for an adversary to track vehicles. Also,

the lack of freshness and authentication allows spoof-

ing and replay attacks to be performed undetected.

Our protocol aims to improve TPMS security, while

keeping the added time, memory and energy costs

as low as possible. Current standards in automotive

on-board communication request for authentication

tags of 24 bits and freshness parameters (AUTOSAR,

2017). Speciﬁcations for interfaces of cryptographic

primitives also exist in (AUTOSAR, 2015a) and (AU-

TOSAR, 2015b). For authenticity however we cannot

rely on constructions such as the HMAC (Krawczyk

et al., 1997) due to memory constraints on the sensor,

the only alternative being the CBC-MAC which can

be easily derived from the symmetric cipher that we

use.

Hardware constraints for in-wheel sensors were

also taken into consideration. For this type of ap-

plication, lightweight block ciphers are suited since

they require low amounts of memory and process-

ing power. The block cipher family of our choice is

SPECK (Beaulieu et al., 2015), released by NSA and

optimized for performance in software implementa-

tions.

3.3 Protocol Description

Data Packet Format. In the available implementation

examples, the Microchip sensor uses a data packet

with the structure from Figure 7 (i). The ID ﬁeld

has three bytes, comparable to real sensors as shown

in our experimental study. Pressure and temperature

data are both two-byte ﬁelds and there is another one-

byte ﬁeld for sending useful ﬂags such as battery sta-

tus, giving a total of 8 bytes that are sent by the sensor.

ID PressureTemperature FLAGS

MACID Temperature Pressure FLAGS

ii)

Byte 7 Byte 6 Byte 5 Byte 4 Byte 3 Byte 2 Byte 1 Byte 0

Figure 7: Structure of a data packet from TPMS.

Figure 7 (ii) shows the data packet format used

in our implementation once the security element is

added. In order to achieve data integrity, a three-byte

MAC ﬁeld is added. To avoid increasing the power

consumption during transmissions, the ID and pres-

sure ﬁelds are reduced in size so that the ﬁnal length

of the data packet remains 8 bytes. Because the ID

is encrypted and the message is authenticated (with a

session key), using only one byte for the ID ﬁeld is

sufﬁcient and even if collisions occur in the ID they

are further mitigated by checking the larger MAC.

Freshness. In our approach, we achieve message

freshness by using Counter mode for message encryp-

tion. This method prevents replay attacks and can

be implemented with ease on low-end embedded sys-

tems. Considering that for the smallest SPECK vari-

ant, i.e., SPECK32 64 the counter has the size of 32

bits and that TPMS sensors send data once a few min-

utes, capturing two messages encrypted with the same

counter value is unlikely.

Conﬁdentiality and Integrity. The proposed proto-

col ensures conﬁdentiality and integrity of TPMS RF

transmissions by encrypting the messages and con-

catenating a three-byte MAC. Depending on the im-

plementation requirements, we distinguish between

two different scenarios. The ﬁrst scenario corre-

sponds to the situation in which the message length

exceeds the block size (of the block cipher), thus an

additional block is required for computing the MAC,

i.e., CBC-MAC. This scenario is illustrated in Fig-

ure 8. In the second scenario, the entire message ﬁts

in the block cipher thus the MAC can be computed

by simply encrypting the ciphertext with the authenti-

cation key. The second situation is illustrated in Fig-

ure 9.

PECCS 2019 - 9th International Conference on Pervasive and Embedded Computing and Communication Systems

COUNTER

SPECK32_64

Ciphertext Block 1

Encryption Key

SPECK32_64Authentication Key

COUNTER

SPECK32_64Encryption Key

SPECK32_64Authentication Key

MAC

ID || TEMP || PRESS

FLAGS || 0x000000

CT Block 0 MSB || 0xFFFFFF

Ciphertext Block 0

Figure 8: Encryption with SPECK32 64.

Table 3: Execution time of Speck variants.

Block size Key size Execution time (µs)

(bits) (bits) S12XF512 PIC16F684

32 64 188.6 2693

48 72 198.6 3854

48 96 207.6 4044

64 96 273.6 5494

64 128 284.0 5697

96 96 301.8 7934

96 144 312.2 8217

Figure 10: Encryption time with SPECK on S12.

3.4 Performance Evaluation

Execution Time. We now evaluate the performance of

the employed platforms in executing the underlying

cryptographic algorithms. Table 3 presents the exe-

cution times of different variants of SPECK (various

combinations of block and key size) on the S12XF512

and PIC16F684. Figures 10 and 11 give a graphic

summary of the encryption time on both controllers.

COUNTER

SPECK48_96

Ciphertext

Encryption Key

SPECK48_96Authentication Key

ID || TEMP || PRESS || FLAGS || 0x00

MAC

Figure 9: Encryption with SPECK48 96.

Table 4: Memory utilization for PIC16F684.

Block size Key size Flash RAM EEPROM

(bits) (bits) (bytes) (bytes) (bytes)

32 64 44 7 44

48 72 60 9 66

48 96 60 9 69

64 96 76 11 104

64 128 76 11 108

96 96 112 15 168

96 144 112 15 174

Figure 11: Encryption time with SPECK on PIC.

Memory Utilization. Given the reduced memory

available on sensor devices we address the issue of

memory consumption with a memory-optimized im-

plementation of SPECK on the PIC16F684. Mem-

ory optimization for SPECK is presented in (Beaulieu

et al., 2015) as a trade-off between FLASH and RAM

consumption. Our objective is to minimize both pro-

gram and data memory usage by optimizing the algo-

rithms in assembly and taking advantage of the avail-

Security for Low-end Automotive Sensors: A Tire-pressure and Rain-light Sensors Case Study

CP TP

Figure 12: Power consumption: no se-

curity.

CP TP

Figure 13: Power consumption:

SPECK 32/64.

CP TP

Figure 14: Power consumption:

SPECK 48/96.

able EEPROM memory. The encryption algorithm is

straightforward and there is little space for optimiza-

tion. In contrast, the key expansion stage which is

performed before every encryption can be skipped.

During this stage, the secret key for encryption is ex-

panded into round keys to be used in the encryption

stage. By pre-expanding and storing the round keys

in EEPROM, the key expansion stage is avoided, thus

reducing the amount of RAM and FLASH memory

used. Table 4 lists the memory consumption of our

implementations of various SPECK variants on the

PIC16F684. The last column is fully represented by

the round keys stored in EEPROM.

Power Consumption. Due to their in-wheel position-

ing, TPMS sensors are powered by batteries. Usu-

ally, the expected time before battery drain is up

to seven years, thus minimizing energy increase is

mandatory. Figure 12 illustrates the power consump-

tion plot of Microchip’s TPMS sensor, before adding

security measures. After augmenting regular data

transmission with the security protocol, based on both

SPECK32 64 and SPECK48 96 block ciphers, the

power consumption graph modiﬁes as depicted in

Figure 13 and Figure 14 (note that the computational

time expands). The overall power consumption can

be divided into two major phases, i.e., Computation

Phase (CP) and Transmission Phase (TP).

The computational phase CP starts when the pro-

cessor exits low-power mode and during this phase,

sensor measurements, encryption and MAC computa-

tions are performed. Peak value is reached when the

actual sensor is powered during pressure and temper-

ature measurements and can be visually observed as

a spike in all plots. The power consumption is dic-

tated by the processor’s operational power require-

ment and the average instantaneous value measured

by us was 402 micro-watts. Comparing the CP dura-

tions we ﬁnd increases of 65.8% in the SPECK32

based implementation and 50% in the variant based

on SPECK48 96 (note however that power consump-

tion is small compared to the transmission phase TP).

Using a larger block, i.e., 48 vs. 32, to avoid an addi-

tional encryption block leads to lower computational

time thus to lower power consumption. The second

phase (TP) is marked by a dramatic increase of the

plot amplitude. During this phase the message is sent

via RF thus the antenna must be powered. By per-

forming again the same measurement for the average

power consumption, we obtain 1284 micro-watts. Be-

cause we used the same packet length of 8 bytes, the

duration of TP is the same in all three cases. Us-

ing calculus to approximate the power consumption

penalty for both cases, we estimate an overall increase

of 3.3% for the SPECK32 64 variant and 2.5% for the

SPECK48 96 variant. This shows that our security

protocol does not impact the battery life signiﬁcantly.

4 CONCLUSIONS

In this work we have analyzed the security of low-end

vehicle sensors and proposed a cryptographic proto-

col that is able to assure both privacy and security.

To prove feasibility, we made a proof-of-concept im-

plementation on a TPMS kit from Microchip. Our

protocol makes use of the lightweight SPECK cipher

and assures security by encrypting the data-ﬁeld and

by using a CBC MAC. Performance results are dis-

cussed for several version of the cipher. Since TPMS

systems usually rely on internal batteries that cannot

be changed, we also present results on energy con-

sumption which prove that the solution is not pro-

hibitive w.r.t. small batteries on such sensors. Similar

lightweight security mechanisms can be used for low-

end RLS sensors. Our after-market RLS sensor was

not programmable, but it has superior characteristics

to the TPMS sensor that we used and thus the pro-

posed solution can be deployed in a straight-forward

manner. While current RLS sensors are wired to LIN

bus, we argue that RF communication in RLS may

become a future option to reduce wiring.

PECCS 2019 - 9th International Conference on Pervasive and Embedded Computing and Communication Systems

ACKNOWLEDGEMENTS

We thank the reviewers for helpful comments that

improved our work. This work was supported by a

grant of Ministry of Research and Inovation, CNCS-

UEFISCDI, project number PN-III-P1-1.1-TE-2016-

1317, within PNCDI III (2018-2020).

REFERENCES

AUTOSAR (2015a). Speciﬁcation of Crypto Abstraction

Library, 4.2.2 edition.

AUTOSAR (2015b). Speciﬁcation of Crypto Service Man-

ager, 4.2.2 edition.

AUTOSAR (2017). Speciﬁcation of Secure Onboard Com-

munication, 4.3.1 edition.

Beaulieu, R., Treatman-Clark, S., Shors, D., Weeks,

B., Smith, J., and Wingers, L. (2015). The si-

mon and speck lightweight block ciphers. In 2015

52nd ACM/EDAC/IEEE Design Automation Confer-

ence (DAC), pages 1–6. IEEE.

Checkoway, S., McCoy, D., Kantor, B., Anderson, D.,

Shacham, H., Savage, S., Koscher, K., Czeskis, A.,

Roesner, F., Kohno, T., et al. (2011). Comprehensive

experimental analyses of automotive attack surfaces.

In USENIX Security Symposium. San Francisco.

Ergen, S. C. and Sangiovanni-Vincentelli, A. (2017). In-

travehicular energy-harvesting wireless networks: Re-

ducing costs and emissions. IEEE Vehicular Technol-

ogy Magazine, 12(4):77–85.

Ishtiaq Roufa, R. M., Mustafaa, H., Travis Taylora, S. O.,

Xua, W., Gruteserb, M., Trappeb, W., and Seskarb,

I. (2010). Security and privacy vulnerabilities of in-

car wireless networks: A tire pressure monitoring sys-

tem case study. In 19th USENIX Security Symposium,

Washington DC, pages 11–13.

Koscher, K., Czeskis, A., Roesner, F., Patel, S., Kohno,

T., Checkoway, S., McCoy, D., Kantor, B., Anderson,

D., Shacham, H., et al. (2010). Experimental security

analysis of a modern automobile. In Security and Pri-

vacy (SP), 2010 IEEE Symposium on, pages 447–462.

IEEE.

Krawczyk, H., Bellare, M., and Canetti, R. (1997). Hmac:

Keyed-hashing for message authentication. Technical

report.

Miller, C. and Valasek, C. (2014). A survey of remote auto-

motive attack surfaces. Black Hat USA.

Solomon, C. and Groza, B. (2015). Limon - lightweight

authentication for tire pressure monitoring sensors. In

1st Workshop on the Security of Cyber-Physical Sys-

tems (afﬁliated to ESORICS 2015).

Takahashi, J., Aragane, Y., Miyazawa, T., Fuji, H., Ya-

mashita, H., Hayakawa, K., Ukai, S., and Hayakawa,

H. (2017). Automotive attacks and countermea-

sures on lin-bus. Journal of Information Processing,

25:220–228.

Toth, A. (2014). Method and system for monitoring a

parameter of a tire of a vehicle. EP Patent App.

EP20,120,464,019.

van Zyl, P., Goethem, S. v., Jansen, S., Kanarchos, S., Rex-

eis, M., Hausberger, S., and Smokers, R. (2013). Study

on tyre pressure monitoring systems (tpms) as a means

to reduce light-commercial and heavy-duty vehicles

fuel consumption and CO2 emissions. Delft: TNO.

Xu, M., Xu, W., Walker, J., and Moore, B. (2013).

Lightweight secure communication protocols for in-

vehicle sensor networks. In Proceedings of the 2013

ACM workshop on Security, privacy & dependability

for cyber vehicles, pages 19–30. ACM.

Yan, C., Xu, W., and Liu, J. (2016). Can you trust au-

tonomous vehicles: Contactless attacks against sen-

sors of self-driving vehicle. DEF CON, 24.

Security for Low-end Automotive Sensors: A Tire-pressure and Rain-light Sensors Case Study
