Pipelined Implementation of a Parallel Streaming Method for Time

Series Correlation Discovery on Sliding Windows

Boyan Kolev

, Reza Akbarinia

, Ricardo Jimenez-Peris

, Oleksandra Levchenko

Florent Masseglia

, Marta Patino

and Patrick Valduriez

Inria and LIRMM, Montpellier, France

LeanXcale, Madrid, Spain

Universidad Politecnica de Madrid (UPM), Madrid, Spain

Keywords: Time Series Correlation, Data Stream Processing, Distributed Computing.

Abstract: This paper addresses the problem of continuously finding highly correlated pairs of time series over the most

recent time window. The solution builds upon the ParCorr parallel method for online correlation discovery

and is designed to run continuously on top of the UPM-CEP data streaming engine through efficient streaming

operators. The implementation takes advantage of the flexible API of the streaming engine that provides low

level primitives for developing custom operators. Thus, each operator is implemented to process incoming

tuples on-the-fly and hence emit resulting tuples as early as possible. This guarantees a real pipelined flow of

data that allows for outputting early results, as the experimental evaluation shows.

1 INTRODUCTION

Consider a big number of streams of time series data

(e.g. stock trading quotes), where we need to find

highly correlated pairs for the latest window of time

(say, one hour), and then continuously slide this

window to repeat the same search (say, every

minute). Doing this efficiently and in parallel could

help gather important insights from the data in real

time (Figure 1). This has been recently addressed by

the ParCorr parallel incremental sketching approach

(Yagoubi et al., 2018), which scales to 100s of

millions of parallel time series, and achieves 95%

recall and 100% precision. An interesting aspect of

the method is the discovery of time series that are

highly correlated to a certain subset of the time series,

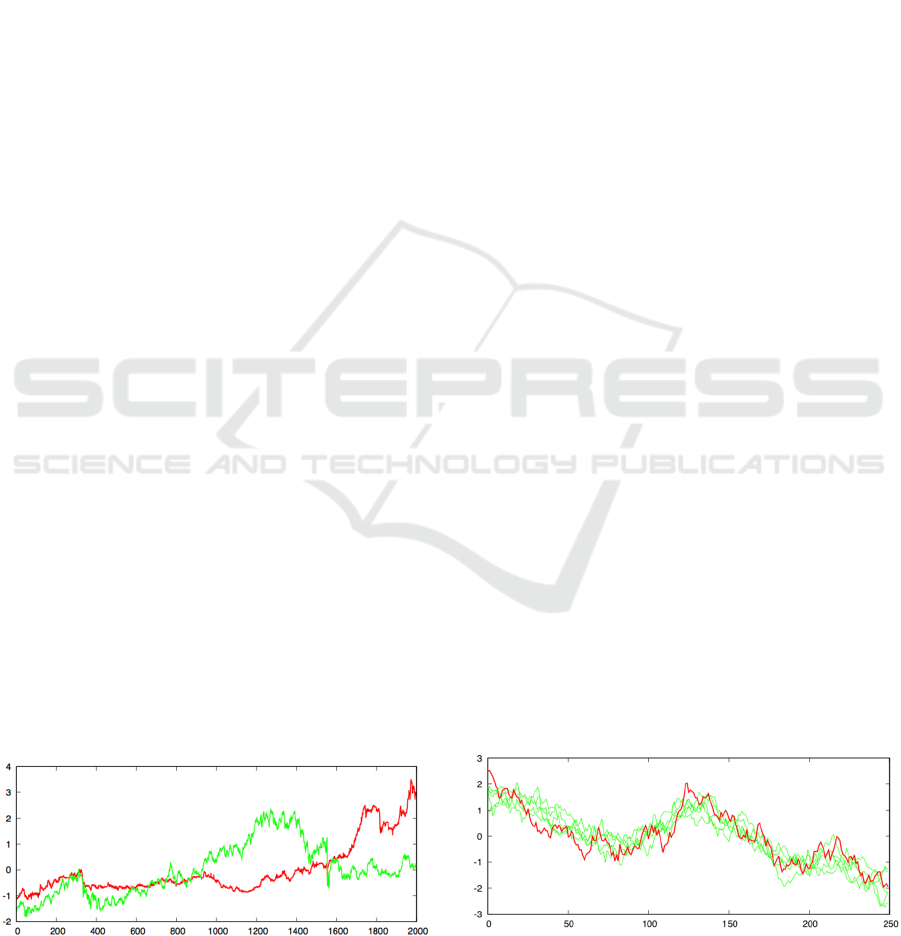

Figure 1: Example of a pair of time series that the method

found to be highly correlated over the first several sliding

windows of 500 time points, but not thereafter.

which we call targets (Figure 2). This concept has

many applications in different domains (finance,

retail, etc.), where we would like to use the correlates

of a target as predictors to forecast the value of the

target for the next time window.

Such challenges have been identified by use case

scenarios, defined in the scope of the

CloudDBAppliance project (CDBA, 2019), which

aims to provide a database-as-a-service appliance

integrating several data management technologies,

designed to scale vertically on many-core

architectures. These include an operational database,

an analytical database, a data lake, and a data

streaming engine. To face these requirements, the

ParCorr method was implemented as a continuous

query for the highly scalable streaming engine.

Figure 2: Example of a target time series (red) and its top

correlates (green) discovered by the method.

Kolev, B., Akbarinia, R., Jimenez-Peris, R., Levchenko, O., Masseglia, F., Patino, M. and Valduriez, P.

Pipelined Implementation of a Parallel Streaming Method for Time Series Correlation Discovery on Sliding Windows.

DOI: 10.5220/0008191304310436

In Proceedings of the 8th International Conference on Data Science, Technology and Applications (DATA 2019), pages 431-436

ISBN: 978-989-758-377-3

431

In a previous paper (Kolev et al., 2019), we

presented details of the generic implementation of the

method. In this paper, we focus on a modification that

allows for efficient data pipelining, considering the

fact that, at each window, target time series can be

hashed as a first step and then all the others can be

correlated to the targets in a pipeline. The rest of the

paper gives a brief overview of the streaming engine

and the ParCorr method, followed by a description of

the pipelined implementation in comparison with a

naïve one, which are then experimentally evaluated.

2 UPM-CEP: STREAMING

ENGINE OVERVIEW

Stream Processing (SP) is a novel paradigm for

analyzing in real-time data captured from

heterogeneous data sources. Instead of storing the

data and then processing it, the data is processed on

the fly, as soon as it is received, or at most a window

of data is stored in memory. SP queries are

continuous queries run on a (infinite) stream of

events. Continuous queries are modeled as graphs

where nodes are SP operators and arrows are streams

of events. SP operators are computational boxes that

process events received over the incoming stream and

produce output events on the outgoing streams. SP

operators can be either stateless (such as projection,

filter) or stateful, depending on whether they operate

on the current event (tuple) or on a set of events (time

window or number of events window). Several

implementations went out to the consumer market

from both academy and industry, such as Borealis

(Ahmad et al., 2005), Infosphere (Pu et al., 2001),

Storm

, Flink

and StreamCloud (Gulisano et al.,

2012). Storm and Flink followed a similar approach

to the one of StreamCloud in which a continuous

query runs in a distributed and parallel way over

several machines, which in turn increases the system

throughput in terms of number of tuples processed per

second. The streaming engine UPM-CEP (Complex

Event Processing) adds efficiency to this parallel-

distributed processing being able to reach higher

throughput using less resources. It improves the

network management, reduces the inefficiency of the

garbage collection by implementing techniques such

as object reutilization and takes advantage of the

novel Non Uniform Memory Access (NUMA)

multicore architectures by minimizing the time spent

in context switching of SP threads/processes.

http://storm.apache.org/

The UPM-CEP JCEPC (Java CEP Connectivity)

driver hides from the applications the complexity of

the underlying cluster. Applications can create and

deploy continuous queries using the JCEPC driver as

well as register to the source streams and subscribe to

output streams of these queries. During the

deployment the JCEPC driver takes care of splitting a

query into sub-queries and deploys them in the CEP

cluster. Some of those sub-queries can be

parallelized.

3 ParCorr: METHOD OVERVIEW

The ParCorr time series correlation discovery

algorithm (Yagoubi et al., 2018) is based on a work

on fast window correlations over time series of

numerical data (Cole et al., 2005), and concentrates

on adapting the approach for the context of a big

number of parallel data streams. The analysis is done

on sliding windows of time series data, so that recent

correlations are being continuously discovered in

nearly real-time. At each move of the sliding window,

the latest elements of the time series are taken as

multi-dimensional vectors. As a similarity measure

between such vectors, we take the Euclidean distance,

since it is related to the Pearson correlation

coefficient if applied to normalized vectors.

Since the sliding window can result in a very high

number of dimensions of time series vectors, which

makes them very expensive to be compared to each

other, a major challenge the algorithm addresses is the

reduction of the dimensionality in a way that nearly

preserves the Euclidean distances. For this purpose,

random projection approach is adopted, where each

high-dimensional vector is transformed into a low-

dimensional one (called “sketch” of the vector), by

applying a product with a specific transformation

matrix, the elements of which are randomly selected

from the values of either -1 or 1. This approach

guarantees with high probability that the distance

between any pair of original vectors correspond to the

distance between their sketches.

Furthermore, to simplify the comparing across

sketches, each sketch vector is partitioned into

subvectors (e.g. two-dimensional), so that for

example a 30-dimensional sketch vector is broken

into 15 two-dimensional subvectors. Then, discrete

grid structures (in the example, 15 two-dimensional

grids) are built and subvectors are assigned to

grid cells, so that close subvectors are grouped in the

same grid

cells. This process essentially performs a

https://flink.apache.org/

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

432

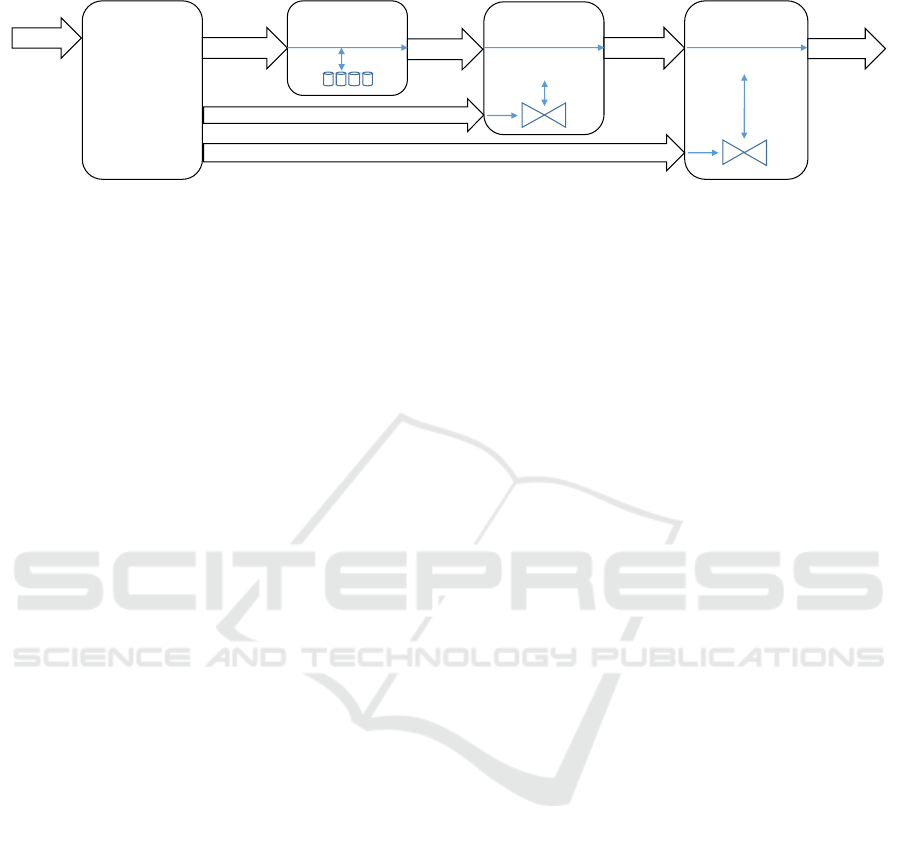

Figure 3: Streaming operators architecture with pipelined data flow within the operators Collocation, Correlation, and

Verification.

locality-sensitive hashing of high-dimensional time

series vectors, where close vectors are discovered by

searching for pairs of vectors, which are represented

together in a high number of grid cells. Since this can

output false positives, the candidate pairs are

explicitly verified by computing the actual distance

between them.

This outlines four main steps of the algorithm:

 Sketching: computation and partitioning of

sketches;

 Collocation: grouping together all time series

assigned to the same grid cell;

 Correlation: finding frequently collocated pairs

as candidates for correlation;

 Verification: computing the actual correlation of

each candidate pair to filter out false positives.

To provide prediction capabilities, the method

takes into account the correlates of time series that are

considered of interest for prediction and called

“targets”. Only correlated pairs that involve at least

one target time series are considered for discovery.

4 PIPELINED

IMPLEMENTATION

The generic implementation involves four stateful

streaming operators (Kolev et al., 2019), each

processing incoming tuples in the context of the

current window, taking into account the current state

of the window. Thanks to the flexible API of the

UPM-CEP streaming engine that provides low level

primitives for implementing custom operators, each

operator can process incoming tuples on-the-fly and

hence emit resulting tuples as early as possible. This

guarantees a real pipelined flow of data that allows

for outputting early results. This section includes

descriptions of the operators with focus on the

improvements enabled through the custom design.

The current modification presented hereby

concentrates on extensions of the method, guided by

the requirements of the CloudDBAppliance project’s

use cases, which include a filtering that enables the

discovery of time series that are highly correlated

only with a certain subset of all the time series, called

“targets”. The rest of the series are called “features”

and the objective is to output the most relevant

features for each target.

4.1 Architecture

Figure 3 shows the architecture of the streaming

operators and the data flow within the pipelined

implementation. Although these operators are

stateful, large part of their inputs are processed in a

pipelined way, allowing to emit resulting tuples as

early as possible. Therefore, compared to a naïve

implementation based on high-level streaming

operators with custom transformation functions, our

implementation gives much lower latency of the first

output tuples at each window slide.

The parallelization of the algorithm is quite

straightforward – sketches of time series vectors on

parallel data streams are computed in parallel, which

is followed by an additional shuffle step that groups

together the identifiers of time series that fit in the

same grid cell; then groups are explored for

discovering frequent pairs. Since the streaming

engine operates in a distributed environment,

operators have multiple instances, handling different

partitions of data in parallel. This requires shuffles of

intermediate data across operator instances and the

partitioning is based on a key from the schema of the

intermediate dataset. In Figure 3, we use the

Key=>Value notation to show which fields are used

as partition keys.

Time

series

input

Sketching

Collocation

cell → feature

→ [t

, …]

Correlation

raw time series (repeater)

candidate

, t

)

Verification

correlations

→ (f

, data

)

, f

, corr)

, f

, data

)

cell → target

targets

per

cell

feature (f

)

dat a

data

hash i

ems

grid cells

group by

grid cell

requency

counting

ual

distance

Pipelined Implementation of a Parallel Streaming Method for Time Series Correlation Discovery on Sliding Windows

433

4.2 Streaming Operators

The Sketching operator computes a hashing of all

time series within the current window by assigning

each time series item (only the identifier, without the

data) to a grid cell in a number of grids. As a first step,

it emits the cell assignment of only the target time

series and then emits the rest of the items (features).

Then, the Collocation operator first memorizes for

each cell a set of all assigned targets, and at the next

step processes on-the-fly each of the features by

emitting directly the set of targets collocated in the

same cell with the feature. Conceptually, this operator

efficiently combines the functionality of a group-by

followed by a hash join, by constructing the hashed

side of the join during the group-by step.

The Correlation operator counts the number of

occurrences of each (feature, target) pair and as soon

as it exceeds a certain threshold, the pair is considered

a candidate for correlation. To perform this counting,

each instance of the operator maintains incrementally,

for each of the features, a counter map that keeps the

current count for each target. When a new tuple

arrives (recall that an incoming tuple is a feature id

mapped to a set of target ids), the counter map for the

feature gets updated by incrementing the counts of the

targets present in the tuple. If some of these counts is

already equal to the threshold, the corresponding

(feature, target) pair is immediately promoted as

candidate. Conceptually, this step of the operator is

equivalent to a counting aggregate on a keyed stream

followed by a filter on the counted value. Hence, the

candidate selection with standard streaming operators

would first fully process the aggregate in order to

compute the counts for filtering.

As soon as a candidate is selected, the Correlation

operator immediately retrieves the time series data of

the feature from a local copy of the current window,

partitioned by time series identifier. This lookup is

done using a non-blocking symmetric hash join

between the candidate pairs stream and the raw time

series repeater stream. Thus, the custom

implementation of this operator combines two

stateful operations (grouping with counting and then

join) into a single one in a way that allows resulting

tuples to be emitted as soon as possible.

The same symmetric hash join strategy is applied

at the Verification operator to retrieve the time series

data of the target, compute the actual correlation of

the candidate (target, feature) pair, and, if it exceeds

the desired correlation threshold, output it. Note that

these joins also benefit from a long-term state within

the operator that keeps in a buffer the data for

previous windows, so that the repeater streams need

to incrementally stream only the newest basic

window for the consuming operator to update the

current window data. This long-term state is yet

another improvement that benefits from the custom

design, compared to standard implementations of

symmetric hash joins.

So, except for the first operator, which has

anyway to wait for the entire window to be collected

in order to compute the hashing, all the other

operators process the “features” part of the stream in

a pipeline, so that a target-feature association be

output as early as possible.

4.3 Comparison with a Naïve

Implementation

We compare the benefits of the pipelined

implementation with a naïve one, where some of the

operators must wait for the entire window data to be

collected before shuffling resulting tuples to the next

operator. This can be easily achieved through the use

of standard operators, but results in emitting all

candidates for correlations at almost the same time, as

opposed to the pipelining approach, where early

results can be observed shortly after each window

slide.

We have implemented the same algorithm on

Apache Spark, using standard operators (such as

reduceByKey and join), in order to compare the

response times of the first and the last emitted tuples

per each sliding window. The major impact on the

latency of the first results, compared to the pipelined

implementation, has the candidate selection step,

where counting is done per candidate through a

stateful operation that requires the entire window to

be processed.

5 EXPERIMENTS

We consider two implementations of the ParCorr

method as follows:

 CDBA: the pipelined implementation on top of

the UPM-CEP streaming engine for the

CloudDBAppliance platform. It leverages

custom streaming operators to minimize the

amount of exchanged intermediate data and

output resulting tuples as early as possible.

 Naïve: the baseline implementation with

standard streaming operators for Apache Spark

(version 2.3.3), with custom transformation

functions.

The experiments were carried out on a many-core

architecture platform, provided for the integration of

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

434

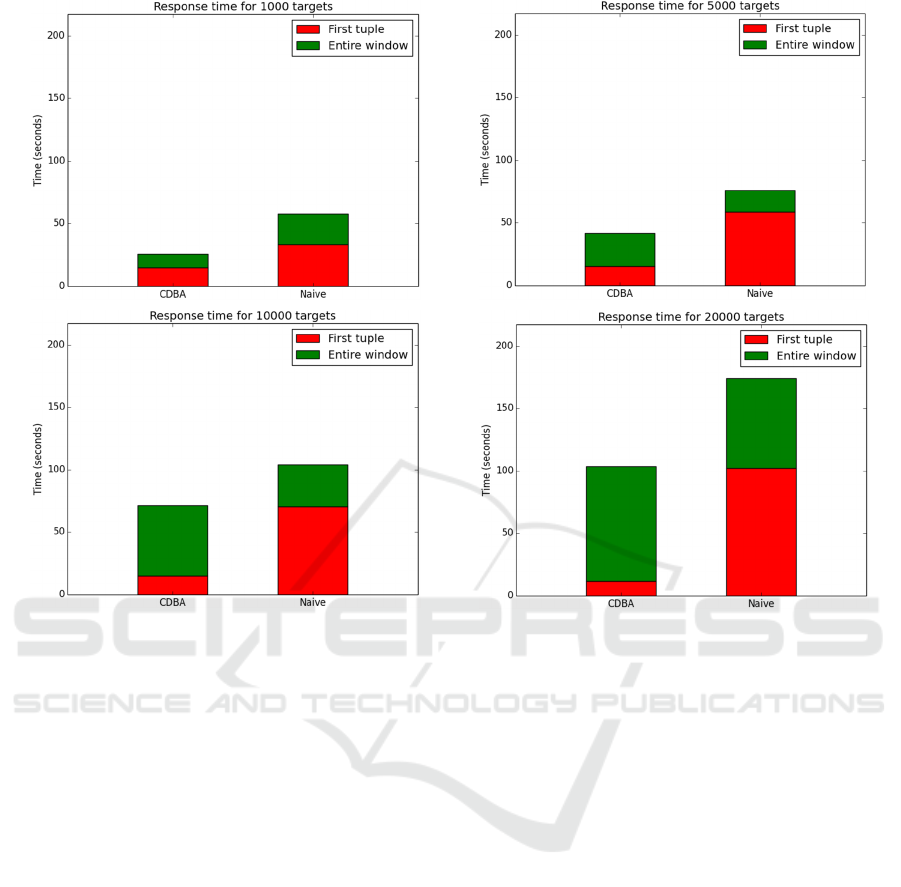

Figure 4: Experimental evaluation of the response times for the pipelined (CDBA) implementation and the naïve one. The

dataset contains 1 million random walk time series, each of length 510 points. The number of target time series is varied

between 1k, 5k, 10k, and 20k. Response times were measured for each window of size 250, sliding with a step of 20 points

(14 windows in total). Average latency to emit the first and the last tuple after the beginning of each window is displayed.

the CloudDBAppliance components. The platform

utilizes a configurable number of Intel Xeon Platinum

8153 @2GHz processors, with 3TB of main memory.

In our experiments, we have used a level of

parallelism of 48 workers, for both implementations.

Datasets were loaded in memory, so I/O cost is not

considered for either of the solutions.

The two implementations of the method were

evaluated on a synthetic random walk dataset of 1

million time series, each consisting of 510 values. At

each time point, the random walk generator draws a

random number from a Gaussian distribution N(0,1),

then adds the value of the last number to the new

number. Sliding windows of size 250 with a step of

20 points (14 windows in total) have been taken into

account to measure the response times of the first and

the last emitted tuple after the beginning of each

window.

Figure 4 shows the results of the experimental

evaluation, comparing the two implementations, with

respect to latency of the first results emitted after the

beginning of a window and the response time of the

entire window result. CDBA shows an advantage in

the total window processing time, thanks to its

optimized data flow and customized allocation of

local (to the operator instances) long-term memory

storage. In addition to the overall performance,

CDBA also shows a significant advantage in the

latency of the first results, thanks to the pipelining

approach provided by the custom operator logic.

Raising the number of targets, as expected, raises

the total execution time, as the number of candidates

is proportional. However, with respect to the first

results latency, the number of targets shows no

particular impact on the pipelined approach. An

interesting observation is that the latency even

decreases as the number of targets increases. This can

be explained by the higher number of targets

associated to each feature (at the Correlation step),

which results in a higher probability for early

presence of a frequent feature/target pair. This effect,

however, cannot be observed with the naïve

implementation, due to its inability to detect early

candidates.

Pipelined Implementation of a Parallel Streaming Method for Time Series Correlation Discovery on Sliding Windows

435

6 CONCLUSIONS

We presented a parallel streaming implementation of

the ParCorr method for window correlation discovery

on time series data, in the context of the

CloudDBAppliance project, adapted to discover

correlations with respect to a particular subset of the

input series, called “targets”. The implementation

leverages the development of custom streaming

operators that boosts the performance and minimizes

the response time by optimizing intra-operator

communication and utilizing pipelining of

intermediate data. The experimental study evaluates

the performance benefits of this implementation,

compared to a naïve streaming setup, with respect to

latency of the first results and response time of the

entire output at each time window. Our

implementation shows a significant advantage in

starting to emit results very shortly after a window

slides, thanks to the pipelining approach provided by

the custom operator logic. In addition, the overall

response time per window gets also improved.

ACKNOWLEDGEMENTS

This work has received funding from the European

Union's Horizon 2020 research and innovation

programme under grant agreement No 732051.

REFERENCES

Ahmad, Y., Berg, B., Cetintemel, U., Humphrey, M.,

Hwang, J., Jhingran, A., Maskey, A., Papaemmanouil,

O., Rasin, A., Tatbul, N., Xing, W., Xing, Y., Zdonik,

S., 2005, Distributed Operation in the Borealis Stream

Processing Engine. ACM SIGMOD International

Conference on Management of Data (2005), pp 882–

884.

CDBA, 2019. The CloudDBAppliance Project.

http://clouddb.eu

Cole, R., Shasha, D., Zhao, X., 2005. Fast Window

Correlations over Uncooperative Time Series. In:

Proceedings of the International Conference on

Knowledge Discovery and Data Mining (SIGKDD).

ACM, pp 743–749.

Gulisano, V., Jimenez-Peris, R., Patino-Martinez, M, C.

Soriente, C., Valduriez, P., 2012. Streamcloud: An

Elastic and Scalable Data Streaming System. IEEE

Trans. Parallel Distrib. Syst. 23(12), pp 2351–2365.

Kolev, B., Akbarinia, R., Jimenez-Peris, R., Levchenko, O.,

Masseglia, F., Patino, M., Valduriez, P., 2019. Parallel

Streaming Implementation of Online Time Series

Correlation Discovery on Sliding Windows with

Regression Capabilities. Proceedings of the 9th

International Conference on Cloud Computing and

Services Science (CLOSER), pp 681–687.

Pu, C., Schwan, K., Walpole, J., 2001. Infosphere Project:

System Support for Information Flow Applications.

SIGMOD Record 30(1) (2001), pp 25–34.

Yagoubi, D.-E., Akbarinia, R., Kolev, B., Levchenko, O.,

Masseglia, F., Valduriez, P., Shasha, D., 2018. ParCorr:

Efficient Parallel Methods to Identify Similar Time

Series Pairs across Sliding Windows. Data Mining and

Knowledge Discovery, vol. 32(5), pp 1481-1507.

Springer.

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

436
