Dynamic Data Streaming for an Appliance

Marta Patiño and Ainhoa Azqueta

Laboratorio de Sistemas Distribuidos, E.T.S. Ingenieros Informáticos, Universidad Politécnica de Madrid, Spain

Keywords: Data Stream Processing, NUMA Aware, Appliances.

Abstract: Many applications require to analyse large amounts of continuous flows of data produced by different data

sources before the data is stored. Data streaming engines emerged as a solution for processing data on the fly.

At the same time, computer architectures have evolved to systems with several interconnected CPUs and Non

Uniform Memory Access (NUMA), where the cost of accessing memory from a core depends on how CPUs

are interconnected. In order to get better resource utilization and adaptiveness to the load dynamic migration

of queries must be available in data streaming engines. Moreover, data streaming applications require high

availability so that failures do not cause service interruption and losing data. This paper presents the dynamic

migration and fault-tolerance capabilities of UPM-CEP, a data streaming engine designed to take advantage

of NUMA architectures. The preliminary evaluation using Intel HiBench benchmark shows the effect of the

query migration and fault-tolerance on the system performance.

1 INTRODUCTION

Large companies use mainframes for running their

application businesses. In general, the main frames

are characterized by having a large memory and

several cores. The mainframe usually runs the

operational database which is part of the core

business of companies.

The goal of the CloudDBAppliance project

setting up a European Cloud Appliance that integrates

three data management technologies: operational

database, analytical engine and real-time data

streaming on top of a many-core architecture with

hundreds of cores and several Terabytes of RAM

provided by Bull.

Servers with several CPUs in a single board, many

cores, with non-uniform memory access (NUMA)

and 128GB or more are common these days.

Nowadays several data streaming engines (DSE)

are available and ready to be used such as Flink

(Fundation, T. A. (2014)), Spark Streaming

, and

Storm (Foundation, A. S. (2015)) among others.

These data streaming engines were designed to run on

a distributed system made of several computers

connected through a network in a LAN in order to

scale and process large amount of events per second.

However, mainframes although their architecture

The CloudDBAppliance Project. http://clouddb.eu

resemble a distributed architecture they expose a

centralized architecture with no network

communication and large shared memory. In this

paper we present UPM-CEP, a NUMA aware DSE

for appliances. UPM-CEP provides a scalable

architecture to be deployed on NUMA architectures.

To the best of our knowledge, this is the first DSE

with this feature. The paper describes the UPM-CEP

migration and fault-tolerance features and

preliminary performance results using the Intel

HiBench benchmark.

The rest of the paper is organized as follows.

Section 2 introduces NUMA architectures. Section 3

presents data streaming engines main features. The

architecture of UPM-CEP is presented in Section 4.

Section 5 presents the dynamic migration algorithm,

while Section 6 presents the fault-tolerance protocol.

The performance evaluation is shown in Section 7

and finally, Section 8 presents the conclusions and

future work.

2 NUMA ARCHITECTURES

A NUMA system consists of several connected

CPUs, also called nodes or sockets. Each CPU has its

own memory that can be accessed faster than the

https://spark.apache.org/streaming/

470

Patiño, M. and Azqueta, A.

Dynamic Data Streaming for an Appliance.

DOI: 10.5220/0008319204700477

In Proceedings of the 8th International Conference on Data Science, Technology and Applications (DATA 2019), pages 470-477

ISBN: 978-989-758-377-3

memory attached to other CPUs. Main vendors have

implemented this model and connect the CPUs using

QuickPathInterconnect (QPI, Intel) or other means,

like HyperTransport in AMD processors. The cores

of a CPU have its own L1 and L2 caches and share a

L3 cache. In the case of Intel each CPU has a number

of QPI links used to connect to other CPUs.

Depending on the total number of CPUs the memory

of other CPUs is reachable in a single hop or more

hops are needed.

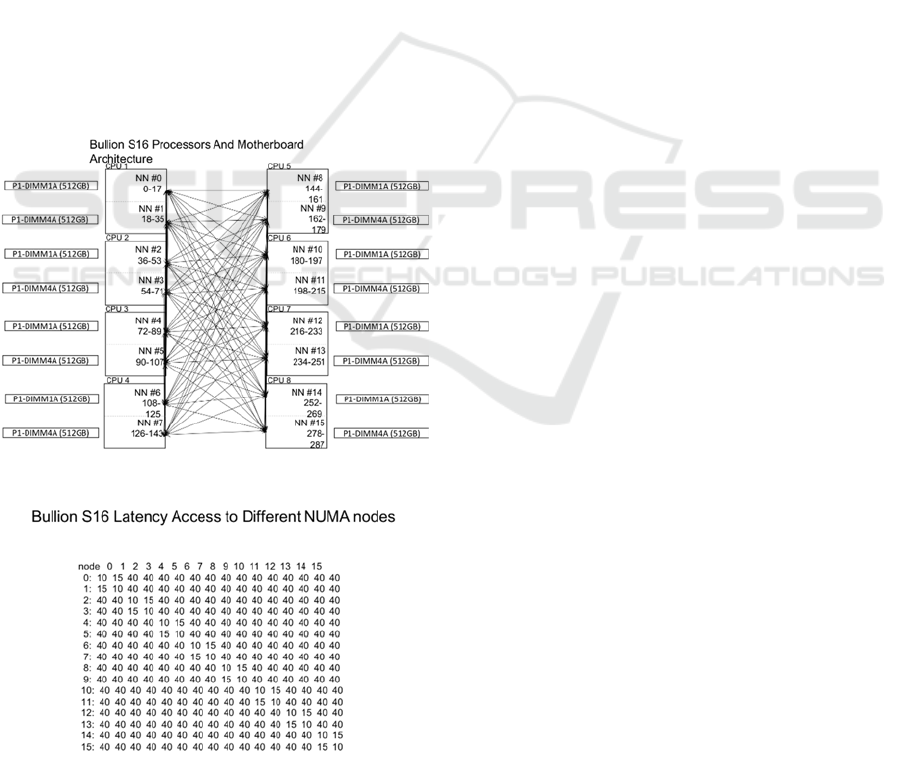

For instance, the Bullion S16 consists of 16 Intel

NUMA nodes each of them equipped with 18 cores.

Figure 1 shows how the CPUs are connected and

Figure 2 shows the memory distance between

different NUMA nodes.

The distance represents the relative latency for

accessing the memory from one CPU to another one.

For instance, a program in node 0 accessing data in

its own memory has a cost of 10, while accessing the

data in the memory attached to node 1 has a higher

cost, 15 (50% overhead). If data is the memory of any

of the 14 remaining nodes, the cost is 40. That is, it

costs 4 times more than accessing local memory of

node 0.

Figure 1: Bullion S16 Architecture.

Figure 2: NUMA distances in the Bullion S16.

Operating systems in general allocate threads on

the CPU with lowest usage. Therefore, the threads of

a process can be spread across several CPUs and

therefore the performance of the application can be

affected by remote access to the data. Linux systems

provide functions to bound threads to a CPU (e.g.,

libnuma) and even tools to bind a process to a CPU

(e.g., numactl). The numactl command also allows to

define where the memory is allocated for an

application, for instance, on a single CPU, on a set of

CPUs or interleaved among a set of CPUs.

3 DATA STREAMING ENGINES

Stream Processing (SP) is a novel paradigm for

analysing data in real-time captured from

heterogeneous data sources. Instead of storing the

data and then process it, the data is processed on the

fly, as soon as it is received, or at most a window of

data is stored in memory. SP queries are continuous

queries run on a (infinite) stream of events.

Continuous queries are modeled as graphs where

nodes are SP operators and arrows are streams of

events. SP operators are computational boxes that

process events received over the incoming stream and

produce output events on the outgoing streams. SP

operators can be either stateless (such as projection,

filter) or stateful, depending on whether they operate

on the current event (tuple) or on a set of events (time

window or number of events window). Several

implementations went out to the consumer market

from both academy and industry (such as Borealis

(Ahmad, 2005), Infosphere (Pu, 2001), Storm

(Foundation, 2015), Flink (Fundation, Apache

Flink® - Stateful Computations over Data Streams,

2014) and StreamCloud (Gulisano, StreamCloud: An

Elastic and Scalable Data Streaming System, 2012)).

Storm and Flink followed a similar approach to the

one of StreamCloud in which a continuous query runs

in a distributed and parallel way over several

machines, which in turn increases the system

throughput in terms of number of tuples processed per

second. UPM-CEP adds efficiency to this parallel-

distributed processing being able to reach higher

throughput using less resources. It reduces the

inefficiency of the garbage collection by

implementing techniques such as object reutilization

and takes advantage of the novel Non Uniform

Memory Access (NUMA) multicore architectures by

minimizing the time spent in context switching of SP

threads/processes.

Dynamic Data Streaming for an Appliance

471

4 UPM-CEP DATA STREAMING

ENGINE

UPM-CEP provides a client driver for streaming

applications, the JCEPC driver that hides from the

applications the complexity of the underlying system.

Applications can create and deploy continuous

queries using the JCEPC driver as well as register to

the source streams and subscribe to output streams of

these queries. During the deployment of a streaming

query the JCEPC driver takes care of splitting the

query into sub-queries and deploys them in the CEP.

Some of those sub-queries can be parallelized. For

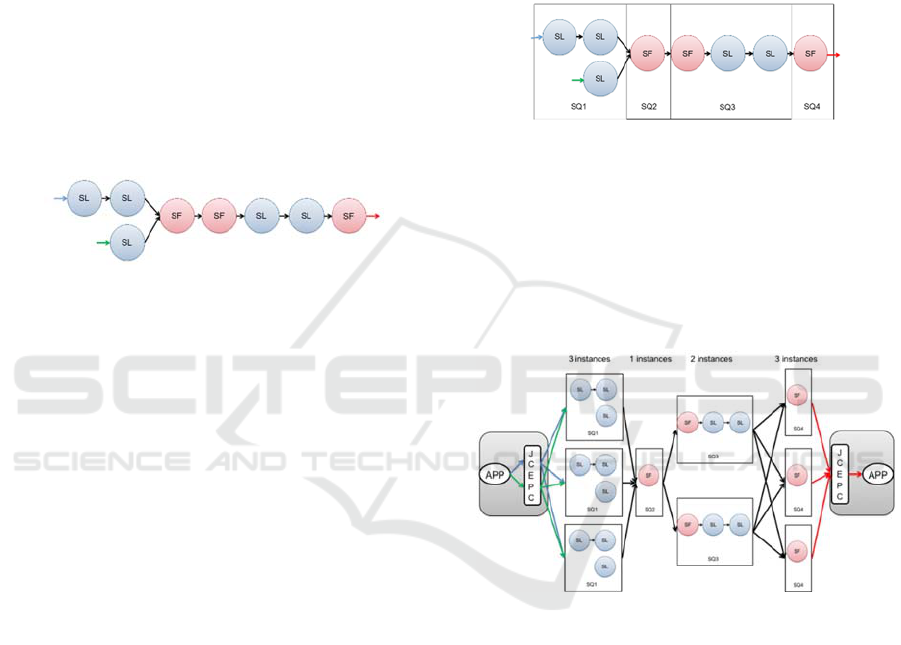

instance, the query in Figure 3 shows a data streaming

query made out 2 input streams and 8 operators. The

operators are either stateless (SL) or stateful (SF)

operators.

Figure 3: Data streaming query.

UPM-CEP has several stateless and stateful

operator implemented and users can create their own

customized operators. The stateless operators that can

be found are: 1) Map: that allows to select the desired

fields from the input tuple and create an output tuple

with those fields. 2) Filter: Only the tuples that satisfy

a defined condition are sent through the output

stream, the rest of tuples are discarded. 3) Demux:

sends the input tuples to all the output streams that

satisfies the defined conditions and 4) Union: Tuples

that arrives to the operator from different input

streams are sent to one output stream.

Regarding the stateful operators two window

oriented operators are available: 1) Aggregate: group

all tuples that are in the time or size window taking

into account defined functions executed over the

fields of all the tuples. Moreover, tuples can be

grouped into different windows if the group by

parameter is specified. 2) Join: Correlates tuples from

two different input stream. Two time windows are

created, one per input stream and when the windows

are slide tuples are joined creating one output tuple

taking into account a specified predicate.

UPM-CEP partitions queries into subqueries so

that, each subquery executes in a different node.

Figure 4 shows how the previous query is splitted into

four subqueries (SQ1, SQ2, SQ3 and SQ4). The

number of subqueries of a given query is defined by

the number of stateful operators. All consecutive

stateless operators are grouped together in a subquery

till a stateful operator is reached. That stateful

operator is the first operator of the next subquery.

This way of partitioning queries has proven to be

efficient in distributed scenarios (Gulisano,

StreamCloud: A Large Scale Data Streaming System,

2010). We have applied the same design principles to

UPM-CEP although it is not a distributed setup, the

same principles apply minimizing the communication

across NUMA nodes in this case and keeping the

same semantics a centralized system will provide.

Figure 4: Query partitioning.

Subqueries can be parallelized in order to increase

the throughput. Each instance of a subquery can run

in a different core in the same node. Figure 5 shows

how subqueries of the previous example could be

parallelized. There are 3 instances of SQ1, one

instance of SQ2, two instances of SQ3 and three

instances of SQ4.

Figure 5: Query parallelization.

The main challenge in query-parallelization is to

guarantee that the output of a parallel execution is the

same as a centralized one. If we consider a sub-query

made by only one operator, this challenge means that

the output of a parallel operator must be the same as

a centralized operator. On the other hand, window

oriented operators require that all tuples that have to

be aggregated/correlated together are processed by

the same CEP instance. For example, if an Aggregate

operator computing the total monthly operations of

the bank accounts for each client is parallelized over

three CEP Instances, it must be ensured that all tuples

belonging to the same user account must be processed

by the same CEP Instance in order to produce the

correct result.

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

472

To guarantee the equivalence between centralized

and parallel queries, particular attention must be

given to the communications among sub-queries.

Consider the scenario depicted in

Figure 6

where there

are two sub-queries, Sub-query 1 and Sub-query 2,

with a parallelization degree of two and three,

respectively. If Sub-query 2 does not contain any

window oriented operator, CEP instances at Sub-

query 1 can arbitrary decide to which CEP instance of

Sub-query 2 send their output tuples. Output tuples of

Sub-query 1 are assigned to buckets. This assignment

is based on the fields of the tuple. Given B distinct

buckets, the bucket b corresponding to a tuple t is

computed by hashing one or more fields of the tuple

modulus B. All tuples belonging to a given bucket are

sent to the same CEP instance of the Sub-query 2.

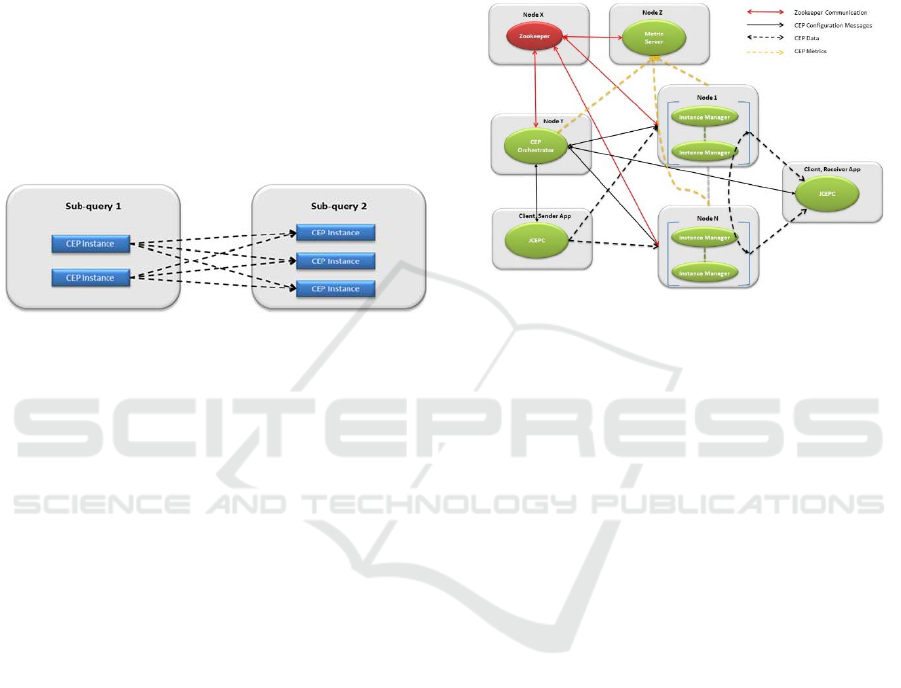

Figure 6: Subquery Connections.

The fields to be used in the hash function depend

on the semantics of the window oriented operators

defined at Sub-query 2 and the mapping among

buckets and downstream CEP Instances depends on

the load balancing algorithm used in the CEP.

 Join: if the join predicate has at least one equality

condition, it is an equi-join (EJ), otherwise it is a

cartesian product. For downstream operators of

type EJ, the hash function is computed over all the

fields used in the equalities plus the optional fields

which could appear in the group-by clause.

 Aggregate: the fields used in the hash function are

all the fields used in the group-by parameter. In

this way, it is ensured that all tuples sharing the

same values of the attributes specified in the

group-by parameter are processed by the same

CEP instance.

UPM-CEP comes with this default partition strategy

used for splitting a query into sub-queries in the

absence of user defined split policies. According to

this strategy a new sub-query is created anytime one

of the following conditions is satisfied during the

query:

 It is a stateful operator.

 It is an operator with more than one input stream.

All the event oriented operators before the first

stateful operator are part of the same sub-query.

4.1 UPM-CEP Architecture

The UPM-CEP architecture consists of two main

components: the orchestrator and instance managers.

Other components are the reliable registry

(Zookeeper) and the metric server. Figure 7 depicts

how the CEP components can be deployed in a

scenario with several NUMA nodes or nodes.

Figure 7: CEP Components.

4.1.1 Orchestrator

The orchestrator is in charge of managing the rest of

the elements of the CEP. There is only one instance

of this component in a deployment. It deploys queries

and subqueries in the instance managers and balances

the load among different nodes running instance

managers.

The state of the orchestrator is kept in Zookeeper

(Fundation, Apache ZooKeeper, 2010) so that, if

there is a failure a new orchestrator can be run and

take its state from Zookeeper. Active replication

could be an alternative design however, although

fault-tolerance is easier to implement in this case, the

overhead of active replication of the orchestrator will

have an impact on regular processing (when there are

no failures).

4.1.2 Instance Managers

The instance manager is the component in charge of

running queries. Each instance manager runs on a

core of NUMA node and can run one or more

subqueries. Instance managers are single threaded.

Instance managers receive tuples either from

clients (through the JCEPC driver) or from other

instance managers. Instance managers must be aware

of the nature of the subquery it sends tuples. In a

scenario in which there is no parallelism, an instance

manger running a subquery will send all the data to

the next subquery. These means, tuples from the first

Dynamic Data Streaming for an Appliance

473

subquery are sent directly to the next one, this type of

tuple sender process is called point to point balancer.

Figure 8 shows two subqueries SQ

and SQ

, both are

deployed using one instance manager. And tuples t1

to t6 are being sent from SQ

to SQ

by means of the

point to point balancer.

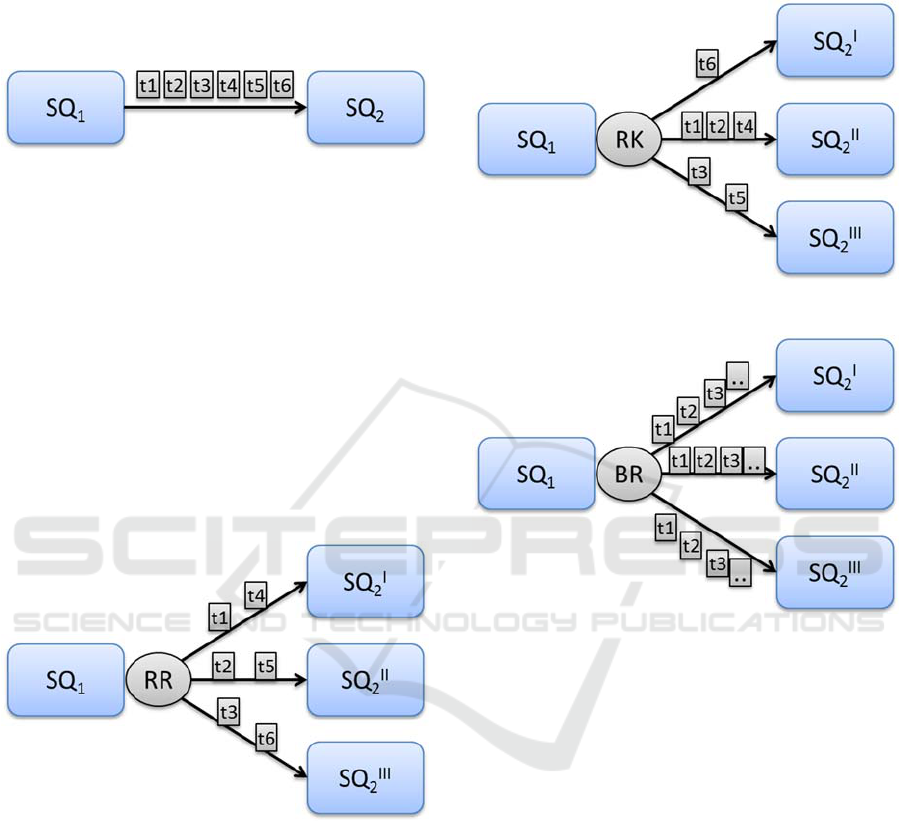

Figure 8: Point to Point Balancer.

However, if SQ

is deployed in several instances,

has to take into consideration the type of operator

is placed at the beginning of SQ

. If it is a stateless

operator, tuples from the previous instance manager

are sent in a round-robin fashion. For instance, Figure

9 represents the aforementioned scenario. SQ

has

been parallelized in three different instances and the

first operator is stateless, these means the tuples can

be handle by any of the SQ

instances. The round

robin balancer sends tuples t1 to t6 as presented, tuple

t1 is sent to the first instance, t2 is sent to the second

instance, t3 is sent to instance number 3 and the

process is repeated with tuples t4 to t6 beginning from

the first instance.

Figure 9: Round Robin Balancer.

Nevertheless, if the first operator is stateful these

means that tuples have to be handled by a specified

instance. For that cases a route key balancer is

required, taking into account the group by clause

specified in the operator configuration. Tuples

produced by SQ

are routed to the required SQ

instance, Figure 10 shows how the route key balancer

works sending tuples t1 to t6 to the different instances

of SQ

. Tuple t6 is sent to SQ

, tuples t1, t2 and t4

are sent to SQ

taking into account the route key and

finally tuples t3 and t5 are sent to SQ

III

To complete the types of balancer presented, the

UPM-CEP also defines a broadcast balancer of those

operators that requires to send the tuples to all the

instances. Figure 11 exposes an example of how

tuples are sent from SQ

to all SQ

instances.

Figure 10: Route key Balancer.

Figure 11: Broadcast Balancer.

5 DYNAMIC MIGRATION

The metric server component of the DSE stores all the

metrics related to the performance and resource usage

of the DSE. That is, input load, throughput and

latency of each operator, subquery and query running

in the system. Regarding the resource usage the DSE

monitors CPU, memory and bandwidth consumed by

each Instance Manager. If an Instance Manager is

saturated, dynamic migration will try to move one of

the subqueries running on that IM to another less

loaded IM.

Dynamic migration also happens when a new

Instance Managers are provisioned to the DSE, or

when moving sub-queries from an Instance Manager

running on one NUMA node to another one. In the

first case, the goal of moving a sub-query is to

distribute the load between an overloaded Instance

Manager and a new one. In the second case, the

reconfiguration can move two sub-queries that are

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

474

exchanging data with high frequency on the same

NUMA node in order to take advantage of the local

memory.

We defined a migration protocol for the DSE:

State Transfer. To explain the migration protocol, we

will use the query depicted in Figure 12. In the figure

there is a query Q with three sub-queries named

SQ_A, SQ_B and SQ_C. SQ_A and SQ_C are

deployed with 2 instances each and SQ_B is deployed

using 3 instances. Each sub-query is deployed in its

own Instance Manager. C and R represent

respectively the client application sending tuples and

the receiver application waiting for the query results.

Moreover let us assume that we want migrate SQ_B

from IM4 to IM8.

The completion time for the State Transfer

protocol depends on the state size, that is, the number

of tuples kept in the window structures at the time the

reconfiguration is issued.

State Transfer Protocol:

1. The protocol starts deploying a new Instance of

SQ_B (SQ_B

2NEW

) in the Instance Manager IM8.

2. Then, the upstreaming sub-queries,SQ_A

and

SQ_A

are informed that the sub-query SQ_B

will

be moved from IM4 to IM8. As a result of this

action, the IMs running SQ_A

and SQ_A

flush

their output streamss, and turn in a reconfiguration

mode where they start buffering all new output

tuples with destination SQ_B

3. IM4 takes a snapshot of the state (if any) of SQ_B

and

transfers it to the new instance SQ_B

2NEW

running in IM8.

4. Once the state is transferred, SQ_A

and SQ_A

first send to SQ_B

2NEW

all the tuples stored in the

meanwhile in the buffers and then turn themselves

back in the normal operation mode.

6 FAULT-TOLERANCE

The simplest solution to provide high availability in a

datacentre is simply to deploy the DSE in another

appliance (backup) and resume the processing of

tuples in that appliance if the active one fails

(primary). A replication manager is needed for

detecting the failure of the primary appliance. The

replication manager also sends the queries to be

deployed to the backup. These queries are registered

in the backup during regular processing. When the

primary fails in a primary-backup scenario in a data

centre, the backup will redeploy all the queries and

resume the processing.

This solution is valid if some tuples can be lost

and this does not affect the application. However, if

no tuple should be missed then, either an active

replication approach is followed or some check

pointing mechanisms must be in place. In that case

some mechanisms are needed to store the tuples so

that they can be replayed in case of a failure. If tuples

are replayed, two semantics are possible: at least once

or exactly once. That is, tuples are processed exactly

once (there are no duplicates in case of failures) or

there can be duplicates (at least once). The exactly

once policy is more expensive as it needs to register

every outcome. The DSE currently implements at

least once semantics by implementing active

replication. That is, all events are sent to the two

appliances, and both of them process all events. The

sinks that receive the outcome of the data streaming

engine will receive output events from the two

appliances and filters them in order to avoid sending

duplicates to the client during regular processing.

When a failure happens, one of the appliances will

stop sending output events. At that point the sink will

receive events from one appliance and send these

results to the client. In this scenario there will be no

duplicate outcomes (exactly once guarantee).

7 PERFORMANCE EVALUATION

UPM-CEP performance has been measured using the

Intel HiBench benchmark (Intel, 2017). This

benchmark allows to evaluate different big data

frameworks and contains 19 different workloads that

are distributed in: micro, machine learning, sql,

graph, websearch and streaming. Specifically, we

focus on the streaming workloads: 1) Identity: This

workload reads input tuples and produces the same

tuples without any modification. A map operator is

defined with the same input and output fields. 2)

Repartition: Modifies the parallelism level and

distributes the load in a round robin fashion. It defines

a map operation that copies the input to the output.

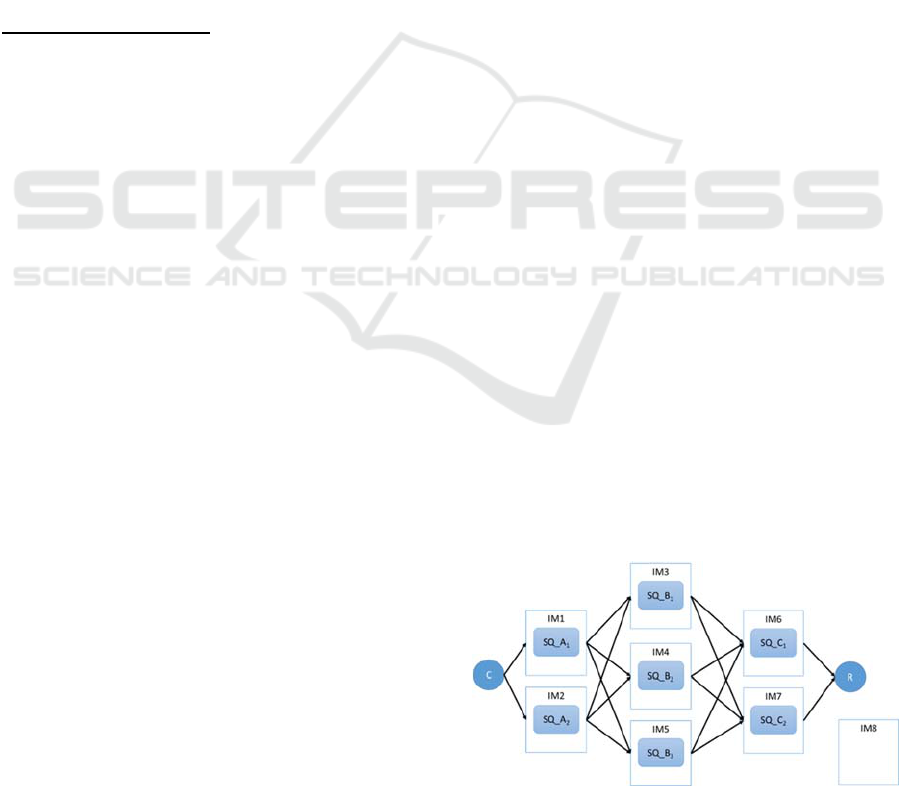

Figure 12: Example query for the migration protocol.

Dynamic Data Streaming for an Appliance

475

The query is deployed several times. Tuples are sent

to the different instances of the query in a round robin

fashion. 3) Stateful wordcount: counts the number

word. This workload requires several operators, first

of all a map operator picks only the word from the

input tuple; an aggregate operator with a number of

tuples window and a group by condition based on the

word is added. This query tests the route key balancer.

4) Fixed Window: This workload tests the

performance of the time window operator group by a

field.

This streaming workload has been implemented

to be executed in four different streaming frameworks

such as Flink, Storm, Spark and Gearpump. We have

implemented same workloads for the UPM-CEP. In

this evaluation we use the Fixed Window query,

which aggregates the connections to a server from

each IP address during a period of time. After this

time expires, a tuple with the timestamp of the first

and last connection from that IP address and the

number of connections during that period is

produced.

Figure 13: HiBench Fixed Window Topology.

This query, represented in Figure 13, is

implemented as a map operator that selects the IP

address and the connection time (timestamp) from

incoming tuples. Then, an aggregate operator with a

time window of 30 seconds per IP is defined. When

the window is triggered a tuple is emitted with the

timestamp of the first tuple in the window and the

number of tuples. To finalize a map operator, add an

extra field to the tuple with the timestamp at this

moment. The code below corresponds to the

aggregate function.

AggregateOperatorConfig aggregator = new

AggregateOperatorConfig("aggregator",

PROJECTOR_STREAM, AGGR_STREAM);

aggregator.setWindow(OperatorEnums.WindowTyp

e.TIME, wsize, wadv);

aggregator.addGroupByField("ip");

aggregator.addIntegerFunctionMapping("counter",

OperatorEnums.Function.COUNT, "ip");

aggregator.addLongFunctionMapping("startts",

OperatorEnums.Function.LAST_VAL,

ParameterStore.TIMESTAMP_USER_FIELDNAM

E);

aggregator.addStringFunctionMapping("ip",

OperatorEnums.Function.LAST_VAL, "ip");

query.addOperator(aggregator );

The goal of the evaluation is to show the performance

during load balancing and when failures occur.

For the replication protocol we show the

throughput and latency of subquery 2, the one starting

with the aggregate operator before the failure, while

the migration happens and after the system is

reconfigured. Figure 14 shows those values before the

migration happens. At that point 10,000 tuples are

received by this subquery. The response time is 0.04

ms.

Figure 14: Subquery migration, Load and response time

before the migration.

Then, the query is migrated to another node.

Figure 15 shows the load and response time after the

query is migrated. It takes around 20 seconds to

transfer the state and start processing tuples again.

Figure 15: Query migration.

For the evaluation of the fault-tolerance protocol we

present the behaviour of the data source and the data

sink. The data source is in charge of duplicating the

tuples and sending them to both nodes. The data sink

receives the output tuples from the two nodes and

outputs a single one. The first time a tuple arrives

from one of the nodes, it outputs that tuple and keeps

it in memory till the duplicate arrives or a failure

happens. In the former case the tuple is eliminated,

while in the latter case, the tuples are directly send to

the client.

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

476

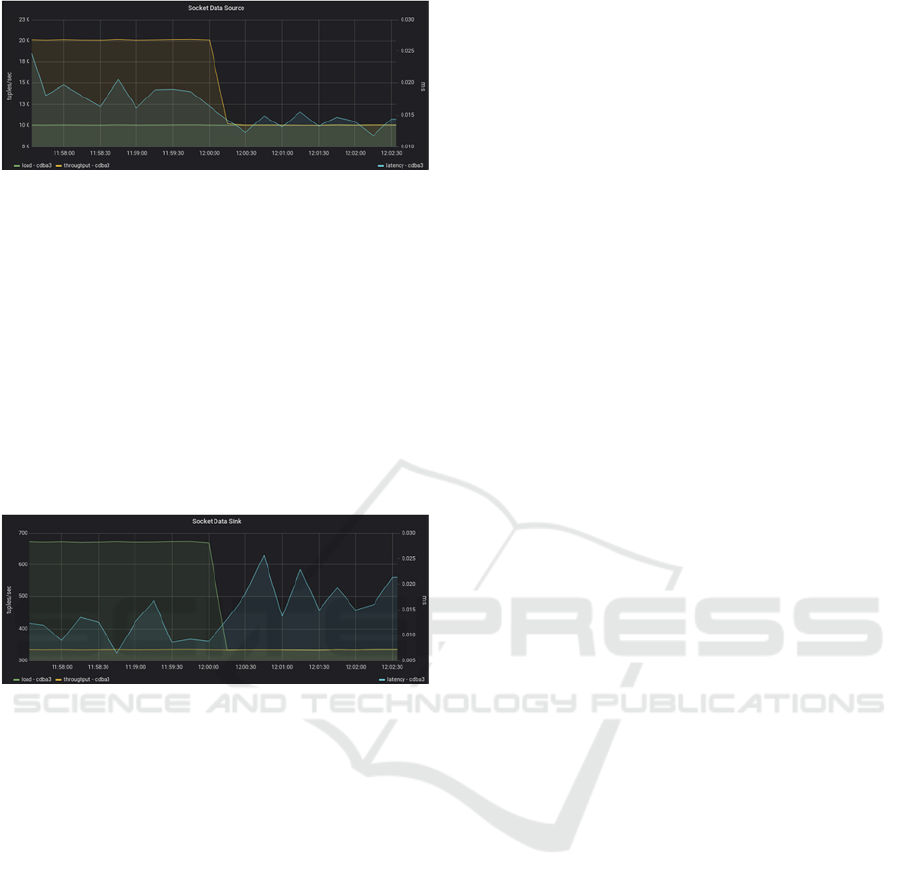

Figure 16: Data Source.

Figure 16 shows that the data source receives 10

000 tuples and sends 20 000 tuples while there are two

replicas, then a failure happens and it only sends the

tuples to the available replica.

Figure 17 shows the number of tuples the data

sink receives while the two replicas are running (680

tuples), when the failure happens one of the replicas

stops sending tuples and therefore, the data sink

receives 340 tuples per second. In both the former

case it filters duplicates and sends half of the tuples.

While in the latter case it sends the same amount of

tuples but, there is no filtering.

Figure 17: Data sink.

8 CONCLUSIONS

In this paper we have presented the migration and

fault-tolerance protocols of UPM-CEP and their

performance running the HiBench benchmark.

As future work we plan to implement other fault-

tolerance protocols providing more relaxed

semantics.

ACKNOWLEDGEMENTS

This work has received funding from the European

Union’s Horizon 2020 research and innovation

programme under grant agreements No 732051,

779747, the Madrid Regional Council, FSE and

FEDER, projects Cloud4BigData and EDGEDATA

(grants S2013TIC2894, S2018/TCS-4499), the

∫œMinistry of Economy and Competitiveness

(MINECO) under project CloudDB (grant TIN2016-

80350).

REFERENCES

Ahmad, Y. e. (2005). Distributed Operation in the Borealis

Stream Processing Engine. ACM SIGMOD

International Conference on Management of Data,

882-884.

Foundation, A. S. (2015). Apache Storm. Obtenido de

http://storm.apache.org/

Fundation, T. A. (2010). Apache ZooKeeper. Obtenido de

https://zookeeper.apache.org/

Fundation, T. A. (2014). Apache Flink® - Stateful

Computations over Data Streams. Obtenido de

https://flink.apache.org/

Gulisano, V. e. (2010). StreamCloud: A Large Scale Data

Streaming System. 126-137.

Gulisano, V. e. (2012, 12 23). StreamCloud: An Elastic and

Scalable Data Streaming System. IEEE Transactions

on Parallel Distributed Systems, 2351-2365.

Intel. (2017). HiBench. Obtenido de https://github.

com/Intel-bigdata/HiBench

Pu, C. e. (2001). Infosphere Project: System Support for

Information Flow Applications. (25-34, Ed.)

SIGMOD(30), 25-34.

Dynamic Data Streaming for an Appliance

477
