Finding a Meta-dialogue Strategy for Multi-intent Spoken Dialogue

Systems

Jakob Landesberger and Ute Ehrlich

Speech Technology, Daimler AG, Ulm, Germany

Keywords: Spoken Dialogue System, Multi-intent, Multitasking, Conversational Interface, HCI.

Abstract: Speech is an easily accessible and highly intuitive modality of communication for humans. Maybe that is the

reason why people have wanted to talk to computers almost from the moment the first computer was invented.

Today several consumer-level products developed in the last few years have brought inexpensive voice

assistants into everyday use. The problem is that this speech interfaces are mostly designed for certain

commands. But during demanding tasks like driving a car, it can be useful to talk about several things at once,

to get back to the main task as fast as possible. While talking about different things in a single utterance it is

important to give the user adequate feedback, like a meta-dialogue informing about which topic is discussed

at the moment. In this paper we compare several meta-dialogue approaches for a speech dialogue system

capable of handling multi-intents. The aim of our study is to reveal which strategies users prefer regarding

metrics such as flexibility, joy, and consistency. Our results show that explaining topic transitions and topic

introductions via speech receive a high user rating and is cognitively less demanding then visual cues.

1 INTRODUCTION

At least since Apple released its assistant Siri,

Conversational Interfaces became a part of our

everyday life. Siri offers its users the possibility to

execute a huge range of functions and get information

with input in natural language. Generally, such

Conversational Interfaces have a big advantage as

speech is an intuitive modality of communication for

human (Lemon et al., 2002).

Conversational Interfaces do not only ease the use

of smartphones, they can also increase safety. If

integrated in cars they allow the driver to interact with

the car without having to look away from the road. In

such situations with a demanding task like operating

a car, people tend to communicate in an efficient and

economical way. To get back as fast as possible to the

more demanding task people often talk about several

things at once in one utterance. While utterances can

contain multiple intents simultaneously, such as

answering a question and providing feedback about

the understanding of the question, intents can also be

aligned sequentially (Bunt, 2011). E.g.: “Take the

fastest way to work and please call my brother”.

These utterances are called multi-intents (MIs). MIs

do not only occur while people do several things at

once, they are quite frequently used in a conversation.

The ability of humans to easily process such MI

statements and to react accordingly, allows for

effective dialogue. MIs are often used to add topics to

an ongoing dialogue e.g. in an over-answering

scenario. Over-answering means to generate

extended responses that provide more specific or

additional information. This is a quite useful

mechanism to make a dialogue swifter and more

efficient. (Wahlster et al., 1983).

In order for a system to process, understand and

react appropriately to MI statements, the first crucial

step is to detect MIs and to distinguish the individual

intentions. Some methods for MI detection exists,

such as Xu and Sarikaya (2013) which approach the

detection problem with MIs as a classification

problem and use multi-label learning. Kim et al.

(2017) provide a two stage method to detect MIs with

only single-intent labelled training data. The MI data

was fabricated by concatenating combinations of

single intent sentences. Due to the general lack of MI

data Beaver et al. (2017) propose a commercial

customer service speech corpus containing MIs.

The above mentioned researched MI interactions

are normally single-turn inputs which are dealt with

independently. Intents where follow-up questions or

further clarification is needed, are hardly considered.

Interactions which span multiple turns of a dialogue

Landesberger, J. and Ehrlich, U.

Finding a Meta-dialogue Strategy for Multi-intent Spoken Dialogue Systems.

DOI: 10.5220/0008348701710176

In Proceedings of the 3rd International Conference on Computer-Human Interaction Research and Applications (CHIRA 2019), pages 171-176

ISBN: 978-989-758-376-6

171

are of course a part of natural conversation. Multiple

turns are a requirement for essential communication

aspects like receiving more details to generate a more

precise answer, for the sake of grounding or resolving

miscommunication (Clark and Brennan, 1991).

Miscommunication is often divided into

misunderstanding and non-understanding.

Misunderstanding means that one participant obtains

an interpretation that he or she considers correct, but

is not in line with the other speaker’s intentions

(Skantze, 2003). Resolving misunderstandings can

be complicated and confusing (Georgiladakis et al.,

2016). Therefore making sure both dialogue partners

know they talk about the same topic is important.

Meta-dialogue which exceeds topic related

content, e.g. to inform about a topic-switch or which

topic is discussed first, is a way to assure this mutual

understanding.

When people use MIs to talk about multiple

things at once, meta-dialogue seems to be a necessity

to establish and maintain the required amount of

understanding.

We want to investigate which meta-dialogue

strategy shows the best result in a real-life speech

dialogue system capable of handling MIs. To create a

scenario where meta-dialogue is especially important

we made sure the dialogue-topics require further

clarification and misunderstandings have to be solved

every now and then. To investigate the question

which meta-dialogue strategy is perceived best, we

implemented a MI, multi-domain Wizard of Oz study

in a driving simulator with periodically forced

misunderstandings.

2 EXPERIMENT SETUP

In existing dialogue systems which consider meta-

dialogue strategies to introduce a particular topic,

mostly topic interruption strategies were evaluated.

Heinroth et al. (2012) looked at four different topic

switching strategies. The explanation strategy

explains what topic is about to be started, showed

high scores regarding efficiency and user-friendless

and supports the user to memorise the topics. Non-

verbal behaviour, like visual cues plays an important

role in topic switching, too (Sidner et al., 2005).

In order to find out what strategies a dialogue

system should use to handle MIs we follow Glas and

Pelachaud (2015) by testing a set of potential meta-

dialogue strategies with respect to their effects on the

user perception of the dialogue and the dialogue

system. The tested system does not only allow MIs

from the user, it uses MI-answers if convenient, too,

e.g. if multiple topics need further clarification.

We distinguish three meta-dialogue strategies:

 NMD (no meta-dialogue): Only topic related

answers and no meta-dialogue at all.

“... I'll remind you directly before you have to

take over. Should I raise the temperature ...?”

 SMD (spoken meta-dialogue) Explains topic

transitions and topic introductions via speech.

“... I'll remind you directly before you have to

take over. And regarding the cold: Should I

raise the temperature …?”

 VMD (visual meta-dialogue) Topic transitions

and topic introductions are explained with a

graphical user interface.

“... I'll remind you directly before you have to

take over. Should I raise the temperature …?”

(Construction site symbol moves away;

Temperature topic symbol moves in (see Figure

1))

Figure 1: Visual meta-dialogue representation during the

system prompt: “... I'll remind you directly before you have

to take over. Should I raise the temperature …?”.

The experiment described in this work is a Wizard

of Oz study. The investigator simulates the behaviour

of a speech dialogue system (SDS), whereas the

subjects believe to interact with a real system. This

procedure allows to conduct user studies before

developing a real system. Analysing the user

utterances provides a detailed view of how a user

interacts with a SDS. This data will be necessary for

the development of a real user centred system

(Dahlbäck et al., 1993, Fraser and Gilbert, 1991).

CHIRA 2019 - 3rd International Conference on Computer-Human Interaction Research and Applications

172

3 USER EXPERIMENT

Each participant of the user study conducted six

dialogues with the simulated SDS of an autonomous

car. To keep the cognitive load and the distraction

from the dialogue low there was no driving task. To

keep the study controllable the system tries to clarify

the user's need by asking closed questions. While the

system was uttering a question, a picture regularly

appeared on the screen in front of the participant. This

picture represented one out of four user conditions

likely to occur during a car ride such as the driver

feels cold. Participants were instructed to answer the

question and to respond to the shown picture in one

turn.

User (U): “I can take over but I feel really cold!”

If both topics required further clarification or

proper feedback the system used a MI statement, too.

System (S): “Ok. I'll remind you directly before you

have to take over. And regarding the Cold: Should I

activate the seat heating or raise the temperature?”

During three out of six dialogues a misunder-

standing was simulated. The misunderstanding

occurred always after the participant used a MI

utterance.

S: “Do you want to postpone or cancel your

appointment?”

U: “Please postpone the appointment and I have to

visit the restrooms.”

S: “I will cancel your appointment. And regarding

the Restrooms: There is …”

The participants received instructions beforehand

to correct possible errors and no matter which way

they chose, the wizard ensured that resolving the

misunderstanding was successful.

After having successfully finished the dialogues

the participants had to fill in a questionnaire. We

adopted SASSI (Hone and Graham, 2000), a

standardized method to assess whole dialogues. We

tailored the comprehensive questionnaire to 12

questions related to the following quality factors:

 Flexibility (FLEX) – Is the system flexible

enough to meet different requirements und is it

able to react quickly to changes?

 Joy (JOY) – Is there any fun and joy while

using the system?

 Irritation (IRRT) – Does the interaction with the

system lead to confusion or are there

comprehension problems?

 Consistency (CONS) – Does the system behave

in a consistent way and does it allow the user to

realise the discussed topic at any time?

In order to derive a valid estimation a semi-

structured interview took place after the

questionnaire. The participants were asked to answer

several questions regarding understanding, perceived

differences between the meta-dialogue strategies and

if there were any difficulties using multi-intents.

4 RESULTS

We analysed data from 35 participants (15f/20m),

with average age of 25.08 (SD: 4.2). Their experience

with SDS is mediocre (6-Likert scale, avg: 3.17, SD:

1.23) as well as the usage of SDSs (5-Likert scale,

avg: 2.24, SD: 1.22). In total, we built a corpus of

interactions with 5h and 33min of spoken dialogues.

It contains 1454 user utterances with 364 MI

statements.

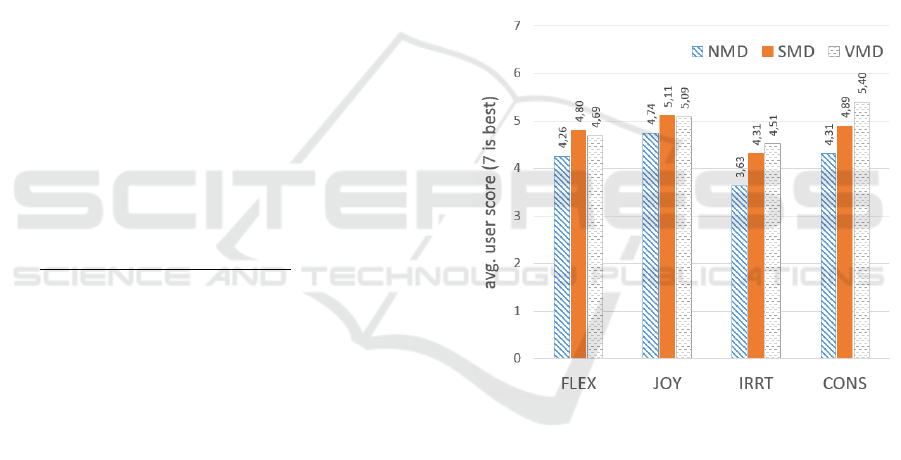

Figure 2: Average user score for each meta-dialogue

strategy regarding the four tested categories of all

participants.

Figure 2 shows the subjective results of the

questionnaire. Overall the SMD and VMD strategies

performed best regarding all categories (NMD vs.

SMD p=.010; NMD vs. VMD p=.003). In contrast,

NMD performed poorly in the IRRT category and

worse than the other strategies in the remaining

categories. The VMD strategy is assessed as being the

least irritating and most consistent one but there is no

overall significant difference to the SMD strategy.

SMD received the best ratings for flexibility and joy.

Figure 3 shows the results of the questions how

much cognitive effort was needed during the

dialogue. Strategy NMD received the best rating and

VMD the worst. While the differences between the

Finding a Meta-dialogue Strategy for Multi-intent Spoken Dialogue Systems

173

strategies are not significant, all strategies performed

over all poorly.

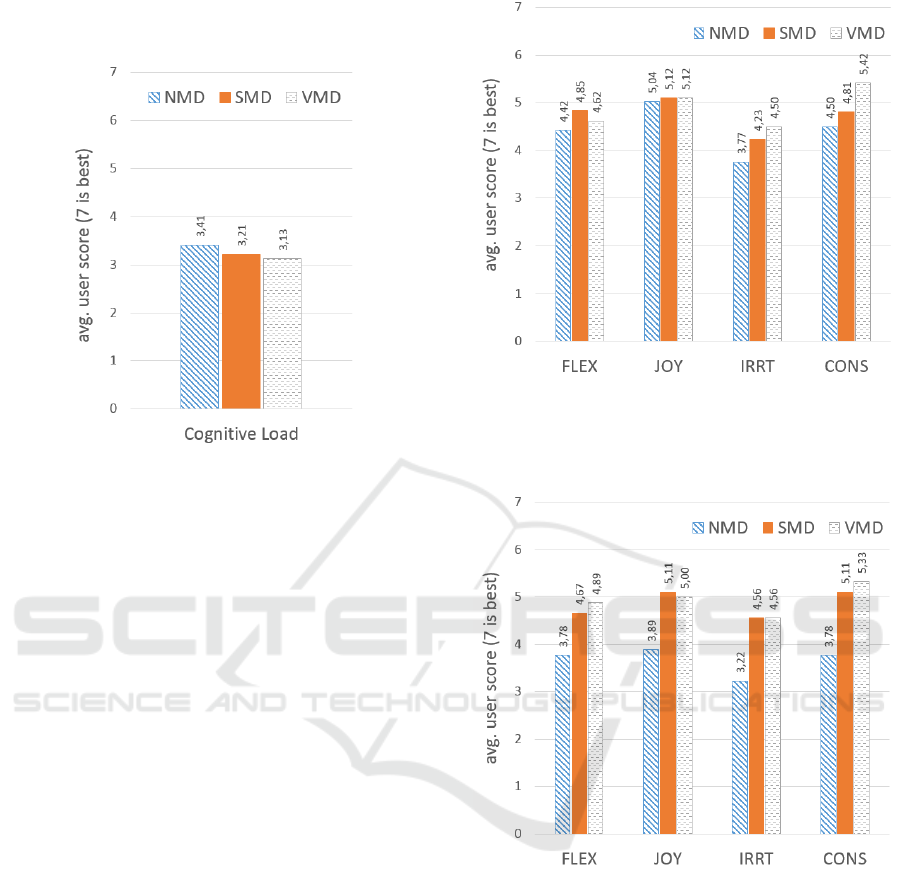

Figure 3: Average user score of all participants for each

meta-dialogue strategy regarding the question how much

cognitive effort was needed during the dialogue. (A higher

score means less cognitive resources were needed.)

The high cognitive load during the VMD strategy

is additionally illustrated by the answers to the

interview question: "Does the graphic representation

require too much attention?" 44% of the participants

confirmed the statement, 48% did not want to commit

themselves, 8% did not make a statement and not a

single one rejected the question.

Another indicator for the overall high cognitive

load are the answers to the question, if the participants

can point out the difference between meta-dialogue

strategy NMD and SMD. 67% did not notice any

difference or said things like the system voice has

changed – which is not true. 7% could not give an

answer at all and only 26% noticed the spoken meta-

dialogue in strategy SMD.

Figure 4 shows the subjective results of the

questionnaire for the group of participants which

recognized the difference between strategy NMD and

SMD. Of particular note is the considerable worse

result of strategy NMD regarding all tested categories

(NMD vs. SMD p=.030; NMD vs. VMD p=.038).

The participants who did not recognize the

difference, rated NDM overall higher, but still worse

than strategy SMD or VMD. Figure 5 shows the

results of this group.

We analysed the utterances used to resolve the

misunderstanding if another MI was used or if one of

the dialogue topics was dropped to focus on the

misunderstood part.

Figure 4: Average user score for each meta-dialogue

strategy regarding the four tested categories of all

participants who did recognize the difference between

strategy NMD and SMD.

Figure 5: Average user score for each meta-dialogue

strategy regarding the four tested categories of all

participants who did not recognize the difference between

strategy NMD and SMD.

33% of the recognized misunderstandings were

solved by handling only the error. Nearly two-thirds

(62%) interrupted the system at the moment the

failure was realized.

S: Ok. We won’t do any more refuelling stops and

regarding the heat: Should ...”

U: “Stop! [Interrupting the system] I wanted to

refuel.”

The other participants (38%) did not interrupt the

system, listened to the whole prompt but decided

CHIRA 2019 - 3rd International Conference on Computer-Human Interaction Research and Applications

174

afterwards to ignore the correct part and focus on the

misunderstanding.

67% of the utterances after a misunderstanding

included two intents. One regarding the

misunderstanding and the other one an answer to the

question. During the interview the participants

confirmed that using a MI is nothing uncommon. The

main issue, mentioned by 23% of the participants

was, that they were not used talking to a system in

such a natural way. A common statement included: “I

wouldn't have used Multi-Intents because I don't think

a system can handle that.”

5 CONCLUSION

If there is a complicated task like resolving a

misunderstanding users should be able to drop all the

other topics and focus on the important task if needed.

The need for such a mechanism was mentioned

during the interview by 61% of the participants. If the

user interrupts the system and drops a topic the

system should allow the interruption and proactively

raise the dropped topic again after the important task

is finished. Another possibility which was mentioned

during the interview is, that the system choses one

topic to focus on and postpone the other one. But the

decision has to be logical and comprehensible.

Users have no difficulties using MIs while talking

to a simulated SDS. They even used MIs to solve

misunderstandings and talk about other things in one

turn. To maintain a consistent dialogue flow, an

adequate meta-dialogue is a useful mechanism. The

results presented in this work emphasise this

statement and also indicate that a spoken meta-

dialogue explaining what topic is about to be started,

is preferred.

A visual realization of this additional information

achieved a similar good rating, but is cognitively

more demanding. In addition, a graphical

representation for meta-dialogue is impracticable in

scenarios with a visually demanding main task like

driving a car.

6 FUTURE WORK

Despite the usefulness of MIs it seems that if the

system uses MIs, too, to add topics or to try to clarify

multiple topics at once, the whole dialogue becomes

cognitive very demanding. In order to reduce the

general high cognitive load, a system-side

prioritisation of one intent could be useful, if the

prioritisation is logical and comprehensible for the

user. In future research, we will take a further look

into prioritising one intent if multiple intents occur in

a single utterance. We will investigate which

parameters can be used to prioritize a topic and how

the dialog and meta-dialog should be designed to

enable intuitive and easily accessible communication

for the user.

REFERENCES

Lemon, O. et al. (2002): Multi-tasking and collaborative

activities in dialogue systems. In Proceedings of the

Third SIGdial Workshop on Discourse and Dialogue.

Bunt, H. (2011). Multifunctionality in dialogue. Computer

Speech & Language, 25(2), pp. 222-245.

Wahlster, W. et al. (1983): Over-answering yes-no

questions: Extended responses in a NL interface to a

vision system. In Proceedings of the Eighth

international joint conference on Artificial intelligence,

pp. 643-646.

Xu, P., & Sarikaya, R. (2013): Exploiting shared

information for multi-intent natural language sentence

classification. In Interspeech, pp. 3785-3789.

Kim, B., Ryu, S., & Lee, G. G. (2017): Two-stage multi-

intent detection for spoken language understanding.

Multimedia Tools and Applications, 76(9), pp. 11377-

11390.

Beaver, I., Freeman, C., & Mueen, A. (2017): An

Annotated Corpus of Relational Strategies in Customer

Service. arXiv:1708.05449.

Clark, H. H., & Brennan, S. E. (1991): Grounding in

communication. Perspectives on socially shared

cognition, 13, pp. 127-149.

Skantze, G. (2003): Exploring human error handling

strategies: Implications for spoken dialogue systems. In

ISCA Tutorial and Research Workshop on Error

Handling in Spoken Dialogue Systems.

Georgiladakis, S. et al. (2016): Root Cause Analysis of

Miscommunication Hotspots in Spoken Dialogue

Systems. In INTERSPEECH, pp. 1156-1160.

Heinroth, T., Koleva, S., & Minker, W. (2011). Topic

switching strategies for spoken dialogue systems. In

Twelfth Annual Conference of the International Speech

Communication Association.

Sidner, C. et al. (2005): Explorations in engagement for

humans and robots. Artificial Intelligence, 166(1-2),

pp. 140-164.

Glas, N., & Pelachaud, C. (2015): Topic Transition

Strategies for an Information-Giving Agent. In

European Workshop on Natural Language Generation

(ENLG), pp. 146-155.

Dahlbäck, N., Jönsson, A., & Ahrenberg, L. (1993): Wizard

of Oz studies—why and how. Knowledge-based

systems, 6(4), pp. 258-266.

Finding a Meta-dialogue Strategy for Multi-intent Spoken Dialogue Systems

175

Fraser, N. M., & Gilbert, G. N. (1991): Simulating speech

systems. Computer Speech & Language, 5(1), pp. 81-

99.

Hone, K. S., & Graham, R. (2000): Towards a tool for the

subjective assessment of speech system interfaces

(SASSI). Natural Language Engineering, 6(3-4), pp.

287-303.

CHIRA 2019 - 3rd International Conference on Computer-Human Interaction Research and Applications

176
