Improving Projection Profile for Segmenting Characters from

Javanese Manuscripts

Aditya W Mahastama

, Lucia D Krisnawati

Informatics Dept., Faculty of Information Technology, Universitas Kristen Duta Wacana,

Jl. Dr. Wahidin Sudirohusodo 5-25, Yogyakarta, Indonesia

Keywords: OCR, Character Segmentation, Projection Profile Cutting, Outlier Analysis.

Abstract: The emergence of non-latin scripts in the Unicode character set has opened the possibilities to do Optical

Character Recognition (OCR) for manuscripts written in non-alphabetic scripts. Javanese is one of the

Southeast Asian languages which has vast collections of manuscripts. Unfortunately, these manuscripts are

prone to damage due to lack of maintenance. Therefore, digitising them through OCR has become the most

obvious option. This research focuses on the segmentation process of our OCR project which implements the

Projection-Profile Cutting (PPC). The rationale is that PPC is well known as having a low computational cost.

As the object of segmentation, we sampled 72 scanned pages of Serat Mangkunegara IV, Wulang Maca, and

Kitab Rum. Our preliminary evaluation showed that implementing PPC per se exhibits unsatisfactory results.

Hence, we refined it by applying a statistical analysis to segment lines of characters whose distance is too

low. The proposed algorithm results in 19.112 segments. To evaluate the system outputs, we conducted two

levels of evaluation: the line and character segmentations. The refinement of PPC has proved to increase the

line segmentation accuracy by 32.84%. To evaluate the character segmentation, we collaborated with

Javanese Wikipedia Community which verified them manually in 4 batches. Only 15.386 segments were

verified, in which 73.59% (11.322) system outputs are correctly segmented, 22.5% (3.464) are over-

segmented, 1.3% (206) are under-segmented, and the rest has not been labelled as either one of three

categories above.

1 INTRODUCTION

Character segmentation is mutually inseparable

from text segmentation. Both text and character

segmentations frequently become a pre-processing

stage in a more complex applications such as in a

paper watermarking system (Mei, et al., 2013),

processing bank checks and recognizing mails

(Lacerda & Mello, 2013), writer identification in

historical documents (Dhali, et al., 2017), or in a

vehicle license plate detection system (Asif, et al.,

2017). Character segmentation has turned to be a

significant phase in Optical Character Recognition

(OCR) since it could increase as well as decrease its

recognition rate.

The Optical Character Recognition is not merely

applied for the academic purposes such as digitizing

primary sources for the sake of building a digital

library (Manmatha & Rath, 2003). In industrial area,

OCR is applicable to detect and recognize the running

texts in a video (Chaiwatanaphana, et al., 2017); its

software is frequently embedded as additional

features to scanners, printers or smartphones in order

to increase their sale. This research focuses on the

character segmentation as a subtask of OCR for

digitizing and preserving the content of the historical

manuscripts.

In OCR, character segmentation refers to a

process of separating the pixels of a text image from

the pixels of its background. The text image is

acquired by either scanning or photographing books

or manuscripts. The process proceeds to segment

lines of characters, aka horizontal segmentation, and

to decompose each segmented line vertically into

individual character images (vertical segmentation).

These characters will be the input of the recognition

process.

In this study, we investigate how to segment

Javanese characters acquired from scanning the

historical books. Javanese script is categorized as an

Abugida, which is a writing system where the

consonant letters represent syllables with a default

Mahastama, A. and Krisnawati, L.

Improving Projection Proﬁle for Segmenting Characters from Javanese Manuscripts.

DOI: 10.5220/0008526900770082

In Proceedings of the 1st International Conference on Intermedia Arts and Creative Technology (CREATIVEARTS 2019), pages 77-82

ISBN: 978-989-758-430-5

vowel and other vowels are denoted by diacritics

(Ding, et al., 2018). In Javanese, diacritics could be

written above, under, on the left or right side of the

main characters. Hence, its segmentation challenges

lie not only on the overlapped character strokes and

diacritics but also on the identification which diacritic

belongs to which character. In our preliminary study,

we have experimented segmentation by Projection

Profile (PP). However, the application of Projection

Profile per se turned out to give unsatisfactory results.

Therefore, we proposed to refine it by means of

detecting outlier of pixel density. The hybrid of pixel

outlier detection and PP has proved to increase the

line segmentation accuracy by 32.84%.

2 RELATED WORKS

Various character segmentation methods have

been proposed in OCR and in many text recognition

among images (Asif, et al., 2017; Karthikeyan, et al.,

2013). However, Projection Profile methods and

Connected Component Analysis (CCA) are among

those which are frequently applied due to their low

computational cost and simplicity. The application of

these methods have technically slight differences

owing to the text media, for example texts written on

palm leaves (Kesiman, et al., 2016),

books/manuscripts (Mei, et al., 2013), or car license

plates (Karthikeyan, et al., 2013), and the

characteristics of the characters themselves. Apart

from applying PP and PCA which base their

segmentation on the pixel intensity, some researches

make use of character features as a basis of

segmentation as found in (Budhi & Adipranata, 2015;

Lacerda & Mello, 2013), or a hybrid between feature-

based and Projection Profile as in (Lue, et al., 2010).

A more intricate approach is the recognition-based

segmentation which adapts prior knowledge to screen

all possible segmentation schemes (Mei, et al., 2013;

Inkeaw, et al., 2018; Dhali, et al., 2017).

Due to its writing system, segmenting Asian

characters presents its own challenges and therefore

needs additional techniques. In many cases of

segmenting Devanagari characters, the text is

commonly decomposed into lines, words and

characters (Srivastav & Sahu, 2016; Mehul, et al.,

2014) due to the presence of shirorekha, which is a

straight line connecting each character in a word. In

segmenting Chinese characters, Mei et. al.

implemented 3 stages of segmentation (Mei, et al.,

2013). In the first stage, vertical white space was used

as a delimiter of any character. Then, two or more

segmented characters would be merged if it is

identified to have a connection region, which is

recognized by means of a vertical projection. The last

stage is fine-gained segmentation, in which the under-

segmentation cases are splitted based on the defined

rules (Mei, et al., 2013).

To segment Javanese characters, Widiarti et al.

applied the projection profile for line segmentation

and Moving Average Algorithm to refine the vertical

projection (Widiarti, et al., 2014). Meanwhile, Budhi

and Adipranata in (Budhi & Adipranata, 2015) made

use of attributes of a character image and

skeletonizing to segment Javanese characters.

Having object of Baliness characters written on palm

leaf, Kesiman et al. divided their segmentation system

into 4 subtasks. The first subtask is brushing character

area of gray level images with minimum filtering to

overcome the problem of semi-sapce areas (Kesiman,

et al., 2016). The second subtask is to apply the

average block projection profile, followed by the

selection of the candidate area for segmentation path.

The fourth subtask deals with the construction of non-

linear segmentation path by implementing the

multistage graph search algorithm (Kesiman, et al.,

2016).

3 METHODS

The proposed algorithm consists of two main

steps i.e. the background removal and the text

segmentation. The background removal was

performed through image binarisation. We simply

applied the binarisation function provided in Python

and used threshold t=160 for the current data samples.

This process is to separate the necessary pixels

forming the foreground part – the text which is

commonly marked as 1 -- from its background

(marked as 0). Following it is the so-called

segmentation process which was applied to the

foreground pixels only.

The segmentation process was designed to

comprise three stages of line segmentation and a stage

of character segmentation. Such segmentation model

is aimed to adjust the nature of the manuscript image

and the Javanese script to the Projection-Profile

Cutting (PPC). From this point forward, we would

like to use the term ‘pass’ to refer to a ‘stage’ in our

line segmentation.

3.1 Vertical Pass 1: Finding the Line

Candidates

The first pass is to find the possible text line

candidates from the binarised image. PPC is used here

by calculating the binary vertical histogram of

horizontal foreground pixel projection along the

CREATIVEARTS 2019 - 1st International Conference on Intermedia Arts and Creative

image height and selecting vertical (y) values which

is changing from 0 to > 0 as a line start point and from

> 0 to 0 as a line end point. These pairs of ordinates

are then saved as an array as the first most possible

candidates of line. Illustration of Pass 1 result applied

to original image is shown in Figure 1.

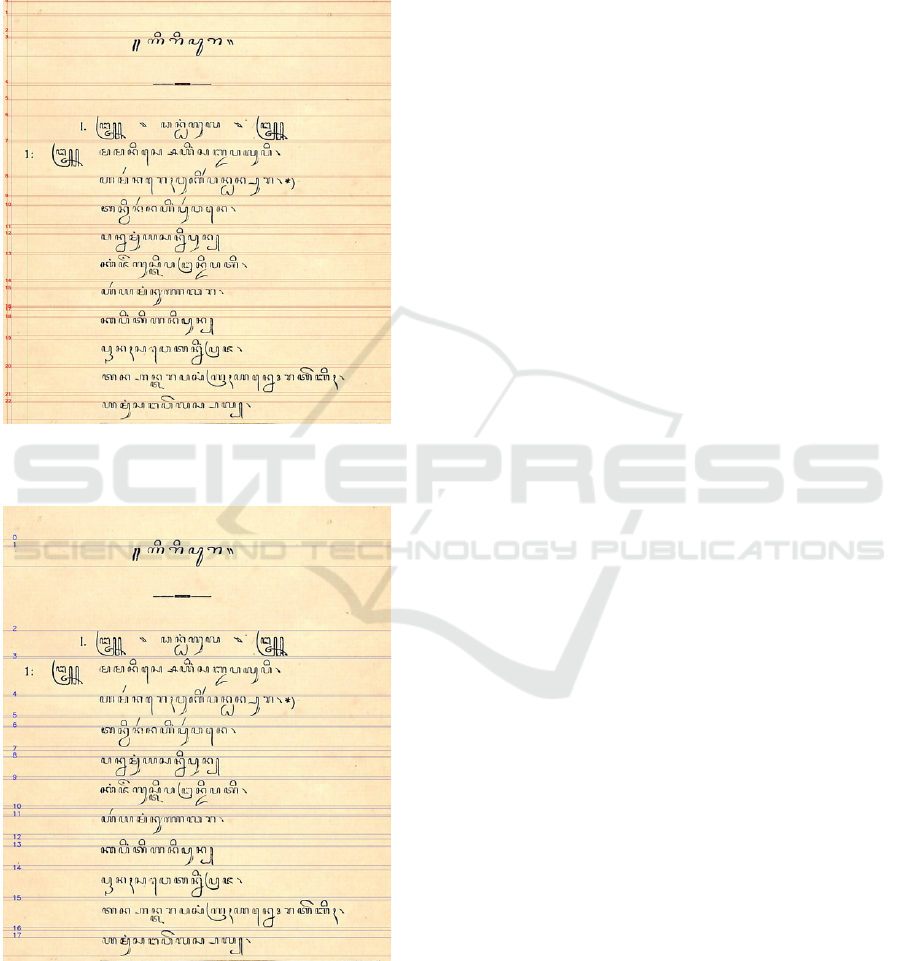

Figure 1: Illustration of Pass 1 result for test image

dn0027.jpg, 23 line candidates detected.

Figure 2: Illustration of Pass 2 result for test image

dn0027.jpg, 18 true line candidates left, noise lines

removed.

3.2 Vertical Pass 2: Removing False

Lines

The lines obtained from pass 1 are not free from

false lines yet. These false lines may be formed by

noises which regarded as foreground pixels by the

binarisation process, and thus may be detected as a

line. These false lines are having a very small height

value, so all lines having a height value less than 5

pixels are removed from the array. This may not

eliminate all false lines, but at least it does minimise

the possibility of having a false line and reduce the

errors in calculating the average line height which is

to be done in the next pass. The illustration of Pass 2

result applied to original image is shown in Figure 2.

3.3 Vertical Pass 3: Refining, Splitting

and Merging

The first purpose of this pass is to ensure that the

remaining lines in the array are truly text lines. To

achieve this we performed statistical analysis to the

vertical histogram and calculates the First Quartile

) of the data. Then we re-examine the histogram

for hills between zeros (which represents a text line)

and check whether there are ordinate (y) members of

the hill which exceeds the Q

. The pair of start and

end ordinate of these values over Q

are then recorded

as true line candidates.

These true line candidates then compared against

array of lines obtained from Pass 2. Lines that are

containing at least one true ordinate pairs are kept in

the array. From calculating these true line candidate

pairs we also found that the average height value

between start and end ordinates are an approximation

of the original plain character height h

, the height of

a Javanese carakan, a character without either

pasangan (pseudo-consonant cluster maker) or

sandhangan (diacritics) for the document.

This knowledge is then used for the merging

process, in which true line candidates with less height

than h

are possibly lines of sandhangan or pasangan

which should be merged to a text line, either from

above or from below. This is done by calculating the

vertical space between an allegedly sandhangan or

pasangan line with nearby text lines. If the vertical

space is less than 20 percent of h

, the sandhangan or

pasangan line is then merged with the text line.

The last step performed in this pass is splitting, in

which if a text line in the array is found to have height

more than 3 times of h

, it is analysed and the integer

result of its height divided by 3 × h

are used to split

its entire height into 3 lines of equal height. This

method is not always successful and sometimes it

results in over segmentation.

Improving Projection Proﬁle for Segmenting Characters from Javanese Manuscripts

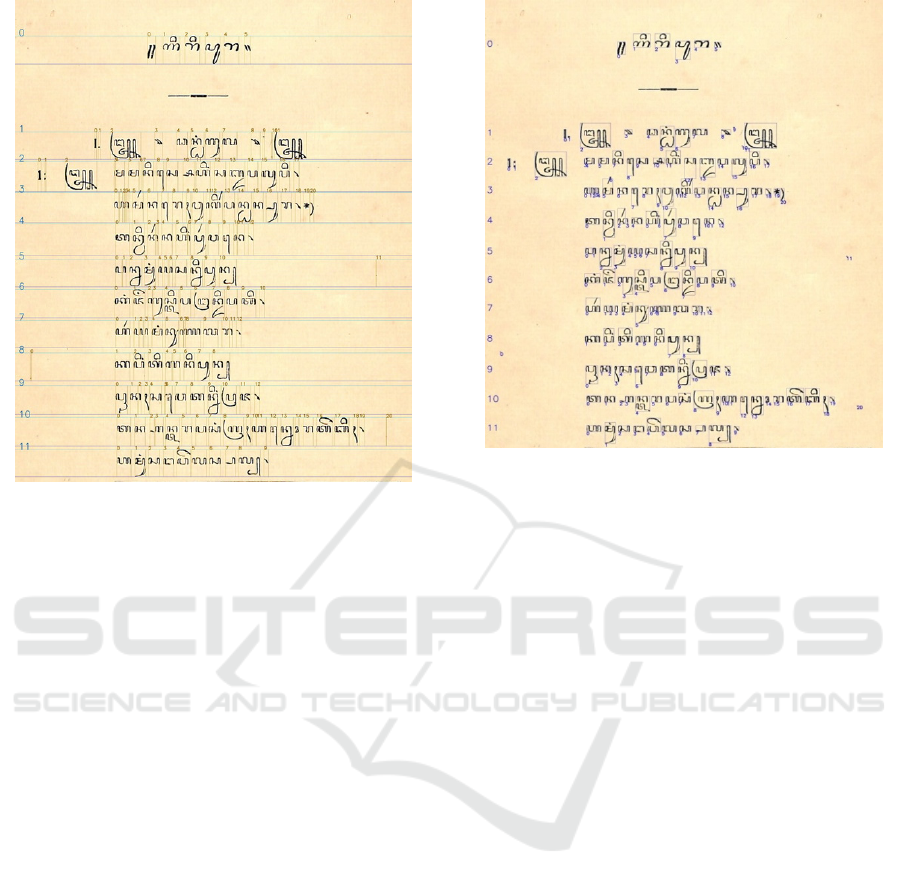

Figure 3: Illustration of Pass 3 result for test image


true text lines left after reassuring, splitting and

merging procedure applied.

3.4 Horizontal Pass

After the first 3 vertical pass, it is assumed that the

text lines stored in the line array are the true ones, and

so for each line PPC is used horizontally to segment

the characters inside the line. A histogram is

calculated for the vertical projection of each line, and

collecting horizontal (x) values which is changing

from 0 to > 0 as a character start point and from > 0

to 0 as a character end point. These pair of x values

are then stored as character array for each line.

Illustration of Pass 3 and Horizontal Pass results up

to this point is shown in Figure 3, figuratively applied

to original image.

The character segments are then formed by

cutting along the line and character boundaries

obtained from the stored arrays, trim the remaining

vertical blank space, and save the segment as separate

images in the server. However, these four efforts are

not been able to eliminate noises occurring within a

true line, since there is no special function created to

check and eradicate such noise in the Horizontal Pass,

due to save the execution time. The final result of

segmented characters is illustrated in Figure 4.

Figure 4: Illustration of final character segments,

numbered from left for each text lines.

4 EXPERIMENT AND RESULTS

Seventy two Javanese document images of 24-bit

JPG format were used for the character segmentation

experiment; each page should roughly contain

between 150 to 300 character segments. These

samples are produced by randomly scanning pages

from Serat Mangkunegara IV, Wulang Maca, and

Kitab Rum manuscripts using a high-resolution

document scanner, the Fujitsu ScanSnap SV600 with

a resolution not less than 400dpi. For testing purpose,

the authors wrote a program according to the

proposed algorithm using Python 3.7 and MySQL

database to store the results.

4.1 Line Segmentation

For the assessment scheme, we conducted two

levels of evaluation: the line and character

segmentations. This scheme is aimed to monitor how

far the proposed method affects the accuracy of the

line segmentation and to minimize the trickle-down

effect of line segmentation error on the character

segmentation. Furthermore, we are able to identify

and cope with the problems in case the character

segmentation rate is unsatisfactory.

14 out of 72 pages were randomly chosen as

sample for evaluating the line segmentation. 2 out of

these 14 pages contain several skewed lines as a result

of poor scanning quality. The other 2 pages have very

CREATIVEARTS 2019 - 1st International Conference on Intermedia Arts and Creative

narrow spaces among their lines; the character size is

very small and dense. This sample set produces in

total 268 lines. We considered these lines as the

ground truth data. The information on the document

sample IDs, the ground truth line numbers and the

number of lines segmented by the system on the

Vertical Pass 2 and 3 could be found on Table 1.

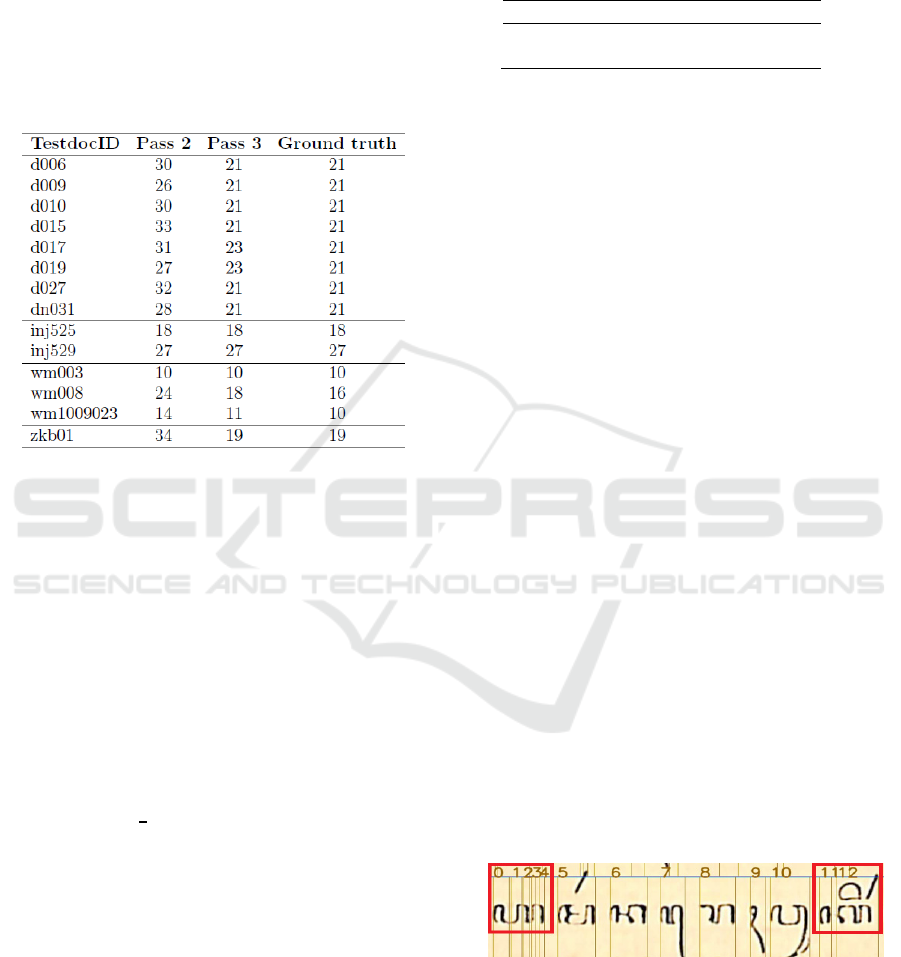

Table 1: The number of lines in the test documents as

ground truth and the number of lines segmented in the

vertical Pass 2 and 3

The evaluation on line segmentation was

conducted on the outputs of Vertical pass 2 and 3. The

performance of vertical pass 1 was left unassessed

since it produced the segment candidates. The Mean

Absolute Error (MAE) metric was selected to forecast

the accuracy. The reason is that it is much more

effortless to mark the line segmentation error than to

examine and count the true ones. The MAE rate is

computed based on the Equation 1, where n refers to

the number of examined line samples, O

i,ref

refers to

the number of text lines in a referent object, and O

i,est

is the number of lines obtained in the texts by the

applied method.

MAE=

∑

O

i,ref

- O

i,est



i=1

[1]

One drawback of MAE is that it ignores the type

of segmentation error. For this reason, we

distinguished the line segmentation error in two

types, i.e. under-segmentation (US) and over-

segmentation (OS). The US is identified when two

lines of characters are left being unsegmented by the

system and OS when a line is segmented into 2 or

more lines. Table 2 shows that the proposed methods

produce more OS errors than US. This Table shows

also that the refinement of PPC has successfully

reduced the error rate to 0.32. In other words, it

increases the line segmentation accuracy by ca.

32.8%.

Table 2: The number of over-segmented lines (OS), under-

segmented lines (US) and the Mean Absolute Error.

4.2 Character Segmentation

The segmentation tests cost roughly 2-4 minutes

per document image, and the output of the program

also present an easily identifiable numbered line and

character segments as shown in Figure 4, for human

evaluation purpose. The proposed algorithm results in

19,112 segments for the whole document images in

test. To evaluate the system outputs, we collaborated

with Javanese Wikipedia Community (Komunitas

Wikipedia Jawa) which verified them manually in 4

batches. Only 15.386 segments were verified, in

which 73.59% (11.322) system outputs are correctly

segmented, 22.5% (3.464) are over-segmented, 1.3%

(206) are under-segmented, and the rest has not been

labelled as either one of three categories above. The

incorrect segmentation causes are mentioned below.

Over-segmentation occurs when a supposedly

single segment is segmented as more than one. This

is almost always happened during the character

(horizontal) segmentation. It is due to the characters

having not been equally inked when printing so when

the binarisation is carried on, some of the linkage in

the symbol is broken and causing horizontal blank

spaces within a character, as shown in Figure 5. At

experiments we were trying to lower the threshold t

by tens to t=150 and t=140 in order to gain more

foreground pixels in between but this does not help

significantly.

In some rare case, over-segmentation also occurs

vertically. It might have caused by line height

identification failure during the Vertical Pass 3.

Figure 5: Example of over segmentation caused by

broken linkage inside characters

In contrast with over-segmentation, under-

segmentation is occurred when a supposedly few

different segments are regarded as only one. The only

cause of this is the lack of vertical or horizontal

Passes #OS #US MAE

Pass 2 91 4 0.354

Pass 3 7 0 0.026

Improving Projection Proﬁle for Segmenting Characters from Javanese Manuscripts

straight blank space between lines or characters, as

demanded by PPC. Under-segmentation both

occurred in lines or characters level and the Vertical

Pass 3 sometimes cannot cope with it as the average

forced vertical segmentation may cut in the wrong

place.

Also, due to the natural condition of the

manuscript, some noises are just at the right size and

intensity or having similar traits to a character to get

through all four segmentation stages, thus survived to

be regarded as a valid line or character. Our proposed

algorithm is not designed to detect these kinds of

noises, and so it has to be evaluated manually to

dispose of the incorrect segments.

5 CONCLUSIONS

The proposed algorithm is capable of improving

the original Projection Profile Cutting (PPC) for line

segmentation in printed Javanese manuscripts. After

Vertical Pass 3 the number of text line segment which

is equal to ground truth is 10 from 14 test documents,

which is 71.42% correct. It is increased from 2 test

documents (14.28%) after Vertical Pass 2, and 0

documents from Vertical Pass 1 which applied

straight PPC. It also reduces over-segmentation and

under-segmentation of lines by having MAE of 0.32,

which in other words, increases the line segmentation

accuracy by ca. 32.8%. An improved text line

segmentation is crucial to provide a good base for

character segmentation.

Since PPC is based on straight vertical and

horizontal blank spaces, without further refinements

it would be incapable of segmenting Javanese

characters to its individual units, thus the resulting

segments are mixed of individual symbols and

syllables. This may be adequate for designing an

Optical Character Recognition (OCR) system, but

may cause problems when used in designing a

transliteration or translation system.

ACKNOWLEDGEMENTS

We would like to give our deepest gratitude to

Wikimedia Indonesia which has funded this research

and our participation in this conference. We also give

our thanks to Javanese Wikipedia community for

their contribution on evaluating the character

segments.

REFERENCES

Asif, M. et al., 2017. Multinational vehicle license plate

detection in complex backgrounds. Journal of Visual

Communication and Image Representation, 46(C), pp.

176-186.

Budhi, G. & Adipranata, R., 2015. Handwritten Javanese

Characters Recognition Using Several Artificial Neural

Network Methods. Journal of ICT Research and

Applications, 8(3), pp. 195-212.

Chaiwatanaphana, S., Pluempitiwiriyawej, C. &

Wangsiripitak, S., 2017. Printed Thai Character

Recognition Using Shape Classification in Video

Sequence Along a Line. Engineering Journal,, 21(6),

pp. 37-45.

Dhali, M. et al., 2017. A Digital Palaeographic Approach

towards Writer Identiﬁcation in the Dead Sea Scrolls.

s.l., s.n., pp. 693-702.

Ding, C., Utiyama, M. & Sumita, E., 2018. Simplified

Abugidas. Melbourne, Australia, ACL, pp. 491-495.

Inkeaw, P. et al., 2018. Recognition-based Character

Segmentation for Multi-level Writing Style.

International Journal on Document Analysis and

Recognition, 21(1-2), pp. 21-39.

Karthikeyan, K., Vijayalakshmi, V. & Jeyakumar, 2013.

License Plate Segmentation Using Connected

Component Analysis. OSR Journal of Electronics and

Communication Engineering (IOSR-JECE), 4(5), pp.

18-24.

Kesiman, M., Burie, J. & Ogier, J., 2016. A New Scheme for

TextLine and Character Segmentation from Gray Scale

Images of Palm Leaf Manuscript. Shenzhen,China, s.n.,

pp. 325-330,.

Lacerda, E. & Mello, C., 2013. Segmentation of Connected

Handwritten Digits Using Self-Organizing Maps.

International Journal of Expert System with

Application, 40(15), pp. 5867-5877.

Lue, H. et al., 2010. A Novel Character Segmentation

Method for Text Images Captured by Cameras. ETRI

Journal, 32(5), pp. 729-739.

Manmatha, R. & Rath, T. M., 2003. Indexing of

Handwritten Historical Documents - Recent Progress,

s.l.: Semantic Scholar.

Mehul, G. et al., 2014. ext-Based Image Segmentation

Methodology. s.l., Elsevier, Procedia Technology.

Mei, Y., Wang, X. & Wang, J., 2013. An Efficient

Character Segmentation Algorithm for Printed Chinese

Documents. s.l., s.n., pp. 183-189.

Srivastav, A. & Sahu, N., 2016. Segmentation of

Devanagari Handwritten Characters. International

Journal of Computer Applications, 142(14), pp. 15-18.

CREATIVEARTS 2019 - 1st International Conference on Intermedia Arts and Creative
