Towards a Uniﬁed Model Representation of Machine Learning

Knowledge

Antonio Mart

ınez-Rojas

, Andr

es Jim

enez-Ram

ırez

and Jose G. Enr

ıquez

Departamento de Lenguajes y Sistemas Inform

aticos, Universidad de Sevilla, Seville, Spain

Keywords:

Machine Learning, Automated Machine Learning, Knowledge Representation, Model-Driven Engineering.

Abstract:

Nowadays, Machine Learning (ML) algorithms are being widely applied in virtually all possible scenarios.

However, developing a ML project entails the effort of many ML experts who have to select and conﬁgure

the appropriate algorithm to process the data to learn from, between other things. Since there exist thousands

of algorithms, it becomes a time-consuming and challenging task. To this end, recently, AutoML emerged to

provide mechanisms to automate parts of this process. However, most of the efforts focus on applying brute

force procedures to try different algorithms or conﬁguration and select the one which gives better results.

To make a smarter and more efﬁcient selection, a repository of knowledge is necessary. To this end, this

paper proposes (1) an approach towards a common language to consolidate the current distributed knowledge

sources related the algorithm selection in ML, and (2) a method to join the knowledge gathered through this

language in a uniﬁed store that can be exploited later on. The preliminary evaluations of this approach allow

to create a uniﬁed store collecting the knowledge of 13 different sources and to identify a bunch of research

lines to conduct.

1 INTRODUCTION

Machine Learning (ML) entails the study of algo-

rithms that automatically improve through experience

(Mitchell, 1997). This kind of algorithms has been

successfully and broadly applied in the past (Mitchell,

2006) and nowadays is receiving an increasing atten-

tion due to the affordable access to bigger computa-

tion power of machines.

A ML project requires selecting an appropriate al-

gorithm to process the data to learn from, what is typ-

ically named creating the data model. However, there

are thousands of algorithms under the paradigm of

ML, each of them tailored to some speciﬁc tasks or

contexts. In addition, many of these algorithms of-

fer a different set of parameters to be conﬁgured (e.g.,

selecting the number of layers in a neural network).

Many existing approaches focus on the latter task,

i.e., supporting the user after the algorithm selection

is done, and few of them recommend an algorithm al-

ways after the user has provided the dataset. As an

example, the recent research area of AutoML (Thorn-

ton et al., 2012) aims to automate the different steps

https://orcid.org/0000-0002-2782-9893

https://orcid.org/0000-0001-8657-992X

https://orcid.org/0000-0002-2631-5890

Heterogeneous

Knowledge Sources

Machine learning

algorithms

Problem

characteristics

Consolidated

knowledge

Selection

criteria

Figure 1: Problem motivation.

of ML projects. Nonetheless, such approaches ne-

glect the early stages of the project. Many of them

just provide a brute force mechanism that runs several

algorithms in later stages of the project, i.e., when the

dataset is ready. Thus, little effort has been done to

support the user in the algorithm selection in an efﬁ-

cient manner (i.e., without applying brute force) and

based on the problem characteristics (i.e., the early

information).

The algorithm selection is speciﬁcally challeng-

ing since the existing knowledge regarding this task is

distributed across different sources and each of them

is speciﬁed in a non-standard manner, thus, making

it difﬁcult to consolidate information from different

sources, i.e., the name of the algorithms —or family

of algorithms—, the selection criteria, and the char-

acteristics of the problem that affect the selection are

heterogeneous (cf. Figure 1).

470

Martínez-Rojas, A., Jiménez-Ramírez, A. and Enríquez, J.

Towards a Uniﬁed Model Representation of Machine Learning Knowledge.

DOI: 10.5220/0008559204700476

In Proceedings of the 15th International Conference on Web Information Systems and Technologies (WEBIST 2019), pages 470-476

ISBN: 978-989-758-386-5

Common language for

machine learning decisions

Unified information

store

Figure 2: Overall proposal.

To reduce the risk of taking inaccurate decisions

due to a lack of information, a central repository of

the ML Knowledge which stores the information in

a structured way is required. In order to address

this problem, this paper proposes (cf. Figure 2), on

the one hand, a uniﬁed language for representing the

knowledge related to the algorithm selection in ML

projects. On the other hand, the paper describes a

method to transform the knowledge gathered using

this language to a uniﬁed knowledge store which can

be exploited later on.

The uniﬁed language is presented as a metamodel

that allows a graphical representation of the knowl-

edge related to:

• The characteristics that affect the decisions, e.g.,

the amount of data which is available or the type

of problem.

• The algorithms that can be recommended, e.g.,

Bayesian network or Support Vector Machine.

• The criteria for recommending an algorithm based

on some of the characteristics, e.g., if the project

aims to detect anomalies and the number of

columns of the dataset is greater than 100, the

Support Vector Machine algorithm is an excellent

candidate.

Thereafter, the recommendations which are writ-

ten using this language can be transferred to the pro-

posed uniﬁed stored. This store allows to reduce the

ambiguity on (1) the name of the characteristics, e.g.,

number of columns is often used as number of vari-

ables or features in some information sources, and

(2) the name of the algorithms to recommend, e.g.,

Bayesian network can be found as Bayes model too.

This approach has been validated in a real indus-

trial project using several publicly-available informa-

tion sources related to ML. Some of them represent

the information as a picture summarizing the knowl-

edge (e.g., (Sckit-learn, 2019; Microsoft, 2019))

while some others are expressed in text form (e.g.,

(Dataiku, 2019)). After considering an initial set of

13 different information sources, our approach suc-

cessfully stored 150 recommendations of more than

80 algorithms considering more than 20 characteris-

tics.

Although it remains out of the scope of this paper,

this uniﬁed knowledge can be used to create a recom-

mendation system that helps the user to decide which

is the best algorithm for her new project.

The rest of the paper is organized as follows: sec-

tion 2 put in context the problem treated in this re-

search, detailing a background related to the Machine

Learning and Model-Driven Engineering. Section 3

presents the contributions of the paper. This section

is divided into two main elements: (1) a common

language for recommendations of ML algorithms and

(2) an early approach to reach a uniﬁed knowledge

store. Finally, section 4 summarizes the conclusions

and states a set of future work.

2 BACKGROUND

This paper deals with two main concepts: ML (cf.

Section 2.1) and Model-Driven Engineering (cf. Sec-

tion 2.2).

2.1 Machine Learning

Machine learning emerges as a set of tools un-

der a broader paradigm called artiﬁcial intelligence

(Mitchell, 1997). A ML project typically follows a

life-cycle comprising many activities, e.g., the under-

standing of the problem, selecting the appropriate al-

gorithm, parametrizing the algorithm, or creating and

testing the model. All these steps involve tedious

manual work which motivating the arising of AutoML

(Thornton et al., 2012; Feurer et al., 2015), a research

line that pursues the automation of the ML life-cycle

steps.

So far, AutoML has been applied in several do-

mains, like health (Panagopoulou et al., 2018), chem-

istry (Dixon et al., 2016) or software engineering

(Abukwaik et al., 2018). Most of the effort has been

applied to automatically generate the ML model, e.g.,

to look for the algorithm’s parameters which allow the

most accurate model for a given dataset. However,

the majority of these studies applied brute force to

look for these parameters and only a few approaches

(Panagopoulou et al., 2018; Mohr et al., 2018) include

smarter solutions to reduce the search space.

In the industry ﬁeld, there exist some commer-

cial tools that support AutoML, e.g., BigML (BigML,

2019) or DataRobot (DataRobot, 2019). Similarly

to the academic ﬁeld, these tools mainly apply brute

force to ﬁnd the appropriate algorithm.

At a glance, selecting the appropriate algorithm is

a non-deterministic and time-consuming task that de-

pends on many problem and data characteristics. For

Towards a Uniﬁed Model Representation of Machine Learning Knowledge

471

this, the empirical knowledge is commonly shared in

different Internet sources. Beyond the research pa-

pers, organizations used to share their experiences

with the aim of guiding practitioners to use some soft-

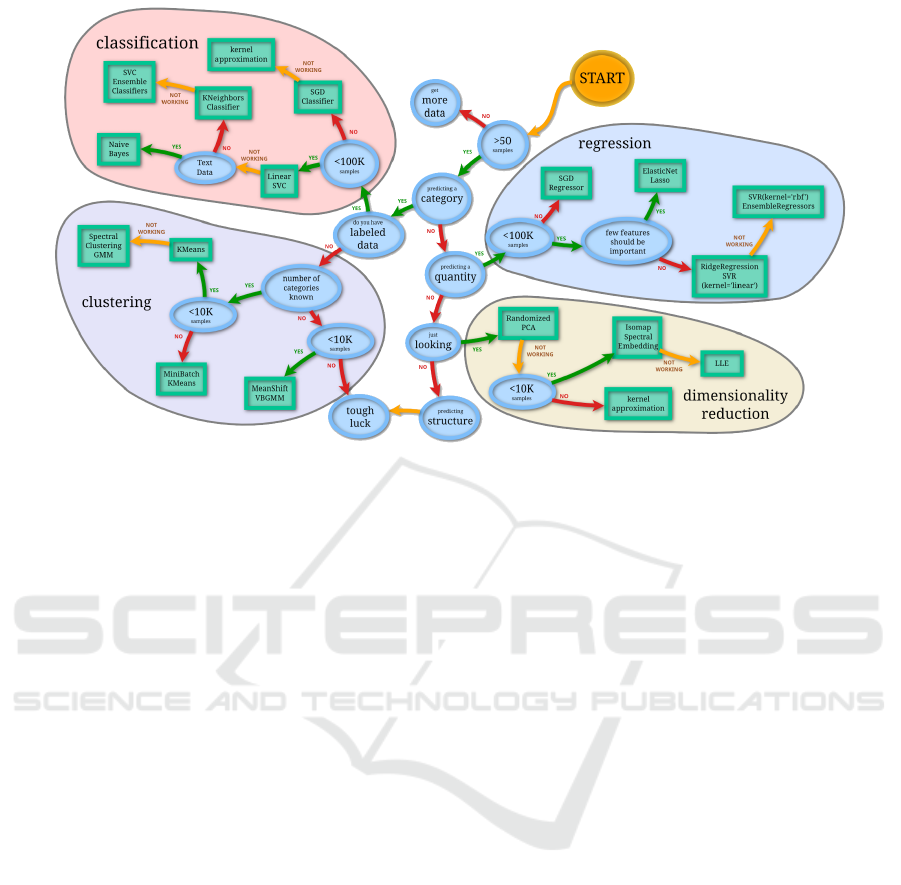

ware products. For example, scikit-learn (Pedregosa

et al., 2011) (cf. Figure 3) and Microsoft Azure (Mi-

crosoft, 2019) share a cheat sheet which tries to ex-

plain which algorithm better ﬁts according to a set

of problem characteristics while Dataiku (Dataiku,

2019) contains technical documents with the same ob-

jective. The current work aims to gather all this dis-

tributed knowledge to enable a smarter way of Au-

toML.

2.2 Model-Driven Engineering

The Model-Driven Engineering (MDE) paradigm

raises the use of models as a mechanism to reach the

concrete from the abstract (Fondement and Silaghi,

2004).

MDE incorporates the elements: concepts, nota-

tions, processes, rules and support tools (Brambilla

et al., 2012), to provide advantages such as: having

a common way of representing processes, facilitat-

ing compatibility with other formalisms, enabling the

reuse of models or creating speciﬁc solutions of do-

main among others (Mohagheghi et al., 2013).

The fundamental elements of MDE are models

and transformations between models (Cetinkaya and

Verbraeck, 2011), which must be expressed through

some notation (called a modeling language), and de-

ﬁnes the syntax or notation of the model, as well as

its semantics or meaning.

Everything in MDE can be expressed as a model

ezivin, 2005). The term “metamodeling” is known

as the action of modeling a model or modeling a mod-

eling language. A metamodel is an abstraction of

a model itself, which deﬁnes the properties of that

model, the structure and restrictions for a family of

models (Mellor et al., 2004).

MDE is probably one of the best-known model-

ing techniques in software engineering (Kent, 2002).

Modeling languages are the mechanisms that allow

designers to specify the models of their processes or

systems. They establish the way in which the concrete

representation of a conceptual model is deﬁned and

can be composed of graphical representations, textual

representations, or even both. In any case, modeling

languages are formally deﬁned and oblige designers

to use their syntax when creating models (Brambilla

et al., 2012). There are two major groups of modeling

languages.

• Domain-Speciﬁc Languages (DSLs), which are

designed speciﬁcally for a certain domain.

• General-Purpose Modeling Languages (GPMLs),

which can be used for any application domain.

The Meta Object Facility (MOF) language (OMG,

2016), proposed by the reference body in this ﬁeld,

the Object Management Group (OMG), is one of the

best-known languages for the deﬁnition of metamod-

els. In this language, metainformation is speciﬁed that

makes data understandable by a computer (Schmidt,

2006).

Considering the background presented, it is pos-

sible to assume that MDE can be used to standardize

the way in which the ML Knowledge is created.

3 CONTRIBUTION

This section describes the two main contributions of

this paper: (1) a common language is proposed to

enable a consolidated way of representing the ML

Knowledge (cf. Section 3.1), and (2) a process to

incorporate heterogeneous information sources into a

uniﬁed knowledge store (cf. Deﬁnition 1) using the

previous language (cf. Section 3.2).

Deﬁnition 1. A Uniﬁed knowledge store UKS =

(CharTerms, AlgTerms, KnowlSources, Rules) con-

sists of

• A set of pairs hchar

, char

name

i which contains an

id and a name associated to problem characteris-

tics, e.g., the amount of data (i.e., CharTerms),

• A set of pairs halg

, alg

name

i which contains an

id and a name associated to the ML algorithms,

e.g., Naives Bayes (i.e., AlgTerms),

• A set of tuples hsource

, source

name

i which con-

tains an id and a name associated to the knowl-

edge sources that have been considered in the

store, e.g., Sckit-Learn Algorithm Cheat Sheet

(i.e., AlgTerms),

• And a set of tuples

hrule

, source

, antecedents, consequencesi

which contains an id, the reference of the

knowledge source which motivates this rule, and

the rule itself (i.e., Rules). On the one hand,

antecedents is a set of pairs hchar

, valuei

stating that this rule is ﬁred if the problem

characteristics have the given value. On the other

hand, consequences is a set alg

which indicates

that these algorithms are recommended if the rule

is ﬁred.

APMDWE 2019 - 4th International Special Session on Advanced practices in Model-Driven Web Engineering

472

Figure 3: Example knowledge source. source:scikit-learn.com.

3.1 A Common Language for

Recommendations of ML

Algorithms

This paper proposes a formal language to abstract

from the different languages which are used to rep-

resent the knowledge. More precisely, in the con-

text of recommendations for the usage of a ML al-

gorithm, sources of knowledge can be found in re-

search papers, Web forums, cheat sheets of organiza-

tions, etc. Nonetheless, if these sources are analyzed

and the non-relevant information is wiped out, the

knowledge that they contain shares a similar and sim-

ple format: some algorithms are recommended if a set

of problem characteristics have some speciﬁc values

(e.g., the problem is to predict a discrete value and the

amount of data is over 10K).

Herein, we propose an abstract syntax or meta-

model (cf. Figure 4) that allows: (1) representing

this knowledge in a graphical way and (2) being in-

terpreted by a computer program.

The proposed metamodel is composed of six

metaclasses. The “MLKnowledge” metaclass allows

the content of the knowledge source to be represented

in the format of the target knowledge source. This

representation format is composed of Decisions and

Nodes.

The “Node” metaclass, deﬁned by the attribute

“name”, allows to represent each origin points of the

different branches of the knowledge source. This

metaclass can be represented as three different ways:

• Start: it represents the initial node.

• Characteristic: it represents the antecedents that

are considered for making a decision and generate

a consequence.

• Algorithm: it represents a consequence, that is,

an algorithm resulting from the recommendation

based on some antecedents).

The “Decision” metaclass allows to represent the

antecedents of the knowledge source, that is, a set of

characteristics that affects the decisions and the crite-

ria for recommending an algorithm based on them.

These criteria are represented through the “expres-

sion” attribute of “Decision” metaclass. Moreover,

this metaclass connects instances of the metaclass

“Node” through the “source” and “target” attributes.

In addition to the abstract syntax, a concrete syn-

tax that allows to create models based on the ML

Knowledge Language was deﬁned. This concrete

syntax is a DSL composed of a set of speciﬁc symbols

(cf. Figure 5) that let the software engineer instantiate

each of the metaclasses of the metamodel.

A small example of the use of the DSL is illus-

trated in Figure 6. This ﬁgure represents a piece of

the knowledge source of scikit-learn (cf. Figure 3)

modelled with the DSL described above.

As evidenced in Figure 6, the model begins with

the Start Node. Next, it is presented a Characteris-

tic Node called “data”, which represents the amount

of data that the user has. This Characteristic is con-

nected to a pair of Nodes called “Linear SVC” and

“SGD Classiﬁer” by two different Decisions, called

“>100K” and “<100K” respectively. It means, if the

antecedent “data” takes value “<100K” the conse-

Towards a Uniﬁed Model Representation of Machine Learning Knowledge

473

class Domain Objects

«metaclass»

MLKnowledge

«metaclass»

Decision

- expression: String

- source: Node

- target: Node

«metaclass»

Start

«metaclass»

Node

- name: String

«metaclass»

Characteristic

«metaclass»

Algorithm

0..* 2

Figure 4: MLKnowledge Metamodel.

Metaclass

Description

Symbol

Start Node

It represents the initial node

Characteristic

Node

It represents a feature of the

knowledge source

Algorithm

Node

It represents an

algorithm

Decision

It represents the decision based on

certain criteria and characteristics

Start

expression

name

Figure 5: Concrete syntax deﬁnition.

Linear

SVC

Tree

>100K

SGD

Classifier

data

text

<100K

Start

yes

Naive

Bayes

Classifier

Paths

Linear

SVC

Start

text

data

Classifier

Naive

Bayes

Linear

SVC

Linear

SVC

SGD

Classifier

yes

<100K

>100K

<Characteristic,value>

<data, 80K>

<text, yes>

<data, 120K>

<text, no>

<data, 120K>

<data, 80K>

Antecedents

Algorithm

SGD

Classifier

Linear

SVC

Naive

Bayes

Classifier

Consequences

Linear

SVC

Linear

SVC

Figure 6: Example of DSL use.

quence value will be “SGD Classiﬁer”, else, the con-

sequence value will be “Linear SVC”.

There is another Characteristic Node called “text”

linked to the “Linear SVC” Node. This Character-

istic Node represents the type of data that the user

has. It means, if the antecedent “Linear SVC” takes

value “yes” the consequence value will be “Naive

Bayes”, else, the consequence value will be “KNeigh-

bors Classiﬁer”.

Characteristics

Algorithms

Unify characteristics

Unify algorithms Knowledge D in UKML

New knowledge

source

Unify terms

Knowledge with

unified terminology

Knowledge in the

common language

Unified knowledge store

Translate

Figure 7: Consolidate terms of knowledge source.

3.2 Towards a Uniﬁed Knowledge Store

As seen in Figure 2, this approach consists of two

phases. In a ﬁrst phase, each knowledge source is ex-

pressed using the suggested language (cf. Figure 7).

For this, the terminology of the considered knowledge

source is uniﬁed with the terminology that is already

used in the existing uniﬁed knowledge store. That

is, each problem characteristic or algorithm that ap-

pears in the knowledge source is mapped to a term in

CharTerms and AlgTerms respectively. In case that

some new term has not a mapping to any exiting term,

it remains with the original one since it will be in-

cluded later in the store.

Thereafter, the knowledge source with uniﬁed ter-

minology is manually modeled using the previous

language. That is, the different relations between the

problem characteristics and the algorithms is written

in a formal way.

In a second phase, the knowledge source is pro-

cessed to extract the individual recommendation rules

(cf. Figure 8) and store them in the uniﬁed knowl-

edge store. For this, since the model present a tree-

like structure, it is divided into the different paths that

exist from the root (i.e., the start node) to any algo-

rithm node.

Each path is composed of (1) a “Start Node, (2) a

set of “Characteristic Nodes together with a labeled

APMDWE 2019 - 4th International Special Session on Advanced practices in Model-Driven Web Engineering

474

Split the graph

into paths

Extract

characteristics

and values

Extract algorithm

and its

recommendation

Add to the

information

source

Antecedents

<characteristic, value>

Consequences

Split

Extract

Antecedents

<char, val>, <char, val>, …

Consequences

alg, alg, …

<char, val>, <char, val>, …

alg, alg, …

<char, val>, <char, val>, …

alg, alg, …

…

Add to

store

Knowledge source Graph paths Rules Unified knowledge store

Figure 8: Add knowledge to the uniﬁed knowledge store.

Linear

SVC

Tree

>100K

SGD

Classifier

data

text

<100K

Start

yes

Naive

Bayes

Classifier

Paths

Linear

SVC

Start

text

data

Classifier

Naive

Bayes

Linear

SVC

Linear

SVC

SGD

Classifier

yes

<100K

>100K

<Characteristic,value>

<data, 80K>

<text, yes>

<data, 120K>

<text, no>

<data, 120K>

<data, 80K>

Antecedents

Algorithm

SGD

Classifier

Linear

SVC

Naive

Bayes

Classifier

Consequences

Linear

SVC

Linear

SVC

Figure 9: Example for extracting rules from a sample knowledge source.

outgoing edge where the label indicates the value that

takes the characteristic, and (3) one or various “Al-

gorithm Nodes. Therefore, the paths are processed to

extract the rules of the knowledge source. These rules

have a similar shape to the uniﬁed knowledge store.

Each one keeps a set of antecedents (i.e., the names

and the values of the characteristics that appears in

the path) and a set of consequences (i.e., the names of

the algorithms that appears in the path).

As a ﬁnal step, these intermediate rules are incor-

porated in the uniﬁed knowledge store. First, if the

knowledge source does not exist in the KnowlSources

of the store, a new entry is included with a new

source

. Second, each characteristic name and al-

gorithm name that exists in the CharTerms and the

AlgTerms are substituted by the char

and the alg

respectively. If some characteristics or algorithms

were not previously included in the store, new en-

tries are created in the CharTerms or AlgTerms

and the new char

or alg

are used to sub-

stitute the names in the antecedents and conse-

quences. And third, a new rule

is obtained and the

tuple hrule

, source

, antecedents, consequencesi is

the Rules of the uniﬁed knowledge store.

For example, Figure 9 depicts how the different

rules can be extracted from the model of Figure 6.

4 CONCLUSIONS AND FUTURE

WORK

This paper presents an approach to deal with the dis-

tributed knowledge of ML. Speciﬁcally, it aims to cre-

ate a repository with rules that help to decide which

ML algorithms are suitable to solve a given prob-

lem. For this, a common language for modeling this

knowledge is proposed. Such a language is stated in

form of a metamodel that a computer program can

process. In addition, a procedure to transfer these

models to a uniﬁed knowledge store is described.

This store will enable exploiting the knowledge of the

distributed sources to make decisions with less risk.

However, this work considers some assumptions

that limit its application. First, it considers that all

the knowledge sources are equally relevant and not

biased, e.g., an organization may not recommend

certain algorithms just because they do not provide

a component for it. Second, the suggested uniﬁed

knowledge store keeps simple rules lacking more

complex syntax like OR or NOT expressions. And

ﬁnally, using this proposal requires a manual work

to model the knowledge source through the provided

language which may entail a considerable effort de-

pending on the number of sources. Nonetheless, this

effort will be leveraged not only by a single ML

project but by the future ones too.

As further future work, we plan (1) to exploit the

uniﬁed knowledge store in order to generate a deci-

sion support tool, (2) to improve traceability of term

mappings between knowledge sources and the uni-

ﬁed store, so that we can enable a revision of the

translations that have been done related to a term in

the uniﬁed knowledge store. (3) to weight knowl-

edge sources according to their relevance, sound-

ness or reliability, in order to optimize the search

for the right algorithm, (4) to extend the proposed

Towards a Uniﬁed Model Representation of Machine Learning Knowledge

475

MLKnowledge language capabilities since complex

expressions, such as disjunctions and negations, oc-

casionally appear within the antecedents of knowl-

edge sources, (5) to introduce the concept of inten-

sity of recommendation with the aim of expressing

the degree of acceptance of the recommendations,

since some knowledge sources express a distinction

between the value of different recommendations (e.g.,

excellent vs acceptable recommendations), (6) to an-

alyze the impact of fuzzy terms within knowledge

sources since some of them specify fuzzy values for

the characteristics (e.g., few data instead of a con-

crete number), (7) to use ML to automatically trans-

late knowledge sources, so that it takes as input the

source as its (e.g., either in graphic or text mode) and

generates as output the associated models in the ML

Knowledge Language.

ACKNOWLEDGEMENTS

This research has been supported by the Polo-

las project (TIN2016-76956-C3-2-R) of the Spanish

Ministerio de Econom

ıa y Competitividad and the

PROMETEO project (P009-18/E09) of the Centre for

Industrial Technological Development (Centro para el

Desarrollo Tecnol

ogico Industrial, CDTI) of Spain.

REFERENCES

Abukwaik, H., Burger, A., Andam, B. K., and Berger, T.

(2018). Semi-automated feature traceability with em-

bedded annotations. 2018 IEEE International Con-

ference on Software Maintenance and Evolution (IC-

SME), pages 529–533.

ezivin, J. (2005). On the uniﬁcation power of models.

Software & Systems Modeling, 4(2):171–188.

BigML (2019). Bigml. Available at: https://bigml.com/.

Last accessed: July 2019.

Brambilla, M., Cabot, J., and Wimmer, M. (2012). Model-

driven software engineering in practice. Synthesis

Lectures on Software Engineering, 1(1):1–182.

Cetinkaya, D. and Verbraeck, A. (2011). Metamodeling

and model transformations in modeling and simula-

tion. In Proceedings of the Winter Simulation Con-

ference, pages 3048–3058. Winter Simulation Confer-

ence.

Dataiku (2019). Dataiku blog. Available at: https://blog.

dataiku.com/. Last accessed: July 2019.

DataRobot (2019). Datarobot. Available at: https://www.

datarobot.com/. Last accessed: July 2019.

Dixon, S. L., Duan, J., Smith, E. D., Bargen, C. D. V., Sher-

man, W., and Repasky, M. P. (2016). Autoqsar: an au-

tomated machine learning tool for best-practice quan-

titative structure-activity relationship modeling. Fu-

ture medicinal chemistry, 8 15:1825–1839.

Feurer, M., Klein, A., Eggensperger, K., Springenberg, J.,

Blum, M., and Hutter, F. (2015). Efﬁcient and robust

automated machine learning. In Cortes, C., Lawrence,

N. D., Lee, D. D., Sugiyama, M., and Garnett, R., edi-

tors, Advances in Neural Information Processing Sys-

tems 28, pages 2962–2970. Curran Associates, Inc.

Fondement, F. and Silaghi, R. (2004). Deﬁning model

driven engineering processes. In Third International

Workshop in Software Model Engineering (WiSME),

held at the 7th International Conference on the Uni-

ﬁed Modeling Language (UML).

Kent, S. (2002). Model driven engineering. In Inter-

national Conference on Integrated Formal Methods,

pages 286–298. Springer.

Mellor, S. J., Scott, K., Uhl, A., and Weise, D. (2004).

MDA distilled: principles of model-driven architec-

ture. Addison-Wesley Professional.

Microsoft (2019). Machine learning algorithm cheat

sheet for azure machine learning studio. Available

at: https://docs.microsoft.com/en-us/azure/machine-

learning/studio/algorithm-cheat-sheet. Last accessed:

July 2019.

Mitchell, T. M. (1997). Machine Learning. McGraw-Hill,

Inc., New York, NY, USA, 1 edition.

Mitchell, T. M. (2006). The discipline of machine learn-

ing, volume 9. Carnegie Mellon University, School of

Computer Science, Machine Learning . . . .

Mohagheghi, P., Gilani, W., Stefanescu, A., and Fernandez,

M. A. (2013). An empirical study of the state of the

practice and acceptance of model-driven engineering

in four industrial cases. Empirical Software Engineer-

ing, 18(1):89–116.

Mohr, F., Wever, M., and H

ullermeier, E. (2018). Ml-

plan: Automated machine learning via hierarchical

planning. Machine Learning, 107(8):1495–1515.

OMG (2016). Meta object facility (MOF) 2.5 core speciﬁ-

cation. Version 2.5.1. Available at: https://www.omg.

org/spec/MOF/2.5.1/PDF. Last accessed: July 2019.

Panagopoulou, M. S., Karaglani, M., Balgkouranidou, I.,

Biziota, E., Koukaki, T., Karamitrousis, E., Nena,

E., Tsamardinos, I., Kolios, G., Lianidou, E. S.,

Kakolyris, S. S. J., and Chatzaki, E. (2018). Circulat-

ing cell-free dna in breast cancer: size proﬁling, lev-

els, and methylation patterns lead to prognostic and

predictive classiﬁers. Oncogene, 38:3387–3401.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer,

P., Weiss, R., Dubourg, V., et al. (2011). Scikit-

learn: Machine learning in python. Journal of ma-

chine learning research, 12(Oct):2825–2830.

Schmidt, D. C. (2006). Model-driven engineer-

ing. COMPUTER-IEEE COMPUTER SOCIETY-,

39(2):25.

Sckit-learn (2019). sckikit-learn algorithm cheat-sheet.

Available at: https://scikit-learn.org/stable/tutorial/

machine\ learning\ map/index.html. Last accessed:

July 2019.

Thornton, C., Hutter, F., Hoos, H. H., and Leyton-Brown,

K. (2012). Auto-weka: Automated selection and

hyper-parameter optimization of classiﬁcation algo-

rithms. CoRR, abs/1208.3719.

APMDWE 2019 - 4th International Special Session on Advanced practices in Model-Driven Web Engineering

476
