A Hierarchical
R
outing Protocol based on Energy Consumption
Weight Clustering Scheme for Cognitive Radio Networks
Yihang Du
1, a
, Hu Jin
1
, Lijia Wang
2
and Lei Xue
1
1
Electronic Countermeasure Institute, National University of Defense Technology, Hefei, China
2
CTTL-Terminals of China Academy, Telecommunication Research of MIIT, Beijing, China
Keywords: Hierarchical routing protocol, clustering, energy consumption ratio, multi-agent Q-learning.
Abstract: In order to reduce the network congestion and data forwarding times, a hierarchical routing protocol based
on energy consumption weight clustering scheme is proposed. Firstly, the concept of Energy Consumption
Weight (ECW) is introduced. Then the clustering problem is modelled as a complete bipartite graph
decomposition problem with maximum weights and a greedy clustering scheme based on ECW is presented
to minimize the energy consumption of intra-cluster transmission. Subsequently, the Equal Reward
Timeslots based Conjectural Multi-Agent Q-Learning (ERT-CMAQL) is applied to optimize routing and
resource allocation in inter-cluster communication. Simulation results show that the proposed hierarchical
routing scheme outperforms the flat routing protocol in terms of system energy consumption and packet
transmission latency, and it effectively reduces the number of nodes involved in operation and decision-
making in the multi-agent learning scheme when the size of network is large.
1 INTRODUCTION
With the explosive growth of the communication
divices, the scarcity of spectrum resource is
becoming a severe problem. Cognitive Radio (CR)
is a promising technology to break the static channel
assignment policy and realize the Dynamic
Spectrum Access (DSA). It enables the Secondary
Users (SUs) to opportunistically access the spectrum
that is not occupied by the licensed users for
enhancing the spectrum utilization rate (Chen et al.
2016). In order to expand the deployment scope and
ensure the flexibility as well as robustness of the
system, Cognitive Radio Network (CRN) usually
adopts the distributed network architecture, and
transmits data from the source node to the
destination node in multi-hop manner. Therefore, it
is of significant importance to take routing into
consideration in CRN (Cesana et al. 2011).
Reinforcement Learning (RL) has been widely
used in the routing design in CRN since it does not
require the priori information such as spectrum
statistics and network topology. Furthermore, RL
methods have good adaptability to the dynamic and
unpredictable nature of CRN. A cross-layer routing
protocol based on Prioritized Memories Deep Q-
Network (PM-DQN) was proposed in (Du et al.
2018) to solved the joint routing and resource
management problem in the large-scale CRN.
However, it applied single- agent learning
framework, which had low convergence speed and
high signaling overhead. A conjecture-based multi-
agent Q-learning scheme was presented in (Cao et
al. 2014) to perform route selection in a partially
observable environment. The routing problem was
formulated as a stochastic game (SG) in
(Pourpeighambar et al. 2017). Then, it was solved
through a non-cooperative multi-agent learning
method in which each secondary user (SU)
speculated other nodes’ strategies without
acquisition of global information. However, these
works all adopted the flat routing protocol, in which
the node density and information redundancy are
high. Moreover, the number of hops in the data
transmission is large, which leads to large energy
consumption and high cost of establishing and
maintaining routing.
To improve energy efficiency and reduce
network latency, hierarchical routing protocols have
been studied and developed. The main idea of
hierarchical routing protocols is to divide network
nodes into different groups according to their
geographical location and characteristic attributes,
Du, Y., Jin, H., Wang, L. and Xue, L.
A Hierarchical Routing Protocol based on Energy Consumption Weight Clustering Scheme for Cognitive Radio Networks.
DOI: 10.5220/0008868804210430
In Proceedings of 5th International Conference on Vehicle, Mechanical and Electrical Engineering (ICVMEE 2019), pages 421-430
ISBN: 978-989-758-412-1
Copyright
c
2020 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
421
which is called clustering. The author in (Baddour et
al. 2009) adopted affinity propagation to classify
SUs by similarity of sensing results. Nevertheless,
there were too many clusters and the cluster size was
particularly small in the sensing results based
clustering algorithm, which was not conducive to
network management and operation. A sensing
factor based clustering scheme was built in (Qi et al.
2018), which mapped the clustering problem to
Constraint Maximum-Weight Edge Biclique (C-
MWEB) decomposition problem. However, it only
considered the maximization of cooperative sensing
accuracy of the PU channels instead of the overall
energy consumption of intra-cluster communication.
To improve energy efficiency and reduce
network delay, in this paper we propose a
hierarchical cross-layer routing protocol based on
energy efficiency in multi-agent framework. Firstly,
the SUs and PU channels are clustering into groups
in CRN by maximizing energy consumption weight
to minimize the energy consumption of intra-cluster
communication. Then the multi-agent reinforcement
learning algorithm is used to joint optimize the
routing, channel access and power allocation of the
cluster head for the reduction of transmission delay
and system energy consumption. Simulation results
show that the end-to-end performance of the
proposed hierarchical routing scheme is significantly
better than that of the flat routing protocol and the
hierarchical routing protocol under the traditional
clustering algorithm.
2 SYSTEM MODEL
2.1 Network Model and Frame
Structure
We consider a CRN consisting of
N
SU nodes, in
which the SUs in the set
1
,,
N
nn
coexist with
M
PUs in the set
1
,,
M
vv
, and SUs use the
authorized channels for data transmission when the
PU channel is idle. SUs adopt cooperative spectrum
sensing to improve the sensing accuracy. The signal
of PUs can only cover SUs in a certain area due to
their limited transmission power. Some SU nodes
located in the remote area or in the hidden terminal
position cannot effectively detect the signal of PUs.
Their participation in cooperative spectrum sensing
may lead to a decline in sensing performance. To
improve the accuracy of channel detection for PUs
and reduce the number of data forwarding, we
introduce a hierarchical routing protocol based on
clustering. As shown in Figure 1, SUs and PU
channels are divided into
K
clusters. In each cluster,
SU nodes jointly sense the PU channels in the
cluster and transmit the data to the destination node
in a hierarchical form. Each cluster is denoted as
1
,,
K
L
LL
, where the cluster head of the cluster
i
L
is represented as
i
H
, and the member in the cluster
i
L
is denoted as
i
. In the data transmission, the
member node sends data to the cluster head, and
then the cluster head transmits data to the destination
node via other cluster head nodes in the multi-hop
manner.

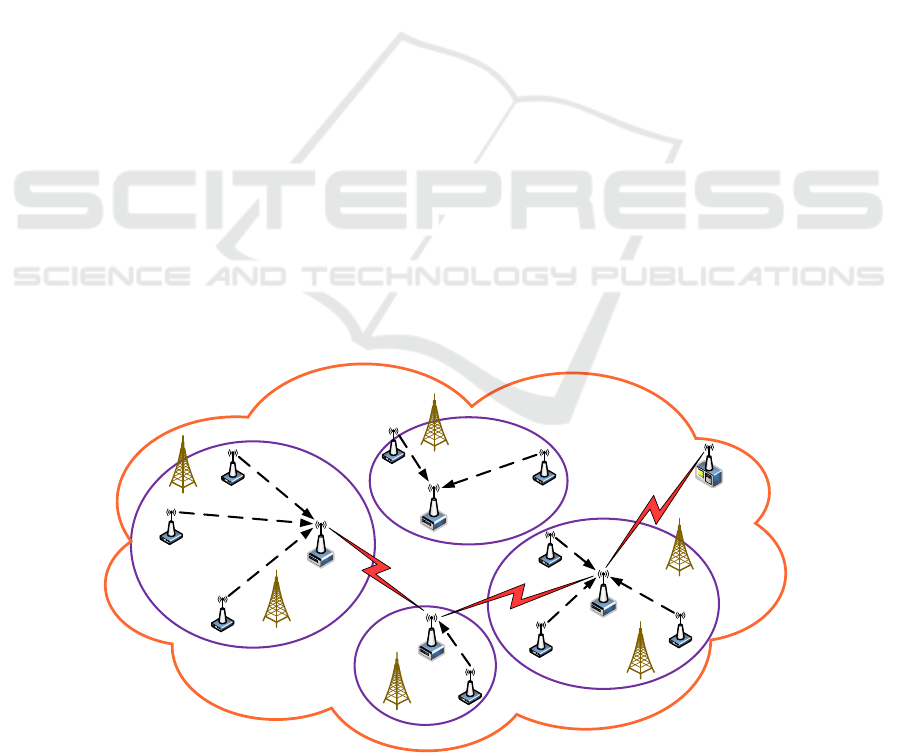

Cognitive
Radio
Network
PU
Destination
Node
PU
PU
PU
PU
PU
Cluster 1
Cluster
Member
Cluster
Head
Cluster
Head
Cluster
Head
Cluster
Head
Cluster 2
Cluster 3
Cluster 4
Figure 1. Network model of the hierarchical routing protocol.
ICVMEE 2019 - 5th International Conference on Vehicle, Mechanical and Electrical Engineering
422
As shown in Figure 2, the frame structure of
hierarchical routing protocol includes clustering
stage, running stage and cluster maintenance stage.
In the clustering stage, SU nodes and PU channels
are divided into different clusters according to
certain criteria. To prevent the degradation of the
original clustering performance caused by the
mobility of SU nodes or the change of the PU
channel characteristics, it is necessary to adjust and
maintain the clustering at a certain time, which is
called the cluster maintenance stage. Running phase
is the most critical part of the protocol, which is
divided into spectrum sensing time slot, intra-cluster
data transmission time slot and inter-cluster data
transmission time slot. In the spectrum sensing
stage, all the nodes in the cluster execute cooperative
spectrum sensing and report the sensing results to
cluster head for data fusion. After that, cluster
member nodes communicate with the cluster head
through time division multiplexing. Subsequently,
the cluster head selects the corresponding relay node
and channel according to its strategy to transmit data
between clusters.
In the intra-cluster data transmission stage, we
assume that the transmit power of each cluster
member node is a constant value
P
. Since only the
information of the PU channel in the cluster can be
obtained, the cluster member sends the data directly
to the cluster head by selecting a certain PU channel
in the corresponding cluster. In the inter-cluster data
transmission stage, the cluster head obtains the
channel status information and the location
information of the cluster head in adjacent cluster by
request signaling and response signalling. Then it
selects a cluster head as the relay node to forward
the data to the destination node in the multi-hop
manner. In this process, the transmit power of
cluster head can be adaptively adjusted to reduce
energy consumption and routing delay. In addition,
the PU’s occupation is modeled as an independently
and identically alternation between two stages, i.e.,
ON status when the PU channel is occupied and
OFF status when the PU channel is idle (Singh et al.
2017).
2.2 Energy Consumption Weight
To guarantee the system energy efficiency, the
average energy consumption of data transmission
within the cluster should be minimized. We assume
that cluster member
i
n
sends data to cluster head
using authorized channel
j
in a cluster. The channel
capacity
ij
C
is defined as follows:
2
log 1
ij j ij
CB hP
(1)
Where
j
B
is the bandwidth of the PU channel
j
,
ij
h
represents the channel gain when the SU
i
n
using
channel
j
,
2
is the Additive White Gaussian
Noise (AWGN) power, and
P
is the transmit
power of the cluster member nodes. It is assumed
that the size of the packet is
p
acket
S
, the data
transmission time of the cluster member nodes is
given by:
ij packet ij
SC
(2)
Then the energy consumption in the intra-cluster
data transmission is calculated as
ij ij
Ep
. It is
assumed that there are
J
PU channels in the cluster,
and the idle probability of the channel
j
is
j
off
p
. We
consider that the probability that a cluster member
node chooses a certain channel is proportional to the
idle probability of the channel. So the probability of
node selecting the channel
j
in intra-cluster data
transmission is given by:

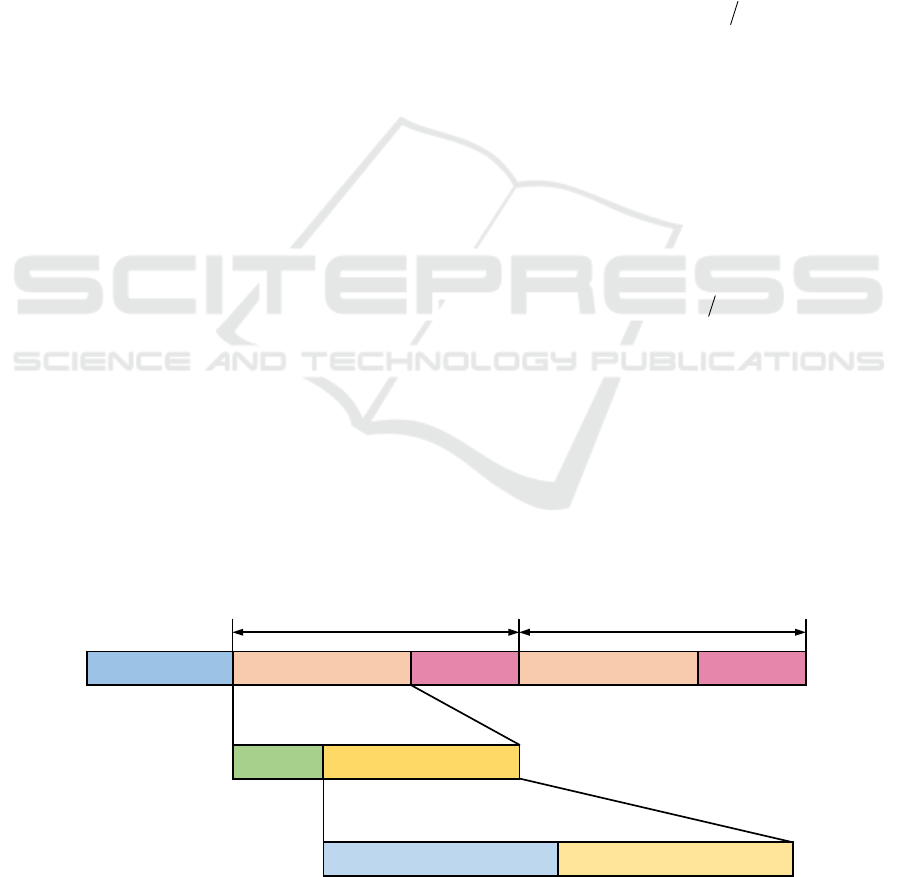

Clustering Stage
Data Transmission
Maintaining
Intra-Cluster Communication
Sensing
Running Stage 1 Maintaining
The First Data Period
The Second Data Period
Inter-Cluster Communication
Running Stage 2
Figure 2. Frame structure of hierarchical routing protocol.
A Hierarchical Routing Protocol based on Energy Consumption Weight Clustering Scheme for Cognitive Radio Networks
423
1
J
j
n
j
off off
n
Pp p
(3)
Therefore, the average energy consumption of
the
kth
cluster in the intra-cluster communication is
calculated as follows:
1
k
JJ
jn
kijoffoff
ij n
Eppp
(4)
To minimize the average energy consumption of
intra-cluster communication in the whole network, it
is necessary to choose a reasonable clustering
method to maximize
k
k
E
. Then the concept of
Energy Consumption Weight (ECW) is introduced,
and the ECW of SU node
i
n
using PU channel
j
is
defined as:
1
J
jn
ij ij j ij off off
n
EP p p p
(5)
Thus the sum of ECW in the
kth
cluster is
given by:
1
k
k
J
kk ij
ij
JJ
jn
ij off off
ij n
E
pp p
(6)
3 ALGORITHMIC DESIGN
3.1 Energy Consumption Weight Based
Clustering Algorithm
We introduce the concept of bipartite graph in graph
theory to cluster SU nodes and PU channels

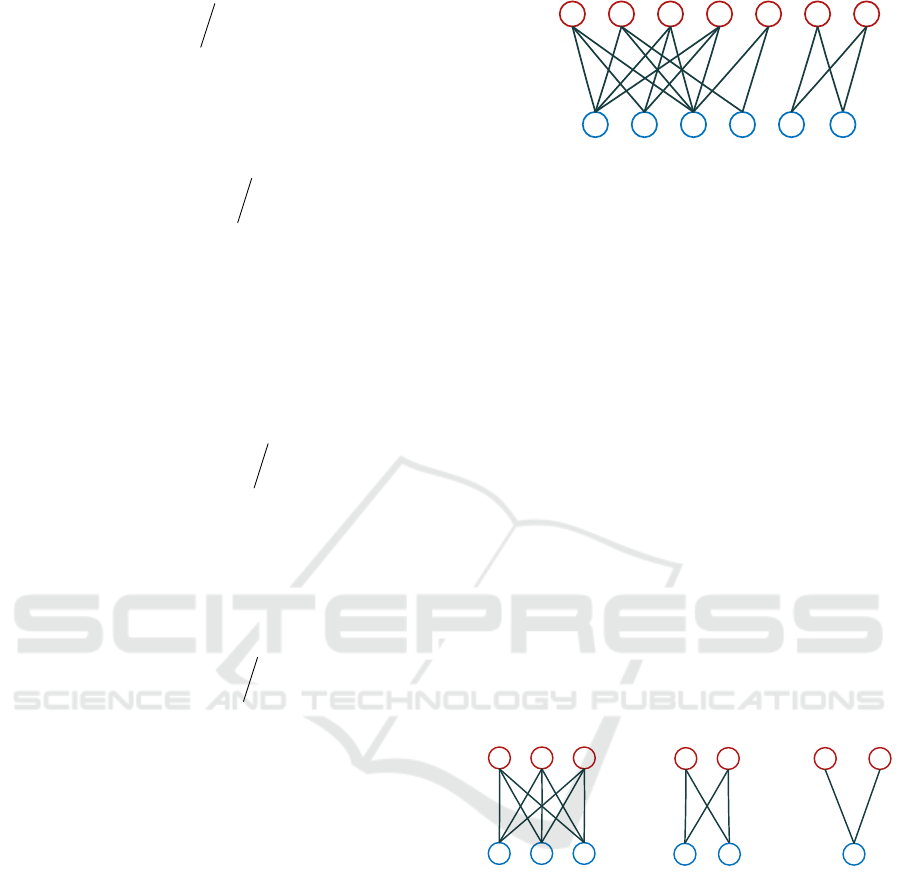

reasonably. As shown in Figure 3, the graph
G
is
defined as a bipartite graph if the vertices of
undirected graph
,GX Y
can be divided into
two independent sets, and the two vertices
x
and
y
connected by the edge in
belong to the set
X
and
Y
, respectively. Vertex set
X
corresponds to the
set of SU nodes in CRN, and the set
Y
represents
the PU channels. If a SU node
x
is within the
coverage of the PU
y
and can sense the state of the
corresponding PU channel, then there is an edge
,
x
y
in the bipartite graph where the weight of the
edge is the ECW
ij
.
1 2 3 4 5 6
1 2 3 4 5
7
6
SU
PU
Figure 3. Bipartite graph model.
For a bipartite graph
,QUW
, if there is an edge
connection between any two vertices
uU
and
wW
, then
Q
is called a complete bipartite graph.
For CRN, the problem of clustering SU nodes and
PU channels can be formulated as the problem of
decomposing a bipartite graph into a complete
bipartite graph. Figure 4 shows three cases in which
the bipartite graph in Figure 3 is decomposed into a
complete bipartite graph. The complete bipartite
graph shown in Figure 4(a) represents the first
cluster partitioned from the CRN. Its cluster member
set is
1
1, 3, 4U
, and the sensed channel set is
1
1, 2, 3W
. All of the SU nodes in
1
U
sense the
channels in
1
W
cooperatively and communicate with
cluster head through these channels. Similarly, the
complete bipartite graph shown in Figure 4(b)
denotes the second cluster. Its cluster member set is
2
6,7U
, and the sensed channel set is
2
5,6W
.
The complete bipartite graph shown in Figure 4(c)
denotes the third cluster. Its cluster member set is
3
2,5U
, and the sensed channel set is
3
4W
.
1 3 4
1 2 3
2 5
4
6
5
7
6
(a) (b) (c)
Figure 4. Complete bipartite graph decomposed from
the
bipartite graph in Figure 3.
To minimize the average energy consumption of
intra-cluster communication after clustering, it is
necessary to maximize the sum of system ECW.
Therefore, we have to find a bipartite graph
decomposition method to maximize the sum of edge
weights of all complete bipartite graphs after
decomposition. The matrix
s
A
and
p
B
represent the
clustering of SU nodes and PU channels,
respectively. The elements
k
i
a
denotes the
relationship between SU node
i
n
and the
kth
ICVMEE 2019 - 5th International Conference on Vehicle, Mechanical and Electrical Engineering
424
cluster, and the elements
k
j
b
represents the
relationship between the PU
i
v
and the
kth
cluster:
1
0
ik
k
i
nU
a
else
，
，
(7)
1
0
ik
k
j
vW
b
else
，
，
(8)
Consequently, the clustering problem can be
mapped to the problem of bipartite graph
decomposition to maximize the weight of edge in
graph theory. The mathematical description is as
follows:
,
1
1
max ( ( ), ( ))
s.t. 1
1
sp
kks kp
AB
k
K
k
i
k
K
k
j
k
UAWB
ai
bj
(9)
Two constraints in Equation (9) indicate that
each SU node or PU channel can only be allocated
to one cluster and cannot appear in different clusters.
In addition, it is assumed that the number of SU
nodes in each cluster is not less than
m
to guarantee
cooperative spectrum sensing accuracy.
Since solving the optimization objective (9) is a
NP-complete problem (Zhang et al. 2014), a
heuristic greedy algorithm is designed to find the
next optimal solution. The algorithm can effectively
separate the complete bipartite graph from the
bipartite graph under the above constraints. In the
initial stage, it is assumed that
1
and
1
.
For the
kth
cluster,
11kkk
U
and
11kk k
W
. The steps to obtain a complete
bipartite graph
,
kk
QU W
from a bipartite graph
,
kkk
G
are as follows:
k
W
is set to an empty
set and
k
U
is set to the SU node set. In the
lth
iteration, we first find the PU channel
lkk
vW
with the highest edge weights, whose edge weights
are denoted as
deg
l
v
. Then we add
l
v
to
k
W
and
remove the SU node that cannot sense the channel
l
v
from
k
U
(The set of SU nodes that can sense
l
v
is denoted as
l
v
). Subsequently, we calculate the
sum of all the edge weights of the bipartite graphs
composed of
k
U
and
k
W
, which is denoted as
k
.
The above steps are repeated until the number of
remaining channels in
k
is 0 or
kk
Um
. The
details of greedy clustering algorithm based on ECW
are shown in algorithm 1.
Algorithm 1 Greedy clustering algorithm
based on energy consumption weight
1: Initialize:
2: Set
,
kkk
G
,
k
U
,
k
W
and
1l
;
3: While
kk
Um
and
0
k
Do
4:
arg max deg
kk
lvW
vv
;
5: If
deg
k
vm
then
6: break;
7:Else
8:
kkl
v
;
l
kkv
UU
;
9:
that can senses
l
vk l
SU SUs v
;
10:
kkl
WWv
;
,
kkkk
lUW
;
11: End If
12:
1ll
13: End While
14: Output:
*
,
kkk
QUW
3.2 Inter-Cluster Communication
Protocol
After clustering, we select cluster heads using ID
(LID) scheme which is commonly used in ad hoc
networks. All cluster heads form the upper network
structure, and transmit data derived from the source
node to the destination node with the multi-hop
manner. In this paper, the inter-cluster cross-layer
routing design problem is modeled as a quasi-
cooperative stochastic game, and the concept of
responsibility rating proposed in (Du et al. 2018) is
applied. The players of the stochastic game are all
cluster heads. In the game, each player chooses an
action and then obtains a reward based on the
present state and action. Subsequently, the game will
enter the next stage and its state is determined by the
previous state and the action of each players. In the
stochastic game, the state distribution, player’s
action and reward at each stage are defined as
follows:
(1) State distribution:
The state of cluster head
i
H
at timeslot t is
, ,
ttt
iiii
s
f
, where
t
i
is the responsibility rating
of the cluster head
i
H
,
t
i
f
i
C
is the PU channel
accessed by the cluster head
i
H
at timeslot t, and
A Hierarchical Routing Protocol based on Energy Consumption Weight Clustering Scheme for Cognitive Radio Networks
425
0,1
i
is the Signal-to-Interference plus Noise
Ratio (SINR) indicator that indicates whether the
SINR
i
of cluster head
i
H
is above or below the
threshold
th
:
1, if
0, otherwise
ith
i
(10)
Where
2
t
i
PU
i ijc ijc
gp
,
t
i
p
is the
transmitting power of cluster head
i
H
,
ijc
g
represents the channel gain between node
i
n
and
j
n
,
P
U
ijc
denotes the PU-to-SU interference at
i
H
, and
2
is the AWGN power. In addition, a learning
episode of cluster head
i
H
terminates when
0
i
,
i.e.,
0, ,
ttt
iii
s
f
is the terminal state in the
Markov chain.
(2) Player’s action:
Player’s action consists of routing selection,
channel access and power control of cluster head
nodes. The action of cluster head
i
H
at timeslot t is
, ,
i
t
iji
aHcp
, where
j
H
represents the relay
cluster head selected form the neighbouring node of
cluster head
i
H
,
i
c
i
C
represents the PU channel
of cluster head
i
H
, and
i
p
is the transmit power of
cluster head
i
H
corresponding to the responsibility
rating
t
i
.
(3) Instantaneous reward:
The single-hop transmission latency
,TL i
U
of the
cluster head
i
H
is defined as follows:
,2
log 1
TL i packet j i
US B
(11)
Where
p
acket
S
represents the data packet size,
j
B
is the bandwidth of PU channel
j
, and
i
is the
SINR of cluster head
i
H
. The power consumption
ratio
,
P
CR i
U
of the cluster head
i
H
is given by:
,2
log 1
i
PCR i j i
UpB
(12)
Where
i
p
is the transmit power of cluster head
i
H
corresponding to the responsibility rating
t
i
.
The instantaneous reward when cluster head
i
H
executes action
i
a
in
i
s
and other cluster heads
perform actions
-i
a
is defined as:
2, ,
(, , ) -log
t
iii TLi PCRi
Rsa U U
-i
a
(13)
Where
111
\
(, , , , , )
i
ii K
jHH
aaa a
-i -i j
aAA
is other cluster heads’ action vector;
and
are
parameters to adjust the weighting of the
transmission delay and energy efficiency.
Each cluster head only needs local information
instead of sharing information with all cluster heads
in the network. Therefore, the cross-layer design
problem of inter-cluster communication can be
modeled as a non-cooperative stochastic game:
,
max ( , , )
..
i
t
iii
a
TD i th
Rsa
st U
i
-i
A
a
(14)
Where
th
is the maximum transmission latency
of the cluster head.
We apply the Equal Reward Timeslots based
Conjectural Multi-Agent Q-Learning (ERT-
CMAQL) proposed in (Du et al. 2019) to solve the
Nash equilibrium of the stochastic game and
optimize the routing and resource allocation in the
inter-cluster communication.
The update framework of multi-agent Q-learning
is given by:
1
(, , )
(, ) (1 ) (, )
max ( , )
i
ii i
tt
t
iii iii
iii
b
ERs
Qsa Qsa
Qsb
i
-i
A
ψ
(15)
Where
0 1
，
is the learning rate, and
is
the discount factor determining the agent’s horizon,
(, , )
ii i
ERs
-i
ψ
is the expected reward for cluster
head
i
H
at timeslot t considering other
1N
competing cluster heads, that is
(, )
\
(, , ) (, , ) (, )
i
i
ii i ii i j j j
a
jHH
E
Rs Rsa s a
-i
-i -i
aA
ψ a
(16)
Where
(, )
j
jj
s
a
is the strategy of cluster head
j
H
. Thus the mixed-strategies for other cluster
heads is defined as:
\
(, ) ( , )
i
tt
ii jj j
jHH
s
sa
-i
a
(17)
Which represents the probability that other
cluster heads execute strategy
-i
ψ
at timeslot t.
Furthermore, the probability that the agent chooses
ICVMEE 2019 - 5th International Conference on Vehicle, Mechanical and Electrical Engineering
426
i
a
at state
i
s
while other competing cluster heads
performing strategy
-i
ψ
is given by:
(, ) (, )
tt
iiiiii
sa s
-i
a
(18)
That is, the probability that cluster head
i
H
obtains expected reward
(, , )
ii i
Rsa
-i
a
is
i
. Let
n
denotes the number of time slots between any two
continuous slots which cluster head
i
H
gets the
same return
(, , )
ii i
Rsa
-i
a
, and
n
has the independent
and identical distribution with
i
. It is assumed that
the average value of
n
is denoted as
n
, and then we
have the approximate equation
11
i
n
. Since
every cluster head has its own strategy
(, )
t
iii
s
a
, the
agent is able to estimate
(, )
t
ii
s
-i
a
as follows:
(, ) 1 (1 ) (, )
tt
ii iii
s
nsa
-i
a
(19)
Since
n
is a stationary stochastic process in time
dimension so its mean value
n
is a constant.
Specifically, the quotient of the conjecture belief at
time slot t - 1and t can be calculated as:
1
1
1
(, )
11
(1 ) ( , ) (1 ) ( , )
(, )
(, )
(, )
t
ii
tt
t
iii i ii
ii
t
iii
t
iii
s
nsa n sa
s
sa
sa
-i
-i
a
a
(20)
Thus
(, )
t
ii
s
-i
a
is updated as follows:
1
1
(, )
(, ) (, )
(, )
t
tt
iii
ii i i
t
iii
s
a
ss
s
a
-i -i
aa
(21)
Consequently, the multi-agent Q-learning
updating rule in (15) can be modified as:
1
(, )
(, ) (1 ) (, )
(, , ) (, ) max (,)
i
i
tt
iii iii
tt
ii i i i i ii
b
a
Qsa Qsa
Rsa s Qsb
i
-i
-i -i
A
aA
aa
(22)
The details of ERT-CMAQL based cross-layer
routing protocol for inter-cluster communication are
shown in algorithm 2.
Algorithm 2 ERT-CMAQL based cross-
layer routing protocol for inter-cluster
communication
1: Initialize:
2: Set
0t
and memory size
N
.
3: For each cluster head
i
H
Do
4: For each
,
iii i
s
Sa A
Do
5: Initialize
(, )
t
iii
s
a
, (, )
t
ii
s
-i
a ,
(, )
t
iii
Qsa .
6: End For
7: End For
8: Learning:
9: For each cluster head
i
H Do
10: For
1, eposide M
Do
11: Initialize state
1
i
s
.
12: Repeat
13: Select action
t
i
a according to
(, )
t
iii
s
a
.
14: Execute
t
i
a , and obtain
i
.
15: Observe
(, , )
t
iii
Rsa
-i
a and
1t
i
s
.
16: Update
1
(, )
t
iii
Qsa
based on
(, )
t
ii
s
-i
a
according to (22).
17: Update the strategy
1
(, )
t
iii
s
a
according
to Boltzmann distribution.
18: Update
1
(, )
t
ii
s
-i
a according to
(21).
19:
1t
ii
s
s
20:
1tt
21: Until
i
s
is the terminal state
22: End For
23: End For
4 SIMULATION RESULTS
In this section, the performance of the hierarchical
routing protocol based on ECW clustering algorithm
is evaluated using Python 3.5.1 and its packages
Networkx 2.3 and Numpy 1.15.3. The results of the
proposed scheme are compared with (1) Cooperative
Multi-Agent Q-Learning (CMAQL) under flat
routing protocol (Du et al. 2019); (2) ERT-CMAQL
based on C-MWEB clustering algorithm (Qi et al.
2018) and (3) Q-routing (Al-Rawi et al. 2014) based
on ECW clustering algorithm.
A Hierarchical Routing Protocol based on Energy Consumption Weight Clustering Scheme for Cognitive Radio Networks
427
In the simulation process, the bandwidth of PU
channel
j
is set to
~1, 2 MHz
j
B
. It is supposed
that the AWGN power
27
10 mW
, the packet size
5
210bit
packet
S
, and the PU-to-SU interference
76
~10 , 10 mW
PU
ijc
. The link gain of both intra-
cluster communication and inter-cluster
communication is given by:
00
for
q
hLFdd dd
，
(23)
Where
L
is a constant set to be
6
10
, and the
shadowing factor
F
is subject to a lognormal
distribution with a mean of
0 dB
and variance of
6 dB
,
d
is the actual distance between the
transmitter and receiver,
0
d
is the reference
distance, and
q
is the path loss exponent. In our
simulation process, we set
0
1d
and
4q
. The
expected mean and deviation of average PU
departure rate
(,)
d
are set as
0.1
and
0.05
. A networking scenario comprising 20 SUs
and 10 PUs uniformly deployed in a 500 × 500 m
area is considered. The transmit power of cluster
member node is
200mWP
, and the transmit
power set for cluster head contains ten levels:
550, 600, , 1000 mW
. We use ECW based
clustering scheme and C-MWEB clustering
algorithm to cluster the network. The C-MWEB
clustering algorithm only considers the
maximization of cooperative sensing accuracy of PU
channels, but it ignores the overall energy
consumption of intra-cluster communication. The
network topology and clustering results are shown in
Figure 5.
Figure 6 shows the packet transmission delay
varying with the number of routes in different
schemes. It can be seen that with increasing number
of routes, the packet transmission delay of all
schemes decreases gradually. This is because agents
gradually learn the optimal strategies under each
scheme by interacting with the environment. As a
single agent scheme, the packet transmission delay
of Q-routing algorithm should be much higher than
that of the multi-agent strategy CMAQL. However,
we can see that the packet transmission delay of Q-
routing algorithm based on ECW clustering is lower
than that of CMAQL algorithm under flat routing
protocol. The reason for this is that the hierarchical
routing protocol reduces the number of data
forwarding. Furthermore, the transmit power of
cluster head is larger than that of flat routing
protocol so that the data transmission time of each
hop is reduced. Thus the total transmission delay of
Q-routing algorithm under hierarchical routing
protocol is much lower. In addition, when ERT-
CMAQL is adopted as the inter-cluster
communication scheme, the packet transmission
delay of the hierarchical routing protocol based on
ECW is lower than that of the C-MWEB clustering
protocol. This is because the average channel
capacity of each SU in the cluster is larger so that
the transmission delay in the intra-cluster
communication is lower than that in the C-MWEB
clustering scheme, which leads to lower total
transmission delay. Moreover, we find that ERT-
CMAQL based on ECW clustering, ERT-CMAQL
based on C-MWEB clustering and CMAQL under
flat routing protocol have almost the same
convergence speed, which is faster than Q-routing
based on ECW clustering. This is due to the fact that
each SU node in the multi-agent learning scheme is
equipped with an agent, and each agent works in
parallel so that the convergence rate is not affected
by the size of the network. In the single agent
framework, one agent works independently and its
computation load is heavy so that the convergence
speed is slower than that of multi-agent system.
(a) ECW based clustering scheme.
(b) C-MWEB clustering algorithm.
ICVMEE 2019 - 5th International Conference on Vehicle, Mechanical and Electrical Engineering
428

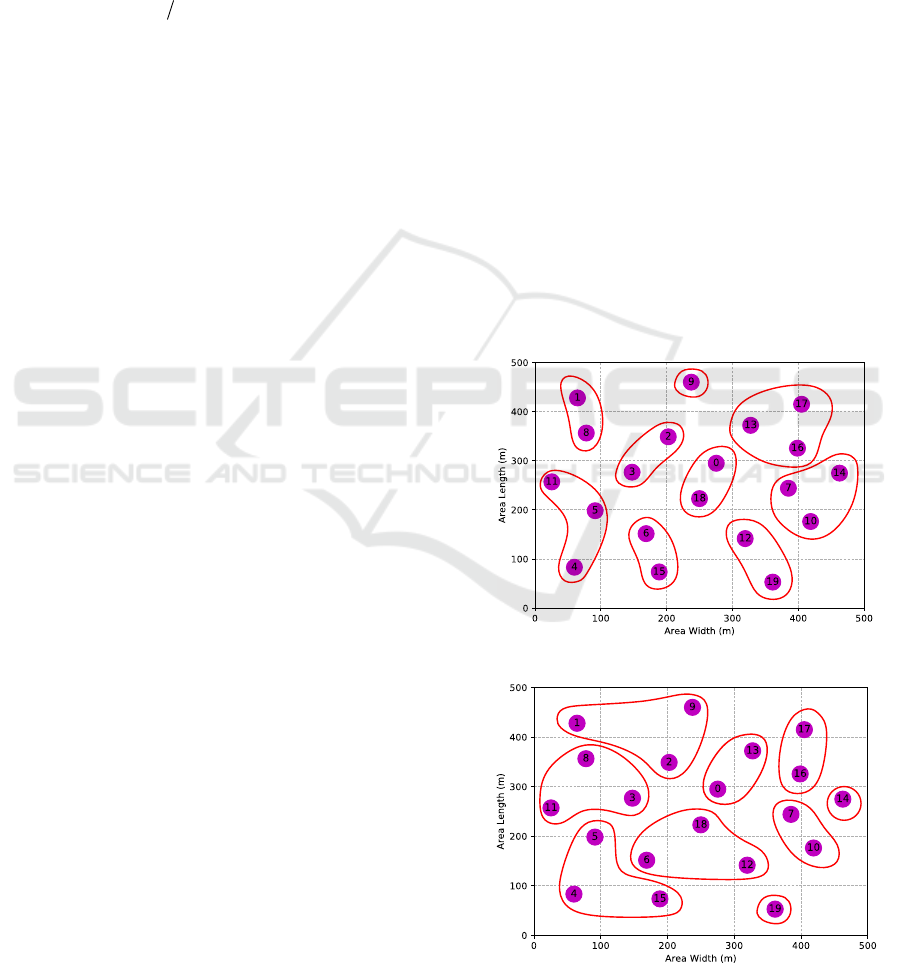

Figure 5. Network topology and comparison of clustering
results.

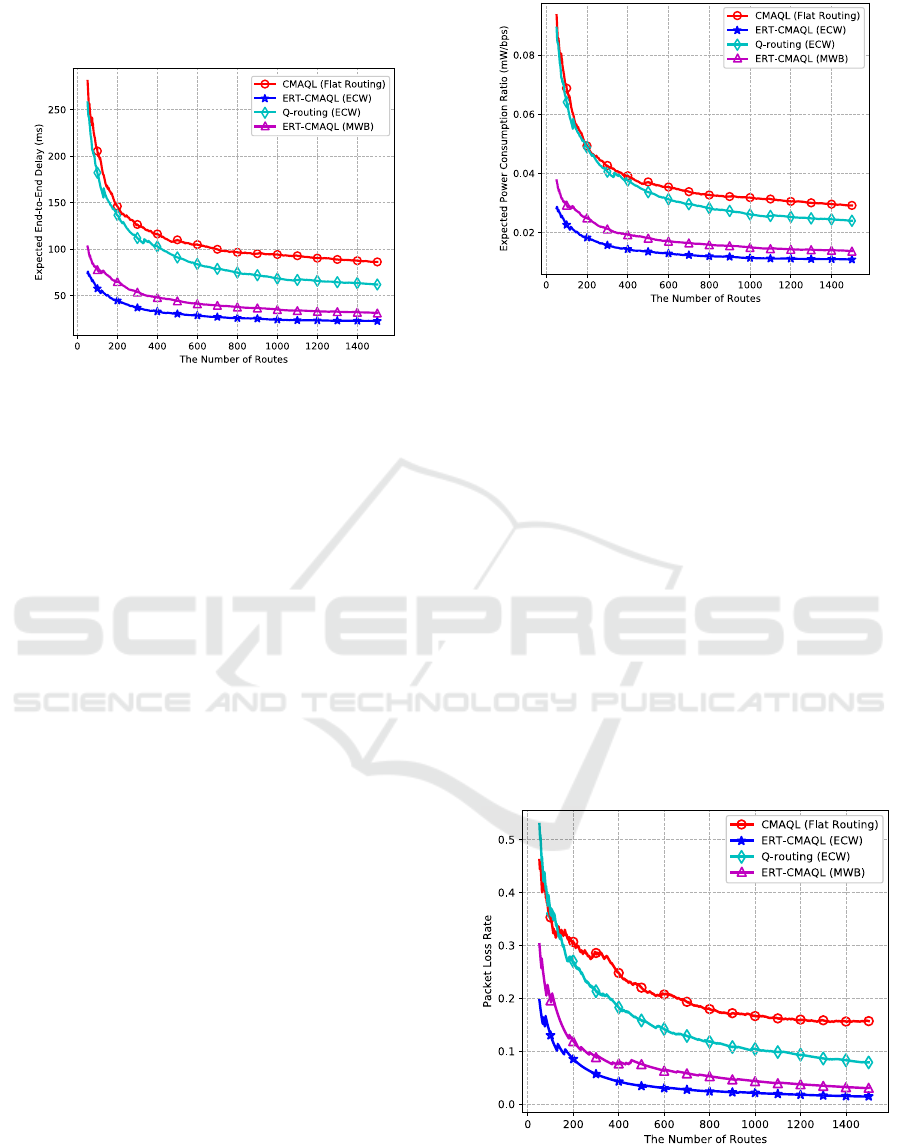

Figure 6. Data packet delay vs. the number of routes.
Figure 7 illustrates the power consumption ratio
changing with the number of routes. It can be seen
that the power consumption ratio of Q-routing based
on ECW clustering is lower than that of CMAQL
under flat routing protocol. This is mainly because
the hierarchical routing protocol reduces the times of
data forwarding. Although the transmit power of
cluster heads is higher than that of nodes in flat
routing, the advantages of less data forwarding times
will not be offset because the packet size is
sufficiently large. In addition, when ERT-CMAQL
is adopted as the inter-cluster communication
scheme, the energy consumption of the hierarchical
routing protocol based on ECW is lower than that of
the C-MWEB clustering protocol. This is because
the C-MWEB clustering algorithm only considers
the maximization of cooperative sensing accuracy of
PU channels, but it ignores the overall energy
consumption of intra-cluster communication.
Therefore, the average energy consumption in the
intra-cluster communication is larger when using C-
MWEB clustering algorithm so that the system
power consumption ratio is higher.
Figure 7. Power consumption ratio vs. the number of
routes.
As shown in Figure 8, the Packet Loss Rate
(PLR) of all algorithms decreases gradually with the
increase of the number of routes, and the PLR of Q-
routing based on ECW clustering is lower than that
of CMAQL under flat routing protocol. In addition,
when ERT-CMAQL is adopted as the inter-cluster
communication scheme, the PLR of hierarchical
routing protocol based on ECW is lower than that of
the C-MWEB clustering protocol. This is because
hierarchical routing protocol based on ECW has
lower packet transmission delay in Figure 6. Then
the number of packets whose total transmission
latency exceeds the delay tolerance is smaller so that
the number of packets which are transmitted
successfully exceeds the protocol based on C-
MWEB clustering. This shows that ERT-CMAQL
based on ECW clustering has higher network
stability than other algorithms.
Figure 8. Packet loss rate vs. the number of routes.
5 CONCLUSIONS
A Hierarchical Routing Protocol based on Energy Consumption Weight Clustering Scheme for Cognitive Radio Networks
429
In this paper, we developed a hierarchical routing
protocol based on energy consumption weight
clustering scheme. Firstly, SU nodes and PU
channels in CRN are clustered by maximizing
energy consumption weights for the minimization of
the energy consumption in intra-cluster
communication. Then the strategy conjecture based
multi-agent Q-learning scheme is used to joint
optimize the routing, channel access and power
allocation of the cluster head for the reduction of
transmission delay and system energy consumption.
Simulation results show that the end-to-end
performance of the proposed hierarchical routing
scheme is significantly better than that of the flat
routing protocol and the hierarchical routing
protocol under the traditional clustering algorithm.
REFERENCES
Al-Rawi, H. A., Yau, K. L. A., Mohamad, H., Ramli, N.,
& Hashim, W., 2014. A reinforcement learning-based
routing scheme for cognitive radio ad hoc networks. In
2014 7th IFIP wireless and mobile networking
conference (WMNC) (pp. 1-8). IEEE.
Baddour, K. E., Ureten, O., & Willink, T. J., 2009.
Efficient clustering of cognitive radio networks using
affinity propagation. In 2009 Proceedings of 18th
International Conference on Computer
Communications and Networks (pp. 1-6). IEEE.
Cao, Y., Duan, D., Cheng, X., Yang, L., & Wei, J., 2014.
QoS-oriented wireless routing for smart meter data
collection: Stochastic learning on graph. IEEE
Transactions on Wireless Communications, 13(8),
4470-4482.
Cesana, M., Cuomo, F., & Ekici, E. (2011). Routing in
cognitive radio networks: Challenges and solutions.
Ad Hoc Networks, 9(3), 228-248.
Chen, H., Zhou, M., Xie, L., Wang, K., & Li, J., 2016.
Joint spectrum sensing and resource allocation scheme
in cognitive radio networks with spectrum sensing
data falsification attack. IEEE Transactions on
Vehicular Technology, 65(11), 9181-9191.
Du, Y., Chen, C., Ma, P., & Xue, L., 2019. A Cross-Layer
Routing Protocol Based on Quasi-Cooperative Multi-
Agent Learning for Multi-Hop Cognitive Radio
Networks. Sensors, 19(1), 151.
Du, Y., Zhang, F., & Xue, L., 2018. A kind of joint
routing and resource allocation scheme based on
prioritized memories-deep Q network for cognitive
radio ad hoc networks. Sensors, 18(7), 2119.
Pourpeighambar, B., Dehghan, M., & Sabaei, M., 2017.
Non-cooperative reinforcement learning based routing
in cognitive radio networks. Computer
communications, 106, 11-23.
Qi, Q., Wang, K., & Du Y., 2018. A Clustering Scheme
based on Spectrum Sensing in Cognitive Radio Ad
hoc Networks. Journal of Data Acquisition and
Processing (1), 41-50.
Singh, K., & Moh, S., 2017. An Energy-Efficient and
Robust Multipath Routing Protocol for Cognitive
Radio Ad Hoc Networks. Sensors, 17(9), 2027.
Zhang, W., Yang, Y., & Yeo, C. K., 2014. Cluster-based
cooperative spectrum sensing assignment strategy for
heterogeneous cognitive radio network. IEEE
Transactions on Vehicular Technology, 64(6), 2637-
2647.
ICVMEE 2019 - 5th International Conference on Vehicle, Mechanical and Electrical Engineering
430
