The Best Route Selection and Internet Routing Application in PT.

IndosatM2

Siswanto, M. Anif and Basuki Hari Prasetyo

Universitas Budi Luhur

Keywords: Route Selection Application, Internet Routing, Router, Ping, BGP.

Abstract: The best internet routing and route selection are one of the crucial parameters together with other parameters

such as network quality and capacity, network device reliability, and a good network monitor system, which

must be considered by PT. IndosatM2 as an Internet Service Provider (ISP). During this time the process of

selecting the best internet route and routing is carried out entirely by the network administrator so that it

cannot be done at any time and the existing alternative lines are checked one by one with a level of accuracy

which often disrupts due to lack of documentation. The Best Route Selection and Routing Internet Application

at PT. IndosatM2 will integrate and connect a web-based online application with network devices that are

routers that interact with each other to run a script command on the router network device, that is, the script

command from BGP routing protocol that is used between Service Providers on the internet to know and

provide track information and the best routing to a particular destination. The output of this application is the

best internet route and routing, also noted the requested changes in the form of 6 requests could be done the

best internet routing and routing processor about 75% of the total 8 requests. 2 requests cannot be made for

the best internet routing and routing processor around 25% of the total 8 requests reducing the processing

time to complete the request for the best internet routing and routing that is very significant, so that it can

improve service levels above the average value of 99.5% to customers

1. INTRODUCTION

PT. IndosatM2 (IM2) a company with a head office

located on Jl. Kebagusan Raya No. 36 Pasar Minggu

South Jakarta and has branches in many major cities

in Indonesia, wholly owned by PT. Indosat Tbk, the

leading provider of telecommunications services in

Indonesia, has been operating fully since 2000 to

build and implement IP, internet and multimedia

based services and products in Indonesia. Serving

four customer segments: corporations (large, medium

and small), government, institutions, residential, and

individuals. Corporate and institutional services

include Virtual Private Network (VPN) networks,

direct connections to international internet

backbones, and multimedia service providers.

IM2, as one of the internet service providers or

often referred to as an Internet Service Provider (ISP)

in Indonesia places great importance on the quality of

internet access for its customers. IM2 as one of the

ISPs is connected to the internet through various other

ISPs called Uplink Providers. The current business

process flow system is that the Helpdesk accepts path

selection requests and internet routing to specific IP

address destinations from customers, then the

helpdesk creates and forwards the ticket to the Person

In Charge (PIC) administrator, then the administrator

processes the request by logging into the gateway

router use the application to telnet and run the script

command to check the number of available IP routing

paths to the destination IP address requested by the

customer, the administrator manually changes the

BGP routing protocol configuration on the router, ie

for the outbound path by increasing the local

preference value and pinging to the destination IP

address and record the time lag results, while for the

inbound path by adding prepend AS and ping the

destination IP address and re-record the time lag

result, the administrator does the work manually for

configuration changes and records the time lag to the

purpose of this particular IP address repeats according

to the number of paths and routing available from the

results of previous checks, after which it will be

selected from the results manually recorded, the

smallest time lag value and configuration are changed

to match the selected path to the destination of a

Siswanto, ., Arif, M. and Prasetyo, B.

The Best Route Selection and Internet Routing Application in PT. IndosatM2.

DOI: 10.5220/0008930601290134

In Proceedings of the 1st International Conference on IT, Communication and Technology for Better Life (ICT4BL 2019), pages 129-134

ISBN: 978-989-758-429-9

129

specific IP address, then obtained the best path and

routing, then the administrator will resolve the ticket,

based on the ticket that has been resolved, the

helpdesk will inform the customer that the path

selection request and internet routing to the

destination IP address requested has been completed.

A router is one of the main devices to connect

between one network and another network which also

functions to manage exchanges and data traffic routes

with each other (Thiel, 2014). Routers are also

connected to other routers throughout the world,

which allows two computer networks connected to

different routers to be able to channel their data with

the best travel routes among various alternative

routes. But not always the route determined by the

router is the most optimal or best because of several

factors that can not be known by the router, for

example, there is a relationship in the middle of the

track with full traffic capacity or a transmission

interruption. Thus human interaction is needed as a

network manager to determine the best route for

themselves to a particular destination after checking

the existing path alternatives. A router’s functions are

to read the destination address marked in an incoming

IP packet, to consult its internal information to

identify an outgoing link to which the packet is to be

forwarded, and then to forward the packet (Medhi and

Ramasamy, 2017).

The best path selection and internet routing takes

a long time, because routing access permissions

should only be done at the administrator level,

including each connection of each Uplink Provider

connection, all of which are done manually so that it

helps with the long transition, plus the need for data

access and information for the company's internal

interests as a material for analysis, decisions and

strategic decision making of the company going

forward (Goralski, 2017).

The problems faced in the existing system

mechanism are as follows: it is necessary to examine

alternative paths one by one for two directions

(Upstream and Downstream), so that it takes more

than 1 hour, Requires expert staff at administrator

level who have the highest access rights to Router

configuration changes, with a limited number and not

always ready 24 hours to do so, changes made often

cause disruption of internet access due to inadvertent

conduct in checking and changing internet routing

lines, and not well-documented for information on

changes made as reports to supervisor and

management.

The main objectives expected with the

development of application systems are internet

routing and routing, which are: design and implement

the best internet routing and routing application

system in PT. IndosatM2, provides an easy, precise

and fast system that is the result of automation of the

best internet routing and routing processes., providing

continuity of information systems for the best internet

route and routing selection, providing recapitulation

of the best internet routing and routing processes, so

as to produce information that is more accurate and

can be utilized by internal and company management.

In this paper, we propose the use of a blockchain-

based mechanism to secure the Internet BGP and

DNS infrastructure; A tamper-resistant DNS

infrastructure also ensures that it is not possible for

the application-level PKI to spoof HTTPS traffic

(Hari and Lakshman, 2016).

Nearly all network applications rely on the global

Internet routing infrastructure to compute routes and

deliver packets; unfortunately, false Internet routes

can be maliciously introduced with relative ease into

the routing infrastructure. This is because Border

Gateway Protocol(BGP), the Internet’s global routing

protocol, lacks basic authentication and monitoring

functionalities, currently, it is impossible to prevent

such malicious injection off also traffic routes, we

believe that an ability to identify false paths through

efficient validation, proper recording and forensic

analysis of routing data, will considerably help in the

prosecution of them is creant and will act as a strong

deterrent (Kim, Massey and Ray, 2005).

BGP routing updates collected by monitoring

projects such as Route Views and RIPE have been a

vital source to our understanding of the global routing

system. However, the collected BGP data contains

both the updates generated by actual route changes

and the updates of BGP routing table transfers

resulted from BGP session resets between operational

routers and the data collection stations, In this paper,

we present the design and evaluation of the minimum

collection time (MCT) algorithm. Given a BGP

update stream, MCT can identify the start and

duration of each routing table transfer in the stream

with high accuracy. We evaluated MCT performance

by using three months of BGP data formal l RIPE

collectors. Our results show that out of the total 1664

BGP resets with 166 monitors, MCT can identify

BGP routing table transfers with over 95% accuracy,

and pinpoint the exact starting time of the detected

table transfers in 83% of such cases (Chenga, Zhang,

and Massey, 2011).

Abnormal BGP events such as attacks,

misconfigurations, electricity failures, can cause

anomalous or pathological routing behavior at either

a global level or prefix level, and thus must be

detected in their early stages. Instead of using ad-hoc

ICT4BL 2019 - International Conference on IT, Communication and Technology for Better Life

130

methods to analyze BGP data, in this paper we

introduce an Internet Routing Forensics framework to

systematically process BGP routing data, discover

rules of abnormal BGP events, and apply these rules

to detect the occurrences of these events (Li, Dou,

Wu, Kim and Agarwal, 2005).

The Border Gateway Protocol(BGP) is one of the

fundamental computer communication protocols.

Monitoring and mining BGP update messages can

directly reveal the health and stability of Internet

routing; specifically, we developed BGPlens, an

automated BGP updates analysis tool,that has three

desirable properties: it is effective, able to identify

phenomena that would otherwise go unnoticed, such

as a peculiar ‘clothesline’ behavior or prolonged

‘spikes’ that last as long as 8 hours; it is scalable,

using algorithms that are all linear on the number of

time-ticks (Prakash, Valler, Andersen, Faloutsos and

Christos, 2009).

2. METHOD

This study uses a research method with the following

steps:

2.1 Running System Analysis

One of the activities carried out by the Network

Operation & Monitoring sub-section, the Network

Operation Center (NOC) Division of PT. IndosatM2

(IM2) is monitoring continuity and carrying out

operational systems and production networks for the

continuity of services and products of PT. IndosatM2

is used by customers, which includes the process of

selecting the best internet route and routing.

Previously there was no application system that

was made to determine the best online and automatic

route and internet routing selection that could serve

customers' requests easily, quickly and precisely, so

the process flow in the system was still done

manually, both from the start of the request, forward

the ticket to the Administrator, check and report the

results of the internet routing and routing selections

made. This manual method is very inefficient, and the

report data obtained is no longer accurate.

2.2 Running System Process Flow

The process flow that is written is limited to the

process flow of the best internet routing and routing

received by IM2 NOC. Explanation of the system

process flow running for the best internet routing and

routing paths is as follows:

2.2.1 The customer requests and makes a ticket to

the Helpdesk.

2.2.2 The Helpdesk creates and forwards the

ticket to the Personal in Charge (PIC)

Administrator concerned.

2.2.3 The administrator processes the ticket

request for the best internet route and routing

and resolves the ticket after getting the best

internet route.

2.2.4 Based on the ticket that has been resolved,

the Helpdesk informs the Customer that the

request has been completed.

2.3 Data Savings Analysis

Deposits of data are still in the form of paper

documents, so it needs to be stored in the form of a

database as part of the system application for the best

internet routing and routing.

2.4 Analysis of Problems in the

Running System

After discussing and analyzing the system that is

running, various problems can be found in the system.

The problems in question are:

2.4.1 Storage of data from the best path and

internet routing results is manual so that it can

cause data duplication and data search will take

a long time, then new and automatic database

storage is needed.

2.4.2 The best internet routing and routing process

are still manual, so the implementation of the

best internet routing and routing process from

many customers will take time and be

hampered if the Administrator is not available,

so the process automation is needed in the best

internet routing and routing to overcome the

problem.

2.4.3 The recording and recapitulation of tickets

by the Helpdesk produced are still manual, so

it takes a long time in grouping and calculating

tickets and difficulties in compiling reports for

management, it requires a new reporting

process that is automated so that fast and

accurate data reporting needs can be resolved.

2.4.4 There needs to be a policy regarding the best

process of internet routing and routing that is

automatic in a system. This policy will enable

the old problems handling the process of

requesting the best internet route and routing

and can only be done by the Administrator is

not an obstacle, and the availability of reports

for management regarding the process and the

best internet routing can be handled and

presented online.

The Best Route Selection and Internet Routing Application in PT. IndosatM2

131

2.4.5 Based on observations, it can be seen that the

flow of the process of requesting the best

internet routing and routing paths rests

everything on the Administrator who must be

stand-by on the spot.

2.5 Problem Solving Strategies

Based on problem analysis, it is necessary to make the

design and implementation of the best internet path

and routing selection system.

2.6 Problem Solving Strategy Process

Flow

Explanation of the process flow of problem-solving

strategies for the best internet route and routing

selection is as follows:

2.6.1 The customer requests the best internet route

and routing request to the Helpdesk.

2.6.2 The Helpdesk accepts requests, ensures

customer profiles are in the customer database,

and assigns tickets to requests for the best

internet routing and route selection.

2.6.3 The system processes the best internet path

and routing for the internet IP address as

requested on the ticket.

2.6.4 From the results of the new route and routing

obtained, the helpdesk resolves the ticket and

information that is ready to be delivered to the

customer.

2.6.5 From the resolving ticket, the Helpdesk

informs the results to the Customer.

2.6.6 The Flow of the Path Selection Process and

the Best Internet Routing in General

Explanation of the best flow path and internet

routing process, are as follows:

2.6.7 Connection and Login to the gateway router

console using Telnet.

2.6.8 Check each connection to the existing

internet, by typing the console command: show

IP BGP, note the available alternative path,

namely the BGP Peer IP address for each

available BGP path that is visible on the

console.

2.6.9 Specify the path to the destination address

(Upstream):

a) Of all the alternative paths available from

number 2.7.2 above, prioritize one for the

destination IP address requested by the

Customer, by increasing the local-preference

prefix IP value obtained from BGP Peer for this

path, with console commands namely like the

following example:

(1) IP IN permit 10.10.100.0/24 prefixes

(2) route-map IN permit 5

(3) Match IP IN. Prefix-list

(4) local-preference set of 150

(5) clear IP BGP peer-group IN soft in

b) Check and record the amount of latency

obtained at the destination IP address using the

console ping command to the destination IP

address, which is the average round-trip value.

c) Repeat steps a) and b) above for each of the

other paths until all BGP Peers in number 2)

above.

d) From the latency recorded, prioritize the

destination address requested to the alternative

path with the smallest latency, by way of point

a) above.

2.7.1 Determine the return path from the

destination address (Downstream):

a) From all the alternative paths available from

number 2.7.2 above, make the downstream

path to the Origin IP address pass one of the

paths, by advertising the Customer IP prefix by

doing a US Prepend to all BGP Peers on the

other path, with commands console that is like

the following example:

(1) IP prefix-list UPLINK1-OUT permit

20.20.200.0/24

(2) IP UPLINK2-OUT permit prefix-list

20.20.200.0/24

(3) UPLINK1-OUT permit-map route 5

(4) match IP UPLINK1-OUT prefix-list

(5) set as-path prepend 4795 4795 4795 4795

(6) UPLINK2-OUT permit route-map 5

(7) match IP UPLINK2-OUT prefix-list

(8) set as-path prepend 4795 4795 4795 4795

(9) clear IPBGP peer-group UPLINK1-OUT

soft out

(10) clear IPBGP peer-group UPLINK2-OUT

soft out

b) Check and record the amount of latency

obtained at the destination IP address using the

console ping command to the destination IP

address, which is the average round-trip value.

c) Repeat steps a) and b) above until all BGP

Peers from number 2.7.2.

d) From the latency recorded, prioritize

downstream to the Customer address to the

alternative path with the smallest latency, as in

point a) above.

2.7.2 The best internet path and routing to the

requested destination has been obtained and

Customer traffic has gone through that path

both Upstream and Downstream.

ICT4BL 2019 - International Conference on IT, Communication and Technology for Better Life

132

3. RESULT AND DISCUSSION

By implementing the implementation process and

using the best internet routing and routing application

system programs, an analysis was achieved by the

program. Analysis of the results achieved by the

program during the first 2 weeks (17-30 April 2019)

the use of the best internet routing and routing

application system, including:

3.1 The best internet routing and routing

application system program can be used easily,

precisely and quickly and runs well to process the best

customer routing and internet routing for a total of 8

requests, as in figure 1.

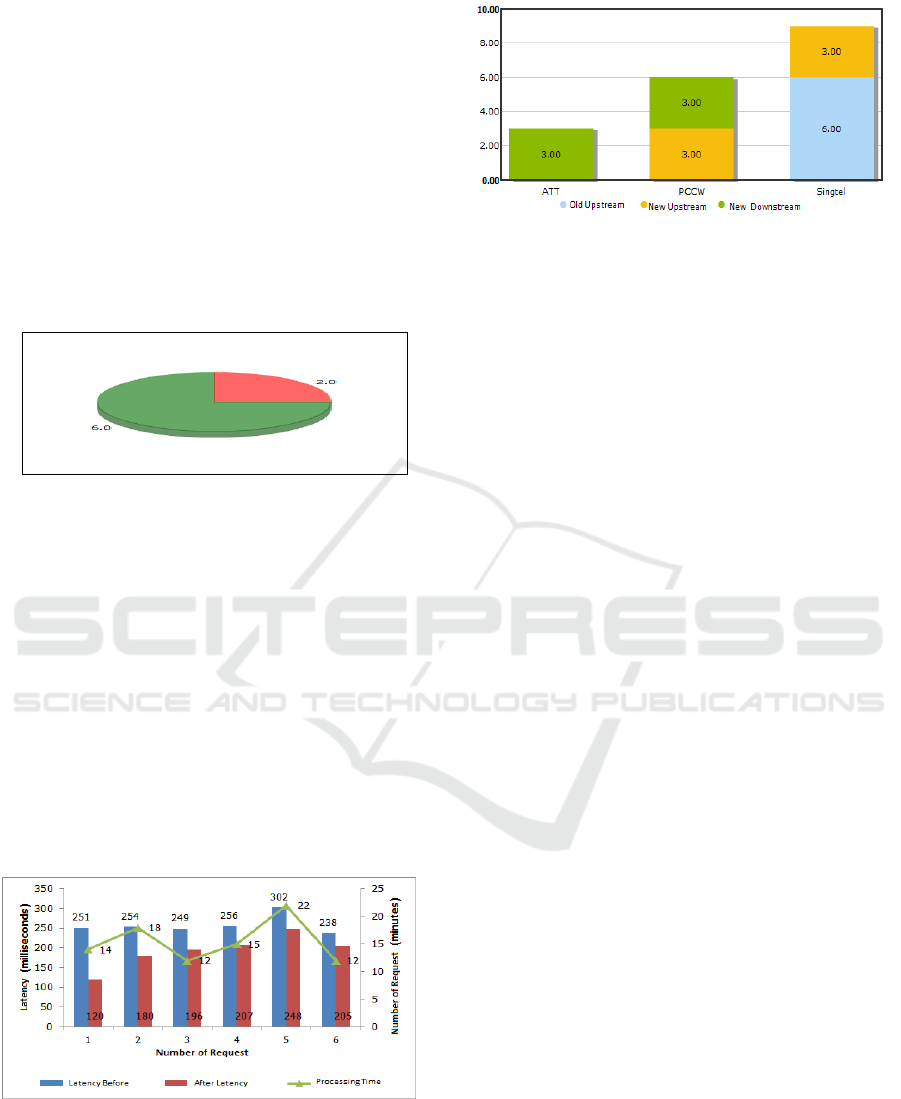

Figure 1: Pie Chart Best Total Path Selection Requests and

Internet Routing

With the explanation for the Pie Chart above are:

3.1.1 6 requests can be carried out by the best

internet routing and routing processor, around 75% of

the total 8 requests.

3.1.2 2 requests cannot be carried out by the best

internet routing and routing processor around 25% of

the total 8 requests because the IP Destination

requested by the Customer cannot be pinged.

3.2 The program can do the best internet routing

and routing selection from 6 Customer requests with

Latency and Processing Time as shown in figure 2.

Figure 2: Bar Line Chart Latency and Processing Time

3.3 From the results of a new internet routing

and routing check for 6 requests from the Customer,

there is the best internet routing and routing selection

based on the Uplink Provider, as shown in figure 3.

Figure 3: Uplink Bar Chart For Best Internet Path and

Routing Selection

With the explanation for the Chart Bar above are:

3.3.1 Singtel is an old Upstream path of 6 requests

and selected as the best new Upstream for 3 requests

resulting from the process of selecting the best

internet route and routing.

3.3.2 PCCW is selected as the best new Upstream

for 3 requests and selected as the best new

Downstream for 3 requests resulting from the best

internet routing and routing process.

3.3.3 ATT is selected as the best new Downstream

for 3 requests as a result of the best internet routing

and routing process.

4. CONCLUSIONS

Conclusions can be taken as follows: the program can

run well according to the objectives and design of the

program and as a solution to the problems faced

beforehand and can be used quickly, precisely and

easily by the user as part of process automation to

support daily operational activities,remote

application process or remote control directly to the

router gateway device automatically and real time,

reducing dependence on administrators and reducing

the possibility of errors during the inspection process

and the best internet routing and routing, checking

and selecting the best internet routes and routing can

be done in a fairly short and efficient time, reducing

the process time to complete the request for the best

internet routing and routing that is very significant, so

that it can increase service levels above the average

value of 99.5% to customers, and documentation of

the process and results of examinations as well as the

best internet route and routing selection, so that a

report on recapitulation of requests and completion of

the best internet route and routing selection can be

made based on the time period needed quickly and

accurately to support the continuity of information

The Best Route Selection and Internet Routing Application in PT. IndosatM2

133

systems company management to support and

improve company performance and services.

Suggestions for further enhancing and developing

application systems, namely: there is a monitor

feature to monitor the best internet routes and routing

to the IP destination address requested by the

customer so that it can be known if there is a change

back and can be used all the time as long as this

feature is activated, the visualization feature of the

best internet routing and routing process is done so

that it can help and as an illustration for the uplink

provider selection process, the best internet routes

and routing going forward, and

can be integrated with a Web Analyzer system that

has a world-wide popular website address data bank

that is accessed by many customers, so that the

system can monitor and select the best internet routes

and routing to the website's IP address.

REFERENCES

Thiel, D. (ed.), 2014. The Ultimate Router Guide: Jigs,

Joinery, Projects & More from Popular Woodworking,

Popular Woodworking Books, ISBN: 1440339821,

9781440339820, https://www.pdfdrive.com/the-

ultimate-router-guide-jigs-joinery-projects-more-from-

popular-woodworking-d157831157.html, pp. 5 -32.

Medhi, D., and Ramasamy, K., 2017. Network Routing:

Algorithms, Protocols, and Architectures2nd Edition,

eBook ISBN: 9780128008294 Paperback ISBN:

9780128007372 Imprint: Morgan Kaufmann Published

Date: 11th September 2017, pp. 5-7

Goralski, W., 2017. The Illustrated Network: How TCP/IP

Works in a Modern Network, 2nd Edition, eBook

ISBN: 9780128110287 Paperback ISBN:

9780128110270 Imprint: Morgan Kaufmann,

Published Date: 28th April

2017.https://www.elsevier.com/books/the-illustrated-

network/goralski/978-0-12-811027-0., pp. 247 -287.

Hari, A., and Lakshman, T.V., 2016. The Internet

Blockchain: A Distributed, Tamper-Resistant

Transaction Framework for the Internet Nokia Bell

Labs, USA,

http://web.kaust.edu.sa/Faculty/MarcoCanini/classes/C

S390G/S17/papers/InternetBlockchain.pdf, HotNets-

XV, November 09 - 10, 2016, Atlanta, GA,

Publication rights licensed toACM. ISBN 978-1-4503-

4661-0/16/11,

DOI:http://dx.doi.org/10.1145/3005745.300577, pp.

204-210.

Kim, E., Massey, D. and Ray, I., 2005. Global Internet

Routing Forensics:Validation Of Bgp Paths Using Icmp

Traceback, https://www.researchgate.net/scientific-

contributions/44257010_Eunjong_Kim, pp. 1-12.

Chenga, P., Zhang, B., Massey, D.l, and Zhang, L., 2011.

Identifying BGP routing table transfers, Computer

Networks 55, www.elsevier.com/locate/comnet,

http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.

1.1.221.3083&rep=rep1&type=pdf, pp. 636–649.

Li, J., Dou, D., Wu, Z., Kim, S., and Agarwal, V., 2005. An

Internet Routing Forensics Framework for Discovering

Rules of Abnormal BGP Events, ACM SIGCOMM

Computer Communication Review 55 Volume 35,

Number 5, October 2005, pp 54-66.

Prakash, B. A., Valler, N., Andersen, D., Faloutsos, M., and

Christos, 2009. BGP-lens: Patterns and Anomalies in

Internet Routing Updates, KDD’09, June 28–July 1,

60558-495-9/09/06 ...$5.00, pp. 1315-1323.

ICT4BL 2019 - International Conference on IT, Communication and Technology for Better Life

134
