A Visual Intelligence Scheme for Hard Drive Disassembly in Automated

Recycling Routines

Erenus Yildiz

1 a

, Tobias Brinker

1 b

, Erwan Renaudo

2 c

, Jakob J. Hollenstein

2 d

Simon Haller-Seeber

2 e

, Justus Piater

2 f

and Florentin Wörgötter

1 g

III. Physics Institute, Georg-August University of Göttingen, Germany

Department of Computer Science, University of Innsbruck, Innsbruck, Austria

Keywords:

Object Detection, Object Classiﬁcation, Automation, e-Waste, Recycling.

Abstract:

As the state-of-the-art deep learning models are taking the leap to generalize and leverage automation, they

are becoming useful in real-world tasks such as disassembly of devices by robotic manipulation. We address

the problem of analyzing the visual scenes on industrial-grade tasks, for example, automated robotic recycling

of a computer hard drive with small components and little space for manipulation. We implement a supervised

learning architecture combining deep neural networks and standard pointcloud processing for detecting and

recognizing hard drives parts, screws, and gaps. We evaluate the architecture on a custom hard drive dataset

and reach an accuracy higher than 75% in every component used in our pipeline. Additionally, we show that

the pipeline can generalize on damaged hard drives. Our approach combining several specialized modules can

provide a robust description of a device usable for manipulation by a robotic system. To our knowledge, we

are the pioneers to offer a complete scheme to address the entire disassembly process of the chosen device. To

facilitate the pursuit of this issue of global concern, we provide a taxonomy for the target device to be used in

automated disassembly scenarios and publish our collected dataset and code.

1 INTRODUCTION

Today’s electronic products have a short life cycle,

as they are usually discarded before their materials

degrade. Studies like (Duﬂou et al., 2008) showed

that 1) the recycling processes of these products are

mostly done by humans, 2) even when automated, the

processes are usually destructive – leading to the loss

of valuable metals and rare earth materials (Tabuchi,

2010; Massari and Ruberti, 2013). There is thus a

strong need for less-destructive recycling processes,

as illustrated by a recent initiative to reuse magnets

from retired hard-disk drives (HDD) in order to re-

duce the demand on rare earth materials

. In addition,

the hazardous elements used in electronic products

https://orcid.org/0000-0002-3601-7328

https://orcid.org/0000-0003-2930-158X

https://orcid.org/0000-0003-3282-8972

https://orcid.org/0000-0001-5694-691X

https://orcid.org/0000-0002-1538-5906

https://orcid.org/0000-0002-1898-3362

https://orcid.org/0000-0001-8206-9738

https://spectrum.ieee.org/energywise/energy/environment/

making-new-hard-disk-drives-from-recycled-magnets

(e.g. Beryllium in GSM ampliﬁers) pose a threat to

the health of employees due to their carcinogenic na-

ture. Even with enforced security measures, avoiding

exposure of humans to such substances is paramount.

Thus, there are both health and economical reasons to

improve automation of the disassembly and recycling

processes.

From a robotics perspective, the disassembly pro-

cess presents a high automation potential due to its

repetitiveness. However great adaptability of such a

system is required, as EOL products to be recycled

can be of various nature (from house-ofﬁce equip-

ment to entertainment, communication, etc.) or they

might be partially damaged. Moreover, some de-

vices within the same family of products present a

high intra-class variance of their parts’ shape depend-

ing on their brand or model. These variances im-

plies that a robotic disassembly system can not rely

on an open-loop procedure but has to analyze the

product to ﬁnd the best disassembly strategy. It thus

needs efﬁcient perception capabilities to provide rel-

evant information to the rest of the system. Several

parameters must be extracted from the scene: prod-

uct’s parts must be identiﬁed from the sensor data

Yildiz, E., Brinker, T., Renaudo, E., Hollenstein, J., Haller-Seeber, S., Piater, J. and Wörgötter, F.

A Visual Intelligence Scheme for Hard Drive Disassembly in Automated Recycling Routines.

DOI: 10.5220/0010016000170027

In Proceedings of the International Conference on Robotics, Computer Vision and Intelligent Systems (ROBOVIS 2020), pages 17-27

ISBN: 978-989-758-479-4

and their pose must be estimated to allow the robot

to interact with the device. Sensors of various types

can be used (precise laser scanner, etc. (Weigl-Seitz

et al., 2006)), however vision sensors offer the best

cost/performance/adaptability solution given the tasks

to complete. In this work, we thus introduce a vision-

based perception scheme capable of analyzing a prod-

uct at different stages of disassembly. We evaluate it

on one class of undamaged devices, computer hard

drives (HDDs), which are one of the most common

devices encountered in E-Waste, and suitable in size

for robotic manipulation. This paper is organized as

follows: Section 2 gives a review of the literature

on vision-based methods, Section 3 presents our ap-

proach in detail, Section 4 presents the evaluation of

the method on the target device. Section 5 discuss the

impact of these results and concludes.

2 RELATED WORK

Computer vision techniques have been extensively

applied to industrial applications, e.g. defect detec-

tion, part recognition, etc. (Bi and Wang, 2010; Mala-

mas et al., 2003). However, not much work is done

in the context of automated recycling, where multi-

ple valuable parts must be identiﬁed for recovery. A

short survey of existing approaches in 2006 (Weigl-

Seitz et al., 2006) showed numerous limitations also

found in later work. First the focus on detecting a

speciﬁc class of component to detect – e.g. screws

((Bdiwi et al., 2016; Ukida, 2007; Bailey-Van Kuren,

2002), bolts (Wegener et al., 2015) – reduces the

generality of the method and its applicability in the

context of recycling where several types of compo-

nents must be gathered. The use of fully model-

based methods (Elsayed et al., 2012; Xie et al., 2008;

Ukida, 2007; Pomares et al., 2004; Torres et al., 2003;

Tonko and Nagel, 2000) implies the availability of

(e.g. CAD) models. This is a strong assumption as

these models are rarely available for every brand and

every type of device. Moreover, the recycling do-

main does not guarantee that devices are in an in-

tact state. Finally, another important limitation is

the use of non-adaptive feature detection techniques

(Bdiwi et al., 2016; Wegener et al., 2015; Weigl-Seitz

et al., 2006; Bailey-Van Kuren, 2002; Karlsson and

Järrhed, 2000). As mentioned previously, the high

intra-class and inter-brand variances of components

reduces the relevance of a human-engineered descrip-

tor of a component class. This limitation is only par-

tially explained by the date of publication of some

works (Weigl-Seitz et al., 2006; Bailey-Van Kuren,

2002; Karlsson and Järrhed, 2000).

On one hand, it seems that there is still a substan-

tial lack in generalizable, device and environment-

independent methods, which can be used in disassem-

bly processes. On the other hand, Deep Convolutional

Neural Networks (DCNN) offer a powerful solution

to analyze the inner structure of devices in the context

of disassembly. These methods have the potential to

solve the problems highlighted before: the speciﬁcity

of a detector can be tackled by training on a dataset

that includes samples of multiple parts of the targeted

device (and extended by retraining later on) and thus

being able to recognize these parts in all the devices

that use them. The lack of adaptability is addressed

by the nature of deep networks: as machine learn-

ing methods, they are problem and feature agnostic

before training. Finally most of these methods are

CAD model-free, meaning that they do not require

device-speciﬁc description sheets. They learn the rel-

evant features of a part class by themselves, abstract-

ing from the details of a speciﬁc brand and model. In

E-Waste recycling context, devices found in the same

family of devices often include similar parts such as

PCBs, screws, wires, etc. Extracting features from

these using visual paradigms usually leads to repro-

ducible results that can be used and further developed

for other devices as well.

Thus, the problem of disassembly scene analysis

can be formulated as a problem where machine learn-

ing paradigms (e.g. segmentation, classiﬁcation) and

traditional data (e.g. pointcloud) analysis methods are

used in order to recognize the present parts of the tar-

get device. In contrast to other application domains,

the context of recycling E-Waste adds the following

constraints:

• The position estimation of parts must be precise

enough to allow manipulation of small parts in the

device.

• There is a strong degree of occlusion because

parts are intertwined, e.g. the platters and R/W

head of a hard drive.

• There is substantial intra-class variance for spe-

ciﬁc parts depending on the device brand or model

or the potential damage of the part.

The Semantic Segmentation problem (also known

as pixelwise classiﬁcation problem) has been ad-

dressed in domains ranging from autonomous driv-

ing, human-computer interaction, to robotics, medi-

cal research, agriculture (Li et al., 2017; Dai et al.,

2016; Liu et al., 2018; Fu et al., 2019; Lin et al.,

2019; Dvornik et al., 2017). However, to the best

of our knowledge, no work currently address the do-

main of automated recycling of E-Waste. In these

domains, the state-of-the-art performance is achieved

ROBOVIS 2020 - International Conference on Robotics, Computer Vision and Intelligent Systems

using deep learning methods, especially Convolu-

tional networks (CNNs or ConvNets) (Krizhevsky

et al., 2012). Fully Convolutional Networks (FCN)

have been the standard algorithm to achieve pixelwise

segmentation of images (Badrinarayanan et al., 2017;

Long et al., 2015; Ronneberger et al., 2015) in vari-

ous domains such as medicine, autonomous driving,

domestic robotics. They extend CNN by replacing

fully-connected layers by convolutional layers, allow-

ing for arbitrary-sized input with no need for region-

proposal. The trade-off however, due to the nature of

the layers, is that the prediction of boundaries lacks

precision. This problem is addressed by a set of im-

provement to the networks (e.g. multi-resolution ar-

chitecture with skip connections (Ghiasi and Fowlkes,

2016; Lin et al., 2017a), mask reﬁnement (Pinheiro

et al., 2016)). Additionally, pixelwise segmentation

requires labeled data which has a higher cost of pro-

duction (Lin et al., 2014). Weakly-supervised meth-

ods have been developed to tackle this issue (Zhang

et al., 2019): these methods iterate between learn-

ing using coarse bounding boxes as labels then reﬁn-

ing them into more precise masks (Dai et al., 2015;

Khoreva et al., 2017). They achieve similar perfor-

mance as fully supervised methods at a lower la-

belling cost. Another main approach is called Region-

Based Semantic Segmentation. This method relies

on a pre-processing of the input image into candidate

objects (region proposals) for which features are ex-

tracted. These features are then used for the classiﬁ-

cation. There is an entire family of R-CNN networks

(Girshick et al., 2014; Girshick, 2015; Ren et al.,

2015) that have been evolving and ﬁnally the cur-

rent state-of-the-art networks of the family is called

Mask-RCNN (He et al., 2017) which is based on

Feature Pyramid Network (FPN) (Lin et al., 2017b).

Mask-RCNN has been used by Facebook AI Research

(Joulin et al., 2016) as well as by medicine studies

(Johnson, 2018; Couteaux et al., 2019; Chen et al.,

2019).

Mask-RCNN and its ensembled models are cur-

rently the state of the art for object detection and in-

stance segmentation, and the reason for this is the

region-based detection mechanism mentioned earlier.

The core idea behind Mask-RCNN is to scan over the

predeﬁned regions called anchors. RPN, then, does

two different types of predictions for each anchor.

First is the score of the anchor being foreground, and

the bounding box regression. The ﬁxed number of

anchors with the highest score are then chosen, and

the regression adjustment is applied to get the ﬁnal

proposal for object prediction at the network head.

There are other architectures that could be used for

this very task, such as the ensembled model Cascade-

RCNN (Cai and Vasconcelos, 2018). Through the ex-

perimental evaluation we conducted in Section 4, we

found out that Mobile-RCNN (Howard et al., 2017)

works better for our domain.

3 METHODS

Our visual scheme outputs on request a scene anal-

ysis that combines the predictions of 3 modules: a

part detection module, a screw detection module and

a gap detection module. The part detection module

recognizes most inner components of electronic de-

vices (HDD in our case). A specialized screw detec-

tor module detects various screw types as a separate

task from the part detection. Finally, gaps are also de-

tected as they provide useful information for robotic

manipulation of parts and tool. The pseudo code for

the pipeline is given in algorithm 1.

As mentioned earlier, the analysis of parts is a

semantic segmentation problem, but the screw de-

tection can be simpliﬁed as a classiﬁcation problem:

rather than trying to ﬁnd screws boundaries, we make

the hypothesis that they are mostly circular structures

in the scene. The new problem is thus to classify

detected circles in the image as screws or artefacts

(holes, stickers, etc.), with a specialized network.

3.1 Taxonomy & Datasets

In order to train the different modules of our pipeline,

we collect and create datasets. The ﬁrst step is to

deﬁne a taxonomy of the HDD, which is done in

agreement with an industrial partner providing hard-

ware samples and data. The taxonomy provides the

class labels and is available on the IMAGINE web-

site

. Two datasets are created (a) for parts and (b)

for screws. For (a), top-down views of the computer

hard drives are annotated into 12 classes correspond-

ing to parts of interest according to the taxonomy. 500

images of 7 different brands (Hitachi, IBM, Maxtor,

Seagate, WD, Samsung, Toshiba) and models are col-

lected under different light conditions. These images

include various stages of disassembly with parts in ar-

bitrary positions (e.g. after a failed action). 5% of all

images correspond to damaged devices to account re-

alistically for the state of products in recycling plants.

The dataset is split into a validation set (10% of the

images), a test set (10%) and a training set (80%).

For (b), 10700 samples are annotated into 23% of

screws and 77% of artifacts. The training set includes

1491 screws and 4924 artifacts. The test set includes

https://imagine-h2020.eu/hdd-taxonomy.php

A Visual Intelligence Scheme for Hard Drive Disassembly in Automated Recycling Routines

Algorithm 1: Perception Pipeline.

1: c

, b

, m

:= []  part centers, boundaries, masks

2: c

, b

, m

:= []  screw centers, boundaries, masks

3: c

, b

, v

:= []  gap centers, boundaries, volumes

4: I, P := NULL  I: Input Monocular Image, P: Input Pointcloud

5: C

:= NULL  C

: Monocular Calibration Info, C

: Stereo Calibration Info

6: predicates = []

7: procedure COLLECT PREDICATES

8: if hddTable.State() = 0 then

9: hddTable.changeState(angle = θ

Stereo

)

10: P := getPointcloud(P)

11: if P 6= NU LL then

12: c

, b

, v

← detectGaps(P)

13: hddTable.changeState(angle = θ

Monocular

)

14: I := getRGBImage(I)

15: if I 6= NULL & hddTable.State() = 0 then

16: c

, b

, m

← segmentParts(I)

17: c

, b

, m

← detectScrews(I)

18: C

← getCalibrationIn f o()

19: predicates := mergeAllIn f o(I, P,C

, c

, b

, m

, c

, b

, m

, c

, b

, v

)

20: return predicates

1000 screws and 3285 artifacts. Figure 1 illustrates

an annotated drive (top) and a sample of artefacts and

screws found during the disassembly (bottom).

Figure 1: Top: Ground truth annotations for a sample hard

drive based on the taxonomy, used for part segmentation

task (above). Bottom: Training dataset containing (ﬁrst

row) artefacts and (second row) screws for the detection of

screws.

3.2 Part Segmentation

We address the semantic segmentation problem with

Deep CNNs to detect, recognize and localize the inner

parts of the device. Due to the high number of avail-

able state-of-the-art networks, we train and evaluate

a set of selected methods on this instance segmenta-

tion problem: MobileNetV1 (Howard et al., 2017),

MobileNetV2 (Sandler et al., 2018), Cascade-RCNN

(Cai and Vasconcelos, 2018), native Mask-RCNN

(He et al., 2017), and ﬁnally the ensembled model of

Cascade-MobileNetV1 . All networks were trained

with data augmentation turned on as suggested by the

native Mask-RCNN authors, we apply the same aug-

mentation procedures. The accuracy of a network is

computed using the similarity IoU metric (see eq. 1):

IoU =

| A ∩ B |

| A ∪ B |

(1)

where A and B are respectively the sets of pre-

dicted and ground truth bounding boxes. The results

of this preliminary study are available in Table 1. Al-

though Cascade-RCNN obtains the best segmentation

results, we selected Mobile-RCNN that comes right

after, since the model is lighter, and, thus, it is em-

ployed in the part detection module of our architec-

ture.

3.3 Screw Detection

The screw detection module classiﬁes potential candi-

dates input into the screw or artefact classes. We inte-

grate the algorithm presented in (Yildiz and Wörgöt-

ter, 2019) into our pipeline. We describe the algo-

rithm brieﬂy hereafter and refer the reader to the pub-

lication for an extended description and analysis.

The algorithm combines classical vision prepro-

cessing of the input image with deep learning meth-

ods for classiﬁcation. The image is processed with

the Hough circle transform (Duda and Hart, 1971) to

generate screw candidates as local views of the in-

ROBOVIS 2020 - International Conference on Robotics, Computer Vision and Intelligent Systems

Table 1: IoU values of different networks evaluated on our test set. Cascade-RCNN and MobV1-RCNN seem to be the best

performing ones.

DCNN Identiﬁer Cascading Backbone AP AP

0.5

0.75

Mean-F

Mask-RCNN No ResNet-101-FPN 41.2 65.7 47.6 16.3 42.3 42.4 0.70

MobV1-RCNN No Mobilenetv1-224-FPN 56.2 76.7 64.9 20.6 54.6 59.7 0.78

MobV2-RCNN No Mobilenetv2-FPN 34.6 60.5 35.5 3.8 15.4 43.6 0.63

Cas-Mob-RCNN Yes Mobilenetv1-224-FPN 28.5 43.3 33.3 20.0 13.3 35.4 0.61

Cas-RCNN Yes ResNet-101-FPN 61.3 76.4 72.6 35.1 61.8 65.4 0.84

put image. These candidates are sent to an ensemble

of two networks (InceptionV3 (Szegedy et al., 2016)

and Xception (Chollet, 2017) both with an additional

dropout layer before their last fully-connected layer)

and their output are combined through a weighted

sum. The network ﬁnally output its prediction on

the nature of the candidate (screw or artifact). The

method is reported to achieve a 99% successful clas-

siﬁcation rate (Yildiz and Wörgötter, 2019).

The most signiﬁcant feature of this work is clearly

its adaptation ability. Since we are proposing a visual

scheme for disassembly processes, we must consider

the fact that our target device (HDD) is not going to

be the only device to be disassembled for long. Since

the chosen screw detection paradigm already works

well for the screws encountered in hard drives, along

with the fact that it allows users to collect new datasets

very quickly, we are sure of its adaptability even if the

target device or the environment changes at a point.

We’ve experimented with the integrated screw de-

tection module and we share its results in Section 4.

3.4 Position Estimation

The part detection and screw detection module oper-

ate only on RGB image data. To act on the detected

screws and parts, their pixel coordinates (2D) need to

be related to positions in the robot’s frame (3D). We

will refer to this process as localization. We use an

RGB-D camera to get a point-cloud representation of

the scene and relate pixels to points (see Figure 3 for

the relative poses of the camera). The correspondence

is done by projecting the point-cloud points into pixel

coordinates, and estimating a k-nearest-neighbor re-

gressor to perform the inverse operation: mapping

pixels to 3D positions. This process is repeated each

time the scene analysis is performed, i.e. upon request

from the rest of the system. These requests come

asynchronously at less than 1 Hz thus there are no

time constraint in this case.

3.5 Gap Detection

The gap detection relies on the top-view point-cloud

representation of the scene acquired by the stereo

camera. The overall process along sample views for

each step is presented in Figure 2. The point-cloud

is processed by a passthrough ﬁlter to ﬁnd the re-

gion of interest: points outside a volume (i.e. box-

shaped) in which the HDD should be positioned are

discarded to remove artifacts. The output point-cloud

is then denoised: We are using sparse outlier removal

(Rusu et al., 2008), which identiﬁes outlier points

based on their mean distance to their nearest neigh-

bours. The denoised point-cloud depth distribution

is then analysed to classify the points into surface

points and gap points. Because the existence of gaps

produces a bi-modal depth distribution between fore-

ground points (surface) and background points (gaps),

a simple threshold can be computed automatically

(e.g. using (Otsu, 1979)). The candidate gap points

are then clustered into separate gaps using a density-

based clustering approach (DBSCAN with manually

set parameters). This step provides the location and

size of the gaps and excludes the spaces too small to

be interesting gaps. In order to extrapolate the volume

of each gap, a convex hull algorithm is used to get the

2D boundaries of the gap in a ﬁrst pass. Then arti-

ﬁcial points are added to each cluster by duplicating

the boundary points and setting their height to the me-

dian height of the surface points identiﬁed earlier. A

second pass of the convex hull algorithm provides the

corrected 3D gap volumes, which are then ﬁltered to

remove very small volumes. The gap centers are esti-

mated as the mean of the extrema for every axis. The

set of found gaps including their centers and volumes

are sent back to the rest of the pipeline.

4 RESULTS

4.1 Experiments

4.1.1 Setup

Our visual scheme requires two inputs: a top-down

RGB image and a top-down point-cloud. We built an

automated system that uses a tilting table holding the

device either horizontal (its surface normal aligned

with the RGB camera) or 45

◦

(aligned with the RGB-

A Visual Intelligence Scheme for Hard Drive Disassembly in Automated Recycling Routines

Figure 2: Complete pipeline for the gap detection module.

Initially, a passthrough ﬁlter discards the points below the

lower limit and points above the upper limit for the speciﬁed

axis. The noise created from the stereo cameras is removed

via sparse outlier removal (Rusu et al., 2008). Following,

thresholding is done only on the Z-axis since it denotes the

height of the points in the cloud. Deeper points are very

likely to belong to a gap, therefore, using a well-chosen

threshold we can split the point cloud based on the depth

of points into potential gap points and insigniﬁcant surface

points. Points belonging to a gap often lie in close proxim-

ity to each other, opening an opportunity for a clustering ap-

proach (DBSCAN, HDBSCAN) to label points. A volume

correction is applied by adding artiﬁcial points to the set of

gap points, so that the convex hull algorithm uses them as

the new outline points and creates a better estimate. As a

last step, the volume ﬁlter is used to throw away extremely

small volumes that cannot be gaps given the device’s natural

shape.

D stereo camera) on request (see Figure 3). We use

a Basler acA4600-7gc monocular camera which pro-

vides images with 4608 × 3288 resolution and 3.5

FPS and a Nerian Karmin2 stereo camera with a depth

error of 0.06cm from the minimum range of 35cm.

4.2 Evaluation Method

There are three main blocks in our scheme and each

of these blocks has to be evaluated differently, as the

paradigms running behind are different. Evaluation

of the screw detection used was already conducted in

Figure 3: Setup used for evaluation: a monocular RGB

camera is oriented downwards (θ

Monocular

= 90

◦

) and a

stereo RGB-D camera is mounted at θ

Stereo

= 45

◦

. This

conﬁguration is due to the different focal lengths of the cam-

eras. Both are pointing at the device to be analysed. A

tilting mechanism allows the system to obtain “top-down”

views of the devices with both cameras.

its paper, thus, the results are directly taken from that

work (Yildiz and Wörgötter, 2019). For part segmen-

tation, we are going to go by the IoU (Intersection

over Union) metric and report the AP, as it has become

the de facto evaluation metric for instance segmenta-

tion networks. One very similar work was recently

evaluated the same way (Jahanian et al., 2019). Fi-

nally the gap detection is evaluated with a metric that

we came up ourselves, which we are going to discuss

in its respective subsection.

4.2.1 Screw Detection

Table 2: Classiﬁer accuracy of different state-of-the-art net-

works, from (Yildiz and Wörgötter, 2019) with permission.

Model TP TN FP FN Acc

Xception 975 3244 25 41 98.5

InceptionV3 973 3262 27 23 98.8

ResneXt101 962 3260 38 25 98.5

InceptionResnetV2 965 3260 35 25 98.6

DenseNet201 897 3272 103 13 97.3

ResNetV2 943 3208 57 77 96.9

Integrated model 988 3254 12 31 99.0

We ﬁrst would like to report the classiﬁer accuracy in

Table 2 which are directly taken from the work (Yildiz

and Wörgötter, 2019) published. However, although

the classiﬁer accuracy is quite high, due to the fact

that Hough circle ﬁnder method misses out ﬁnding

the circles in the ﬁrst place, our ﬁnal average precision

was found to be 80%. As the classiﬁer expects images

that are directly suggested by the Hough circle ﬁnder,

any circle that is missed, is also not considered by

the classiﬁer. In other words, the classiﬁer’s ability is

limited by the Hough circle ﬁnder. Therefore, the AP

remains at 80%. We refer the reader to the Figure 4

to illustrate a few detection samples during the HDD

disassembly sequences.

ROBOVIS 2020 - International Conference on Robotics, Computer Vision and Intelligent Systems

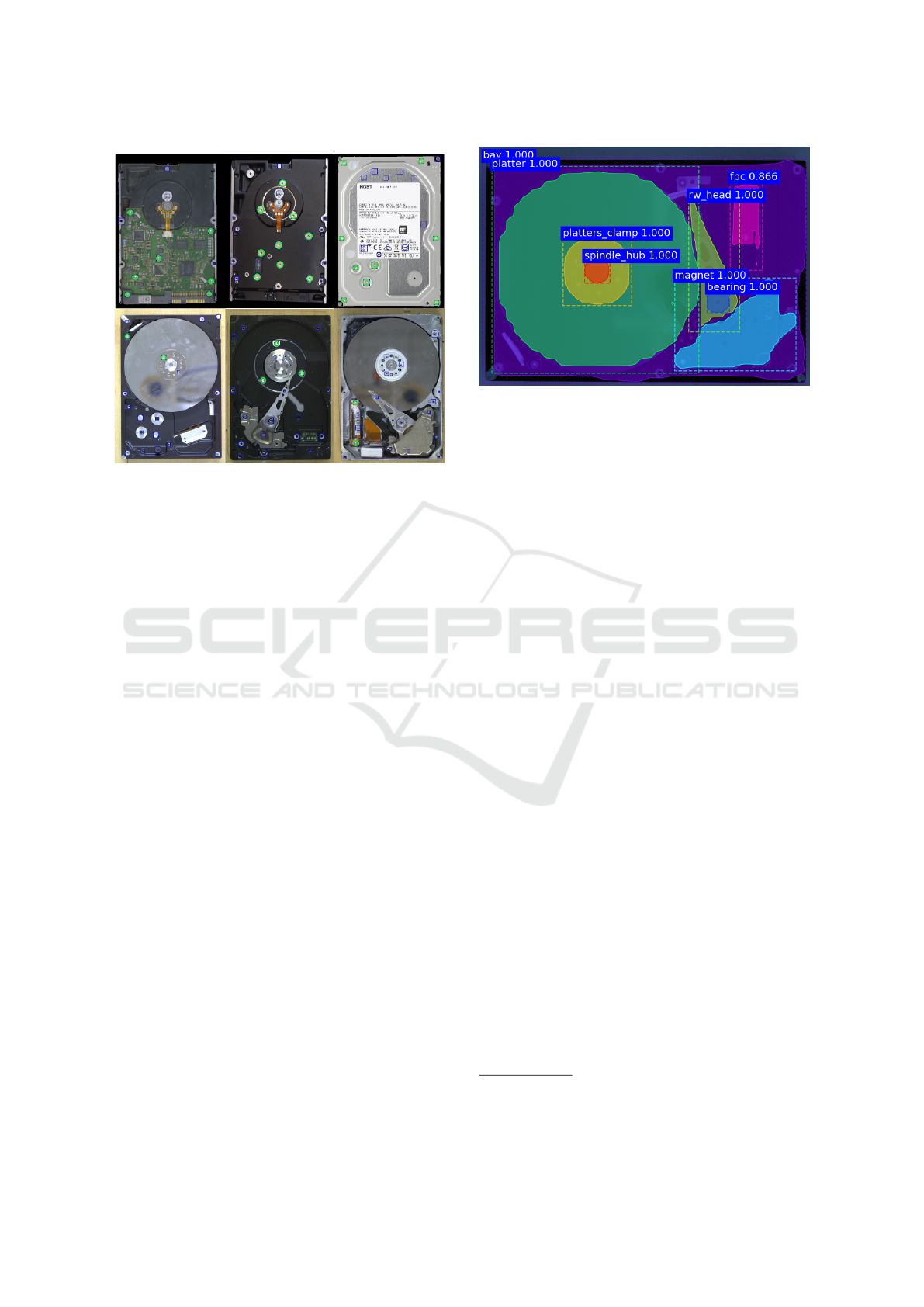

Figure 4: Outputs from the integrated screw detection mod-

ule. Blue circles highlight the candidates suggested by the

Hough circle ﬁnder, whereas green circles are the detected

screws by the model taken from a study (Yildiz and Wörgöt-

ter, 2019).

4.2.2 Part Segmentation

As mentioned earlier, the standard metrics for pixel to

pixel segmentation are mainly the COCO (Lin et al.,

2014) average precision (AP) metrics: AP is aver-

age precision of multiple IoU values. As reported

in Table 1, MobV1-RCNN and CAS-RCNN achieve

the best segmentation performances (resp. 0.78 and

0.84). These results are achieved after 500 epochs of

training on Google Colaboratory (Bisong, 2019) envi-

ronment using Tensorﬂow (Abadi et al., 2016) 1.15.2.

Figure 5 shows a sample output of the part segmenta-

tion process.

From our experiments, we make the following

conclusions. MobileNetV2 has stabilization issues

since the model is not able to predict on every scene

after a certain amount of training. We observed in the

training history that the loss becomes undetermined

and thus the model remains unstable. It could be ar-

gued that the reason is the dataset, i.e. the classes are

not uniformly distributed. On the other hand, cascad-

ing lighter backbones such as MobileNetV1 does not

ensure better feature extraction property. In fact, our

modeling suggests that it actually decreases efﬁciency

due to usage of depthwise convolutions. However,

this situation in return, validates the choice of back-

bone with residual nets that is clearly done in the orig-

inal CBNet (Liu et al., 2019), Cascade-RCNN (Cai

and Vasconcelos, 2018). In short, we ﬁnd out that

cascading should only be done with models that has

residual backbones such as ResNet and its variants.

Figure 5: Output of the part segmentation module powered

by MobV1-RCNN. Each color represents a different part

predicted by the network whose names and prediction val-

ues are given. In this case, all parts and boundaries are cor-

rectly detected.

During our investigations we noticed that increasing

cascading with more detection target and logits loss

destabilizes the model. The use of DenseNet (Huang

et al., 2016) may increase accuracy, however, with

non-distributed class data like ours, stabilization re-

mains an issue. This is due to the fact that the last

layers in the network cannot handle class-logits when

the feature data is non-distributed. In the presence

of multi-GPU systems, we recommend ResNext-152

(Xie et al., 2017) to be investigated for higher accu-

racy.

Instead of selecting Cascade-RCNN, we made our

choice with MobV1-RCNN due to the fact that it re-

mains stable in the presence of high resolutions, un-

like Cascade-RCNN that is unstable despite of having

high accuracy. Since our setup uses high-resolution

images, we therefore employed MobV1-RCNN as our

ﬁnal model in the segmentation scheme. However, for

future reference, we note that combining images of

different resolutions in a dataset creates problems in

stable models as the model is not stable during train-

ing.

4.2.3 Gap Detection

In order to evaluate the performance of the gap de-

tector, we had to create ground truth. To this end, all

point clouds taken by the stereo cameras were anno-

tated using a Semantic Segmentation Editor

. These

ground truth annotations consist of point wise seg-

mentations of each gap in a device. To get comparable

point numbers, sparse outlier denoising was run on

the clouds before segmentation. Based on the found

https://github.com/Hitachi-Automotive-And-Industry-Lab/

semantic-segmentation-editor

A Visual Intelligence Scheme for Hard Drive Disassembly in Automated Recycling Routines

Table 3: Comparison of the DBSCAN powered detector’s

output and the ground truth annotations. Mean error is

found to be 24.30% among the identiﬁed gaps. Gaps that

were not identiﬁed due to the shortcomings of the sensor

were left out of the calculation. These are the gaps that are

usually extremely small and irrelevant to the disassembly

routine.

Detected (cm

) Ground Truth (cm

) Error(%)

Gap #1 36.3 46.243 21.50

Gap #2 3.099 3.417 9.31

Gap #3 23.414 16.984 37.86

Gap #4 22.714 22.712 0.01

Gap #5 0.99 0.99 0.00

Gap #6 0.725 0.746 2.82

Gap #7 1.196 1.159 3.19

Gap #8 8.854 8.032 10.23

Gap #9 2.421 1.974 22.64

Gap #10 16.622 15.99 3.95

Gap #11 0.136 2.797 95.14

Gap #12 26.874 36.339 26.05

Gap #13 3.45 1.677 51.39

Gap #14 12.043 12.663 4.9

Gap #15 0.189 0.773 75.55

Mean Error: 24.30

Gap #16 - 0.125 -

Gap #17 - 1.443 -

Gap #18 - 0.386 -

Gap #19 - 0.438 -

Gap #20 - 0.453 -

Gap #21 - 0.111 -

Table 4: Precision for the DBSCAN- and HDBSCAN-

powered gap detectors.

Detected True positives False positives Precision

DBSCAN 18 15 3 83.33%

HDBSCAN 22 16 6 72.73%

points the volume correction was used to estimate a

volume for the labelled gap. Given the estimated vol-

ume and the number of points for each gap in each

device, the gap detector was used to process the same

point cloud. For all devices the same set of parame-

ters was used. Tuning these parameters on a device

to device basis can improve the results and correct

misclassiﬁcations. However, since the gap detector

should have a degree of generalization, the parame-

ters are ﬁxed for every device. Additionally, the de-

tector was used twice on each point cloud, once using

DBSCAN in the clustering step of the approach and

once using HDBSCAN. The detector outputs the vol-

ume and point numbers for each identiﬁed gap. These

numbers are then compared against the human anno-

tation. Table 3 reports the results. The entries of de-

tection and error as "-" are the ones where our camera

could not perceive the gap due to technical impossi-

bilities given the hardware limitations of the camera

and are not included in our calculations. The method

achieved a mean error in volume of 24.30% among

the identiﬁed gaps with a standard deviation of 28.14

and variance of 791.85.

Furthermore, we evaluated our gap detector’s

clustering algorithm as well, since it plays a pivotal

role in the pipeline. To this end, we considered the

Figure 6: Detected gaps without (left) and with (right) vol-

ume correction.

two state-of-the-art clustering algorithms namely DB-

SCAN and HDBSCAN. In table 4 a detector based

on DBSCAN is compared against the detector using

HDBSCAN. Over the 12 hard drives used with a to-

tal of 21 gaps, the gap detector identiﬁed 18 gaps or

85.7% using DBSCAN. The detector based on HDB-

SCAN identiﬁed 22 gaps, a gap more than the ground

truth. While using DBSCAN, the detector was able

to identify 15 out of 21 gaps correctly against 16 out

of 21 gaps using HDBSCAN. However, the higher

detection rate of HDBSCAN also produces a higher

number of false positives. The detection pipeline pro-

duced gaps with a precision of 72.73% using HDB-

SCAN against the 83.33% using DBSCAN. Further-

more, a detection pipeline using DBSCAN was able

to produce higher quality gaps (see ﬁgure 6 for an il-

lustration of the output of the gap detector). Therefore

in our approach, a detection system using DBSCAN

was preferable over a detection system using HDB-

SCAN.

4.3 Generalization

As mentioned earlier, our part segmentation model

was trained with images that account for cases where

the device is damaged or cases where a part falls back

in the scene, occluding certain portion of a target de-

vice. These are signiﬁcant cases to assess the general-

ization ability of the scheme. We are quite optimistic

as our results for such cases prove that the scheme

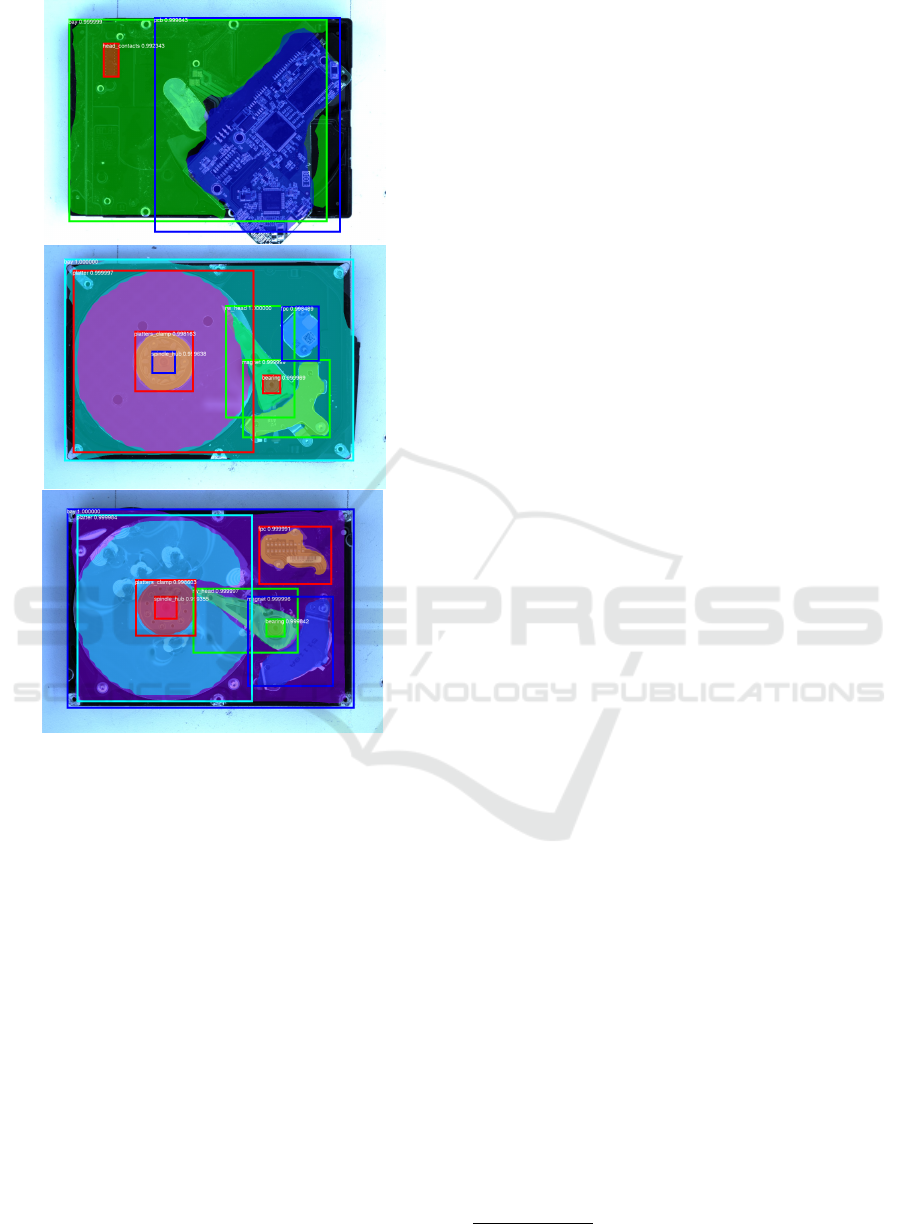

does generalize. Figure 7 illustrates a few cases of

such.

5 DISCUSSION

In this paper, we presented an integrated vision

pipeline to analyze an industrial scene and extract

the composition of parts inside a device. We pro-

ROBOVIS 2020 - International Conference on Robotics, Computer Vision and Intelligent Systems

Figure 7: Output of the part segmentation module powered

by MobV1-RCNN on damaged devices, as well as on de-

vices where a part is arbitrarily placed over the device to

create possible occlusion to account for failed manipulation

cases.

posed new part detection and gap detection methods

by using and training state-of-the-art deep learning

networks. We showed on the use-case of a HDD that

the pipeline can achieve a high detection and local-

ization performance, enabling a robot to interact with

the device with sufﬁcient precision. The overall pro-

cess still make some errors (80% AP for screw de-

tection, 24% error for gap detection) but we do not

see this as a limitation: such performance given the

variability of brands, models and state of the device

is acceptable; the goal of this pipeline is to be used in

a more complex system were perception inaccuracies

are handled based on action outcome. To the best of

our knowledge, this is the ﬁrst approach to provide an

adaptable visual method to analyse a whole device –

in contrast to most of the related work, which focuses

on detecting speciﬁc parts or properties of the mate-

rial. This scheme is designed to provide robots with

robust analysis capabilities and open new grounds for

automated disassembly and recycling of End-Of-Life

electronic devices.

One challenge of applying vision methods with

off-the-shelf cameras to such a domain lies in the

presence of shiny and reﬂective parts. These reduce

the quality of the point-cloud introducing potential er-

rors in the position estimation and the gap detection.

Our system nevertheless provides a relevant analysis

of the hard drive state but the lighting conditions are

a potential failure parameter and should thus be con-

trolled. On the other hand, the method is weakly af-

fected by damages to the device in this use case.

The current need for top-view inputs of the device

limits the ability of the system to analyse all potential

scenes. It can however be overcome by training with

more varied data including side views of the device

(for the part detection and screw detection modules).

For the gap detection, the methods relies on a per-

ceived depth difference so the gaps can be detected

in any position of the device (but are easier to detect

when they are aligned with the stereo camera).

Gap detection can directly be adapted to a new de-

vice as it requires no training data and can be uni-

versally found in any device. The screws used here

are only of Torx8 type and different types of screws

should be included into the training dataset if a dif-

ferent device is to be disassembled. However, this is

not a time consuming task, thanks to the convenient

data collection mode of the screw detector (Yildiz and

Wörgötter, 2019). The part recognition is the least

directly generalizable component and requires collec-

tion, annotation and retraining for other class of de-

vices. However, the HDD use case offers a wide

range of parts that can also be found in other devices

(e.g. PCB, lid and covers), even if they have different

appearances. We will evaluate to which extend the

current system performs well on a set of new devices

in future work.

ACKNOWLEDGMENTS

The research leading to these results has received

funding from the European Union’s Horizon 2020 re-

search and innovation programme under grant agree-

ment no. 731761, IMAGINE. We would like to also

express our gratitude to Maik Bergamos and Electro-

cycling GmbH

for the data and hardware used in this

work as well as their expertise on the recycling do-

main.

http://www.electrocycling.de

A Visual Intelligence Scheme for Hard Drive Disassembly in Automated Recycling Routines

REFERENCES

Abadi, M., Barham, P., Chen, J., Chen, Z., Davis, A.,

Dean, J., Devin, M., Ghemawat, S., Irving, G., Isard,

M., et al. (2016). Tensorﬂow: A system for large-

scale machine learning. In 12th {USENIX} Sympo-

sium on Operating Systems Design and Implementa-

tion ({OSDI} 16), pages 265–283.

Badrinarayanan, V., Kendall, A., and Cipolla, R. (2017).

Segnet: A deep convolutional encoder-decoder ar-

chitecture for image segmentation. IEEE transac-

tions on pattern analysis and machine intelligence,

39(12):2481–2495.

Bailey-Van Kuren, M. (2002). Automated demanufacturing

studies in detecting and destroying, threaded connec-

tions for processing electronic waste. In Conference

Record 2002 IEEE International Symposium on Elec-

tronics and the Environment (Cat. No.02CH37273),

pages 295–298.

Bdiwi, M., Rashid, A., and Putz, M. (2016). Au-

tonomous disassembly of electric vehicle motors

based on robot cognition. Proceedings - IEEE In-

ternational Conference on Robotics and Automation,

2016-June(July):2500–2505.

Bi, Z. and Wang, L. (2010). Advances in 3d data acquisition

and processing for industrial applications. Robotics

and Computer-Integrated Manufacturing, 26(5):403 –

413.

Bisong, E. (2019). Google colaboratory. In Building Ma-

chine Learning and Deep Learning Models on Google

Cloud Platform, pages 59–64. Springer.

Cai, Z. and Vasconcelos, N. (2018). Cascade r-cnn: Delving

into high quality object detection. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 6154–6162.

Chen, C., Ma, L., Jia, Y., and Zuo, P. (2019). Kidney and

tumor segmentation using modiﬁed 3d mask rcnn.

Chollet, F. (2017). Xception: Deep learning with depthwise

separable convolutions. In Proceedings of the IEEE

conference on computer vision and pattern recogni-

tion, pages 1251–1258.

Couteaux, V., Si-Mohamed, S., Nempont, O., Lefevre, T.,

Popoff, A., Pizaine, G., Villain, N., Bloch, I., Cotten,

A., and Boussel, L. (2019). Automatic knee menis-

cus tear detection and orientation classiﬁcation with

mask-rcnn. Diagnostic and interventional imaging,

100(4):235–242.

Dai, J., He, K., and Sun, J. (2015). Boxsup: Exploiting

bounding boxes to supervise convolutional networks

for semantic segmentation. In 2015 IEEE Interna-

tional Conference on Computer Vision, ICCV 2015,

Santiago, Chile, December 7-13, 2015, pages 1635–

1643. IEEE Computer Society.

Dai, J., He, K., and Sun, J. (2016). Instance-aware semantic

segmentation via multi-task network cascades. In Pro-

ceedings of the IEEE Conference on Computer Vision

and Pattern Recognition, pages 3150–3158.

Duda, R. O. and Hart, P. E. (1971). Use of the hough trans-

formation to detect lines and curves in pictures. Tech-

nical report, SRI Iinternational Menlo Park CA Artiﬁ-

cial Intelligence Center.

Duﬂou, J. R., Seliger, G., Kara, S., Umeda, Y., Ometto,

A., and Willems, B. (2008). Efﬁciency and feasibility

of product disassembly: A case-based study. CIRP

Annals, 57(2):583–600.

Dvornik, N., Shmelkov, K., Mairal, J., and Schmid, C.

(2017). Blitznet: A real-time deep network for scene

understanding. In Proceedings of the IEEE interna-

tional conference on computer vision, pages 4154–

4162.

Elsayed, A., Kongar, E., Gupta, S. M., and Sobh, T. (2012).

A robotic-driven disassembly sequence generator for

end-of-life electronic products. Journal of Intelli-

gent and Robotic Systems: Theory and Applications,

68(1):43–52.

Fu, C.-Y., Shvets, M., and Berg, A. C. (2019). Retina-

mask: Learning to predict masks improves state-of-

the-art single-shot detection for free. arXiv preprint

arXiv:1901.03353.

Ghiasi, G. and Fowlkes, C. C. (2016). Laplacian pyramid

reconstruction and reﬁnement for semantic segmenta-

tion. In European Conference on Computer Vision,

pages 519–534. Springer.

Girshick, R. (2015). Fast r-cnn. In Proceedings of the IEEE

international conference on computer vision, pages

1440–1448.

Girshick, R., Donahue, J., Darrell, T., and Malik, J. (2014).

Rich feature hierarchies for accurate object detec-

tion and semantic segmentation. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 580–587.

He, K., Gkioxari, G., Dollár, P., and Girshick, R. (2017).

Mask r-cnn. In Proceedings of the IEEE international

conference on computer vision, pages 2961–2969.

Howard, A. G., Zhu, M., Chen, B., Kalenichenko, D.,

Wang, W., Weyand, T., Andreetto, M., and Adam,

H. (2017). Mobilenets: Efﬁcient convolutional neu-

ral networks for mobile vision applications. arXiv

preprint arXiv:1704.04861.

Huang, G., Liu, Z., and Weinberger, K. Q. (2016).

Densely connected convolutional networks. CoRR,

abs/1608.06993.

Jahanian, A., Le, Q. H., Youcef-Toumi, K., and Tset-

serukou, D. (2019). See the e-waste! training visual

intelligence to see dense circuit boards for recycling.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition Workshops, pages 0–

Johnson, J. W. (2018). Adapting mask-rcnn for au-

tomatic nucleus segmentation. arXiv preprint

arXiv:1805.00500.

Joulin, A., van der Maaten, L., Jabri, A., and Vasilache, N.

(2016). Learning visual features from large weakly

supervised data. In Computer Vision – ECCV 2016,

pages 67–84.

Karlsson, B. and Järrhed, J.-O. (2000). Recycling of elec-

trical motors by automatic disassembly. Measurement

Science and Technology, 11(4):350–357.

Khoreva, A., Benenson, R., Hosang, J., Hein, M., and

Schiele, B. (2017). Simple does it: Weakly supervised

instance and semantic segmentation. In 2017 IEEE

Conference on Computer Vision and Pattern Recogni-

tion (CVPR), pages 1665–1674.

ROBOVIS 2020 - International Conference on Robotics, Computer Vision and Intelligent Systems

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. In Advances in neural information process-

ing systems, pages 1097–1105.

Li, Y., Qi, H., Dai, J., Ji, X., and Wei, Y. (2017). Fully

convolutional instance-aware semantic segmentation.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition, pages 2359–2367.

Lin, D., Shen, D., Shen, S., Ji, Y., Lischinski, D., Cohen-

Or, D., and Huang, H. (2019). Zigzagnet: Fusing top-

down and bottom-up context for object segmentation.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition, pages 7490–7499.

Lin, G., Milan, A., Shen, C., and Reid, I. (2017a). Re-

ﬁnenet: Multi-path reﬁnement networks for high-

resolution semantic segmentation. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 1925–1934.

Lin, T.-Y., Dollár, P., Girshick, R., He, K., Hariharan, B.,

and Belongie, S. (2017b). Feature pyramid networks

for object detection. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition,

pages 2117–2125.

Lin, T.-Y., Maire, M., Belongie, S., Hays, J., Perona, P.,

Ramanan, D., Dollár, P., and Zitnick, C. L. (2014).

Microsoft coco: Common objects in context. In Euro-

pean conference on computer vision, pages 740–755.

Springer.

Liu, S., Qi, L., Qin, H., Shi, J., and Jia, J. (2018). Path ag-

gregation network for instance segmentation. In Pro-

ceedings of the IEEE Conference on Computer Vision

and Pattern Recognition, pages 8759–8768.

Liu, Y., Wang, Y., Wang, S., Liang, T., Zhao, Q., Tang, Z.,

and Ling, H. (2019). Cbnet: A novel composite back-

bone network architecture for object detection. arXiv

preprint arXiv:1909.03625.

Long, J., Shelhamer, E., and Darrell, T. (2015). Fully con-

volutional networks for semantic segmentation. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 3431–3440.

Malamas, E. N., Petrakis, E. G., Zervakis, M., Petit, L., and

Legat, J.-D. (2003). A survey on industrial vision sys-

tems, applications and tools. Image and Vision Com-

puting, 21(2):171 – 188.

Massari, S. and Ruberti, M. (2013). Rare earth elements as

critical raw materials: Focus on international markets

and future strategies. Resources Policy, 38(1):36–43.

Otsu, N. (1979). A threshold selection method from gray-

level histograms. IEEE transactions on systems, man,

and cybernetics, 9(1):62–66.

Pinheiro, P. O., Lin, T.-Y., Collobert, R., and Dollár, P.

(2016). Learning to reﬁne object segments. In Eu-

ropean Conference on Computer Vision, pages 75–91.

Springer.

Pomares, J., Puente, S., Torres, F., Candelas, F., and Gil,

P. (2004). Virtual disassembly of products based on

geometric models. Computers in Industry, 55(1):1–

14.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster

r-cnn: Towards real-time object detection with region

proposal networks. In Advances in neural information

processing systems, pages 91–99.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-net:

Convolutional networks for biomedical image seg-

mentation. In International Conference on Medical

image computing and computer-assisted intervention,

pages 234–241. Springer.

Rusu, R. B., Marton, Z. C., Blodow, N., Dolha, M., and

Beetz, M. (2008). Towards 3D Point Cloud Based

Object Maps for Household Environments. Robotics

and Autonomous Systems Journal (Special Issue on

Semantic Knowledge in Robotics), 56(11):927–941.

Sandler, M., Howard, A., Zhu, M., Zhmoginov, A., and

Chen, L.-C. (2018). Mobilenetv2: Inverted residu-

als and linear bottlenecks. In Proceedings of the IEEE

conference on computer vision and pattern recogni-

tion, pages 4510–4520.

Szegedy, C., Vanhoucke, V., Ioffe, S., Shlens, J., and Wo-

jna, Z. (2016). Rethinking the inception architecture

for computer vision. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 2818–2826.

Tabuchi, H. (2010). Japan recycles minerals from used elec-

tronics. New York Times, 4.

Tonko, M. and Nagel, H.-H. (2000). Model-based stereo-

tracking of non-polyhedral objects for automatic dis-

assembly experiments. International Journal of Com-

puter Vision, 37(1):99–118.

Torres, F., Puente, S., and Aracil, R. (2003). Disassembly

planning based on precedence relations among assem-

blies. International Journal of Advanced Manufactur-

ing Technology, 21.

Ukida, H. (2007). Visual defect inspection of rotating screw

heads. In SICE Annual Conference 2007, pages 1478–

1483. IEEE.

Wegener, K., Chen, W. H., Dietrich, F., Dröder, K., and

Kara, S. (2015). Robot assisted disassembly for the

recycling of electric vehicle batteries. Procedia CIRP,

29:716–721.

Weigl-Seitz, A., Hohm, K., Seitz, M., and Tolle, H. (2006).

On strategies and solutions for automated disassem-

bly of electronic devices. International Journal of Ad-

vanced Manufacturing Technology, 30(5-6):561–573.

Xie, S., Girshick, R., Dollár, P., Tu, Z., and He, K. (2017).

Aggregated residual transformations for deep neural

networks. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 1492–

1500.

Xie, S. Q., Cheng, D., Wong, S., and Haemmerle, E. (2008).

Three-dimensional object recognition system for en-

hancing the intelligence of a KUKA robot. Interna-

tional Journal of Advanced Manufacturing Technol-

ogy, 38(7-8):822–839.

Yildiz, E. and Wörgötter, F. (2019). DCNN-Based

Screw Detection for Automated Disassembly Pro-

cesses. Proceedings of the 15th International Con-

ference on Signal Image Technology & Internet based

Systems.

Zhang, M., Zhou, Y., Zhao, J., Man, Y., Liu, B., and Yao, R.

(2019). A survey of semi- and weakly supervised se-

mantic segmentation of images. Artiﬁcial Intelligence

Review.

A Visual Intelligence Scheme for Hard Drive Disassembly in Automated Recycling Routines
