GPS Driven Camera Selection in Cyclocross Races

for Automatic Rider Story Generation

Jelle De Bock

, Alec Van Den Broeck

and Steven Verstockt

IDLab, Ghent University-imec, Belgium

Keywords: GPS Tracking, GeoJSON, Geospatial Analysis, Linked Open Data, Storytelling, Summarization.

Abstract: Cyclocross races are a very popular winter sport in Belgium and the Netherlands. In this paper we present a

methodology to calculate the proximity of riders to a number of cameras that are located on a cyclocross

course in order to automatically select the correct camera for each rider. The methodology is based on two

main input sources. The first input is the course with cameras positioned along it. As the course and camera

information is usually available as pdf and isn’t directly processable by computer programs, we propose the

conversion GeoJSON. The second requirement for our methodology is accurate location tracking of the

athletes on the course with the help of wearable GPS trackers. We present an experimental camera proximity

algorithm that uses both input sources and finds for every rider at any given moment in the race the closest

camera or vice versa. The output of this methodology results in automatic identification of the filmed riders

by a given camera at a given moment in the race and might benefit post-processing of the camera video

streams for further computer vision-based analysis of the streams, for example, to pre-filter the camera streams

or to generate rider and team stories.

1 INTRODUCTION

Over the past few years, cyclocross became more and

more global as the UCI World Cup series is organized

across the universe, with its epicentre located in

Belgium. Races are broadcasted on Belgian and

Dutch national television and the action is captured

by an array of approximately 20 cameras. The

optimal camera stream for a given moment in the race

is usually selected by the broadcast director who is

monitoring the race footage in the camera truck at the

race location. When the race gets very eventful and a

lot of action happens simultaneously this can be a

rather hectic job. Furthermore, it is not unimaginable

that the directors in charge have some subjectivity or

their preferences for certain riders or sectors. In the

current workflow, a lot of video footage is lost, as

only the main broadcast is usually persisted at their

servers. As it will be illustrated in this paper and in

further research, this is a missed opportunity because

having the raw footage at each moment in the race

might be valuable to generate additional race insights.

https://orcid.org/0000-0002-1676-9813

https://orcid.org/0000-0002-3593-7851

https://orcid.org/0000-0003-1094-2184

Data-driven race reporting might offer a solution

for the previously mentioned shortcomings. The

evolution of wearable technology and the

implementation of new wireless standards allow race

organisers to track every rider on the cyclocross

course in real-time. Studies of Hess et al. and Merry

et al. show that nowadays fairly accurate GPS

tracking is even possible with most of the available

smartphones. However, for demanding events such as

cyclocross and long road races, a dedicated GPS

tracker is used more often. The Quarq Qollector is an

example of such a device that tracks GPS location and

combines it with sensor data such as heart rate, power

and cadence. The sensor is usually mounted on the

riders’ bikes or at the back of their skinsuit and is

transmitting its data in real-time to the Quarq servers

using 3G cellular data connectivity. Based on the

rider location we can search the camera on the course

that is best used to capture the riders.

Cyclocross courses are challenging for riders, but also

for the film crew to bring the race to the television

viewer. The design of a cyclocross track can be

considered as “a fine art” as courses are usually built

De Bock, J., Van Den Broeck, A. and Verstockt, S.

GPS Driven Camera Selection in Cyclocross Races for Automatic Rider Story Generation.

DOI: 10.5220/0010016200670074

In Proceedings of the 8th International Conference on Sport Sciences Research and Technology Support (icSPORTS 2020), pages 67-74

ISBN: 978-989-758-481-7

by a handful of specialists and often ex-professional

riders such as Adrie van der Poel, Richard

Groenendael and Erwin Vervecken. Planning,

building and finalizing the perfect track takes weeks

to provide riders with a challenging, but safe course.

Obstacles such as barriers, sandpits and off-camber

sectors make cyclocross interesting to watch both at

location and on the television. The broadcast director

visits the location a couple of days in advance and

accurately plans the camera setup at race-day.

Cameras, identified by their index number, are placed

on a topological map of the course (see Figure 1 for

an example of such a course plan).

Figure 1: Example pdf document of the race broadcasters

plan of the Leuven cyclocross track. Plan contains the

course (yellow line). Cameras are annotated as red circles.

It is a very detailed plan of the course but is not directly

processable by a computer program.

The combination of the multiple camera streams,

detailed riders’ locations and carefully planned and

documented course and camera location make the

cyclocross broadcasting a very interesting use-case for

automation. As mentioned, camera selection and race

monitoring can be very hectic at times. In literature

several implementations that predict the best camera at

given circumstances based solely on the camera

streams exist. Shen and Fels proposed a methodology

that produced a Quality of View (QOV) measurement

for classifying the quality of each shot in a multi-

camera surveillance system. In a sports related context,

Chen et al. implemented a methodology to

automatically select the correct video camera stream

based on Internet videos in soccer games. However, in

this paper we present a mechanism that tracks the

riders’ location based on either GPS files or real time

data and returns the closest camera to a given rider.

Video editors and directors could benefit from this

mechanism as streams can be pre-filtered based on the

vicinity of riders. Finally, it can also be used to

generate a summary of a rider/team across all cameras.

2 METHODOLOGY

In this section we introduce the steps of the

methodology to match a rider based on its GPS

location to the closest camera.

2.1 Course Digitalisation

The first step to a GPS assisted camera proximity

algorithm is the digitalisation and annotation of the

racecourse and cameras positioned along that course.

Currently this is a partly manual (offline) process in

which a portable document format (pdf) and a gps

exchange format (gpx) file are used as input. The gpx

file can be either provided by a rider who did practise

on the course or it can be drawn with tools such as

Komoot, RideWithGPS or Garmin Connect. This gpx

file of the course is converted with a Python script to

a GeoJSON linestring object. GeoJSON is a very

useful standard to store, represent and

programmatically access geographic data. The

linestring of the course consists of interconnected

points (latitude/longitude pairs) of the track (red line,

Figure 2).

Figure 2: Digitalized version of the cyclocross course of the

Rectavit Series Leuven (2020) based on Figure 1. Red line

is the GeoJSON course linestring. The blue markers are

GeoJSON point features and are representing the cameras

and their respective identifiers (camera id).

The locations of the cameras are registered by the

broadcasters in a pdf containing both the course and

the locations of the various cameras across the track.

Every camera on the schematic has an identifier (e.g.

Camera 7a), but the logic behind the numbering isn’t

related to its exact location on the track. To make this

camera locations programming interface friendly, we

manually added the locations to the GeoJSON track

icSPORTS 2020 - 8th International Conference on Sport Sciences Research and Technology Support

file of the previous step. The installed cameras on the

course are stored as GeoJSON point features with the

identifier of the camera as its properties (see Code 1 for

the json code representing the camera location of

camera 2). The camera digitalisation is a rather manual

procedure, but tools such as GeoJSON.io are making

this rather straightforward. Future work will also

further focus on the development of a tagging tool that

can automatically generate the GeoJSON data.

{

"type": "Feature",

"properties": {

"type": "camera",

"camera_id": 2,

"geometry": {

"type": "Point",

"coordinates": [

4.710833430290222,

50.85269722820937

]

}

Code 1: GeoJSON code representing the “camera 2”

coordinates on the course as a point geometry. The feature

has its type and camera_id stored as the properties.

2.2 Rider Location Processing

Once we have a structured representation of the track

and the cameras placed around it, we can start looking

for riders on it. As mentioned in the introduction,

several methods do exist to accurately track and trace

riders on the cyclocross course. We divided rider

tracking in two separate approaches. In the first

approach, GPS eXchange (gpx) files were used to get

time stamped locations of the riders, who recorded

their races with their own GPS head units or watches.

These kinds of files are usually uploaded to online

web applications such as Strava, Trainingpeaks or

Today’s plan for further analysis. Although this is not

offering us real time locations of the riders, it still

provides great information for our camera and rider

matching algorithm for post-race video analysis and

summarization. Another benefit of using this

approach is that there is no need to interface with

external Application Programming interfaces (APIs)

and real-time storage and management isn’t an issue.

The second approach to get the riders’ locations

is by using one of the many connected GPS trackers

(eg. SPOT or Quarq Qollector). These GPS trackers

are usually worn on the riders’ bodies or fixed to their

bikes. Most of the trackers are accessible by APIs.

A Python program was written to interface, read

and interpret the data from the Quarq qollector API.

Each Quarq Qollector device has a tracking id (tid).

With the API we were able to periodically (every

second) retrieve all the sensor and location data that

was recorded by the Quarq Qollector for a list of

participating tracking ids.

Both approaches result in the location of the

tracked riders for any given moment during the race.

An abstraction layer was written to quickly get a

location for a specific rider at a given timestamp,

independent from the underlying rider tracking

technology.

Riders are often tracked with an identifier. For

further computer vision-based analysis on the camera

streams the riders’ names and other relevant

information about them should be linked with the

tracking identifier. The linking process should be

generic and future-proof. The connection of the

riders’ identities with the tracking devices should

introduce the least manual effort as possible. In

cyclocross, new teams appear, and old ones disappear

rather quickly. Riders’ contracts can range anything

from one year to three years, so riders changing teams

is very common. The open WikiData knowledge base

is the perfect data provider for this information. Most

of the riders playing a key role in the race are well

documented in WikiData. Their WikiData entries

(also called entities in WikiData) are often containing

lots of meta-information, such as their height, weight,

team history, birthday and many more. WikiData is

maintained by a rather active community of

contributors around the world. Everybody can

propose changes to a WikiData page. For instance,

during 2020, the page of famous cyclocross rider

Wout Van Aert has been already changed/improved

more than five times. This example makes it safe to

say that important changes such as team changes or

big victories will most likely be updated quite

quickly. Finally, the WikiData knowledge base can

also be easily exported as a Javascript Object

Notation (JSON) document or queried using the

SPARQL query language. An example query to the

WikiData SPARQL endpoint is shown in Figure 3. As

illustrated and if available a royalty free “profile”

picture is also retrieved.

It is important that rider ids are linked to the

WikiData entity id (QID) for further analysis of the

video streams. Currently the link between the location

tracking ID and the tracked rider’s WikiData QID

was made manually. For each tracked rider we make

a list that projects each tracking ID number on the

athlete’s WikiData QID that produces the tracking

data. This process would become much easier if riders

would have a fixed location tracking ID as well (i.e.

if they were using the same trackers every race).

GPS Driven Camera Selection in Cyclocross Races for Automatic Rider Story Generation

Figure 3: Example SPAQRL query that retrieves all

cyclocross riders from the WikiData knowledge base with

their WikiMedia image. Result can be stored as JSON or

XML. This produces useful rider meta-information for

further computer vision-based video stream analysis.

2.3 Camera Rider Matching Algorithm

Now that racetrack, camera locations and rider

locations are available and converted to a computer-

understandable format a camera matching algorithm

can be introduced.

As a start, a formal definition of the proximity of

a rider to a certain camera should be given. The

calculation can be tackled in a couple of different

ways. A first possibility might be the calculation of

the haversine distance between a rider and all of the

available cameras. The haversine distance is a

formula that is very important for geospatial purposes

as it is calculating the distance between two points

(using their latitude and longitude coordinates) on a

sphere (i.e. the earth) (Ingole and Nichat, 2013).

In some cases, haversine distance can be enough,

but sometimes the track layout of a cyclocross race

might not be ideal for this calculation method. Tracks

usually consist of lots of tight turns on a compact area.

Figure 4 illustrates this principle. The yellow circled

camera is the one that is detected as closest to the rider

(represented by the red X). This might result in a good

shot of the rider, based on the orientation and direct

visibility of that specific camera at this location.

Another possibility is to project both the cameras

and the riders on the course’s linestring (Westra). The

proximity of a camera is now determined by the

distance along the course from the rider to the

projection of the camera (see Figure 5). The

projection is achieved by finding the index of the

Figure 4: Camera setup on a test course. The red X is the

current location of the rider following the course in the

direction of the red arrow. Yellow circled marker is the

absolute closest camera. Orange circled marker is the next

camera the rider will visit on the course.

point on the course with minimum (haversine)

distance to the camera’s location. If n is the number

of cameras and l the number of course points this

approach has a time complexity of O(l·n). As

mentioned, camera and course data are available prior

to the race so this step can be pre-processed for faster

real-time querying.

A final optimization that can be done is the pre-

indexing of the course points based on the closest

cameras (see Figure 6). Finding the closest camera for

a given rider is reduced to a search in a precomputed

list that is mapping each point on the course to the

best/closest camera.

Figure 5: Illustration of closest camera along the course

principle. Rider r is “snapped” on the blue course line

following the direction of the arrow. Cameras c1 and c2 are

also projected on the course linestring. Distance d is the

distance from rider r to a camera c with a given index,

following the course path. Negative distances are cameras

behind the rider, positive distances are cameras the rider is

approaching. Closest camera is the camera with the smallest

absolute distance.

icSPORTS 2020 - 8th International Conference on Sport Sciences Research and Technology Support

It is worth mentioning that labelling which

camera is serving which point on the courses can also

be done manually by the responsible video director

prior to the race (resulting output is similar to the

output of the pre-indexing approach, Figure 6) .

Although this process is a manual effort (that can be

facilitated by a software tool), it will in some

situations be more accurate, e.g., when dense forests,

elevation differences or audiences are blocking the

direct view of the closest camera.

Figure 6: Alternative straightforward approach. Only riders

are projected on the course. Each point on the course is

labelled with the camera that is serving that location on the

track. This can be done by the race directors prior to the race

or can be the result of the camera on course projection

technique. Getting the closest camera is now a case of

looking at the camera index of the point of the rider on the

course. Distance to the camera can also be pre-processed

for each point on the course using either the haversine or

the distance across the course metric.

Now that we know the closest camera for a given

rider, we also want to get an idea how far away that

camera is. Figure 5 explains the distance (d

r,c

) between

a camera c and the rider r. The distance is not the

direct distance between both points but is again the

distance along the course’s path. A negative distance

means that the camera is behind the rider and

positioned earlier on the course. A positive distance

means that the rider is approaching this camera.

Figure 7: Visual illustration how the referencing approach

uses distances w.r.t. a reference point. The distance between

two points is the result of the difference between distances

from both points to the reference point.

Figure 8: Example output of the camera matching algorithm

for a cyclocross race of the 2019-2020 season. Manual

verification in the video stream shows that riders 1231 and

1232 are indeed visible by the camera. This shows the

feasibility of tracking a rider during the race across the

available cameras which is facilitating the video searching

process.

To further speed up the camera matching

algorithm the distances of riders and cameras on the

courses were mapped with respect to a fixed point on

the course. We choose the start of the course as the

reference point (see Figure 7). This allowed pre-

indexing all camera projection locations elapsed

distances w.r.t. the course starting point. Finding the

distance between a rider and a camera with given

index is now a case of finding the elapsed distance of

the rider (projected on the course line) w.r.t the course

reference point, look up of the elapsed distance of the

camera’s elapsed distance (w.r.t course reference

point) and subtracting both distances.

3 RESULTS

With the introduced building blocks, we can now

track riders on the course and find their distances to a

given camera. This approach facilitates several

interesting analyses. A first possibility is the sorting

of riders based on their proximity to a certain camera.

Figure 8 shows an example of such a search for the

cyclocross race of Leuven around minute 50 of the

race. Solely based on sensor data and the course and

camera metadata we can reduce the number of riders

that might have been filmed by a certain camera. As

an example, and as shown in Figure 8, the total

number of riders nearby was limited to only two of 13

riders. From one side this methodology might give us

an idea of how many and who to expect at a given

camera at a given moment in the race. This can for

example be very interesting to limit the number of

GPS Driven Camera Selection in Cyclocross Races for Automatic Rider Story Generation

Figure 9: Example of how camera proximity algorithm can

help computer vision techniques with rider identification.

candidates for automatic rider recognition/annotation.

On the other side a certain rider could also be

followed across the different cameras which enables

the tracking of a specific rider across all cameras

during the race. This can be useful for teams or for

fans who are only interested in their favourite rider.

Table 1: Benchmark setup with execution times of pre-

processing stage and of some scenarios of the Leuven

cyclocross case.

Test setup – race moment 22/02/2020 15:05:43

Hardware

Apple MacBook Pro (2018)

Intel Core i5 – 2.3 Ghz – Quad Core

8GB RAM

Intel Iris Plus Graphics 655 1536

Total number of

cameras

Total number of

riders

Pre-processing

45.5 s

configuration

0.01 s

Distance all riders to

all cameras

3.11 s

Distance 1 camera

to all riders

0.18 s *

Distance from 1

rider to all cameras

0.23 s *

* time scales linearly when #cameras/riders increase.

The last cyclocross races were held before the

suggested methodology was developed, we could

only test this approach in an offline manner.

Nevertheless, it is important that the performance of

the implemented workflow is appropriate for real-

time querying as well. To verify the feasibility of live

camera proximity tracking in cyclocross races, the

proximity algorithm was tested in several different

race scenarios. Detailed results of the test can be

found in Table 1. We used a total of 17 cameras and

13 riders with tracking information in this test. The

most expensive operation was the retrieval of

proximity of all riders to all cameras, which took

roughly 3 seconds. This can be improved with further

reasoning and knowledge of the sequence in which

the cameras were positioned. For instance, if only one

of the 17 cameras detects nearby riders, it doesn’t

make sense to run the camera proximity algorithm

five seconds later on a camera that is on the other side

of the course. Moreover, as GPS systems have an

accuracy of around 10 meters (Fong et al.) and riders

are riding at speeds ranging between 3 and 15 m/s, the

execution time of 3 seconds is justifiable.

#EXTVLCOPT:start-time=28

#EXTVLCOPT:stop-time=36

camera_1.mp4

#EXTVLCOPT:start-time=500

#EXTVLCOPT:stop-time=550

camera_17.mp4

#EXTVLCOPT:start-time=900

#EXTVLCOPT:stop-time=1100

camera_5.mp4

Code 2: Sample .m3u file. An m3u file is a kind of playlist

that extracts specific parts from larger video files (in our

example the different camera streams) and plays them

subsequently.

With this information in mind, we can start

collecting video extracts from different camera

streams and compile them in either a rider specific

summary or extract only the parts from a raw camera

stream in which riders were nearby. When the streams

are available as individual files (e.g. camera_1.mp4,

camera_17.mp4 and camera_5.mp4 in code extract 2)

it is possible to make an m3u playlist which is

bundling all the separate clips as one continuous

video, without the need to duplicate the data of the

original camera streams (Garcia et al.). Code extract

2 shows the content of an m3u file, selecting 3 video

extracts from three different camera stream files.

icSPORTS 2020 - 8th International Conference on Sport Sciences Research and Technology Support

4 CONCLUSIONS AND FUTURE

WORK

The proposed mechanism is not only useful for race

broadcast directors, but the filtered streams can also

be further processed by video processing algorithms

to annotate, index and document the race footage. The

camera proximity algorithm can serve as a first filter

for the video footage before it is processed by the

video processing tools which are also currently being

developed within our cyclocross video research

project. Techniques such as text recognition, face

recognition and pose estimation are used to further

annotate the filtered video extracts from the camera

streams.

The camera proximity algorithm can also further

assist the computer vision modules (Xue et al.).

Currently the main components of our computer

vision pipeline are a Detectron2 pose estimator to

locate the riders and a Keras-OCR (Python library

that combines a CRAFT text detector and CRNN text

recognition to read jersey numbers and sponsors, Nag

et al. and Baek et al.) and text recognition module.

For instance, as the example in Figure 9 illustrates,

our text recognition detects “Tormans” and the output

of the camera proximity algorithm (see table in Figure

9) outputs that only one rider of that team is in the

neighborhood of the camera in question (i.e. camera

17). Combined with the help of the WikiData

information available about the riders and their teams,

we can easily find out the rider’s identity (i.e. Corné

van Kessel).

Moreover, the use of WikiData information of

riders has also been found to be beneficial as it offers

a semi-automated way to get up-to-date data about

riders. In the future we plan to even further extend

this WikiData approach. Participants of a cyclocross

race are usually available as a PDF document roughly

an hour before the race. We are currently writing a

Python library to process these formatted PDF

documents and extract riders and their bib numbers.

A similar approach can be used on the PDF of the race

results. The parsed information of both PDF

documents can then be committed to the WikiData

page of the cyclocross race. New WikiData entities

are automatically created if the race or rider isn’t on

WikiData yet. Ultimately, this extra information

could be very helpful to link the output of the camera

proximity algorithm with insights gathered from the

computer vision techniques applied on the camera

streams. For instance, in Figure 10, the WikiData race

participant information helps the computer vision

pipeline to identify the rider based on the shoulder

number on the rider’s left arm.

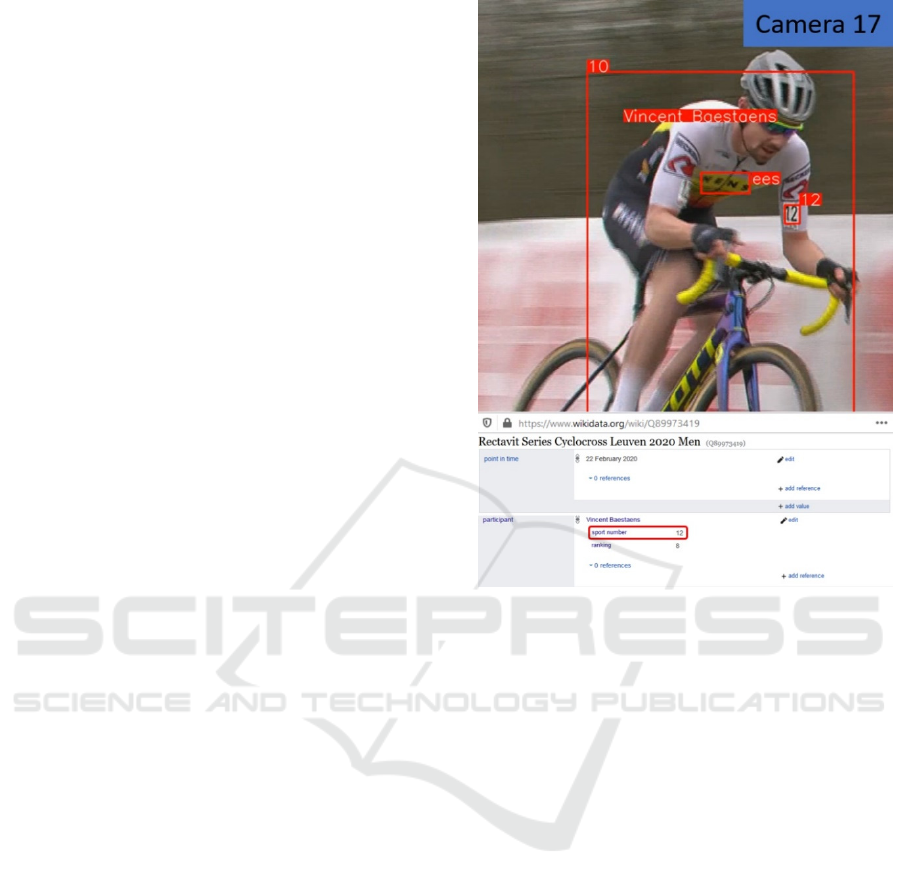

Figure 10: Example of optical character recognition (OCR)

on camera 17 output stream. With the combination of the

detected shoulder number and the participant list added to

the race’s WikiData page the rider was correctly

recognized. In combination with the camera proximity

algorithm this can produce an accurate rider detector and

tracker.

As mentioned, another aspect we’re currently

focussing on is the creation of an intuitive camera

coverage labelling tool for the race directors. Such a

tool should allow them to easily label the locations of

the cameras on the racecourse using a web application

on a wearable device. The tool could do the

conversion process to the GeoJSON standard

automatically, which would be a huge step towards a

fully automated camera proximity algorithm.

As a final note, the proposed methodology of

linking participant location data with camera and

course/playfield information can also be repurposed

in other sports such as cross country skiing (Swarén

et al.) or motorsports. With some adaptations the

proposed methodology can also be used in team

sports such as hockey, rugby or soccer. However,

these type of team sports might benefit from a more

accurate location tracking system such as Ultra Wide

Band (UWB) or Radio-Frequency Identification

(RFID) (Gudmundsson and Horton) position tracking

as GPS accuracy errors and the relatively small

GPS Driven Camera Selection in Cyclocross Races for Automatic Rider Story Generation

dimensions of the playgrounds might give false

camera proximity results (Castillo et al.).

ACKNOWLEDGEMENTS

This research is funded by the imec ICON project

DAIQUIRI (Agentschap Innoveren en Ondernemen

project nr. HBC.2019.0053).

REFERENCES

Baek, Y., Lee, B., Han, D., Yun, S., & Lee, H. (2019).

Character region awareness for text detection. In

Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition (pp. 9365-9374).

Bastida Castillo, A., Gómez Carmona, C. D., De la cruz

sánchez, E., & Pino Ortega, J. (2018). Accuracy, intra-

and inter-unit reliability, and comparison between GPS

and UWB-based position-tracking systems used for

time–motion analyses in soccer. European journal of

sport science, 18(4), 450-457.

Chen, J., Lu, K., Tian, S., & Little, J. (2019, January).

Learning sports camera selection from internet videos.

In 2019 IEEE Winter Conference on Applications of

Computer Vision (WACV) (pp. 1682-1691). IEEE.

Fong, W. T., Ong, S. K., & Nee, A. Y. (2008, September).

A differential GPS carrier phase technique for precision

outdoor AR tracking. In 2008 7th IEEE/ACM

International Symposium on Mixed and Augmented

Reality (pp. 25-28). IEEE.

Garcia, A., Kalva, H., & Furht, B. (2010, October). A study

of transcoding on cloud environments for video content

delivery. In Proceedings of the 2010 ACM multimedia

workshop on Mobile cloud media computing (pp. 13-

18).

Gudmundsson, J., & Horton, M. (2017). Spatio-temporal

analysis of team sports. ACM Computing Surveys

(CSUR), 50(2), 1-34.

Hess, B., Farahani, A. Z., Tschirschnitz, F., & von

Reischach, F. (2012, November). Evaluation of fine-

granular GPS tracking on smartphones. In Proceedings

of the First ACM SIGSPATIAL International Workshop

on Mobile Geographic Information Systems (pp. 33-

40).

Ingole, P. V., & Nichat, M. M. K. (2013). Landmark based

shortest path detection by using Dijkestra Algorithm

and Haversine Formula. International Journal of

Engineering Research and Applications (IJERA), 3(3),

162-165.

Merry, K., & Bettinger, P. (2019). Smartphone GPS

accuracy study in an urban environment. PloS one,

14(7), e0219890. https://doi.org/10.1371/journal.

pone.0219890

Nag, S., Ramachandra, R., Shivakumara, P., Pal, U., Lu, T.,

& Kankanhalli, M. (2019, September). CRNN Based

Jersey-Bib Number/Text Recognition in Sports and

Marathon Images. In 2019 International Conference on

Document Analysis and Recognition (ICDAR) (pp.

1149-1156). IEEE.

SPOT (n.d.). About Spot. Retrieved on May 13, 2020 from

https://www.findmespot.com/en-us/about-

spot/company-info

Shen, C., Zhang, C., & Fels, S. (2007, September). A multi-

camera surveillance system that estimates quality-of-

view measurement. In 2007 IEEE International

Conference on Image Processing (Vol. 3, pp. III-193).

IEEE.

Swarén, M., Stöggl, T., Supej, M., & Eriksson, A. (2016).

Usage and validation of a tracking system to monitor

position and velocity during cross-country skiing.

International Journal of Performance Analysis in

Sport

, 16(2), 769-785.

Quarq Qollector. (2015). quarq-qollector. Retrieved on May

13, 2020 from https://prod.quarq.com/product/quarq-

qollector/

Westra, E. (2010). Python geospatial development. Packt

Publishing Ltd.

Xue, Y., Song, Y., Li, C., Chiang, A., & Ning, X. (2017).

Automatic Video Annotation System for Archival

Sports Video. 2017 IEEE Winter Applications of

Computer Vision Workshops (WACVW), 23-28.

icSPORTS 2020 - 8th International Conference on Sport Sciences Research and Technology Support
