Improving Learning in a Mobile Robot using Adversarial Training

Todd W. Flyr

1 a

and Simon Parsons

1,2 b

Department of Computer Science, Graduate Center, City University of New York, New York, U.S.A.

School of Computer Science, University of Lincoln, Lincoln, U.K.

Keywords:

Mobile Robotics, GANs, Adversarial Training, Machine Learning.

Abstract:

This paper reports research training a mobile robot to carry out a simple task. Speciﬁcally, we report on

experiments in learning to strike a ball to hit a target on the ground. We trained a neural network to control

a robot to carry out this task with data from a small number of trials with a physical robot. We compare the

results of using this neural network with that of using a neural-network trained with this dataset plus the output

of a generative adversarial network (GAN) trained on the same data. We ﬁnd that the neural network that uses

the GAN-generated data provides better performance. This relationship holds as we present the robot with

generalized versions of this task. We also ﬁnd that we can produce acceptable results with an exceptionally

small initial dataset. We propose that this is a possible way to solve the “big data” problem, where training a

neural network to learn physical tasks requires a large corpus of labeled trial data that can be difﬁcult to obtain.

1 INTRODUCTION

Machine learning is essential if robotics is going to

reach its full potential. The alternative, that every

detail of what every robot does is individually pro-

grammed into it, will just not scale. However, there

are many challenges in applying machine learning to

robotics. One, in particular, is our focus here. That is

the problem of ensuring that there is sufﬁcient data for

a robot to learn a task. Generating a single datapoint

with a physical robot can be time-consuming, and

that makes the data needs of modern deep-learning

approaches extremely hard to meet even for simple

robot tasks.

Robotics is not alone as an application area of ma-

chine learning where it is difﬁcult to ﬁnd enough data

to feed deep methods (though it is an area in which

it is particularly hard to collect data). As a result, re-

searchers have come up with a number of ingenious

methods for augmenting the datasets that they can col-

lect. For example, in computer vision, it is common

to generate additional data by manipulating existing

data — ﬂipping and/or cropping images is one com-

mon approach (Chatﬁeld et al., 2014).

A more general approach is to use a generative ad-

versarial network (GAN) to create synthetic data that

can improve learning, as in (Bowles et al., 2018). We

https://orcid.org/0000-0003-2011-1552

https://orcid.org/0000-0002-8425-9065

will discuss GANs in more detail below, but a well-

trained GAN will generate elements that are indistin-

guishable from those in the original dataset.

Recently, we (Flyr and Parsons, 2019) demon-

strated that it was possible to use a GAN to gener-

ate data that can successfully augment the dataset on

which a robot is trained to complete a simple task.

We compared the performance of a neural network

controller learnt from a dataset of robot trials, and a

controller learnt from that dataset augmented with the

output of a GAN. This was restricted to situations in

which the initial conditions for the robot task were

close to those in the training set. In other words,

little generalization was demonstrated. In this paper

we go further, showing that augmenting a dataset of

robot trials with data from a GAN improves the per-

formance of the robot on trials that are well outside

the scope of the initial dataset. This is possible since

the GAN, in effect, can hypothesize a wide range of

plausible trial data.

The speciﬁc task that we study here is that of a

robot learning to strike a ball towards a target on the

ground. We use a very simple instance of this task —

the robot is a simple mobile base, and the only cus-

tomization is a metal plate attached perpendicular to

the side of the robot. The robot hits the ball by ro-

tating so that the plate strikes it. One might view this

as a putting in golf, or as the kind of “kick” used by

robot in early iterations of RoboCup. The challenge

Flyr, T. and Parsons, S.

Improving Learning in a Mobile Robot using Adversarial Training.

DOI: 10.5220/0010107100820089

In Proceedings of the International Conference on Robotics, Computer Vision and Intelligent Systems (ROBOVIS 2020), pages 82-89

ISBN: 978-989-758-479-4

for the robot thus reduces to deciding where to po-

sition itself, given the position of ball and target, in

order to strike the ball effectively. This is a task that

is complex enough to be somewhat challenging if the

robot were to be programmed directly, but also simple

enough to be feasible without an expensive lab setup.

The remainder of this paper is structured as fol-

lows. Section 2 describes related work. Then Sec-

tion 3 describes the approach that we adopted. Sec-

tion 4 describes the speciﬁc experiments that we car-

ried out, and Section 5 presents the results that we ob-

tained. Section 6 discusses the results while Section 7

concludes with pointers to future work.

2 RELATED WORK

There is a large literature applying machine learning

to robotics. Here we brieﬂy survey the work that is

most related to our own.

This paper builds on our work which looked at the

use of adversarial training for a robot that was learn-

ing to hit a ball a target (Flyr and Parsons, 2019) .

We tested whether the training set for a neural net-

work controller could be usefully extended by exam-

ples generated by a GAN which was trained on the

same data set. This paper starts from the same posi-

tion, and then examines the extent to which data gen-

erated by the GAN makes it possible for the controller

to generalise, ﬁrst to scenarios outside the range of the

training data, and second to cope with a very minimal

training set.

This approach to data augmentation with a GAN

relates to (Salimans et al., 2016). In that case, the

GAN is used to generate an extra class of data in ad-

dition to their canonical list of classes, K. As this

GAN generated trial data is the K + 1th class, it is ef-

fectively unlabeled. (Salimans et al., 2016) then show

how this can be used to improve training on the la-

beled data, similar to how semi-supervised learning

works via exposing a neural network to related, but

unlabeled data. Our approach differs in that we simu-

late the entire system of inputs and outputs, including

a measure of success, and train the discriminator to

simply assert whether or not that combination is plau-

sible.

This interest in a controller’s ability to make pre-

dictions outside the range of its experience is in-

spired by Bongard’s concept of prospection (Bongard,

2015). This is the ability to predict future actions, in

particular the ability to mentally simulate the actions

in contexts that have never been previously encoun-

tered.

For us, this connects with the use of the GAN,

with its ability to generate data from which the con-

troller can learn standing as a simple form of prospec-

tion by providing the controller with imagined scenar-

ios and the action that should be taken in those scenar-

ios.

(Lee and Ryoo, 2017) developed a method for

training a large CNN combined with an autoencoder

to learn from video of humans manipulating objects

with their hands. (Lee and Ryoo, 2017) involves a

form of prediction where a sequence of video frames

is mapped to 1-2 seconds of further video, thus “pre-

dicting” what will be seen a short distance into the

future. This ability can be used, for example, to iden-

tify the point at which a person carrying a box will

want to put it down, allowing a robot to anticipate the

need to clear a space for the box.

The approach to prediction from (Lee and Ryoo,

2017) has subsequently been applied to provide a

robot with the ability to engage in learning through

self simulation. In this work, a controller for a Turtle-

bot is trained to recognize an object, and decide

whether to approach it or avoid it, by using a “dream-

ing model”. The process starts with the robot wan-

dering randomly in the space taking pictures. Then

a variational autoencoder with the prediction mecha-

nism from (Lee and Ryoo, 2017) is used to produce

sequences of images that make up a realistic path to

(or away from) the object. A reinforcement learning

algorithm is then used to learn a policy that will take

the robot along the relevant path. After the pictures

are taken, the whole process is completed without any

real-world trials, and so it represents a form of imag-

ining how to achieve a simple goal.

Finally, we note that (Gupta et al., 2018) use

a GAN framework to improve models for predict-

ing trajectories when navigating in a crowd. Like

our work, (Gupta et al., 2018) shows what can be

achieved by using a GAN architecture when learning

with a robot. However, unlike our work, there is no

physical robot.

3 APPROACH

This section explains the setup for our experimental

work. There are three aspects — the physical setup

of the robot and the task it is learning, the way that

data is collected, and the design and training of the

controllers. We discuss these in turn.

3.1 Physical Setup

The physical setup replicates that from our earlier

work in (Flyr and Parsons, 2019), though our arenas

Improving Learning in a Mobile Robot using Adversarial Training

(i) (ii) (iii)

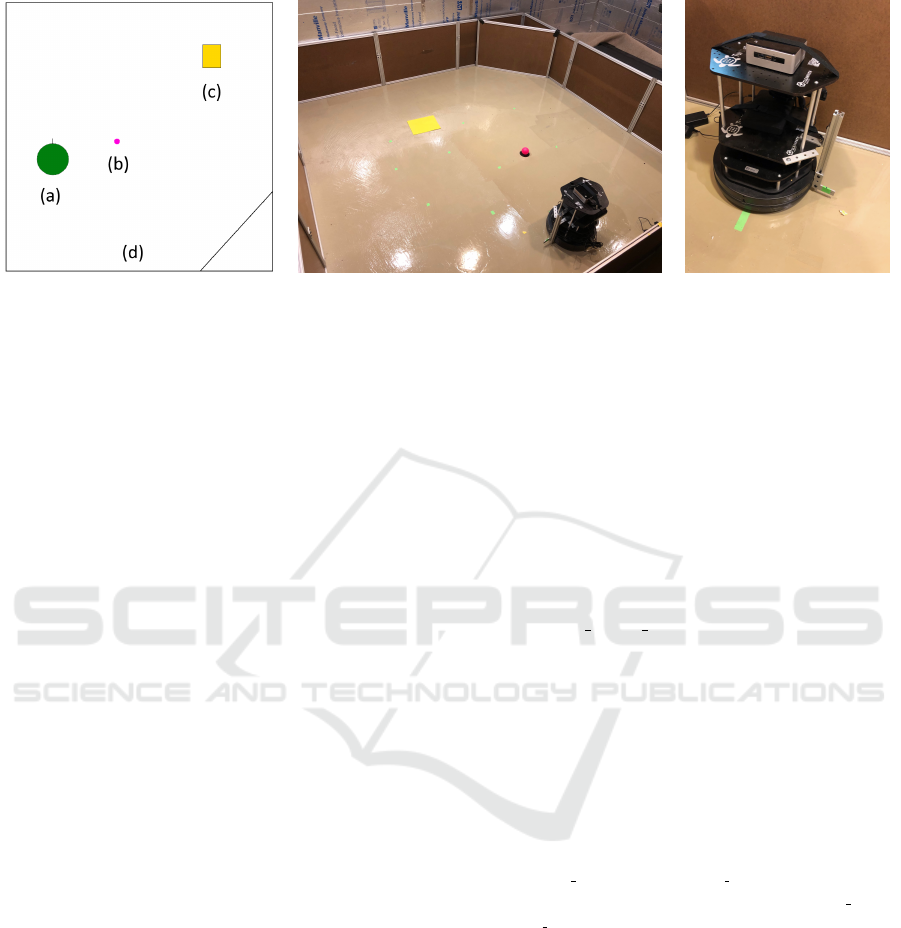

Figure 1: The physical setup. (i) is a diagrammatic view of the arena: (a) The turtlebot with the putter head attached to the

side; the ball—in an initial position; (c) the target—a piece of colored paper, the robot must locate the ball and the target and

then properly position itself to line up the shot; (d) the arena walls. (ii) is a picture of the the arena. (iii) is a photograph of

the modiﬁed Turtlebot.

are larger at about 3 metres square.

The physical setup is shown in Figure 1. The tar-

get is a coloured piece of paper on the ﬂoor of the

arena. The robot is a Turtlebot 2, modiﬁed by attach-

ing a “putter” to the side of the robot. The robot starts

at a position in the arena that is somewhat distant from

the ball. It approaches the ball, and strikes the ball the

ball by rotating so that the putter comes into contact

with it. If the ball passes over the target, we con-

sider that a “hit”. Otherwise we consider that the ball

missed the target.

3.2 Data Collection

In order to develop a dataset, trial data was collected

from a number of scenes. We use the term scene to

mean a unique robot initial position, ball initial posi-

tion, and target location. For each scene, we collected

data for several trials. A trial is an attempt for the

robot to hit the ball to the target in a given scene.

Unlike our work in (Flyr and Parsons, 2019),

where we used a rule-based system to collect trial

data, we controlled the robot by hand during data col-

lection. Data was collected as follows. First, a scene

was selected and the robot was driven to a suitable

position from which to hit the ball. The robot local-

ized, and recorded its pose, we call this the demon-

strated position for the scene. Trials were then run

for this scene. Each trial involved the following. The

robot localized, and recorded its pose in its initial po-

sition. The robot also detected, using its on-board

RGB-D camera, the location of the ball and the tar-

get. These are the ball and target locations recorded

for the trial. The robot then drove to the demonstrated

position, using its on-board localization to determine

its ﬁnal pose — this was recorded as the robot’s ﬁ-

nal position. The robot then attempted to hit the ball

(by rotating and swinging the putter at the ball). The

on-board camera then tracked the ball and determined

whether or not the target was hit. If the target was not

hit, then the closest approach of the ball to the target

was computed and recorded. As a result, the data for

each trial consists of the robot’s estimates of:

htarget(x, y), ball(x, y),

robot initial pose(position(x, y), yaw))i

and which form the input to the neural network, along

with the robot’s estimates of its ﬁnal position:

hposition(x, y), yawi

that is the position from which it should attempt to

hit the ball. This ﬁnal position is what the neural net-

work is trained to predict given the input. In order

to learn the optimal settings for the task, we added

in the terms for the minimum distances of the task

goals: inv

bt min

(x, y) and inv

rb min

(x, y) where bt is

the ball-target distance and rb is the robot

f inal pose

−

ball

initial position

distance . Because of noise in the

robot’s estimates, and because the target position was

being generated by the human operator, a given scene

could generate several different trials. For Experi-

ments 1 and 2 we collected sufﬁcient data that we

had several successful and unsuccessful trials for each

scene. For Experiments 3 and 4, where (see below)

we were interested in establishing a minimal training

set, we continued trials until the target was hit, and

kept just that trial.

It is worth noting that the only human involvement

collecting the training data — and hence in the entire

training process — is to pilot the robot to its ﬁnal po-

sition before carrying out trials. Identifying the po-

sitions of all the relevant objects is carried out by the

ROBOVIS 2020 - International Conference on Robotics, Computer Vision and Intelligent Systems

robot. As a result, we consider that this work falls into

the category of learning by demonstration, with each

trial being a single, simple, demonstration.

3.3 Training the Controllers

The process for training the GAN and the MLP con-

trollers were identical to the training in (Flyr and Par-

sons, 2019).

Each experiment compares two controllers. One

is a neural network learnt directly from the training

data collected as above what we call the initial train-

ing data. This neural network is a fully connected

feed forward network with two hidden layers. The

network topology was 11 × 120 × 84 × 3. Note that

training only considered the yaw (rotation on the z-

axis) of the robot. Thus the input to the controller is

htarget(x, y), ball(x, y),

robot initial pose(position(x, y), yaw),

inv

bt min

(x, y), inv

rb min

(x, y))i

and the output from the neural network is:

hposition(x, y), yawi

This is an estimate of the position from which the

robot should hit the ball. We call the controller that

is learnt from the initial training data the MLP con-

troller.

The second controller is a neural network with the

same architecture as the MLP controller, but which

makes use of additional training data. This additional

data is generated using a WGAN (Arjovsky et al.,

2017). The GAN is used in a standard way — it is

made up of a a generator, G, and a critic, D. The gen-

erator, G, takes noise as input, and generates data that

simulates trials of the robot. G is trained against the

critic D. D takes G’s outputs as input, and only out-

puts whether or not each output from G looks like a

genuine trial run. G uses the results from the critic

to learn how to output data that looks exactly like the

trial data in the initial training set, and at the same

time D learns, based on the initial training data, how

to recognise data that is close to that in the training

set.

The generator network had a topology of 8 × 96 ×

106 × 106 × 106 × 106 × 96 × 14 while the critic had

a topology of 14 × 64 × 74 × 74 × 74 × 74 × 64 × 1.

The generator simulates the entire system, thus the

11 inputs and the 3 outputs are combined for the 14

outputs of the generator.

Once trained, the GAN was used to generate some

additional trials that were added to the initial dataset

to create an augmented training set. Another neural

network was then trained using the augmented train-

ing set. We call this controller the MLP/GAN. The

main difference between Experiments 1 and 2, on one

hand, and Experiments 3 and 4, on the other, is in the

number of trials in the initial and augmented datasets.

We give these details in the description of the individ-

ual experiments below.

3.4 Carrying out Experiments

Once the controllers were trained, we carried out

trials in which the robot, completely autonomously,

attempted to hit the ball to the target. The robot,

ball and target were set up as a scene. The robot

then self-localized, identiﬁed the positions of ball and

target, and used its neural network (either MLP or

MLP/GAN), to identify the pose from which it should

hit the ball. The robot then used the standard ROS

navigation stack to move to the pose indicated by the

neural network. Once there, the robot swung and tried

to hit the ball, tracked the ball, and recorded if there

was a hit, and if not recorded the closest approach to

the target.

4 EXPERIMENTS

In this section we describe the set of experiments that

we carried out.

4.1 Overview

We present results from four experiments. In each

experiment we compared two robot controllers, the

MLP and MLP/GAN described above. For each ex-

periment, we ran a number of trials.

An example of the data collected for a trial is given

in Figure 2a. This shows initial and ﬁnal positions of

the robot (green and blue squares, respectively), the

expected ﬁnal position of the robot (blue star), the ini-

tial position of the ball (red circle), the target position

(yellow square), and the tracked location of the ball.

What is recorded are the earliest point at which the

moving ball is observed (magenta circle), around one

meter from the robot, where the ball comes to rest

(magenta triangle), and the track (blue line). From

this we can compute the closest approach of the ball

to the center of the target.

Table 1: The composition of the full dataset.

Hit Hit Ball/Missed Target Missed Ball Total

54 90 10 154

Improving Learning in a Mobile Robot using Adversarial Training

The experiments tested two parameters, each of

which had two possible values. (Hence four exper-

iments.) One parameter was the size of the dataset

that we used to train the controllers. This parame-

ter either had value 154, or had value nine, the min-

imum number of trials for which we could generate

sensible robot behaviour. We call the ﬁrst of these the

full dataset, and the second the minimal dataset. The

other parameter relates to the scenes, and has values

in-range and out-of-range. In range scenes are those

in which the initial position of the robot, the initial po-

sition of the ball and the position of the target all lie

in the range of positions used in constructing the ini-

tial training set. In out-of-range scenes, one or more

of these positions is allowed to range across the entire

arena. The range of positions for the initial training

dataset in Experiments 1 and 2 is shown in Figure 2b.

The four experiments are thus:

• Experiment 1: Full dataset, in-range.

• Experiment 2: Full dataset, out-of-range.

• Experiment 3: Minimal dataset, in-range.

• Experiment 4: Minimal dataset, out-of-range.

The ﬁrst experiment replicates our work in (Flyr and

Parsons, 2019), though with a much larger dataset —

both more scenes and more trials. Looking at the re-

sults of the second experiment alongside this should

tell us whether a training dataset augmented with data

generated by a GAN that was trained on the same

dataset can be used to improve the ability of the robot

to hit the target when the robot is presented with ini-

tial conditions outside the range of conditions that it

has seen before. In other words, this is a test of the

controller’s ability to generalize. The second two ex-

periments then allow us to examine how this ability to

generalize is affected by starting from a much reduced

— we would argue a bare minimum — dataset.

4.2 Experimental Detail

4.2.1 Experiment 1

For the ﬁrst experiment,we ran 154 trials with the

Turtlebot, as described above. The breakdown of the

data, in terms of how many trials resulted in the ball

hitting the target, the robot hitting the ball but missing

the target, and the robot missing the ball, is given in

Table 1.

The MLP was learnt from this data. The GAN was

trained on these same 154 trials, and used to generate

the data for 200 more. The combined dataset of 354

trials is the augmented training set. The MLP/GAN

was then trained on the augmented set. The con-

trollers were then tested on a small number of trials

where the scenes were chosen from those used to gen-

erate the training data. (This is not the same as saying

the controllers were tested on the training data — see

the discussion in Section 5). Care was taken that both

controllers were tested on a similar pattern of scenes.

4.2.2 Experiment 2

The second experiment was intended to test whether,

in addition to improving the performance of the con-

troller on data similar to that in the initial training set,

the MLP/GAN was able to generalize to scenes out-

side the range of the initial training set. Normally, we

would expect that presenting a neural network with

inputs that are outside of the ranges on the data on

which it was trained would fail, and so it was our

expectation that the MLP controller would perform

badly in this experiment. However, the use of the

GAN can expand the range of possible inputs to some

degree via a logical extrapolation from the existing

data, so it was our hypothesis that in this case, the

MLP/GAN would function better than the MLP. The

experiment took the same MLP and MLP/GAN con-

trollers from Experiment 1, and tested them on such

scenes — for example scenes where the ball is at the

extreme right of the robot and the target is at the ex-

treme left. Again, the pattern of scenes presented to

both controllers was similar.

4.2.3 Experiment 3

The third experiment was intended to test how well

the GAN can augment the scene dataset starting from

an initial training set that was as small as possible. To

create a minimal dataset, a single robot position was

used, position (1.0, 2.0) (see the coordinate system

in Figure 2a). A set of ball and target positions were

chosen that covered the breadth of the arena, in partic-

ular to ensure that they include every combination of

robot movement to the ball (move straight, turn left,

turn right) and rotation to face the target from the ball

(none, clockwise, counter-clockwise). This resulted

in the nine scenes. For each scene, trials were re-

peated until a hit was recorded, and the data from the

trial that led to the hit was added to the initial training

set. The initial training set was thus made up of nine

trials, each reﬂecting a different scene. The MLP and

MLP/GAN networks were trained as before with the

GAN generating an additional 200 scenes so that the

augmented dataset was made up of 209 scenes.

For Experiment 3, both controllers were then

tested using the same nine scenes. Each scene was

used eight times to create 72 trials.

ROBOVIS 2020 - International Conference on Robotics, Computer Vision and Intelligent Systems

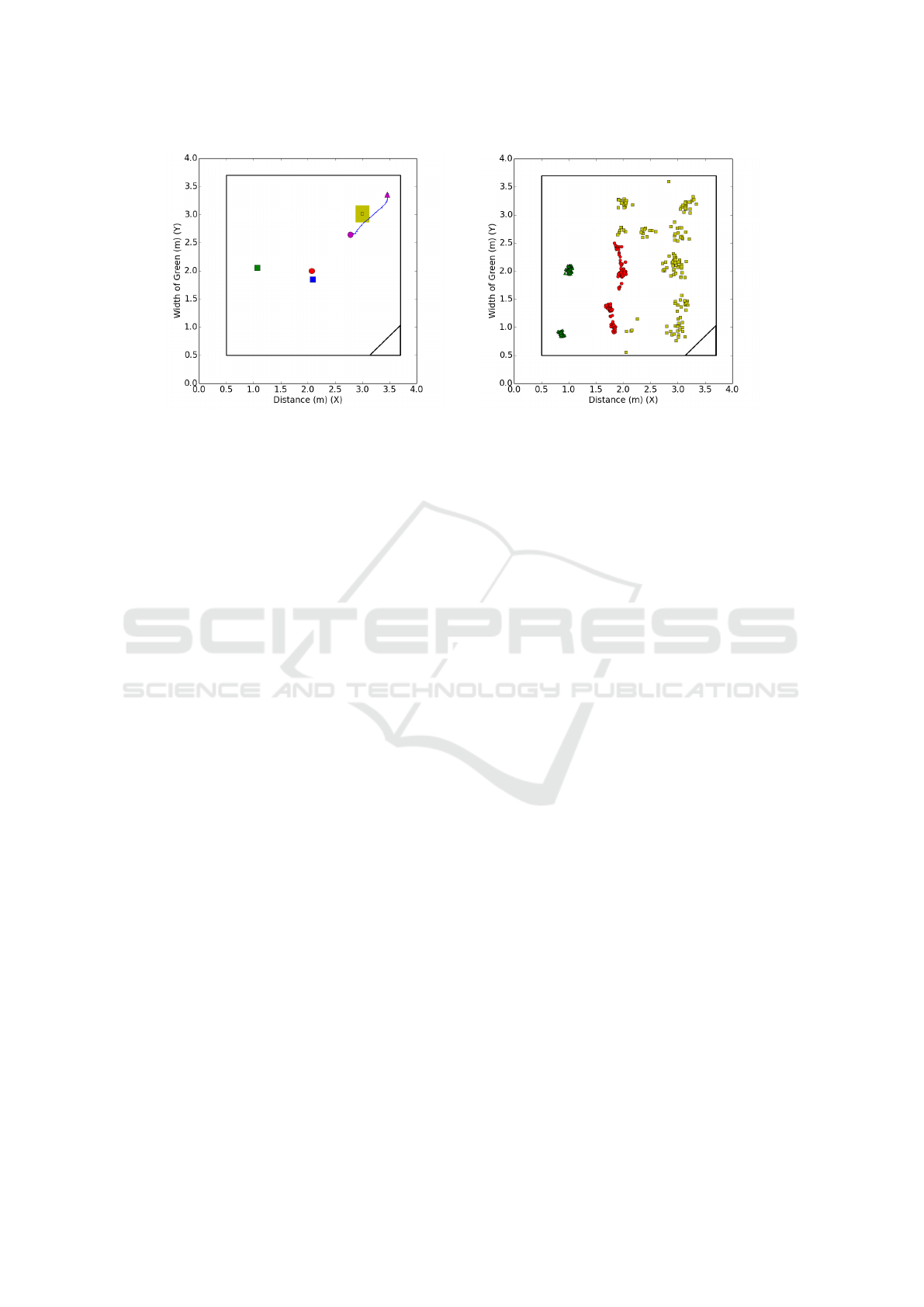

(a) (b)

Figure 2: Examples of data from our experiments: (a) data recorded in a trial, and (b) scenes for some of the experiments. In

(a), the initial position of the robot is in green, and its ﬁnal position is in blue. The initial position of the ball is in red, the blue

line indicates where the ball has been tracked — from the magenta circle to the magenta triangle. The target is the big yellow

square. In (b), robot positions are green triangles, ball positions are red circles and target positions are yellow squares.

4.2.4 Experiment 4

The fourth experiment was intended to test general-

ization in the minimal dataset scenario. The MLP and

MLP/GAN controllers from Experiment 3 were again

tested by making two trials from each of eight scenes,

just as in Experiment 3. However, these scenes were

novel, that is they were not included in the training

data. Some scenes were in the range of the training

data and other scenes were outside that range.

5 RESULTS

5.1 Experiments 1 and 2

The ﬁrst two sections of Table 2 summarize the results

of the experiments. For both the MLP and MLP/GAN

controllers, we report the total number of trials (sec-

ond column), the number of times the target was hit

(third column), the number of times that the ball was

hit but the target was missed (fourth column), and

the number of times that the ball was missed (ninth

column). When the ball was hit but the target was

missed, we report the average and median closest ap-

proach that the robot made to the ball (ﬁfth and sixth

columns) and that the ball made to the target (seventh

and eighth columns). When the ball was missed, we

report the average and median distance of the robot

from the ball (tenth and eleventh columns).

The results of Experiment 1 suggest improved per-

formance for the MLP/GAN. While the MLP con-

troller is not able to hit the target at all, the MLP/GAN

manages to do this around 30% of the time. When

hitting the ball but not the target, the MLP/GAN hits

the ball closer, on average, to the target. However,

when the robot misses the ball, the MLP controller

has it come closer to the ball, on average, than the

MLP/GAN. The median approach to robot to ball is

lower for the MLP than the MLP/GAN. We carried

out Barnard’s exact test on the numbers of hits and

misses achieved by the MLP and MLP/GAN. This

produces a p-value of P = 0.1163, indicating a prob-

ability of 0.8837 that the MLP/GAN performs better

on this measure.

The scenes used for the trials in Table 2 were taken

from the set of scenes that were used in generating

the training data. Consequently, these results might

be considered to have been obtained from the training

data. However, using a scene from the training data

to test the performance of the controller learned from

the training data does not mean the controller is being

presented with exactly the same instance that it was

trained on. It is considerably different than, for ex-

ample, testing a neural network-based vision system

on one of the images that it was trained on. This is

because the scene only describes the physical setup

at the start of the trial — it identiﬁes the location of

the robot, ball and target as positioned by the exper-

imenters. It does not exactly ﬁx the data that is fed

into the controller, since this is computed by the robot

from its localization component, and data extracted

from its camera. Though we would expect that the

data generated by the robot from two instances of the

same scene to be close, the noise means that two in-

stances will generate different data. As a result, we

argue that testing with in-range scenes is not the same

Improving Learning in a Mobile Robot using Adversarial Training

as using training data for testing, but equally does tell

us much about the controllers’ ability to generalize.

What it does allow us to show, is that in terms of hit-

ting the target, which is the task it is trained for, the

MLP/GAN likely performs better than the MLP, ex-

actly as we might expect.

The results of Experiment 2 (Table 2, second sec-

tion) extend our work in (Flyr and Parsons, 2019),

showing that the MLP/GAN is able to generalize

to scenes that are outside the range of the training

set. While it does not manage to hit the target, the

MLP/GAN controller is able to hit the ball a few times

while MLP controller, as one might expect, was not

able to hit the ball in eight attempts. Comparing the

counts of hits and misses by the two controllers us-

ing Barnard’s exact test gives P = 1.0 as those counts

were identical. But comparing whether or not the

robot hit the ball gives P = 0.2118 as the MLP/GAN

actually hit the ball twice. Thus it is likely that there is

a measurable improvement in generalization from the

use of the GAN even in this more extreme scenario.

5.2 Experiments 3 and 4

The results of Experiments 3 and 4 are given in the

second half of Table 2.

Experiment 3 shows that both MLP and

MLP/GAN controllers outperform their counterparts

from Experiments 1 and 2. Further, in Experiment

3, as in Experiment 1, the MLP/GAN controller

performs much better than the MLP controller, on

the same metrics — it hits the target more often,

and when it misses the target, the mean approach is

closer (however, the median approach of the robot

to the ball is again slightly higher). Comparing

counts of hits and misses by the two controllers

using Barnard’s exact test gives P = 0.0383 so the

difference is statistically signiﬁcant. While again,

especially in the light of Experiment 1, this might be

expected, it is notable that even when trained with

so little data, the GAN can generate additional data

that improves the performance of the network trained

from it.

Experiment 4 shows the performance of the two

controllers on novel scenes. Here the performance

of the MLP/GAN in the novel out of range scenes

is marginally worse than the non-augmented MLP.

Comparing counts of hits and misses by both con-

trollers yields P = 1.0, as in Exp 2 — there is no

difference in performance. Indeed, while both con-

trollers had an equal number of hits on the target,

the MLP/GAN controller missed the ball more fre-

quently, and only outperformed the MLP in the sense

that it came closer, on average, to the target in the “hit

ball/missed target” category, a difference that is not

statistically signiﬁcant. However, it is worth noting

that both controllers show good generalization here,

hitting the target more than a third of the time even

though ball, target, or both are positioned outside the

range of locations seen in the training data. We dis-

cuss why the MLP/GAN did not perform better in

Section 6 below.

6 DISCUSSION

While the previous section shows that GAN augmen-

tation improves that robot’s ability to learn the task,

we do not suppose that what we have is necessarily

the best solution. But it does illustrate how GAN

augmentation may improve performance on a task for

which a neural network is a good solution apart for

the need of a large number of physical trials. Fur-

thermore, with a carefully tailored dataset, as in Ex-

periment 3, we can obtain reasonable performance for

what is quite hard task when all the noise is taken into

account. This suggests that it is possible to train a

mobile robot on a physical task when it is difﬁcult or

expensive to obtain a large corpus of training data.

It is interesting to reﬂect on the question of what

the GAN is actually generating. Upon review, the

GAN generated trials follow the same general pattern

of the physical trials.

However, the GAN generates some trials that

stretch the dimensions of each element of the scene,

while maintaining the proportional relationships be-

tween these elements established in the training data.

IT also “ﬂips” some trials into the negative X di-

rection. These additional trials are sufﬁcient to im-

prove performance. In Experiment 2, for example,

the ﬂipped trials expanded the range enough to en-

able the robot to at least hit the ball when placed in a

trial which was well outside of the scene data.

A follow-up question is why the MLP/GAN did

not perform well in Experiment 4. A review of the

GAN generated data for Experiment 4 showed a form

of mode collapse. It seems likely that this explains the

poorer performance of the MLP/GAN in out-of-range

scenes.

7 CONCLUSIONS

While the work presented here gives clear evidence

that the GAN-augmentation of a small dataset com-

posed of physical trials can improve performance,

there are some possibilities for improvements. (Sal-

imans et al., 2016) suggests one avenue, which is

ROBOVIS 2020 - International Conference on Robotics, Computer Vision and Intelligent Systems

Table 2: Results for all experiments. Experiment 1: Full dataset, in-range scenes. Experiment 2: Full dataset, out-of-range

scenes. Experiment 3: Minimal dataset, in-range scenes. Experiment 4: Minimal dataset, out of range scenes. The subscript

rb indicates robot/ball and t indicates target.

Experiment 1

Type Total Hit Target Hit Ball/Missed Target Missed Ball

# # # Mean

Med

Mean

Med

# Mean

Med

MLP 9 0 5 0.1438 0.1404 0.4504 0.4607 4 0.1375 0.1287

MLP/GAN 11 3 4 0.2023 0.2022 0.3246 0.3772 4 0.2069 0.2382

Experiment 2

MLP 8 0 0 - - - - 8 0.2985 0.3312

MLP/GAN 8 0 2 0.2816 0.2816 0.5370 0.5370 6 0.3022 0.3395

Experiment 3

MLP 36 12 11 0.2106 0.1990 0.3368 0.2989 13 0.2467 0.2785

MLP/GAN 36 21 7 0.2254 0.2223 0.3854 0.3321 8 0.2524 0.2432

Experiment 4

MLP 16 6 4 0.1791 0.1898 0.3399 0.2624 6 0.43 0.3977

MLP/GAN 16 6 1 0.2128* 0.2128* 0.3039* 0.3039* 9 0.3439 0.2427

*The mean and median results match as there is only a single trial where the ball was hit but the target was missed.

to train the generator on an intermediate layer of

the discriminator, which is the actual features of the

dataset, as opposed to a singular output that inade-

quately combines those features.

Another line of inquiry is to use a more recent

GAN architecture. We picked the WGAN (Arjovsky

et al., 2017) to minimize mode-collapse. However,

mode-collapse was still a problem in Experiment 4.

A natural response is to use a GAN such as that de-

scribed in (Gulrajani et al., 2017), which incorporates

further technical improvements.

Regardless of these future developments, we be-

lieve that we have shown GAN-augmentation is a vi-

able path for developing robust controllers for phys-

ical robots in scenarios where a sufﬁcient number of

the physical trials is difﬁcult to obtain.

ACKNOWLEDGEMENTS

These experiments were carried out while Todd Flyr

was a visiting student at King’s College London. We

are grateful to King’s for hosting him, and for allow-

ing us to use the robotics facilities in the Department

of Engineering.

REFERENCES

Arjovsky, M., Chintala, S., and Bottou, L. (2017). Wasser-

stein generative adversarial networks. In Precup, D.

and Teh, Y. W., editors, Proceedings of the 34th Inter-

national Conference on Machine Learning, volume 70

of Proceedings of Machine Learning Research, pages

214–223, International Convention Centre, Sydney,

Australia. PMLR.

Bongard, J. C. (2015). Using robots to investigate the evo-

lution of adaptive behavior. Current Opinion in Be-

havioral Sciences, 6:168–173.

Bowles, C., Chen, L., Guerrero, R., Bentley, P., Gunn, R.,

Hammers, A., Dickie, D. A., Hern

andez, M. V., Ward-

law, J., and Rueckert, D. (2018). GAN augmentation:

Augmenting training data using generative adversarial

networks. arXiv preprint arXiv:1810.10863.

Chatﬁeld, K., Simonyan, K., Vedaldi, A., and Zisserman,

A. (2014). Return of the devil in the details: Delving

deep into convolutional nets. In Proceedings of the

British Machine Vision Conference. BMVA Press.

Flyr, T. W. and Parsons, S. (2019). Towards adversar-

ial training for mobile robots. In Proceedings of the

20th Towards Autonomous Robotic Systems Confer-

ence, London.

Gulrajani, I., Ahmed, F., Arjovsky, M., Dumoulin, V., and

Courville, A. C. (2017). Improved training of Wasser-

stein GANs. In Guyon, I., Luxburg, U. V., Bengio, S.,

Wallach, H., Fergus, R., Vishwanathan, S., and Gar-

nett, R., editors, Advances in Neural Information Pro-

cessing Systems 30, pages 5767–5777. Curran Asso-

ciates, Inc.

Gupta, A., Johnson, J., Fei-Fei, L., Savarese, S., and Alahi,

A. (2018). Social GAN: socially acceptable trajec-

tories with generative adversarial networks. CoRR,

abs/1803.10892.

Lee, J. and Ryoo, M. S. (2017). Learning robot activities

from ﬁrst-person human videos using convolutional

future regression. CoRR, abs/1703.01040.

Salimans, T., Goodfellow, I., Zaremba, W., Cheung, V.,

Radford, A., Chen, X., and Chen, X. (2016). Im-

proved techniques for training GANs. In Lee, D. D.,

Sugiyama, M., Luxburg, U. V., Guyon, I., and Garnett,

R., editors, Advances in Neural Information Process-

ing Systems 29, pages 2234–2242. Curran Associates,

Inc.

Improving Learning in a Mobile Robot using Adversarial Training
