Selective Auctioning using Publish/Subscribe

for Real-Time Bidding

Sonia Slimani and Kaiwen Zhang

École de Technologie Supérieure, Montréal, Canada

Keywords:

Real-Time Bidding, Online Advertising, Publish/Subscribe System, Top-k Filtering, Machine Learning.

Abstract:

Real-Time Bidding (RTB) advertising has recently experienced a massive growth in the industry of online

marketing. RTB technologies allow an Ad Exchange (AdX) to conduct online auctions in order to sell tar-

geted ad impressions by soliciting bids from potential buyers, called Demand Side Platforms (DSPs). In the

OpenRTB speciﬁcations, which is a well-known open standard protocol for RTB, the AdX sends bid requests

to all DSPs for every auction. This communication protocol is highly inefﬁcient since for each given auction,

only a small fraction of DSPs will actually submit a competitive bid to the AdX. The exchange of bid requests

to uninterested parties waste valuable computation and communication resources. In this paper, we propose to

leverage publish/subscribe to optimize the auction protocol used in RTB. We demonstrate how RTB semantics

can be expressed using content-based subscriptions, which allows for selective dissemination of bid requests

in order to eliminate no-bid responses. We also formulate the problem of minimizing the number of bid re-

sponses per auction, and propose combining top-k scoring with regression analysis with continuous variables

as a heuristic solution to further reduce the number of irrelevant responses. We then adapt our solution by con-

sidering discrete machine learning models for a faster execution. Finally, we evaluate our proposed solutions

against the OpenRTB baseline in terms of end-to-end latency and total paid price over time efﬁciency.

1 INTRODUCTION

1.1 Context

Real-Time Bidding (RTB) is a type of online adver-

tising that allows websites to sell in real-time an ad

impression to the highest bidder. RTB is a form of

targeted advertising as each advertiser calculates its

bid based on characteristics such as the banner size,

the context of the web page, the user proﬁle, etc.

OpenRTB is a speciﬁcation of RTB system (IAB,

2016) which proposes open industry standards for

communication between buyers and sellers of ad im-

pressions. It is based on two main components: Ad

Exchange (AdX) and Demand Side Platform (DSP).

AdX is an intermediate agent between sellers and

buyers of ad impressions. The AdX runs an auction

for each ad request and sends corresponding bid re-

quests to all eligible DSPs. Each DSP serves mul-

tiple advertisers, which can ask the DSP to run an

ad campaign for a particular product based on tar-

get audience, predeﬁned budget and campaign dura-

tion (Mullarkey and Hevner, 2015). Upon receipt of

a bid request by the AdX, each DSP calculates the

bid price based on the ad campaigns of its advertis-

ers. The AdX collects bid responses to the auction

and selects the winning DSP accordingly.

1.2 Problematic: Selective Auctioning

In the current OpenRTB speciﬁcations, the AdX

broadcasts every bid request to all DSPs and awaits

their bid responses. However, not every bid request

will be of interest to each DSP, which may reply

with a no-bid response (IAB, 2016). Bid responses

with non-competitive bid amounts have no realistic

chance of winning an auction, which adopts the Vick-

rey model (Section 2.3) . Finally, bid responses which

arrive slowly or late will increase the end-to-end la-

tency of the auction or be ignored completely, thereby

degrading the efﬁciency of the exchange. In light

of these observations, we conclude that OpenRTB

wastes signiﬁcant resources due to the sending of ir-

relevant bid requests and responses.

The impact of this overhead is characterized by

two factors. First, bid request and bid response data

are exchanged using HTTP in JSON (IAB, 2016),

which is a heavy human-readable format. Second, a

Slimani, S. and Zhang, K.

Selective Auctioning using Publish/Subscribe for Real-Time Bidding.

DOI: 10.5220/0010111300260037

In Proceedings of the 16th International Conference on Web Information Systems and Technologies (WEBIST 2020), pages 26-37

ISBN: 978-989-758-478-7

timeout value (called t

max

) is ﬁxed for each auction

by the publisher, which is set to a sufﬁciently high

value to collect all bid responses, including no-bid re-

sponses.

1.3 Objectives

In this paper, we propose a solution to reduce the com-

munication overhead of RTB by selecting the subset

of DSPs to be contacted for each bid request. We in-

tegrate Publish/Subscribe (Pub/Sub) semantics in the

OpenRTB implementation to allow DSPs to express

their interests as content-based subscriptions (Eugster

et al., 2003). The AdX can then act as a pub/sub bro-

ker and ﬁlter DSPs based on their subscriptions, thus

eliminating no-bid responses.

Furthermore, we can reduce the overhead by elim-

inating non-competitive and slow bids from each auc-

tion. We propose an extension which uses top-k ﬁl-

tering and regression analysis (with continuous vari-

ables) to select a subset of DSPs who are likely to

submit competitive bids on time for a given auction.

We then adapt our model in order to substitute contin-

uous regression model with an efﬁcient discrete one.

Since DSPs employ bidding strategies which do

not require a complete history of past auctions, our

solution can safely omit DSPs from the auction with-

out compromising their integrity for future requests.

1.4 Contributions

In this paper, we provide the following contributions:

• We propose a pub/sub solution which maps RTB

semantics, where bid requests are modeled as

publications and DSP interests are expressed as

content-based subscriptions (section 4.1),

• We formulate the problem of minimum bid re-

sponses selection for a RTB auction (section 4.2),

• We leverage top-k ﬁltering on top of pub/sub to

further ﬁlter DSPs based on predicted bid prices

and responses time, which are computed using re-

gression analysis (section 4.3),

• We adapt our solution in order to employ discrete

machine learning models, thereby improving the

speed of the top-k ﬁltering (section 5) and ﬁnally,

• We implement our approach with OpenRTB and

RabbitMQ and evaluate using the iPinYou dataset

against a known baseline (section 6).

1.5 Paper Plan

We start this paper with the background in section 2

where we present different concepts used in our work.

Publish/Subscribe

Broker

Figure 1: Publish/subscribe Overview.

In section 3, we survey related works in the literature.

We continue with proposed solution in section 4, then

we propose Discrete Prediction Models in section 5.

We evaluate experimentally our solutions in section 6.

Finally, we conclude in section 7.

2 BACKGROUND

In this section, we present different notions useful

for understanding our work: Publish/Subscribe, Real-

Time Bidding, Vickrey auction and OpenRTB spec-

iﬁcations. We also describe the iPinYou dataset that

we use to conduct our evaluation.

2.1 Publish/Subscribe

Publish/Subscribe system allows data producers (pub-

lishers) to send publications which are delivered to

matching data consumers (subscribers) according to

their interests, expressed as subscriptions.

As Figure 1 shows, (1) each subscriber can ex-

press interest in a particular publication by sending a

subscription to the intermediary service of Pub/Sub.

(2) Once the publisher produces this publication, (3)

it delivers it to its corresponding subscribers.

According to (Eugster et al., 2003), pub/sub sys-

tem is characterized by scalability, a dynamic topol-

ogy and decoupling in terms of space (publishers and

subscribers do not know each other and do not know

who sends or receives or even how many entities par-

ticipating in the interaction), time (no need for in-

teraction at the same time) and synchronization (it is

asynchronous).

Subscription types commonly supported include

topic-based, type-based and content-based (Eugster

et al., 2003). In our work, we use content-based

subscriptions, which are expressed as predicates over

key-value pairs (Canas et al., 2017). For example,

the two following subscriptions SUB1 and SUB2 have

two predicates each:

SUB1 : (x = 3), (y > 4), SUB2 : (x < 0), (y > 3)

A publisher publishes the following publication,

which is only delivered to SUB1, since it satisﬁes all

Selective Auctioning using Publish/Subscribe for Real-Time Bidding

Publisher

AdX

DSP 3

DSP 2

DSP 1

Advertiser 1

Advertiser 2

Advertiser 3

Internet user

DMP

Figure 2: RTB Process Overview.

of its predicates:

PUB : (x = 3), (y = 5)

In Section 4.1, we use the aforementioned model

to express DSP bidding interests as content-based

subscriptions, while bid requests are modeled as

content-based publications, carrying OpenRTB data

as key-value pairs, which can be used to match against

subscriptions by the pub/sub system.

2.2 Real-Time Bidding

Real-Time Bidding (RTB) is a form of online adver-

tising which provides buying and selling of online ad

impressions to a target audience, through real-time

auctions that are conducted while the web page is

loading (e.g., between 200 ms and 300 ms (Kumar,

2017)).

Figure 2 shows the typical RTB process (Yuan

et al., 2014), which starts when advertiser asks a DSP

to run an ad campaign for a product based on budget,

target audience and campaign duration. (1) Once a

user visits a web page, (2) the AdX generates a bid

request for each ad request and (3) sends it to all el-

igible DSPs, which takes into account their clients

interests and user information provided by the Data

Management Platform (DMP), and then calculates bid

prices based on their campaigns, and sends bid re-

sponse contains a bid price or no-bid reason for each

bid request. (4) Then, the AdX collects bid responses

received within a t

max

speciﬁed by the publisher: all

bid responses sent after this timeout are rejected. Fi-

nally, (5) the AdX determines the outcome of the auc-

tion and chooses the DSP with the best bid price to (6)

display its ad to the publisher who (7) sends it to the

user. The winner pays the second-highest price since

RTB employs Vickrey auction semantics.

In our work, we focus on step (3) by modifying

how the AdX behaves. Instead of broadcasting the bid

request to all DSPs, it will performing a ﬁltering ac-

tion, using publish/subscribe semantics, to selectively

decide which DSPs to solicit a bid response from.

2.3 Vickrey Auction

Vickrey auction is a type of sealed bid auction,

where bidders submit their bids for something with-

out knowing other participants bids. Then, the high-

est bidder wins but pays the second highest-bid, so

it encourages everyone to bid truthly. In a Vickrey

auction, the auctioneer sets a reservation price (Kalra

et al., 2019), which is a minimum price below which

the item is not sold at all.

Theorem 1. Let {b1 .... bn} be a set of bidders and R

the reserve price:

• if ∃ b

> max

j=/ i

⇒ b

is the highest bidder and

pays the second highest price.

• if b

= max

j=/i

(which means there are two

highest bids) ⇒ the winner is selected randomly

from the highest bidders, or alphabetically or

by checking who submitted their bid ﬁrst or

according to tie-breaking rule and pays his bid

price.

• if max

j=/ i

≤ R ⇒ the winner pays R.

2.4 OpenRTB Speciﬁcations

OpenRTB is a project developed by IAB Technol-

ogy Laboratory to specify open communication pro-

tocols and standards between buyers and sellers of ad

impressions in the context of RTB advertising (IAB,

2016). OpenRTB provides an API with all essential

entities (RTB Exchange and bidder) and interactions

between them (sending bid request, bid response, win

billing and loss notices). The RTB Exchange (AdX)

sends a bid request to the bidder (DSP) with details

about the site, content, user, device, location, etc. The

bidder returns bid response with a bid price if it de-

cides to participate in the auction or no–bid if not. A

possible response to the request is no-bid, which is

accompanied by a reason. After launching auction,

AdX sends win notice to the winner and loss notice

for other bidders.

In this paper, we analyse the different reasons and

identify which ones could be avoided by integrating

a publish/subscribe system to ﬁlter out DSPs using

information gathered from the bid requests and bid

responses.

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

2.5 iPinYou Dataset

iPinYou dataset is a set of auction, impression, click

and conversion logs extracted from real advertising

campaigns obtained from the iPinYou DSP platform.

To the best of our knowledge, this is the only pub-

licly available dataset containing RTB auctions. The

original objective of the iPinYou dataset is to evaluate

DSP bidding algorithms submitted for a competition

in 2013 (Liao et al., 2014). In this paper, we are only

interested in the auction logs, which contains infor-

mation of bid requests and DSP responses (Zhang and

Zhang, 2014).

As we will see in Section 4.3, our top-k scoring re-

lies of the prediction of bid values and response times,

as described in Section 4.4. In order to enable this pre-

diction, we extract features from the OpenRTB speci-

ﬁcations, and train our model using the corresponding

attributes in the iPinYou dataset. Furthermore, since

the accuracy of the model is highly dependent on the

workload, we analyze the iPinYou dataset in detail

and derive the statistical distribution of important at-

tributes (using SAS JMP

). This analysis is used by

our data generator and described further in Section 6.

3 RELATED WORKS

In this section, we survey related works in the litera-

ture, divided into three categories: bidding strategies,

header bidding and publish/subscribe.

3.1 Bidding Strategies

As of today, RTB research remains limited given the

relative size of its market (Yuan et al., 2014). Most

of the research in this area is directed towards the op-

timization of DSP algorithms to calculate bid price.

In (Wang et al., 2016), the authors estimate the proba-

bility of ad clicks and conversions using linear regres-

sion models (logistic regression and Bayesian Probit

regression) and nonlinear models (factorisation ma-

chines, gradient tree models, and deep learning), then

use this metric to optimize bidding. In (Lee et al.,

2013), the authors suggest an algorithm which se-

lect high quality impressions and adjust the bid price

based on historical performance, while spreading the

ad campaign budget optimally across time. The algo-

rithm is based on the estimation of click-through rate

(CTR) and action or conversion rate (AR). In (Zhang

and Zhang, 2014), the authors integrates the concept

https://www.jmp.com/en_ca/home.html

of budget utilization efﬁciency in DSP bidding strat-

egy, in order to win as many impressions as possible.

Another method proposed for bidding strategies con-

sists in predicting the winning bid price (Wu et al.,

2015). So, these approaches are complementary to

our own work, as we seek to reduce the communica-

tion overhead of conducting auctions by optimizing

how the AdX selects DSPs. Once selected, the DSPs

may then leverage the aforementioned works to de-

cide its own bid. To the best of our knowledge, the

bidding strategies found in literature do not depend of

previous auctions’ results: DSPs do not use the com-

plete auction history to calculate bid prices. There-

fore, selectively ﬁltering DSPs and omitting them

from certain auctions will not affect the correctness

of the bidding algorithms.

These previous works may potentially reduce the

processing time required by each DSP, and thus al-

low the AdX to set a shorter timeout (t

max

). Our work

is complementary to these bidding strategies since it

also selects a subset of DSPs to contact, thereby re-

ducing communication overhead. In addition, we im-

plement some of these bidding strategies in our eval-

uation in order to generate a realistic load for bid re-

sponses (cf. Section 6).

3.2 Header Bidding

Header bidding or pre-bidding is a technique for on-

line advertising that allows publishers to offer an ad

impression to several ad exchanges before launching

a RTB auction. Each AdX proposes a price to the

publisher, who chooses the highest offer and sends the

ad impression to the winning AdX (Qin et al., 2017),

who then internally forwards it to the winning DSP.

This process helps the publishers dynamically choose

the most suitable AdX for each ad impression instead

of committing to reservation contracts with each of

them (Sayedi, 2018).

Header bidding is complementary to our solution:

In order to propose a price, an AdX must conduct an

auction for its own DSPs. Thus, the AdX can employ

our solution to dynamically select the set of DSPs to

contact for such a RTB auction.

3.3 Publish/Subscribe

Several works optimize pub/sub systems such as:

Aggregation: The authors propose grouping publi-

cations within the same time window and sending

a summary to reduce trafﬁc (Jacobsen et al., 2014).

This approach does not work for RTB because bid re-

quests cannot be aggregated.

Selective Auctioning using Publish/Subscribe for Real-Time Bidding

Parametric Subscriptions: The solution proposed

allows the pub/sub system to autonomously adapt

to the dynamic interests of the subscribers, alleviat-

ing the need to unsubscribe and resubscribe repeat-

edly (Jayaram et al., 2010). In our approach, the main

bottleneck is the publication trafﬁc, and not the sub-

scription trafﬁc.

Top-k Filtering: Top-k ﬁltering is a commonly used

technique to effectively reduce the volume of publi-

cations to be disseminated by a pub/sub system while

maintaining high data relevance. In (Shraer et al.,

2014), the authors maintain top-k tweets for each so-

cial story at a news website serving high volume of

page views using a publish/subscribe system. The

tweets are ordered based on a content/recency score

function. Top-k subscriptions is deﬁned in (Zhang

et al., 2017) to deliver a publication only to the

k best ranked subscribers using rank-covering for

large-scale applications. Top-k ﬁltering is also used

in (Zhang et al., 2013) to reduce the amount of notiﬁ-

cations sent in social networks. In (Chen et al., 2015),

the authors propose a new solution to handle a large

number of temporal spatial-keyword (TaSK) top-k re-

quests on a geo-text object stream.

In our work, we use top-k as a method to select

the most relevant subscribers for a given publication,

which is close to the model of top-k subscriptions pre-

sented in (Zhang et al., 2013). To the best of our

knowledge, top-k ﬁltering was never used in the con-

text of RTB, and our solution is adapted and opti-

mized speciﬁcally according to RTB semantics.

4 PROPOSED SOLUTION

In this section, we ﬁrst present our new solution which

integrates pub/sub with OpenRTB, in order to elimi-

nate no-bid responses. Then, we investigate how to

further reduce the number of irrelevant bid responses

by formulating the problem deﬁnition of minimum

bid responses selection. We show how our pub/sub

solution can be extended using top-k ﬁltering to ﬁlter

out bid responses that are too slow or with low values.

Finally, we adapt the top-k solution by replacing the

score prediction component with a discrete machine

learning model.

4.1 Content-based Filtering of DSPs

Sending bid requests to DSPs who respond with a no-

bid message has two major consequences. First, it

generates communication overhead since 2 messages

need to be exchanged between the AdX and the DSP:

the request and the response. Second, the timeout

Publisher

AdX

Pub/Sub Brocker

DSP 3

DSP 2

DSP 1

Advertiser 1

Advertiser 2

Advertiser 3

Internet user

DMP

Subscription 1

Subscription 2

Subscription 3

Figure 3: Proposed Content-Based Solution for Selective

Auctioning.

value t

max

is potentially affected if the DSP is slow

to produce the no-bid response, thus increasing the

end-to-end latency for that bid request.

Our analysis of the OpenRTB speciﬁcations, as

well as the iPinYou dataset, reveals that most no-bid

responses are related to the content of the bid request,

such as unsupported device or unmatched user (error

codes 6 and 8). Therefore, our solution allows the

DSPs to expose any constraint on they may have re-

garding these two aspects in the form of a content-

based subscription, thereby ﬁltering DSPs at the AdX

side and eliminating no-bid responses with these error

codes. Our proposed RTB processing model is shown

in Figure 3. This is accomplished by leveraging the

attributes device and user from the OpenRTB speci-

ﬁcations. They are also called User-Agent and User-

ProﬁleIDs in the iPinYou dataset, respectively. Com-

pared to the original model in Figure 2, the following

steps have been modiﬁed:

(1a) Prior to receiving auctions, DSPs send to the

AdX (equipped with a publish/subscribe broker) the

following subscription:

Subscription : (device,=, val1), (user, =, val2)

where device is the desired user device (mobile, desk-

top computer, set top box, etc.), and user refers to

characteristics of the target audience (keywords, in-

terests, gender, etc.).

(2) Once a user visits a page web, the Publisher

delivers to the AdX an ad request containing the pub-

lication:

Publication : (device, val1), (user, val2)

(3) For each inbound ad request, AdX generates a

bid request as follows:

Bidrequest : (id, site, device, user)

The AdX matches the bid request publication

against stored subscriptions and forwards it to inter-

ested DSPs, which calculates bid prices based on their

campaigns. DSPs with unmatched subscriptions will

not receive the bid request.

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

Note that the publish/subscribe system allows

each DSP to send multiple subscriptions if necessary.

Furthermore, subscriptions can be modiﬁed at any

time to reﬂect updated interests from the DSP.

4.2 Optimal Number of Bid Responses

Now we focus on the problem of ﬁltering DSPs be-

yond those who are not interested. Intuitively, the

AdX should try to obtain a high winning price for

each auction, while waiting just long enough to col-

lect this winning price (which is the second-highest

bid in a Vickrey auction). Reducing auction time

is very important since the longer an auction takes,

the longer resources (e.g., state, RAM) are blocked,

and the more resources are required for achieving

the same throughput which may lead to a bottleneck.

Also, reducing the number of contacted DSPs opti-

mizes the RTB system when it is overloaded with bid

requests. Thus, DSPs with either low bid values or

slow responses should also be ﬁltered by our proposed

solution. We deﬁne a general model that capture these

two parameters using a cost model. We formalize

our optimization problem which select a minimum

number of auction responses while keeping a second

best high price (for Vickrey auctions) and a minimum

waiting time, as follows:

Given a set of bid responses BR =

{(b

), (b

), ..., (b

)} where n is the num-

ber of DSPs, t

is response time, b

bid price of DSP

and BR

is a set of chosen bid responses:

Minimize |BR

|, where BR

⊆ BR

Subject to U(BR

) ≥ U(BR

), ∀BR

⊆ BR

U(BR

) = w

× second_price(BR

) + w

× (t

max

−

max_time(BR

))

second_price(BR

) = max

j6=i

, where

> max

j6=i

, ∀(b

), (b

) ∈ BR

max_time(BR

) = max(t

), ∀(b

) ∈ BR

+ w

= 1

In the above formula, U(BR) represents the util-

ity of a subset of bid responses, which is calcu-

lated by factoring in the two objective metrics: paid

price (second-highest price) and auction time (time

of the slowest response received). These two metrics

are normalized using weight parameters w

and w

which can be adjusted depending on the application.

The optimal set of chosen DSP is the one that yield the

greatest utility, among all possible subsets of DSPs in

the system, with the fewest number of DSPs selected.

Given an oracle with perfect knowledge, which

can accurately return the minimum bid responses with

best bid prices and time taken by each DSP prior to

the auction, we can prove that the optimal solution

has always size two:

Theorem 2. The number of chosen DSPs is always 2

(|BR

| = 2).

Proof. (By contradiction) Suppose that the

optimal set of chosen bid responses is

= (b

), (b

). Thus, |BR

| = 3

and U((b

), (b

)) is the maximum

among all possible sets of chosen bid responses.

Case 1: Without loss of generality, if b

second_price(BR

), then b

< b

and t

≤ max−

time(BR

) ⇒ (b

) can be removed without affecting

utility, since it does not contribute to raising the win-

ning price (second highest price), nor can it increase

the response time of remaining DSPs in the set, since

each response time is independent.

Case 2: ∀b, b ≥ second_price(BR

) , then ∃b

and

≥ second_price ⇒ (bi, ti) can be also removed,

since it means at least 2 of the 3 bids have the same

value, so removing one of the three will not affect the

value of the second price. Again, removing a bid can-

not increase the response time of remaining DSPs.

In both cases, U((bi,ti), (bs,ts), (bw, tw)) =

U((bs, ts), (bw,tw)), then |BR

| = |BR

− (bi,ti)| =

2 < 3.

Therefore, our problem can be represented as a se-

lection of 2 bid responses from n elements, where the

utility of the chosen subset is maximal among all sub-

sets of size 2. Thus, it is a combination problem with





. This combination can be solved in quadratic time

O(n

) (Oppen, 1980).

4.3 Top-k Filtering

In the previous section, we demonstrate that the AdX

should optimally select 2 DSPs for every bid request.

In practice, this is not feasible without perfect knowl-

edge of future bid values and response times. There-

fore, we propose the use of top-k ﬁltering as a general

solution to select a subset of DSPs using a ﬁxed size

k, according to a scoring function which models the

utility function of the previous section. In ideal cir-

cumstances, our top-k solution would yield optimal

results if k = 2 and the top-k scoring function corre-

sponds perfectly to the utility function U(BR).

Figure 4 shows our proposed solution with

pub/sub and top-k ﬁltering. For each arriving bid

request b, the AdX compares the subscriptions of n

DSPs to obtain m ≤ n DSPs matching publication b,

and then selecting k ≤ m DSPs with the highest score

to participate in the auction.

Figure 5 shows how the top-k ﬁltering works in

details. The performance of each DSP is predicted in

order to calculate their scores. They are then sorted

Selective Auctioning using Publish/Subscribe for Real-Time Bidding

Publish/Subscribe Top-k filtering

Routing

m≤n DSPs

matching b

k≤m DSPs

with highest

scores

b forwarded

towards top-k DSPs

Figure 4: Processing Flow with Pub/Sub and Top-K Filtering.

Scoring-based

top-k results

Train data

Predict DSPs’

ranks

Select first k

DSPs

Train data

Figure 5: Scoring-based Top-K Overview.

in order to select the highest k scores. The score of

a DSP

for a given request b is calculated with the

following formula:

score(DSP

, b) = w

× p(DSP

, b)−w

× won_bids(DSP

)

(1)

with p(DSP

, b) is predicted performance of DSP cal-

culated as follows:

per f (DSP

, b) =

predicted_price(DSP

, b)

predicted_time(DSP

, b)

(2)

The above formula is similar to the theoretical for-

mulation as it jointly considers both metrics of price

and time. To introduce some fairness in the sys-

tem, the score substracts wonBids, which indicates

the number of bids already won by the DSP

. This

reduces the likelihood of a DSP to always be selected

and denying the opportunity for others to bid. Finally,

and w

are adjustable parameters used to tune the

weight of each component of the score.

4.4 Score Prediction Model

To predict the performance of DSPs for any given

request, we need to estimate the bidding prices and

response times using its historical training data (e.g.,

iPinYou dataset), which consists of past bid requests

(with detailed information about their features) and

the corresponding responses from DSPs, including

their bid prices and response times. We propose the

use of regression analysis to predict price and re-

sponse time as two continuous variables in R

≥0

First, we select features of the iPinYou

dataset to use for regression, using the Filter

method (KAUSHIK, ). We build a correlation matrix

of features found in the iPinYou dataset. Then, we

remove every feature that is highly correlated with

another feature (correlation coefﬁcient |c| > 0, 5)

other than bidding price and response time. We obtain

the following remaining features: Timestamp, AdEx-

change, AdSlotHeight, CityID, AdSlotVisibility,

AdSlotFloorPrice and UserProﬁleIDs.

To predict bid price and response time, we com-

pare three popular regression methods: Linear regres-

sion, Regression tree and K-Nearest Neighbors (for

regression). For each DSP, we apply these algorithms

the dataset and compare the results of each algorithms

using the following metrics (Moayedi et al., 2019):

Mean Absolute Error (MAE): The average of the

differences between the predictions and the actual val-

ues. 0 is a perfect ﬁt.

: An indication of goodness of ﬁt of a set of fore-

casts compared to actual values, ranging from 0 to 1.

According to regression metrics results, we note

that linear regression performs the best for the bid

price with MAE ' −3.50 and R

' 0.88. We also ﬁnd

that KNN regression works the best for the response

time with MAE ' −6.54 and R

' −13.57. There-

fore, we will implement these two techniques in our

evaluation.

5 DISCRETE PREDICTION

MODELS

The proposed top-k solution requires the prediction

of two continuous variables: bid price and response

time. As we will see in the evaluation (Section 6), the

regression analysis is slow to calculate predictions,

which negatively impacts the end-to-end latency of

running each auction. In order to speed up the pre-

diction, we propose the use of discrete models.

The main insight is that the top-k ﬁltering pur-

pose is solely to determine which DSPs to contact in

order to run a proﬁtable and short auction: it does

not need to accurately predict the winning bid or to-

tal time taken for the auction. Therefore, the current

scoring mechanism is calculating more than needed,

which degrades performance. We propose two predic-

tion models using discrete variables: rank-based and

binary selection-based. In order to use these mod-

els, we must adapt the original top-k ﬁltering process,

which will be described in each subsection.

5.1 Rank-based Top-k

This method is based on predicting the rank of each

interested DSP by the current bid request (6) (cf. Fig-

ure 6). First, we use the same historical data as before,

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

except we calculate the score of each DSP based on

their bid value and response time, and use the scores

to establish the ranking of the DSPs for each bid re-

quest. Then, we train a linear regression algorithm to

predict the rank of each DSP given the features of the

bid request. Finally, the AdX selects k DSPs with the

highest rank.

5.2 Binary Selection-based Top-k

While the previous solution uses a discrete variable, it

still is performing more work than necessary since it

tries to accurately predict the rank of each DSP. Our

next approach is to classify each DSP in two cate-

gories: “yes” or “no”, answering solely the question

whether a DSP should be contacted or not for a given

RTB auction. We accomplish this using classiﬁcation

analysis (cf. Figure 7). We tested ﬁve types of classi-

ﬁers: FeedForward, Bayesian, NEAT, PNN and RBF.

We opted to use FeedForward for its superior execu-

tion time compared to others. To train this model, we

use the same dataset, but convert the score into a “yes”

or “no” value based on whether this DSP belongs to

the top-k for an auction or not. Note that this method

does not guarantee top-k results with exactly k DSPs.

Furthermore, the training is done for a speciﬁc value

of k chosen in advance.

6 EVALUATION

In this section, we experimentally evaluate our solu-

tions: Pub/Sub, and Top-k against a baseline imple-

mentation of OpenRTB. Our experiments contains a

performance comparison of the three approaches with

respect to auction time and paid price. Then, we con-

duct a sensitivity analysis of the major parameters im-

pacting the solutions.

6.1 Experimental Setup

Implementation: Our work is based on the Open-

RTB 2.0 reference implementation

. We imple-

mented in J2EE our own AdX according to the Open-

RTB API speciﬁcations (version 2.5) (IAB, 2016).

We use RabbitMQ using the Header Exchanges as the

pub/sub broker (Ionescu, 2015). Finally, we add the

top-k engine to the AdX and integrate it with Rab-

bitMQ.

Bidding Strategies: We employ 100 DSPs dis-

tributed across three different types of bidding strate-

gies:

https://github.com/openrtb/openrtb2x

• CONSTANT

• RANDOM

• Below_eCPC: (Zhang and Zhang, 2014) where

the offer price is calculated by multiplying the

maximum of eCPCs (effective cost per click for

each campaign) with the CTR (click-through rate)

predicted for the ad impression.

Default Parameters: We set the selectivity to 70%

of interested DSPs per bid request. Our default top-

k method is the scoring-based one (cf. Section 4.3),

with k = 10.

Workload: By default, we employ the iPinYou

dataset, in particular the logs containing auction data

(bid requests and responses). For the sensitivity anal-

ysis, we developed a dataset generator using iPinYou

datset distributions with adjustable parameters. We

generate 100 bid requests at a time.

Environment: We conduct our evaluation using an

Ubuntu virtual machine version 18.04.3 LTS, with

4096 MB of RAM and 2 GHz CPU.

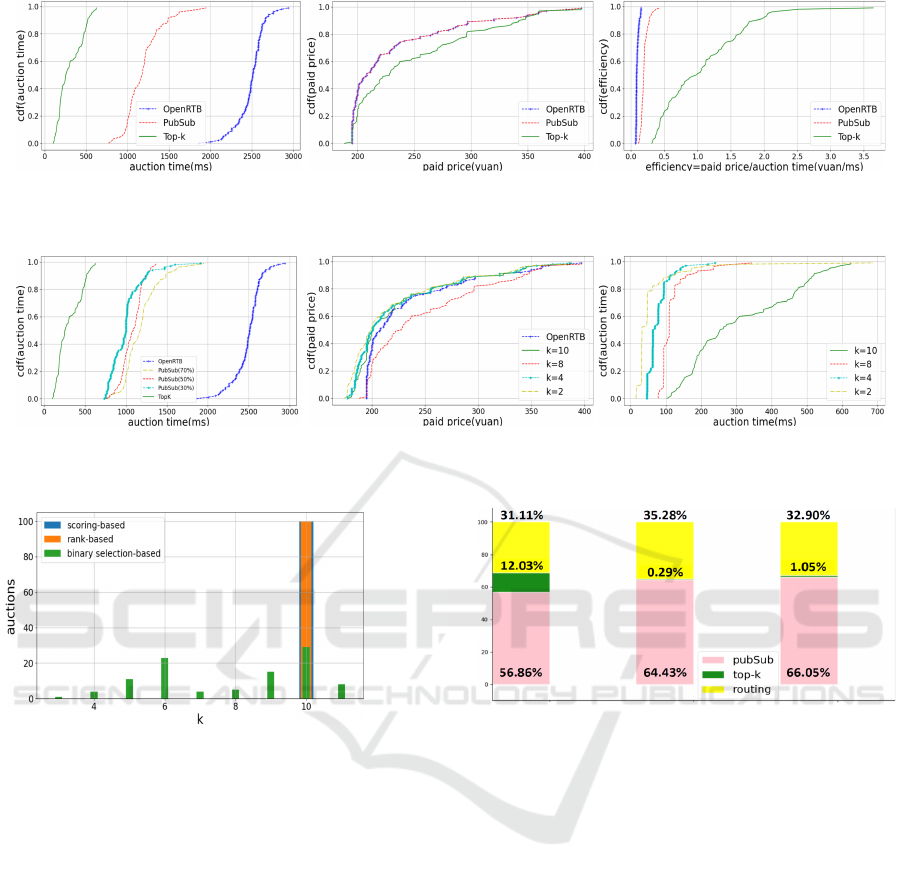

6.2 Performance Comparison

Using four different metrics, we compare our three

approaches: OpenRTB (baseline), Pub/Sub only, and

Pub/Sub with Top-k.

Number of Messages: Figure 8 shows the number of

bid responses sent by DSPs and the rate of no-bids

responses. Compared to the baseline, the Pub/Sub

and Top-k reduce the total number of messages by

47% and 90%, respectively. In particular, 4696 no-

bid responses are received by the AdX, which are

completely eliminated by both of our solutions. The

top-k solution can further ﬁlter out an additional 4304

messages compared to only pub/sub, which are low-

scoring bid responses. Furthermore, the top-k ﬁlter-

ing increases stability, since exactly 10 responses are

received for each of the 100 bid requests.

Auction Time: Figure 9a shows the cumulative

distribution function (CDF) for the end-to-end auc-

tion time of bid requests processed by the three ap-

proaches. The auction time is measured from the

moment the AdX receives the bid request from the

publisher to the moment it contacts the winning DSP.

In the OpenRTB baseline implementation, auctions

takes between 1800ms to 3000ms, compared to 800−

2, 000ms for pub/sub, and 120 − 600ms for top-k.

The median for each solution is 2510ms, 1171ms and

140ms for baseline, pub/sub, and top-k respectively.

Our pub/sub and top-k solutions are therefore able to

reduce the auction time by 50% and 94%. This re-

sult demonstrates that a reduction in the number of

DSPs contacted by the AdX decreases the chance of

Selective Auctioning using Publish/Subscribe for Real-Time Bidding

Scoring-based

top-k results

Train data

Predict ranks

of DSPs

Select first k

DSPs

Figure 6: Rank-based Top-K Overview.

Scoring-based

top-k results

Train data

Classify DSPs

Yes/No

Select DSPs

with "yes"

result

Figure 7: Binary Selection-Based Top-K Overview.

Baseline

Pub/Sub

Top-k

Figure 8: Baseline Comparison for the Number of Bid Re-

sponses.

encountering a slow DSP (straggler), thereby reduc-

ing the overall time.

Paid Price: Figure 9b shows the CDF for the paid

price using the same bid requests for all three ap-

proaches. Here, the baseline OpenRTB is optimal

since it contacts every DSP every time, guarantee-

ing the maximum price of each auction. The pub/sub

solution also performs optimally, since it only elimi-

nates no-bid responses which no chance of winning.

For the top-k solution, a median loss of 3.61% is in-

curred for two reasons. First, a DSP with high bid

price but slow response time might not be selected

as it will score poorly for top-k. Second, the predic-

tion model used might incorrectly underestimate the

score of a DSP, causing it not to be selected when it

would have impacted the paid price (i.e., submitted a

bid higher than the second highest price).

Efﬁciency: Figure 9c evaluates the efﬁciency of the

three solutions. This metric combines the previous

two metrics by dividing the paid price with the auction

time. Since the pub/sub solution yields the same paid

prices as OpenRTB with shorter auction times, its ef-

ﬁciency is superior with a median of ' 0, 19 yuan/ms

against only ' 0, 08 yuan/ms, a 2.375 times increase.

However, top-k is even better with a median efﬁciency

of ' 1.48 yuan/ms, which is 18.5 times better than

the baseline and 7.79 times better than the pub/sub

only solution. Although top-k sacriﬁces a small loss

in paid prices, its execution time is also substantially

shorter. The trade-off is therefore in favor of the top-k

solution.

Summary: Compared to the baseline, the pub/sub

and top-k approaches reduce the number of messages

by 47% and 90%, and the auction time by 50% and

94%, respectively. The pub/sub only approaches does

not compromise on the paid price, while the top-k ap-

proach suffers a loss of 3.61% in paid prices. How-

ever, this loss is offset by a huge speedup in auction

time, as evidenced by the superior efﬁciency of the

top-k approach. The top-k approach is therefore desir-

able if the application receives a near-inﬁnite stream

of requests that must be treated efﬁciently. On the

other hand, if the volume of bid requests is limited,

the pub/sub only approach is desirable in order to ex-

tract the maximum price per auction.

6.3 Sensitivity Analysis

We conduct a sensitivity analysis for our solutions in

order to study the impact of three parameters: selec-

tivity of bid requests, value of k, and choice of predic-

tion model.

Selectivity: Figure 10a shows the impact of varying

the selectivity of DSPs. This parameter controls how

many DSPs are interested in each bid request. We test

3 scenarios: 30%, 50% and 70%. The baseline solu-

tion is unaffected by this parameter, since it contacts

every DSP without considering their interests. The

top-k solution is also insensitive to selectivity: if k is

sufﬁciently low, the change in sensitivity does not im-

pact the number of DSPs selected, which is always k

per bid request. Finally, the pub/sub only approach

is affected the selectivity: the median are 999ms,

1083ms, and 1171ms for 30%, 50%, and 70%. As

the selectivity increases, the ﬁltering performed by

the pub/sub broker decreases, which reduces the ef-

fectiveness of the solution.

Parameter k: We test 4 different values of k: 2, 4, 8,

and 10. Figure 10b shows the paid price CDF for each

scenario, compared to the optimal price represented

by the OpenRTB baseline. As expected, the paid

price generally decreases when k decreases, since the

margin of error becomes narrower for the prediction

model to correctly identify the ideal DSPs for the auc-

tion. However, the difference is not substantial, with

a median loss of 4.1% for k = 2 compared to 3.61%

for k = 10. This indicates that the regression model

used is highly accurate.

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

(a) Auction Time. (b) Paid Price. (c) Efﬁciency.

Figure 9: Baseline Comparison between OpenRTB, Pub/Sub, and Scoring-Based Top-K.

(a) Selectivity vs. Auction Time. (b) k vs. Paid Price. (c) k vs. Auction Time.

Figure 10: Sensitivity Analysis of the Scoring-Based Top-K Solution.

(a) Number of Selected DSPs for Top-K Solutions.

scoring-based

rank-based

Binary selection-based

rate(%)

(b) Processing time for Top-K.

Figure 11: Comparison of Top-K Solutions.

For the auction time, Figure 10c shows that a notice-

able improvement can be achieved by reducing the

value of k. The median value for k = 2 is 32ms com-

pared to 140ms to k = 10.

Prediction Models: We compare our three predic-

tion models: scoring-based, rank-based, and binary

selection-based, with two baselines: history-based

(average of past auctions) and random k (choose k

DSPs at random).

Figure 12a shows the CDF for paid prices. Both

baselines (history and random) are clearly inferior to

our proposed solution, with intervals of 120 − 340

yuan and 100 − 310 yuan. One notable exception is

the rank-based one, which obtained poor prices for

20% of the auctions and thus has a wide interval of

100-390 yuan. On the other hand, the paid prices for

scoring-based and binary selection-based are in the

range of 180−390 yuan, which is near optimal to the

OpenRTB baseline.

Figure 12b shows the CDF for auction time.

Random-k and history-based have an interval range

of 40 − 300ms and 70 − 450ms. The scoring-based

model is the heaviest to compute, with an interval of

100 − 600ms. The rank-based model has an interval

of 40 − 330ms and the binary selection-based top-k

outperforms all others with an interval of 40−220ms.

We compare also the efﬁciency (paid price/auction

time) in Figure 12c which clearly demonstrates that

the binary selection-based is the most efﬁcient model

with a range of 0.9 − 5 yuan/ms compared to other

models that are almost in the same interval 0.5 − 4

yuan/ms.

Since the binary selection-based model does not

guaranteed a ﬁxed k per bid request, we also measure

the variation in the size of the sets returned in Fig-

ure 11a. The results show that the set vary between

3 to 11 DSPs selected. For rank-based and scoring-

based, the results conﬁrm that the number of DSPs

Selective Auctioning using Publish/Subscribe for Real-Time Bidding

(a) Top-K Model vs. Paid Price. (b) Top-K Model vs. Auction Time. (c) Top-K Model vs. Efﬁciency.

Figure 12: Comparison of Top-K Models.

Table 1: Summary of Top-k Filtering Solutions.

Top-K Models Advantages Disadvantages

Scoring-based Near-optimal prices; ﬂexible choice of k Poor execution time; loss of efﬁciency

Rank-based Flexible choice of k Uneven performance

Binary selection-based Best execution time and efﬁciency Variable size of results; the value of k is

ﬁxed during training

selected is always k (10).

Figure 11b shows a decomposition of the end-to-

end latency into three parts: pub/sub ﬁltering, top-k

ranking, and the routing. The main difference be-

tween our various solutions is the time taken to run

the top-k model: it is almost 12%, 0.3% and 1%

of the overall time in scoring, rank-based and binary

selection-based models respectively. This result con-

ﬁrms that the regression analysis used by the scoring-

based solution is slow due to its usage of continuous

variables. The rank-based and binary selection-based

models have similar top-k processing times since they

are both discrete. While the rank-based model is

slightly faster in regards to the top-k processing time

than the binary selection-based one, the overall auc-

tion time is better with the latter (as seen in Fig-

ure 12b), because it contacts fewer DSPs on average

(see Figure11a) which reduces the routing time.

Summary: When compared to the baseline and the

pub/sub solution, the top-k solution stands out as be-

ing the most reliable, since it is not sensitive to the

selectivity of the bid requests. For the scoring-based

solution, k can be set to a surprisingly low number

(as low as 2), with little loss of price and substan-

tial speedup in auction time. When comparing pre-

diction models for top-k solutions, each of three pro-

posed approaches have advantages and disadvantages,

as highlighted in Table 1. For maximum efﬁciency,

the binary-based selection model stands out as it is

noticeably faster with minimal price loss, with the

drawback of returning uneven-sized results and being

inﬂexible. The scoring-based model has the worst ef-

ﬁciency, but can obtain better prices than other solu-

tions. The rank-based solution is a compromise be-

tween the two, as it has average efﬁciency and retains

ﬂexibility. However, it suffers from uneven perfor-

mance for a minority of requests (20%).

7 CONCLUSIONS

The current standard for real-time bidding (RTB)

broadcasts bid requests to all DSP bidders, which gen-

erates massive communication and computation over-

head. We propose the use of publish/subscribe to ex-

press the interests of DSP bidders as content-based

subscriptions, in order to eliminate no-bid responses

through auctioning with selected DSPs only.

Furthermore, we explore how to further reduce the

number of DSPs contacted by avoiding bids with low

prices or slow response times. We formulate the prob-

lem of optimal number of bid responses, and demon-

strate how top-k ﬁltering can be used to address this

problem in a online setting. Top-k ﬁltering relies

on a prediction model in order to guess which DSPs

should participate in which auction. Our scoring-

based model uses regression analysis with continuous

variables, while our rank-based and binary selection-

based models both employ discrete analysis.

Our evaluation conﬁrms the effectiveness of our

approach in reducing the number of messages re-

quired and the auction time, while maintaining opti-

mal or near-optimal winning prices. Our most effec-

tive solution is the OpenRTB implementation using

Pub/Sub with a binary selection-based top-k ﬁltering

mechanism.

For our future work, we wish to test the applica-

bility of our approach across a wider range of datasets

beyond iPinYou, and to implement more sophisticated

WEBIST 2020 - 16th International Conference on Web Information Systems and Technologies

bidding strategies which could challenge the accuracy

of our prediction models. We will also investigate

making our solution self-adaptive, tuning its param-

eters (e.g., value of k) by monitoring the current con-

ditions.

REFERENCES

Canas, C., Zhang, K., Kemme, B., Kienzle, J., and Jacob-

sen, H. A. (2017). Self-Evolving Subscriptions for

Content-Based Publish/Subscribe Systems. Interna-

tional Conference on Distributed Computing Systems.

Chen, L., Cong, G., Cao, X., and Tan, K. L. (2015). Tem-

poral Spatial-Keyword Top-k publish/subscribe. In-

ternational Conference on Data Engineering.

Eugster, P. T., Felber, P. A., Guerraoui, R., and Kermarrec,

A.-M. (2003). The many faces of publish/subscribe.

ACM Computing Surveys.

IAB (2016). Openrtb api speciﬁcation version 2.5. Techni-

cal report.

Ionescu, V. M. (2015). The analysis of the performance

of RabbitMQ and ActiveMQ. 14th RoEduNet Inter-

national Conference - Networking in Education and

Research.

Jacobsen, H.-A., Pandey, N. K., Vitenberg, R., Zhang, K.,

and Weiss, S. (2014). Distributed event aggregation

for content-based publish/subscribe systems. 8th ACM

International Conference on Distributed Event-Based

Systems.

Jayaram, K. R., Jayalath, C., and Eugster, P. (2010).

Parametric subscriptions for content-based pub-

lish/subscribe networks. In Middleware 2010.

Springer Berlin Heidelberg.

Kalra, A., Borcea, C., Wang, C., and Chen, Y. (2019). Re-

serve price failure rate prediction with header bidding

in display advertising. the ACM SIGKDD Interna-

tional Conference on Knowledge Discovery and Data

Mining.

KAUSHIK, S. Introduction to feature selection methods

with an example (or how to select the right variables?).

Available at https://www.analyticsvidhya.com/.

Kumar, J. (2017). Timeout Analysis, Troubleshooting and

Notiﬁcation in Real Time Bidding Advertising Sys-

tem with Implementation. Computer Science and En-

gineering.

Lee, K. C., Jalali, A., and Dasdan, A. (2013). Real time

bid optimization with smooth budget delivery in on-

line advertising. the 7th International Workshop on

Data Mining for Online Advertising, ADKDD 2013 -

Held in Conjunction with SIGKDD 2013.

Liao, H., Peng, L., Liu, Z., and Shen, X. (2014). iPinYou

Global RTB Bidding Algorithm Competition Dataset.

20th ACM SIGKDD Conference on Knowledge Dis-

covery and Data Mining.

Moayedi, H., Bui, D. T., Dounis, A., and Lyu, Z. (2019).

applied sciences Predicting Heating Load in Energy-

E fﬁ cient Buildings Through Machine Learning Tech-

niques.

Mullarkey, M. T. and Hevner, A. R. (2015). Entering action

design research. In New Horizons in Design Science:

Broadening the Research Agenda.

Oppen, D. C. (1980). Complexity, convexity and combina-

tions of theories. Theoretical Computer Science.

Qin, R., Yuan, Y., and Wang, F. Y. (2017). Optimizing the

revenue for ad exchanges in header bidding advertis-

ing markets. 2017 IEEE International Conference on

Systems, Man, and Cybernetics.

Sayedi, A. (2018). Real-time bidding in online display ad-

vertising. Marketing Science.

Shraer, A., Gurevich, M., Fontoura, M., and Josifovski, V.

(2014). Top-k publish-subscribe for social annotation

of news. the VLDB Endowment.

Wang, J., Zhang, W., and Yuan, S. (2016). Display Adver-

tising with Real-Time Bidding (RTB) and Behavioural

Targeting. Foundations and Trends

 in Information

Retrieval.

Wu, W. C. H., Yeh, M. Y., and Chen, M. S. (2015). Predict-

ing winning price in real time bidding with censored

data. the ACM SIGKDD International Conference on

Knowledge Discovery and Data Mining.

Yuan, Y., Wang, F., Li, J., and Qin, R. (2014). A survey

on real time bidding advertising. IEEE International

Conference on Service Operations and Logistics, and

Informatics.

Zhang, C. R. and Zhang, E. (2014). Optimized bidding al-

gorithm of real time bidding in online ads auction. In-

ternational Conference on Management Science and

Engineering.

Zhang, K., Sadoghi, M., Muthusamy, V., and Jacobsen,

H. A. (2013). Distributed ranked data dissemination

in social networks. International Conference on Dis-

tributed Computing Systems.

Zhang, K., Sadoghi, M., Muthusamy, V., and Jacobsen, H.-

A. (2017). Efﬁcient covering for top-k ﬁltering in

content-based publish/subscribe systems. Middleware

’17.

Selective Auctioning using Publish/Subscribe for Real-Time Bidding
